Users Manual

Heavy Duty
Commercial Microwave Oven
Keep these instructions for future reference.
If the oven changes ownership, this manual
must accompany oven.
Owner's Manual
Contents
Model Identification .......................... 2
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY .................. 3
IMPORTANT SAFETY INSTRUCTIONS .. 3
Earthing Instructions ......................... 5
Installation ........................................ 5
Display and Features ........................ 6
Using the Oven Control
(Electronic Models) ....................... 8
Programming the Oven Control
(Electronic Models) ....................... 9
User Options
(Electronic Models) ......................10

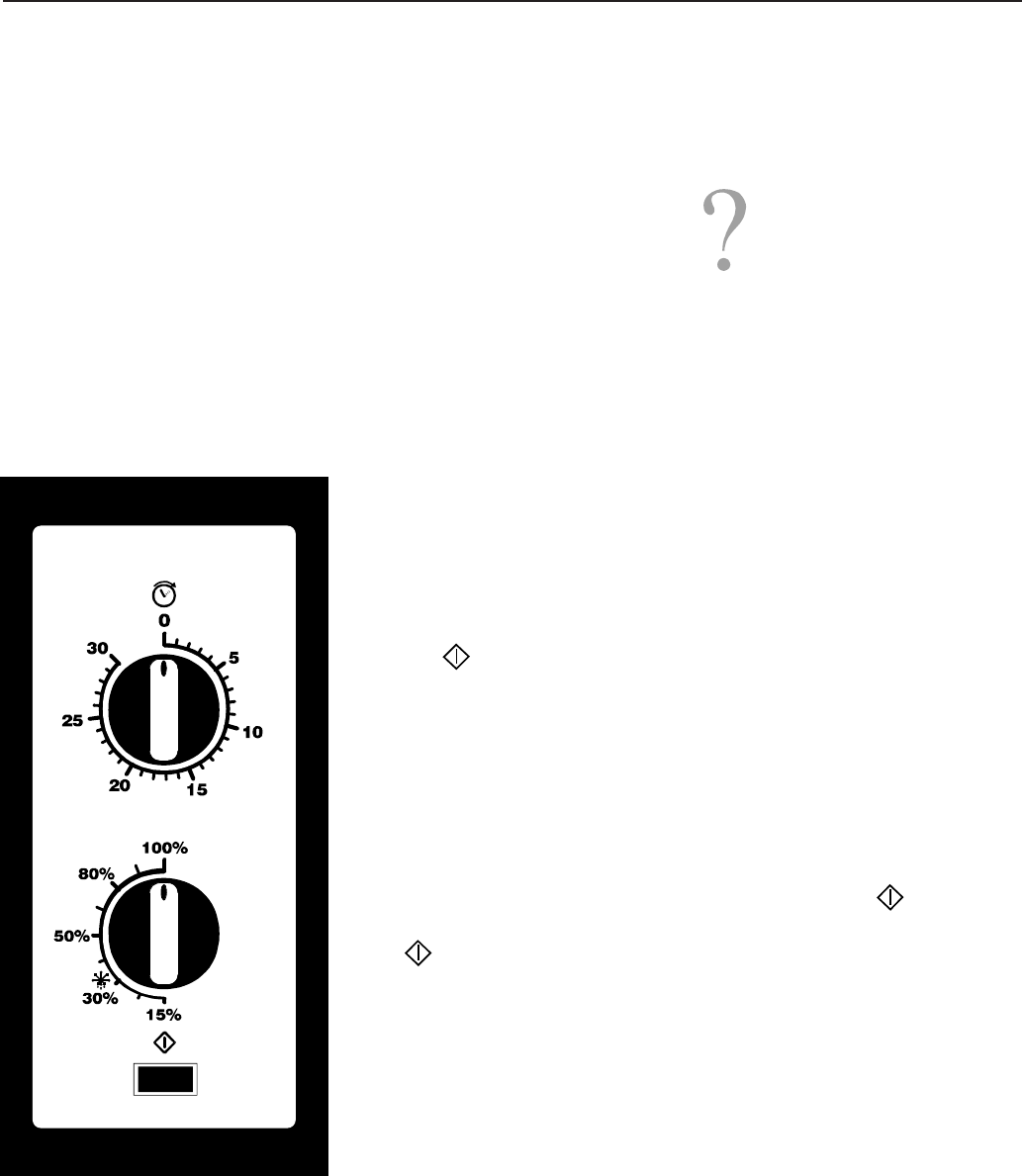

Dial Operation ................................. 11
Care and Cleaning ..........................12
Before Calling for Service ................13
MM-627AMY
MM-524AMW
Report No.: 03-LAE-M146 FCC Part 18 (ISM)
Date: June 30, 2003 Certification
LG Electronics Inc. FCC ID: BEJC520ZK
APPENDIX F. Owner’s Manual with regard to FCC Instruction
2
Any questions or to locate an authorized servicer, call
1-319-622-5511. If an automated telephone system is
reached, select Commercial Microwave Ovens category.
Warranty service must be performed by an authorized
servicer. Amana also recommends contacting an
authorized servicer if service is required after warranty
expires.
Model Identification
Complete enclosed registration card and promptly return.
If registration card is missing, call Consumer Affairs
Department at 1-319-622-5511.
When contacting Amana, provide product information.
Product information is located on oven serial plate.
Record the following information:
Model Number: ____________________________
Manufacturing Number: ______________________
Serial or S/N Number: _______________________
Date of purchase: __________________________
Dealers name and address: __________________
________________________________________
________________________________________
________________________________________
3
SAVE THESE INSTRUCTIONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
A. DO NOT attempt to operate this oven with the door open since open door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
B. DO NOT place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
C. DO NOT operate the oven if it is damaged. It is particularly important that the oven door close properly and
that there is no damage to the:
1. door (bent)
2. hinges and latches (broken or loosened)
3. door seals and sealing surfaces.
D. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
1. READ all instructions before using equipment.
2. READ AND FOLLOW the specific
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY on this page.
3. This equipment MUST BE EARTHED. Connect
only to properly EARTHED outlet. See
EARTHING INSTRUCTIONS on page 5.
4. Install or locate this equipment ONLY in
accordance with the installation instructions in
this manual.
5. Some products such as whole eggs and sealed
containersfor example, closed glass jarsare
able to explode and SHOULD NOT be HEATED
in this oven.
6. Use this equipment ONLY for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this equipment.
This type of oven is specifically designed to
heat, cook, or dry food. It is not designed for
industrial or laboratory use.
7. As with any equipment, CLOSE SUPERVISION
is necessary when used by CHILDREN.
8. See door cleaning instructions on page 12 of
this product safety manual.
9. DO NOT heat baby bottles in oven.
10. Baby food jars shall be open when heated and
contents stirred or shaken before consumption, in
order to avoid burns.
11 DO NOT operate this equipment if it has a
damaged cord or plug, if it is not working properly,
or if it has been damaged or dropped.
12. This equipment, including power cord, must be
serviced ONLY by qualified service personnel.
Special tools are required to service equipment.
Contact nearest authorized service facility for
examination, repair, or adjustment.
13. DO NOT cover or block filter or other openings on
equipment.
14. DO NOT store this equipment outdoors. DO NOT
use this product near water  for example, near a
kitchen sink, in a wet basement, a swimming pool,
or a similar location.
15. DO NOT immerse cord or plug in water.
16. Keep cord AWAY from HEATED surfaces.
17. DO NOT let cord hang over edge of table or
counter.
18. For commercial use only.
!
WARNING
When using electrical equipment, basic safety precautions should be followed to reduce the risk of burns,
electrical shock, fire, or injury to persons.
IMPORTANT SAFETY INSTRUCTIONS
Recognize this symbol as a SAFETY message
4
SAVE THESE INSTRUCTIONS
a. DO NOT overcook food. Carefully attend oven
when paper, plastic, or other combustible
materials are placed inside the oven to facilitate
cooking.
b. Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
c. If materials inside the oven ignite, keep oven
door CLOSED, turn oven off and disconnect
the power cord, or shut off power at the fuse or
circuit breaker panel.
d. DO NOT use the cavity for storage. DO NOT
leave paper products, cooking utensils, or food
in the cavity when not in use.
WARNING
!
To avoid risk of fire in the oven cavity:
WARNING
!
Liquids such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid.
Visible bubbling or boiling when the container is
removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT
LIQUIDS SUDDENLY BOILING OVER WHEN A
SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID. To reduce the risk of injury to persons:
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through
heating it.
iii) Do not use straight-sided containers with narrow
necks.
iv) After heating, allow the container to stand in the
microwave oven for a short time before
removing the container.
v) Use extreme care when inserting a spoon or
other utensil into the container.
1. Do not deep fat fry in oven. Fat could overheat
and be hazardous to handle.
2. Do not cook or reheat eggs in shell or with an
unbroken yolk using microwave energy.
Pressure may build up and erupt. Pierce yolk
with fork or knife before cooking.
3. Pierce skin of potatoes, tomatoes, and similar
foods before cooking with microwave energy.
When skin is pierced, steam escapes evenly.
4. Do not operate equipment without load or food
in oven cavity.
5. Use only popcorn in packages designed and
labeled for microwave use. Popping time
varies depending on oven wattage. Do not
continue to heat after popping has stopped.
Popcorn will scorch or burn. Do not leave oven
unattended.
6. Do not use regular cooking thermometers in
oven. Most cooking thermometers contain
mercury and may cause an electrical arc,
malfunction, or damage to oven.
7. Do not use metal utensils in oven.
8. Never use paper, plastic, or other combustible
materials that are not intended for cooking.
9. When cooking with paper, plastic, or other
combustible materials, follow manufacturer's
recommendations on product use.
10. Do not use paper towels which contain nylon or
other synthetic fibers. Heated synthetics could
melt and cause paper to ignite.
11. Do not heat sealed containers or plastic bags in
oven. Food or liquid could expand quickly and
cause container or bag to break. Pierce or open
container or bag before heating.
12. To avoid pacemaker malfunction, consult
physician or pacemaker manufacturer about
effects of microwave energy on pacemaker.
13. An authorized servicer MUST inspect equipment
annually. Record all inspections and repairs for
future use.
!
CAUTION
To avoid personal injury or property damage, observe the following:
IMPORTANT SAFETY INSTRUCTIONS
Unpacking Oven
• Inspect oven for damage such as dents in door or inside oven cavity.
• Report any dents or breakage to source of purchase immediately.
Do not attempt to use oven if damage.
• Remove all materials from oven interior.
• If oven has been stored in extremely cold area, wait a few hours before
connecting power.
Radio Interference
• Operation of the microwave oven may cause interference to your radio, TV
or similar equipment.
• When there is interference, it may be reduced or eliminated by taking the
following measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
and receiver are on different branch circuits.

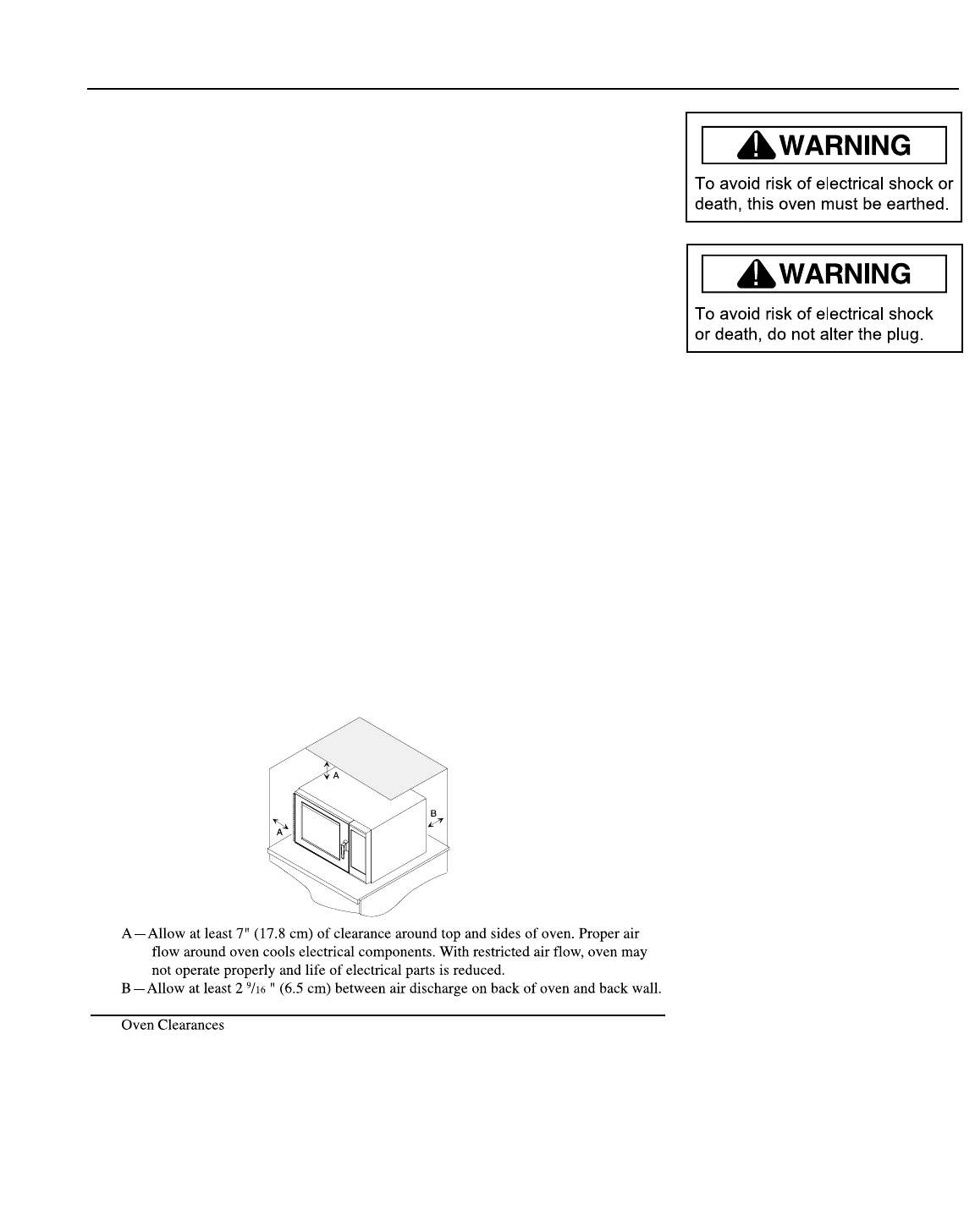

Oven Placement
• Do not install oven next to or above source of heat, such as pizza oven or
deep fat fryer. This could cause microwave oven to operate improperly and
could shorten life of electrical parts.
• Do not block or obstruct oven filter. Allow access for cleaning.
• Install oven on level countertop surface.
• Place warning label in a conspicuous place close to microwave oven.
• Outlet should be located so that plug is accessible when oven is in place.
Grounding Instructions
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current. This appliance is
equipped with a cord having outlet that
a grounding plug. The plug must be
plugged into an outlet that is properly
installed and grounded.
WARNING - Improper use of the
grounding can result in a risk of electric
shock.
Consult a qualified electrician or
serviceman if the grounding
instructions are not completely
understood, or if doubt exists as to
whether the appliance is properly
grounded, and either:
(1) If it is necessary to use an
extension cord, use only a 3-wire
extension cord that has a 3-blade
grounded plug, and 3-slot
receptacle that will accept the plug
on the appliance. The marked
rating of the extension cord shall be
equal to or greater than the
electrical rating of the appliance,
or
(2) Do not use extension cord. If the
power supply cord is too short,
have a qualified electrician or
service man install an outlet near
the appliance.
The switching operation of this microwave oven can cause voltage fluctuations
on the supply line. The operation of this oven under unfavorable voltage
supply conditions can have adverse effects. This device is intended system
impedance Zmax of 0.26 Ohm at the interface point of the user’s supply. The
user has to ensure that this device is connected only to a power supply
system which fulfills the requirement above. If necessary, the user can ask the
public power supply company for the system impedance at the interface point.
6

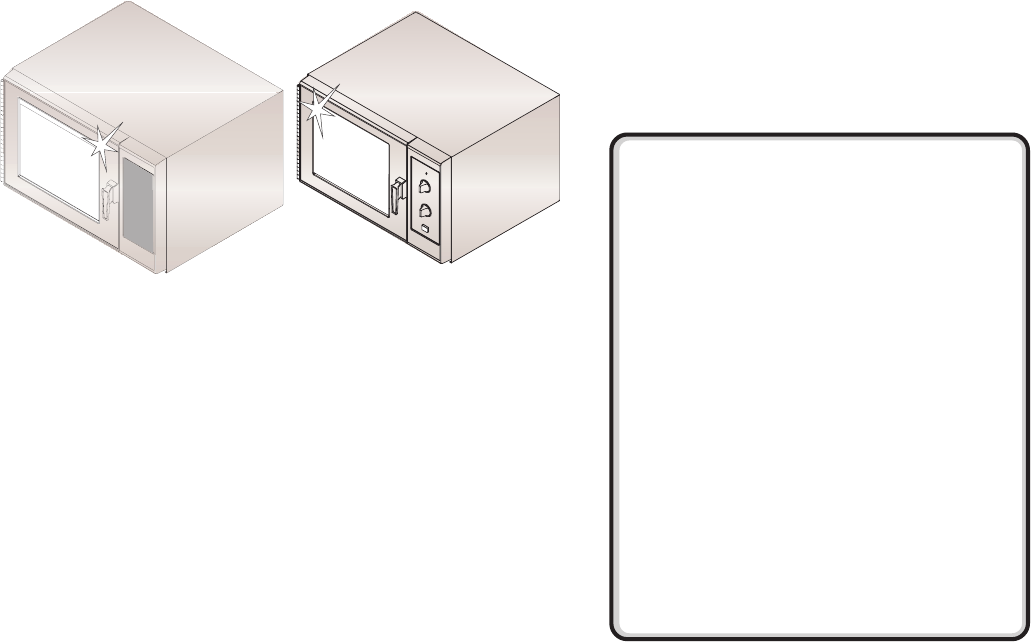

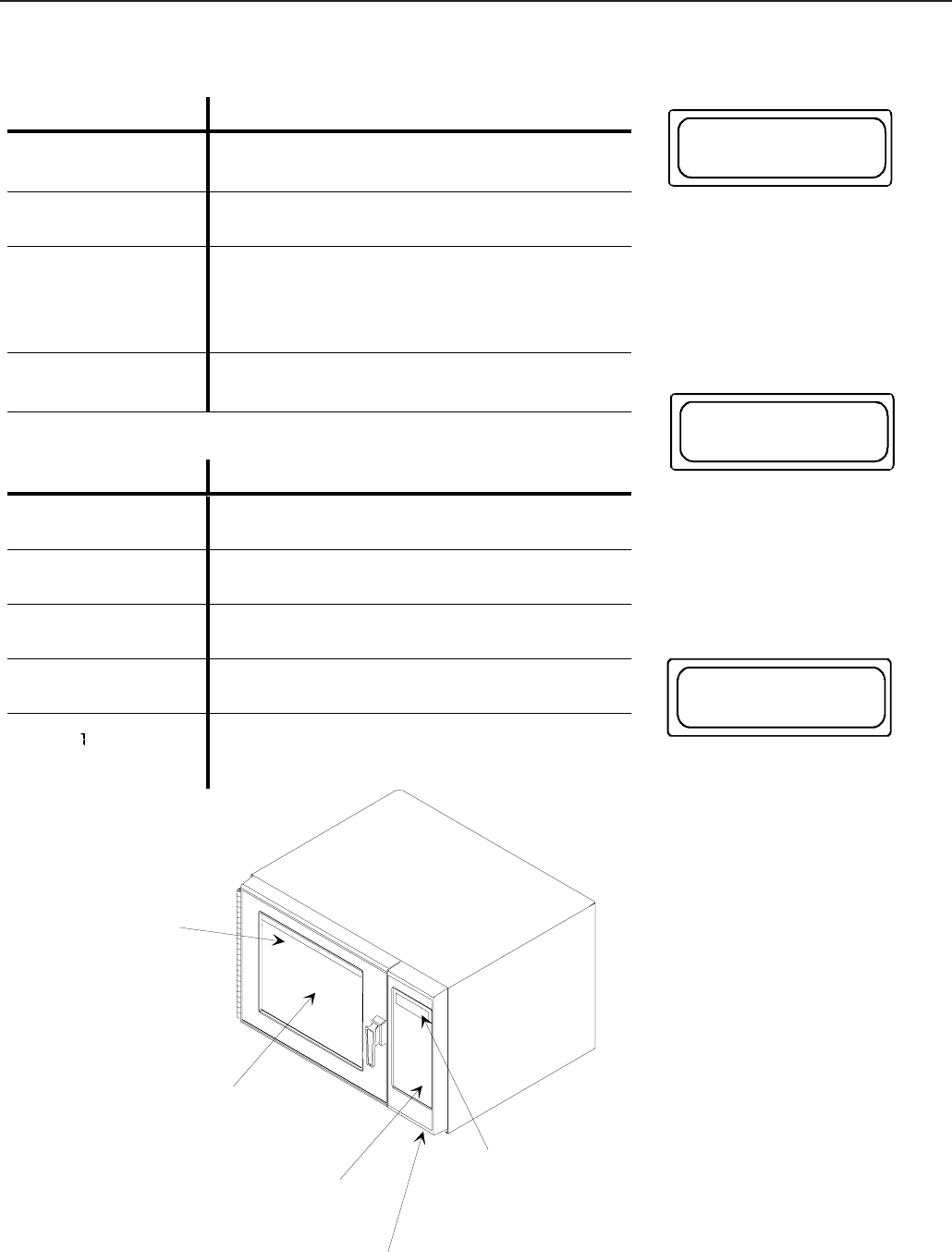

Display and Features
If These Features are
Different from Yours
These features are intended to
show the variety that is
available in the product line. If your
microwave does not have all the options
that are shown, it is not a mistake. The
information provided applies to several
of the models in the product line.
OP:-- User Options
This microwave can be set for specific user preferences.
Options such as beep volume, maximum cooking time, and the
number of programmable pads can be changed. To change different options,
see User Options in this manual.
P:--1Stage Cooking
Stage cooking is a cooking sequence with specific power stage
changes. The user can program up to four different power level changes and
the specific amount of cooking time at each power level. Each power level/
cooking time combination is known as a stage. Up to four stages can be
programmed. Stage cooking is available only in some electronic control
models.
X 2
X2 Pad
The X2 Pad increases a preset cooking time by a percentage of
the original cooking time (cooking factor). The user specifies the
percentage and it can be changed for individual cooking sequences. This
feature is very useful for cooking multiple servings of foods such as potatoes
or slices of pizza. The X2 pad can be used with either single or double pad
programming. To change the cooking factor, see Programming the Oven
Control.
Time
Entry
Manual Time Entry
In addition to programmable pads, this microwave also accepts
specific time entry by using the TIME ENTRY pad. Using manual
time entry does not affect the programmed buttons.
0
7
Double Pad Programming
This feature enables 100 programmed entries to be
made. Each entry will be assigned a double digit
number, for example 01, 05, or 20. When using the double pad programming,
two pads must be pressed to start the cooking cycle.
Single Pad Programming
This feature enables each numbered pad to be programmed for
a specific use, such as cooking a certain number of potatoes or
defrosting and then cooking vegetables or other frozen foods. To use this
feature, simply program the pad to the desired length of time and power level.
To use this feature, press the pad once and the microwave will begin cooking.
7
START Pad
The start pad is used to
begin a manual time
entry cooking cycle. It is also used to
save any changes to programming
sequences or user options.
START
STOP pad
The STOP pad stops a
cooking sequence in
progress, clears out any remaining
time, and also ends a programming
or user option cycle. When the
STOP pad is used to end a
programming or option change, the
changes are discarded.
STOP
7
Display and Features
Display
Some items in the display can be seen but
are not available depending on model.
Ready
Ready displays when an oven control
will accept entries.
Cooking Displays
25:20 displays total cooking time. When
more than one cooking stage is
programmed, total time for all stages
displays. POWER displays when
microwave energy is being generated.
DEFR, MED, or MED HI will display to
indicate microwave power level being
used. If no power level is displayed, the
microwave is operating at 100% power.
88:88
MICRO DEFR WARM MEDHI POWER HOLD
8
COOK
LEVEL
TIMER
READY
CLOCK
25:20
MICRO DEFR MED MEDHI POWER HOLD
8
COOK
LEVEL
TIMER
READY
CLOCK
88:88
MICRO DEFR WARM MEDHI POWER HOLD
8
COOK
LEVEL
TIMER
READY
CLOCK
Removable
Splatter Shield
(Not Shown)
Oven Control
Pads
Oven Display
Oven Door Window
and Interior Light
Filter (some models)
Cooking Display
DISPLAYS DESCRIPTION
5($'< 5($'<displays when oven control will accept
entries.
00:00 Displays cooking time. If stage cooking is
programmed, total cooking time is displayed.
'()5
0('
0('+,
These settings display the current power level used
for the microwave. If no display is shown,
microwave is running at full power (100%).
32:(5 32:(5is displayed while the oven is generating
microwave energy during a cooking cycle.
Programming Display
DISPLAYS DESCRIPTION
P:0 Displays when oven is in programming mode for
single pad memory only.
P: Displays when oven is in programming mode for
double pad memory.
OP: -- Displays when oven is in user option mode. User
options can then be set or specified.
CF: Displays with a numerical cooking factor when the
X2 pad is pressed.
P:-- Displays briefly when programming a specific
cooking stage. Number (1 through 4) indicates
the stage that is being programmed.
8
Using the Oven Control (Electronic Control)
Manual Time Entry
To cook food using a specific entered time and power level.
1. Open oven door and place food in oven. Close door.
READY displays. Fan and light will turn on.
2. Press TIME ENTRY pad.
READY and 0000 display.
If pad does not work, open and close oven door and try again.
3. Enter cooking time by using the numbered pads.
4. Press a power level pad to change power level.
COOK LEVEL displays with the power setting.
If a number is not displayed with COOK LEVEL the
microwave is set to full power.
5. If stage cooking is desired, press TIME ENTRY and
repeat steps 3 and 4.
Display changes to cook time and power level for the next stage.
To add another cooking stage press TIME ENTRY pad again.
Up to four different stages can be programmed.
6. Press START pad.
Oven operates and time counts down.
POWER, COOK LEVEL and cooking time display.
7. At end of cooking cycle oven beeps and shuts off.
Programmed Pads
To cook food using pads preprogrammed with cooking sequences.
1. Open oven door and place food in oven. Close door.
READY displays. Fan and light will turn on.
2. Press desired pad.
For single pad entry, press only one pad.
For double pad entry, press the two pads, in order, of the double
digit number for the desired cooking sequence.
To change single or double pad entry option
see User Options section in this manual.
3. Oven begins to cook.
POWER, power level and total cooking time
display. If power level does not display,
microwave is cooking at full power.
For additional cooking time, press preprogrammed pad again
to begin cooking sequence again.
4. At end of cooking cycle oven beeps and shuts off.
7
0
7
Factory Settings
START
Time
Entry
Med.
50%
Pad Time Pad Time
110 sec. 6 1:30 min.
220 sec. 7 2 min.
330 sec. 8 3 min.
445 sec. 9 4 min.
51 min. 0 5 min.
X2 Pad
(some models)
To increase cooking
time by a specific cooking factor
when cooking more than one
serving. The cooking factor is a
percentage of the original cooking
time (from 10 to 100%).
1. Open oven door and place food
in oven. Close door.
READY displays. Fan and
light will turn on.
2. Press X2 pad.
Amount of time added is a
percentage of the original
preprogrammed cooking time.
The percentage can be
changed. See Programming
the Oven Control section in
this manual.
3. Press desired preprogrammed
pad or pad sequence.
4. Oven begins cooking.
Displayed cooking time is the
total of original cooking time
and added X2 time.
X
2
Interrupting
Operation
Open oven door or
press STOP pad to interrupt
operation. Display continues to
show countdown time. Close door
and press START pad to resume
oven operation.
STOP
Do I have stage
programming?
Stage programming is a hidden
feature—it is not shown with a
pad on the oven. To verify that your
microwave has stage programming,
refer to the Quickstart Guide provided
with the microwave or call your
authorized Amana dealer.
9
Programming Pads
Oven is shipped from the factory for single pad programming. To change
the oven default to allow double pad programming, see User Option section.
To change the amount of time or the power level for a preset pad:
1. Open oven door.
READY displays.
If door is closed or STOP pad is pressed before
programming is complete, changes are discarded and
microwave exits programming mode.
2. Press and hold pad 1 for approximately 5 seconds.
This begins programming mode.
Microwave will beep and P:O displays. Oven is in programming mode.
3. Press pad to be reprogrammed.
Press two pads if reprogramming a double pad program.
Power level and cooking time display.
If power level does not display, microwave is set to full power.
4. Enter cooking time by using the number pads.
5. Press a power level pad to change power level if desired.
6. Press START pad to set new programming to the pad.
If START is not pressed, changes will not be saved.
P:O displays.
7. Press STOP pad or close oven door to exit programming mode.
Programming the Oven Control (Electronic Control)
Programming Multiple Stages
Stage cooking allows consecutive cooking cycles without interruption.
Up to four different cooking cycles can be programmed into a memory pad.
To use stage cooking:
1. Follow steps 1 through 5 above.
6. Press TIME ENTRY pad.
Display briefly shows the pad number that is being
programmed and the stage number to the upper right.
Display changes to cook time and power level for the next stage.
7. Enter cook time and power level as in steps 4 and 5.
To enter another cooking stage for that pad, press TIME
ENTRY pad again.
Up to four different stages can be programmed.
8. Press START pad to set new programming changes to the pad.
9. Press STOP pad or close oven door to exit programming mode.
The display shows
not .
When set to double pad
programming, the display will show P:
when programming pads for double digit
cooking sequences. To change the oven
to default to allow single pad
programming only, see the User Option
section.
1
Med.
50%
START
Time
Entry
START
X2 Programming
(some models)
This feature allows a
preset percentage of original cook
time, called a cooking factor, to be
added to a cook sequence.
To change the cooking factor:
1. Open oven door.
2. Press and hold pad 1 for
approximately 5 seconds.
3. Press pad to be reprogrammed.
4. Press the X2 pad.
5. Press a numbered pad to change
the cooking factor.
Cooking factor can be set from
10% to 100%.
Default is 80%.
Pad 5 would change the
cooking factor to 50%.
Pad 3 would change the
cooking factor to 30%.
6. Press START pad to save
changes.
X 2
Canceling
Mistakes
If oven is not cooking,
press STOP pad to clear display.
If oven is cooking, press STOP pad
once to stop oven, then again to clear
display. If oven door is open and time
shows in display, close oven door and
press STOP pad to clear display.
STOP
10
User Options (Electronic Control)
Changing user options
Options such as single or double pad programming, beep volume, and
maximum cooking time can be changed to suit individual preferences.
To change options:
1. Open oven door.
If door is closed or RESET pad is pressed before programming is
complete, changes are discarded and microwave exits programming
mode.
2. Press and hold pad 2 for approximately 5 seconds.
This begins options mode.
Microwave will beep and 0P: displays. Microwave is now in programming
mode.
3. Press number pad that controls option to be changed.
See table below for options.
Current option will display.
4. Press number pad again to change the option.
Each time pad is pressed, option will change.
Match code displayed with code for desired option.
5. Press START pad to save changes.
To change additional options, repeat steps 3 and 4.
Changes appear after door is closed or STOP/RESET pad is pressed.
Didnt like an option?
Factory settings are marked in bold. To
change the oven back to the factory
setting, simply select the option that is
marked in bold.
My changes werent
saved.
In order for any changes to be
saved, the START pad must be
pressed after selecting an option.
Shutting the oven door or pressing the
STOP/RESET pad will not save
changes.
Numbered Pads Display Options (Factory Settings in Bold)
1
End of Cycle Beep
OP:10
OP:11
OP:12
3 second continuous beep.
Continuous beep until door is opened.
5 beep bursts until door is opened.
2
Speaker Volume
OP:20
OP:21
OP:22
OP:23
Eliminates beep.
Sets volume to low.
Sets volume to medium.
Sets volume to high.
3
Key Beep
OP:30
OP:31
Prevents beep when pad is pressed.
Allows beep when pad is pressed.
4
Keyboard Enable
Window
OP:40
OP:41
OP:42
OP:43
15 seconds after oven door is opened, keyboard disabled.
30 seconds after oven door is opened, keyboard disabled.
1 minute after oven door is opened, keyboard disabled.
2 minutes after oven door is opened, keyboard disabled.
5
Add Time During
Heating
OP:50
OP:51
Prevents adding heating time while oven is heating.
Allows heating time to be changed while oven is heating when a memory pad
is pressed.
6
Reset Door Open
OP:60
OP:61
Allows oven to resume heating time countdown after door is opened during
cycle.
Cancels heating time count down after door is opened during cycle.
7
Maximum Heating Time
OP:70
OP:71
Allows 60 minutes of heating time.
Allows 10 minutes of heating time.
8
Manual Operation
OP:80
OP:81
Allows use of preprogrammed pads only.
Allows use of manual time entry and preprogrammed pads.
9
Double Digit Operation
OP:90
OP:91
Allows 10 (0-9) preprogrammed pads.
Allows 100 (00-99) preprogrammed pads.
11
Dial Operation
Heating
1. Open oven door, place food in oven, and close oven door.
2. Turn time entry knob clockwise until desired time displays.
Cooking time can be set up to 30 minutes.
3. Turn the power level knob to desired power level.
Power level can be set from full power (100%) to 15%.
4. Press (START) button.
Oven begins operation and time counts down.
5. When cooking time elapsed, microwave energy stops and oven signal
sounds.
Interrupting Operation
Open oven door to interrupt operation or turn time entry knob
counterclockwise to 0.
To resume microwave oven operation, close door and press (START).
If time was changed to 0, time will need to be reset, and then
press (START).
Changing Time and Power/Canceling
Mistakes
Heating time and power level can be changed at any time while the oven is
operating. Turn knobs to desired new setting. To set cooking time to zero,
turn knob counterclockwise to 0.
Dial option is available on some models only.
If These Features are
Different from Yours
These features are intended to
show the variety that is available
in the product line. If your microwave
does not have all the options that are
shown, it is not a mistake. The information
provided applies to several of the
models in the product line.
12

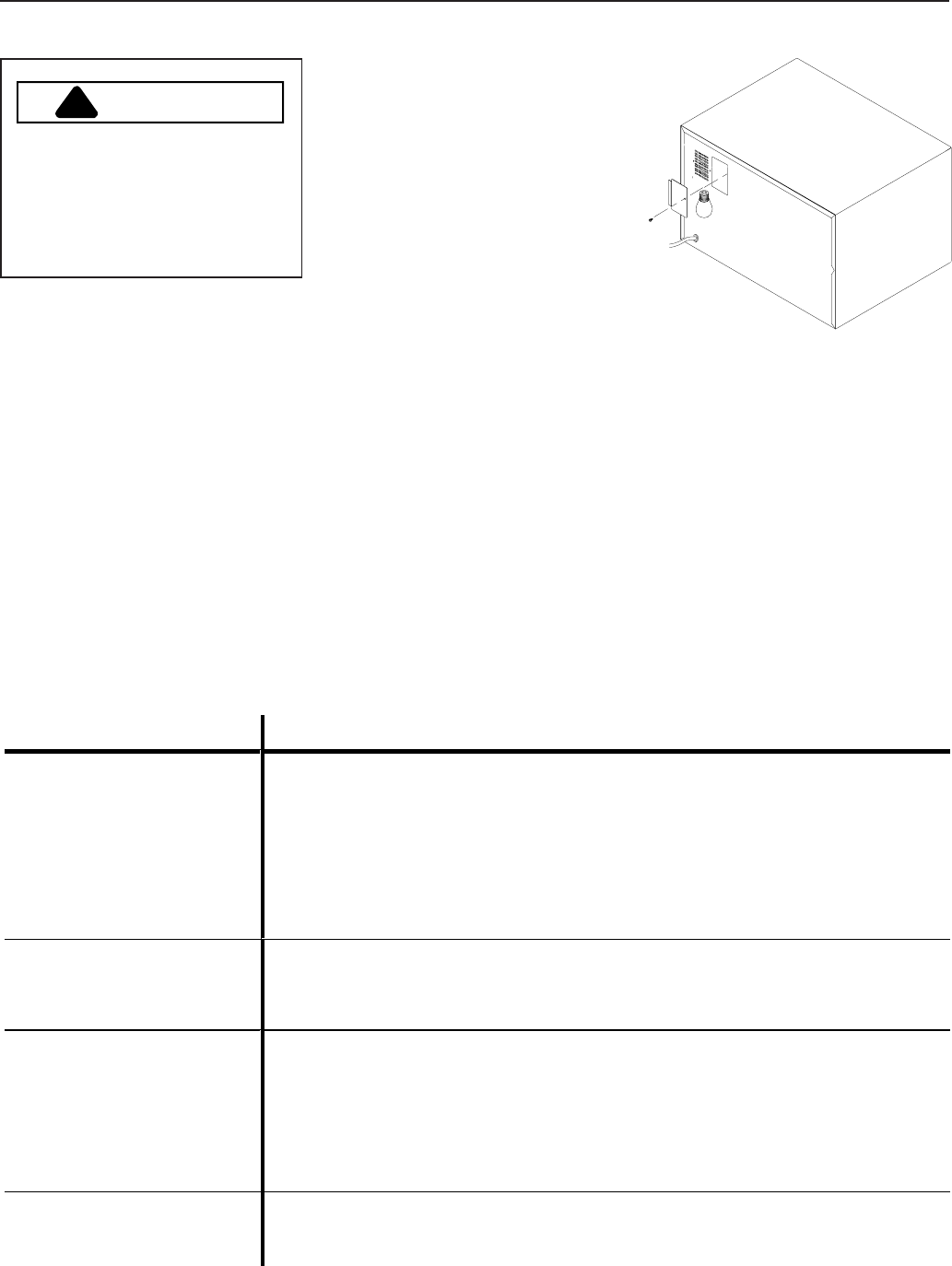

Care and Cleaning
Replacing Oven Light
1. Disconnect electrical supply.
2. Remove screw from back of oven.
3. While wearing protective gloves,
turn light bulb counterclockwise to
remove.
4. Replace light bulb with 230-volt,
25-watt appliance bulb. Do not
over-tighten bulb.
Over-tightening may make bulb
difficult to remove later.
5. Replace light bulb cover before use.
6. Reconnect power supply.
Removing Splatter Shield
Splatter shield keeps top of microwave oven cavity and antenna from becoming soiled. Clean soil from shield with
damp cloth or clean with mild detergent and water. Splatter shield can be removed for easier cleaning. The shield
snaps into a lip in the front of the oven and three slots in the back wall.
1. Unplug oven to stop antenna from rotating.
2. Place your thumbs in the two indentations in the front of the shield.
3. Press lightly toward the back and carefully lower the shield away from the antenna.
4. Pull the shield out of the back slots and out of the oven.
DO NOT bend antenna.
5. Reinstall splatter shield by fitting shield tabs into the three slots at the top of the back. Lift front until shield
snaps into place.
6. Reconnect power to oven.
Verify antenna operation by placing a glass or cup of water in the unit. Close the oven door and start oven.
A rotating shadow should be visible above the splatter shield.
WARNING
!
To avoid electrical shock which
can cause severe personal
injury or death, unplug power
cord or open circuit breaker to
oven before cleaning or
removing light bulb.
PART CARE AND CLEANING RECOMMENDATION
Interior, Exterior, and Door
Clean microwave oven with mild detergent in warm water using soft sponge or cloth.
Wring sponge or cloth to remove excess water before wiping equipment. If desired, boil a
cup of water in microwave oven to loosen soil before cleaning.
Important:
• Do not use abrasive cleansers or cleaners containing ammonia or citrus.
These could damage finish.
• Never pour water into microwave oven bottom.
• Do not use water pressure type cleaning systems.
Discharge Air Vents
Check monthly for a buildup of cooking vapors along intake and discharge louvers on
bottom and back of oven. Clean air vents with damp cloth to ensure proper airflow. Dry
thoroughly.
Air Intake Filter
(some models)
Filter is located below oven door. Clean air intake filter weekly for proper airflow. Wash
filter in hot water and mild detergent. Do not use oven without filter in place. Remove filter
to clean.
Important:
To avoid overheating and oven damage, clean air filter regularly.
1. Grasp filter tab and pull forward. Filter will release from retaining clips.
2. To reinstall, place bottom of filter in clips and push top of filter into position.
Control Panel Open oven door to deactivate oven timer. Clean with mild detergent in warm water using
soft sponge or cloth.
13
Before Calling for Service
!WARNING
To avoid electrical shock which can cause severe personal injury or death, do not remove outer case at any time.
Only an authorized servicer should remove outer case.
ã 2001 Amana Appliances
Amana, Iowa 52204
Part No. 12668501
Printed in U.S.A. 12/01
An authorized servicer MUST inspect equipment annually.
Record all inspections and repair for future reference.
For full product documentation visit:
www.amanacommercial.com/wavelink
Problem Possible Cause
Oven does not operate.
Confirm oven is plugged into dedicated circuit.
Confirm oven is on grounded and polarized circuit.
(Contact electrician to confirm)
Check fuse or circuit breaker.
Oven operates intermittently. Check air filter and discharge areas for obstructions.
If oven does not accept entries
when pad is pressed.
Make sure oven is on.
Open and close oven door. Press pad again.
If oven malfunctions or shows
with a number:
Oven control is equipped with a self-diagnostic system. Self-diagnostic
system alerts you if there is a error or problem. When electronic control
signals a problem, follow steps listed below.
1. Record number shown.
2. Unplug oven, wait for 1 minute, and plug in oven.
• Disconnecting electrical supply may eliminate service code. If failure
continues, contact an authorized Amana servicer.
Oven operates but does not heat
food.
Place one cup of water in oven.
Run for one minute at full power (100%).
If temperature does not rise, oven is not operating correctly. Contact
authorized Amana servicer.

Navigation menu
