Models/Modelos MD-1243KC

Use and Care Guide

P/NO.: 3828W5A3602

Cafetera y horno de microondas

ENGLISH

TABLE OF CONTENTS

WARRANTY ......................................................... 2

SAFETY ........................................................... 3~5

Precautions to Avoid Possible Exposure to

Excessive Microwave Energy............................. 3

Grounding Instructions........................................ 3

Important Safety Instructions.......................... 4~5

UNDERSTANDING YOUR BREW’ N WAVE ... 6-8

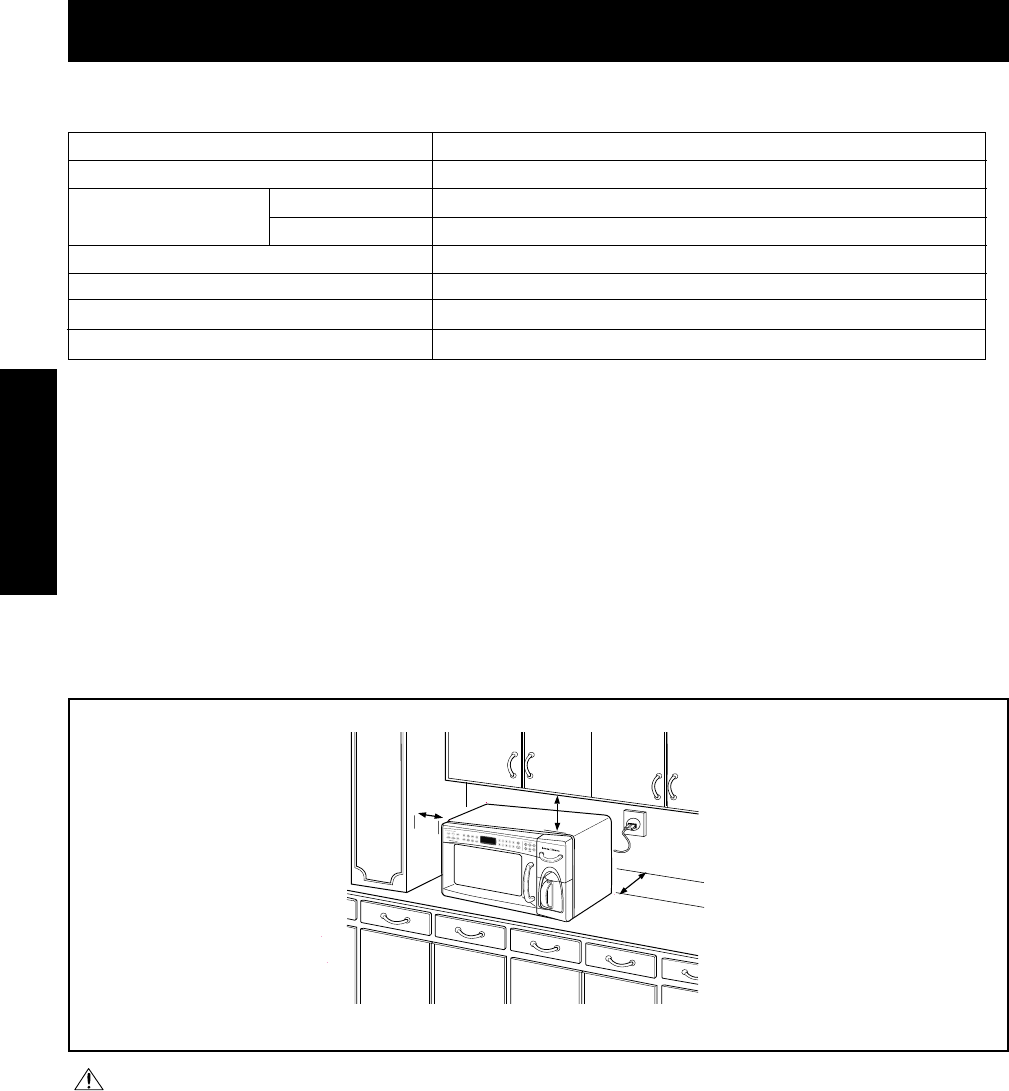

Specifications...................................................... 6

Installation........................................................... 6

Parts And Accessories........................................ 7

Control Panel...................................................... 8

USING YOUR MICROWAVE OVEN .............. 9~19

Cookware Guide................................................. 9

Tips for Microwave Cooking ............................. 10

Cleaning............................................................ 10

Kitchen Timer.................................................... 11

Child Lock ......................................................... 11

Quick Touch Sensor Operation Instruction....... 12

Quick Touch Sensor Table................................ 12

Potato ............................................................... 12

Reheat .............................................................. 13

Reheat Table..................................................... 13

Auto Cook......................................................... 14

Auto Cook Table ............................................... 14

Add Minute........................................................ 14

Option ............................................................... 15

Option Function Table....................................... 15

Auto Defrost...................................................... 16

Express Defrost ................................................ 16

Auto Defrost Table ............................................ 17

Timed Cooking.................................................. 17

Multi-Stage Cooking ......................................... 18

Microwave Power Levels.................................. 18

Cooking Tips............................................... 19~20

USING YOUR COFFEE MAKER.................. 21-26

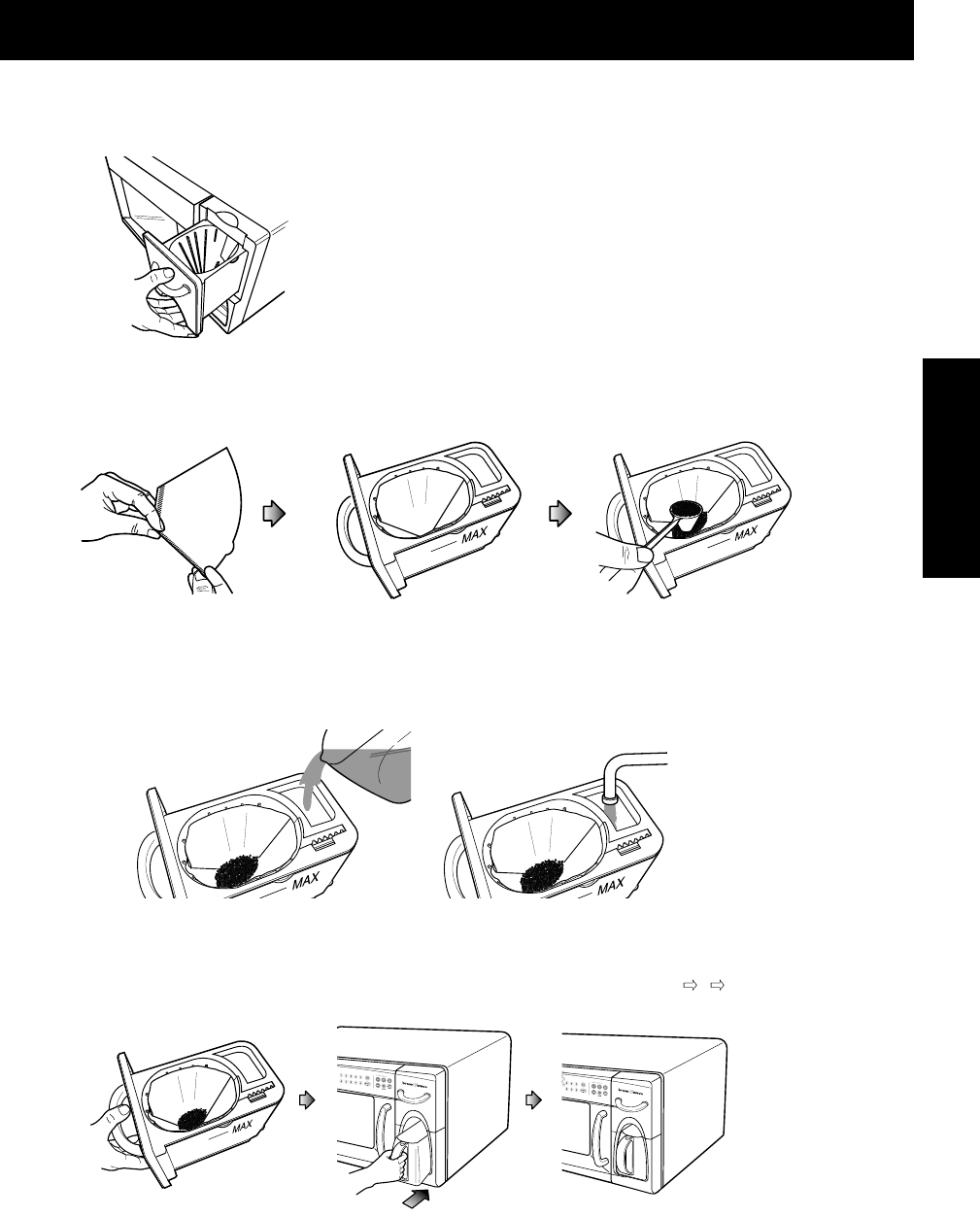

Preparing Coffee................................................21

Brew Strength Control .......................................22

Cleaning Coffee Maker..................................... 22

Self-Cleaning (Cleaning pipe)........................... 22

Brew.................................................................. 23

Small Batch....................................................... 23

Temp ................................................................. 24

How To Set The Brew Timer For Auto-On Mode

.. 24

Timer ON ...........................................................25

Timer OFF..........................................................25

How To Change The Warm Time ..................... 25

Other Functions .................................................26

TROUBLESHOOTING ................................. 27~30

Questions and Answers.............................. 27~28

Before Calling for Service........................... 29~30

Master Protection Agreements ......................... 62

Service Numbers ................................ Back cover

WARRANTY

FULL ONE-YEAR WARRANTY ON

BREW’ N WAVETM

For one year from the date of purchase, if this

Kenmore Brew’ N Wave fails due to a defect in

material or workmanship, Sears will repair it free

of charge.

FULL FIVE-YEAR WARRANTY ON

THE MAGNETRON

For five years from the date of purchase, if the

magnetron in this Kenmore Brew’ N Wave fails

due to a defect in material or workmanship,

Sears will repair it free of charge.

WARRANTY SERVICE

For warranty service, return the Brew’ N Wave

to your nearest Sears Parts & Repair Center in

the United States. For the location of your

nearest Sears Parts & Repair Center, call

1-800-4-MY-HOME®

This warranty applies only while this product is

in use in the United States.

This warranty gives you specific legal rights,

and you may also have other rights which vary

from state to state.

Sears, Roebuck and Co., D/817WA,

Hoffman Estates, IL. 60179 U.S.A.

ENGLISH

SAFETY

• DO NOT attempt to operate this oven with

the door open, since open-door operation

can result in harmful exposure to microwave

energy. It is important not to defeat or

tamper with the safety interlocks.

• DO NOT operate the oven if it is damaged.

It is particularly important that the oven door

close properly and that there is no damage

to the:

1. door (bent)

2. hinges and latches (broken or loosened)

3. door seals and sealing surfaces.

• DO NOT place any object between the oven

front face and the door, or allow soil or

cleaner residue to accumulate on sealing

surfaces.

• THE OVEN should not be adjusted or

repaired by anyone except properly qualified

service personnel.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

GROUNDING INSTRUCTIONS

This appliance must be grounded! If an electrical

short circuit occurs, grounding reduces the risk of

electric shock by providing an escape wire for the

electric current. This appliance is equipped with a

cord having a grounding wire with a grounding plug.

Put the plug into an outlet that is properly installed

and grounded.

WARNING

If you use the grounding plug improperly, you risk electric shock.

If you use an extension cord, be sure that:

NOTE: This oven draws 13.8 amperes at 120 Volts, 60 Hz.

• The extension cord has the same electrical rating as

the appliance.

• The marked rating of the extension cord shall be

equal to or greater than the electrical rating of

the appliance.

• The extension cord is a grounding-type 3-wire cord.

• The extension cord does not drape over a

countertop or tabletop, where it can be pulled on

by children or tripped over accidentally.

• The electrical cord is dry and not pinched or

crushed in any way.

Ask a qualified electrician or the Sears Service

Department if you do not understand the grounding

instructions or if you wonder whether the appliance is

properly grounded.

This appliance has a short power supply cord to

reduce the risk of anyone’s tripping over or becoming

entangled in the cord. You may use an extension

cord if you are careful.

ENGLISH

SAFETY - MICROWAVE

IMPORTANT SAFETY INSTRUCTIONS

The safety instructions below will tell you how to use your microwave oven to avoid harm to yourself or damage to your oven.

WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive

microwave energy:

SAVE THESE INSTRUCTIONS!

1. Read all the instructions before using your microwave

oven.

2. Do not allow children to use this oven without close

supervision!

3. Read and follow the specific PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE

ENERGY found on page 3.

4. Do not tamper with the built – in safety switches on the

oven door! The oven has several built-insafety switches to

make sure the power is off when the door is open.

5. When cleaning the door and the surfaces that touch

the door, use only mild, nonabrasive soaps or

detergents and a sponge or soft cloth.

6. If your oven is dropped or damaged, have it thoroughly

checked by a qualified service technician before using it

again.

7. To avoid a fire hazard:

a) Do not severely overcook foods. It can cause a fire in

the oven.

b) Do not use recycled paper products in your oven.

They can contain particles that can cause arcing or may

ignite.

c) Do not overcook potatoes. Overcooking could cause a

fire.

d) Do not store combustible items (bread, cookies, etc.)

in the oven, because if lightning strikes the power lines,

it may cause the oven to turn ON.

e) Do not use wire twist-ties in the oven. Be sure to

remove them before placing the item in the oven.

f) Do not use the cavity for storage purposes. Do not

leave paper products, cooking utensils, or food in the

cavity when not in use.

8. If a fire should start:

a) Keep the oven door closed.

b) Turn the oven off.

c) Disconnect the power cord or shut off thepower at

the fuse or circuit breaker panel.

9. Do not use this oven for commercial purposes. This

microwave is made for household use only.

10. Install or locate this appliance in accordance with the

provided installation instructions.

11. To avoid electric shock:

a) This appliance must be grounded! Connect it only to

a properly grounded outlet. (See the Grounding

instructions on page 3.)

b) Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly, or if it has

been damaged or dropped.

c) Do not immerse the electrical cord or plug in water.

d) Keep the cord away from heated surfaces.

e) This appliance should be serviced only by qualified

service personnel.

12. Liquids such as water, coffee, or tea are able to be

overheated beyond the boiling point without appearing to

be boiling due to surface tension of the liquid. Visible

bubbling or boiling when the container is removed from

the microwave oven is not always present. This could

result in very hot liquids suddenly boiling over when the

container is disturbed or when a spoon or other utensil is

inserted into the liquid. To reduce the risk of injury to

persons;

1) Do not overheat the liquid.

2) Stir the liquid both before and halfway through heating it.

3) Use extreme care when inserting a spoon or other

utensil into the container once heating has begun.

4) Do not use straight-sided containers with narrow

necks.

5) After heating, allow the container to stand in the

microwave oven for a short time before removing the

container.

13. Keep the glass tray and the turntable roller rest in the

oven when you are cooking.

14. Do not use the oven outdoors. Do not store the oven

outdoors. Do not use this product near water.

– for example, near a kitchen sink, in a wet basement,

near a swimming pool, or similar location.

15. Do not cover or block any openings in the oven.

16. Do not run the microwave oven empty.

17. Do not let the cord hang over the edge of a table or

counter.

18. Do not heat glass turntable excessively.

– Do not cook bacon directly on the glass turntable.

– Do not allow the grey film on special microwave cooking

packages to touch the glass turntable. Put the package

on a microwave-safe dish.

– Keep a browning dish at least 3⁄16 inch above the glass

turntable. If you use the browning dish incorrectly, you

could break the glass turntable.

19. Be careful not to chip or scratch the edges of the

turntable. Chips or scratches may cause the turntable to

break during use.

20. Some produce such as whole eggs and sealed

containers, for example, closed glass jars, are able to

explode and should not be heated in this oven.

ENGLISH

SAFETY - COFFEE MAKER

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be flowed to reduce the risk of fire, electric

shock and/or injury to person, including the following:

SAVE THESE INSTRUCTIONS!

FOR HOUSEHOLD USE ONLY

1. Read all instructions.

2. Do not touch hot surfaces. Use handles and knobs.

3. To protect against fire, electric shock and injury to person,

do not immerse cord, plugs or appliance in water or other

liquid.

4. Close supervision is necessary when any appliance is used

by or near children.

5. Always unplug from outlet when not in use and before

cleaning. Allow to cool before putting on or taking off parts

and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug

or after the appliance malfunctions or has been dropped or

damaged in any manner.

Return appliance to the nearest LG Electronics Repair

Center for examination, repair or electrical or mechanical

adjustment.

7. The use of accessory attachments not recommended by

LG Electronics may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch

hot surface.

10. Do not place on or near a hot gas or electric burner, or in a

heated oven.

11. Always fill water reservoir first, then plug cord into the wall

outlet. To disconnect, turn controls to “off”, then remove

plug from outlet.

12. Do not use appliance for other than intended use.

13. Snap lid securely onto carafe before serving any

beverages.

14. Scalding may occur if the lid is removed during the brewing

cycle.

15. The glass carafe is designed for use with this appliance

only. It must never be used on the range top.

16. Do not set a hot carafe on a wet or cold surface.

17. Do not use cracked carafe or a carafe having a loose or

weakened handle.

18. Do not clean carafe or warming plate with cleansers, steel

wood pads, or other abrasive materials.

19. WARNING : To reduce the risk of fire of electric shock, do

not remove the base plate. No user serviceable parts are

inside. Repair should be done only by authorized

personnel.

20. Avoid contact with moving parts.

21. Do not pull out the water reservoir while brewing coffee.

ENGLISH

Power Supply

Rated Power Consumption

Rated Current

Overall Dimensions (WxHxD)"

Oven Cavity Dimensions (WxHxD)"

Capacity of Oven Cavity

UNDERSTANDING YOUR BREW’ N WAVE

INSTALLATION

1. Remove your Kenmore Brew’ N Wave and all

packing materials from the shipping carton.

2. Place the oven on a level surface that provides at

least 4 inches of space at the left, right, top, and rear

sides for proper ventilation.

3. Slide the turntable support onto the pin in the

center opening of the oven floor, making sure it

seats properly on the pin.

Then place the glass turntable on the turntable

support.

NOTE: Never place the glass turntable in the oven

upside down. Blocking the inlet and/or outlet

openings can damage the oven.

inches

Countertop

SPECIFICATIONS

*IEC 60705 RATING STANDARD

Specifications subject to change without prior notice.

120V AC, 60 Hz

1650W

*1200W

750W / 90W (Dual)

13.8A(Microwave Oven) / 14.5A(Microwave Oven with Coffee Maker)

23" x 121/2" x 171/8"

1411/16" x 95/8" x 155/8"

1.2 cu.ft

WARNING

To reduce the risk of fire or electric shock, do not install closer than 4 inches to side and back wall.

Microwave Output Microwave

Coffee Maker

ENGLISH

Your oven comes with the following accessories:

1 Use and Care Guide

1 Glass Turntable

1 Turntable Support

UNDERSTANDING YOUR BREW’ N WAVE

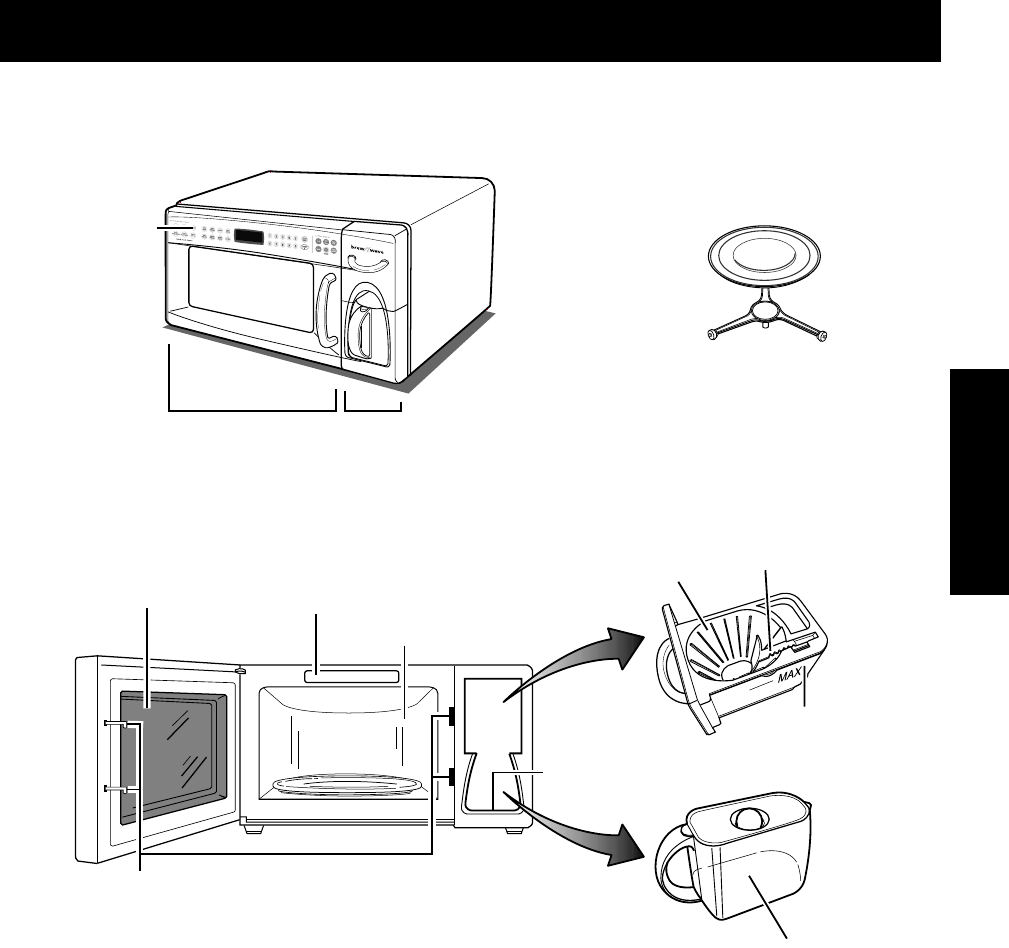

PARTS AND ACCESSORIES

See-Through Door

Safety Interlock System

Turntable Support

Glass Turntable

Coffee Maker

Water

Reservoir

Filter Basket

Carafe

Flavor

Selector

Control

Panel

Microwave Oven

Warming Plate

Easy-Clean

Oven Cavity

Cooking Guide

Label

ENGLISH

UNDERSTANDING YOUR BREW’ N WAVE

1. 1-4. This pad is small batch function. This pad is used when you want to brew a small amount (1~4 cups) of coffee.

2. TEMP. This pad is used when you want to adjust the warm temperature of coffee.

3. OFF/CLEAR. Touch this pad to stop the coffee maker or clear entries. (coffee maker only)

4. BREW. This pad is used when you want to brew more than 4 cups of coffee.

5. TIME SET. Touch this pad to change the default setting of the coffee maker for brew timer or warming timer.

6. TIMER ON/OFF. This pad is used when you want to turn the brew timer function On or Off.

COFFEE MAKER CONTROL AREA

1 3

1. DISPLAY. The Display includes a clock and indicators that tell you time of day, cooking time settings, and cooking

functions selected.

2. STOP/CLEAR. Touch this pad to stop the oven or clear entries. (microwave oven only)

3. START. Touch this pad to start all entries (except the Auto Cook and Add Minute function which start automatically)

and to turn Child Lock on or off.

4. AUTO COOK. Touch this pad to select programmed food items.

5. ADD MINUTE. Touch this pad to cook at 100% cooking power for 1 minute to 99 minutes 59 seconds.

6. AUTO DEFROST. This pad is an accurate defrosting method for frozen meat, poultry and fish up to 6.0 lbs.

7. EXPRESS DEFROST. This pad provides you with the quick defrosting method for 1.0 pound of frozen foods.

8. OPTION. Touch this pad to change the oven's default settings for sound, clock, scroll speed and Lbs/Kg.

9. KITCHEN TIMER. Touch this pad to use your microwave oven as a kitchen timer.

10. COOK TIME. Touch this pad to set the cooking time.

11. POWER. Touch this pad to set the cooking power.

12. NUMBER PADS. Touch Number Pads to enter cooking time, power level, quantities, or weights.

13. QUICK TOUCH SENSOR. This pad allows you to cook most of your favorite foods without having to select

cooking times and power levels.

MICROWAVE CONTROL AREA

CONTROL PANEL

13 57911 112

4 6 8 10 2

ENGLISH

USING YOUR MICROWAVE OVEN

USE

Ovenproof Glass

• Glass treated for use in high-intensity heat

includes utility dishes, bread dishes, pie plates, cake

plates, liquid measuring cups, casseroles, and bowls

without metallic trim.

China

• Bowls, cups, serving plates, and platters without

metallic trim can be used in your oven.

Plastic

• When using plastic wrap as a cover, make sure that

the dish is deep enough so the plastic wrap does not

touch the food. As the food heats, it may melt the

plastic wrap wherever the wrap touches the food.

• Place plastic wrap loosely over the top of the dish

and secure it by pressing the wrap to the sides of

the dish.

• Vent by turning back one corner of the plastic wrap.

This will allow excess steam to escape.

• Use plastic dishes, cups, semi-rigid freezer

containers, and plastic bags only for short time

cooking. Use these with care because the

plastic may soften from the heat of the food.

Paper

• Microwave-safe paper towels, waxed paper, paper

napkins, and paper plates with no metallic trim or

design can be used in your oven.

• Refer to the paper manufacturer’s label for use of

any paper product in the microwave oven.

DO NOT USE

Metal Utensils

• Metal shields food from microwave energy and

produces uneven cooking. Avoid metal skewers,

thermometers, or foil trays.

• Metal utensils can cause arcing, which is a

discharge of electric current. Arcing can damage

your microwave oven.

Metal Decoration

• Do not use metal-trimmed or metal-banded

dinnerware, casserole dishes, etc.

Centura™ Tableware

• The Corning Company recommends that you

do not use Centura tableware and some Corelle™

closed-handle cups for microwave cooking.

Aluminum Foil

•Do not use large sheets of aluminum foil because

they hinder cooking and may cause arcing. You may

use small pieces of foil to shield poultry legs and

wings.

• Keep all aluminum foil at least 1 inch from the walls

and door of the oven.

Wood

• Wooden bowls, boards, and baskets will dry out and

may split or crack when you use them in the

microwave oven.

Tightly Closed Containers

• Tightly closed cookware can explode. Be sure

to leave an opening for steam to escape from

covered cookware.

Brown Paper

•Do not use brown paper bags. They absorb

heat and could burn.

Metal Twist-Ties

• Always remove metal twist-ties as they can become

hot and cause a fire.

COOKWARE GUIDE

Most heat-resistant, non-metallic cookware is safe for use in your microwave oven. However, to test cookware

before using, follow these steps:

1. Place the empty cookware in the microwave oven.

2. Measure 1 cup of water in a glass measuring cup and place it in the oven beside the cookware.

3. Microwave on 100% power for 1 minute. If the dish is warm, it should not be used for microwave cooking.

ENGLISH

USING YOUR MICROWAVE OVEN

TIPS FOR MICROWAVE COOKING

BROWNING

Meat and poultry with high fat content that are cooked

for 10 or 15 minutes or longer will brown lightly. Foods

cooked a shorter time can be brushed with a browning

agent, such as Worcestershire sauce, soy sauce, or

barbecue sauce.

COVERING

A cover traps heat and steam and causes the food to

cook more quickly. Use a lid or microwave-safe plastic

wrap with one corner folded back to vent the excess

steam. Lids on glass casseroles can become hot

during cooking. Handle carefully. Waxed paper will

prevent the food from splattering in the oven and help

retain heat. When warming bread items, use waxed

paper, napkins, or paper towels. To absorb extra

moisture, wrap sandwiches and fatty foods in paper

towels.

SPACING

Arrange individual foods, such as baked potatoes,

cupcakes, and hors d’oeuvres’ in a circle and at least

1 inch apart. This will help the food cook more evenly.

STIRRING

Stirring blends flavors and redistributes the heat in

foods. Always stir from the outside toward the center

of the dish. Food at the outside of the dish heats first.

TURNING

Large foods, such as roasts and whole poultry, should

be turned so that the top and bottom cook evenly. Also

turn over chicken pieces and chops.

ARRANGEMENT

Do not stack food. Arrange in a single layer in the dish

for more even cooking. Because dense foods cook

more slowly, place thicker portions of meat, poultry, fish,

and vegetables toward the outside of the dish.

TESTING FOR DONENESS

Because foods cook quickly in a microwave oven, you

need to test frequently for doneness.

STANDING TIME IN OVEN

Depending on density, food often needs to stand from

2 to 15 minutes either in or outside of the oven after

cooking power shuts off. Outside of the oven, you

usually need to cover food during standing time to retain

heat. Remove most foods when they are slightly

undercooked and they will finish cooking during

standing time. The internal temperature of food will rise

about 10°F during standing time.

SHIELDING

To prevent some portions of rectangular or square

dishes from overcooking, you may need to shield

them with small strips of aluminum foil to block the

microwaves. You can also cover poultry legs and

wing tips with foil to keep them from overcooking.

Always keep foil at least 1 inch from oven walls

to prevent arcing.

PIERCING

Pierce the shell, skin, or membrane of foods before

cooking to prevent them from bursting. Foods that

require piercing include yolks and whites of eggs, hot

dogs, clams, oysters, and whole vegetables, such as

potatoes and squash.

CLEANING

Wipe the oven inside and outside with a soft cloth and

a mild detergent solution. Then rinse and wipe dry.

This should be done weekly or more often, if needed.

Never use cleaning powders or rough pads.

Excessive oil splatters on the inside top will be difficult

to remove if left for many days. Wipe splatters with a

wet paper towel, especially after cooking chicken or

bacon.

REMOVABLE PARTS

The turntable and turntable support are removable.

They should be hand-washed in warm (not hot) water

with a mild detergent and a soft cloth. Once they are

clean, rinse well and dry with a soft cloth. Never use

cleaning powders, steel wool, or rough pads.

• The turntable may be cleaned at the sink. Be careful

not to chip or scratch the edges as this may cause

the turntable to break during use.

• The turntable support rest should be cleaned regularly.

SPECIAL CARE

For best performance and safety, the inner door panel

and the oven front frame should be free of food or

grease buildup. Wipe often with a mild detergent; then

rinse and wipe dry. Never use cleaning powders or

rough pads.

After cleaning the control panel, touch STOP/CLEAR

to clear any entries that might have been entered

accidentally while cleaning the panel.

ENGLISH

USING YOUR MICROWAVE OVEN

::ENTER TIME IN MIN

AND SEC

TOUCH START

You can use this safety feature to lock the control

panel so that children cannot use the oven when

you do not want them to and when you are

cleaning the oven.

To set CHILD LOCK:

Touch: Display Shows:

CHILD LOCK

Touch and hold

until LOCKED

appears in

the display

(approximately

4 seconds).

To cancel CHILD LOCK:

Touch: Display Shows:

Touch and hold

until LOCKED

disappears

from the

display

(approximately

4 seconds).

Time of day.

LOCKED

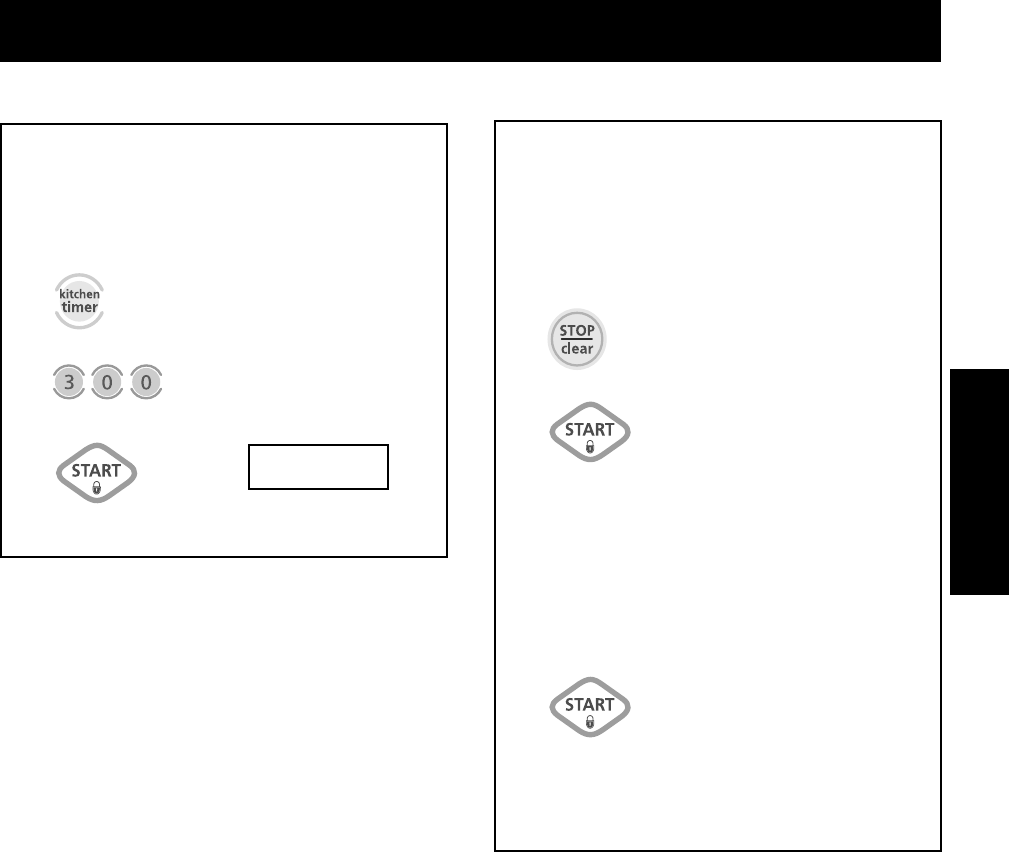

Your microwave oven can be used as a kitchen

timer. You can set up to 99 minutes, 99 seconds.

Example: To set 3 minutes.

Touch: Display Shows:

KITCHEN TIMER

TIMER and time

counting down.

3. 3

ENGLISH

USING YOUR MICROWAVE OVEN

QUICK TOUCH SENSOR

OPERATION INSTRUCTION

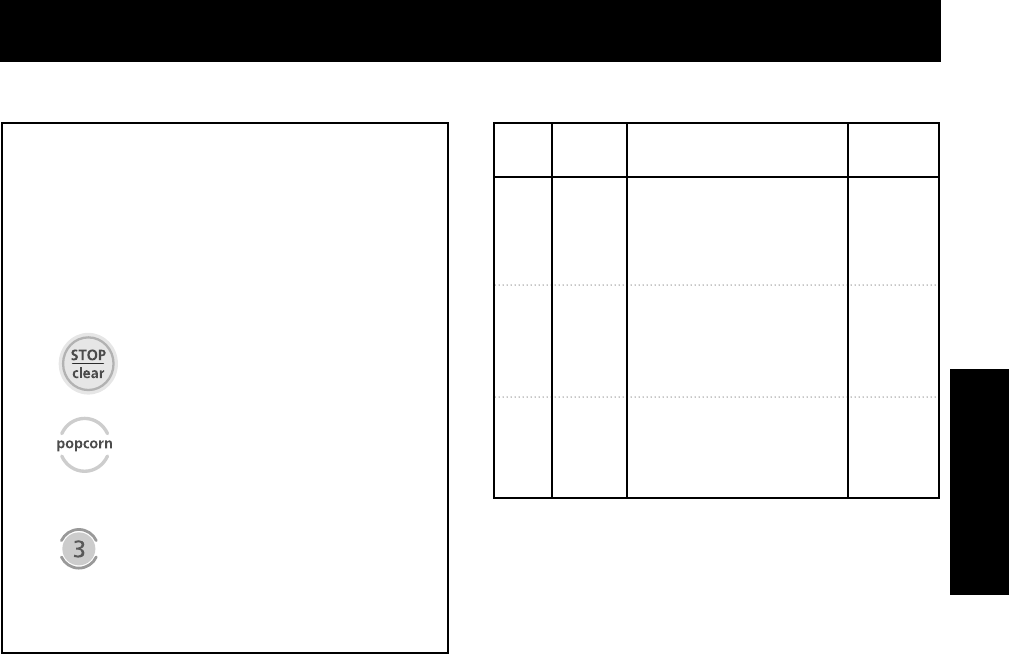

Sensor touch cooking provides exciting new features

to make microwaving easier. The sensor menu is

preprogrammed with many popular food choices and helps

you heat or reheat perfectly, using the sensor to calculate

how long to heat or reheat food items.

Categories:

Reheat, Potato

Popcorn, Fresh Vegetable

Frozen Vegetable, Frozen Entree

For most Quick Touch Sensor Cooking programs, a table

with specific food examples and cooking instructions is

provided in the next few pages.

• The Sensor Touch system works by detecting a build-up

of vapor.

• Make sure the door remains closed.

• Once the vapor is detected, two beeps will sound.

• Opening the door or touching the STOP/CLEAR pad

before the vapor is detected will abort the process. The

oven will stop.

• Before using Quick Touch Sensor, make sure the exterior

of the reheating container and the interior of the oven are

dry, to assure the best results.

• Room temperature should not exceed 95°F.

• Oven should be plugged in at least 5 minutes before

sensor cooking.

SENSOR COOK allows you to cook most of your

favorite foods without having to select cooking

times and power levels. This oven automatically

determines required cooking times for each food

item.

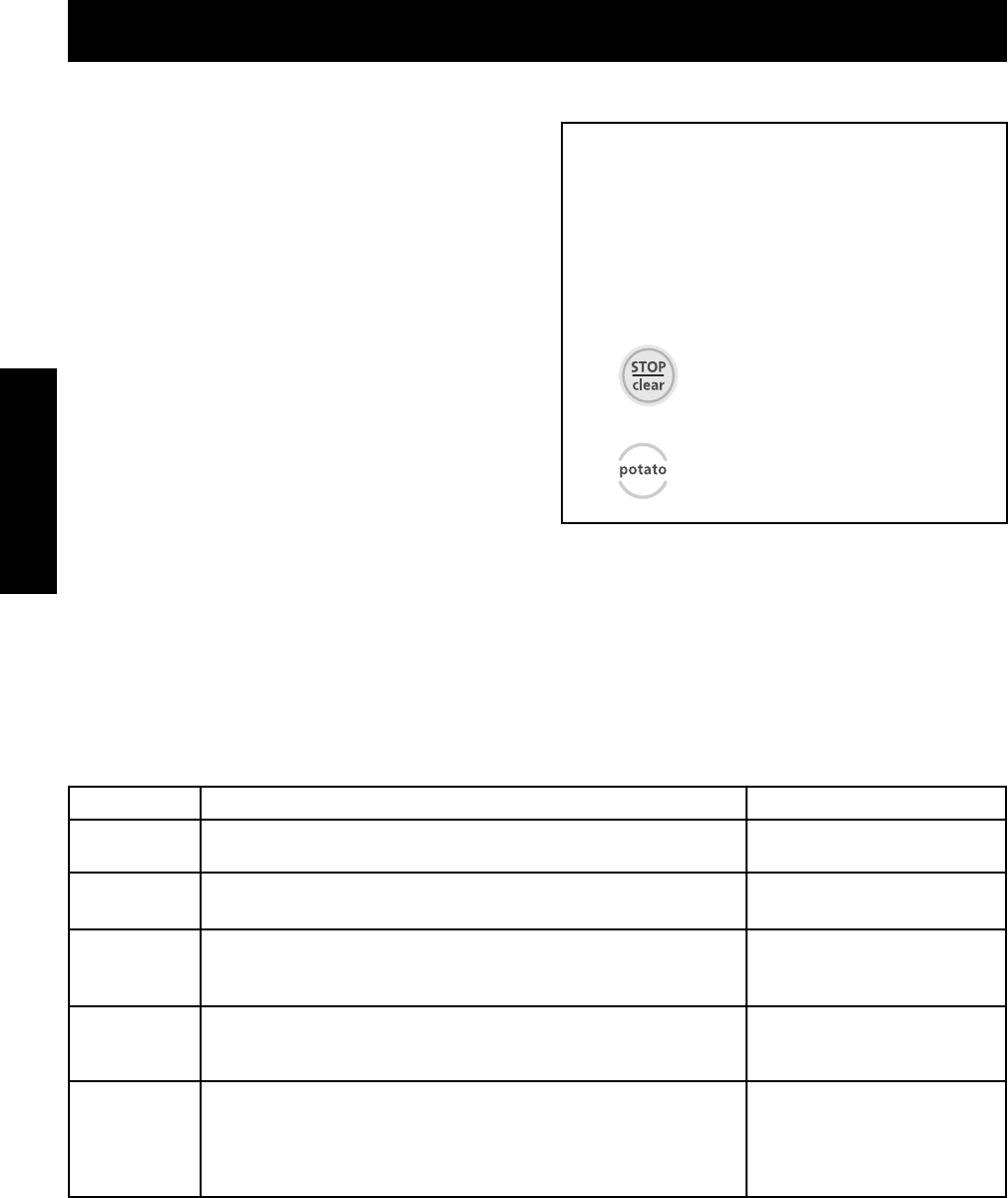

Example: To cook potato

Touch: Display Shows:

POTATO (EXAMPLE)

QUICK TOUCH SENSOR TABLE

NOTE: If you open the door or press STOP during sensing, the process will be canceled.

Category

MEAT

POULTRY

FISH

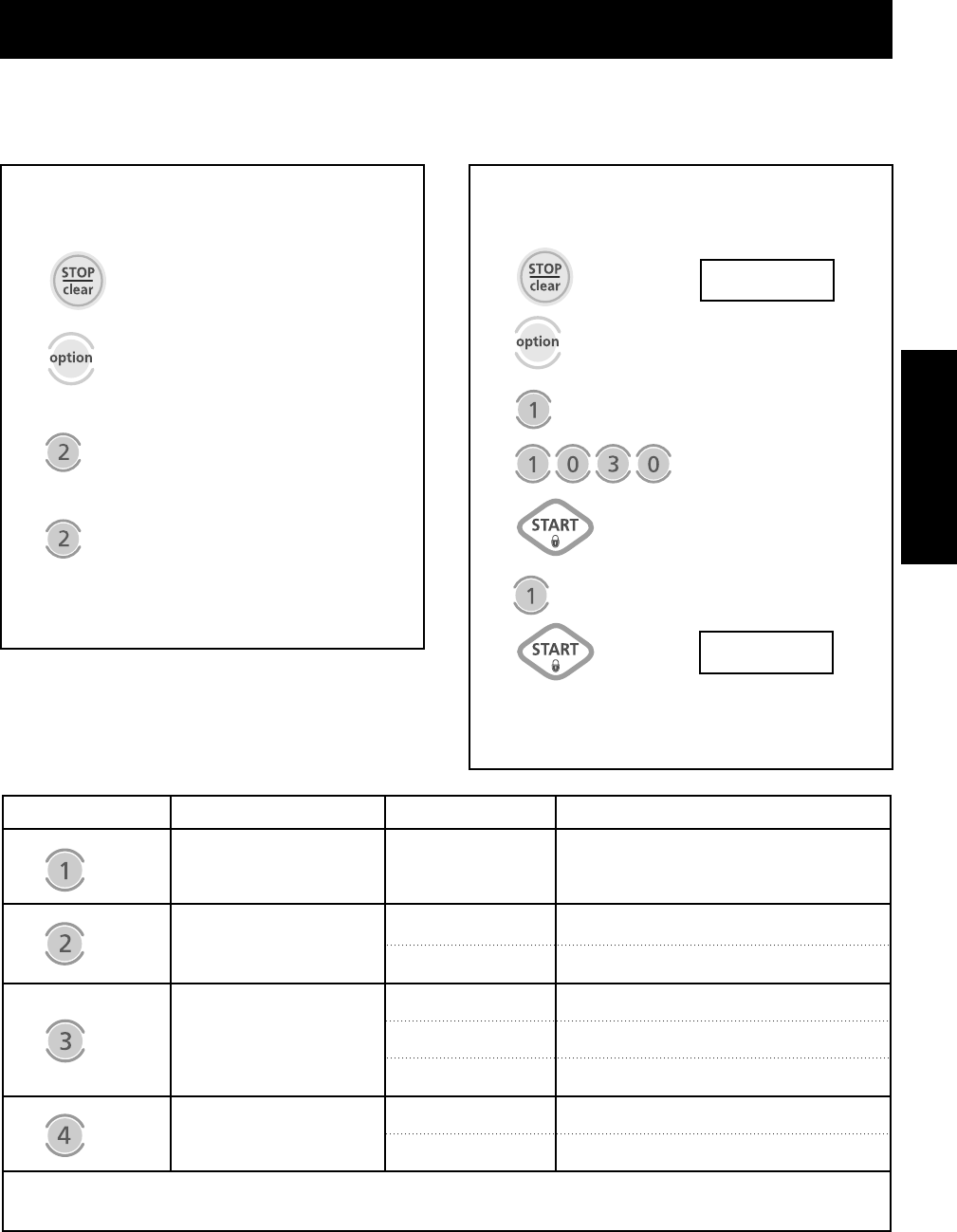

Food to be Defrosted

Beef

Ground beef, Round steak,

Cubes for stew, Tenderloin steak,

Pot roast, Rib roast, Rump roast,

Chuck roast, Hamburger patty

Lamb

Chops (1-inch thick), Rolled roast

Pork

Chops ( 1⁄2-inch thick), Hot dogs,

Spareribs, Country-style ribs.

Rolled roast, Sausage

Veal

Cutlets (1 lb., 1⁄2-inch thick)

Poultry

Whole (under 4 lbs.), Cut-up, Breasts

(boneless)

Cornish Hens

Whole

Turkey

Breast

Steaks/Chops

Round beef steak, Tenderloin steak

Lamb chops (1-inch thick)

Pork chops (1⁄2-inch thick)

Veal cutlets (1 lb., 1⁄2-inch thick)

Fish

Fillets, Whole Steaks

Shellfish

Crab meat, Lobster tails, Shrimp,

Scallops

Time counting down

and POWER 80.

ENGLISH

USING YOUR MICROWAVE OVEN

MICROWAVE POWER LEVELS

Your microwave oven has 10 cook power levels to let

you cook or heat a wide variety of foods. Refer to the

table below for suggestions:

Microwave Power Level Table

• Boiling water.

• Making candy.

• Cooking poultry pieces, fish, and

vegetables.

• Cooking tender cuts of meat.

• Whole poultry.

• Reheating rice, pasta, and vegetables.

• Reheating prepared foods quickly.

• Reheating sandwiches.

• Cooking egg, milk, and cheese dishes.

• Cooking cakes, breads.

• Melting chocolate.

• Cooking veal.

• Cooking whole fish.

• Cooking puddings and custard.

• Cooking ham, whole poultry, and lamb.

• Cooking rib roast, sirloin tip.

• Thawing meat, poultry, and seafood.

• Cooking less tender cuts of meat.

• Cooking pork chops, roast.

• Taking chill out of fruit.

• Softening butter.

• Keeping casseroles and main dishes warm.

• Softening butter and cream cheese.

• Standing time.

(High)

Use

Power

Level

For best results, some recipes call for different cook

powers during different stages of a cook cycle. You

can program your oven to switch from one power

level to another for up to 2 stages.

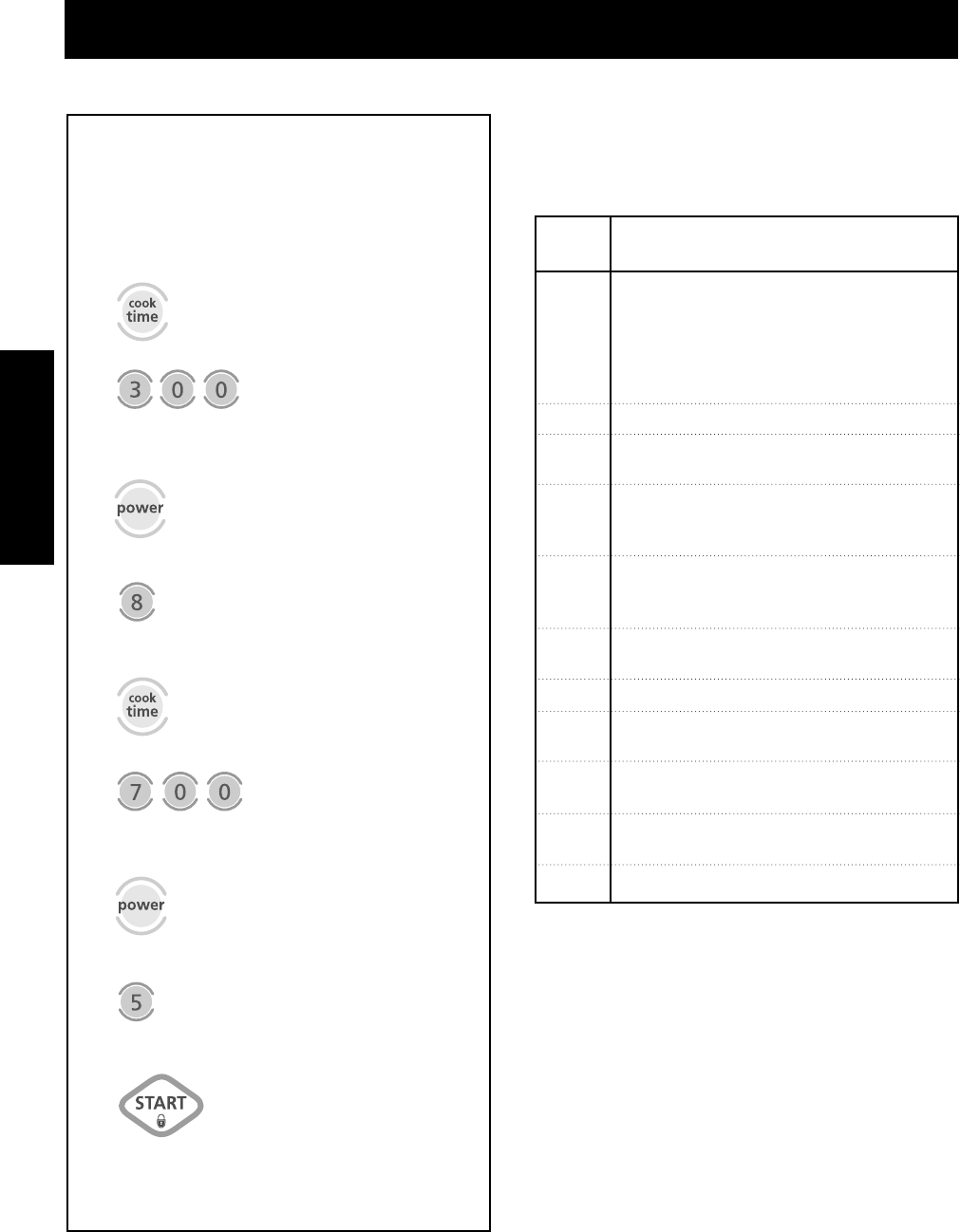

Example: To set a 2-stage cook cycle.

Touch: Display Shows:

MULTI-STAGE COOKING

to set a 7 minute cook

time for second stage.

to set a 3 minute cook

time for first stage.

::ENTER COOKING TIME

TOUCH START

OR POWER

TOUCH START

OR POWER

ENTER POWER

LEVEL

ENTER POWER

LEVEL

POWER

TOUCH START

8. to set a 50%

cook power for

the second

stage.

to set an 80%

cook power for

the first stage.

POWER

TOUCH START

When the first stage is over, you will hear two

short tones as the oven begins the second

cook stage.

10.

Time counting down

and POWER 80.

NOTE: You may program standing time as the second

stage in multi-stage cooking.

ENGLISH

Meat

1. No special techniques are required. Meat should be

prepared as with conventional cooking. Season if

desired. Always thoroughly defrost meat before

cooking.

2. Place the meat on a microwave roasting rack or

microwave-proof plate and place on the turntable.

3. Cook according to the Meat Cooking Table (below).

Use the longer time for large cuts of meats and the

shorter time for small cuts of meats. For thicker

chops, use the longer time.

4. Turn the meat over once halfway through the

cooking time.

5. Wrap in foil and let stand for 5~10 minutes after

cooking. The standing time is very important as it

completes the cooking process.

6. Make sure meat, especially pork, is thoroughly

cooked before eating.

Poultry

1. No special techniques are required. Poultry should

be prepared as with conventional cooking. Season if

desired.

2. Poultry should be thoroughly defrosted. Remove

giblets and any metal clamps.

3. Prick the skin and brush lightly with vegetable oil

unless the poultry is self-basting.

4. All poultry should be placed on a microwave roasting

rack or a microwave-proof plate and placed on the

turntable.

5. Cook according to the instructions in the Poultry

Cooking Table below. Turn over halfway through the

cooking time. Because of its shape, poultry has a

tendency to cook unevenly, especially in very bony

parts.Turning food over helps to cook these areas

evenly.

6. Remove from oven, wrap in foil, and let stand for

5~10 minutes before carving. The standing time is

very important, as it completes the cooking process.

7. Make sure poultry is thoroughly cooked before eating.

Whole poultry is completely cooked when the juices

run clear from the inside thigh when it is pierced with

a sharp knife. Poultry pieces should be pierced with

a sharp knife through the thickest part to ensure that

the juices are clear and the flesh is firm.

USING YOUR MICROWAVE OVEN

WARNING: Do not use large sheets of aluminum foil because they hinder cooking

and may cause arcing

. You may

use small pieces of foil to shield poultry legs and

wings.

Keep all aluminum foil at least 1 inch from the walls and door of the oven.

BEEF

Standing/Rolled Rib

– Medium

– Well-done

Ground Beef (to

brown for casserole)

Hamburgers,

Fresh or defrosted

(4 oz. each)

– 2 patties

– 4 patties

PORK

Loin, Leg

Bacon

– 4 slices

– 6 slices

Microwave

Power

HIGH (100%)

Cooking Time

Per Pound

1/2

to 11

1/2

minutes

1/2

to 14 minutes

61/2to 91/2minutes

1/2

to 4

1/2

minutes

1/2

to 5

1/2

minutes

1/2

to 16

1/2

minutes

1/2

to 3

1/2

minutes

1/2

to 4

1/2

minutes

Meat Cooking Table

CHICKEN

Whole

Breast (boned)

Portions

TURKEY

Whole

Microwave

Power

Cooking Time

Per Pound

11 to 15 minutes

10 to 14 minutes

11 to 17 minutes

11 to 15 minutes

Poultry Cooking Table

NOTES:

• The times listed above are only a guide. Allow for

difference in individual tastes and preferences. The

times may also vary due to the shape, cut, and

composition of the food.

• If whole poultry is stuffed, the weight of the stuffed

bird should be used when calculating the cooking

time.

NOTE: The times listed above are only a guide.

Allow for difference in individual tastes and

preferences. The times may also vary due to

the shape, cut, and composition of the food.

Poultry

COOKING TIPS

Meat

ENGLISH

USING YOUR MICROWAVE OVEN

COOKING TIPS (continued)

Fish

1. Arrange fish in a large shallow non-metallic dish or

casserole.

2. Cover with pierced microwave plastic wrap or

casserole lid.

3. Place the dish on the turntable.

4. Cook according to the instructions in the Fresh Fish

Cooking Table below. Flakes of butter can be added

to the fish if desired.

5. Let stand as directed in the Cooking Table before

serving.

6. After standing time, check to see that the fish is

thoroughly cooked. The fish should be opaque and

flake easily.

Fresh Fish Cooking Table

Fish

Fish Fillets

Whole Mackerel,

Cleaned and Prepared

Whole Trout,

Cleaned and Prepared

Salmon Steaks

Microwave

Power

HIGH

Cooking Time

Per Pound

1/2

to 8 minutes

1/2

to 8 minutes

1/2

to 9 minutes

1/2

to 8 minutes

Standing

Time

2 to 3 minutes

3 to 4 minutes

Butter

Add 15 to 30 ml (1 to 2 tbsp lemon juice)

–

Add 15 to 30 ml (1 to 2 tbsp lemon juice)

ENGLISH

USING YOUR COFFEE MAKER

PREPARING COFFEE

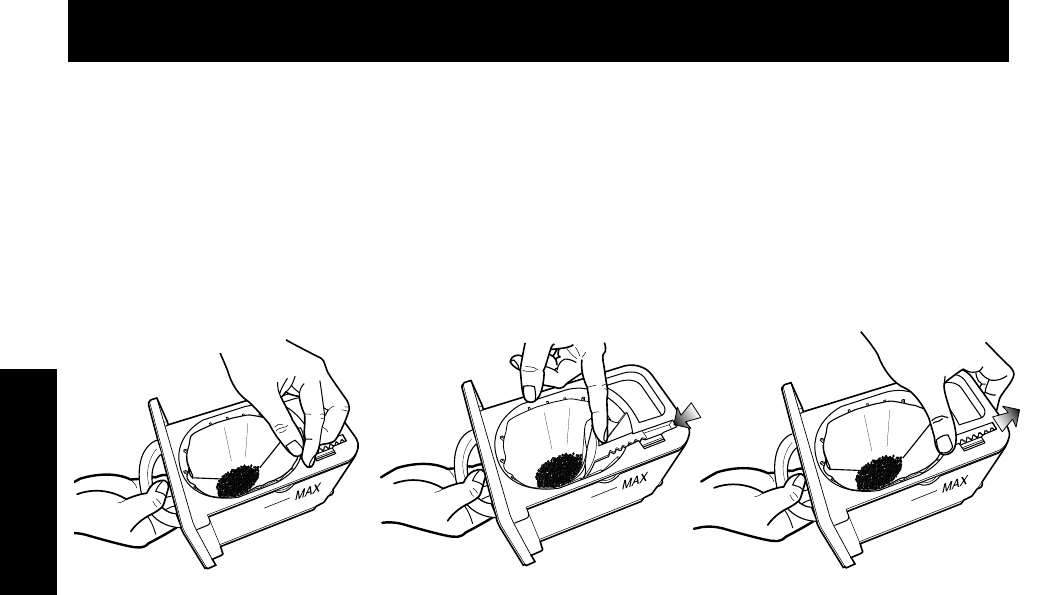

1. Pull out the water reservoir.

2. Place a #2 size paper coffee filter in the filter basket (Fig. 2, 3). Add coffee for the amount to be brewed

(Fig. 4) (usually one heaping tablespoon for every two cups; adjust to suit your taste).

3. Fill the Water Reservoir.

Fill with the water through the hole of the filter basket to the desired cup level. (Fig. 5, 6)

Do not exceed the MAX line. (Maximum : 7 cups, 1 cup - 140 cc)

4. Push the filled Reservoir back into the Coffee maker to the end.

Make sure you have replaced the Carafe in its position on the warming plate. (Fig. 7 89)

<Fig. 1>

<Fig. 2>

<Fig. 5>

<Fig. 8> <Fig. 9><Fig. 7>

<Fig. 6>

<Fig. 3> <Fig. 4>

ENGLISH

USING YOUR COFFEE MAKER

BREW STRENGTH CONTROL

- Pre-selecting the taste (flavor selector)

The flavor selector (Fig. 10) allows you to adjust the flavor of your coffee to suit your personal tastes. It helps ensure

a full, rich flavor, while allowing you to select a milder flavor without bitter aftertaste, or a strong, robust taste.

If you prefer a milder coffee, without bitter aftertaste, pull the flavor selector toward the center of the filter basket

(Fig. 11).

If you prefer a strong, robust flavor, push the flavor selector in to the side of the filter basket (Fig. 12).

CLEANING THE COFFEE MAKER

To clean the coffee maker after brewing, be sure the unit is OFF and has cooled.

Discard the paper filter and grounds, and clean as follows:

The water reservoir, filter basket, carafe, and carafe lid are all top-rack dishwasher safe.

This may also be hand-washed.

Warming plate may be cleaned with a soft damp cloth.

Do not use abrasive cleansers or scouring pads. Never immerse the Coffee maker.

SELF CLEANING (CLEANING PIPE)

1. To clean, fill the water reservoir to capacity with a mixture of 1/3white vinegar and 2/3water

2. Press the “Brew” button.

One cycle should be sufficient to adequately clean the coffee maker.

3. Run at least two cycles of fresh cold water through the unit before using the unit again to brew coffee.

NOTICE

1. Always use cold water to make coffee.

Warm water or other liquids could cause damage to the coffee maker.

2. Before using the first time, or when the coffee maker has not been used for some time, fill the water reservoir to

the maximum with cold water and without coffee grounds and without a paper filter.

Turn on and allow the water to flow through, then discard and fill with clean water.

3. Never pull out the water reservoir during the brewing cycle.

Extremely hot water or steam can cause injury.

Always wait 5 minutes before pulling out the water reservoir.

4. Do not detach the filter basket from the water reservoir when it is filled with water.

5. When you draw the water reservoir, lift it slightly please.

<Fig. 10> <Fig. 11> <Fig. 12>

ENGLISH

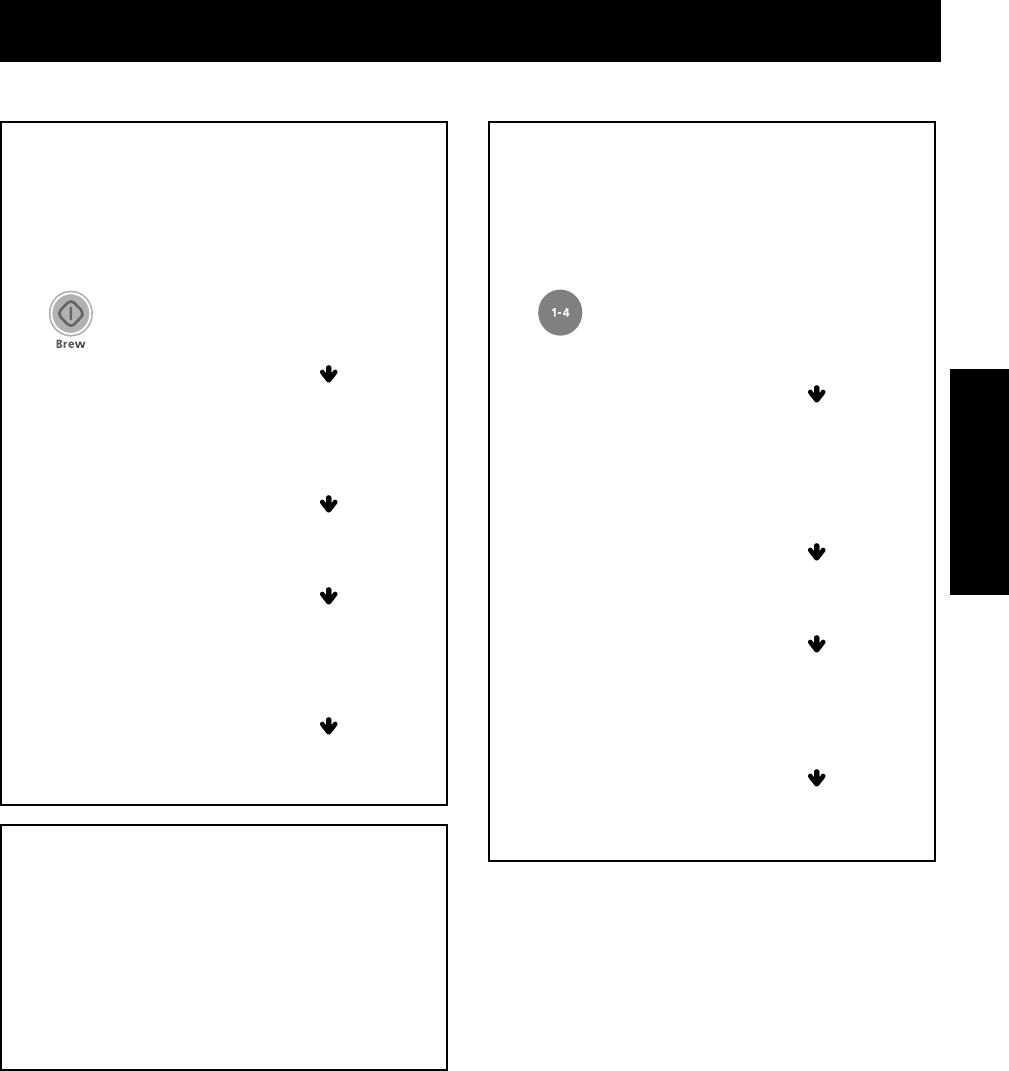

USING YOUR COFFEE MAKER

This pad is used when you want to brew more than

4 cups of coffee.

Touch: Display Shows:

Brew

1. brew/warm-med

(Scroll)

brew end

(Scroll 3 times &

Beep 5 times)

warm-med

warm end

(Scroll 3 times &

Beep 3 times)

Time of the day.

This pad is used when you want to brew a small

amount (1~4 cups) of coffee.

Touch: Display Shows:

SMALL BATCH

1. small/batch/

warm-med

(Scroll)

small/batch/

end

(Scroll 3 times &

Beep 5 times)

warm-med

warm end

(Scroll 3 times &

Beep 3 times)

Time of the day.

NOTE: When the brewing is completed, it enters

KEEP WARM mode automatically.

• Warming temperature is set at medium when the

unit is plugged in.

User can adjust the temperature using temp pad.

(See page 24)

• Warming time is set to 1 hour when the unit is

plugged in.

User can adjust warming time on the program pad.

(See page 25)

After

scrolling

stops.

After

scrolling

stops.

After

scrolling

stops.

After

scrolling

stops.

ENGLISH

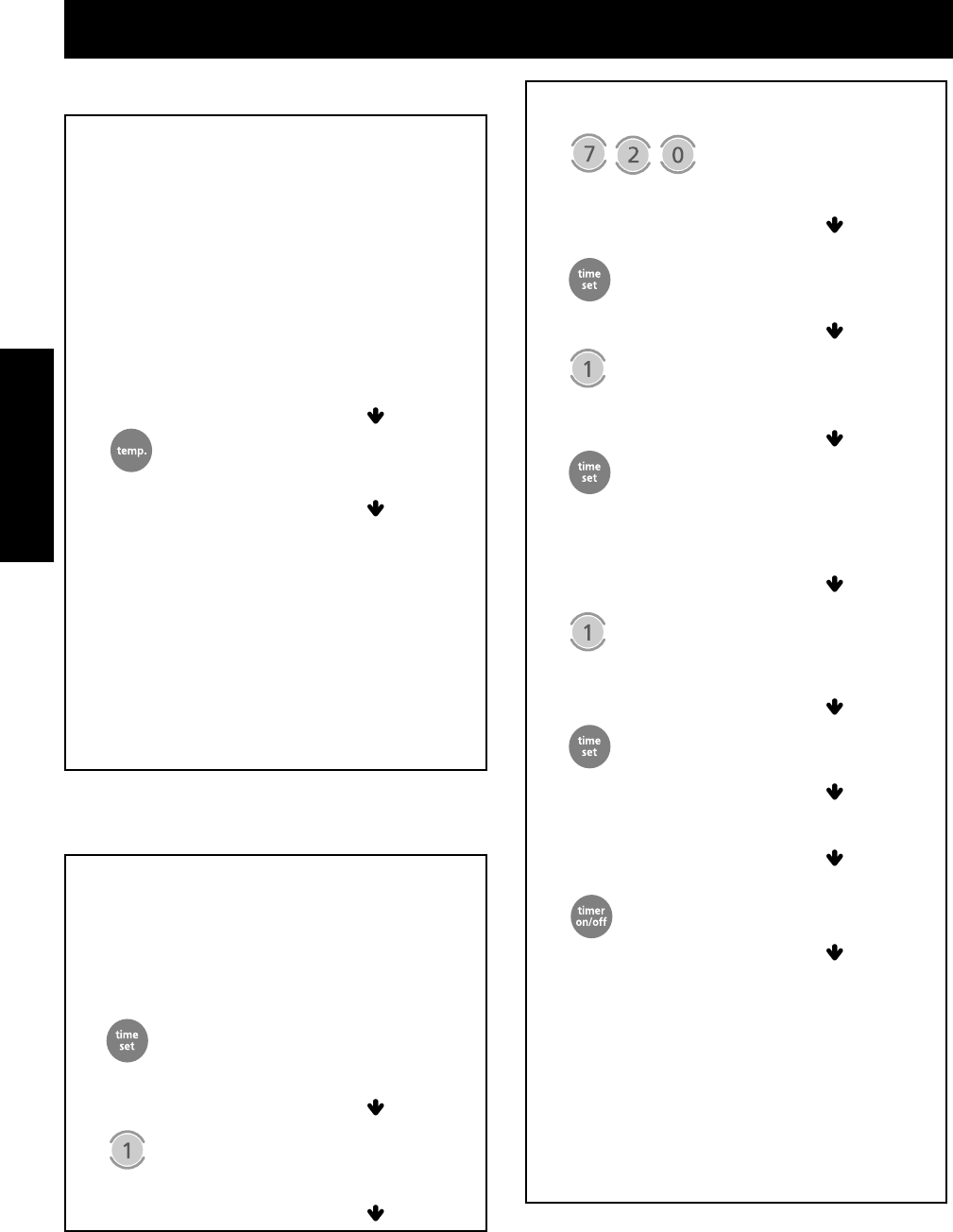

Use this pad when you want to adjust the warming

plate temperature of coffee after brewing

(including small batches).

This pad can be used during brewing (including

small batches), or warming.

Example: Setting to high during brewing

Touch: Display Shows:

TEMP

brew/warm-med

(Scroll)

warm-hi

(Scroll once)

brew/warm-hi

(Scroll)

Time of the day.

NOTE:

1. Temperature of the coffee after brewing has

3 levels - “HIGH”, “MEDIUM”, and “LOW”.

2. Whenever you touch “Temp.” key, the warm

temperature level will be changed in sequence.

(“LOW” - “MEDIUM” - “HIGH” - “LOW”...)

3. Warming plate temperature is set at MEDIUM

when the unit is plugged in.

Touch: Display Shows:

7:20

touch/time set

(Scroll)

7:20

am/touch 1/pm/touch 2

(Scroll)

am 7:20

touch/time set

(Scroll)

am 7:20

brew/touch 1/

small/batch/touch 2

(Scroll)

am 7:20

brew/touch/time set

(Scroll)

am 7:20

set/auto on

set/brew/timer

(Scroll once)

Time of the day.

Auto BREW

Setting Auto-On time 7:20.

If you want to set 11:30,

Touch 1,1,3,0 pad in order.

Select either a.m. or p.m.

A.M. is selected.

Select either brew or

small batch.

Now, Timer is set to on

- Mode : Brew

- Time of day : 7:20 a.m.

NOTE:

1. The “Auto-On” feature is used to reserve the start

time of the brewing process.

2. Touch “Timer On/Off” to activate “Auto-On” mode.

To deactivate “Auto-On”, touch “Timer On/Off”

again.

3. If you want to set a time for “Auto-On”, the time of

day should be set first.

After

scrolling

stops.

After

scrolling

stops.

After

scrolling

stops.

This pad enables you to enjoy freshly brewed coffee

at any pre-selected time within a 24-hour period.

Example: Auto-On at 7:20 (a.m.)

Touch: Display Shows:

HOW TO SET THE BREW TIMER

FOR AUTO-ON MODE

brew timer/touch 1/

warm/time/touch 2

(Scroll)

: enter/auto on/

time of/day

(Scroll)

Time of the day.

After

scrolling

stops.

USING YOUR COFFEE MAKER

ENGLISH

Use this pad when you want to change the warming

time.

Example : To set warm time for 1 hour

30 minutes.

Touch: Display Shows:

HOW TO CHANGE THE

WARMING TIME

brew timer/touch 1/

warm/time/touch 2

(Scroll)

: enter/warm/time

(Scroll)

1:30

touch/time set

(Scroll)

changed/warm/time

(Scroll once & No beep)

Time of the day.

Setting warming time

to 1 hour, 30 minutes.

Changed warming time

to 1 hour, 30 minutes.

NOTE:

1. The “Auto-Off” feature is used to shut off the

coffee maker at a preset time.

2. Warming time can be set from 10 min. up to 2 hrs.

3. Warming time is set to 1 hr. when you plug in.

Use this pad when you want to select the “Auto-On”

mode.

Touch: Display Shows:

TIMER ON

1. am 7:20

set/auto on

(Scroll)

Time of day.

auto brew

Time of the day.

After

scrolling

stops.

After

scrolling

stops.

After

scrolling

stops.

“A.M. 7:20” means

the start time of the

brewing process at

7:20 a.m.

automatically.

Use this pad when you want to cancel the

“Auto-On” mode.

Touch: Display Shows:

TIMER OFF

1. reset/auto on

(Scroll once)

Time of the day.

Time of day.

auto brew

After

scrolling

stops.

NOTE:

1. This pad can be used only after “Auto-On” mode

is set.

NOTE:

1. “Auto BREW” displays when ‘Auto-On’ is set for

‘BREW’.

2. “Auto 1-4” displays when ‘Auto-On’ is set for ‘1-4’.

USING YOUR COFFEE MAKER

ENGLISH

USING YOUR COFFEE MAKER

OTHER FUNCTIONS

“Auto-On” operation when other functions are in use.

1) Microwave cooking or programmed microwave cooking.

- Will delay “Auto-on” brewing until 5 minutes after microwave cooking is finished. Auto-On start will be skipped

if the microwave is still operating for 30 minutes after the programmed Auto-On time is set to start.

2) Brewing or Small Batch Brewing is in use

- “Auto-On” is skipped.

3) Warming plate function is in use

- “Auto-On” will operate normally and warm function will be cancelled.

Basic concept for simultaneous operation

1) Basically, you can not use the Microwave Oven while the brew functions, such as ‘Brew’, ‘1-4’ are activated.

Otherwise you can use all other Microwave functions, such as timer and clock.

2) You can not operate Coffee Maker functions while Microwave Oven is operating.

ENGLISH

TROUBLESHOOTING

Questions and Answers

Operation

Question

Why is the oven light not on during

cooking?

Why does steam come out of the air

exhaust vent?

Will the microwave oven be damaged if it

operates empty?

Does microwave energy pass through the

viewing screen in the door?

Why does a tone sound when a pad on

the control panel is touched?

Can my microwave oven be damaged if

food is cooked for too long?

When the oven is plugged into a wall

outlet for the first time, it does not work

properly. What is wrong?

Why do I see light reflection around the

outer case?

What are the various sounds I hear when

the microwave oven is operating?

What does "F-1" and "F-2" code on the

display mean?

What is wrong when baked foods have a

hard, dry, brown spot?

Why do eggs sometimes pop?

There may be several reasons why the oven light is not on.

Have you:

• Set a cooking time?

• Touched START?

Steam is normally produced during cooking. The microwave oven

has been designed to vent this steam.

Yes. Never operate the oven empty or without the glass turntable.

No. The metal screen bounces the energy back to the oven cavity.

The holes (or ports) allow only light to pass through. They do not

let microwave energy pass through.

The tone tells you that the setting has been entered.

Like any other cooking appliance, it is possible to overcook food

to the point that the food creates smoke, and even possibly fire

and damage to the inside of the oven. It is always best to be near

the oven while you are cooking.

The microcomputer controlling your oven may temporarily

become scrambled and fail to function as programmed when you

plug it in for the first time or when power resumes after a power

interruption. Unplug the oven from the 120~ volt household outlet

and then plug it back in to reset the microcomputer.

This light is from the oven light which is located between the

oven cavity and the outer wall of the oven.

The clicking sound is caused by a mechanical switch turning the

microwave oven’s magnetron ON and OFF. The heavy hum and

clunk is from the change in power the magnetron draws as it is

turned ON and OFF by a mechanical switch.The change in blower

speed is from the change in line voltage caused by the magnetron

being turned ON and OFF.

That means failure mode. Contact the nearest Sears Parts & Repair

Center.

A hard, dry, brown spot indicates overcooking. Shorten the cooking

or reheating time.

When baking, frying, or poaching eggs, the yolk may pop due to

steam buildup inside the yolk membrane. To prevent this,

simply pierce the yolk with a wooden toothpick before cooking.

CAUTION: Never microwave eggs in the shell.

Answer

ENGLISH

TROUBLESHOOTING

Questions and Answers (continued)

Food

Question

Why are scrambled eggs sometimes a

little dry after cooking?

Why do baked apples sometimes burst

during cooking?

Why do baked potatoes sometimes

burn during cooking?

Why is a standing time recommended

after microwave cooking time is over?

Why is additional time required for

cooking food stored in the refrigerator?

Eggs will dry out when they are overcooked, even if the same

recipe is used each time. The cooking time may need to be varied

for one of these reasons:

• Eggs vary in size.

• Eggs are at room temperature one time and at refrigerator

temperature another time.

• Eggs continue cooking during standing time.

The peel has not been removed from the top half of each apple to

allow for expansion of the interior of the apple during cooking. As in

conventional cooking methods, the interior of the apple expands

during the cooking process.

If the cooking time is too long, fire could result. At the end of the

recommended cooking time, potatoes should be slightly firm.

CAUTION: Do not overcook.

Standing time allows foods to continue cooking evenly for a few

minutes after the actual microwave oven cooking cycle ends. The

amount of standing time depends upon the density of the foods.

As in conventional cooking, the initial temperature of food affects

total cooking time. You need more time to cook food taken out of a

refrigerator than for food at room temperature.

Answer

ENGLISH

TROUBLESHOOTING

BEFORE CALLING FOR SERVICE

Problem

Oven and Coffee Maker does not start

Arcing or Sparking

Incorrect time of day

Unevenly Cooked Foods

Overcooked Foods

Undercooked Foods

Improper Defrosting

Coffee Maker malfunctions or fails to

operate.

You can often correct operating problems yourself. If your Brew’ N Wave fails to work properly, locate the

operating problem in the list below and try the solutions listed for each problem.

If the Brew’ N Wave still does not work properly, contact the nearest Sears Parts & Repair Center, which is fully

equipped to handle your service requirements.

• Is the power cord plugged in?

• Is the door closed?

• Are the cooking time or brew control set?

• Are you using approved cookware?

• Is the oven empty?

• Have you tried to reset the time of day?

• Are you using approved cookware?

• Is the glass turntable in the oven?

• Did you turn or stir the food while it was cooking?

• Were the foods completely defrosted?

• Was the time/cooking power level correct?

• Are you using approved cookware?

• Were the foods completely defrosted?

• Was the time/cooking power level correct?

• Are the ventilation ports clear?

• Are you using approved cookware?

• Was the time/cooking power level correct?

• Did you turn the food over or stir during the defrosting cycle?

• Is the machine plugged in?

• Is the fuse in the circuit to the machine in working order?

• If you have a circuit breaker box, be sure the circuit is closed.

• Try unplugging and re-plugging.

• Is ‘Water Reservoir’ installed properly?

• Is ‘Water Reservoir’ empty ?

Possible Causes

ENGLISH

TROUBLESHOOTING

WARNING:

This equipment generates and uses ISM frequency

energy and if not installed and used properly, that is in

strict accordance with the manufacturer's instructions,

may cause interference to radio and television

reception. It has been type tested and found to comply

with limits for ISM Equipment pursuant to part 18 of

FCC Rules, which are designed to provide reasonable

protection against such interference in a residential

installation.

However, there is no guarantee that interference will

not occur in a particular installation. If this equipment

does cause interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the

following:

• Reorient the receiving antenna of the radio or

television.

• Relocate the Microwave Oven with respect to the

receiver.

• Move the microwave oven away from the receiver.

• Plug the microwave oven into a different outlet so

that the microwave oven and the receiver are on

different branch circuits.

The manufacturer is not responsible for any radio

or TV interference caused by unauthorized

modification to this microwave oven. It is the

responsibility of the user to correct such interference.

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE

STATEMENT (U.S.A. ONLY)

LG Electronics USA D124ZKA Microwave Oven User Manual

LG Electronics USA Microwave Oven Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
