OWNER’S MANUAL
3D MONITOR
3D MONITOR MODEL
D2341P
Please read this manual carefully before operating your set and
retain it for future reference.
ENGLISH
1
This unit has been engineered and manufactured to ensure your personal safety,
however improper use may result in potential electrical shock or fire hazards. In
order to allow the proper operation of all safeguards incorporated in this display,
observe the following basic rules for its installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of this
manual or listed on the display. If you are not sure what type of power supply you
have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your
service technician for replacement.
As long as this unit is connected to the AC wall outlet, it is not disconnected from
the AC power source even if the unit is turned off.
Do not Open the Display:
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
Important Precautions
2
Important Precautions
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place the
display where the power cord is subject to damage.
Do not use this display near water such as near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
Do not shock or scratch the front and sides of the screen with metallic objects.
Otherwise, it may cause damage to the screen.
Make sure the panel faces forward and hold it with both hands to move. If you
drop the product, the damaged product can cause electric shock or fire. Contact
an authorized the service center for repair.
Avoid high temperatures and humidity.
For displays with glossy bezels the user should consider the placement of the
display as the bezel may cause disturbing reflections from surrounding light and
bright surfaces.
Important Precautions
3
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
When cleaning the product, unplug the power cord and scrub gently with a soft
cloth to prevent scratching. Do not clean with a wet cloth or spray water or other
liquids directly onto the product. An electric shock may occur. (Do not use
chemicals such as benzene, paint thinners or alcohol)
Spray water onto a soft cloth 2 to 4 times, and use it to clean the front frame;
wipe in one direction only. Too much moisture may cause staining.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
4
Cautions When Viewing 3D Images
Cautions When Viewing 3D Images
If you view images in 3D mode for a long period of time (playing games, viewing
movies, etc.), you may feel dizzy. We strongly recommend you to take a rest
after viewing images in 3D mode for one hour. (Feeling dizzy can vary
individually.)
Please view 3D images within the optimal viewing angle and distance of the
product. Otherwise, 3D images may look overlapped or not be displayed
properly in 3D.
If you view 3D images too closely for a long period of time, this may cause
dizziness or blurred vision. Please keep the proper distance.
If you are pregnant, a senior or have heart problems, we recommend you not to
view 3D images. The 3D images can cause disorientation and confusion.
The 3D images can cause nausea or vomiting in those under the influence of
alcohol. In this case, please do not view 3D images.
Parents/guardians should monitor children’s viewing of 3D images because they
may be unable to handle emergency situations.
Do not use the 3D glasses as regular glasses, sunglasses, or goggles. This may
cause your vision to get worse.
Do not keep the 3D glasses in an extremely hot or cold place. This may cause
damage to the shape. Do not use the 3D glasses if they are damaged because
this may cause your vision to get worse or dizziness.
The lenses of the 3D glasses (polarizing film) are easily scratched. Use a soft and
clean cloth when cleaning it. Do not use any chemicals.
Cautions for Safety
Warning for photosensitivity seizure
Some users may experience a seizure or other abnormal symptoms when they
are exposed to a flashing light or particular pattern from a video game or movie.If
anyone in your family has a history of epilepsy or any kind of seizure, please
consult with your doctor before viewing 3D images. If you feel any symptoms
listed below when viewing 3D images, please stop viewing and consult with your
doctor even if you do not have a medical history.
* Symptoms : dizziness, blurred vision or facial tic, involuntary motion,
twitching,blackout, confusion, disorientation and wrong decision.
To prevent a photosensitivity seizure, please follow the instructions
below.
1.Do not view 3D images when you are sleepy, tired, or sick.
2.Do not view 3D images for a long period of time.
3.Reduce the depth of the 3D image.
5

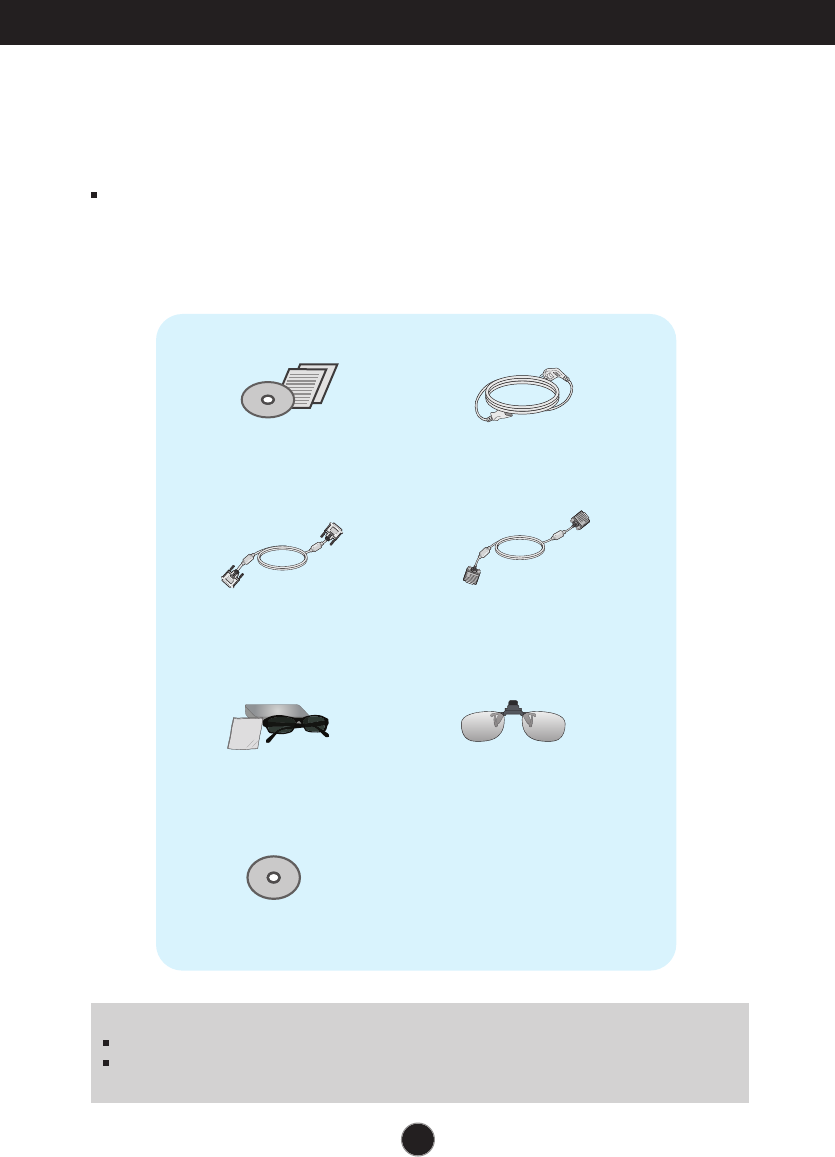

Accessories
!!! Thank for selecting LGE products !!!
Please make sure the following items are included with your
monitor. If any items are missing, contact your dealer.
User's Guide/Cards Power Cord
15-pin D-Sub Signal Cable
(To set it up, this signal cable may be
attached to this product before
shipping out.)
DVI-D Signal Cable
(This feature is not available in all
countries.)
NOTE
This accessories may look different from those shown here.
User must use shielded signal interface cables (D-sub 15 pin cable, DVI-D cable) with ferrite
cores to maintain standard compliance for the product.
3D Glasses
(Normal type)
3D Glasses
(Clip type)
TriDef 3D S/W Program CD
6
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Connecting the stand

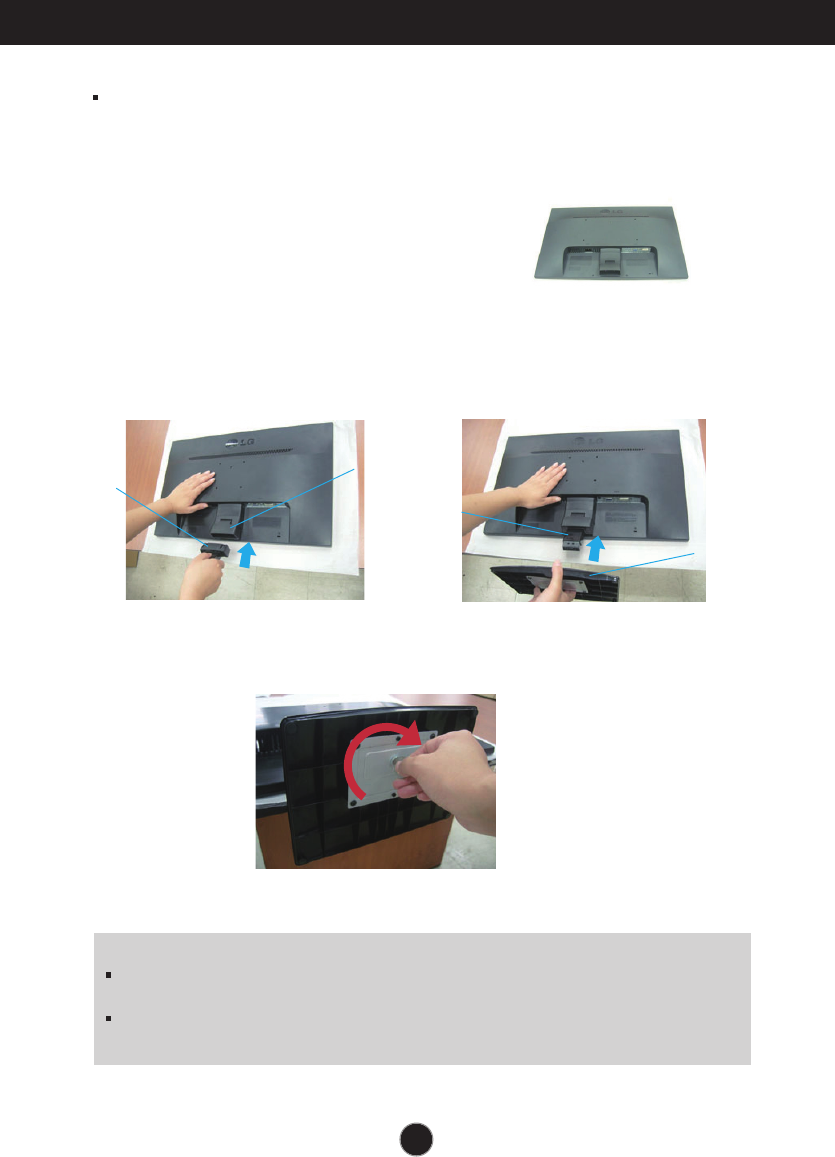

1. Place the monitor with its front facing downward on
a soft cloth.
2. Assemble the Stand Body into the
product in the correct direction as shown in
the picture. Make sure you push it until you
hear it “click”.
3. Assemble the Stand Base(Front,
Rear) into the Stand Body in the
correct direction.
4. Use a coin on the back of the stand base and turn the screw clockwise to tighten.
5. Once assembled take the monitor up carefully and face the front side.
Important
This illustration depicts the general model of connection. Your monitor may differ from
the items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may
fall and get damaged or injure your foot.
Stand Body
Hinge Body
Stand Body
Stand Base
7
Connecting the Display

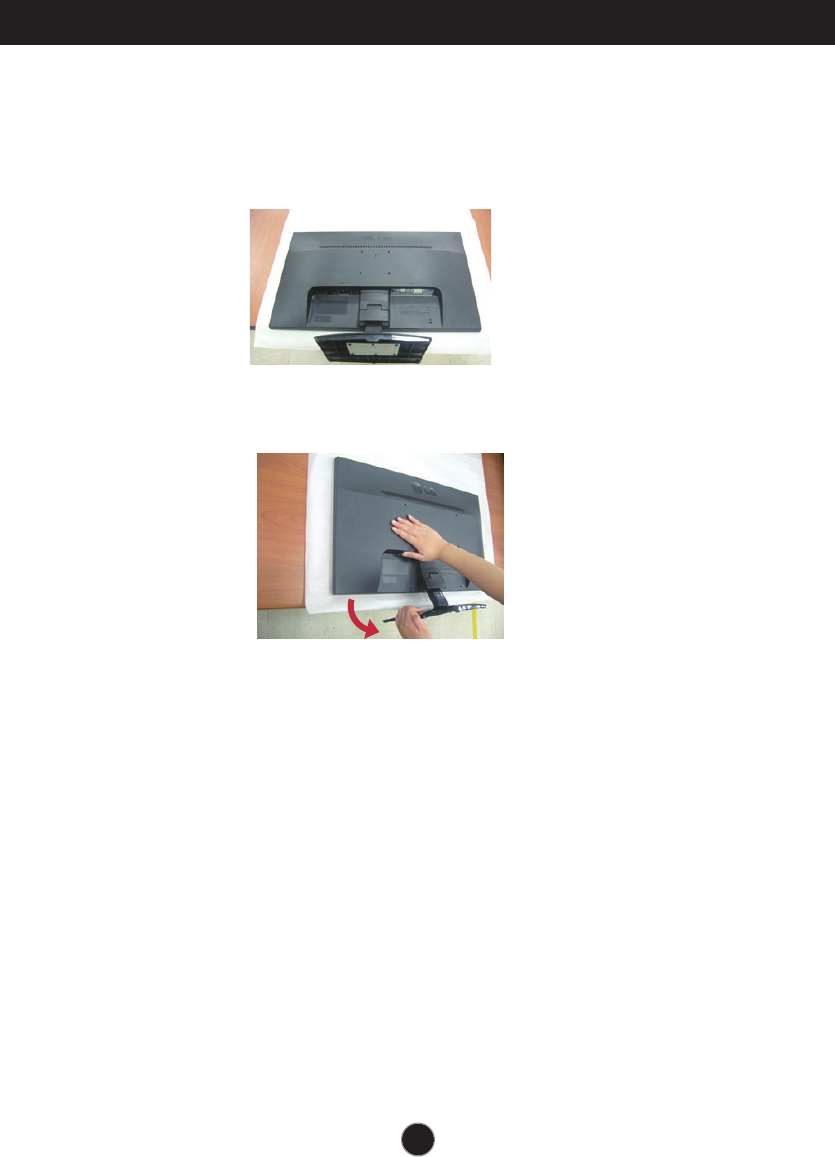

Disassembling the stand
1. Put a cushion or soft cloth on aflat
surface.
3.Remove the Stand Body and
Stand Base from product in
correct direction as shown in the
picture.
2. Place the monitor face Down on the
cushion or soft cloth.
4. Use a coin on the back of the Stand
Base and turn the screw anticlock-
wise to loosen.
8
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor,
the computer system, and other attached devices is turned off.
Positioning your display
-After installation, adjust the angle as shown below.

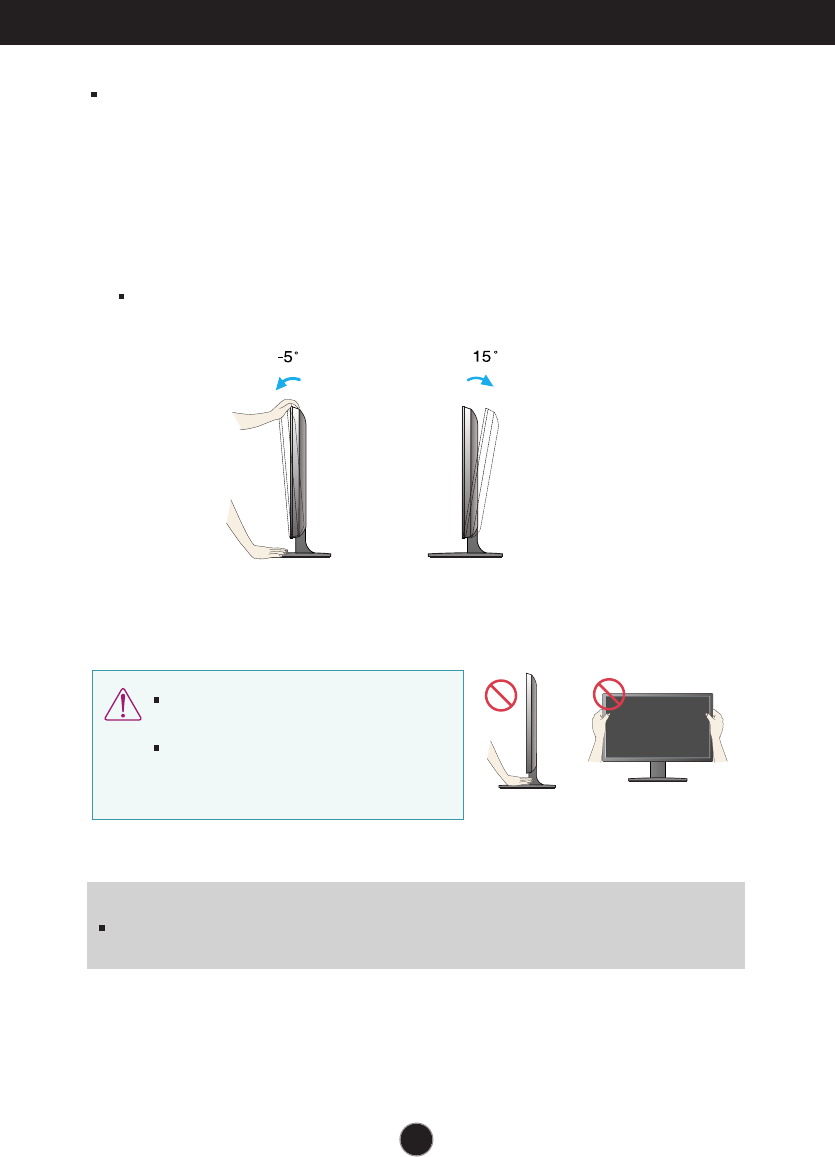

1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -5˚ to 15˚
ERGONOMIC
It is recommended that in order to maintain an ergonomic and comfortable viewing position,
the forward tilt angle of the monitor should not exceed 5 degrees.
Do not touch or press the screen when
adjusting the angle of the monitor.
When adjusting the angle of the screen, do
not put your finger(s) in between the head of
the monitor and the stand body. You can
hurt your finger(s).
9
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display
settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO’ Function? When you encounter problems such as blurry screen, blurred letters, screen
flicker or tilted screen while using the device or after changing screen resolution, press the
AUTO function button to improve resolution.
A
B

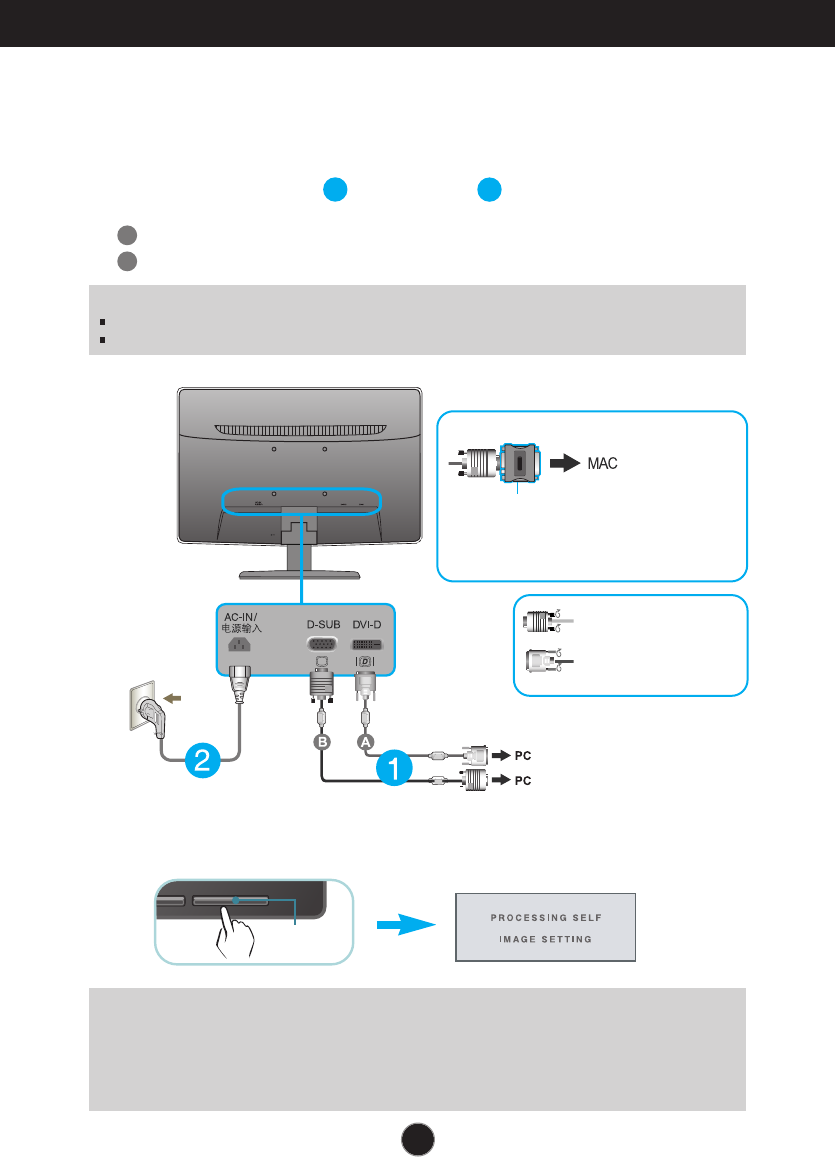

Connect DVI-D(Digital signal) Cable
Connect D-sub(Analog signal) Cable
1. Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
2.
Connect signal input cable and power cord in order, then tighten the screw
of the signal cable.
Connecting with the PC
12
Wall-outlet type
Mac adapter : For Apple Macintosh use, a
separate plug adapter is needed to change the
15 pin high density (3 row) D-sub VGA
connector on the supplied cable to a 15 pin 2
row connector.
When using a D-Sub signal input cable connector
for Macintosh
Varies according to model.
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your display may differ from the view as shown.
3. Press the power button on the front panel to turn the power on. When monitor power is
turned on, the 'Self Image Setting Function' is executed automatically.
(Only Analog Mode)
Power Button
Connect the signal
input cable and tighten
it up by turning in the
direction of the arrow
as shown in the figure.
Connecting the Display
10

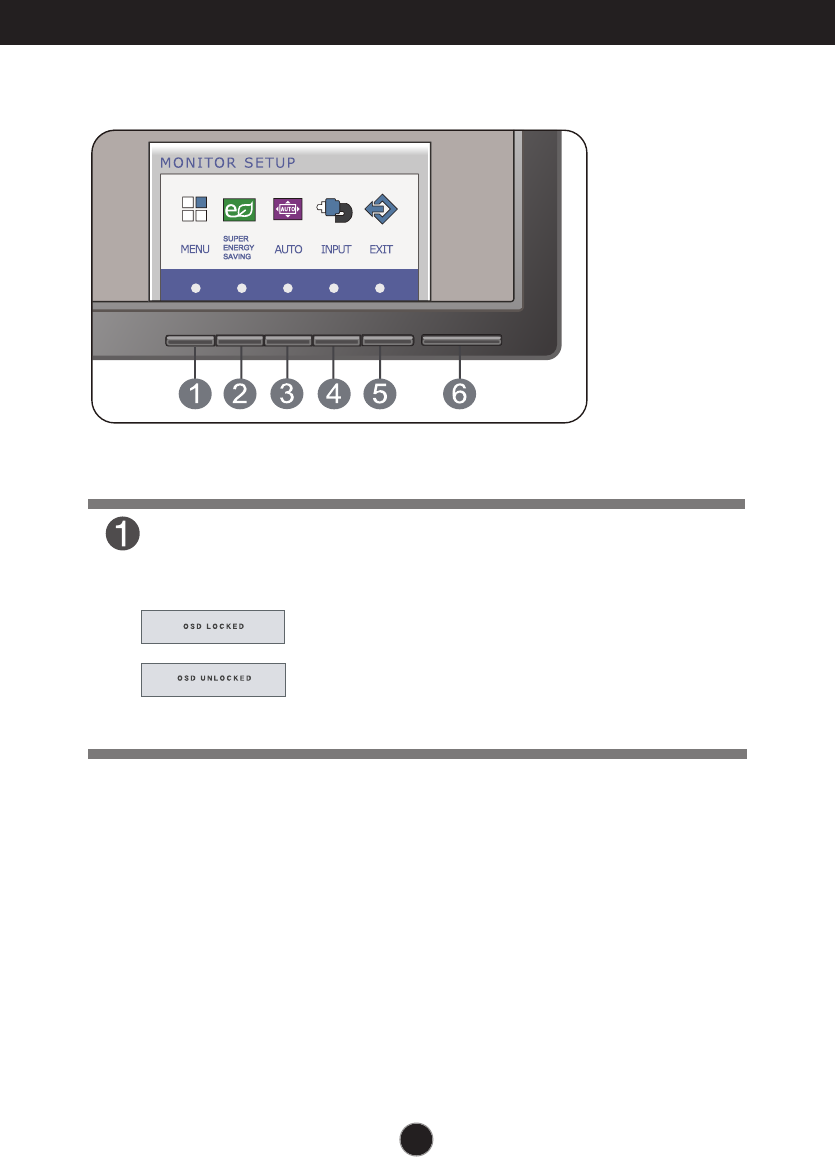

Control Panel Functions
Front Panel Controls
MENU Button
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
11
Control Panel Functions
AUTO Button
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press the
AUTO button on the MONITOR SETUP OSD. (Only
Analog Mode)
This will automatically adjust your display image to the
ideal settings for the current screen resolution size
(display mode).
The best display mode is
1920 x 1080
INPUT Button
Use this button to turn the display on or off.
The power indicator stays blue if the display is running
properly (On Mode). If the display is in Sleep Mode , the
power indicator is blinking blue.
Power Button &
Power Indicator
When two input signals are connected, you can select the
input signal (D-SUB/DVI) you want. When only one signal
is connected, it is automatically detected. The default
setting is D-Sub.
(SOURCE Hot key)
Exit the OSD(On Screen Display).
EXIT Button
SUPER ENERGY
SAVING Button
Use this button to enter
SUPER ENERGY SAVING
menu.For more information, refer to page 17.
12

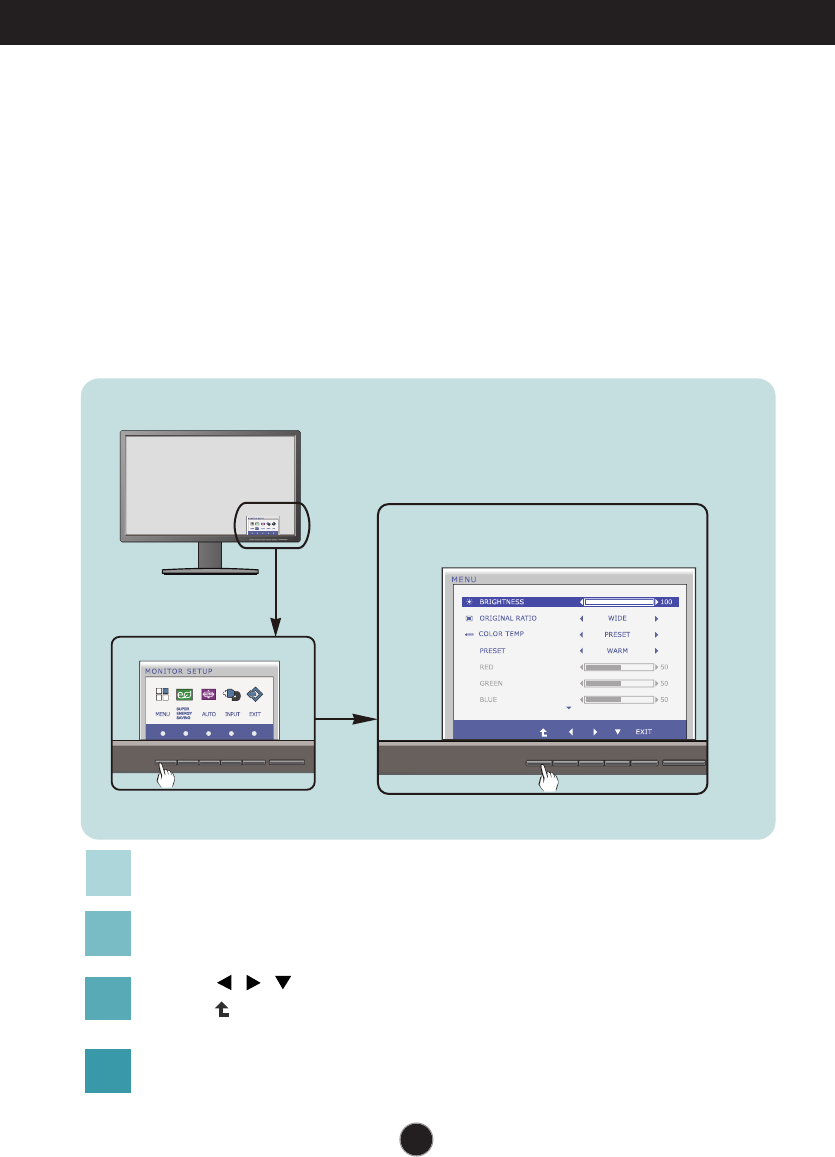

On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating
parameters of the display is quick and easy with the On Screen
Display Control system.
A short example is given below to familiarize you with the use of the
controls. The following section is an outline of the available
adjustments and selections you can make using the OSD.
To make adjustments in the On Screen Display, follow these steps:
Press the discretionary Button, then the main menu of the OSD appears.
To access a control, use the corresponding Buttons.
Use the / / Buttons to adjust the image to the desired level.
Use the Button to select other sub-menu items.
Press the EXIT Button to exit from the OSD.
1
2
3
4
On Screen Display (OSD) Control Adjustment
13
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
: D-SUB(Analog signal) input
: DVI-D(Digital signal) input
DSUB
DVI-D
To customize the screen status
for a user's operating
environment
To adjust the contrast of the
screen
To customize the color of the
screen
MENU To adjust the brightness of the
screen
NOTE
The order of icons may differ depending on the model (13 to 19).
DSUB
DVI-D
To adjust the image size
Main menu Sub-menu
Supported input
Description
BRIGHTNESS
ORIGINAL RATIO
COLOR TEMP
(PRESET / USER)
CONTRAST
LANGUAGE
FACTORY RESET
SUPER
ENERGY
SAVING
Turn on the SUPER ENERGY
SAVING function.
DSUB
DVI-D
Turn off the SUPER ENERGY
SAVING function.
Initialize the SUPER ENERGY
SAVING and set to "OFF" mode.
ON
OFF
RESET
14
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
Sub-menus
NOTE
OSD (On Screen Display) menu languages on the monitor may differ from the manual.
Menu Name
Icons
Button
Tip
Press the MENU Button, then the main menu of the OSD appears.
Exit
Move
Restart to select sub-menu
15

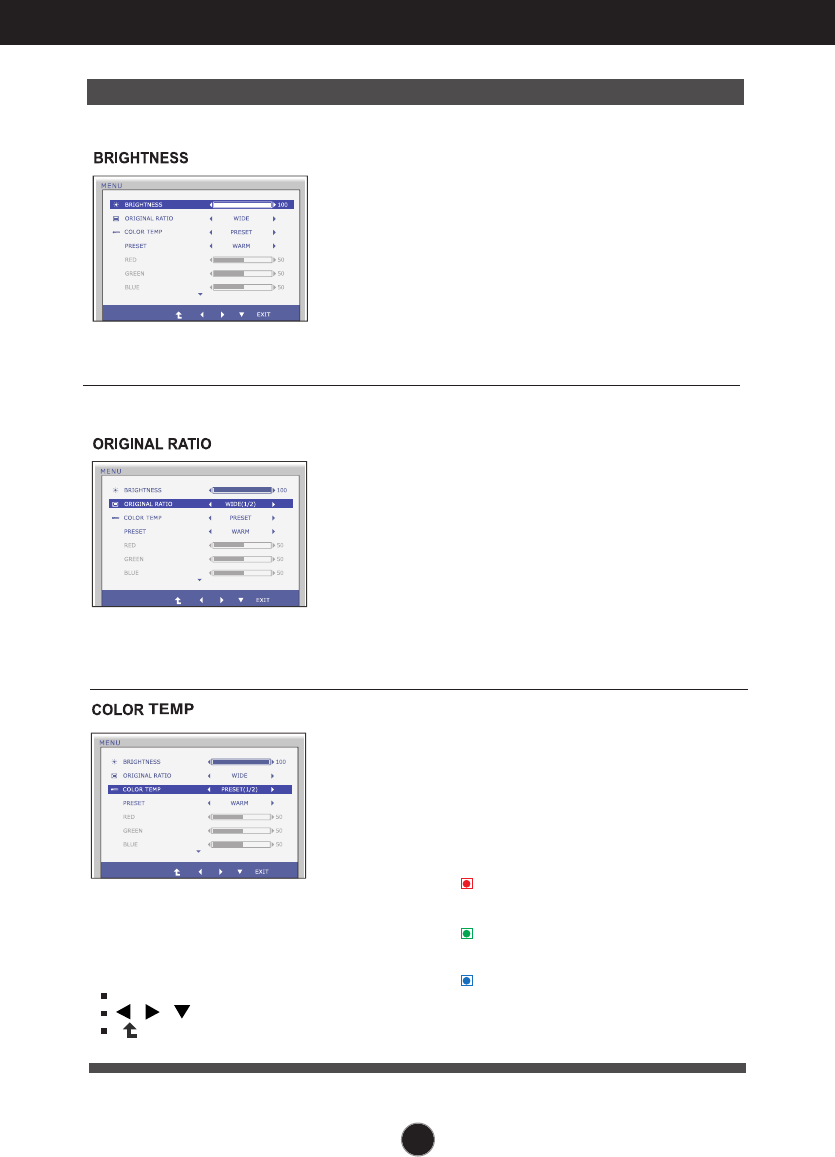

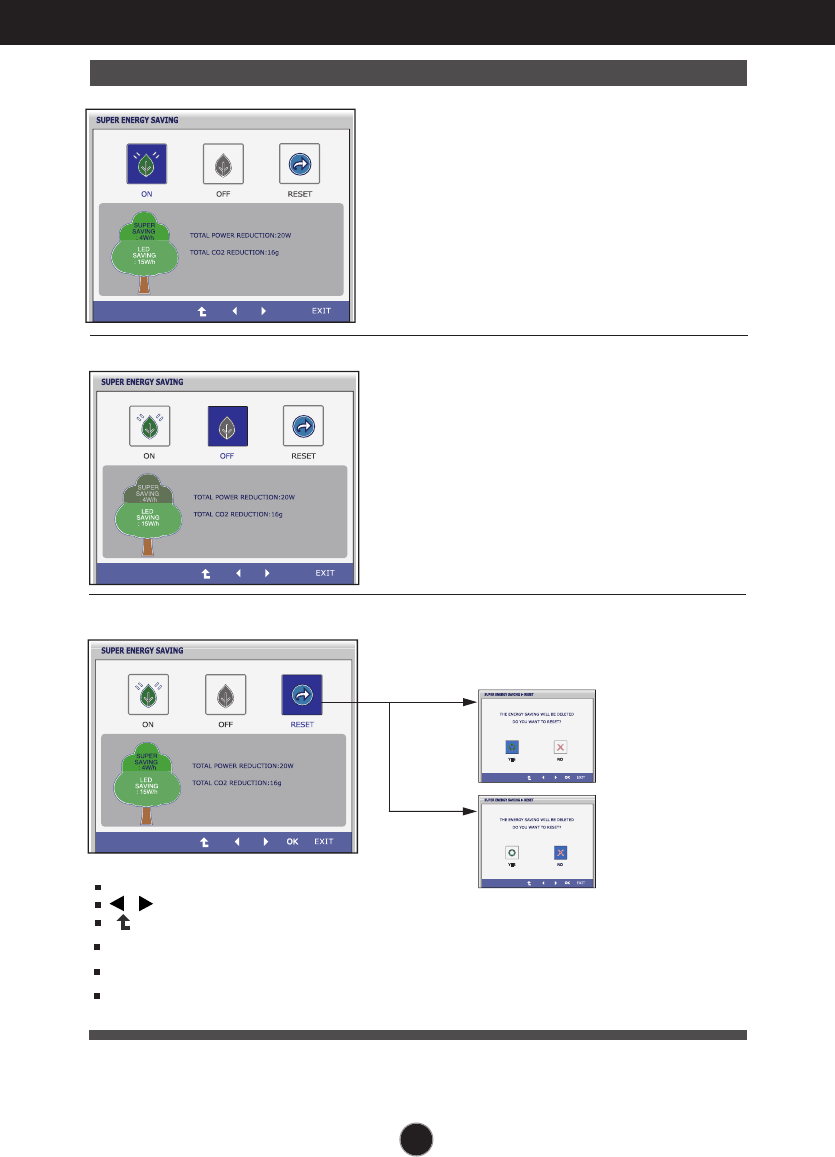

On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
To adjust the brightness of the screen.
Change the input image signal ratio to
original.
WIDE
ORIGINAL
Switch to full screen mode according to
input image signal.
* This function works only if input
resolution is lower than monitor ratio
(16:9).
Exit : Exit
, , : Move
: Select another sub-menu
PRESET
Select the screen color.
• WARM: Set the screen to warm color
temperature .
• MEDIUM: Set the screen to medium
color temperature.
• COOL: Set the screen to cool color
temperature.
RED
Set your own red color levels.
GREEN
Set your own green color levels.
BLUE
Set your own blue color levels.
USER
16

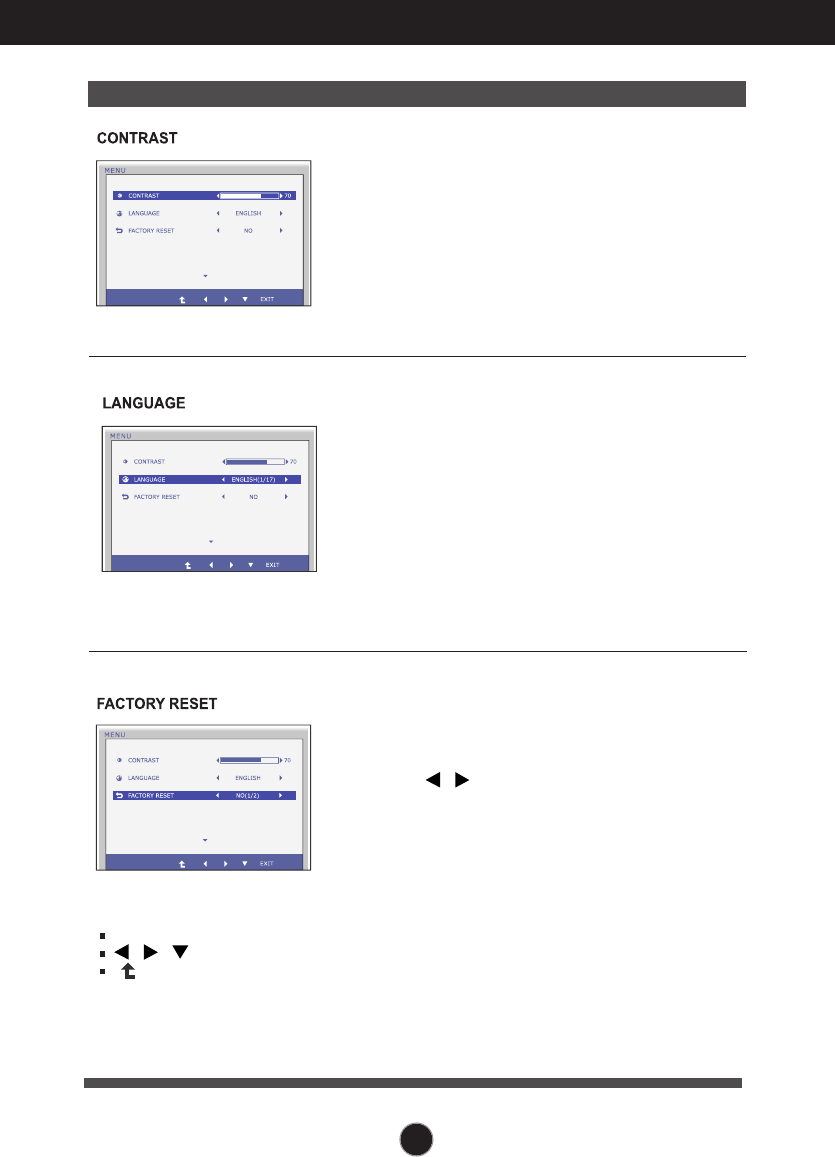

On Screen Display(OSD) Selection and Adjustment
Main menu Description
To choose the language in which the
control names are displayed.
Press the , buttons to reset
immediately.
Restore all factory default settings except
"LANGUAGE."
To adjust the contrast of the screen.
Exit : Exit
, , : Move
: Select another sub-menu
17
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
Sub-menus
NOTE
OSD (On Screen Display) menu languages on the monitor may differ from the manual.
Menu Name
Icons
Button
Tip
Press the SUPER ENERGY SAVING Button, then the main menu of the
OSD appears.
Exit
Move
Restart to select sub-menu
18
On Screen Display(OSD) Selection and Adjustment
Main menu Sub menu Description
Exit : Exit
, : Move
: Select another sub-menu
Turn on the SUPER ENERGY
SAVING fuction.
When current setting value is
ON,the SUPER SAVING color is
green.
Turn off the SUPER ENERGY
SAVING function.Now the monitor
is LED SAVING function.
When current setting value is
OFF,the SUPER SAVING color is
gray.
Clear the TOTAL POWER
REDUCTION and TOTAL CO2
REDUCTION values.
OK : Select
TOTAL POWER REDUCTION : How much power is saved during using the monitor.
TOTAL CO2 REDUCTION : Change the TOTAL POWER REDUCTION to CO2.
ON
OFF
RESET
19
On Screen Display(OSD) Selection and Adjustment
SUPER SAVING
LED SAVING
5
12
23 inch
Saving Data depends on the Panel. So,those values should be different from
each panel and panel vendor.
LG accumulate those values using integrated function with 10 minutes
broadcast video signal.
LED Saving means that how much power can be saved using WLED Panel
instead of CCFL panel.
SUPER Saving means that how much power can be more saved using
SUPER ENERGY SAVING function.
NOTE
SAVING DATA(W/h):
20
Troubleshooting
No image appears
Check the following before calling for service.
No image appears
Do you see a "OSD LOCKED" message on the screen?
●Is the power cord of the
display connected?
●Is the power indicator
light on?
●Is the power indicator
flickering?
●Do you see an "OUT OF
RANGE" message on
the screen?
●Do you see a "CHECK
SIGNAL CABLE"
message on the
screen?
•
Check and see if the power cord is connected
properly to the power outlet.
•
Press the Power button.
•
If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard to
bring up the screen.
• Try to turn on the PC
.
•
This message appears when the signal from the
PC (video card) is out of horizontal or vertical
frequency range of the display. See the
'Specifications' section of this manual and
configure your display again.
•
This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.
• You can secure the current control settings,
so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time
by pushing the MENU button for several
seconds: the message
“OSD UNLOCKED” will appear.
●
Do you see “OSD
LOCKED” when you
push MENU button?
21
Troubleshooting
Display image is incorrect
●Display Position is
incorrect.
●On the screen
background, vertical
bars or stripes are
visible.
●Any horizontal noise
appearing in any
image or characters
are not clearly
portrayed.
•
Press the AUTO button to automatically adjust
your display image to the ideal setting.
•
Press the AUTO button to automatically adjust
your display image to the ideal setting.
•
Press the AUTO button to automatically adjust
your display image to the ideal setting.
•
Check Control Panel --> Display --> Settings
and adjust the display to the recommended
resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits
(true color).
IMPORTANT
Check Control Panel --> Display --> Settings and see if the frequency or the
resolution were changed. If yes, readjust the video card to the recommend
resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be
blurred and the screen may be dimmed, truncated or biased. Make sure to select
the recommend resolution.
The setting method can differ by computer and O/S (Operation System),
and resolution mentioned above may not be supported by the video card
performance. In this case, please ask to the computer or the video card
manufacturer.
22
Display image is incorrect
●The screen color is
mono or abnormal.
●The screen blinks.
•
Check if the signal cable is properly connected
and use a screwdriver to fasten if necessary.
•
Make sure the video card is properly inserted in
the slot.
•
Set the color setting higher than 24 bits (true color)
at Control Panel - Settings.
•
Check if the screen is set to interlace mode and if
yes, change it to the recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA
DDC) monitor found" message?
●
Have you installed the
display driver?
•
Be sure to install the display driver from the display
driver CD (or diskette) that comes with your
display. Or, you can also download the driver from
our web site: http://www.lg.com.
•
Make sure to check if the video card supports
Plug&Play function.
Troubleshooting
I can see a swirling oil-like pattern on the monitor when the
monitor is turned off.
I cannot see 3D images properly.
23
Troubleshooting When Using 3D Mode
• This is caused by the interference of external light in the air layer between the
LCD surface and 3D filter.
The pattern becomes almost invisible when you turn on the power again.
●
If you are not using the
glasses provided with
the monitor,
●
If you view 3D images
outside the optimal
viewing angle or
distance,
●
If you have not set the
resolution,
• When you view 3D images with this monitor, it
is very important that you use the glasses
provided with the monitor. The glasses are
designed to compensate optically for the 3D
filter attached to the surface of the monitor. If
you wear third-party glasses, you may not see
3D images properly on the monitor.
• The optimal viewing angle of the monitor is
between -4° and 8° in vertical direction while
between 85° and -85° in horizontal direction;
the optimal viewing distance is between 50 cm
to 70 cm from the monitor. When you view 3D
images outside the optimal viewing angle or
viewing distance, the images may look
overlapped or not be displayed properly in 3D.
• Please set the resolution of the monitor to the
maximum (1920 x 1080 @ 60 Hz) in the display
settings. The 3D software may not work
properly if the resolution is not set to the
maximum.
24
Troubleshooting When Using 3D Mode
I cannot see 3D images properly.
●
If the images that your
left and right eyes see
are reversed,
●
I cannot see 3D but only
2D images.
●
If the ‘TriDef Support’
couldn’t work properly
• The stripe images in the odd-numbered lines
are the ones that your right eye sees on the
monitor. If you only see the stripe images, not
3D images, set the images for your right eye to
be displayed in the odd-numbered lines by
changing the player or viewer option of the 3D
software.
• This monitor works both in 2D and 3D mode.
You can view a video in 3D if it is made in 3D. If
you try to view 2D images in 3D, they might not
be displayed properly or you may experience
poor picture quality.
• The recommended system requirements on PC
to run the ‘TriDef Support’ :
-Intel® Core 2 Duo or Athlon™ 64 X2 Dual-
Core CPU 1GB RAM;
-NVIDIA® GeForce 8600GT or ATI X1650 XT
or better 100MB free disk space;
-Windows® XP (SP2) (32 bit only), Windows®
Vista (32 bit only) or Windows®7 (32 or 64 bit);
-DirectX 9.0c compatible sound card;
-DVD-ROM drive,A supported DVD
Decoder(only when it is used);
-Network card(not necessary);
You can check your PC first.
25
Specifications
58.4 cm (23 inch) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size :
58.4 cm
0
.
265 mm x 0
.
265 mm (Pixel pitch)
Display
Horizontal Freq. 30 kHz to 83 kHz (Automatic)
Vertical Freq. 56 Hz to 75 Hz (Automatic)
Input Form Separate Sync.
Digital
Sync Input
Signal Input 15 pin D-Sub Connector
DVI-D Connector (Digital)
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Video Input
Max VESA 1920 x 1080 @ 60 Hz
Recommend VESA 1920 x 1080 @ 60 Hz
Resolution
Plug&Play
On Mode :
38 W(Typ.)
Sleep Mode < 0.3 W
Off Mode < 0.3 W
Power
Consumption
Operating Conditions
Temperature 10 ˚C to 35 ˚C
Humidity 10 % to 80 % non-Condensing
Storage Conditions
Temperature -20 ˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Environment
al Conditions
With Stand
Width 54.6 cm ( 21.49 inch )
Height 40.7 cm ( 16.02 inch )
Depth 20.2 cm ( 7.95 inch )
Weight(excl. packing) 3.5 kg ( 7.71 lb )
Dimensions
& Weight
Tilt : -5˚ to 15˚
Range
AC 100-240 V~ 50 / 60 Hz 1.0 A
Power Input
Attached ( ), Detached ( O )
Stand Base
Wall-outlet type
Power cord
Without Stand
Width 54.6 cm ( 21.49 inch )
Height 34.2 cm ( 13.46 inch )
Depth 5.7 cm ( 2.24 inch )
NOTE
Information in this document is subject to change without notice.
DDC 2B(Analog
,
Digital)
26
Specifications
Preset Modes (Resolution)
Indicator
On Mode
Sleep Mode
Off Mode
Blue
Blue Blinking
Off
LED Color
MODE
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
*Recommend Mode
1
2
3
4
5
6
7
8
9
10
11
*12
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
1024 x 768
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1680 x 1050
1920 x 1080
31.468
31.469
37.500
37.879
46.875
48.363
60.123
67.500
63.981
79.976
65.290
67.500
70
60
75
60
75
60
75
75
60
75
60
60
Polarity(H/V)
-/+
-/-
-/-
+/+
+/+
-/-
+/+
+/+
+/+
+/+
-/+
+/+
27
1. Place the monitor with its front facing downward on a soft cloth.
2. Remove the Stand Body and Stand Base from product in correct direction as shown in
the picture.
Installing the Wall mount plate
This monitor satisfies the specifications of the Wall mount plate or
the interchange device.
28

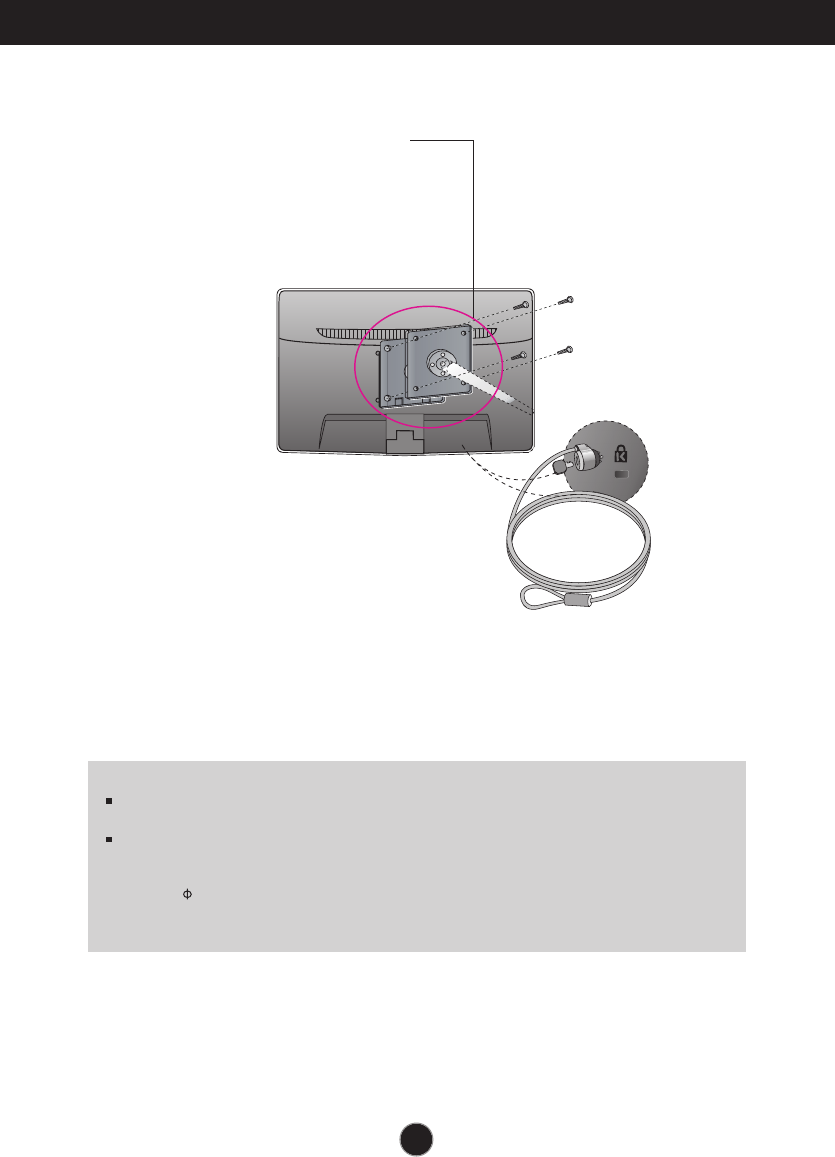

Installing the Wall mount plate
Wall mount plate(Separate purchase)
This is stand-type or wall mount type and is
connectable with Wall mount plate.
Please refer to the installation guide for more
details, which is provided when Wall mount
plate is purchased.
Kensington Security Slot
Connected to a locking cable that can
be purchased separately at most
computer stores.
<Screw Mounting Interface Dimension>
Hole spacing : 75 mm x 75 mm.
3.
Install the Wall mount plate.
NOTE
VESA compatible only with respect to screw mounting interface dimensions and mounting screw
specifications
Please use VESA standard as below.
* 784.8 mm and under (30.9 inch)
- Wall Mount Pad Thickness : 2.6 mm
- Screw : 4.0 mm x Pitch 0.7 mm x Length 10 mm
* 787.4 mm and above (31.0 inch)
- Please use VESA standard wall mount pad and screws.
Make sure to read the Safety Precautions
before using the product.
Keep the OWNER’S MANUAL(CD) in an
accessible place for furture reference.
The model and serial number of the SET is
located on the back or one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
As an ENERGY STAR Partner LGE U. S. A.,Inc.
has determined that this product meets the
ENERGY STAR guidelines for energy efficiency.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
