OWNER’S MANUAL
SUPER 3D MONITOR
D2342P
Please read this manual carefully before operating
your set and retain it for future reference.
SUPER 3D MONITOR MODEL
ENGLISH
2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
3 ASSEMBLINGANDPREPARING

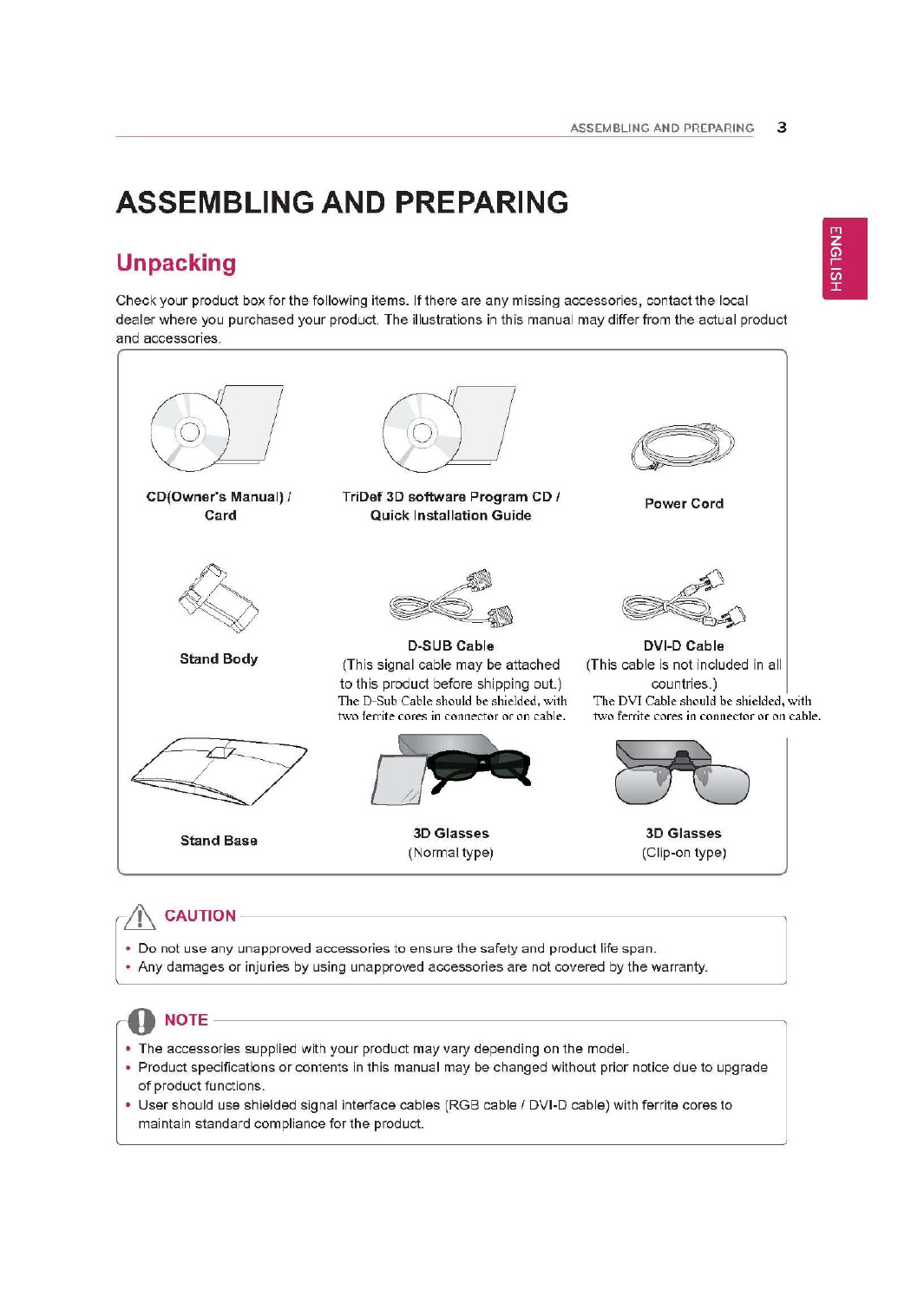

3 Unpacking
4 Partsandbuttons
6 SettinguptheMonitorset
6 - AttachingtheStandBase
6 - DetachingtheStandBaseandBody
7 - Mountingonatable
8 - Mountingonawall
10 USINGTHEMONITORSET
10 ConnectingtoaPC
10 - D-SUBconnection
10 - DVI-Dconnection
10 - HDMIconnection
12 CUSTOMIZINGSETTINGS
12 AccessingTheMainMenus
13 CustomizingSettings
13 - MenuSettings
14 - 3DSettings(Only3Dmode)
14 - VolumeSettings(Onlysupportedin
HDMI)
15 - SUPERENERGYSAVINGSettings
16 TROUBLESHOOTING
18 TROUBLESHOOTINGWHEN
USING3DMODE
19 SPECIFICATIONS
20 PresetModes(Resolution)
20 HDMI3DTIMING
20 Indicator
21 PRECAUTIONSTOTAKE
WHENVIEWING3DIMAGES
22 PROPERPOSTURE
22 ProperpostureforusingtheMonitorset.
22 Precautionstotakewhenviewing3Dim-
ages
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
Partsandbuttons
HDMID-SUB
AC-IN/
䔜㹷彺⅌ DVI-D
PowerIndicator
LightingOn:Turnedon
LightingOff:Turnedoff
Connectionpanel(Seep.10)
Button(Seep.13)
(PowerButton)
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
Button Description
MENU Accessesthemainmenus.(Seep.13)
OSDLOCKED/
UNLOCKED
Thisfunctionallowsyoutolockthecurrentcontrolsettings,so
thattheycannotbeinadvertentlychanged.
PressandholdtheMENUbuttonforseveralseconds.
Themessage"OSDLOCKED"shouldappear.
YoucanunlocktheOSDcontrolsatanytimebypushing
theMENUbuttonforseveralseconds.Themessage"OSD
UNLOCKED"shouldappear.
SUPERENERGY
SAVINGButton
UsethisbuttontoenterSUPERENERGYSAVINGmenu.For
moreinformation.(Seep.15)
3D 3Ddisplaysettings.(Seep.14)
AUTO Whenadjustingyourdisplaysettings,alwayspresstheAUTObuttonontheMONITOR
SETUPOSD.(OnlysupportedinAnalogMode)
Thebestdisplaymode 1920x1080
VOLUME(OnlyHDMImode) AdjustthevolumeoftheMonitorset.(Seep.14)
INPUT Youcanchoosetheinputsignal.
Whentwoinputsignalsareconnected,youcanselecttheinputsignal(D-SUB/DVI/
HDMI)youwant.
Whenonlyonesignalisconnected,itisautomaticallydetected.Thedefaultsettingis
D-SUB.
EXIT ExittheOSD(OnScreenDisplay).
(PowerButton) Turnsthepoweronoroff.
PowerIndicator Thepowerindicatorstaysblueifthedisplayisrunning
properly(OnMode).IfthedisplayisinSleepMode,thepower
indicatorblinksblue.
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
SettinguptheMonitorset
AttachingtheStandBase
1 PlacetheMonitorsetwiththescreenside
downonaflatandcushionedsurface.
Layafoammatorsoftprotectivecloth
onthesurfacetoprotectthescreenfrom
damage.
Thisillustrationdepictsthegeneralmodelof
connection.Yourmonitormaydifferfromthe
itemsshowninthepicture.
Donotcarrytheproductupsidedown
holdingonlythestandbase.Theproduct
mayfallandgetdamagedorinjureyour
foot.
CAUTION
CAUTION
DetachingtheStandBaseandBody
1 PlacetheMonitorsetwiththescreenside
downonaflatandcushionedsurface.
2 Turnthescrewtotheleft,andthenpulloutthe
StandBasefromtheStandBody.
3 AttachtheStandBaseandthentightenthe
screwtotherightwithaCoin.
2 AssembletheStandBodyintotheproductin
thecorrectdirectionasshowninthepicture.
Makesureyoupushituntilyouhearit“click”.
3 PullouttheStandBodyfromtheMonitorset.
StandBody
StandBase
HingeBody
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mountingonatable
1 LiftandtilttheMonitorsetintoitsupright
positiononatable.
Leavea10cm(minimum)spacefromthewall
forproperventilation.
2 ConnectthePowerCordtoawalloutlet.
3 Press (Power)buttononthefrontswitch
paneltoturnthepoweron.
10 cm
10 cm
10 cm
10 cm
Whenyouadjusttheangle,donotholdthe
bottomoftheMonitorsetframeasshownon
thefollowingillustration,asmayinjureyour
fingers.
Donottouchorpressthescreenwhen
adjustingtheangleofthemonitor.
WARNING
Unplugthepowercordbeforemovingthe
Monitortoanotherlocation.Otherwiseelectric
shockmayoccur.
Tiltfrom+15to-5degreesupordowntoadjust
theangleoftheMonitorsettosuityourview.
CAUTION
NOTE
Front Rear
15- 5
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mountingonawall
Forproperventilation,allowaclearanceof10cm
oneachsideandfromthewall.Detailed
instructionsareavailablefromyourdealer,seethe
optionalTiltWallMountingBracketInstallationand
SetupGuide.
WhenyouinstalltheMonitorsetusingawall
mountinginterface(optionalparts),attachit
carefullysoitwillnotdrop.
PleaseuseVESAstandardasbelow.
784.8mm(30.9inch)andunder
*WallMountPadThickness:2.6mm
*Screw:Φ4.0mmxPitch0.7mmx
Length10mm
787.4mm(31.0inch)andabove
*PleaseuseVESAstandardwallmountpad
andscrews.
10 cm
10 cm
10 cm
10 cm
UsingtheKensingtonsecuritysystem
TheKensingtonsecuritysystemconnectoris
locatedatthebackoftheMonitorset.Formore
informationofinstallationandusing,refertothe
manualsuppliedwiththeKensingtonsecurity
systemorvisit
http://www.kensington.com
.
ConnecttheKensingtonsecuritysystemcable
betweentheMonitorsetandatable.
TheKensingtonsecuritysystemisoptional.
Youcanobtainitfrommostelectronicsstores.
NOTE
9
ENG
ENGLISH
USING THE MONITOR SET
Disconnectthepowercordfirst,andthen
moveorinstalltheMonitorset.Otherwise
electricshockmayoccur.
IfyouinstalltheMonitorsetonaceilingor
slantedwall,itmayfallandresultinsevere
injury.
UseonlyanauthorizedLGwallmount
andcontactthelocaldealerorqualified
personnel.
Donotovertightenthescrewsasthismay
causedamagetotheMonitorsetandvoid
yourwarranty.
Useonlyscrewsandwallmountsthat
meettheVESAstandard.Anydamages
orinjuriesbymisuseorusinganimproper
accessoryarenotcoveredbythewarranty.
UsethescrewsthatarelistedontheVESA
standardscrewspecifications.
Thewallmountkitwillincludeaninstallation
manualandnecessaryparts.
Thewallmountbracketisoptional.Youcan
obtainadditionalaccessoriesfromyourlocal
dealer.
Thelengthofscrewsmaydifferdepending
onthewallmount.Besuretousetheproper
length.
Formoreinformation,refertothe
instructionssuppliedwiththewallmount.
CAUTION
NOTE
Model D2342P
VESA(AxB) 75x75
Standardscrew M4
Numberofscrews 4
Wallmountbracket
(optional)
RW120
10
ENG
ENGLISH
USING THE MONITOR SET
USINGTHEMONITORSET
ConnectingtoaPC
YourMonitorsetsupportsPlug&Play*.
*Plug&Play:APCrecognizesaconnected
devicethatusersconnecttoaPCandturn
on,withoutdeviceconfigurationoruser
intervention.
D-SUBconnection
TransmitsanalogvideofromyourPCto
theMonitorset.ConnectthePCandtheMonitor
setwiththesuppliedD-sub15pinsignalcableas
showninthefollowingillustrations.
Macadapter
ForAppleMacintoshuse,aseparateplug
adapterisneededtochangethe15pin
highdensity(3row)D-SUBVGAconnector
onthesuppliedcabletoa15pin2row
connector.
WhenusingaD-Subsignalinputcable
connectorforMacintosh
IfyouuseHDMIPC,itcancausecompatibility
problem.
NOTE
NOTE
H
D
MI
D-SUB
DVI
-D
RGB OUT
H
D
MI
D
-
S
U
B
DVI OUT
DVI-D
HDMI
-
U
HDMI OUT
DVI
-D
HDMI OUT
DVI-Dconnection
TransmitsadigitalvideosignalfromyourPCtothe
Monitorset.ConnectthePCandtheMonitorset
withaDVIcableasshowninthefollowing
illustrations.
HDMIconnection
Transmitsthedigitalvideoandaudiosignalsfrom
yourPCorA/VtotheMonitorset.ConnectthePC
orA/VandtheMonitorsetwiththeHDMIcableas
showninthefollowingillustrations.
11
ENG
ENGLISH
USING THE MONITOR SET
WhenyouwanttousetwoPCinourMonitor,
pleaseconnectthesignalcable(D-SUB/
DVI-D/HDMI)respectivelyinMonitorset.
IfyouturntheMonitorsetonwhileitiscold,
thescreenmayflicker.Thisisnormal.
Somered,green,orbluespotsmayappear
onthescreen.Thisisnormal.
"SelfImageSetting"Function.
Thisfunctionprovidestheuserwithoptimal
displaysettings.Whentheuserconnects
themonitorforthefirsttime,thisfunction
automaticallyadjuststhedisplaytooptimal
settingsforindividualinputsignals.(Only
supportedinAnalogMode)
‘AUTO’Function.
Whenyouencounterproblemssuchas
blurryscreen,blurredletters,screenflicker
ortiltedscreenwhileusingthedeviceor
afterchangingscreenresolution,pressthe
AUTOfunctionbuttontoimproveresolution.
(OnlysupportedinAnalogMode)
NOTE NOTE
Connectthesignal
inputcableandtighten
itbyturningthescrews
clockwise.
Donotpressthescreenwithyourfingerfor
alongtimeasthismayresultintemporary
distortiononthescreen.
Avoiddisplayingafixedimageonthe
screenforalongperiodoftimetoprevent
imageburn.Useascreensaverifpossible.
CAUTION SelfImageSettingFunction
Pressthepowerbuttononthefrontpaneltoturn
thepoweron.Whenmonitorpoweristurnedon,
the"SelfImageSetting"Functionisexecuted
automatically.(OnlysupportedinAnalogMode)
12
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZINGSETTINGS
AccessingTheMainMenus
1 PressanybuttononthefrontoftheMonitorsettodisplaytheMONITORSETUPOSDmenu.
2 Pressthedesiredmenuitem.
3 ChangethevalueofthemenuitembypressingthebuttonsonthefrontoftheMonitorset.
Toreturntotheuppermenuorsetothermenuitems,usetheuparrow( )button.
4 SelectEXITtoleavetheOSDmenu.
MonitorsetButtons
MONITOR SETUP
MENU AUTO VOLUME INPUT EXIT
3D
MENU(Seep.13)
Setsthescreenoptions.
AUTO(Seep.5)
Optimizestheresolution.
EXIT
ExitstheOSDmenu.
INPUT
Setstheexternalinput.
3D(Seep.14)
Setsthe3Dmode.
VOLUME(Seep.14)
Setsthevolume.
Differentmenuitemsareenableddependingonthetypeofinputsignal.
D-SUB/DVIMode:MENU,3D,AUTO,INPUT,EXIT
HDMIMode:MENU,3D,VOLUME,INPUT,EXIT
NOTE
13
ENG
ENGLISH
CUSTOMIZING SETTINGS
CustomizingSettings
MenuSettings
1 PressanybuttononthefrontoftheMonitorsettodisplaythe
MONITORSETUPOSDmenu.
2 PresstheMENUbuttontodisplaytheoptionsintheOSD
menu.
3 Settheoptionsbypressingthebuttonsonthefrontofthe
Monitorset.
4 SelectEXITtoleavetheOSDmenu.
Toreturntotheuppermenuorsetothermenuitems,usethe
uparrow( )button.
Menu Analog Digital HDMI Description
BRIGHTNESS ● ● ● Adjuststhebrightnessofthescreen.
ORIGINALRATIO
● ● ●
WIDE
Switchtofullscreenmodeaccordingtoinputimagesignal.
ORIGINAL
Changetheinputimagesignalratiotooriginal.
*ThisfunctionworksonlyifinputresolutionislowerthanMonitor
setratio(16:9).
3DCOLOR
EFFECT ● ● ● Thepicturequalityisoptimizedatthe3Dmode.
COLORTEMP
● ● ●
PRESET
Selectthescreencolor.
WARM:Setthescreentowarmcolortemperature(morered).
MEDIUM:Setthescreentomediumcolortemperature.
COOL:Setthescreentocoolcolortemperature(Moreblue).
USER
RED:Setyourownredcolorlevels.
GREEN:Setyourowngreencolorlevels.
BLUE:Setyourownbluecolorlevels.
CONTRAST ● ● ● Adjuststhecontrastofthescreen.
BLACKLEVEL
(Onlysupported
inHDMImode) ●
Youcansettheoffsetlevel.Ifyouselect'HIGH',thescreenwillbe
brightandifyouselect‘LOW’,thescreenwillbedark.
Offset:Asthecriteriaforvideosignal,itisthedarkestscreen
themonitorcanshow.
LANGUAGE ● ● ● Changesthemenulanguage.
SUPERENERGY
SAVING ● ● ● SetstheSUPERENERGYSAVINGfunction.
FACTORY ● ● ● Returnsthemonitortooriginalfactorysettings.
Analog:D-SUB(Analogsignal)input.
Digital:DVI-D(Digitalsignal)input.
HDMI:HDMI(Digitalsignal)input.
MENU
EXIT
BRIGHTNESS
ORIGINAL RATIO
3D COLOR EFFECT
COLOR TEMP
PRESET
RED
GREEN
BLUE
CONTRAST
BLACK LEVEL
LANGUAGE
SUPER ENEYGY SAVING
FACTORY RESET
WIDE
OFF
PRESET
WARM
HIGH
ENGLISH
NO
100
50
50
50
70
Theavailableprogramsettingsaredescribedbelow.
14
ENG
ENGLISH
CUSTOMIZING SETTINGS
3DSettings(Only3Dmode)
1 PressanybuttononthefrontoftheMonitorsettodisplaythe
MONITORSETUPOSDmenu.
2 Pressthe3DbuttontodisplaytheoptionsintheOSDmenu.
3 Settheoptionsbypressingthebuttonsonthefrontofthe
Monitorset.
4 SelectEXITtoleavetheOSDmenu.
Toreturntotheuppermenuorsetothermenuitems,usethe
uparrow( )button. 
VolumeSettings(OnlysupportedinHDMI)
1 PressanybuttononthefrontoftheMonitorsettodisplaythe
MONITORSETUPOSDmenu.
2 PresstheVOLUMEbuttontodisplaytheoptionsintheOSD
menu.
3 Settheoptionsbypressingthebuttonsonthefrontofthe
Monitorset.
4 SelectEXITtoleavetheOSDmenu.
Toreturntotheuppermenuorsetothermenuitems,usetheup
arrow( )button.
Theavailablepicturesettingsaredescribedbelow.
Menu Description
3DMODE Selecttheformatof3Dvideodata.(EnabledonlyforHDMIVIDEOTIMING)
SIDEBYSIDE LeftandrightpicturesarearrangedinSidebySidelayout.
TOP&BOTTOM LeftandrightpicturesarearrangedinTopandBottomlayout.
LINEINTERLACED Leftandrightpicturesarearrangedinlinebyline.
OFF Turnsoff3DMode.
3DL/RCHANGE Changeswhichframeisshowntoeacheye.
R-L OddlinesareRightpictureandevenlinesareLeftpicture.
L-R OddlinesareLeftpictureandevenlinesareRightpicture.
3D->2D Converts3Dimagesinto2D.(EnabledonlyforHDMIVIDEOTIMING)
OFF Displaysimagesin3D.
ON Displaysimagesin2D.
3DMode.
SIDEBYSIDE TOP&BOTTOM LINEINTERLACED
Ifthe3Doptionselectedisincorrect,imagesmaynotbedisplayedproperly.
NOTE
3D
3D MODE
3D L/R CHANGE
3D - > 2D
OFF(1/4)
R-L(1/2)
OFF
VOLUME
EXIT
EXIT
50
15
ENG
ENGLISH
CUSTOMIZING SETTINGS
SUPERENERGYSAVINGSettings
1 PressanybuttononthefrontoftheMonitorsetto
displaytheMONITORSETUPOSDmenu.
2 PresstheMENUbuttontodisplaytheoptionsinthe
OSDmenu.
3 SelectSUPERENERGYSAVINGbypressingthe
buttonsonthefrontoftheMonitorsetandsetthe
options.
4 SelectEXITtoleavetheOSDmenu.
Toreturntotheuppermenuorsetothermenuitems,
usetheuparrow( )button.
Theavailablepicturesettingsaredescribedbelow.
Menu Description
ON EnablesSUPERENERGYSAVINGyoucansaveenergywiththisenergy-efficientfunction.
OFF DisablesSUPERENERGYSAVING.
RESET ResetsthevaluesoftotalenergyconsumptionreductionandCO2emissionreductionestimates.
TOTALPOWERREDUCTION:Howmuchpowerissavedwhileusingthemonitor.
TOTALCO2REDUCTION:ChangetheTOTALPOWERREDUCTIONtoCO2.
SAVINGDATA(W/h)
584mm(23inch)
SUPERSAVING 5W/h
LEDSAVING 12W/h
SavingDatadependsonthePanel.So,thosevaluesshouldbedifferentfromeachpanelandpanel
vendor.
LGcalculatedthesevaluesbyusing“broadcastvideosignal”.
LEDSavingreferstohowmuchpowercanbesavedusingaWLEDPanelinsteadofCCFLpanel.
SUPERSAVINGreferstohowmuchpowercanbesavedusingtheSUPERENERGYSAVING
function.
NOTE
EXIT
OK
ON OFF RESET
TOTAL POWER REDUCTION: 20 W
TOTAL CO2 REDUCTION: 16 g
SUPER
SAVING
: 5 W/h
LED
SAVING
: 12 W/h
SUPER ENERGY SAVING
16
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Checkthefollowingbeforecallingforservice.
Noimageappears
Isthepowercordofthedisplay
connected?
Checkandseeifthepowercordisconnectedproperlytothepower
outlet.
Isthepowerindicatorlighton?
PressthePowerbutton.
Isthepoweronandthepower
indicatorblueorgreen?
Adjustthebrightnessandthecontrast.
Isthepowerindicatorflickering?
Ifthedisplayisinpowersavingmode,trymovingthemouseor
pressinganykeyonthekeyboardtobringupthescreen.
TrytoturnonthePC.
Doyouseean"OUTOFRANGE"
messageonthescreen?
ThismessageappearswhenthesignalfromthePC(videocard)is
outofhorizontalorverticalfrequencyrangeofthedisplay.Seethe
'Specifications'sectionofthismanualandconfigureyourdisplay
again.
Doyouseea"CHECKSIGNAL
CABLE"messageonthescreen?
ThismessageappearswhenthesignalcablebetweenyourPCand
yourdisplayisnotconnected.Checkthesignalcableandtryagain.
Doyouseea"OSDLOCKED"messageonthescreen?
Doyousee“OSDLOCKED”when
youpushMENUbutton?
Youcansecurethecurrentcontrolsettings,sothattheycannotbe
inadvertentlychanged.YoucanunlocktheOSDcontrolsatanytime
bypushingtheMENUbuttonforseveralseconds:themessage“OSD
UNLOCKED”willappear.
Displayimageisincorrect
DisplayPositionisincorrect.
PresstheAUTObuttontoautomaticallyadjustyourdisplayimageto
theidealsetting.
Onthescreenbackground,vertical
barsorstripesarevisible.
PresstheAUTObuttontoautomaticallyadjustyourdisplayimageto
theidealsetting.
Anyhorizontalnoiseappearingin
anyimageorcharactersarenot
clearlyportrayed.
PresstheAUTObuttontoautomaticallyadjustyourdisplayimageto
theidealsetting.
CheckControlPanel►Display►Settingsandadjustthedisplay
totherecommendedresolutionoradjustthedisplayimagetotheideal
setting.Setthecolorsettinghigherthan24bits(truecolor).
17
ENG
ENGLISH
TROUBLESHOOTING
Displayimageisincorrect
Thescreencolorismonoor
abnormal.
Checkifthesignalcableisproperlyconnectedanduseascrewdriver
tofastenifnecessary.
Makesurethevideocardisproperlyinsertedintheslot.
Setthecolorsettinghigherthan24bits(truecolor)atControlPanel
►Settings.
Thescreenblinks.
Checkifthescreenissettointerlacemodeandifyes,changeittothe
recommendresolution.
Doyouseean"Unrecognizedmonitor,Plug&Play(VESADDC)monitorfound"message?
Haveyouinstalledthedisplay
driver?
BesuretoinstallthedisplaydriverfromthedisplaydriverCD(or
diskette)thatcomeswithyourdisplay.Or,youcanalsodownloadthe
driverfromourwebsite:http://www.lg.com.
MakesuretocheckifthevideocardsupportsPlug&Playfunction.
CheckControlPanel►Display►Settingsandseeifthefrequencyortheresolutionwere
changed.Ifyes,readjustthevideocardtotherecommendresolution.
Iftherecommendedresolution(optimalresolution)isnotselected,lettersmaybeblurredandthe
screenmaybedimmed,truncatedorbiased.Makesuretoselecttherecommendresolution.
ThesettingmethodcandifferbycomputerandO/S(OperationSystem),andresolutionmentioned
abovemaynotbesupportedbythevideocardperformance.Inthiscase,pleaseasktothecomputer
orthevideocardmanufacturer.
CAUTION
18
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTINGWHENUSING3DMODE
Icanseeaswirlingoil-likepatternonthemonitorwhenthemonitoristurnedoff.
ThisiscausedbytheinterferenceofexternallightintheairlayerbetweentheLCDsurfaceand3Dfilter.
Thepatternbecomesalmostinvisiblewhenyouturnonthepoweragain.
Icannotsee3Dimageproperly
Ifyouarenotusingtheglasses
providedwiththemonitor,
Whenyouview3Dimageswiththismonitor,itisveryimportant
thatyouusetheglassesprovidedwiththemonitor.Theglassesare
designedtocompensateopticallyforthe3Dfilterattachedtothe
surfaceofthemonitor.Ifyouwearthird-partyglasses,youmaynot
see3Dimagesproperlyonthemonitor.
Ifyouview3Dimagesoutsidethe
optimalviewingangleordistance,
Theoptimalviewingangleofthemonitoris12°inverticaldirection
while80°inhorizontaldirection;theoptimalviewingdistanceis
between50cmto90cmfromthemonitor.
 Whenyouview3Dimagesoutsidetheoptimalviewingangleor
viewingdistance,theimagesmaylookoverlappedornotbedisplayed
properlyin3D.
Ifyouhavenotsettheresolution,
Pleasesettheresolutionofthemonitortothemaximum(1920x
1080@60Hz)inthedisplaysettings.The3Dsoftwaremaynotwork
properlyiftheresolutionisnotsettothemaximum.
Iftheimagesthatyourleftandright
eyesseearereversed,
Thestripeimagesintheodd-numberedlinesaretheonesthatyour
righteyeseesonthemonitor.Ifyouonlyseethestripeimages,not
3Dimages,settheimagesforyourrighteyetobedisplayedinthe
odd-numberedlinesbychangingtheplayerorvieweroptionofthe3D
software.
Icannotsee3Dbutonly2Dimages.
Thismonitorworksbothin2Dand3Dmode.Youcanviewavideoin
3Difitismadein3D.Ifyoutrytoview2Dimagesin3D,theymight
notbedisplayedproperlyoryoumayexperiencepoorpicturequality.
Ifthe‘TriDefSupport’couldn’twork
properly
TheminimumsystemrequirementsonPCtorunthe‘TriDef3D’:
»Intel®Core2DuoorAMDAthlon™64X2Dual-CoreCPUorbetter
»1GBRAM
»NVIDIA®GeForce®8600GTorATIX1650XT
»500MBfreediskspace
»Windows®XP(SP2)(32bitonly),Windows®Vista(32bitonly)or
Windows®7(32or64bit)
»DirectX9.0ccompatiblesoundcard
»Internetconnection
»DVD-ROMdrive
»Networkcard
»DirectX9.0c
19
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
Display ScreenType 58.4cm(23inch)FlatPanelActivematrix-TFTLCD
Anti-Glarecoating
Visiblediagonalsize:58.4cm
PixelPitch 0.265mmx0.265mm(PixelPitch)
SyncInput HorizontalFrequency 30kHzto83kHz(Automatic)
VerticalFrequency 56Hzto75Hz(D-SUB,DVI-D)
56Hzto61Hz(HDMI)
InputForm SeparateSync.Digital
VideoInput SignalInput 15pinD-SUBConnector/DVI-DConnector(Digital)
HDMIConnector
InputForm RGBAnalog(0.7Vp-p/75ohm),Digital
Resolution Max D-SUB(Analog):1920x1080@60Hz
DVI/HDMI(Digital):1920x1080@60Hz
Recommend VESA1920x1080@60Hz
Plug&Play DDC2B(Analog,Digital)
PowerConsumption OnMode:39W(Typ.)
SleepMode≤0.5W
OffMode≤0.5W
PowerInput AC100-240V~50/60Hz1.0A
Dimensions
(WidthxHeightxDepth)
WithStand 54.6cmx40.7cmx17.9cm
WithoutStand 54.6cmx34.2cmx5.7cm
Weight 3.5kg
TiltRange -5°to15°
Environmental
conditions
OperatingTemperature
OperatingHumidity
10°Cto35°C
20%to80%
StorageTemperature
StorageHumidity
-10°Cto60°C
5%to90%non-Condensing
StandBase Attached(),Detached(O)
Powercord Wall-outlettype
Productspecificationsshownabovemaybechangedwithoutpriornoticeduetoupgradeofproduct
functions.
20
ENG
ENGLISH
SPECIFICATIONS
PresetModes(Resolution)
DisplayModes(Resolution) Horizontal
Frequency(kHz)
Vertical
Frequency(Hz) Polarity(H/V)
720x400 31.468 70 -/+
640x480 31.469 60 -/-
640x480 37.500 75 -/-
800x600 37.879 60 +/+
800x600 46.875 75 +/+
1024x768 48.363 60 -/-
1024x768 60.123 75 +/+
1152x864 67.500 75 +/+
1280x1024 63.981 60 +/+
1680x1050 65.290 60 -/+
1920x1080 67.500 60 +/+ RecommendMode
HDMI3DTIMING
3DFormat Resolution RefreshRate Limitation
FramePacking 1080p 24Hz
FramePacking 720p 50/60Hz
Side-by-Side(Half) 1080p 50/60Hz
Side-by-Side(Half) 1080i 50/60Hz
Side-by-Side(Half) 720p 50/60Hz
Top-and-Bottom 1080p 50/60Hz
Top-and-Bottom 1080p 24Hz
Top-and-Bottom 720p 50/60Hz
Indicator
Mode LEDColor
OnMode Blue
SleepMode BlinkingBlue
OffMode Off
21
ENG
ENGLISH
PRECAUTIONS TO TAKE WHEN VIEWING 3D IMAGES
PRECAUTIONSTOTAKEWHENVIEWING3D
IMAGES
1 Ifyouviewimagesinthe3Dmodeforalongperiodoftime(playinggames,watchingmoviesetc.),you
mayfeeldizzy.Westronglyrecommendyoutotakearestafteronehourofviewing3D.(Thetimeof
experiencingdizzinessvariesdependingontheindividual.)
2 Pleaseview3Dimagesattheoptimalviewingangleandattherecommendeddistancefromthe
product.Otherwise,3Dimagesmayappeartobeoverlappedormaynotbedisplayedproperly.
3 Ifyouview3Dimagestoocloselyforalongperiodoftime,thismayresultindizzinessorblurredvision.
Pleaseusethedeviceattherecommendeddistance.
4 Ifyouarepregnant,elderlyorhaveheartproblems,werecommendthatyoudonotview3Dimages.
Thisisbecausethe3Dimagescancausedisorientationandconfusion.
5 3Dimagescanalsocausenauseaorvomitingforusersundertheinfluenceofalcohol.Inthissituation,
pleasedonotview3Dimages.
6 Parents/guardiansshouldmonitorchildren’sviewingof3Dimagesbecausetheymaynotbeusedtothe
3Dviewingexperienceandlackknowledgeonhowtohandlepotentialrisks.
7 Donotusethe3Dglassesasregularglasses,sunglassesorgoggles.Thismaycauseyourvisionto
worsen.
8 Donotkeepthe3Dglassesinanextremelyhotorcoldplace.Thismaytheshapeoftheglassesto
changeandbecomedamaged.Donotusethe3Dglassesiftheyaredamagedbecausethismaycause
yourvisiontoworsen,oryoumayexperiencedizzin.
9 Thelensesofthe3Dglasses(polarizingfilm)areeasilyscratched.Useasoftcleanclothwhencleaning
them.Donotuseanychemicalcleaningproductsontheglasse.
CAUTION
Warningaboutphotosensitivityseizures
Someusersmayhaveaseizureorotherabnormalsymptomswhentheyareexposedtoa
flashinglightorparticularpatterninavideogameormovie.Ifanyoneinyourfamilyhasahistory
ofepilepsyorhaseverexperiencedanykindofseizure,pleaseconsultwithyourdoctorbefore
viewing3Dimages.Ifyouexhibitanyofthesymptomslistedbelowwhenviewing3Dimages,
pleasestopviewingimmediatelyandconsultwithyourdoctorevenifyoudonothaveprevious
medicalproblemsofthisnature.
Symptoms
Dizziness,blurredvisionorfacialtics,involuntarymovements,twitching,blackouts,confusion,
disorientationandwrongstate.
Topreventaphotosensitivityseizure,pleasefollowtheinstructionsbelow.
Donotview3Dimageswhenyouaretiredorill.
Donotview3Dimagesforalongperiodoftime.
Reducethedepthofthe3Dimage.
22
ENG
ENGLISH
PROPER POSTURE
ProperpostureforusingtheMonitorset.
PROPERPOSTURE
Mode Size(Inch) Optimalviewingdistance(L) Optimalviewingangle(D)
Whenviewing3Dimages 58.4cm 50cmto90cm 12°
Precautionstotakewhenviewing3Dimages
Wearthe3DglassesprovidedwiththeMonitorset.
Watchyourposture.
Remainattheoptimaldistanceandanglewhenviewing3Dimages.
(Viewing3Dimagestoocloselymaycauseyourvisiontoworsen,oryoumayexperiencedizziness.)
50cmto90cm
Adjustthe
Monitorsetand
yourpostureto
allowyoutoview
imagesatthe
optimalviewing
angle(D).
Placeyourhands
gentlyonthe
keyboard,keeping
yourarmsbentat
theelbowsand
horizontallyoutright.
AdjustyourdistancefromtheMonitor
settoallowyoutoviewimagesfrom
theoptimaldistance(L).
Adjustthelocationofthe
Monitorsettoavoidit
reflectinglight.
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service. As an ENERGY STAR Partner LGE
U. S. A.,Inc. has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
MODEL
SERIAL

Navigation menu
