E2042CA_User Manual

www.lg.com

OWNER'S MANUAL

LED LCD MONITOR

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD MONITOR MODEL

ENGLISH

E1642C

E1942C

E2042C

E2242C

Important Precautions

NOTE

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY

NOTE

This epuipment has been tested and found to comply with the limits for a class

B digital device,pursuant to part 15 of the FCC Rules.These limits are designed

to provide reasonable protection against harmful interference in a residential

installation.This equipment generates,uses and can radiate radio frequency

cause harmful interference to radio communications.However,there is no

guarantee that interference will not occur in a particular installation.If this

which can be determined by turning the equipment off and on,the user is

encouraged to try to correct the interference by one or more of the following

measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and the receiver.

-Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

energy and,if not installed and used in accordance with the instructions,may

equipment does cause harmful interference to radio or television reception,

TO OPERATE THE EQUIPMENT.

-Consult the dealer or an experienced radio/TV technician for help.

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

6 Setting up the Monitor set

6 - Attaching the Stand

6 - Detaching the Stand

7 - Mounting on a table

8 - Mounting on a wall

10 USING THE MONITOR SET

10 Connecting to a PC

10 - D-SUB connection

12 CUSTOMIZING SETTINGS

12 Accessing The Main Menus

13 Customizing Settings

13 - Menu Settings

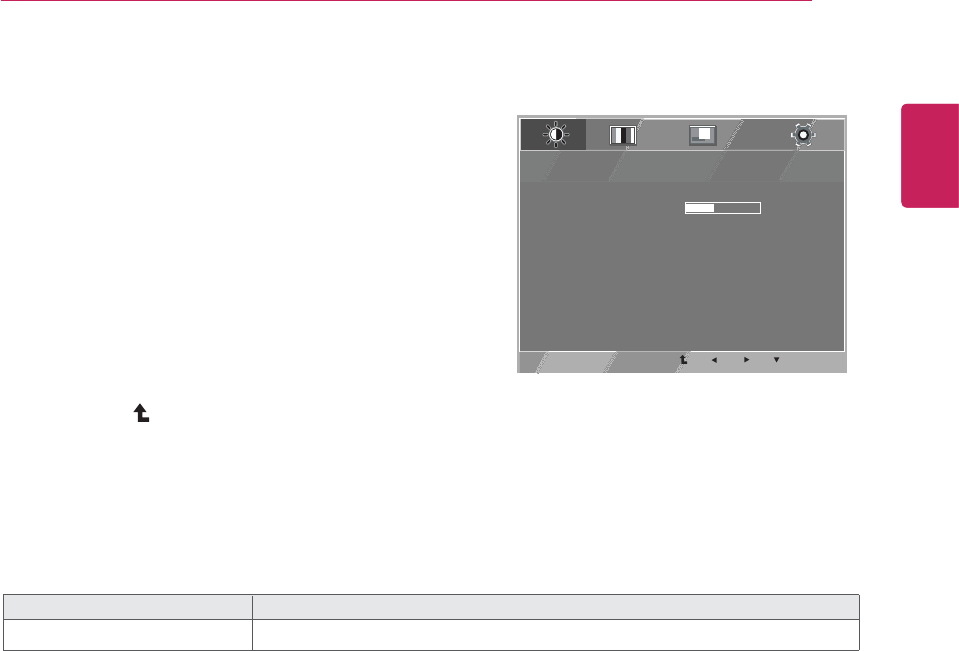

14 -PICTURE

15 -COLOR

16 -DISPLAY

17 -OTHERS

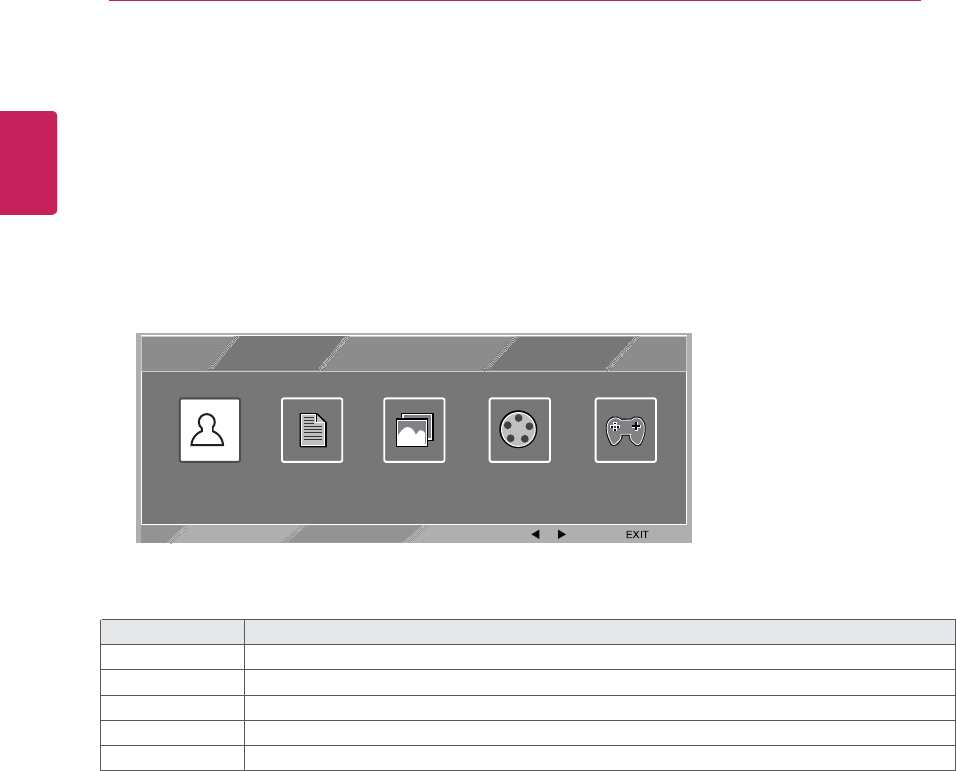

MODE Setting

SUPER ENERGY SAVING

20 TROUBLESHOOTING

22 SPECIFICATIONS

28 Preset Modes (Resolution)

29 Indicator

21 E1642C

22 E1942C

23 E2042C

24 E2242C

ENG

ENGLISH

ASSEMBLING AND PREPARING

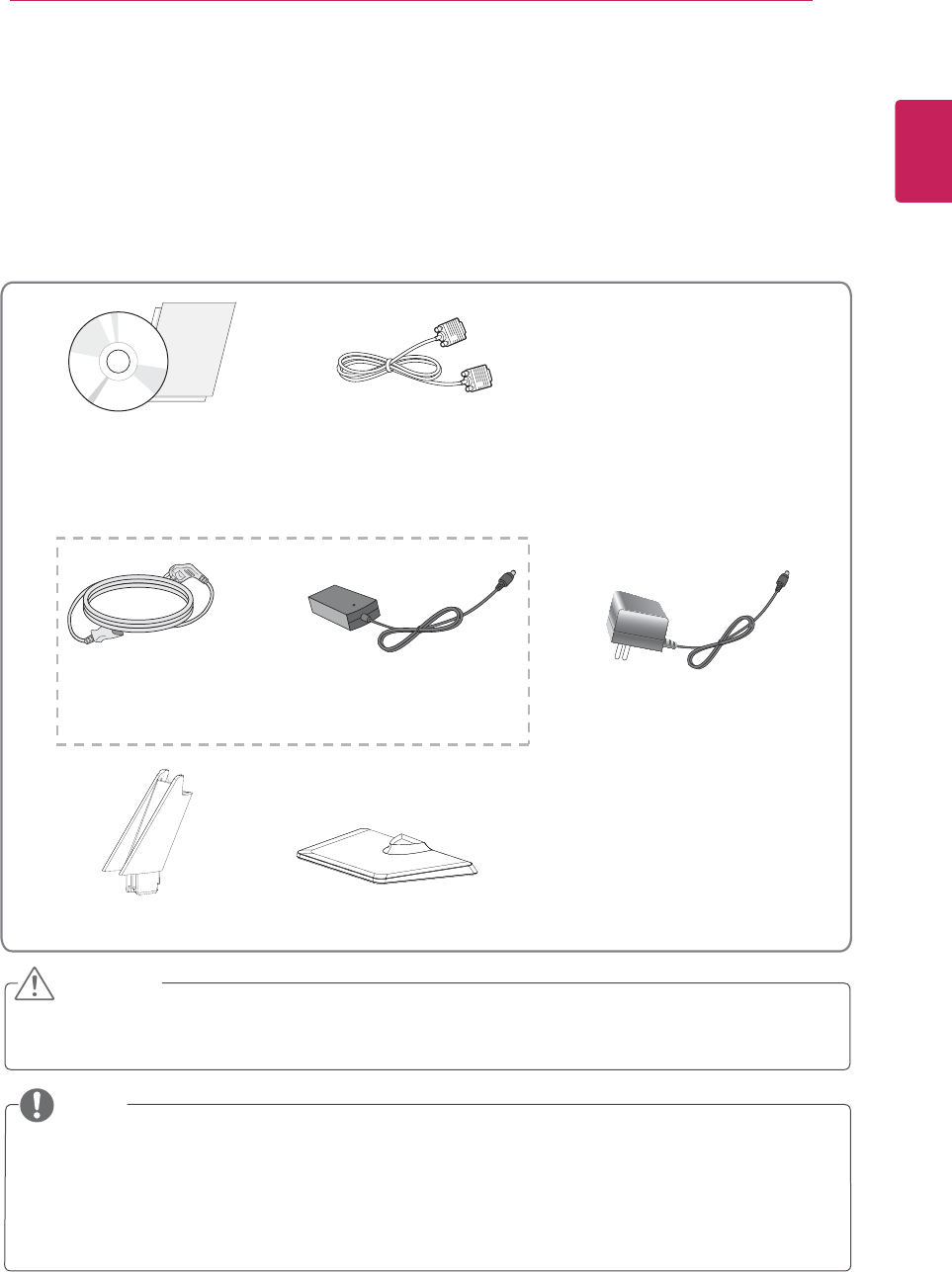

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

 Do not use any unapproved accessories to ensure the safety and product life span.

 Any damages or injuries by using unapproved accessories are not covered by the warranty.

 The accessories supplied with your product may vary depending on the model.

 Product specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

CD(Owner's Manual) /

Card

D-SUB Cable

Power Cord AC-DC Adapter

AC-DC adapter

(Depending on the country)

Stand Body Stand Base

(Depending on the country)

ENG

ENGLISH

ASSEMBLING AND PREPARING

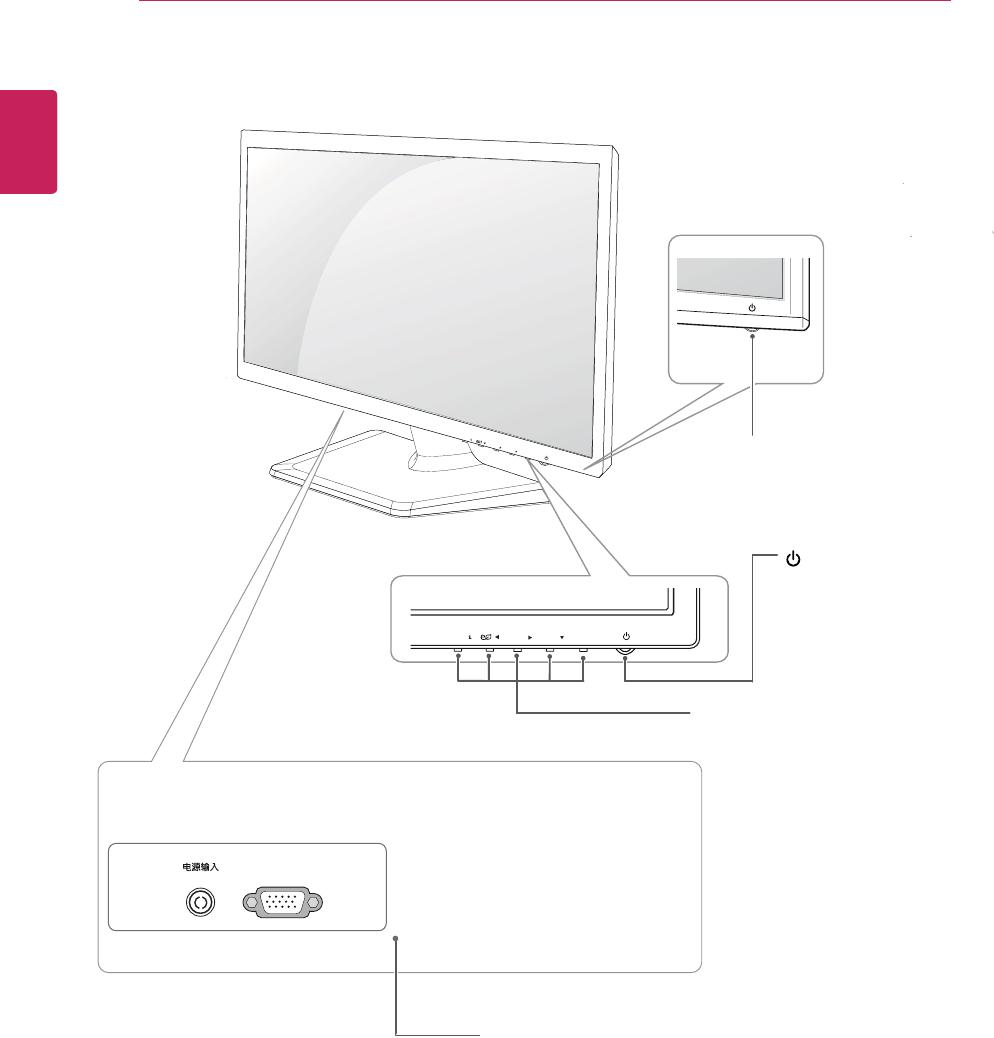

Parts and buttons

Power Indicator

 Lighting On: Turned on

 Lighting Off: Turned off

Button (See p.11)

(Power Button)

MENU / /INPUT / EXIT

MODE / AUTO /

MENU / /INPUT /

EXIT

MODE / AUTO /

Connection panel (See p.9)

D-SUB

DC-IN /

Setting up the Monitor set

Attaching the Stand

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

 This illustration depicts the general model of

connection. Your monitor may differ from the

items shown in the picture.

 Do not carry the product upside down holding

only the stand base. The product may fall

and get damaged or injure your foot.

CAUTION

Detaching the Stand

1Place the Monitor set with the screen side

down on a flat and cushioned surface.

2 Attach the Stand body and then attach the Stand

Base,then tighten the screw to the right with a

Coin.

Stand Base

Stand Body

Turn the screw to the left with a Coin, and then

pull out the Stand Base from the Stand Body,

then pull out the Stand Body from the Monitor

set .

Stand Base

Stand Body

ENG

ENGLISH

ASSEMBLING AND PREPARING

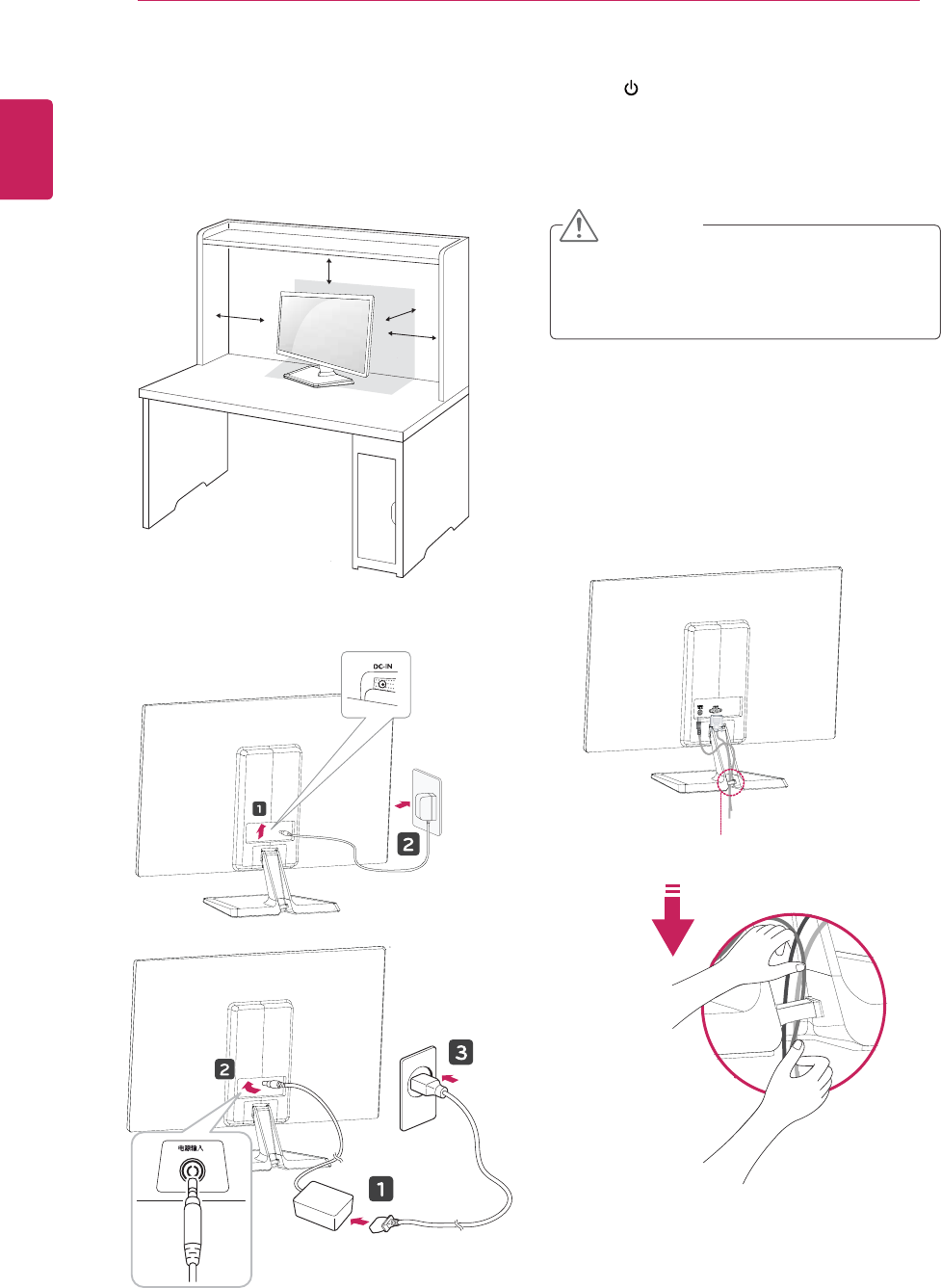

Mounting on a table

1Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

2 Connect the AC-DC Adapter and Power Cord to

wall outlet.

3Press (Power) button on the bottom switch

panel to turn the power on.

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

CAUTION

10 cm

Using the cable holder

ENG

ENGLISH

ASSEMBLING AND PREPARING

⬉⑤䕧ܹ

DC-IN

Cable holder

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

Tilt from +20 to -5 degrees up or down to adjust

the angle of the Monitor set to suit your view.

NOTE

Front Rear

205

ENGLISH

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

WARNING

Do not hold this set like below picture.

Monitor screen can detach from stand base

and injure your body.

 Disconnect the power cord first, and then

move or install the Monitor set. Otherwise

electric shock may occur.

 If you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe

injury.

 Use only an authorized LG wall mount

and contact the local dealer or qualified

personnel.

 Do not over tighten the screws as this may

cause damage to the Monitor set and void

your warranty.

 Use only screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an improper

accessory are not covered by the warranty.

 Use the screws that are listed on the VESA

standard screw specifications.

 The wall mount kit will include an installation

manual and necessary parts.

 The wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

 The length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

 For more information, refer to the

instructions supplied with the wall mount.

CAUTION

NOTE

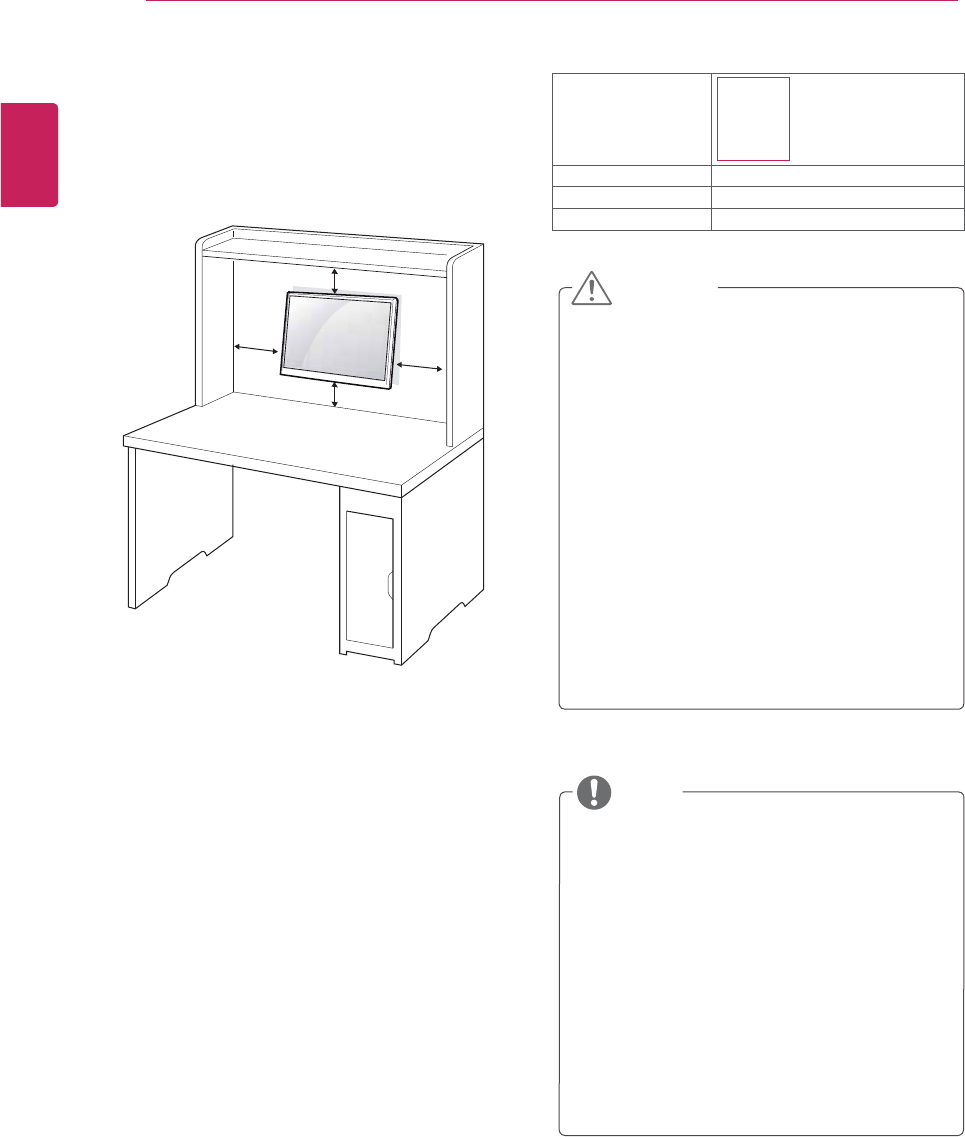

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm

on each side and from the wall. Detailed

instructions are available from your dealer, see the

optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

If you intend to mount the Monitor set to a wall,

attach Wall mounting interface (optional parts) to

the back of the set.

When you install the Monitor set using a wall

mounting interface (optional parts), attach it

carefully so it will not drop.

1 Please, Use the screw and wall mount interface

in accordance with VESA Standards.

2 If you use screw longer than standard, the

monitor might be damaged internally.

3 If you use improper screw, the product might be

damaged and drop from mounted position. In

this case, LG Electronics is not responsible for

it.

4 VESA compatible.

5 Please use VESA standard as below.

 784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm

 787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

10 cm

ENG

ENGLISH

ASSEMBLING AND PREPARING

Model

VESA (A x B)

75 x 75

Standard screw M4

4Number of screws

E1642C

E2242C

E2042C

E1942C

USING THE MONITOR SET

Connecting to a PC

 Your Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected

device that users connect to a PC and turn

on, without device configuration or user

intervention.

D-SUB connection

Transmits analog video from your PC to the

Monitor set. Connect the PC and the Monitor set

with the supplied D-sub 15 pin signal cable as

shown in the following illustrations.

 Mac adapter

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin

high density (3 row) D-SUB VGA connector

on the supplied cable to a 15 pin 2 row

connector.

 When using a D-Sub signal input cable

connector for Macintosh

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

DC-IN

 When you want to use two PC in our Monitor,

please connect the signal cable(D-SUB)

respectively in Monitor set.

 If you turn the Monitor set on while it is cold,

the screen may flicker. This is normal.

 Some red, green, or blue spots may appear

on the screen. This is normal.

 "Self Image Setting" Function.

This function provides the user with optimal

display settings.When the user connects

the monitor for the first time, this function

automatically adjusts the display to optimal

settings for individual input signals.(Only

supported in Analog Mode)

 ‘AUTO’ Function.

When you encounter problems such as

blurry screen, blurred letters, screen flicker

or tilted screen while using the device or

after changing screen resolution, press the

AUTO function button to improve resolution.

(Only supported in Analog Mode)

NOTE NOTE

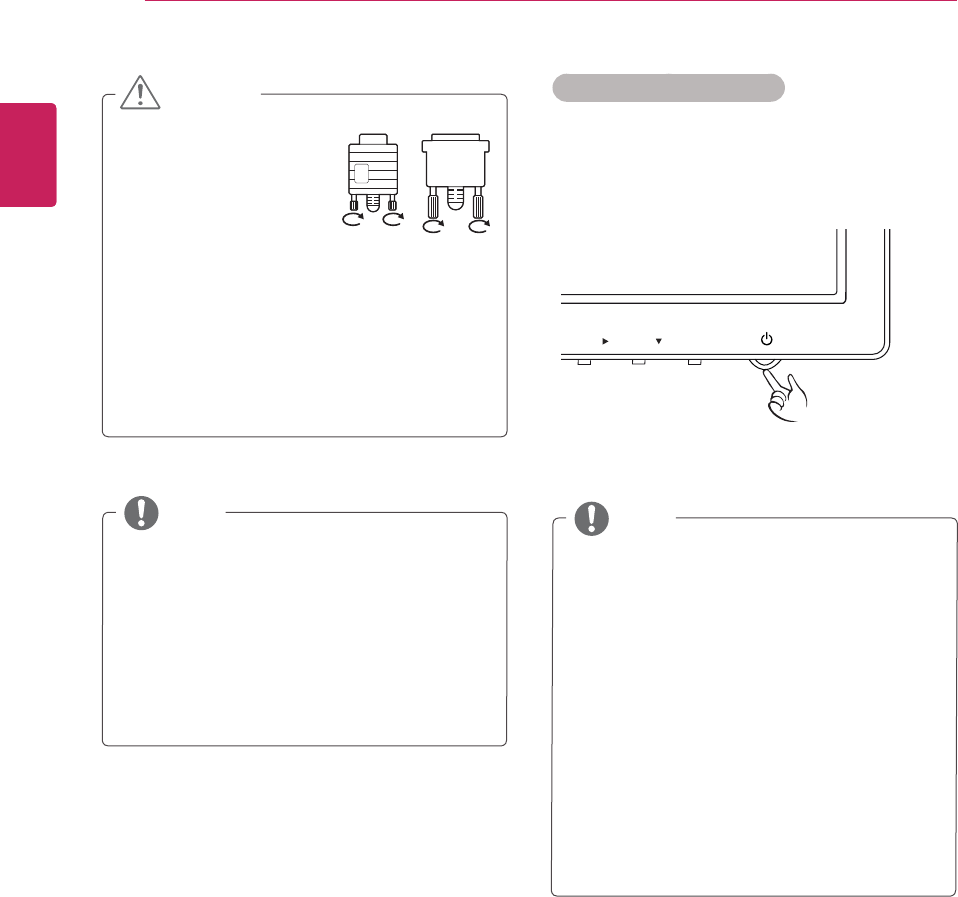

 Connect the signal

input cable and tighten

it by turning the screws

clockwise.

 Do not press the screen with your finger for

a long time as this may result in temporary

distortion on the screen.

 Avoid displaying a fixed image on the

screen for a long period of time to prevent

image burn. Use a screensaver if possible.

CAUTION Self Image Setting Function

Press the power button on the bottom panel to

turn the power on. When monitor power is turned

on, the "Self Image Setting" Function is executed

automatically. (Only supported in Analog Mode)

ENG

ENGLISH

USING THE MONITOR SET

INPUT / EXIT

MODE / AUTO /

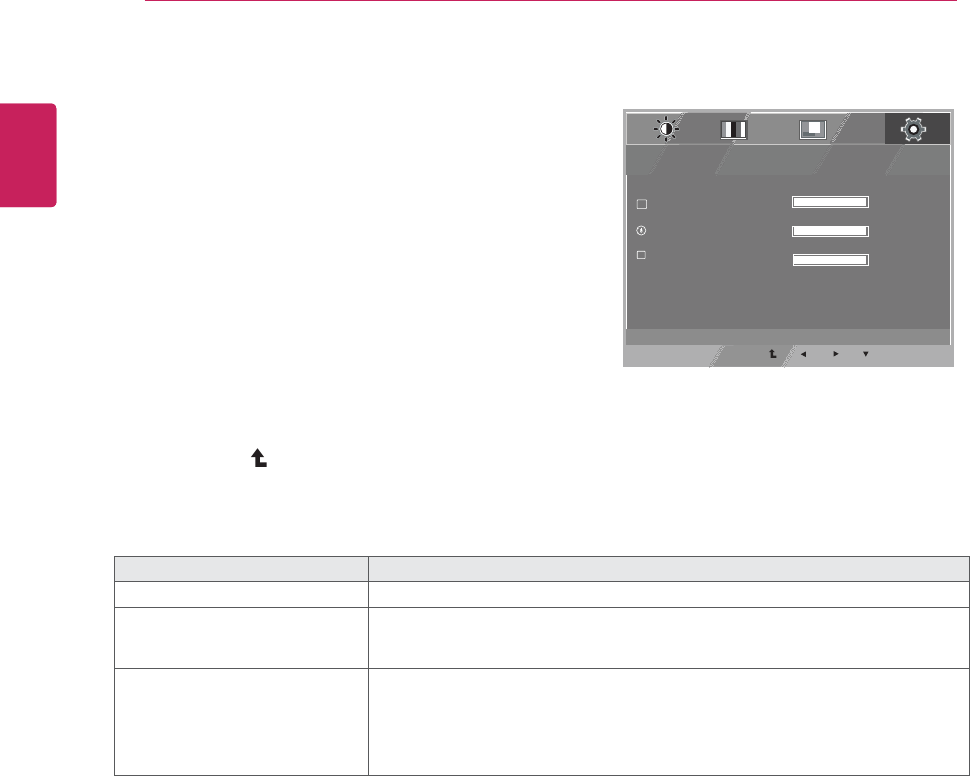

CUSTOMIZING SETTINGS

Press the desired button on the bottom of the Monitor set .

Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

3Select EXIT to leave the OSD menu.

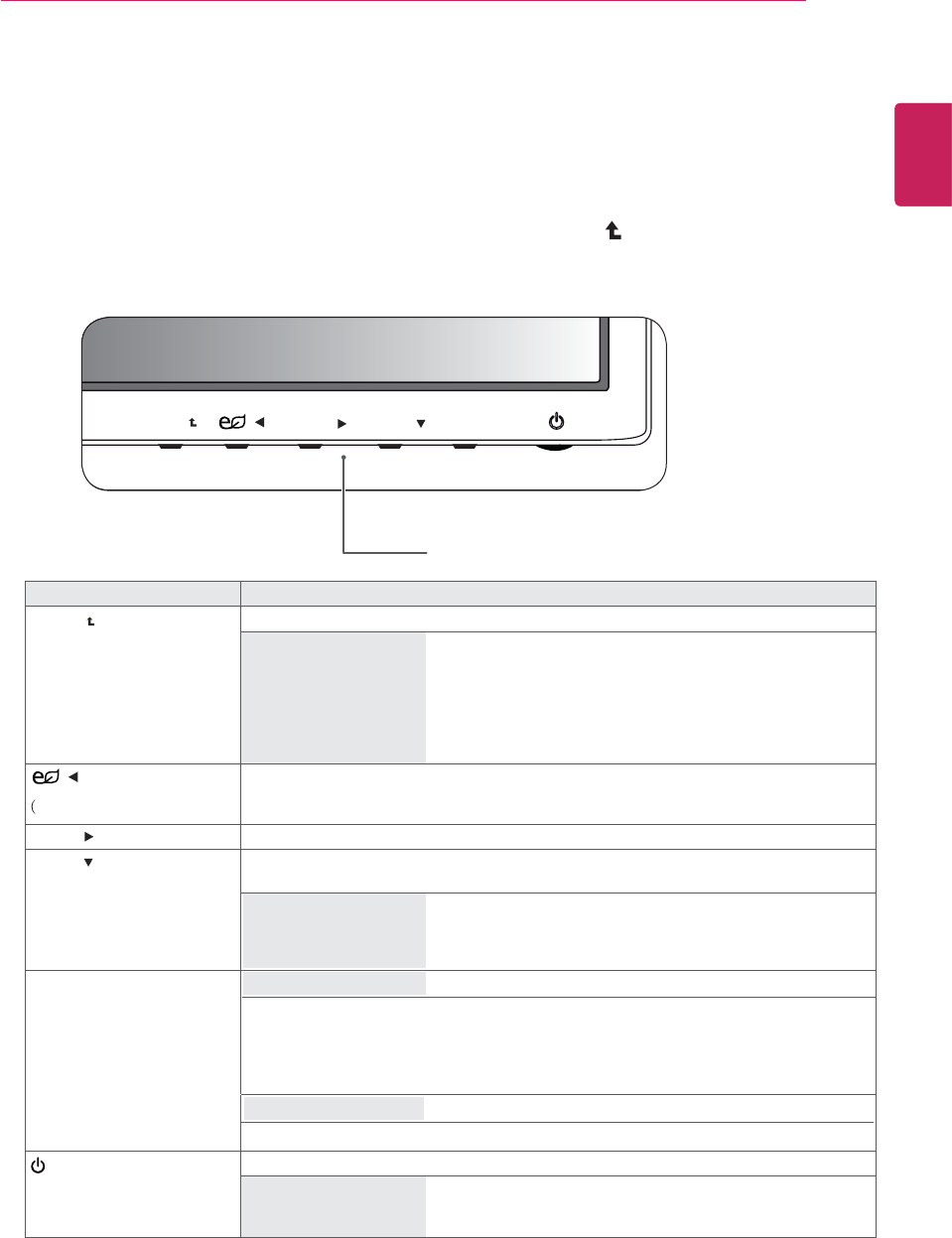

Monitor set Buttons

MENU / /INPUT / EXIT

MODE / AUTO /

ENG

ENGLISH

USING THE MONITOR SET

Button Description

Accesses the main menus.(See p.12)

OSD LOCKED/

UNLOCKED

This function allows you to lock the current control settings, so

that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds.

The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing

the MENU button for several seconds. The message "OSD

UNLOCKED" should appear.

Use this button to enter CUSTOM,TEXT,PHOTO,CINEMA,GAME menus.(See p.18)

When adjusting your display settings, always press the AUTO button on the MONITOR

SETUP OSD. (Only supported in Analog Mode)

The best display mode

INPUT / EXIT

You can choose the input signal.

• When two input signals are connected, you can select the input signal (D-SUB/DVI/

HDMI) you want.

• When only one signal is connected, it is automatically detected. The default setting is

D-SUB.

Exit the OSD(On Screen Display).

(Power Button) Turns the power on or off.

Power Indicator The power indicator stays red if the display is running

properly (On Mode). If the display is in Sleep Mode, the power

indicator blinks red.

SUPER ENERGY SAVING)

Use this button to enter SUPER ENERGY SAVING menu.For

more information.(See p.17)

MODE /

AUTO /

INPUT

EXIT

MENU /

E1642C /E1942C：1366 x 768

E2042C：1600 x 900

E2242C：1920 x 1080

Customizing Settings

Menu Settings

 Analog: D-SUB(Analog signal) input.

EXIT

WIDE / ORIGINAL

RESET

CONTRAST

BRIGHTNESS

NEXT MENU

1 / 2

WIDE

NEXT MENU PICTURE

＞＞

EXIT

SHARPNESS

ENG

ENGLISH

USING THE MONITOR SET

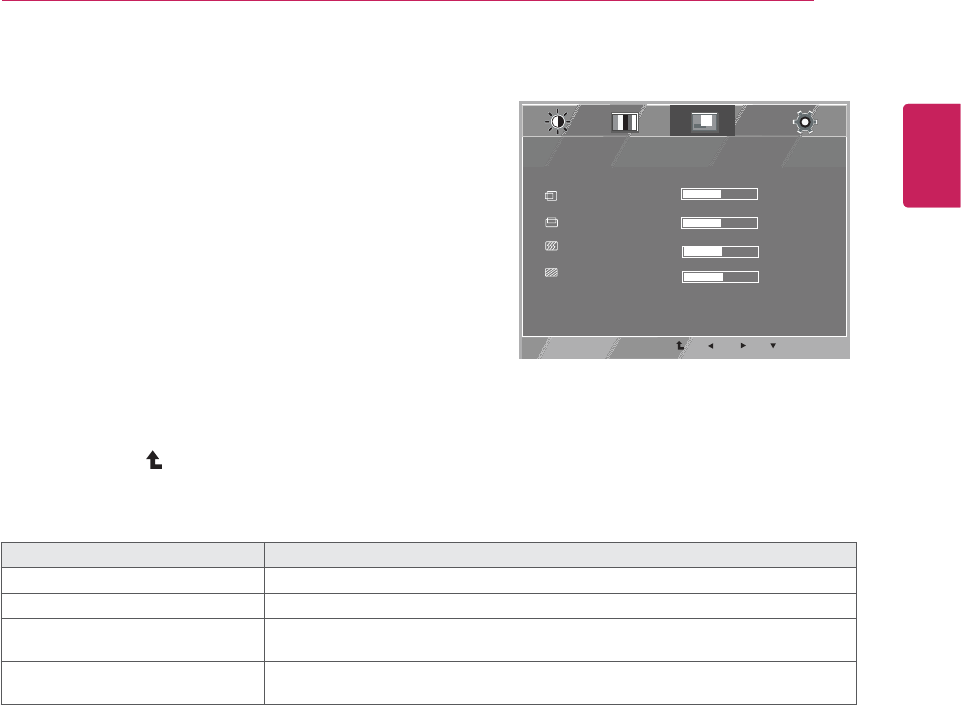

1Press MENU

button on the bottom of the Monitor set to

display the MENU OSD.

2 Set the options by pressing the ◄ or ► or ▼ buttons.

3 Select the " " button to enter the more option

NEXT MENU

settings.

4Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

Each option is explained below.

Analog Description

PICTURE ●To adjust the sharpness of the screen

To customize the color of the screen

To adjust the position of the screen

To improve the clarity and stability of the screen

To customize the screen status for a user's operating

environment

COLOR ●

GAMMA

COLOR TEMP

DISPLAY HORIZONTAL

VERTICAL ●

CLOCK

PHASE ●

OTHERS

LANGUAGE

POWER INDICATOR ●

WHITE BALANCE ●

SHARPNESS

Menu Description

BRIGHTNESS To adjust the brightness of the screen.

CONTRAST To adjust the contrast of the screen.

WIDE/ORIGINAL

RESET

WIDE

Switch to full screen mode according to input image signal.

Change the input image signal ratio to original.

* This function works only if input resolution is lower than Monitor

set ratio (16:9).

ORIGINAL

Restore all factory default settings . Press the , buttons to reset immediately.

Analog

●

MENU-->NEXT MENU


NEXT MENU PICTURE

＞＞

EXIT

SHARPNESS

Menu--NEXT MENU--PICTURE Description

SHARPNESS To adjust the clearness of the screen.

ENG

ENGLISH

CUSTOMIZING SETTINGS

1Press MENU button on the bottom of the Monitor set to

display the MENU OSD.

2Select the " " button to enter the more option

NEXT MENU

settings.

3 Enter to PICTURE by pressing the

▼

button.

4 Set the options by pressing the ◄ or ► or ▼ buttons.

Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

Each option is explained below.

COLOR

NEXT MENU COLOR

＞＞

EXIT

1 / 4

2 / 3

5 0

COLOR TEMP

GAMMA GAMMA 1

WARM

RED

GREEN

BLUE

ENG

ENGLISH

CUSTOMIZING SETTINGS

Each option is explained below.

1Press MENU button on the bottom of the Monitor set to

display the MENU OSD.

2Select the " " button to enter the more option

settings.

3 Select COLOR by pressing the

►

button.

4 Enter to COLOR by pressing the

▼

button.

Set the options by pressing the ◄ or ► or ▼ buttons.

6 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

NEXT MENU

Description

GAMMA Set your own gamma value. GAMMA 0,GAMMA1,GAMMA2 On the monitor,

COLOR TEMP

high gamma values display whitish images and low gamma values display

MENU--NEXT MENU--COLOR

• RED: Set your own red color levels.

• GREEN: Set your own green color levels.

• BLUE: Set your own blue color levels.

blackish images.

CUSTOM

Select the screen color.

WARM: Set the screen to warm color temperature (more red).

MEDIUM: Set the screen to medium color temperature.

COOL: Set the screen to cool color temperature (More blue).

DISPLAY

NEXT MENU DISPLAY

＞＞

EXIT

2 5

CLOCK

PHASE

VERTICAL

HORIZONTAL

ENG

ENGLISH

CUSTOMIZING SETTINGS

1Press MENU button on the bottom of the Monitor set to

display the MENU OSD.

2Select the " " button to enter the more option

NEXT MENU

settings.

3 Select DISPLAY by pressing the

►

button.

4 Enter to DISPLAY by pressing the

▼

button.

Set the options by pressing the ◄ or ► or ▼ buttons.

6 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

Each option is explained below.

MENU-- NEXT MENU-- DISPLAY Description

HORIZONTAL To move image left and right.

VERTICAL To move image up and down.

CLOCK To minimize any vertical bars or stripes visible on the screen background.

The horizontal screen size will also change.

PHASE To adjust the focus of the display. This item allows you to remove any horizontal

noise and clear or sharpen the image of characters.

OTHERS

NEXT MENU OTHERS

＞＞

EXIT

1 / 2

1 / 15

1 / 2

WHITE BALANCE

POWER INDICATOR

LANGUAGE

ENGLISH

D-SUB 1920 X 1080 60HZ

ENG

ENGLISH

CUSTOMIZING SETTINGS

1Press MENU button on the bottom of the Monitor set to

display the MENU OSD.

2Select the " " button to enter the more option

NEXT MENU

settings.

3 Select OTHERS by pressing the

►

button.

4 Enter to OTHERS by pressing the

▼

button.

Set the options by pressing the ◄ or ► or ▼ buttons.

6 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

Each option is explained below.

MENU-- NEXT MENU-- OTHERS Description

LANGUAGE To choose the language in which the control names are displayed.

POWER

INDICATOR

Use this function to set the power indicator on the bottom side of the monitor to

ON or OFF.If you set OFF, it will go off.

If you set ON at any time, the power indicator will automatically be turned on.

WHITE

BALANCE

If the output of the video card is different the required specifications,the color level

may deteriorate due to video signal distortion. Using this function, the signal level

output level of the video card in order to provide

white and black colors are present in

is adjusted to fit into the standard

the optimal image.Activate this function when

the screen.

SUPER ENERGY SAVING Settings

Menu Description

ON Enables SUPER ENERGY SAVING you can save energy with this energy-efficient function.

OFF Disables SUPER ENERGY SAVING.

RESET Resets the values of total energy consumption reduction and CO2 emission reduction estimates.

 TOTAL POWER REDUCTION: How much power is saved while using the monitor.

 TOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2.

 SAVING DATA(W/h)

NOTE

(1*LQGG  

EXIT

ON OFF

RESET

SUPER ENERGY SAVING

SUPER ENERGY SAVING IS

ACTIVE

YOU SAVED 12.34 TREES

POWER REDUCTION:123W

CO2 DECREMENT:123G

Press ( SUPER ENERGY SAVING ) button on

the bottom of the Monitor set to display the SUPER

ENERGY SAVING OSD.

3 Select EXIT to leave the OSD menu.

Set the options by pressing the ◄ or ► or ▼ buttons.

 Saving Data depends on the Panel. So,those values should be different from each panel and panel

vendor.

 LG calculated these values by using “broadcast video signal”.

 LED Saving refers to how much power can be saved using a WLED Panel instead of CCFL panel.

 SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING

function.

ENG

ENGLISH

CUSTOMIZING SETTINGS

Each option is explained below.

482mm

(19 inch)

SUPER SAVING 4 W/h

LED SAVING 10 W/h

507 mm

(20 inch)

558 mm

(22 inch)

406 mm

(16 inch)

5 W/h

20 W/h

6 W/h

17 W/h

4 W/h

ENG

ENGLISH

PICTURE MODE Setting

PICTURE MODE

TEXT PHOTO CINEMA GAME

CUSTOM

18 TROUBLESHOOTING

1 Press button on the bottom of the Monitor set to display the PICTURE MODE OSD .

3Select EXIT to leave the OSD menu.

Each option is explained below.

MODE

Set the options by pressing ◄ or ► buttons.

PICTURE MODE Description

CUSTOM

GAME

TEXT


CINEMA

It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.

It is a mode that the screen is adjusted to the best for the text works.

It is a mode that the screen is adjusted to the best to view pictures.

It is a mode that the screen is adjusted to the best to view the videos.

It is a mode that the screen is adjusted to the best to play a game.

TROUBLESHOOTING

Do you see a "OSD LOCKED" message on the screen?

Do you see “OSD LOCKED” when

you push MENU button?

You can secure the current control settings, so that they cannot be

inadvertently changed. You can unlock the OSD controls at any time

by pushing the MENU button for several seconds: the message “OSD

UNLOCKED” will appear.

Display image is incorrect

Display Position is incorrect. Press the AUTO button to automatically adjust your display image to

the ideal setting.

On the screen background, vertical

bars or stripes are visible.

Press the AUTO button to automatically adjust your display image to

the ideal setting.

Any horizontal noise appearing in

any image or characters are not

clearly portrayed.

Press the AUTO button to automatically adjust your display image to

the ideal setting.

Check Control Panel ► Display ► Settings and adjust the display

to the recommended resolution or adjust the display image to the ideal

setting. Set the color setting higher than 24 bits (true color).

ENG

ENGLISH

TROUBLESHOOTING

Check the following before calling for service.

No image appears

Is the power cord of the display  Check and see if the power cord is connected properly to the power

connected? outlet.

Is the power indicator light on?  Press the Power button.

Is the power on and the power 

indicator Red?

Is the power indicator flickering?  If the display is in power saving mode, try moving the mouse or

pressing any key on the keyboard to bring up the screen.

 Try to turn on the PC.

Do you see an "OUT OF RANGE"  This message appears when the signal from the PC (video card) is

message on the screen? out of horizontal or vertical frequency range of the display. See the

'Specifications' section of this manual and configure your display

again.

Do you see a "CHECK SIGNAL  This message appears when the signal cable between your PC and

CABLE" message on the screen? your display is not connected. Check the signal cable and try again.

Adjust the brightness and the contrast.

Display image is incorrect

The screen color is mono or

abnormal.

Check if the signal cable is properly connected and use a screwdriver

to fasten if necessary.

Make sure the video card is properly inserted in the slot.

Set the color setting higher than 24 bits (true color) at Control Panel

► Settings.

The screen blinks. Check if the screen is set to interlace mode and if yes, change it to the

recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?

Have you installed the display

driver?

Be sure to install the display driver from the display driver CD (or

diskette) that comes with your display. Or, you can also download the

driver from our web site: http://www.lg.com.

Make sure to check if the video card supports Plug&Play function.

 Check Control Panel ► Display ► Settings and see if the frequency or the resolution were

changed. If yes, readjust the video card to the recommend resolution.

 If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the

screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.

 The setting method can differ by computer and O/S (Operation System), and resolution mentioned

above may not be supported by the video card performance. In this case, please ask to the computer

or the video card manufacturer.

CAUTION

ENG

ENGLISH

SPECIFICATIONS

ENG

ENGLISH

SPECIFICATIONS

Product specifications shown above may be changed without prior notice due to upgrade of product

functions.

Display Screen Type 39.5 cm (15.6 inch) Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Visible diagonal size: 39.5 cm

Pixel Pitch 0.3 mm x 0.3 mm (Pixel Pitch)

Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)

Vertical Frequency 56Hz to 75Hz (D-SUB)

Input Form Separate Sync.

Video Input Signal Input 15 pin D-SUB Connector

Input Form RGB Analog (0.7 Vp-p/ 75 ohm)

Resolution Max D-SUB(Analog) : 1366 x 768 @ 60 Hz

Recommend VESA 1366 x 768 @ 60 Hz

Plug & Play DDC 2B(Analog)

Power Consumption On Mode : 15 W(Typ.)

Sleep Mode ≤ 0.3 W

Off Mode ≤ 0.3 W

Power Input

Dimensions

(Width x Height x Depth)

With Stand 44.1 cm x 34.9 cm x 16.8 cm

Without Stand 44.1 cm x 27.5 cm x 3.5 cm

Weight 2.1 kg

Tilt Range -5° to 20°

Environmental

conditions

Operating Temperature

Operating Humidity

10°C to 35 °C

10 % to 80 %

Storage Temperature

Storage Humidity

-20°C to 60 °C

5 % to 90 % non-Condensing

Stand Base Attached ( ), Detached (O)

Power cord Wall-outlet type

E1642C

19 V 1.2 A

Digital

AC-DC Adapter Type ADS-40SG-19-3 19025G,manufactured by HONOR ELECTRONIC

or type ADS-40FSG-19 19025GPG-1,manufactured by HONOR ELECTRONIC

or type ADS-40FSG-19 19025GPBR-1,manufactured by HONOR ELECTRONIC

or type ADS-40FSG-19 19025GPI-1,manufactured by HONOR ELECTRONIC

or type ADS-40FSG-19 19025GPCU-1,manufactured by HONOR ELECTRONIC

or type LCAP211,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or type LCAP26-A,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or type LCAP26-E,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or type LCAP26-I,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or type LCAP26-B,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

OUTPUT: 19V 1.3A

SPECIFICATIONS

Product specifications shown above may be changed without prior notice due to upgrade of product

functions.

Display Screen Type 46.9 cm (18.5 inch) Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Visible diagonal size: 46.9 cm

Pixel Pitch 0.3 mm x 0.3 mm (Pixel Pitch)

Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)

Vertical Frequency 56Hz to 75Hz (D-SUB)

Input Form Separate Sync. Digital
