BEJE2342VA_User Manual 1

www.lg.com

OWNER’S MANUAL

LED LCD MONITOR

E2342V

E2442V

E2742V

Please read this manual carefully before operating

your set and retain it for future reference.

LED LCD MONITOR MODEL

ENGLISH

ENG

ENGLISH

TABLE OF CONTENTS

CONTENTS

3 ASSEMBLING AND PREPAR-

ING

3 Unpacking

4 Parts and buttons

6 Setting up the Monitor set

6 - Attaching the Stand

6 - Detaching the Stand

7 - Mounting on a table

8 - Mounting on a wall

10 USING THE MONITOR SET

10 Connecting to a PC

10 - D-SUB connection

10 - DVI-D connection

10 - HDMI connection

12 CUSTOMIZING SETTINGS

12 Accessing The Main Menus

13 Customizing Settings

13 - Menu Settings

14 - PICTURE

15 - COLOR

16 - DISPLAY

16 - VOLUME

17 - OTHERS

18 SUPER ENERGY SAVING

19 MODE Setting

20 TROUBLESHOOTING

22 SPECIFICATIONS

22 E2342V

23 E2442V

25 Preset Modes (Resolution)

25 Indicator

24 E2742V

ASSEMBLING AND PREPARING

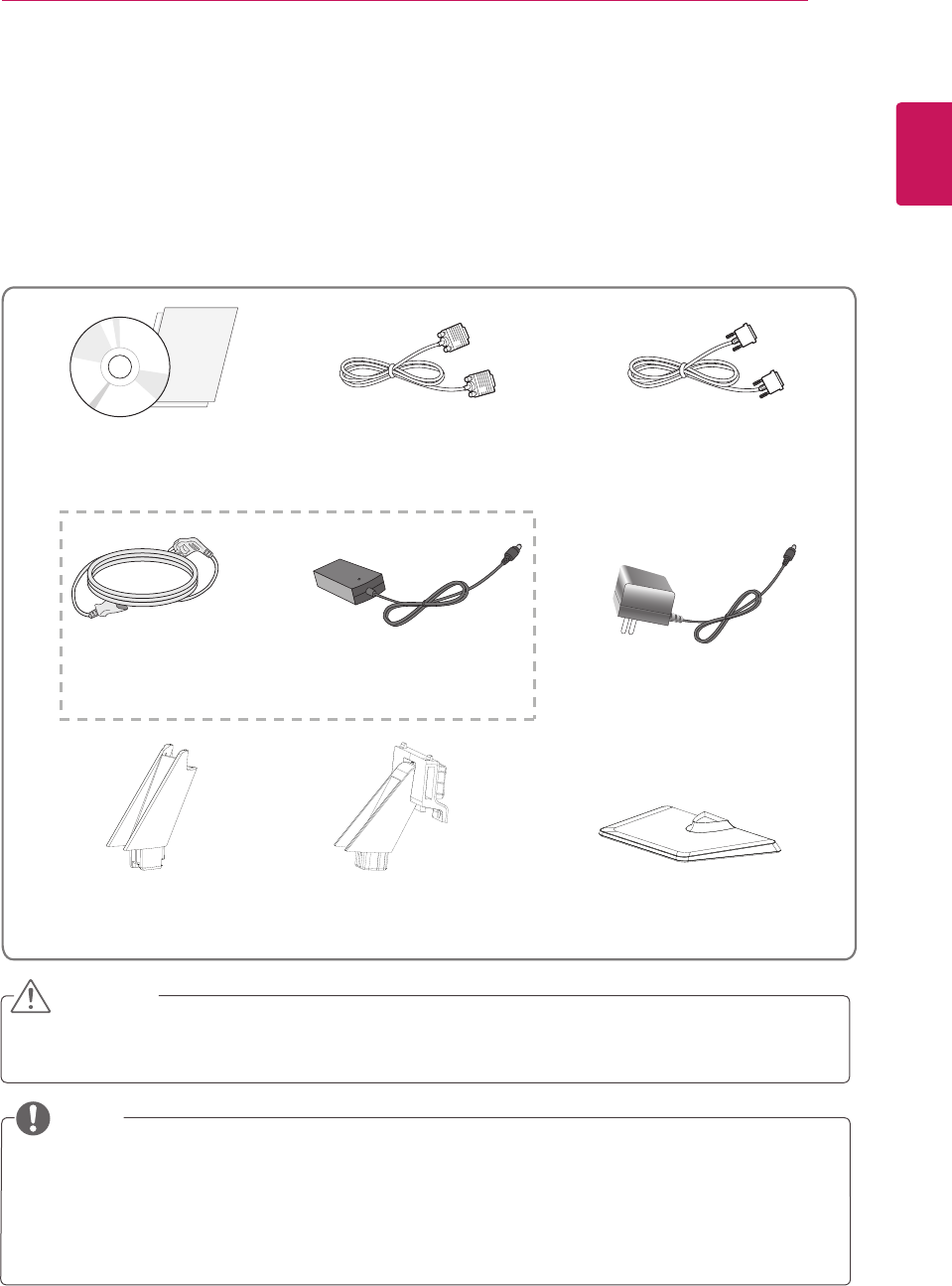

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual product

and accessories.

yDo not use any unapproved accessories to ensure the safety and product life span.

yAny damages or injuries by using unapproved accessories are not covered by the warranty.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade

of product functions.

CAUTION

NOTE

ENG

ENGLISH

ASSEMBLING AND PREPARING

CD(Owner's Manual) /

Card D-SUB Cable DVI-D Cable

(This cable is not included in all

countries.)

Power Cord AC-DC Adapter

Stand Base

Stand Body Stand Body

AC-DC adapter

(Depending on the country)

( E2342V /E2442V )

( E2742V )

ENG

ENGLISH

ASSEMBLING AND PREPARING

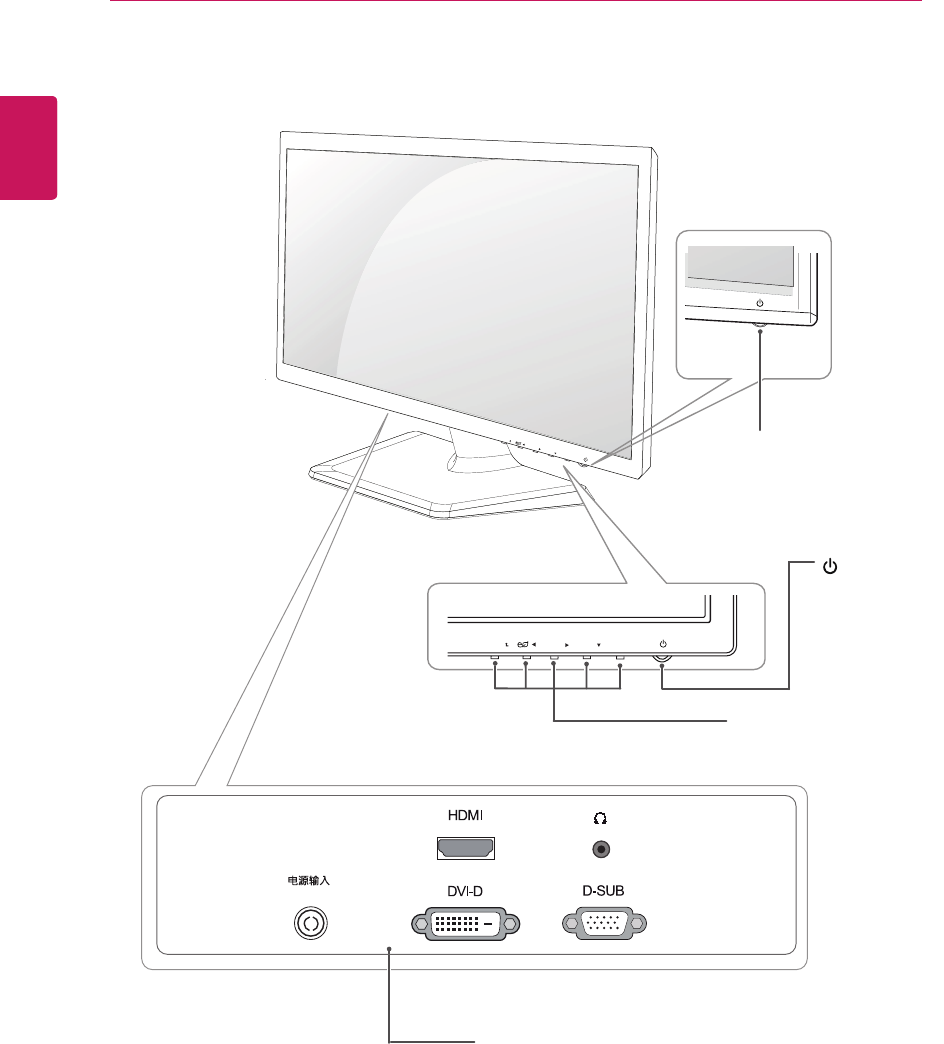

Parts and buttons

Power Indicator

yLighting On: Turned on

yLighting Off: Turned off

Button (See p.12)

(Power Button)

Connection panel (See p.10)

MENU / /INPUT / EXIT

MODE / AUTO /

MENU / /INPUT /

EXIT

MODE / AUTO /

DC-IN

Setting up the Monitor set

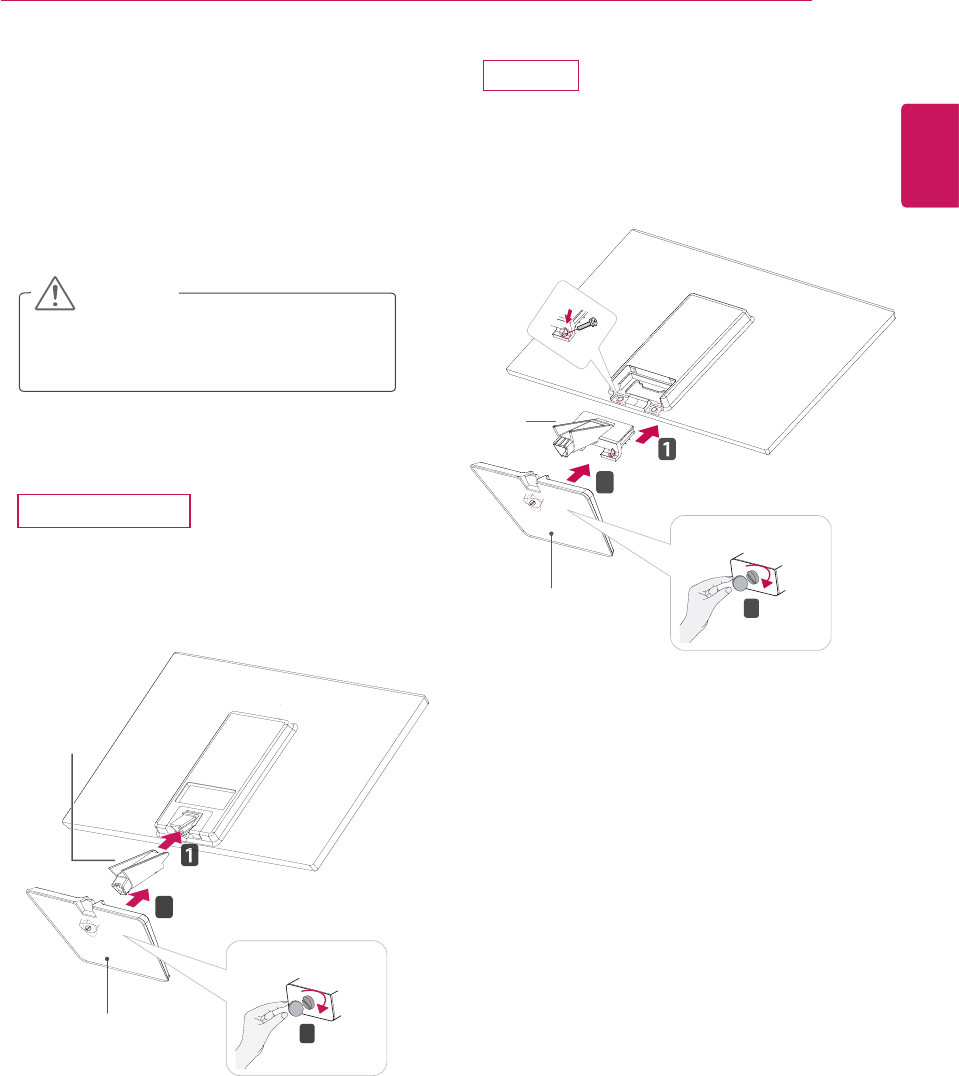

Attaching the Stand

1 Place the Monitor set with the screen side

down on a flat and cushioned surface.

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

CAUTION

Attach the Stand body and then attach the Stand

Base,then tighten the screw to the right with a

Coin.

ENG

ENGLISH

ASSEMBLING AND PREPARING

E2742V

Use two screw to assemble the Stand Body and

back cover, attach the stand base and then

tighten the screw to the right with a Coin.

Stand Base 3

Stand Base

Stand Body

E2342V/E2442V

CAUTION

This illustration depicts the general model of

connection. Your monitor may differ from the

items shown in the picture.

Do not carry the product upside down holding

only the stand base. The product may fall

and get damaged or injure your foot.

E2742V

Stand Base 1

Stand Body

Turn the screw to the left with a Coin, and then

pull out the Stand Base from the Stand Body.

Remove 2 screws and pull out the Stand Body

from the Monitor set.

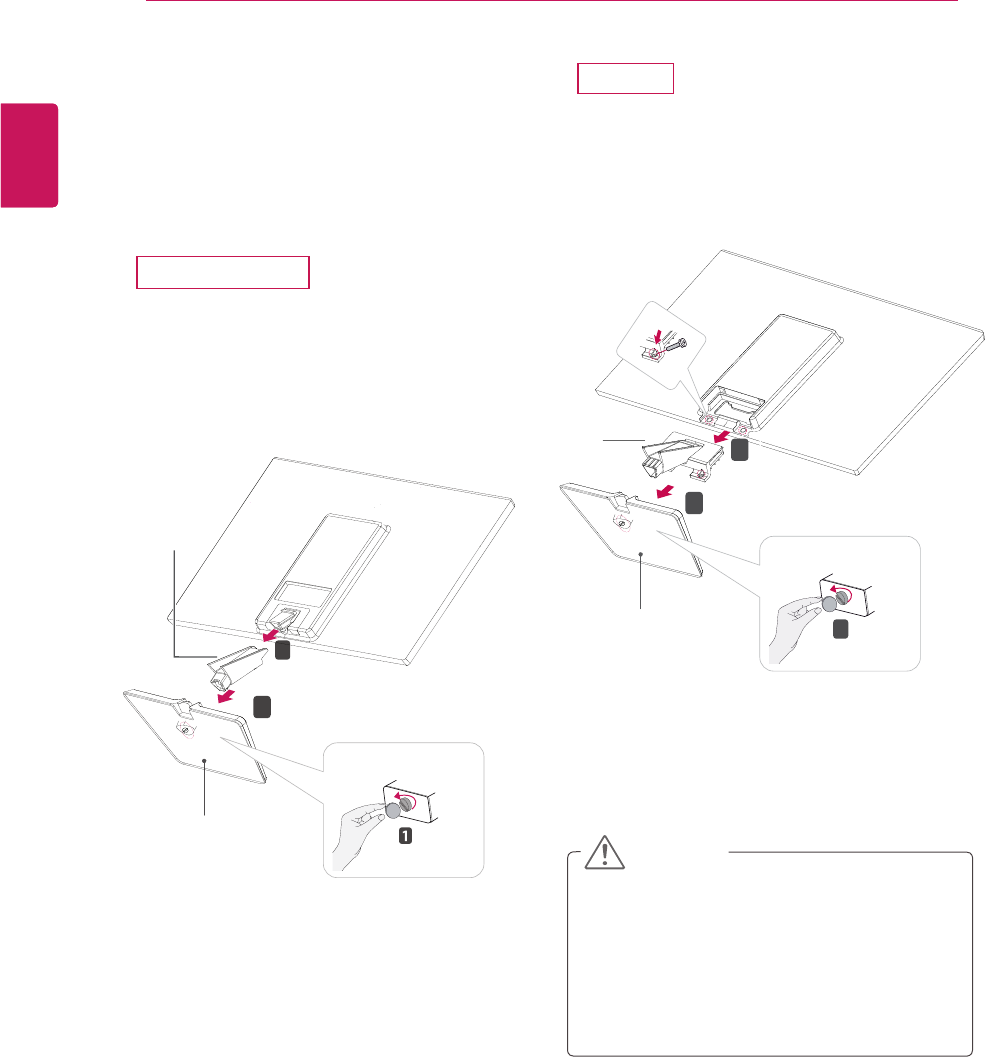

Detaching the Stand

1 Place the Monitor set with the screen side

down on a flat and cushioned surface.

Turn the screw to the left with a Coin, and then

pull out the Stand Base from the Stand Body,

then pull out the Stand Body from the Monitor

set .

Stand Base

Stand Body

ENG

ENGLISH

ASSEMBLING AND PREPARING

E2342V/E2442V

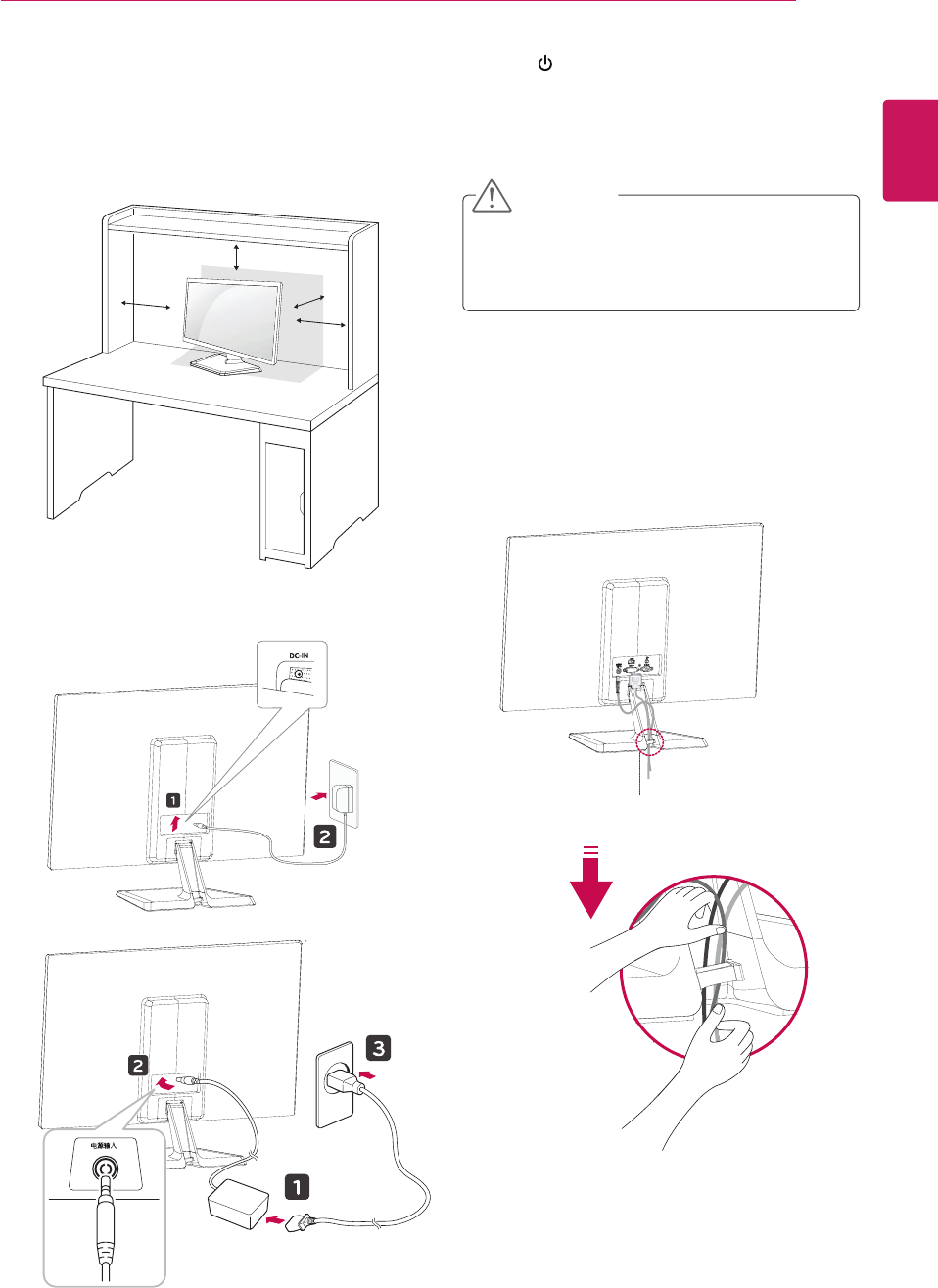

Mounting on a table

1 Lift and tilt the Monitor set into its upright

position on a table.

Leave a 10 cm (minimum) space from the wall

for proper ventilation.

2 Connect the AC-DC adapter and Power Cord

to wall outlet

3 Press (Power) button on the bottom switch

panel to turn the power on.

CAUTION

Unplug the power cord before moving the

Monitor to another location. Otherwise electric

shock may occur.

10 cm

ENG

ENGLISH

ASSEMBLING AND PREPARING 7

Using the cable holder

Cable holder

电源输入/

DC-IN

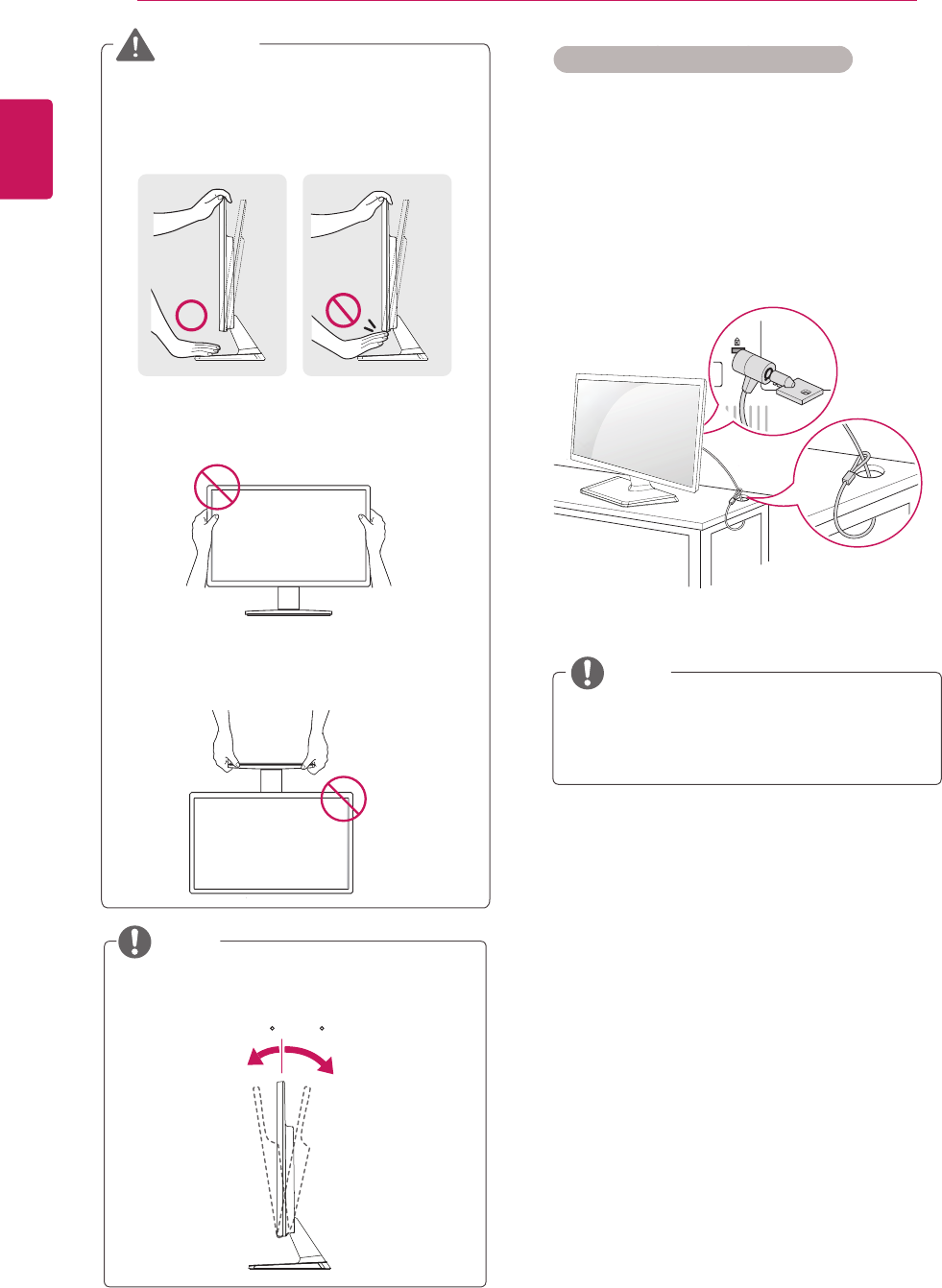

Tilt from +20 to -5 degrees up or down to adjust

the angle of the Monitor set to suit your view.

NOTE

Front Rear

Using the Kensington security system

The Kensington security system connector is

located at the back of the Monitor set. For more

information of installation and using, refer to the

manual supplied with the Kensington security

system or visit

http://www.kensington.com

Connect the Kensington security system cable

between the Monitor set and a table.

The Kensington security system is optional.

You can obtain it from most electronics stores.

NOTE

20- 5

ENG

ENGLISH

ASSEMBLING AND PREPARING

ENGLISH

When you adjust the angle, do not hold the

bottom of the Monitor set frame as shown on

the following illustration, as may injure your

fingers.

Do not touch or press the screen when

adjusting the angle of the monitor.

WARNING

Do not hold this set like below picture.

Monitor screen can detach from stand base

and injure your body.

yDisconnect the power cord first, and then

move or install the Monitor set. Otherwise

electric shock may occur.

yIf you install the Monitor set on a ceiling or

slanted wall, it may fall and result in severe

injury.

yUse only an authorized LG wall mount

and contact the local dealer or qualified

personnel.

y Do not over tighten the screws as this may

cause damage to the Monitor set and void

your warranty.

y Use only screws and wall mounts that

meet the VESA standard. Any damages

or injuries by misuse or using an improper

accessory are not covered by the warranty.

yUse the screws that are listed on the VESA

standard screw specifications.

yThe wall mount kit will include an installation

manual and necessary parts.

yThe wall mount bracket is optional. You can

obtain additional accessories from your local

dealer.

yThe length of screws may differ depending

on the wall mount. Be sure to use the proper

length.

yFor more information, refer to the

instructions supplied with the wall mount.

CAUTION

NOTE

Model E2342V

VESA (A x B) 75 x 75

Standard screw M4

Number of screws 4

100 x 100

E2442V

E2742V

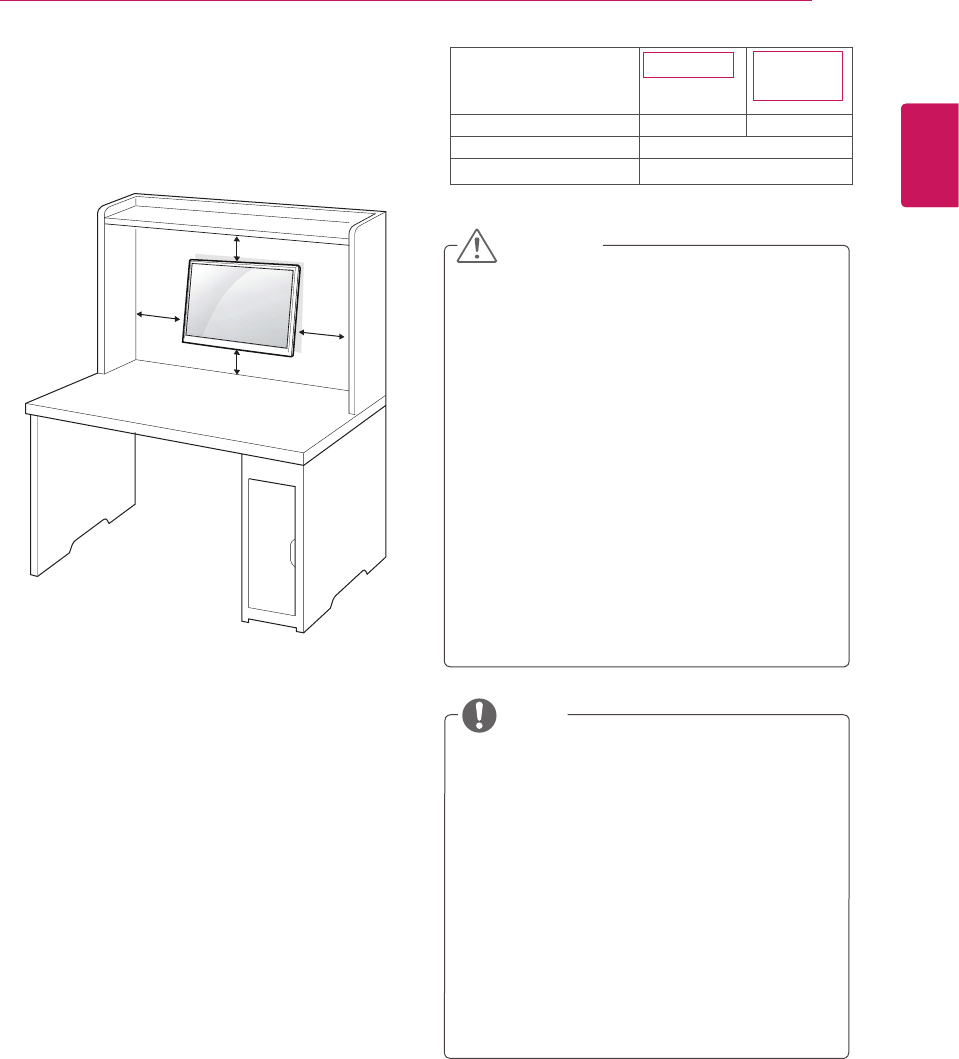

Mounting on a wall

For proper ventilation, allow a clearance of 10 cm

on each side and from the wall. Detailed

instructions are available from your dealer, see the

optional Tilt Wall Mounting Bracket Installation and

Setup Guide.

If you intend to mount the Monitor set to a wall,

attach Wall mounting interface (optional parts) to

the back of the set.

When you install the Monitor set using a wall

mounting interface (optional parts), attach it

carefully so it will not drop.

1 Please, Use the screw and wall mount interface

in accordance with VESA Standards.

2 If you use screw longer than standard, the

monitor might be damaged internally.

3 If you use improper screw, the product might be

damaged and drop from mounted position. In

this case, LG Electronics is not responsible for

it.

4 VESA compatible.

5 Please use VESA standard as below.



784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm

* Screw : Φ 4.0 mm x Pitch 0.7 mm x

Length 10 mm



787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad

and screws.

10 cm

ENG

ENGLISH

ASSEMBLING AND PREPARING

USING THE MONITOR SET

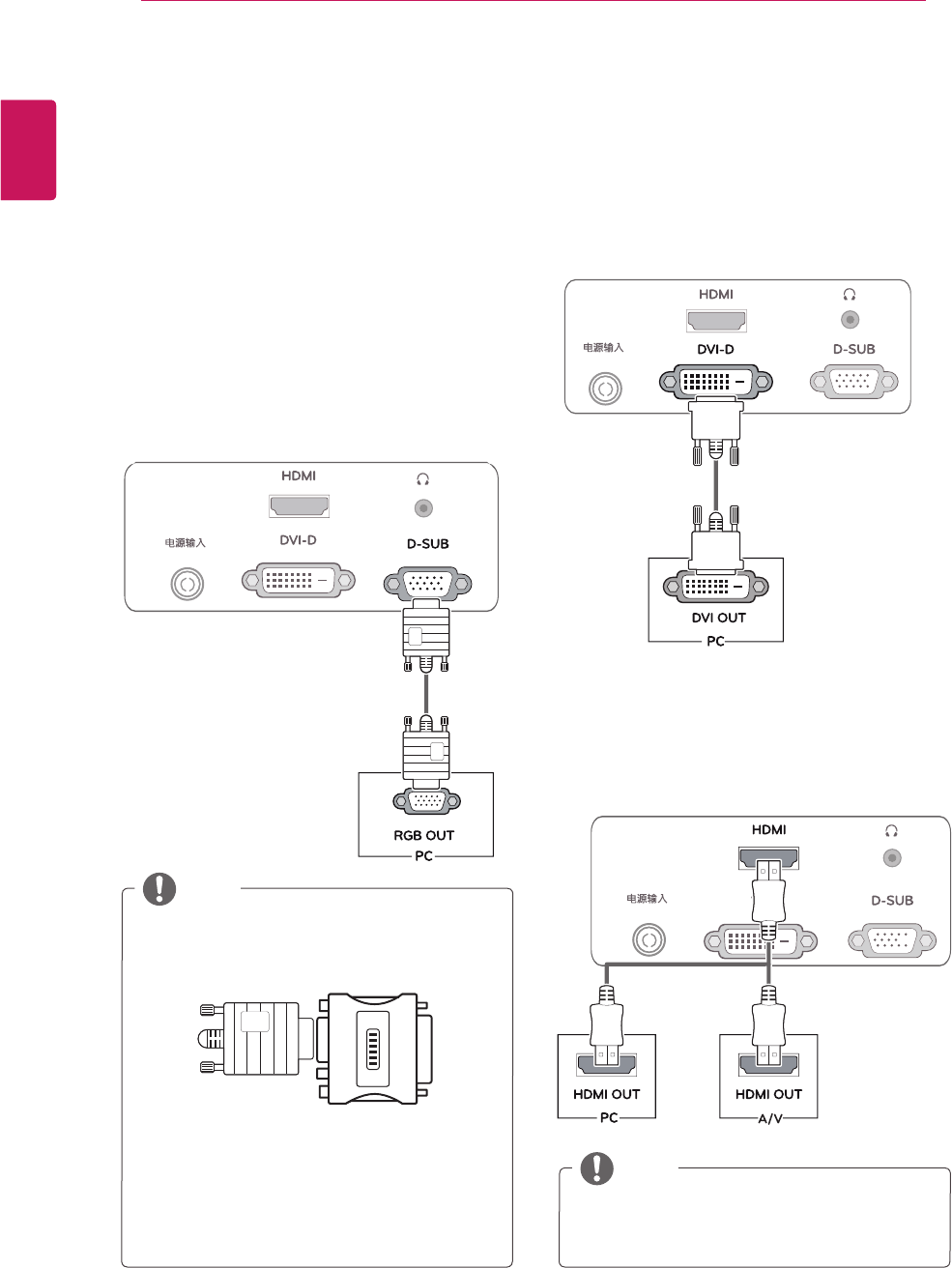

Connecting to a PC

yYour Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected

device that users connect to a PC and turn

on, without device configuration or user

intervention.

D-SUB connection

Transmits analog video from your PC to the

Monitor set. Connect the PC and the Monitor set

with the supplied D-sub 15 pin signal cable as

shown in the following illustrations.

yMac adapter

For Apple Macintosh use, a separate plug

adapter is needed to change the 15 pin

high density (3 row) D-SUB VGA connector

on the supplied cable to a 15 pin 2 row

connector.

yWhen using a D-Sub signal input cable

connector for Macintosh

yIf you use HDMI PC, it can cause compatibility

problem.

NOTE

DVI-D connection

Transmits a digital video signal from your PC to

the Monitor set. Connect the PC and the Monitor

set with a DVI cable as shown in the following

illustrations.

HDMI connection

Transmits the digital video and audio signals from

your PC or A/V to the Monitor set. Connect the PC

or A/V and the Monitor set with the HDMI cable as

shown in the following illustrations.

DC-IN

ENG

ENGLISH

USING THE MONITOR SET

yWhen you want to use two PC in our Monitor,

please connect the signal cable(D-SUB/

DVI-D/HDMI) respectively in Monitor set.

yIf you turn the Monitor set on while it is cold,

the screen may flicker. This is normal.

ySome red, green, or blue spots may appear

on the screen. This is normal.

y"Self Image Setting" Function.

This function provides the user with optimal

display settings.When the user connects

the monitor for the first time, this function

automatically adjusts the display to optimal

settings for individual input signals.(Only

supported in Analog Mode)

y‘AUTO’ Function.

When you encounter problems such as

blurry screen, blurred letters, screen flicker

or tilted screen while using the device or

after changing screen resolution, press the

AUTO function button to improve resolution.

(Only supported in Analog Mode)

NOTE NOTE

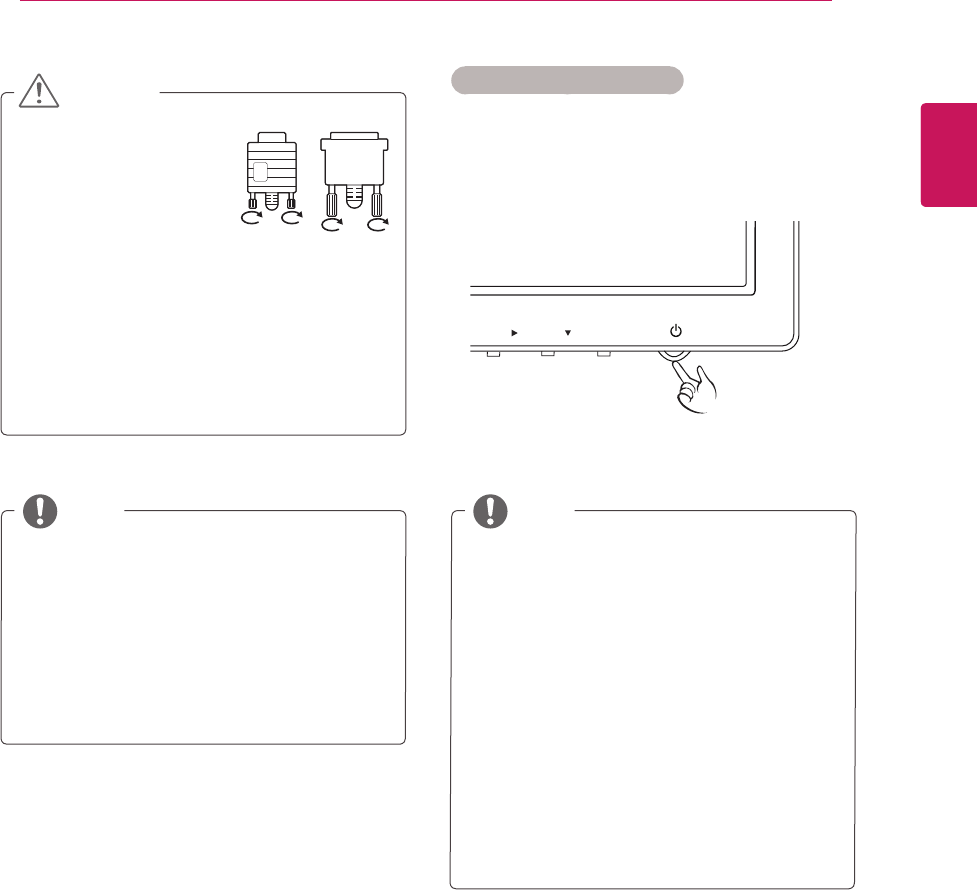

yConnect the signal

input cable and tighten

it by turning the screws

clockwise.

yDo not press the screen with your finger for

a long time as this may result in temporary

distortion on the screen.

yAvoid displaying a fixed image on the

screen for a long period of time to prevent

image burn. Use a screensaver if possible.

CAUTION Self Image Setting Function

Press the power button on the bottom panel to

turn the power on. When monitor power is turned

on, the "Self Image Setting" Function is executed

automatically. (Only supported in Analog Mode)

ENG

ENGLISH

USING THE MONITOR SET

INPUT / EXIT

MODE / AUTO /

CUSTOMIZING SETTINGS

Press the desired button on the bottom of the Monitor set .

Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow ( ) button.

Select EXIT to leave the OSD menu.

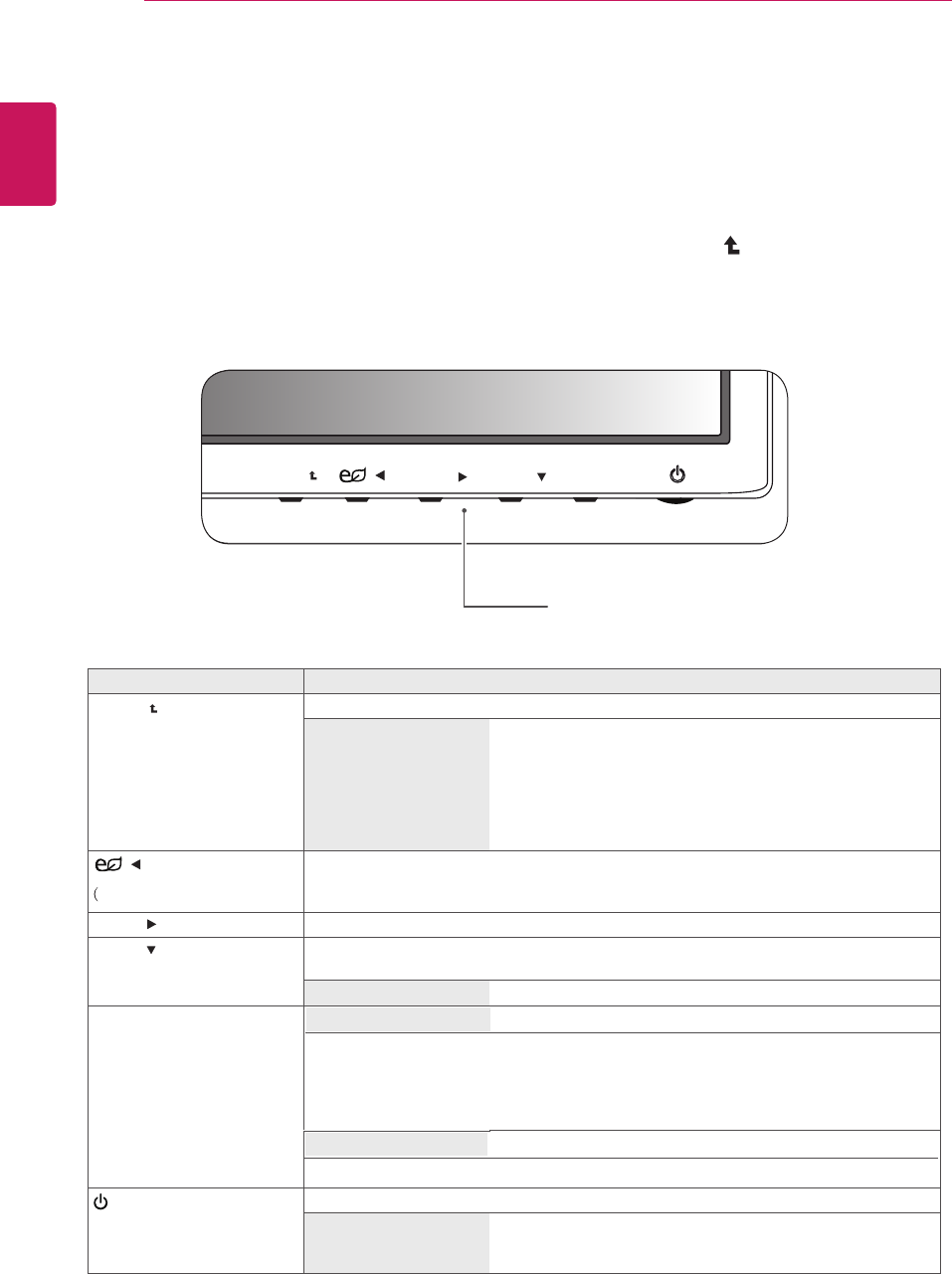

Monitor set Buttons

MENU / /INPUT / EXIT

MODE / AUTO /

ENG

ENGLISH

USING THE MONITOR SET

Button Description

Accesses the main menus.(See p.13)

OSD LOCKED/

UNLOCKED This function allows you to lock the current control settings, so

that they cannot be inadvertently changed.

Press and hold the MENU button for several seconds.

The message "OSD LOCKED" should appear.

You can unlock the OSD controls at any time by pushing

the MENU button for several seconds. The message "OSD

UNLOCKED" should appear.

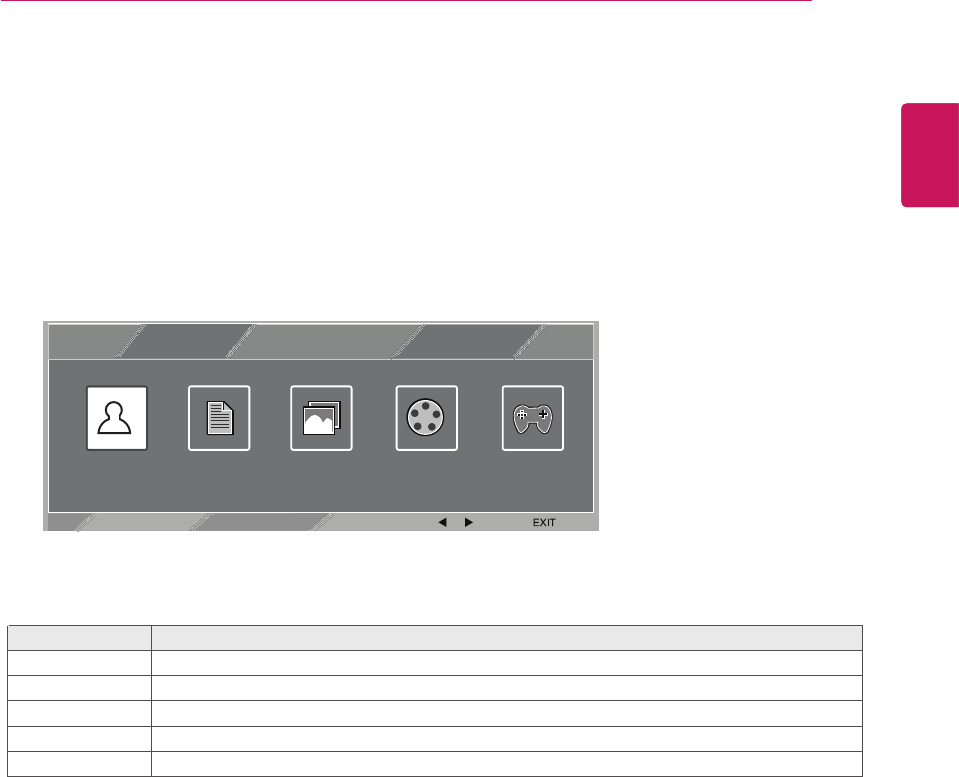

Use this button to enter CUSTOM,TEXT,PHOTO,CINEMA,GAME menus.(See p.19)

When adjusting your display settings, always press the AUTO button on the MONITOR

SETUP OSD. (Only supported in Analog Mode)

The best display mode 1920 x 1080

INPUT / EXIT

You can choose the input signal.

• When two input signals are connected, you can select the input signal (D-SUB/DVI/

HDMI) you want.

• When only one signal is connected, it is automatically detected. The default setting is

D-SUB.

Exit the OSD(On Screen Display).

(Power Button) Turns the power on or off.

Power Indicator The power indicator stays red if the display is running

properly (On Mode). If the display is in Sleep Mode, the power

indicator blinks red.

SUPER ENERGY SAVING)

Use this button to enter SUPER ENERGY SAVING menu.For

more information.(See p.18)

MODE /

AUTO /

INPUT

EXIT

MENU /

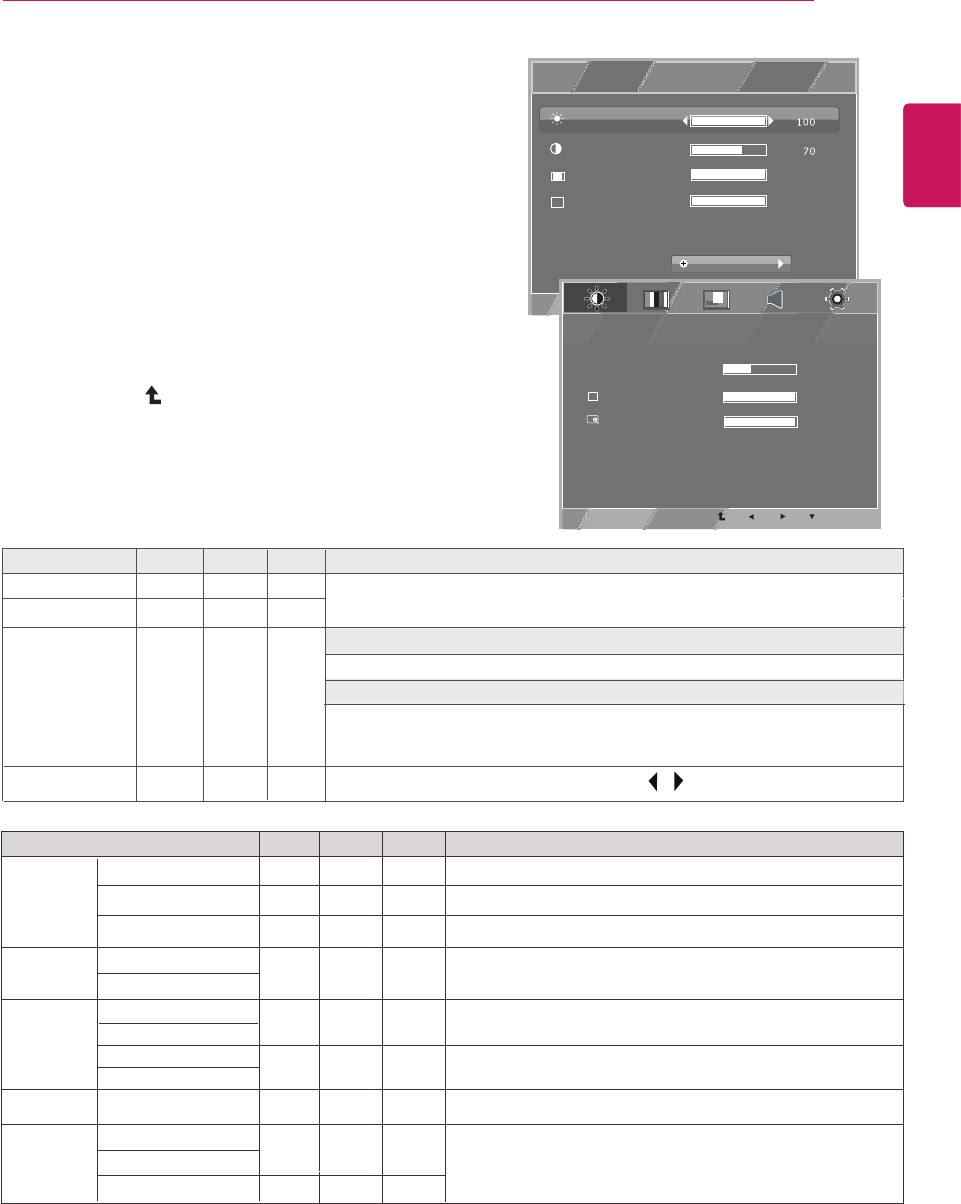

Menu Settings

Each option is explained below.

yAnalog: D-SUB(Analog signal) input.

yDigital: DVI-D(Digital signal) input.

yHDMI: HDMI(Digital signal) input.

Customizing Settings MENU

EXIT

WIDE / ORIGINAL

RESET

CONTRAST

BRIGHTNESS

NEXT MENU

1 / 2

WIDE

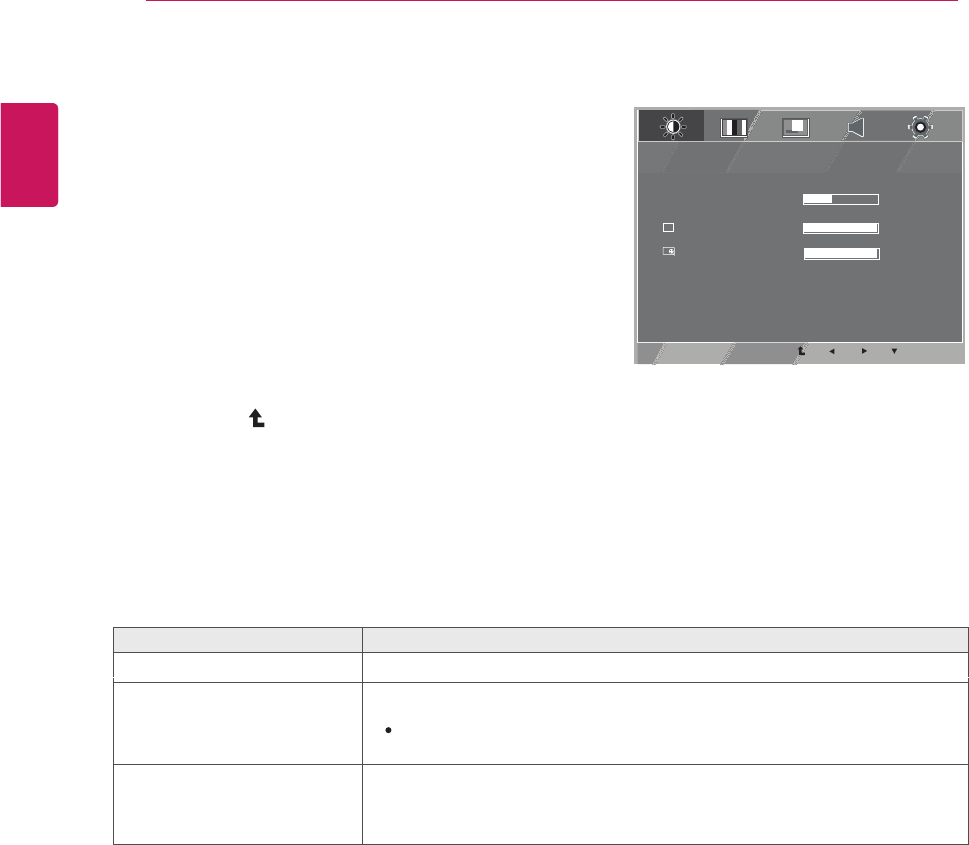

NEXT MENU PICTURE

＞＞

EXIT

1 / 2

BLACK LEVEL

SHARPNESS

HIGN

OVERSCAN OFF 1 / 2

Select to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

NEXT MENU

2 Settheoptionsbypressingthe◄or►or▼buttons.

Select the " " button to enter the more option

settings.

Press button on the bottom of the Monitor set to

display the MENU OSD.

ENG

ENGLISH

CUSTOMIZING SETTINGS

4 EXIT

Analog Digital Description

PICTURE ● ● To adjust the clearness of the screen .

COLOR ● ● To customize the color of the screen

GAMMA

COLOR TEMP

DISPLAY HORIZONTAL

VERTICAL ●To adjust the position of the screen

CLOCK

PHASE ●To improve the clarity and stability of the screen

OTHERS LANGUAGE

POWER INDICATOR ● ● To customize the screen status for a user's operating

environment

WHITE BALANCE ●

OVERSCAN

SHARPNESS

BLACK LEVEL

HDMI

●

To set offset level

VOLUME To adjust the volume

●

To improve the clarity and stability of the screen.

Menu Description

BRIGHTNESS

CONTRAST

WIDE/ORIGINAL

RESET

WIDE

Switch to full screen mode according to input image signal.

Change the input image signal ratio to original.

* This function works only if input resolution is lower than Monitor

set ratio (16:9).

ORIGINAL

Restore all factory default settings . Press the , buttons to reset immediately.

Analog Digital HDMI

● ● ●

MENU-->NEXT MENU

To adjust the brightness, contrast of the screen.


Each option is explained below.

NEXT MENU PICTURE

＞＞

EXIT

1 / 2

BLACK LEVEL

SHARPNESS

HIGN

OVERSCAN OFF 1 / 2

1 Press MENU

button on the bottom of the Monitor set to

display the MENU OSD.

Select the " " button to enter the more option

settings.

4





EntertoPICTUREbypressingthe 

▼





button.



Settheoptionsbypressingthe◄or►or▼buttons.

Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

MENU--NEXT MENU--PICTURE Description

SHARPNESS To adjust the clearness of the screen.

BLACK LEVEL

OVERSCAN To select the range of output image for DTV timing in HDMI input.

(only for HDMI input) Recommend overscan function to turn on

You can set the offset level. If you select 'HIGH', the screen will be

bright and if you select ‘LOW’, the screen will be dark.

Offset: As the criteria for video signal, it is the darkest screen

the monitor can show.

when connect AV equipment.

ENG

ENGLISH

CUSTOMIZING SETTINGS

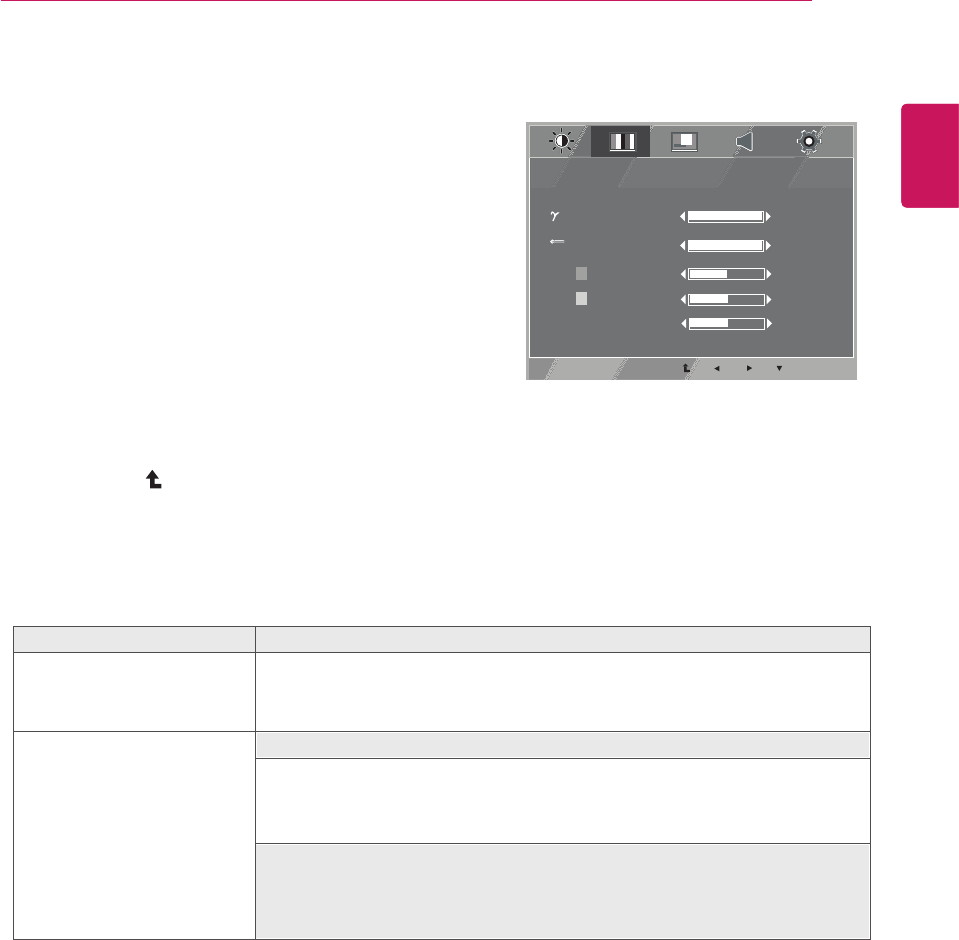

NEXT MENU

COLOR

Each option is explained below.

NEXT MENU COLOR

＞＞

EXIT

1 / 4

2 / 3

5 0

COLOR TEMP

GAMMA GAMMA 1

WARM

RED

GREEN

BLUE

1 Press MENU

button on the bottom of the Monitor set to

display the MENU OSD.

2 Select the " " button to enter the more option

settings.

 SelectCOLORbypressingthe



►

 button.



4EntertoCOLORbypressingthe 

▼





button.



Settheoptionsbypressingthe◄or►or▼buttons.

6Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

ENG

ENGLISH

CUSTOMIZING SETTINGS

NEXT MENU

Description

GAMMA Set your own gamma value. GAMMA 0,GAMMA1,GAMMA2 On the monitor,

COLOR TEMP

high gamma values display whitish images and low gamma values display

MENU--NEXT MENU--COLOR

• RED: Set your own red color levels.

• GREEN: Set your own green color levels.

• BLUE: Set your own blue color levels.

blackish images.

CUSTOM

Select the screen color.

WARM: Set the screen to warm color temperature (more red).

MEDIUM: Set the screen to medium color temperature.

COOL: Set the screen to cool color temperature (More blue).

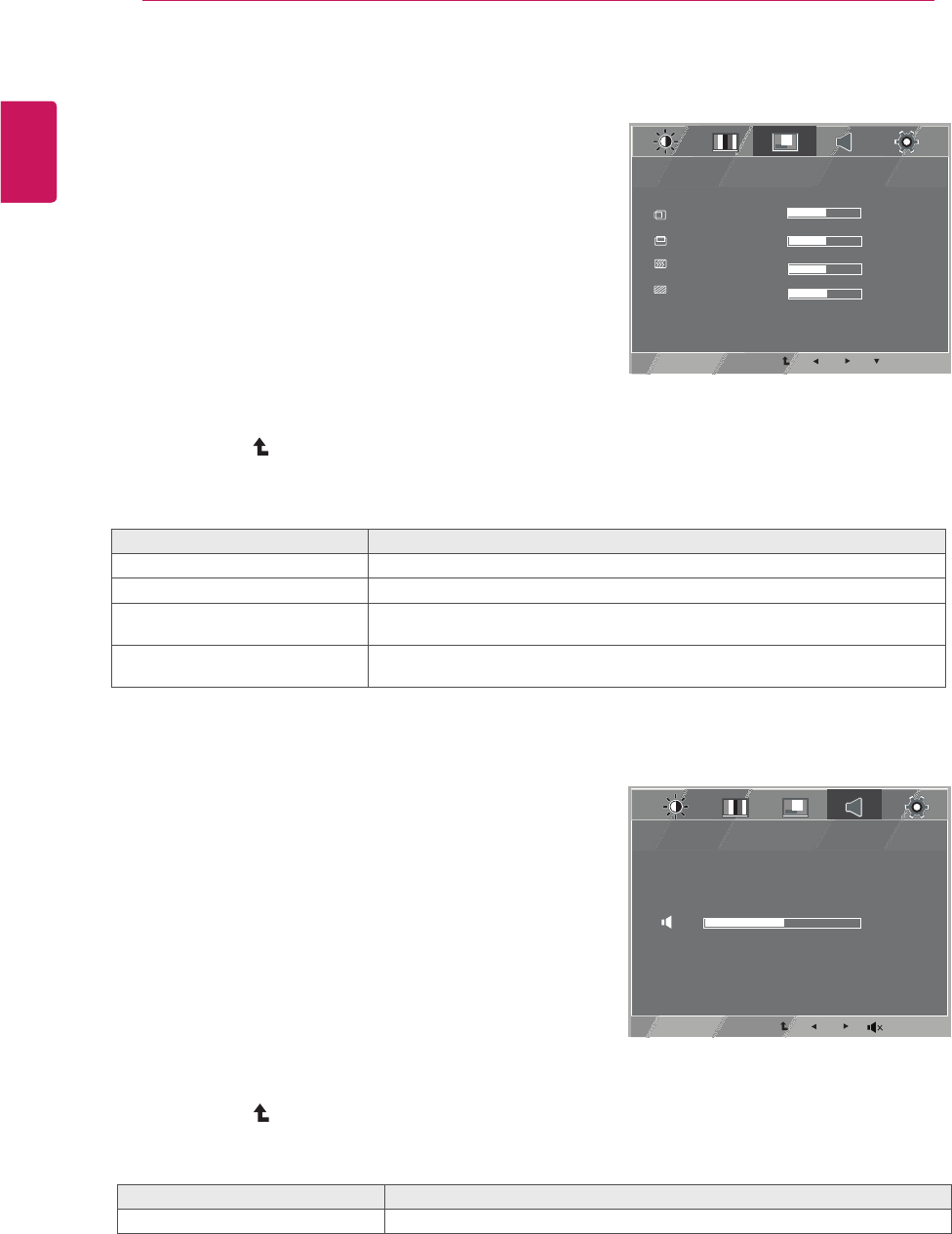

DISPLAY

Each option is explained below.

VOLUME

Each option is explained below.

NEXT MENU DISPLAY

＞＞

EXIT

2 5

CLOCK

PHASE

VERTICAL

HORIZONTAL

NEXT MENU VOLUME

＞＞

EXIT

5 0

to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

 SelectVOLUMEbypressingthe



►

 button.



 Settheoptionsbypressingthe◄or►buttons.

EntertoVOLUMEbypressingthe 

▼





button.



5

6Select EXIT

1 Press MENU

button on the bottom of the Monitor set to

display the MENU OSD.

2 Select the " " button to enter the more option

settings.

 SelectDISPLAYbypressingthe



►

 button.



4EntertoDISPLAYbypressingthe 

▼





button.





6Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

Settheoptionsbypressingthe◄or►or▼buttons.

Select the " " button to enter the more option

settings.

Press MENU

button on the bottom of the Monitor set to

display the MENU OSD.

ENG

ENGLISH

CUSTOMIZING SETTINGS

NEXT MENU

MENU-- NEXT MENU-- DISPLAY Description

HORIZONTAL To move image left and right.

VERTICAL To move image up and down.

CLOCK To minimize any vertical bars or stripes visible on the screen background.

The horizontal screen size will also change.

PHASE To adjust the focus of the display. This item allows you to remove any horizontal

noise and clear or sharpen the image of characters.

MENU-- NEXT MENU-- VOLUME Description

VOLUME To adjust the volume of headphone/Earphone.(Only for HDMI input)

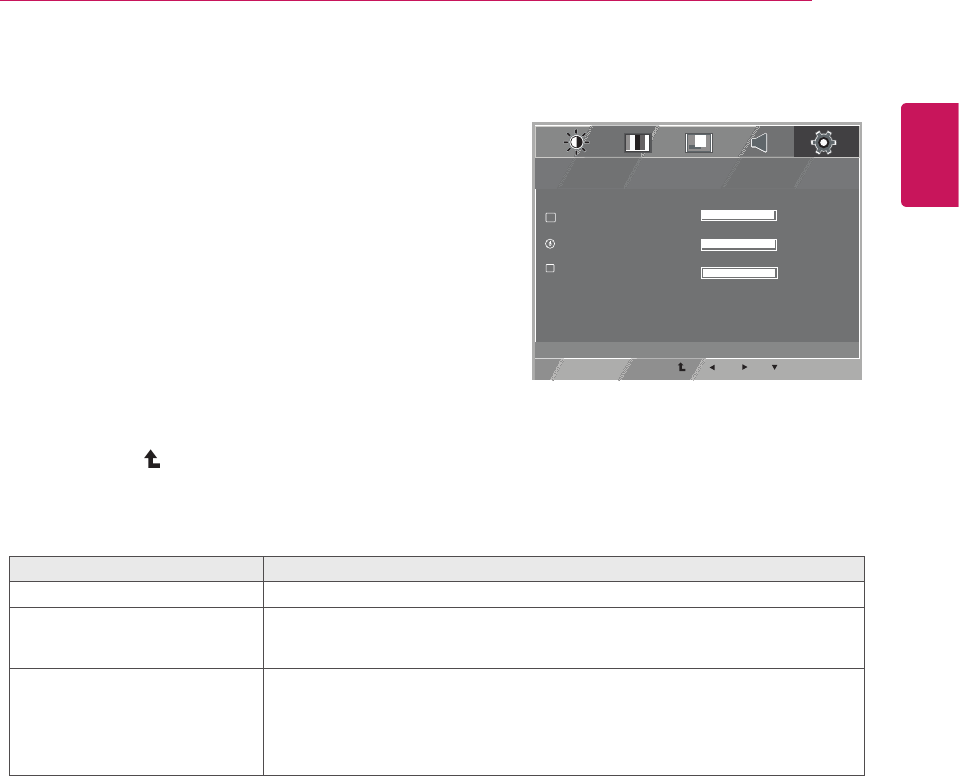

OTHERS

Each option is explained below.

NEXT MENU OTHERS

＞＞

EXIT

1 / 2

1 / 15

1 / 2

WHITE BALANCE

POWER INDICATOR

LANGUAGE

ENGLISH

D-SUB 1920 X 1080 60HZ

SelectOTHERSbypressingthe



►

 button.



4EntertoOTHERSbypressingthe 

▼





button.





6



Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use

the up arrow ( ) button.

Select the " " button to enter the more option

settings.

Press MENU

button on the bottom of the Monitor set to

display the MENU OSD.

Settheoptionsbypressingthe◄or►or▼buttons.

ENG

ENGLISH

CUSTOMIZING SETTINGS

MENU-- NEXT MENU-- OTHERS Description

LANGUAGE To choose the language in which the control names are displayed.

POWER

INDICATOR Use this function to set the power indicator on the bottom side of the monitor to

ON or OFF.If you set OFF, it will go off.

If you set ON at any time, the power indicator will automatically be turned on.

WHITE

BALANCE If the output of the video card is different the required specifications,the color level

may deteriorate due to video signal distortion. Using this function, the signal level

output level of the video card in order to provide

white and black colors are present in

is adjusted to fit into the standard

the optimal image.Activate this function when

the screen.

NEXT MENU

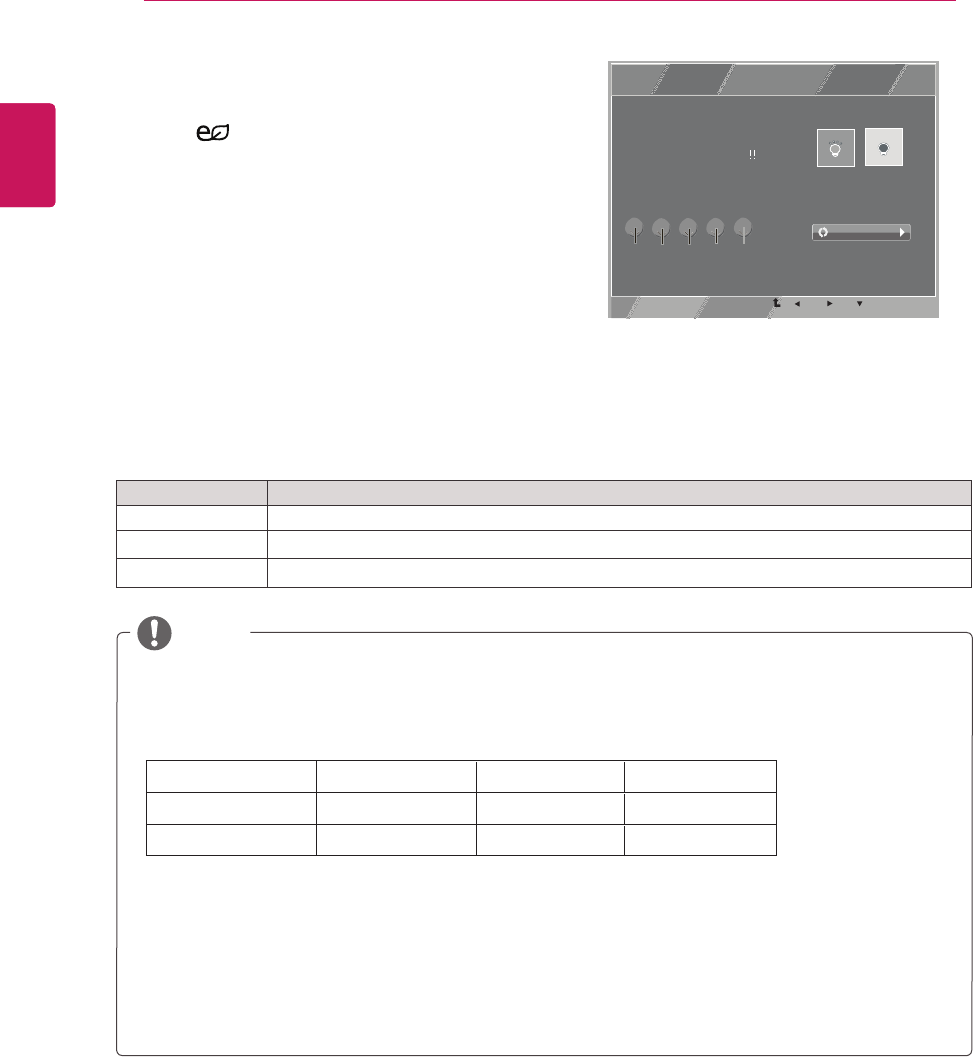

SUPER ENERGY SAVING Settings

Menu Description

ON EnablesSUPERENERGYSAVINGyoucansaveenergywiththisenergy-efficientfunction.

OFF DisablesSUPERENERGYSAVING.

RESET ResetsthevaluesoftotalenergyconsumptionreductionandCO2emissionreductionestimates.

 TOTAL POWER REDUCTION:Howmuchpowerissavedwhileusingthemonitor.

 TOTAL CO2 REDUCTION:ChangetheTOTALPOWERREDUCTIONtoCO2.

 SAVING DATA(W/h)

 SavingDatadependsonthePanel.So,thosevaluesshouldbedifferentfromeachpanelandpanel

vendor.

 LGcalculatedthesevaluesbyusing “broadcast video signal”.

 LEDSavingreferstohowmuchpowercanbesavedusingaWLEDPanelinsteadofCCFLpanel.

 SUPERSAVINGreferstohowmuchpowercanbesavedusingtheSUPERENERGYSAVING

function.

NOTE

ENG.indd 15

EXIT

ON OFF

RESET

SUPER ENERGY SAVING

SUPER ENERGY SAVING IS

ACTIVE

YOU SAVED 12.34 TREES

POWER REDUCTION:123W

CO2 DECREMENT:123G

Press ( SUPER ENERGY SAVING ) button on

the bottom of the Monitor set to display the SUPER

ENERGY SAVING OSD.

Select EXIT to leave the OSD menu.

Settheoptionsbypressingthe◄or►or▼buttons.

584 mm (23 inch)

SUPER SAVING

LED SAVING

7W/h

14 W/h

610 mm (24 inch) 685 mm (27 inch)

7 W/h

19 W/h

9 W/h

13 W/h

ENG

ENGLISH

TROUBLESHOOTING

Each option is explained below.

PICTURE MODE Setting

1 Press button on the bottom of the Monitor set to display the PICTURE MODE OSD .

Select EXIT to leave the OSD menu.

Each option is explained below.

PICTURE MODE Description

CUSTOM

GAME

TEXT


CINEMA

It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.

It is a mode that the screen is adjusted to the best for the text works.

It is a mode that the screen is adjusted to the best to view pictures.

It is a mode that the screen is adjusted to the best to view the videos.

It is a mode that the screen is adjusted to the best to play a game.

PICTURE MODE

TEXT PHOTO CINEMA GAME

CUSTOM

MODE

Settheoptionsbypressing◄or►buttons.

ENG

ENGLISH

TROUBLESHOOTING

Do you see a "OSD LOCKED" message on the screen?

Do you see “OSD LOCKED” when

you push MENU button?

yYou can secure the current control settings, so that they cannot be

inadvertently changed. You can unlock the OSD controls at any time

by pushing the MENU button for several seconds: the message “OSD

UNLOCKED” will appear.

Display image is incorrect

Display Position is incorrect.

yPress the AUTO button to automatically adjust your display image to

the ideal setting.

On the screen background, vertical

bars or stripes are visible.

yPress the AUTO button to automatically adjust your display image to

the ideal setting.

Any horizontal noise appearing in

any image or characters are not

clearly portrayed.

yPress the AUTO button to automatically adjust your display image to

the ideal setting.

yCheck Control Panel ► Display ► Settings and adjust the display

to the recommended resolution or adjust the display image to the ideal

setting. Set the color setting higher than 24 bits (true color).

ENG

ENGLISH

SPECIFICATIONS

Check the following before calling for service.

No image appears

Is the power cord of the display y Check and see if the power cord is connected properly to the power

connected? outlet.

Is the power indicator light on? y Press the Power button.

Is the power on and the power y

indicator Red?

Is the power indicator flickering? y If the display is in power saving mode, try moving the mouse or

pressing any key on the keyboard to bring up the screen.

y Try to turn on the PC.

Do you see an "OUT OF RANGE" y This message appears when the signal from the PC (video card) is

message on the screen? out of horizontal or vertical frequency range of the display. See the

'Specifications' section of this manual and configure your display

again.

Do you see a "CHECK SIGNAL y This message appears when the signal cable between your PC and

CABLE" message on the screen? your display is not connected. Check the signal cable and try again.

Adjust the brightness and the contrast.

Display image is incorrect

The screen color is mono or

abnormal.

yCheck if the signal cable is properly connected and use a screwdriver

to fasten if necessary.

yMake sure the video card is properly inserted in the slot.

ySet the color setting higher than 24 bits (true color) at Control Panel

► Settings.

The screen blinks.

yCheck if the screen is set to interlace mode and if yes, change it to the

recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?

Have you installed the display

driver?

yBe sure to install the display driver from the display driver CD (or

diskette) that comes with your display. Or, you can also download the

driver from our web site: http://www.lg.com.

yMake sure to check if the video card supports Plug&Play function.

yCheck Control Panel ► Display ► Settings and see if the frequency or the resolution were

changed. If yes, readjust the video card to the recommend resolution.

yIf the recommended resolution (optimal resolution) is not selected, letters may be blurred and the

screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.

yThe setting method can differ by computer and O/S (Operation System), and resolution mentioned

above may not be supported by the video card performance. In this case, please ask to the computer

or the video card manufacturer.

CAUTION

ENG

ENGLISH

SPECIFICATIONS

Product specifications shown above may be changed without prior notice due to upgrade of product

functions.

Display Screen Type 58.3 cm (23 inch) Flat Panel Active matrix-TFT

LCDAnti-Glare coating

Visible diagonal size: 58.3 cm

Pixel Pitch 0.265 mm x 0.265 mm (Pixel Pitch)

Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)

Vertical Frequency 56Hz to 75Hz (D-SUB, DVI-D)

56Hz to 61Hz (HDMI)

Input Form Separate Sync. Digital

Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)

HDMI Connector

Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz

DVI / HDMI (Digital) : 1920 x 1080 @ 60 Hz

Recommend VESA 1920 x 1080 @ 60 Hz

Plug & Play DDC 2B(Analog,Digital,HDMI)

Power Consumption On Mode : 24 W(Typ.)

Sleep Mode ≤ 0.3 W

Off Mode ≤ 0.3 W

Power Input

Dimensions

(Width x Height x Depth) With Stand 54.4 cm x 40.6 cm x 18.1 cm

Without Stand 54.4 cm x 33.2 cm x 3.4 cm

Weight 2.9 kg

Tilt Range -5° to 20°

Environmental

conditions Operating Temperature

Operating Humidity 10°C to 35 °C

10 % to 80 %

Storage Temperature

Storage Humidity -20°C to 60 °C

5 % to 90 % non-Condensing

Stand Base Attached ( ), Detached (O)

Power cord Wall-outlet type

E2342V

19V 1.6A

AC-DC Adapter Type ADS-40SG-19-3 19032G,manufactured by HONOR ELECTRONIC

or type ADS-40FSG-19 19032GPG-1,manufactured by HONOR ELECTRONIC

or type ADS-40FSG-19 19032GPBR-1,manufactured by HONOR ELECTRONIC

or type ADS-40FSG-19 19032GPI-1,manufactured by HONOR ELECTRONIC

or type ADS-40FSG-19 19032GPCU-1,manufactured by HONOR ELECTRONIC

or type LCAP21A,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or type LCAP26A-A,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or type LCAP26A-E,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or type LCAP26A-I,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

or type LCAP26A-B,manufactured by LIEN CHANG ELECTRONIC ENTERPRISE

OUTPUT: 19V 1.7A

ENG

ENGLISH

SPECIFICATIONS

Product specifications shown above may be changed without prior notice due to upgrade of product

functions.

Display Screen Type 60.9 cm (24 inch) Flat Panel Active matrix-TFT LCD

Anti-Glare coating

Visible diagonal size: 61.0 cm

Pixel Pitch 0.277 mm x 0.277 mm (Pixel Pitch)

Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)

Vertical Frequency 56Hz to 75Hz (D-SUB, DVI-D)

56Hz to 61Hz (HDMI)

Input Form Separate Sync. Digital

Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)

HDMI Connector

Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital

Resolution Max D-SUB(Analog) : 1920 x 1080 @ 60 Hz

DVI / HDMI (Digital) : 1920 x 1080 @ 60 Hz

Recommend VESA 1920 x 1080 @ 60 Hz

Plug & Play DDC 2B(Analog,Digital,HDMI)

Power Consumption On Mode : 25 W(Typ.)

Sleep Mode ≤ 0.3 W

Off Mode ≤ 0.3 W

Power Input

Dimensions

(Width x Height x Depth) With Stand 56.7 cm x 41.8 cm x 18.1 cm

Without Stand 56.7 cm x 34.3 cm x 5.7 cm

Weight 3.8 kg
