This unit has been engineered and manufactured to ensure your personal

safety, however improper use may result in potential eletrical shock or fire

hazards. In order to allow the proper operation of all safeguards

incorporated in this monitor, observe the following basic rules for its

installation, use, and servicing.

On Safety

Use only the power cord supplied with the unit. In case you use another power

cord, make sure that it is certified by the applicable national standards if not being

provided by the supplier. If the power cable is faulty in any way, please contact the

manufacturer or the nearest authorized repair service provider for a replacement.

The power supply cord is used as the main disconnect device. Ensure that the

socket-outlet is easily accessible after installation.

Operate the monitor only from a power source indicated in the specifications of

this manual or listed on the monitor. If you are not sure what type of power supply

you have in your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous. So are frayed power

cords and broken plugs. They may result in a shock or fire hazard. Call your service

technician for replacement.

Do not Open the Monitor.

There are no user serviceable components inside.

There are Dangerous High Voltages inside, even when the power is OFF.

Contact your dealer if the monitor is not operating properly.

To Avoid Personal Injury :

Do not place the monitor on a sloping shelf unless properly secured.

Use only a stand recommended by the manufacturer.

Do not try to roll a stand with small casters across thresholds or deep pile

carpets.

To Prevent Fire or Hazards:

Always turn the monitor OFF if you leave the room for more than a short period

of time. Never leave the monitor ON when leaving the house.

Keep children from dropping or pushing objects into the monitor's cabinet

openings. Some internal parts carry hazardous voltages.

Do not add accessories that have not been designed for this monitor.

During a lightning storm or when the monitor is to be left unattended for an

extended period of time, unplug it from the wall outlet.

Do not bring magnetic devices such as magnets or motors near the picture

tube.

Important Precautions

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place

the monitor where the power cord is subject to damage.

Do not use this monitor near water such as near a bathtub, washbowl, kitchen

sink, laundry tub, in a wet basement, or near a swimming pool.

Monitors are provided with ventilation openings in the cabinet to allow the release

of heat generated during operation. If these openings are blocked, built-up heat

can cause failures which may result in a fire hazard. Therefore, NEVER:

Block the bottom ventilation slots by placing the monitor on a bed, sofa, rug,

etc.

Place the monitor in a built-in enclosure unless proper ventilation is provided.

Cover the openings with cloth or other material.

Place the monitor near or over a radiator or heat source.

On Cleaning

Unplug the monitor before cleaning the face of the monitor screen.

Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the

monitor screen because overspray may cause electrical shock.

On Repacking

Do not throw away the carton and packing materials. They make an ideal

container in which to transport the unit. When shipping the unit to another

location, repack it in its original material.

A3A3

Connecting the Monitor

Latch

Before setting up the monitor, ensure that the power is turned off to the

monitor, computer system, and other attached devices.

Carefully set the monitor face-down with the underside facing you.

Connecting the Tilt/Swivel stand

1. Align the hooks on the tilt/swivel stand with the matching slots in the base of

the monitor.

2. Insert the hooks into slots.

3. Slide the tilt/swivel stand toward the front of the monitor until the latches click

into the locked position.

NOTE

This illustration depicts the general model of connection. Your monitor may differ from the

items shown in the picture.

Hook

Slot

Hook

Connecting the Monitor

Using the Computer

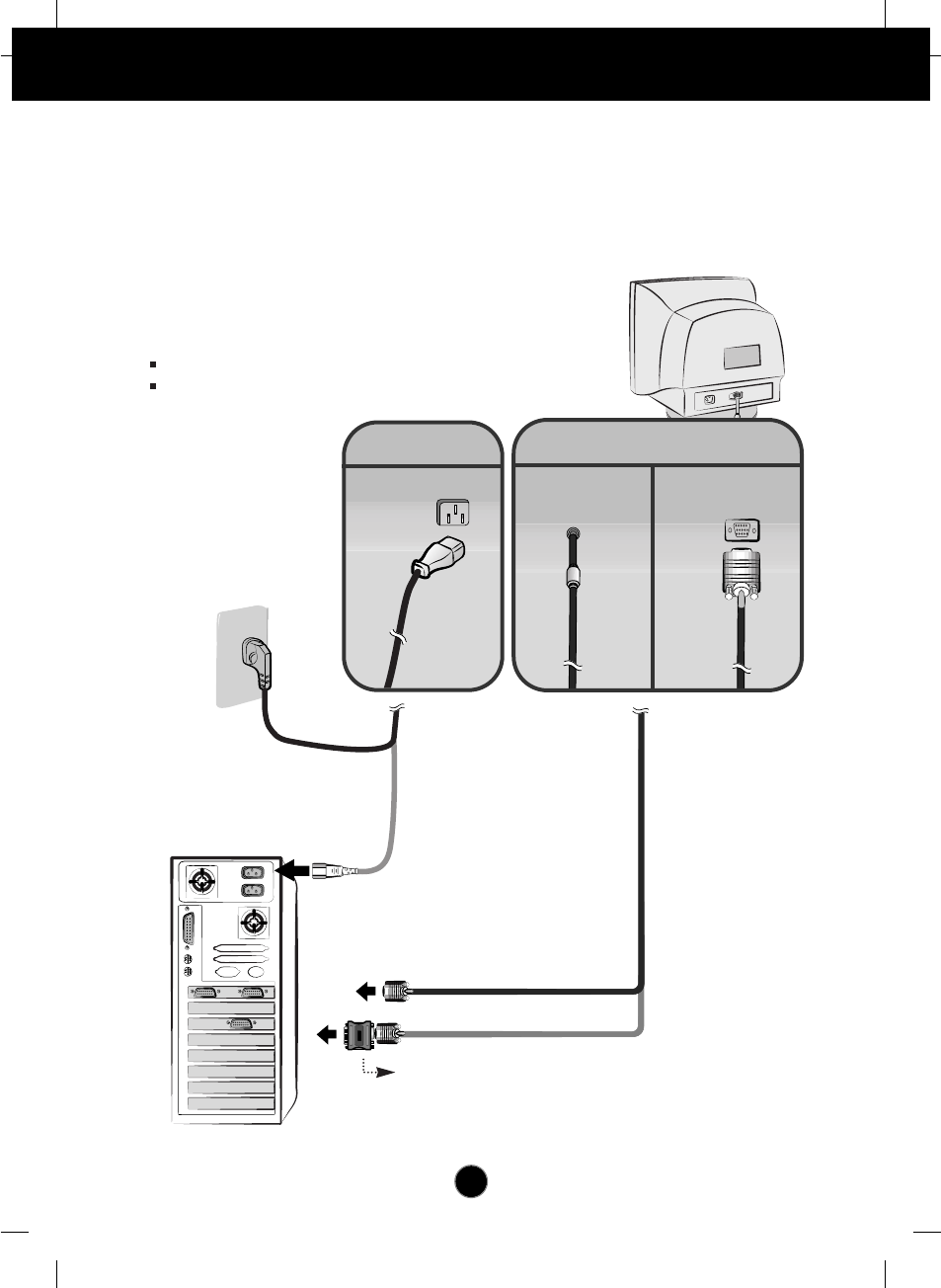

1. Connect the signal cable. When mated, tighten the thumbscrews to secure the

connection.

2. Connect the power cord into a properly power outlet that is easily accessible and

close to the monitor.

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to

change the 15 pin high density (3 row) D-sub VGA connector

on the supplied cable to a 15 pin 2 row connector.

Wall-outlet type*

NOTE

This is a simplified representation of the rear view.

This rear view represents a general model; your monitor

may differ from the view as shown.

PC-outlet type*

MAC

Power Cord Signal Cable

Attached Type*Detached Type*

Varies according to model.

Control Panel Functions

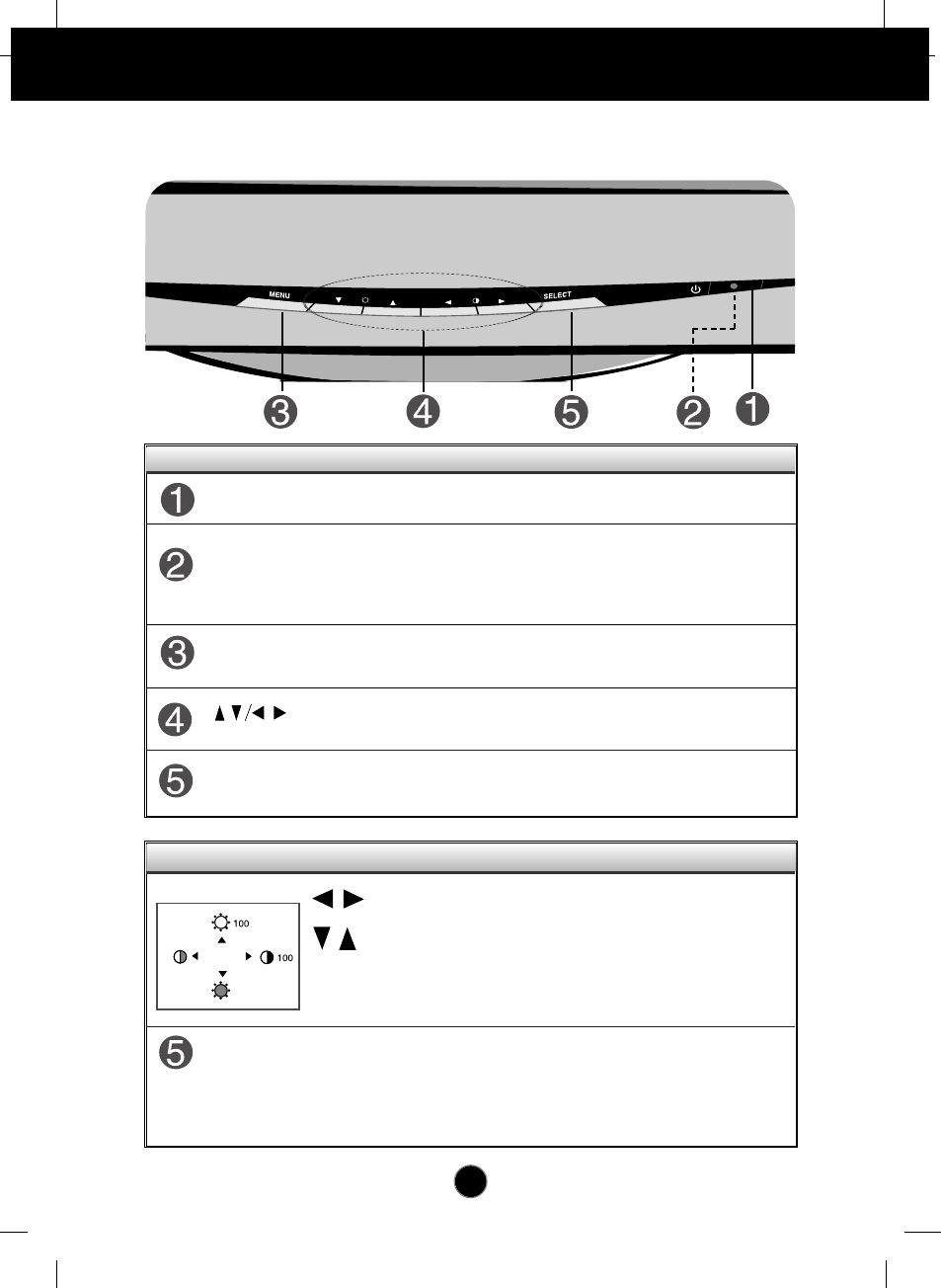

Front Panel Controls

Buttons Use these buttons to choose or adjust items in

the on screen display.

MENU (or OSD)

Button

Use this button to enter or exit the on screen

display.

This Indicator lights up green when the monitor

operates normally. If the monitor is in DPM

(Energy Saving) mode, this indicator color changes

to amber.

Power (DPMS)

Indicator

Use this button to turn the monitor on or off.

Power Button

Use this button to enter a selection in the on

screen display.

SELECT (or SET)

Button

The Contrast and Brightness functions are also available in the

On Screen Display (OSD) menu.

Control Direct Access Function

Control Function

Button

Bring up Contrast adjustment

Bring up Brightness adjustment

Use this button to make Dsub or BNC connector active. This

feature is used when two computers are connected to the

display. The default setting is Dsub. The LED is turned on for

the D-sub connector and is turned off for the BNC connector.

SELECT

On Screen Display (OSD) Control Adjustment

Screen Adjustment

Making adjustments to the image size, position and operating parameters of

the monitor is quick and easy with the On Screen Display Control system. A

short example is quick and easy given below to familiarize you with the use of

the controls. The following section is an outline of the available adjustments

and selections you can make using the OSD.

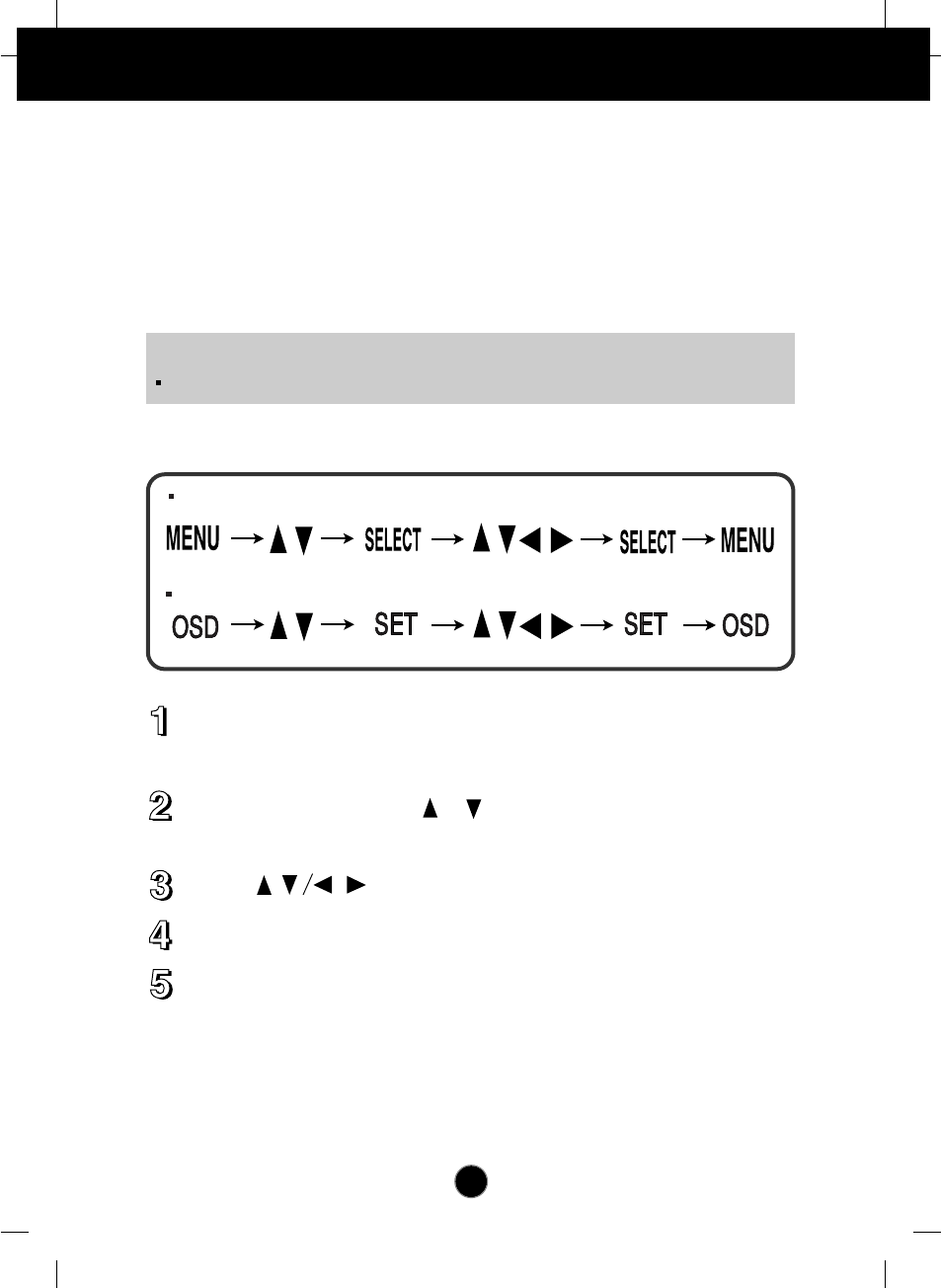

To make adjustments in the On Screen Display, follow these steps:

Press the MENU (or OSD) Button, then the main menu of the OSD

appears.

To access a control, use the or Buttons. When the icon you want

becomes highlighted, press the SELECT (or SET) Button.

Use the Buttons to adjust the item to the desired level.

Accept the changes by pressing the SELECT (or SET) Button.

Exit the OSD by Pressing the MENU (or OSD) Button.

NOTE

Allow the monitor to stabilize for at least 30 minutes before making image adjustments.

Case 1

Case 2

Main menu Sub menu Reference

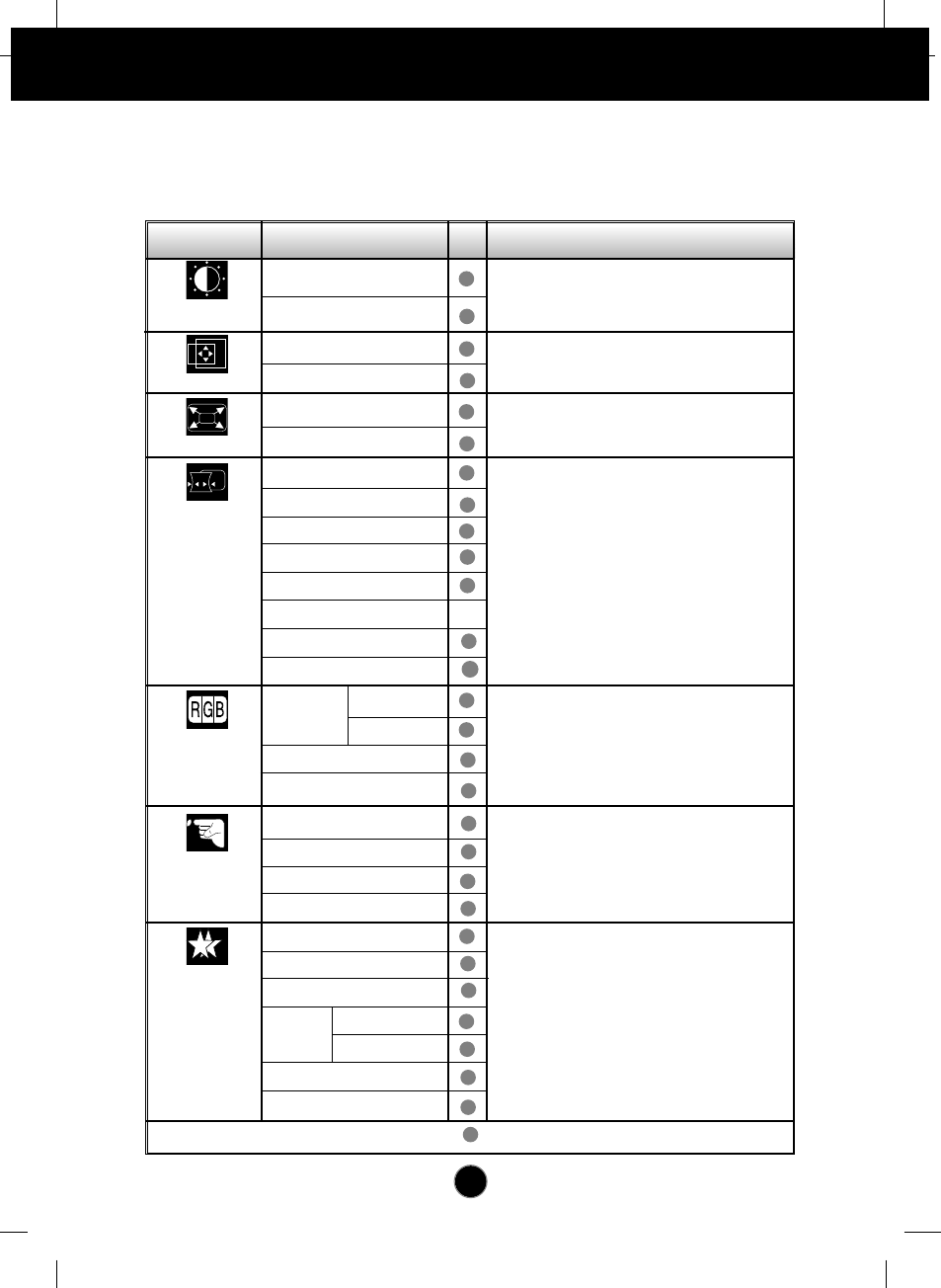

On Screen Display(OSD) Selection and Adjustment

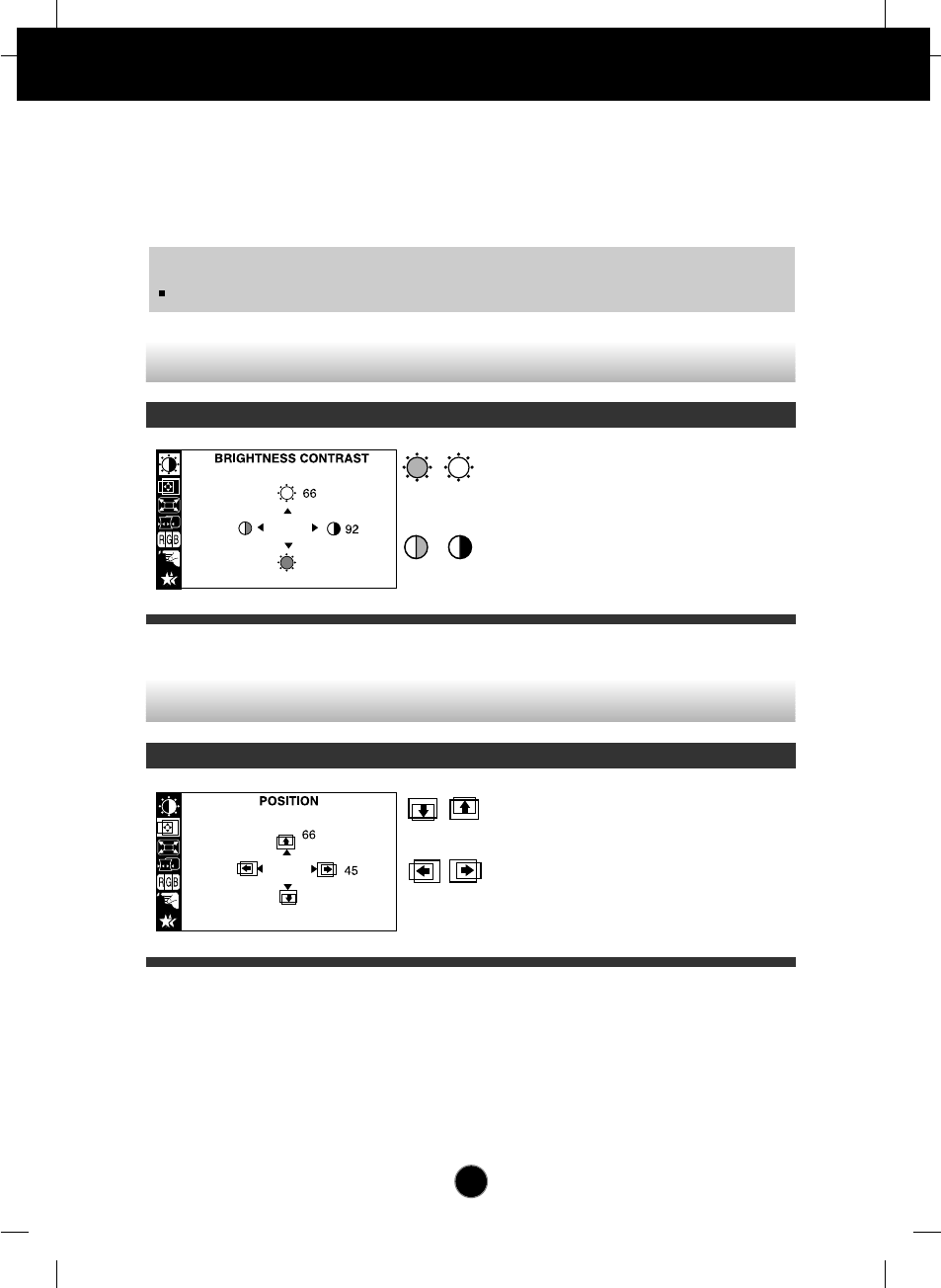

To adjust the brightness and

contrast of the screen

Brightness

Contrast

The following table indicates all the On Screen Display control, adjustment,

and setting menus.

BRIGHTNESS/

CONTRAST

POSITION

V Position

H Position

SIZE

V Size

H Size

SHAPE

Tilt

Side Pincushion

S Pincushion Balance

Parallelogram

Trapezoid

H Corner

Top Corner

Bottom Corner

COLOR

PRESET

6500K

9300K

Temp

R/G/B(User Color)

SETUP

Video Level

Language

OSD Time

Clamp

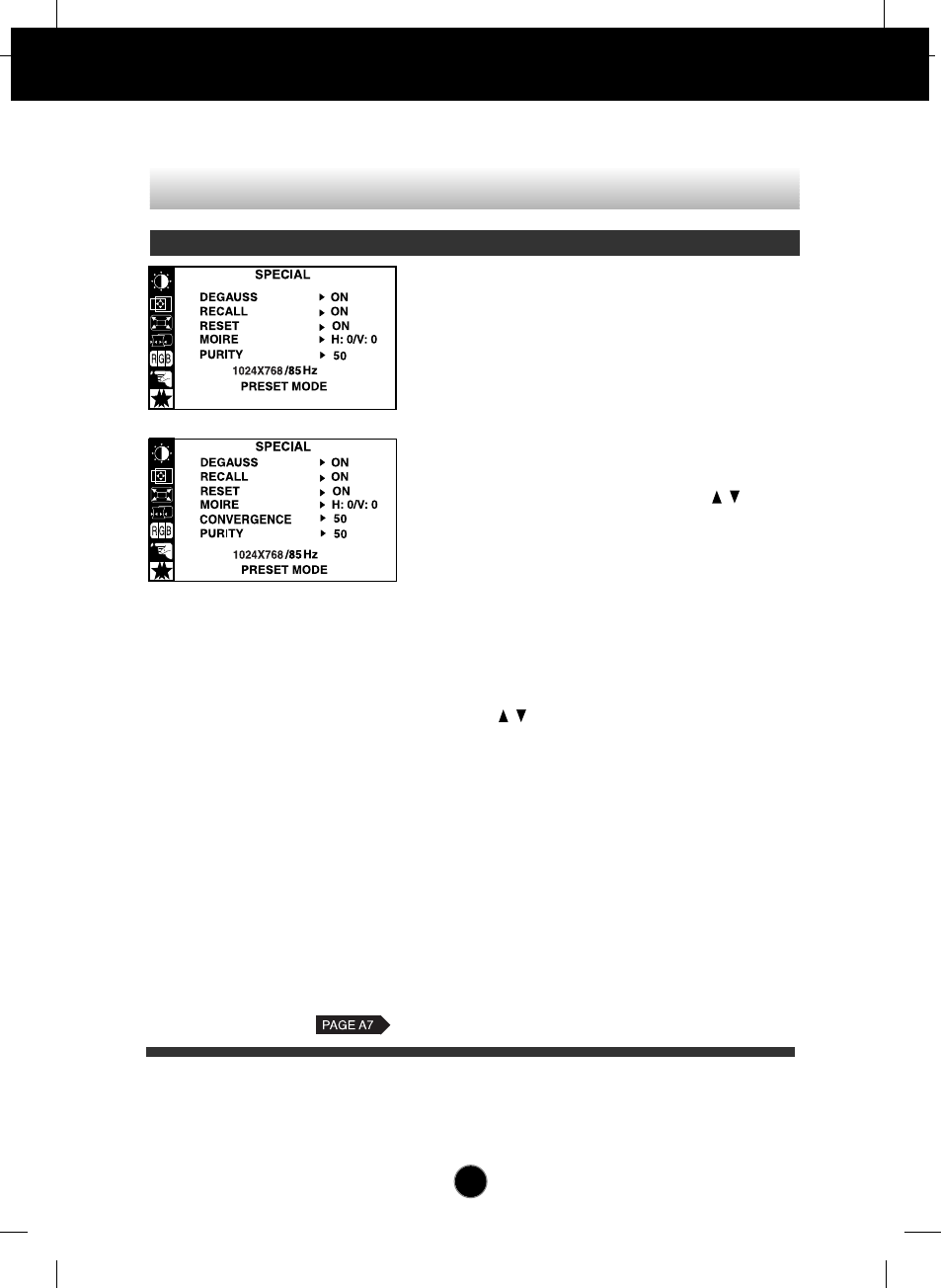

SPECIAL

Degauss

Recall

Reset

Moire H Moire

V Moire

Convergence

Purity

To adjust the position of the

screen

To adjust the size of the screen

To adjust the shape of the screen

To customize the color of the

screen

To customize the screen status

for a user's operating environment

To improve the clarity and

stability of the screen

: Adjustable

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item

using the OSD system. Listed below are the icons, icon names, and icon

descriptions of the all items shown on the Menu.

OSD Adjust Description

Brightness

To adjust the brightness of the screen.

Contrast

To adjust the contrast of the screen.

Vertical Position

To move image up and down.

Horizontal Position

To move image left and right.

To adjust the brightness and contrast of the screen

To adjust the position of the screen

OSD Adjust Description

NOTE

The order of icons may differ depending on the model (A8~A11).

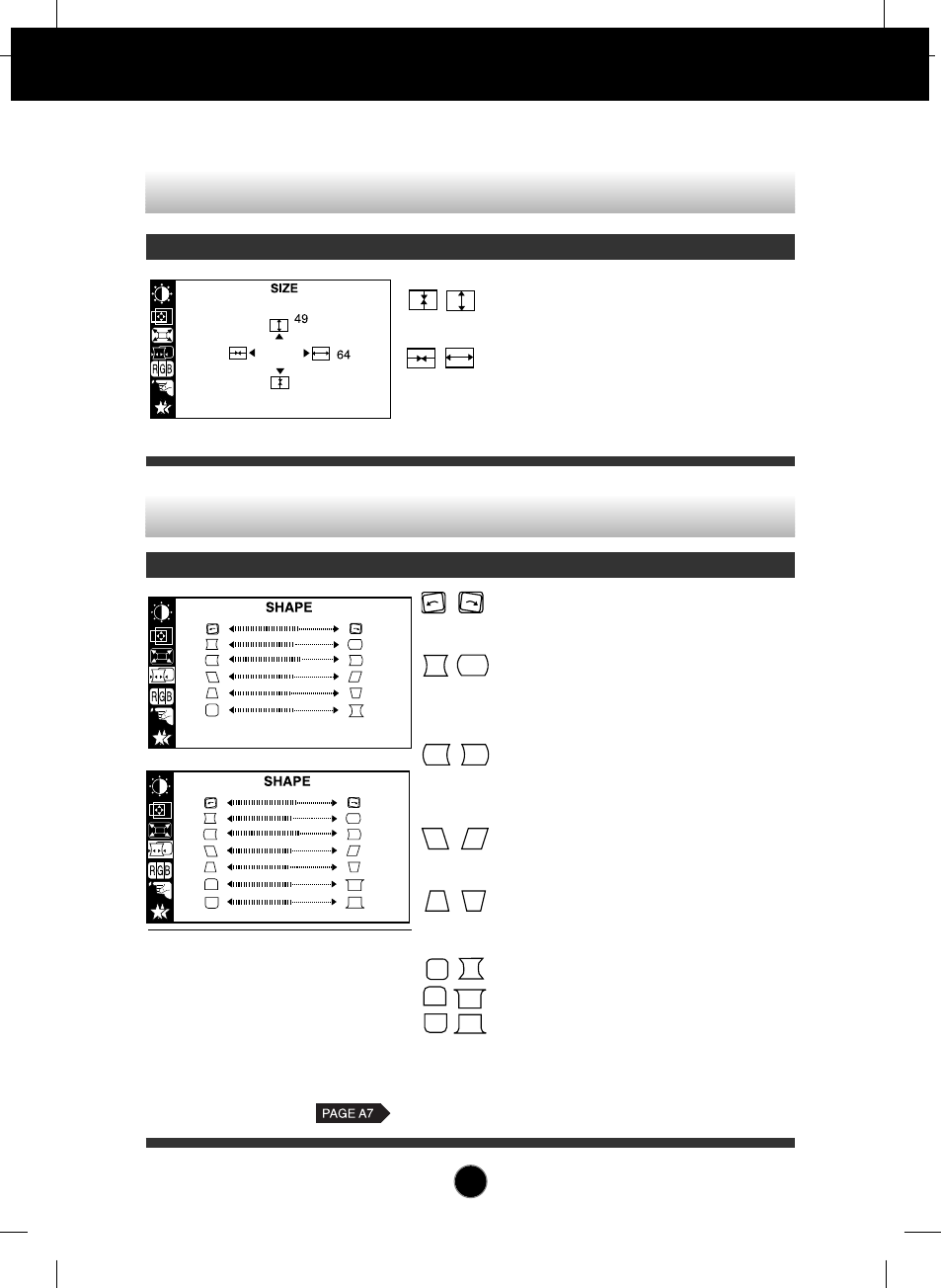

On Screen Display(OSD) Selection and Adjustment

Vertical Size

To adjust image height.

Horizontal Size

To adjust image width.

To adjust the size of the screen

OSD Adjust Description

To adjust the shape of the screen

OSD Adjust Description

Tilt

To correct image rotation.

Side Pincushion

To correct a concave or convex bowing of

the image.

Side Pincushion Balance

To correct the balance of both sides

bowing.

Parallelogram

To correctly adjust the skew of the image.

Trapezoid

To correct geometric distortion.

H Corner

Top Corner

Bottom Corner

To correct an irregular distortion of the

displayed image.

* This function is available for

designated models only.

A10

This item is used to select the monitor's

input signal level. The normal level used for

most PCs is 0.7V.

If the screen becomes suddenly washed-

out or blurred, please select 1.0V and try

again.

To choose the language in which the

control names are displayed.

OSD Menus are available in 11 languages:

English, German, French, Spanish, Italian,

Swedish, Finnish, Portuguese, Korean,

Chinese and Russian.

Set the OSD time, i.e. the length of time a

menu will remain on-screen before it shuts

off automatically. Adjust the time to 5, 10,

20, 30 or 60 seconds.

In case of input SOG (Sync On Green)

Video Signal, the back raster will appear

green. Then, to select the SOG (Sync On

Green) in the clamp, it goes back to the

original back raster.

VIDEO LEVEL

LANGUAGE

OSD TIME

CLAMP

On Screen Display(OSD) Selection and Adjustment

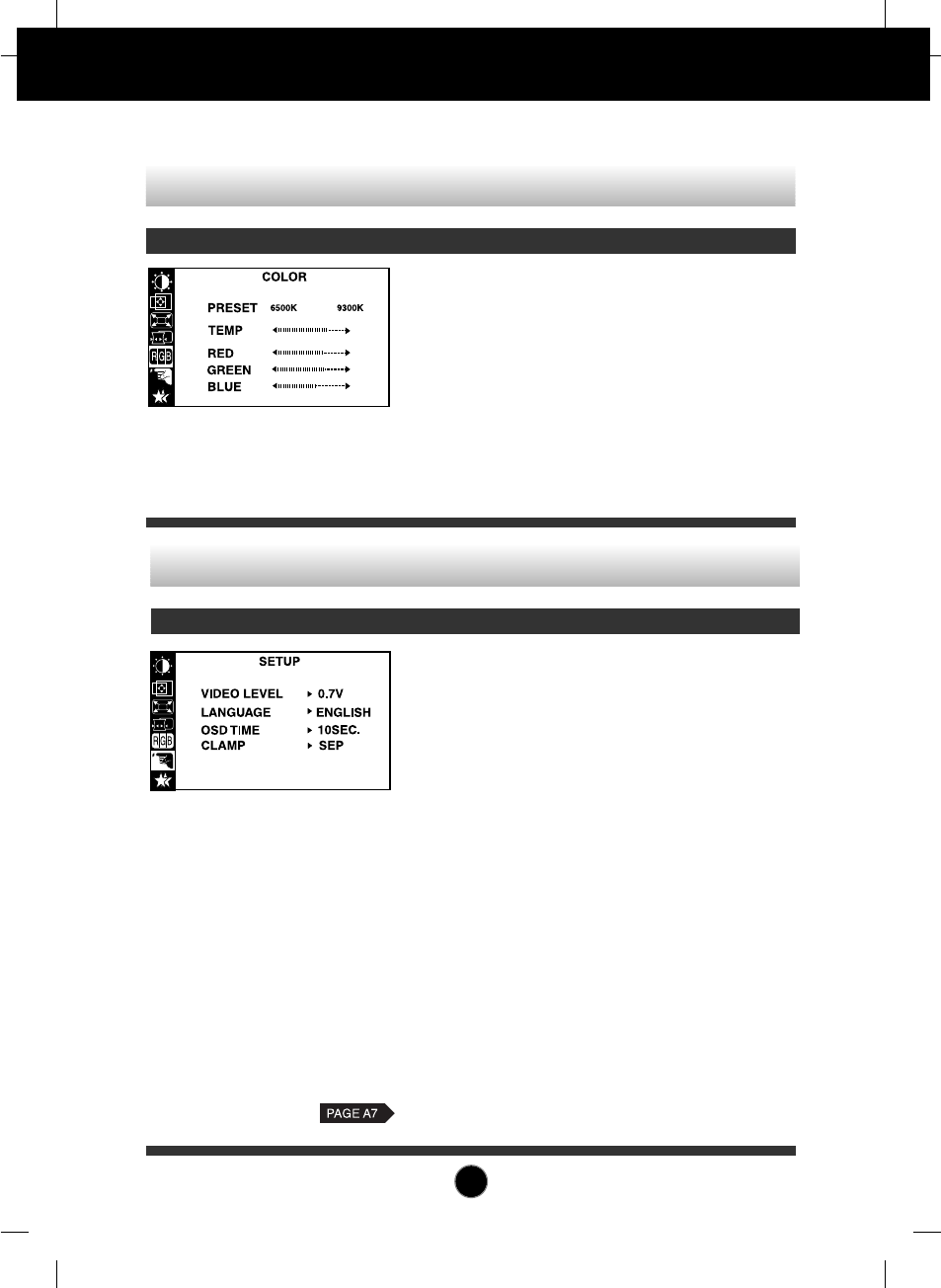

PRESET

TEMP

RED

GREEN

BLUE

6500K/ 9300K

Select the screen color.

• 6500K: Slightly reddish white.

• 9300K: Slightly bluish white.

Select the screen temperature which you

prefer among reddish or bluish or any color

in between.

Set your own color levels.

To customize the color of the screen

OSD Adjust Description

To customize the screen status for a user's operating environment

OSD Adjust Description

* This function is available for

designated models only.

A11

DEGAUSS

RECALL

RESET

MOIRE

CONVER-

GENCE*

PURITY*

On Screen Display(OSD) Selection and Adjustment

To manually demagnetize the screen to

avoid showing incorrect images or colors.

You can use this function to reload the

modified parameters for screen display

operation, as specified by the user after

purchase: Position, Size, Side Pincushion,

Trapezoid (These recalled options may differ

depending on the mode selected: Preset,

User, or New).

If you don’t want to recall the monitor to

these modified settings, use the button

to select CANCEL and then press the

SELECT (or SET) button.

Return to all factory default settings except

"LANGUAGE": Brightness, Contrast, Tilt,

Color 9300K, Video Level, OSD Time, Moire,

Purity (These reset options may differ

depending on the mode selected: Preset,

User, or New).

If you don’t want to reset the monitor, use the

button to select CANCEL and then

press the SELECT (or SET) button.

This item allows you to reduce the degree of

moire. (Moire is caused by interference

Horizontal Scan Line with the periodical dot

screen). It is normally OFF(H:0/V:0).

The moire adjustments may affect the focus

of the screen.

Moire adjustments may shake slightly while

the moire reduction function is on.

This is to adjust the alignment of red

and blue fields.

Use to adjust the purity on the screen

if the color appears uneven.

To improve the clarity and stability of the screen

OSD Adjust Description

* This function is available for

designated models only.

A12

Troubleshooting

Check the following before calling for service.

No image appears

Is the power cord of the

monitor connected?

Is the power indicator light

on?

Is the power on and the

power indicator green?

Is the power indicator

amber?

Do you see an "OUT OF

FREQUENCY" message

on the screen?

Do you see a "SELF

DIAGNOSITICS" message

on the screen?

Check and see if the power cord is connected properly to

the power outlet.

Press the Power button.

Adjust the brightness and the contrast.

If the monitor is in power saving mode, try moving the

mouse or pressing any key on the keyboard to bring up

the screen.

This message appears when the signal from the PC

(video card) is out of horizontal or vertical frequency

range of the monitor. See the 'Specifications' section of

this manual and configure your monitor again.

This message appears when the signal cable between

your PC and your monitor is not connected. Check the

signal cable and try again.

Is the vertical frequency

less than 70Hz or is your

monitor set to the

interlaced mode?

Do you have any

magnetic material such

as adapter, or high-

voltage line near to your

monitor?

Do you hear a "~ding"

sound while the monitor

is flickering?

Set the vertical frequency to 72Hz or higher, and

consult the video card user manual for instructions on

converting to a non-interlaced mode.

(You can set this option under the Display icon of the

Control Panel.)

Remove magnetic sources, such as power

adapters, speakers, or high-voltage lines, away from

the monitor.

Use the normal degaussing function. This function

clears the screen and reduces any screen blur that

may occur due to the surrounding magnetic field. The

screen may flicker for about 5 seconds, accompanied

by a "~ding" sound.

The screen is flickering.

A13

Troubleshooting

Do you see basic

discoloration (16 colors)?

Is the screen color unstable

or monochrome?

Do you see black dots on

the screen?

Do you see a partial

blurring on the screen?

Set the color depth to 256 colors or higher: use 'Control

Panel' 'Display' 'Settings' 'Color Palette'

Check the connection of the signal cable. Or pull out the

video card of the PC and insert it again.

This is due to a small amount of foreign or abnormally

florescent material that became fastened on the mask

during manufacturing. It will not affect product

performance.

This happens due to interference from surrounding

magnetic fields, as created when speakers, steel

structures, or high-voltage lines are placed near the

monitor. Remove any such materials from the

immediate vicinity and use the DEGAUSS icon on the

screen adjustment menu to fix the screen.

Do you see the after-image

even when you turn off

the monitor?

A premature aging of the monitor pixels may cause the

prolonged display of a single image on the screen. Be

sure to use a screen saver to maximize the service life of

the monitor.

The screen color is not normal.

I see an after-image on the screen.

Do you see the wave

directly on the screen? This occurs in inverse proportion to the screen focus,

which can be caused by a particular frequency or video

card. Brighten the screen and use the 'MOIRE' icon on

the screen adjustment menu to adjust the screen.

I see waves on the screen.

Have you installed the

monitor driver? Be sure to install the monitor driver from the monitor

driver CD (or diskette) that comes with your monitor. Or,

you can also download the driver from our web site:

http://www.lge.com.

Have you installed the monitor driver?

A14

Specifications

NOTE

Information in this document is subject to change without notice.

19 inches (18.0 inches viewable) Perfect Flat Tube

90 degree deflection

0.24mm Slot pitch

ARAS(Anti-Reflective Anti-Static) coating

Horizontal Freq. 30 - 111kHz (Automatic)

Vertical Freq. 50 - 160 Hz (Automatic)

Input Form Separate TTL, Positive/Negative

CompositeTTL, Positive/Negative

SOG(Sync On Green)

Signal Input 15 pin D-Sub / 5 BNC Connector

Input Form

Separate, RGB Analog, 0.7Vp-p/75 ohm, Positive

Resolution(max) 1600 x 1200@ 85Hz

DDC 1/2B

Normal

98W (108W)

Stand-by/Suspend

≤8W ( 13W)

Power Off ≤1W ( 8W) *( ):With USB

Width 46.7 cm / 18.37 inches

Height 47.3 cm / 18.64 inches

Depth 47.2 cm / 18.60 inches

Net 24.0 kg (52.91 lbs)

Europe AC 200-240V 50Hz 1.2A

Others AC 100-240V 50/60Hz 2.5A

The products should be used according to the Power

requirements of each ID LABEL.

Operating Conditions

Temperature 0˚C to 40 ˚C

Humidity 10 % to 90 % non-Condensing

Storage Conditions

Temperature -20˚C to 60 ˚C

Humidity 5 % to 90 % non-Condensing

Attached( ), Detached ( O )

Attached or Detached

TCO99

Picture Tube

Sync Input

Video Input

Plug&Play

Power

Consumption

Dimensions

&Weight

(with tilt/ swivel

stand)

Power Input

Environmental

Conditions

Tilt/Swivel Stand

Signal cable

Power cord

Regulations

A15

Specifications

Preset Modes (Resolution)

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)

640 x 480

800 x 600

1024 x 768

1280 x 1024

1600 x 1200

43.269

53.674

68.677

91.146

93.750

106.250

VESA

A16

Using the BNC connector with other types of video cards

COMP.

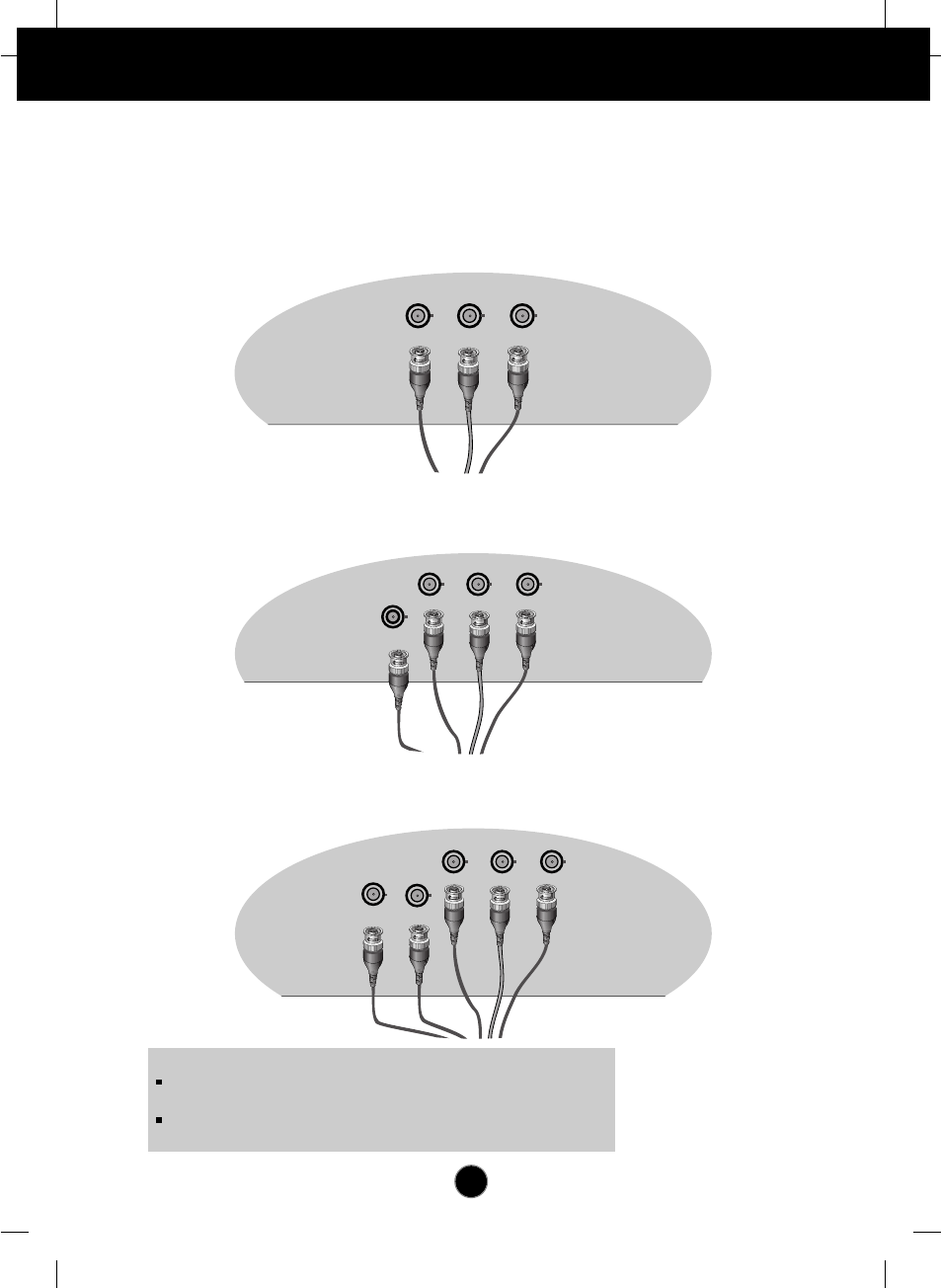

Using the BNC connectors with other types of video cards. Follow the

example that fits your needs.

1. In case of using a composite sync on green video signal(Sync On Green):

Connect each R,G and B video signals to BNC receptacles on the back of the

monitor.

2. In case of using an external composite sync signal:

Connect each R, G and B video signals and composite sync signal to the BNC

receptacles on the rear panel.

3. In case of using a separate horizontal and vertical sync signal:

Connect each R, G and B video signals and the horizontal and vertical sync

signal to BNC receptacles on rear panel.

Blue Green Red

Blue

Gray

Green

Red

Blue

Gray Black

Green

Red

NOTE

This package does not include the BNC connectors but you can

purchase them at your local computer stores.

This monitor does not support the DDC function, if you use the

5 BNC connectors with other types of video cards.

HD : Horizontal Drive

VD : Vertical Drive

COMP : Composite

Varies according to model.

A17

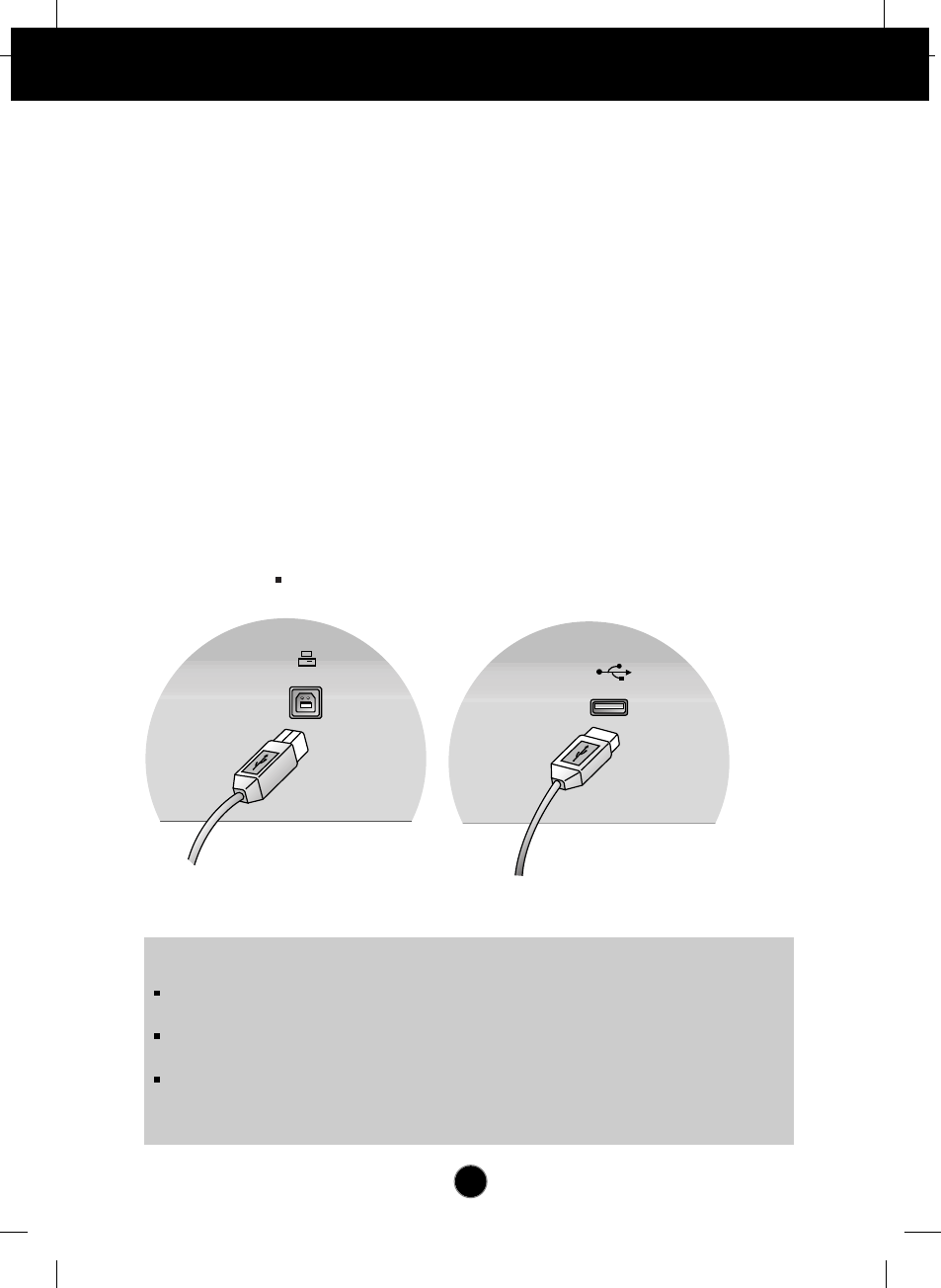

Making use of USB (Universal Serial Bus)

USB downstream Ports

connect the cables from USB

compliant peripherals-such as

keyboard, mouse, printer,

scanner, etc

This is a simplified representation of the rear view.

To USB downstream port

of the USB compliant PC

or another hub cable

USB (Universal Serial Bus) is an innovation in connecting your different

desktop peripherals conveniently to your computer. By using the USB, you will

be able to connect your mouse, keyboard, printer, and other peripherals to your

monitor instead of having to connect them to your computer. This will give you

greater flexibility in setting up your system. USB allows you to connect chain up

to 120 devices on a single USB port, and you can “hot” plug (attach them while

the computer is running) or unplug them while maintaining Plug and Plug auto

detection and configuration. This monitor has an integrated self-powered USB

hub, allowing up to 4 other USB devices to be attached it.

USB connection

1. Connect the upstream port of the monitor to the downstream port of the USB

compliant PC or another hub using the USB cable (Computer must have a

USB port).

2. Connect the USB compliant peripherals to the downstream ports of the

monitor.

NOTE

To activate the USB hub function, the monitor must be connected to a USB compliant

PC(OS) or another hub with the USB cable(enclosed).

When connecting the USB cable, check that the shape of the connector at the cable

side matches the shape at the connecting side.

Even if the monitor is in a power saving mode, USB compliant devices will function

when they are connected the USB ports(both the upstream and downstream) of the

monitor.

A18

Making use of USB (Universal Serial Bus)

Rev. 1.1 complied Self-powered hub

500mA for each (MAX)

12 Mbps (full), 1.5 Mbps (low)

1 Upstream port / 4 Downstream ports

USB standard

Downstream power supply

Communication speed

USB port

USB Specifications

IMPORTANT: These USB connectors are not designed for use with high-power USB devices

such as a video camera, scanner, etc. LGE recommends connecting high-power USB devices

directly to the computer

Reference Guide

for Precaution,

Service, Warranty

and Diskette Install

English

Deutsch

Français

Italiano

Español

Nederlands

Português

Monitor Registration

The model and serial numbers are found

on the rear of this unit. These numbers

are unique to this unit and not available to

others. You should record requested

information here and retain this guide as

a permanent record of your purchase.

Staple your receipt here.

Date of Purchase :

Dealer Purchased From

Dealer Address :

Dealer Phone No. :

Model No. :

Serial No. :

English

Important Precautions ..................................................1

DDC (Display Data Channel) .......................................1

Energy Saving Design .................................................2

Service ..........................................................................2

Deutsch

Wichtige Hinweise ........................................................2

DDC (Display Data Channel) ......................................3

Energieversorgung .......................................................3

Wartung ........................................................................3

Français

Consignes de Sécurité ..................................................4

DDC (Display Data Channel) .......................................4

Caractéristique D’économie D’énergie ........................5

Maintenance du Moniteur .............................................5

Italiano

Precauzioni Importanti ..................................................5

DDC (Display Data Channel) Canale Dati del Monitor 6

Modello Conforme alla Normativa sul Risparmio

Energetico ......................................................................6

Manutenzione ................................................................6

Español

Precauciones Importantes ............................................7

DDC (Canal de despliegue de información) ................7

Diseño de Ahorro de Energía .......................................8

Servicio ..........................................................................8

Nederlands

Belangrijke voorzorgsmaatregelen ..............................8

DDC (Display Data Channel) .......................................9

Energiebesparingssysteem ..........................................9

Onderhoud .....................................................................9

Português

Precauções Importantes .............................................10

DDC (Display Data Channel) .....................................10

Sistema de Gerenciamento de Energia ....................11

Manutenção .................................................................11

Regulatory Information

FCC Compliance Statement .....................................11

Canadian DOC Notice ................................................11

CE Conformity Notice (for Europe) .............................12

Low Radiation Compliance (MPR II)...........................12

TCO95 ..........................................................................12

TCO99 ..........................................................................13

EPA (U.S.A only)..........................................................14

NOM MARK (Mexico only)..........................................14

Warranty

the United States and Canada - CDT Monitor ...........15

the United States and Canada - LCD Monitor............16

Australia - CDT & LCD Monitor...................................17

Brazil - CDT & LCD Monitor ........................................18

Mexico - CDT Monitor..................................................19

the United Kingdom - CDT&LCD Monitor ..................21

Monitor Driver Installation

Monitor Driver Installation ..........................................22

USB Install Guide ........................................................22

English

Important Precautions

This unit has been engineered and manufactured to

assure your personal safety, but improper use can

result in potential electrical shock or fire hazard. In

order not to defeat the safeguards incorporated in this

monitor, observe the following basic rules for its

installation, use, and servicing. Also follow all

warnings and instructions marked directly on your

monitor.

On Safety

Use only the power cord supplied with the unit. In case you

use another power cord, make sure that it is certified by the

applicable national standards if not being provided by the

supplier. If the power cable is faulty in any way, please

contact the manufacturer or the nearest authorized repair

service provider for a replacement.

Operate the monitor only from a power source indicated in

the specifications of this manual or listed on the monitor. If

you are not sure what type of power supply you have in

your home, consult with your dealer.

Overloaded AC outlets and extension cords are dangerous.

So are frayed power cords and broken plugs. They may

result in a shock or fire hazard. Call your service technician

for replacement.

Do not Open the Monitor.

There are no user serviceable components inside.

There are Dangerous High Voltages inside, even when

the power is OFF.

Contact your dealer if the monitor is not operating

properly.

To Avoid Personal Injury :

Do not place the monitor on a sloping shelf unless

properly secured.

Use only a stand recommended by the manufacturer.

Do not try to roll a stand with small casters across

thresholds or deep pile carpets.

To Prevent Fire or Hazards:

Always turn the monitor OFF if you leave the room for

more than a short period of time. Never leave the

monitor ON when leaving the house.

Keep children from dropping or pushing objects into the

monitor's cabinet openings. Some internal parts carry

hazardous voltages.

Do not add accessories that have not been designed for

this monitor.

During a lightning storm or when the monitor is to be left

unattended for an extended period of time, unplug it from

the wall outlet.

Do not bring magnetic devices such as magnets or

motors near the picture tube.

On Installation

Do not allow anything to rest upon or roll over the power

cord, and do not place the monitor where the power cord is

subject to damage.

Do not use this monitor near water such as near a bathtub,

washbowl, kitchen sink, laundry tub, in a wet basement, or

near a swimming pool.

Monitors are provided with ventilation openings in the

cabinet to allow the release of heat generated during

operation. If these openings are blocked, built-up heat can

cause failures which may result in a fire hazard. Therefore,

NEVER:

Block the bottom ventilation slots by placing the monitor

on a bed, sofa, rug, etc.

Place the monitor in a built-in enclosure unless proper

ventilation is provided.

Cover the openings with cloth or other material.

Place the monitor near or over a radiator or heat source.

LCD Monitor only

Do not rub or strike the Active Matrix LCD with anything

hard as this may scratch, mar, or damage the Active Matrix

LCD permanently.

Do not press the LCD screen with your finger for a long

time as this may incur some afterimages.

Some dot defects may appear on the screen, like Red,

Green or Blue spots on the screen. However, this will have

no impact or effect on the monitor performance.

If possible, use the recommended resolution to obtain the

best image quality for your LCD monitor. If used under any

modes except the recommended resolution, some scaled

or processed images may appear on the screen. However,

this is the characteristics of the LCD panel which has a

fixed resolution.

On Cleaning

Unplug the monitor before cleaning the face of the

monitor screen.

Use a slightly damp (not wet) cloth. Do not use an

aerosol directly on the monitor screen because

overspray may cause electrical shock.

On Repacking

Do not throw away the carton and packing materials.

They make an ideal container in which to transport the

unit. When shipping the unit to another location, repack it

in its original material.

DDC (Display Data Channel)

DDC is a communication channel over which the monitor

automatically informs the host system (PC) about its

capabilities.

DDC protocol

①DDC1/DDC2B

An uni-directional communication channel.

②DDC 2AB/DDC2B+/DDC2Bi

A bi-directional communication channel.

Note

PC must support DDC functions to do this.

Mode

Normal

Standby

Suspend

Off

Horizontal

Sync.

Off

Vertical

Sync.

Off

LED

Color

Green

Amber

English Deutsch

Energy Saving Design

This monitor complies with the EPA's Energy Star program,

which is a program designed to have manufacturers of

computer equipment build circuitry into their products to

reduce power consumption during time of non-use.

When this monitor is used with a Green or EPA Energy

Star PC, or a PC with a screen blanking software following

the VESA Display Power Management Signalling (DPMS)

protocol, this monitor can conserve significant energy by

reducing power consumption during periods of non-use.

There are 2 signal lines, 4 modes of operation.

; Normal, Standby, Suspend and Off.

When you awaken your PC by hitting a key or moving the

mouse, the monitor will also awaken to its normal operating

mode, indicated by the green Power LED light.

Note

The energy saving Design for monitors only work when

connected to computers that have energy saving

features.

Service

Unplug the monitor from the wall outlet and refer servicing

to qualified service personnel when :

The power cord or plug is damaged or frayed.

Liquid has been spilled into the monitor.

The monitor has been exposed to rain or water.

The monitor does not operate normally following the

operating instructions. Adjust only those controls that are

covered in the operating instructions. An improper

adjustment of other controls may result in damage and

often requires extensive work by a qualified technician to

restore the monitor to normal operation.

The monitor has been dropped or the cabinet has been

damaged.

The monitor exhibits a distinct change in performance.

Snapping or popping from the monitor is continuous or

frequent while the monitor is operating. It is normal for

some monitors to make occasional sounds when being

turned on or off, or when changing video modes.

Do not attempt to service the monitor yourself, as opening

or removing covers may expose you to dangerous voltage

or other hazards. Refer all servicing to qualified service

personnel.

Wichtige Hinweise

Bei der Konstruktion bzw. Herstellung dieses Monitors

wurde insbesondere auf eine höchstmögliche

Betriebssicherheit geachtet. Um eine eventuell durch

Fehlbedienung verursachte Brand - und Stromschlaggefahr

auszuschliessen, sollten Sie jedoch bei Inbetriebnahme

und Benutzung des Gerätes die nachfolgenden

Sicherheitshinweise genau beachten. Beachten Sie

ausserdem die am Monitorgehäuse angebrachten

warnhinweise und Anweisungen.

Zur Sicherheit

Benutzen Sie ausschliesslich das mitgelieferte abgeschirmte

Netzkabel. Falls Sie ein anderes als das vom Hersteller

gelieferte Netzkabel verwenden, achten Sie darauf, daß es der

nationalen Norm entspricht. Wenn das Netzkabel in irgendeiner

Weise defekt ist. Wenden Sie sich an den Hersteller oder den

nächsten autorisierten Reparaturservice, um Ersatz zu erhalten.

Stellen Sie sicher, dass die angelegte Netzspannung den

Geräteanforderungen entpricht (siehe dazu die technischen

Daten in diesem Handbuch bzw. die Angaben auf der Rückseite

des Monitors). Bei Fragen zur Spannungsversorgung den

Händler zu Rate ziehen.

Vermeiden Sie eine Überlastung des benutzten Stromkreises

oder einer eventuell eingesetzten Mehrfachstec1Sie ausserdem

unbedingt darauf, dass Netzkabel und -stecker unbeschädigt

sind, um Brand und Stromschlaggefahr auszuschliessen.

Lassen Sie alle notwendigen Reparaturen von einem

qualifizierten Service-Techniker ausführen.

Öffnen Sie den Monitor auf keinen Fall.

Im Innern des Monitors befinden sich keinerlei vom Benutzer

zu wartende Teile.

Da allerdings selbst bei ausgeschaltetem Monitor im Gehäuse

gefährliche Spannungen anliegen, sollte bei einer Fehlfunktion

des Monitors unbedingt der Händler zu Rate gezogen werden.

Um eine Verletzung des Benutzers auszuschliessen:

den Monitor keinesfalls auf einer instabilen unterlage abstellen.

ausschliesslich vom Hersteller empfohlene Monitorsockel und

-tische benutzen.

den Monitor nicht mit einem Rolltisch über hohe Türschwellen

oder sehr weiche Teppiche fahren.

Um die Gefahr eines Brandes oder elektrischen Schlages

auszuschliessen:

den Monitor ausschalten, wenn Sie ihn für längere Zeit nicht

benutzen bzw. wenn Sie das Büro oder die Wohnung

verlassen.

auf keinen Fall irgendwelche Gegenstände in die

Gehäuseschlitze stecken, da spannungsführende Teile

beruhrt oder Kurzschlüsse verursacht werden könnten.

Keine Zubehörteile installieren, die nicht für diesen Monitor

geeignet sind.

bei Gewitter oder wenn Sie den Monitor für längere Zeit nicht

benutzen, das Netzkabel aus der Steckdose ziehen.

keine magnetisch aufgeladenen Gegenstände wie permanent-

magneten oder Motoren id die Nähe des Bildschirms bringen.

Zur Installation

Stellen Sie keine Gegenstände auf das Netzkabel. Plazieren Sie

den Monitor so, dass das Netzkabel auf keinen Fall beschädigt

werden kann.

Betreiden Sie den Monitor nicht in der Nähe von Wasser

(Waschbecken etc.) bzw. in Räumen mit überdurchschnittlich

hoher Luftfeuchte.

Die Schlitze im Monitorgehäuse dienen der Belüftung des

Geräts.

Diese Öffnungen dürfen auf keinen Fall blockiert oder vedeckt

werden, da sie den Monitor vor Überhitzung schützen und einen

störungsfreien Betrieb des Geräts garantieren. Um die Gefahr

eines Brandes weitgehend auszuschliessen, sollten Sie deshalb:

den Monitor niemals auf eine weiche Unterlage stellen, da auf

diese Weise die Belüftungsschlitze an der Gehäuseunterseite

blockiert werden.

den Monitor nicht eingebaut betreiben, sofern nicht für eine

ausreichende Belüftung gesorgt ist.

die Belüftungsschlitze des Monitors auf keinen Fall mit einer

Textil- oder sonstigen Abdeckung blockieren

den Monitor nicht in die Nähe einer Heizung oder auf einen

Heizkörper stellen.

Nur LCD-Monitor

Das Aktivmatrix-LCD nicht mit etwas härterem als HB reiben

oder schlagen, da das das Aktivmatrixdisplay dauerhaft

verkratzen oder beschädigen kann.

Nicht mit Ihrem Finger für längere Zeit auf den LCD-Bildschirm

drücken, da das Schattenbilder hervorrufen kann.

Einige Punktdefekte können auf dem Bildschirm erscheinen.

Das können rote, grüne oder blaue Stellen auf dem Bildschirm

sein. Das hat jedoch keinen Einfluß auf die Leistungsfähigkeit

des Bildschirms.

Verwenden Sie, wenn möglich, die empfohlene Auflösung, um

die bestmögliche Bildqualität für den LCD-Monitor zu erzielen.

Bei Verwendung anderer Modi als die empfohlene Auflösung

können einige skalierte oder verarbeitete Bilder auf dem

Bildschirm erscheinen . Hierbei handelt es sich jedoch um die

Eigenschaften der LCD-Anzeige mit einer festen Auflösung.

Zur Reinigung

Ziehen Sie das Netzkabel des Monitors, bevor Sie die

Vorderseite des Bildschirms reinigen.

Verwenden Sie ein leicht feuchtes (kein nasses) Tuch.

Sprühen Sie ein Spray niemals direkt auf den Bildschirm, da

zuviel Spray einen elektrischen Schock verursachen kann.

Zur Verpackung

Das Verpackungsmaterial des Monitors sollte aufbewahrt

werden, um das Gerät gegebenenfalls lagern, transportieren

oder versenden zu können. Beispielsweise sollte der Monitor

im Falle einer Störung wie auf dem Karton dargestellt

ausschliesslich in der Originalverpackung zur Reparatur

zurückgeschickt werden.

DDC (Display Data Channel)

DDC ist ein Kommunikationskanal, über weiche Sie von lhrem

Monitor automatisch über das verbundene System (PC) und

seine Fähigkeiten informiert werden.

DDC Protokoll

①DDC1/DDC2B

Ein unidirektionaler Kommunikationskanal.

②DDC 2AB/DDC2B+/DDC2Bi

Ein bidirektionaler Kommunikationskanal.

Anmerkung

Der PC muß für DDC Funktionen eingerichtet sein.

Energieversorgung

Dieser Monitor entspricht den Richtlinien des EPA Energy Star

Program. Er beinhaltet neuartige Schaltungen, um den

Energiever-brauch wahrend der Nichtbennutzung zu verringern.

Wird dieser Monitor mit einem grünen oder EPA Energy Star-PC

oder einem PC mit einer Software verwendet, die den Bildschirm

gemäß des VESA Display Power Management Signaling

(DPMS)–Protokolls abschaltet, läßt sich eine beträchtliche

Energiemenge sparen, indem der Stromverbrauch bei Inaktivität

gesenkt wird.

Es gibt 2 Signalreihen und 4 Betriebsmodi.

; Normal, Standby, Bereitschaft und Aus.

Wenn Sie den PC durch Drücken einer Taste oder Bewegen der

Maus wieder aktivieren, wird der Monitor ebenfalls in den

Normalmodus umgeschaltet, was durch die grüne Netz-LED

angezeigt wird.

Hinweis

Die Energiesparfunktion für Monitore kann nur bei Anschluß

an Computern verwendet werden, die ebenfalls

Energiesparfunktionen unterstützen

Wartung

Bei folgenden Fehlerbedingungen ist der Netzstecker des

Monitors zu ziehen und der Kundendienst zu benachrichtigen:

Wenn der Netzstecker beschadigt oder das Netzkabel

ausgefranst ist.

Wenn Flussigkeit in den Monitor gelaufen ist.

Wenn der Monitor Regen oder Feuchtigkeit ausgesetzt

worden ist.

Wenn der Monitor trotz Befolgung aller

Bedienungsanweisungen nicht ordnungsgemass arbeitet.

Benutzen Sie ausschliesslich die Bedienelemente, die in den

Hinweisen dieses Handbuchs beschrieben werden. Werden

andere Bedienelemente geandert oder verstellt, konnen

Schaden entstehen, die nur von einem qualifizierten Service-

Techniker behoben werden konnen.

Wenn der Monitor fallengelassen und das Gehause

beschadigt wurde.

Wenn beim Betrieb des Monitors haufig oder lang anhaltend

knackende oder knallende Nebengerausche auftreten.

Hiermit sind nicht die typischen Gerausche gemeint, die beim

Ein- oder Ausschalten des Monitors zu horen sind.

Fuhren Sie keine Wartungsarbeiten selbst durch. Durch Offnen

oder Entfernen wichtiger Abdeckungen werden

spannungsfuhrende Teile freigelegt, so dass eine erhohte

Gefahrdung besteht. Fur Wartungsarbeiten in diesen Bereichen

ist der Kundendienst zustandig.

Modus

Normal(Max.)

Standby

Bereitschaft

Aus

Hori

Sync.

Ein

Aus

Ein

Aus

Vert.

Sync.

Ein

Aus

LED

Farbe

Grün

Gelb

Deutsch

Consignes de Sécurité

Cet appareil a été conçu et fabriqué de façon à vous

garantir une sécurité optimale, mais une utilisation

inadéquate peut entraîner des risques de décharges

électriques ou d’incendie. Afin de conserver intacts les

dispositifs de sécurité incorporés à ce moniteur, nous vous

recommandons de respecter les règles de base suivantes

concernant son installation, son utilisation et sa

maintenance, ainsi que les avertissements et consignes

apposés directement sur votre moniteur.

Pour Votre Sécurité

Utilisez uniquement le cordon d’alimentation fourni avec votre

moniteur. Si vous utilisez un autre cordon d’alimentation, au cas

où le fournisseur n’en aurait pas procuré, assurez-vous qu’il est

conforme aux normes nationales en vigueur.Si le câble

d’alimentation est défectueux, adressez-vous au fabricant ou au

plus proche mainteneur agréé afin de le changer.

N’utilisez, pour l’utilisation de votre moniteur, que la source

d’alimentation indiquée dans les spécifications techniques de ce

manuel ou directement sur le moniteur. Si vous n’êtes pas sûr

de votre type de source d’alimentation, demandez conseil à

votre distributeur.

Il est dangereux de surcharger les prises secteur et les

rallonges. Les cordons secteur dénudés et les prises cassées

présentent également un danger. Ils peuvent entraîner des

décharges électriques ou un incendie. Si tel est le cas de vos

prises ou cordons secteur, demandez à votre technicien de

maintenance de vous les remplacer.

N’ouvrez Pas le Moniteur.

l ne contient pas d’éléments utiles à l’utilisateur pour le

fonctionnement de l’appareil.

Il contient en revanche une haute tension dangereuse, même

lorsque le moniteur est à l’arrêt.

S’il ne fonctionne pas normalement, contactez votre

distributeur.

Pour Votre Sécurité Personnelle, Respectez les Consignes

Suivantes :

Ne placez pas le moniteur su r une surface inclinée, à moins

de l’avoir solidement fixé.

Ne l’installez que sur les supports recommandés par le

fabricant.

Ne tentez pas de le déplacer sur une table roulante avec des

pas de porte à franchir ou des tapis épais.

Pour éviter les risques d’incendie ou de décharges électriques :

Veillez à mettre votre moniteur en position d’arrêt si vous

quittez la pièce plus d’un court moment. Ne laissez jamais le

moniteur en position de marche lorsque vous partez.

Ne laissez pas des enfants faire tomber ou enfoncer des

objets dans les ouvertures du boîtier de votre moniteur.

Certaines pièces internes ont une haute tension dangereuse.

N’ajoutez pas d’accessoires qui n’auraient pas été conçus

pour ce moniteur.

En cas d’orage, ou si vous ne vous servez pas du moniteur

pen dant une période prolongée, débranchez la prise murale.

N’approchez pas d’appareils magnétiques tels que des

aimants ou des moteurs électriques à proximité du tube-

image.

Consignes D’installation

Ne placez aucun objet sur le cordon d’alimentation, et ne placez

pas le moniteur à un endroit où le cordon d’alimentation risque

d’être endommagé.

Ne placez pas le moniteur à proximité d’endroits humides, par

exemple baignoire, lavabo, évier de cuisine, machine à laver,

dans un sous-sol humide ou à proximité d’une piscine.

Les moniteurs sont équipés d’ouvertures de ventilation dans le

boîtier, qui lui permettent d’évacuer la chaleur générée par le

fonctionnement de l’appareil. Si ces ouvertures sont obturées,

l’accumulation de chaleur peut provoquer des défaillances allant

jusqu’au risque d’incendie. Par conséquent, ne JAMAIS:

obturer les trous de ventilation en plaçant le moniteur sur un lit,

un canapé, une couverture, etc.

placer le moniteur sur un support encastré si l’aération requise

n’est pas assurée.

recouvrir les ouvertures d’une étoffe ou de tout autre matière.

placer le moniteur à proximité ou au dessus d’un radiateur ou

d’une source de chaleur.

Moniteur LCD (à affichage à cristaux liquides) uniquement

Ne passez pas un produit ou objet dur sur l’écran à cristaux

liquides à matrice active et ne heurtez pas ce dernier avec un

produit similaire, car cela risquerait de rayer, d’abîmer ou

d’endommager de façon permanente cet écran.

N’appuyez pas pendant longtemps avec les doigts sur l’écran à

cristaux liquides car cela risquerait de provoquer l’apparition

d’images fantômes.

Certains défauts ponctuels peuvent apparaître sur l’écran. Des

points rouges, verts ou bleus peuvent ainsi faire leur apparition.

Cependant, cela n’a aucun impact ou effet sur les performances

du moniteur.

Dans la mesure du possible, utilisez la résolution recommandée

pour obtenir une qualité d’image optimale sur votre moniteur

LCD. Si vous l’utilisez dans d’autres modes que la résolution

conseillée, certaines images affichées peuvent être mises à

l’échelle ou subir un traitement particulier. Ce sont des

caractéristiques propres à l’écran LCD, dont la résolution est fixe.

Consignes de Nettoyage

Débranchez le moniteur avant de nettoyer l’écran.

Utilisez un chiffon légèrement humide (mais pas mouillé). Ne

projetez jamais de produit en aérosol directement sur le

moniteur car les éclaboussures pourraient provoquer un court-

circuit.

Consignes de Transport

Ne jetez pas le carton et l’emballage d’origine de votre

moniteur. Ils peuvent vous servir pour le transport de

l’appareil, ils sont par faitement indiqués en cas de

déplacement du moniteur vers un autre site.

DDC (Display Data Channel)

DDC est une chaine de communication par le biais de

laquelle le moniteur prévient automatiquement le systéme

central (PC) de ces capacités.

Protocole DDC

①DDC1/DDC2B

Canal de communication unidirectionnel.

②DDC 2AB/DDC2B+/DDC2Bi

Canal de communication bidirectionnel.

Remarque

Le PC doit posséder les fonctions DDC pour cela.

Français

Caractéristique D’économie D’énergie

Ce moniteur a été conçu en conformité avec le programme

Energy Star de l’EPA, qui est un programme destiné aux

fabricants d’équipement informatique, les incitant à construire

des systèmes internes de réduction de la consommation

pendant les périodes de non-utilisation.

Lorsque ce moniteur est connecté à un PC ayant le label Green

ou EPA Energy Star, ou utilisant un économiseur d’écran

compatible avec le protocole VESA DPMS (Display Power

Management Signalling), le moniteur permet de réaliser une

économie d’énergie importante en réduisant la consommation

électrique lorsqu’il n’est pas utilisé.

Il y a 2 lignes de signaux et 4 modes de fonctionnement : Normal,

Standby (Attente), Suspend (Suspens) et Off (Désactivé).

Lorsque vous réactivez votre PC en appuyant sur une touche ou

en déplaçant la souris, le moniteur revient également à son

mode de fonctionnement normal, signalé par l’allumage du

voyant vert d’alimentation.

Remarque

La fonction d’économie d’énergie des moniteurs ne peut être

activée que si le moniteur est connecté à un ordinateur

prenant en charge l’économie d’énergie.

Maintenance du Moniteur

Débranchez le moniteur (prise murale) et contactez un

technicien qualifié de maintenance de ce type d’équipement

dans les cas suivants:

Le cordon d’alimentation ou la prise est endommagé(e) ou

dénudé.

Du liquide a coulé à l’intérieur du moniteur.

Le moniteur a été exposé à la pluie ou à l’humidité.

Le moniteur ne fonctionne pas normalement lorsque vous

suiv ez les instructions du mode d’emploi. Ne réglez que les

éléments décrits dans le mode d’emploi. Un Réglage

indadapté d’autres éléments peut entraîner une déterioration

de l’appareil et nécessite souvent un important travail du

technicien qualifié pour remet tre le moniteur en bon état de

fonctionnement.

Le moniteur est tombé ou son boîtier a été endommagé.

Le moniteur présente un changement net dans ses capacités

de fonctionnement.

Des bruits secs ou des bruits d’encliquetage 'clic' se font enten

dre en continu ou fréquemment en cours de fonctionnement

du moniteur. Il est normal que certains moniteurs fassent des

bruits occasionnels lorsqu’ils sont mis sous tension ou hors

tension, ou lors de changements de mode vidéo.

Ne tentez pas de réparer vous-même votre moniteur, car ouvrir

le moniteur ou retirer son boîtier peut vous exposer à des

décharges électriques dangereuses et présente par ailleurs

d’autres risques. Pour toute réparation du moniteur, contactez un

technicien qualifié.

Precauzioni Importanti

Questa unità è stata progettata e realizzata per garantire la

massima sicurezza personale dell'utente, tuttavia un uso

improprio potenzialmente potrebbe comunque provocare

una scarica elettrica o un incendio. Al fine di non alterare i

dispositivi di sicurezza incorporati nel monitor, osservare le

seguenti norme basilari per l'istallazione, l'uso e la

manutenzione. Seguire inoltre tutte le avvertenze e le

istruzioni riportate direttamente sul monitor.

Per la Sicurezza

Utilizzare unicamente il cavo d'alimentazione fornito insieme

all'unità. Se si utilizza un altro cavo di alimentazione, non fornito

dal rivenditore, assicurarsi che sia conforme agli standard in

vigore nella propria nazione. Se il cavo di alimentazione è

difettoso, contattare il produttore oppure il più vicino fornitore

autorizzato alla sostituzione.

Mettere in funzione il monitor collegandolo unicamente ad una

delle fonti elettriche indicate nelle specifiche di questo manuale o

elencate sul monitor stesso. Se non si è certi del voltaggio della

corrente delle prese a cui si dovrebbe collegare l'apparecchio,

consultarsi prima con un tecnico.

Le prese di corrente sovraccaricate e le prolunghe elettriche

sono pericolose. Altrettanto vale per i cavi d'alimentazione

danneggiati e per le spine consumate. Questi elementi possono

provocare scariche elettriche o incendi. Rivolgersi ad un tecnico

della manutenzione per richiederne la sostituzione.

Non Aprire il Monitor.

All'interno non vi sono componenti che possono essere puliti

o sostituiti dallutente.

Vi è comunque il pericolo di scariche elettriche all'interno,

anche quando l'apparecchio è spento.

Contattare il proprio negoziante se il monitor non funziona

correttamente.

Per Evitare il Rischio di Danni Alla Persona:

Non posizionare il monitor su scaffalature inclinate, a meno

che non siano state opportunamente regolate e fissate.

Utilizzare unicamente la base di appoggio consigliata dal

produttore.

Non cercare di trascinare la base di appoggio lungo pavimenti

irregolari o tappeti a pelo alto.

Per Evitare il Rischio di Incendi o Pericoli:

Spegnere sempre il monitor quando si lascia la stanza per un

periodo lungo. Non lasciare mai acceso il monitor quando si

esce di casa.

Impedire ai bambini di lasciar cadere o infilare oggetti nelle

fes sure della struttura del monitor. Alcune parti interne

possono provocare scariche elettriche.

Non aggiungere accessori che non siano stati specificamente

disegnati per questo monitor.

In caso di temporale, o comunque quando non c'è nessuno

che possa controllare il monitor per un lungo periodo di

tempo, stac care la spina dalla presa del muro.

Non avvicinare oggetti magnetici, quali calamite o motori, al

tubo catodico.

Per l'istallazione

Non appoggiare né far rotolare nulla sul cavo di alimentazione,

inoltre non posizionare il monitor dove il cavo di alimentazione

potrebbe essere soggetto danni.

Français

Mode

Normal(Max.)

Standby

Suspend

Off

Sync Hori.

Off

Sync Verti.

Off

Couleur du

Voyante DEL

Vert

Ambre

Italiano

Non utilizzare questo monitor in prossimità dell'acqua, per

esempio vicino a vasche da bagno, lavandini, lavelli, vasche da

bucato, superfici bagnate o vicino a una piscina.

La struttura dei monitor è dotata di fessure di ventilazione che

consentono la fuoriuscita del calore generato durante il

funzionamento. Se queste fessure restano bloccate, il calore

imprigionato causa danni che potrebbero provocare incendi.

Dunque non bisogna MAI:

Bloccare le fessure di ventilazione inferiori posizionando il

moni tor su letti, divani, tappeti, ecc.

Posizionare il monitor in uno scomparto chiuso a meno che

non si possa garantire un'adeguata ventilazione.

Coprire le fessure con tessuto o altro materiale.

Posizionare il monitor in prossimità di un termosifone o sopra

di esso o comunque vicino ad una fonte di calore.

Solo per monitor LCD

Non strofinare né percuotere il Display a Cristalli Liquidi Active

Matrix con oggetti duri (più duri di HB), altrimenti si rischia di

graffiare, compromettere o danneggiare permanentemente il

Display a Cristalli Liquidi Active Matrix.

Non fare pressione a lungo sullo schermo del display a cristalli

liquidi con i polpastrelli, altrimenti si potranno avere immagini

residue.

Su schermo potranno apparire difetti puntiformi, come puntini di

colore rosso, verde o blu. Questo non avrà tuttavia alcun effetto

o ripercussione negativa sulle prestazioni del monitor.

Se possibile, utilizzare la risoluzione consigliata per ottenere la

migliore qualità dell’immagine sul vostro monitor LCD. Nel caso

si utilizzino modalità diverse da quella consigliata, alcune

immagini potrebbero apparire processate o scalate. In ogni caso,

queste sono le caratteristiche del pannello LCD a risoluzione

fissa.

Per la Pulizia

Scollegare il monitor prima di pulire lo schermo.

Utilizzare un panno leggermente inumidito (non bagnato). Se

si usano prodotti spray, non spruzzare il prodotto direttamente

sullo schermo del monitor perché una quantità eccessiva

potrebbe causare scosse elettriche.

Per l'imballaggio

Non getti via la scatola di cartone e i materiali di imballaggio.

Sono il contenitore ideale per trasportare l’apparecchio.

Quando lo trasferisce in un altro posto, lo reimballi nel suo

materiale originale.

Utilizzare uno panno leggermente umido (non bagnato). Non

uti lizzare nebulizzatori direttamente sul tubo catodico perché

la vaporizzazione potrebbe provocare scariche elettriche.

DDC (Display Data Channel)

Il DDC è un canale di comunicazione attraverso il quale il

monitor informa automaticamente il sistema ospite (PC) circa le

proprie capacità.

Protocollo DDC

①DDC1/DDC2B

Un canale di comunicazione uni-direzionale.

①DDC 2AB/DDC2B+/DDC2Bi

Un canale di comunicazione bi-direzionale.

Nota

Per fare questo il PC deve supportare le funzioni DDC.

Modello Conforme alla Normativa sul

Risparmio Energetico

Questo monitor è conforme al programma Energy Star

dell'EPA, che è stato messo a punto affinché le case

produttrici di computer realizzino macchine dotate di un

circuito inteso a ridurre il consumo energetico durante i

tempi di non utilizzo.

Quando si utilizza il monitor insieme a un personal

computer conforme agli standard Green o EPA Energy

Star, oppure con un PC dotato di software di soppressione

di sfondo conforme al protocollo VESA per Display Power

Management Signalling (DPMS), il monitor può conservare

una grande quantità di energia riducendone il consumo

durante i periodi di non utilizzo.

Vi sono 2 linee di segnale e 4 modalità operative.

; Normale, Standby, Sospensione e Spento.

Quando si riattiva il PC premendo un tasto o muovendo il

mouse, il monitor tornerà alla modalità operativa normale,

indicata dalla luce verde del led di alimentazione.

Nota

La funzionalità di risparmio energetico per i monitor è

disponibile solo su monitor connessi a computer a

risparmio energetico.

Manutenzione

Staccare il monitor dalla presa elettrica e consultare il

personale addetto alla manutenzione quando:

Il cavo elettrico o la spina sono danneggiati o consumati.

Si è rovesciato del liquido sul monitor.

Il monitor è stato esposto alla pioggia o all'acqua.

Il monitor non funziona correttamente secondo le

istruzioni oper ative. Regolare unicamente quei controlli

contemplati nelle istruzioni operative. La manomissione

di altri controlli può provo care danni e spesso poi è

necessario un lungo lavoro da parte dei tecnici

specializzati per ripristinare le normali funzionalità del

monitor.

Il monitor è caduto o si è danneggiata la struttura.

Il monitor funziona in maniera evidentemente diversa da

prima.vIl monitor lampeggia in maniera continua o

frequente mentre è in funzione. E' normale che alcuni

monitor emettano suoni occa sionali quando vengono

accesi o spenti, oppure quando si cam bia la modalità

video.

Non cercare di effettuare da soli la manutenzione poiché

l'apertura della struttura potrebbe esporre l'utente al

pericolo di scariche elettriche o ad altri rischi. Rivolgersi al

personale tecnico qualificato.

Italiano

Modalità

Normal

Stand by

Sospensione

Spento

Sinc.

Oriz.

Off

Sinc.

Vert.

Off

Colore

LED

Verde

Giallo

Precauciones Importantes

Esta unidad ha sido diseñada y fabricada para asegurar su

seguridad personal, pero el uso indebido puede resultar en

sacudidas elétricas potenciales o en peligro de incendio.

Para no destruir los dispositivos de seguridad en este

monitor, observe las siguientes reglas básicas para su

instalación, uso y servicio. También siga todas las

advertencias e instrucciones marcadas directamente en su

monitor.

En Cuanto a Seguridad

Utilice únicamente el cable de energía proporcionado con esta

unidad. En caso de utilizar otro cable de alimentación,

compruebe que está certificado por los estándares nacionales

aplicables, si esta información no ha sido facilitada por el

proveedor. Si el cable de alimentación de corriente tiene algún

fallo, póngase en contacto con el fabricante o con el distribuidor

autorizado más cercano para cambiarlo.

Opere el monitor únicamente de una fuente de energía indicada

en las especificaciones de este manual o listado en el monitor.

Si usted no está seguro del tipo de fuente de energía que tiene

en su hogar, consulte con su distribuidor.

Las salidas de corriente alterna (AC) sobrecargadas y las

extensiones de los cables son peligrosas. También lo son los

cables de energía desgastados y los enchufes rotos. Ello puede

resultar en una sacudida eléctrica o en un peligro de incendio.

Llame a su técnico de servicio para su reemplazo.

No abra el monitor.

No hay componentes adentro que se puedan utilizar.

Hay Voltaje de Alto Peligro en el interior, aún cuando la

energía está apagada.

Contacte a su distribuidor si el monitor no está operando

adecuadamente.

Para Evitar Lesión Personal:

No coloque el monitor en una repisa inclinada, al menos que

esté apropiadamente asegurda.

Utilice únicamente un mueble recomendado por el fabricante.

No trate de rodar el mueble con ruedecillas a través de

umbrales o alfombras gruesas.

Para Prevenir Incendio o Riesgos:

Simpre apague el monitor si usted deja la habitación por más

de un período corto de tiempo. Nunca deje su monitor

encendido cuando salga de la casa.

Evite que los niños dejen caer o metan objetos dentro de las

ranuras del gabinete del monitor. algunas piezas internas

tienen voltajes peligrosos.

No adicione accesorios que no han sido diseñadas para este

monitor.

Durante una tomenta eléctrica o cuando el monitor no se va

a utilizar, por un período extendido de tiempo, desconéctelo

del tomacorriente. motores cerca del tubo de imagen.

No coloque dispositivos magnéticos tales como imanes o

motores cerca del tubo de imagen.

Sobre la Instalación

No permita que nada descanse encima o ruede sobre el cable, y

no coloque el monitor donde el cable de energía pueda causar

daño.

No use este monitor cerca del agua o cerca de una bañera,

lavamanos, fregador de cocina, fregador de ropa o en un sótano

húmedo, o cerca de una piscina.

Los monitores tienen ranuras de ventilación en su gabinete para

permitir la liberación de calor generada durante su operación. Si

estas ranuras se bloquean, el calor en aumento puede causar

fallas que pueden resultar en peligro de incendio. Por lo tanto,

NUNCA:

Bloquee las ranuras inferiores colocando el monitor en una

cama, sofá, alfombra, etc.

Coloque el monitor en un área empotrada a no ser que haya

una ventilación adecuada.

Cubra las ranuras con telas u otros materiales.

Coloque el monitor cerca o sobre un radiador o fuente de

calor.

Monitor LCD exclusivamente

No frote o golpee el LCD de Matriz Activa con algo que sea duro

(más de H) ya que podría rayar, estropear o dañar con carácter

permanente LCD de Matriz Activa.

No apriete la pantalla de LCD con los dedos durante un largo

tiempo, ya que ello podría producir alguna imagen posterior.

Pueden aparecer en la pantalla algunos defectos de puntos, en

los puntos rojo, verde o azul de la pantalla. No obstante, esto no

tendría impacto o efecto en el rendimiento del monitor.

Si es posible, utilice la resolución recomendada para obtener la

mejor calidad de imagen en su monitor LCD. Si utiliza cualquier

otro modo, pueden aparecer imágenes escaladas o procesadas

en pantalla. Esta es una característica del panel LCD, que tiene

una resolución fija.

Sobre la Limpieza

Antes de limpiar la superficie de la pantalla, desconecte el

monitor.

Utilice un paño ligéramente húmedo (no empapado.) No

utilice un aerosol directamente sobre la pantalla del monitor

porque un exceso de pulverización puede provocar una

descarga eléctrica.

Sobre el Reempaque

No bote la caja y los materiales de empaque. Son ideales

para transportar la unidad. Cuando embarque la unidad a

otra ubicación, reempáquelo en su material original.

DDC (Canal de despliegue de

información)

DDC es un canal de comunicación sobre el cual el monitor

automáticamente informa al sistema anfitrión (PC) sobre sus

capacidades.

Protocolo DDC

①DDC1/DDC2B

Un canal de comunicación unidireccional.

②DDC 2AB/DDC2B+/DDC2Bi

Un canal de comunicación bidireccional.

Nota

La PC debe soportar las funciones DDC para poder hacer

esto.

Espanõl

Diseño de Ahorro de Energía

Este monitor cumple con el programa EPA'S Energy Star el cual

es un programa diseñado para que fabricantes de equipo de

computadora fabriquen sistema de circuitos en sus productos

para reducir el consumo de energía durante el tiempo que no

está en uso el equipo.

Si este monitor se utiliza con un PC Green o EPA Energy Star, o

con un PC con software de blanqueo de pantalla que siga el

protocolo VESA Display Power Management Signalling

(DPMS), ahorrará mucha energía al reducir el consumo cuando

está encendido pero no se usa.

Hay 2 líneas de señal, 4 modos de operación.

; Normal, Espera (Standby), Suspendido y Apagado.

Si activa de nuevo el PC pulsando una tecla o moviendo el

mouse, el monitor también recuperará su modo de operación

normal y se iluminará el indicador LED de encendido de color

verde.

Nota

La característica de ahorro de energía de los monitores sólo

funciona cuando están conectados a equipos que también

tienen la característica de ahorro de energía.

Servicio

Desconecte el monitor del tomacorriente de la pared y

refiera el servicio a personal de servicio calificado cuando:

El cable o enchufe de energía está dañado o

desgastado.

Se ha derramado líquido en el monitor.

El monitor ha sido expuesto a la lluvia o al agua.

El monitor no funciona normal aunque se hayan seguido

las instrucciones de operación. Ajuste sólo los controles

que están cubiertos en las instrucciones de operación.

Un ajuste incorrecto de estos controles pueden causar

daño y a veces requiere de trabajo extenso por un

técnico calificado para restaurar el monitor al

funcionamiento normal.

El monitor se ha dejado caer o el gabinete se ha

dañado.

El monitor exhibe un cambio distinto en la ejecución.

Los chasquidos o explosivos que emanan del monitor

son continuos o frecuentes mientras el monitor está

operando. Los ruidos ocasionales son normales para

algunos monitores cuando se prende o se apaga, o

cambia el modo de video.

No trate de arreglar usted mismo el monitor, ya que abrir y

sacar las tapas pueden exponerlo a niveles de voltaje

peligrosos u otros peligros. Refiera el arreglo a un personal

técnico calificado para ello.

Belangrijke voorzorgsmaatregelen

Dit apparaat is zodanig ontworpen en geproduceerd

dat uw persoonlijke veiligheid is gewaarborgd. Bij

onjuist gebruik bestaat er echter gevaar voor

elektrische schokken of brand. Als u onderstaande

basisregels voor het installeren, gebruiken en

onderhouden van de monitor in acht neemt, blijven de

veiligheidsvoorzieningen van deze monitor goed

functioneren. Neem ook alle waarschuwingen en

aanwijzingen die rechtstreeks op uw monitor

verschijnen, in acht.

Veiligheid

Gebruik het netsnoer dat bij dit apparaat is meegeleverd.

Mocht u een ander netsnoer gebruiken, dat niet door de

leverancier van de monitor is geleverd, zorg dan dat het

snoer is goedgekeurd volgens de van toepassing zijnde

nationale normen. Als het netsnoer op enigerlei wijze is

beschadigd, neem dan contact op met de fabrikant of met

het dichtstbijzijnde erkende servicepunt voor vervanging

van het snoer.

Sluit de monitor uitsluitend aan op een spanningsbron zoals

vermeld bij de specificaties in deze handleiding of op de

monitor. Als u niet weet welk type stroomvoorziening u in

uw huis gebruikt, raadpleeg dan uw dealer.

Overbelaste stopcontacten en verlengsnoeren zijn

gevaarlijk. Dat geldt ook voor versleten snoeren en

gebroken stekkers. Elektrische schokken en brand kunnen

het gevolg zijn.

Neem contact op met uw onderhoudsmonteur voor

vervanging.

Maak de monitor niet open

In de monitor bevinden zich geen onderdelen die door

de gebruiker kunnen worden onderhouden.

In de monitor bevinden zich gevaarlijke, hoge elektrische

spanningen, zelfs wanneer de stroom is uitgeschakeld.

Neem contact op met uw dealer, wanneer de monitor

niet naar behoren functioneert.

Voorkom persoonlijk letsel:

Zet de monitor niet op een hellende plank, tenzij u de

monitor goed hebt vastgezet.

Gebruik alleen een monitorvoet die door de fabrikant

wordt aanbevolen.

Rol een monitorvoet die voorzien is van kleine wieltjes,

niet over drempels of over hoogpolig tapijt.

Voorkom brand of onveilige situaties:

Zet de monitor altijd uit als u de ruimte voor meer dan

een korte tijd verlaat. Laat de monitor nooit aanstaan als

u het pand verlaat.

Zorg ervoor dat kinderen niets in de monitorbehuizing

kunnen laten vallen of naar binnen kunnen duwen.

Sommige interne onderdelen zijn namelijk geladen met

gevaarlijk hoge spanningen.

Gebruik geen accessoires die niet voor deze monitor zijn

ontworpen.

Haal de stekker uit het stopcontact als het onweert of als

u de monitor voor langere tijd onbeheerd laat.

Zet geen magnetisch geladen voorwerpen zoals

magneten of motoren in de buurt van de beeldbuis.

Espanõl

Modo

Normal

En espera

Suspendido

Apagado

Hori.

Sinc.

Encendido

Apagado

Encendido

Apagado

Sinc.

Vert.

Encendido

Apagado

Color

LED

Verde

Ambar

Nederlands

Installeren

Zorg dat er niets op het netsnoer wordt geplaatst of er over heen

wordt gerold en zet de monitor niet op een plaats waar het

netsnoer makkelijk kan worden beschadigd.

Gebruik deze monitor niet in de buurt van water, zoals bij een

badkuip, gootsteen of wasteil, in een natte kelderruimte of in de

buurt van een zwembad.

De monitorbehuizing is voorzien van ventilatieopeningen om de

warmte die door de monitor wordt geproduceerd, kwijt te kunnen

raken. Als deze openingen worden geblokkeerd, kan de

opgehoopte warmte brandgevaarlijke storingen veroorzaken.

Neem daarom de volgende voorschriften in acht:

Zet de monitor nooit op een bed, sofa, kleed enz., omdat dan

de onderste ventilatieopeningen worden geblokkeerd.

Zet de monitor nooit in een ombouw, tenzij er maatregelen zijn

getroffen om een goede ventilatie te waarborgen.

Dek de openingen nooit af met een doek of met ander

materiaal.

Zet de monitor nooit in de buurt van of boven een radiator of

een andere warmtebron.

Alleen LCD-monitor

Wrijf of veeg niet met een hard voorwerp over de actieve-matrix

LCD, want hierdoor kunnen niet meer te verwijderen krassen of

beschadigingen aan de actieve-matrix LCD ontstaan.

Druk niet gedurende langere tijd met uw vinger tegen het LCD-

scherm, omdat dit nabeelden kan veroorzaken.

Er kunnen een aantal foutpuntjes op het scherm verschijnen,

zoals rode, groene of blauwe vlekjes op het scherm. Dit is echter

niet van invloed op de prestaties van de monitor. Dit is

kenmerkend voor LCD-schermen met een vaste resolutie.

Gebruik indien mogelijk de aanbevolen resolutie. Zo bent u er

zeker van dat de LCD-monitor de beste beeldkwaliteit biedt. Als

u een andere dan de aanbevolen resolutie gebruikt, kunnen

sommige afbeeldingen op een gewijzigde grootte of anderszins

bewerkt worden afgebeeld. Dit is kenmerkend voor LCD-

schermen met een vaste resolutie.

Reinigen

Haal de stekker van de monitor uit het stopcontact voordat u

het monitorscherm schoonmaakt.

Gebruik een vochtige (geen natte) doek. Spuit

schoonmaakmiddelen nooit direct op de monitor, dit kan een

elektrische schok veroorzaken.

Inpakken

Gooi het karton en het verpakkingsmateriaal niet weg. Deze

materialen zijn uitstekend te gebruiken als u de monitor nog

eens moet vervoeren. Wanneer u de monitor naar een andere

locatie overbrengt, verpak het dan in het originele

verpakkingsmateriaal.

DDC (Display Data Channel)

DDC is een communicatiekanaal waarmee de monitor het host-

systeem (PC) automatisch informeert over zijn mogelijkheden.

DDC-protocol

①DDC1/DDC2B

Een unidirectioneel communicatiekanaal.

②DDC 2AB/DDC2B+/DDC2Bi

Een bidirectioneel communicatiekanaal.

OPMERKING

Dit kan alleen als de PC DDC ondersteunt.

Energiebesparingssysteem

Deze monitor voldoet aan het Energy Star-programma van EPA.

Dit programma is bedoeld om fabrikanten van

computerapparatuur zo ver te krijgen elektronica in hun

producten op te nemen die ervoor zorgt dat het energieverbruik

wordt teruggedrongen op momenten dat de apparatuur niet

wordt gebruikt.

Wanneer u deze monitor gebruikt in combinatie met een

energiezuinige pc, een pc die voldoet aan de EPA Energy Star-

norm of schermsoftware die werkt met het DPMS-protocol

(Display Power Management Signalling) van VESA, kan het

energiegebruik van deze monitor flink worden gereduceerd.

Er zijn twee signaallijnen en vier gebruiksmodi:

; Normal, Standby, Onderbroken en Uit.

Wanneer u de pc activeert door op een toets te drukken of de

muis te bewegen, wordt de normale gebruiksmodus van de

monitor ook hersteld. Dit wordt aangegeven door de groene

LED-indicatie van de Aan/Uit-schakelaar.

Opmerking

De energiesparende functie van de monitor werkt alleen als

de computer waar hij op is aangesloten ook een

energiebesparende functie heeft.

Onderhoud

In de volgende gevallen haalt u de stekker van de monitor uit het

stopcontact en roept u de hulp in van een gekwalificeerde

technicus:

Het netsnoer of de stekker is beschadigd of versleten.

Er is vloeistof in de monitor gemorst.

De monitor heeft blootgestaan aan regen of water.

De monitor werk niet goed, ondanks het feit dat u handelt

volgens de gebruiksaanwijzing. Beperk u bij het instellen van

de monitor tot de items die in de gebruiksaanwijzing worden

besproken. Het onjuist instellen van andere items kan

storingen veroorzaken. Vaak is dan een omvangrijke reparatie

door een gekwalificeerde technicus nodig, om de monitor

weer voor normaal gebruik in gereedheid te brengen.

De monitor is gevallen of de behuizing is beschadigd.

De monitor functioneert wezenlijk anders dan normaal het

geval is.

De monitor produceert voortdurend of regelmatig kraak- en

knalgeluiden. Bij sommige monitoren is het normaal dat ze af

en toe geluiden produceren bij het in- en uitschakelen, of

wanneer ze veranderen van videomodus.

Probeer de monitor niet zelf te repareren, aangezien u bij het

openen of verwijderen van de behuizing blootgesteld kunt

worden aan gevaarlijke elektrische schokken of andere gevaren.

Laat alle reparatiewerkzaamheden over aan gekwalificeerde

technici.

Nederlands

Modi

Normaal

Stand-by

Onderbroken

Uit

Hor.

Sync

Aan

Uit

Aan

Uit

Vert

Sync

Aan

Uit

Indicator

Green

Amber

Precauções Importantes

Este monitor foi projetado e fabricado de forma a

assegurar a sua segurança pessoal, porém o uso ou

operação inadequada podem resultar em risco

potencial de incêndio ou choque elétrico. Além disso,

o não cumprimento destas regras podem invalidar a

garantia.

Na Segurano

Use somente o cabo de força fornecido pelo monitor. Em

caso de necessitar outro cabo de força, certifique-se que o

mesmo suporta os níveis de tensão e corrente exigidos

pelo monitor(veja item especificações).

Se o cabo de alimentação tiver algum defeito, entre em

contacto com o fabricante ou com o fornecedor de serviços

de reparação da sua zona para o substituir.

Ligue o monitor somente em tomadas com a mesma

especificação de tensão que a mencionada neste manual

ou no corpo do monitor.

Tomadas sobrecarregadas e extensões podem provocar

incêndios e danificar o monitor. Verifique bem as tomadas

antes de efetuar a conexão do cabo de força.

Não abra o Monitor

Não existem componentes que possam ser trocados

pelo usuário dentro do monitor e mesmo que ele esteja

desligado e com o cabo de força desconectado, existem

pontos de ALTA TENSÃO altamente perigosos

presentes.

Sinais de abertura do monitor invalidarão definitivamente

a garantia.

Para Evitar Acidentes Pessoais :

Não coloque o monitor em superfícies inclinadas.

Não coloque o monitor sobre superfícies que não

suportem seu peso.

Não tente arrastar a mesa onde se encontra o monitor.

Retire o monitor da mesa, coloque-a em sua nova

posição e depois coloque o monitor sobre ela.

Para Evitar Incêndios e Choques Elétricos :

Sempre desligue o monitor ao abandonar a sala onde

ele se encontra Nunca deixe o monitor ligado ao sair do

escritório ou de casa.

Evite que crianças coloquem objetos nas aberturas do

monitor. Algumas partes internas do monitor

apresentam tensões elevadas (da ordem de milhares de

volts).

Não adicione acessórios que não tenham sido

projetados para este monitor.

Durante tempestades elétricas (com raios e trovões) ou

durante períodos em que o monitor permanecerá sem

uso, desconecte-o da tomada.

Não deixe dispositivos magnéticos (alto falantes,

motores, imãs, etc.) próximos do tubo do monitor.

Na Instalação

Não deixe nenhum objeto sobre o cabo de força e nem

coloque o monitor em locais onde o cabo de força possa

ser danificado.

Não use o monitor em locais próximos a água, tais como

banheiras, aquários, pias, ou em locais úmidos.

Os monitores possuem frestas para ventilação. Se estas

frestas são bloqueadas, o calor gerado pelo monitor pode

causar falhas de funcionamento que podem gerar um

incêndio. Portanto, NUNCA:

Bloqueie as frestas de ventilação colocando o monitor

sobre camas, sofás, almofadas, etc.

Coloque o monitor em locais fechados, a não ser que

ventilação adequada tenha sido providenciada.

Fechar as frestas de ventilação com panos ou outros

materiais.

Colocar o monitor sobre ou próximo a superfícies

geradoras de calor.

Somente para monitores LCD

Não esfregue ou toque no Active Matrix LCD com objetos

duros que possam riscá-lo, estragá-lo ou danificá-lo

permanentemente.

Não esfregue ou toque no Active Matrix LCD com objetos

duros que possam riscá-lo, estragá-lo ou danificá-lo

permanentemente.

Talvez surjam alguns defeitos de pontos na tela, como

manchas vermelhas, verdes ou azuis. Entretanto, isso não

afetará o desempenho do monitor.

Se possível, utilize a resolução recomendada para obter a

melhor qualidade de imagem do seu monitor LCD. Se for

utilizado qualquer modo que não seja a resolução

recomendada, podem aparecer imagens redimensionadas

ou processadas na tela. Entretanto, trata-se de uma

característica da tela LCD com resolução fixa.

Na Limpeza

Desconecte o monitor antes de limpar sua tela.

Utilize um tecido macio umedecido (não molhado). Não

utilize produtos em aerossol diretamente na tela, pois o

jato em excesso pode causar choque elétrico.

Na Reembalagem

Não jogue fora a caixa e os suportes originais do

produto. Caso necessite transportar o monitor, a caixa

original é a embalagem ideal O uso de outras

embalagens pode danificar o monitor durante o

transporte, mesmo que a embalagem permaneça

intacta.

DDC (Display Data Channel)

DDC é um canal de comunicação através do qual o

monitor informa ao computador a respeito de suas

características.

Protocolo DDC

①DDC1/DDC2B

Um canal de comunicação unidirecional.

②DDC 2AB/DDC2B+/DDC2Bi

Um canal de comunicação bidirecional.

Ovservação

O PC deve suportar DDC para fazer isso.

Português

Regulatory Information

Sistema de Gerenciamento de

Energia

Este monitor está de acordo com o programa Energy Star

da EPA (Agência de Proteção Ambiental Americana), cujo

objetivo é determinar aos produtores de equipamentos de

informática padrões para projetos de circuitos que gastam

menos energia quando não estão em uso.

Quando o monitor for utilizado com Green ou EPA Energy

Star PC ou com um PC com software protetor de tela de

acordo com o protocolo VESA Display Power Management

Signalling (DPMS), este monitor pode economizar uma

quantidade considerável de energia reduzindo seu

consumo enquanto não estiver sendo utilizado.

Existem 2 linhas de sinal, 4 modos de operação.

; Normal, Em espera, Suspenso e Desligado.

Quando você acionar o PC pressionando alguma tecla ou

movendo o mouse, o monitor também será acionado,

passando para o modo normal de operação, indicado pela

luz verde do LED.

Observação

O Projeto de economia de energia para monitores

funciona somente se eles estiverem conectados a

computadores com esse recurso.

Manutenção

Desligue o monitor da tomada e procure por serviço

autorizado, quando:

O cabo de força ou plugue estiver danificado ou

rompido.

Houve queda de líquido no monitor.

O monitor foi exposto à chuva ou água.

O monitor não opera normalmente seguindo as

instruções de operação. Ajuste somente os controles

descritos nas instruções de operação. Uma tentativa de

ajuste de outros controles invali-dará a garantia, além de

exigir diversas horas de trabalho de pessoal qualificado

para restaurar as condições originais de fun-cionamento

do monitor.

O monitor caiu ou está com o gabinete quebrado.

O monitor exibe uma distinta mudança de performance.

O monitor emite estalos ou estouros continuamente

durante sua operação normal. Para alguns monitores é

normal se ouvirem estalos quando se liga ou desliga o

monitor ou quando há mudança de modo de vídeo.

Não tente efetuar a manutenção do monitor você mesmo.

Abrir ou remover as tampas do gabinete deixarão expostos

pontos de alta tensão em diversas partes do monitor.

Procure sempre pessoal qualificado para execução de

serviços de manutenção.

FCC Compliance Statement

This equipment has been tested and found to comply within

the limits of a Class B digital device pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses, and can radiate radio

frequency energy and if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio

or television reception (which can be determined by turning

the equipment on and off), the user is encouraged to try to

correct the interference by using one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the

receiver.

Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV

technician for help.

Caution: Changes or modifications not expressly approved

by the party responsible for compliance could void the

user's (or your) authority to operate the equipment. Only

peripherals (digital input/output devices, terminals, printers,

etc.) certified to comply with the Class B limits may be

attached to this monitor. Operation with non-certified

peripherals is likely to result in interference to radio and TV

reception.

Only shielded signal cables may be used with this System.

Canadian DOC Notice

This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les

exigences du Règlement sur le matériel brouilleur du

Canada.

Português

Modo

Normal

Em espera

Suspenso

Desligado

Sinc.

Horiz.

Ligado

Desligado

Ligado

Desligado

Sinc.

Vert.

Ligado

Desligado

Cor do

LED

Verde

Laranja

NOTICE

The regulations are applied only to the products with the

ID LABEL indicating specific requirements.

NOTICE

The regulations are applied only to the products with the

ID LABEL indicating specific requirements.

Regulatory Information cont.

NUTEK

Naturskydds

föreningen

Närings- och teknikutvecklingsverket

SEMKO

CE Conformity Notice (for Europe)

Products with the “CE” Marking comply with the EMC

Directive(89/336/EEC) and LOW VOLTAGE Directive

(73/23/EEC) issued by the Commission of the European

Community.

Compiance with these directives implies conformity to the

following European Norms :

• EN 55022 ; Radio Frequency Interference

• EN 50082-1:1992 ; Electromagnetic Immunity

• EN 60555-2 ; Power Line Harmonics

• EN 60555-3 ; Voltage Fluctuations

• EN 60950 ; Product Safety

Low Radiation Compliance (MPR II)

This monitor meets one of the strictest guidelines available

today for low radiation emissions, offering the user extra

shielding and an antistatic screen coating. These

guidelines, set forth by a government agency in Sweden,

limit the amount of emission allowed in the Extremely Low

Frequency (ELF) and Very Low Frequency (VLF)

electromagnetic range.

TCO95

Congratulations!

You have just purchased a TCO’95 approved and labelled

product! Your choice has provided you with a product

developed for professional use. Your purchase has also

contributed to reducing the burden on the environment and

to the further development of environmentally-adapted

electronic products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an

established method for encouraging the adaptation of

goods and services to the environment. The main problem

as far as computers and other electronic equipment are

concerned is that environmentally harmful substances are

used both in the products and during their manufacture.

Since it has not been possible so far for the majority of

electronic equipment to be recycled in a satisfactory way,

most of these potentially damaging substances sooner or

later enter Nature.

There are also other characteristics of a computer, such as

energy consumption levels, that are important from both the

working and natural environment viewpoints. Since all

types of conventional electricity generation have a negative

effect on the environment (acidic- and climatic-influencing

emissions, radioactive waste, etc.), it is vital to conserve

energy. Electronic equipment in offices consumes as

enormous amount of energy, since it is often routinely left

running continuously.

What does the environmenal labelling involve?

This product meets the requirements for the TCO’95

scheme, which provides for international environmental

labelling of personal computers. The labelling scheme was

developed as a joint effort by the TCO (The Swedish

Confederation of Professional Employees),

Naturckyddsföreningen (The Swedish Society for Nature

Conservation), and NUTEK (The National Board for

Industrial and Technical Development in Sweden), and

SEMKO AB (an international certification agency).

The requirements cover a wide range of issues:

environment, ergonomics, usability, emission of electrical

and magnetic fields, energy consumption and electrical and

fire safety.

The environmental demands concern, among other things,

restriction on the presence and use of heavy metals,

brominated and chlorinated flame retardants, CFCs

(freons), and chlorinated solvents. The product must be

prepared for recycling, and the manufacturer is obliged to

have an environmental plan, which must be adhered to in

each country where the company implements its

operational policy.

The energy requirements include a demand that the

computer and/or display, after a certain period of inactivity,

shall reduce its power consumption to a lower level, in one

or more stages. The length of time to reactivate the

computer shall be reasonable for the user.

Labelled products must meet strict environmental

demands, for example, in respect of the reduction of electric

and magnetic fields, along with physical and visual

ergonomics and good usability.

The following is a brief summary of the environmental

requirements met by this product. The complete

environmental criteria document may be ordered from:

TCO Development Unit

Linnegatan 14, S-11494 Stockholm, Sweden

FAX +46-8 782 92 07

E-mail (Internet): development@tco.se

Current information regarding TCO’95 approved and

labelled products may also be obtained on the Internet

using the address: http://www.tco-info.com/

TCO’95 is a co-operative project between:

Environmental requirements

Brominated flame retardants are present in printed circuit

boards, cabling, casings, and housings, and are added to

delay the spread of fire. Up to 30% of the plastic in a

computer casing can consist of flame-retardant substances.

These are related to another group of environmental toxins,

PCBs, and are suspected of giving rise to similar harm,

including reproductive damage in fish-eating birds and

mammals. Flame retardants have been found in human

blood, and researchers fear that they can disturb fetus

development.

Bio-accumulative1TCO’95 demands require that plastic

components weighing more than 25 grams must not

contain flame retardants with organically bound chlorine or

bromine.

NOTICE

The regulations are applied only to the products with the

ID LABEL indicating specific requirements.

Lead can be found in picture tubes, display screens, solder,

and capacitors. Lead damages the nervous system and in

higher doses causes lead poisoning. The relevant bio-

accumulative TCO’95 requirement permits the inclusion of

lead, as no replacement has yet been developed.

Cadmium is present in rechargeable batteries and in the

color-generating layers of certain computer displays.

Cadmium damages the nervous system and is toxic in high

doses. The relevant bio-accumulative TCO’95 requirement

states that batteries may not contain more than 25 ppm

(parts per million) of cadmium. The color-generating layers

of display screens must not contain any cadmium.

Mercury is sometimes found in batteries, relays and

switches. Mercury damages the nervous system and is

toxic in high doses. The relevant bio-accumulative TCO’95

requirement states that batteries may not contain more than

25 ppm of mercury and that no mercury is present in any of

the electrical or electronic components concerned with the

display unit.

CFCs (freons) are sometimes used for washing printed

circuit boards and in the manufacture of expanded foam for

packaging. CFCs break down ozone and thereby damage

the ozone layer in the atmosphere, causing increased

reception on Earth of ultra-violet light with consequent

increased risks of skin cancer (malignant melanoma). The

relevant TCO’95 requirement: Neither CFCs nor HCFCs

may be used during the manufacture of the product or its

packaging.

1Bio-accumulative means that the substance accumulates

within living organisms.

Shipping Package

The packaging material can be recycled, or you can save it

to return the monitor to a service center for repair or

disposal.

CFC Compounds in Distribution Packaging

Cushioning material used for shipping finished monitors are

not manufactured with nor do they contain any CFC

compounds.

Design for Disassembly/Recycling

These monitors have been designed for easy end-of-life

disassembly and recycling. Fasteners are generally of the

same type for efficient disassembly. Components made of

different materials can be easily separated and plastics

have been identified using intermational symbols to aid in

recycling.

Monitor Disposal

TCO99

Congratulations!

You have just purchased a TCO’99 approved and labelled

product! Your choice has provided you with a product

developed for professional use. Your purchase has also

contributed to reducing the burden on the environment and

also to the further development of environmentally adapted

electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an

established method for encouraging the adaptation of

goods and services to the environment. The main problem,

as far as computers and other electronics equipment are

concerned, is that environmentally harmful substances are

used both in the products and during their manufacture.

Since it is not so far possible to satisfactorily recycle the

majority of electronics equipment, most of these potentially

damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as

energy consumption levels, that are important from the

viewpoints of both the work (internal) and natural (external)

environments. Since all methods of electricity generation

have a negative effect on the environment (e.g. acidic and

climate-influencing emissions, radioactive waste), it is vital

to save energy. Electronics equipment in offices is often left

running continuously and thereby consumes a lot of

energy.

What does labelling involve?

This product meets the requirements for the TCO’99

scheme which provides for international and environmental

labelling of personal computers. The labelling scheme was

developed as a joint effort by the TCO (The Swedish

Confederation of Professional Employees), Svenska

Naturskyddsforeningen (The Swedish Society for Nature

Conservation) and Statens Energimyndighet (The Swedish

National Energy Administration).

Approval requirements cover a wide range of issues:

environment, ergonomics, usability, emission of electric and

magnetic fields, energy consumption and electrical and fire

safety.

The environmental demands impose restrictions on the

presence and use of heavy metals, brominated and

chlorinated flame retardants, CFCs (freons) and chlorinated

solvents, among other things. The product must be

prepared for recycling and the manufacturer is obliged to

have an environmental policy which must be adhered to in

each country where the company implements its

operational policy.

The energy requirements include a demand that the

computer and/or display, after a certain period of inactivity,

shall reduce its power consumption to a lower level in one

or more stages. The length of time to reactivate the

computer shall be reasonable for the user.

Labelled products must meet strict environmental

demands, for example, in respect of the reduction of electric

and magnetic fields, physical and visual ergonomics and

good usability.

WARNING

If you need to dispose of a monitor, ask a qualified service

representative for the proper procedure. Improper disposal

could result in personal injury from implosion.

Regulatory Information cont.

EPA POLLUTION PREVENTER

As an ENERGY STAR Partner LG

Electronics U. S. A.,Inc. has

determined that this product meets the

ENERGY STAR guidelines for

energy efficiency.

Below you will find a brief summary of the environmental

requirements met by this product. The complete

environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: +46 8 782 92 07

Email (Internet): development@tco.se

Current information regarding TCO’99 approved and labelled

products may also be obtained via the Internet, using the

address: http://www.tco-info.com/

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards,

cables, wires, casings and housings. Their purpose is to

prevent, or at least to delay the spread of fire. Up to 30% of

the plastic in a computer casing can consist of flame

retardant substances. Most flame retardants contain

bromine or chloride, and those flame retardants are

chemically related to another group of environmental toxins,

PCBs. Both the flame retardants containing bromine or

chloride and the PCBs are suspected of giving rise to

severe health effects, including reproductive damage in

fish-eating birds and mammals, due to the bio-

accumulative* processes. Flame retardants have been

found in human blood and researchers fear that

disturbances in foetus development may occur.

The relevant TCO’99 demand requires that plastic

components weighing more than 25 grams must not

contain flame retardants with organically bound bromine or

chlorine. Flame retardants are allowed in the printed circuit

boards since no substitutes are available.

Cadmium**

Cadmium is present in rechargeable batteries and in the

colour-generating layers of certain computer displays.

Cadmium damages the nervous system and is toxic in high

doses. The relevant TCO’99 requirement states that

batteries, the colour-generating layers of display screens

and the electrical or electronics components must not

contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and

switches. It damages the nervous system and is toxic in

high doses. The relevant TCO’99 requirement states that

batteries may not contain any mercury. It also demands

that mercury is not present in any of the electrical or

electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO’99 requirement states that neither CFCs

nor HCFCs may be used during the manufacture and

assembly of the product. CFCs (freons) are sometimes

used for washing printed circuit boards. CFCs break down

ozone and thereby damage the ozone layer in the

stratosphere, causing increased reception on earth of

ultraviolet light with e.g. increased risks of skin cancer

(malignant melanoma) as a consequence.

Lead**

Lead can be found in picture tubes, display screens,

solders and capacitors. Lead damages the nervous system

and in higher doses, causes lead poisoning. The relevant

TCO’99 requirement permits the inclusion of lead since no

replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate

within living organisms

** Lead, Cadmium and Mercury are heavy metals which are Bio-

accumulative.

EPA (U.S.A only)

ENERGYSATR is a set of power-saving guidelines

issued by the U.S. Environmental Protection

Agency(EPA).

NOM MARK (Mexico only)

MONITOR LIMITED WARRANTY

LG Electronics will repair or at its option replace, without charge, your product which proves to be defective in material or

workmanship under normal use, during the warranty period listed below from the date of original purchase. This warranty is good

only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska,

Hawaii, U.S. Territories; and all Canadian Provinces.

WARRANTY PERIOD:

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES,

INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE

EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF

THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL,

ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY

EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY

APPLICABLE TO THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied

warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may

also have other rights which vary from state to state or province to province.

THE ABOVE WARRANTY DOES NOT APPLY:

• To damages or problems which result from delivery or improper installation.

• To damages or problems which result from misuse, abuse, accident, alteration, or incorrect electrical current or voltage.

• To service calls, which do not involve defective workmanship or material, such as explaining the operation of the unit.

Therefore, these costs are paid by the consumer.

CUSTOMER ASSISTANCE NUMBERS:

MODEL # PARTS & LABOR 3 Years HOW SERVICE IS HANDLED

Call 1 (800) 243-0000 and select the appropriate menu

option, 24 hrs a day, 7 days per week.

Please have your product type (MONITOR) and ZIP/Postal

code ready.

To Prove Warranty Coverage:

To obtain Technical Support

or Customer Assistance:

For Your Nearest Authorized

Service Center

→Retain your sales receipt to prove date of purchase.

→A copy of your sales receipt must be submitted at the time warranty service is provided.

→CALL 1 (800) 243-0000, (Mon.-Fri. 7 a.m.-10 p.m. Central Time) and select the

appropriate menu option.

See our website at http://www.LGEservice.com

or send e-mail via our submission form at

http://www.LGEservice.com/techsup.html

→Call 1 (800) 243-0000 and select the appropriate option, 24 hours a day, 7 days per

week. Please have your product type (MONITOR) and ZIP/Postal Code ready.

This information subject to change at any time without notice.

Warranty

the United States and Canada - CDT Monitor:

Warranty cont.

the United States and Canada - LCD Monitor:

LG ELECTRONICS USA and CANADA

LCD MONITOR LIMITED WARRANTY

LG Electronics, will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship

under normal use, during the warranty period listed below from the date of original purchase. This warranty is good only to the original

purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories, and in

all Canadian Provinces.

WARRANTY PERIOD:

No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE

IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY

HEREIN. LG ELECTRONICS, SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT,

INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF,

OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY,

INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.

Some states/provinces do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied

warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have

other rights which vary from state to state or province to province.

THE ABOVE WARRANTY DOES NOT APPLY:

• To damages or problems which result from delivery or improper shipping.

• To damages or problems which result from misuse, abuse, accident, alteration, or incorrect electrical current or voltage.

• To service calls which do not involve defective workmanship or material, such as explaining the operation of the unit.

Therefore, these costs are paid by the consumer.

CUSTOMER ASSISTANCE NUMBERS:

FOR SERVICE

You must call Product Assistance to confirm the product needs servicing and to obtain Return Authorization (RA).

(1-800-243-0000 Mon. - Fri. 7AM to10PM CST please select the appropriate option from the menu) During the first year of warranty, LGE

will send you a return shipping label; thereafter, customer has to pay for freight in to LGE. After you obtain authorization for return, please

box your unit with a copy of the sales receipt and enough packing material to insure safe delivery of your product. When you receive the

label, place it on the box and call the 800 # in the instruction for pick-up. When your unit is received, LGE will repair your unit in 2 working

days and return to you via 2-day delivery service.

MODEL #

Please write in

Serial #

LABOR

3 Year

PARTS

3 Year

BACK LIGHT

1 Year

HOW SERVICE IS HANDLED

2 working day repair service after receiving at LG Electronics. Please retain your

box to return the unit for repair.

For further instructions please see below.

1st year freight both ways paid by LGE

2nd & 3rd customer pays one-way, LGE pays return freight

Retain your Sales Receipt to prove date of purchase and your box for shipping

the unit in for repair.

Copy of your Sales Receipt must be submitted with the unit at the time warranty

service is provided.

Call 1-800-243-0000 (Mon. - Fri. 7AM to 10PM CST)

Please select the appropriate option from the menu.

See our web site at http://www/LGEservice.com or send e-mail via our form at

http://www.LGEservice.com/techsup.html

To prove warranty coverage:

To obtain where to buy,

product or customer assistance:

COLOUR MONITOR WARRANTY

Complete the details on this form and retain in the event of warranty service being required (purchase receipt attached).

PURCHASER'S NAME

ADDRESS

CITY STATE POST CODE

MODEL NO. SERIAL NO.

DATE OF PURCHASE INVOICE/SALES DOCKET NO.

RETAILER'S NAME

ADDRESS

CITY STATE POST CODE

TERMS OF WARRANTY

Should a defect in this product due to either FAULTY

MATERIAL or WORKMANSHIP become apparent

within the period of 36 months from the date of original

purchase of the product such defect will be rectified,

without cost to you for either labor or

material, at the

premises of Authorized Service Centre.

subject to:

1. Particulars of the model and serial number, the date

original purchase and invoice/ sales docket number

being

given to the authorized service centre when a claim

under warranty is made, Purchase receipt must be

produced.

2. All (a) damage resulting from incorrect installation or

use other than in accordance with the operating

instructions issued by the Company(b)

consequentia

damage, being excluded from this Warranty.

3. The Warranty being rendered invalid if the product is

misused or if any unauthorized alteration, modification,

or substitution of any part of the product be made or the

serial number of the product is defaced or altered.

4. Cost of transportation both ways to and from the

authorized service centre being met by the owner if it is

necessary to return the product or any part to an

authorized service centre.

5. The Warranty not applying except to the servicing

within Australia of products purchased in Australia.

6. LG shall not be liable for the loss of use of product,

inconvenience, loss or any other damages, direct or

consequential arising out of the use, or the inability to

use this product during the terms and conditions of the

warranty period. If any legislation whether Federal or

State to applies to this transaction, certain non-exclude

conditions and may be implied and certain non-exclude

rights may arise but except for such

conditions,warranties and rights, all conditions and

warranties which might otherwise be implied in this

transaction are hereby excluded and negated.

IMPORTANT NOTICE

1. LG Electronics Australia Pty,. Ltd. has arranged for

authorized service centres to perform all after-sales and

warranty service on its behalf.

2. The authorized service centre can accept no

responsibility for damage in transit to and from his

premises.

3. If the product or any parts returned to an authorized

service centre for any cause not covered by this

warranty, all costs involved, including a charge for

inspection and handling must be paid to the authorized

service centre.

4. Changes not covered by the terms of this Warranty must

be borne by the owner. Such charges may arise through

the cost of any service call where the product is found to

be incorrected installed, maladjustment of user controls,

or failure to follow operating instructions, mains supply

defects or external interference.

5. No retailer has authority to very the terms of the above

warranty.

ADDRESS: 23 Pike Street, Rydalmere NSW 2116

Toll Free Line: 1800 643 156

TEL: 9684-8000

Warranty cont.

Australia - CDT & LCD Monitor:

TERMO DE GARANTIA

A LG Electronics de São Paulo Ltda. garante este produto

pelo período de 3(três) anos, contados a partir da data de

emissão da Nota Fiscal de compra, desde que o mesmo

tenha sido instalado conforme orientações descritas neste

manual de instruções e, somente em Território Nacional.

Durante o período estipulado, a garantia cobre peças e mão-

de-obra que apresentarem defeito de fabricação. Somente o

técnico do Serviço Autorizado credenciado pela LG

Electronics de São Paulo Ltda., está autorizado a reparar

defeitos cobertos pela garantia, mediante apresentação da

Nota Fiscal de compra.

O consumidor tem o prazo de 90 dias para reclamar de

irregularidades (vícios) aparentes, ou seja, de fácil e imediata

observação no produto, tais como os ítens que constituam a

parte externa e qualquer outro acessível ao usuário.

A garantia de peça sujeita ao desgaste natural (peças

plásticas e acessórios em geral), fica restrita ao prazo legal

de 90 dias, a contar da data de emissão da Nota Fiscal de

compra.

A garantia perde seu efeito se:

• A instalação ou utilização do produto estiver em

desacordo com as recomendações do manual de

instruções;

• O produto sofrer qualquer dano provocado por acidente,

queda, agentes da natureza ou consertos realizados por

pessoas não credenciadas pela LG Electronics de São

Paulo Ltda;.

• O número de série do produto estiver danificado ou

adulterado.

A garantia não cobre:

• Transporte e remoção de produtos para conserto, ou

daqueles que estejam instalados fora do perímetro urbano

onde se localiza o Serviço Autorizado LG mais próximo;

• Desempenho insatisfatório do produto devido a

instalação ou rede elétrica local inadequadas;

• Transporte e remoção de produtos que estejam instalados

em locais de risco até o Serviço Autorizado LG mais

próximo.

OBS: Se o consumidor desejar ser atendido no local em que

o produto estiver instalado, ficará a critério do Serviço

Autorizado a cobrança de taxa de visita e deslocamento,

devendo o consumidor consultá-lo antes de solicitar o

serviço.

Este produto destina-se exclusivamente ao uso doméstico ou

amador. A LG Electronics de São Paulo Ltda. não cobrirá

qualquer prejuízo do usuário, amador ou profissional,

decorrente da impossibilidade de utilização do produto.

A GARANTIA SOMENTE É VÁLIDA

MEDIANTE A APRESENTAÇÃO DA NOTA

FISCAL DE COMPRA DESTE PRODUTO

LG Electronics de São Paulo Ltda.

Central LG de Atendimento ao Consumidor

Ligue: 0800.171514

LIGAÇÃO GRATUITA

TERMO DE GARANTIA

A LG Electronics de São Paulo Ltda. garante este produto

pelo período de 90 dias, mais 2 anos e nove meses contados

a partir da data de emissão da Nota Fiscal de compra, desde

que o mesmo tenha sido instalado conforme orientações

descritas neste manual de instruções e, somente em

Território Nacional.

Durante o período estipulado, a garantia cobre peças e mão-

de-obra que apresentarem defeito de fabricação. Somente o

técnico do Serviço Autorizado credenciado pela LG

Electronics de São Paulo Ltda., está autorizado a reparar

defeitos cobertos pela garantia, mediante apresentação da

Nota Fiscal de compra.

O consumidor tem o prazo de 90 dias para reclamar de

irregularidades (vícios) aparentes, ou seja, de fácil e imediata

observação no produto, tais como os ítens que constituam a

parte externa e qualquer outro acessível ao usuário.

A garantia de peça sujeita ao desgaste natural (peças

plásticas e acessórios em geral), fica restrita ao prazo legal

de 90 dias, a contar da data de emissão da Nota Fiscal de

compra.

A garantia perde seu efeito se:

• A instalação ou utilização do produto estiver em

desacordo com as recomendações do manual de

instruções;

• O produto sofrer qualquer dano provocado por acidente,

queda, agentes da natureza ou consertos realizados por

pessoas não credenciadas pela LG Electronics de São

Paulo Ltda;.

• O número de série do produto estiver danificado ou

adulterado.

A garantia não cobre:

• Transporte e remoção de produtos para conserto, ou

daqueles que estejam instalados fora do perímetro urbano

onde se localiza o Serviço Autorizado LG mais próximo;

• O mal funcionamento do produto devido a instalaçaõ ou

rede elétrica local inadequadas.

OBS: Se o consumidor desejar ser atendido no local em que

o produto estiver instalado, ficará a critério do Serviço

Autorizado a cobrança de taxa de visita e deslocamento,

devendo o consumidor consultá-lo antes de solicitar o

serviço.

Este produto destina-se exclusivamente ao uso amador ou

profissional. A LG Electronics de São Paulo Ltda. não

cobrirá qualquer prejuízo do usuário, amador ou

profissional, decorrente da impossibilidade de utilização do

produto.

A GARANTIA SOMENTE É VÁLIDA

MEDIANTE A APRESENTAÇÃO DA NOTA

FISCAL DE COMPRA DESTE PRODUTO

LG Electronics de São Paulo Ltda.

Central LG de Atendimento ao Consumidor

Ligue: 0800.171514

LIGAÇÃO GRATUITA

Warranty cont.

Brazil - CDT Monitor: LCD Monitor:

LG Electronics México, S.A. de C.V. GARANTIZA LOS MONITORES GOLDSTAR/LG POR EL TERMINO DE TRES

AÑOS EN TODAS SUS PARTES Y MANO DE OBRA, CONTRA CUALQUIER DEFECTO DE FABRICACION A

PARTIR DE LA FECHA DE ENTREGA DEL PRODUCTO BAJO LAS SIGUIENTES

1.- PARA HACER EFECTIVA ESTA GARANTIA ES NECESARIO PRESENTAR ESTA POLIZA DEBIDAMENTE

SELLADA POR LA CASA VENDEDORA O FACTURA DE COMPRA EN CUALQUIERA DE LOS CENTROS DE

SERVICIO QUE SE INDICAN EN EL ANEXO.

2.- LA EMPRESA SE COMPROMETE A REPARAR O CAMBIAR, EL PRODUCTO DEFECTUOSO SIN NINGUN

CARGO PARA EL CLIENTE Y CUBRIR LOS GASTOS QUE SE DERIVEN DE LA PRESENTE GARANTIA.

3.- EL TIEMPO DE REPARACION EN NINGUN CASO SERA MAYOR DE 30 DIAS CONTADOS A PARTIR DE LA

FECHA DE RECEPCION DEL PRODUCTO EN CUALQUIERA DE LOS SITIOS DONDE PUEDE HACERSE

EFECTIVA ESTA GARANTIA.

4.- LAS REFACCIONES Y PARTES PARA LA REPARACION DEL APARATO QUE AMPARA ESTA POLIZA

PODRAN SER ADQUIRIDAS EN LOS CENTROS DE SERVICIO AUTORIZADOS.

ESTA GARANTIA NO ES VALIDA EN LOS SIGUIENTES CASOS

A) SI EL PRODUCTO NO HA SIDO OPERADO CONFORME AL INSTRUCTIVO ANEXO.

B) SI NO SE HAN OBSERVADO LAS ADVERTENCIAS SEÑALADAS.

C) DAÑOS OCASIONADOS POR FENOMENOS NATURALES COMO INCENDIO, INUNDACION, TEMBLORES,

RAYOS, DESCARGAS ELECTRICAS.

D) DAÑOS POR GOLPES, RASPADURAS, ROTURAS EN EL PRODUCTO Y EN SUS ACCESORIOS.

E) SI EL PRODUCTO HA TRATADO DE SER REPARADO POR PERSONAS NO AUTORIZADAS POR:

LG Electronics México, S.A. de C.V.

PRODUCTO: MONITORS

MODELO: SERIE:

DISTRIBUIDOR:

DIRECCION: COLONIA

CIUDAD EDO.

FECHA DE ENTREGA

CENTRO DE SERVICIO DIRECTO.

México D.F. (5)3 211900

Av. Sor Juana Inés de la Cruz No. 555 . Col. San Lorenzo, Tlalnepantla Edo. Mex

Guadalajara (3)6195523 Chicago No. 120, Col. Ferrocarril Guadalajara, Jalisco.

Monterrey (8)3 549111

Ruiz Cortines Ote No 2822 Col. La Moderna. Monterrey, Nuevo León.

Mérida (99) 255049 Calle 60 No 360, Col. Centro, Merida Yucatán.

POLIZA DE GARANTIA

CONDICIONES

CENTRO DE SOLUCION AL CLIENTE

Teléfono Lada sin costo 01 (800) 50 48100 y en el DF 3 211900

Fax Lada sin costo 01 (800) 50 73300 y en el DF 5 657549

LG Electronics México S.A. de C.V.

Av. Sor Juana Inés de la Cruz No. 555. Col. San Lorenzo, Tlalnepantla, Edo. de Mex. Tel. 3 21 19 00

SELLO Y FIRMA

Garantia Limitada Para México

NOTA : EN CASO DE EXTRAVIO DE LA PRESENTE GARANTIA EL CONSUMIDOR PUEDE SOLICITAR UNA REPOSICION. PREVIA PRESENTACION

CON FACTURA DE COMPRA CON EL PROVEEDOR O DIRECTAMENTE A LG ELECTRONICS MEXICO.

Warranty cont.

xico- CDT Monitor:

Centro de Servicio Gobal Cibernetico (México)

Servicio Directo LG

Ciudad E-mail Teléfono Línea

Celaya, Guanajuato pedro4@ibm.net (461)-238-10 E

Toluca, Edo. Méx. shureeoi@yahoo.com (72)-13-34-24 E

Hermosillo, Sonora macamax@hotmail.com (62)-11-59-24 E, LB

Hermosillo, Sonora alfrgs@prodigy.net.mx (62)-13-14-60 LB, RAC, IRAC

(62)-12-22-00

Cancun, Quintana Roo amador@qrool.telnex.net.mx (98)-87-96-89 LB, RAC, IRAC

Guadalajara, Jalisco setesa@vianet.com.mx (3)-635-18-75 E

México, D.F. mhkim@infosel.net.mx (5)-611-87-06 E

Veracruz, Veracruz servicenterv@mexis.com (29)-32-00-18 E, LB, RAC, IRAC

Mazatlan, Sinaloa eracitti@sin.telmex.net.mx (69)-85-37-48 LB

México D.F. meretivallejo@hotmail.com (5)-739-09-93 LB

Chalco, Edo. Méx. asalasg@edomex1.telmex.net.mx (5)-975-21-49 E, LB

Merida, Yucatan cena@sureste.com (99)-26-11-53 E, LB

México, D.F. alflonat@hotmail.com.mx (5)-544-31-55 IRAC

Tuxtla Gutierrez, Chiapas elba7@yupimail.com.mx (961)-323-06 E

Villahermosa, Tabasco svmaster@podigy.net.mx (93)-16-32-06 E, LB

Zamora, Michoacan multis@cerse.com.mx (351)-554-16 E, LB

Merida, Yucatan mixers@prodigy.net.mx (99)-27-30-79 IRAC

Cd. Juarez, Chihuahua servitecjrz@hotmail.com (16)-16-38-83 LB

México D.F. laagsi@correoweb.com (5)-797-61-48 E, MM

Guasave, Sinaloa zynkoleo@debtel.com.mx (687)-223-31 E

Ciudad Domicilio Telefono Fax

Mexico, Estado de México Sor. Juana Ines de la Cruz No. 555 (5)-321-19-00 (5)-321-19-18

Col. San Lorenzo LADA S/COSTO (5)-321-19-08

Tlalnepantla, Edo. Méx 01-800-504-8100 01-800-507-3300

Monterrey, Nuevo Leon Av. Ruiz Cortinez No. 2822 Oriente (8)-354-91-11 (8)-354-91-11

Col. Moderna 01-800-34-716-00

Guadalajara, Jalisco Chicago No. 120 (3)-619-55-22/23 (3)-619-55-24

Col. Ferrocarril 01-800-96-722-00

Merida, Yucatan Calle 60No. 360 x 37 (99)-25-50-49 (99)-25-50-49

Col. Centro 01-800-34-718-00

Nomenclatura:

E-mail: Correo electrónico

L/B: Centro de Servicio Autorizado de Línea Blanca

E: Centro de Servicio Autorizado de Línea Electrónica

RAC: Centro de Servicio Autorizado de Aire Acondicionado

MM: Centro de Servicio Autorizado de Multimedia

IRAC: Instalador de Aire Acondicionado

Acceso directo a la página de Internet de LG:

Consumidores: http://mx.lgservice.com/

ASC: http://biz.lgservice.com/

Warranty cont.

FAQ's - Frequently asked questions - Please check before calling

LG Electronics U.K. Ltd

Thank you for choosing LG.

This Monitor is supplied with a 3-year

on-site swap-out warranty from the

first date of purchase.

The Replacement will normally be a

model of same or higher specification

BRANDS ELECTRONICS will

normally provide this Service on a

"Next Working Day" basis, for calls

received before 3 p.m.

For Ireland & Outlying areas, this may

take a little longer.

In the event of a fault, please call:

UK 01475 744788

Ireland 0044 1475 744788

Or Fax your details to:

UK 01475 742629

Ireland 0044 1475 742629

Brands Website: http://www.brands.co.uk

LG Service site: http://www.lgelectronics.co.uk

Sales Website: http://www.lge.co.kr

Conditions

1) This Warranty applies for 3 years from the first date of

purchase only. The right to request sight of the original

proof of purchase is reserved.

2) This warranty is valid in the UK Mainland, Ireland,

Channel Islands and Isle of Man.

3) It is the user’s responsibility to ensure that the product

is used in accordance with the Manufacturer’s

guidelines detailed in the Instruction Manual supplied

with your Monitor. Failure to do so may invalidate your

Warranty.

4) All warranties will be immediately invalidated if

unauthorised repairs or modifications are made to the

monitor or in any case of accident, misuse, damage

caused by improper installation and altered serial

numbers. Pollution of the monitor with smoke, food,

liquid or similar will be deemed as misuse.

5) LCD & TFT Monitors have 1 year on site and 2 years

collect for repair. The Backlight in these units is

warranted for 1 year only. Replacements are

chargeable

6) LG Electronics reserves the right to collect repairs and

return any monitor which has cabinet defilement,

including security marking. We may also collect units

for repair where no suitable replacement is

immediately available.

7) The END USER will be liable for all costs associated

with "Invalid Warranty Claims".

8) The Liability is limited to the cost of repair and/or

replacement of the unit under warranty.

9) This warranty does not affect the purchaser’s statutory

rights.

10) In the event that the Courier cannot obtain access on

his first visit on the day agreed with the "End User", we

reserve the right to charge for the second or

subsequent delivery attempts.

Power is on, but no picture visible

No Power

Colour is distorted down one side

Colour is flickering

Check the leads are connected fully and that the

Contrast/Brightness controls are set to normal

Check Mains Plug to see if fuse is blown.

If your monitor takes power from the PC, then try

a separate Power Supply (Wall Socket)

Make sure Speakers, Transformers or anything

else magnetic are well away from the monitor

Make sure the 15 pin signal connector from the

PC to the Monitor is correctly seated in the

socket at both the PC and the Monitor end (If

applicable to the Monitor, some Cables are hard

wired.)

Try another cable if available.

YYee

eeaa

aarr

OOnn

nn--

--SS

SSii

iitt

ttee

MMoo

oonn

nnii

iitt

ttoo

oorr

SSww

wwaa

aapp

OOuu

uutt

WWaa

aarr

rrrr

rraa

aann

nntt

ttyy

BRANDS

ELECTRONICS

the United Kingdom - CDT&LCD Monitor:

Warranty cont.

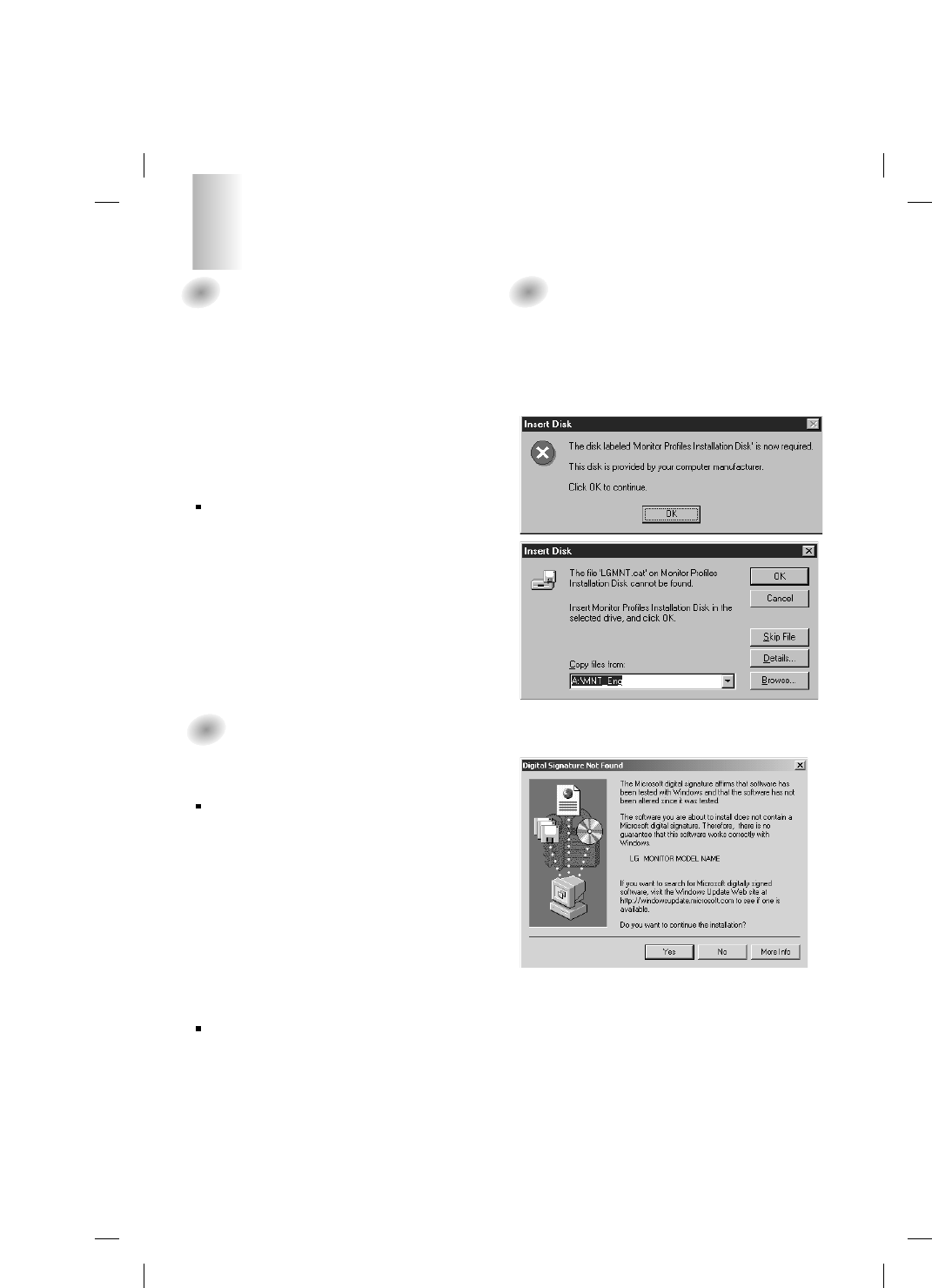

Monitor Driver Installation

Monitor Driver Installation

for Windows® 95/98

When you install the Monitor Driver, resolution and

frequency are automatically set to the Monitor. So

you can work on the clearer display.

Monitor Driver Diskette will be provided for the 17-

inch or higher Model ( higher than 70kHz) with LCD.

If your monitor is not the one above or you lost the

diskette, you can download the driver on

http://www.lge.com

INSTALL

①Start 󰫛Settings 󰫛Control Panel.

②Double-click the Display icon.

③Click the Settings tab, then click Change Display

Type.

④Under Monitor Type, click Change 󰫛Have Disk.

⑤Insert the Monitor Installation Diskette into the floppy

drive and click OK.

⑥Under Model list, select your LG Monitor, then click

OK. The monitor files are copied to the hard drive.

⑦Click OK 󰫛Close to save the settings.

⑧Restart the system to activate the setting.

USB Install Guide

The following guide is only for the USB-Monitor

software support Monitor.

INSTALL

①Before Setting up the USB Program, Connect the

monitor to PC with the USB signal cable.

②Insert the “Monitor Installation Disk”into the floppy

disk drive.

③Select the MNT_USB folder, and double click the

setup.

④“USB Monitor”window is displayed, click the “Next”,

and repeat that.

⑤Click the “Finish”button and setup is completed.

⑥Select the “Display properties”, and then you use the

USB Monitor Function.

UNINSTALL

①Select the Settings and Control Panel, Double click

the “Add/Remove Programs”.

②Select the “USB Monitor”.

③Click the “Add/Remove”button and the Program is

removed..

Caution: This Program is supported WINDOWS98 and Higher.

IMPORTANT NOTICE

This message may appear several times during

the installation of your monitor diskette.

Click Skip File to continue (Windows 98), Click

Yes to continue (Windows 2000).

This action will not harm your monitor or system.

For LG Customer Support:

World Wide Web:

http://www.lge.com

U.S. and Canada only:

website: http://www.LGEservice.com

e-mail: http://www.LGEservice.com/techsup.html

Brazil only:

LG Electronics de São Paulo LTDA.

C.G.C. NO. : 011666 372/0001-55

AV. D. Pedro 1, W-7777, Jardim Silvia Maria, Taubate-SP

Mexico only:

LG Electronics México S.A. de C.V.

Sor Juana Inés de la Cruz No. 555 Col. San Lorenzo

Tlalnepantla, Edo. de México C.P. 54033

Tel. 321 19 00 fax. 565 75 49

Lada sin costo 01 800 50 481 00

Printed in Korea

(3828TUL100D)

LG Electronics USA FB910G 19" CRT Color Monitor User Manual users manual

LG Electronics USA 19" CRT Color Monitor users manual

users manual

Navigation menu

Namespaces

Views

Navigation
