MICROWAVE OVEN
Use and Care Guide
HORNO DE MICROONDAS
Manual de Uso y Cuidado
P/NO.: 3828W5A8254
2
ENGLISH
TABLE OF CONTENTS
WARRANTY
FULL ONE-YEAR WARRANTY ON
MICROWAVE OVEN
For one year from the date of purchase, if this
Kenmore microwave oven fails due to a defect
in material or workmanship, Sears will repair it
free of charge.
For the second through the fifth year from the date
of purchase,if the magnetron in this oven fails due
to a defect in material or workmanship,Sears will
supply a new magnetron,free of charge.Safety
regulations,however,require the magnetron to be
installed by Sears,and you must pay the labor cost
of installation.
This warranty applies only while this product is
in use in the United States.
This warranty gives you specific legal rights,
and you may also have other rights which vary
from state to state.
WARRANTY SERVICE
For warranty service, return the microwave to
your nearest Sears Parts & Repair Center in the
United States. For the location of your nearest
Sears Parts & Repair Center, call
1-800-4-MY-HOME®
.
This warranty is void if microwave is used for other
than private household purposes.
Sears, Roebuck and Co., D/817WA,
Hoffman Estates, IL. 60179 U.S.A.
W
FOUR YEAR LIMITED WARRANTY
ON MAGNETRON
WARRANTY ......................................................... 2
SAFETY ............................................................ 3-4
Precautions To Avoid Possible Exposure
To Excessive Microwave Energy........................ 3
Grounding Instructions........................................ 3
Important Safety Instructions.............................. 4
UNDERSTANDING YOUR
MICROWAVE OVEN ......................................... 5-8
Specifications...................................................... 5
Installation........................................................... 5
Parts And Accessories........................................ 6
Control Panel...................................................... 6
Cookware Guide................................................. 7
Tips For Microwave Cooking .............................. 8
Cleaning.............................................................. 8
USING YOUR MICROWAVE OVEN ............... 9-18
Clock...................................................................
9
9
Child Lock
Quick Touch Cooking
Auto Grill Cooking
.......................................
.......................................
....................................
...................................
....................................
....................................
....................................
....................................
....................................
....................................
............
.................
.................
...........................
.....................
...................................................................
................
......
..............................
Quick Touch Cooking Table
Auto Grill Cooking Table
10
10
Add Minute ......................................................... 9
11
11
19
Bread Defrost
Melt
Melt Table
Soften
Soften Table
Auto Defrost
Express Defrost
17
17
17
17
18
19
.......
Auto Defrost Table 19
..................................
Questions And Answers .............................. 20-21
Before Calling For Service................................ 22
Master Protection Agreements ......................... 48
Service Numbers .................................Back cover
........................................................... TROUBLE SHOOTING
20-22
....................................
....................................
..................................
..................................
................................................
...................
...
...............
Micro Cooking
Grill Cooking
Combi. Cooking
...........................
Combi. Model Cooking Table
Multi - Stage Cooking
Microwave Power Levels
12
12
13
13
14
14
................................................
Cooking Tips 15-16
...............................
Grill Cooking Model Table
13
...............................
Combi. Model Time Table
14
..
.
ENGLISH
3
SAFETY
• Do not attempt to operate this oven with the door open, since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlock.
• Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the:
– door (bent)
– hinges and latches (broken or loose)
– door seals and sealing surfaces.
• Do not place any object between the oven front face and the door, or allow soil or cleaner
residue to accumulate on sealing surfaces.
• The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY ...
GROUNDING INSTRUCTIONS
This appliance must be grounded! If an electrical short circuit occurs, grounding reduces the risk of electric shock
by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding
wire with a grounding plug. Put the plug into an outlet that is properly installed and grounded.
WARNING
If you use the grounding plug improperly, you risk electric shock.
Ask a qualified electrician or the Sears Service Department if you do not understand the grounding instructions or
if you wonder whether the appliance is properly grounded.
This appliance has a short power supply cord to reduce the risk of anyone’s tripping over or becoming entangled
in the cord. You may use an extension cord if you are careful.
If you use an extension cord, be sure that:
NOTE: This oven draws 13 amperes at 120 Volts, 60 Hz.
• The extension cord has the same electrical rating as
the appliance.
• The marked rating of the extension cord shall be
equal to or greater than the electrical rating of
the appliance.
• The extension cord is a grounding-type 3-wire cord.
• The extension cord does not drape over a
countertop or tabletop, where it can be pulled on
by children or tripped over accidentally.
• The electrical cord is dry and not pinched or
crushed in any way.
4
ENGLISH
SAFETY - MICROWAVE
IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your microwave oven to avoid harm to yourself or damage to your oven.
WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to
excessive microwave energy:
SAVE THESE INSTRUCTIONS!
1. Read all the instructions before using your microwave
oven.
2. Do not allow children to use this oven without close
supervision!
3. Read and follow the specific PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY found on page 3.
4. Do not tamper with the built – in safety switches on the
oven door! The oven has several built-insafety switches to
make sure the power is off when the door is open.
5. When cleaning the door and the surfaces that touch
the door, use only mild, nonabrasive soaps or
detergents and a sponge or soft cloth.
6. If your oven is dropped or damaged, have it thoroughly
checked by a qualified service technician before using it
again.
7. To avoid a fire hazard:
a) Do not severely overcook foods. It can cause a fire in
the oven.
b) Do not use recycled paper products in your oven.
They can contain particles that can cause arcing or may
ignite.
c) Do not overcook potatoes. Overcooking could cause a
fire.
d) Do not store combustible items (bread, cookies, etc.)
in the oven, because if lightning strikes the power lines,
it may cause the oven to turn ON.
e) Do not use wire twist-ties in the oven. Be sure to
remove them before placing the item in the oven.
f) Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in the
cavity when not in use.
8. If a fire should start:
a) Keep the oven door closed.
b) Turn the oven off.
c) Disconnect the power cord or shut off thepower at
the fuse or circuit breaker panel.
9. Do not use this oven for commercial purposes. This
microwave is made for household use only.
10. Install or locate this appliance in accordance with the
provided installation instructions.
11. To avoid electric shock:
a) This appliance must be grounded! Connect it only to
a properly grounded outlet. (See the Grounding
instructions on page 3.)
b) Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
c) Do not immerse the electrical cord or plug in water.
d) Keep the cord away from heated surfaces.
e) This appliance should be serviced only by qualified
service personnel.
12. Liquids such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing to
be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. This could
result in very hot liquids suddenly boiling over When the
container is disturbed or when a spoon or other utensil is
inserted into the liquid. To reduce the risk of injury to
persons;
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Use extreme care when inserting a spoon or other
utensil into the container once heating has begun.
4) Do not use straight-sided containers with narrow
necks.
5) After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
13. Keep the glass tray and the turntable roller rest in the
oven when you are cooking.
14. Do not use the oven outdoors. Do not store the oven
outdoors. Do not use this product near water.
– for example, near a kitchen sink, in a wet basement,
near a swimming pool, or similar location.
15. Do not cover or block any openings in the oven.
16. Do not run the microwave oven empty.
17. Do not let the cord hang over the edge of a table or
counter.
18. Do not heat glass turntable excessively.
– Do not cook bacon directly on the glass turntable.
– Do not allow the grey film on special microwave cooking
packages to touch the glass turntable.Put the package
on a microwave-safe dish.
– Keep a browning dish at least 3
16 inch above the glass
turntable. If you use the browning dish incorrectly, you
could break the glass turntable.
19. Be careful not to chip or scratch the edges of the
turntable. Chips or scratches may cause the turntable to
break during use.
20. Some produce such as whole eggs and sealed containers
- for example, closed glass jars are able to explode and
should not be heated in this oven.
ENGLISH
5
UNDERSTANDING YOUR MICROWAVE OVEN
SPECIFICATIONS
*IEC 60705 RATING STANDARD
Specifications subject to change without prior notice.
Power Supply
Rated Power Consumption
Microwave Output
Rated Current
Overall Dimensions (WxHxD)
Oven Cavity Dimensions (WxHxD)
Capacity of Oven Cavity
Grill Output

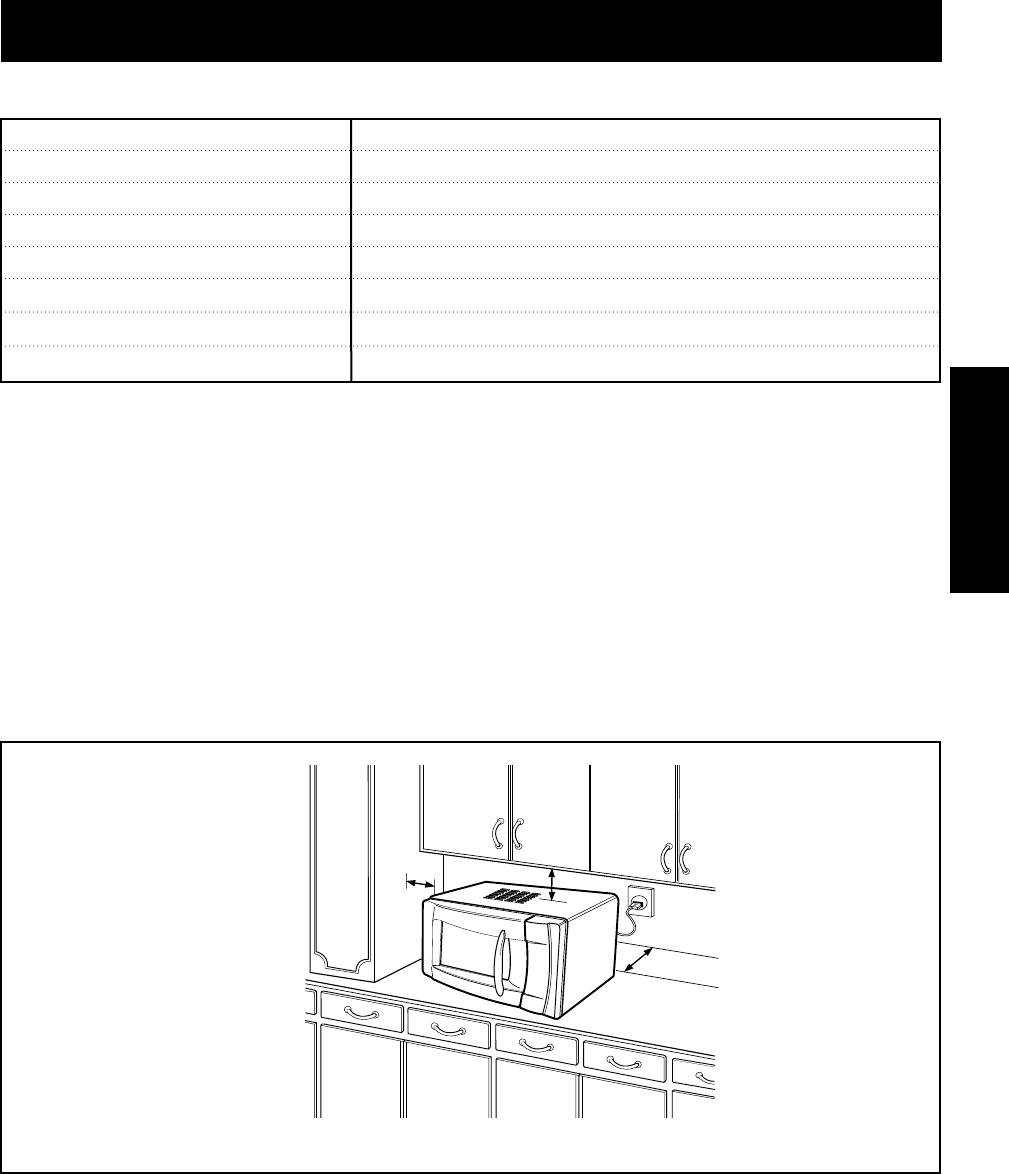

INSTALLATION
1. Remove your Kenmore microwave oven and all
packing materials from the shipping carton.
2. Place the oven on a level surface that provides at
least 4 inches of space at the left, right, top, and
rear sides for proper ventilation.
NOTE: Do not install your microwave oven over a
range, cooktop or other heat-producing appliances.
This oven is not designed for Built-In use.
3. Place the turntable roller rest in the circle on the
oven floor and then place the glass turntable on the
top of the turntable roller rest.
NOTE: Never place the glass turntable in the oven
upside down. Blocking the inlet and/or outlet
openings can damage the oven.
Countertop
120 V AC, 60 Hz
1,300 W
900 W
11.3 A
0.9 Cu. Ft.
20 x 191/8 x 167/16
13 x 8 x 14
3/16
””
”
1,000 W
4
inches
4
inches
4
inches
NOTE: Never use glass turntable without using
the roller assembly in place.
UNDERSTANDING YOUR MICROWAVE OVEN

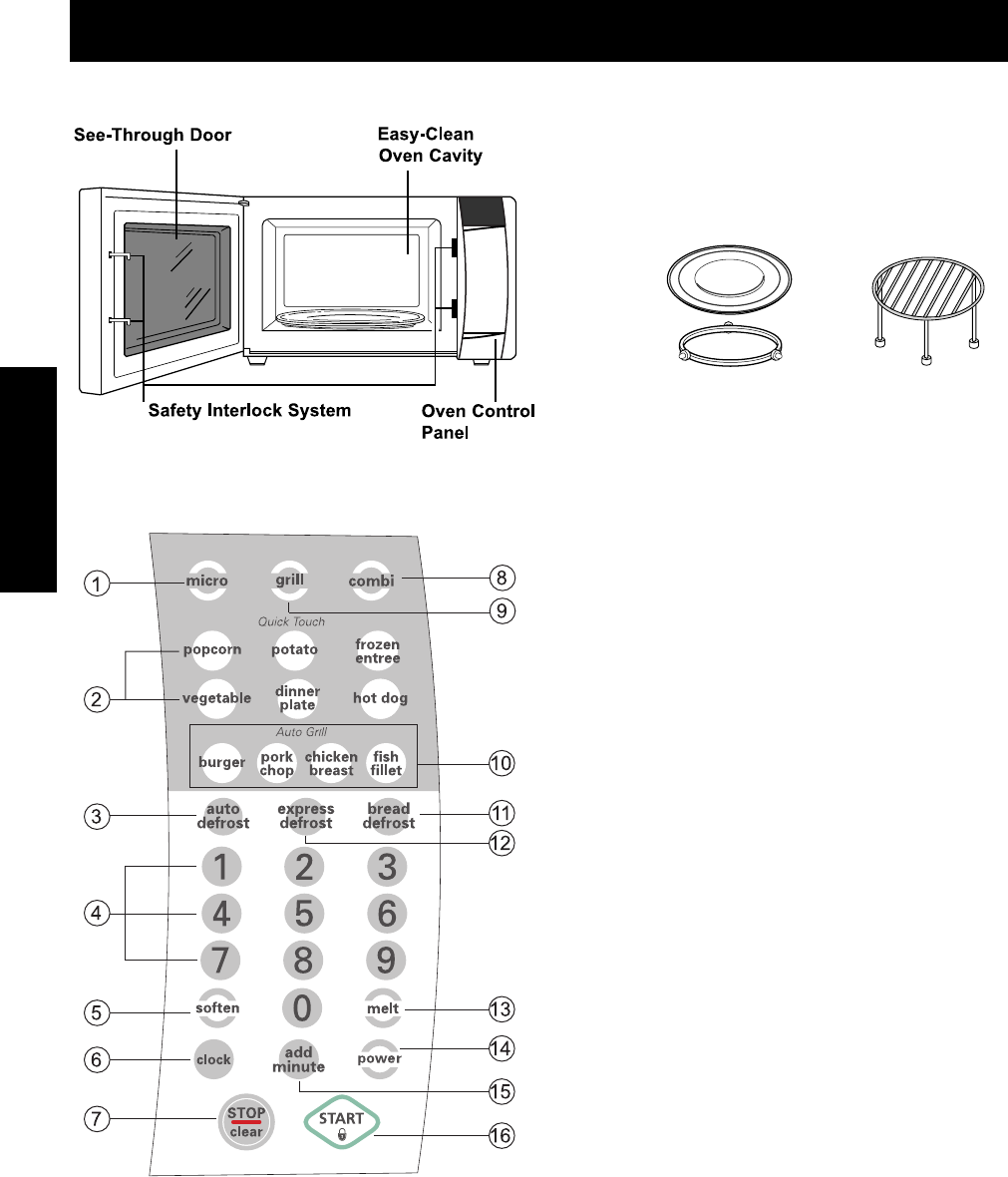

PARTS AND ACCESSORIES
CONTROL PANEL
Turntable
Roller Rest
Glass Turntable
ENGLISH
Rack
6
1. MICRO. The feature will allow you to cook food
with microwave function.
2. QUICK TOUCH COOKING. These pads allow you to
cook most of your favorite foods without having to
select cooking times and power levels.
3. AUTO DEFROST. This pad is an accurate defrosting
method for frozen meat, poultry and fish up to 6.0 lbs.
4. NUMBER PADS. Touch Number Pads to enter
cooking time, power level, quantities, or weights.
6. CLOCK. Touch this pad to enter the time of day.
5. SOFTEN.
Touch this pad to soften icecream,
7. STOP/CLEAR. Touch this pad to stop the oven
EXPRESS DEFROST. This pad provides you with the
quick defrosting method for 1.0 pound frozen foods.
11. BREAD DEFROST. Touch this pad to defrost
frozen bread.
12.
MELT. Touch this pad to melt chocolate, cheese,
butter, or marshmallows.
power for 1 minute to 99 minute 59 seconds.
13.
POWER. Touch this pad to set a cooking power.
14.
ADD MINUTE. Touch this pad to cook at 100% cook
15.
Quick Touch Sensor, Express Defrost, Auto Cook
and Add Minute function which start automatically)
16. START. Touch this pad to start all entries (except the
and to turn Child Lock on or off.
cream cheese, butter or frozen juice.
or stop entries.
8. COMBI.This feature will allow you to cook food
with microwave and grill function at the same time
(or alternately).
9. GRILL.
This feature will allow you to brown and
crisp food quickly.
10. AUTO GRILL.
Touch these pad to allow you to cook
most of your favorite food easily with grill function.
2 Rack
ENGLISH
7
USE
Ovenproof Glass
• Glass treated for use in high-intensity heat
includes utility dishes, bread dishes, pie plates, cake
plates, liquid measuring cups, casseroles, and bowls
without metallic trim.
China
• Bowls, cups, serving plates, and platters without
metallic trim can be used in your oven.
Plastic
• When using plastic wrap as a cover, make sure that
the dish is deep enough so the plastic wrap does not
touch the food. As the food heats, it may melt the
plastic wrap wherever the wrap touches the food.
• Place plastic wrap loosely over the top of the dish
and secure it by pressing the wrap to the sides of
the dish.
• Vent by turning back one corner of the plastic wrap.
This will allow excess steam to escape.
• Use plastic dishes, cups, semi-rigid freezer
containers, and plastic bags only for short time
cooking. Use these with care because the
plastic may soften from the heat of the food.
Paper
• Microwave-safe paper towels, waxed paper, paper
napkins, and paper plates with no metallic trim or
design can be used in your oven.
• Refer to the manufacturer’s label for use of any
paper product in the microwave oven.
DO NOT USE
Metal Utensil
• Metal shields food from microwave energy and
produces uneven cooking. Avoid metal skewers,
thermometers, or foil trays.
• Metal utensils can cause arcing, which is a
discharge of electric current. Arcing can damage
your microwave oven.
Metal Decoration
• Do not use metal-trimmed or metal-banded
dinnerware, casserole dishes, etc.
Centura™ Tableware
• The Corning Company recommends that you
do not use Centura tableware and some Corelle™
closed-handle cups for microwave cooking.
Aluminum Foil
• Do not use large sheets of aluminum foil because
they hinder cooking and may cause arcing.You may
use small pieces of foil to shield poultry legs and
wings.
• Keep all aluminum foil at least 1 inch from the walls
and door of the oven.
Wood
• Wooden bowls, boards, and baskets will dry out and
may split or crack when you use them in the
microwave oven.
Tightly Closed Containers
• Tightly closed cookware can explode. Be sure
to leave an opening for steam to escape from
covered cookware.
Brown Paper
• Do not use brown paper bags. They absorb
heat and could burn.
Metal Twist Ties
• Always remove metal twist ties as they can become
hot and cause a fire.
COOKWARE GUIDE
Most heat-resistant, non-metallic cookware is safe for use in your microwave oven. However, to test cookware
before using, follow these steps:
1. Place the empty cookware in the microwave oven.
2. Measure 1 cup of water in a glass measuring cup and place it in the oven beside the cookware.
3. Microwave on 100% power for 1 minute. If the dish is warm, it should not be used for microwave cooking.
UNDERSTANDING YOUR MICROWAVE OVEN

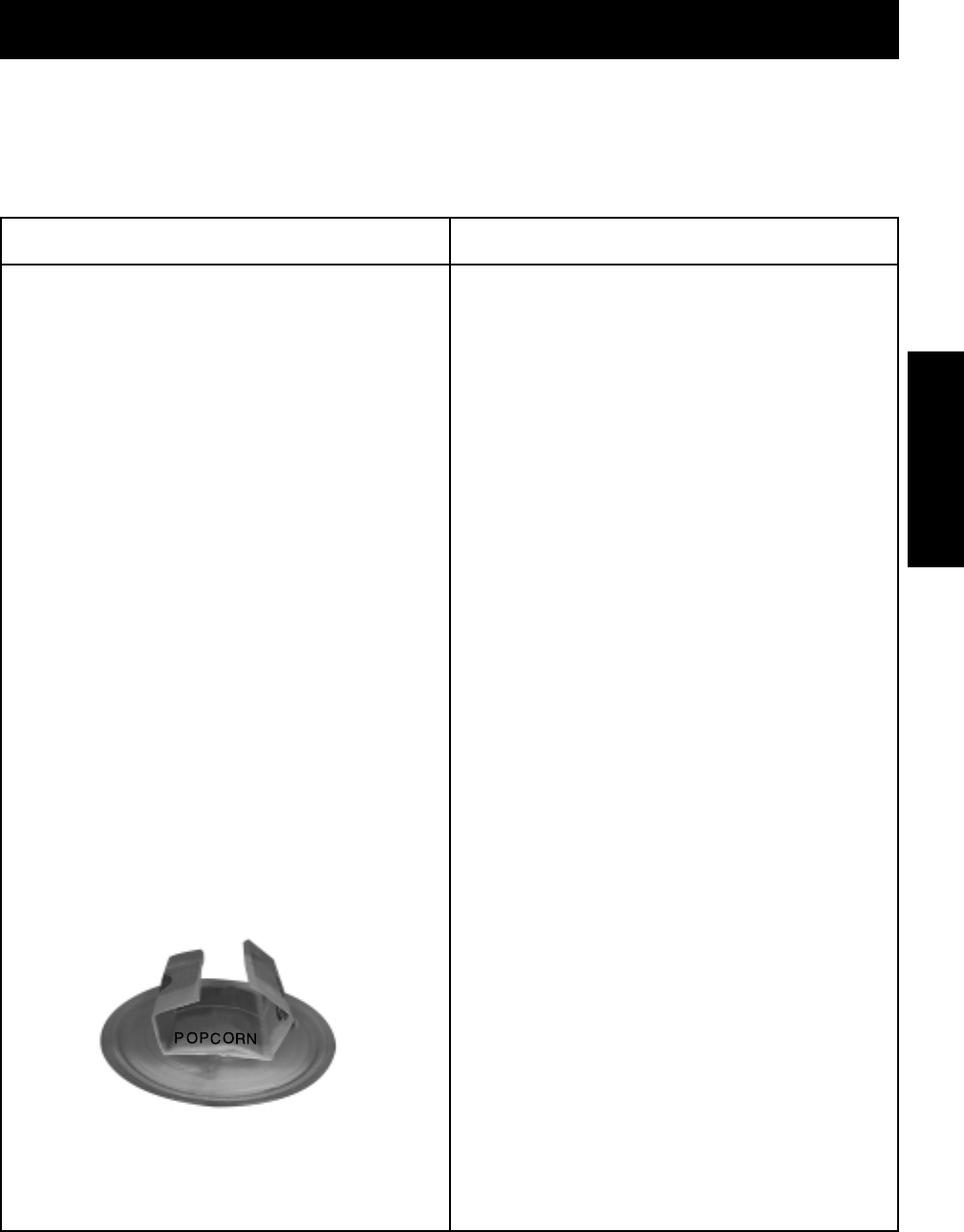

When popping prepackaged popcorn;
Place carefully so the bag does not touch
the oven walls.
Fold each end of the bag in half toward
the center top of thebag.
8
ENGLISH
UNDERSTANDING YOUR MICROWAVE OVEN
TIPS FOR MICROWAVE COOKING
BROWNING
Meat and poultry with high fat content that are cooked
for 10 or 15 minutes or longer will brown lightly. Foods
cooked a shorter time can be brushed with a browning
agent, such as Worcestershire sauce, soy sauce, or
barbecue sauce.
COVERING
A cover traps heat and steam and causes the food to
cook more quickly. Use a lid or microwave-safe plastic
wrap with one corner folded back to vent the excess
steam. Lids on glass casseroles can become hot
during cooking. Handle carefully. Waxed paper will
prevent the food from splattering in the oven and help
retain heat. When warming bread items, use waxed
paper, napkins, or paper towels. To absorb extra
moisture, wrap sandwiches and fatty foods in paper
towels.
SPACING
Arrange individual foods, such as baked potatoes,
cupcakes, and hors d’oeuvres’ in a circle and at least
1 inch apart. This will help the food cook more evenly.
STIRRING
Stirring blends flavors and redistributes the heat in
foods. Always stir from the outside toward the center
of the dish. Food at the outside of the dish heats first.
TURNING
Large foods, such as roasts and whole poultry, should
be turned so that the top and bottom cook evenly. Also
turn over chicken pieces and chops.
ARRANGEMENT
Do not stack food. Arrange in a single layer in the dish
for more even cooking. Because dense foods cook
more slowly, place thicker portions of meat, poultry, fish,
and vegetables toward the outside of the dish.
TESTING FOR DONENESS
Because foods cook quickly in a microwave oven, you
need to test frequently for doneness.
STANDING TIME IN OVEN
Depending on density, food often needs to stand from
2 to 15 minutes either in or outside of oven after
cooking power shuts off. Outside of oven, you usually
need to cover food during standing time to retain heat.
Remove most foods when they are slightly undercooked
and they will finish cooking during standing time. The
internal temperature of food will rise about 10°F during
standing time.
SHIELDING
To prevent some portions of rectangular or square
dishes from overcooking, you may need to shield
them with small strips of aluminum foil to block the
microwaves. You can also cover poultry legs and
wing tips with foil to keep them from overcooking.
Always keep foil at least 1 inch from oven walls
to prevent arcing.
PIERCING
Pierce the shell, skin, or membrane of foods before
cooking to prevent them from bursting. Foods that
require piercing include yolks and whites of eggs, hot
dogs, clams, oysters, and whole vegetables, such as
potatoes and squash.
CLEANING
Wipe the oven inside and outside with a soft cloth and
a mild detergent solution. Then rinse and wipe dry.
This should be done weekly or more often, if needed.
Never use cleaning powders or rough pads.
Excessive oil splatters on the inside top will be difficult
to remove if left for many days. Wipe splatters with a
wet paper towel, especially after cooking chicken or
bacon.
REMOVABLE PARTS
The turntable and turntable roller rest are removable.
They should be hand-washed in warm (not hot) water
with a mild detergent and a soft cloth. Once they are
clean, rinse well and dry with a soft cloth. Never use
cleaning powders, steel wool, or rough pads.
• The glass turntable may be cleaned at the sink. Be
careful not to chip or scratch the edges as this may
cause the turntable to break during use.
• The turntable roller rest should be cleaned regularly.
SPECIAL CARE
For best performance and safety, the inner door panel
and the oven front frame should be free of food or
grease buildup. Wipe often with a mild detergent; then
rinse and wipe dry. Never use cleaning powders or
rough pads.
After cleaning the control panel, touch STOP/CLEAR
to clear any entries that might have been entered
accidentally while cleaning the panel.
ENGLISH
9
USING YOUR MICROWAVE OVEN
Use this safety feature to lock the control panel
when you are cleaning it, or to prevent children
from using the oven when you do not want them
to.
To set CHILD LOCK:
Touch: Display Shows:
CHILD LOCK
To cancel CHILD LOCK:
Touch: Display Shows:
from the display.(approximately 4 seconds)
Time of day.
1.
1.
2.
Time of day.
Twice
ADD MINUTE
A time-saving pad, this simplified control lets
you quickly set and start microwave cooking at
100% power without the need to touch START.
Example: To cook for 2 minutes.
Touch: Display Shows:
1.
2.
NOTE: If you touch ADD MINUTE, it will add 1
minute up to 99 min 59 seconds.
Time counting down
and power 100

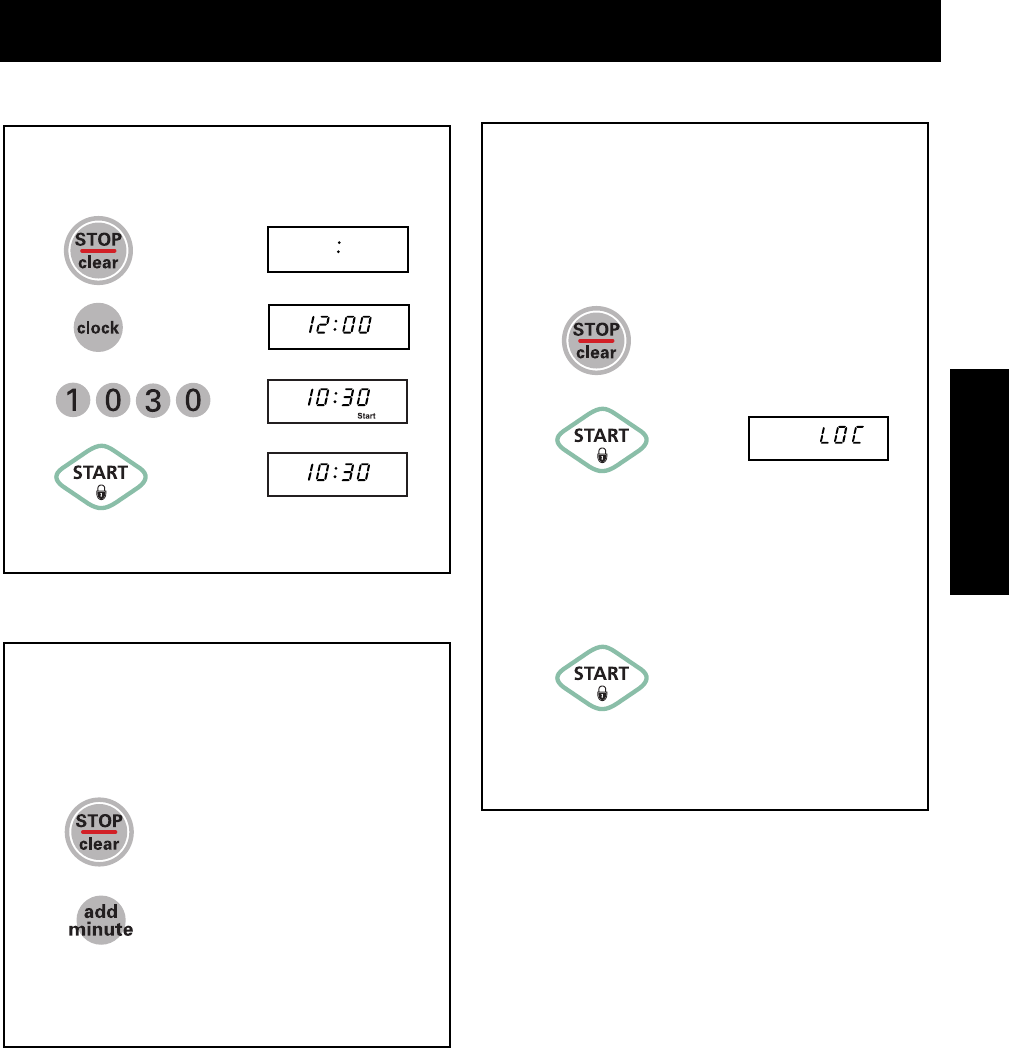

Example: To set the clock for 10:30 .
Touch: Display Shows:
CLOCK
1.
2.
3.
4.
NOTE: This is a 12 hour clock.
Time of day.
(approximately 4 seconds)
Touch and hold until LOC appears in the display.
Touch and hold until LOC disappears from
10
ENGLISH
USING YOUR MICROWAVE OVEN
Time counting down.
The oven will start
automatically.
At the end of cooking
time, 4 short tones
will sound.
Example: To cook 1 potato
Touch: Display Shows:
1.
2.
3.
QUICK TOUCH COOKING
Time counting down.
The oven will start
automatically.
At the end of cooking
time, 4 short tones
will sound.
Use this function to cook food without entering a
cook time or power. Refer to the Quick Touch
Cook Table below for more information.

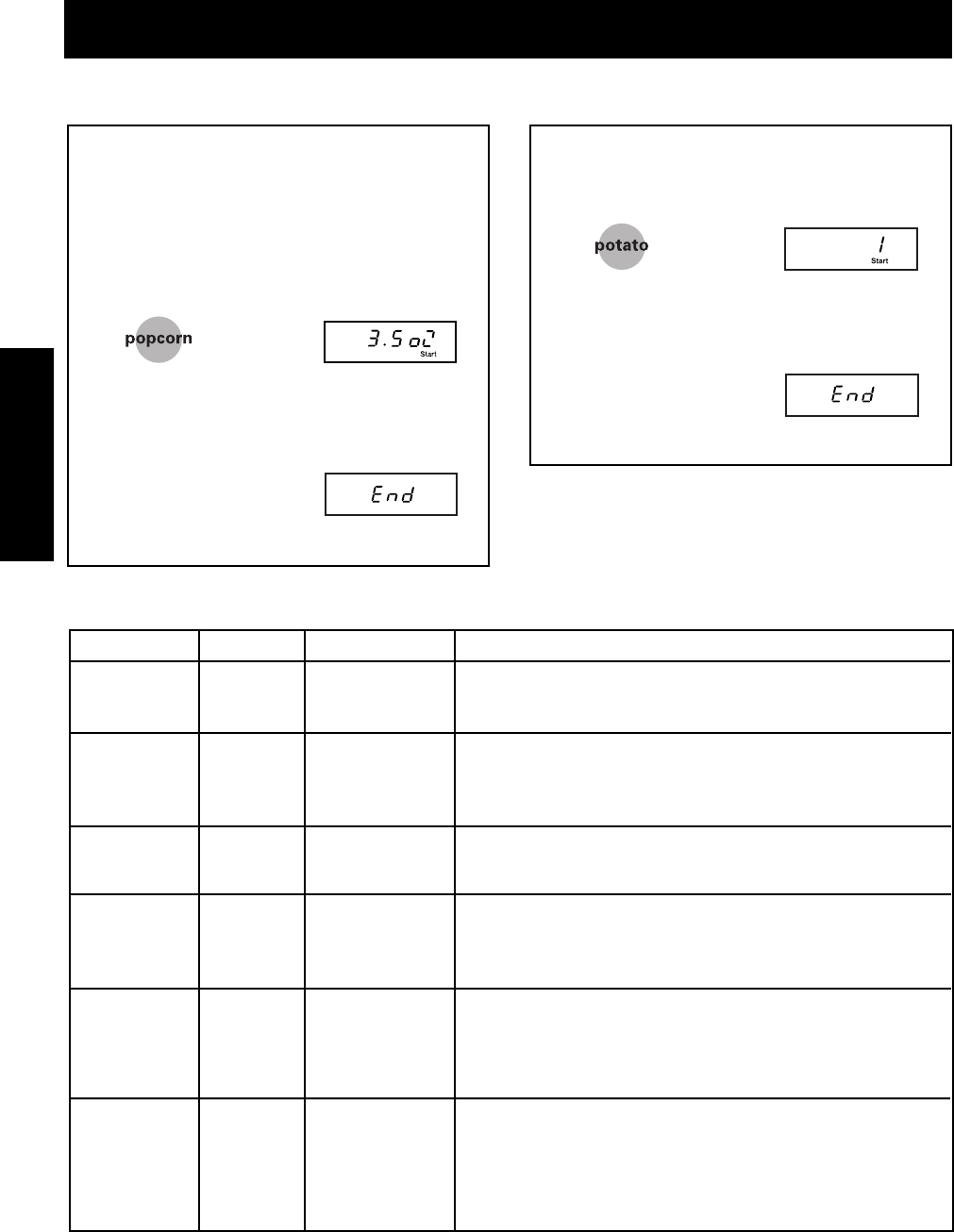

Example: To cook a 3.5oz. bag of microwave
popcorn.
Touch: Display Shows:
1.
2.
3.
Once
Category
QUICK TOUCH COOKING TABLE
Potato
Popcorn
1 time
2 times
3 times
4 times
1 time
2 times
Serving size
1 ea (8 oz.)
2 ea (16 oz.)
3 ea (24 oz.)
4 ea (32 oz.)
3.5 oz.
3.0 oz.
Directions
• 8-10 oz. per potato.
• Place in center of the turntable tray on paper towel.
• Pierce potato several times with fork.
• After cooking, let stand for 5 minutes.
• Follow package instructions.
• Do not try to pop unpopped kernels.
• Heat only 1 package at a time.
Frozen
Entree 1 time 10 oz.
• Remove from outer display package.
• If not in microwave-safe container, place on plate cover with
plastic wrap and vent.
1 time
2 times
3 times
4 times
1 cup
2 cups
3 cups
4 cups
• Prepare as desired, wash, and leave residual water on
the vegetables.
• Place the appropriately-sized microwave container.
• Cover with plastic wrap and vent.
Vegetable
Hot Dog
1 time
2 times
3 times
4 times
1 ea
2 ea
3 ea
4 ea
• Arrange food on the microwave plate.
• Place meaty portions and bulky vegetable to the outside
• Cover with plastic wrap and vent.
• Pierce the skin and place hot dogs in microwave-safe bowl.
• Heat uncovered.
• After heating, Stir well.
Dinner Plate 1 time
2 times 10.5 oz.
16 oz.
5 times
6 times 5 ea
6 ea
• Drain and serve.
• After cooking , let stand for 2 mimutes.
of the plate.
Once
• Cover with water.
Touch
ENGLISH
11
USING YOUR MICROWAVE OVEN

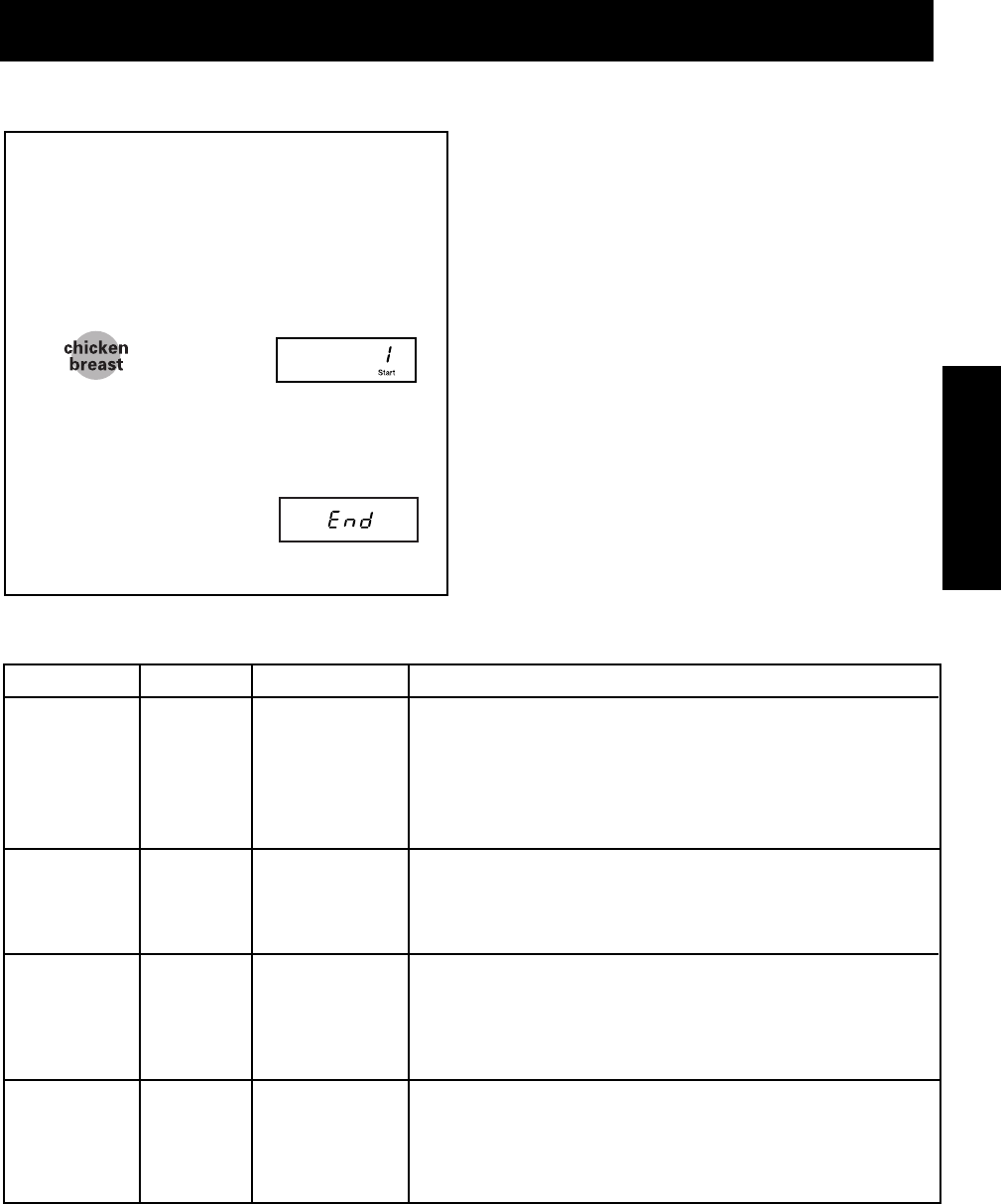

AUTO GRILL COOKING
Time counting down.
The oven will start
automatically.
At the end of cooking
time, 4 short tones
will sound.
Use this function to cook food without entering a
cook time or power. Refer to the AUTO GRILL
Cook Table below for more information.
Example: To cook 1 piece chicken breast
Touch: Display Shows:
1.
2.
3.
Once
Category
AUTO GRILL COOKING TABLE
Hamburger
1 time
2 times
3 times
4 times
Serving size
1 patty
2 patties
3 patties
4 patties
Directions
• Remove all packaging from hamburger patties.
• Place on rack.
• When the oven beeps, turn food over and press start to continue.
Pork Chop
1 time
2 times
3 times
4 times
1 chop
2 chops
3 chops
4 chops
• Brush the pork with melted margarine or butter.
• Place on rack.
• When the oven beeps, turn food over and press start to continue.
• After cooking, stand covered with foil for 2-5 minutes.
Chicken
1 time
2 times
3 times
4 times
1 piece
2 pieces
3 pieces
4 pieces
• Brush the chicken with melted margarine or butter.
• Place on rack.
• When the oven beeps, turn food over and press start to continue.
• After cooking, stand covered with foil for 2-5 minutes.
Breast
• Wash and dry skin.
1 time
2 times
3 times
4 times
1 fillet
2 fillets
3 fillets
4 fillets
• Place on rack.
• When the oven beeps, turn food over and press start to continue.
• After cooking, stand covered with foil for 2-5 minutes.
Fish Fillet
• Clean and dry.
• After cooking, let stand for 1-2 minutes.
Touch
NOTE: When the oven stops, use oven mitts
to carefully remove the dish. It may
NOTE: During and after use, do not touch,
materials contact the cooking elements.
These surface may be hot enough
to burn. Allow sufficient time for
be very hot.
or let clothing , pot holders or other
cooling first.
5 times
6 times 5 patties
6 patties
USING YOUR MICROWAVE OVEN
For best results, some recipes call for different cook
powers during different stages of a cook cycle. You
can program your oven to switch from one power
level to another for up to 2 stages.
Example: To set a 2-stage cook cycle.
Touch: Display Shows:
MULTI-STAGE COOKING
1.
2.
5.
3.
4.
6.
to set a 7 minute cook
time for second stage.
to set a 3 minute cook
time for first stage.
7.
9.
8.
to set an 50%
cook power for
the second
stage.
to set an 80%
cook power for
the first stage.
Time counting down
12
MICRO COOKING
1.
2.
5.
3.
4.
This feature lets you program a specific cook time
and power. For best results, there are 10 power
level settings in addition to HIGH power (100%).
Refer to the “Microwave Power Level Table” on
page 15 for more information.
NOTE: If you do not select a power level, the oven
will automatically cook at HIGH (100%) power.
Example: To cook for 5 minutes, 30 seconds
at 80% power.
Touch: Display Shows:
Time counting down
and POWER 80.
ENGLISH
13
USING YOUR MICROWAVE OVEN
MICROWAVE POWER LEVELS
Your microwave oven has 10 cook power levels to let
you cook or heat a wide variety of foods. Refer to the
table below for suggestions:
Microwave Power Level Table
• Boiling water.
• Making candy.
• Cooking poultry pieces, fish, & vegetables.
• Cooking tender cuts of meat.
• Whole poultry.
• Reheating rice, pasta, & vegetables.
• Reheating prepared foods quickly.
• Reheating sandwiches.
• Cooking egg, milk, & cheese dishes.
• Cooking cakes, breads.
• Melting chocolate.
• Cooking veal.
• Cooking whole fish.
• Cooking puddings & custard.
• Cooking ham, whole poultry, & lamb.
• Cooking rib roast, sirloin tip.
• Thawing meat, poultry, & seafood.
• Cooking less tender cuts of meat.
• Cooking pork chops, roast.
• Taking chill out of fruit.
• Softening butter.
• Keeping casseroles & main dishes warm.
• Softening butter & cream cheese.
• Standing time.
10
(High)
9
8
7
6
5
4
3
2
1
0
Use
Power
Level
GRILL COOKING
1.
2.
3.
This feature lets you program a specific cook time
to brown and crisp food quickly. The grill rack can
be used during cooking.
Example: To cook for 5 minutes, 30 seconds
Touch: Display Shows:
Time counting down
ENGLISH
Category
Setting
Model
Cooking
Time Hints
Beef burgers
50g (2 oz.)
100g (4 oz.) Grill
Grill
Grill
Grill
Grill
2-4 minutes
3-5 minutes
13-18 minutes
15-20 minutes
17-22 minutes
19-25 minutes
16-21 minutes
4-7 minutes
Beef Steaks
2.5cm (1") thick
Rare
Medium
Well
Pork Chops
2.5cm (1") thick
Lamb Chops
2.5cm (1") thick
Sausages
Baste with oil
or melted
Place foods
Turn food
half the
Turn
butter.
•
on rack.
•
over after
cooking time.
•
frequently.
•
GRILL MODEL COOKING TABLE
Use this table as a guide to cooking common foods.
NOTE: When the oven stops, use oven mitts to carefully
remove the dish. It may be very hot.
NOTE: During and after use, do not touch, or let clothing,
pot holders or other flammable materials contact
the cooking elements. These surface may be hot
enough to burn. Allow sufficient time for cooling first.
USING YOUR MICROWAVE OVEN
ENGLISH

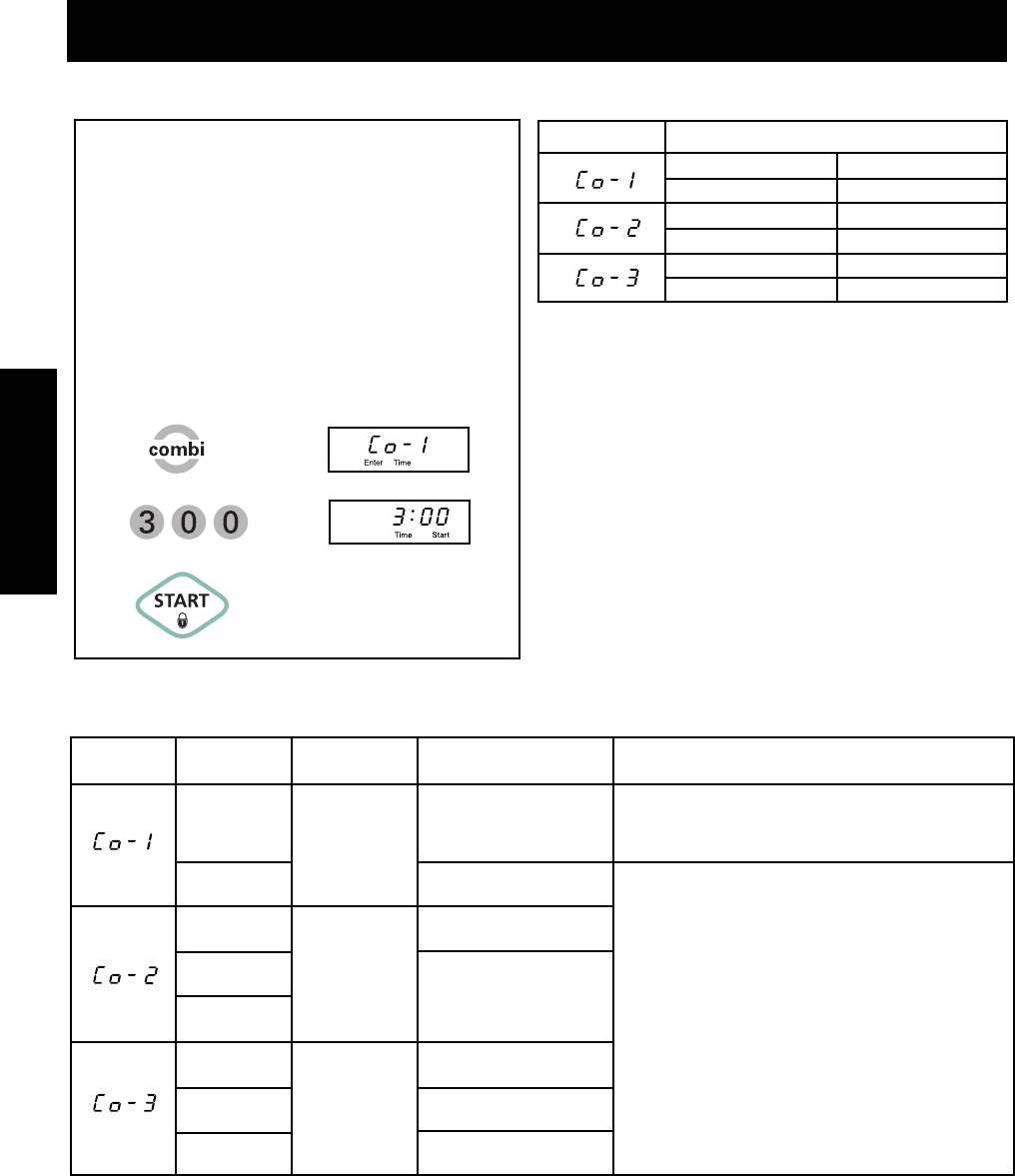

COMBI. COOKING
Your oven has a grill + micro cooking feature
which allows you to cook food with heater and
microwave at the same time (or alternately).
This generally means it takes less time to cook
your food. before cooking, You can select one
Time counting down
of the 3 cooking model. The grill rack can be
1.
2.
3.
Touch: Display Shows:
Example: To cook for 3 minutes
with 1 cooking model.
CATEGORY ALTERNATION TIME (s)
Microwave 8
Grill
Microwave
Grill
Microwave
Grill
24
14
18
20
12
COMBI. MODEL TIME TABLE
used during cooking.
NOTE: When the oven stops, use oven mitts to carefully
remove the dish. It may be very hot.
NOTE: During and after use, do not touch, or let clothing,
pot holders or other flammable materials contact the
the cooking elements. These surface may be hot
enough to burn. Allow sufficient time for cooling first.
USING YOUR MICROWAVE OVEN
Category
Sausage
100-600g
200-800g
500-1500g
13-21
13-21
15-23
15-19
15-21
22-28
14-20
Fish
Kebab
Pork chop
Chicken
Portion
Pork
Beef
Mutton
Food Type Serving Size Approx.Cooking Time Directions
(in minutes)
Baste with oil or melted butter.
Place food on rack.
Turn food over after half the cooking time.
Baste with oil or melted butter.
Place food on rack.
Turn frequently.
COMBI. MODEL COOKING TABLE
•
•
•
•
•
•
14
ENGLISH
Meat
1. No special techniques are required. Meat should be
prepared as with conventional cooking. Season if
desired. Always thoroughly defrost meat before
cooking.
2. Place the meat on a microwave roasting rack or
microwave-proof plate and place on the turntable.
3. Cook according to the Meat Cooking Table (below).
Use the longer time for large cuts of meats and the
shorter time for small cuts of meats. For thicker
chops, use the longer time.
4. Turn the meat once halfway through the cooking
time.
5. Let stand for 5-10 minutes wrapped in foil after
cooking. The standing time is very important as it
completes the cooking process.
6. Make sure meat, especially pork, is thoroughly
cooked before eating.
Poultry
1. No special techniques are required. Poultry should
be prepared as with conventional cooking. Season if
desired.
2. Poultry should be thoroughly defrosted. Remove
giblets and any metal clamps.
3. Prick the skin and brush lightly with vegetable oil
unless the poultry is self-basting.
4. All poultry should be placed on a microwave roasting
rack or a microwave-proof plate and placed on the
turntable.
5. Cook according to the instructions in the Poultry
Cooking Table below. Turn over halfway through the
cooking time. Because of its shape, poultry has a
tendency to cook unevenly, especially in very bony
parts.Turning food over helps to cook these areas
evenly.
6. Remove from oven,wrap in foil,and let stand for
5 -10 minutes before carving.The standing time is very
important, since it completes the cooking process.
7. Make sure poultry is thoroughly cooked before eating.
Whole poultry is completely cooked when the juices
run clear from the inside thigh when it is pierced with
a sharp knife. Poultry pieces should be pierced with
a sharp knife through the thickest part to ensure that
the juices are clear and the flesh is firm.
BEEF
Standing/Rolled Rib
– Medium
– Well-done
Ground Beef (to
brown for casserole)
Hamburgers,
Fresh or defrosted
(4 oz. each)
– 2 patties
– 4 patties
PORK
Loin, Leg
Bacon
– 4 slices
– 6 slices
Microwave
Power
8
8
HIGH(100%)
HIGH(100%)
HIGH(100%)
8
HIGH(100%)
HIGH(100%)
Cooking Time
Per Pound
9
1/2
to 11
1/2
minutes
11
1/2
to 14 minutes
61/2to 91/2minutes
2
1/2
to 4
1/2
minutes
3
1/2
to 5
1/2
minutes
12
1/2
to 16
1/2
minutes
2
1/2
to 3
1/2
minutes
3
1/2
to 4
1/2
minutes
Meat Cooking Table
CHICKEN
Whole
Breast (boned)
Portions
TURKEY
Whole
Microwave
Power
8
8
8
8
Cooking Time
Per Pound
11 to 15 minutes
10 to 14 minutes
11 to 17 minutes
11 to 15 minutes
Poultry Cooking Table
NOTES:
• The times listed above are only a guide. Allow for
difference in individual tastes and preferences. The
times may also vary due to the shape, cut, and
composition of the food.
• If whole poultry is stuffed, the weight of the stuffed
bird should be used when calculating the cooking
time.
NOTE: The times listed above are only a guide. Allow
for difference in individual tastes and preferences. The
times may also vary due to the shape, cut, and compo-
sition of the food.
Poultry
COOKING TIPS
Meat
15
ENGLISH
USING YOUR MICROWAVE OVEN
WARNING: Do not use large sheets of aluminum foil because they hinder
cooking and may cause arcing
. You may
use small pieces of foil to shield poultry legs
and wings.
Keep all aluminum foil at least 1 inch from the walls and door of the oven.
16
Fish
Fish Fillets
Whole Mackerel,
Cleaned and Prepared
Whole Trout,
Cleaned and Prepared
Salmon Steaks
Microwave
Power
HIGH
HIGH
HIGH
HIGH
Cooking Time
Per Pound
4
1
/
2
to 8 minutes
4
1
/
2
to 8 minutes
5
1
/
2
to 9 minutes
5
1
/
2
to 8 minutes
Standing
Time
2 to 3 minutes
3 to 4 minutes
3 to 4 minutes
3 to 4 minutes
Butter
–
–
Fresh Fish Cooking Table
USING YOUR MICROWAVE OVEN
COOKING TIPS (continued)
Fish
1. Arrange fish in a large shallow non-metallic dish or casserole.
2. Cover with pierced microwave plastic wrap or casserole lid.
3. Place the dish on the turntable.
4. Cook according to the instructions in the Fresh Fish Cooking Table below. Flakes of butter can be added to the
fish if desired.
5. Let stand as directed in the Cooking Table before serving.
6. After standing time, check to see that the fish is thoroughly cooked. The fish should be opaque and flake easily.
Add 1 to 2 tbsp (15 to 30 ml)
of lemon juice.
Add 1 to 2 tbsp (15 to 30 ml)
of lemon juice.
ENGLISH
17
USING YOUR MICROWAVE OVEN
MELT
The oven uses low power to melt foods (butter,
chocolate, marshmallows and cheese). See the
following table.

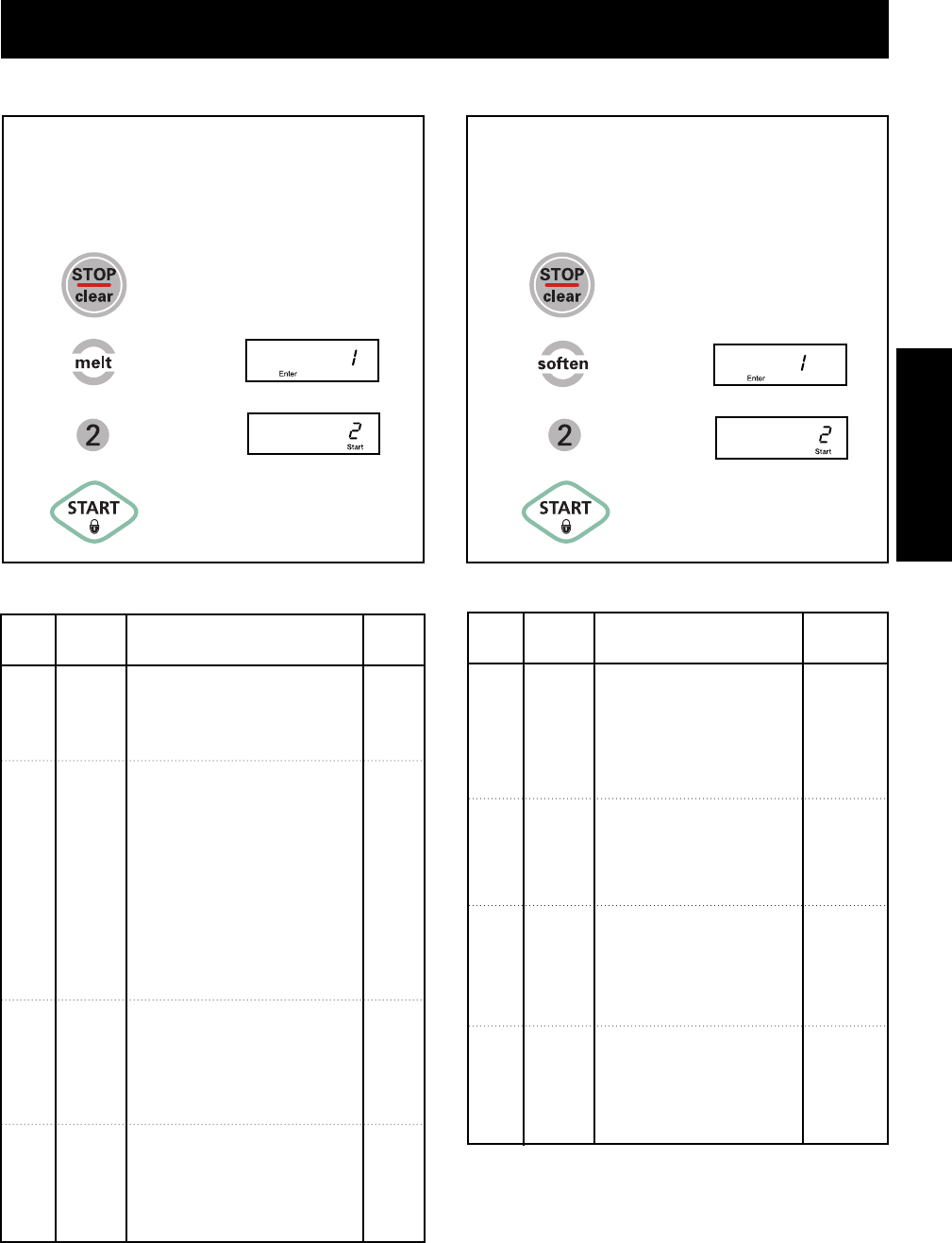

Example: To Melt 2 sticks butter.
Touch: Display Shows:
1.
2.
3.
4.
Time of day.
SOFTEN
The oven uses low power to soften foods (butter,
ice cream, cream cheese, and frozen juice)
See the following table.
Example: To Soften Quart Ice Cream.
Touch: Display Shows:
1.
2.
3.
4.
Time of day.
SOFTEN TABLE
Amount
1, 2 or
3 sticks
Pint,
Quart,
Half
gallon
3 or
8 oz.
6, 12 or
16 oz.
Direction
Unwrap and place in
microwavable container.
No need to cover butter.
Butter will be at room
temperature and ready
for use in recipe.
Place container in oven.
Ice cream will be soft
enough to make
scooping easier.
Unwrap and place in
microwavable container.
Cream cheese will be at
room temperature and
ready for use in recipe.
Remove top.
Place in oven.
Frozen juice will be soft
enough to easily mix with
water.
Cate-
gory
Butter
Ice
Cream
Cream
Cheese
Frozen
Juice
1
2
3
4
Code
Time counting down.
Time counting down.
MELT TABLE
Amount
1, 2 or
3 sticks
4 or
8 oz.
8 or
16 oz.
5 or
10 oz.
Direction
Unwrap and place in
microwavable container .
No need to cover butter .
Stir at the end of cooking
to complete melting.
Choose the 4 or 8 oz.(actual
weight) selection to melt
squares of baking chocolate
or chocolate morsels.
Unwrap squares and place
them in a microwavable
container. Stir at the end of
Use processed cheese
food only. Cut into cubes.
Place in a single layer in
microwavable container
.
Stir at the end of cooking
to complete melting.
Large or miniature
marshmallows may be
used. Place in
microwavable container.
Stir at the end of cycle to
complete melting.
Cate-
gory
Butter/
Marga-
rine
Choco
late
Cheese
Marsh-
mallows
1
2
3
4
Code
-
the cycle to complete melting.
NOTE:
Add time if necessary to
complete melting.
ENGLISH
USING YOUR MICROWAVE OVEN

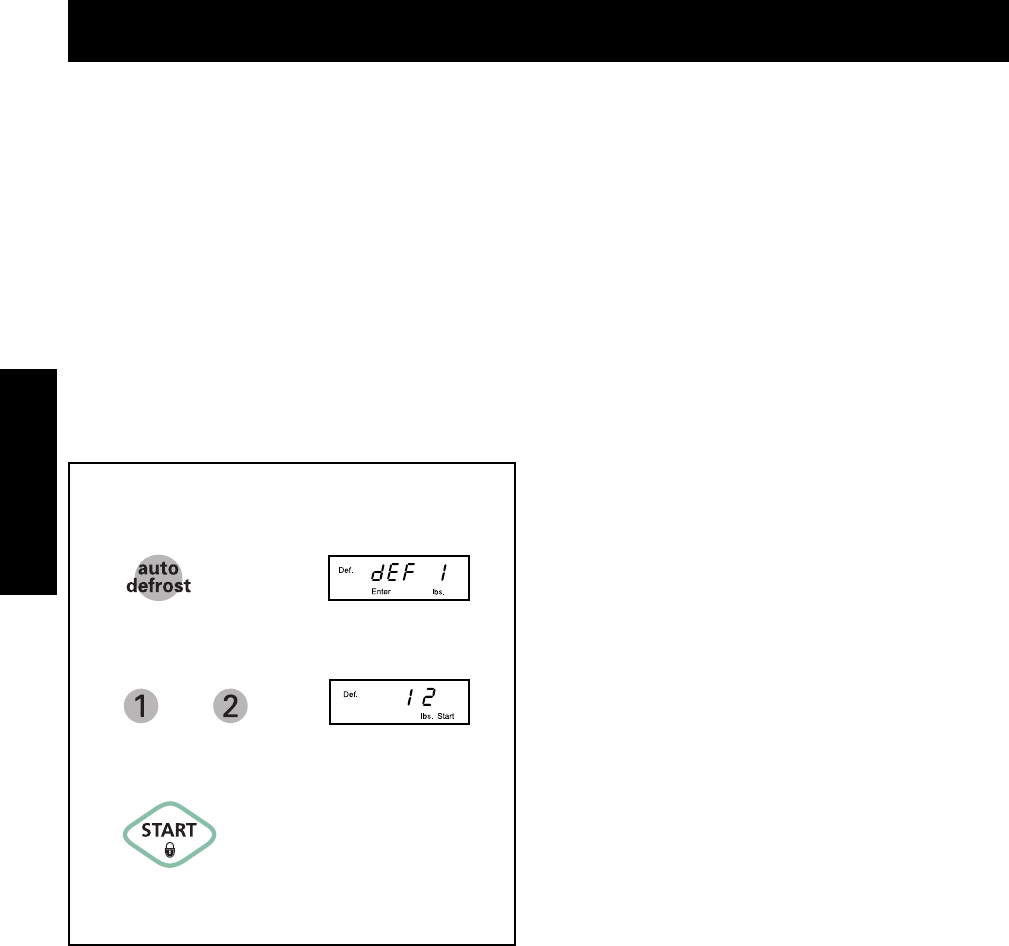

Example: To defrost 1.2 lbs of ground beef.
Touch: Display Shows:
AUTO DEFROST
1.
2. and
3.Time counting down
to enter the weight
Three defrost sequences are preset in the oven.
The auto defrost feature provides you with the best
defrosting method for frozen foods. The cooking guide
will show you which defrost sequence is recommended
for the food you are defrosting.
For added convenience, the Auto Defrost
includes a built-in beep mechanism that reminds
you to check, turn over, separate, or rearrange to get
best defrost results. Three different defrosting levels
are provided.
1 MEAT
2 POULTRY
3 FISH
*Available weight is 0.1~6.0 lbs.
NOTE:
When you touch the START pad, the display changes
to defrost time count down. The oven will beep during
the DEFROST cycle. At this time, open the door and
turn, separate, or rearrange the food.
Remove any portions that have thawed.
Return frozen portions to the oven and touch
START to resume the defrost cycle.
OPERATING TIPS
• For best results, remove fish, shellfish, meat, and
poultry from its original closed paper or plastic pack-
age (wrapper). Otherwise, the wrap will hold steam
and juice close to the foods, which can cause the
outer surface of the foods to cook.
• For best results, shape your ground meat into the
form of a doughnut before freezing. When defrosting,
scrape off thawed meat when the beep sounds and
continue defrosting.
• Place foods in a shallow container or on a microwave
roasting rack to catch drippings.
• Food should still be somewhat icy in the center when
removed from the oven.
18
.
Once
NOTE: 4 tones can be heard in middle of cycle.
ENGLISH
19
USING YOUR MICROWAVE OVEN
AUTO DEFROST TABLE
Category
MEAT
POULTRY
FISH
Food to be Defrosted
Beef
Ground beef, Round steak,
Cubes for stew, Tenderloin steak,
Pot roast, Rib roast, Rump roast,
Chuck roast, Hamburger patty
Lamb
Chops (1 inch thick), Rolled roast
Pork
Chops ( 1 2inch thick), Hot dogs,
Spareribs, Country-style ribs.
Rolled roast, Sausage
Veal
Cutlets (1 lb., 1 2inch thick)
Poultry
Whole (under 4 lbs.), Cut-up, Breasts
(boneless)
Cornish Hens
Whole
Turkey
Breast
Steaks/Chops
Round beef steak, Tenderloin steak
Lamb chops (1 inch thick)
Pork chops (1/2 inch thick)
Veal cutlets (1 lbs, 1/2 inch thick)
Fish
Fillets, Whole Steaks
Shellfish
Crab meat, Lobster tails, Shrimp,
Scallops
This feature should be used only when you defrost 1
pound of frozen ground beef.
Example: To defrost 1 lb Ground beef.
Touch: Display Shows:
EXPRESS DEFROST
1.
2.
Time counting down .
Time of day.
NOTE: 4 tones can be heard in middle of cycle.

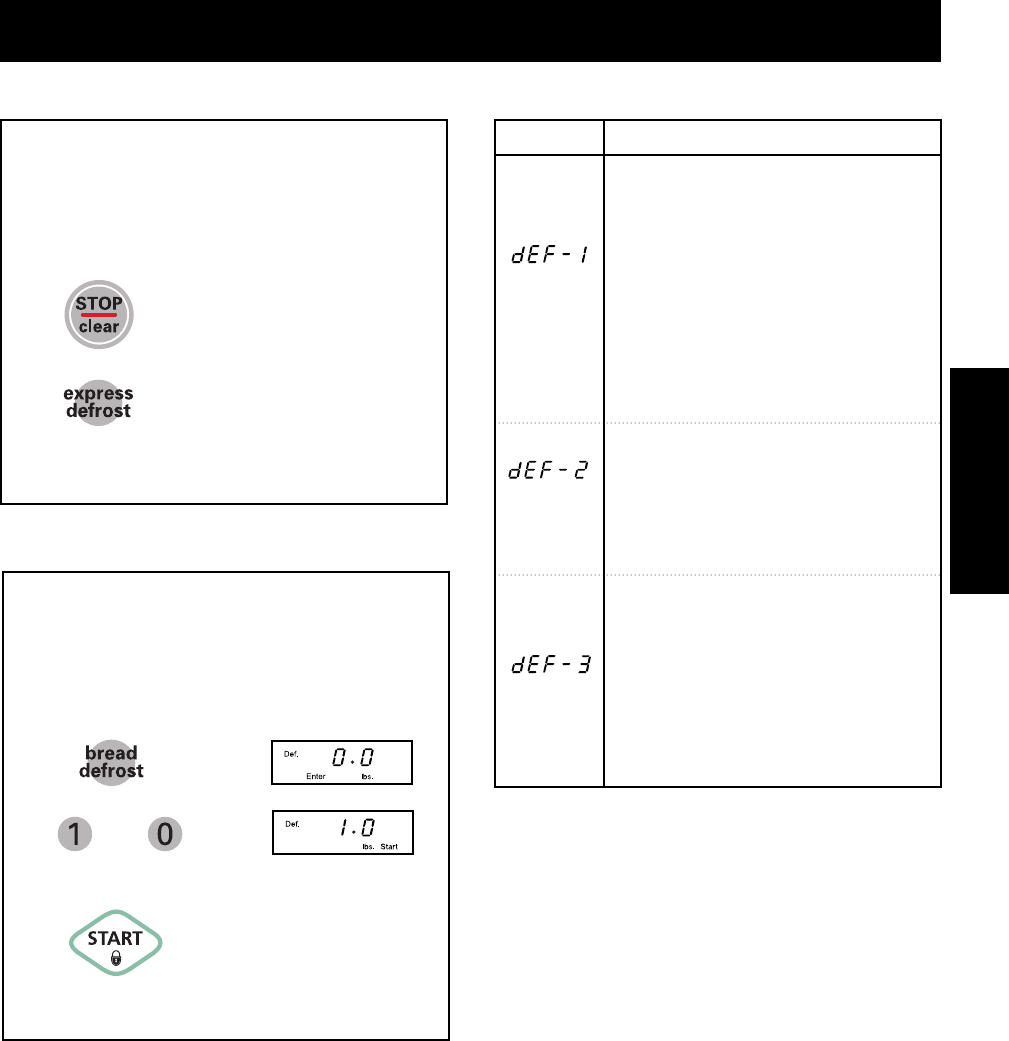

Example: To defrost 1.0 lbs of bread.
Touch: Display Shows:
BREAD DEFROST
1.
2. and
Time counting down.
to enter the weight
The bread defrost feature provides you with the best
defrosting method for frozen bread.
*Available weight is 0.1~1.0 lbs.
3.
NOTE: 4 tones can be heard in middle of cycle.
/
/
ENGLISH
20
TROUBLESHOOTING
Questions and Answers
Operation
Question
Why is the oven light not on during
cooking?
Why does steam come out of the air
exhaust vent?
Will the microwave oven be damaged if it
operates empty?
Does microwave energy pass through the
viewing screen in the door?
Why does a tone sound when a pad on
the control panel is touched?
Can my microwave oven be damaged if
food is cooked for too long?
What could be wrong when the oven is
plugged into the wall outlet for the first
time and it does not operate?
Why do I see light reflection around the
outer case?
What are the various sounds I hear when
the microwave oven is operating?
There may be several reasons why the oven light is not on.
Have you:
• Set a cooking time?
• Touched START?
Steam is normally produced during cooking. The microwave oven
has been designed to vent this steam.
Yes. Never operate the oven empty or without the glass turntable.
No. The metal screen bounces the energy back to the oven cavity.
The holes (or ports) allow only light to pass through. They do not
let microwave energy pass through.
The tone tells you that the setting has been entered.
It is possible to overcook food to the point of smoke and /or fire,
causing damage to the inside of the oven. It is always best to
remain near the oven while cooking.
The microcomputer controlling your oven may temporarily
become scrambled and fail to function as programmed when you
plug in for the first time or when power resumes after a power
interruption. Unplug the oven from the 120 volt household outlet
and then plug it back in to reset the microcomputer.
This light is from the oven light which is located between the
oven cavity and the outer wall of the oven.
The clicking sound is caused by a mechanical switch turning the
microwave oven’s magnetron ON and OFF.
The heavy hum and clunk is from the change in power the
magnetron draws as it is turned ON and OFF by a mechanical
switch.The change in blower speed is from the change in line
voltage caused by the magnetron being turned ON and OFF.
Answer
ENGLISH
21
TROUBLESHOOTING
Questions and Answers (continued)
Food
Question
What is wrong when baked foods have a
hard, dry, brown spot?
Why do eggs sometimes pop?
Why are scrambled eggs sometimes a
little dry after cooking?
A hard, dry, brown spot indicates overcooking. Shorten the cooking
or reheating time.
When baking, frying, or poaching eggs, the yolk may pop due to
steam build-up inside the yolk membrane. To prevent this,
simply pierce the yolk with a wooden toothpick before cooking.
CAUTION: Never microwave eggs in the shell.
Eggs will dry out when they are overcooked, even if the same
recipe is used each time. The cooking time may need to be varied
for one of these reasons:
• Eggs vary in size.
• Eggs are at room temperature one time and at refrigerator
temperature another time.
• Eggs continue cooking during standing time.
Answer
Why do baked apples sometimes burst
during cooking?
The peel has not been removed from the top half of each apple to
allow for expansion of the interior of the apple during cooking. As in
conventional cooking methods, the interior of the apple expands
during the cooking process.
Why do baked potatoes sometimes
burn during cooking?
If the cooking time is too long, fire could result. At the end of the
recommended cooking time, potatoes should be slightly firm.
CAUTION: Do not overcook.
Why is a standing time recommended
after microwave cooking time is over?
Standing time allows foods to continue cooking evenly for a few
minutes after the actual microwave oven cooking cycle. The
amount of standing time depends upon the density of the foods.
Why is additional time required for
cooking food stored in the refrigerator?
As in conventional cooking,the initial temperature of food affects
total cooking time. You need more time to cook food taken out of a
refrigerator than for food at room temperature.
ENGLISH
22
TROUBLESHOOTING
BEFORE CALLING FOR SERVICE
Problem
Oven does not start
Arcing or Sparking
Unevenly Cooked Foods
Overcooked Foods
Undercooked Foods
Improper Defrosting
You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the
operating problem in the list below and try the solutions listed for each problem.
If the microwave oven still does not work properly, contact the nearest Sears Parts & Repair Center by calling 1-800-
4-MY-HOME . Sears Parts & Repair Centers are fully equipped to handle your service requirements.
• Is the power cord plugged in?
• Is the door closed?
• Is the cooking time set?
• Are you using approved cookware?
• Is the oven operating while empty?
• Are you using approved cookware?
• Is the glass turntable in the oven?
• Did you turn over or stir the food while it was cooking?
• Were the foods completely defrosted?
• Was the time/cooking power level correct?
• Was the time/cooking power level correct?
• Are you using approved cookware?
• Were the foods completely defrosted?
• Was the time/cooking power level correct?
• Are you using approved cookware?
• Was the time/cooking power level correct?
• Did you turn over or stir the food during the defrosting cycle?
WARNING:
This equipment generates and uses ISM frequency
energy and if not installed and used properly, that is
in strict accordance with the manufacturer's instruc-
tions, may cause interference to radio and television
reception. It has been type tested and found to
comply with limits for ISM Equipment pursuant to
part 18 of FCC Rules, which are designed to provide
reasonable protection against such interference in a
residential installation.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause interference to radio or television recep-
tion, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following:
• Reorient the receiving antenna of the radio or televi-
sion.
• Relocate the Microwave Oven with respect to the
receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so
that the microwave oven and the receiver are on dif-
ferent branch circuits.
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modifi-
cation to this microwave oven. It is the responsibility
of the user to correct such interference.
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE
STATEMENT (U.S.A. ONLY)
Possible Causes
®
ENGLISH
48
Master Protection Agreements
Congratulations on making a smart purchase.
Your new Kenmore®product is designed and manufac-
tured for years of dependable operation.
But like all products, it may require preventive mainte-
nance or repair from time to time.
That’s when having a Master Protection Agreement can
save you money and aggravation.
Purchase a Master Protection Agreement now and pro-
tect yourself from unexpected hassle
and expense.
The Master Protection Agreement also helps extend the
life of your new product. Here’s
what’s included in the Agreement:
Expert service by our 12,000 professional repair
specialists
Unlimited service and no charge for parts and
labor on all covered repairs
“No-lemon” guarantee – replacement of your cov-
ered product if four or more product failures occur
within twelve months
Product replacement if your covered product can’t
be fixed
Annual Preventive Maintenance Check at your
request – no extra charge
Fast help by phone – phone support from a Sears
technician on products requiring in-home repair,
plus convenient repair scheduling
Power surge protection against electrical damage
due to power fluctuations
Rental reimbursement if repair of your covered
product takes longer than promised
Once you purchase the Agreement, a simple phone call
is all that it takes for you to schedule service.
You can call anytime day or night, or schedule a service
appointment online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That’s the kind of professionalism you can
count on to help prolong the life of your new purchase
for years to come. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply. For prices
and additional information call 1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. call
1-800-4-MY-HOME®
Acuerdos Maestros de protección
Felicitaciones por haber hecho una compra inteligente
Su nuevo producto Kenmore®está diseñado y fabricado
para años de operación segura.
Pero como todo producto, puede necesitar mantenimiento
preventivo o reparaciones cada cierto tiempo. Es allí cuan-
do el tener un Acuerdo Maestro de protección le puede
ahorrar dinero o evitar que la falla empeore.
Adquiera un Acuerdo Maestro de protección ahora y
resguárdese de cualquier molestia o gastos inesperados.
El Contrato de Protección Maestro ayuda también extender
la vida de su nuevo producto. Estas son los aspectos
incluídos en el Contrato :
Servicio experto, llevado a cabo por cualquiera de
nuestros 12.000 profesionales especialistas en repara-
ciones.
Servicio ilimitado y sin cargo alguno, por las piezas
o por el trabajo en toda las reparaciones cubiertas por
el Acuerdo.
Garantía de "No-Lemon" - cambio de su producto
cubierto si ocurre más de cuatro o más fallas al pro-
ducto dentro de doce primeros meses.
Reemplazo del producto si su este asegurado no
puede arreglarse.
Control anual de mantenimiento preventivo a pedi-
do suyo sin cargo extra.
Ayuda rápida vía teléfonico - Soporte telefónico de
un técnico de Sears sobre los productos que se
requiere de reparación en casa, más la programación
conveniente de servicio.
Protección contra sobrecarga eléctrica, por daños
eléctricos causados por fluctuaciones de corriente.
Reembolso de alquiler si la reparación del producto
asegurado toma más tiempo de lo prometido.
Una vez que ha comprado el Acuerdo, una simple llamada
telefónica es todo lo que le tomará para agendar un servi-
cio. Puede llamar a cualquier hora del día o de la noche o
hacer un compromiso de atención por teléfono.
Sears tiene más de 12,000 profesionales especialistas en
reparaciones que tienen acceso a más de 4.5 millones de
piezas de calidad y accesorios. Esa es la clase de profe-
sionalismo con la que puede usted contar para ayudar a
prolongar la vida de su nueva adquisición en los años por
venir. ¡Suscriba ya un Acuerdo Maestro de protección!
Se aplican algunas limitaciones y exclusiones. Por pre-
cios e información adicional llame al 1-800-827-6655.
Servicio de instalación Sears
Para la instalación profesional de Sears de los aparatos del
hogar, dispositivos de apertura de la puerta del garaje,
calentadores de agua, y otros items principales del hogar,
llame en los Estados Unidos a 1-800-4-MY-HOME®.
® Registered Trademark /
TM
Trademark /
SM
Service Mark of Sears Brands, LLC
® Marca Registrada /
TM
Marca de Fábrica /
SM
Marca de Servicio de Sears Brands, LLC
MC
Marque de commerce /
MD
Marque déposée de Sears Brands, LLC © Sears Brands, LLC
Get it fixed, at your home or ours!
Your Home
For repair – in your home– of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME®(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase a protection agreement (U.S.A.)
or maintenance agreement (Canada) on a product serviced by Sears:
1-800-827-6655
(U.S.A.)
1-800-361-6665
(Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
Au Canada pour service en français:
1-800-LE-FOYER
MC
(1-800-533-6937)
www.sears.ca

Navigation menu
