LG Electronics
BLUETOOTH®Mono Headset
HBM-220 User manual
English
3
Introduction
The LG Bluetooth®Headset HBM-220 is a lightweight wireless
headset that uses Bluetooth®technology.
This product can be used as an audio accessory for devices that
support the headset or handsfree Bluetooth®profiles.

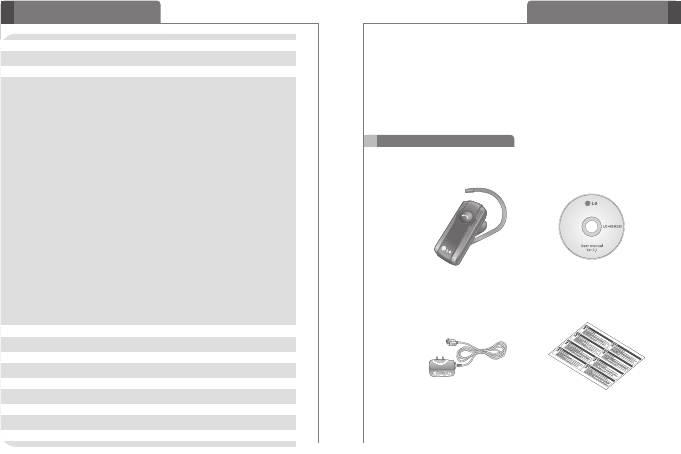

Included in the package
2
Table of Contents
Bluetooth®Headset User manual
WEEE Card
Introduction 3
Description of parts 4
How to use 4
- Change direction 4
- Charging 5
- Low battery 5
- Power on 5
- Power off 5
- Pairing 5
�Easy pairing 5
�Manual pairing 6
- Auto reconnect 7
- Volume control 7
- Calling 7
�Answering a call 7
�Making a call 7
�Voice-dialling 8
�Last number redial 8
�Ending a call 8
�Transferring a call 8
�Call waiting 8
�Call reject 8
Summary of button functions 9
LED indication 9
Troubleshooting 10
Specification 10
Precautions 11
Declaration of confirmation 13
Additional information 13
Limited warranty 16
Important safety information 16
Charger
Back
4

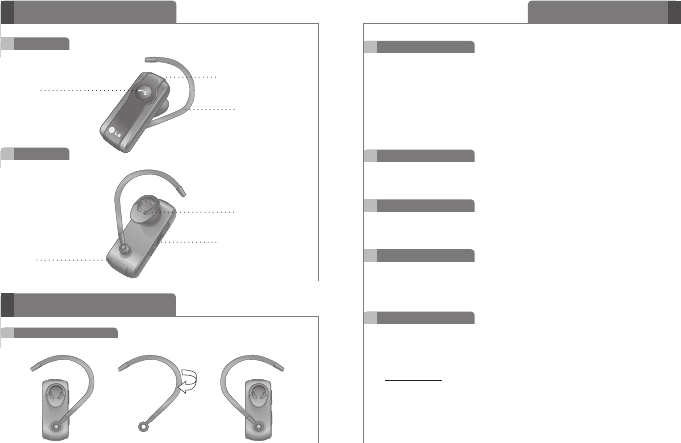

Description of parts
Front
How to use
Change direction
5
Charging
Low battery
Power on
- Remove the cover on the charging port and connect the charger.
- When the charger is connected, with power on or off, the Headset
will turn off.
- While charging, the LED indicator will show a solid blue light.
- The buttons will not function while the device is charging.
- It takes 2 hours to fully charge the Headset.
- When charging is complete, the LED indicator will turn off.
Pairing
Power off
- Press and hold the MFB for 5 seconds.
�A shutdown tone will sound, the Bluetooth link will be disconnected
and the power will turn off.
How to use
- A low battery tone will sound once every 30 seconds.
- If the battery is not charged, the headset will turn off.
Volume UP /
Down Button
Speaker
Mic
MFB
(Multi-Function Button)
Charging Port
Ear Loop
- Press and hold the MFB for 5 seconds.
�The power will turn on and a startup tone will sound.
- Before using the headset for the first time, it must be paired with a
Bluetooth-enabled handset.
- There are 2 pairing modes with the HBM-220.
1) Easy Pairing
�Press and hold the MFB for 5 seconds to turn on the HBM-220.
�The Headset will enter auto-reconnect mode for 10 seconds.
(if your Headset has already been paired with the handset, the
Headset will automatically reconnect to the handset when the
HBM-220 is powered on).
7
Auto reconnect
6
How to use
�After 10 seconds, the HBM-220 will automatically enter pairing mode.
�When the Headset enters pairing mode, the LED indicator will show
a solid blue light.
�Using your handset, find the Bluetooth menu and “search for” or
“add” new devices.
�Select “LG HBM-220” from the list of devices and pair it with your
handset.
�When asked for the passkey or PIN during pairing, please enter
“0000” (4 zeros).
�Once pairing has been completed successfully, you will hear a beep.
�After pairing has been completed, make sure you “Connect” to the
LG HBM-220.
�If you want to pair with a different device in the future, the Headset
must be in pairing mode.
�If the Headset is in pairing mode for 3 minutes without being
connected to a handset, the HBM-220 will automatically turn off.
2) Manual Pairing
�With the power off, press and hold the MFB for 7 seconds.
�When the Headset enters pairing mode, the LED indicator will show
a solid blue light.
�Using your handset, find the Bluetooth menu and “search for” or
“add” new devices.
�Select “LG HBM-220” from the list of devices and pair it with your
handset.
�When asked for the passkey or PIN during pairing, please enter
“0000” (4 zeros).
�Once pairing has been completed successfully, you will hear a beep.
�After pairing has been completed, make sure you “Connect” to the
LG HBM-220.
�If you want to pair with a different device in the future, the Headset
must be in pairing mode.
�If the Headset is in pairing mode for 3 minutes without being
connected to a handset, the HBM-220 will automatically turn off.
Volume control
- If the HBM-220 is turned off (either accidentally or intentionally) whilst
connected to a handset, the Headset and handset will disconnect.
The Headset and handset will automatically reconnect when the
HBM-220 is turned back on (provided that both devices are within
the required range of 33 feet 10 metres).
[ Out of range ]
- When your handset and HBM-220 are separated by a range of 33
feet (10 metres) or more, the Headset and handset will disconnect.
When the handset and HBM-220 are within the required range again,
the HBM-220 will automatically reconnect to the handset.
- If the Headset and handset do not automatically reconnect when they
are back within the required range, briefly press the MFB on the HBM-
220 to reconnect manually.
- Press the VOLUME UP or VOLUME DOWN button to adjust the speaker
volume.
- There are eight speaker volume levels.
Calling
How to use
Answering a call
-
When there is an incoming call, the Headset will ring.
-
Briefly press the MFB to answer the incoming call.
Making a call
- If you make a call from the handset, the call will (depending on the
phone settings) automatically transfer to the Headset. If the call is not
automatically transferred, you can manually transfer the call by briefly
pressing the MFB on the HBM-220 (handset and headset must be
paired).
9
8
How to use
LED indication
Summary of button functions
Function HBM-220
Status Action
Function HBM-220 Status Action
Power on Power off Press the MFB for 5 seconds.
Power off Power on Press the MFB for at least 5 seconds.
Volume up Talking Briefly press the VOLUME UP button.
Volume down Talking Briefly press the VOLUME DOWN button.
Transferring a call Talking - Handset to Headset
Briefly press the MFB (must be paired)
- Headset to handset
Press and hold the VOLUME UP button
for 5 seconds.
Answering a call Ringing Briefly press the MFB.
Ending a call Talking Briefly press the MFB.
Call waiting Talking Press the MFB for 1 second.
Last number redial Idle Press the MFB for 1 second.
Voice dialing Idle Briefly press the MFB.
(handset must support)
Call reject Ringing Press the MFB for 1 second.
Pairing mode(Manual) Power off Press the MFB for 7 seconds.
Operating Power on The blue LED light flickers 4 times.
Power off The blue LED light flickers 4 times
and then turns off.
Pairing mode The blue LED light stays on.
Headset / handsfree The blue LED light flickers
Profile connected twice every 5 seconds.
Call connected The blue LED light flickers
twice every 5 seconds.
Charging Charging The blue LED light stays on.
Charging complete The LED light turns off.
Voice-dialling
*
- Briefly press the MFB to activate “Voice Command”.
For best results, record the voice-dialling tag through your Headset.
NOTE: If your handset does not support voice-dialling, this action may
activate last number redial.
Last number redial
*
-
Press and hold the MFB for 1 second to activate “Last number redial”.
The headset will beep and then call the last number dialled.
Ending a call
-
Briefly press the MFB.
Transferring a call
*
- Whilst on a call, briefly press the MFB to transfer the audio from the
handset to the Headset (the Headset and handset must be paired).
- To transfer a call from the Headset to handset, press and hold the
VOLUME UP button for 5 seconds.
Call waiting
*
-
Answer a second call without hanging up the first call by pressing the
MFB for 1second. Press the MFB for 1second to return to the original
call.
-
Briefly press the MFB to terminate both calls at once.
Call Reject
*
- Activate call reject by pressing the MFB for 1 second when the
handset rings.
*These functions may only be used if your handset supports them.
For further information about using these features, please consult
your handset's user manual.
Troubleshooting
Specification

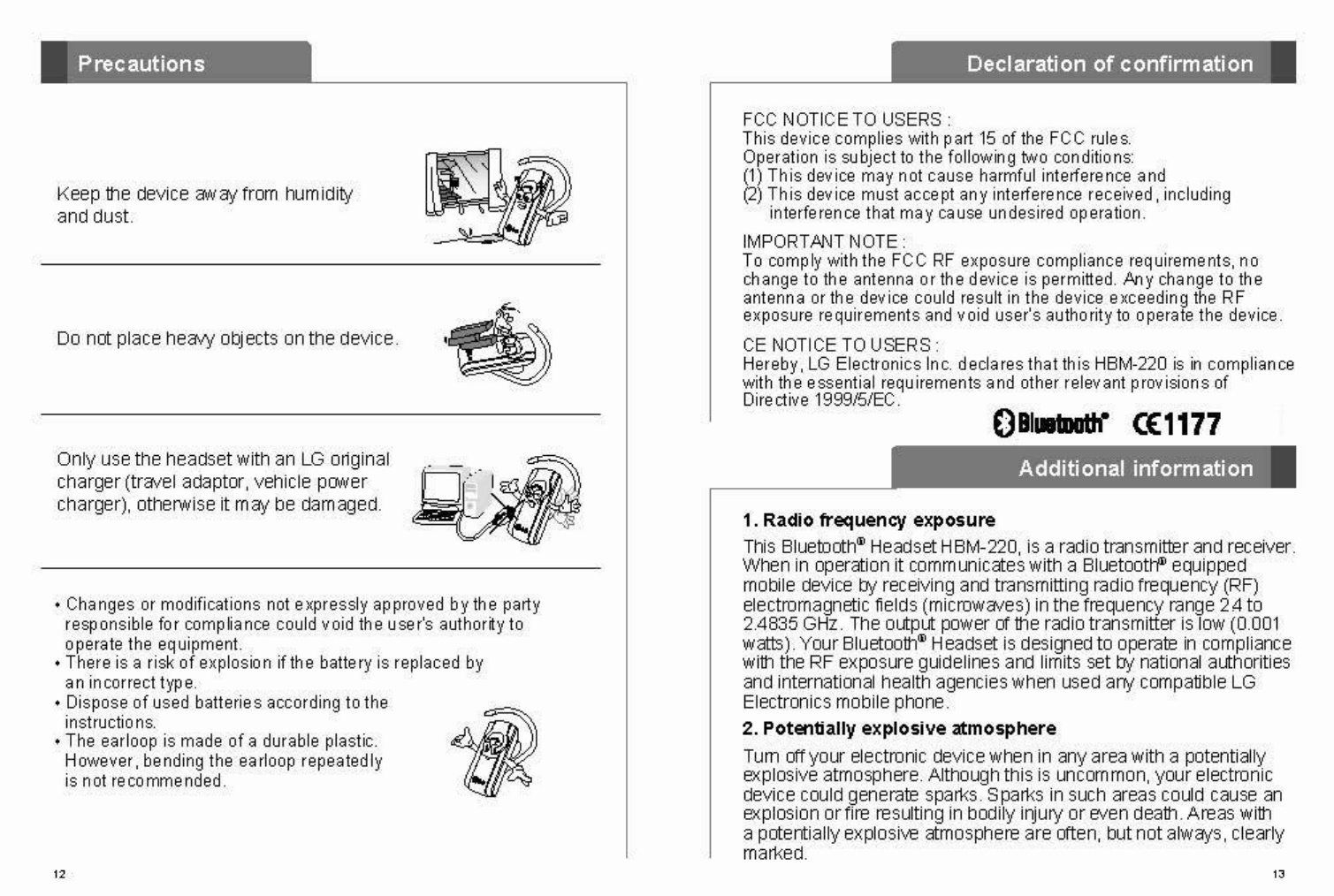

Precautions
11
10
Do not modify, repair, or disassemble.
Do not expose directly to water,
alcohol, benzene, etc. for cleaning.
Do not expose directly to flammables.
ITEM Description
Bluetooth®specification V2.0 (handsfree / headset profiles)
Battery 3.7V, Li- Polymer, 110mAh
Stand by time Up to 180Hrs
Talk Time Up to 8Hrs
Charging time Less than 2 hrs
Operation temperature -10℃~60℃
Dimension / weight 19.5mm(W) X 45mm(L) X 9.5mm(H) / 10.7g
Does not turn on Check whether the battery Charge the battery.
of the HBM-220 is fully
charged.
Unable to Check whether Determine whether your
communicate with the handset supports handset supports
the LG Bluetooth
®
the Headset or Handsfree the Headset or Handsfree
Headset HBM-220 Bluetooth profiles. Bluetooth profiles.
Check whether the battery Charge the battery.
of the HBM-220 is low.
Unable to pair the Check and make sure the Press and hold the MFB for
HBM-220 with the Headset is on. at least 5 seconds to turn on
Bluetooth®device the Headset.
Check and make sure With the power off, press
the Headset is placed and hold the MFB for
in pairing mode. 7 seconds to put the
Headset in pairing mode.
Low volume
(speaker)
Check the speaker volume.
lncrease the volume level.
Do not place or keep the device near
flammables.
Do not drop the device from a height.
1514
3. Emergency calls
IMPORTANT!
This Bluetooth®headset and the electronic device connected to the
headset operate using radio signals, mobile and landline networks
as well as user- programmed functions, which cannot guarantee
connection under all conditions. Therefore you should never rely
solely upon any electronic device for essential communications (e.g.
medical emergencies). Remember, in order to make or receive calls,
the headset and the electronic device connected to the headset must
be switched on and in a service area with adequate mobile signal
strength. Emergency calls may not be possible on all mobile phone
networks or when certain network services and/or phone features
are in use. Check with your local service provider.
4. Battery information
A rechargeable battery has a long service life if treated properly.
A new battery or one that has not been used for a long period of
time could have reduced capacity the first few times it is used.
Do not expose the battery to extreme temperatures, never above
+60。C(+140。F) or under -20。C(-4。F). For maximum battery capacity,
use the battery at room temperature. If the battery is used in low
temperatures, the battery capacity will be reduced. The battery can
only be charged in temperatures between +10。C(+50。F) and +45。C
(+113。F). For your safety, do not remove the battery incorperated in
the product. If you need to replace the battery, take it to the nearest
authorised LG Electronics service point or dealer for assistance.
5. Recycling the battery in your Bluetooth®headset
The battery in your Bluetooth®Headset must be disposed of properly
and should never be placed in municipal waste. The LG Electronics
service partner who removes the battery will dispose of it according
to local regulations.
6. Conditions
- The warranty is valid only if the original receipt issued to the original
purchaser by the dealer, specifying the date of purchase and serial
number, is presented with the product to be repaired or replaced.
LG Electronics reserves the right to refuse warranty service if this
information has been removed or changed after the original
purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or
replaced product shall be warranted for the remaining time of the
original warranty period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement may involve the
use of functionally equivalent reconditioned units. Replaced parts
or components will become the property of LG Electronics.
-
This Warranty does not cover any failure of the product due to normal
wear and tear, or due to misuse, including but not limited to use in
other than the normal and customary manner, in accordance with
instructions for use and maintenance of the product. Nor does this
warranty cover any failure of the product due to accident, modification
or adjustment, acts of God or damage resulting from liquid.
-
This warranty does not cover product failures due to improper repair
installations, modifications or service performed by a non-LG
Electronics authorised person. Tampering with any of the seals on
the product will void the warranty.
-THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR
ORAL, OTHER THAN THIS PRINTED LIMITED WARRANTY. ALL
IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS
VENDORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT
LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE FULL
EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
�
Some countries/states do not allow the exclusion or limitation of
incidental or consequential damages, or limitation of the duration
of implied warranties, so the preceding limitations or exclusions
may not apply to you. The warranty provided does not affect the
consumer's statutory rights under applicable national legislation
in force, nor the consumer's rights against the dealer arising from
their sales/purchase contract.
Additional information Additional information
16
IMPORTANT SAFETY INFORMATION
Subject to the conditions of this Limited Warranty, LG Electronics
warrants this product to be free from defects in design, material and
workmanship at the time of its original purchase by a consumer, and
for a subsequent period of one (1) year. Should your product need
warranty service, please return it to the dealer from whom it was
purchased or contact your local LG Electronics contact centre to
get further information.
Limited warranty
Avoiding hearing damage Permanent hearing loss may occur if you
use your headset at a high volume. Set the volume to a safe level.
Over time you can become accustomed to a higher volume that may
sound normal but can be damaging to your hearing. If you experience
ringing in your ears or muffled speech, stop listening and have your
hearing checked. The louder the volume, the less time is required
before your hearing could be affected.
Hearing experts suggest that to protect your hearing:
�Limit the amount of time you use the headset at high volume.
�Avoid turning up the volume to block out noisy surroundings.
�Turn the volume down if you can't hear people speaking near you.
Using headsets safely Use of headsets to listen to music while
operating a vehicle is not recommended and is illegal in some areas.
Be careful and attentive whilst driving. Stop using this device if you
find it disruptive or distracting whilst operating any type of vehicle or
performing any other activity that requires your full attention.
