BLUETOOTH®Mono Headset
HBM-235 User manual
English

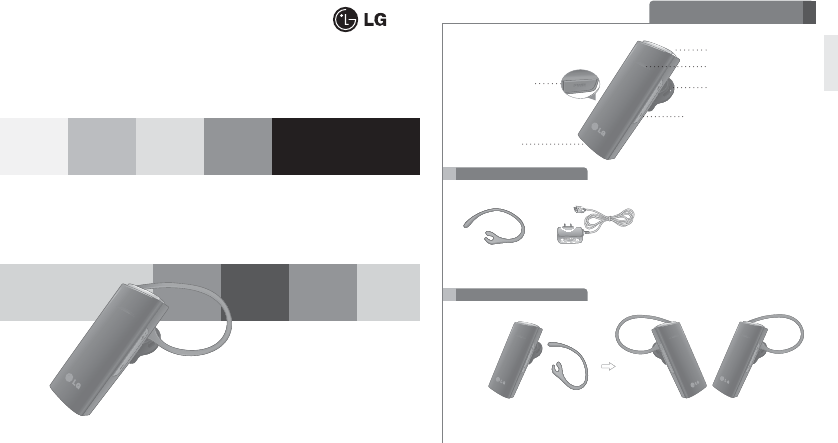

Description of parts
C. Speaker
D. VOLUME UP/DOWN Button
E. Charging Port
F. Mic
B. LED Indicator
A. MFB Button
(Multi-Funtion Button)
I. * Note: The ear loop can be attached to the headset, as an option, if necessary.
Not every user will need to attach the ear loop.
G. Ear loop
Left Right
H. Charger
1
ENG
Specification
Description of parts
Contents
3
A. MFB Button (Multi-Funtion Button)
B. LED Indicator
C. Speaker
D. VOLUME UP/DOWN Button
E. Charging Port
F. Mic
G. Ear loop
H. Charger
I. Ear loop Attachment
* Note : The ear loop can be attached to the headset, as an option, if necessary.
Not every user will need to attach the ear loop.
Specification 3
How to use 4
LED indication 7
Troubleshooting 7
ITEM Description
Bluetooth®specification V2.1 (Headset / HFP)
Battery Battery 3.7V / 110mAh Li-Polymer
Standby time / Talk time Up to 300Hrs / Up to 8Hrs
Charging time < 2Hrs
Operation temperature -10°C ~50°C
Dimension / Weight 18.2mm(W) X 48mm(L) X 10mm(H) / 9.8g

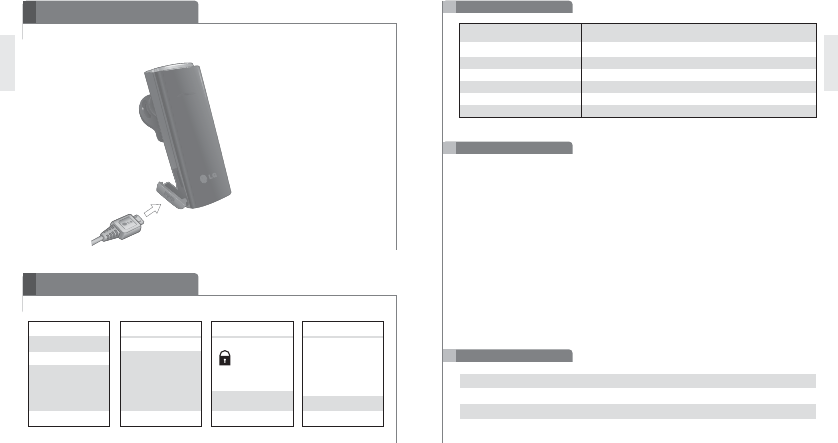

Charging Your Headset
Pairing Your Headset
Sounds Settings
BLUETOOTH TURN ON
Display Settings
Phone Settings
Call Setting
SETTINGS
SELECT
LG HBM-235
DEVICES FOUND
SELECT
Passkey:
0000
LG HBM-235
OK
LG HBM-235
added.
The handsfree is
now ready for use
HANDSFREE
SELECT
2
ENG
ENG
Controls
How to use
Pairing
54
- Before using the headset for the first time, you must pair it with a Bluetooth-enabled handset.
- To pair your headset with an additional handset, the headset must be placed in Pairing Mode.
- There are 3 Pairing Mode Methods with the HBM-235.
Easy Pairing (First Time Pairing)
1. Press and hold the MFB Button for 3 seconds, to turn on the HBM-235. When the headset enters
Pairing Mode, the LED indicator will show a solid white light.
2. Using your handset, find the Bluetooth Menu and “search for” or “add” new devices.
•Select “LG HBM-235” from the list of devices and pair it with your handset.
3. If asked for the Pass/PIN code please enter “0000” (4 Zeros).*
* Note : If your handset supports Secure Simple Pairing (SSP), you will not need to enter
Pass/PIN code.
•Once pairing has completed successfully, you will hear a beep.
4. Some handsets might ask for permission to access the phone’s contact list. If you receive a
message from your handset, please select “OK” or “Allow access”
•The HBM-235 will automatically turn off if not paired within 3 minutes.
Manual Pairing (Pairing with another phone or re-pairing)
•With the Power off, press and hold the MFB Button for 6 seconds.
•When the headset enters Pairing Mode, the LED indicator will show a solid white light.
After the procedure repeat Easy Pairing steps 2 through 4.
Proximate pairing (Headset Initiated Pairing)
•When entering pairing mode, HBM-235 automatically searches and tries to connect the
handset in close proximity and discoverable mode.
How to use
Multipoint
- The LG HBM-235 is capable of having two handsets connected to the headset.
- To use this feature, you must enable Multipoint set up.
(see “Enable/Disable Multipoint” on page 4 for help)
Multipoint Connect
- Pair the headset with one of your Bluetooth-enabled handsets.
(per the pairing instructions on Manual Pairing).
- Now, pair and connect the headset with your other Bluetooth-enabled handset.
(This will be your Primary handset).
- Once this handset is paired and connected, go back and connect the first paired handset to
the headset. (This will be your Secondary handset).
Note: When the HBM-235 is connected to two handsets at the same time (Multipoint),
the headset calling functions will work with the Primary handset (or handset
which made the last outgoing call).
ENG
ENG
Power on / Power off
- Press the MFB Button for 3 seconds.
Volume Control
- Briefly press the VOLUME button.
Charging
- When the charger is connected, with the power on or off, the headset will turn off.
- While charging, the LED indicator will show a solid white light.
- When charging is complete, the LED indicator will turn off.
Battery Status Alert
- Press and hold the VOLUME DOWN button for 3 seconds.
- There are 3 levels of battery status : “Battery high”,”Battery Medium”,”Battery low”
Low battery
- An announcement will be made once every 2 minutes.
- If the battery is not charged, the headset will turn off.
Answering a call / Ending a call
- Briefly press the MFB button.
Last number redial*
- Press and hold the MFB button for 1 second to activate “Last Number Redial”.
The headset will beep, and call the last number dialed.
Making a call
- If you make a call from the handset, the call will (subject to phone settings) automatically
transfer to the headset. If the call is not automatically transferred, you can manually
transfer the call by briefly pressing the MFB button.
Voice dialing
- Briefly press the MFB button to activate “Voice Command”.
NOTE: If the handset does not support Voice Dialing, it is possible that performing this action
will activate Last Number Redial.
Transferring a call*
- While on a call on your handset, briefly press the MFB button on the headset to transfer
the audio to the headset. And to transfer a call from the headset to handset, press and hold
VOLUME UP button for 3 seconds.
How to use
6
Call waiting*
- Answer a second call without hanging up the first call by pressing the MFB
button for 1second (you will hear a beep). Press the MFB button for 1 second
to turn to the original call.
- Briefly press the MFB button to terminate the active call or both calls at once.
(subject to handset's support)
Call Reject*
- Press the MFB button for 1 second when the handset rings.
Calling Function
- Voice Dialing and Last Number Redial features work with the Primary handset
(or handset which made the last outgoing call).
Enable/Disable Multipoint
- With the Power off, press and hold the VOLUME UP and MFB button
for 3 seconds to power on as Multipoint enabled.
- With the Power off, press and hold the VOLUME DOWN and MFB button for 3
seconds to power on as Multipoint disabled
Note : With the advanced multipoint, two calls using two handsets are available.
Out of range
- Operating range up to 10 meters (approximately 33 ft)
- If the headset and handset do not automatically reconnect when they are back
within the required range, briefly press the MFB button on the HBM-235 to
reconnect manually.
* It is possible to use these functions only when your handset supports them.
For further information about using these features, please consult your
handset’s user manual.
7
LED indication
Troubleshooting
ENG
Does not turn on Check whether the battery Charge the battery.
of the HBM-235 is fully
charged.
Unable to Check whether Determine whether your
communicate with the handset supports handset supports
the LG Bluetooth®the headset or hands-free the headset or hands-free
Headset HBM-235 Bluetooth profiles. Bluetooth profiles.
Check whether the battery Charge the battery.
of the HBM-235 is low.
Unable to pair the Check and make sure the Press and hold the MFB
HBM-235 with the headset is on. button for 3 seconds to turn
Bluetooth®device on the headset.
Check and make sure With the power off, press and
the headset is placed hold the MFB button for
in pairing mode. 6 seconds to manually place the
headset in pairing mode.
Low sound (speaker) Check the speaker volume. lncrease the volume level.
Function HBM-235 Status Action
Operating Power on The white LED light flickers 4 times.
Power off The white LED light flickers 4 times
and then turns off.
Pairing mode The white LED light stays on.
headset / hands-free The white LED light flickers
profile connected 2 times every 5 seconds.
Call connected The white LED light flickers
2 times every 5 seconds.
Proximity Pairing mode Fast LED light flicking 20 seconds
Charging Charging The white LED stays on.
Charging complete LED is turns off.
ENG
98
Precautions
Declaration of Confirmation
Do not drop the unit from high places.
Do not modify, repair, or take apart.
Do not expose directly to water, alcohol, benzene, etc. for cleaning.
Do not expose directly to flammables.
Do not place or keep the unit near flammables.
Keep unit away from humidity & dust.
Do not place heavy objects on the unit.
Only use the headset with an original LG charger, otherwise it may be damaged.
•Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
•There is a risk of explosion if the battery is replaced by an incorrect type.
•Dispose of used batteries according to the instructions.
FCC NOTICE TO USERS :
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE :
To comply with the FCC RF exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the antenna or the device could result
in the device exceeding the RF exposure requirements and void user's authority to
operate the device.
Hereby, LG Electronics Inc. declares that this HBM-235 is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
ENG
ENG
Additional Information
1. Radio frequency exposure
This Bluetooth®Headset, HBM-235, is a radio transmitter and receiver. When in
operation, it communicates with a Bluetooth®equipped mobile device by receiving and
transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency
range 2.4 to 2.4835 GHz. The output power of the radio transmitter is low.
Your Bluetooth®Headset is designed to operate in compliance with the RF exposure
guidelines and limits set by national authorities and international health agencies when
used any compatible LG Electronics mobile phone.
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive atmosphere.
It is rare, but your electronic device could generate sparks. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially
explosive atmosphere are often, but not always, clearly marked.
3. Battery information
A rechargeable battery has a long service life if treated properly. A new battery or one
that has not been used for a long period of time could have reduced capacity the first few
times it is used. Do not expose the battery to extreme temperatures, never above
+60°(+140°F) or under -20°(-4°F). For maximum battery capacity, use the battery in room
temperature. If the battery is used in low temperatures, the battery capacity will be
reduced. The battery can only be charged in temperatures between +10°(+50°F) and
+45°(+113°F). For your safety, do not remove the battery incorperated in the product. If
you need to replace the battery, take it to the nearest authorised LG Electronics service
point or dealer for assistance.
5. Recycling the battery in your Bluetooth®Headset
The battery in your Bluetooth®Headset must be disposed of properly and should never
be placed in municipal waste. The LG Electronics service partner removing battery will
dispose of it according to local regulations.
6. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser by the
dealer, specifying the date of purchase and serial number, is presented with the product
to be repaired or replaced. LG Electronics reserves the right to refuse warranty service
if this information has been removed or changed after the original purchase of the
product from the dealer.
11
10
ENG
- If LG Electronics repairs or replaces the product, the repaired or replaced product shall
be warranted for the remaining time of the original warranty period or for ninety (90)
days from the date of repair, whichever is longer. Repair or replacement may involve
the use of functionally equivalent reconditioned units. Replaced parts or components
will become the property of LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear and tear,
or due to misuse, including but not limited to use in other than the normal and customary
manner, in accordance with instructions for use and maintenance of the product. Nor
does this warranty cover any failure of the product due to accident, modification or
adjustment, acts of God or damage resulting from liquid.
- This warranty does not cover product failures due to improper repair installations,
modifications or service performed by a non-LG Electronics authorized person.
Tampering with any of the seals on the product will void the warranty.
Limited Warranty
Important safety information
Subject to the conditions of this Limited Warranty, LG Electronics warrants this product
to be free from defects in design, material and workmanship at the time of its original
purchase by a consumer, and for a subsequent period of one (1) year. Should your
product need warranty service, please return it to the dealer from whom it was
purchased or contact your local LG Electronics contact center to get further information.
Avoiding hearing damage Permanent hearing loss may occur if you use your Headset
at a high volume. Set the volume to a safe level. You can adapt over time to a higher
volume of sound that may sound normal but can be damaging to your hearing. If you
experience ringing in your ears or muffled speech, stop listening and have your hearing
checked. The louder the volume, the less time is required before your hearing could be
affected. Hearing experts suggest that to protect your hearing:
•Limit the amount of time you use Headset at high volume.
•Avoid turning up the volume to block out noisy surroundings.
•Turn the volume down if you can't hear people speaking near you.
Please refer to your handset user guide for more information on how to adjust listening
levels on your handset.
Using Headsets safely Use of Headsets to listen to music while operating a vehicle is
not recommended and is illegal in some areas. Be careful and attentive while driving.
Stop using this device if you find it disruptive or distracting while operating any type of
vehicle or performing any other activity that requires your full attention.
MEMO
