The LG Bluetooth®Headset HBM- 570 is a light weight wireless
Headset utilizing Bluetooth®technology. This product can be used
as an audio accessory for devices supporting either the Headset or
Handsfree Bluetooth®Profiles.

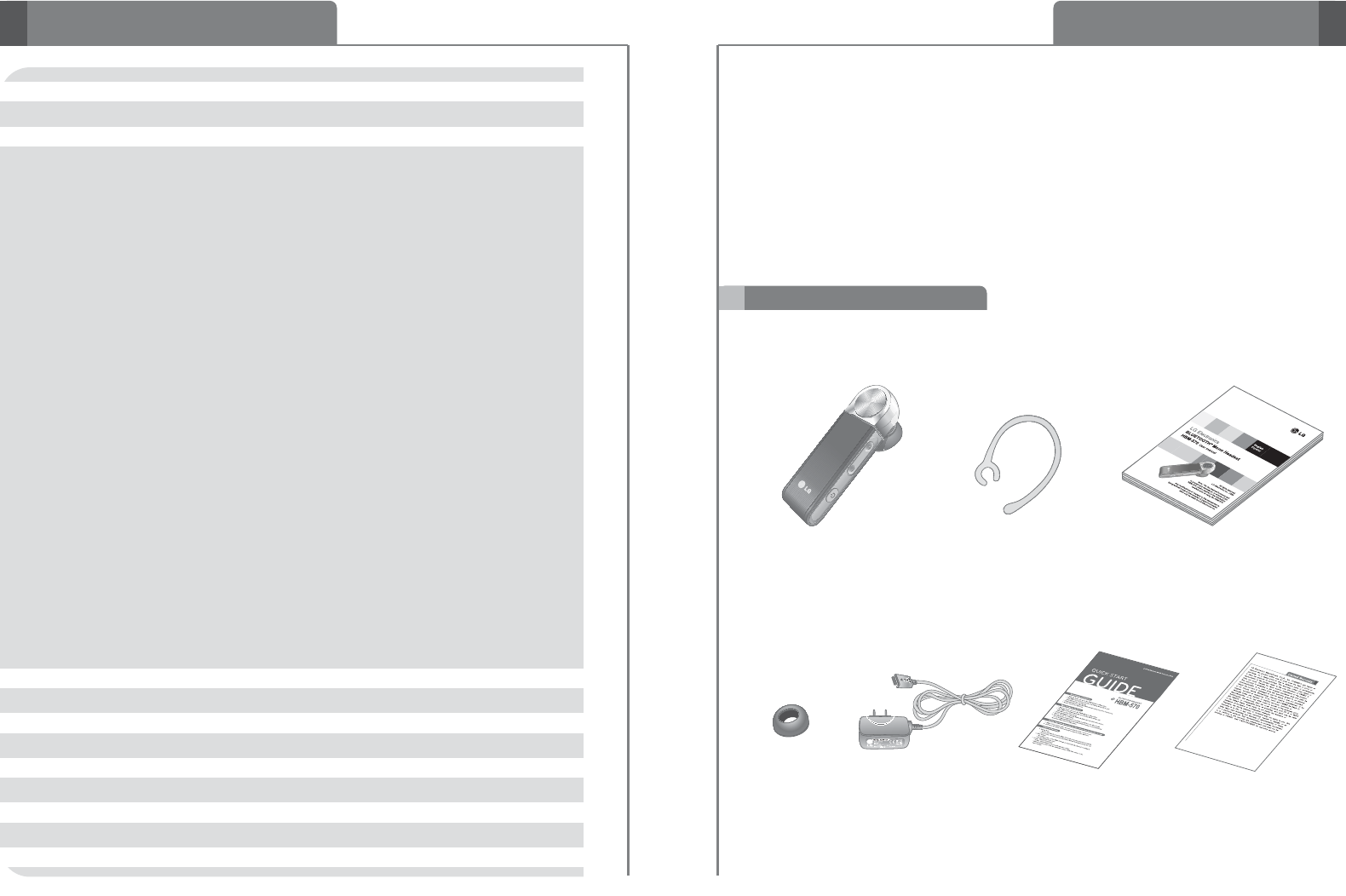

HBM-570
Bluetooth®Headset
User manual
Charger Warranty Card
Included in package
2
Table of Contents
Introduction 3
- Included in package 3
Part Description 4
How to use 4
- Change direction 4
- Charging 5
- Low battery 5
- Power on 5
- Power off 5
- Pairing 5
Easy Pairing 5
Manual Pairing 6
- Auto Reconnect 6
- Volume control 7
- Calling 7
Answering a call 7
Making a call 7
Voice dialing 7
Last number redial 7
Ending a call 7
Transferring a call 8
Call waiting 8
Call Reject 8
- Name Alert 8
- Multipoint 9
- Ear Loop Attachment and Removal 9
Summary of button functions 10
LED indication 10
Troubleshooting 11
Specification 11
Precautions 11
Declaration of confirmation 13
Additional information 13
Limited warranty 16
Important safety information 16
Ear loop
Quick Start Guide
Ear bud
Back
4 5

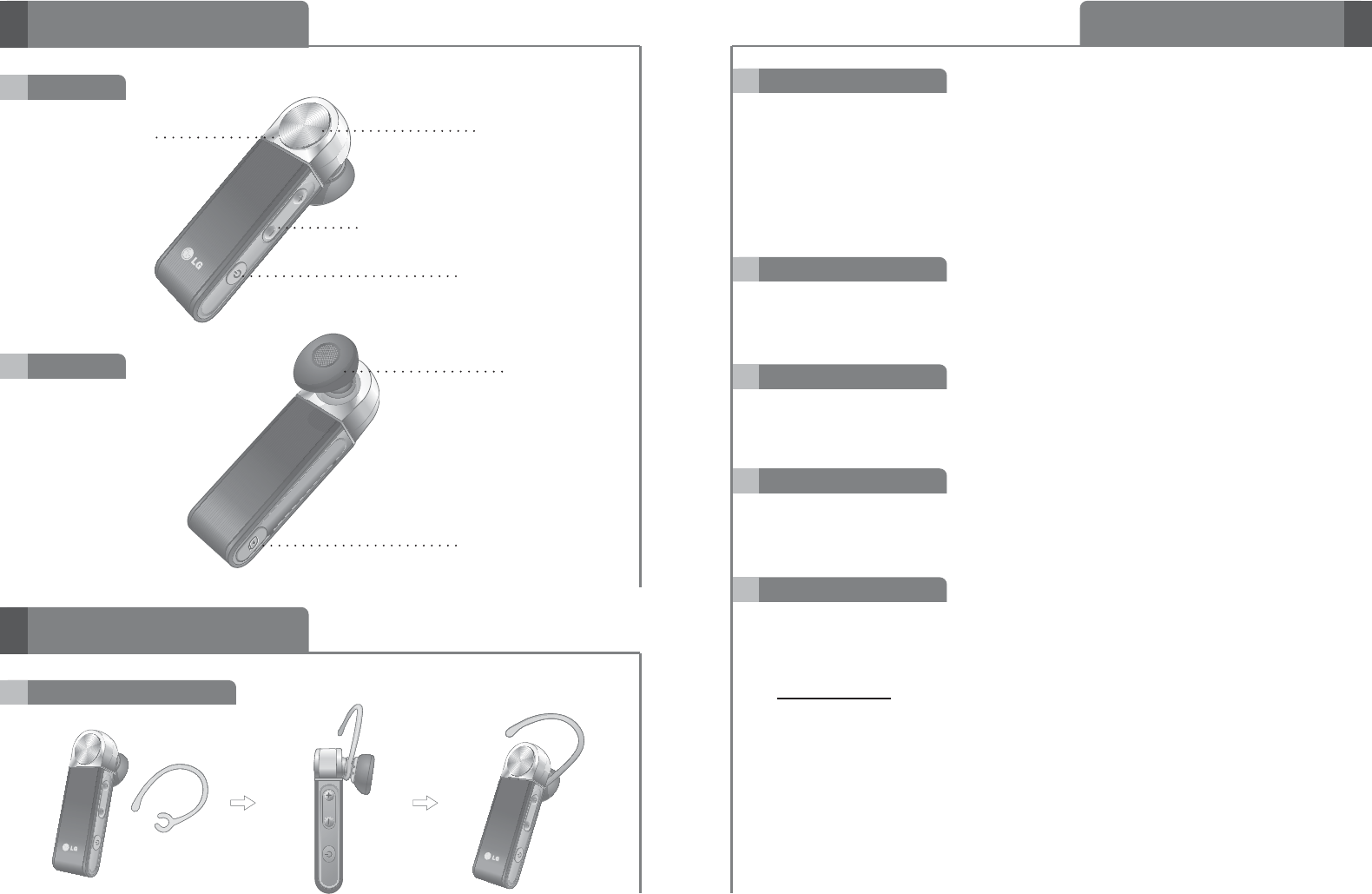

Part Description
Power Button
Charging
Low battery
Power on
Pairing
Power off
How to use
- Remove the cover on the charging port and connect the charger.
- When the charger is connected, with power on or off, the Headset will
turn off.
- While charging, the LED indicator will show a solid blue light.
- The buttons will not function while the device is charging.
- It takes 2 hours to fully charge the Headset.
- When charging is complete, the LED indicator will turn off.
- A low battery tone will play once every 30 seconds.
(Speech: Battery very low, please charge now)
- If the battery is not charged, the Headset will turn off.
- Press and Hold the PWR button for 3 seconds.
The power will turn on and a booting tone will play.
(Speech: Ready,["battery info"])
- Press and hold the PWR button for 4 seconds.
A shutdown tone will play, the Bluetooth link will disconnect,
and the power will turn off. (Speech: Powering Down)
- Prior to using the Headset for the first time, you must pair it with a
Bluetooth-enabled handset.
- There are 2 Pairing Mode Methods with the HBM-570.
1) Easy Pairing
With the Power off, press and hold the PWR button for 3 seconds,
to turn on the HBM-570.
The Headset will enter Auto-Reconnect mode, for 10 seconds
(If your Headset has been previously paired to the handset, the
Headset will automatically reconnect to the handset, when the
HBM-570 is powered on.)
After 10 seconds, the HBM-570 will automatically enter Paring Mode.
When the Headset enters Pairing Mode, the LED indicator will show
a solid blue light.
Front
LED indicator Call Button
How to use
Change direction
Volume UP / Down Button
Speaker
Charging Port
76
How to use
Volume control
Auto Reconnect
Using your handset, find the Bluetooth Menu and “search for” or
“add” new devices.
Select “LG HBM-570” from the list of devices and pair it with your handset.
When asked for the Pass/PIN code during the pairing procedure,
please enter “0000” (4 Zeros).
Once pairing has completed successfully, you will hear a beep.
(Speech: Pairing Successful to Phone)
After pairing successfully, be sure to “Connect” to the LG HBM-570.
(Speech: Connected to Phone)
If you want to pair with a different device in the future, the Headset
must be placed in Pairing Mode.
If the Headset is in Pairing mode for three minutes without being
connected to a handset, the HBM-570 will automatically turn off.
2) Manual Pairing
With the Power off, press and hold the PWR button for 6 seconds.
When the Headset enters Pairing Mode, the LED indicator will show
a solid blue light.
Using your handset, find the Bluetooth Menu and “search for” or
“add” new devices.
Select “LG HBM-570” from the list of devices and pair it with your handset.
When asked for the Pass/Pin code during the pairing procedure,
please enter “0000” (4 Zeros)
Once pairing has completed successfully, you will hear a beep.
(Speech: Pairing Successful to Phone)
After pairing successfully, be sure to “Connect” to the LG HBM-570.
(Speech: Connected to Phone)
If you want to pair with a different device in the future, the Headset
must be placed in Pairing Mode.
If the Headset is in Pairing mode for three minutes without being
connected to a handset, the HBM-570 will automatically turn off.
- When the HBM- 570 turns off (accidentally or intentionally) while
connected to a handset, the Headset and handset will disconnect.
The Headset and handset will automatically reconnect when the
HBM-570 is turned back on.(as long as both devices are within
the required range of 33ft. or 10m).
Calling
How to use
Answering a call
- When there is an incoming call, the Headset will ring.
(Speech: Call from [caller name or phone numbers])
- Briefly press the CALL button to answer an incoming call.
Making a call
- If you make a call from the handset, the call will (subject to phone settings)
automatically transfer to the Headset. If the call is not automatically
transferred, you can manually transfer the call by briefly pressing the
CALL button on the HBM- 570 (Headset and handset must be paired).
Voice dialing*
- Briefly press the CALL button to activate “Voice Command”. You will get
the best results if you record the voice dialing tag through your Headset.
NOTE: If the handset does not support Voice Dialing, it is possible
that performing this action will activate Last Number redial.
Last number redial*
- Press and hold the CALL button for 1second to activate “Last Number
Redial”. The Headset will beep, and call the last number dialed.
Ending a call
- Briefly press the CALL button.
[ Out of range ]
- When the HBM- 570 and your handset are separated by a distance of
33 feet (10 meters) or more, the Headset and handset will disconnect,
and you will hear a beep(Speech: Out of range)
When the handset and HBM- 570 are brought back within the required
distance, the HBM- 570 will automatically reconnect with the handset,
and you will hear a beep (Speech: Connected to Phone)
- If the Headset and handset do not automatically reconnect when they
are back within the required range, briefly press the CALL button on
the HBM-570 to reconnect manually.
- Press the VOLUME UP or VOLUME DOWN button to adjust the
speaker volume.
- There are eight levels of speaker volume.
8
How to use
Transferring a call*
- While on a call on your handset, briefly press the CALL button to transfer
the audio to the Headset.(Headset and handset must be paired).
- And to transfer a call from the Headset to handset, press and hold
VOLUME UP button for 5 seconds.
Call waiting*
- Answer a second call without hanging up the first call by pressing the
CALL button for 1second. Press the CALL button for 1 second to
return to the original call.
- Briefly press the CALL button to terminate the active call or both calls
at once. (subject to handset's support)
Call Reject*
- Activate Call Reject by pressing the CALL button for 1second when
the handset rings.
It is possible to use these functions only when your handset supports
them. For further information about using these features, please
consult your handset's user manual.
9
How to use
Ear Loop Attachment and Removal
Attaching the ear loop
- Hold the ear loop just above the base (C shaped part), and snap it
into place behind the speaker on the HBM-570.
Removing the ear loop
- Hold the ear loop at the base (C shaped part), and pull, to unhook
the ear loop from the HBM-570.
Note: The ear loop can be attached to the HBM-570, as an option,
if necessary. Not every user will need to attach the ear loop.
Name Alert
The LG HBM-570 is capable of telling caller's name, battery status
information and confirmations of Headset operation.
Enable/Disable 'Name Alert'
- Press and hold the VOLUME UP button on the HBM-570 for 5 seconds
to enable/disable 'Name Alert'. You will hear "Name Alert Enabled" or
"Name Alert Disabled"
Language Selection
- There are 5 languages featured in HBM-570. They are US_ENGLISH,
UK_ENGLISH, Mexican_SPANISH, FRENCH, GERMAN.
- To enter Language Selection Mode, press and hold the VOLUME UP
and VOLUME DOWN button simultaneously on the HBM-570 for 3
seconds. You will hear "Please select language".
- To browse language type, press the VOLUME UP or VOLUME DOWN
button. You will hear "[Language Type]".
- To select language, press CALL Button Once and you will hear "Selected"
Battery Information Alert
- To check battery status, press and hold the VOLUME DOWN button on
the HBM-570 for 3 seconds.
- There are 4 status : “Battery full”, “Battery half”, “Battery low”,
“Battery very Low”
Multipoint
The LG HBM-570 is capable of having two handsets connected to the
Headset at the same time. This will give you the freedom of having only
one Headset to operate both your handsets.
Multipoint Connect
- Pair the Headset with one of your Bluetooth-enabled handsets.
(per the pairing instructions on pages 5-6).
- Turn off the Headset.
- With the power off, press and hold the PWR button on the HBM-570
for 6 seconds to enter Manual Pairing mode.
- Now, pair and connect the Headset with your other Bluetooth-enabled
handset. (This will be your Primary handset).
- Once this handset is paired and connected, go back and connect the
first paired handset to Headset. (This will be your Secondary handset).
* Note: When the HBM-570 is connected to two handsets at the same
time (Multipoint), the Headset calling functions will work with
Primary handset (or handset which made a out-going call).
Calling Function
- Voice Dial and Last Number Redial features work with the Primary
handset (or handset which made a out-going call).
- The first connected device is set as primary handset and the next
connected device is set as secondary handset.
- The device which made the last outgoing call will always be set as
the primary handset.
- To answer an incoming call on your secondary handset, while on a call
on your primary handset, hang-up the active-call (briefly press the CALL
button) and then answer the incoming-call (briefly press the CALL
button again).
LED indication
Summary of button functions
Function HBM-570 Status Action
Operating Power on The blue LED light flickers 4 times.
Power off The blue LED light flickers 4 times
and then turns off.
Pairing mode The blue LED light stays on.
Specification
LED indication
ITEM Description
Bluetooth®specification V2.1 (Handsfree / Headset profiles)
Battery Battery 3.7V / 105mAh Li-Polymer
Stand by time Up to 125Hrs
Talk Time Up to 5Hrs
Charging time < 2Hrs
Operation temperature -10 ~ 55
Dimension / weight 15.9mm(W) X 56.2mm(L) X 9.8mm(T) / 11g
11
Function HBM-570
Status Action
Power on Power off Press the PWR button for 3 seconds.
Power off Power on Press the PWR button for at least
4 seconds.
Volume up Talking Briefly press the Volume Up button.
Volume down Talking Briefly press the Volume Down button.
Transferring a call Talking - Handset to Headset : Briefly press
the CALL button on the HBM-570
(Headset and handset must be paired)
- Headset to handset : Press and hold
the VOLUME UP button on
the HBM-570 for 5 seconds.
Answering a call Ringing Briefly press the CALL button.
Ending a call Talking Briefly press the CALL button.
Call waiting Talking Press the CALL button for 1 second.
Last number redial Idle Press the CALL button for 1 second.
Voice dialing Idle Briefly press the CALL button.
(handset must support)
Manual pairing Power off Press the PWR button for 6 seconds.
Call reject Ringing Press the CALL button for 1 second.
(TTS) Activate / Idle Press and hold the VOLUME UP button
Deactivate for 5 seconds
(TTS) Enter language Idle Press and hold the VOLUME UP and
selection mode VOLUME DOWN button simultaneously
for 3 seconds
(TTS) Browse language TTS Language Press the VOLUME UP or VOLUME
type Selection Mode DOWN button.
(TTS) Select language TTS Language Press CALL button Once.
Selection Mode
(TTS) Check battery Idle Press and hold the VOLUME DOWN
status button for 3 seconds.
Troubleshooting
Does not turn on Check whether the battery Charge the battery.
of the HBM-570 is fully
charged.
Unable to Check whether Determine whether your
communicate with the handset supports handset supports
the LG Bluetooth®the Headset or Handsfree the Headset or Handsfree
Headset HBM-570 Bluetooth profiles. Bluetooth profiles.
Check whether the battery Charge the battery.
of the HBM-570 is low.
Unable to pair the Check and make sure the Press and hold the PWR
HBM-570 with the Headset is on. button for at least 3 seconds
Bluetooth®device to turn on the Headset.
Check and make sure With the power off, press
the Headset is placed and hold the PWR button
in pairing mode. for 5 seconds to place the
Headset in pairing mode.
Low sound (speaker) Check the speaker volume. lncrease the volume level.
10
Operating Headset / handsfree The blue LED light flickers
Profile connected 2 times every 5 seconds.
Call connected The blue LED light flickers
2 times every 5 seconds.
Charging Charging The blue LED is stays on.
Charging complete LED is turned off.

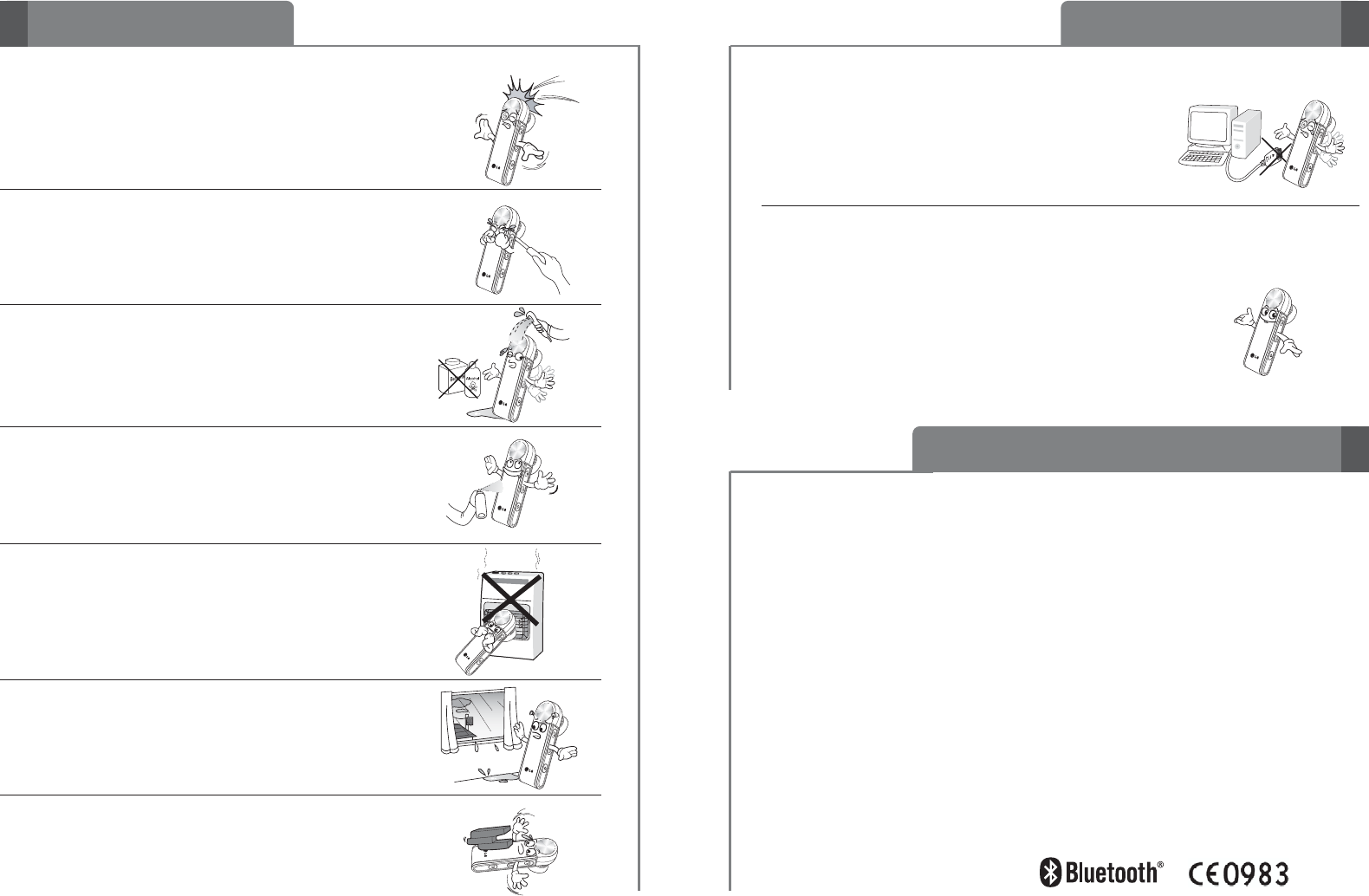

Precautions
1312
Keep unit away from humidity & dust.
Do not place heavy objects on the unit.
Precautions
Please only use the Headset with an LG
original charger (Travel Adaptor, Vehicle
Power Charger). Otherwise the Headset
might be damaged.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
There is a risk of explosion if the battery is
replaced by on incorrect type.
Dispose of used batteries according to
the instructions.
Do not place or keep the unit near
flammables.
Declaration of Confirmation
FCC NOTICE TO USERS :
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE :
To comply with the FCC RF exposure compliance requirements,
no change to the antenna or the device is permitted. Any change to
the antenna or the device could result in the device exceeding the RF
exposure requirements and void user's authority to operate the device.
Hereby, LG Electronics Inc. declares that this HBM-570 is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.
FCC ID : BEJHBM570
Do not modify, repair, or take apart.
Do not expose directly to water,
alcohol, benzene, etc. for cleaning.
Do not expose directly to flammables.
Do not drop the unit from high places.
1514
1. Radio frequency exposure
This Bluetooth®Headset, HBM-570, is a radio transmitter and receiver.
When in operation, it communicates with a Bluetooth®equipped mobile device
by receiving and transmitting radio frequency (RF) electromagnetic fields
(microwaves) in the frequency range 2.4 to 2.4835 GHz. The output power of
the radio transmitter is low, 0.001 watt. Your Bluetooth®Headset is designed
to operate in compliance with the RF exposure guidelines and limits set by
national authorities and international health agencies when used any compatible
LG Electronics mobile phone.
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive
atmosphere. It is rare, but your electronic device could generate sparks.
Sparks in such areas could cause an explosion or fire resulting in bodily
injury or even death. Areas with a potentially explosive atmosphere are often,
but not always, clearly marked.
3.Emergency calls
IMPORTANT!
This Bluetooth®Headset and the electronic device connected to the Headset
operate using radio signals, cellular and landline networks as well as user -
programmed functions, which cannot guarantee connection under all
conditions. Therefore you should never rely solely upon any electronic device
for essential communications (e.g. medical emergencies). Remember, in order
to make or receive calls, the Headset and the electronic device connected to
the Headset must be switched on and in a service area with adequate cellular
signal strength. Emergency calls may not be possible on all cellular phone
networks or when certain network services and/or phone features are in use.
Check with your local service provider.
4. Battery information
A rechargeable battery has a long service life if treated properly.
A new battery or one that has not been used for a long period of time could
have reduced capacity the first few times it is used. Do not expose the battery
to extreme temperatures, never above +60°(+140°F) or under -20°(-4°F).
For maximum battery capacity, use the battery in room temperature.
If the battery is used in low temperatures, the battery capacity will be reduced.
The battery can only be charged in temperatures between +10°(+50°F) and
+45°(+113°F). For your safety, do not remove the battery incorperated in the
product. If you need to replace the battery, take it to the nearest authorised
LG Electronics service point or dealer for assistance.
Additional Information Additional Information
5. Recycling the battery in your Bluetooth®Headset
The battery in your Bluetooth®Headset must be disposed of properly and
should never be placed in municipal waste. The LG Electronics service
partner removing battery will dispose of it according to local regulations.
6. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser
by the dealer, specifying the date of purchase and serial number, is presented
with the product to be repaired or replaced. LG Electronics reserves the right
to refuse warranty service if this information has been removed or changed
after the original purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or replaced
product shall be warranted for the remaining time of the original warranty period
or for ninety (90) days from the date of repair, whichever is longer. Repair or
replacement may involve the use of functionally equivalent reconditioned units.
Replaced parts or components will become the property of LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear
and tear, or due to misuse, including but not limited to use in other than the
normal and customary manner, in accordance with instructions for use and
maintenance of the product. Nor does this warranty cover any failure of the
product due to accident, modification or adjustment, acts of God or damage
resulting from liquid.
- This warranty does not cover product failures due to improper repair installations,
modifications or service performed by a non-LG Electronics authorized person.
Tampering with any of the seals on the product will void the warranty.
-THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL,
OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY.
IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER,
INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS,
TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
Some countries/states do not allow the exclusion or limitation of incidental
or consequential damages, or limitation of the duration of implied warranties,
so the preceding limitations or exclusions may not apply to you. The warranty
provided does not affect the consumer's statutory rights under applicable
national legislation in force, nor the consumer's rights against the dealer
arising from their sales/purchase contract.
16
Important safety information
Subject to the conditions of this Limited Warranty, LG Electronics
warrants this product to be free from defects in design, material and
workmanship at the time of its original purchase by a consumer, and
for a subsequent period of one (1) year. Should your product need
warranty service, please return it to the dealer from whom it was
purchased or contact your local LG Electronics contact center to
get further information.
Limited Warranty
Avoiding hearing damage Permanent hearing loss may occur if you
use your Headset at a high volume. Set the volume to a safe level.
You can adapt over time to a higher volume of sound that may sound
normal but can be damaging to your hearing. If you experience ringing
in your ears or muffled speech, stop listening and have your hearing
checked. The louder the volume, the less time is required before your
hearing could be affected. Hearing experts suggest that to protect your
hearing:
Limit the amount of time you use Headset at high volume.
Avoid turning up the volume to block out noisy surroundings.
Turn the volume down if you can't hear people speaking near you.
Please refer to your handset user guide for more information on how
to adjust listening levels on your handset.
Using Headsets safely Use of Headsets to listen to music while
operating a vehicle is not recommended and is illegal in some areas.
Be careful and attentive while driving. Stop using this device if you
find it disruptive or distracting while operating any type of vehicle or
performing any other activity that requires your full attention.

Navigation menu
