Note : For the best performance and to prevent
any damage to, or misuse of the HBM-586,
please read all of the information carefully
before to using the HBM-586.
Any modifi cations or changes to this manual due to
typographical errors or inaccuracies of stated information
shall only be made by LG Electronics Inc.
LG Electronics
BLUETOOTH® Mono Headset
HBM-586 User Manual
2 3
Introduction
ENG
ENG

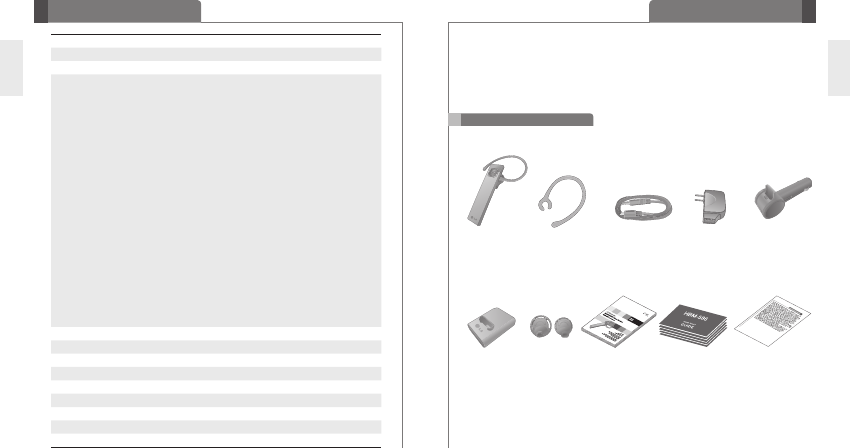

Included in the package
The LG Bluetooth® Headset HBM-586 is a light weight wireless headset that uses
Bluetooth® technology.
This product can be used as an audio accessory for devices that support the
headset, hands-free and A2DP Bluetooth® profi les.
Introduction 3
- Included in Package 3
Description of parts 4
How to use 4
- Change direction 4
- Charging 5
- Low battery 5
- Battery status alert 5
- Power on 5
- Power off 5
- Pairing 6
• Easy Pairing 6
• Manual Pairing 6
- Auto Reconnect 7
• Out of range 7
- Volume control 7
- Calling 8
• Answering a call 8
• Making a call 8
• Voice dialing 8
• Last number redial 8
• Ending a call 8
• Transferring a call 8
• Call waiting 8
• Call Reject 9
- Advanced multipoint 9
• Connection 9
• Calling function 9
- Audio Streaming (A2DP) 10
- SMS Reader 10
Summary of button functions 11
LED indication 12
Troubleshooting 12
Specification 13
Precautions 13
Declaration of confirmation 14
Additional information 14
Limited warranty 17
Important safety information 17
Table of Contents
LG HBM-586
Bluetooth®
Headset
Ear loop 5 Pin Data
Cable
Adapter Vehicle Power
Adapter
Small Charging
Cradle
Ear buds User manual Quick Start
Guide
Warranty Card
4 5

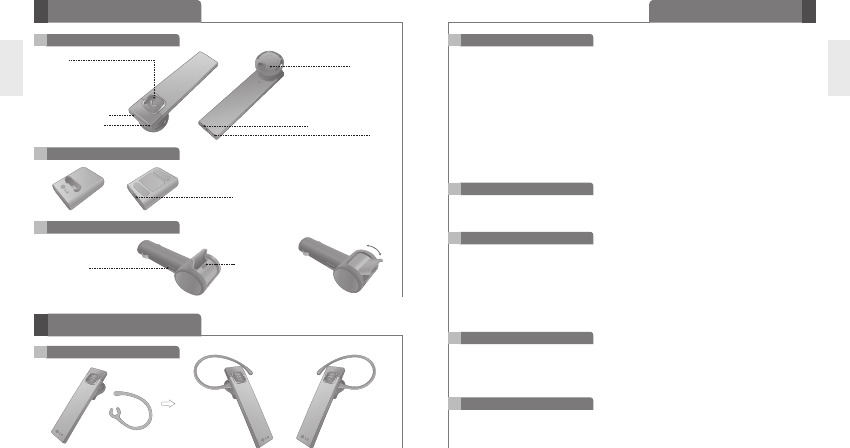

Description of parts How to use
ENG
ENG
Charging
- Slide the HBM-586 into the Small Charging Cradle or the Vehicle Power Adapter.
- When the headset is placed into either charging device, the headset will turn off.
- While charging, the LED indicator on the headset will show a solid white light.
- The buttons will not function while the device is charging.
- It takes 2 hours to fully charge the headset.
- When charging is complete, the LED indicator will turn off.
NOTE: When the HBM-586 is removed from the charging device (Small
Charging Cradle or Vehicle Power Adapter), it will automatically power
ON. If the headset has already been paired to your handset, it will
automatically reconnect when removed.
Change direction
Low battery
- An announcement will play once every 2 minutes.
- If the battery is not charged, the headset will turn off.
Power on
- Press and hold the MFB for 3 seconds.
• The power will turn on and a startup tone will play.
- The audible battery status alert will let you know the battery level.
Power off
- Press and hold the MFB for 3 seconds.
• A shutdown tone will play, the Bluetooth link will disconnect and the power will
turn off.
How to use
Headset
Left Right
Battery status alert
- By pressing and holding the VOLUME button for 3 seconds, you can check the
battery status of the HBM-586. The audible battery status alert will inform you of the
battery level. There are 3 levels of battery power:
1. Battery High
2. Battery Medium
3. Battery Low
Speaker
MFB
(Multi-Function Button)
Volume Button
LED Indicator Charging Contacts
Mic
Small Charging Cradle
Charging Port
Vehicle Power Adapter
LED Indicator
USB Port
6 7
How to use
ENG
ENG
Auto reconnect
- If the HBM-586 is turned off (either accidentally or intentionally) while connected
to a handset, the headset and handset will disconnect.
The headset and handset will automatically reconnect when the HBM-586 is
turned back on (provided that both devices are within the required range of 33
feet 10 meters).
Out of range
- When your handset and HBM-586 are separated by a range of 33 feet (10
meters) or more, the headset and handset will disconnect.
When the handset and HBM-586 are within the required range again, the HBM-
586 will automatically reconnect to the handset.
- If the headset and handset do not automatically reconnect when they are back
within the required range, briefl y press the MFB on the HBM-586 to reconnect
manually.
- While trying to reconnect, your headset will beep and the LED indicator will fl icker
twice every 5 seconds.
- Before using the headset for the fi rst time, it must be paired with a Bluetooth-
enabled handset.
- There are 2 pairing modes with the HBM-586.
1) Easy Pairing
• Press and hold the MFB for 3 seconds to turn on the HBM-586.
• The headset will enter auto-reconnect mode for 10 seconds. (if your headset
has already been paired with the handset, the headset will automatically
reconnect to the handset when the HBM-586 is powered on).
• After 10 seconds, the HBM-586 will automatically enter pairing mode.
• When the headset enters pairing mode, the LED indicator will show a solid
white light.
• Using your handset, fi nd the Bluetooth menu and “search for” or “add” new
devices.
• Select “LG HBM-586” from the list of devices and pair it with your handset.
• If you are asked for the passkey or PIN during pairing, please enter “0000”
(4 zeros).
• Once pairing has been completed successfully, you will hear “Headset paired”.
• After pairing has been completed, make sure you “connect” to the LG HBM-
586. You will hear “Connected”.
• If you want to pair with a different device in the future, the headset must be
placed into pairing mode.
• If the headset is in pairing mode for 3 minutes without being connected to a
handset, the HBM-586 will automatically turn off.
2) Manual Pairing
• With the power off, press and hold the MFB for 6 seconds.
• When the headset enters pairing mode, the LED indicator will show a solid
white light.
• Using your handset, fi nd the Bluetooth menu and “search for” or “add” new
devices.
• Select “LG HBM-586” from the list of devices and pair it with your handset.
• If you are asked for the passkey or PIN during pairing, please enter “0000”
(4 zeros).
Volume control
- Press the VOLUME button to adjust the speaker volume.
- There are eight levels of speaker volume. The volume will increase one level,
each time the volume button is pressed. When the headset reaches the
maximum volume level, the next press of the button returns the headset to the
lowest volume level.
How to use
Pairing • Once pairing has been completed successfully, you will hear “Headset paired”.
• After pairing has been completed, make sure you “connect” to the LG HBM-586.
You will hear “Connected”
• If you want to pair with a different device in the future, the headset must be
placed into pairing mode.
• If the headset is in pairing mode for 3 minutes without being connected to a
handset, the HBM-586 will automatically turn off.
8 9
How to use
ENG
ENG
Calling
Answering a call
- When there is an incoming call, the headset will ring.
- Briefl y press the MFB to answer the incoming call.
Making a call
- If you make a call from the handset, the call will (depending on the phone settings)
automatically transfer to the headset. If the call is not automatically transferred,
you can manually transfer the call by briefl y pressing the MFB on the HBM-586
(handset and headset must be paired).
Voice dialing*
- Briefl y press the MFB to activate “Voice Command”.
For best results, record the Voice dialing tag through your headset.
NOTE: If your handset does not support Voice dialing, this action may activate Last
Number Redial.
Last number redial*
- Press and hold the MFB for 1 second to activate “Last number redial”.
The headset will beep and then call the last number dialed.
Ending a call
- Briefl y press the MFB.
Transferring a call*
- While on a call on your handset, briefl y press the MFB to transfer the audio to the
headset (the headset and handset must be paired).
- To transfer a call from the headset to handset, press and hold the VOLUME button
for 3 seconds.
Call waiting*
- Answer a second call without hanging up the fi rst call by pressing the MFB for
1second. Press the MFB for 1second to return to the original call.
- Briefl y press the MFB to terminate both calls at once.
How to use
Call Reject*
- Activate call reject by pressing the MFB for 1 second when the handset rings.
* These functions may only be used if your handset supports them. For further
information about using these features, please consult your handset’s user manual.
Advanced multipoint
The LG HBM-586 is capable of having two handsets connected to the headset at the
same time. This will give you the freedom of having only one headset to operate both
of your handsets.
Connection
- Pair the headset with one of your Bluetooth-enabled handsets. (per the pairing
instructions on pages 6).
- Turn off the headset.
- With the power off, press and hold the MFB on the HBM-586 for 6 seconds to enter
Manual Pairing mode.
- Now, pair and connect the headset with your other Bluetooth-enabled handset.
(This will be your primary handset).
- Once this handset is paired and connected, go back and connect the fi rst paired
handset to the headset. (This will be your secondary handset).
* NOTE: When the HBM-586 is connected to two handsets at the same
time(multipoint), the headset calling functions will work with the primary
handset (or handset which made the last outgoing call).
Calling function
- Voice dialing and Last Number Redial features work with the primary handset (or
handset which made the last outgoing call).
- The fi rst connected device is set as the primary handset and the next connected
device is set as the secondary handset.
- The device which made the last outgoing call will always be set as the primary
handset.
- If there is an incoming call on each handset, the fi rst incoming call can be answered
by a brief press of the MFB.
10 11
ENG
ENG
How to use
Audio Streaming (A2DP)
The HBM-586 supports music streaming (A2DP).
When you play music from your Bluetooth Enabled Device, it will automatically
transfer to your headset. Music will automatically pause when you have an incoming
call. When the call is ended the music will start playing again.
A2DP allows streaming of all audio from your handset and running applications
Including Music and GPS Navigation.
SMS Reader
The HBM-586 Bluetooth Headset supports SMS reading on AndroidTM based
devices.
In the AndroidTM Marketplace search for the LG “BT Reader” app and install on your
device to use this function.
* The 2D barcode shown below helps you download the BTReaderTM application
from Android MarketTM.
Summary of button functions
Function
HBM-586 Status
Action
Power on Power off Press the MFB for 3 seconds.
Power off Power on Press the MFB for 4 seconds.
Volume up Talking Briefl y press the VOLUME button.
Volume down Talking
Briefl y press the VOLUME DOWN button.
Transferring a call Talking
- Handset to headset
Briefl y press the MFB (must be paired)
- Headset to handset
Press and hold the VOLUME button for 3
seconds.
Answering a call Ringing Briefl y press the MFB.
Ending a call Talking Briefl y press the MFB.
Call waiting Talking Press the MFB for 1 second.
Last number redial Idle Press the MFB for 1 second.
Voice dialing
(handset must
support)
Idle Briefl y press the MFB.
Call reject Ringing Press the MFB for 1 second.
Pairing mode
(Manual) Power off Press the MFB for 6 seconds.
Battery status check
Idle
Press the VOLUME button for 3 seconds.
12 13
ENG
ENG
Function HBM-586 Status Action
Operating
Power on The white LED light fl ickers 4 times.
Power off
The white LED light fl ickers 4 times and then turns off.
Pairing mode The white LED light stays on.
Headset / Hands-free
profi le connected
The white LED light fl ickers twice every 5 seconds.
Call connected The white LED light fl ickers twice every 5 seconds.
Out of range
For 15 minutes since linkloss occurred, the white
LED light fl ickers twice every 5 seconds.
After 15 minutes, the white LED light fl ickers once
every 5 seconds.
Charging Charging The white LED light stays on.
Charging complete
The LED light turns off.
Specifi cation
Issue Possible problem Resolution
Does not turn on Check whether the battery of
the HBM-586 is fully charged. Charge the battery.
Unable to
communicate with
the LG Bluetooth
®
Headset HBM-586
Check whether the handset
supports the headset or
hands-free Bluetooth profi les
Determine whether your handset
supports the headset or hands-
free Bluetooth profi les.
Check whether the battery of
the HBM-586 is low.
Charge the battery.
Unable to pair the
HBM-586 with the
Bluetooth
®
device
Check and make sure the
headset is on.
Press and hold the MFB for at
least 3 seconds to turn on the
headset.
Check and make sure the
headset is placed in pairing
mode.
With the power off, press and
hold the MFB for 6 seconds to
manually place the headset in
pairing mode.
Low sound (speaker) Check the speaker volume. lncrease the volume level.
LED indication
Troubleshooting
ITEM Description
Bluetooth
®
specifi cation
V3.0 (Headset / Hands-Free / A2DP Profi les)
Battery
3.7V, Li- Polymer, 60mAh
Talk Time Up to 5 Hrs
Stand by time Up to 200 Hrs
Charging time < 2 hours
Operation temperature -10°C ~ 50°C
Dimension / weight Headset : 15mm(W) X 61.5mm(L) X 3.8mm(H) / 7.2g
Cradle : 30.6mm(W) X 38.7mm(L) X 9.2mm(H) / 16.8g
Precautions
Do not drop the device.
Do not modify, repair, or disassemble.
Do not expose directly to water, alcohol, benzene, etc. for cleaning.
Do not expose directly to fl ammables.
Do not place or keep the device near fl ammables.
Keep the device away from humidity and dust.
Do not place heavy objects on the device.
Only use the headset with an original LG charger, otherwise the it may be
damaged.
• Changes or modifi cations not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• There is a risk of explosion if the battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• The earloop is made of a durable plastic.
However, bending the earloop repeatedly is not recommended.
14 15
ENG
ENG
FCC NOTICE TO USERS:
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to
the antenna or the device is permitted. Any change to the antenna or the device
could result in the device exceeding the RF exposure requirements and void user’s
authority to operate the device.
CE NOTICE TO USERS:
Hereby, LG Electronics Inc. declares that this HBM-586 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
1. Radio frequency exposure
This Bluetooth® Headset HBM-586, is a radio transmitter and receiver.
When in operation it communicates with a Bluetooth® equipped mobile device by
receiving and transmitting radio frequency (RF) electromagnetic fi elds (microwaves)
in the frequency range 2.4 to 2.4835 GHz. The output power of the radio transmitter
is . Your Bluetooth® Headset is designed to operate in compliance
with the RF exposure guidelines and limits set by national authorities and
international health agencies when used any compatible LG Electronics mobile
phone.
Additional Information
Declaration of Confi rmation
Additional Information
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive
atmosphere. Although this is uncommon, your electronic device could generate
sparks. Sparks in such areas could cause an explosion or fi re resulting in bodily
injury or even death. Areas with a potentially explosive atmosphere are often, but
not always, clearly marked.
3.Emergency calls
IMPORTANT!
This Bluetooth® headset and the electronic device connected to the headset
operate using radio signals, mobile and landline networks as well as user -
programmed functions, which cannot guarantee connection under all conditions.
Therefore you should never rely solely upon any electronic device for essential
communications (e.g.medical emergencies). Remember, in order to make or
receive calls, the headset and the electronic device connected to the headset
must be switched on and in a service area with adequate mobile signal strength.
Emergency calls may not be possible on all mobile phone networks or when
certain network services and/or phone features are in use. Check with your local
service provider.
4. Battery information
A rechargeable battery has a long service life if treated properly. A new battery
or one that has not been used for a long period of time could have reduced
capacity the fi rst few times it is used. Do not expose the battery to extreme
temperatures, never above +60°C(+140°F) or under -20°C(-4°F). For maximum
battery capacity, use the battery at room temperature. If the battery is used in
low temperatures, the battery capacity will be reduced. The battery can only be
charged in temperatures between +10°C(+50°F) and +45°C (+113°F). For your
safety, do not remove the battery incorperated in the product. If you need to
replace the battery, take it to the nearest authorised LG Electronics service point
or dealer for assistance.
5. Recycling the battery in your Bluetooth® headset
The battery in your Bluetooth® Headset must be disposed of properly and should
never be placed in municipal waste. The LG Electronics service partner who
removes the battery will dispose of it according to local regulations.
16 17
ENG
ENG
6. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser by
the dealer, specifying the date of purchase and serial number, is presented with
the product to be repaired or replaced.
LG Electronics reserves the right to refuse warranty service if this information
has been removed or changed after the original purchase of the product from
the dealer.
- If LG Electronics repairs or replaces the product, the repaired or replaced product
shall be warranted for the remaining time of the original warranty period or for
ninety (90) days from the date of repair, whichever is longer.
Repair or replacement may involve the use of functionally equivalent
reconditioned units. Replaced parts or components will become the property of
LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear and
tear, or due to misuse, including but not limited to use in other than the normal
and customary manner, in accordance with instructions for use and maintenance
of the product. Nor does this warranty cover any failure of the product due to
accident, modifi cation or adjustment, acts of God or damage resulting from liquid.
- This warranty does not cover product failures due to improper repair installations,
modifi cations or service performed by a non- LG Electronics authorised person.
Tampering with any of the seals on the product will void the warranty.
- THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR
ORAL, OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS
BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY
NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS
OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
• Some countries/states do not allow the exclusion or limitation of incidental or
consequential damages, or limitation of the duration of implied warranties, so
the preceding limitations or exclusions may not apply to you. The warranty
provided does not affect the consumer’s statutory rights under applicable national
legislation in force, nor the consumer’s rights against the dealer arising from their
sales/purchase contract.
Additional Information Limited warranty
Subject to the conditions of this Limited Warranty, LG Electronics warrants this
product to be free from defects in design, material and workmanship at the time of
its original purchase by a consumer, and for a subsequent period of one (1) year.
Should your product need warranty service, please return it to the dealer from
whom it was purchased or contact your local LG Electronics contact centre to get
further information.
Avoiding hearing damage
Permanent hearing loss may occur if you use your headset at a high volume. Set
the volume to a safe level. Over time you can become accustomed to a higher
volume that may sound normal but can be damaging to your hearing. If you
experience ringing in your ears or muffl ed speech, stop listening and have your
hearing checked. The louder the volume, the less time is required before your
hearing could be affected.
Hearing experts suggest that to protect your hearing:
• Limit the amount of time you use the headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
Using Headsets safely
Use of headsets to listen to music while operating a vehicle is not recommended
and is illegal in some areas. Be careful and attentive whilst driving. Stop using this
device if you fi nd it disruptive or distracting whilst operating any type of vehicle or
performing any other activity that requires your full attention.
Important safety information
