BLUETOOTH®Mono Headset
HBM-760 / HBM-761 User manual
HBM-760 HBM-761
3
Introduction
The LG Bluetooth®Headset HBM-760/761 is a light weight wireless
Headset utilizing Bluetooth®technology. This product can be used
as an audio accessory for devices supporting either the Headset or
Handsfree Bluetooth®Profiles.
Bluetooth®Headset User manual

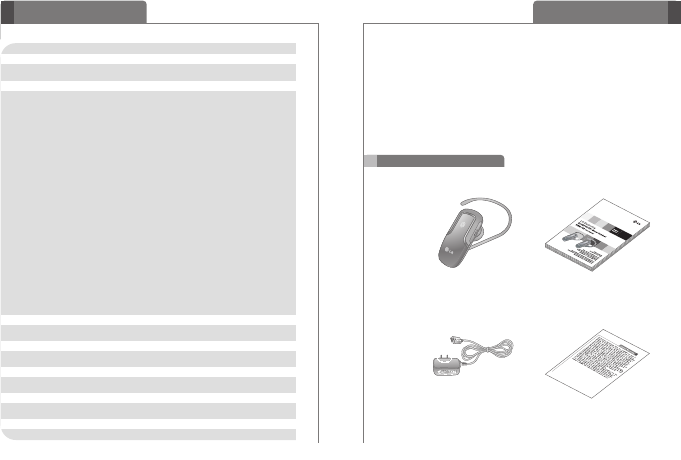

Charger Warranty Card
Included in package
2
Table of Contents
Introduction 3
Part Description 4
How to use 5
- Change direction 5
- Charging 5
- Low battery 5
- Power on 5
- Power off 6
- Pairing 6
- Auto Reconnect 7
- Volume control 7
- Calling 8
�Answering a call 8
�Making a call 8
�Voice dialing 8
�Last number redial 8
�Ending a call 8
�Transferring a call 8
�Call waiting 8
�Call Reject 8
Summary of button functions 9
LED indication 9
Troubleshooting 10
Specification 10
Precautions 11
Declaration of confirmation 13
Additional information 13
Limited warranty 16
Important safety information
16

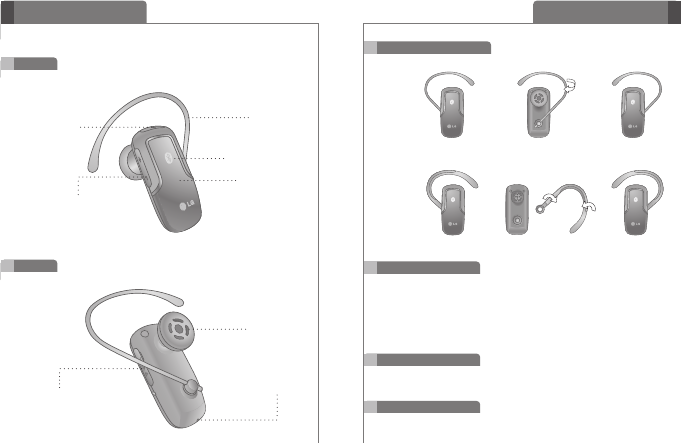

Front
Back
4 5
How to use
Volume UP / Down Button
LED indicator
Speaker
MIC
On the left Rotation On the right
Change direction
Charging Port
Part Description
Earloop
Power Button

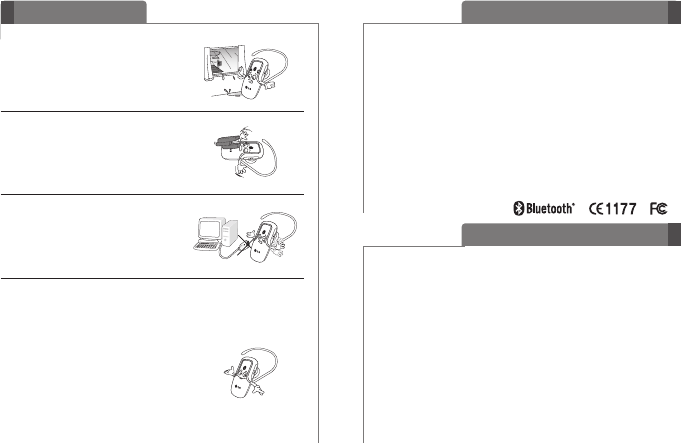

Charging
Low battery
Power on
- Remove the cover on the charging port and connect the charger.
- When the charger is connected, with power on or off, the Headset
will turn off. While charging, the LED indicator will show a solid blue light
.
- The buttons will not function while the device is charging.
- It takes 2 hours to fully charge the Headset.
- When charging is complete, the LED indicator will turn off.
- A low battery tone will play once every 30 seconds.
- If the battery is not charged, the Headset will turn off.
- Press and Hold the PWR button for 4 seconds.
�The power will turn on and a booting tone will play.
Call Button
On the left Rotation On the right
[HBM-760]
[HBM-761]
7
Auto Reconnect
How to use
6
Pairing
Power off
How to use
- Press and hold the PWR button for 2 seconds.
�A shutdown tone will play, the Bluetooth link will disconnect,
and the power will turn off.
- Prior to using the Headset for the first time, you must pair it with a
Bluetooth-enabled handset.
- There are 2 Pairing Mode Methods with the HBM-760/761.
1) Easy Pairing
�With the Power off, press and hold the PWR button for 4 seconds,
to turn on the HBM-760/761.
�The Headset will enter Auto-Reconnect mode.
(If your headset has been previously paired to the handset, the
headset will automatically reconnect to the handset, when the
HBM-760/761 is powered on.)
�
At the same time, the HBM-760/761 will automatically enter Paring Mode.
�When the headset enters Pairing Mode, the LED indicator will show
a solid blue light
�Using your handset, find the Bluetooth Menu and “search for” or
“add” new devices.
�Select “LG HBM-760/761” from the list of devices and pair it with
your handset
.
�When asked for the Pass/PIN code during the pairing procedure,
please enter “0000” (4 Zeros).
�Once pairing has completed successfully, you will hear a beep.
�
After pairing successfully, be sure to “Connect” to the LG HBM-760/761.
�
If you want to pair with a different device in the future, the Headset
must be placed in Pairing Mode.
�If the headset is in Pairing mode for three minutes without being
connected to a handset, the HBM-760/761 will automatically enter Idle.
2) Manual Pairing
�With the Power off, press and hold the CALL button for 7 seconds.
�When the Headset enters Pairing Mode, the LED indicator will show
a solid Blue light.
�Using your handset, find the Bluetooth Menu and “search for” or
“add” new devices.
Volume control
�Select “LG HBM-760/761” from the list of devices and pair it with
your handset.
�When asked for the Pass/Pin code during the pairing procedure,
please enter “0000” (4 Zeros)
�Once pairing has completed successfully, you will hear a beep.
�
After pairing successfully, be sure to “Connect” to the LG HBM-760/761.
�If you want to pair with a different device in the future, the Headset
must be placed in Pairing Mode.
�If the headset is in Pairing mode for three minutes without being
connected to a handset, the HBM-760/761 will automatically enter Idle.
- When the HBM- 760/761 turns off (accidentally or intentionally) while
connected to a handset, the headset and handset will disconnect.
The Headset and handset will automatically reconnect when the
HBM-760/761 is turned back on.
[ Out of range ]
- When the HBM-760/761 and your handset are separated by a
distance of 33 feet (10 meters) or more, the Headset and handset
will disconnect. When the handset and HBM-760/761 are brought
back within the required distance, the HBM-760/761 will automatically
reconnect with the handset.
- If the Headset and handset do not automatically reconnect when they
are back within the required range, briefly press the CALL button to
reconnect manually.
-
Press the VOLUME UP or VOLUME DOWN button to adjust the
speaker volume.
- There are eight levels of speaker volume.
9
8
How to use
LED indication
Summary of button functions
Function HBM-760/761
Status Action
Function HBM-760/761
Status Action
Power on Power off Press the PWR button for 4 seconds.
Power off Power on Press the PWR button for at least
2 seconds.
Volume up Talking Briefly press the Volume Up button.
Volume down Talking Briefly press the Volume Down button.
Transferring a call Talking - Handset to Headset
Briefly press the CALL button
(must be paired)
- Headset to Handset
Press and hold the VOLUME UP button
for 5 seconds.
Answering a call Ringing Briefly press the CALL button.
Ending a call Talking Briefly press the CALL button.
Call waiting Talking Press the CALL button for 1 second.
Last number redialing
Idle Press the CALL button for 1 second.
Voice dialing Start & stop Briefly press the CALL button.
(handset must support)
voice command
Pairing mode Power off
Press the CALL button for 7 seconds.
Call reject Ringing Press the
CALL
button for 1 second.
Operating Power on The blue LED light flickers 4 times.
Power off The blue LED light flickers 4 times
and then turns off.
Pairing mode The blue LED light stays on.
Headset /handsfree The blue LED light flickers
Profile connected 2 times every 5 seconds.
Call connected The blue LED light flickers
2 times every 5 seconds.
Charging Charging The blue LED stays on.
Charging complete LED is turned off.
Calling
Answering a call
- When there is an incoming call, the Headset will ring.
- Briefly press the CALL button to answer an incoming call.
Making a call
-
If you make a call from the handset, the call will (subject to phone settings)
automatically transfer to the Headset. If the call is not automatically
transferred, you can manually transfer the call by briefly pressing the
CALL button on the HBM-760/761 (handset and headset must be paired).
Voice dialing
*
- Briefly press the CALL button to activate “Voice Command Dialing”.
You will get the best results if you record the voice dialing tag through
your Headset.
NOTE: If the handset does not support Voice Dialing, the headset
will activate Last Number redial.
Last number redial
*
- Press and hold the CALL button for 1second to activate “Last Number
Redial”. The headset will beep, and call the last number dialed.
Ending a call
- Briefly press the CALL button.
Transferring a call
*
-
While on a call on your handset, briefly press the CALL button to
transfer the audio to the Headset.(headset and handset must be paired).
- And to transfer a call from the Headset to Handset, press and hold
VOLUME UP button for 5seconds.
Call waiting
*
- Answer a second call without hanging up the first call by pressing the
CALL button for 1second. Press the CALL button for 1second to return
to the original call.
- Briefly press the CALL button to terminate both calls at once.
Call Reject
*
- Activate Call Reject by pressing the CALL button for 1second when the
handset rings.
*
It is possible to use these functions only when your handset supports
them. For further information about using these features, please
consult your handset's user manua
l.
Troubleshooting
Specification

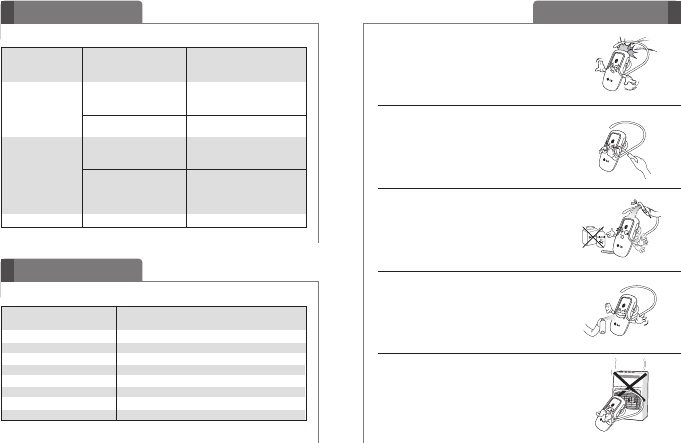

Precautions
1110
Do not drop the unit from high places.
Do not modify, repair, or take apart.
Do not expose directly to water,
alcohol, benzene, etc. for cleaning.
Do not expose directly to flammables.
Do not place or keep the unit near
flammables.
ITEM Description
Bluetooth®specification V2.0 (Handsfree / Headset profiles)
Battery 3.7V, Li- Polymer
Stand by time Up to 120Hrs
Talk Time Up to 6Hrs
Charging time < 2Hrs
Operation temperature -10℃~ 60℃
Dimension / weight 45mm(W) X 20.2mm(L) X 10.9 mm(H) / 10.8g
Adapter rated voltage AC 100 ~ 220V, 50 ~ 60HZ
Does not turn on Check whether the battery Charge the battery.
of the HBM-760/761 is
fully charged.
Unable to
Check whether the handset
Determine whether your
communicate with supports the Headset or
handset
supports the Headset
the LG Bluetooth
®
Handsfree profiles. or Handsfree profiles.
Headset Check whether the battery Charge the battery.
HBM-760/761.
of the HBM-760/761 is low.
Unable to pair the Check and make sure the
Press and hold the PWR button
HBM-760/761 with Headset is on. for at least 4 seconds to turn
the Bluetooth®on the Headset.
device. Check and make sure With the power off, press and
the
Headset is placed
hold the CALL button for
in pairing mode.
7 seconds to place the headset
in pairing mode.
Low sound
(speaker)
Check the speaker volume.
lncrease the volume level.
12
Keep unit away from humidity & dust.
Do not place heavy objects on the unit.
Precautions
Please only use the headset with an LG
original charger (Travel Adaptor, Vehicle
Power Charger). Otherwise the headset
might be damaged.
�Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
�There is a risk of explosion if the battery is replaced by
on incorrect type.
�Dispose of used batteries according to the instructions.
�The earloop is made of a durable plastic.
However, bending the earloop repeatedly
is not recommended.
Declaration of Confirmation
13
FCC NOTICE TO USERS :
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE :
To comply with the FCC RF exposure compliance requirements, no change
to the antenna or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure requirements
and void user's authority to operate the device.
User Information for CE
Hereby, LG Electronics Inc., declares that this HBM-760/761 is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.
Additional Information
1. Radio frequency exposure
This Bluetooth®Headset, HBM-760/761, is a radio transmitter and
receiver. When in operation, it communicates with a Bluetooth®
equipped mobile device by receiving and transmitting radio
frequency (RF) electromagnetic fields (microwaves) in the
frequency range 2.4 to 2.4835 GHz. The output power of the radio
transmitter is low, 0.001 watt. Your Bluetooth®Headset is designed
to operate in compliance with the RF exposure guidelines and limits
set by national authorities and international health agencies when
used any compatible LG Electronics mobile phone.
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially
explosive atmosphere. It is rare, but your electronic device could
generate sparks. Sparks in such areas could cause an explosion or
fire resulting in bodily injury or even death. Areas with a potentially
explosive atmosphere are often, but not always, clearly marked.
1514
3.Emergency calls
IMPORTANT!
This Bluetooth®Headset and the electronic device connected to the
Headset operate using radio signals, cellular and landline networks
as well as user- programmed functions, which cannot guarantee
connection under all conditions.
Therefore you should never rely solely upon any electronic device
for essential communications (e.g. medical emergencies).
Remember, in order to make or receive calls, the Headset and the
electronic device connected to the Headset must be switched on and
in a service area with adequate cellular signal strength. Emergency
calls may not be possible on all cellular phone networks or when
certain network services and/or phone features are in use. Check
with your local service provider.
4. Battery information
A rechargeable battery has a long service life if treated properly.
A new battery or one that has not been used for a long period of time
could have reduced capacity the first few times it is used.
Do not expose the battery to extreme temperatures, never above
+ 60。(+140。F) or under -20。(-4。F). For maximum battery capacity,
use the battery in room temperature. If the battery is used in low
temperatures, the battery capacity will be reduced. The battery can
only be charged in temperatures between
+ 10。(+50。F) and + 45。(+ 113。F).
5. Recycling the battery in your Bluetooth®Headset
The battery in your Bluetooth®Headset must be disposed of properly
and should never be placed in municipal waste. The LG Electronics
service partner removing battery will dispose of it according to local
regulations.
6. Conditions
-
The warranty is valid only if the original receipt issued to the original
purchaser by the dealer, specifying the date of purchase and serial
number, is presented with the product to be repaired or replaced.
LG Electronics reserves the right to refuse warranty service if this
information has been removed or changed after the original
purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or
replaced product shall be warranted for the remaining time of the
original warranty period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement may involve the
use of functionally equivalent reconditioned units. Replaced parts
or components will become the property of LG Electronics.
- This Warranty does not cover any failure of the product due to
normal wear and tear, or due to misuse, including but not limited to
use in other than the normal and customary manner, in accordance
with instructions for use and maintenance of the product. Nor does
this warranty cover any failure of the product due to accident,
modification or adjustment, acts of God or damage resulting from
liquid.
- This warranty does not cover product failures due to improper
repair installations, modifications or service performed by a non- LG
Electronics authorized person. Tampering with any of the seals on
the product will void the warranty.
-THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR
ORAL, OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS
LIMITED WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS
VENDORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT
LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE FULL
EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
�
Some countries/states do not allow the exclusion or limitation of
incidental or consequential damages, or limitation of the duration
of implied warranties, so the preceding limitations or exclusions
may not apply to you. The warranty provided does not affect the
consumer's statutory rights under applicable national legislation in
force, nor the consumer's rights against the dealer arising from
their sales/purchase contract.
Additional Information Additional Information
16
IMPORTANT SAFETY INFORMATION
Subject to the conditions of this Limited Warranty, LG Electronics
warrants this product to be free from defects in design, material and
workmanship at the time of its original purchase by a consumer, and
for a subsequent period of one (1) year. Should your product need
warranty service, please return it to the dealer from whom it was
purchased or contact your local LG Electronics contact center to get
further information.
Limited Warranty
Avoiding hearing damage Permanent hearing loss may occur if you
use your headset at a high volume. Set the volume to a safe level.
You can adapt over time to a higher volume of sound that may sound
normal but can be damaging to your hearing. If you experience ringing
in your ears or muffled speech, stop listening and have your hearing
checked. The louder the volume, the less time is required before your
hearing could be affected. Hearing experts suggest that to protect your
hearing:
�Limit the amount of time you use headset at high volume.
�Avoid turning up the volume to block out noisy surroundings.
�Turn the volume down if you can't hear people speaking near you.
For information about how to set a maximum volume limit on your
handset, please refer to the features guide for your handset.
Using headsets safely Use of headsets to listen to music while
operating a vehicle is not recommended and is illegal in some areas.
Be careful and attentive while driving. Stop using this device if you
find it disruptive or distracting while operating any type of vehicle or
performing any other activity that requires your full attention.
