TABLE OF CONTENTS
[Key Display] ……………………………………………………………………………………………………………….……3
I. Booting …..………………………………………………………………………………………………………………….…4
II. Shut down ………………………………………………………………………………………………………………..…..4
III. Charging ………………………………………………………………………………………..……………………………4
IV. Pairing ……………………………………………………………………………………………………………………..…4
V. Waiting ………………………………………………………………………..………………………………………………5
VI. Connect ………………………………………………………………………………………………………………...……5
VII. Disconnect ……………………………………………………………………………………………………….…………6
VIII. Volume Up and Down …………………………………………………………………………………………………….6
IX. Handsfree Profile Related Functions ……………………………………………………………………………….….…7
1. Incoming Call ……………………………………………………………………………….…………………………..7
2. Picking up a Call ……………………………………………………………………………….…………………….…7
3. Making a Call ……………………………………………………………………………….……………………….….7
4. Terminating a Call ……………………………………………………………………………….……………………..7
5. Audio Transfer ……………………………………………………………………………….………………………....7
X. AV Profile Related Functions ……………………………………………………………………………….………………8
1. Playing Music ……………………………………………………………………………….……………………….….8
2. To Pause playing ……………………………………………………………………………….………………………8
3. To Resume playing ……………………………………………………………………………….……………………8
4. To Stop playing ……………………………………………………………………………….………………………..8
5. Next Song in the Playlist ……………………………………………………………………………….……………..8
6. Previous Song in the Playlist ……………………………………………………………………………….………...8
XI. Hold Switch ……………………………………………………………………………….……………………………..…9
XII. LCD ON / OFF ………………………………………………………………………………………………………….…9
LG Electronics Inc.,
File name : HBS-110 User Manual
Revision number : 20050930.005
3

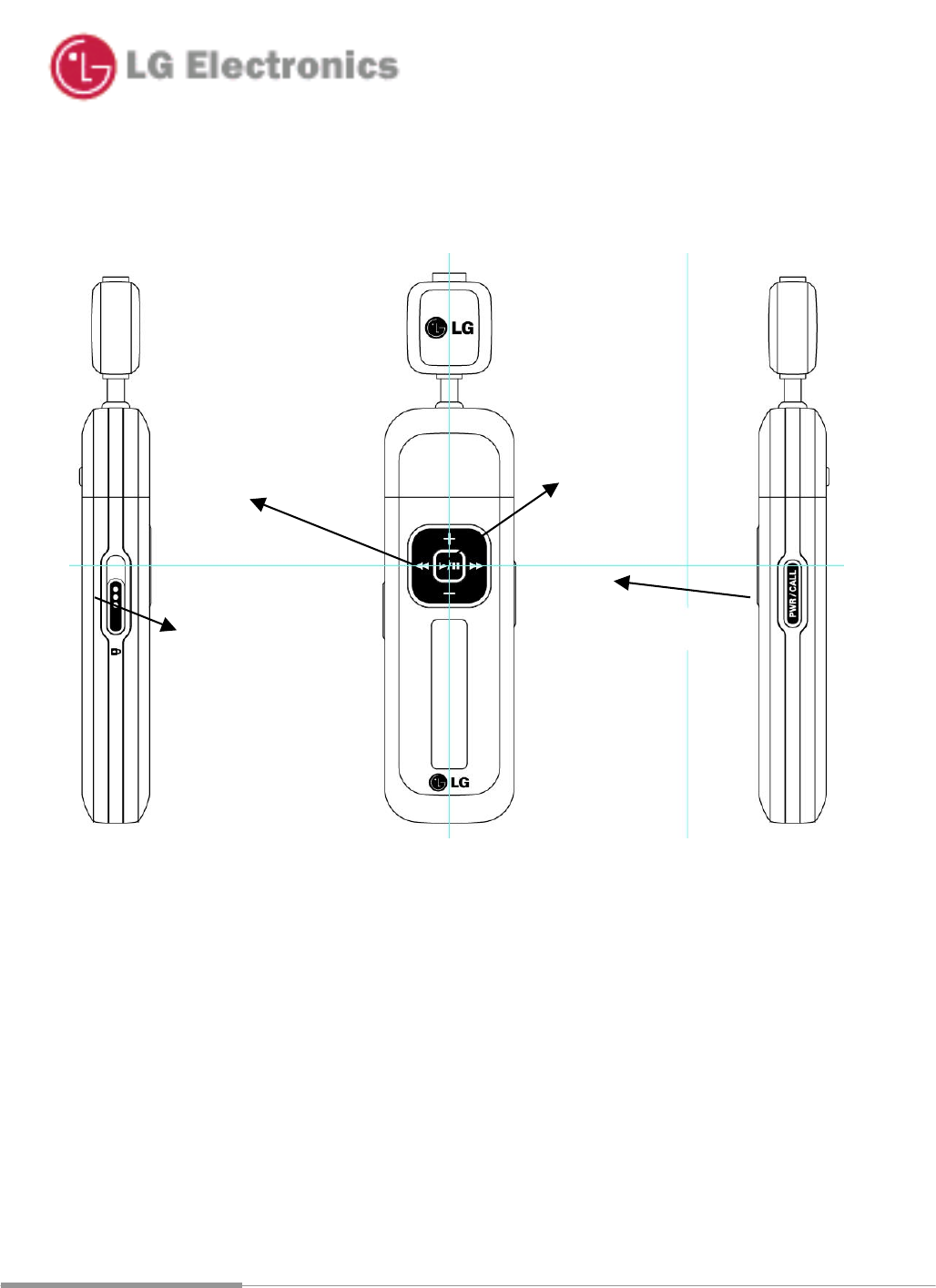

[Key Display]
Play / Pause Key Function Key
Power / Call Key
Hold key
LG Electronics Inc.,
File name : HBS-110 User Manual
Revision number : 20050930.005
4
I. Booting
- Press and the Hold Power/Talk button for more than 3 seconds until you hear a series of beeps followed
By a connection signal
- LED indicates the “Connectable”.
- LCD will be Off and enter the Power saving Mode after 60 seconds without pressing any key.
II. Shut down
- Press and the Hold Power /Talk button for more than 5 seconds.
- LED indicates the “Good bye”
III. Charging
- Before using your HBS110, you need to charge it fully by plugging the charger into the DC jack outlet.
Æ Æ ….

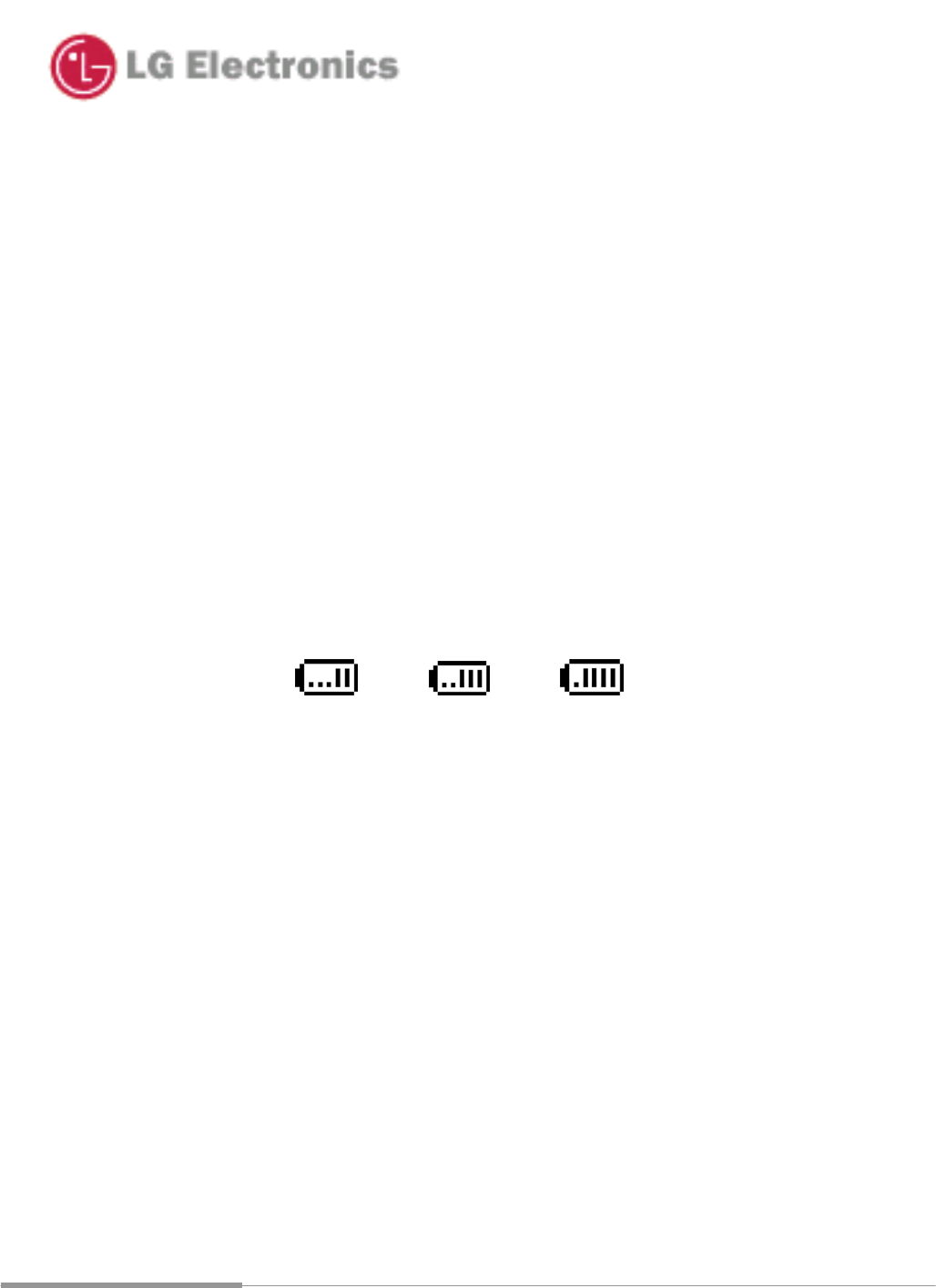

- When fully charged, LED lights indicates “Battery full”
IV. Pairing
- After turning the HBS110 on, press and hold the PALY&PAUSE&STOP button for more than 5 seconds.
Î You will hear a melody and the LED light will blink every second.
- To search and register the “stereo headset” or “Headset” to your Bluetooth enabled handset.
Î Please refer to the user manual of the handset.
Î When asked for the Pass/PIN code during the pairing procedure, please enter “0000” (4 Zeros).
Î Once pairing has completed successfully, you will hear a beep
and the LED indicates the “pair complete”, and then indicates the “HF and AV”.
According to status of phone paired, LCD indicates the “HF and AV”, “HF”, “AV”.
If the LED light still blinks every second, please repeat the pairing procedure from the beginning.
LG Electronics Inc.,
File name : HBS-110 User Manual
Revision number : 20050930.005
5
V. Waiting
- The connecting mode from the registered Phone to the Bluetooth Headset.
- Press the Headset button to connect to the registered device.
- In case of mp3 phone, LCD indicates the “HF and AV”.
- In case of not mp3 phone, LCD indicates the “HF”.
- In case of mp3 player, LCD indicates the “AV”.
VI. Connect
- Even if the headset is not connected to any Bluetooth device, pressing the Talk button or PLAY/PAUSE/STOP button
will automatically connect it to the last device connected. The connection supports both the Handsfree profile and AV
profile.
- If the sign 'Connected' does not appear, try connecting again after switching the headset to Pairing Mode.
For last number redial, press the Talk Button once until a short beep is heard. LED indicates the “Voice
Commend”
LED indicates the each profile as follows:
“HF” : Reading the connection of Handsfree Profile.
“AV” : Reading the connection of AV Profile.
- When connected, LCD indicates the type of Profile connected.
Handsfree Profile :
AV Profile :
[ LCD indicates the “HF and AV” --Æ “HF” ]
To activate Voice dialing, press the Talk Button until it beeps twice. LED indicates the “Last Number Dial “.
Î Please note that some handsets don’t support this function
When the “call ended” is displayed in the LED, the call will be terminated.
Press the talk button once until a short beep is heard. Go in to the “Voice dial’ state.
Press the talk button shortly. LED indicates the “Initial state
LG Electronics Inc.,
File name : HBS-110 User Manual
Revision number : 20050930.005
6
- Press the Talk button until you hear twice consecutive beeps. And then, go in to the “Dialing” mode and reading the
“Calling” for the last number redial.
- When hang up the call, LCD indicates the “Call Ended”.
[ LCD indicates the “HF and AV” --Æ “AV” ]
Press the PLAY/PAUSE/STOP button once shortly, LCD indicates the “Play/Pause”, indicates the “Streaming”, and
then play the music.
To stop the playback the current song, press the “PLAY/PAUSE/STOP” button shortly, LCD indicates the “Play/Pasue” ,
and then indicates the “Streming”.
Press the PLAY/PAUSE/STOP button long, LCD indicates the “Suspending” short while, stop the music,
LCD indicates the “HF and AV” status.
VII. Disconnect
Cancel the connection operating the phone menu to disconnect the Bluetooth.
VIII. Volume Up and Down
Press the Volume (+) Button to increase the speaker sound, and the Volume (-) Button to lower the sound.
Î The volume level can be adjusted from 1 to 6.
-
- In the status of muted Volume, LCD does not indicates the volume scale.
- (It means the speaker is muted.)
- Volume has the two type. One, normal volume, the other Volume is for AV Streaming status.
- When start the audio Streaming of AV Profile, Volume level will be adjusted AV volume established before.
- AV Streaming volume can be adjusted by Volume up button or Volume down button.
- When turn off the “play button”, Volume will be come back automatically.

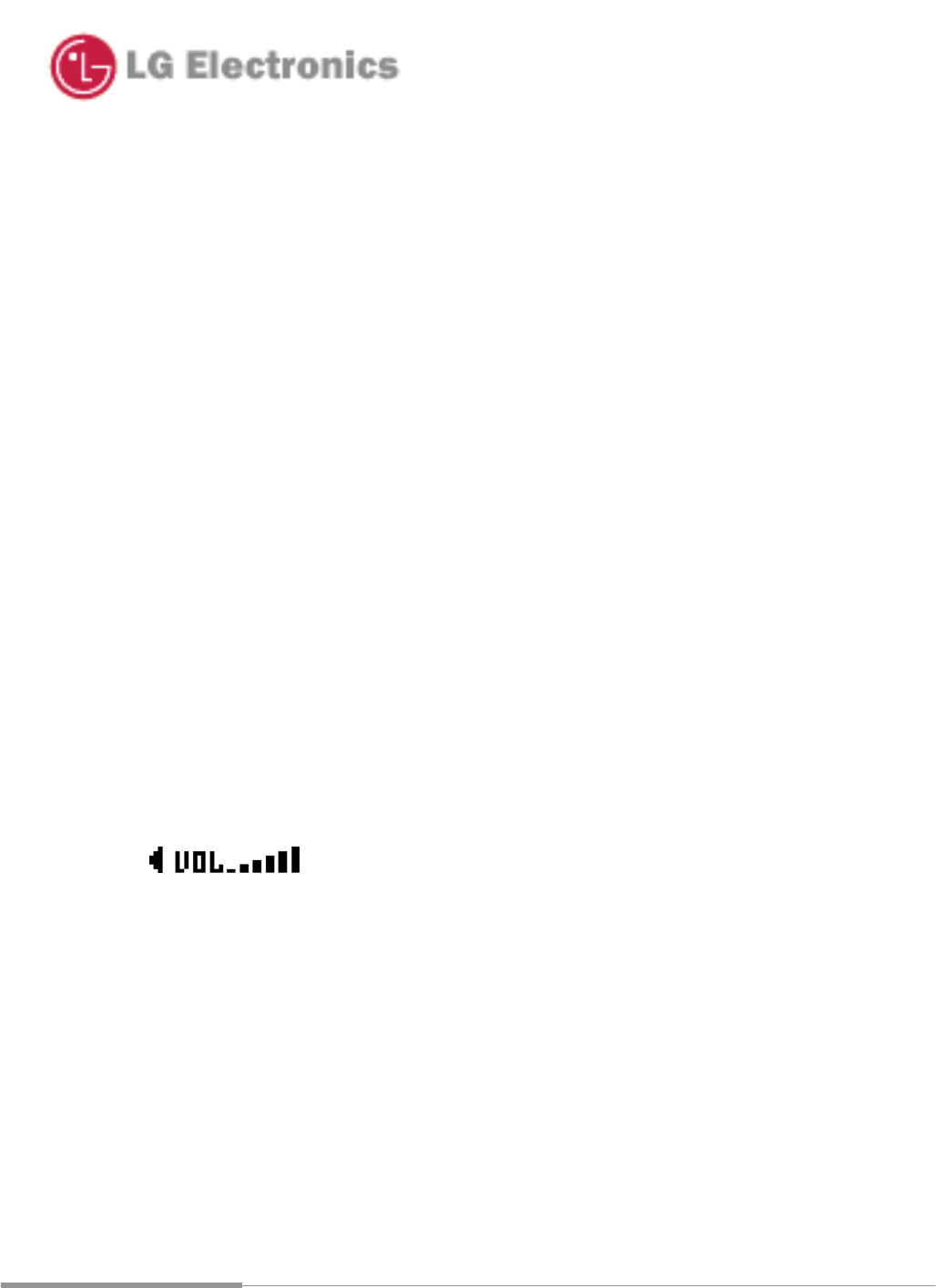

[ Realizing of Volume level]
LG Electronics Inc.,
File name : HBS-110 User Manual
Revision number : 20050930.005
7
IX. Handsfree Profile Related Functions
All functions in this section should premise that the Handsfree profile of the Headset connect to the phone.
1. Incoming Call
- On a phone, which supports the handsfree profile: Press the Power/Talk button if you want to answer the call. Press
the Power/Talk button if you don't want to answer the call.
- Some phones support automatic answering. Please refer to your Handset Guide for information on this feature.
2. Picking up a Call
- Press the call button in the front of the Headset in the state of Ring Alerting to pick up a call.
- The phone Icon in the top of the LCD is indicated when start talking.
3. Making a Call
- If you make a call from the Handset, the call will (subject to phone settings) be automatically transferred to the
Headset, If not automatically transfer the call manually by pressing the Power/call button.
4. Terminating a Call
Press the Talk button when ringing with headset.
5. Audio Transfer
- To transfer a call from the Handset to the HBS110, press the Power/Talk button while answering.
- To transfer a call back to the Handset, Just press the Power/Talk button again.
LG Electronics Inc.,
File name : HBS-110 User Manual
Revision number : 20050930.005
8
X. AV Profile Related Functions
All functions in this section should premise that the A2DP profile and AVRCP Profile of the Headset connect to the
phone. Also, this section should premise that mp3 player, phone or playing music file
1. Playing Music
- When does not play the music, press the PLAY/PAUSE/STOP button , music will be started.
- LCD indicates the “Streaming”.
2. To Pause playing
- When play the music, Press the PLAY/PAUSE/STOP button, music is stopped.
- LCD indicates the “Play/Paused”, after that indicates the “Streaming”.
3. To Resume playing
- When stop the music, press the PLAY/PAUSE/STOP button, play the music again.
- Play the music again , LCD indicates the “Streaming”.
4. To Stop playing
- When stop the music, the beep sound will be heard.
- When play or stop the music, press the PLAY/PAUSE/STOP button for more than 1 second. LCD indicates the
“Suspending”. After that stop the playback, indicates the “HF and AV”.
- Do not press the long time not to change to the “Pairing mode”.
5. Next Song in the Playlist
- Press and hold ”FF Button” to play next song.
6. Previous Song in the Playlist
- Press and hold “REW Button” to play the previous song.
- When play the music , the same music will be started again.
( Therefore, press the “REW Button” twice to play the previous song.)
LG Electronics Inc.,
File name : HBS-110 User Manual
Revision number : 20050930.005
9
XI. Hold Switch
- To place a call on hold, not working any button
- To place a call on hold, LCD indicates the [ LOCKED].
- Change the Hold switch to Hold into Normal location, , LCD indicates the [ UNLOCKED ]
( It means all button will be worked well.)
- When the press the button in the status of Hold On, the beep sound will be heard.
( It means the Hold key is locked.)
XII. LCD ON / OFF
In order to save power, the LCD automatically switches off if the headset does not receive any input or event (e.g. pairing
request, incoming call, etc.) for 60 seconds.
- Note that when the LCD is turned off, it does not necessarily mean that the headset is turned off.
- When the user presses on any key, the LCD lits up. Note however that during battery charging the headset power is off and
ony the LED is on.
LG Electronics Inc.,
File name : HBS-110 User Manual
Revision number : 20050930.005
10
FCC NOTICE TO USERS :
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE : To comply with the FCC RF exposure compliance
requirements, no change to the antenna or the device
is permitted.
Any change to the antenna or the device could result
in the device exceeding RF exposure requirements
and void user’s authority to operate the device.
<<NOTICE>>
* Section 15.21 Information to user
The changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
