LG BlueBAND R
BHS-200
User Guide
Project No. : C51-A05133-XX
(Draft Version 1 – 20-Apr-2006)
(Page 0)
Contents
LG BHS-200 Overview 2
Getting Started 3
Charging Your Earphone
Normal Charging Time
Talk Time, Music Play Time and Standby Time
Low Battery
4-5
Turning Your Earphone On and Off 6
Pairing Your Earphone 7-8
Using Your Earphone
Answering a Call
Answering a Call when Listening to Stereo Audio
Ending a Call
Rejecting a Call
Dialling from Your Mobile Handset
Voice Dialling from Your Earphone
Last Number Redial from Your Earphone
Listening to Stereo Audio
9-10
Adjusting the Volume 11
Resetting / Removing the Pairing 11
Remote Control Function 12
Care and Maintenance 13-14
Safety Information 15
Troubleshooting 16
Declaration of Conformity (DoC) 17
Product Specifications 18
(Page 1)
LG BHS-200 Overview

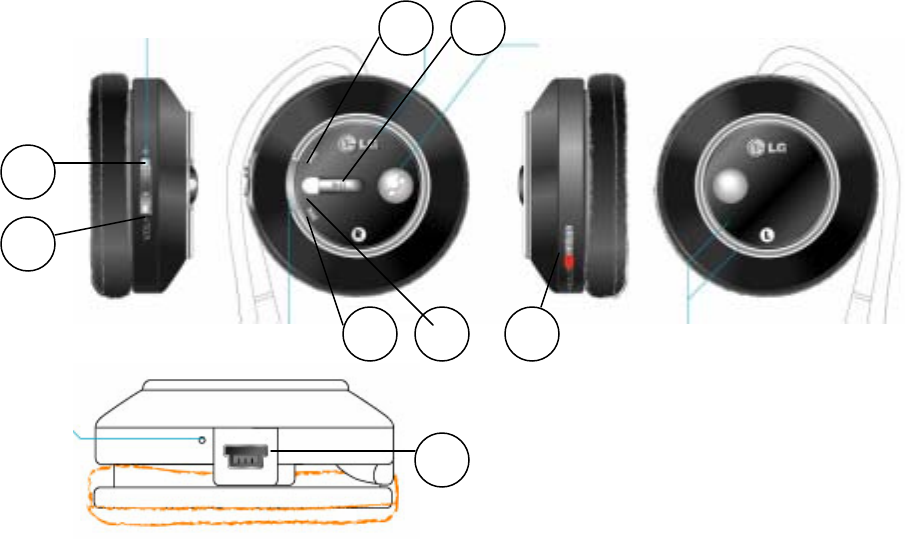

Fig. 1
1. Volume Key (+) 5. Play / Pause Key
2. Volume Key (-) 6. Status Indicator
3. Forward Key 7. Hold Key
4. Backward Key 8. Charging Socket
Getting Started
To use your LG BHS-200 Earphone (“Earphone”), please follow these simple steps:
Charge your earphone
Pair your earphone with a Bluetooth-enabled mobile handset or music player
1
2
3
4
5
6
7
8
(Page 2)
Wearing Your LG BHS-200 Earphone

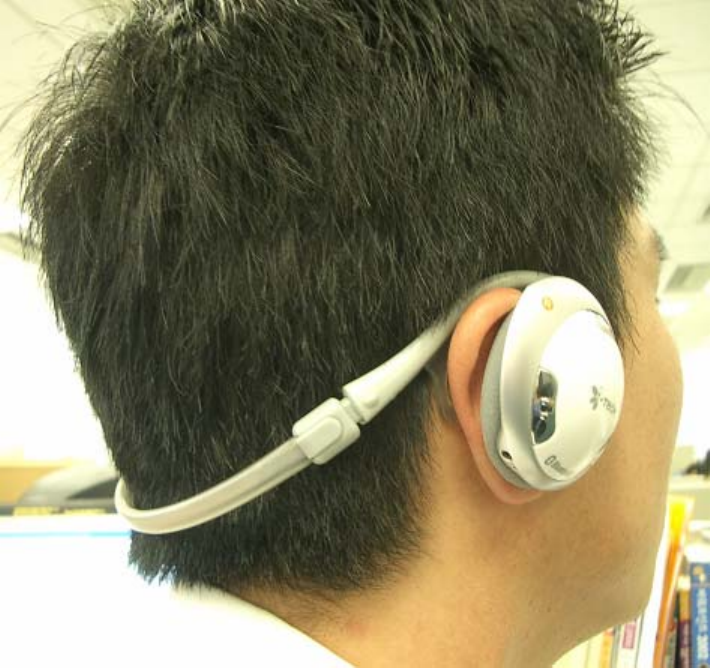

Fig. 2 Wearing your Earphone
Page 3
Charging Your Earphone

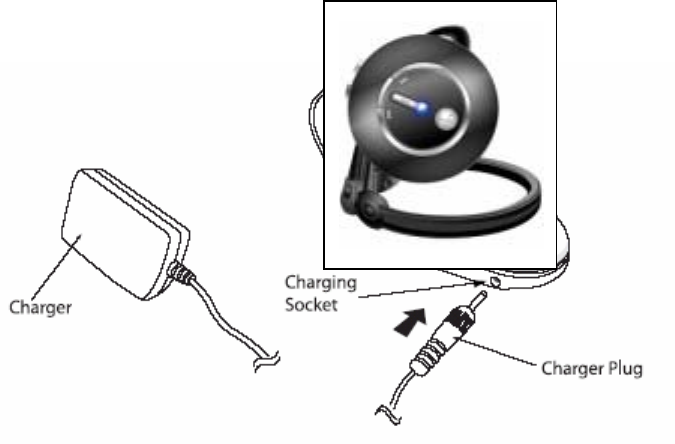

Fig. 4
The Earphone comes with a built-in rechargeable battery. Prior to using the headset, it
is recommendable to charge the battery fully for the first time.
Page 5
Charging Your Earphone
Connect the charger to an AC wall outlet and the charger plug to the headset’s
charging socket (fig.4). The LED will be red while charging.
IMPORTANT Charging indication will be delayed for a few seconds if the
headset has not been used for a long time or the battery is drained.
Normal Charging Time
Charging the battery fully is normally within 3 hours. When the battery is fully
charged, the LED will turn blue and remains on. Disconnect the charger from AC
wall outlet and the headset. Press and hold the MFB (fig.1) for 2 seconds to turn the
headset on, please refer to “Turning Your Earphone On and Off” on the next page. For
pairing, please refer to “Pairing your earphone”.
Talk Time, Music Play Time & Standby Time
The fully charged battery offers up to 7.5 hours talk time, music play time and up to
150 hours standby time. When no calls are in progress, the headset remains turned on
in standby mode.
Low Battery
When the headset is on and the battery becomes low, the LED flashes red and the
headset emits a beep every 1 minute. Please recharge the battery as described above.
Page 6
Turning Your Earphone On and Off
Turning On the Earphone
Press and hold the MFB for 2 seconds until you hear a short beep. The LED will
flash blue.
IMPORTANT Press the MFB again each time you turn on the headset to
reactivate pairing so that the connection between the headset and the mobile
handset is resumed. For pairing, please refer to “Pairing Your Earphone” on
page 7-8.
Turning Off the Earphone
Press and hold the MFB for 3 seconds until you hear a long beep. The LED flash
stops.
IMPORTANT To disconnect the Bluetooth connection, please firstly turn of
your headset by pressing the MFB key.
Page 7
Pairing Your Earphone
Prior to using your Earphone for the first time, you must pair it with a
Bluetooth-enabled mobile handset or Music Player (The “Device”).
The information on the next page describes pairing instruction for typical
Bluetooth-enabled mobile handset or music player. Earphone pairing procedure is
subject to different models of mobile handsets and music player.

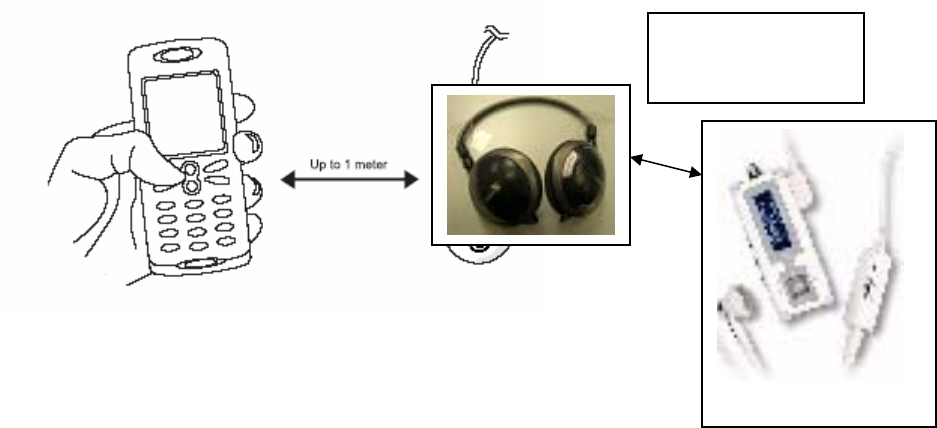

Up to 1 meter
Page 8
Pairing Your Earphone
1. Place the Earphone and the device where they are easily viewable by no more than
1 meter apart.
2. Ensure the earphone is OFF.
3. Press and hold the MFB until the earphone Status Indicator alternately flashes
blue and red.
4. Activate your mobile handset’s Bluetooth function by referring to your mobile
handset user guide for details.
5. Set the device to search for Bluetooth devices within about 1 meter as instructed
in the mobile handset user guide and select “LG BHS-200” from the list.
6. Enter the preprogrammed passkey “0000” and press “OK” to pair your earphone
and device. When the pairing is complete, the earphone Status Indicator will
flash blue rapidly for 5 times followed by a long beep.
7. Go back to your device’s main menu. For certain device models, a headset / audio
icon will be shown on the screen. You should now be able to make and receive
calls using your earphone and listen stereo music via your earphone.
IMPORTANT If the pairing cannot be completed within 2 minutes while the
pairing mode is activated, the earphone status indicator flashes purple red with 3
beeps and the headset is turned off. Please repeat Steps 2 to 7 to pair the headset
and the mobile handset again.
Page 9
Using Your Earphone
Answering a Call
When there is an incoming call, you will hear ringing through the earphone. Press the
MFB to accept the call or answer the call via your mobile handset in the normal way.
Answering a Call when Listening to Stereo Audio
Press the MFB once to answer the call and when finished, press the MFB once to
resume stereo audio.
If the other party you are speaking to ends the call, stereo audio will automatically
resume without having to pressing the MFB.
NOTE To receive stereo audio from your mobile handset or PDA, please make
sure they support the Bluetooth A2DP profile.
Ending a Call
Press the MFB to end your call or end the call via your mobile handset in the normal
way.
Rejecting a Call
To reject an incoming call during ringing of the headset, press and hold the Volume
Key for 2 seconds until you hear 2 beeps.
Dialing from Your Mobile Handset
Simply make calls on your mobile handset in the normal way.
Page 10
Using Your Earphone
Voice Dialing from Your Earphone
If your mobile handset is equipped with a voice dialling function, simply press the
MFB on your headset and when you hear a beep, say the voice tag.
IMPORTANT Please make sure to record voice tag into the mobile handset
first before using voice dialling function.
Last Number Redialling from Your Headset
Press the MFB on your headset twice.
IMPORTANT The above functions are only applicable to mobile handsets with
Bluetooth Handsfree Profile. Functionality varies depending on the mobile
handset model you have. Please refer to your mobile handset user guide for
additional information.
Listening to Stereo Audio from Your PC / Device
By connecting you earphone to your PC through i.Tech mini Bluetooth USB Dongle
v1.2, you can listen to stereo audio from your PC (please refer USB Dongle v1.2
Quick User Guide).
By connecting you earphone to your Bluetooth-enabled music devices, you can listen
to stereo music from your music devices (please also refer your music player user
guide).
Page 11
Adjusting the Volume
Press the Volume Key repeatedly until you reach the desired volume level.
Resetting / Removing the Pairing
You may want to reset the headset to its original settings. This also clears all current
pairings.
1. Ensure the headset is OFF.
2. Press and hold the Volume Key 20 seconds until the Status Indicator alternately
flashes blue and red rapidly.
3. Release the Volume Key.
4. Press and hold the Volume Key again until you hear 2 beeps.
5. Recharge the headset for a few seconds
The headset is turned off and returns to the original settings. All current pairings are
cleared.
Page 12
Remote Control Function (AVRCP)
Play / Pause
1. Press once for start music playing
2. Press once again for pause the music playing
Volume Control

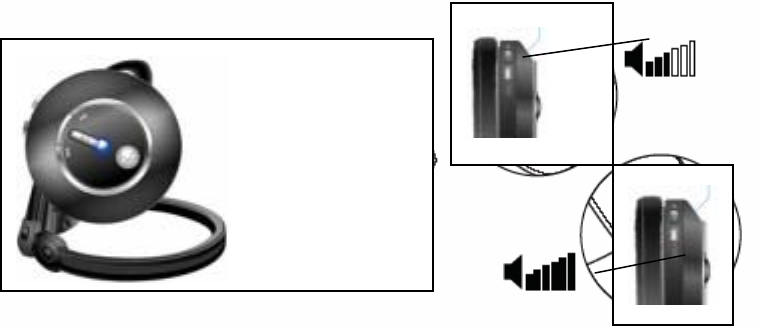

By pressing the “+” to increase the audio volume. By pressing the “-“ to decrease the
audio volume. Total audio level is 12.
Forward
By scrolling the panel upward to skip next chapter or forward selecting the chapter.
Backward
By scrolling the panel downward to repeat last chapter or backward selecting the
chapter.
Page 13
Care and Maintenance
Earphone
Consider turning your earphone off before placing it in your pocket or bag. If the
MFB is accidentally depressed, your mobile handset may place an unintended
call.
Do not expose the earphone to liquid, moisture or humidity as it is not
waterproof.
Do not use abrasive cleaning solvents to clean the earphone.
Do not expose the earphone to extremely high or low temperatures.
Do not dispose of the earphone in a fire as it will result in explosion.
Do not expose your earphone to contact with sharp objects as this will cause
scratches and damage.
Do not stick anything inside the earphone as this may damage internal
components.
Do not attempt to disassemble the earphone as it does not contain serviceable
components.
If you do not use the earphone for long periods, be sure to store it in a dry place,
free from extreme temperatures and dust.
Page 14
Built-in Battery
Do not attempt to replace the earphone’s battery yourself as it is in-built and is
not changeable.
Charge the battery in accordance with the instruction supplied with this user
guide.
Only use the manufacturer supplied charger when charging the earphone.
Charger
Only use the manufacturer supplied charger when charging the earphone.
Do not disassemble the charger as it may expose you to dangerous voltages of
other risks. Incorrect reassembly can cause electric shock when the earphone is
subsequently used.
Do not use the charger outdoors or in damp areas.
Only charge the earphone’s built-in battery in accordance with the instructions of
this user guide.
Avoid charging the earphone in extremely high and low temperatures.
Page 15
Safety Information
Check local laws regarding use of a mobile handset and earphone while driving.
If you use the earphone while driving, ensure your attention and focus remains
on your responsibility of driving safely.
Never allow children to play with the earphone – small parts may be a choking
hazard.
Observe all signs that require an electrical device or RF radio product to be
switched off in designated areas. These could include hospitals, blasting areas,
and potentially explosive atmospheres.
Turn off your earphone prior to boarding an aircraft. Do not use your earphone in
an aircraft.
Never mount or store your earphone over any air bag deployment area as serious
injury may result when an air bag deploys.
Do not open or mutilate the built-in battery.
Dispose of batteries according to local regulations. Do not dispose as household
waste
Page 16
Troubleshooting
If you are unable to connect your earphone and mobile handset, please try the
following:
Ensure your earphone is turned off and is properly charged.
Ensure the earphone is paired with your mobile handset.
Ensure your mobile handset’s Bluetooth feature is activated. Please refer to your
mobile handset user guide for specific instruction.
Ensure the earphone is within a maximum of 10 meters of your mobile handset(s)
and there are no obstructions, such as walls or other electronic devices in
between.
If the above steps do not solve your problem, please recharge the earphone and
remove your mobile handset battery for a while.
The LG BHS-200 Earphone is compliant with and adopts the Bluetooth Specification
1.2. However, interoperability between the device and other Bluetooth-enabled
products is not guaranteed because it depends on compatibility. For more information
on the compatibility between the device with other Bluetooth-enabled products,
please check with the manufacturer or browse http://www.itechdynamic.com
Page 17
Declaration of Conformity (DOC)
We, i.Tech Dynamic Ltd., declare that the following product:
Product Name: LG BHS-200
Model No.: C51-A05133-XX
Is in conformity with the following essential requirements of Council Directive 1999/5/EC (referred to
as R&TTE Directive): Article 3.1a, 3.1.b and 3.2. and the product is manufactured in accordance with
Annex II of the above directive.
A copy of the Declaration of Conformity can be found at:
http://www.itechdynamic.com
Page 18
Product Specifications
Bluetooth Specification: Version 1.2 Class 2
Bluetooth Profile Supported: Earphone, Handsfree, A2DP and AVRCP
Range of Frequency: 2.4GHz Spectrum
Dimensions: ??? mm (L) x ??? mm (W) x ??? mm (H)
Nominal Charging Time: Within 3 hours
Talk Time*: Up to 7.5 hours
Music Play Time*: Up to 7.5 hours
Standby Time*: Up to 150 hours
Weight: ??? grams
*may vary due to users’ operation mode and mobile phone settings
(Back Cover)
© 2005 Hutchison Harbour Ring Enterprises Limited
All rights in this publication are reserved and no part may be reproduced without the
prior written permission of the publisher. The contents of this publication are believed
to be correct at the time of going to press, but any information, specifications,
products or services mentioned may be modified, supplemented or withdrawn without
further notice.
The Stylized i.Tech logos are trademarks owned by Hutchison Harbour Ring
Enterprises Limited or its affiliates.
Bluetooth® and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc,
USA and licensed to i.Tech Dynamic Limited.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
i.Tech declares under our sole responsibility that the earphone is in conformity with
the provisions of the following Council Directives: 1999/5/EC
Printed in China
