User manual
English
Español
Rev 1.0 US
All rights reserved.
LG Electronics Inc., 2013
Note: Please read all information carefully prior to
using HBS-750 in order to prevent damages to the
product and to enjoy the best performance.
WARNING :
This product contains chemicals known to the State
of California to cause cancer and birth defects or
reproductive harm.
Wash hands after handling.
ON OFF

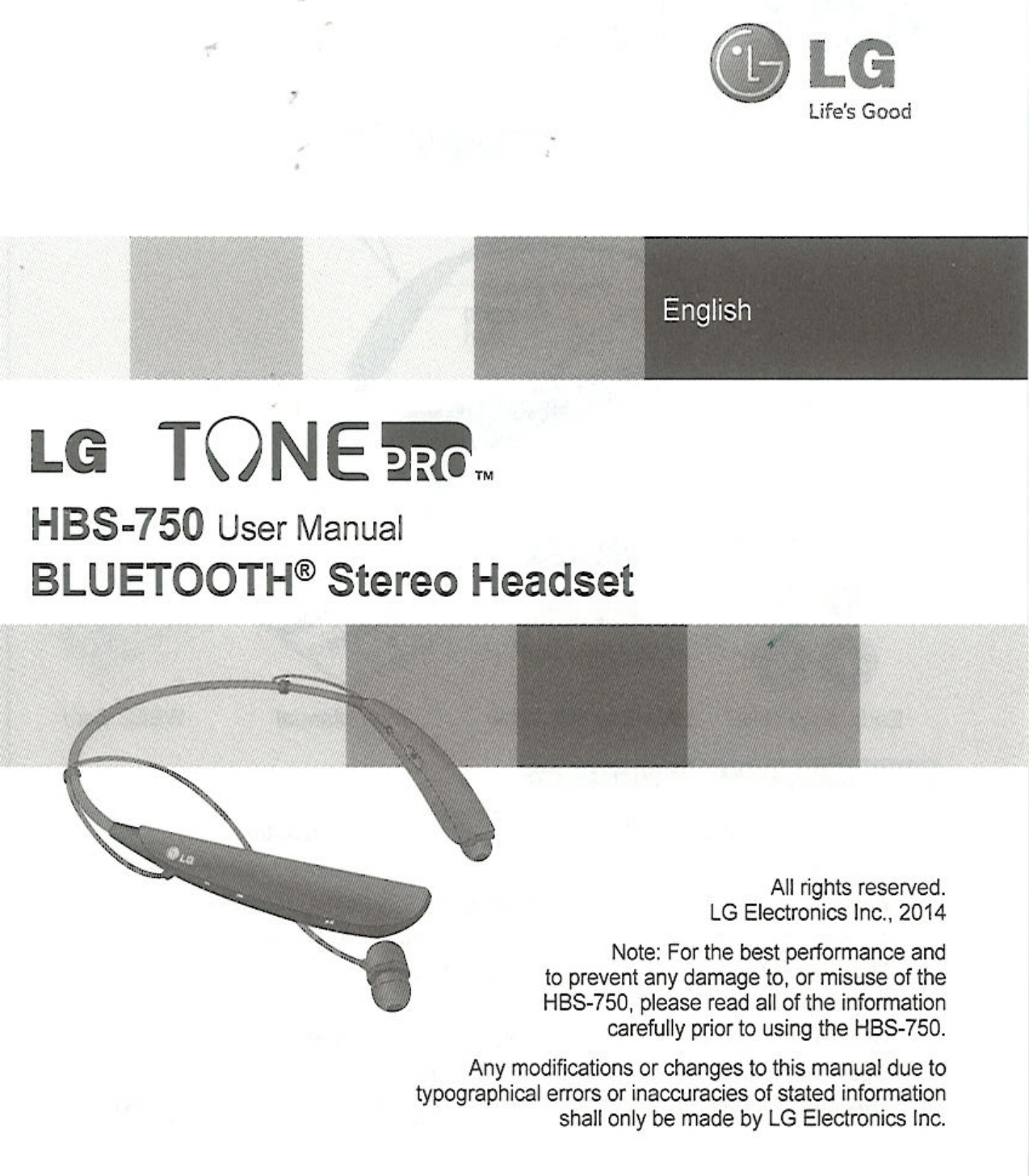

HBS-750 User Manual
BLUETOOTH® Stereo Headset
2
ENG
Introduction 3
- Included in the package 3
Description of Parts 4
How to Use 4
- Wearing 4
- Charging 5
- Low Battery 5
- Battery Status Alert 5
- Power On / Power Off 5
- Pairing 5
- Multi-connection 6
- Auto Reconnect 7
- Audio Streaming 7
- Equalizer 8
- aptX
®
8
- Volume Control 8
- Calling 8
• Answering a call 8
• Transferring a call 8
• Voice dialing 9
• Last number redial 9
• Ending a call 9
• Call waiting 9
• Rejecting a call 9
• Mic mute 9
- SMS reader 9
Summary of Button Functions 10
LED Indication 11
Troubleshooting 11
Specification 12
Precautions 12
Declaration of Confirmation 13
Additional Information 13
Limited Warranty 16
Important Safety Information 16
Table of Contents
3
ENG
Included in the Package
The LG TONE+TM (HBS-750) is a lightweight wireless headset that uses Bluetooth®
technology.
This product can be used as an audio accessory for devices supporting either the
A2DP or Hands-Free Bluetooth Prole.
Earbuds (2 Sets) *Charger
User Manual Warranty Card Quick Start Guide
HBS-750
ON OFF
* Actual product design may differ from images shown on manual.
Introduction
4

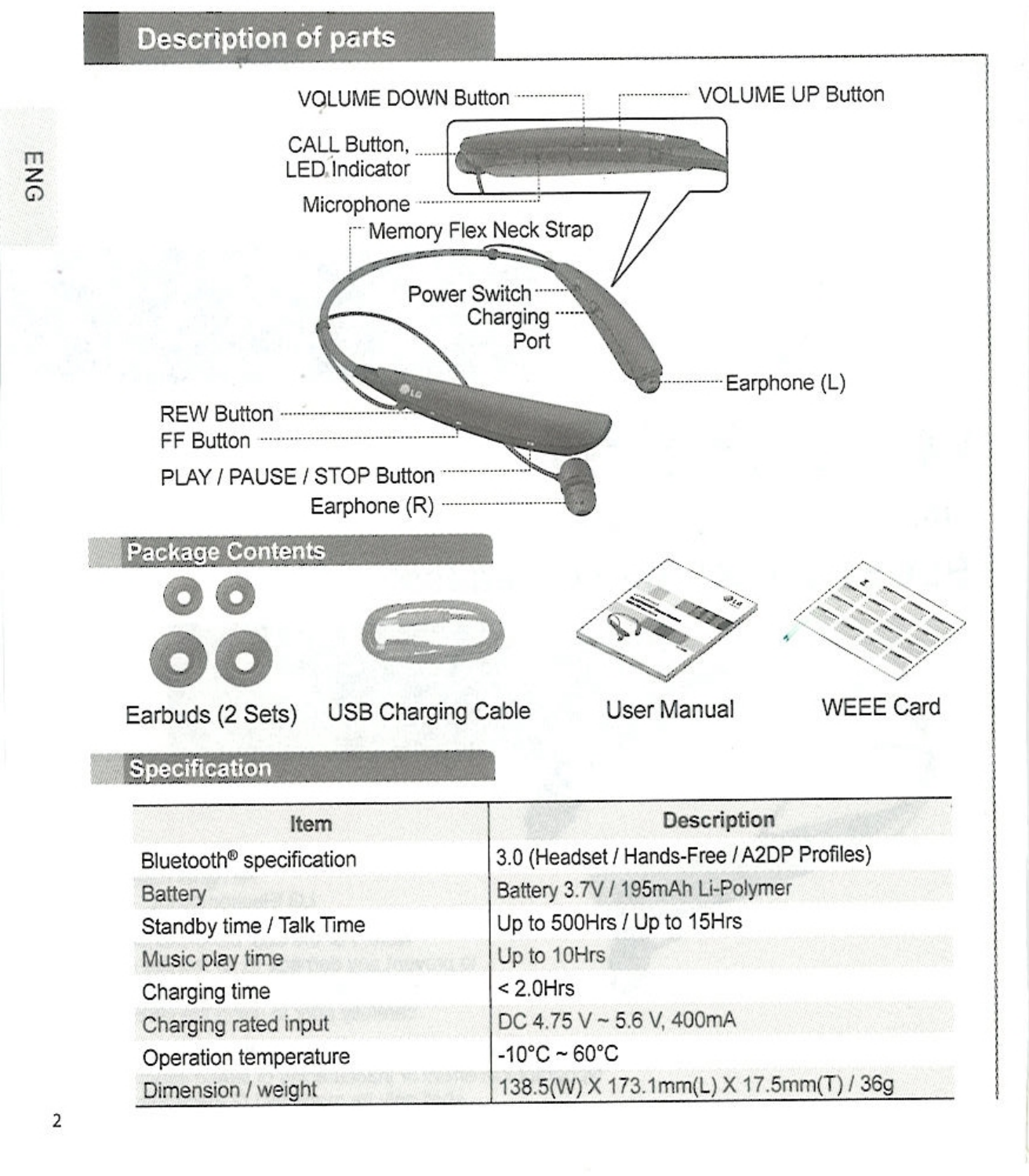

Description of Parts
ENG
Headset
ON OFF
VOLUME UP Button
VOLUME DOWN Button
REW Button
Power Switch
FF Button
PLAY / PAUSE / STOP Button
Earphone (R)
Charging Port
CALL Button,
LED Indicator
Microphone
Earphone (L)
Memory Flex Neck Strap
5
ENG

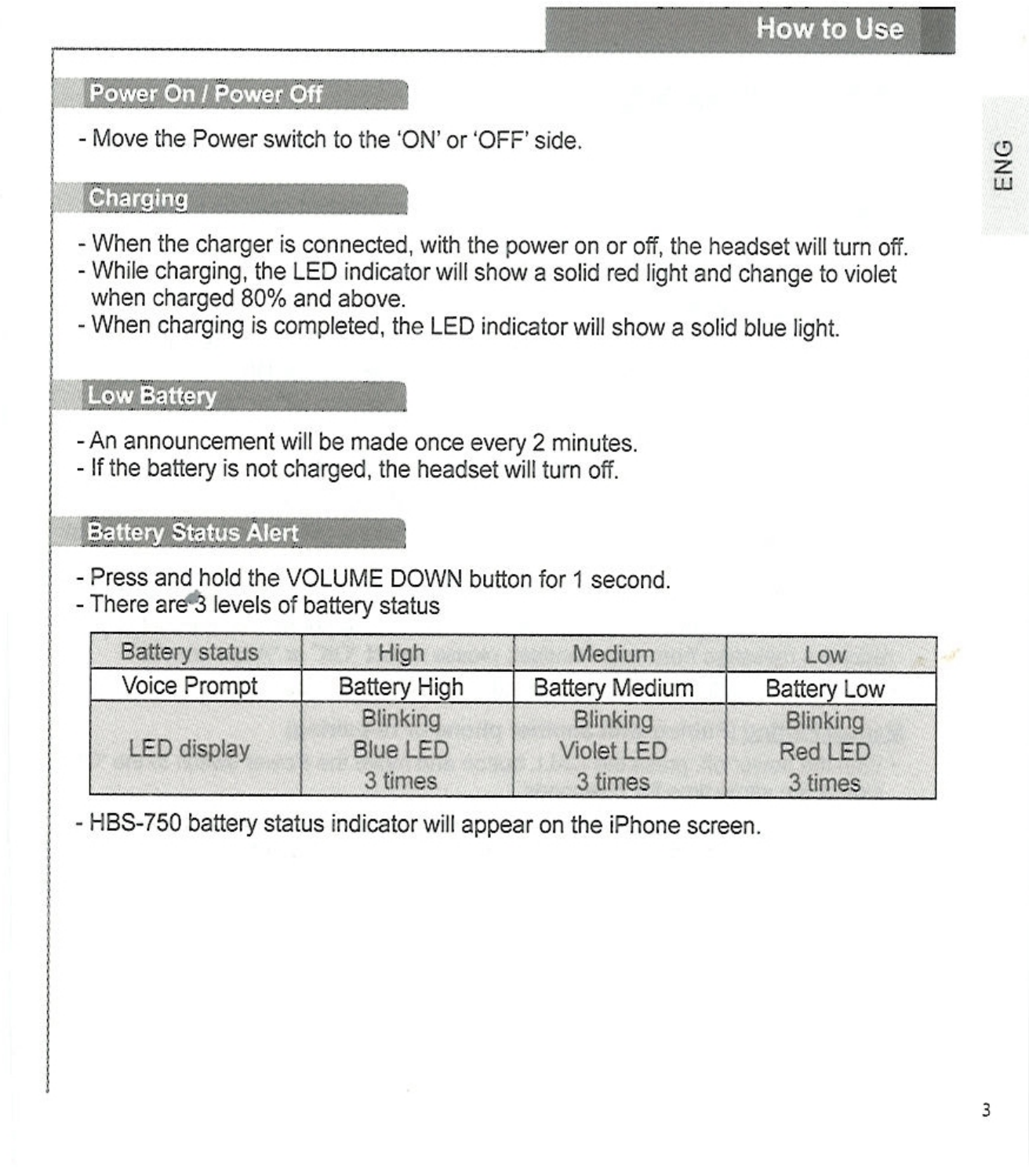

Charging
- When the charger is connected, with the power on or off, the headset will turn off.
- While charging, the LED indicator will show a solid red light.
- When charging is completed, the LED will be changed from red to blue.
Low Battery
- A low battery alert will play once every 2 minutes.
- If the battery is not charged, the headset will turn off.
Power On / Power Off
- Slide the power switch to the ‘ON’ or ‘OFF’ position.

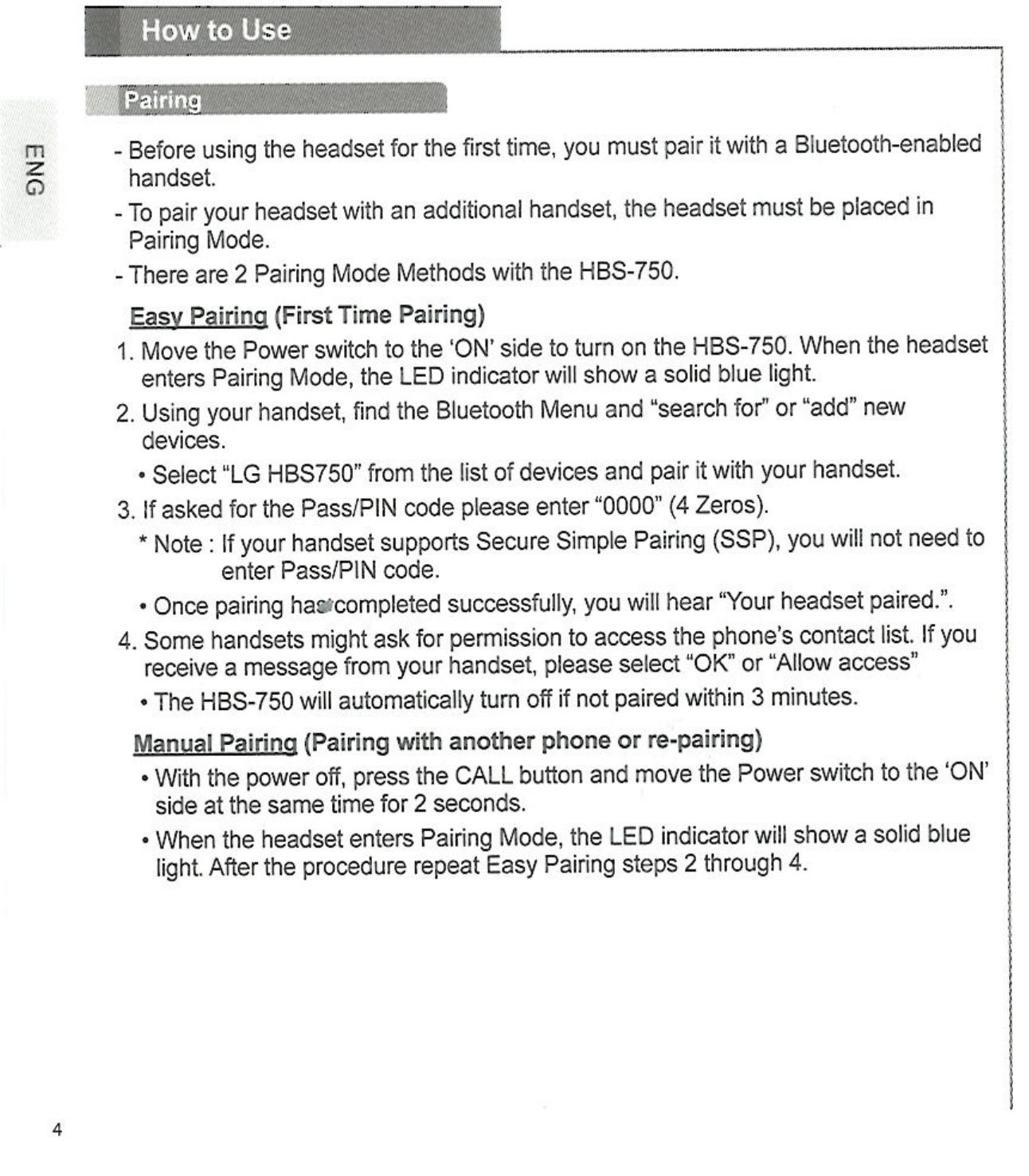

Pairing
- Before using the headset for the rst time, you must pair it with a Bluetooth-enabled
device.
- There are 2 pairing mode methods with the HBS-750.
1) Easy Pairing
a) Slide the power switch to the “ON” position.
b) If it is your rst time pairing the device it will automatically enter pairing mode.
If it has been paired but no paired device is in range it will enter pairing mode
after 10 seconds.
Battery Status Alert
- By pressing and holding the VOLUME DOWN button for 1 second, you can check
the battery status of the HBS-750. The audible battery status alert will inform you of
the battery level. There are 3 levels of battery power:
1. Battery High
2. Battery Medium
3. Battery Low
- HBS-750 battery status indicator will appear on the iPhone screen.
How to Use
6
ENG
• The LED indicator will be solid blue.
c) On the device you wish to pair, nd the Bluetooth menu and “search for” or
“add” new devices.
d) Select “LG HBS-750” from the list of devices.
e) If asked for a Pass/Pin Code enter 0000 (4 Zeros).
f) Once the devices are paired, you will hear “Your headset paired.”.
• The HBS-750 will automatically turn off if not paired within 3 minutes.
2) Manual Pairing (pairing with another phone or re-pairing)
a) With the power off, press the CALL button and slide the power switch to the
‘ON’ position at the same time for 1 second.
b) When the headset enters Pairing Mode, the LED indicator will show a solid
blue light. After the procedure repeat Easy Pairing steps “c)” through “f)”.
How to Use

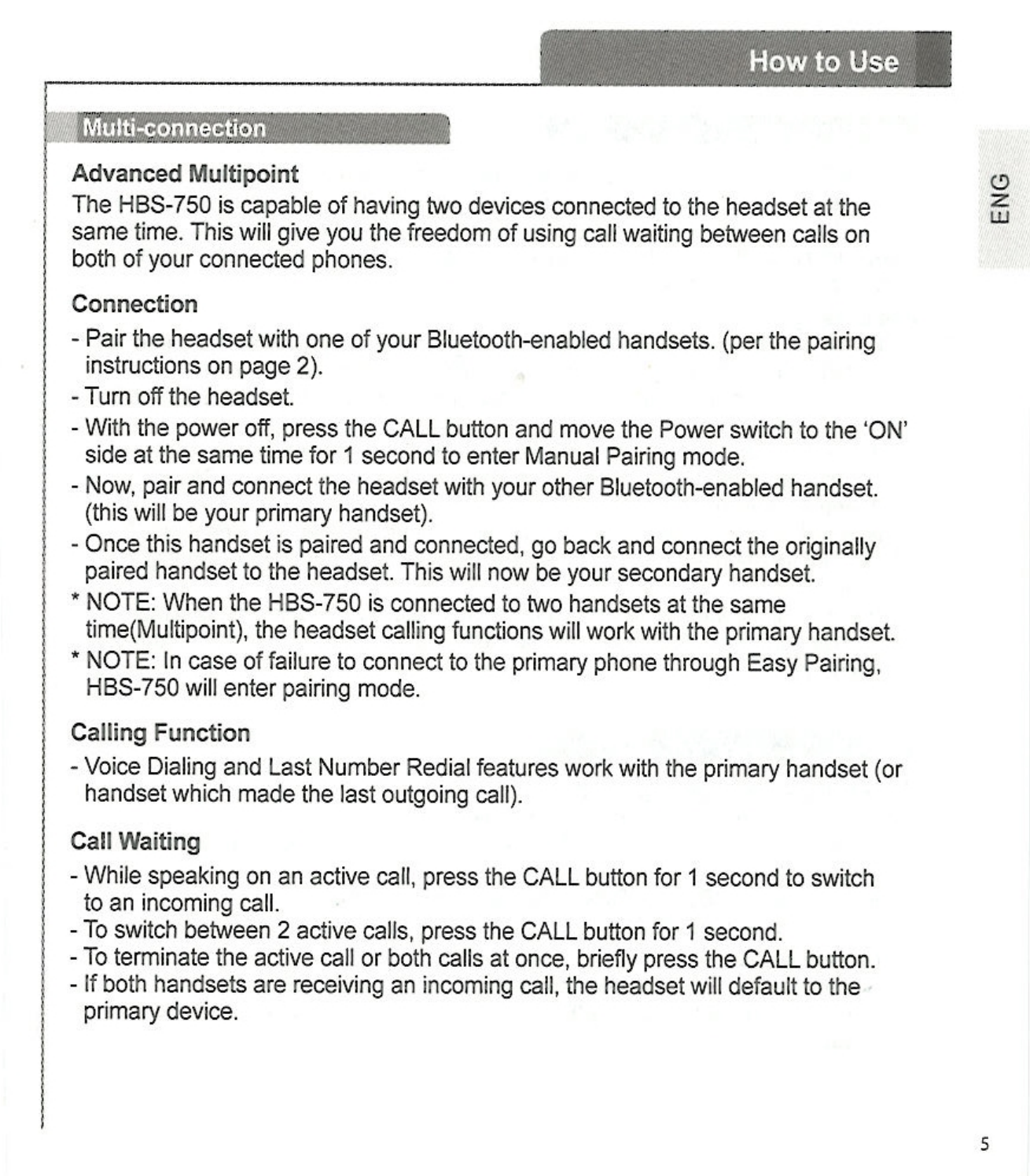

Multi-connection
Advanced Multipoint
The HBS-750 is capable of having two devices connected to the headset at the
same time. This will give you the freedom of using call waiting between calls on
both of your connected phones.
Connection
- Pair the headset with one of your Bluetooth-enabled handsets. (per the pairing
instructions on page 6).
- Turn off the headset.
- With the power off, press the CALL button and slide the power switch to the ‘ON’
position at the same time for 2 seconds to enter Manual Pairing mode.
- Now, pair and connect the headset with your other Bluetooth-enabled handset.
(this will be your primary handset).
- Once this handset is paired and connected, go back and connect the originally
paired handset to the headset. This will now be your secondary handset.
* NOTE: When the HBS-750 is connected to two handsets at the same
time(Multipoint), the headset calling functions will work with the primary handset.
* NOTE: In case of failure to connect to the primary phone through Easy Pairing,
HBS-750 will enter pairing mode.
7
ENG

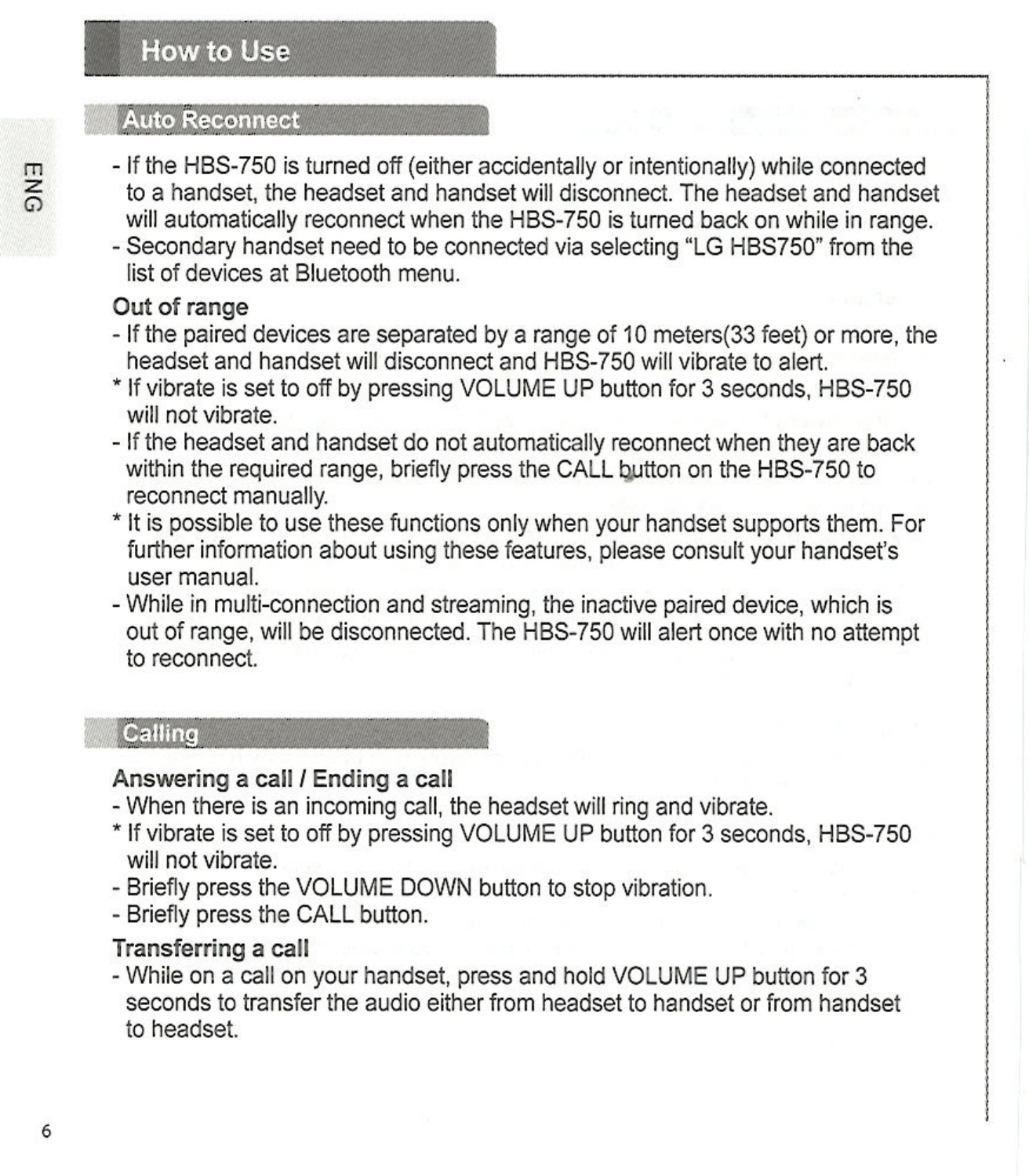

Auto Reconnect
- If the HBS-750 is turned off (either accidentally or intentionally) while connected to
a handset, the headset and handset will disconnect. The headset and handset will
automatically reconnect when the HBS-750 is turned back on while in range.
- Secondary handset will need to be connected manually. Select “LG HBS-750” from
the list of devices in the Bluetooth menu and pair.
Out of Range
- If the paired devices are separated by a range of 33 feet (10 meters) or more, the
headset and handset will disconnect and HBS750 will vibrate to alert.
- If the headset and handset do not automatically reconnect when they are back within the
required range, briey press the CALL button on the HBS-750 to reconnect manually.
- While in multi-connection and streaming, the inactive paired device, which is out of
range, will be disconnected. The HBS-750 will alert once with no attempt to reconnect.
Audio Streaming
Play
- Briey press the PLAY/PAUSE/STOP Button.
Pause
- While playing music, briey press the PLAY/PAUSE/STOP button.
Stop
- While playing music, press and hold the PLAY/PAUSE/STOP button for 1 second.
Next song
- Briey press the FAST FORWARD button.
Previous song
- Briey press the REWIND button.
Calling Function
- Voice Dialing and Last Number Redial features work with the primary handset (or
handset which made the last outgoing call).
Call Waiting
- While speaking on an active call, press the call button for 1 second to switch to
an incoming call.
- To switch between 2 active calls, press the call button for 1 second.
- To end both calls briey press the call button.
- If both handsets are receiving an incoming call, the headset will default to the
primary device.
How to Use
8
ENG
How to Use
Volume Control
- Press the VOLUME UP or VOLUME DOWN button to adjust the speaker volume.
- There are eight levels of speaker volume in Hands-Free mode.
- There are eight levels of speaker volume in Audio Streaming mode.
aptX®
- HBS-750 features aptX® technology that ensures audio content transmitted over
Bluetooth is instant and crystal-clear.
- aptX® is automatically enabled as long as the source device supports it.
Calling
Answering a Call
- When there is an incoming call, the headset will ring and vibrate.
- Briey press the VOLUME DOWN button to stop vibration.
* To activate or deactivate the function of ‘incoming call vibration’, press and hold
VOLUME UP button for 3 seconds. The headset will beep when it is activated or
deactivated.
- Briey press the CALL button to answer the incoming call.
Transferring a Call
- If you make a call from the handset, the call will (depending on the phone settings)
automatically transfer to the headset. If the call is not automatically transferred, you can
manually transfer the call to, or from, the headset by pressing and holding VOLUME
UP button for 3 seconds on the HBS-750 (handset and headset must be paired).
Equalizer
- While playing music, press and hold VOLUME UP and VOLUME DOWN buttons
at the same time for 1 second to switch between EQ’s (Bass Boost(Default) g
Normal g Treble Boost).
- EQ is not changed if your handset supports aptX® codec and is enabled.
- The bass coming from the speakers can vary as a result of the size of the Earbud
that is being used.
Fast Forward
- Press and hold the FAST FORWARD button.
Rewind
- Press and hold the REWIND button.
9
ENG
Voice Dialing
- Briey press the CALL button to activate “Voice Command”. For best results, record
the voice dialing tag through your headset.
NOTE: If your handset does not support voice dialing, this action may activate Last
Number Redial.
Last Number Redial
- Press and hold the CALL button for 1 second to activate “Last Number Redial”.
The headset will beep and then call the last number dialed.
Ending a Call
- Briey press the CALL button.
Call Waiting
- Answer a second call without hanging up the rst call by pressing the CALL button
for 1 second. Press the CALL button for 1 second to return to the original call.
- Briey press the CALL button to terminate both calls at once.
Rejecting a Call
- Activate call reject by pressing the CALL button for 1 second when the handset rings.
* These functions may only be used if your handset supports them. For further
information about using these features, please consult your handset’s user manual.
Mic Mute
- Press and hold the VOLUME UP and VOLUME DOWN buttons at the same time for
1 second to mute/unmute the Mic during conversation.
SMS Reader
The HBS-750 Bluetooth headset supports SMS
reading on Android TM based devices.
In Google Play™ Store search for the LG ‘BT
Reader’ application and install it on your device to
use this function.
* The 2D barcode shown below helps you
download the LG ‘BT Reader’ application
from Google Play™ Store. Google Play is a
trademark of Google, Inc.
How to Use
10
ENG
Function
HBS-750 Status
Action
Power on Power off Slide the power switch to the ‘ON’ side.
Power off Power on Slide the power switch to the ‘OFF’ side.
Volume up Talking Briey press the VOLUME UP button.
Volume down Talking Briey press the VOLUME DOWN button.
Transferring a call Talking Press and hold VOLUME UP button for 3
seconds.
Answering a call Ringing Briey press the CALL button.
Stop incoming call
vibration alerting Ringing Briey press the VOLUME DOWN button.
Incoming call
vibration on/off Power on Press and hold VOLUME UP button for 3
seconds.
Ending a call Talking Briey press the CALL button.
Call waiting Talking Press the CALL button for 1 second.
Last number redial Idle Press the CALL button for 1 second.
Voice dialing
(handset must
support)
Idle Briey press the CALL button.
Call reject Ringing Press the CALL button for 1 second.
Mic mute on/off Talking Press and hold VOLUME UP and VOLUME
DOWN buttons at the same time for 1 second.
Pairing mode
(Manual) Power off
Press the CALL button and slide the power switch
to the ‘ON’ side at the same time for 4 seconds.
Battery status check
Idle Press the VOLUME DOWN button for 1 second.
Play Power on Briey press the PLAY/PAUSE/STOP button.
Pause Music on Briey press the PLAY/PAUSE/STOP button.
Stop Music on Press and hold the PLAY/PAUSE/STOP button
for 1 second.
Next song Music on Briey press the FF button.
Previous song Music on Briey press the REW button.
Fast forward Music on Press and hold the FF button.
Rewind Music on Press and hold the REW button.
Equalizer settings Music on Press and hold VOLUME UP and VOLUME
DOWN buttons at the same time for 1 second.
Summary of Button Functions
11
ENG
Function HBS-750 Status Action
Operating
Power on The blue LED light ickers 4 times.
Power off
The blue LED light ickers 4 times and then
turns off.
Pairing mode The blue LED light stays on.
Headset / hands-free
prole connected
The blue LED light ickers 2 times every 5
seconds.
Call connected The blue LED light ickers 2 times every 5
seconds.
Charging Charging The red LED stays on.
Charging complete
LED turns off.
Issue Possible problem Resolution
Does not turn on Check whether the battery of
the HBS-750 is fully charged. Charge the battery.
Unable to
communicate with
the LG Bluetooth
®
Headset HBS-750
Check whether the handset
supports the headset or
hands-free Bluetooth proles.
Determine whether your handset
supports the headset or hands-
free Bluetooth proles.
Check whether the battery of
the HBS-750 is low.
Charge the battery.
Unable to pair the
HBS-750 with the
Bluetooth
®
device
Check and make sure the
headset is on.
Slide the power switch to the ‘ON’
position to turn on the headset.
Check and make sure the
headset is placed in pairing
mode.
With the power off, press the
CALL button and slide the
power switch to the ‘ON’ side at
the same time for 1 second to
manually place the headset in
pairing mode.
Low sound (speaker) Check the speaker volume. lncrease the volume level.
LED Indication
Troubleshooting
12
ENG
Specication
Precautions
Item Description
Bluetooth
®
specication
3.0 (Headset / Hands-Free / A2DP Proles)
Battery
Battery 3.7V / 195mAh Li-Polymer
Talk Time Up to 15Hrs
Music play time Up to 10Hrs
Standby time Up to 500Hrs
Charging time < 2.0Hrs
Operation temperature 14°F ~ 140°F (-10°C ~ 60°C)
Dimension / weight 138.3(W) X 173.1mm(L) X 17.5mm(T) / 32g
Do not drop the device.
Do not modify, repair, or disassemble.
Do not expose directly to water, alcohol, benzene, etc for cleaning.
Do not expose directly to ammables.
Do not place or keep the device near ammables.
Keep the device away from excessive humidity and dust.
Do not place heavy objects on the device.
Only charge the headset with an original LG charger, otherwise it may be damaged.
• Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• There is a risk of explosion if the battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• The neck strap is made of a shape memory alloy. However, bending the neck
strap repeatedly is not recommended.
13
ENG
1. Radio frequency exposure
This Bluetooth® Stereo Headset HBS-750, is a radio transmitter and receiver. When
in operation it communicates with a Bluetooth® equipped mobile device by receiving
and transmitting radio frequency (RF) electromagnetic elds (microwaves) in the
frequency range 2.4 to 2.4835 GHz. Your Bluetooth® Headset is designed to operate
in compliance with the RF exposure guidelines and limits set by national authorities
and international health agencies when used any compatible LG Electronics mobile
phone.
FCC NOTICE TO USERS:
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to
the antenna or the device is permitted. Any change to the antenna or the device
could result in the device exceeding the RF exposure requirements and void user’s
authority to operate the device.
CE NOTICE TO USERS:
Hereby, LG Electronics Inc. declares that this HBS-750 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Declaration of Conrmation
Additional Information
FCC ID: BEJHBS750
1177
14
ENG
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive
atmosphere. Although this is uncommon, your electronic device could generate
sparks. Sparks in such areas could cause an explosion or re resulting in bodily
injury or even death. Areas with a potentially explosive atmosphere are often, but
not always, clearly marked.
3.Emergency calls
IMPORTANT!
This Bluetooth® headset and the electronic device connected to the headset
operate using radio signals, mobile and landline networks as well as user
- programmed functions, which cannot guarantee connection under all conditions.
Therefore you should never rely solely upon any electronic device for essential
communications (e.g. medical emergencies). Remember, in order to make or
receive calls, the headset and the electronic device connected to the headset
must be switched on and in a service area with adequate mobile signal strength.
Emergency calls may not be possible on all mobile phone networks or when
certain network services and/or phone features are in use. Check with your local
service provider.
4. Battery information
A rechargeable battery has a long service life if treated properly. A new battery
or one that has not been used for a long period of time could have reduced
capacity the rst few times it is used. Do not expose the battery to extreme
temperatures, never above +60°C(+140°F) or under -20°C(-4°F). For maximum
battery capacity, use the battery at room temperature. If the battery is used in
low temperatures, the battery capacity will be reduced. The battery can only be
charged in temperatures between +10°C(+50°F) and +45°C (+113°F). For your
safety, do not remove the battery incorperated in the product. If you need to
replace the battery, take it to the nearest authorised LG Electronics service point
or dealer for assistance.
5. Recycling the battery in your Bluetooth® headset
The battery in your Bluetooth® Headset must be disposed of properly and should
never be placed in municipal waste. The LG Electronics service partner who
removes the battery will dispose of it according to local regulations.
Additional Information
15
ENG
6. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser by
the dealer, specifying the date of purchase and serial number, is presented with
the product to be repaired or replaced. LG Electronics reserves the right to refuse
warranty service if this information has been removed or changed after the original
purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or replaced
product shall be warranted for the remaining time of the original warranty period
or for ninety (90) days from the date of repair, whichever is longer. Repair or
replacement may involve the use of functionally equivalent reconditioned units.
Replaced parts or components will become the property of LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear and
tear, or due to misuse, including but not limited to use in other than the normal
and customary manner, in accordance with instructions for use and maintenance
of the product. Nor does this warranty cover any failure of the product due to
accident, modication or adjustment, acts of God or damage resulting from liquid.
- This warranty does not cover product failures due to improper repair installations,
modications or service performed by a non- LG Electronics authorized person.
Tampering with any of the seals on the product will void the warranty.
- THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR
ORAL, OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS
BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY
NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS
OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
• Some countries/states do not allow the exclusion or limitation of incidental or
consequential damages, or limitation of the duration of implied warranties, so
the preceding limitations or exclusions may not apply to you. The warranty
provided does not affect the consumer’s statutory rights under applicable national
legislation in force, nor the consumer’s rights against the dealer arising from their
sales/purchase contract.
Additional Information
16
ENG
Subject to the conditions of this Limited Warranty, LG Electronics warrants this
product to be free from defects in design, material and workmanship at the time
of its original purchase by a consumer, and for a subsequent period of one (1)
year. Should your product need warranty service, please return it to the dealer
from whom it was purchased or contact your local LG Electronics contact center
to get further information.
Avoiding hearing damage
Permanent hearing loss may occur if you use your headset at a high volume.
Set the volume to a safe level. Over time you can become accustomed to a
higher volume that may sound normal but can be damaging to your hearing.
If you experience ringing in your ears or mufed speech, stop listening and have
your hearing checked. The louder the volume, the less time is required before
your hearing could be affected.
Hearing experts suggest that to protect your hearing:
• Limit the amount of time you use the headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
Using Headsets safely
Use of headsets to listen to music while operating a vehicle is not recommended
and is illegal in some areas. Be careful and attentive while driving. Stop using
this device if you nd it disruptive or distracting while operating any type of
vehicle or performing any other activity that requires your full attention.
Limited Warranty
Important Safety Information
IC NOTICE TO USERS :
HBS-750 complies with Industry Canada License-exempt RSS standard(s).
Operatiuon is Subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the
device.
INFORMATIONS RELATIVES À LA RÉGLEMENTATION D’IC :
L’adaptateur HBS-750 est conforme aux normes CNR d’Industrie
Canada applicables aux dispositifs exempts de licence. Son
fonctionnement est sujet aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférence, et
(2) cet appareil doit accepter toutes les interférences, y compris
celles pouvant causer un fonctionnement indésirable de l’appareil.
