User’s Guide
Bluetooth® Stereo Headset
LG TONE PRO™
Please read the Important Safety Precautions for the proper use of this product.
After reading, store this User’s Guide in an easily accessible place for all users.
NOTE : Please read all information carefully prior to using the HBS-910 in order to prevent damages
to the product and to enjoy the best performance.
WARNING : This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm. Call (800) 243-0000 for more information.
Wash hands after handling.
HBS-910 www.lg.com
Rev 1.0 US
All rights reserved.
LG Electronics Inc., 2015
Contents
Safety Cautions 2
HD Speaker 2
apt-X® 3
Product Components 3
Product Tour 4
Battery Charging and Alerts 4
HBS-910 Registration/Connection 5
Indicator lamp 6
Mobile Calling Functions 7
Playing Music 7
Vibration Alert Settings 8
Out of Range 8
Find Me 8
Tone & Talk 9
Summary of HBS-910 Functions 9
Troubleshooting 10
Specications and Features 11
Declaration of Conrmation 11
Additional Information 12
Limited Warranty 14
Important Safety Information 14
2 3
ENG
ENG
The LG TONE PRO™ (HBS-910) is a lightweight wireless headset that uses Bluetooth® technology.
This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free
Bluetooth® Prole.
The Bluetooth® work mark and logo are registered trademarks of Bluetooth® SIG, Inc. and the use of all
trademarks should follow the license agreement.
Safety Cautions
!
!
HD Speaker
If the communication network of the device you are connecting to supports “HD Voice Calling”, you can
enjoy making voice calls and listening to music in high denition.
apt-X®
This product supports apt-X®.
The apt-X® is Bluetooth® wireless technology that provides clearer audio for listening to music and watching
movies. (It operates automatically only with a mobile phone or audio device that supports apt-x®.)

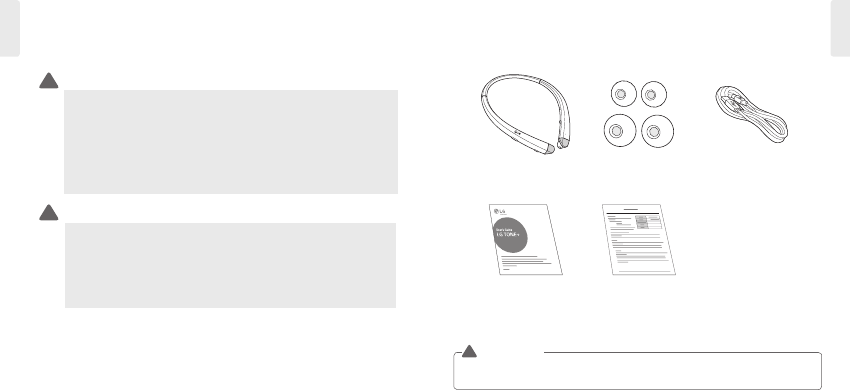

Product Components
LG TONE PRO™ HBS-910
(Medium ear gels installed)
Extra Ear Gels
(small & large) USB Charging Cable
User Manual Warranty Card
yActual product design may differ from images shown in manual.
Make sure authentic LG Electronics components are used. Using a non-authentic component may
damage the product and thus void the warranty.
!
CAUTION
Do not disassemble, adjust or repair the product arbitrarily.
Make sure there are no ammable materials close or in contact with the product.
Do not arbitrarily replace the battery as it may explode.
The product may be damaged if an incompatible recharger is used.
Make sure that any infant or child does not swallow a magnet or a small component of the product.
If you have a medical device implanted, contact your doctor before use.
Do not drop the product from a high place.
Make sure there is no water, alcohol, or benzene in contact with the product.
Do not store the product in a wet or dusty place.
Do not place any heavy objects on the product.
This product is not waterproof. Avoid humidity and water.
CAUTION
WARNING
4 5
ENG
ENG

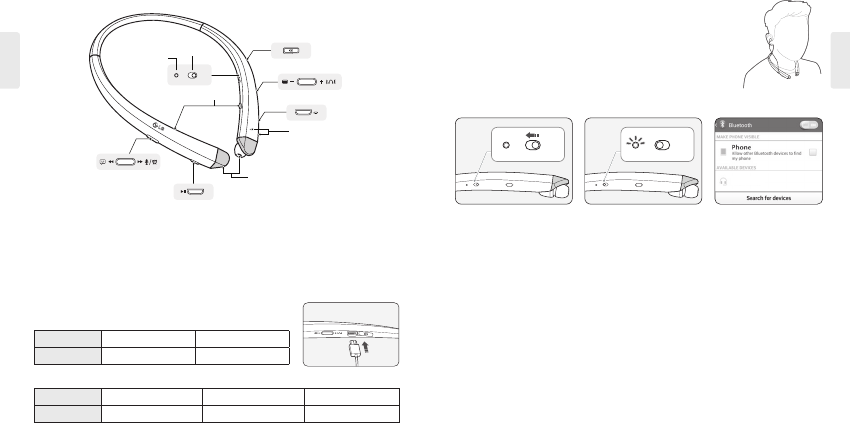

Product Tour
ON OFF
yNOTE : When you control the volume(level 16), you will hear a control sound two times or as a long
sound from volume level 6 and higher.
Battery Charging and Alerts
Open the charging port cover and connect the charger to the charging port.
y NOTE : You cannot use functions such as Power on/off, Auto reconnection,
Play/Pause, Make/Hang up Calls, Reject Calls, and Adjust Volume.
Indicator lamp Red Blue
Battery Status Charging Completed
Slide the Volume jog switch in the “-” direction for 1 second to check the battery level by voice and indicator lamp.
Battery Status Sucient Normal Insucient
Indicator lamp Blue ashes three times Purple ashes three times Red ashes three times
HBS-910 Registration/Connection
If you start the process after putting in your earphones, you can easily register and connect
following the voice prompts.
yNOTE : If you are prompted for the authorization code (PIN Code), type “0000”.
If you hear that the battery is insucient, recharge the battery before proceeding with
the registration.
If registration is not completed within three minutes, the power automatically turns o.
Connecting Quickly
1 Slide the Power switch towards [ON] to turn on the Power.
2 The blue indicator lamp turns on and the HBS-910 switches to search mode.
3 From the mobile phone or device list, select [LG HBS910] to connect.
4 Once the connection is complete, a voice message indicates that the connection is complete.
5 Use the same process to register the HBS-910 to other devices.
Connecting Manually
1 Hold down the Call button and slide Power switch to [ON] to turn it on.
2 The blue indicator lamp turns on and the HBS-910 switches to search mode.
3 Select [LG HBS910] from the device list to connect.
Multiple Connections
The HBS-910 can be connected to a mobile phone and a PC simultaneously.
yNOTE : If simultaneously connected to two devices, the main functions work based on the " Main Connected Device" .
ON
OFF
ON OFF
ON
OFF
ON OFF
LG HBS910
Indicator lamp
Power switch
Earphone cord-wrapping button
Volume jog switch
Previous/Next
jog switch
Play/Pause/Stop button
Earphone (left/right)
Charging port
Call button
Microphone
6 7
ENG
ENG
1 Hold down the Call button and slide Power switch to [ON] to turn it on.
2 Perform Steps 2 to 4 in [Connecting Quickly]. This device becomes the “Main Connected Device”.
3 Try to connect to HBS-910 using a previously connected device. This device becomes the “Sub
Connected Device”.
Automatic Reconnection
If you turn on the product, it automatically searches for the devices whose connection settings are
congured to connect to them.
If the product does not automatically connect to the device you want, search for your product in the
device you want to connect to and connect it manually.
Indicator lamp
Functions HBS-910 Status Description
Operation
Power On The blue indicator lamp ashes four times.
Power O The blue indicator lamp ashes four times.
Search Mode The blue indicator lamp is on.
Headset/Hands-free
Prole Connected The blue indicator lamp ashes once every 5 seconds.
Call Connected The blue indicator lamp ashes once every 5 seconds.
Mobile Calling Functions
Functions Description
Receiving a Call/
Hanging Up
Briey press the Call button.
To turn o the vibration, briey slide the Volume jog switch in the “-” direction.
Making a Call
If you make a call using a mobile phone, the call is automatically connected to the HBS-910.
On some mobile phones, you should briey press the Play/Pause/Stop button two times
to switch calls.
Redial Press the Call button for 1 second.
Voice Dial Briey press the Call button.
If the mobile does not support the voice dial function, you can use the redial function.
Switching Calls
Briey press the Play/Pause/Stop button two times during a call.
(Every time you press one of these buttons, the call switches to the mobile phone or
the HBS-910.)
Receiving a Call
While on the
Phone
You can receive another call while on the phone by pressing the Call button for 1 second.
The existing call switches to a call waiting status. Press the Call button again for 1 second
to switch back to the previous call.
Briey press the Call button to hang up in the middle of a call, or to hang up both calls.
(It works dierently depending on the mobile phone settings.)
Rejecting a Call Press the Call button for 2 seconds.
Enabling/Disabling
Mute
Slide the Volume jog switch in the “+” direction, and slide the Previous/Next jog switch in
the Previous direction for 1 second at the same time.
yCAUTION : Do not disable/enable the mute while driving, as you need to use both hands.
yNOTE : The voice dial and redial functions work on the“Main Connected Device”or on the device on which you
made the last call. (The voice dial and redial functions may work differently depending on some mobile phones.)
Playing Music
Functions Description
Play Briey press the Play/Pause/Stop button.
Music will play from the activated player of the connected device.
Pause Briey press the Play/Pause/Stop button.
Stop Press the Play/Pause/Stop button for 1 second.
8 9
ENG
ENG
Play Previous/Next Song Briey slide the Previous/Next jog switch in the Previous or Next direction.
Fast Rewind/Forward Slide the Previous/Next jog switch in the Previous or Next direction until you reach
the desired section of the track.
Change Equalizer Mode
Briey press the Play/Pause/Stop button. Changes modes with a beeping sound
in the following order: Ultra Boost (Default setting) > Bass Boost > Normal > Treble
Boost (Enhanced treble)
Switching Music Players
If you stop in the middle of playback and then play music on either of the two connected devices, the
HBS-910’s music playback and control changes to that device.
Vibration Alert Settings
Slide the Volume jog switch in the ”+” direction for 2 seconds when the HBS-910 is not in use.
If you turn o the vibration alerts, it will not vibrate even when a call is being received or you are out of
communication range.
yNOTE : The vibration alert is automatically set to [ON] when you turn on the power.
Out of Range
If the device connected to the product is out of eective communication range (33 feet / 10 meters), the
communication signal becomes weak and the communication is lost.
If the device comes back within eective communication range, the product automatically reconnects to
the device. If the device is not automatically reconnected, press the Call button on the product to connect
to it manually.
If a device that is not in use goes out of communication range when multiple devices are connected, the
product vibrates and a voice message indicates that the connection is lost. In this case, the automatic
reconnection function is not supported.
Find Me
To nd handset, slide the Volume jog switch and Previous/Next jog switch to same direction at the same
time. for example,
1 Slide the Volume jog switch to the + position and the Previous/Next jog switch to the Previous position.
2 Slide the Volume jog switch to the - position and the Previous/Next jog switch to the Next Position.
Tone & Talk
LG Tone & Talk supports various functions including text and voice directions,
and calling. Go to the Google Play Store and search for “LG Tone & Talk” or scan
the QR code on the right to install LG Tone & Talk.
yNOTE : LG Tone & Talk can be used on Android smartphones.
Function Action
Current time alert or
Voice memo
1. Select Current time alert or Voice memo from application.
2. Slide the Previous/Next jog switch to the Next position for 1 second.
Reading Recent Messages Slide the Previous/Next jog switch in the Previous direction for 1 second.
Find Me Slide the Volume jog switch and Previous/Next jog switch to same direction
at the same time.
Using Speed Dial to
Make a Call
1. Go to LG Tone & Talk and select a speed dial contact.
2. Briey press the Call button two times.
(The number should be specied in the LG Tone & Talk app.)
Using Favorites to
Make a Call
1. Go to LG Tone & Talk and select a favorite contact.
2. Briey press the Call button two times.
3. Slide the Previous/Next jog switch previous or next for 1 second to select
a number.
4. Briey press the Call button two times.
Making a Call from Call
History
1. Go to LG Tone & Talk and select Call History.
2. Briey press the Call button two times.
3. Slide the Previous/Next jog switch previous or next for 1 second to select a
Call History number.
4. Briey press the Call button two times.
Summary of HBS-910 Functions
Function HBS-910 Status Action
Power on Power o Slide the Power switch to the ON position.
Power o Power on Slide the Power switch to the OFF position.
10 11
ENG
ENG
Volume up Talking / Music on Slide the Volume jog switch to the + position.
Volume down Talking / Music on Slide the Volume jog switch to the - position.
Transferring a call Talking Press the Play/Pause/Stop button twice.
Answering a call Ringing Briey press the Call button.
Stop incoming call
vibration alerting Ringing Briey slide the Volume jog switch to the - position.
Vibration on/o Idle Slide the Volume jog switch to the + position for 2 seconds.
Find Me Power on Slide the Volume jog switch and Previous/Next jog switch
to same direction at the same time.
Ending a call Talking Briey press the Call button.
Call waiting Talking Press the Call button for 1 second.
Last number redial Idle Press the Call button for 1 second.
Voice dialing
(handset must support) Idle Briey press the Call button.
Call reject Ringing Press the Call button for 2 seconds.
Mic mute on/o Talking
Slide the Volume jog switch to the + position and the
Previous/Next jog switch to the Previous position at the
same time for 1 second.
Pairing mode (Manual) Power o Press the Call button and slide the Power switch to the ON
position at the same time for 2 seconds.
Battery status check Idle Slide the Volume jog switch to the - position for 1 second.
Play Power on Briey press the Play/Pause/Stop button.
Pause Music on Briey press the Play/Pause/Stop button.
Stop Music on Press and hold the Play/Pause/Stop button for 1 second.
Next song Music on Briey slide the Previous/Next jog switch to the Next
position.
Previous song Music on Briey slide the Previous/Next jog switch to the Previous
position.
Fast forward Music on Slide and hold the Previous/Next jog switch in the Next
position.
Rewind Music on Slide and hold the Previous/Next jog switch in the
Previous position.
Equalizer settings Music on Press the Play/Pause/Stop button twice.
Troubleshooting
Problems Solutions
The power does not turn on Check the battery level and charge it.
Cannot make a call with
the HBS-910
If the mobile phone does not support headset and hands-free functions, you
cannot use the calling features.
Check the battery level and charge it.
Cannot register the HBS-
910 to the mobile phone
Check whether the HBS-910 is turned on.
Check whether the HBS-910 is in search mode.
- Hold down the Call button and slide Power switch to [ON] and the HBS-910
switches to search mode.
The sound is low Control the sound level of the device connected to the HBS-910.
Specications and Features
Item Comments
Bluetooth® Specications V 4.1 (Headset/Hands-Free/A2DP/AVRCP proles)
Battery Battery 3.7 V / 210 mAh , Li-Polymer
Waiting Time Up to 540 hours
Call Time Up to 16 hours
Music Playback Time Up to 12 hours
Charging Time Less than 2 hours ~
Rated input voltage DC 4.75 V ~ 5.6 V, 400 mA
Operating Temperature -20 ˚C ~ 50 ˚C
Dimensions/Weight 145 mm (W) X 175 mm (L) x 14.7 mm (H) / 51 g
Operating Frequency 2402 MHz to 2480 MHz
12 13
ENG
ENG
Declaration of Conrmation
FCC NOTICE TO USERS:
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is
permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure
requirements and void user’s authority to operate the device.
1. Radio frequency exposure
This Bluetooth® Stereo Headset HBS-910 is a radio transmitter and receiver. When in operation it com-
municates with a Bluetooth® equipped mobile device by receiving and transmitting radio frequency (RF)
electromagnetic elds (microwaves) in the frequency range 2.4 to 2.4835 GHz. Your Bluetooth® Headset is
designed to operate in compliance with the RF exposure guidelines and limits set by national authorities
and international health agencies when used with any compatible LG Electronics mobile phone.
2. Potentially explosive atmosphere
Turn o your electronic device when in any area with a potentially explosive atmosphere. Although this is
uncommon, your electronic device could generate sparks. Sparks in such areas could cause an explosion
or re resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often, but
not always, clearly marked.
3. Emergency calls
IMPORTANT!
This Bluetooth® headset and the electronic device connected to the headset operate using radio signals,
mobile and landline networks as well as user-programmed functions, which cannot guarantee connection
under all conditions. Therefore you should never rely solely upon any electronic device for essential
communications (e.g. medical emergencies). Remember, in order to make or receive calls, the headset and
the electronic device connected to the headset must be switched on and in a service area with adequate
mobile signal strength. Emergency calls may not be possible on all mobile phone networks or when
certain network services and/or phone features are in use. Check with your local service provider.
4. Battery information
A rechargeable battery has a long service life if treated properly. A new battery or one that has not been
used for a long period of time could have reduced capacity the rst few times it is used. Do not expose the
battery to extreme temperatures, never above +60°C (+140°F) or below -20°C (-4°F). For maximum battery
capacity, use the battery at room temperature. If the battery is used in low temperatures, the battery
capacity will be reduced. The battery can only be charged in temperatures between +10°C (+50°F) and
+45°C (+113°F). For your safety, do not remove the battery incorporated with the product. If you need to
replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance.
Additional Information
IC NOTICE TO USERS:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) L'appareil ne doit pas produire de brouillage, et
(2) L'utilisateur de l'appareil doit accepter tout brouillage, radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
CE NOTICE TO USERS:
Hereby, LG Electronics Inc. declares that this HBS-910 is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
s3FPSJFOUPSSFMPDBUFUIFSFDFJWJOHBOUFOOB
s*ODSFBTFUIFEJTUBODFCFUXFFOUIFFRVJQNFOUBOEUIFSFDFJWFS
s$POOFDUUIFFRVJQNFOUUPBOPVUMFUPOBDJSDVJUEJűFSFOUGSPNUIBUUPXIJDIUIFSFDFJWFSJTDPOOFDUFE
s$POTVMUUIFEFBMFSPSBOFYQFSJFODFESBEJP57UFDIOJDJBOGPSIFMQ
14
ENG
service performed by a non- LG Electronics authorized person. Tampering with any of the seals on the
product will void the warranty.
- THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL, OTHER THAN THIS PRINTED
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL
LG ELECTRONICS OR ITS VENDORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY
NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE
FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.
• Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or
limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply
to you. The warranty provided does not aect the consumer’s statutory rights under applicable national
legislation in force, nor the consumer’s rights against the dealer arising from their sales/purchase contract.
Limited Warranty
Subject to the conditions of this Limited Warranty, LG Electronics warrants this product to be free from
defects in design, material and workmanship at the time of its original purchase by a consumer, and for
a subsequent period of one (1) year. Should your product need warranty service, please return it to the
dealer from whom it was purchased or contact your local LG Electronics contact center to get further
information.
Important Safety Information
Avoiding hearing damage
Permanent hearing loss may occur if you use your headset at a high volume.
Set the volume to a safe level. Over time you can become accustomed to a higher volume that may sound normal but
can be damaging to your hearing.
If you experience ringing in your ears or mued speech, stop listening and have your hearing checked. The louder the
volume, the less time is required before your hearing could be aected.
Hearing experts suggest that to protect your hearing:
• Limit the amount of time you use the headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
Using headsets safely
Use of headsets to listen to music while operating a vehicle is not recommended and is illegal in some areas. Be careful
and attentive while driving. Stop using this device if you nd it disruptive or distracting while operating any type of
vehicle or performing any other activity that requires your full attention.
6. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser by the dealer, specifying
the date of purchase and serial number, is presented with the product to be repaired or replaced. LG
Electronics reserves the right to refuse warranty service if this information has been removed or changed
after the original purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted
for the remaining time of the original warranty period or for ninety (90) days from the date of repair,
whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned
units. Replaced parts or components will become the property of LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear and tear, or due to misuse,
including but not limited to use in other than the normal and customary manner, in accordance with in-
structions for use and maintenance of the product. Nor does this warranty cover any failure of the product
due to accident, modication or adjustment, acts of God or damage resulting from liquid.
- This warranty does not cover product failures due to improper repair installations, modications or
15
5. Recycling the battery in your Bluetooth® headset
The battery in your Bluetooth® Headset must be disposed of properly and should never be placed in
municipal waste. The LG Electronics service partner who removes the battery will dispose of it according
to local regulations.
FCC ID: ZNFHBS910

Navigation menu
