BLUETOOTH®Hands-free Car Kit
HFB-320 User manual
English

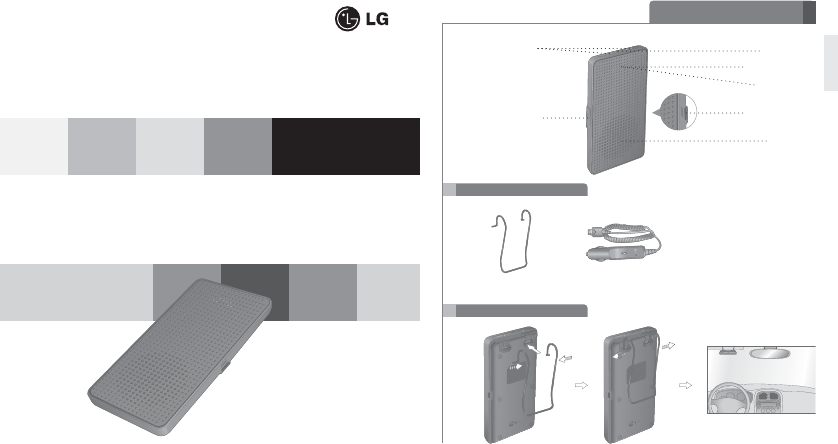

Description of parts
B. Speaker
C. Volume UP/
Down Button E. LED indicator
D. Power Switch F. Charging Port
A. Call Button
Microphone
H. Car Charger
G. Visor Clip
1
ENG
Specification
Description of parts
INSTALLING IN CAR
Contents
3
A. Call Button
B. Speaker
C. Volume UP/Down Button
D. Power Button
E. LED indicator
F. Charging Port
G. Visor Clip
H. Car Charger
* Note : To install the HFB-320 in your car, Sun Visor Clip onto HBF-320, then
secure HBF-320 to the sun visor in your car as shown below.
How to use 4
LED indication 8
Troubleshooting 8
ITEM Description
Bluetooth®specification V2.1 (Headset / HFP)
Battery Battery 3.7V / 1000mAh Li-Polymer
Standby time / Talk time Up to 2000Hrs / Up to 27Hrs
Charging time < 2Hrs
Operation temperature -10°C ~60°C
Dimension / Weight 59(W) X 126(L) X 13.5(T) / 95g

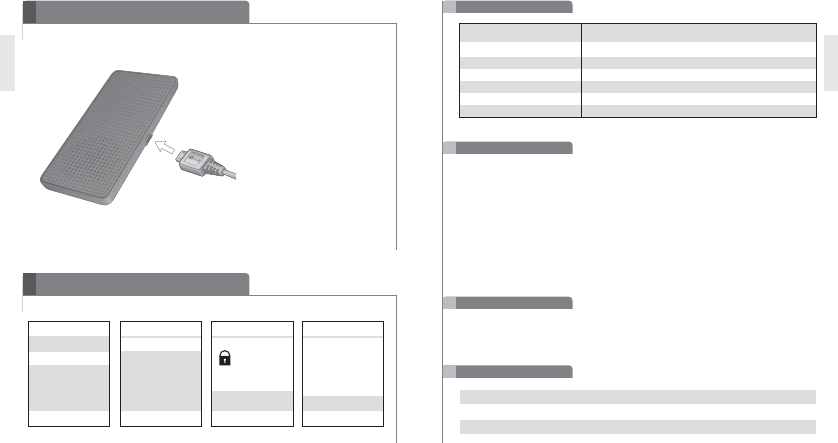

Charging Your Hands-free car kit
Pairing Your Hands-free car kit
Sounds Settings
BLUETOOTH TURN ON
Display Settings
Phone Settings
Call Setting
SETTINGS
SELECT
LG HFB-320
DEVICES FOUND
SELECT
Passkey:
****
HFB-320
OK
LG HFB-320 added.
The handsfree is
now ready for use
HANDSFREE
SELECT
2
ENG
ENG
Controls
How to use
Pairing
65
- Before using the hands-free car kit for the first time, you must pair it with a Bluetooth-
enabled handset.
- To pair your hands-free car kit with an additional handset, the hands-free car kit must
be placed in Pairing Mode.
- There are 2 Pairing Mode Methods with the HFB-320.
Easy Pairing (First Time Pairing)
1. Move the Power switch to ON position to turn on the HFB-320. When the hands-free
car kit enters Pairing Mode, the LED indicator will show a solid blue light.
2. Using your handset, find the Bluetooth Menu and “search for” or “add” new devices.
•Select “LG HFB-320” from the list of devices and pair it with your handset.
3. If asked for the Pass/PIN code please enter “0000” (4 Zeros).*
* Note : If your handset supports Secure Simple Pairing(SSP), you will not need to
enter Pass/PIN code.
•Once pairing has completed successfully, you will hear a beep.
4. Some handsets might ask for permission to access the phone’s contact list. If you
receive a message from your handset, please select “OK” or “Allow access”
•The HFB-320 will automatically turn off if not paired within 3 minutes.
Manual Pairing (Pairing with another phone or re-pairing)
•With the Power off, press and hold the Call control button and move the Power
switch to ON position
•When the hands-free car kit enters Pairing Mode, the LED indicator will show a solid
blue light. After the procedure repeat Easy Pairing steps 2 through 4.
How to use
Multipoint
- The LG HFB-320 is capable of having two handsets connected to the hands-free car kit.
- To use this feature, you must enable Multipoint set up.
(see “Enable/Disabel Multipoint” on page 4 for help)
Multipoint Connect
- Pair the Hands-free car kit with one of your Bluetooth-enabled handsets.
(per the pairing instructions on Manual Pairing).
- Now, pair and connect the Hands-free car kit with your other Bluetooth-enabled handset.
(This will be your Primary handset).
- Once this handset is paired and connected, go back and connect the first paired handset to
the Hands-free car kit. (This will be your Secondary handset).
Note: When the HFB-320 is connected to two handsets at the same time (Multipoint),
the Headset calling functions will work with the Primary handset (or handset
which made the last outgoing call).
Power on / Power off
- Slide the Power switch to the on/off position.
Volume Control
- Briefly press the Volume button.
Charging
- While charging, the LED indicator will show a solid blue light.
- It takes 2 hours to fully charge the hands-free car kit.
- When charging is complete, the LED indicator will turn off.
Battery Status Alert
- To check the battery status, press and hold the VOLUME DOWN button for 3 seconds.
- There are 3 levels of battery status : “Battery High”,”Battery Medium”,”Battery low”
Low battery
- An announcement will be made once every 30 seconds.
- If the battery is not charged, the headset will turn off.
Answering a call / Ending a call
- Briefly press the CALL button.
Last number redial*
- Press and hold the CALL button for 1 second to activate “Last Number Redial”.
The hands-free car kit will beep, and call the last number dialed.
Making a call
- If you make a call from the handset, the call will (subject to phone settings) automatically
transfer to the hands-free car kit. If the call is not automatically transferred, you can
manually transfer the call by briefly pressing the CALL button.
Voice dialing*
- Briefly press the CALL button to activate “Voice Command”.
NOTE: If the handset does not support Voice Dialing, it is possible that performing this action
will activate Last Number Redial.
Transferring a call*
- While on a call on your handset, briefly press the CALL button on the hands-free car kit to
transfer the audio to the hands-free car kit. And to transfer a call from the hands-free car kit
to handset, press and hold VOLUME UP button for 3 seconds.
ENG
ENG
How to use
7
Call waiting*
- Answer a second call without hanging up the first call by pressing the CALL button for 1
second (you will hear a beep). Press the CALL button for 1second to turn to the
original call.
- Briefly press the CALL button to terminate the active call or both calls at once.
(subject to handset's support)
Call Reject*
- Press the CALL button for 1second when the handset rings.
Calling Function
- Voice Dial and Last Number Redial features work with the Primary handset
(or handset which made the last outgoing call).
Volume Down
- Briefly press the Volume Down button.
Enable/Disable Multipoint
- With the Power off, press and hold the VOLUME UP/DOWN and Slide the Power
switch to the on position simultaneously for 3 seconds.
* It is possible to use these functions only when your handset supports them. For further
information about using these features, please consult your handset’s user manual.
Out of range
- Operating range up to 10 meters (approximately 33 ft)
- If the hands-free car kit and handset do not automatically reconnect when they are
back within the required range, briefly press the CALL button on the HFB-320 to
reconnect manually.
Note : if the HFB-320 and handset are out of range for approximately 60 minutes,
HFB-320 will automatically turn off, to help save power.
To activate the hands-free car kit, with the Power off, slide Power switch to the
on position.
8
LED indication
Troubleshooting
ENG
Does not turn on Check whether the battery Charge the battery.
of the HFB-320 is fully
charged.
Unable to Check whether Determine whether your
communicate with the handset supports handset supports
the LG Bluetooth®the headset or hands-free the headset or hands-free
Headset HFB-320 Bluetooth profiles. Bluetooth profiles.
Check whether the battery Charge the battery.
of the HFB-320 is low.
Unable to pair the Check and make sure the Press and hold the PWR
HFB-320 with the headset is on. button for 3 seconds to turn
Bluetooth®device on the headset.
Check and make sure With the power off, press and
the headset is placed hold the PWR button for
in pairing mode. 6 seconds to manually place the
headset in pairing mode.
Low sound (speaker) Check the speaker volume. lncrease the volume level.
Function HFB-320 Status Action
Operating Power on The blue LED light flickers 4 times.
Power off The blue LED light flickers 4 times
and then turns off.
Pairing mode The blue LED light stays on.
Headset / hands-free The blue LED light flickers
profile connected 2 times every 5 seconds.
Call connected The blue LED light flickers
2 times every 5 seconds.
Charging Charging The blue LED stays on.
Charging complete LED is turns off.
ENG
109
Precautions
Declaration of Confirmation
Do not drop the unit from high places.
Do not modify, repair, or take apart.
Do not expose directly to water, alcohol, benzene, etc. for cleaning.
Do not expose directly to flammables.
Do not place or keep the unit near flammables.
Keep unit away from humidity & dust.
Do not place heavy objects on the unit.
Only use the headset with an original LG charger, otherwise it may be damaged.
•Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
•There is a risk of explosion if the battery is replaced by an incorrect type.
•Dispose of used batteries according to the instructions.
FCC NOTICE TO USERS :
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE :
To comply with the FCC RF exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the antenna or the device could result
in the device exceeding the RF exposure requirements and void user's authority to
operate the device.
Hereby, LG Electronics Inc. declares that this HFB-320 is in compliance with the essential
requirements and other relevant provisions of Directive
1999/5/EC.
ENG
ENG
Additional Information
1. Radio frequency exposure
This Bluetooth®Hands-free car kit, HFB-320, is a radio transmitter and receiver. When in
operation, it communicates with a Bluetooth®equipped mobile device by receiving and
transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency
range 2.4 to 2.4835 GHz. The output power of the radio transmitter is low, 0.001 watt.
Your Bluetooth®Hands-free car kit is designed to operate in compliance with the RF
exposure guidelines and limits set by national authorities and international health agencies
when used any compatible LG Electronics mobile phone.
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive atmosphere.
It is rare, but your electronic device could generate sparks. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death. Areas with a potentially
explosive atmosphere are often, but not always, clearly marked.
3. Battery information
A rechargeable battery has a long service life if treated properly. A new battery or one
that has not been used for a long period of time could have reduced capacity the first few
times it is used. Do not expose the battery to extreme temperatures, never above
+60°(+140°F) or under -20°(-4°F). For maximum battery capacity, use the battery in room
temperature. If the battery is used in low temperatures, the battery capacity will be
reduced. The battery can only be charged in temperatures between +10°(+50°F) and
+45°(+113°F). For your safety, do not remove the battery incorperated in the product. If
you need to replace the battery, take it to the nearest authorised LG Electronics service
point or dealer for assistance.
4. Recycling the battery in your Bluetooth®Hands-free car kit
The battery in your Bluetooth®Hands-free car kit must be disposed of properly and
should never be placed in municipal waste. The LG Electronics service partner removing
battery will dispose of it according to local regulations.
5. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser by the
dealer, specifying the date of purchase and serial number, is presented with the product
to be repaired or replaced. LG Electronics reserves the right to refuse warranty service
if this information has been removed or changed after the original purchase of the
product from the dealer.
12
11
ENG
- This Warranty does not cover any failure of the product due to normal wear and tear,
or due to misuse, including but not limited to use in other than the normal and customary
manner, in accordance with instructions for use and maintenance of the product. Nor
does this warranty cover any failure of the product due to accident, modification or
adjustment, acts of God or damage resulting from liquid.
- This warranty does not cover product failures due to improper repair installations,
modifications or service performed by a non-LG Electronics authorized person.
Tampering with any of the seals on the product will void the warranty.
7. Do no use for emergency calls
Limited Warranty
Important safety information
Subject to the conditions of this Limited Warranty, LG Electronics warrants this product
to be free from defects in design, material and workmanship at the time of its original
purchase by a consumer, and for a subsequent period of one (1) year. Should your
product need warranty service, please return it to the dealer from whom it was
purchased or contact your local LG Electronics contact center to get further information.
Avoiding hearing damage Permanent hearing loss may occur if you use your Hands-
free car kit at a high volume. Set the volume to a safe level. You can adapt over time to
a higher volume of sound that may sound normal but can be damaging to your hearing.
If you experience ringing in your ears or muffled speech, stop listening and have your
hearing checked. The louder the volume, the less time is required before your hearing
could be affected. Hearing experts suggest that to protect your hearing:
•Limit the amount of time you use Hands-free car kit at high volume.
•Avoid turning up the volume to block out noisy surroundings.
•Turn the volume down if you can't hear people speaking near you.
Please refer to your handset user guide for more information on how to adjust listening
levels on your handset.
Using Hands-free car kit safely Use of Hands-free car kit to listen to music while
operating a vehicle is not recommended and is illegal in some areas. Be careful and
attentive while driving. Stop using this device if you find it disruptive or distracting while
operating any type of vehicle or performing any other activity that requires your full
attention.
MEMO
