LG Electronics USA HFB500 BLUETOOTH CAR KIT User Manual HFB 500
LG Electronics USA BLUETOOTH CAR KIT HFB 500
USERS MANUAL
LG Electronics
BLUETOOTH®Hands-free Car Kit
HFB-500 User manual
All rights reserved.
LG Electronics Inc., 2008
Note : For the best performance and
to prevent any damage to, or misuse of
the HFB-500, please read all of the information
carefully prior to using the HFB-500.
Any modifications or changes to this manual
due to typographical errors or inaccuracies of stated
information shall only be made by LG Electronics Inc.
English

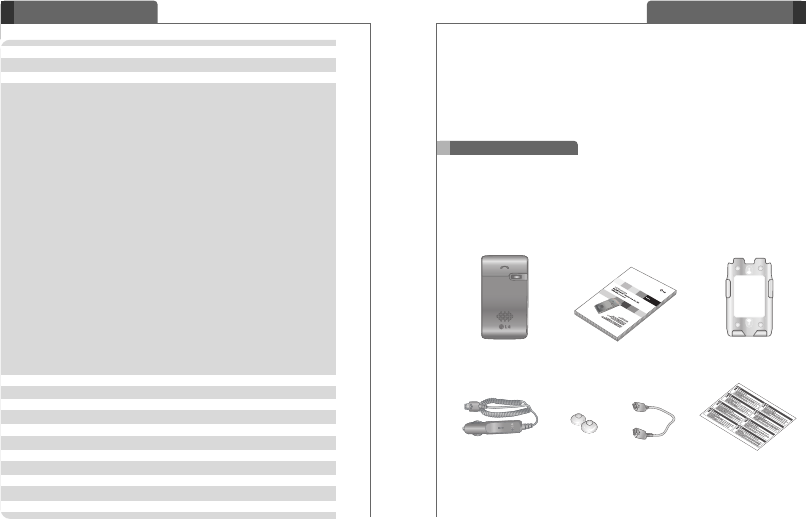

Table of Contents
3
Introduction
The LG Bluetooth®Hands-free car kit HFB-500 is a solar-powered wireless
hands-free car kit utilizing Bluetooth technology with a slim and fashionable
design. This product can be used as an audio accessory for devices
supporting the Headset or Handsfree Bluetooth profiles.
Hands-free car kit User manual
Car charger Suction cups
Included in package
Window mount
2
Ensure that the items mentioned below are all included in the package.
If any item is missing, please contact the dealer.
WEEE Card
Emergency
charging cable
Introduction 3
- Included in package 3
Part description 4
How to use 5
- Recommended installation position 5
- Charging 5
- Low battery 5
- Battery status 5
- Emergency Battery Charging 6
- Power on 6
- Power off 6
- Pairing 7
�Easy Pairing 7
�Manual Pairing 7
- Auto Reconnect 8
-Volume control 8
- Calling 8
�Answering a call 8
�Making a call 8
�Voice dialing* 8
�Last number redial* 8
�Ending a call 8
�Transferring a call* 9
�Call waiting* 9
�Call reject* 9
�Mute 9
Multipoint 9
- Multipoint Connect 9
Summary of button functions 10
LED indication and signal sound 10
Troubleshooting 11
Specification 11
Precautions 12
Declaration of confirmation 13
Additional information 14
Limited warranty 16
Important safety information 16
4

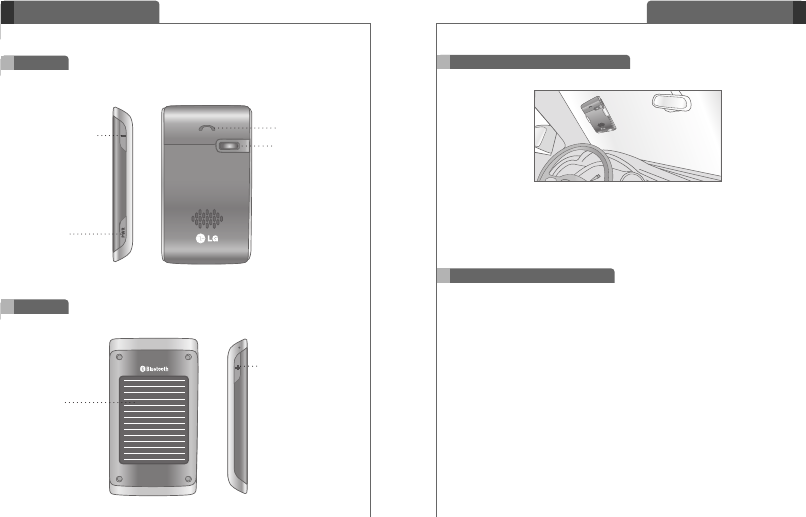

Part description
Front
5
Charging
- Using the car charger
�Remove the cover on the charging port and connect the charger.
�When the charger is connected, the LED indicator flashes slowly.
�It takes 2 hours to fully charge the hands-free car kit.
�When charging is complete, the LED indicator will turn off.
(! The LED indicator indicates the charging status only when the hands-free
car kit turned off)
- Using solar power
�Direct the solar panel on the back of the hands-free car kit toward the sun.
(Please refer to the recommended installation position, as mentioned above.)
�
If the car kit receives sufficient sunlight for 2 hours, you can talk for a duration
of up to 1 h. Using solar power charge, the operation time (the talk time and
the standby time) will be extended continuously without any additional
charge required by the car charger.
* WARNING :
Do not attempt to charge the hands-free car kit with any charger
other than the one provided. Using another charger may
damage or destroy the hands-free car kit.
Recommend installation position
- It is recommended that the hands-free car kit be positioned and installed on
the windshield in front of the driver's seat, as shown in the picture below.
* WARNING : Install the hands-free car kit out of the way of any Air Bags
for safety reason.
Solar Module
Back
Volume Up Button
CALL Button
Power Button
& Status LED
Volume Down Button
Charging Port
How to use
How to use
7
Power on
- Press and hold PWR button for 1 second.
- You will hear a startup tone and the LED indicator will rapidly flash 5 times.
6
Power off
- Press and hold PWR button for 2 seconds.
- You will hear a shutdown tone and the LED indicator will rapidly flash 5 times.
Pairing
- Prior to using the hands-free car kit for the first time, you must pair it with a
Bluetooth-enabled handset.
- There are 2 pairing mode methods with the HFB-500.
1) Easy Pairing
�With the power off, press and hold the PWR button for 1 second, to turn on the
HFB-500.
�The hands-free car kit will enter Auto-Reconnect mode, for 10 seconds (If your
hands-free car kit has been previously paired to the handset, the headset will
automatically reconnect to the handset, when the HFB-500 is powered on.)
�After 10 seconds, the HFB-500 will automatically enter pairing mode.
�When the hands-free car kit enters Pairing mode, the LED indicator will flash
at 2 second intervals. (The LED indicator is on 2 seconds, and off 2 seconds.)
�Using your handset, find the Bluetooth menu and “search for” or “add” new
devices.
�Select “LG HFB-500” from the list of devices and pair it with your handset.
�When asked for the Pass/PIN code during the pairing procedure, please enter
“0000” (4 zeros).
�Once pairing has completed successfully, you will hear a beep.
�After pairing successfully, be sure to “Connect” to the LG HFB-500.
�If you want to pair with a different device in the future, the hands-free car kit
must be placed in pairing mode.
�
If the hands-free car kit is in pairing mode for 3 minutes without being connected
to a handset, the HFB-500 will automatically turn off.
2) Manual Pairing
�With the power off, press and hold the CALL button for 5 seconds.
�When the hands-free car kit enters Pairing mode, the LED indicator will flash
at 2 second intervals. (The LED indicator is on 2 seconds, and off 2 seconds.)
�Using your handset, find the Bluetooth menu and “search for” or “add” new
devices.
�Select “LG HFB-500” from the list of devices and pair it with your handset.
�When asked for the Pass/PIN code during the pairing procedure, please enter
“0000” (4 zeros).
�Once pairing has completed successfully, you will hear a beep.
�After pairing successfully, be sure to “Connect” to the LG HFB-500.
�If you want to pair with a different device in the future, the hands-free car kit
must be placed in pairing mode.
�
If the hands-free car kit is in pairing mode for 3 minutes without being connected
to a handset, the HFB-500 will automatically turn off.
Battery status
- By pressing volume up and volume down button simultaneously and then
releasing them briefly, the battery status is indicated by the number of red
flashes with a beeping sound.
Emergency Battery Charging
- If the battery from the mobile phone runs out, the battery from the HFB-500
can be used for mobile phone's function.
- Connect HFB-500 and the mobile phone using the emergency charging cable.
- When the Emergency charging cable is connected, with power on or off, the
HFB-500 will turn off. While Emergency Battery Sharing, the LED indicator
will turn on.
* While sharing the emergency battery between HFB-500 and the mobile
phone, the electric current can be flow backward when the battery of HFB-
500 is not charged enough. Emergency battery sharing can be done only
for LG GSM and 3G mobile phones.
Number of red flashes 4 flashes 3 flashes 2 flashes 1 flash
and beeps
Talking time More than 12 h More than 8 h More than 4 h Up to 4 h
Low battery
- The LED indicator will flash once every 3 seconds when the battery status is
lower than 10 % of the full charge.
How to use
8
How to use
9
Transferring a call*
- While on a call on your handset, briefly press the CALL button to transfer the
audio to the hands-free car kit. (handset and hands-free car kit must be paired).
- And to transfer a call from the hands-free car kit to handset, press and hold
VOL UP button for 1 second.
Call waiting*
- Answer a second call without hanging up the first call by pressing the CALL
for 1 second. Press the CALL button for 1 second to return to the original call.
- Briefly press the CALL button to terminate both calls at once.
Call reject*
- Activate Call Reject by pressing the pressing the CALL button for 1 second
when the hands-free car kit rings.
Mute
- To activate the mute function, press VOL DOWN button for 1 second; this will
mute your voice to the other party whiled on a phone call.
- To release the mute function, press VOL DOWN button for 1 second again.
- When the mute function is activated, you will hear a beep periodically.
* The *(star) mark indicates that these functions are only available with a
hands-free profile, and the connected mobile phone should support these
functions. For additional information regarding these functions, refer to the
user manual of your Bluetooth mobile phone.
Auto Reconnect
6Volume control
-
Briefly press the VOL UP or VOL DOWN button to adjust the speaker volume.
- There are eight levels of speaker volume.
- When the HFB-500 turns off (accidentally or intentionally) while connected to a
handset, the hands-free car kit will automatically reconnect when the HFB-500
is turned back on (as long as both devices are within the required range of 33ft.
of 10m).
[Out of range]
- When the HFB-500 and your handset are separated by a distance of 33 feet
(10 meters) or more, the HFB-500 and handset will disconnected. When the
handset and HFB-500 are brought back within the required distance, the HFB-
500 will automatically reconnect with the handset.
- If the HFB-500 and handset do not automatically reconnect when they are
back within the required range, briefly press the CALL button on the HFB-500
to reconnect manually.
6Calling
Answering a call
- When there is an incoming call, the hands-free car kit will ring.
- Briefly press the CALL button to answer an incoming call.
Making a call
- If you make a call from the hands-free car kit, the call will (subject to phone
settings) automatically transfer to the hands-free car kit. If the call is not
automatically transferred, you can manually transfer the call by briefly pressing
the CALL button on the HFB-500
(handset and hands-free car kit must be paired).
Voice dialing*
-
Briefly press the CALL button to activate “Voice Command”. You will get the best
results if you record the voice dialing tag through your hands-free car kit.
NOTE : If the handset does not support Voice Dialing, it is possible that
performing this action will activate Last Number redial.
Last number redial*
-
Press and hold the CALL button for 1 second to activate “Last Number Redial”.
The hands-free car kit will beep, and call the last number dialed.
Ending a call
- Briefly press the CALL button.
Multipoint
HFB-500 is capable of having two handsets connected to the hands-free car
kit at the same time. This will give you the freedom of having only hands-free
car kit to operate both your handsets and the operation of function in the
hands-free function as described in section 'How to use'.
[Multipoint Connect]
- Pair the hands-free car kit with one of Bluetooth-enabled handsets.
- Turn off the hands-free car kit.
- With the power off, press and hold the CALL button for 5 seconds to enter
Manual Pairing mode.
- Pair and connect the hands-free car kit with the other of Bluetooth-enabled
handsets.
- Connect first paired handset to hands-free car kit.
*NOTE : Functions of calling only will work on the last used handset.
How to use
10
Summary of button functions
LED indication and signal sound
11
Troubleshooting
Function HFB-500
Status Action
Power on Power off Press the PWR button for 1 second
Power off Power on Press the PWR button for 2 seconds
Volume up Talking Briefly press the VOL UP button
Volume down Talking Briefly press the VOL DOWN button
Transferring a call Talking - Handset to hands-free car kit
Briefly press the CALL button
- Hands-free car kit to handset
Press and hold the VOL UP button for 1second
Answering a call Ringing Briefly press the CALL button
Ending a call Talking Briefly press the CALL button
Call waiting Talking Press the hold the CALL button for 1 second
Last number redialing Idle Press the hold the CALL button for 1 second
Voice dialing Idle Briefly press the CALL button
Call reject Ringing Press the CALL button for 1 second
Pairing (Manual) Power Off Press the CALL button for 5 seconds
Mute on Talking Press and hold the VOL DOWN button for
1 second
Mute off Mute on Press and hold the VOL DOWN button for
1 second
Battery Status Check Standby Briefly press and release the VOL UP and
VOL DOWN buttons simultaneously
LED indcation
Power on Startup tone The LED indicator flashes 5 times rapidly
Power off Shutdown tone The LED indicator flashes 5 times rapidly
Pairing Beeps twice The LED indicator flashes at 2 second
intervals. (The LED indicator is on 2 seconds,
and off 2 seconds.)
Handsfree / Headset No beep The LED indicaator flashes twice every
Profile connected 5 seconds
Handsfree / Headset Beeps once The LED indicaator flashes once every
Profile Connected 5 seconds
Unintentional loss Beep The LED indicaator flashes twice every
of connection periodically 5 seconds
Charging No beep The LED indicator flashes slowly
Charging completed No beep The LED indicator is off
Battery power is low No beep The LED indicator flashes once every
3 seconds
HFB-500 Status Signal sound
Specifications
Bluetooth® Specification V2.1
Supported profiles HFP, HSP, GAP, SDAP
Frequency 2.402GHz ~ 2.480 GHz(ISM band)
Transmitting output Class2
Cover range Within 10m / 33ft
Standby time Up to 1100 hours
Talk time Up to 16 hours
Charging time Using charger Approximateely 2 h
Using solar power Approximateely 33 h
Operation temperature -20℃~ 60℃
Dimension / Weight 94.3 x 50.35 x 14.4 (mm) / 72 (g)
Does not turn on Check whether the battery of Charge the battery.
the HFB-500 is fully charged.
Unable to Check whether you mobile Determine whether your handset
communicate with phone supports the “Headset” supports the “Headset” or
the LG Bluetooth and /or “Handsfree” Profile(s). ”Handsfree” Bluetooth profiles(s).
Hands-free car kit Check whether the battery of Charge the battery.
the HFB-500 is low.
Unable to pair Check and make sure Press and hold the PWR button for
the HFB-500 with the HFB-500 is on. 1 second to turn on the HFB-500.
Bluetooth device Check and make sure When the power is off, press and
the HFB-500 is placed in hold CALL button for at least 5
pairing mode. seconds to place the HFB-500 in
the pairing mode.
Extremely low or Check the speaker volume. Press either the VOL UP button or
loud speaker the VOL DOWN button to control
volume the volume accordingly.
A wireless device for wireless data
communication system (LG HFB-500)
Status To check Corrective action
Name of product
13
Precautions
Do not place heavy objects on the unit.
Please only use the hands-free car kit with an
LG original charger. Otherwise the hands-free
might be damaged.
�Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
�There is a risk of explosion if the battery is replaced by an incorrect type.
�Dispose of used batteries according to the instructions.
Declaration of confirmation
FCC NOTICE TO USERS :
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
IMPORTANT NOTE :
To comply with the FCC RF exposure compliance requirements, no change
to the antenna or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure requirements
and void user's authority to operate the device.
FCC RF exposure requirements: The antenna used for this transmitter must
be installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operating in conjunction with any other antenna
or transmitter.
12
Precautions
Do not drop the unit from high places.
Do not modify, repair, or take apart.
Do not expose directly to water, alcohol,
benzene, etc. for clearing.
Do not expose directly to flammables.
Do not place or keep the unit near flammables.
Keep unit away from humidity & dust.
14
Additional Information
15
Additional Information
6. Conditions
-
The warranty is valid only if the original receipt issued to the original purchaser
by the dealer, specifying the date of purchase and serial number, is presented
with the product to be repaired or replaced. LG Electronics reserves the right
to refuse warranty service if this information has been removed or changed
after the original purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or replaced
product shall be warranted for the remaining time of the original warranty
period or for ninety (90) days from the date of repair, whichever is longer.
Repair or replacement may involve the use of functionally equivalent
reconditioned units. Replaced parts or components will become the property
of LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear
and tear, or due to misuse, including but not limited to use in other than the
normal and customary manner, in accordance with instructions for use and
maintenance of the product. Nor does this warranty cover any failure of the
product due to accident, modification or adjustment, acts of God or damage
resulting from liquid.
- This warranty does not cover product failures due to improper repair
installations, modifications or service performed by a non-LG Electronics
authorized person. Tampering with any of the seals on the product will void
the warranty.
-THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR ORAL,
OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS BE
LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE
WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR
COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
* Some countries/states do not allow the exclusion or limitation of incidental or
consequential damages, or limitation of the duration of implied warranties, so
the preceding limitations or exclusions may not apply to you. The warranty
provided does not affect the consumer's statutory rights under applicable
national legislation in force, nor the consumer's rights against the dealer
arising from their sales/purchase contract. Additional Information Additional
Information.
1. Radio frequency exposure
This Bluetooth®Hands-free car kit, HFB-500, is a radio transmitter and receiver.
When in operation, it communicates with a Bluetooth®equipped mobile device
by receiving and transmitting radio frequency (RF) electromagnetic fields
(microwaves) in the frequency range 2.4 to 2.4835 GHz. The output power of
the radio transmitter is low, 0.001 watt. Your Bluetooth®Hands-free car kit is
designed to operate in compliance with the RF exposure guidelines and limits
set by national authorities and international health agencies when used any
compatible LG Electronics mobile phone.
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive
atmosphere. It is rare, but your electronic device could generate sparks. Sparks
in such areas could cause an explosion or fire resulting in bodily injury or even
death. Areas with a potentially explosive atmosphere are often, but not always,
clearly marked.
3. Emergency calls
IMPORTANT!
This Bluetooth®Hands-free car kit and the electronic device connected to the
Hands-free car kit operate using radio signals, cellular and landline networks as
well as user- programmed functions, which cannot guarantee connection under
all conditions. Therefore you should never rely solely upon any electronic
device for essential communications (e.g. medical emergencies). Remember,
in order to make or receive calls, the Hands-free car kit and the electronic
device connected to the Hands-free car kit must be switched on and in a
service area with adequate cellular signal strength. Emergency calls may not
be possible on all cellular phone networks or when certain network services
and/or phone features are in use. Check with your local service provider.
4. Battery information
A rechargeable battery has a long service life if treated properly. A new battery
or one that has not been used for a long period of time could have reduced
capacity the first few times it is used. Do not expose the battery to extreme
temperatures, never above +60°(+140°F) or under -20°(-4°F). For maximum
battery capacity, use the battery in room temperature. If the battery is used in
low temperatures, the battery capacity will be reduced. The battery can only
be charged in temperatures between +10°(+50°F) and +45°(+113°F).
5. Recycling the battery in your Bluetooth®Hands-free car kit
The battery in your Bluetooth®Hands-free car kit must be disposed of properly
and should never be placed in municipal waste. The LG Electronics service
partner removing battery will dispose of it according to local regulations.
16
Limited Warranty
Subject to the conditions of this Limited Warranty, LG Electronics warrants
this product to be free from defects in design, material and workmanship at
the time of its original purchase by a consumer, and for a subsequent period
of one (1) year. Should your product need warranty service, please return it to
the dealer from whom it was purchased or contact your local LG Electronics
contact center to get further information.
Important safety information
Avoiding hearing damage Permanent hearing loss may occur if you use
your headset(Hands-free car kit) at a high volume. Set the volume to a safe
level. Over time you can become accustomed to a higher volume that may
sound normal but can be damaging to your hearing. If you experience ringing
in your ears or muffled speech, stop listening and have your hearing checked.
The louder the volume, the less time is required before your hearing could be
affected. Hearing experts suggest that to protect your hearing:
�Limit the amount of time you use the headset(Hands-free car kit) at high
volume.
�Avoid turning up the volume to block out noisy surroundings.
�Turn the volume down if you can't hear people speaking near you.
For information about how to set a maximum volume limit on your handset
(Hands-free car kit), please refer to the features guide for your handset.
Using headsets(Hands-free car kit) safely Use of headsets(Hands-free car
kit) to listen to music while operating a vehicle is not recommended and is
illegal in some areas. Be careful and attentive whilst driving. Stop using this
device if you find it disruptive or distracting whilst operating any type of vehicle
or performing any other activity that requires your full attention.
