OWNER’S MANUAL
DLP PROJECTOR
HX300G
HX301G
Please read this manual carefully before operating
your set and retain it for future reference.
www.lge.com
DLP PROJECTOR
DLP PROJECTOR
Warning
This is a class B product. In a domestic environment this product may cause radio interference, in
which case the user may be required to take adequate measures.
This projector complies with EMC Directive and R&TTE Directive.
DE DK ES FI FR
GB GR HU IT NL
NO PL PT SE
Contents
3
Contents
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by
the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream
through designated collection facilities appointed by your government or your local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the envi-
ronment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste
disposal service or the shop where you purchased the product.
Safety Instructions ....................................................... 4
Names of parts
Main Body ..........................................................................................7
Control Panel .....................................................................................7
Connecting Part .............................................................................. 8
Remote Control .............................................................................. 9
Installing Batteries ........................................................................... 9
Accessories ......................................................................................10
Optional Extras ..............................................................................10
Installing and Composition
Installation Precautions ..................................................................11
Basic Operation of the Projector ...............................................12
How to install the projector using the tripod ..........................13
Kensington Security System .......................................................13
Turning on the Projector ..............................................................14
Turning off the Projector ..............................................................14
Focus and Position of the Screen Image ................................14
Selecting input mode ...................................................................14
Connection
Connecting to a Desktop PC ......................................................15
Connecting to a Video Source ...................................................15
Connecting to a DVD Player .......................................................16
Connecting to a D-TV Set-Top Box ..........................................16
Function
PICTURE Menu Options
Picture mode ................................................................................... 17
Adjusting Picture Mode ................................................................ 17
Advanced Control Function .........................................................18
Color Temperature Function ........................................................19
Picture Reset Function ..................................................................19
SCREEN Menu Options
To Change PJT Mode ..................................................................20
Using Aspect Ratio Function .....................................................20
Using Keystone Function ............................................................20
Auto Configure Function ..............................................................21
RGB Config. Function ...................................................................21
Using the Still Function ................................................................21
AUDIO Menu Options
What is FM Wireless Audio? (HX300G only) .......................22
Installing Instructions (HX300G only) .....................................23
What do I do if the FM receiving signal is not good?
(HX300G only) ..............................................................................23
To listen through the FM receiver speaker (HX300G only) 24
Adjusting Volume ..........................................................................24
Function Audio ...............................................................................24
Adjusting Speaker Balance ........................................................25
Adjusting Treble .............................................................................25
TIME Menu Options
Sleep time Function .....................................................................26
Auto Off Function .........................................................................26
OPTION Menu Options
Selecting Language ..................................................................... 27
Using Blank Function ................................................................... 27
Selecting Blank image .................................................................27
Screen Capture Function ............................................................28
To adjust the brightness of the screen ...................................28
To make the power of the projector turn on automatically
when power is in ............................................................................28
Demo Mode Function ..................................................................29
Initial Setting Function .................................................................29
INFORMATION Menu Options
To See The Projector Information .............................................29
USB
To use the USB device
Connecting the USB device .......................................................30
Eject USB ........................................................................................30
Precautions when using the USB device ................................31
PHOTO List
Screen Components ....................................................................32
Photo Selection and Popup Menu ...........................................32
Full Screen Menu ..........................................................................33
MUSIC List
Screen Components ....................................................................34
Music Selection and Popup Menu ...........................................34
MOVIE List
Supported Movie File ...................................................................35
Precautions when playing the DivX ........................................36
Screen Components .................................................................... 37
Movie Selection and Popup Menu ........................................... 37
Playing the Movie ..........................................................................38
Option Menu Selection................................................................38
To See The DivX Registration Code.........................................39
Deactivation Function ...................................................................39
FILE Viewer
Screen Components ....................................................................40
View File ...........................................................................................40
Information
Supported Monitor Display ..........................................................41
Maintenance ....................................................................................41
Specifications .................................................................................42
Open Source Software Notice ...................................................43
Safety Instructions
4
Safety Instructions
Please take note of the safety instructions to prevent any potential accident or misuse of the projector.
ᰶ Safety Instructions are given in two forms as detailed below.
WARNING : The violation of this instruction may cause serious injuries and even death.
NOTES : The violation of this instruction may cause injuries or damage to the projector.
ᰶ After reading this manual, keep it in the place that you can access easily.
Indoor Installation WARNING
Do not place the Projector in direct
sunlight or near heat sources such
as radiators, fires, stove etc.
This may cause a fire hazard!
Do not place flammable materi-
als in, on or near the projector
This may cause a fire hazard!
Do not hang on the installed
projector.
It may cause the projector to fall,
causing injury or death.
Power WARNING
Indoor Installation NOTES
Earth wire should be connected.
Ensure that you connect the earth ground
wire to prevent possible electric shock (That
is a Projector with a three-prong grounded
AC plug must be connected to a three-
prong grounded AC outlet).
If grounding methods are not possible, have
a qualified electrician install a separate circuit
breaker.
Do not try to ground the unit by connecting
it to telephone wires, lightening rods, or gas
pipes.
The power cord should be inserted
fully into the power outlet to avoid
a fire hazard!
This may cause a fire hazard or damage
the unit.
Do not place heavy objects on
the power cord.
This may cause a fire or an electric
shock hazard!
Do not place the projector close
to sources of steam or oil such
as a humidifier.
This may create a fire hazard or an
electric shock hazard!
Do not place the projector where
it might be exposed to dust.
This may cause a fire hazard or
damage to the unit!
Do not block the vents of the pro-
jector or restrict air-flow in any way.
This would cause the internal tempera-
ture to increase and could cause a fire
hazard or damage to the unit!
Do not place the projector direct-
ly on a carpet, rug or place where
ventilation is restricted.
This would cause its internal tempera-
ture to increase and might create a
fire hazard or damage the unit.
Ensure good ventilation around the
projector. The distance between
the projector and the wall should
be more than 30 cm.
An excessive increase in its internal
temperature may cause a fire hazard or
damage to the unit!
Do not use the projector in a
damp place such as a bathroom
where it is likely to get wet.
This may cause a fire or an electric
shock hazard!
When installing the projector on
a table, be careful not to place it
near the edge.
The projector could fall causing injury
and damage to the projector.
Only use a suitable stand.
Only use the projector on a level
and stable surface.
It may fall and cause injury and/or
damage to the unit.
Disconnect from the power sup-
ply and remove all connections
before moving, or cleaning.
Safety Instructions
5
Using WARNING
If water is spilt into the projector unplug it from the power supply
immediately and consult your Service Agent.
This may cause an electric shock hazard or damage to the unit!
Dispose of used batteries
carefully and safely.
In the case of a battery being
swallowed by a child please consult
a doctor immediately.
CAUTION concerning the Power Cord
It is recommend that most appliances be placed on a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional outlets or branch circuits.Check the specification
page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire insulation are dangerous.Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance
indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by authorized service personnel.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched,
closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
Do not remove any covers. High
risk of Electric Shock!
Don’t look directly into the lens
when the projector is in use. Eye
damage may occur!
Do not touch metal parts during
or soon after operation since the
vents will remain very hot!
Power WARNING
Power NOTES
Do not plug-in too many items
into one power outlet.
It may result in overheating of the out-
let and create a fire hazard!
Never touch the power plug with
a wet hand.
This may cause an electric shock
hazard!
Prevent dust from collecting on
the power plug pins or outlet.
This may cause a fire hazard!
Hold the plug firmly when
unplugging. If you pull the cord,
it may be damaged.
This may cause a fire hazard!
Do not use if the power cord or
the plug is damaged or any part
of the power outlet is loose.
This may cause a fire or an electric
shock hazard or damage to the unit!
Ensure the power cord does not
come into contact with sharp or
hot objects.
This may cause a fire or an electric
shock hazard or damage to the unit!
Place the projector where people
will not trip or tread on the power
cord.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not turn the projector On/Off by plugging-in or unplugging the
power plug to the wall outlet.
(Allow the unit to cool before removing power.)
It may cause mechanical failure or could cause an electric shock.
Do not place anything containing
liquid on top of the projector
such as flowerpot, cup, cosmet-
ics or candle.
This may cause a fire hazard or
damage to the unit!
In case of impact shock or damage
to the projector switch it off and
unplug it from the power outlet and
contact an authorized service center.
This may cause a fire or an electric shock
hazard or damage to the unit!
Do not allow any objects to fall
into the projector.
This may cause an electric shock haz-
ard or damage to the unit!
Safety Instructions
6
Using NOTES
Do not place heavy objects on
top of projector.
This may cause mechanical failure or
personal injury!
Take care not to impact the lens
particularly when moving the
projector.
Do not touch the lens of the pro-
jector. It is delicate and easily
damaged.
Others NOTES
Cleaning NOTES
Contact the Service
Center once a year to
clean the internal
parts of the projector.
Accumulated dust can
cause mechanical failure.
When cleaning the plastic parts such as projector case, unplug the power and
wipe it with a soft cloth. Do not use cleanser, spray water or wipe with a wet
cloth. Especially, never use cleanser (glass cleaner), automobile or industrial
shiner, abrasive or wax, benzene, alcohol etc., which can damage the product.
Use an air spray or soft cloth that is moist with a neutral detergent and water
for removing dust or stains on the projection lens.
It can cause fire, electric shock or product damage (deformation, corrosion and damage).
Cleaning WARNING
Do not use water while cleaning
the projector.
This may cause damage to the pro-
jector or an electric shock hazard.
In the unlikely event of smoke or
a strange smell from the projec-
tor, switch it off, unplug it from
the wall outlet and contact your
dealer or service center.
This may cause a fire or an electric
shock hazard or damage to the unit!
Use an air spray or soft cloth that
is moist with a neutral detergent
and water for removing dust or
stains on the projection lens.
Others WARNING
Do not attempt to service the projector yourself. Contact your dealer or service center.
This may cause damage to the projector and could give an electric Shock as well as invalidating the warranty!
Using WARNING
If the projector is in a room that experiences a gas leak, do not touch
the projector.
It can cause a fire or a burn by a spark.
Always open the lens door or
remove the lens cap when the
projector lamp is on.
Do not use any sharp tools on the
projector as this will damage the
casing.
In the event that an image does
not appear on the screen please
switch it off and unplug it from the
power outlet and contact your
Service Agent.
This may cause a fire or an electric
shock hazard or damage to the unit!
Do not drop the projector or
allow impact shock.
This may cause mechanical failure or
personal injury!
Be sure to unplug if the projector is
not to be used for a long period.
Accumulated dust may cause a fire hazard
or damage to the unit!
Only use the specified type
of battery.
This could cause damage to the
remote control.
Do not mix new batteries with old
batteries.
This may cause the batteries to over-
heat and leak.
Speaker
Names of parts
7
Names of parts
Main Body
* The projector is manufactured using high-precision technology. You may, however, see on the Projector screen tiny black
points and/or bright points (red, blue, or green). This can be a normal result of the manufacturing process and does not
always indicate a malfunction.
Control panel
Exhaustion Direction#
High heat is generated, so do
not get near the exhaustion
direction during the use.
Focus ring
Speaker
Control Panel
MENU Button
Displays or closes menus.
POWER Button
Turns ON/OFF the projector.
ġ/Ģ/˘/˚Button
Adjusts functions of menus.
OK Button
Checks present mode and saves the change of functions.
* Do not touch the lens when using the projector or opening the lens door.
Names of parts
8

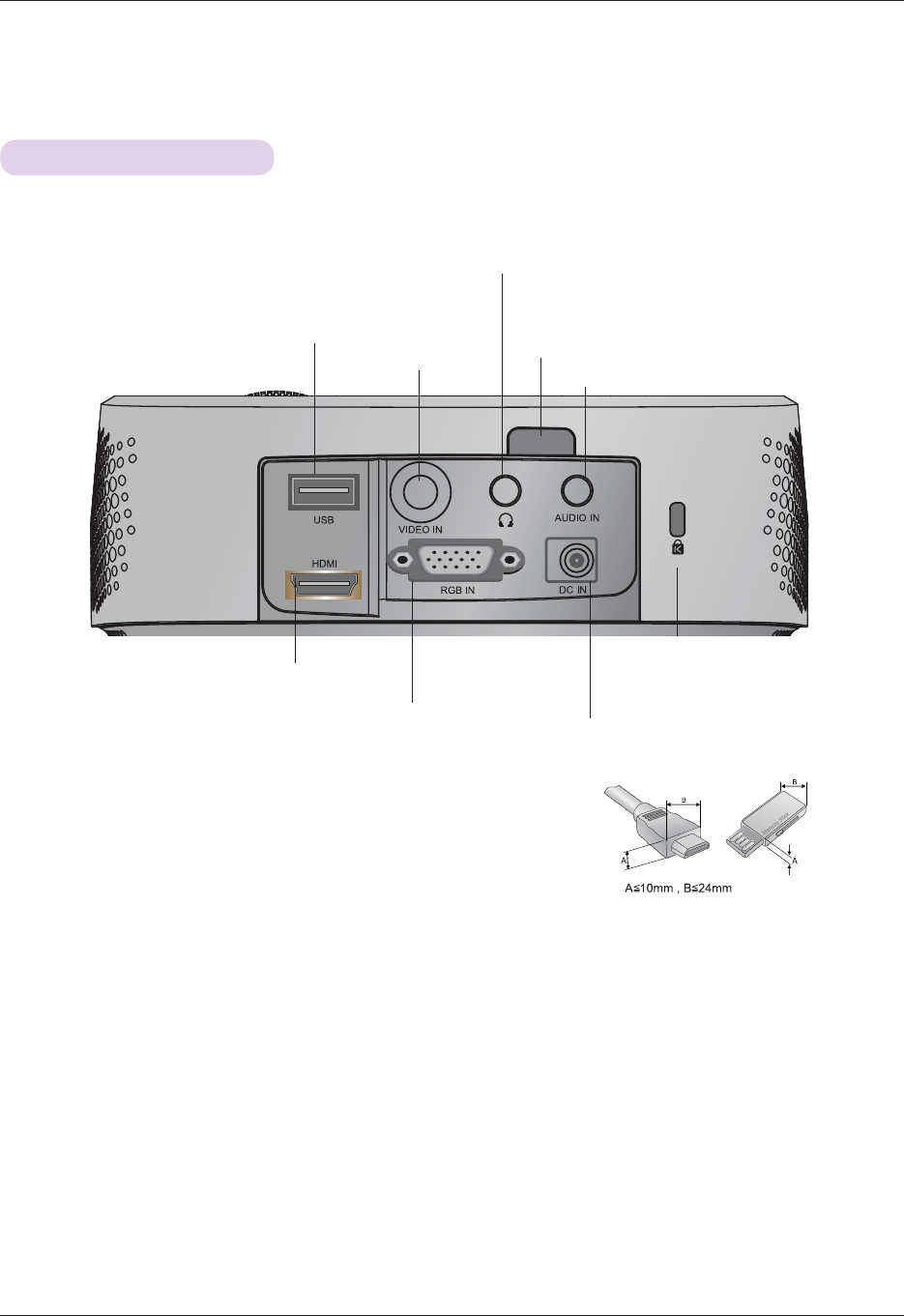

Connecting Part
USB
Headphone port
IR (Remote control sensor)
*
Do not block the IR port for normal operation
of remote control.
* When using HDMI/USB connector, if the size of the jack connecting
to the connector is too big, they may not be connected. Please use
standard size jack.
RGB IN
AUDIO IN
DC IN
Kensington Security
System Connector
(Refer to page 13)
VIDEO IN
HDMI
Names of parts
9

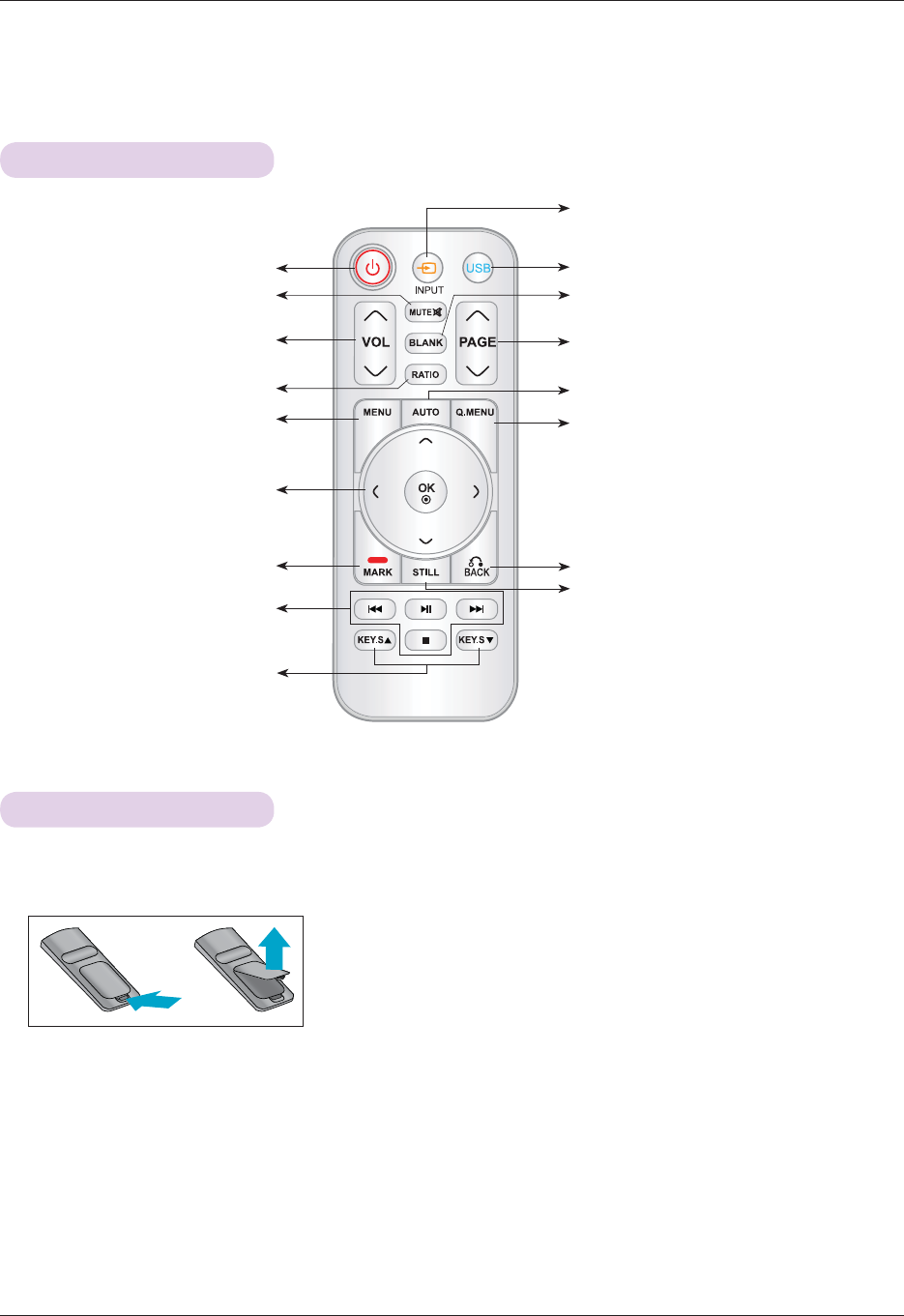

Remote Control
Installing Batteries
INPUT Button
KEYSTONE ᯜ,ᯝ Button
MENU Button
USB control Buttons
AUTO Button
VOLUME +, - Button
RATIO Button
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED WITH AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
MUTE Button
BACK Button
OK, ġ/Ģ/˘/˚Button
STILL Button
(Functions as the STILL button in
any mode other than DivX.)
BLANK Button
USB Button
Q.MENU Button
POWER Button
• Open the battery compartment cover on the back of the remote control.
• Insert the specified type of batteries with correct polarity, match “+” with “+”,
and match “-” with “-”.
• Install two 1.5V AAA batteries. Don’t mix used batteries with new batteries.
PAGE ġ/Ģ Button
MARK Button
Names of parts
10

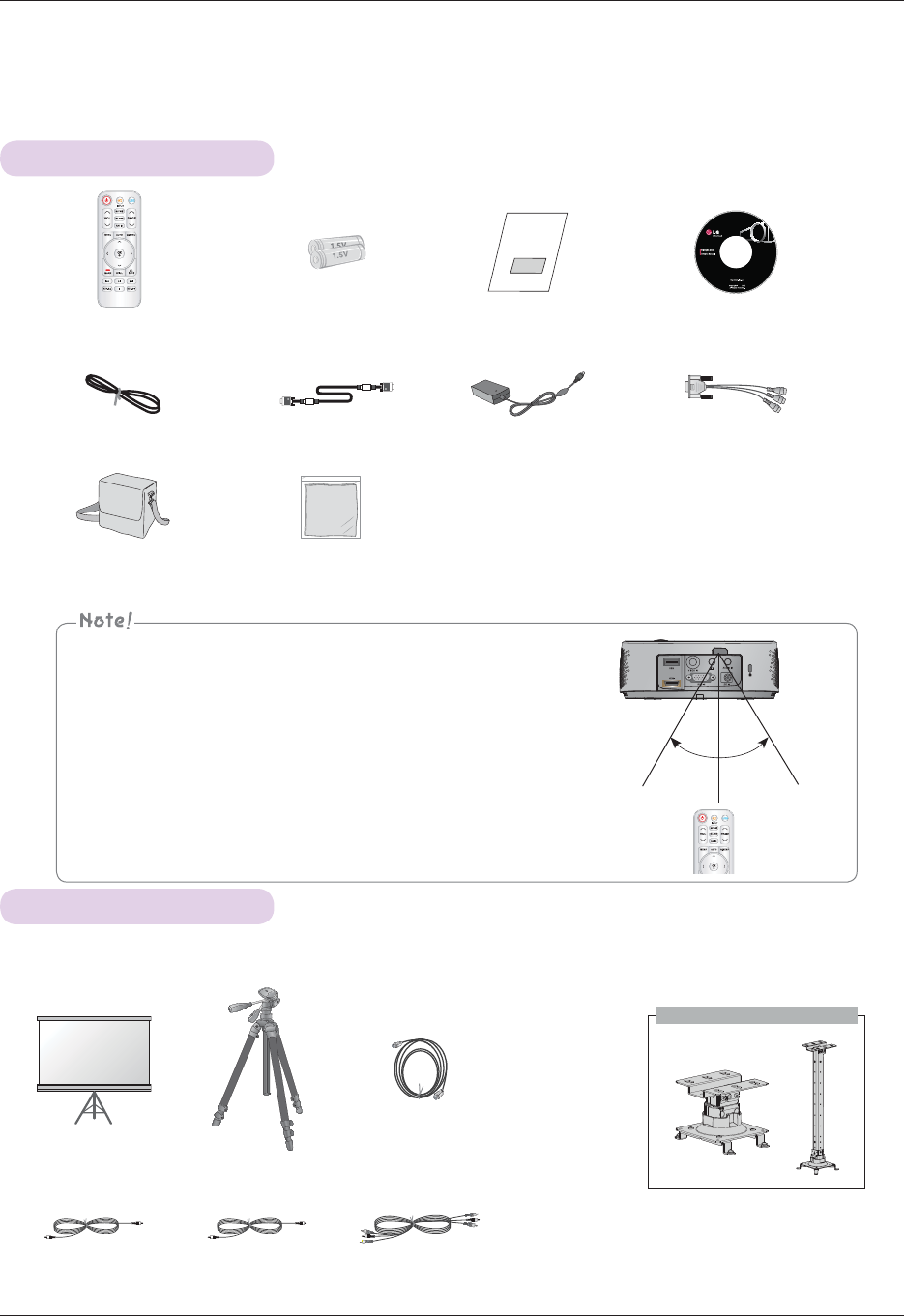

Ceiling mount for projector
Accessories
Optional Extras
* Contact your dealer to purchase these items.
* Optional parts can be changed without notice to improve the quality of the product, and new optional parts can be added.
ƒ Use a remote control up to 6 meters distance and 30° (left/right) with-
in the receiving unit scope.
ƒ We recommend you to use the remote control under 3 m distance and
30° (left/right) when the cables are connected in the back outputs.
ƒ When you carry the remote control in the portable bag, make sure that
the buttons on the remote control are not pressed by the projector,
cables, documents or any other accessories in the bag. Otherwise, it
may reduce the battery life significantly.
Remote Control AAA Battery Owner’s manual CD Owner’s manual
Power Cord Computer Cable AC-DC Adapter RGB to Component Cable
Portable bag Polishing Cloth
Projection Screen Tripod HDMI Cable
Video Cable Audio Cable Component Cable
30° 30°
Installing and Composition
11
Installing and Composition
Provide proper ventilation for this projector.
Place this projector in adequate temperature and humidity conditions.
• Install this projector only in a location where adequate temperature and humidity is available. (refer page 42)
Don’t place the projector where it can be covered with dust.
• This may cause overheating of the projector.
This projector is manufactured using high-precision technology. You may, however, see tiny black points and/or bright
points (red, blue or green) that continuously appear on the projector Screen. This is a normal result of the manufacturing
process and does not indicate a malfunction.
To display DTV programs, it is necessary to purchase a DTV receiver (Set-top Box) and connect it to the projector.
Installation Precautions
The remote control may not work when a lamp equipped with electronic ballast or a three-wavelength lamp is installed.
Replace those lamps with international standard products to use the remote control normally.
Do not obstruct the slots and openings of the projector. This may cause overheating and create a fire hazard.
• The projector is equipped with ventilation holes(intake) on
the bottom and ventilation holes(exhaust) on the front. Do
not block or place anything near these holes. Internal heat
build-up may occur, causing picture degradation or dam-
age to the projector.
• Do not place the projector on a carpet, rug or other similar
surface. It may prevent a adequate ventilation of the pro-
jector bottom. This product should be mounted to a wall
or ceiling only.
• Never push projector or spill any kind of liquid into the
projector.
• Leave an adequate distance (30 cm or more) around the
projector.
Installing and Composition
12
1. Place the projector on a sturdy and horizontal surface with the PC or AV source.
2. Place the projector with the desired distance from the screen. The distance between the projector and the
screen determines the actual size of the image.
3. Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a
right angle, the screen image will be crooked. Although, slight angles can be counteracted using the
Keystone adjustement. (Refer to page 20.)
4. Connect the power cable to the projector and the wall outlet after placing the projector in its desired loca-
tion.
projection distance based on the picture format
Projection distance (D)
Projection offset ratio: 110%
38.6 mm
Projection distance (D)
Basic Operation of the Projector
Screen
Screen height (X)
X/2
X/2
Y/2
Y/2
Screen
Screen Width (Y)
4 : 3 Scale
Diagonal Size (mm) Horizontal Size (mm) Vertical Size (mm) Projection Distance (D)
(mm)
Installing and Composition
13

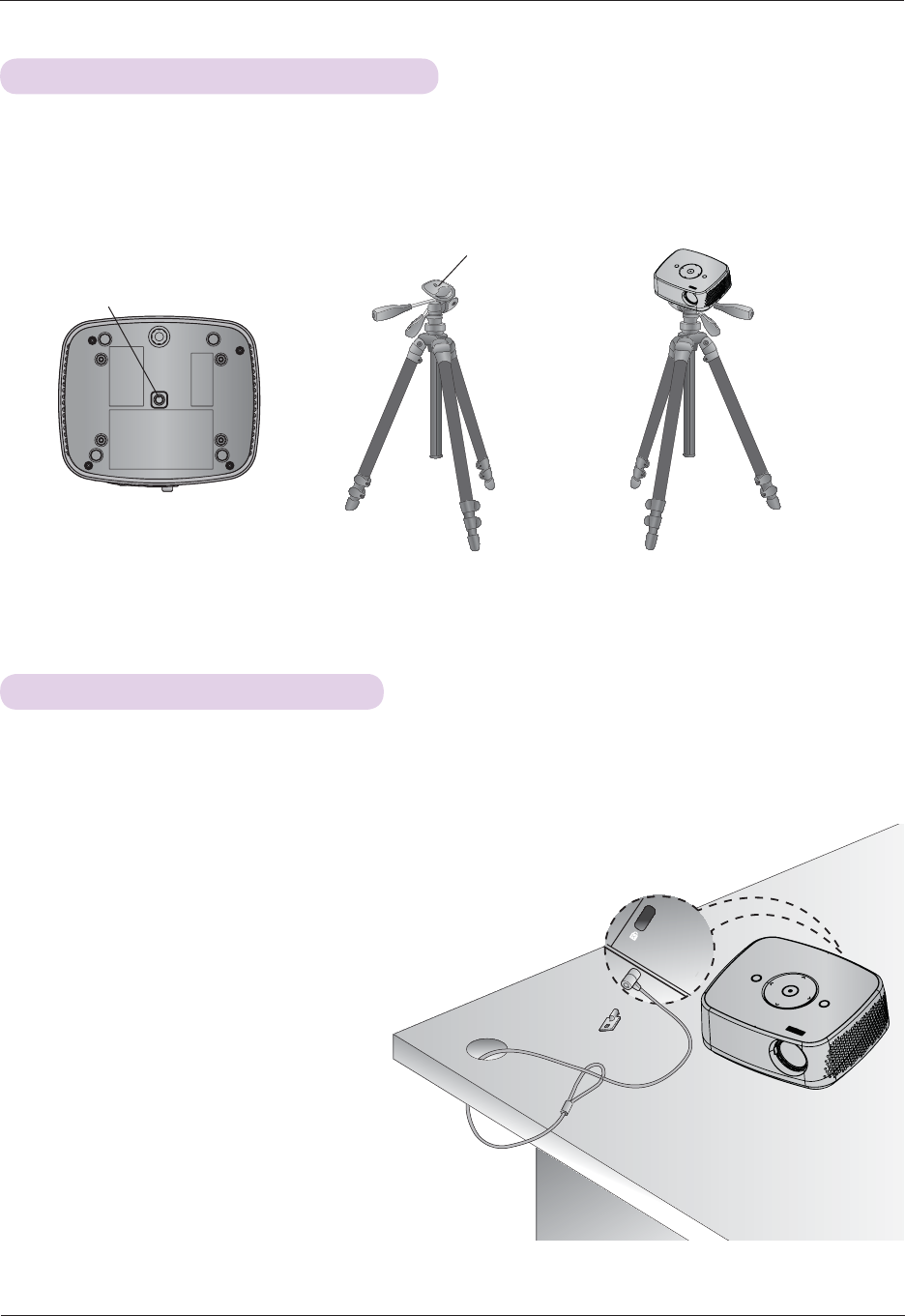

• This projector has a Kensington Security System Connector on the side panel. Connect the Kensington Security System
cable as below.
• For the detailed installation and use of the Kensington Security System, refer to the user’s guide included with the
Kensington Security System set. And for further information, contact http://www.kensington.com, the internet homepage
of the Kensington company that deals with expensive electronic equipment such as notebook PCs or projectors.
• The Kensington Security System is an optional item.
Kensington Security System
* You can install this projector using a tripod for the camera. You can assemble the projector instead of the camera on camera
tripod.
* When stabilizing the tripod, we recommend using the locking bolt of the standard size 4.5 mm or less.The maximum size
allowed for the locking bolt is 6.5 mm.(If it is longer than the maximum allowed size, it may damage the projector.)
How to install the projector using the tripod
+=
Camera Tripod
Part connected to the tripod
Finished condition when projector is install on the tripod
Part connected to the projector
Bottom side of Projector
Installing and Composition
14
Selecting input mode
1. Press the INPUT button on the remote control.
2. Selecting an input signal with the INPUT button will only change the projector only to connected inputs. You
can change it to any inputs with the ˘, ˚ button.
• The component input is always active, and it does not support plug &play function.
Input
ComponentVideo RGB HDMI
Turning on the Projector
1. Make sure the power cord is connected correctly.
2. Press the POWER button on the top cover or the POWER button on the remote control. (The light on the
control panel will be turned on.)
• Press the INPUT button on the remote control to select the input signal you want.
• When you press the POWER button on the remote control or the POWER button on the control panel when you
turn on the projector, the lights for all buttons on the control panel will be turned on.
• Check if the lens door is open before turning on the power.
Turning off the Projector
Press the POWER button on the top cover or the POWER button on the remote control.
When an image appears on the screen, check if it is in focus and fits the screen properly.
• To adjust the focus of the image, rotate the focus ring.
Focus ring
Focus and Position of the Screen Image
Connection
15
Connection
Connecting to a Desktop PC
* You can connect the projector to a computer with VGA, SVGA, XGA, SXGA output.
* Refer to page 41 for resolutions the projector supports.
< How to connect >
1. Connect the RGB IN of the projector and the comput-
er output port with a computer cable.
2. Connect the AUDIO IN of the projector and the com-
puter audio output port with an audio cable.
* You may have to change the resolution that your PC
exports to one supported by the projector. Refer to page
41. This projector may not support output from laptops
when the laptop screen is on.
Connecting to a Video Source
< How to connect >
1. Connect the VIDEO IN of the projector to the output
jack of the video source with a video cable.
2. Connect the AUDIO IN of the projector to the output
jack of the audio source with an audio cable.
* You can connect a VCR, a camcorder or any other compatible video image source to the projector.
<VCR>
Audio Cable
Audio Cable
Audio Cable
Video Cable
Computer Cable
Computer Cable
Connection
16
Connecting to a DVD Player
< How to connect a Component source >
1. After connecting the Component cable of DVD Player
to the RGB to Component cable, connect it to the
RGB IN terminal of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, PB=blue, PR
=red)
2. Connect the AUDIO IN of the projector to the output
jacks of the audio source with an audio cable.
< How to connect a HDMI source >
1. Connect the HDMI IN of the projector and the HDMI
output port of the DVD Player with an HDMI cable.
2. Set the DVD Player's resolution to one of the following:
480p(576p)/720p/1080i/1080p mode.
* Depending on the equipment, the component output jacks (Y, PB, PR) of the DVD Player may be labeled as Y, Pb, Pr/Y, B-Y, R-Y/Y, Cb, Cr.
<DVD Player>
Component cable
Connecting to a D-TV Set-Top Box
< How to connect a HDMI source >
1. Connect the HDMI IN of the projector and the HDMI
output port of the DTV set-top box with an HDMI
cable.
2. Set the DTV receiver's resolution to one of the follow-
ing: 480p(576p)/720p/1080i/1080p mode.
* To receive Digital TV (D-TV) programs, it is necessary to purchase a D-TV receiver (Set-Top Box) and connect it to
the projector.
* Please refer to the owner's manual of the D-TV Set-Top Box for the connection between the projector and D-TV
Set-Top Box.
Component cable
< How to connect a Component source >
1. Connect the D-TV Set-Top Box Component cable with
RGB to Component cable and than connect it to RGB
IN of the projector.
* When connecting the component cable, match the jack
colors with the component cable.(Y=green, PB=blue, PR
=red)
2. Connect the AUDIO IN of the projector to the output
jacks of the audio source with an audio cable.
<D-TV Set-Top Box>
<D-TV Set-Top Box>
RGB to Component
Cable
RGB to Component Cable
HDMI Cable
<DVD Player>
HDMI Cable
Audio Cable
Audio Cable
Function
17
PICTURE Menu Options
1. Press the MENU button. Then, move to PICTURE with the
ġ, Ģ, ˘, ˚ buttons and press the OK button.
2. Press the ġ, Ģ buttons to move to a desired function and
press the OK button.
3. Press the ˘, ˚ buttons to make a desired adjustment and
then press the OK button.
• You can set image values differently for each input and Picture Mode.
• Saving after making adjustments will display (User) in adjusted Picture Mode.
(except Expert 1/2)
• Execute Picture Reset for Picture Mode to restore back to default factory set-
tings.
• Press the BACK button to exit the menu screen.
Adjusting Picture Mode
Function
* The On-Screen Display (OSD) in this manual may be slightly different from your projector.
* This operating guide explains operation of RGB(PC) mode mainly.
1. Press the Q.MENU button on the remote control.
2. Press the ˘, ˚ buttons to move to Picture mode.
3. Press the ġĢbutton to toggle through the preset picture settings.
Picture mode
* Use the Picture mode function to set the projector for the best picture appearance.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
ᰰMove ᰷OK
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
G
ᯧVividᯓ ᯧ
Standard ᯓ ᯧ
CinemaŹ
ᯧ
Sport ᯓ
ᯧ
Expert2 ᯓ ᯧ
Expert1 ᯓ ᯧ
Game ᯓ
Picture Mode
Standard
Function
18

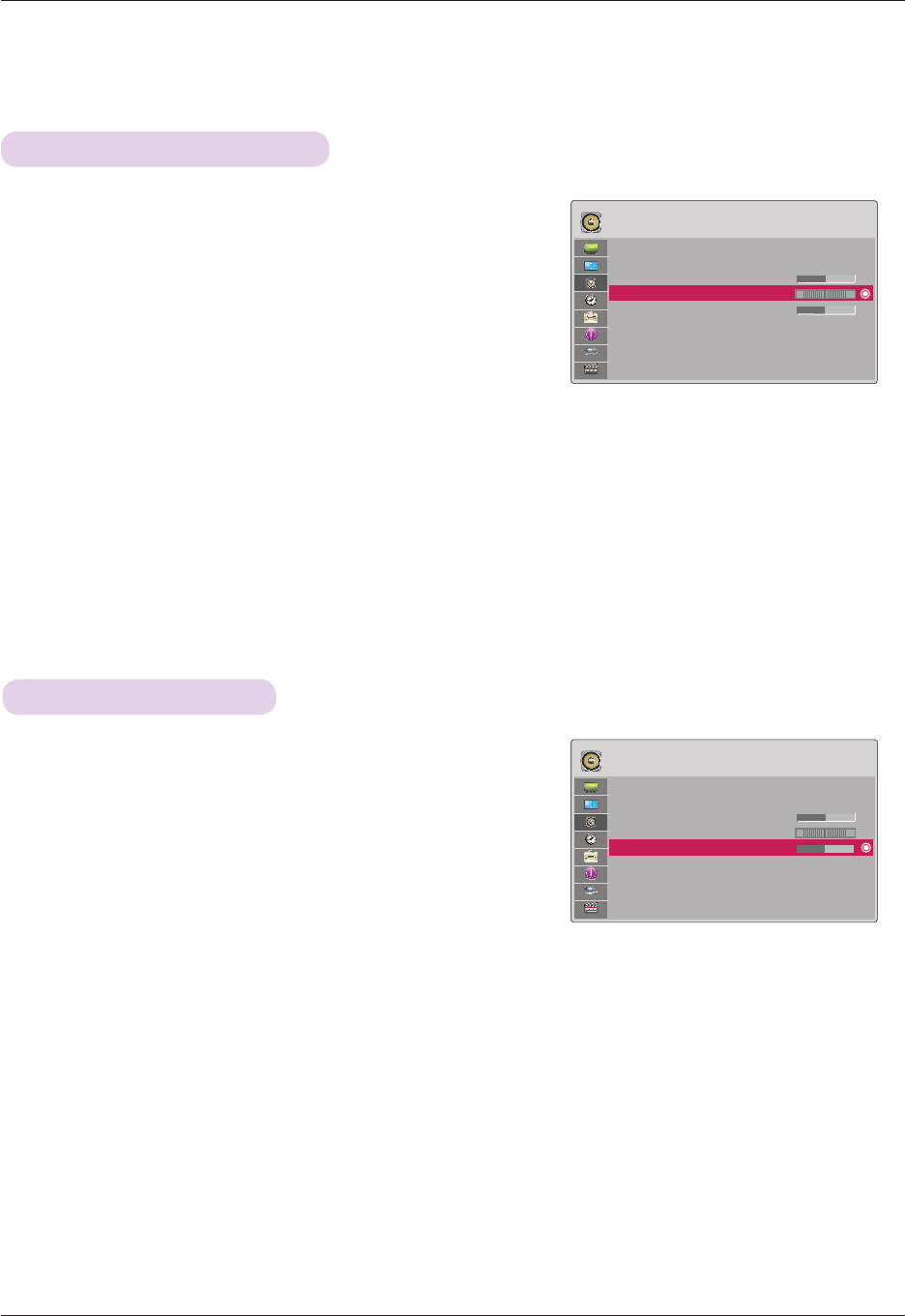

1. Press the MENU button. Then, move to PICTURE with
the ġ, Ģ, ˘, ˚ buttons and press the OK button.
2. Press the ġ, Ģ buttons to move to Advanced Control
and press the OK button.
3. Move to a desired item with the ġ, Ģ buttons.
4. Press the ˘, ˚ buttons to make a desired adjustment
and then press the OK button.
• You can set image values differently for each input and Picture
Mode.
• Execute Picture Reset for Picture Mode to restore back to default
factory settings.
• Press the BACK button to exit the menu screen.
Advanced Control Function
OK
Move
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
RG
OK
Move
Picture Mode : Standard
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
RG
< When Picture Mode is Vivid/Standard/Cinema/Sport/
Game >
< When Picture Mode is Expert 1/2 >
ᯧ Medium
ᯓ
High
High
Medium
Medium
High
Off
Wide
On
Close
Color Temperature
Dynamic Contrast
Dynamic Color
Noise Reduction
Gamma
Black Level
Film Mode
Color Gamut
Edge Enhancer
ᯧ High
ᯓ
High
High
High
On
Standard
Wide
On
Cool
Close
Dynamic Contrast
Noise Reduction
Gamma
Black Level
Film Mode
Color Standard
Color Gamut
Edge Enhancer
White Balance
ᯝ
Color Temperature - This function enables Vivid/Standard/Cinema/Sport/Game.
ᰶ Set to warm to enhance hotter colors such as red, or set to cool to make picture bluish.
Dynamic Contrast ᰶAdjusts the contrast to keep it at the best level according to the brightness of the screen.
The picture is improved by making bright parts brighter and dark parts darker.
Dynamic Color
- This function enables Vivid/Standard/Cinema/Sport/Game.
ᰶAdjusts screen colors so that they look livelier, richer and clearer. This feature enhances
hue, saturation and luminance so that red, blue, green and white look more vivid.
Noise Reduction ᰶReduces screen noise without compromising video quality.
Gamma
Low : Make dark and middle gray level area of the picture brighter.
Medium: Express original picture levels.
High: Make dark and middle gray level area of the picture darker.
ᰶYou can adjust brightness of dark area and middle gray level area of the picture.
Black Level
Low: The reflection of the screen gets darker.
High: The reflection of the screen gets brighter.
ᰶSet black level of the screen to proper level.
ᰶThis feather is disables in RGB mode.
Film Mode ᰶMakes video clips recorded in film look more natural by eliminating judger effect.
ᰶDVD and Blu-ray movies are filmed at 24 frames per second.
Color Gamut
Standard: Displays standard color area.
Wide: Mode to use and set the rich color area of the display.
ᰶMaximize the utilization of color to increase color quality.
Edge Enhancer ᰶShow clearer and distinctive yet natural corners of the video.
Color Standard ᰶConvert the color of a different video to HD color.
Function
19
1. Press the MENU button. Then, move to PICTURE with the
ġ, Ģ, ˘, ˚buttons and press the OK button.
2. Press the ġ, Ģ buttons to move to Picture Reset and press
the OK button.
3. Press the ˘, ˚ buttons to move to Yes and press the OK
button.
• Press the BACK button to exit the menu screen.
Picture Reset Function
* Settings of the selected PICTURE function for each input and Picture Mode return to the default factory settings.
ᰰMove ᰷OK
Picture Mode : Standard(User)
• Contrast 50
• Brightness 50
• Sharpness 5
• Color 70
• Tint 0
• Advanced Control
• Picture Reset
RG

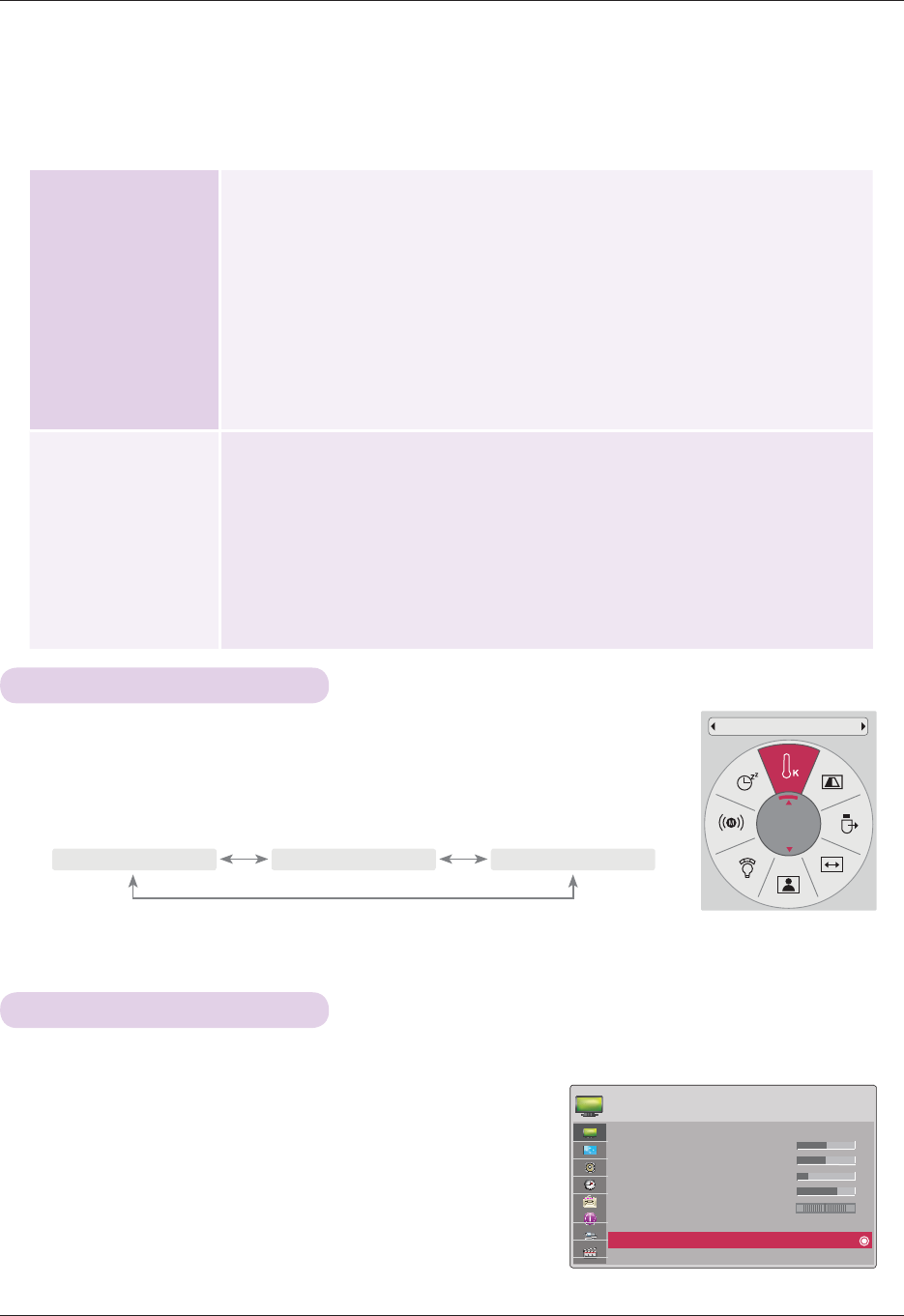

White Balance
- This function enables Expert 1/2.
ᰶThis is the function to adjust the overall color of the screen to the feeling you want.
a. Method : 2 Points
- Pattern: Inner, Outer
- Red/Green/Blue Contrast, Red/Green/Blue Brightness: The adjustment range is -50 ~
+50.
b. Method : 20 Points IRE
- Pattern: Inner, Outer
- IRE (Institute of Radio Engineers) is the unit to display the size of the video signal and
can be set among 5, 10, 15 - 95, 100. You can adjust Red, Green or Blue according to
each setting.
- Red/Green/Blue: The adjustment range is -50 - +50.
Color Management
System
- This function enables Expert 1/2.
ᰶAs the tool used by the experts to make adjustments by using the test patterns, this does
not affect other colors but can be used to selectively adjust the 6 color areas (Red/Green/
Blue/Cyan/Mgt/Yellow).
Color difference may not be distinctive even when you make the adjustments for the gen-
eral video.
Adjusts Red/Green/Blue/Yellow/Cyan, Magenta.
- Red/Green/Blue/Yellow/Cyan, Magenta Color: The adjustment range is -30 ~ +30.
- Red/Green/Blue/Yellow/Cyan, Magenta Tint: The adjustment range is -30 ~ +30.
- This feature is disable in PC mode.
1. Press the Q.MENU button on the remote control.
2. Press the ˘, ˚ buttons to move to Color Temperature.
3. Press the ġĢbutton to toggle through the preset picture settings.
Color Temperature Function
• This function enables Vivid/Standard/Cinema/Sport/Game.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
ᯧ Medium ᯓ ᯧ
Warm ᯓ ᯧ
Cool ᯓ
Color Temperature
Cool
Function
20

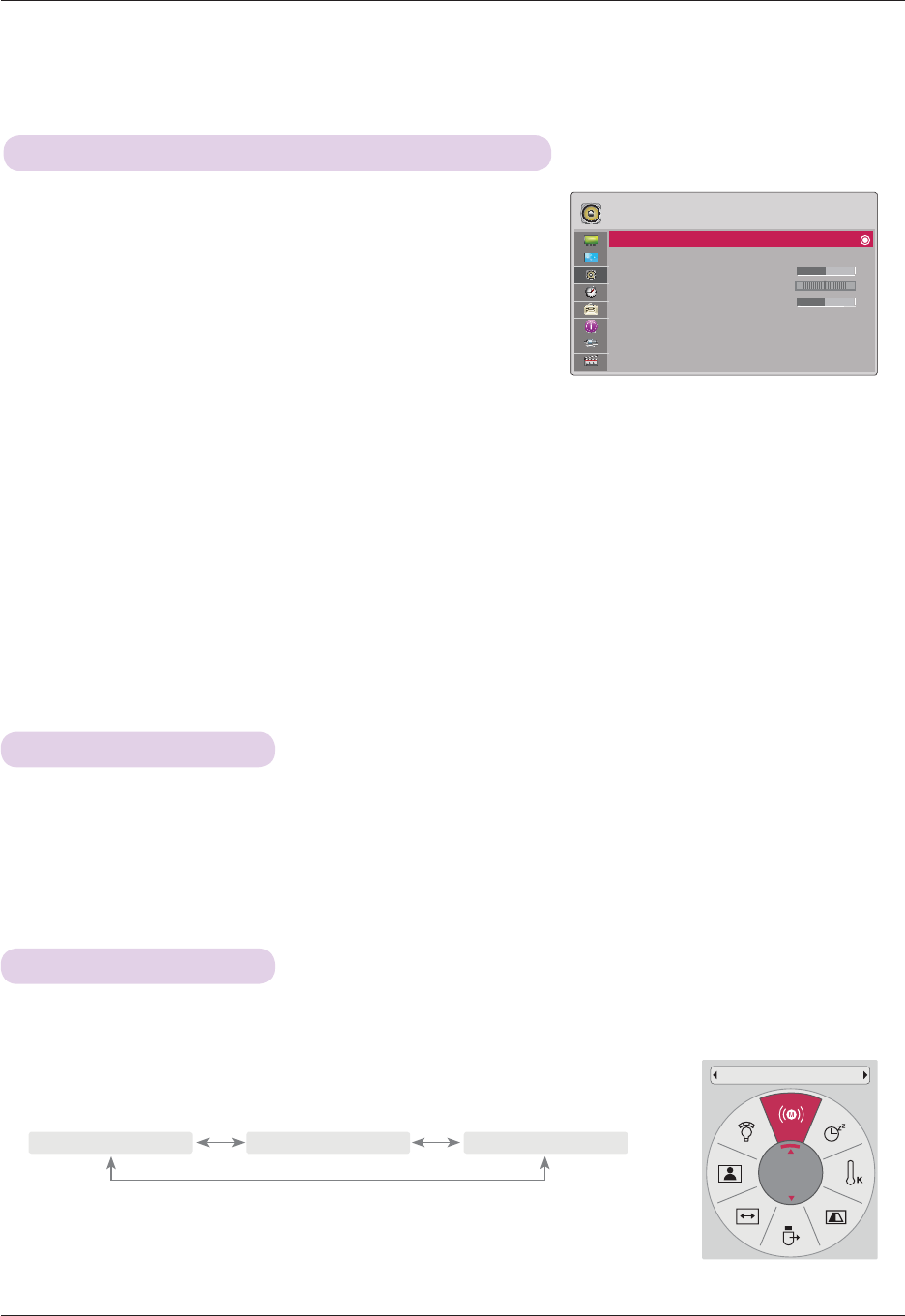

SCREEN Menu Options
• Select Rear when projecting from the back of the transparent screen purchased
separately.
• Select Ceiling when installing the product on the ceiling.
• When PJT Mode is Rear/Ceiling, the left/right of the speaker changes automatically.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
To Change PJT Mode
* This function turns the projected image upside down or flips horizontal.
Press the RATIObuttons to select a desired screen size.
Using Aspect Ratio Function
• Some options may not be available depending on input signals.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
ᯧ
4:3 ᯓ ᯧ
Just Scan ᯓ ᯧ
Set By Program ᯓ
ᯧ
Cinema Zoom1 ᯓ ᯧ
Zoom ᯓ ᯧ
16:9 ᯓ
1. Press the KEY.Sᯜ,KEY.Sᯝ button of remote control.
2. Press the KEY.Sᯜ,KEY.Sᯝ button to adjust the screen condition as
you want.
• Keystone can be adjusted from -40 to 40.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
Using Keystone Function
* Use this function when the screen is not at a right angle to the projector and the image is a trapezoid shape.
* Only use the Keystone function when you can’t get the best angle of projection.
•Keystone 0 ᯧ
ᯓ
᰷OK
- +
PJT Mode
Front
Aspect Ratio
16:9
1. Press the Q.MENU button on the remote control.
2. Press the ˘, ˚ buttons to move to PJT Mode.
3. Press the ġ, Ģ button to select a desired item.
Function
21

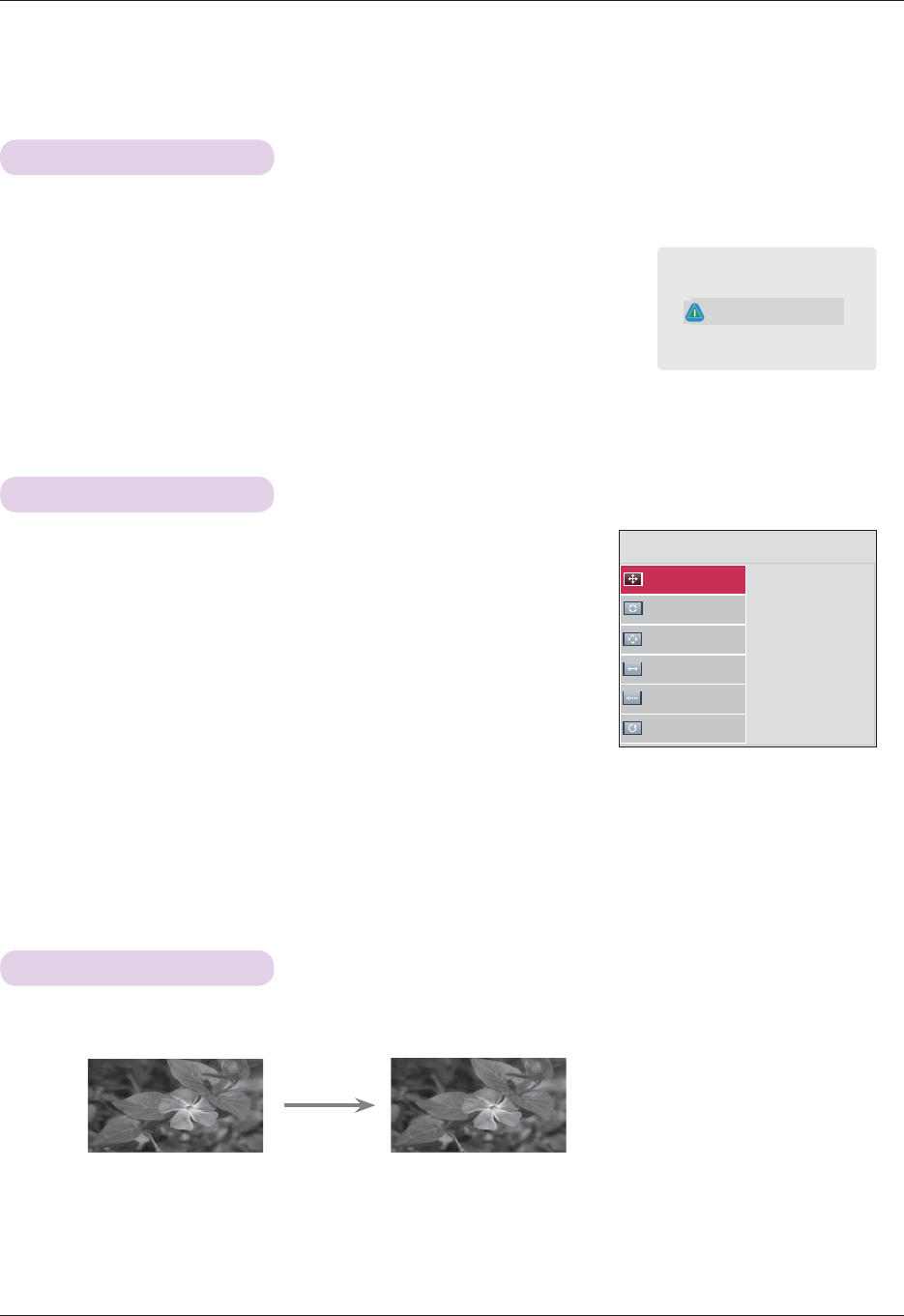

1. Press the MENU button. Then, move to SCREEN with the ġ,
Ģ, ˘, ˚ buttons and press the OK button.
2. Press the ġ, Ģ buttons to move to RGB Config. and press
the OK button.
3. Move to a desired item with the ġ, Ģ buttons and then
press the ˚button.
4. Press the ġ, Ģ, ˘, ˚button to adjust the screen condition
as you want and then press the OK button.
• Resolution can be chosen between 768 resolution
(1024x768/1280x768/1360x768, 60Hz) .
•
Press the BACK button to exit the menu screen.
RGB Config. Function
1. Press the STILL button on the remote control.
* You can freeze the moving image.
2. To exit STILL, press any button.
* The STILL function will release automatically after approximately 10 minutes.
Using the Still Function
<Moving Image> <Still Image>
RGB Config.
Auto Config.
Position
Resolution ᯓ
Size
Phase
Reset
ᯠ 1024 x 768
1280 x 768
1360 x 768
ᰰMove ᱷPrev.
Press the AUTO button of the remote control.
• If you execute screen adjustment for a video from PC graphic signal, optimal
state may not be found. Execute the Auto Configure function for a still image.
• You can use this function through the MENU button.
Auto Configure Function
* This function assures you of getting the best video quality by automatically adjusting the horizontal size and
synchronization of the image.
* Auto Tracking function works in RGB PC input only.
Auto configure
Function
22
AUDIO Menu Options
FM Wireless Audio is a function to send out audio signals from the projector using FM frequency (88.5 MHz
~ 95.5 MHz).
The frequency of Projector and FM receiver should be same in order to output the sound from FM receiver
normally.
The signal can be received by using FM receiver within 3 m of distance.
What is FM Wireless Audio? (HX300G only)
< The recommended use range of FM receiver >
Install projector and FM receiver without any abstacles as shown on the figure below.
A FM receiver can be reached 5 m when the antenna length and direction are good.
< The recommended length of FM receiver Antenna >
We recommend to use a rod antenna 0.8 m ~ 1.5 m for better sound quality since audio noise can be
detected when using under 0.8 m rod antenna.
Audio Signal 88.5 MHz ~95.5 MHz
Receiving range
Within 3 m
FM Receiver
Projector
Front
45° 45°
45° 45°
Function
23
• If used in a medical institution, it may cause an error for medical equipments. Please do not use in a
medical establishment.
• Please maintain the distance between the projector and FM receiver within 3 m.
• The sound from FM receiver may not come out in the desired quality if the distance is more than 3 m.
• Please adjust the location of FM receiver and its antenna and install them to where it shows a good con-
dition of receiving reception.
• According to the installed location and environment, the receiving distance may become shorter and the
sound may be interrupted due to:
- If an obstacle is located near the projector and FM receiver.
- If an obstacle passes near by the projector and FM receiver.
- If the FM receiver is installed Left, Right, or diagonal line of projector
- If the Projector or the FM receiver is located inside of a rack made of metal.
- If other FM transmitter equipment is working near at the same frequency.
- If there is a radio broadcast on air at the same frequency.
- If working in the dusty, humid, or high temperature environment.
Installing Instructions (HX300G only)
• Please adjust the antenna of FM receiver or move the location of FM receiver.
• If there is no Audio signal or low reception, within 55 seconds the FM Wireless Audio function will shut
down automatically.
• Please check the incoming audio signal.
• Please check if the power of projector or FM receiver is on.
• Please check if there is any obstacle between the projector and FM receiver.
• Please check if there is any metallic hardware or electronic product nearby.
• Please check if there is any radio broadcasting channel using the same frequency.
• If there is a radio broadcasting channel using the same frequency, please change to a different frequen-
cy on the projector.
What do I do if the FM receiving signal is not good? (HX300G only)
Function
24
To listen through the FM receiver speaker (HX300G only)
Adjusting Volume
Function Audio
Press the VOLUME +, - button on the remote control.
• If FM Wireless Audio is on, it does not function. Adjust with FM receiver.
• You can use this function through the MENU button.
1. Press the Q.MENU button on the remote control.
2. Press the ˘, ˚ buttons to move to Audio.
3. Press the ġ, Ģ button to select a desired item.
ᰰMove ᰷OK
AUDIO
FM Wireless Audio : Off
• Frequency 88.5 MHz
Volume 50
Balance 0
Treble 0
LR
1. Press the MENU button. Then, move to AUDIO with the
ġ, Ģ, ˘, ˚buttons and press the OK button.
2. Press the ġ, Ģ buttons to move to FM Wireless Audio
and press the OK button.
3. Press the ġ, Ģ buttons to move to On and press the
OK button.
4. Press the ġ, Ģ buttons to move to Frequency and press the OK button.
5. Press the ˘, ˚ buttons to adjusting frequency and press the OK button.
6. Set the frequency of FM receiver to the frequency of the set projector.
• Setting FM Wireless Audio as on disables mute/volume/balance/ treble functions.
• There may be differences in the reception distance and the audio quality according to the type of FM receiver and
installation locations.
• FM frequency can be set between 88.5 ~95.5 MHz.
• If you don’t use the FM receiver or audio signals from the projector, off should be selected.
• When power is back on, it is changed to off status.
• Press the BACK button to exit the menu screen.
Audio
L+R
• This function enables if connected a headphone.
• Press the BACK button to exit the menu screen.
ᯧ
L+R ᯓ ᯧ
R+R ᯓ ᯧ
L+L ᯓ
Function
25
Adjusting Speaker Balance
Adjusting Treble
AUDIO
FM Wireless Audio : Off
• Frequency 88.5 MHz
Volume 50
Balance 0
Treble 0
LR
AUDIO
FM Wireless Audio : Off
• Frequency 88.5 MHz
Volume 50
Balance 0
Treble 0
LR
1. Press the MENU button. Then, move to AUDIO with the
ġ, Ģ, ˘, ˚ buttons and press the OK button.
2. Press the ġ, Ģbuttons to move to Treble and press
the OK button.
3. Press the ˘, ˚ buttons to adjusting audio treble and
press the OK button.
• If FM Wireless Audio is on, it does not function. Adjust with FM receiver.
•
Press the BACK button to exit the menu screen.
1. Press the MENU button. Then, move to AUDIO with the
ġ, Ģ, ˘, ˚ buttons and press the OK button.
2. Press the ġ, Ģbuttons to move to Balance and press
the OK button.
3. Press the ˘, ˚ buttons to adjusting audio balance and
press the OK button.
• If FM Wireless Audio is on, it does not function. Adjust with FM receiver.
• Press the BACK button to exit the menu screen.
* Adjust the treble your taste and room situations.
* Adjust the left/right sound of speaker to suit your taste and room situations.
ᰰMove ᰷OK
ᰰMove ᰷OK
Function
26
* The sleep timer turns the projector off at the preset time.
1. Press the Q.MENU button on the remote control.
2. Press the ˘, ˚buttons to move to Sleep Timer.
3. Press the ġ, Ģbuttons to select a desired preset time.
• You can use this function through the MENU button.
• Press the BACK button to exit the menu screen.
Sleep time Function
Auto Off Function
TIME Menu Options
1. Press the MENU button. Then, move to TIME with the
ġ, Ģ, ˘, ˚ buttons and press the OK button.
2. Press the ġ, Ģ buttons to move to Auto Off and
press the OK button.
3. Move to a desired item with the ˘, ˚ buttons and
then press the OK button.
• Press the BACK button to exit the menu screen.
* This function turns the projector off automatically after the preset time is passed when there is no signal.
ᯧ
Off ᯓ ᯧ
10 Min. ᯓ ᯧ
20 Min. ᯓ ᯧ
30 Min. ᯓ
ᯧ
240 Min. ᯓ ᯧ
180 Min. ᯓ ᯧ
120 Min. ᯓ ᯧ
90 Min. ᯓ
ᯧ
60 Min. ᯓ
TIME
Sleep Timer : Off
Auto Off : 60 Min.
ᰰMove ᰷OK
Sleep Timer
Off
Function
27
OPTION Menu Options
1. Press the MENU button. Then, move to OPTION with the
ġ, Ģ, ˘, ˚ buttons and press the OK button.
2. Press the ġ, Ģ buttons to move to Menu Language and
press the OK button.
3. Move to a desired item with the ġ, Ģ, ˘, ˚ buttons and
then press the OK button.
• On-Screen-Display (OSD) is displayed in the selected language.
• Press the BACK button to exit the menu screen.
Selecting Language
OPTION
Menu Language : English
Blank Image : Black
Screen Capture
LED Mode : Normal
Auto Power : Off
Demo Mode : Off
Initial Setting : Home Use
1. Press the BLANK button on the remote control.
• The screen turns off to a background color.
• You can choose the background color. (Refer to ‘Selecting Blank image’)
2. Press any button to cancel the blank function.
• To temporarily turn off the lamp, press BLANK on the remote control. Do not block the projection lens with any
objects when the projector is under operation as this could cause the objects to become heated and deformed or
even cause a fire.
Using Blank Function
* This function may be effective if you need to get the attention of the audience during presentations, meetings or briefings.
1. Press the MENU button. Then, move to OPTION with the
ġ, Ģ, ˘, ˚ buttons and press the OK button.
2. Press the ġ, Ģ buttons to move to Blank Image and
press the OK button.
3. Move to a desired item with the ˘, ˚ buttons and then
press the OK button.
• Background image will be altered to the selected Blank function image.
• If there is no Screen Captured, selecting Captured Image will display the Logo.
• Press the BACK button to exit the menu screen.
Selecting Blank image
OPTION
Menu Language : English
Blank Image : Black
Screen Capture
LED Mode : Normal
Auto Power : Off
Demo Mode : Off
Initial Setting : Home Use
ᰰMove ᰷OK
ᰰMove ᰷OK
