LG Electronics USA ID7FB Faceplate RADIO ASM-RECEIVER User Manual
LG Electronics USA Faceplate RADIO ASM-RECEIVER
Users Manual
User Manual
Model Name : ID7FB
(2) Specifications
*Product
Item Categories Specifications
Specification
Product Name Faceplate RADIO ASM-RECEIVER
Model ID7FB
Dimensions Refer to image
Weight Base: 1.48kg
DAB : 1.52kg
Power source DC 12V
Operational
temperature range -30 ℃ ~ 85 ℃
1. Overview and Specifications
(1) Overview
1) The Infotainment system provides Infotainment in your car, using the latest
technology. See your dealer to have the system or software updated and upgraded.
2) The radio can be easily used by registering up to 25 FM or AM with the PRESET
button[1 to 5] per every 5 pages.
3) The Infotainment system can play the USB storage device or iPod/iPhone products.
4) The Bluetooth phone connection function allows for the use of wireless hands-free
Phone calls, as well as a phone music player.
In addition, the WiFi function is provided.
5) Connect a portable music player to the auxiliary sound input to enjoy the rich
sound of the Infotainment system.

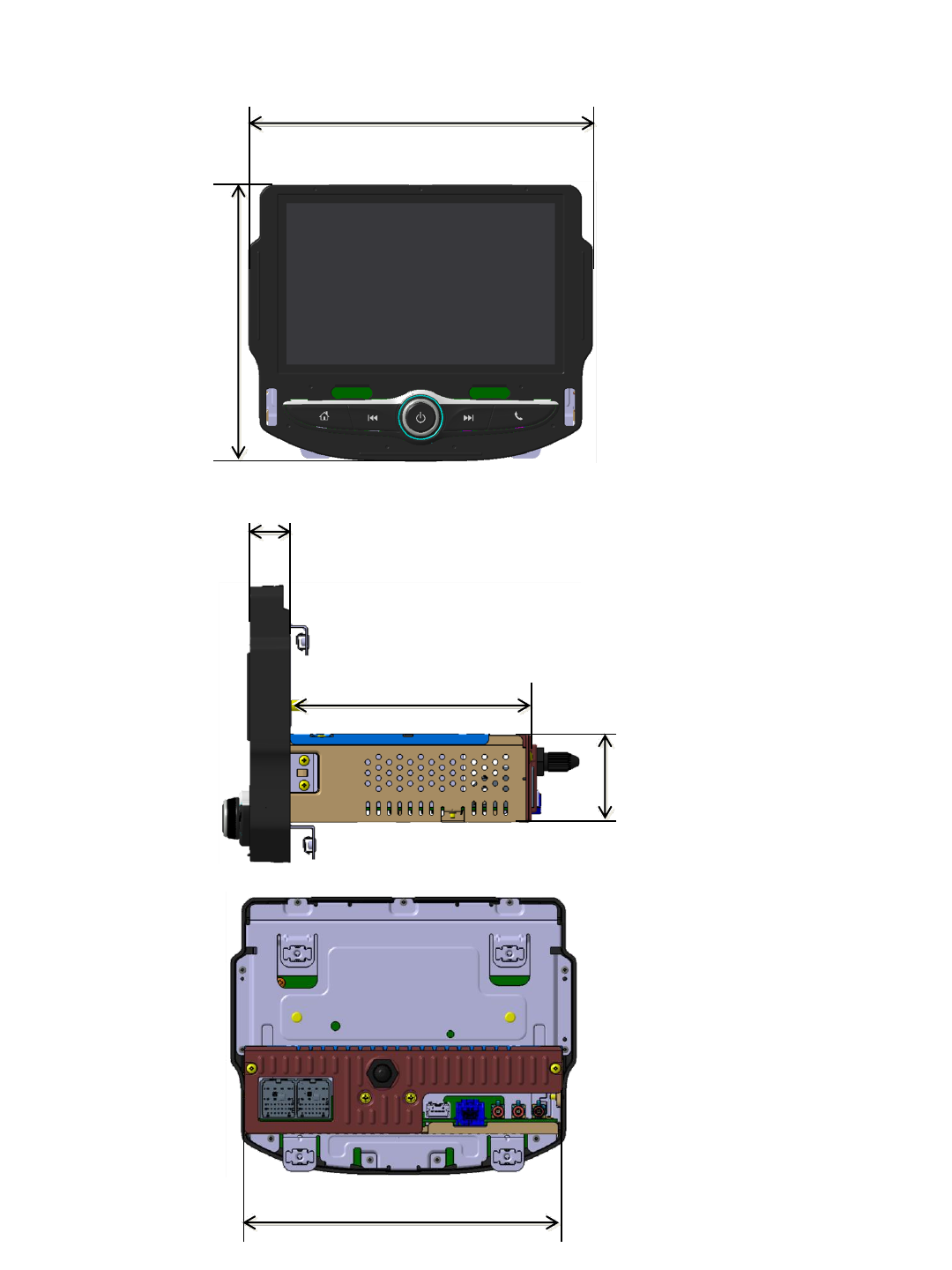

< Basic Design Concept >
7” : 195.3mm
7” : 156.4mm
22.6mm
136.5mm
50mm
180mm
*RF specifications
[ BT ]
[ Wi-Fi ]
Item Specifications Unit
Standard IEEE 802.11 a/b/g/n/ac
Frequency 2.4G 2412 ~ 2462 MHz
5G 5180 ~ 5240, 5745 ~ 5825 MHz
Bandwidth 20 / 40 / 80 MHz
Data rate
2.4G
802.11 b 20M 1, 2, 5.5, 11 Mbps
802.11 g 20M 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 n 20M 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
802.11 n 40M 13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps
5G
802.11 a 20M 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 n 20M 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
802.11 n 40M 13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps
802.11 ac 20M 6.5, 13, 19.5, 26, 39, 52, 58.5, 65, 78 Mbps
802.11 ac 40M 13.5, 27, 40.5, 54, 81, 108, 121.5, 135
162, 180 Mbps
802.11 ac 80M 29.3, 58.5, 87.8, 117, 175.5, 234
263.3, 292.5, 351, 390 Mbps
Modulation CCK, BPSK, QPSK,
16-QAM, 64-QAM, 256-QAM
Mode AP, Station, AP and station
coexistence
Item Specifications Unit
Frequency 2402 ~ 2480 MHz
Modulation Type GFSK, π/4 DQPSK, 8 DPSK
BT Power 8dBm
Data rate 1 ~ 3 Mbps
Channel spacing 1MHz
BT version BT4.2 + EDR
(*LE function in BT 4.2 isn`t used in this
device, being blocked by software.)
MHz

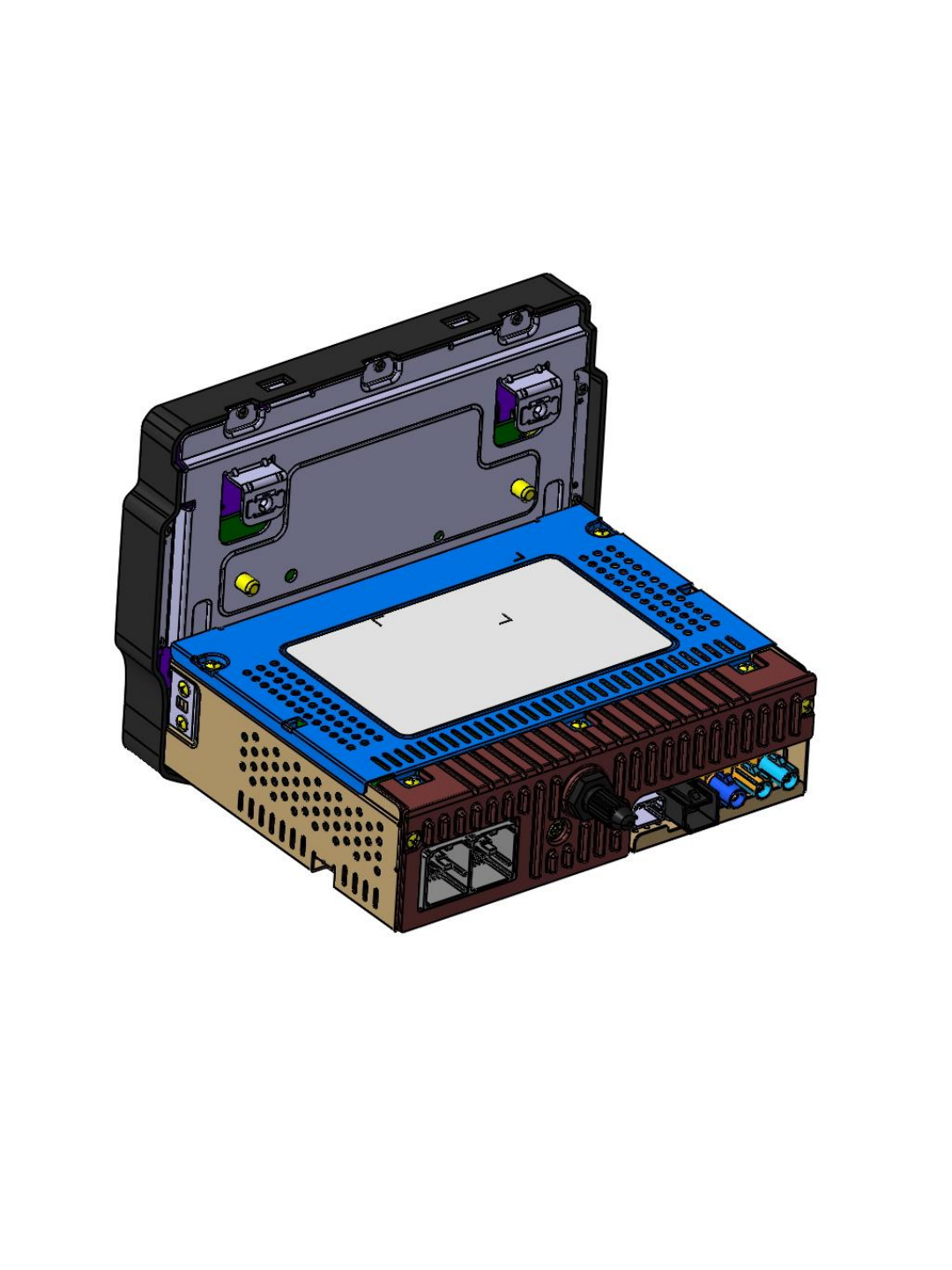

2. Component
3. Operation

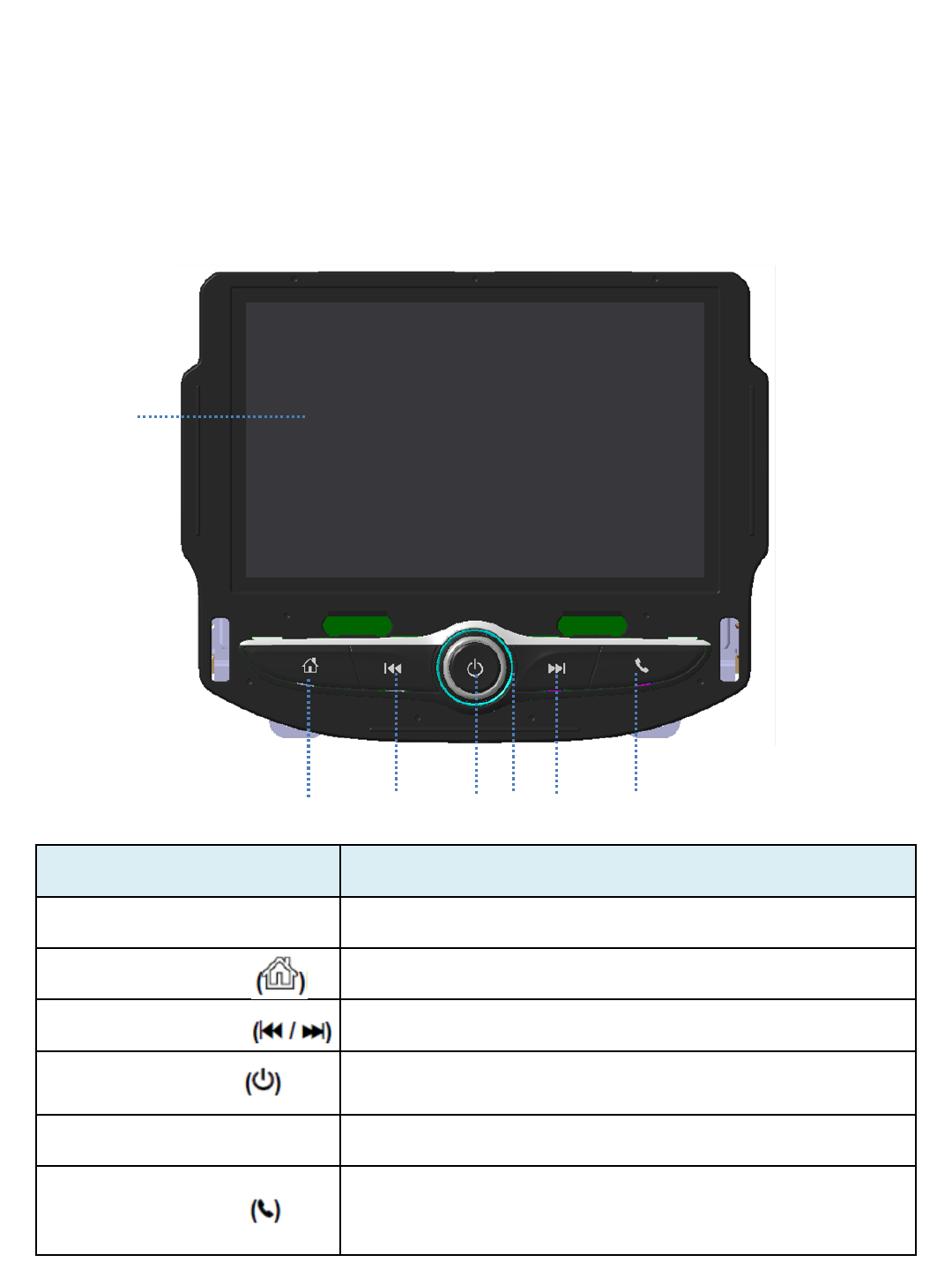

(1)
(2) (3) (4)(5) (6) (7)
Item (#No.) Descriptions
(1) Display Display for Play/Reception/Menu state and information.
(2) HOME button Press this button to enter the home menu.
(3)/(6) Seek button Press this button to seek the station or media contents.
(4) POWER button Press and hold this button to turn the power on/off.
Press this button to turn the mute function on/off.
(5) Volume knob Rotate the Volume knob to adjust the volume.
(7) Phone button
Press this button to access the Phone screen.
(If there is no connected phone, it will be displayed
Bluetooth device management screen.)

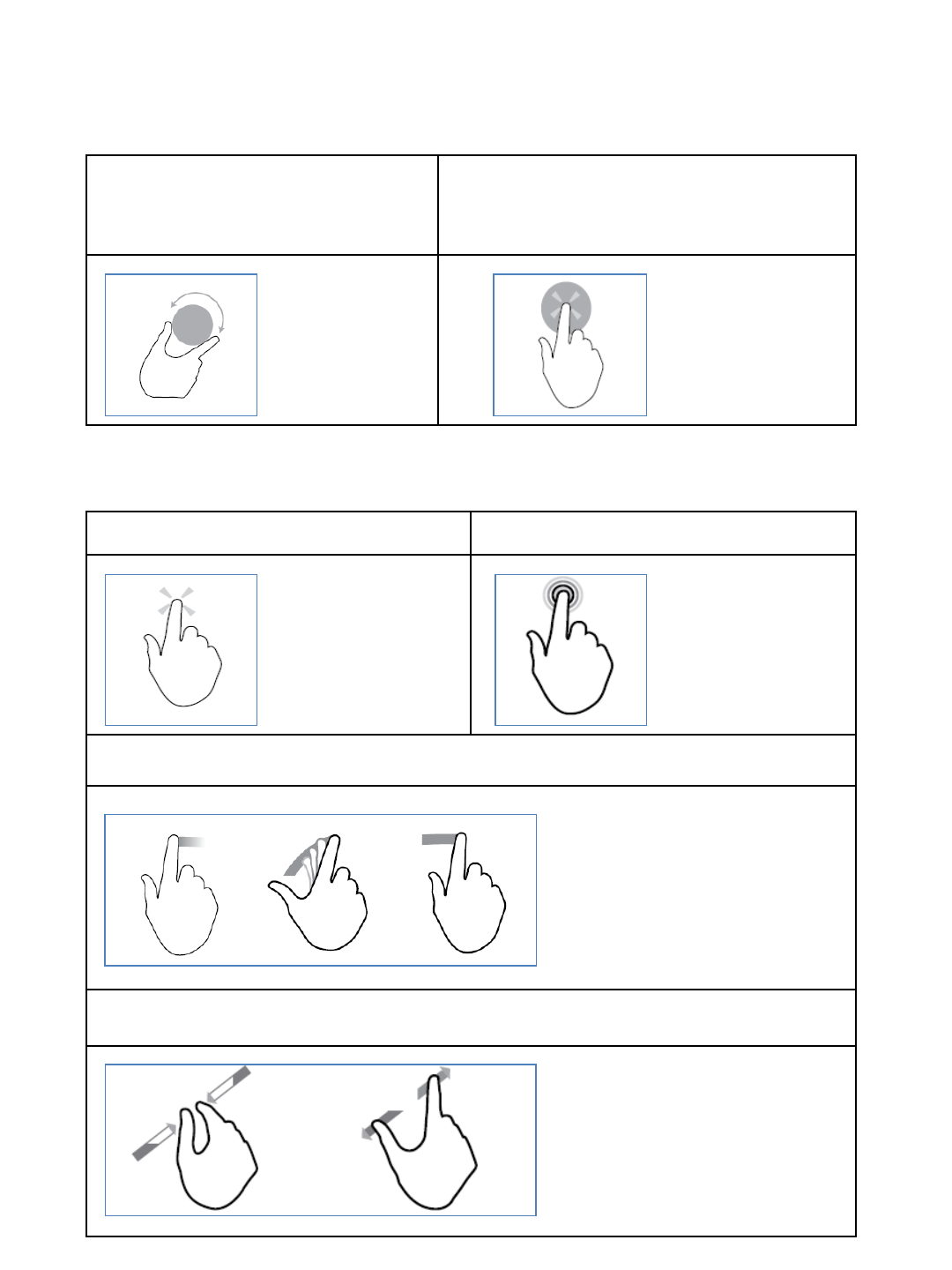

*Tap *Press & Hold
*Fling/Swipe
*Pinch & Spread
(8) Interactions | Rotary Knob
(9) Touch Gestures
*Rotate
Users can rotate the Volume
knob on the faceplate.
*Push
Users can press on the center of
the rotary-push knob to mute volume.

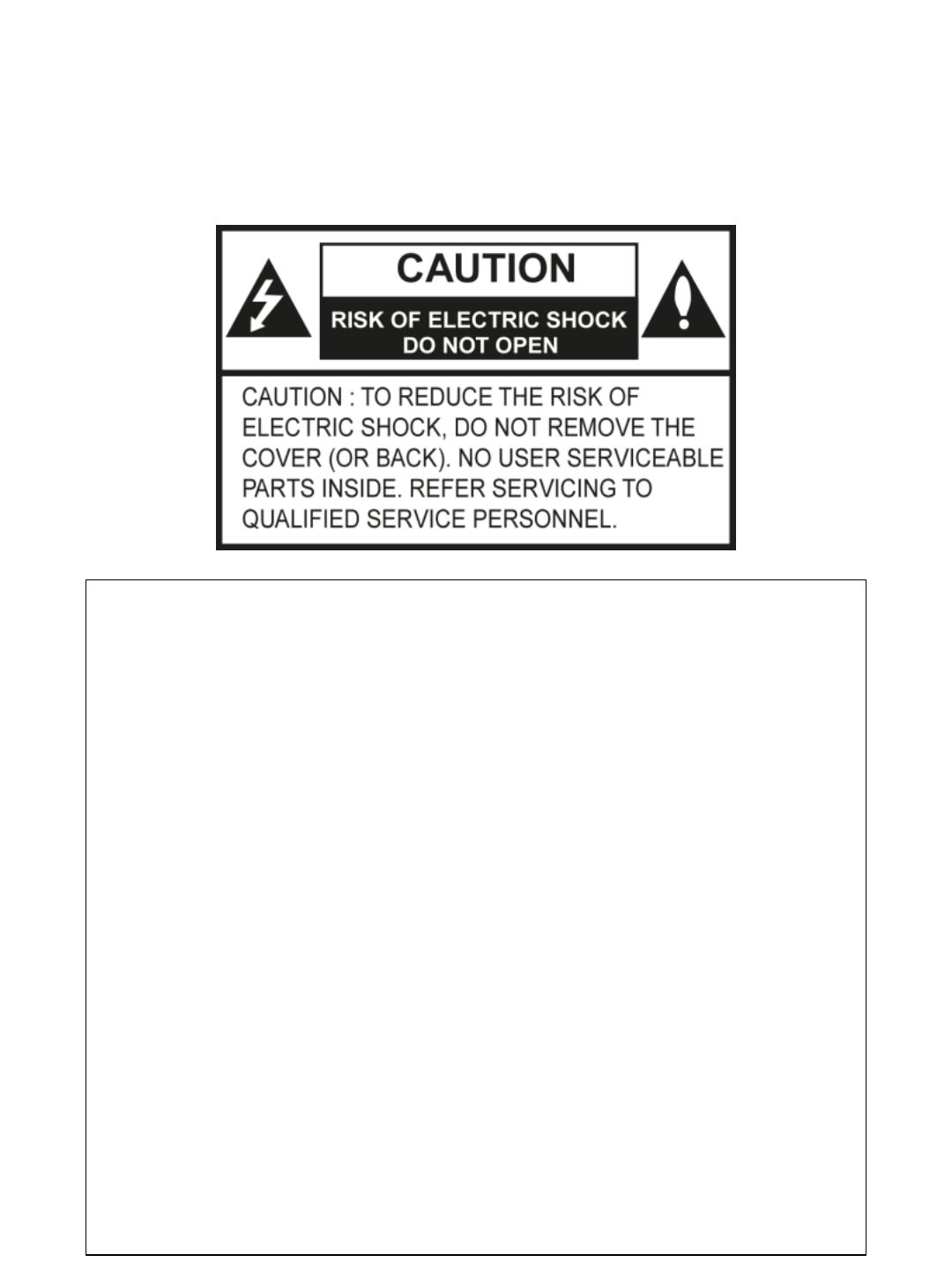

4. Precautions
1) Always operate the vehicle in a safe manner. Do not become distracted by
the vehicle while driving and always be fully aware of all driving conditions.
Do not change settings or any functions. Pull over in a safe and legal
manner before attempting such operations. To promote safety, certain
functions are disabled unless the parking brake is on.
2) To reduce the risk of electric shock, do not remove the cover or back of
this product. There are no user-serviceable parts inside. Refer servicing to
qualified service personnel.
3) To reduce the risk of fire or electric shock, do not expose this product to
dripping or splashing water, rain, or moisture.
4) When driving your vehicle, be sure to keep the volume of the unit low
enough to allow you to hear sounds coming from the outside.
5) Do not drop it and avoid heavy impacts at anytime.
6) The driver should not watch the monitor while driving. If the driver
watches the monitor while driving, it may lead to carelessness and cause an
accident.
<FCC Warning Statements>
FCC Part 15.19 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
RF Exposure Statement (MPE)
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is
maintained between the radiator (antenna) and all persons at all times. This device must not be co-
located or operating in conjunction with any other antenna or transmitter.
