Model Name : ID7SF
(2) Specifications
*Product
Item Categories Specifications
Specification
Product Name Silverbox RADIO ASM-RECEIVER
Model ID7SF
Dimensions Refer to image
Weight
Monitor : 0.63kg
Keypad : 0.13kg
Silver box : 0.79kg(Base)
0.83kg(XM)
Power source DC 12V
Operational
temperature range -30 ℃ ~ 85 ℃
1. Overview and Specifications
(1) Overview
1) The Infotainment system provides Infotainment in your car, using the latest
technology. See your dealer to have the system or software updated and upgraded.
2) The radio can be easily used by registering up to 25 FM or AM with the PRESET
button[1 to 5] per every 5 pages.
3) The Infotainment system can play the USB storage device or iPod/iPhone products.
4) The Bluetooth phone connection function allows for the use of wireless hands-free
Phone calls, as well as a phone music player.
In addition, the WiFi function is provided.
5) Connect a portable music player to the auxiliary sound input to enjoy the rich
sound of the Infotainment system.

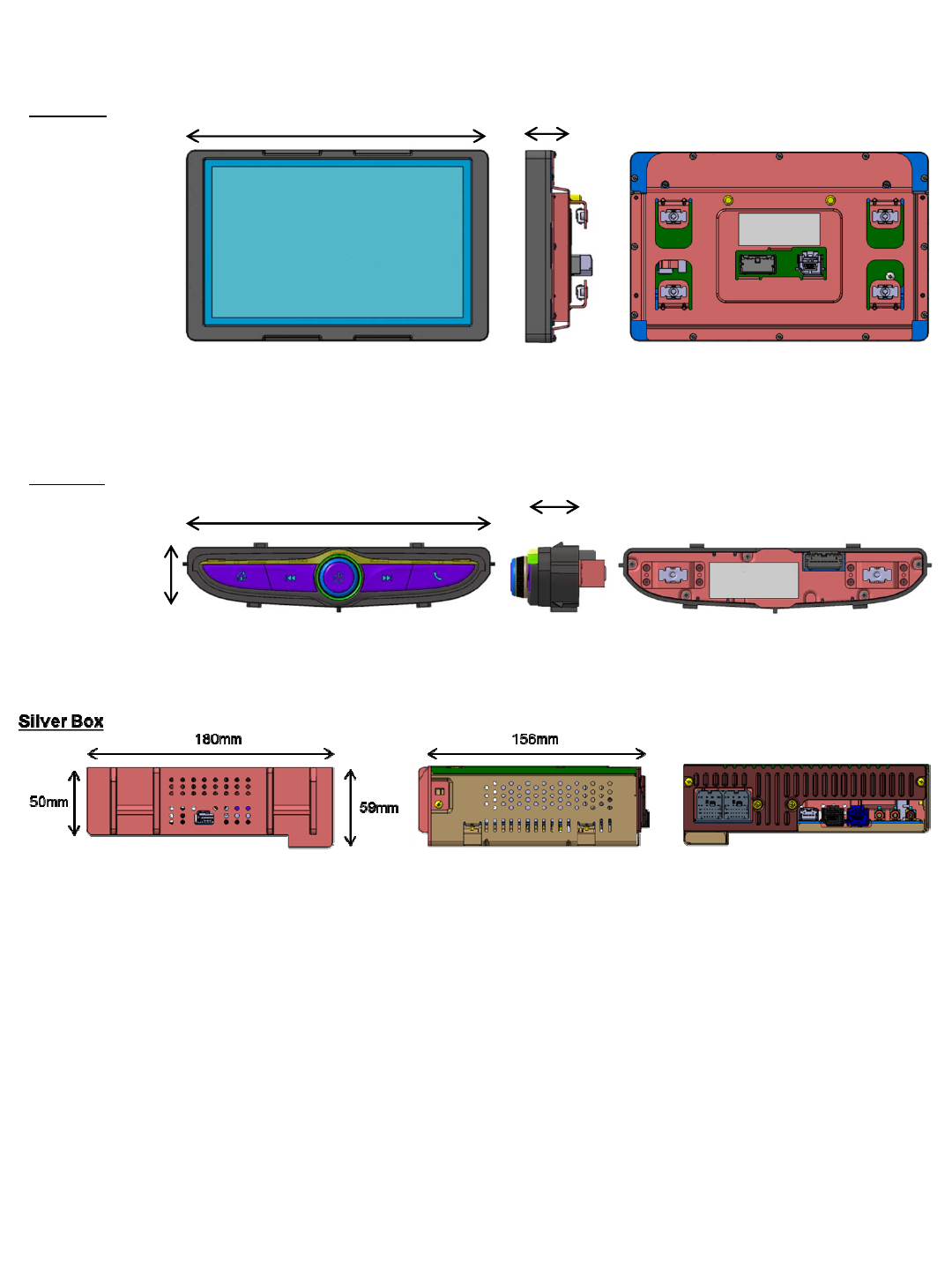

Monitor 183.1mm
115.9mm
26.62mm
28.72mm
Keypad
170.2mm
33.78mm
*RF specifications
[ BT ]
[ Wi-Fi ]
Item Specifications Unit
Standard IEEE 802.11 a/b/g/n/ac
Frequency 2.4G 2412 ~ 2462 MHz
5G 5180~5240, 5745~5825 MHz
Bandwidth 20 / 40 / 80 MHz
Data rate
2.4G
802.11 b 20M 1, 2, 5.5, 11 Mbps
802.11 g 20M 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 n 20M 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
802.11 n 40M 13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps
5G
802.11 a 20M 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 n 20M 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
802.11 n 40M 13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps
802.11 ac 20M 6.5, 13, 19.5, 26, 39, 52, 58.5, 65, 78 Mbps
802.11 ac 40M 13.5, 27, 40.5, 54, 81, 108, 121.5, 135
162, 180 Mbps
802.11 ac 80M 29.3, 58.5, 87.8, 117, 175.5, 234
263.3, 292.5, 351, 390 Mbps
Modulation CCK, BPSK, QPSK,
16-QAM, 64-QAM, 256-QAM
Mode AP, Station, AP and station
coexistence
Item Specifications Unit
Frequency 2402 ~ 2480 MHz
Modulation Type GFSK, π/4 DQPSK, 8 DPSK
BT Power 8dBm
Data rate 1 ~ 3 Mbps
Channel spacing 1MHz
BT version
BT4.2 + EDR(*LE function in BT 4.2 isn`t
used in this device, being blocked by soft
ware.)
MHz

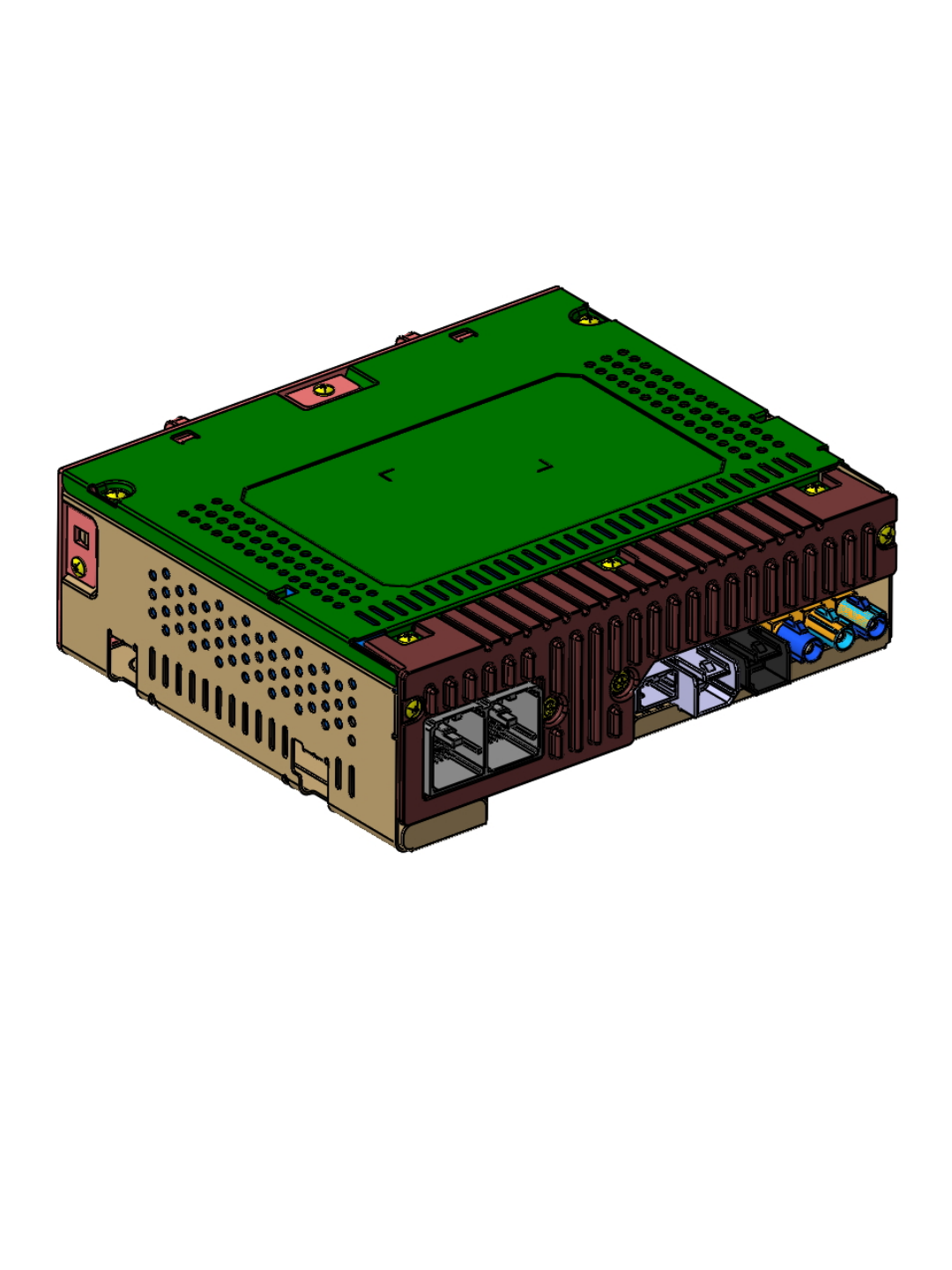

2. Component
3. Operation
(1)
(2) (3) (4)(5) (6) (7)

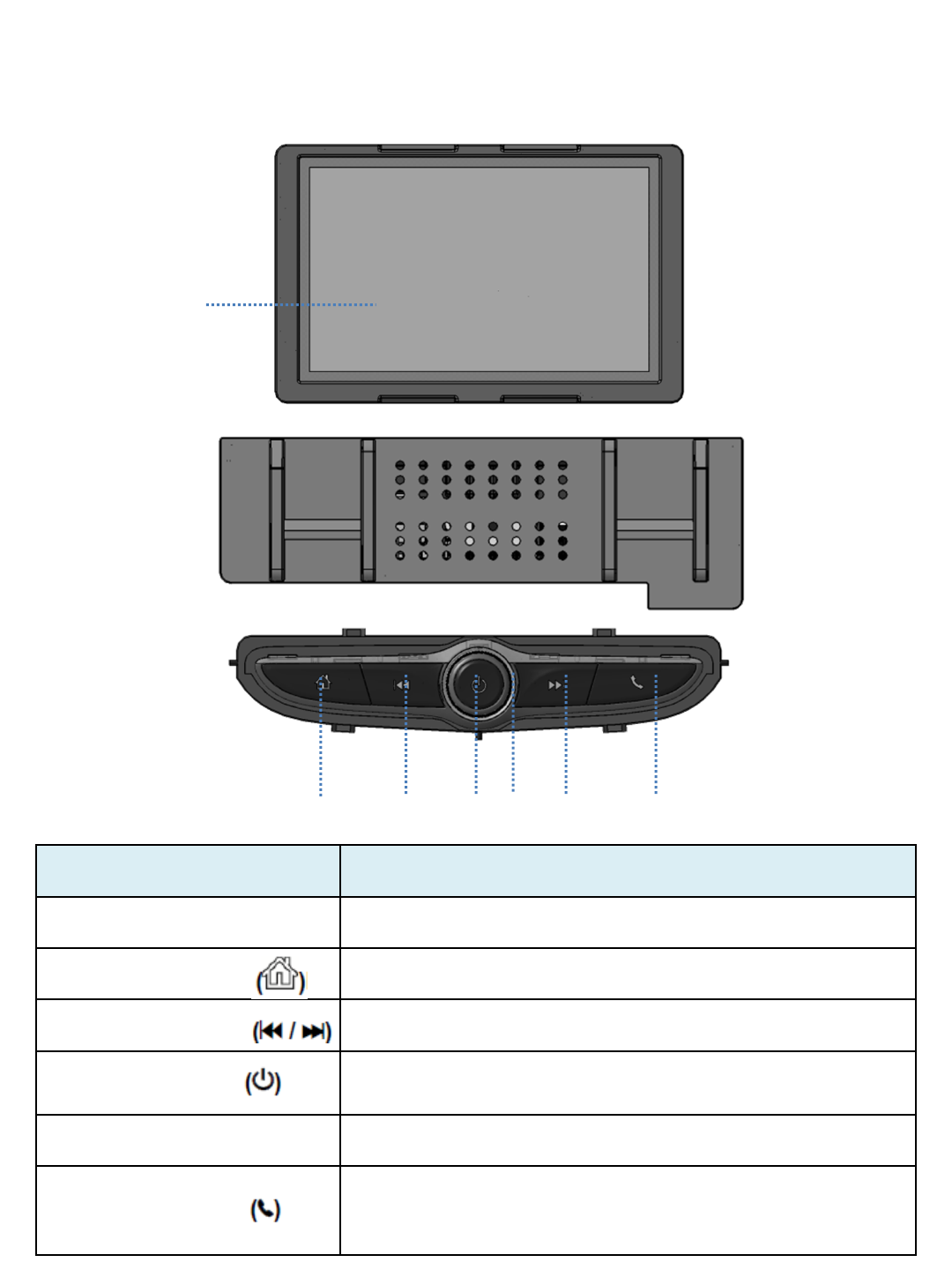

Item (#No.) Descriptions
(1) Display Display for Play/Reception/Menu state and information.
(2) HOME button Press this button to enter the home menu.
(3)/(6) Seek button Press this button to seek the station or media contents.
(4) POWER button Press and hold this button to turn the power on/off.
Press this button to turn the mute function on/off.
(5) Volume knob Rotate the Volume knob to adjust the volume.
(7) Phone button
Press this button to access the Phone screen.
(If there is no connected phone, it will be displayed
Bluetooth device management screen.)

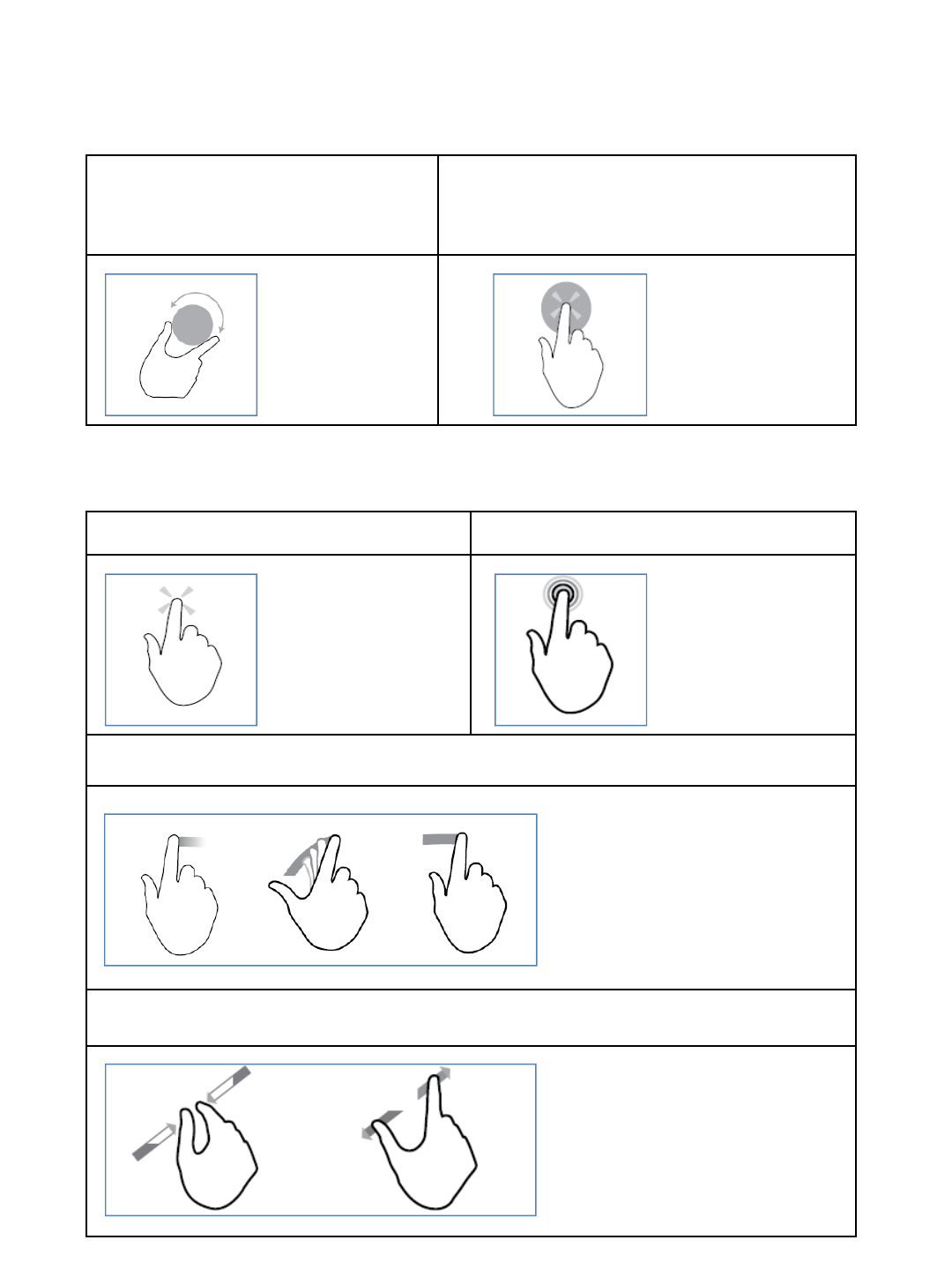

*Tap *Press & Hold
*Fling/Swipe
*Pinch & Spread
(8) Interactions | Rotary Knob
(9) Touch Gestures
*Rotate
Users can rotate the Volume
knob on the faceplate.
*Push
Users can press on the center of
the rotary-push knob to mute volume.
4. Precautions
1) Always operate the vehicle in a safe manner. Do not become distracted by
the vehicle while driving and always be fully aware of all driving conditions.
Do not change settings or any functions. Pull over in a safe and legal
manner before attempting such operations. To promote safety, certain
functions are disabled unless the parking brake is on.
2) To reduce the risk of electric shock, do not remove the cover or back of
this product. There are no user-serviceable parts inside. Refer servicing to
qualified service personnel.
3) To reduce the risk of fire or electric shock, do not expose this product to
dripping or splashing water, rain, or moisture.
4) When driving your vehicle, be sure to keep the volume of the unit low
enough to allow you to hear sounds coming from the outside.
5) Do not drop it and avoid heavy impacts at anytime.
6) The driver should not watch the monitor while driving. If the driver
watches the monitor while driving, it may lead to carelessness and cause an
accident.
<FCC/ISED Warning Statements>
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
RF Exposure Statement (MPE)
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm
is maintained between the radiator (antenna) and all persons at all times. This device must
not be co-located or operating in conjunction with any other antenna or transmitter.
l'exposition aux RF
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une
distance minimum de au moins 20 cm entre la source de radiation (l’antenne) et toute
personne physique.
