LG Electronics USA KE820 GSM850/GSM900/GSM1800/GSM1900 w/Bluetooth User Manual
LG Electronics USA GSM850/GSM900/GSM1800/GSM1900 w/Bluetooth
Manual
KE820
USER GUIDE
WE SHOULD INFORM USER THAT THIS MANUAL CAN HAVE
SOME DIFFERENCES FROM PHONE DEPENDING ON PHONE
S/W AND SERVICE PROVIDER.
Disposal of your old appliance
1.
When this crossed-out wheeled bin symbol is attached
to a product it means the product is covered by the
European Directive 2002/96/EC.
2. All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities appointed
by the government or the local authorities.
3. The correct disposal of your old appliance will help
prevent potential negative consequences for the
environment and human health.
4. For more detailed information about disposal of your
old appliance, please contact your city office, waste
disposal service or the shop where you purchased the
product.
abc
def
jkl
ghi
mno
tuv
pqrs
wxyz
Contents
Introduction 7

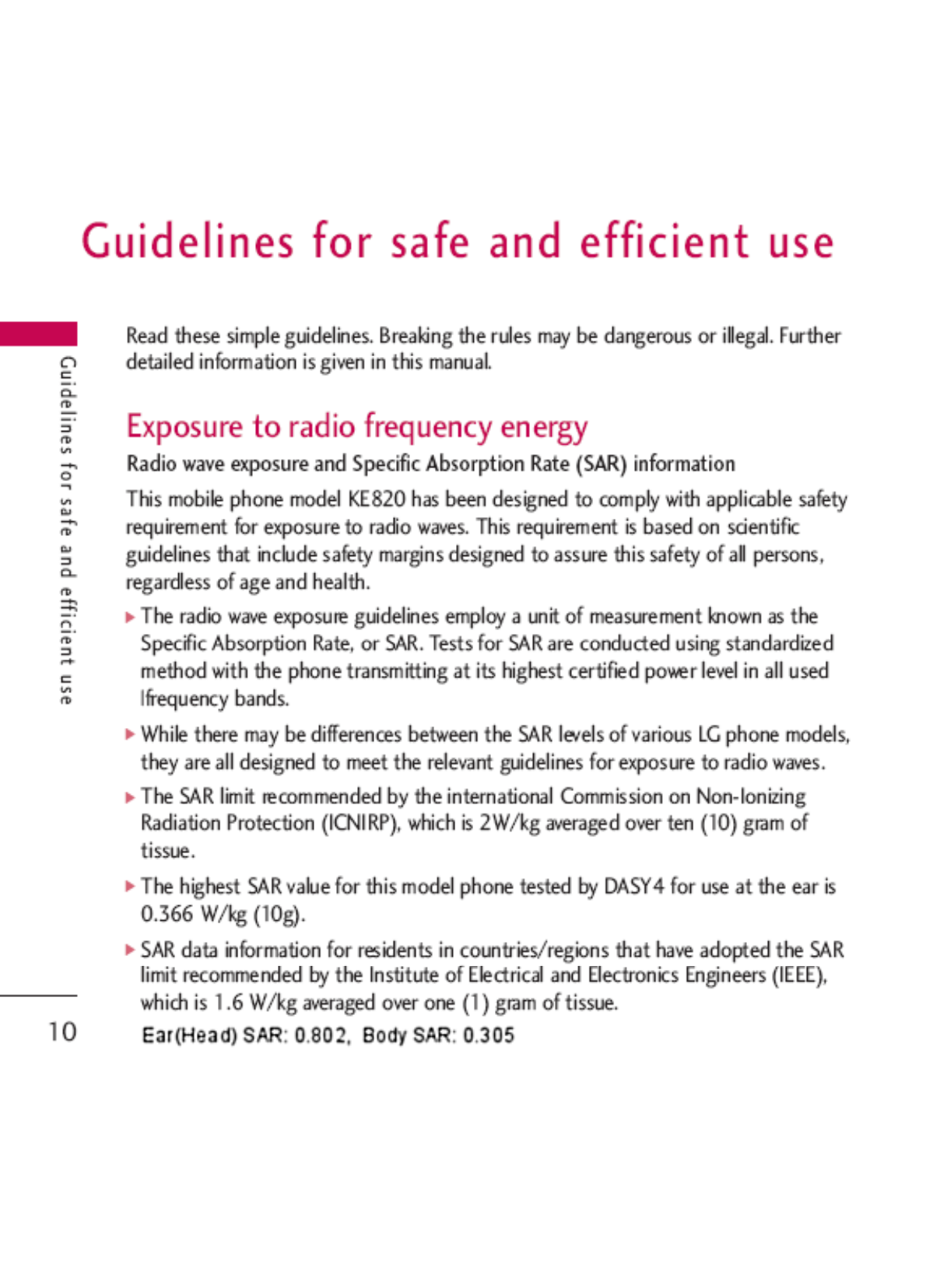

Guidelines for safe and efficient use 10
KE820 Features 16
Part of the phone 16
Display information 21
On-Screen Icons 22
Installation 24

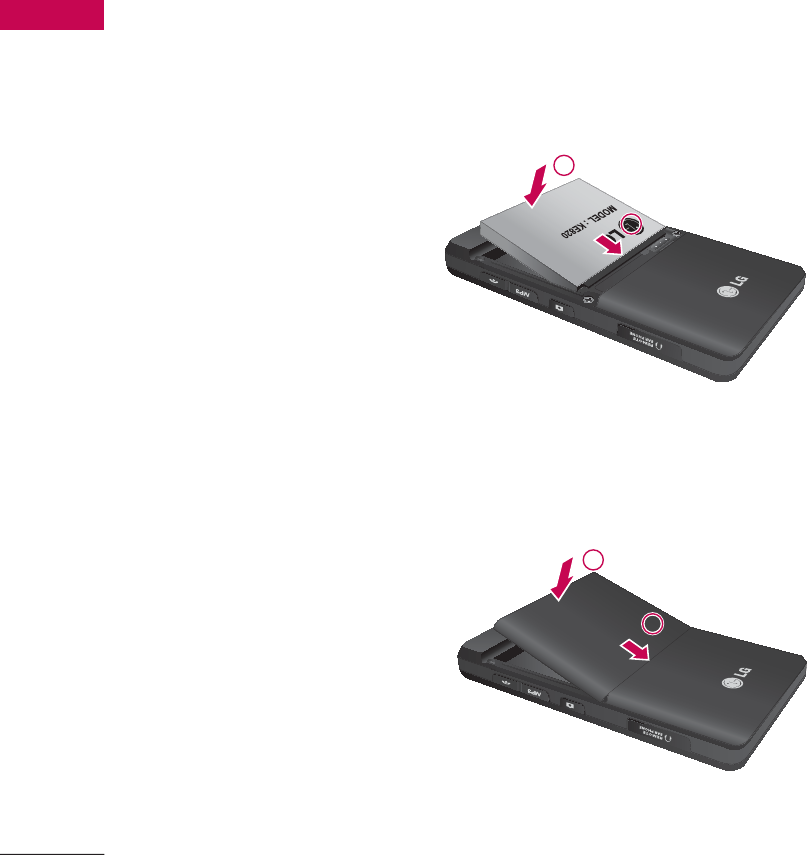

Installing the SIM card and the handset battery 24

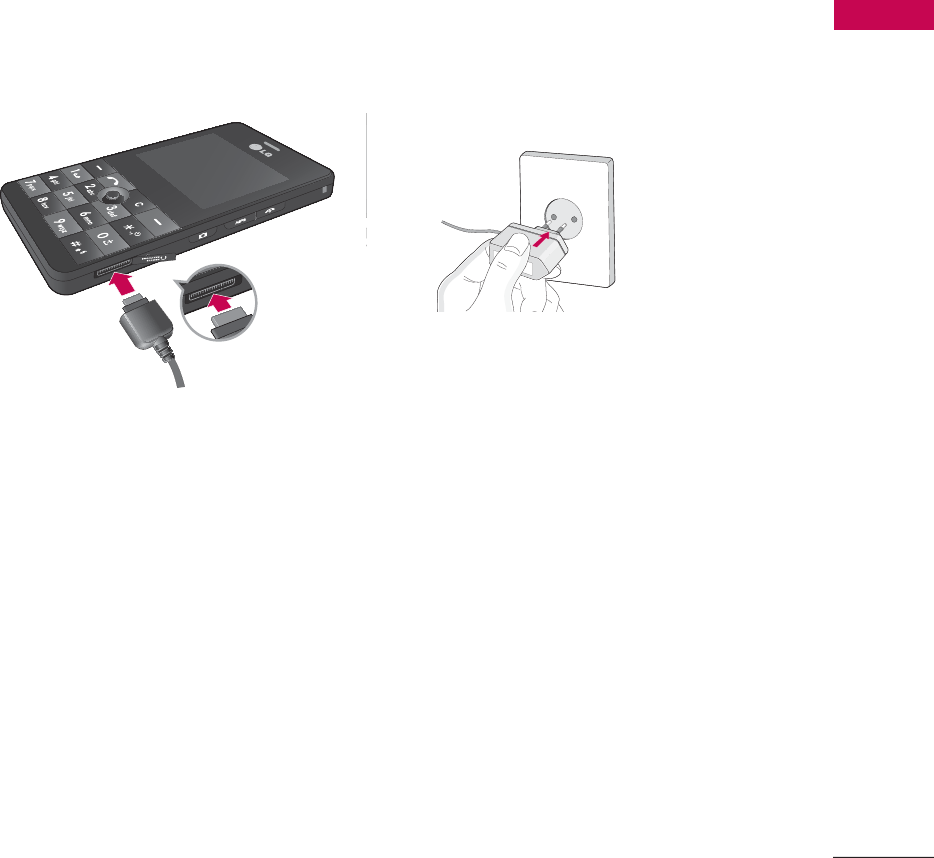

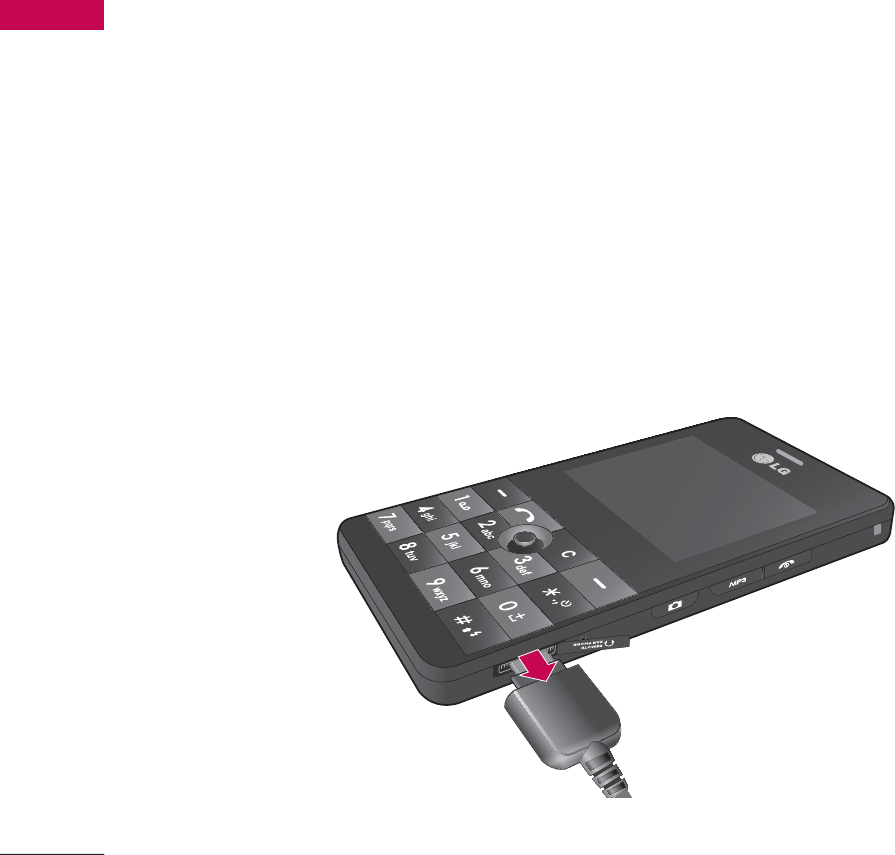

Charging the Battery 27
Disconnecting the charger 28
General functions 29
Making a Call 29
Adjusting the Volume 30
Answering a Call 30
Entering Text 31
Selecting functions and options 37
In-Call Menu 38
During a Call 38
Conference Calls 40
Contents
2
3
Menu tree 42
Messaging 44
New message 44
Inbox 49
Email box 50
Drafts 51
Outbox 51
Sent 52
Voice mail 52
Info message 53
Templates 54
Settings 55
Call history 60
All calls 60
Missed calls 60
Dialled calls 60
Received calls 61
Call duration 61
Call costs 62
Data information 62
Contents
Contents
Contacts 63
Search 63
Add new 64
Caller groups 64
Speed dial 65
Own number 65
My business card 66
Settings 66
Multimedia 68
Camera 68
Video camera 71
MP3 player 72
Radio 77
Voice recorder 79
Karaoke 80
My stuff 82
Videos 82
Images 83
Sounds 84
Others 85
Games & Apps 86
Contents
4
5
External Memory 86
Browser 88
Home 89
Bookmarks 89
Go to URL 90
Settings 90
Tools 94
Favourites 94
Alarm clock 94
Calendar 94
Calculator 96
Memo 98
Tip calculator 99
Stop watch 99
Unit converter 99
World time 100
SIM-Menu 100
Profiles 101
Activate 101
Personalise 101
Rename 102
Contents
Contents
Settings 103
Date &Time 103
Power saving 103
Display 104
Calling 105
Security 109
Memory status 113
Reset setting 113
Accessories 114
Technical data 116
Contents
6
Introduction
7
Congratulations on your purchase of the advanced and compact KE820 cellular
phone, designed to operate with the latest digital mobile communication technology.
Introduction
abc
def
jkl
ghi
mno
tuv
pqrs
wxyz
This user’s guide contains important information on the use and operation of this
phone. Please read all the information carefully for optimal performance and to
prevent any damage to or misuse of the phone. Any changes or modifications not
expressly approved in this user’s guide could void your warranty for this equipment.
Using the magnetic lock case for folder type phones is caused some problems such
as self-power off, absence of network.
For Your Safety
Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further
detailed information is given in this manual.
Warning
]Mobile Phones must be switched off at all times in an aircraft.
]Do not hold the phone in your hand while driving.
]Do not use your phone near petrol stations, fuel depots, chemical plants or
blasting operations.
]For your safety, use ONLY specified ORIGINAL batteries and chargers.
]Do not handle the phone with wet hands while it is being charged. It may cause an
electric shock or seriously damage your phone.
]Keep the phone in a safe place out of children’s reach. It includes small parts which
if detached may cause a choking hazard.
Caution
]Switch off the phone in any area where required by special regulations. For example,
do not use your phone in hospitals or it may affect sensitive medical equipment.
]Emergency call may not be available under all cellular networks. Therefore, you
should never depend solely on the phone for emergency calls.
]Only use ORIGINAL accessories to avoid damage to your phone.
For Your Safety
8
9
]All radio transmitters carry risks of interference with electronics in close proximity.
Minor interference may affect TVs, radios, PCs, etc.
]Batteries should be disposed of in accordance with relevant legislation.
]Do not dismantle the phone or battery.
For Your Safety
11
Product care and maintenance
Warning!
Use only batteries, charger and accessories approved for use with this particular
phone model. The use of any other types may invalidate any approval or warranty applying
to the phone, and may be dangerous.
]Do not disassemble this unit. Take it to a qualified service technician when repair
work is required.
]Keep away from electrical appliance such as a TV, radio or personal computer.
]The unit should be kept away from heat sources such as radiators or cookers.
]Do not drop.
]Do not subject this unit to mechanical vibration or shock.
]The coating of the phone may be damaged if covered with wrap or vinyl wrapper.
]Use dry cloth to clean the exterior of the unit.
(Do not use solvent such as benzene, thinner or alcohol.)
]Do not subject this unit to excessive smoke or dust.
]Do not keep the phone next to credit cards or transport tickets; it can affect the
information on the magnetic strips.
]Do not tap the screen with a sharp object; otherwise, it may damage the phone.
]Do not expose the phone to liquid or moisture.
]Use the accessories like an earphone cautiously. Do not touch the antenna
unnecessarily.
Guidelines for safe and efficient use
Guidelines for safe and efficient use
Fuse replacement
Always replace a blown fuse with a fuse of the same type and size. Never use a fuse
of a higher rating.
Efficient phone operation
To enjoy optimum performance with minimum power consumption please:
]Hold the phone as you speak to any other telephone.
]If your mobile phone supports infrared, never direct the infrared ray at anyone’s
eye.
Electronics devices
All mobile phones may get interference, which could affect performance.
]Do not use your mobile phone near medical equipment without requesting
permission. Avoid placing the phone over the pacemaker, i.e. in your breast pocket.
]Some hearing aids might be disturbed by mobile phones.
]Minor interference may affect TVs, radios, PCs, etc.
Guidelines for safe and efficient use
12
13
Road safety
Check the laws and regulations on the use of mobile phones in the areas when
you drive.
]Do not use a hand-held phone while driving.
]Give full attention to driving.
]Use a hands-free kit, if available.
]Pull off the road and park before making or answering a call if driving conditions so
require.
]RF energy may affect some electronic systems in your motor vehicle such as car
stereo, safety equipment.
]When your vehicle is equipped with an air bag, do not obstruct with installed or
portable wireless equipment. It can cause serious injury due to improper
performance.
Blasting area
Do not use the phone where blasting is in progress. Observe restrictions, and follow
any regulations or rules.
Guidelines for safe and efficient use
Guidelines for safe and efficient use
Potentially explosive atmospheres
]Do not use the phone at a refueling point. Don’t use near fuel or chemicals.
]Do not transport or store flammable gas, liquid, or explosives in the compartment
of your vehicle, which contains your mobile phone and accessories.
In aircraft
Wireless devices can cause interference in aircraft.
]Turn off your mobile phone before boarding any aircraft.
]Do not use it on the ground without crew permission.
Children
Keep the phone in a safe place out of children’s reach. It includes small parts which if
detached may cause a choking hazard.
Emergency calls
Emergency calls may not be available under all cellular networks. Therefore, you
should never depend solely on the phone for emergency calls. Check with your local
service provider.
Guidelines for safe and efficient use
14
15
Battery information and care
]You do not need to completely discharge the battery before recharging. Unlike
other battery systems, there is no memory effect that could compromise the
battery’s performance.
]Use only LG batteries and chargers. LG chargers are designed to maximize the
battery life.
]Do not disassemble or short-circuit the battery pack.
]Keep the metal contacts of the battery pack clean.
]Replace the battery when it no longer provides acceptable performance. The
battery pack may be recharged hundreds of times until it needs replacing.
]Recharge the battery if it has not been used for a long time to maximize usability.
]Do not expose the battery charger to direct sunlight or use it in high humidity, such
as the bathroom.
]Do not leave the battery in hot or cold places, this may deteriorate the battery
performance.
Guidelines for safe and efficient use
KE820 features
Part of the phone
1.Earpiece
2.Main LCD
]
To p :
Signal strength, battery level and various function
]
Bottom:
Soft key indications
3. Alpha numeric keys
]
In standby mode:
Input numbers to dial Hold down
- International calls
- Activate Voice mail centre menu
KE820 features
16
abc
def
jkl
ghi
mno
tuv
pqrs
wxyz
1
8
2
3
4
7
6
5
17
to - Speed dials
]
In editing mode:
Enter numbers & characters
4. Side keys
]
In standby mode (opened):
Volume of key tone
]
In standby mode (closed):
Short press
- The sub LCD light on.
Long press
- Only display a wallpaper.
]
In menu:
scroll up & down
]
During a call:
volume of the earpiece
Note
]
To protect the sense of hearing while Folder open, maximum volume level is 3.
5. End key
]Switched on/off (hold down)
]End or reject a call.
6. Camera and Multimedia hot key
]Activates the camera (long press) and Multimedia menu (short press) directly.
7. Side camera key
Long press
- photo camera activation(Folder opened)
Short press
- Camera and MP3 menu access
8. Handsfree slot
wxyz
abc
KE820 features
KE820 features
1. Navigation key
]
In standby mode:
Briefly:
List of Favourites
Briefly:
List of Contacts
Briefly:
List of Profiles
(
Hold down:
Activate/Deactivate Vibrate mode)
Briefly:
List of Messages
]
In menu:
scroll up & down
2. Soft keys
]These keys perform the function Indicated in the bottom of the display.
KE820 features
18
abc
def
2
1
34
19
3. Send key
]Dial a phone number and answer a call.
]
In standby mode:
shows recently dialled, received and missed call.
4. Clear key
KE820 features
KE820 features
Rear view
KE820 features
20
Battery
Flash
Side camera key
SIM Card Socket
Camera lens
Cable Connector
/Battery Charging Connector
Note
]
To connect USB, several minutes after
power on phone and in the idle window.
21
Display Information
KE820 features
Icon area
Text and graphic area
Soft key indications
Area Description
First line
Middle lines
Displays various icons. See page 15.
Shows the functions currently assigned to the two soft keys.
Last line
Display messages, instructions and any information that you enter, such as
number to be dialled.
KE820 features
The screen displays several icons. These are described below.
On-Screen Icons
Note
]
The quality of the conversation may change depending on network coverage. When the signal
strength is below 2 bars, you may experience muting, call drop and bad audio. Please take the
network bars as indicator for your calls. When there are no bars, that means that there is no
network coverage: in this case, you won’t be able to access the network for any service (call,
messages and so on).
KE820 features
22
Icon/Indicator Description
Tells you the strength of the network signal.
Call is connected.
You can use GPRS service.
Shows that you are using a roaming service.
The alarm has been set and is on.
Tells you the status of the battery.
You have received a text message.
You have received a voice message.
23
KE820 features
Icon/Indicator Description
Vibrate only menu in profile.
General menu in profile.
Loud menu in profile.
Silent menu in profile.
Headset menu in profile.
You can divert a call.
Indicates that the phone is accessing the WAP.
Indicates that you are using GPRS.
You have activated bluetooth menu.
Installation
Installing the SIM card and the handset battery
Make sure the power is off before you remove the battery.
1. Remove the battery cover.
Press the battery release latch and slide the battery cover toward the bottom of the
phone. And remove the battery cover.
Note
]
Removing the battery from the phone when the power is on may cause the phone to
malfunction.
2. Remove the battery.
Hold the top edge of the battery and lift the battery from the battery compartment.
Installation
24
25
3. Install the SIM card.
Insert the SIM card into the holder. Slide the SIM card into the SIM card holder.
Make sure that the SIM card is inserted properly and that the gold contact area on
the card is facing downwards. To remove the SIM card, press down lightly and pull it
in the reverse direction.
Note
]
The metal contact of the SIM card can be easily damaged by scratches. Pay special attention
to the SIM card while handling. Follow the instructions supplied with the SIM card.
Installation
To remove the SIM card
To insert the SIM card
Installation
4. Install the battery.
Insert the bottom of the battery first into the bottom edge of the battery
compartment. Push down the top of the battery until it snaps into space.
5. Replace the battery cover.
Lay the battery cover in place of the phone and slide it until the latch clicks.
Installation
26
2
1
2
1
27
Charging the Battery
Before connecting the travel adapter to the phone you must first install the battery.
1. Ensure the battery is fully charged before using the phone.
2. With the arrow facing you as shown in the diagram push the plug on the battery
adapter into the socket on the bottom of the phone until it clicks into place.
3. Connect the other end of the travel adapter to the mains socket. Use only the
included packing charger.
4. The moving bars of battery icon will stop after charging is complete.
Caution
]
Do not force the connector as this may damage the phone and/or the travel adapter.
]
Insert the battery pack charger vertically to wall power outlet.
]
If you use the battery pack charger out of your own country, use an attachment plug adaptor
for the proper configuration.
]
Do not remove your battery or the SIM card while charging.
Installation
Installation
Warning
]
Unplug the power cord and charger during lightning storms to avoid electric shock or fire.
]
Make sure that no sharp-edged items such as animal teeth, nails, come into contact with the
battery. There is a risk of this causing a fire.
]
Do not place or answer calls while charging the phone as it may short-circuit the phone and/or
cause electric shock or fire.
Disconnecting the charger
Disconnect the travel adapter from the phone by pressing its side buttons as shown
in the diagram.
Installation
28
General Functions
29
Making a Call
1. Make sure your phone is powered on.
2. Enter a phone number including the area code. To edit a number on the display
screen, simply press the key to erase one digit at a time.
]Press and hold the key to erase the entire number.
3. Press the key to call.
4. When you want to finish, press the key.
Making a Call by Send Key
1. Press the key, and the most recent incoming, outgoing and missed phone
numbers will be displayed.
2. Select the desired number by using the navigation key.
3. Press the key.
Making International Calls
1. Press and hold the key for the international prefix. The ‘+’ character can be
replaced with the international access code.
2. Enter the country code, area code, and the phone number.
3. Press the key.
General Functions
General Functions
Ending a Call
When you have finished a call, press the key.
Making a Call From the Contact list
You can store names and phone numbers dialled frequently in the SIM card as well as
the phone memory known as the Contact list.
You can dial a number by simply looking up a name in the contact list. For more
details on the Contacts feature, please refer to page 30.
Adjusting the Volume
During a call, if you want to adjust the earpiece volume, use the side keys of the
phone.
In idle mode, you can adjust the key volume using the side keys.
Answering a Call
When you receive a call, the phone rings and the flashing phone icon appears on the
screen. If the caller can be identified, the caller’s phone number (or name if stored in
your Address Book) is displayed.
1. Open the flip and press the key or the left soft key to answer an incoming call.
If the Any Key menu option (Menu #.3.2), see p. 70, has been set to any key
press will answer a call except for the key or the right soft key.
General Functions
30
31
Note
]
To reject an incoming call, press and hold the side keys on the left side of the phone.
2. End the call by closing the phone or pressing the key.
Note
]
You can answer a call while using the Address Book or other menu features. In case phone is
connected with PC via USB cable, incoming call will be rejected, but after disconnecting phone
from PC you can see Missed call window.
Vibrate Mode (Quick)
Vibrate Mode can be activated by pressing and holding the left side of navigation
key.
Signal Strength
If you are inside a building, being near a window may give you better reception. You
can see the strength of your signal by the signal indicator ( ) on your phone’s
display screen.
Entering Text
You can enter alphanumeric characters by using the phone’s keypad. For example,
storing names in the Address Book, writing a message, creating scheduling events in
the calendar all require entering text. The following text input methods are available
in the phone.
General Functions
General Functions
Note
]
Some fields may allow only one text input mode (e.g. telephone number in address book
fields).
T9 Mode
This mode allows you to enter words with only one keystroke per letter. Each key on
the keypad has more than one letter. The T9 mode automatically compares your
keystrokes with an internal linguistic dictionary to determine the correct word, thus
requiring far fewer keystrokes than the traditional ABC mode.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with the required
letter once, twice, three or four times until the letter is displayed.
123 Mode (Numbers Mode)
Type numbers using one keystroke per number. To change to 123 mode in a text
entry field, press key until 123 mode is displayed.
Symbolic Mode
This mode allows you to enter special characters.
General Functions
32
33
Changing the Text Input Mode
1. When you are in a field that allows characters to be entered, you will notice the
text input mode indicator in the upper right corner of the display.
2. If you want to change modes, press . The available modes are changed.
Using the T9 Mode
The T9 predictive text input mode allows you to enter words easily with a minimum
number of key presses. As you press each key, the phone begins to display the
characters that it thinks you are typing based on a built-in dictionary. As new letters
are added, the word changes to reflect the most likely candidate from the dictionary.
Note
]
You can select a different T9 language from the menu option or press hold down the key
. The default setting on the phone is T9 disable mode.
1. When you are in the T9 predictive text input mode, start entering a word by
pressing keys to Press one key per letter.
]The word changes as letters are typed-ignore what’s on the screen until the word is
typed completely.
]If the word is still incorrect after typing completely, press the down navigation key
once or more to cycle through the other word options.
Example:
Press to type
Good
.
]If the desired word is missing from the word choices list, add it by using the ABC
mode.
def
mno
mno
ghi
wxyz
abc
General Functions
General Functions
2. Enter the whole word before editing or deleting any key strokes.
3. Complete each word with a space by pressing the key or key.
To delete letters, press . Press and hold down to erase the letters
continuously.
Note
]
To exit the text input mode without saving your input, press . The phone returns to the idle
screen.
Using the ABC Mode
Use the to keys to enter your text.
1. Press the key labeled with the required letter:
]Once for the first letter.
]Twice for the second letter.
]And so on.
2. To insert a space, press the key once. To delete letters, press the key.
Press and hold down the key to erase the letters continuously.
Note
]
Refer to the table below for more information on the characters available using the keys.
wxyz
abc
General Functions
34
35
Using the 123 (Numbers) Mode
The 123 Mode enables you to enter numbers in a text message (a telephone number,
for example).
Press the keys corresponding to the required digits before manually switching back
to the appropriate text entry mode.
General Functions
Lower CaseUpper Case
Characters in the Order Display
Key
. , / ? ! - : ' " 1 . , / ? ! - : ' " 1
A B C 2 a b c 2
D E F 3 d e f 3
G H I 4 g h i 4
J K L 5 j k l 5
P Q R S 7 p q r s 7
T U V 8 t u v 8
W X Z Y 9 w x y z 9
Space 0
M N O 6 m n o 6
Space 0
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
General Functions
Using the Symbol Mode
The Symbol Mode enables you to enter various symbols or special characters.
To enter a symbol, press the key. Use the navigation keys to select the desired
symbol and press the [OK] key.
General Functions
36
Selecting Functions and Options
37
Your phone offers a set of functions that allow you to customize the phone. These
functions are arranged in menus and sub-menus, accessed via the two soft keys
marked and . Each menu and sub-menu allows you to view and alter the
settings of a particular function.
The roles of the soft keys vary according to the current context; the label on the
bottom line of the display just above each key indicates its current role.
Selecting Functions and Options
Press the left soft key
to access the available
Menu.
Press the right soft key
to access the available
Contacts.
Menu Contacts
In-Call Menu
Your phone provides a number of control functions that you can use during a call. To
access these functions during a call, press the left soft key [Options].
During a Call
The menu displayed on the handset screen during a call is different than the default
main menu displayed when in idle screen, and the options are described below.
Speaker phone
During call you can activate speaker phone selecting Options/Speaker phone on, or
by pressing OK button. To mute speaker phone select Options/Speaker phone off, or
press OK button one more time.
Making a Second Call (Network Dependent)
You can get a number you wish to dial from the Address Book to make a second call.
Press the Right soft key then select Contacts.
Swapping Between Two Calls
To switch between two calls, press key or the left soft key, and then select Swap.
Answering an Incoming Call
To answer an incoming call when the handset is ringing, simply press the key. The
handset is also able to warn you of an incoming call while you are already on a call.
In-Call Menu
38
39
A tone sounds in the earpiece, and the display will show that a second call is waiting.
This feature, known as
Call Waiting
, is only available if your network supports it. For
details of how to activate and deactivate it see
Call Waiting
(Menu #.3.4, see p. 70)
If Call Waiting is on, you can put the first call on hold and answer the second, by
pressing .
Rejecting an Incoming Call
You can reject an incoming call without answering by simply pressing the key.
During a call, you can reject an incoming call by pressing the key.
Muting the Microphone
You can mute the microphone during a call by pressing the [Options] key then
selecting [Mute]. The handset can be unmuted by pressing the [Unmute]. When the
handset is muted, the caller cannot hear you, but you can still hear them.
DTMF tones while calling
To switch on DTMF tones while calling (e.g. to use the phone with an automatic
switchboard) press the key [Options] followed by Send DTMF – DTMF on. Select
DTMF off to disable DTMF tones. DTMF tones are normally on.
In-Call Menu
In-Call Menu
Conference Calls
The conference service provides you with the ability to have a simultaneous
conversation with more than one caller, if your network service provider supports this
feature. A conference call can only be set up when you have one active call and one
call on hold, both calls having been answered. Once a conference call is set up, calls
may be added, disconnected or separated (that is, removed from the conference call
but still connected to you) by the person who set up the conference call. These
options are all available from the In-Call menu. The maximum callers in a conference
call are five. Once started, you are in control of the conference call, and only you can
add calls to the conference call.
Making a Second Call
You can make a second call while currently on a call. Enter the second number and
press the . When the second call is connected, the first call is automatically
placed on hold. You can swap between calls, by pressing the key.
Setting Up a Conference Call
To set up a conference call, place one call on hold and while the active call is on,
press the left soft key and then select the Join menu of Conference call.
In-Call Menu
40
41
Activate the Conference Call on Hold
To activate a conference call on hold, press the key. Alternatively press the left
soft key [Options] and select Conference/Hold all calls. Other users on hold will stay
connected. To return to conference call mode, press the left soft key [Options]
followed by Conference call.
Adding Calls to the Conference Call
To add a call to an existing conference call, press the left soft key, and then select
the Join menu of Conference call.
Private Call in a Conference Call
To have a private call with one caller from a conference call, display the number of
the caller you wish to talk to on the screen, then press the left soft key. Select the
Private menu of Conference call to put all the other callers on hold.
Ending a Conference Call
Currently displayed caller from a conference call can be disconnected by pressing
the key.
In-Call Menu
Menu Tree
Menu Tree
42
1. Messaging
1.1 New message
1.2 Inbox
1.3 Email box
1.4 Drafts
1.5 Outbox
1.6 Sent
1.7 Voice mail
1.8 Info message
1.9 Templates
1.0 Settings
2. Call history
2.1 All calls
2.2 Missed calls
2.3 Dialled calls
2.4 Received calls
2.5 Call duration
2.6 Call costs
2.7 Data information
3. Contacts
3.1 Search
3.2 Add new
3.3 Caller groups
3.4 Speed dial
3.5 Own number
3.6 My business card
3.7 Settings
4. Multimedia
4.1 Camera
4.2 Video camera
4.3 MP3 player
4.4 Radio
4.5 Voice recorder
4.6 Karaoke
43
Menu Tree
5. My stuff
5.1 Videos
5.2 Images
5.3 Sounds
5.4 Others
5.5 Games & Apps
5.6 External memory
6. Browser
6.1 Home
6.2 Bookmarks
6.3 Go to URL
6.4 Settings
7. Tools
7.1 Favourites
7.2 Alarm clock
7.3 Calendar
7.4 Calculator
7. 5 M e m o
7.6 Tip calculator
7.7 Stop watch
7.8 Unit converter
7. 9 Wo r l d t i m e
7.0 SIM-Menu
8. Profiles
8.1 General
8.2 Silent
8.3 Vibrate only
8.4 Outdoor
8.5 Headset
8.6 Offline
9. Settings
9.1 Date & Time
9.2 Power saving
9.3 Display
9.4 Language
9.5 Calling
9.6 Security
9.7 Memory status
9.8 Reset setting
Messaging
New message Menu 1.1
This menu includes functions related to SMS (Short Message Service), MMS
(Multimedia Message Service), Email, voice mail, as well as the network’s service
messages.
Write text message
(Menu 1.1.1)
You can write and edit text message, checking the number of message pages.
1. Enter the
New messages
menu by pressing the left soft key [Select].
2. If you want to write a new message, select
Write text message
.
3. To make text input easier, use T9.
4. Press [Insert] to attach the followings.
Insert
]
Images:
You can insert the Default graphics or graphics in My pictures that are
available for short messages.
]
Sounds:
You can insert sounds that are available for short messages.
]
Text templates:
You can use Text templates already set in the phone.
]
Contacts:
You can add phone numbers or e-mail addresses in address book.
]
Symbol:
You can add special characters.
]
My business card:
You can add your Business card to the message.
5. If you want to set option for your text, or to finish your writing, press the left soft
key [Options].
Messaging
44
45
Options
]
Send:
Sends text messages.
1. Enter numbers of recipient.
2. Press key to add more recipients.
3. You can add phone numbers in the address book.
4. Press the left soft key after entering numbers. All messages will be
automatically saved in the outbox folder, even after a sending failure.
]
Save to drafts:
Stores messages in Drafts.
]
Font & Alignment:
You can select
Size
and
Style
of fonts, and the alignment of
text.
]
Colour:
You can select
Colour
of foreground and background.
]
Add T9 dictionary:
You can add your own word. This menu can be shown only
when edit mode is Predictive (ABC/abc/123).
]
T9 languages:
Select the language for T9 input mode. You can also deactivate T9
input mode by selecting ‘T9 off’.
]
Exit:
If you press
Exit
while writing a message, you can end the writing message and
back to the Message menu. The message you have written is not saved.
Note
]
The phone which supports EMS release 5 is available to send colour pictures, sounds, text
styles, etc.. The other party may not receive pictures, sounds or text styles you sent properly
if the phone does not support such options.
Messaging
Messaging
Write multimedia message
(Menu 1.1.2)
You can write and edit multimedia messages, checking message size.
1. Enter the
New message
menu by pressing the left soft key [Select].
2. If you want to write a new message, select
Write multimedia message
.
3. You can create a new message or choose one of the multimedia message
templates already made.
4. Press
Insert
to add Image, Sound, External memory, Contacts, Symbol, New photo,
New sound, Text templates, My business card.
Maximum available file size, that can be inserted to MMS-message, is 100 kb.
Options
]
Send:
You can send multimedia messages to multiple recipients, priorities your
message, and make it sent later as well.
Note
]
All messages will be automatically saved in the outbox folder, even after a sending failure.
]
Preview:
You can preview multimedia messages you wrote.
]
Save:
You can save multimedia messages
To d ra fts
or
As template
.
]
Edit subject:
Modifies multimedia messages you chose.
]
Add slide:
You can add a slide before or after current slide.
]
Move to slide:
You can move to previous or next slide.
]
Delete slide:
You can delete current slides.
Messaging
46
47
]
Set slide format
- Set timer:
You can set timer for slide, text, picture and sound.
]
Add T9 dictionary:
You can add your own word. This menu can be shown only
when edit mode is Predictive (ABC/abc/123).
]
T9 languages:
Select the language for T9 input mode. You can also deactivate T9
input mode by selecting ‘T9 off’.
]
Exit:
You can get back to the Message menu.
Note
]
If you select the picture (50K) on writing multimedia message, loading duration will take
around 10 seconds at least. Furthermore, you can’t activate any key during loading time. After
10 seconds, it is available to write multimedia message.
Write email message
(Menu 1.1.3)
To send/receive an email, you should set up the email account. Refer to
Email
on
page 50 first.
1. You can input up to 12 email addresses in the To and Cc field.
Tip:
To input "@", press the and select "@".
2. Key in the subject of the mail and press OK.
3. After writing an email message, press the left soft key [Options]. You can
access the following option menus.
]
Send:
Sends the email message.
]
Edit recipients:
You can edit recipients.
Messaging
Messaging
]
Edit subject:
You can edit the subject.
]
Save to drafts:
Select this to save the message in
Drafts
.
]
T9 dictionary:
Select the language for T9 input mode. You can also deactivate the
T9 input mode by selecting 'T9 off'.
]
Exit:
If you select this while writing the message, you can exit from writing message
and go back to the previous screen. The message you have written is not stored.
4. You can attach files by pressing the right soft key [Attach].
Note
]
For each e-mail account you may save up to 50 messages (totally 150 for three accounts). In
Inbox folder you may save not more than 30 messages, in Drafts and Outbox folders - 5
messages, and in Sent folder up to 10 messages. In case Drafts Outbox or Sent folder is full,
and you try to save new message to one of this folders, first saved message will be
automatically deleted.
]
Maximum size for one sent message is 300 kb with attachments, and maximum size for one
received message is 100 kb. In case you have received message with more than 5 attachments,
only 5 of them will be received. Some attachment may display incorrectly.
Messaging
48
49
Inbox Menu 1.2
You will be alerted when you have received messages. They will be stored in Inbox.
In Inbox, you can identify each message by icons. For detail, see the icon directive.
If the phone shows ‘No space for SIM message’, you have to delete only SIM
messages from Inbox. If the phone displays ‘No space for message’, you can make
space of each repository as deleting messages, media and applications.
* SIM message
SIM message means the message exceptionally stored in SIM card. You can move
this message to the phone.
For notified multimedia message, you have to wait for downloading and processing of
the message.
Messaging
Icon Icon directive
Multimedia message
Short message
SIM message
Read multimedia message
Notified multimedia message
Read text message
Push message
Messaging
To read a message, select one of the messages by pressing the left soft key .
]
View:
You can view the received messages.
]
Delete:
You can delete the current message.
]
Reply:
You can reply to the sender.
]
Forward:
You can forward the selected message to another party.
]
Return call:
You can call back to the sender.
]
Information:
You can view information about received messages; Sender’s address,
Subject (only for Multimedia message), Message date & time, Message type,
Message size.
]
Delete all:
You can delete all messages.
Email box Menu 1.3
When you access this menu, you can either connect to your remote mailbox to
retrieve your new email messages, or you can view the previously retrieved email
messages without logging in to the email server.
You can check the saved emails, drafts, outbox, and sent emails. In the Inbox, up to
30 emails are stored.
Messaging
50
51
Drafts Menu 1.4
Using this menu, you can preset up to five multimedia messages that you use most
frequently. This menu shows the preset multimedia message list.
The following options are available.
]
View:
You can see the multimedia messages.
]
Edit:
Modifies the massage you choose.
]
Delete:
Deletes the message you choose.
]
Information:
To view the information of the message.
]
Delete all:
Deletes all of the messages in the folder.
Outbox Menu 1.5
This menu allows to view the message which is about to send or is failed sending.
After sending the message successfully, the message will be moved to sent menu.
Messaging
Icon Icon directive
MMS Unsent
MMS delivery confirmed
SMS Unsent
SMS delivery confirmed
Messaging
]
View:
You can view the message.
]
Forward:
You can send the message. After sending the message, this will be moved
to sent menu.
]
Delete:
You can delete the message.
]
Information:
You can check information of each message.
]
Delete all:
You can delete all messages in outbox.
Sent Menu 1.6
This menu allows you to view the messages which are already sent. You can check
the time and the contents of message.
Voice mail Menu 1.7
Once this menu has been selected, simply press the left soft key [OK] to listen
to voice mail. You can also hold down the key in standby mode to listen to voice
mail.
Note
]
When you receive a voice mail, your phone displays the icon and you hear an alert. Please
check with your network provider for details of their service in order to configure the handset
correctly.
Messaging
52
53
Info message Menu 1.8
(Dependent to network and subscription)
Info service messages are text messages delivered by the network to GSM. They
provide general information such as weather reports, traffic news, taxis, pharmacies,
and stock prices. Each type of has the number; therefore, you can contact service
provider as long as you have input the certain number for the information. When you
have received an info service message, you can see the popup message to show you
that you have received a message or the info service message is directly displayed. To
view the message again or not in standby mode, follow the sequence shown below;
Read
(Menu 1.8.1)
1. When you have received an info service message and select Read to view the
message, it will be displayed on the screen. You can read another message by
scrolling , or [Next].
2. The message will be shown until another message is reached.
Topics
(Menu 1.8.2)
(Dependent to network and subscription)
]
Add new:
You can add Info service message numbers in the Phone memory with its
nickname.
]
View list:
You can see Info service message numbers which you added. If you
press [Options], you can edit and delete info message category which you
added.
Messaging
Messaging
]
Active list:
You can select info service message numbers in the active list. if you
activate an info service number, you can receive messages sent from the number.
Templates Menu 1.9
Text templates (Menu 1.9.1)
You have 6 text templates as below;
• Please call me back.
• I'm late. I will be there at
• Where are you now?
• I am on the way.
• Top urgent. Please contact.
• I love you.
Multimedia templates
(Menu 1.9.2)
After saving new template, you can use the following options.
]
View:
You can see multimedia templates.
]
Delete:
You can delete multimedia templates.
]
Add new:
Allows you to add new multimedia templates.
]
Write messages:
You can write and send multimedia messages.
Messaging
54
55
]
Edit:
You can edit multimedia templates.
]
Delete all:
Allows you to delete all multimedia messages.
Settings Menu 1.0
Text message (Menu 1.0.1)
]
Message types:
Text, Voice, Fax, Natl. paging, X.400, E-mail, ERMES
Usually, the type of message is set to
Tex t
. You can convert your text into
alternative formats. Contact your service provider for the availability of this
function.
]
Validity period:
This network service allows you to set how long your text messages
will be stored at the message centre.
]
Delivery report:
If you set to
Yes
, you can check whether your message is sent
successfully.
]
Reply charging:
When a message is sent, it allows the recipients to reply and
charge the cost of the reply to your telephone bill.
]
SMS centre:
If you want to send the text message, you can receive the address of
SMS centre through this menu.
Messaging
Messaging
Mulitimedia message
(Menu 1.0.2)
]
Priority:
You can set the priority of the message you choose.
]
Validity period:
This network service allows you to set how long your text messages
will be stored at the message centre.
]
Subject:
You can enter multimedia messages subject when this menu is on.
]
Delivery report:
If it is set to
Yes
in this menu, you can check whether your
message is sent successfully.
]
Auto retrieve:
If you select
On
, you receive multimedia messages automatically. If
you select
Off
, you receive only notification message in the inbox and then you can
check this notification. If you select
Home network only
, you receive multimedia
messages depends on Homenetwork.
]
Network settings:
If you select multimedia message server, you can set URL for
multimedia message server.
]
Permitted message types
Personal:
Personal message.
Advertisements:
Commercial message.
Information:
Necessary information.
Messaging
56
57
Email
(Menu 1.0.3)
This menu allows you to edit, delete or add an email account.
]
Account
You can set up to 3 email accounts by selecting Add new. Using the Edit menu, you
can set the following values.
]
Set as default
]
Edit
- Title:
Account name.
- User ID:
Enter your email ID.
- Password:
Enter your email password.
- Email address:
Enter the email address given to you by your service provider.
- Outgoing server:
Enter the SMTP address and Port number of computer that
sends your email.
- Incoming server:
Enter the POP3 address and Port number of the that receives
your email.
- Leave msg on server:
Select Yes to leave the messages on the server.
- Insert signature:
Select
Yes
to attach your signature to your email messages.
- Access point:
Allow you to select the access point from the list.
- SMTP port number:
Allow you to edit SMTP port number.
- POP3 port number:
Allow you to edit POP3 port number.
Messaging
Messaging
- Outgoing server ID/PW:
Enter the ID and password for sending your email.
]
Delete:
Deletes the selected account from the list.
]
Access point
You can edit the access points. There are default access points for some operators,
stored in phone memory.
]
Title:
Access point name.
]
APN:
Input the APN of Access point.
]
User ID:
Enter the User ID of your access point.
]
Password:
Enter the Password of your access point.
]
Signature
You can make your signature.
Voice mailbox number
(Menu 1.0.4)
You can receive the voicemail if your network service provider supports this feature.
When a new voicemail is arrived, the symbol will be displayed on the screen. Please
check with your network service provider for details of their service in order to
configure the phone accordingly.
]
Home:
You can listen to voice mails by selecting Home.
]
Roaming:
Even when you are in abroad, you can listen to voice mails if roaming
service is supported.
Messaging
58
59
Info message
(Menu 1.0.5)
]
Receive
Yes:
If you select this menu, your phone will receive Info service messages.
No:
If you select this menu, your phone will not receive Info service messages any
more.
]
Alert
Yes:
Your phone will beep when you have received Info service message numbers.
No:
Your phone will not beep even though you have received info service messages.
]
Languages
You can select the language you want by pressing [On/Off]. Then, the info service
message will be shown in the language that you selected.
Push message
(Menu 1.0.6)
You can set the option whether you will receive the message or not.
Messaging
Call history
You can check the record of missed, received, and dialled calls only if the network
supports the Calling Line Identification (CLI) within the service area.
The number and name (if available) are displayed together with the date and time at
which the call was made. You can also view call times.
All calls Menu 2.1
You can view all lists of outgoing or incoming calls.
Missed calls Menu 2.2
This option lets you view the last 10 unanswered calls. You can also:
- View the number if available and call it, or save it in the Address Book
- Enter a new name for the number and save both in the Address Book
- Send a message by this number
- Delete the call from the list
Dialled calls Menu 2.3
This option lets you view the last 20 outgoing calls (called or attempted).
You can also:
- View the number if available and call it or save it in the Address Book
- Enter new name for the number and save both in the Address Book
- Send a message by this number
Call history
60
61
- Delete the call from the list
Received calls Menu 2.4
This option lets you view the last 10 incoming calls. You can also:
- View the number if available and call it or save it in the Address Book
- Enter new name for the number and save both in the Address Book
- Send a message by this number
- Delete the call from the list
Call duration Menu 2.5
Allows you to view the duration of your incoming and outgoing calls. You can also
reset the call times.
The following timers are available:
]
Last call:
Length of the last call.
]
All calls:
Total length of all calls made and incoming calls since the timer was last
reset.
]
Received calls:
Length of the incoming calls.
]
Dialled calls:
Length of the outgoing calls.
]
Reset all:
Allows you to clear the length of all calls by pressing the left soft key
[Yes].
Call history
Call history
Call costs Menu 2.6
Allows you to check the cost of your last call, all calls, remaining and reset the cost.
To reset the cost, you need to PIN2 code.
Data information Menu 2.7
Call history
62
Contacts
63
Search Menu 3.1
1. Select
Search
by press the left soft key [Contacts] or [OK].
2. Enter the name that you want to search.
Note
]
Instant searching is available by inputting the initial letter of the name or number you want to
search.
3. If you want to edit, delete, copy an entry, or to add the voice to one, select left
soft key [Options]. The following menu will be displayed.
]
Edit:
You can edit the name, number, group, character and picture by using the
navigation key.
]
Write messages:
After you have found the number you want, you can send a
text/multimedia message to the selected number.
]
Send via Bluetooth:
You can send the data of phone book to devices which is
compatible with bluetooth through bluetooth.
]
Copy to handset:
You can copy an entry from SIM to phone or from phone to SIM.
]
Assign speed dial:
You can assign the entry as a speed dial.
]
View caller groups:
For further details see (Menu 2.3).
]
Delete:
You can delete an entry.
Contacts
Add new Menu 3.2
You can add phonebook entry by using this function. Phone memory capacity is
1000 entries. SIM card memory capacity depends on the cellular service provider.
The number of character is SIM dependent feature.
Note
]
Maximum stored name and number length depends on SIM-card type.
1. Select
Add new
by press left soft key [Select] or [OK].
2. Select the memory you want to save:
SIM
or
Phone
. If you set to Phone, you need
to select which number you want as a main number.
a. Press [OK] to input a name.
b. Press [Save], then you can input a number.
c. You can set a group for the entry by pressing , .
d. You can set a character and a picture for the entry by pressing , .
Caller groups Menu 3.3
You can list up to the members per each group. There are 7 groups you can make
lists to.
]
Member list:
Shows the group members you have selected.
]
Group ring tone:
Allows you to specify ring tone for the group members’ call.
]
Group icon:
Allows you to select the icon dependent on Group.
64
65
]
Add member:
You can add group members. Each group member shouldn’t be
exceeded 20.
]
Remove member:
You can remove the member from the Group member list. But
the name and the number will be remained in phonebook.
]
Rename:
You can change a group name.
]
Remove all:
Allows you to delete all the members in the group.
Speed dial Menu 3.4
You can assign any of the keys to with a Name list entry. You can call
directly by pressing this key.
1. Open the phonebook first by pressing the right soft key [Contacts] in
standby mode.
2. Scroll to
Speed dial
, then press the left soft key [Select].
3. If you want to add speed dial, select (
empty
). Then, you can search the name in
phonebook.
4. After assigning the number as speed dial, you can change and delete the entry.
You can also make a call or send a message by this number.
Own number Menu 3.5
(Sim dependent)
You can save and check your own number in SIM card.
wxyz
abc
My business card Menu 3.6
This option allows you to create your own business card featuring Name and an
mobile phone number. To create a new business card, press the left soft key
[Edit] and enter the information into the fields.
Settings Menu 3.7
1. Press the right soft [Contacts] in standby mode.
2. Scroll to
Settings
, then press the left soft key [Select].
]
Default memory
Scroll to highlight
Default memory
, and then press the left soft key [Select].
- If you select
Always ask
, when adding entry, the phone will ask where to store.
- If you select
SIM
or
Phone
, the phone will store an entry to SIM or phone.
]
View options
Scroll to highlight
View options
, and then press the left soft key [Select].
- Name only:
Set the phonebook list with displaying only name.
- Name & number:
Set the phonebook list with displaying name and number.
- With pictures:
Set the phonebook list with the information of character and
picture.
]
Copy/Move all
You can copy/move entries from SIM card memory to Phone memory and vice
versa.
66
67
1. Open the Phonebook first by pressing the right soft key [Contacts] in
standby mode.
2. Scroll to
Copy/Move all
, and then press the left soft key [Select] to enter this
menu.
•
SIM to Phone:
You can copy the entry from SIM Card to Phone memory.
•
Phone to SIM:
You can copy the entry from Phone memory to SIM Card.
]
Memory in use:
This feature allows you to see how many free and in-use are in
your phonebook.
]
Clear contacts
You can delete all entries in SIM and Phone. This function requires Security code.
1. Press the right soft key [Contacts] in standby mode and select
Delete all
,
press [Select].
2. Then select a memory to erase.
3. Enter security code and Press the left soft key [OK] or the right soft key
[Back].
]
Service dial number
Use this function to access a particular list of services provided by your network
operator (if supported by the SIM card).
Multimedia
You can enjoy your multimedia function such as camera, voice recorder, MP3 for your
fun and convinience.
Note
]
When the status of the battery indicates low, you may not use Camera or Multimedia function.
]
While using Multimedia function, the status of the battery is changeable.
Camera Menu 4.1
• To take a picture with Folder opened
1. Select
Ta ke p h o to
, and then press . If you want to reach this menu directly,
press for a long time.
2. Focus on the subject to capture the image, and then press the key.
3. If you want to save it, press the left soft key or the key.
Note
]
You can control the image size, brightness, colour and zooming by pressing the navigation key.
( or ).
]
Mode [ ]:
Allows to take multishot photos successively.
•
Still shot:
72x72, 176x220, 320x240, 640x480, 1280x720, 1280x960,
1600x1200
•
multishot:
320x240
•
frameshot:
176x220
]
Scene [ ]:
Allows you to take a picture by using this menu at night.
Multimedia
68
69
]
Effect [ ]:
4 settings are available: Color, Sephia, Black & white, Negative.
]
Flash [ ]:
Allow you to set the flash when you take a photo in dark place.
]
Zoom [ ]:
Allows you to set the zooming value from x1 to x2, x3, x4 depends
on resolution.
]
Brightness [ ]:
Use the right/left navigation keys to adjust lighting. 5 lighting
levels are available: -2, -1, 0, 1, 2.
]
Size [ ]:
Allows you to set the image size to one of Hi (1600x1200),
(1280x960), (1280x720), Med (640x480), Low (320x240), (176x220), (72x72)
main screen, contact, and front screen. If you want to take panorama(1280x720),
you should swivel the folder. Frame shots are only available with the 176x220 pixel
resolution.
]
Timer [ ]:
Allows you to select the delay time (Off, 3 Seconds, 5 Seconds, 10
seconds). Then the phone takes a photo after the specified time.
]
Quality [ ]:
Allows you to set the image quality from Normal, Fine and Superfine.
]
White Balance [ ]:
Allows you to change the settings according to the
enviroment.
]
Auto focus [ ]:
Automatically adjusts the focus for a clear, sharp with a single
press of a button.
]
Metering [ ]:
determines the lighting based on a little part of the subject. You
can select the Centred, pot and combined which is to be exposed correctly.
]
Memory in use [ ]:
You can select a storage space; Phone or Memory card.
]
Album [ ]:
Allow you to see photos saved in your phone.
Multimedia
Multimedia
Note
]
In My album you may look only photos made by handset's camera.
]
Exit [ ]:
Back to the screen mode to take photos.
When you are in Photo Camera capture mode, you may adjust zoom by pressing side
Up/Down navigation keys.
Note
]
To make panorama photo (1280x720 resolution) you should swivel and close flip.
• To take a picture with Folder closed
1. Press [ ] for a long time.
2. A list will be displayed on the sub LCD.
•
MP3:
Activates the MP3 mode.
•
Take picture:
Activates the Take photo mode.
•
Slide show:
View the pictures in Album as a slide show.
Multimedia
70
After finishing all the setting, focus on the
subject to capture and press the Camera
key or OK key. With a click, the image is
captured and the following menu bar
appears.
Save Delete
MMS message
71
Digital Camera Mode
To enter Digital Camera Mode from idle mode you should swivel and close flip.
Handset will automatically enter Digital Camera Mode.
- To enter camera’s main menu, press and hold side camera button.
- With side up/down buttons you may scroll through settings items. After necessary
item is selected, press side camera button, and you will access detailed settings of
this selected item. With side up/down buttons select necessary setting and press
side camera button for confirmation.
- To exit to camera capture mode you should press and hold side camera button.
- To make photo, simply press side camera button.
Note
]
When you are in Digital Camera Mode, and there’s no action for some time, phone will
automatically exit to idle mode.
•
To rc h :
Activates the flash light.
•
Back:
Go back to the previous menu.
Video camera Menu 4.2
1. Select
Video camera
menu.
2. To be able to record, you must reverse the display of the phone and close.
3. You can also amend the brightness, size, quality and other settings by pressing
and holding down the for seconds. Video camera settings menu is the same
with Photo camera settings, except following items:
Multimedia
Multimedia
]
Size:
You may select following resolution: 128x96, 176x144 and 208x160.
]
Record time:
You may select recording time from the list: 1 min, 5 min, 30 min,
90 min and unlimited.
Once the settings are displayed on the screen, you can scroll through them using the
side keys. Scroll to the setting you wish to change, press the and it will bring up
the setting values. Use the side keys to scroll to your preferred choice and then press
the to select.
4. To start recording press . As soon as it starts to record a timer will be displayed.
5. Press the to end the recording and this will now be saved.
MP3 player Menu 4.3
The KE820 has an integrated MP3 player built-in. You can enjoy listening to MP3
music files on a memory in your phone using a compatible headset or via the internal
loudspeaker.
Note
]
Because of the small dimension of the speaker, in some cases the audio could be distorted,
especially at maximum volume and when there are lots of bass sounds. Therefore, we
recommend you to use the stereo headset in order to appreciate the high quality of your
music.
The music player supports:
•
MPEG-1 Layer III, MPEG-2 Layer III, MPEG-2.5 Layer III:
Sampling frequency up
from 8KHz to 48KHz. Bit rate up to 320Kbps, stereo.
Multimedia
72
73
•
AAC:
ADIF, ADTS formats (Sampling frequency from 8KHz to 48KHz)
•
AAC+:
V1: (Bit rate 16
~
128Kbps)
V2 : (Bit rate 16
~
48Kbps)
(Sampling frequency from 8KHz to 48KHz)
•
MP4, M4A:
Sampling frequency up from 8KHz to 48KHz, Bit rate up to 320Kbps,
stereo.
•
WMA:
Sampling frequency up from 8KHz to 48KHz, Bit rate up to 320Kbps,
stereo.
Note
]
KE820 doesn't support the variable bit rate of all mentioned file types. Therefore, you can't
change the file from MP3 format to AAC.
You can transfer MP3 files from a compatible PC to the memory in your phone using
the Mass Storage.
When you connect the phone to a PC using the USB cable (supplied in the same
package), and then you can show removable disk through windows explorer. After
you copy songs in removable disk, you should execute safe remove from your system.
Note
]
You should copy MP3 to My media\Music folder. If you copy another folder, you can't see
MP3 files.
]
The PC should run Windows 98 SE, Windows ME, Windows 2000, Windows XP operating
system.
Multimedia
Multimedia
MP3 player
(Menu 4.3.1)
The following screen is shown up.
Note
]
In case that any invalid file is included in the playlist, an error message will be popped up and
go back to the prior screen.
Multimedia
74
Progressive barRunning time
Volume level
6 volume levels
including mute
Player skin
File name with
the file extension
Playmode
Equalizer setting value
Status of the music controller
Repeat Loop
Play all
Repeat all
Repeat one
A B
Shuffle
Stereo
75
1. Press MP3 menu, and then select MP3 player.
2. Press the left soft key [Options] to access the following menus.
]
View playlist:
You can select another music you want on playing MP3 file.
]
Area repeat:
The special area part of the current music is repeated when you select
ON of the menu.
]
Set as ringtone:
You can set as a ringtone the current music on playing MP3 file
]
Settings:
There are many setting menus, and you refer the Settings part at the next
page.
Playlist
(Menu 4.3.2)
This menu allows to view the whole play list. You can move the track by pressing the
navigation key. In addition, if you select option menu, you can delete the file or view
its information .
Settings
(Menu 4.3.3)
]
Equalizer
This menu helps you to adjust various of environment on listening to the music.
This phone supports four preset menus. When you enter this menu, you can view
current value of equalizer, and change the equalizer here. We support some
equalizers like
General, Classic, Jazz, Pop, Rock
, and
Bass
.
]
Playmode
This menu allows to set the play mode: Play all, Repeat all, Repeat one.
Multimedia
Multimedia
]
Set shuffle
It you selece On, you can listen to the music at random.
]
Visual effect
You can select the visual effect menus: Light, Bounce and Guitarist. This menu
allows to change the background of main LCD and sub LCD on playing MP3 file.
]
Flip setting:
•
Continue playing
Although you close the flip on playing, the play mode is continued without a
pause.
•
Stop playing
When you close the flip, you can stop the play mode.
Note
]
Music is copyright protected in international treaties and national copyright laws. It may be
necessary to obtain permission or a license to reproduce or copy music. In some countries
national law prohibits private copying of copyrighted material. Please check the national
legislation of the applicable country concerning the use of such material.
Multimedia
76
77
Radio Menu 4.4
You can search radio stations and enjoy listening to the radio.
Listen radio
(Menu 4.4.1)
Connect the FM Radio headset into headset jack on the right side of the phone to
activate this menu.
1. Search the desired radio station using the left/right navigation keys.
Key operations
Multimedia
Repeat Loop
Left/Right navigation keys
(Long press) Scans downward/upward to the next receivable
radio station.
(Short press) Changes the frequency 0.1 MHz at a time.
Up/Down navigation keys Increases/Decreases the volume level (6 volume levels including
mute).
Frequency display Preset channel display
Preset channel stations
Stereo indicator
Frequency status bar
Volume level
Multimedia
Note
]
To improve the radio reception, extend the headset cord which functions as the FM antenna.
2. Press and hold down the corresponding number key of a channel to store the
currently selected radio station into. “Done” message will be popped up and the
selected channel will be coloured.
3. After presetting radio channels, you can listen to other channel by pressing the
corresponding number key (short press).
4. You can access the following option menus by pressing the left soft key [Options].
]
Exit radio
Stops the radio play and goes back to standby mode.
]
Radio alarm
To set the radio alarm. The steps to set the radio alarm are same to the ones to set
the alarm clock.
]
Save channel
To save the radio station. The list of 10 channel status appears. After selecting an
(empty) channel, press the left soft key [Save]. If you select an occupied channel,
“Replace?” message will be popped up. And if you select Yes, the channel will be
replaced by the new station.
]
Delete channel
After selecting the channel to delete, press the left soft key [Delete]. You’ll be
asked to confirm this action.
Multimedia
78
79
]
Activate speaker
Select this to listen to the radio through the built-in speaker. To turn off the
speaker, select “Deactivate speaker”.
Channels
(Menu 4.4.2)
Opens up the channel list.
After storing radio stations to the preset channels, you can listen to the radio by
electing the desired channel.
Voice recorder Menu 4.5
The voice memo feature you to record up to 20 voice messages and each memo is
up to 20 Seconds.
Record
(Menu 4.5.1)
You can record voice memo in Voice recorder menu.
1. Once recording is started, the message Recording and the remaining time is
displayed.
2. If you want to finish recording, press the left soft key [Save].
3. Key in Voice memo title, press the left soft key [OK].
Multimedia
Multimedia
View list
(Menu 4.5.2)
The phone shows voice memo list. You can playback and delete the recorded voice
memo. The following [Options] menus are available
]
Play:
Allows to listen to the recorded voice memo.
]
Send:
Allows to send the multimedia message and e-mail.
]
Delete:
Allows to delete voice memo.
]
Delete all:
Allows to delete all voice memos.
Karaoke Menu 4.6
Karaoke is the sing-a-long functionality. You can download the song to the phone by
using the Java Socket Connection. These function come with synchronised lyrics to
prompt you singing along.
Start to Karaoke menu
Select
Karaoke
, press by the left soft key .
The following menus are available.
My song
1. Select the MY song menu by pressing the OK key. The song list, all of the
downloaded and default songs, are displayed.
2. To scroll highlight the song you want, and then the OK key.
The following options are available.
]
Start song:
You can play the current track to sing-a-long.
Multimedia
80
81
]
Whole text:
You can see the whole lyrics of the selected song.
]
Delete:
You can delete the selected song form the list.
New song
Select the New song by pressing the OK key. A new song can be downloaded using
the network connection.
Note
]
In order to use New song function You need to setup internet connection. Go to Downloads,
and then select Games & Apps In this menu, you can go to Profiles and select one of them. In
Settings menu, you should connect Internet according to your network settings (For more
information to connect internet, contact Your service provider). After finishing setup, don’t
forget to activate this profile by pressing Activate in menu.
Help
Note
]
To use Karaoke menu, please refer to Wow LG site http://www.wowlg.com.
Multimedia
To stop playback ( )
To adjust the volume of the song. ( )
Icon Icon directive
To play the track ( )
To skip to the next track ( )
To skip to the next track ( )
To pause the track ( )
My stuff
Note
]
Do not change the defualt folder name, or it does not work properly.
Videos Menu 5.1
Show the list of 3GP, 3G2 files at My media\Videos in Multimedia memory.
Supported only .3gp files, that are encoded with MPEG4 and h.263 video-codecs
and AMR audio-codec.
]
Play:
You can play the video file when pressing OK key or selecting Play menu of
Option menus. To play recorded video with 208x160 resolution you should swivel
abd close flip.
]
Send via Bluetooth:
Send the selected file to another device via bluetooth
Note
]
You may send files via Bluetooth only if they are stored in phone memory, not on memory
card. To send file from external memory, please, firstly copy it to internal phone memory.
]
Copy to External memory:
Copy the selected file to the same folder at Multimedia
memory/External memory.
Warning
]
If you remove a external memory during copying a file, it makes a serious damage at phone.
]
Move to External memory:
Move the selected file to the same folder at Multimedia
memory/External memory.
Warning
]
If you remove a external memory during moving a file, it makes a serious damage at phone.
My stuff
82
83
]
Rename:
Change the file name of selected file. The maximum length of characters is
200. And You can not change the extension of file.
Warning
]
You can’t use the following characters, \ / : * ? “ < > |
]
Delete:
Delete a file.
]
Delete all:
Delete all files in the list
]
Information:
Show the file information.
]
Playing video files in DiCa mode.
- To stop playing press side camera button. To continue it press this button one
more time.
- To exit from play mode press and hold side camera button.
- To scroll video file use up/down side navigation buttons.
Images Menu 5.2
Show the list of JPG files at My media\Photos in Multimedia memory.
]
View:
You can see the JPG file when pressing OK key or selecting View menu of
Option menus.
Note
]
The maximum size of JPG file you can see is 460Kbytes.
]
Send via email:
Send the selected file to another device via email if the file size is
less than 300Kbytes.
My stuff
My stuff
]
Send via Bluetooth:
Send the selected file to another device via Bluetooth.
Note
]
You may send files via Bluetooth only if they are stored in phone memory, not on memory
card. To send file from external memory, please, firstly copy it to internal phone memory.
]
In Photos folder in internal and in external memory only .JPG (.JPEG) files can be stored. In
Images folder in internal and in external memory you may store .GIF, .JPG (.JPEG) and other
image format files.
]
To setup .JPG (.JPEG) file from Photo folder as wallpaper, go to Menu-Multimedia-Photo album
and then please select Set as wallpaper in Options menu.
]
Copy to External memory:
Copy the selected file to the same folder at Multimedia
memory/External memory.
]
Move to External memory:
Move the selected file to the same folder at Multimedia
memory/External memory.
]
Rename:
Change the file name of selected file. The maximum length of characters is
200. And You can not change the extension of file.
]
Delete:
Delete a file.
]
Delete all:
Delete all files in the list
]
Information:
Show the file information.
Sounds Menu 5.3
Show the list of MP3, MP4, AAC, M4A, WMA files at My media\Music in Multimedia
memory.
My stuff
84
85
]
Play:
You can play the MP3 file when pressing OK key or selecting Play menu of
Option menu.
]
Send via Bluetooth:
Send the selected file to another device via Bluetooth
Note
]
You may send files via Bluetooth only if they are stored in phone memory, not on memory
card. To send file from external memory, please, firstly copy it to internal phone memory.
]
Copy to External memory:
Copy the selected file to the same folder at Multimedia
memory/External memory.
]
Move to External memory:
Move the selected file to the same folder at Multimedia
memory/External memory.
]
Rename:
Change the file name of selected file. The maximum length of characters is
200. And You can not change the extension of file.
]
Delete:
Delete a file.
]
Delete all:
Delete all files in the list
]
Information:
Show the file information.
Others Menu 5.4
Show the list of files at My media\Others in Multimedia memory.
]
Play:
You can play a file if its type is the one of 3GP, 3G2, MP3, MP4, AAC, M4A
and WMA.
]
View:
You can see a file if its type is the one of JPG, GIF, WBMP, PNG and TXT.
My stuff
My stuff
]
Send via Bluetooth:
Send the selected file to another device via Bluetooth
Note
]
You may send files via Bluetooth only if they are stored in phone memory, not on memory
card. To send file from external memory, please, firstly copy it to internal phone memory.
]
When you connect phone with PC via bluetooth, to Music, Video, Others and Text folders you
can write and receive files, and from Photo, Sounds and Images folders you may only receive
files, copy files to this folders from PC is impossible. All supported file types you may copy
from PC to phone's Others folder, and then you may view or play these files. When connecting
with PC via USB cable in internal phone memory you may see only Photo, Music, Others, Text
and Video folders, and on external memory card you may see all folders.
Games & Apps Menu 5.5
In this menu, you can manage the Java applications installed in your phone. You can
play or delete
downloaded applications, or set the connect option. This menu will connect to the
(Menu 1.1), see p. 29.
External Memory Menu 5.6
This menu allows you to view Videos, Photos, Music, Text, Images, Sounds and
Others in memory card. If the external memory is not available, a pop up message
“Please insert external memory” is displayed.
Note
]
Removable disk will be not available, if in phone Sim card absence.
My stuff
86
87
My stuff
New Fantastic LG
There is mass storage function in KE820. if you connect the USB cable, you can
use the phone as a Removable Disk.
You can download MP3 files, and photos, video, txt files etc. this gives you fast
access from PC to Phone, by just connecting the USB cable.
Notice
]
MASS STORAGE function will only work in idle mode.
]
Please do not try to remove the cable while you are downloading files. After you download
the files, you need to click "window HW safely remove" on PC and then disconnect
cable.
]
When you copy a file to the removable disk, you can see the Main LCD display
"transferring". it means MASS STORAGE is working. while "transferring", do not disconnect
the cable. if you disconnect the cable while "transferring", data will be broken.
]
If you receive a call during MASS STORAGE the call will be rejected but after you safely
remove the cable, you will be able to see the missed call.
Browser
You can access various WAP (Wireless Application Protocol) services such as banking,
news, weather reports and flight information. These services are specially designed
for mobile phones and they are maintained by WAP service providers.
Check the availability of WAP services, pricing and tariffs with your network operator
and/or the service provider whose service you wish to use. Service providers will also
give you instructions on how to use their services.
Once connected, the homepage is displayed. The content depends on the service
provider. To exit the browser at any time, press the ( ) key. The phone will return
to the idle menu.
Navigating with the WAP browser
You can surf the Internet using either the phone keys or the WAP browser menu.
Using the phone keys
When surfing the Internet, the phone keys function differently to phone mode.
Using the WAP browser menu
There are various menu options available when surfing the Mobile Web.
Note
]
The WAP browser menus may vary, depending on your browser version.
Browser
88
Key Description
Scrolls each line of the content area
Returns to the previous page
Selects options and confirms actions
89
Home Menu 6.1
Connects to a homepage. The homepage will be the site which is defined in the
activated profile. It will be defined by the service provider if you have not defined it
in the activated profile.
Bookmarks Menu 6.2
This menu allows you to store the URL of favourite web pages for easy access at a
later time.
To create a bookmark
1. Press the left soft key [Options].
2. Select Add new and press the OK key.
3. After entering the desired URL and title, press the OK key.
After selecting a desired bookmark, the following options are available.
]
Connect:
Connects to the selected bookmark.
]
Add new:
Select this to create a new bookmark.
]
Edit:
You can edit the URL and/or the title of the selected bookmark.
]
Delete:
Deletes the selected bookmark.
]
Delete all:
Deletes all the bookmarks.
Browser
Browser
Go to URL Menu 6.3
You can connect directly to the site you want. After entering a specific URL, press
the OK key.
Settings Menu 6.4
You can set the profile, cache, cookie and security related to internet service.
Profiles
(Menu 6.4.1)
A profile is the network information used to connect to the Internet.
There are default profiles for some operators, stored in phone memory. It's
impossible to rename default profiles.
Each profile has submenus as follows:
]
Activate:
Activates the selected profile.
]
Settings:
Use this to edit and change WAP settings for the selected profile.
- Homepage:
This setting allows you to enter the address (URL) of a site you want
to use as homepage. You do not need to type http:// at the front of each URL as
the WAP Browser will automatically add it.
- Bearer:
You can set the bearer data service.
1 Data/2 GPRS
- Data settings:
Appears only if you select Data Settings as a Bearer/service.
Dial number:
Enter the telephone number to dial to access your WAP gateway.
Browser
90
91
User ID:
The users identity for your dial-up server (and NOT the WAP gateway).
Password:
The password required by your dial-up server (and NOT the WAP
gateway) to identify you.
Call type:
Select the type of data call : Analogue of Digital (ISDN).
Linger time:
You need to enter timeout period. After entering that, the WAP
navigation service will be unavailable if any data is not input or transferred.
Call speed:
The speed of your data connection; 9600 or 14400 ( Depends on
Operator)
- GPRS settings:
The service settings are only available when GPRS is chosen as a
bearer service.
APN:
Input the APN of the GPRS.
User ID:
The users identify for your APN server.
Password:
The password required by your APN server.
- Proxy settings
Proxy:
Activates or cancels proxy.
IP address:
Input the IP address of the Proxy server you access.
Port:
Input the Proxy Port.
- DNS settings
Primary server:
Input the IP address of the primary DNS server you access.
Secondary server:
Input the IP address of the secondary DNS server you access.
Browser
Browser
]
Rename:
You can change the profile name.
]
Add new:
You can add a new profile.
]
Delete:
Deletes the selected profile from the list.
Cache
(Menu 6.4.2)
The information or services you have accessed are saved in the cache memory of the
phone.
Cookie
(Menu 6.4.3)
The information or services you have accessed are saved in the cache memory of the
phone.
Clear cache
(Menu 6.4.4)
Removes all context saved in cache.
Note
]
A cache is a buffer memory, which is used to save data temporarily.
Clear cookie
(Menu 6.4.5)
Removes all context saved in cookie.
Browser
92
93
Security
(Menu 6.4.6)
A list of the available certification is shown.
]
Authority:
You can see the list of authority certificates that have been stored in
your phone.
]
Personal:
You can see the list of personal certificates that have been stored in your
phone.
Browser
Tools
Favourites Menu 7.1
This option allows you to add your own favourites to the list already provided. Once
you create your own menu, you can access the desired function quickly in the idle
screen by pressing the up navigation key.
Note
]
he menu of SMS, MMS and MP3 is already provided in your own favourites.
Alarm clock Menu 7.2
You can set up to 5 alarm clocks to go off at a specified time.
1. Select
On
and enter the alarm time you want.
2. Select the repeat period:
Once, Mon-Fri, Mon-Sat, Everyday
.
3. Select the alarm tone you want and press [OK].
4. Edit the alarm name and press [OK].
Calendar Menu 7.3
When you enter this menu a calendar will show up. On top of the screen there are
sections for date. Whenever you change the date, the calendar will be updated
according to the date. And square cursor will be used to locate the certain day. If you
see marked date in the calendar, it means that there is a schedule or memo that day.
This function helps to remind you of your schedule and memo. The phone will sound
an alarm tone if you set this for the note.
Tools
94
95
To change the day, month, and year.
In the scheduler mode, press left soft key [Options] as follows;
Add new
(Menu 7.3.1)
Allows you to add new schedule and memo for the chosen day. You can store up to
20 notes.
Input the subject and then press left soft key [OK]. You enter the appropriate
information in the follow section;
Time, Repeat
and
Alarm
.
View daily schedules
(Menu 7.3.2)
View all schedules and memo for the chosen day. Use , to browse through
the note lists. If you set alarm for the note, the alarm icon is displayed.
If you want to view the note in detail, press left soft key [Select]. Press left soft
key [Options] to delete, edit the note you selected.
Delete past
(Menu 7.3.3)
You can delete the past schedule that has been already notified you.
Tools
Key Description
Yearly
Monthly
Weekly
Daily
def
Key Description
Tools
Delete all
(Menu 7.3.4)
You can delete for the all notes.
Go to date
(Menu 7.3.5)
You can go the chosen date directly.
Set alarm tone
(Menu 7.3.6)
You can set the alarm tone of each chosen date.
Calculator Menu 7.4
Bluetooth enables compatible mobile devices, peripherals and computers that are in
close proximity to communicate directly with each other without wires. This handset
supports built-in Bluetooth connectivity, which makes it possible to connect them
with compatible Bluetooth headsets, computer applications and so on.
Note
]
If you use a pcsync via bluetooth, you can exchange the data within only phonebook
]
When you receive data from another Bluetooth device, the phone requests for a confirmation.
After confirming the transfer, the file will be copied in your phone.
]
Depending on the file type, it will be stored in the following folders:
- MP3(.mp3, mp4, aac, m4a, wma): Music folder.
- Video (.3GP): Video folder.
- Phonebook contacts (.VCF): Phonebook.
- Text(.txt): Text folder.
Tools
96
97
- Other files (.*.*): File storage folder.
]
Supported Bluetooth software (Bluetooth stacks) for DUN: Recommended drivers WidComm
Bluetooth for Windows 1.4 and 3.0
Paired devices
(Menu 7.4.1)
You can view all devices which are compatible with bluetooth phone.
Note
]
Due to a compatibility problem, some devices may not support this function.
Handsfree devices
(Menu 7.4.2)
You can view the list of handsfree devices which is compatible with bluetooth phone.
If you enter Paired devices or Handsfree devices menu, you access the options as
follow.
]
Connect/Disconnect:
Allows to connect the other bluetooth devices.
]
Add new:
Allows to search new bluetooth device.
]
Assign name:
Allows to change the name of bluetooth.
]
Set as authorised/Set as unauthorised:
Allows to set the authorised connection
between each bluetooth devices.
]
All service:
Allows to view all services which are supported by bluetooth device.
]
Delete:
Allows to delete the bluetooth device.
]
Delete all:
Allows to delete all bluetooth devices.
Tools
Tools
Settings
(Menu 7.4.3)
You can register new device which is compatible with bluetooth. If you already have
added the device, you can search it after entering a password.
]
Set bluetooth
You can activate or cancel bluetooth function.
]
My handset's visibility
You can set the function that your phone is shown on the other bluetooth devices.
]
My handset's name
You can set the name of bluetooth device. The default name is LG KE820.
Supported services
(Menu 7.4.4)
You can see own bluetooth service list, like a File transfer, Image printing, Pc sync and
so on.
Memo Menu 7.5
1. Select the
Memo
by pressing the left soft key [Select].
2. If the entry is empty, press the left soft key [Write].
3. Input the memo and then press left soft key [OK].
Note
]
If you want to change the text input mode, press the in order.
Tools
98
99
Tip calculator Menu 7.6
This contains the standard functions such as +, –, x, ÷ :
Addition, Subtraction,
Multiplication
, and
Division
.
Furthermore, you can use the various function of calculator such as
+/-, sin, cos, tan,
log, in, exp, sqrt
.
1. Input the numbers by pressing numeric keys.
2. Use a navigation key to select a sign for calculation.
3. Then input the numbers.
4. Press key to view the result.
5. To input the decimal number, press key. If you press key, you can enter
( ).
6. To end Calculator, press the right soft key [Back].
Stop watch Menu 7.7
Unit converter Menu 7.8
This converts any measurement into a unit you want. There are 9 types that can be
converted into units:
Currency, Surface, Length, Weight, Temperature, Volume,
Velocity, Shoes
and
Clothes
.
1. You can select one of four unit types by pressing [Select] key.
Tools
Tools
2. Select the unit you want to convert by pressing and . It's impossible to
input "-" symbol in unit converter.
3. Select the standard value by using , .
World time Menu 7.9
You can view clocks of the world’s major cities.
1. Select the city belonged to the time zone by pressing , key.
2. You can set the current time to the city time you select by pressing the left soft
key [Set].
SIM-Menu Menu 7.0
This menu depends on SIM and the network services.
Tools
100
Profiles
101
In Profiles, you can adjust and customise the phone tones for different events,
environments, or caller groups.
There are six preset profiles:
General, Silent, Vibrate only, Outdoor, Headset
and
Offline
. Each profile can be personalised. Press the left soft key [Menu] and select
Profiles
using up/down navigation keys.
Activate
(Menu 8.X.1)
1. A list of profiles is displayed.
2. In the Profiles list, scroll to the profile you want to activate and press the left soft
key [Select] or OK key.
3. Then, select Activate.
Personalise (Menu 8.X.2)
Scroll to the desired profile in the Profile list. After pressing the left soft key or
the OK key, select
Personalise
. The profile setting option opens. Set the option as
required.
]
Call alert type:
Set the alert type for incoming calls.
]
Ring tone:
Select the desired ring tone from the list.
]
Ring volume:
Set the volume of the ringing tone.
]
Message alert type:
Set the alert type for messages.
]
Message tone:
Select the alert tone for messages.
Profiles
Profiles
]
Keypad tone:
Select the desired keypad tone.
]
Keypad volume:
Set the volume of keypad tone.
]
Flip tone:
Allows to set the flip tone for adjusting environment.
]
Effect sound volume:
Set the volume of effect sound.
]
Power on/off volume:
Set the volume of the ringing tone when switching the
phone on/off.
]
Auto answer:
This function will be activated only when your phone is connected to
the handsfree kit.
•
Off:
The phone will not answer automatically.
•
After 5 secs:
After 5 seconds, the phone will answer automatically.
•
After 10 secs:
After 10 seconds, the phone will answer automatically.
Rename
(Menu 8.X.3)
You can rename a profile and give it any name you want.
Note
]
Vibrate only, Silent and Headset profiles cannot be renamed.
1. To change the name of a profile, scroll to the profile in the profile list and after
pressing the left soft key or the OK key, select
Rename
.
2. Key in the desired name and press the OK key or the left soft key [OK].
Profiles
102
Settings
103
Date &Time Menu 9.1
You can set functions relating to the date and time.
Date
(Menu 9.1.1)
]
Set date
You can enter the current date.
]
Date format
You can set the Date format such as DD/MM/YYYY, MM/DD/YYYY,
YYYY/MM/DD.
(D: Day / M: Month / Y: Year)
Time
(Menu 9.1.2)
]
Set time
You can enter the current time.
]
Time format
Your can set the time format between 24-hour and 12-hour.
Power saving Menu 9.2
If you set On, you can save the power when you don't use the phone.
Settings
Settings
Display Menu 9.3
Wallpaper (Menu 9.3.1)
You can select the background pictures in standby mode.
Main LCD
(Menu 9.3.1.1)
Front LCD
(Menu 9.3.1.2)
Default
You can select a picture or an animation of wallpaper by pressing or .
My folder
You can select a picture or an animation as wallpaper.
Menu Colour
(Menu 9.3.2)
Your phone provides you with 4 menu colour themes. Set the menu colour by
scrolling and pressing the left soft key [Select].
Standby text
(Menu 9.3.3)
If you select
On
, you can edit the text which is displayed in standby mode.
Backlight
(Menu 9.3.4)
You can set the light-up duration of the display.
Settings
104
105
Brightness
(Menu 9.3.5)
You can set the brightness of LCD: 100%, 80%, 60%, 40%
Network name
(Menu 9.3.6)
If this function is activated, network name will be displayed on main LCD.
Language Menu 9.4
You can change the language for the display texts in your phone. This change will
also affect the Language Input mode.
Calling Menu 9.5
You can set the menu relevant to a call by pressing [Select] in the Setting menu.
Call divert
(Menu 9.5.1)
The Call divert service allows you to divert incoming voice calls, fax calls, and data
calls to another number. For details, contact your service provider.
]
All voice calls
Diverts voice calls unconditionally.
]
If busy
Diverts voice calls when the phone is in use.
Settings
Settings
]
If no reply
Diverts voice calls which you do not answer.
]
If out of reach
Diverts voice calls when the phone is switched off or out of coverage.
]
All data calls
Diverts to a number with a PC connection unconditionally.
]
All fax calls
Diverts to a number with a fax connection unconditionally.
]
Cancel all
Cancels all call divert service.
The submenus
Call divert menus have the submenus shown below.
- Activate
Activate the corresponding service.
To voice mail centre
Forwards to message centre. This function is not shown at All data calls and All fax
calls menus.
To ot h er nu m ber
Inputs the number for diverting.
Settings
106
107
To favourite number
You can check recent 5 diverted numbers.
- Cancel
Deactivate the corresponding service.
- View status
View the status of the corresponding service.
Answer mode
(Menu 9.5.2)
]
Flip open
If you select this menu, you can receive an incoming call when you open the flip.
]
Any key
If you select this menu, you can receive a call by pressing any key except [End]
key.
]
Send key only
If you select this menu, you can receive a call by only pressing [Send] key.
Send my number
(Menu 9.5.3)
(network and subscription dependent)
]
Set by network
If you select this, you can send your phone number depending on two line service
such as line 1 or line 2.
Settings
Settings
]
On
You can send your phone number to another party. Your phone number will be
shown on the receiver’s phone.
]
Off
Your phone number will not be shown.
Call waiting
(Menu 9.5.4)
(network dependent)
]
Activate
If you select Activate, you can accept a waiting (receiving) call.
]
Cancel
If you select Cancel, you cannot recognize the waiting (receiving) call.
]
View status
Shows the status of Call waiting.
Minute minder
(Menu 9.5.5)
If you select
On
, you can check the call duration by a beep sound given every minute
during a call.
Settings
108
109
Auto redial
(Menu 9.5.6)
]
On
When this function is activated, the phone will automatically try to redial in the
case of failure to connect a call.
]
Off
Your phone will not make any attempts to redial when the original call has not
connected.
Send DTMF
(Menu 9.5.7)
You can send touch tones during an active call to control your voice mailbox or other
automated phone services.
]
Information
DTMF tone:
Dual Tones Multiple Frequency
Security Menu 9.6
PIN code request (Menu 9.6.1)
In this menu, you can set the phone to ask for the PIN code of your SIM card when
the phone is switched on.
If this function is activated, you’ll be requested to enter the PIN code.
Settings
Settings
1. Select PIN code request in the security settings menu, and then press
[Select].
2. Set
Enable/Disable
.
3. If you want to change the setting, you need to enter PIN code when you switch
on the phone.
4. If you enter wrong PIN code more than 3 times, the phone will lock out. If the PIN
is blocked, you will need to key in PUK code.
5. You can enter your PUK code up to 10 times. If you put wrong PUK code more
than 10 times, you can not unlock your phone. You will need to contact your
service provider.
Handset lock
(Menu 9.6.2)
You can use a security code to avoid unauthorized use of the phone. Whenever you
switch on the phone, the phone will request security code if you set phone lock to
When switch on
.
If you set phone lock to
When SIM changed
, your phone will request security code
only when you change your SIM card.
Call barring
(Menu 9.6.3)
The Call barring service prevents your phone from making or receiving certain
category of calls. This function requires the call barring password. You can view the
following submenus.
Settings
110
111
]
All outgoing calls
The barring service for all outgoing calls.
]
Outgoing international
The barring service for all outgoing international calls.
]
Outgoing international except home country
The barring service for all international outgoing calls except home network.
]
All incoming
The barring service for all incoming calls.
]
Incoming when roaming
The barring service for all incoming calls when roaming.
]
Cancel all barrings
You can cancel all barring services.
]
Change password
You can change the password for Call Barring Service.
The submenus:
- Activate
Allows to request the network to set call restriction on.
- Cancel
Set the selected call restriction off.
Settings
Settings
- View status
View the status whether the calls are barred or not.
Fixed dial number
(Menu 9.6.4)
(SIM dependent)
You can restrict your outgoing calls to selected phone numbers. The numbers are
protected by your PIN2 code.
]
Enable
You can restrict your outgoing calls to selected phone numbers.
]
Disable
You can cancel fixed dialling function.
]
Number list
You can view the number list saved as Fixed dial number.
Change code
(Menu 9.6.5)
PIN is an abbreviation of Personal Identification Number to prevent use by
unauthorized person. You can change the access codes:
Security code, PIN code,
PIN2 code
.
1. If you want to change the Security code/PIN1/ PIN2 code input your original
code, and then press [OK].
2. Input new Security code/PIN1/PIN2 code and verify them.
Settings
112
113
Memory status Menu 9.7
You can check free space and memory usage of each repository, Internal memory and
Multimedia memory. You can go to each repository menu.
Reset setting Menu 9.8
You can initialize all factory defaults. You need Security code to activate this
function.
]
Restore default settings:
Allows you to restore default settings.
]
Clear multimedia memory:
Allows you to format the multimedia memory and
create a default directory.
Settings
Accessories
There are various accessories for your mobile phone. You can select these options
according to your personal communication requirements.
Trave l Adapt er
This charger allows you to charge the battery while away
from home or your office.
Standard Battery
Data cable/CD
You can connect your phone to PC to exchange the data
between them.
Hands free ear-microphone and music player
controller combo
Stereo headset
Controller:
Answer & End button, music player control,
volume control, Hold button and microphone.
Accessories
114
115
Note
]
Always use genuine LG accessories.
]
Failure to do this may invalidate your warranty.
]
Accessories may be different in different regions; please check with our regional service
company or agent for further inquires.
Accessories
Technical Data
General
Product name :
KE820
System :
GSM 900 / DCS 1800 / PCS 1900
Ambient Temperatures
Max. :
+55°C
Min :
-10°C
Technical Data
116
