FCC Compliance Statement
This equipment has been tested and found to comply within
the limits of a Class B digital device pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio
or television reception (which can be determined by turning
the equipment on and off), the user is encouraged to try to
correct the interference by using one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's (or your) authority to operate the equipment. Only
peripherals (digital input/output devices, terminals, printers,
etc.) certified to comply with the Class B limits may be
attached to this monitor. Operation with non-certified
peripherals is likely to result in interference to radio and TV
reception.
Only shielded signal cables may be used with this System.
Canadian DOC Notice
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les
exigences du Règlement sur le matériel brouilleur du
Canada.
CE Conformity Notice
(for Europe)
Products with the “CE” Marking comply with the EMC
Directive(89/336/EEC) and LOW VOLTAGE Directive
(73/23/EEC) issued by the Commission of the European
Community.
Compiance with these directives implies conformity to the
following European Norms :
• EN 55022:1998 ; Radio Frequency Interference
• EN 55024:1998 ; Electromagnetic Immunity
• EN 61000-3-2 ; Power Line Harmonics
• EN 61000-3-3 ; Voltage Fluctuations
• EN 60950 ; Product Safety
Low Radiation Compliance (MPR II)
This monitor meets one of the strictest guidelines available
today for low radiation emissions, offering the user extra
shielding and an antistatic screen coating. These
guidelines, set forth by a government agency in Sweden,
limit the amount of emission allowed in the Extremely Low
Frequency (ELF) and Very Low Frequency (VLF)
electromagnetic range.
TCO95
Congratulations!
You have just purchased a TCO’95 approved and labelled
product! Your choice has provided you with a product
developed for professional use. Your purchase has also
contributed to reducing the burden on the environment and
to the further development of environmentally-adapted
electronic products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an
established method for encouraging the adaptation of
goods and services to the environment. The main problem
as far as computers and other electronic equipment are
concerned is that environmentally harmful substances are
used both in the products and during their manufacture.
Since it has not been possible so far for the majority of
electronic equipment to be recycled in a satisfactory way,
most of these potentially damaging substances sooner or
later enter Nature.
There are also other characteristics of a computer, such as
energy consumption levels, that are important from both the
working and natural environment viewpoints. Since all
types of conventional electricity generation have a negative
effect on the environment (acidic- and climatic-influencing
emissions, radioactive waste, etc.), it is vital to conserve
energy. Electronic equipment in offices consumes as
enormous amount of energy, since it is often routinely left
running continuously.
What does the environmenal labelling involve?
This product meets the requirements for the TCO’95
Regulatory Information
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
NOTICE
The regulations are applied only to the products with the
ID LABEL indicating specific requirements.
Safety Precautions
Please read these safety precautions carefully before using the monitor.
Precautions in installing the Monitor
If you ignore the caution message, you may be slightly injured or the product may be damaged
If you ignore the warning message, you may be seriously injured or there is a possibility of
accident or death.
Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction or deformation may occur.
Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not put heavy objects on the monitor or sit upon it.
- If the monitor collapses or is dropped, you may be injured. Children must pay particular attention.
Do not leave the power or signal cable unattended on the pathway.
- The passerby can falter, which can cause electrical shock, fire, product breakdown or injury.
Install the monitor in a neat and dry place.
- Dust or moisture can cause electrical shock, fire or product damage.
If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the
service center.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
If you dropped the monitor or the case is broken, turn off the monitor and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service
center.
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the monitor, or inflammable
objects such as paper and matches. Children must pay particular attention.
- Electrical shock, fire or injury can occur. If a foreign object is dropped into the monitor, unplug the power cord and
contact the service center.
Make sure the monitor ventilation hole is not blocked. Install the monitor in a suitably wide place (more
than 10cm from the wall)
- If you install the monitor too close to the wall, it may be deformed or fire can break out due to internal heat.
Do not block the ventilation hole of the monitor by a tablecloth or curtain.
- The monitor can be deformed or fire can break out due to overheating inside the monitor.
Install the monitor on a flat and stable place that has no risk of dropping the monitor.
- If the monitor is dropped, you may be injured or the monitor may be broken.
Install the monitor where no EMI occurs.
Keep the monitor away from direct sunlight.
- The monitor can be damaged.
Warning
Warning
Caution
Caution
Electrical Power Related Precautions
Make sure to connect the power cable to the grounded current.
- You may be electrocuted or injured.
Use the rated voltage only.
- The monitor can be damaged, or you may be electrocuted.
During a thunder or lightning storm, unplug the power cable or signal cable.
- You may be electrocuted or a fire can break out.
Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a
power bar with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
Do not touch the power plug with wet hands. Additionally, it the cord pin is wet or covered with dust, dry
the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
If you don’t intend to use the monitor for a long time, unplug the power cable from the monitor.
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
Fix the power cable completely.
- If the power cable is not fixed completely, a fire can break out.
Hold the plug when pulling out the power cable. Do not bend the power cord with excessive force or put
heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is
connected to the input terminal on the wall. Additionally, do not touch the power cable right after
plugging into the wall input terminal.
- You may be electrocuted.
Do not unplug the power cord while the monitor is in use.
- Electrical shock can damage the monitor.
Warning
Caution
ENGLISH
Precautions in Moving the Monitor
Warning
Make sure to turn off the monitor.
- You may be electrocuted or the monitor can be damaged.
Make sure to remove all cables before moving the monitor.
- You may be electrocuted or the monitor can be damaged.
Safety Precautions
Caution
Precautions in Using the Monitor
Warning
Do not put or store inflammable substances near the monitor.
- There is a danger of explosion or fire due careless handling of the inflammable substances.
When cleaning the brown tube surface, unplug the power cord and scrub with soft cloth to prevent
scratching. Do not clean with a wet cloth.
- The water can sink into the monitor, which can cause electric shock or serious malfunction.
Take a rest from time to time to protect your vision.
Keep the monitor clean at all times.
Take a comfortable and natural position when working with a monitor to relax the muscles.
Take a regular break when working with a monitor for a long time.
Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a
scratch on it.
Keep the proper distance from the monitor.
- Your vision may be impaired if you look at the monitor too closely.
Set the appropriate resolution and clock by referring to the User’s Manual.
- Your vision can be impaired.
Use authorized detergent only when cleaning the monitor. (Do not use benzene, thinner or alcohol.)
- Monitor can be deformed.
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
Caution
Do not shock the monitor when moving it.
- You may be electrocuted or the monitor can be damaged
Do not dispose the product-packing box. Use it when you move.
Make the panel face forward and hold it with both hands to move.
- If you drop the monitor, the damaged monitor can cause electric shock or fire. Contact with the service center for
repair.
Do not disassemble, repair or modify the monitor at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or repair.
Do not spray water on the monitor or scrub with an inflammable substance (thinner or benzene). Fire or
electric shock accident can occur
Keep the monitor away from water.
- Fire or electric shock accident can occur.
On Disposal
ENGLISH

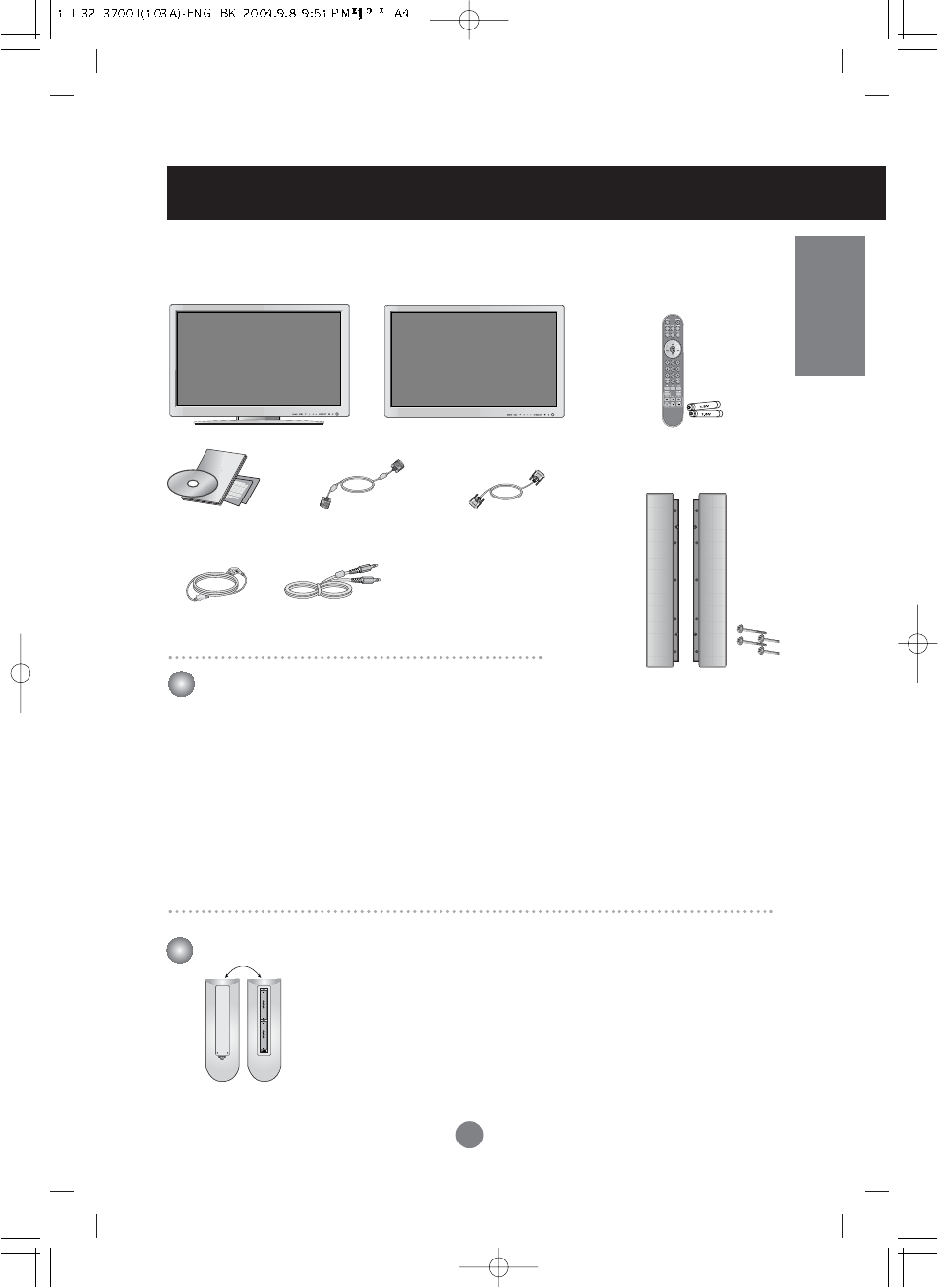

Accessories
Speaker kit / Screws
(Applicable only for models
that support the speakers)
Remote Controller/
Batteries (AAA x 2)
Power Cord Audio Cable (PC)
Monitor
OR
Desktop Stand Type Free Mount Type
Please check the accessories in the product package.
* The monitor and the accessories can be different from the figures shown here.
15-pin D-Sub Signal
Cable
DVI-D Signal Cable
Optional
Wall-mount Rack
Please refer to the enclosed "Installation Guide" when
installing the wall-mount rack.
Monitor Driver CD/
User's Guide/Cards
1. Take out the battery cap.
2. Insert the battery with correct polarity (+/-).
3. Close the battery cap.
• You can use a remote controller 7 meter distance and 30 degree (left/right)
within the receiving unit scope.
• Dispose of used batteries in the recycle bin to prevent environmental pollution.
Inserting batteries into remote controller.
ENGLISH
Name and Function of the Parts
Rear View
Power Connector : Connect the power cord
Wired Remote Control Port
RS-232C Serial Ports
PC Signal Inputs
PC Sound Jack
: Connect the audio cable to the *LINE OUT jack of the PC sound card.
AV Input Ports
TV Tuner Jack : Connect the antenna.
Back Cap
- Open the back cap before
you install the monitor.
*LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that
the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of
PC sound card has only Speaker Out, reduce the PC volume.
If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out
using the card jumper of the program (Refer to the Sound Card Manual).
Video
PC Audio
COMP-1
AV-IN
AV-OUT
COMP-2
REMOTE
CONTROL
ANT IN
( )
IN
OUT
IN
OUT
REMOTE
CONTROL
First of all, see if the computer, monitor and the peripherals are turned off.
Then, connect the signal input cable.
When connecting with the DVI signal input cable.
When connecting with the DSub signal input cable. (IBM compatible PC)
When connecting with the DSub signal input cable. (Macintosh)
PC
PC
Rear side of the monitor.
MAC
Macintosh Adapter (not included)
Use the standard Macintosh adapter since an incompatible
adaptor is available in the market. (Different signaling system)
IN
OUT
REMOTE
CONTROL
Rear side of the monitor.
* When connecting to a
wall outlet.

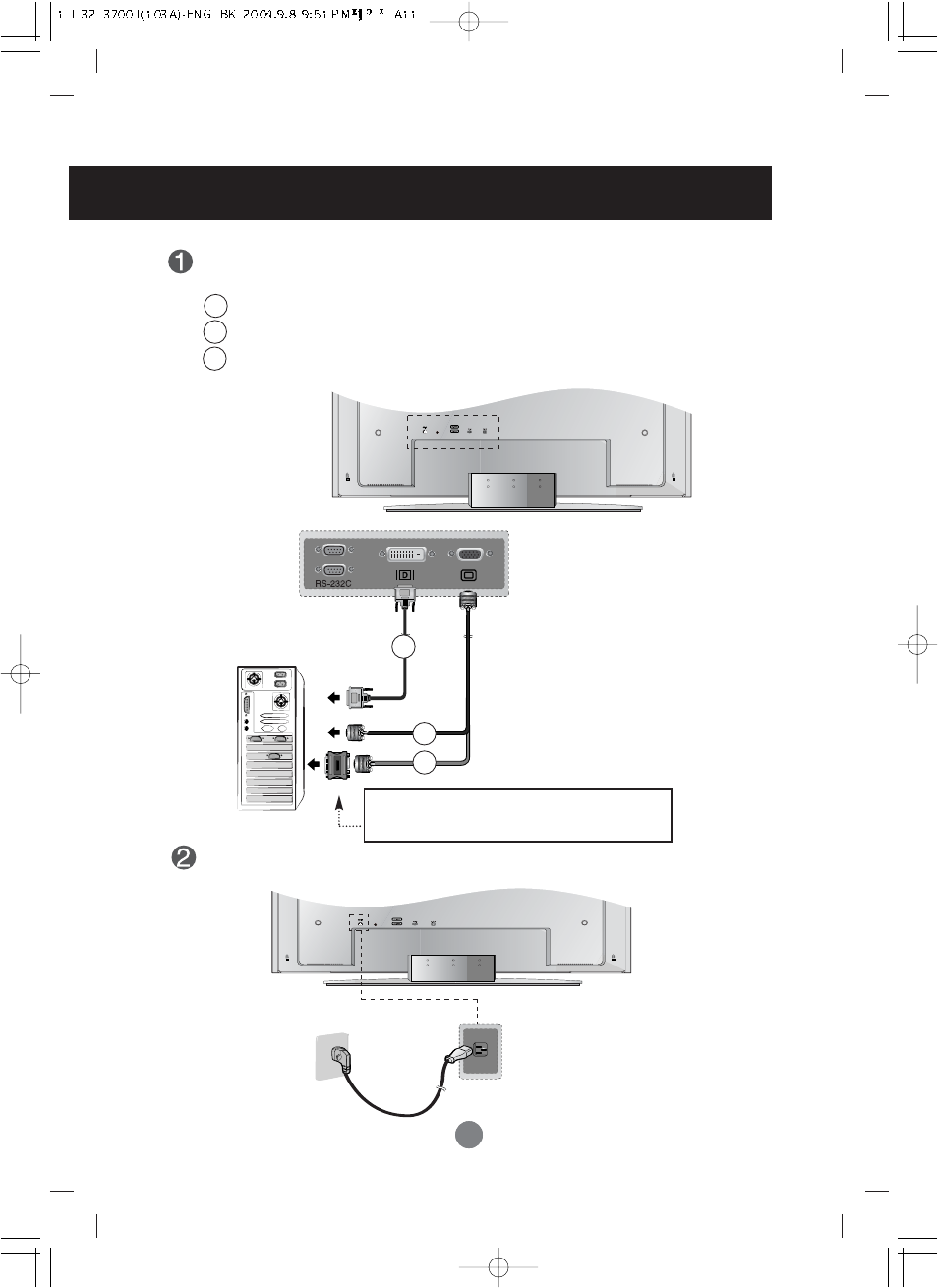

Connecting the Monitor
Connect the power cord.
B
C
A
B
C
A
ENGLISH
SOURCE SET(SELECT)
When connecting with a DVI-D signal input cable.
• Select DVI-PC: DVI-D digital signal.
When connecting with a D-Sub signal input cable.
• Select RGB-PC: 15-pin D-Sub analog signal.

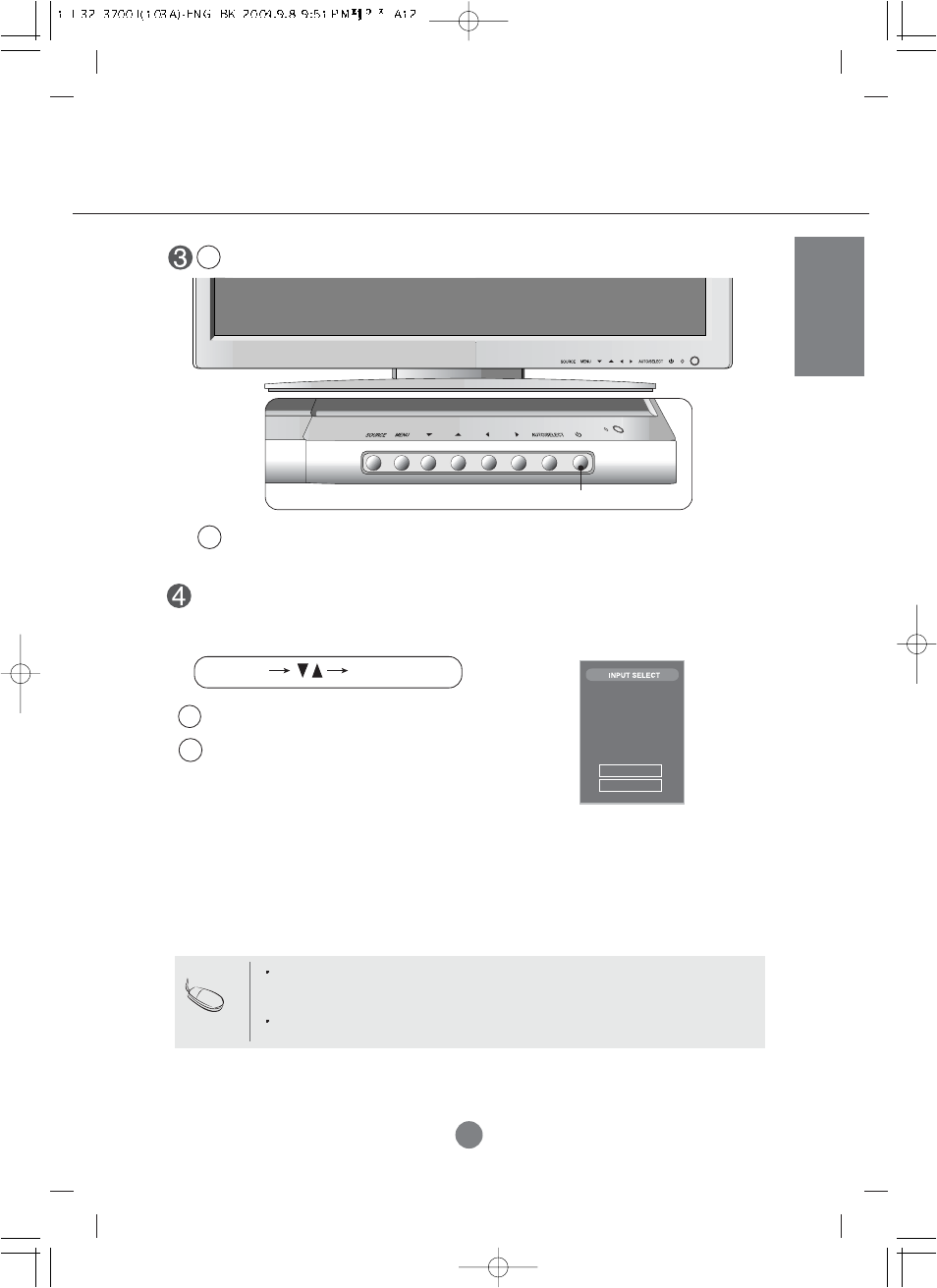

Select an input signal.
Press the SOURCE button on the remote controller to select the input signal.
Or, press the SOURCE button at the front side of the monitor.
How to connect to two computers.
Connect the signal cables (DVI and D-Sub) to each computer.
Press the SOURCE button in a remote controller to select the computer to use.
Directly connect to a grounded power outlet on the wall or a power bar with a ground
wire.
Note
Turn on power by pressing the power button on the monitor.
Turn on the PC.
Power button
B
A
B
A
TV
AV
S-Video
Component 1
Component 2
RGB - PC
DVI - PC
ENGLISH

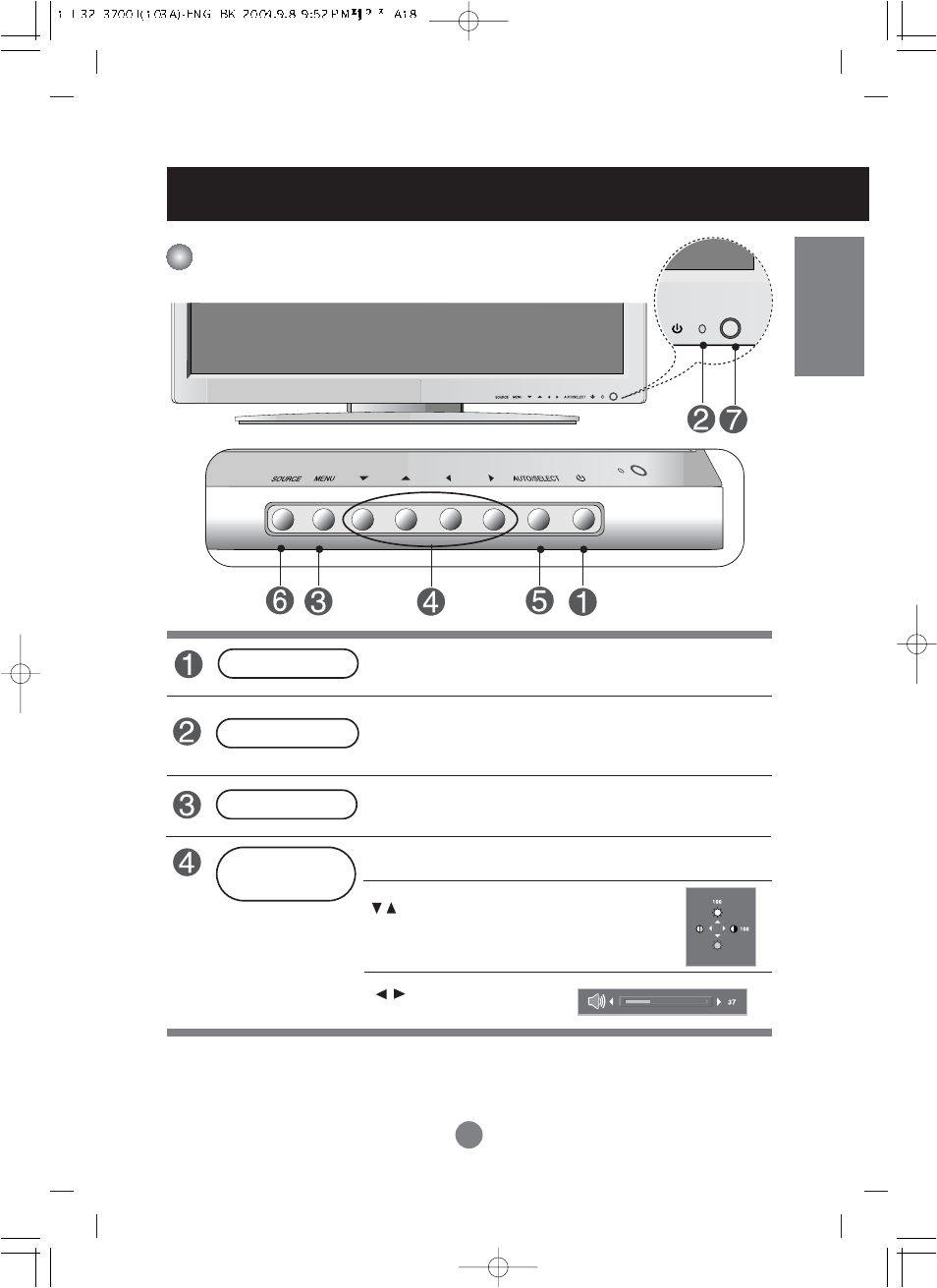

Selecting and Adjusting the Screen
Name of the Buttons in the Screen
Adjustment Unit
• Press the button to turn on the power. Press the button again to
turn it off.
• This Indicator lights up green when the display operates normally.
If the display is in DPM (Energy Saving) mode, this indicator color
changes to amber.
Power Button
Power LED
• Adjust the volume.
• Use this button to directly control
brightness and contrast of the PC signal
(RGB-PC / DVI-PC ).
• Use this button to show/hide the OSD (On Screen Display) menu
screen.
MENU Button
• Use the button to select an icon or adjust the setting in the OSD screen.
OSD Select
Adjust Button
ENGLISH
OSD Menu – When Connected to Your PC
SOUND
TIMER
SPECIAL
Adjusts screen brightness, contrast and color that you prefer.
Adjusts the audio function.
Adjusts the timer function.
Adjusts the screen status according to the circumstances.
Adjusts PIP/POP/PBP mode function.
SCREEN
PIP/POP/PBP
Adjusts the screen video.
Icon Function Description
Icon Function Description
OSD Menu – When Watching TV/Video/DVD/HDTV
STATION
SOUND
TIMER
Adjusts the timer function.
Adjusts the screen video.
Adjusts the audio function.
Adjusts screen brightness, contrast and color that you prefer.
Set/Selects the channel. (available only when watching TV)
Note
OSD(On Screen Display)
The OSD function enables you to adjust the screen status conveniently since it provides
graphical presentation.
SPECIAL
Adjusts the screen status according to the circumstances.
PIP/POP/PBP
Adjusts PIP/POP/PBP mode function.
SCREEN
ENGLISH
• The control locking function prevents unintentional
OSD setting change due to careless usage. To
unlock the controls, simultaneously press the Menu
button and button for 5 seconds. (You cannot set
this function using the remote controller buttons. You
can set this function in the monitor only.)
The 'CONTROLS LOCKED' message
appears when pressing the Menu
button.
'CONTROLS LOCKED' message appears.
• Install the monitor driver, which is provided with
the monitor, or download it from the web site.
(http://www.lge.com)
• See if the plug&play function is supported by
referring to the video card user manual.
Did you install the driver?
'Unknown Monitor' message appears when the monitor is connected.
• See if the power cord is properly connected to the
outlet.
• See if the power switch is turned on.
• Adjust brightness ( ) and contrast ( ) again.
• If the monitor is in power saving mode, move the
mouse or press any key.
• The signal from the PC (video card) is out of the
vertical or horizontal frequency range of the
monitor. Adjust the frequency range by referring
to the Specifications in this manual.
* Maximum resolution
D-Sub : 1280 x 1024 @75Hz
DVI-D : 1280 x 1024 @60Hz
• The signal cable between PC and monitor is not
connected. Check the signal cable.
• Press the 'SOURCE' menu in the remote
controller to check the input signal.
Is the monitor power cord
connected?
Does the power LED is turned on?
Power is on, power LED is green but
the screen appears extremely dark.
Does the power LED look yellow?
Does the 'OUT OF RANGE' message
appear?
Does the 'CHECK SIGNAL CABLE'
message appear?
No image is displayed
Troubleshooting
Note
* Vertical frequency: To enable the user to watch the monitor display, screen image should be changed tens of times
every second like a fluorescent lamp. The vertical frequency or refresh rate is the times of image display per second.
The unit is Hz.
* Horizontal frequency: The horizontal interval is the time to display one vertical line. When 1 is divided by the
horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
Troubleshooting
Is the screen position wrong?
Do thin lines appear on the
background screen?
Horizontal noise appears or the
characters look blurred.
Unable to adjust the
horizontal/vertical position in the
Zoom menu.
Screen size is automatically adjusted
when connected to the PC.
Brightness differs in the main and
sub screen when connected to the
PC.
The screen is displayed abnormally.
No sound appears in the TV channel
display window.
The screen image looks abnormal.
• D-Sub analog signal – Press the “AUTO” button in
the remote controller to automatically select the
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Position OSD menu.
• See if the video card resolution and frequency are
supported by the monitor. If the frequency is out of
range, set to the recommended resolution in the
Control Panel – Display – Setting menu.
• D-Sub analog signal – Press the “AUTO” button
in the remote controller to automatically select an
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Clock OSD menu.
• D-Sub analog signal – Press the “AUTO” button
in the remote controller to automatically select an
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Phase OSD menu.
• See if the Zoom value is set to 0. If it is, you
cannot adjust the H/V Position value.
• If the screen size is not full when connected to the
PC, execute the PIP/POP/PBP to change to full
screen mode.
• You cannot adjust brightness and tint in the
PIP/POP/PBP Screen menu for the sub-screen
among PIP/POP/PBP menus. Therefore,
brightness can be different for the sub-screen.
• The proper input signal is not connected to the
signal port. Connect the signal cable that matches
with the source input signal.
• See if the TV sound is set to mono. if it is, the
sound will not be displayed.
• If you use a fixed image for a long time, the pixels
may be damaged quickly. Use the screensaver
function.
After-image appears when the
monitor is turned off.
After-image appears on the monitor.
ENGLISH
Troubleshooting
• Set the number of colors to more than 24 bits (true
color)
Select Control Panel – Display – Settings – Color
Table menu in Windows.
• Check the connection status of the signal cable.
Or, re-insert the PC video card.
• Several pixels (red, green, white or black color)
may appear on the screen, which can be
attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
Screen has poor color resolution
(16 colors).
Screen color is unstable or mono-
colored.
Do black spots appear on the
screen?
Screen color is abnormal.
• See if the audio cable is connected properly.
• Adjust the volume.
• See if the sound is set properly.
• See if the Sound is set to On in the PIP/POP/PBP
menu.
• Select the appropriate treble sound.
• Select the appropriate bass sound.
• Adjust the volume.
No sound?
No sound is available when the
PIP/POP/PBP mode is engaged.
Sound is too dull.
Sound is too low.
The audio function does not work.
• See if the PIP/POP/PBP function is in use. If the
PIP/POP/PBP function is in use, the screen size
function may not work.
The screen size function in the OSD
menu does not work.
The screen size function in the OSD menu does not work.
• See if you have selected the proper channel
mode.
• Use the automatic channel setup function.
• See if the TV antenna is properly connected.
The TV signal is ot being received.
The TV function does not work.

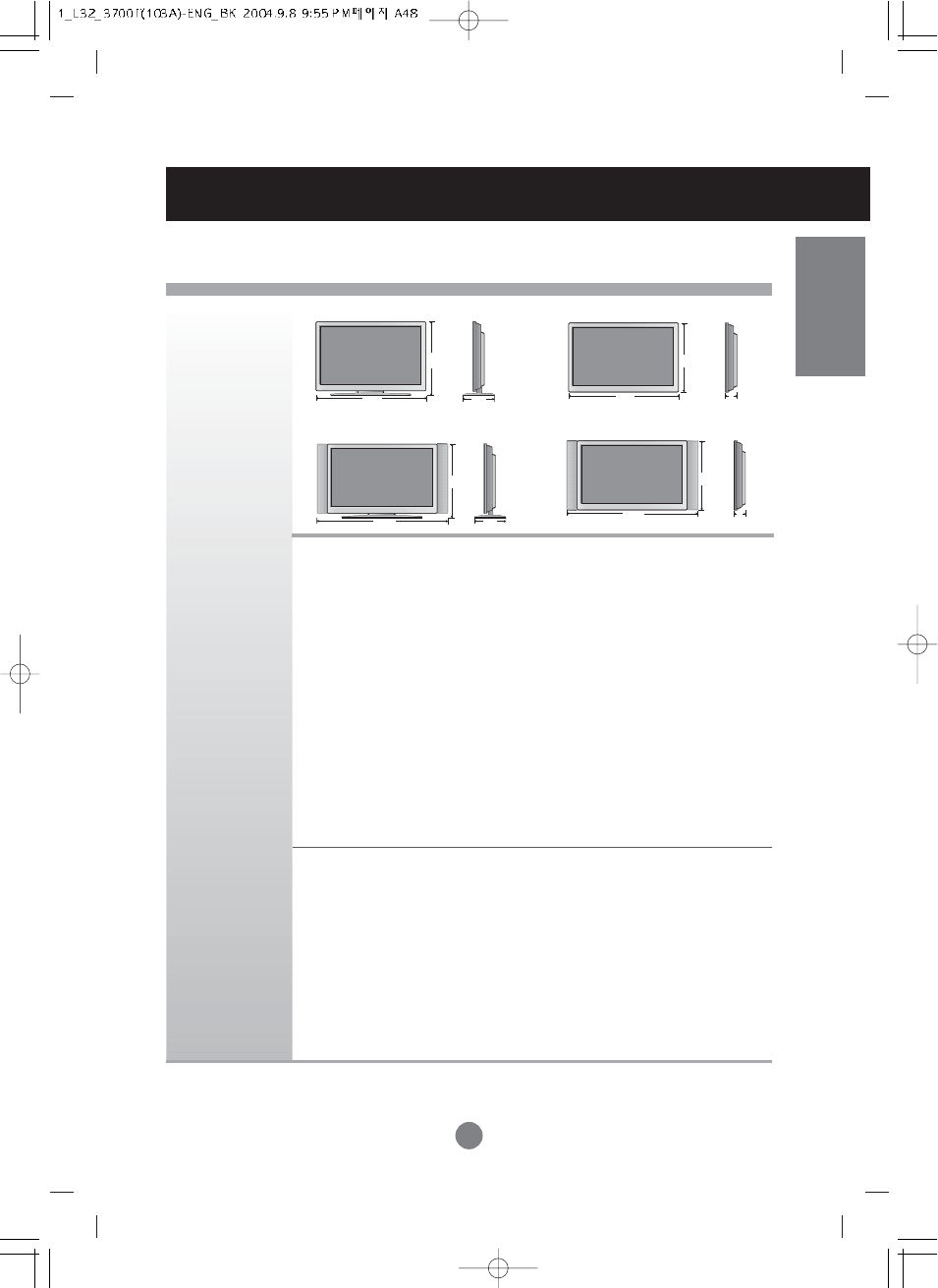

Specifications
NOTE
Information in this document is subject to change without notice.
[L3200T] 32 inches (80.04 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 80.04 cm
0.5025 mm (Pixel Pitch)
[L3700T] 37 inches (94.03 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 94.03 cm
0.5025 mm (Pixel Pitch)
[L4200T] 42 inches (106.68 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Anti-Glare coating
Visible diagonal size: 106.68 cm
0.681 mm (Pixel Pitch)
[L3200T]
Rated Voltage AC 100-240V~ 50/60Hz 2.0A
Power Consumption Normal operation: 160W
Power saving preparation state: ≤4W
Power saving state: ≤4W
Power switch off: ≤2W
[L3700T]
Rated Voltage AC 100-240V~ 50/60Hz 2.4A
Power Consumption Normal operation: 220W
Power saving preparation state: ≤4W
Power saving state: ≤4W
Power switch off: ≤4W
[L4200T]
Rated Voltage AC 100-240V~ 50/60Hz 2.8A
Power Consumption Normal operation: 300W
Power saving preparation state: ≤5W
Power saving state: ≤5W
Power switch off: ≤5W
The product specifications can change without prior notice for product improvement.
LCD Panel
Power
ENGLISH
Specifications
The product specifications can change without prior notice for product improvement.
Width x Height x Depth
[L3200T]
[1] 80.30 cm (31.61 inches) x 54.00cm (21.26 inches) x 18.00 cm (7.09 inches)
[2] 80.30 cm (31.61 inches) x 49.30 cm (19.4 inches) x 9.99 cm (3.93 inches)
[3] 96.40 cm (37.95 inches) x 54.00cm (21.26 inches) x 18.00 cm (7.09 inches)
[4] 96.40 cm (37.95 inches) x 49.30 cm (19.4 inches) x 9.99 cm (3.93 inches)
[L3700T]
[1] 92.80 cm (36.54 inches) x 61.90 cm (24.37 inches) x 22.77 cm (8.96 inches)
[2] 92.80 cm (36.54 inches) x 57.12 cm (22.49 inches) x 12.00 cm (4.72 inches)
[3] 112.9 cm (44.45 inches) x 61.90 cm (24.37 inches) x 22.77 cm (8.96 inches)
[4] 112.9 cm (44.45 inches) x 57.12 cm (22.49 inches) x 12.00 cm (4.72 inches)
[L4200T]
[1] 105.7 cm (41.61 inches) x 70.20 cm (27.64 inches) x 29.45 cm (11.59 inches)
[2] 105.7 cm (41.61 inches) x 65.30 cm (25.71 inches) x 11.91 cm (4.69 inches)
[3] 125.9 cm (49.57 inches) x 70.20 cm (27.64 inches) x 29.45 cm (11.59 inches)
[4] 125.9 cm (49.57 inches) x 65.30 cm (25.71 inches) x 11.91 cm (4.69 inches)
Net
[L3200T]
[1] 19.4 kg (42.77 lbs) [2] 16.0 kg (35.27 lbs)
[3] 21.1 kg (46.52 lbs) [4] 17.7 kg (39.02 lbs)
[L3700T]
[1] 31.1 kg (68.56 lbs) [2] 29.0 kg (63.93 lbs)
[3] 39.1 kg (86.20 lbs) [4] 35.1 kg (77.38 lbs)
[L4200T]
[1] 41.4 kg (91.27 lbs) [2] 37.0 kg (81.57 lbs)
[3] 44.0 kg (97.00 lbs) [4] 39.6 kg (87.30 lbs)
Dimensions
&Weight
[1]
W
H
[2]
W
H
[3]
W
H
DD
DD
[4]
W
H
Specifications
RMS Audio Output 10W+10W(R+L)
Input Sensitivity 0.7Vrms
Speaker Impedance 8Ω
Audio
* Applicable only for models that support the speakers
NOTE
Information in this document is subject to change without notice.
Max. Resolution DSUB : 1600 X 1200 @60Hz
DVI-D : 1360 X 768 @60Hz
Recommended Resolution
DSUB : WXGA 1360 X 768 @60Hz
DVI-D : WXGA 1360 X 768 @60Hz
Horizontal Frequency DSUB : 30 - 83 kHz
DVI-D : 30 - 72 kHz
Vertical Frequency 56 - 85 Hz
Synchronization Type Separate/Composite/SOG (Sync On Green)/Digital
15-pin DSUB type, DVI-D (digital), S-Video,
Composite video, HDTV, DVD
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 10% ~ 80%
Storage Condition Temperature: -20˚C ~ 60˚C , Humidity: 5% ~ 95%
The product specifications can change without prior notice for product improvement.
Video Signal
Input Connector
Environmental
Conditions
ENGLISH
Specifications
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
PC Mode – Preset Mode
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
3
4
5
6
7
8
9
10
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
31.469
31.468
31.469
37.500
43.269
37.879
46.875
53.674
49.725
48.363
70
70
60
75
85
60
75
85
75
60
VGA
VGA
VGA
VESA
VESA
VESA
VESA
VESA
MAC
VESA
11
12
13
14
15
16
1024 x 768
1024 x 768
1280 x 720
1360 x 768
1280 x 1024
1600 x 1200
60.123
68.68
44.772
47.72
63.981
75
VESA
VESA
VESA
VESA
VESA
VESA
75
85
60
60
60
60

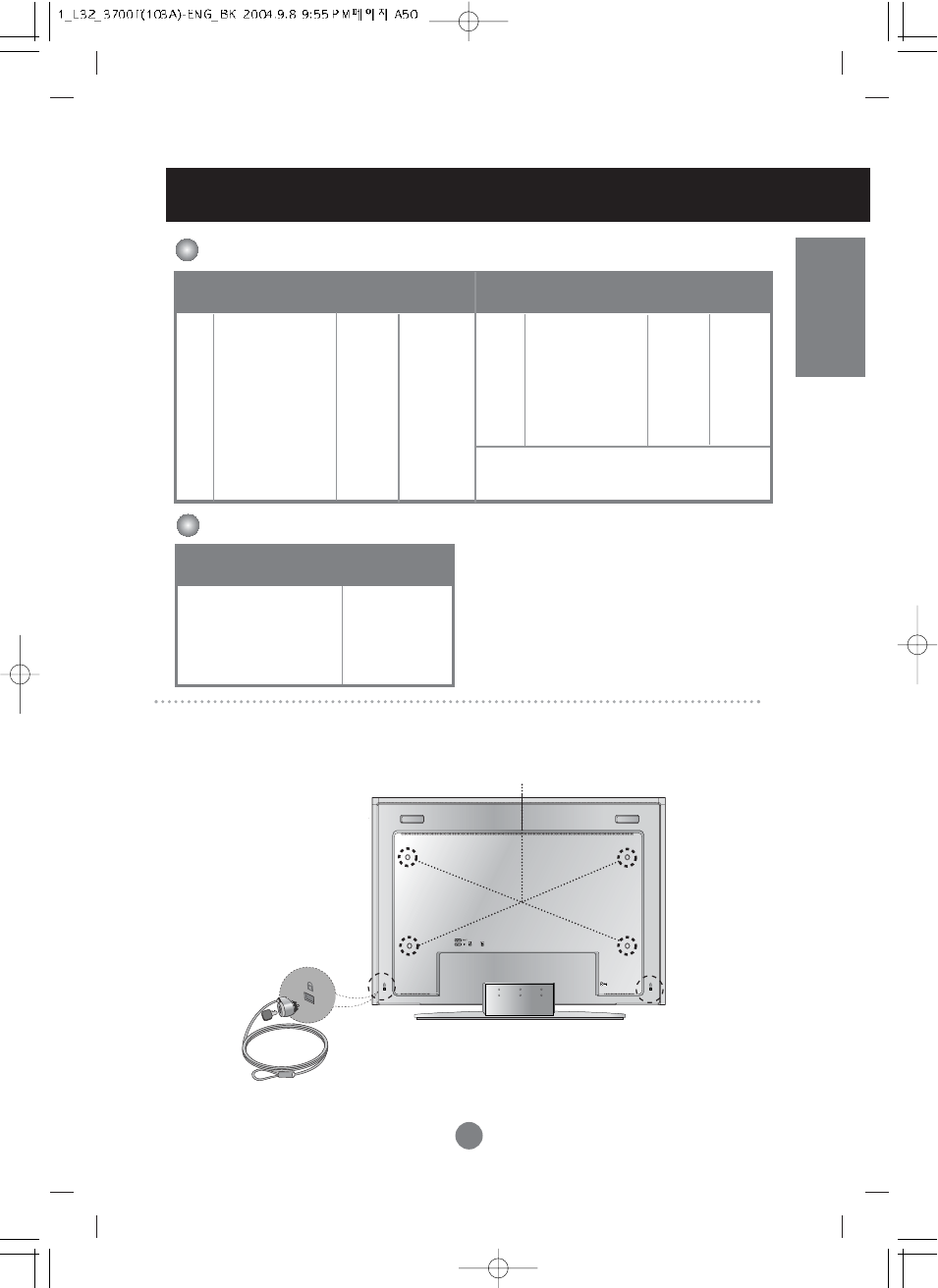

Power LED
Mode Monitor
Normal Operation
Pre-power Saving State
Power Saving State
Power Switch Off
Power Cut-off Switch Off
Green
Amber
Amber
-
-
DSUB : Mode 1 ~ Mode 16
DVI-D : Mode 1 ~ Mode 15
Kensington Security Slot-optional
Connected to a locking
cable that can be purchased separately at most
computer stores
VESA wall mounting
Connected to another object (stand type and wall-mounted type. This
monitor accepts a VESA-compliant mounting interface pad.- optional)
For further information, refer to the VESA Wall Mounting Instruction
Guide.
