Radio-Car (LAN5200WR,LAN5210WR)
User’s Manual
GB.1
ENG_UD4272_1
ITD2 - Sommaire (XNX - Renault)
Contents
Précautions d’utilisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.3
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.5
General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.5
Introduction to the controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.8
Switch on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.10
Operate and use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.11
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.12
Radio / AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.13
Listen to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.13
Auxiliary audio sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.16
Audio setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.19
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.20
The navigation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.20
Read a map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.21
Entering a destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.24
Guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.30
Map settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.35
Managing the favourites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.36
Navigation settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.38
Bluetooth device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.41
Pairing/unpairing Bluetooth® devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.41
GB.2
ENG_UD4272_1
ITD2 - Sommaire (XNX - Renault)
Connecting/disconnecting Bluetooth® devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.43
Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.44
Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.45
Receiving/during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.46
System settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.47
Software update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.49
Map update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.50
Operating faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GB.51
GB.3
ENG_UD24650_1
ULC/Pr cautions d’utilisation (ULC - Renault)
Précautions d’utilisation
The description of the models given in this manual is based on the specifications at the time of writing. This manual covers all
existing functions for the models described. Whether or not they are fitted depends on the equipment model, options selected
and the country where it is sold. This manual may also contain information about functions to be introduced later in the year.
– Operate the controls (on the dash or near the steering wheel) and read the information on the screen only when road
conditions allow.
– Set the volume to a reasonable level so that outside noise can be heard.
– Use of the navigation system does not in any way replace the responsibility or vigilance of the driver when driving the vehi-
cle.
– Depending on the geographical zones, the system may not have the latest information on new roads. Be alert. In all cases,
Road Traffic Regulations and road signs always take precedence over the directions of the navigation system.
– Do not attempt to dismantle or modify the system, as there is a risk of damage to equipment and fire.
– Contact a representative of the manufacturer in the event of malfunction and for all operations involving disassembly.
– Do not insert foreign bodies into the player.
– There are laws which govern the use of phones in vehicles. They do not necessarily authorise the use of hands-free phone
systems under all driving conditions: drivers must be in control of their vehicles at all times;
– Using a phone whilst driving is a significant distraction and risk factor during all stages of use (dialling, communicating,
searching for a number in the handset memory, etc.).
It is essential to follow the precautions below when using the system, both in the interest of safety and to prevent material damage.
You must always comply with the laws of the country in which you are travelling.
GB.4
ENG_UD3125_1
Filler NX (X06 - C06 - S06 - X35 - L35 - X44 - C44 - G44 - X45 - H45 - X65 - L65 - S65 - X73 - B73 - X74 - B74 - K74 - X77 - J77 - F77 - R77 - X81 - J81 - X84 - B84 - C84
RDS .......................................................................(current page)
GB.5
ENG_UD24665_1
ULC/ Description g n rale (ULC - Renault)
General information
General description
Your vehicle’s multimedia system per-
forms the following functions:
– RDS radio,
– management of auxiliary audio
sources,
– hands-free phone,
– navigation assistance.
The multimedia system can be used
to listen to FM (frequency modulation),
and AM (amplitude modulation) radio
stations.
The RDS system makes it possible to
display the name of some stations and
also for information messages sent by
FM stations to be heard automatically:
– traffic bulletins,
– news bulletins,
– emergency messages.
You can listen to your personal stereo
directly through your vehicle’s speak-
ers. There are several ways of connect-
ing your personal stereo, depending on
the type of device you have and the ve-
hicle:
– 3.5 mm Jack socket;
– audio multi-connection unit (USB);
– Bluetooth® connection.
For more information on compatible de-
vices, contact your approved manufac-
turer’s dealer or visit the manufacturer’s
website, where available.
GB.6
ENG_UD24665_1
ULC/ Description g n rale (ULC - Renault)
Jaune Noir Noir texte
The hands-free Bluetooth® phone
system makes the following functions
possible without having to handle your
phone:
– send/receive/suspend a call;
– transfer the list of contacts from the
phone memory;
– access the call logs for calls which
have come through the system;
– dial emergency numbers.
The navigation system automatically
calculates the geographical position of
the vehicle by receiving GPS signals.
It suggests a route to your chosen des-
tination using its road map.
Finally, it indicates the route to take,
step by step, using the display screen
and voice messages.
Some phones are not compatible with
the hands-free system, and do not
enable you to use all of the available
functions or do not provide the best
possible sound quality.
For more information on compatible tel-
ephones, contact your approved man-
ufacturer’s dealer or visit the manufac-
turer’s website, where available.
Your hands-free phone system is only intended to facilitate communication by reducing the risk factors, without remov-
ing them completely. You must always comply with the laws of the country in which you are travelling.
Jaune Noir Noir texte
GB.7
ENG_UD24665_1
ULC/ Description g n rale (ULC - Renault)

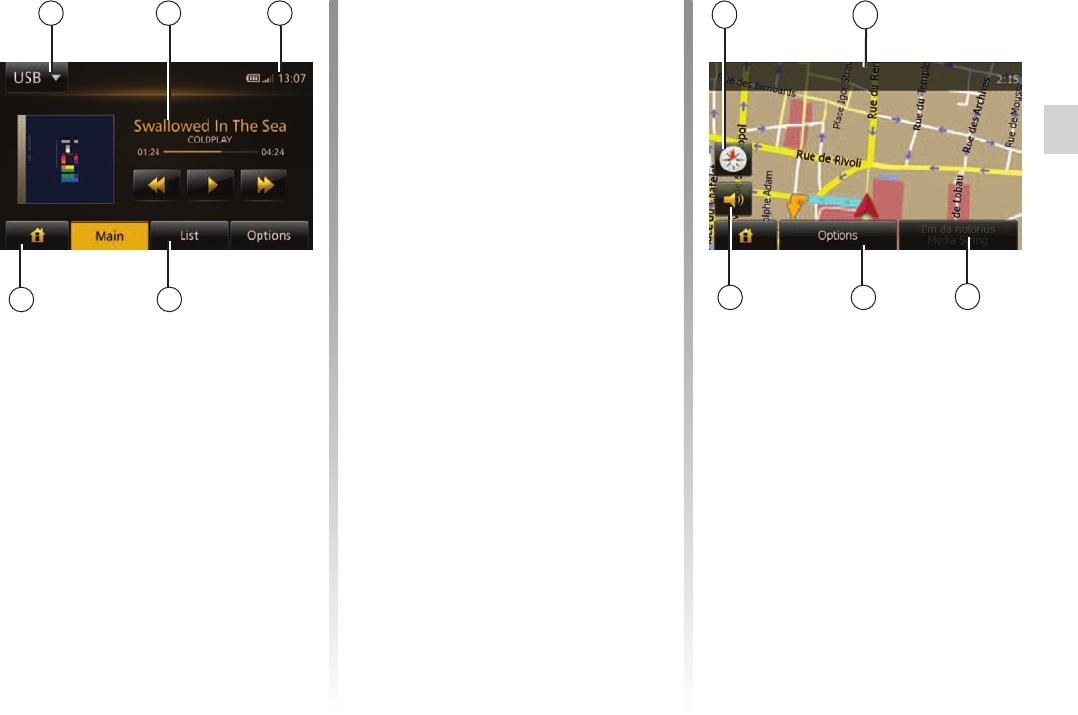

1 Mode selection area
– showing the selected mode
– when mode area is touched, rest
of the area will be showing mode list
2 Contents Area
showing the contents of menu item
and information
3 Time area
– showing the current time
– if Bluetooth is connected, it is dis-
played in the indicator area.
4 Home area
Home or Back button: goes back to
the home menu or previous screen.
5 Menu area
– display subordinate menu of
mode
– showing current menu as high-
lighted color
6 Map view mode (2D/3D)
7 Current street
8 Current audio information
9 Options for route and map setting
10 Voice guidance On/Off
GB.8
ENG_UD24666_1
ULC_Pr sentation commande (ULC - Renault)
Jaune Noir Noir texte
Introduction to the controls
Jaune Noir Noir texte
GB.9
ENG_UD24666_1
ULC_Pr sentation commande (ULC - Renault)

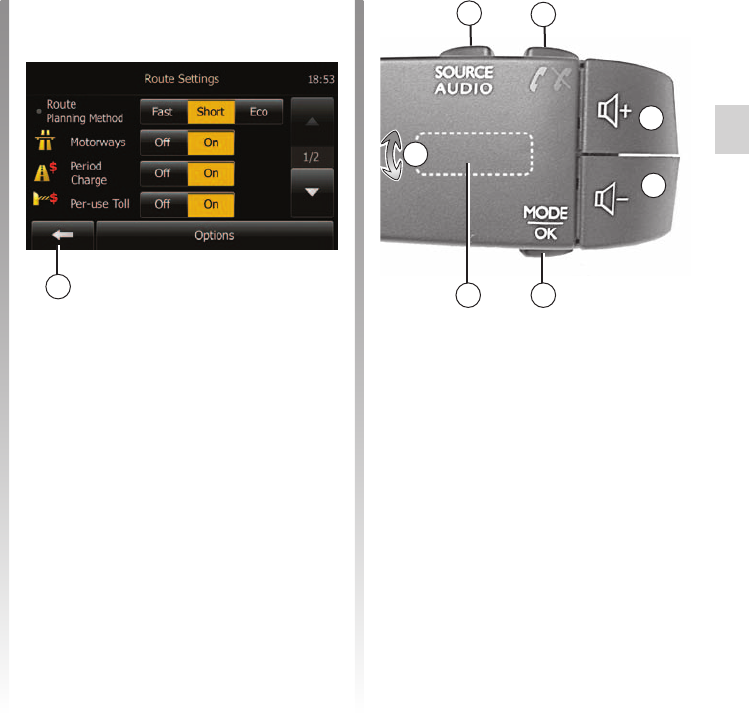

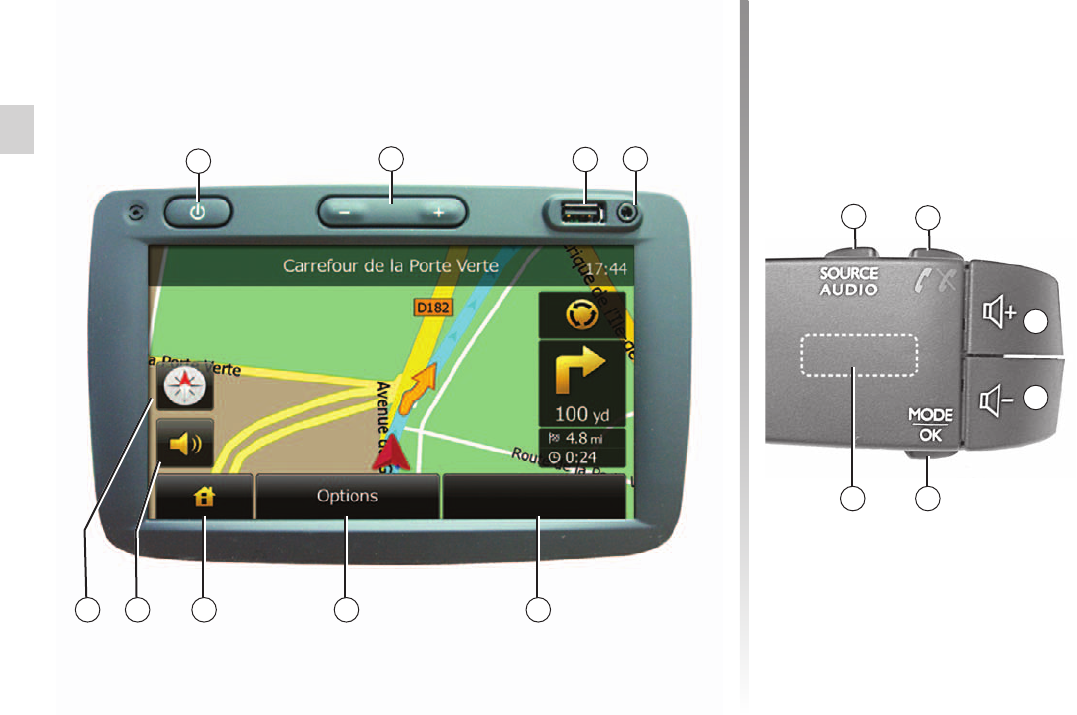

AShort press: standby screen mode On/Off
B, M/N Adjust the volume
CUSB socket
D3.5mm Jack socket
EAccess the current media (Radio, AUX) source
FAccess the option menu
GAccess the home menu
HMute/unmute the voice guidance
JChange the map view mode (2D/3D)
K1st press: access functions for the source currently in use.
Successive presses: select the audio source (Radio, AUX)
LAnswer/end a call
M+N Mute/unmute the sound
PChange mode for choosing a radio station (Main, List, Preset)
Q
Radio: search for a radio station
Media: search for audio track
operation...............................................(up to the end of the DU)
switching off ..........................................(up to the end of the DU)
screen
monitor ............................................ (up to the end of the DU)
GB.10
ENG_UD24667_1
ULC/Marche/Arr t (ULC - Renault)
Switch on/off
The multimedia system switches on au-
tomatically when the ignition is switched
on.
In other cases, press button A to switch
on the multimedia system.
With the ignition off, you can use the
system for 10 minutes.
Press A to make the multimedia system
operate for a further 10 minutes.
The standby clock mode allows the dis-
play screen to be switched off.
When in standby clock mode, the
system is still operating. The radio or
guidance system will continue to oper-
ate.
Press button A to activate and briefly
press A to deactivate the screen
standby.
Any action will temporarily reacti-
vate the screen.
The system switches off automatically
when the vehicle’s ignition is switched
off.
GB.11
ENG_UD24668_1
ULC/Principes d’utilisation (ULC - Renault)
Operate and use
Press button P to change the radio sta-
tion search mode.
Rotate wheel Q to change the station
(movement R).
Press K to change the source (AUX,
AM, FM).
– Item selection
– Item execution (Media playing
screen)
When touching forwards button,
moves toward the next song.
– Item store (Radio screen)
When touching with long presses the
preset number, stores the current
radio channel.
– Move to scroll with acceleration
When touching with long presses the
list down buttons, scroll (per page)
with acceleration.
– fast-forward or rewind (Media play-
ing screen)
When touching with long presses
forwards or backwards button, fast
winding the song.
System goes back to Home menu di-
rectly once you press and hold 1 wher-
ever it is.
volume ..................................................(up to the end of the DU)
mute......................................................(up to the end of the DU)
call volume............................................(up to the end of the DU)
volume: adapted to speed ..................................... (current page)
GB.12
ENG_UD24669_1
ULC/Volume (ULC - Renault)
Volume
Adjust the sound level when listening to
the different sources, messages, ring-
tones and phone communications:
– by pressing B;
– or by pressing G/H.
The radio source being listened to is in-
terrupted when “TA” information, news
bulletins or a warning message is re-
ceived.
Press simultaneously on G/H to mute
the sound.
This function is deactivated automati-
cally when the volume control is used
or when a news or road traffic bulletin
is broadcast.
When this function is activated, the
audio and navigation volume will vary
according to the vehicle speed.
To activate and adjust this function,
refer to the information on “Speed de-
pendent volume control” of the section
on “Audio settings”.
Set the volume to a reason-
able level so that outside
noise can be heard.
range of wavelengths ........................... (up to the end of the DU)
FM/LW/MW bandwidths ........................ (up to the end of the DU)
PRESET mode ..................................... (up to the end of the DU)
storing a radio station ........................... (up to the end of the DU)
LIST mode .............................................................(current page)
MANU mode ..........................................................(current page)
GB.13
ENG_UD24670_1
ULC/Ecouter la radio (ULC - Renault)
Radio / AUX
Listen to the radio

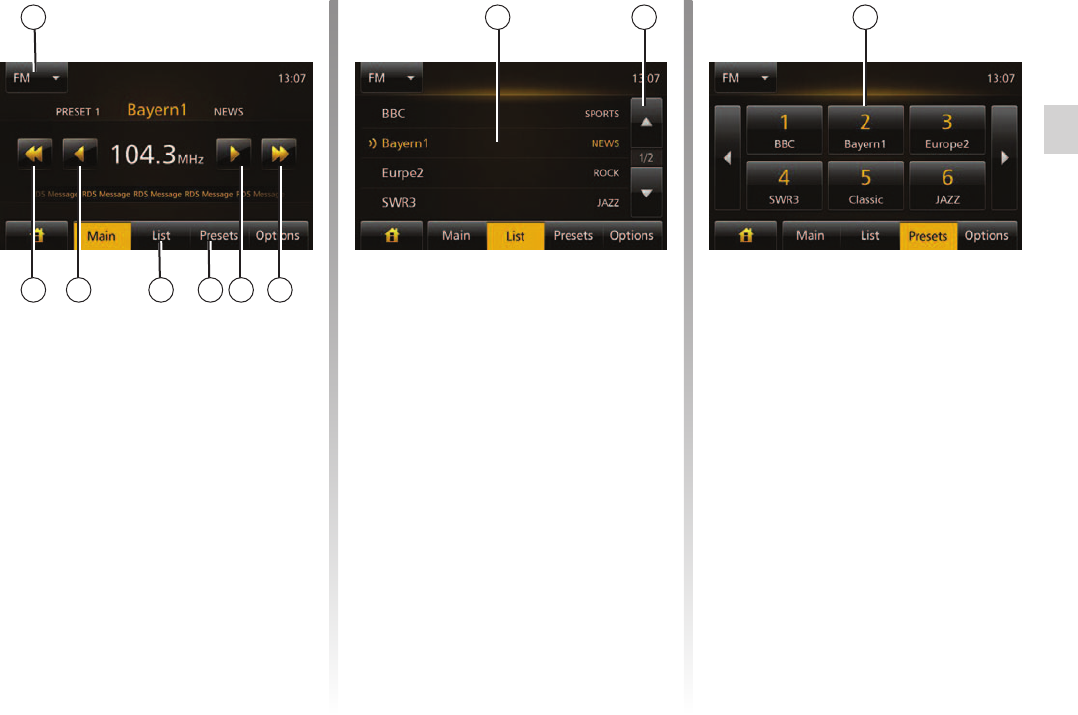

Press 1.
Select the wavelength (FM or AM) re-
quired by pressing wavelength.
There are different modes for choosing
a radio station.
After having selected the wavelength,

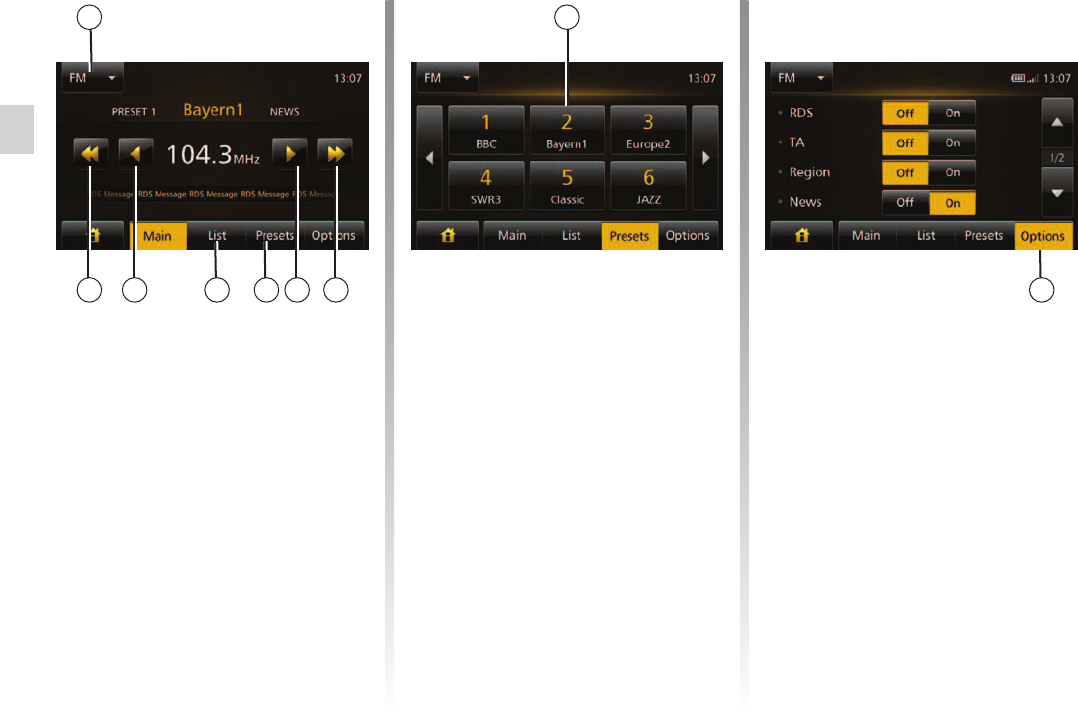

select the mode by pressing 4 or 5.
Select the List mode by pressing 4.
This operating mode allows you to find
a station easily by name from an alpha-
betical list (with FM only).
It is possible to scan up to 50 available
radio stations.
Select the stations required by press
ing zone 6
Press 7 to scroll through all the sta-
tions.
The names of the radio stations that
do not use RDS will not appear on the
screen. Only their frequency is dis-
played and sorted at the end of the list.
Select the Presets mode by pressing 5.
This operation mode allows you to
recall on demand those stations which
you have already stored (refer to infor-
mation on “Storing a station” in this sec-
tion).
Press zone 8 to select your stored sta-
tions.
GB.14
ENG_UD24670_1
ULC/Ecouter la radio (ULC - Renault)
Jaune Noir Noir texte
This mode allows stations to be
searched manually by scanning the se-
lected wavelength.
Scan the wavelength (advancing in in-
crements of 0.05) by repeatedly press-
ing 3.
Briefly press 2 to start an automatic
search for radio stations.
Repeat the operation each time the
search stops if necessary.
You can also move wheel Q to launch
an automatic station search.
Select a radio station by using one of
the modes described above.
Press and hold one of the buttons on
the zone 8.
You can store up to 12 stations per
wavelength.
Display the settings menu by press-
ing 9. You can activate or deactivate
functions by pressing “On” or “Off” (the
setting menu varies depending on the
wavelength).
– RDS
– TA (Traffic announcement)
– Region
– News
– AM
– Update List
RDS .......................................................................(current page)
Jaune Noir Noir texte
GB.15
ENG_UD24670_1
ULC/Ecouter la radio (ULC - Renault)
Some FM radio stations broadcast text
information relating to the programme
being listened to (the name of a track,
for example).
this information is only available
on some radio stations.
When this function is activated, your
audio system makes it possible to au-
tomatically search for and listen to traf-
fic information when they are broadcast
from certain FM radio stations.
Once the function is activated, select
the news station then choose if you re-
quire another playback source.
Traffic information is broadcast au-
tomatically and has priority over the
source being listened to at the time.
The automatic broadcasts will not oper-
ate when listening to radio stations on
the AM wavelength.
When this function is activated, it is
possible to automatically listen to news
when they are broadcast by certain FM
radio stations (depending on country).
If you then select the other sources,
when a broadcast of the selected pro-
gramme type is made, it will interrupt
the other sources.
To activate/deactivate this function,
refer to information on “Radio settings”
in this section.
You can activate or deactivate the AM
wavelength. To activate/deactivate this
function, refer to information on “Radio
settings” in this section
To update the list of stations and obtain
the most recent ones, press “Start”
(only for FM).
To activate/deactivate this function,
refer to information on “Radio settings”
in this section.
The frequency of an FM radio station
may change depending on the geo-
graphical area.
In order to keep listening to the same
radio station when driving, activate
the Region function so that your audio
system can automatically retune the
frequency.
not all radio stations offer this
possibility.
Poor reception can sometimes cause
erratic and annoying changes in fre-
quency. In this case you should deac-
tivate this function.
To activate/deactivate this function,
refer to information on “Radio settings”
in this section.
CD/MP3 CD
listen ...............................................(up to the end of the DU)
CD/MP3 CD
eject ................................................(up to the end of the DU)
CD/MP3 CD
maintenance ...................................(up to the end of the DU)
CD/MP3 CD
random playback ............................(up to the end of the DU)
CD/MP3 CD
fast winding ..................................... (up to the end of the DU)
CD/MP3 CD
searching for a track .......................(up to the end of the DU)
CD changer .......................................... (up to the end of the DU)
file .........................................................(up to the end of the DU)
inserting a CD ........................................................(current page)
GB.16
ENG_UD24671_1
ULC/Auxiliary audio sources (ULC - Renault)
Jaune Noir Noir texte
Auxiliary audio sources
Your system is fitted with an audio mul-
ticonnection unit comprising two auxil-
iary inputs for connecting an external
audio source (MP3 player, portable
audio player, USB key etc.).
To find the input position, please refer
to the section on “Introduction to the
controls”.
There are two types of connections:
– a USB socket,
– a jack.
Connect your portable audio player, de-
pending on the type of device.
Once you have connected a USB
socket or jack, the system automati-
cally detects the auxiliary source.
In navigation mode or when listening
to the radio, select your auxiliary audio
source by pressing “Home” > “MEDIA”.
The system starts playing the last audio
track played.
any change to the external audio
source which is made when the system
is not active will not be automatically
taken into account.
To change the auxiliary source, tap 1
to show the list of auxiliary sources and
then tap the desired auxiliary source
from the following possibilities:
– USB
– iPod
– BT: Bluetooth® devices
– AUX: 3.5mm jack
The auxiliary audio source formats in-
clude MP3, WMA and OGG.
Press and hold 2 to fast forward or
rewind.
Playback resumes when the button is
released.
This function allows you to repeat one
song or all songs.
Tap 3 and then tap “Off”, “Track”, or
“All”.
This function allows you to play all
songs randomly. Tap 3 and then tap
“On” or “Off”.
Only handle the portable audio player when traffic conditions permit.
Store the portable audio player safely while driving (risk of being thrown
in the event of sudden braking).
CD/MP3 CD
changing a WMA CD album .............................(current page)
CD/MP3 CD
changing an MP3 album ..................................(current page)
CD/MP3 CD
repeat ...............................................................(current page)
CD/MP3 CD
file repeat (MP3) ..............................................(current page)
CD/MP3 CD
file repeat (WMA) ............................................. (current page)
CD/MP3 CD
track repeat (MP3) ...........................................(current page)
CD/MP3 CD
track repeat (WMA) ..........................................(current page)
pause ..................................................................... (current page)
Jaune Noir Noir texte
GB.17
ENG_UD24671_1
ULC/Auxiliary audio sources (ULC - Renault)
Connect the socket of your portable
audio player to the USB input on the
unit.
Connect the socket of your portable
audio player to the USB input on the
unit.
Once the USB socket of the digital port-
able audio player is connected, the
“USB” menu is displayed.
depending on the digital porta-
ble audio player, some digital portable
audio player may not be connected.
Connect the socket of your iPod to the
USB input on the unit.
Once the USB socket of the iPod de-
vices is connected, the “iPod” menu is
displayed.
use the iPod cable for exclusive
use of iPod when connecting iPod to
the USB socket.
Refer to the section on “Connecting/
disconnecting Bluetooth® devices”.
Once Bluetooth® is connected, the
“BT” menu is displayed.
Depending on the type of portable
audio player, select a folder (MP3
player, USB key) or a playlist (portable
digital music player).
once connected, you can no
longer directly control your portable dig-
ital audio player. You must use the keys
on the system’s front panel.
To select an audio track within a folder,
tap “List”.
To go back to the previous level in the
folder hierarchy, tap 4.
By default, albums are listed in alpha-
betical order.
if you connect a USB key, all the
folders will be at the same level on the
tree structure.
Depending on the type of digital port-
able audio player, you can refine your
selection by using folders or files or by
searching the following criteria:
– artist,
– album,
– genre,
– playlist,
– all tracks.
Connect the jack of your portable audio
player to the jack input.
No indication of the name of the artist or
the track is displayed on the system’s
screen.
you cannot select a track directly
from your audio system.
To select a track, you must do so di-
rectly via your portable audio player,
when the vehicle is stationary.
FADER................................................................... (current page)
bass .......................................................................(current page)
BALANCE .............................................................. (current page)
treble......................................................................(current page)
BASS .....................................................................(current page)
setting ....................................................................(current page)
settings
audio ................................................................(current page)
settings
fader .................................................................(current page)
settings
balance ............................................................(current page)
balance ..................................................................(current page)
GB.19
ENG_UD24672_1
ULC/R glages audio (ULC - Renault)
Audio setting
Display the settings menu by pressing
“Home” > “SETTING”. Tap 4.
: the system exits the settings
mode automatically without the need
for any action on the part of the user.
You can also exit the settings mode by
pressing 2.
When the speed of your vehicle is more
than 40km/h, the volume level outputs
higher than original volume level.
Adjust the volume/speed ratio by press-
ing zone 1.
Tap “Off” or “On” to turn off or on the
loudness.

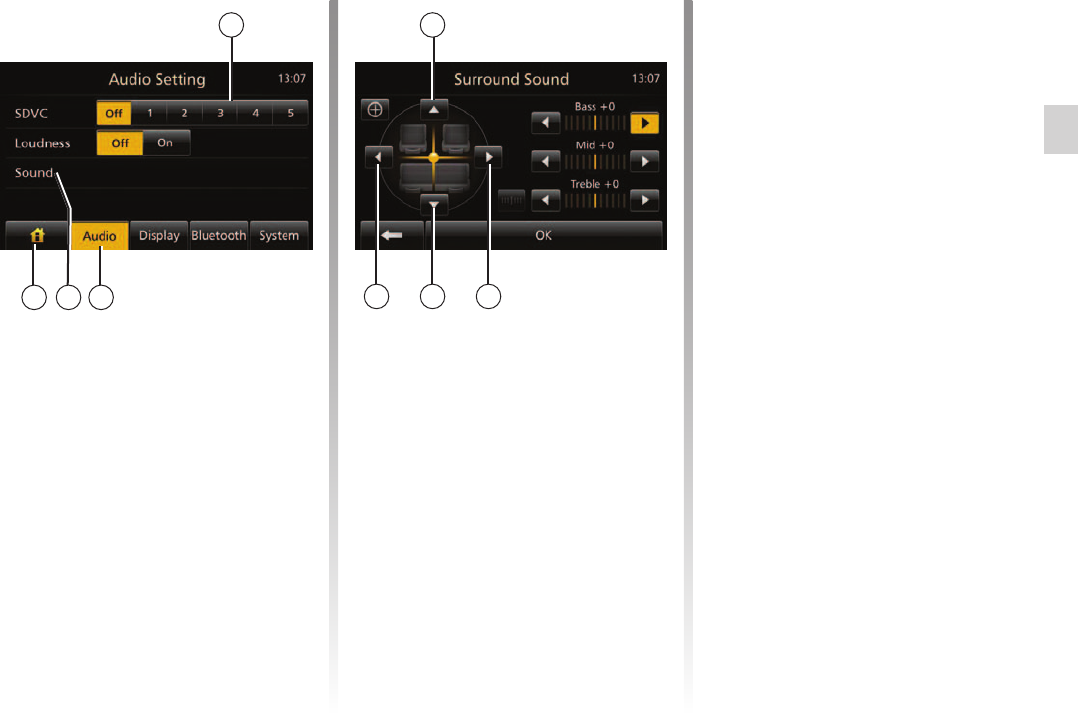

Display the sound menu by pressing 3.
Tap 6 or 8 to adjust the sound the left/
right balance.
Tap 5 or 7 to adjust the sound the front/
rear balance.
After setting balance, tap “OK”.
Tap left arrow or right arrow to adjust
the Bass, Mid or Treble.
After setting Bass, Mid or Treble, tap
“OK”.
GPS
receiver ...........................................(up to the end of the DU)
GPS
reception ..........................................................(current page)
map
digitised map ....................................................(current page)
GB.20
ENG_UD24673_1
ULC/Le syst me de navigation (ULC - Renault)
Navigation
The navigation system
The navigation system calculates your
position and guides you by using data:
– from the GPS receiver;
– from the digital map.
The navigation system uses GPS
(Global Positioning System) satellites
orbiting the Earth.
The GPS receiver receives signals
transmitted from several satellites. The
system can then locate the position of
the vehicle.
after moving a long distance
without driving (ferry, rail freight), the
system may take several minutes to
adjust before retuning to normal opera-
tion.
The digital map contains the road maps
and town maps that the system re-
quires.
The most recent version is installed by
inserting your USB key into a computer
that is connected to the internet. Refer
to the section on “Map update”.
USB key does not supplied with
the system.
If possible, always use the most recent
version.
Connect the USB key to the USB
input 1 on the unit.
map
display ..............................................................(current page)
map
scale ................................................................(current page)
GB.21
ENG_UD24674_1
ULC/Lire une carte (ULC - Renault)
Read a map
To display the map around the location
of the vehicle, tap “Home” > “MAP”.
Touch the map screen.
To move around the navigation map,
drag desired direction on the screen.
Tap 3 to change the scale.
Rotate the map by pressing 1.
4 Name of the next major road or road
sign information, if applicable.
5 Distance to and direction of next
change of direction.
6 Estimated time of arrival
7 Distance remaining to the destina-
tion
8 Location of the vehicle on the navi-
gation map
9 Route calculated by the navigation
system
10 Indicates the direction change
11 Compass
12 Mute voice guidance on/off
This function makes it possible to find
out the geographical location of the se-
lected position (Address/latitude/longi-
tude).
Touch desired position on the screen.
Press “Options” and then press “Info” to
find out exact location of the selected
position.
It indicates North whatever the position
of the map.
Press 11 to change the map view be-
tween 2D and 3D.
The navigation system uses icons 2 to
display points of interest (POI). Refer to
the information on “Display points of in-
terest” in the section on “Map settings”.
GB.22
ENG_UD24674_1
ULC/Lire une carte (ULC - Renault)
Jaune Noir Noir texte
This function allows you to check infor-
mation about the current position and
to search for POI nearby. It operates
when GPS is connected.

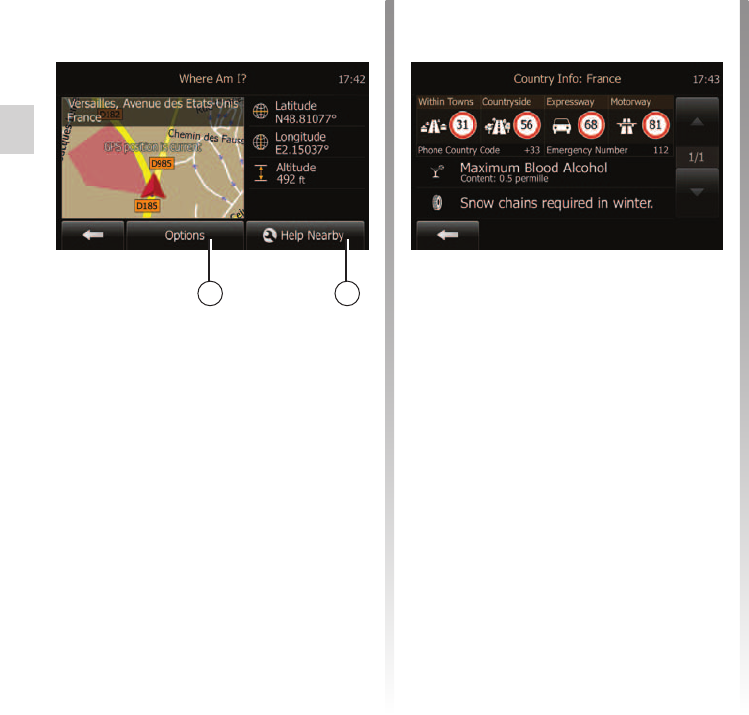

Tap “Options” on the map screen and
then tap “Where Am I?”.
This screen includes information below:
– Latitude;
– Longitude;
– Altitude;
– Current address.
Tap 13 and then tap “Country Info”.
This function allows you to check coun-
try information about current position.
Information on this screen includes:
– Speed limits;
Speed limits are displayed for cities
(urban areas), countryside (rural
areas), expressways and freeways.
Displayed unit depends on active re-
gional settings. If data not available,
then “--” shown instead of table and
number.
– Phone country code;
– Emergency number;
– Legal Restrictions effective in the
country:
– Maximum blood alcohol;
– Visibility vest required;
– Fire extinguisher required;
– Headlights must be on at all
times;
– Spare bulbs required;
– First aid kit required;
– Warning triangle required;
– Helmets required for motorcy-
clists;
– Snow chains required in winter;
– Snow chains recommended in
winter;
– Winter tyres required in winter;
– Winter tyres recommended in
winter.
Jaune Noir Noir texte
GB.23
ENG_UD24674_1
ULC/Lire une carte (ULC - Renault)
This function allows you to search for
assistance near your current position.
Tap 14 to open a new screen for the
quick search.
Information on this screen:
– Car repair services;
– Medical and emergency services;
– Police stations;
– Gas stations.
To search a destination from this
screen, refer to the section on “Entering
a destination” and the information on
“Select one of the “Points of Interest
(POI)”.
destination ............................................ (up to the end of the DU)
entering an address ............................................... (current page)
GB.24
ENG_UD24675_1
ULC/Entrer une destination (ULC - Renault)
Jaune Noir Noir texte

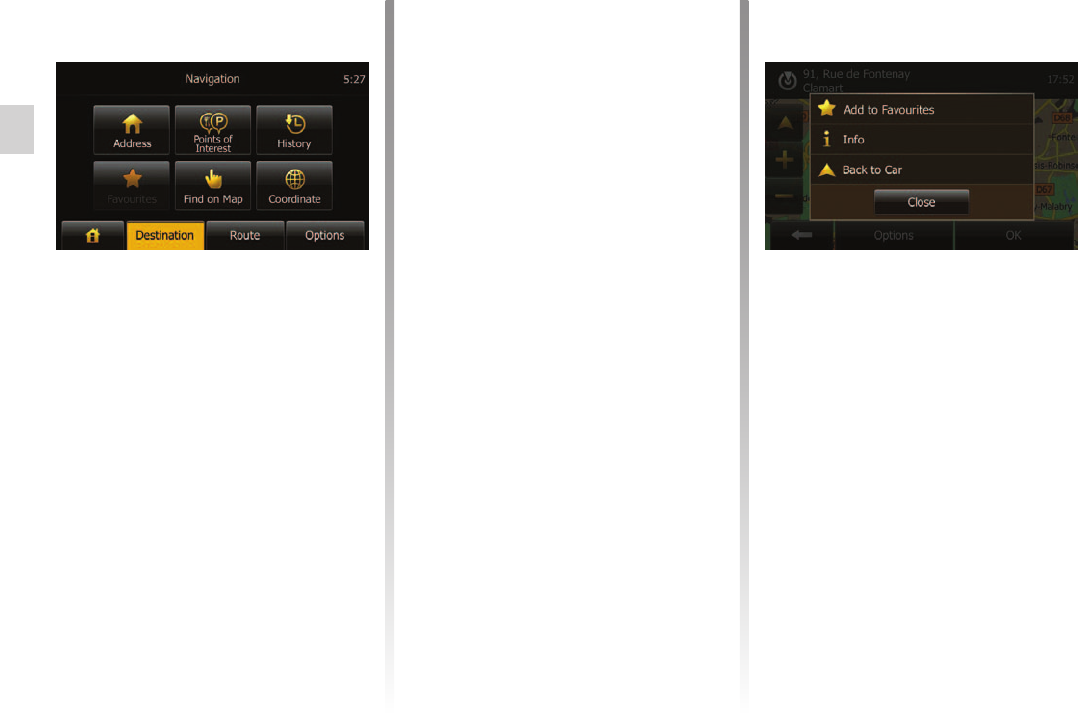

Entering a destination
Tap “Home” > “NAVI” > “Destination” to
access the destination menu.
The destination menu offers several
methods to enter a destination:
– enter an address (complete or par-
tial);
– select an address from Points of
Interest (POI);
– select a destination from the previ-
ous destinations;
– select an address from the
Favourites;
– select for destination by using the
map;
– select a latitude and longitude.
Tap 1
This item allows you to enter all or part
of the address: country, town, street
and number.
Only addresses known to the system
will be recognised.
Tap the “Country”.
Tap the keyboard button to enter the
name of the country required.
When entering the address the system
will remove the brightness of certain let-
ters to help enter the address.
The system may suggest several coun-
try lists by pressing 2. Select the re-
quired country in the lists.
Proceed in the same way for “Town/
Suburb”, “Street”, “Intersecting Street”
and “Street Number”.
: “Intersecting Street” and “Street
Number” might be activated after select
“Street”.
When entering the street, it is not
necessary to specify the type of road
(street, avenue, boulevard etc.).
point of interest ......................................................(current page)
POI ........................................................................ (current page)
Jaune Noir Noir texte
GB.25
ENG_UD24675_1
ULC/Entrer une destination (ULC - Renault)

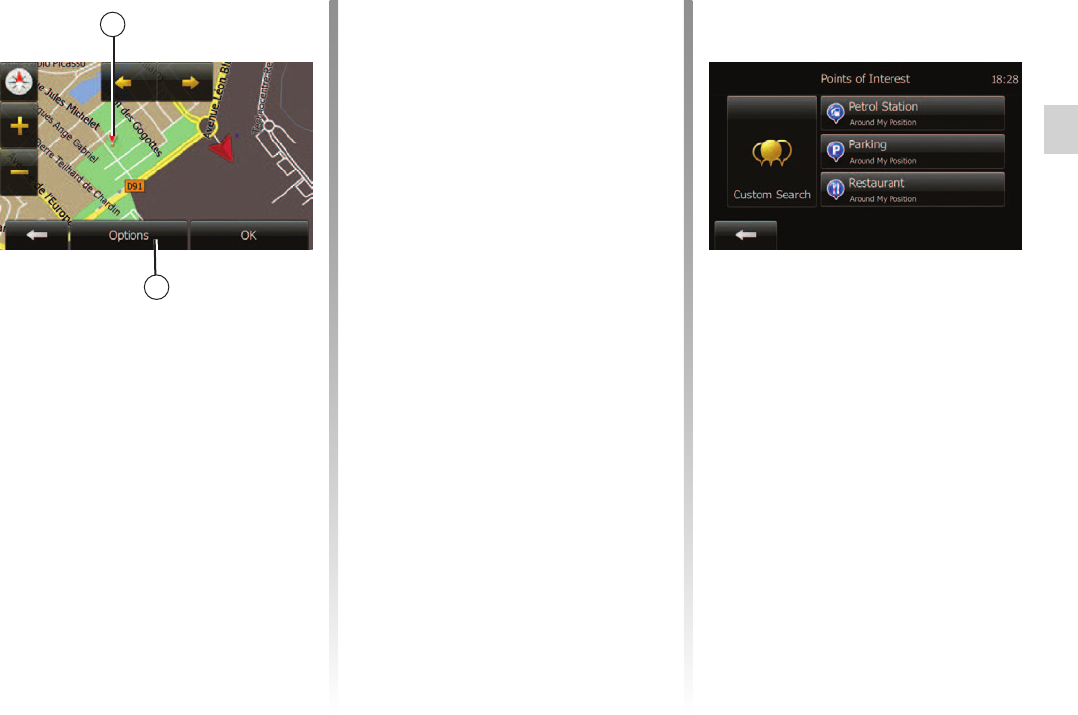

The quick search feature lets you
quickly find a place.
Tap the map somewhere to search for
points of interest. The point 3 appears.
Tap 4 and then tap “Points of Interest
Around Cursor” to show the list of points
with names and distance from point 3.
The preset search feature lets you
quickly find the most frequently se-
lected types of places.
Tap “Home” > “NAVI” > “Destination”
> “Points of Interest” to access preset
categories.
You can select your destination from
the Points of Interest.
You can find a place in different ways:
– with the quick search feature, you
can quickly find a nearby place by its
name.
– with the preset search feature, you
can find frequently searched types of
places with only a few screen taps.
– you can search for a place by its cat-
egory.
– If an active route exists, “Petrol
Station” and “Restaurant” are
searched along the route, and
“Parking” is searched around the
destination.
– If there is no active route (destination
is not selected), they are searched
around the current position.
– If the current position is not availa-
ble either (no GPS signal), they are
searched around the last known po-
sition.
POI ........................................................................ (current page)
point of interest ......................................................(current page)
GB.26
ENG_UD24675_1
ULC/Entrer une destination (ULC - Renault)
Jaune Noir Noir texte
– Tap “Along Route” to search along
the active route, and not around a
given point. This is useful when you
search for a later stopover that re-
sults in a minimal detour only, such
as searching for upcoming gas sta-
tions or restaurants (the result list will
be ordered by the length of the nec-
essary detour).
– Tap “Around My Position” to search
around the current position or if it is
not available, around the last know
position (the result list will be ordered
by the distance from this position).
– Tap “Around Destination” to search
for a place around the destination
of the active route (the result list will
be ordered by the distance from the
destination).

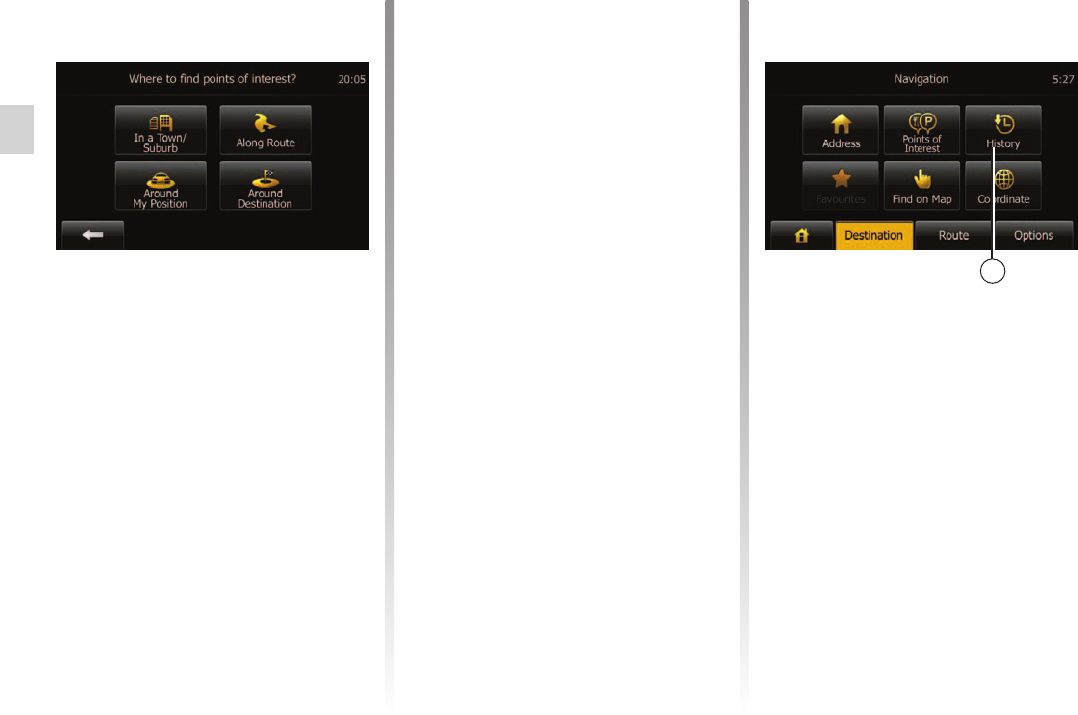

You can search for Points of Interest by
their categories and subcategories.
Tap “Home” > “NAVI” > “Destination” >
“Points of Interest” > “Custom Search”.
Select the area around which the place
should be searched for:
– Tap “In a Town/Suburb” to search
for a place within a selected town/
suburb (the result list will be ordered
by the distance from the center of the
selected city/town).
You can find the destination to a loca-
tion that you have lastly set as the des-
tination.
Tap “Home” > “NAVI” > “Destination”.
Tap 5.
address book .........................................................(current page)
Jaune Noir Noir texte
GB.27
ENG_UD24675_1
ULC/Entrer une destination (ULC - Renault)
You can find the destination to a loca-
tion stored in the Favourites. To utilize
this function more effectively, destina-
tions that you often travel to should be
stored in advance.
First of all, store in the Favourites by
searching the address. Refer to the
section on “Managing the favourites”.
Tap “Home” > “NAVI” > “Destination”
> “Favourites” to display the list of fa-
vorite destinations.
This allows you search for a destination
by scrolling the map.
Tap “Home” > “NAVI” > “Destination” >
“Find on Map” to select destination on
the map.
Tap somewhere on the map that you
want to select as your destination. The
point 6 appears.
Tap 7 to select the point 6 as the des-
tination.
This allows you search for a destination
by entering its coordinate.

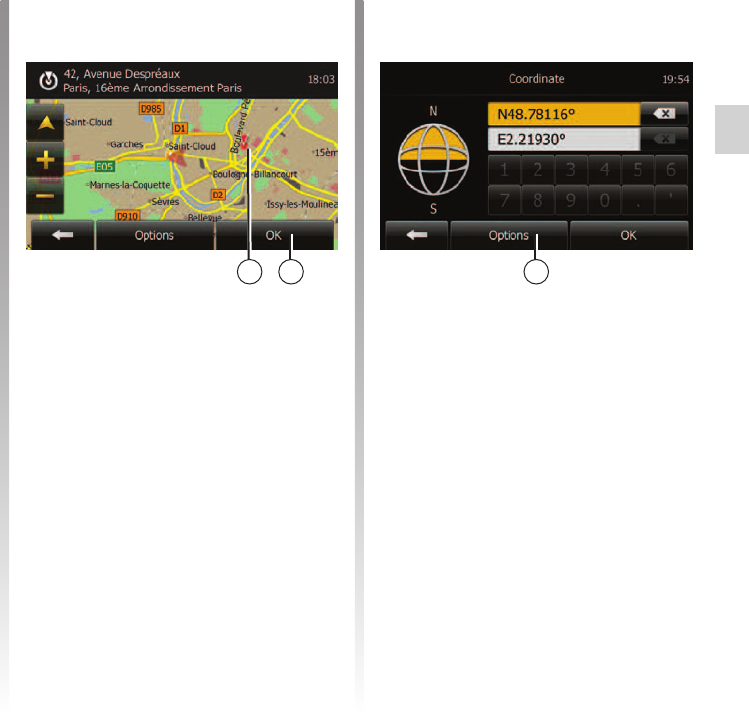

Tap “Home” > “NAVI” > “Destination” >
“Coordinate”.
You can enter the latitude and longitude
values in any of the following formats:
decimal degrees; degrees and decimal
minutes; or degrees, minutes and deci-
mal seconds.
Tap 8 and then tap “UTM” to enter the
coordinate in UTM format.
confirm a destination ............................................. (current page)
GB.28
ENG_UD24675_1
ULC/Entrer une destination (ULC - Renault)
Jaune Noir Noir texte
There are several possible options
before confirming a destination:
– OK;
– New route;
– Waypoint;
– Add to favourites;
– Info;
– Back to Car.

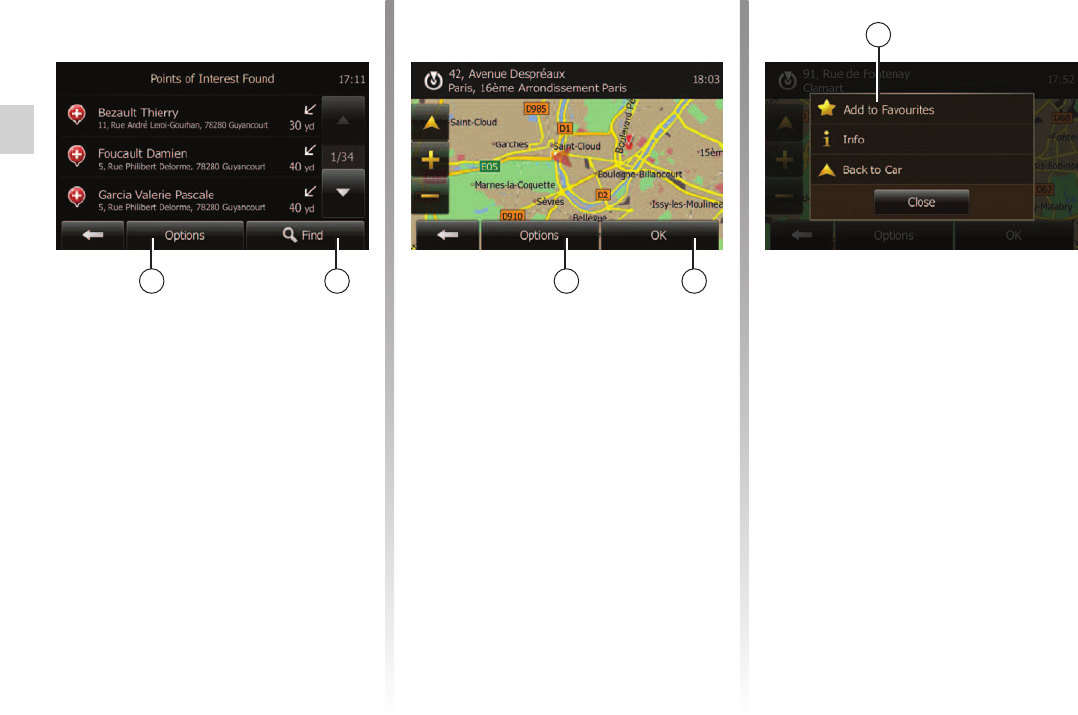

The result of searching a destination by
point of interest, history and favourites
can be sorted by name and distance.
If an active route exists, they can be
sorted by detour. And they also can be
shown all on map. Tap 9.
In case of selecting a destination by
point of interest, history and favourites,
you can search for destination in the
list by their names. Tap 10 and enter
names using keyboard.
– If there is no active route (destination
is not selected), tap 12 to confirm the
destination as a new route.
– If an active route exists, you can
select the destination as a new route
or waypoint. Tap 12 and then tap
“New Route” or “Waypoint”.
Tap 11 and then tap 13 to store se-
lected destination in favourites.
confirm a destination ............................................. (current page)
Jaune Noir Noir texte
GB.29
ENG_UD24675_1
ULC/Entrer une destination (ULC - Renault)
This item allows you to consult the ad-
dress, latitude, longitude and phone
number (phone number is only acti-
vated after selecting a point of interest).
Tap 14.
Tap 15 to move current vehicle loca-
tion.
guidance
activation ..........................................................(current page)
guidance
map ................................................. (up to the end of the DU)
guidance
split screen ......................................(up to the end of the DU)
guidance
voice ...............................................(up to the end of the DU)
screen
navigation display ...........................(up to the end of the DU)
screen
navigation screen ............................(up to the end of the DU)
stage ..................................................... (up to the end of the DU)
detailed route ........................................ (up to the end of the DU)
detour ................................................... (up to the end of the DU)
detour ................................................... (up to the end of the DU)
second route ......................................... (up to the end of the DU)
3D/2D mode .......................................................... (current page)
GB.30
ENG_UD24676_1
ULC/Guidage (ULC - Renault)
Jaune Noir Noir texte
Guidance
Select “OK” or wait 10 seconds after
having entered a destination. Guidance
will begin.
The system will offer several different
navigation maps.
Tap “Home” > “Options” > “Map
Settings” and then tap “2D” or “3D” to
change the map display.
You can also change the map display
by pressing compass on the map.
The different possible full screen dis-
plays are:
– 2D;
– 3D.
This mode allows you to view the navi-
gation map on the entire screen.
The information on the arrival time and
the distance remaining to the destina-
tion are located in the bottom right of
the map.
The indication for the next change of di-
rection is located in the right side of the
map.
2D/2D mode .......................................................... (current page)
Jaune Noir Noir texte
GB.31
ENG_UD24676_1
ULC/Guidage (ULC - Renault)
During guidance, before each change
of direction, the system will automati-
cally display a close-up of the intersec-
tion.
The system will automatically switch
back to normal scale after you have
passed through the intersection.
During guidance, before each motor-
way junction, this system will display a
3-dimensional view of the junction.
for some junctions, only a small
turn arrow will appear on the map.
The system will switch back to normal
mode after you have passed the junc-
tion.

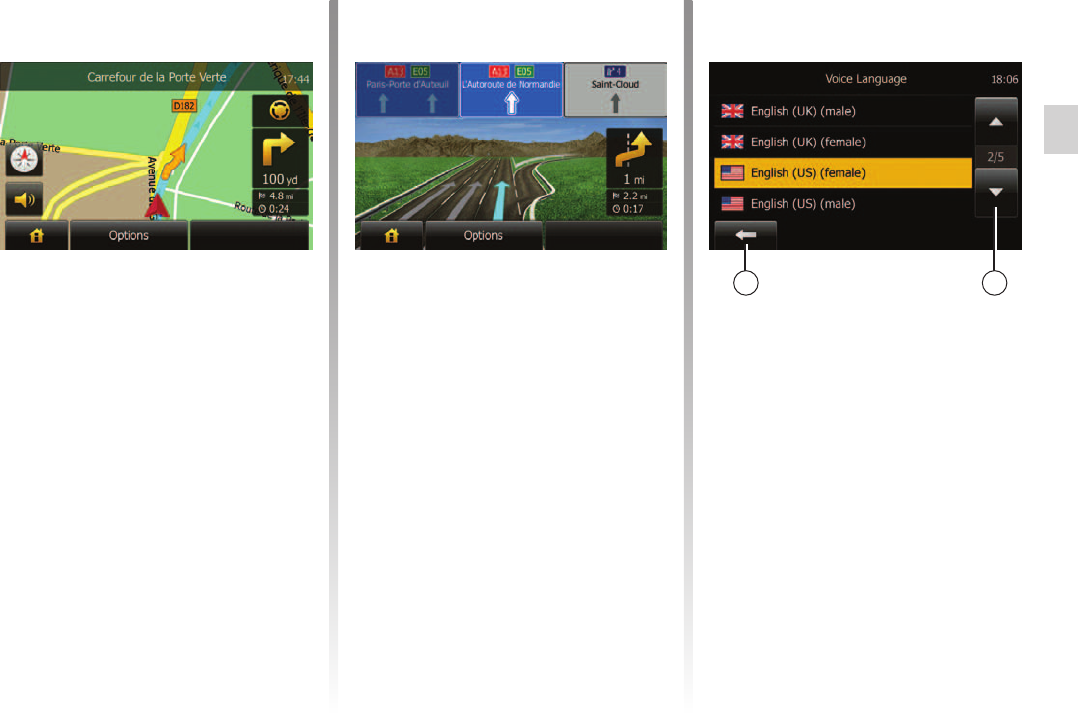

Tap “Home” > “Options” > “Voice
Settings” to change voice language.
Scroll the language list by pressing 2.
Tap the desired language and then
tap 1 to confirm.
GB.32
ENG_UD24676_1
ULC/Guidage (ULC - Renault)
Jaune Noir Noir texte
You have the following options on this
screen by pressing 3.
– Route Alternatives.
– Itinerary.
– Route settings.
: for more information, refer to the
section on next page.
– Simulate Navigation
This function allows you to quickly
view the required route.
Start the simulation by pressing 6.
Tap 8 to increase the speed of the
simulation.
You can leave the route simulation at
any given moment by pressing 4.
You can move to previous/next ma-
noeuvre by pressing 5 or 7.
This function allows you to view your
route.
Select “Home” > “Route” after having
entered a destination. Guidance will
begin.
Six choices will be given:
– “Edit Route”,
– “Avoidances”,
– “Overview”,
– “Cancel Route”,
– “Route Alternatives”,
– “Itinerary”.
Tap “Home” > “Route” > “Overview” to
get a map overview of the active route.
The following information will be given:
– The name and/or address of the des-
tination;
– The total time of the route;
– The total distance of the route;
– The route alternatives (e.g. Short,
Fast, Economical).
TMC (Traffic Message Channel) traffic detour ....... (current page)
Jaune Noir Noir texte
GB.33
ENG_UD24676_1
ULC/Guidage (ULC - Renault)
Tap “Home” > “Route” > “Edit Route”
to edit the route by modifying the list of
destinations. You can add or remove
destinations, reorder the list.
Tap 9 to add a new destination. It offers
several methods to enter a destination.
Refer to the information on “Entering a
destination”.
Tap 11 to delete a destination.
Tap 10 to reorder the list.
This item allows you to change route
planning method.
There are three options with distance
and time to change route planning
method:
– Short;
– Fast;
– Economical.
Refer to the information on “Route set-
tings” in the section on “Navigation set-
tings”.
Tap “Home” > “Route” > “Route
Alternatives” and then tap 15.
Confrim the new route by pressing 14.
Tap “Home” > “Route” > “Avoidances”
to make a detour. Tap a section on the
list you want to make a detour.
You can change the section by press-
ing 13.
Confirm the new route by pressing 12.
At any given moment, you can stop the
guidance.
Tap “Home” > “Route” > “Cancel Route”
to cancel the active route.
guidance
cancellation ...................................................... (current page)
GB.34
ENG_UD24676_1
ULC/Guidage (ULC - Renault)
Tap 16 to sort the details of the route:
– by summary;
It only shows the waypoints (start,
via, destination) and their distance,
remaining time and arrival time.
– by normal;
It shows all the maneuvers and their
signpost information, route numbers,
street name and distance. It also
shows informational and warning en-
tries, such as settlement names the
driver enters, restrictions (access
and maneuver restrictions), ignored
user preferences, etc.
– by road list.
It sections the route to road names
and road numbers. It also shows
their length, average direction and
travel time information. Waypoints
are not shown in this mode.
This function makes it possible to view
the route plan.
Several details of the route will appear:
– direction change arrows,
– road number,
– distance before a fork.

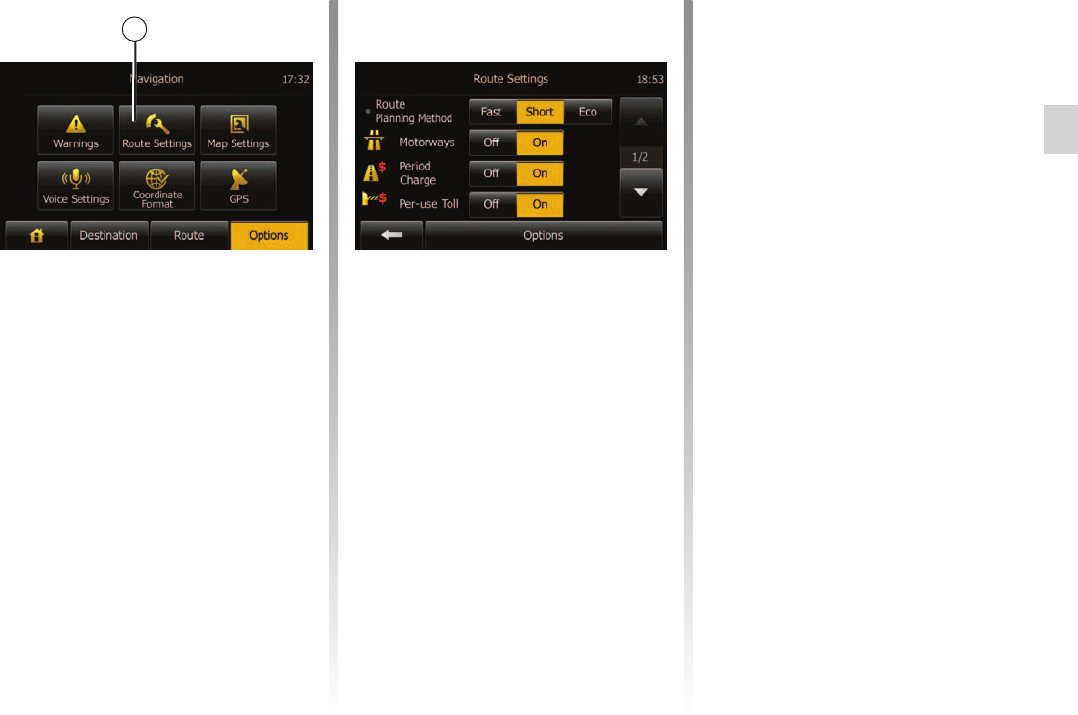

This item enables you to choose your
route settings.
Refer to the information on “Route set-
tings” in the section entitled “Navigation
settings”.
map
display .............................................(up to the end of the DU)
map
scale ...............................................(up to the end of the DU)
map
settings ...........................................(up to the end of the DU)
map navigation ..................................... (up to the end of the DU)
screen
navigation screen ............................(up to the end of the DU)
screen
settings ...........................................(up to the end of the DU)
guidance
map ................................................. (up to the end of the DU)
POI ....................................................... (up to the end of the DU)
point of interest .....................................(up to the end of the DU)
vehicle position .....................................(up to the end of the DU)
settings
contrast ...........................................(up to the end of the DU)
GB.35
ENG_UD24677_1
ULC/R glages carte (ULC - Renault)
Map settings

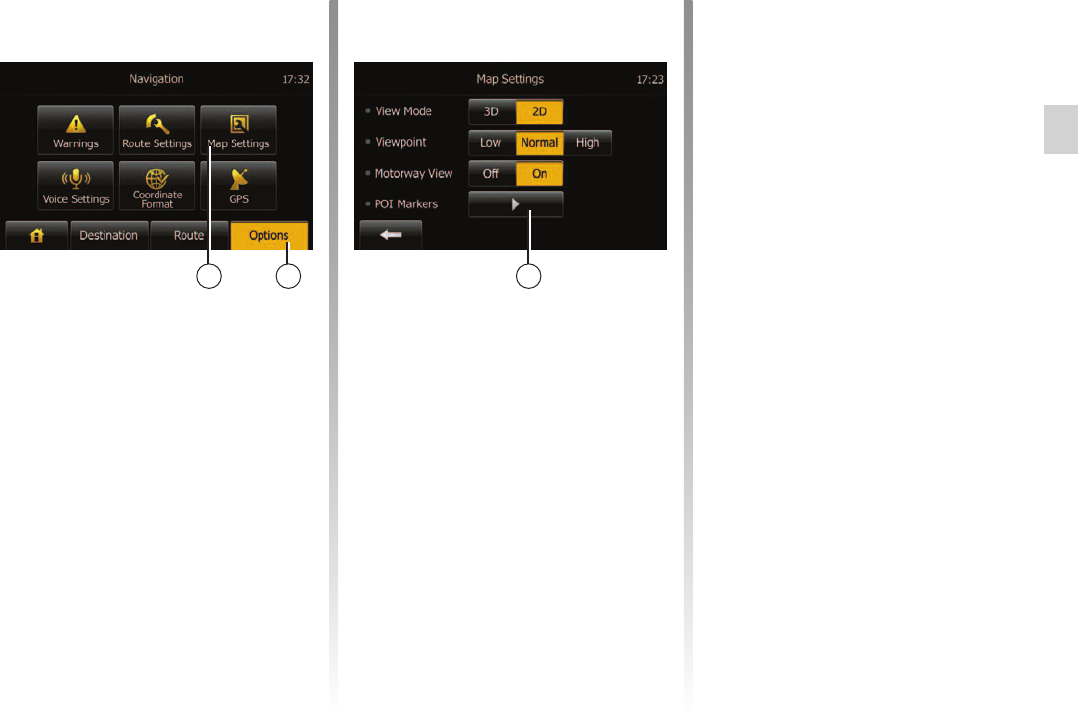

Tap 2 and then tap 1 to access map
setting menu.
This function allows you to switch the
map view between a 3D perspective
view and a 2D top-down view.
Tap “3D” or “2D”.
This function allows you to adjust the
basic zoom and tilt levels to your needs.
Three levels are available.
Tap “Low”, “Normal” or “High”.
This function allows you to activate or
deactivate motorway view.
Tap “On” or “Off”.
You can select certain points of interest
(visible at 100 m scale) to be displayed
on the map.
To access this function directly, Tap 3
to display the points of interest on the
map:
– Accommodation;
– Airport;
– Automotive;
– Business;
– Cafe or Bar;
– etc.
Tap “On” or “Off” to show or hide the
points of interest.
Tap the name of the point of interest to
open the list of its subcategories.
address book ........................................(up to the end of the DU)
destination ............................................ (up to the end of the DU)
GB.36
ENG_UD24679_1
ULC/G rer le carnet d’adresses (ULC - Renault)
Jaune Noir Noir texte
Managing the favourites
Tap “Home” > “Destination” to access
the destination menu. Enter a destina-
tion by using several methods.
– Address: refer to the information on
“Entering an address” in the section
on “Entering a destination”.
– Point of interest: refer to the infor-
mation on “Selecting a point of in-
terest (POI)” in the section entitled
“Entering a destination”.
– Address: refer to the information on
“Entering an address” in the section
on “Entering a destination”.
– History: refer to the information on
“Select a destination from the previ-
ous destinations” in the section enti-
tled “Entering a destination”.
– Find on Map: refer to the information
on “Selecting a destination on the
map” in the section on “Entering a
destination”.
– Coordinate: refer to the informa-
tion on “Entering the coordinate of
the destination” in the section on
“Entering a destination”. In all cases, once the address is con-
firmed, the system will locate it on the
map. Tap “Options” and then tap “Add
to Favourites” to the destination as fa-
vourites.
Before saving favourites, you can
change the name of the favourite by
using keyboard.
Jaune Noir Noir texte
GB.37
ENG_UD24679_1
ULC/G rer le carnet d’adresses (ULC - Renault)
The result of saved favourites can be
sorted by name, distance, and shown
all on map. Tap “Options”.
Tap the favourite you want to delete.
Tap “Options”, “Delete Favourite” and
confrim by pressing “Delete”.
To delete all favourites, tap “Options”
and then tap “Delete all”. Confirm by
pressing “Delete all”.
This function allows you to search the
favourite in the list by its saved name.
Tap “Find” and enter the name of the
favourite by using keyboard.
map
settings ............................................................(current page)
GB.38
ENG_UD24680_1
ULC/R glages de navigation (ULC - Renault)
Jaune Noir Noir texte
Navigation settings
The “Navigation Settings” menu allows
you to change the display of the map or
navigation parameters.

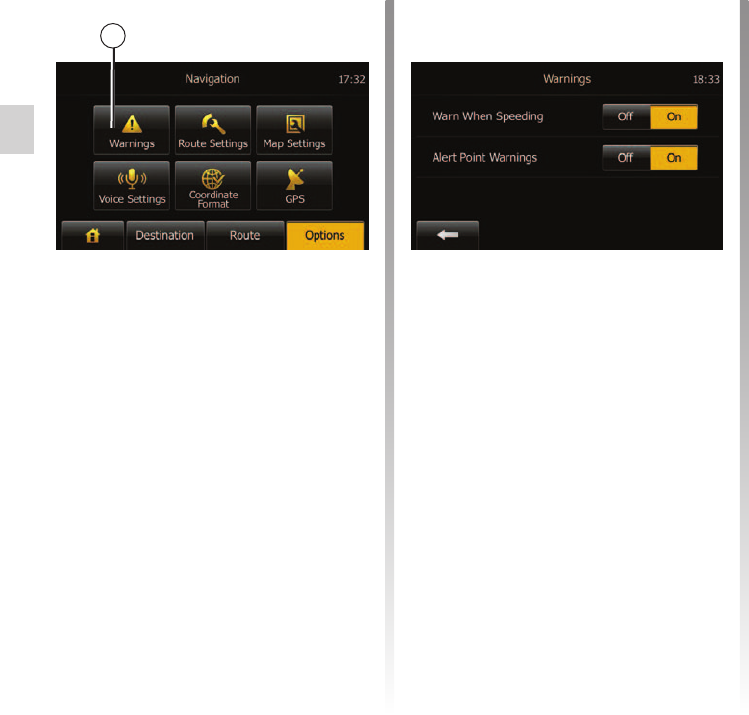

This item allows you to set up warnings.
Tap 1 to access menu of warnings.
Maps may contain information about
the speed limits of the road segments.
The system is able to warn you if you
exceed the current limit. This infor-
mation may not be available for your
region or may not be fully correct for all
roads in the map.
The following alert types are available:
– Audio warning: you receive a non-
verbal warning when you exceed the
speed limit.
– Visual warning: the current speed
limit is shown on the map when you
exceed it.
Tap “On” or “Off” to turn on or off the
warning.
When the driver passes an alert point,
a warning sign appears on the screen.
This ffunction can be turned on or off in
this menu.
You can set speed limits always visible.
This ffunction can be turned on or off in
this menu.
settings ................................................. (up to the end of the DU)
settings
navigation .......................................(up to the end of the DU)
Jaune Noir Noir texte
GB.39
ENG_UD24680_1
ULC/R glages de navigation (ULC - Renault)
– Eco.
This mode produces a compro-
mise between fast and short routing
modes. If you can save a certain dis-
tance by travelling for slightly longer
time in exchange, it will do just that.
The resulting route will be shorter
than the fast variant, but not signifi-
cantly slower.
You might need to avoid motorways
when you are driving a slow car or you
are towing another vehicle.
This function allows you to set how
routes will be calculated.
Tap 2 to access menu of route setting.
This system will offer 3 main route pri-
ority criteria.
– Fast;
Gives a quick route if you can travel
at or near the speed limit on all roads.
– Short;
Gives a short route to minimise the
distance to travel.
Charge roads are pay roads where you
can purchase a pass or vignette to use
the road for a longer period of time.
They can be enabled or disabled sepa-
rately from toll roads.
System includes toll roads (pay roads
where there is a per-use charge) in
the routes by default. If you disable toll
roads, system plans the best toll-free
route.
System includes ferries in a planned
route by default. However, a map does
not necessarily contain information
about the accessibility of temporary fer-
ries. You might also need to pay a fare
on ferries.
System excludes unsealed roads by
default: unsealed roads can be in a bad
condition and usually you cannot reach
the speed limit on them.
GB.40
ENG_UD24680_1
ULC/R glages de navigation (ULC - Renault)
This function allows you to change the
format of coordinate.
Tap 3 to change the format of coordi-
nate.
This system will offer 3 types of format.
Refer to the information in the section
on “Map settings”.
This function allows you to change the
language of voice guidance.
This function allows you to check the
status of GPS satellites.
Tap 4 to see the GPS information.
Bluetooth® .............................................................(current page)
pairing a telephone ................................................(current page)
GB.41
ENG_UD24681_1
ULC/Faire reconnaitre son t l phone (ULC - Renault)

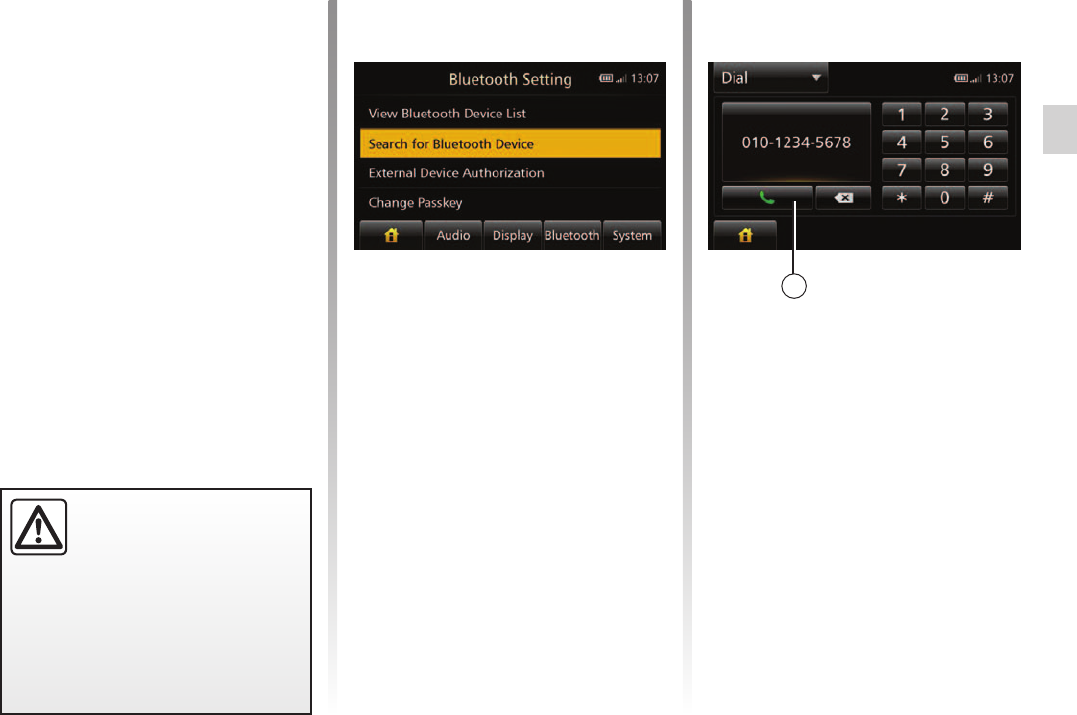

Bluetooth device
Pairing/unpairing Bluetooth® devices
Check that the Bluetooth® connec-
tion is “ON”. To do this, Tap “Home” >
“SETTING”, select “Bluetooth”.
In order to use your hands-free system,
you must pair your Bluetooth® mobile
to your vehicle before using it for the
first time.
Pairing will enable the system to recog-
nise and store a device. You can pair
up to 8 devices, but only one can be
connected at a time to the hands-free
system.
Pairing is carried out directly on your
device.
Your multimedia system and device
must both be switched on.
when pairing, ensure any other
devices already paired are not con-
nected to the hands-free system.
Tap “Search for Bluetooth Device” or
“External Device Authorization” on the
screen or tap 1 on phone screen.
From your device, carry out the proce-
dure in the following order:
– activate the device’s Bluetooth®
connection;
– run a search for Bluetooth® devices
in close proximity;
– select “ULC” (Name of hands-free
system) from the list;
– enter the Bluetooth® code “0000” on
the device keypad.
the Bluetooth® code “0000” is
default. You can change the code by
pressing “Change Passkey” on the
screen.
some devices don’t need to enter
the Bluetooth® code.
The device is automatically stored and
connected to the vehicle. If pairing fails,
repeat these operations.
For more information, refer to your de-
vice’s user guide.
Your hands-free system is
only intended to facilitate
communication by reducing
the risk factors, without re-
moving them completely. You must
always comply with the laws of the
country in which you are travelling.
unpairing a telephone ............................................(current page)
GB.42
ENG_UD24681_1
ULC/Faire reconnaitre son t l phone (ULC - Renault)
Unpairing erases a device from the
hands-free system memory.
Tap “View Bluetooth Device List” on the
screen. Tap the trash can icon on the
device to be deleted in the list. Confirm
your choice by selecting “OK”.
You can also delete all device in the list
by pressing “Options”, “Delete all” and
confirm your choice by selecting “OK”.
connect a telephone .............................................. (current page)
Bluetooth® .............................................................(current page)
Bluetooth connection .............................................(current page)
GB.43
ENG_UD24682_1
ULC/Connecter/d connecter un t l phone appair (ULC - Renault)

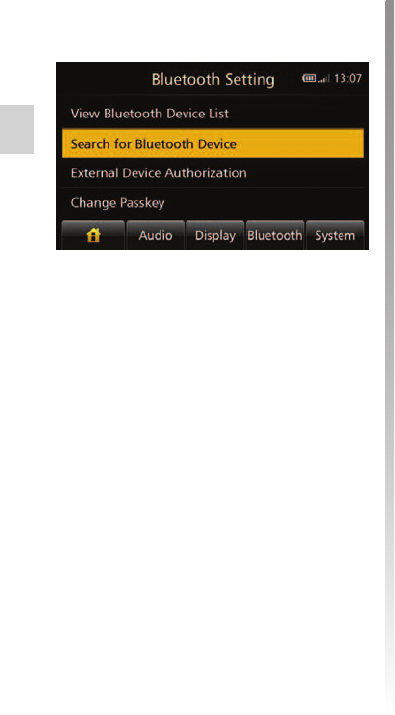

Connecting/disconnecting Bluetooth® devices
Your device must be connected to the
hands-free system in order to use all its
functions.
It is not possible to connect a device to
the hands-free system if it has not first
been paired. Refer to the information on
“Pairing/unpairing Bluetooth® devices”.
Once the system is initiated, the hands-
free system will search for any paired
devices present in the vicinity (the
search may take a minute).
A message will indicate that the phone
is connected. If a call is in progress
when the connection is made, it is
transferred to the vehicle speakers.
The multimedia system can store up to
8 Bluetooth® devices.
You can connect/disconnect one of the
8 Bluetooth® devices at any time.
Tap “Home” > “SETTING”, select
“Bluetooth”. Tap “View Bluetooth
Device List”.
Tap the device to be connected and
confirm by pressing “OK”
If a call is in progress when the phone is
disconnected, the call will automatically
switch to your phone.
If connection fails, check that:
– the device is configured to accept
the system’s connection request;
– your device is switched on;
– your device battery is not flat;
– your device has been paired to the
hands-free system;
– the Bluetooth® for your device and
the system are activated.
Using your hands-free system for
prolonged periods of time will discharge
your device’s battery more quickly.
contacts list ............................................................ (current page)
dialling a number ................................................... (current page)
favourite number....................................................(current page)
Bluetooth® .............................................................(current page)
GB.44
ENG_UD24684_1
ULC/G rer le r pertoire du v hicule (ULC - Renault)

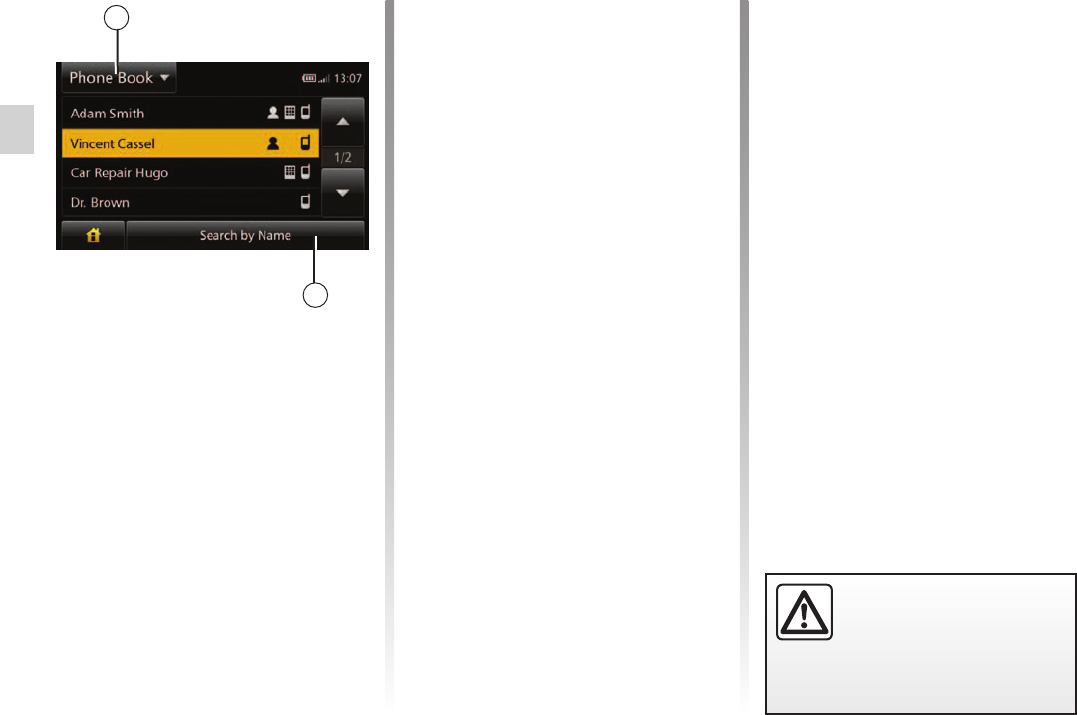

Phonebook
Tap 1 to scroll the list and then tap
“Phone Book” to access the system’s
phonebook.
You can use the phonebook entries
stored on the memory of phone.
After connecting your system and
bluetooth phone via Bluetooth® wire-
less technology, the numbers in your
phone’s phonebook is transferred auto-
matically into system’s phonebook. It is recommended that you
stop your vehicle before en-
tering a number or search-
ing for a contact.
system may ask whether to
transfer phone’s phonebook into sys-
tem’s phonebook in some phones.
After finding the contact in the phone-
book you want to call, you can select
the number and make a call.
If there are many contacts in the phone-
book list, it can be useful to display
them in the alphabetical order for easier
searching.
Tap 2 and then enter the name of con-
tact you want to search by using key-
board.
call ......................................................................... (current page)
dialling ................................................................... (current page)
GB.45
ENG_UD24685_1
ULC/Emettre un appel (ULC - Renault)
Refer to the information on “Calling a
number in the phonebook” in the sec-
tion on “Phonebook”.

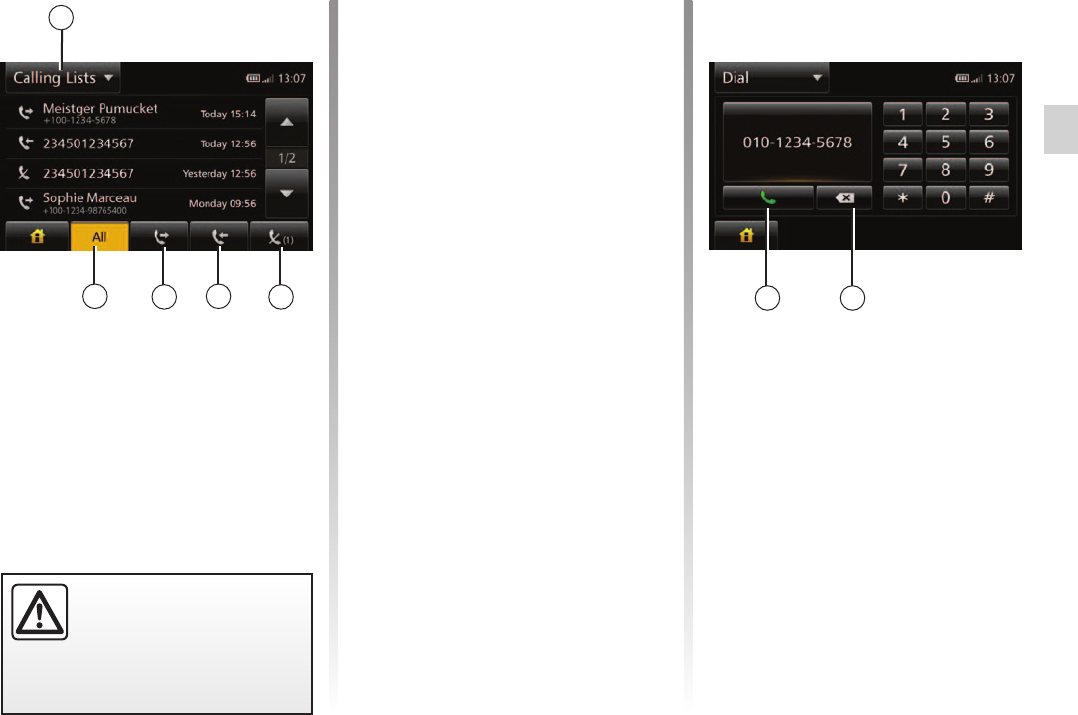

Making a call
You can use the calling list stored on
the memory of phone.
After connecting your unit and
Bluetooth® phone via Bluetooth®
wireless technology, the numbers in
your phone’s All Calls, Outgoing Calls,
Incoming Calls, and Missed Calls list
is transferred automatically into calling
list.
Tap 1 to scroll the list and then tap
“Calling Lists”.
Tap 2 to access to the list of All Calls.
Tap 3 to access the list of Outgoing
Calls.
Tap 4 to access the list of Incoming
Calls.
Tap 5 to access the list of Missed Calls.
For each list, the contacts are listed
from the most recent to the oldest.
Select a contact to make the call.
Tap 1 to scroll the list and then tap
“Dial” to make a call entering a number.
Tap the number buttons to make a call
and then tap 6
To correct a number tap 7. Press and
hold 7 to delete all the numbers at once.
It is recommended that you
stop your vehicle before en-
tering a number or search-
ing for a contact.
answering a call ..................................................... (current page)
receiving a call ....................................................... (current page)
GB.46
ENG_UD24686_1
ULC/Recevoir un appel (ULC - Renault)
Receiving/during a call
When receiving a call, the reception
screen is displayed with any informa-
tion available on the caller:
– the name of the contact (if the
number is present in the phonebook
list);
– the caller’s number;
– “No Caller ID” (if the number cannot
be viewed).
During a call you can:
– switch the microphone on/off by
pressing 2 or 3;
– hang up by pressing 1;
– hear sound through the phone
speaker by pressing 4;
– hear sound through the vehicle
speaker by pressing 5;
settings ................................................. (up to the end of the DU)
settings
brightness ........................................................(current page)
clock ...................................................................... (current page)
clock
display ..............................................................(current page)
GB.47
ENG_UD24690_1
ULC/R glages syst me (ULC - Renault)
System settings
To access the system parameters:
– Tap “Home”, “SETTING”
– tap the menu on the bottom of the
screen.
– select an item.
You can set the brightness of the
screen.
Set the display brightness to Low, Mid
(Middle), or High.
To improve the visibility of the map
screen between day and night, you can
change the combination of the colours
of the map.
– Auto: The map screen is displayed
by autolight signal or illumination
signal.
– Day: The map screen is always dis-
played with bright colours.
– Night: The map screen is always dis-
played with dark colours.
This function allows you to change the
language used in the system.
This function allows you to set the time
format between the “12h” and “24h”.
This function allows you to set the unit
of distance displayed on your naviga-
tion system. You can change the unit
between the “km” and “mls”.
GB.48
ENG_UD24690_1
ULC/R glages syst me (ULC - Renault)
This function allows you to initialize var-
ious settings to the default settings.
– All: Initializes all the settings to the
default settings.
– Phone: Initializes all the settings re-
lated with phone.
– Navigation: Initializes all the settings
related with navigation.
– Audio/Media/Radio: Initializes all the
settings related with Audio/Media/
Radio.
This function allows you to check the
version of system (hardware, software,
OS and navigation).
Refer to the section entitled “Audio set-
ting”
Refer to the section entitled “Pairing/
unpairing Bluetooth® devices”.
system
update....................................................................(current page)
GB.49
ENG_UD25161_1
Software update (ULC - Renault)
Software update
– Screen 1 is displayed automatically
once the USB key connected.
– Tap 3 to start software update.
Tap 2 to go back to previous screen.
The update procedure starts automat-
ically. Do not use any of the system
functions during the update procedure.
– Insert USB key with the file to USB
socket.
Refer to the section on “introduction
to the controls” to find out its loca-
tion.
Insert USB key in your computer’s USB
reader or an external USB reader, while
connected to the internet.
Where, How custmer can get the update
file which is “upgrade.lgu” should be ex-
plained (it is not decided yet).
– With the vehicle stationary, start the
engine.
– Prepare compressed file called
“upgrade.lgu” for software update by
inserting a USB key into a computer
that is connected to the internet.
Do not switch off the engine or eject
the USB key while the software is
being updated.
If the update is accidentally inter-
ruped, restart the process from the
beginning.
Refer to the section on “Map update”
to update the most recent version of
map.
GB.50
ENG_UD25234_1
Map update (ULC - Renault)
Map update
The information how to update the
most recent version of map should be
explained in this page. It is not decided
yet.

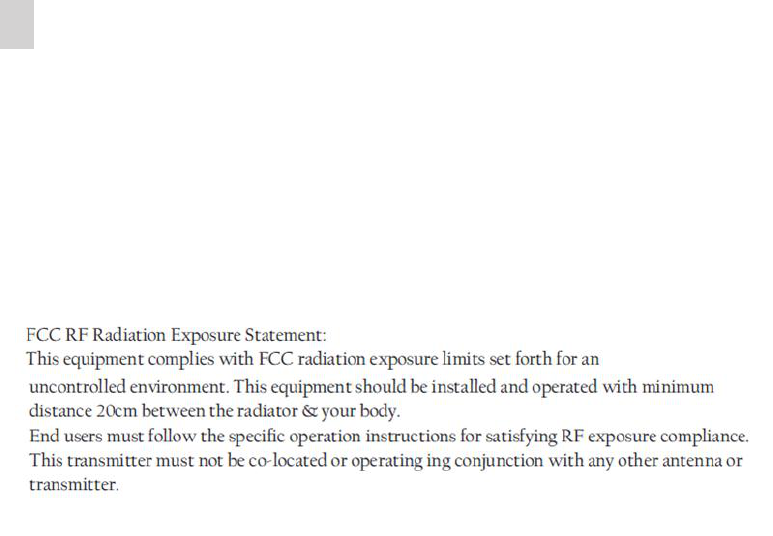

)&&)HGHUDO&RPPXQLFDWLRQV&RPPLVVLRQ
:$51,1*7KLVHTXLSPHQWPD\JHQHUDWHRUXVHUDGLRIUHTXHQF\HQHUJ\
&KDQJHVRUPRGLILFDWLRQVWRWKLVHTXLSPHQWPD\FDXVHKDUPIXOLQWHUIHUHQFHXQOHVVWKHPRGLILFDWLRQVDUHH[SUHVVO\DSSURYHG
LQWKHLQVWUXFWLRQPDQXDO
7KHXVHUFRXOGORVHWKHDXWKRULW\WRRSHUDWHWKLVHTXLSPHQWLIDQXQDXWKRUL]HGFKDQJHRUPRGLILFDWLRQLVPDGH
7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&CV5XOHV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZR&RQGLWLRQV
7KLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQG
7KLVGHYLFHPXVWDFFHSWDQWLQWHUIHUHQFHUHFHLYHGLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUDEOHRSHUDWLRQ
operating faults .....................................(up to the end of the DU)
GB.51
ENG_UD24691_1
ULC/Anomalies de fonctionnement (ULC - Renault)
Operating faults
No image is displayed. The screen is on standby. Ensure that the screen is not on standby.
No sound can be heard. The volume is set to minimum or mute. Increase the volume or deactivate mute.
No sound comes from the left, right, front
or rear speakers.
The balance or fader settings are incor-
rect.
Adjust the sound balance or fader cor-
rectly.
The location of the vehicle on the screen
does not correspond to its actual loca-
tion.
Incorrect positioning of the vehicle
caused by GPS reception.
Move the vehicle until reception of the
GPS signal is improved.
The directions on the screen do not cor-
respond to the actual road.
The version of sytem is out of date. Obtain the latest version of the system.
Certain items on the menu are not avail-
able.
Depending on the current command,
some items will be unavailable.
Voice guidance is unavailable. The navigation system does not include
the intersection.
Voice guidance or guidance is deacti-
vated.
Increase the volume.
Ensure voice guidance is activated.
Ensure guidance is activated.
GB.52
ENG_UD24691_1
ULC/Anomalies de fonctionnement (ULC - Renault)
The directions of the voice guidance do
not correspond to your exact location.
The voice guidance may vary according
to the environment.
Drive according to the actual conditions.
The suggested route does not start or
end at the required destination.
The destination is not yet recognised by
the system.
Enter a road near to the required desti-
nation.
The system calculates a detour automat-
ically.
Prioritising avoid area settings will affect
the calculation of the route.
Deactivate the “Avoidances” func-
tion.
No sounds or ringtone can be heard. The mobile phone is not connected to the
system.
The volume is set to minimum or mute.
Ensure that the mobile phone is con-
nected to the system.
Increase the volume or deactivate mute.
Impossible to make a call. The mobile phone is not connected to the
system.
The phone keypad has been locked.
Ensure that the mobile phone is con-
nected to the system.
Unlock the phone keypad.
GB.53
FRA_UD4329_1
ITD2/Index (XNX - Renault)
address book ........................................GB.27, GB.36 – GB.37
answering a call .............................................................. GB.46
BALANCE ....................................................................... GB.19
balance ...........................................................................GB.19
BASS ..............................................................................GB.19
bass ................................................................................GB.19
Bluetooth connection ......................................................GB.43
Bluetooth® ............................................GB.41, GB.43 – GB.44
call .................................................................................. GB.45
call volume......................................................................GB.12
CD changer .................................................... GB.16 → GB.18
CD/MP3 CD
changing a WMA CD album ...................................... GB.17
changing an MP3 album ...........................................GB.17
eject .......................................................... GB.16 → GB.18
fast winding ............................................... GB.16 → GB.18
file repeat (MP3) .......................................................GB.17
file repeat (WMA) ...................................................... GB.17
listen ......................................................... GB.16 → GB.18
maintenance ............................................. GB.16 → GB.18
random playback ...................................... GB.16 → GB.18
repeat ........................................................................GB.17
searching for a track ................................. GB.16 → GB.18
track repeat (MP3) ....................................................GB.17
track repeat (WMA) ...................................................GB.17
clock ............................................................................... GB.47
display .......................................................................GB.47
confirm a destination ........................................GB.28 – GB.29
connect a telephone ....................................................... GB.43
contacts list ..................................................................... GB.44
destination ............................GB.24 → GB.29, GB.36 – GB.37
detailed route .................................................. GB.30 → GB.34
detour ............................................................. GB.30 → GB.34
dialling ............................................................................ GB.45
dialling a number ............................................................ GB.44
entering an address ........................................................ GB.24
FADER............................................................................ GB.19
favourite number.............................................................GB.44
file ................................................................... GB.16 → GB.18
FM/LW/MW bandwidths .................................. GB.13 → GB.15
GPS
receiver .....................................................................GB.20
reception ...................................................................GB.20
guidance
activation ...................................................................GB.30
cancellation ............................................................... GB.34
map ........................................................... GB.30 → GB.35
split screen ................................................ GB.30 → GB.34
voice ......................................................... GB.30 → GB.34
inserting a CD ................................................................. GB.16
LIST mode ......................................................................GB.13
MANU mode ...................................................................GB.13
map
GB.54
FRA_UD4329_1
ITD2/Index (XNX - Renault)
digitised map .............................................................GB.20
display ...........................................................GB.21, GB.35
scale .............................................................GB.21, GB.35
settings .........................................................GB.35, GB.38
map navigation ............................................................... GB.35
mute................................................................................GB.12
operating faults .................................................GB.51 – GB.52
operation.........................................................................GB.10
pairing a telephone .........................................................GB.41
pause .............................................................................. GB.17
POI .......................................................GB.25 – GB.26, GB.35
point of interest .....................................GB.25 – GB.26, GB.35
PRESET mode ............................................... GB.13 → GB.15
range of wavelengths ..................................... GB.13 → GB.15
RDS ......................................................................GB.5, GB.15
receiving a call ................................................................ GB.46
screen
monitor ...................................................................... GB.10
navigation display ................................... GB.30 → GB.34
navigation screen ...................................... GB.30 → GB.35
settings .....................................................................GB.35
second route ................................................... GB.30 → GB.34
setting .............................................................................GB.19
settings .................................. GB.39 – GB.40, GB.47 – GB.48
audio .........................................................................GB.19
balance .....................................................................GB.19
brightness .................................................................GB.47
contrast .....................................................................GB.35
fader ..........................................................................GB.19
navigation ...................................................GB.39 – GB.40
stage ............................................................... GB.30 → GB.34
storing a radio station ..................................... GB.13 → GB.15
switching off .................................................................... GB.10
system
update ....................................................................... GB.49
2D/2D mode ................................................................... GB.31
3D/2D mode ................................................................... GB.30
TMC (Traffic Message Channel) traffic detour ................GB.33
treble...............................................................................GB.19
unpairing a telephone .....................................................GB.42
vehicle position ...............................................................GB.35
volume ............................................................................GB.12
volume: adapted to speed .............................................. GB.12
