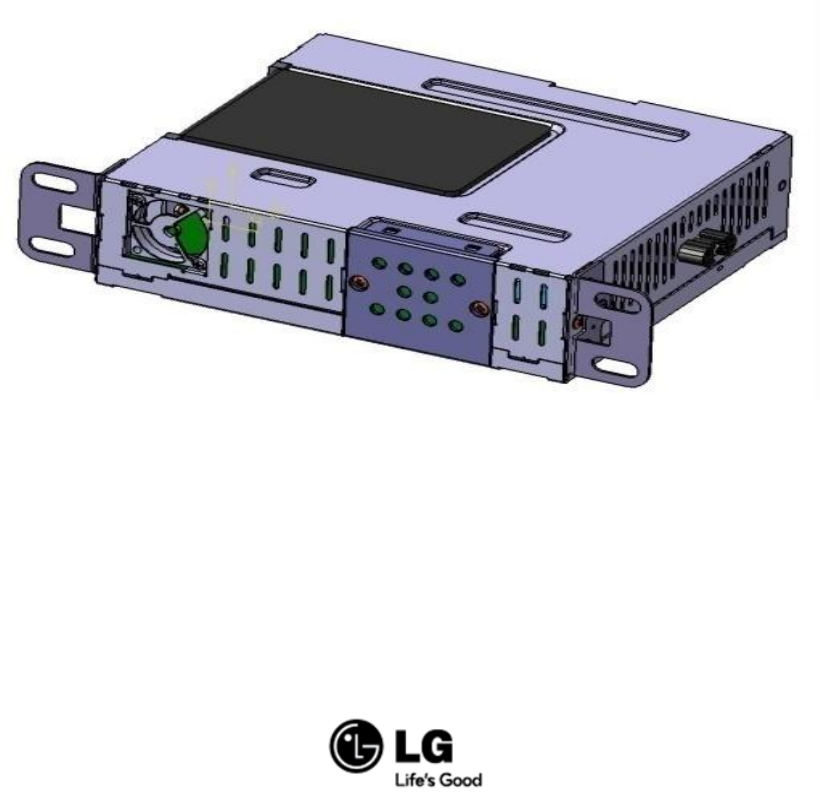

RadNav User Information
Model Name : LANR14
Product description
- RadNav is AVN(Audio/Video/Navigation) product that is Tablet forms of Multi-touch HMI.
- RadNav AVN system performs the following functions
Management of auxiliary audio sources , Hands-free phone(Bluetooth), (2.5D/3D)Navigations
assistance, Radio functions, Auxiliary audio function (USB,AuX, Bluetooth connection )
a. Model name : RadNav2014
b. Dimensions
- Height 50mm
- Width 178mm
- Depth 160mm
- Weight : 1.04 Kg.
- Operation Condition : -40℃ ~ 85 ℃
c. Integrated function
- Display: 7, 8.6 inches Central Panel (Valeo) – LVDS
- Communication: CAN (multimedia CAN & vehicle CAN)
- CVBS: rear view camera
- SWRC / SWRA: remote controller
- 4ch speaker + 2ch Sub woofer
- 2 Antenna Diversity Radio
- DAB antenna
- GNSS
- AUDIO: MCH1, MCH2, TCU, ONDAS, ANC(active noise cancellation),
- Bluetooth (BT mic)
- Navigation
d. General function
- Normal Operating Voltage : DC 9 - 16V
- FM : 87.5 MHz - 108 MHz 50kHz STEP
- MW : 531kHz - 1620kHz 9kHz STEP
- LW : 144KHz - 288KHz 1kHz STEP
e. AUDIO section
- OUT POWER : 20W X4 ch 4 ohm (1kHz 10% THD)
- SUB Woofer : 2ch
- LOAD IMPEDANCE: 4 ohm X 4
f. Operate power manage
: The supply voltage range for Nominal mode is from 9V to 16V.
0 V < +Bat < 5.5
V
May not operate, no destruction.
5.5 V < +Bat <
9V
CAN is functional
TCU Communication is functional
Nominal performances at minimum during
thermal engine voltage profile (refer to
Stop&Start requirement)
9V < +Bat < 16
V
100% Nominal mode
Operates with nominal performances.
16 V < +Bat <
18 V
Operates with nominal performances during 1
hour
18 V < +Bat <
24 V
The ECU is placed in a non-operative mode
providing it with optimum protection against the
consequences of the voltage surge.
Regarding the degraded mode, ECU operation
returns to a normal mode as soon as the various
supplies become normal again.
24 V < +Bat
May not operate, destruction possible
g. feature
Function
Feature
System
CPU
ARM Cortex-A9 Dual Core (@1GHz)
RAM
DDR3 1GB (@ 667MHz)
Internal Storage
eMMC 32GB
OS
Android 4.0
(Ice Cream Sandwich)
Display
LVDS
7” WVGA /
8.7” XGA
Navigation
Map
3D Map
Position
GPS
O
DR
(Gyro Sensor)
Gyroless
Broadcasting
FM/AM
Tuner Diversity
(Option)
Media
USB
Audio, Photo
iPod
Digital I/F
AUX
Audio, Video
Bluetooth
Supported Specification
BT 3.0
Supported Profile
A2DP, AVRCP, GAVDP, HFP1.5, OPP, PBAP, MAP
Frequency rage
2.4GHz ~2.4835GHz
Power
Transmit Power : Min :-6 dBm TYP : 2 dBm, Max : 4dBm
Reception : Min : -86 dBm TYP : -92 dBm
Channel
79
External
Interface
External AMP
O
Rear Camera
O
Steering Wheel
Remocon
O
EU Conformity Notice:
This device should be installed and operated with minimum distance 20 cm between the device
and your body. And this phrase is for the general statement for consideration of user environment.
Regulatory Notices
Part 15.19 statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Part15.21 statement
Changes or modifications not expressly approved by the manufacturer (or party responsible) for
compliance could void the user’s authority to operate the equipment.
Part 15.105 statement
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. if this
equipment does cause harmful interference or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
