LGE Confidential Challenge 123
표지및목차
Contents
1. Overview
- Introduction
- Box Contents (Charger Clip, Charger, LBA-T950)
- Specification
- Watch Overview
2. Getting Started
-Charging
- Time & Date Setting
- Connecting to your mobile phone
1) Easy Pairing
2) Manual Pairing
3. Basic
- Main Menu and Profiles
- Watch Theme
- Setting the Manner Mode
- Responding to a call
- Check the New Message
- Check Received Message List
4. Tools
- Setting the Alarm
- Updating the time automatically
- Using the world time
-Using Stopwatch
- Setting the Event Alert
5. Settings
- Changing the Language
- Changing the Backlight
- Restore factory setting
-Hot Keys
6. How to handle LBA-T950
- Water resistance of the watch
- When wearing watch
7. Safety Guideline
8. Troubleshooting
9. Warranty and Service
10. Declaration of confirmation
11. Additional information
2/14
LGE Confidential Challenge 123
1. Overview
SpecificationIntroduction
The LBA-T950 is a light weight wireless Watch utilizing Bluetooth® technology.
This device can be used as an incoming call and SMS indicator from only LGE
Mobile phone for supporting LBA-T950.
Contents of Box
LBA-T950 Charging Clip Manual Charging Cable
LBA-T950 only supports LGE Bluetooth enabled mobile phones. Please make
sure that LGE mobile phone you already have or plan to purchase is compatible
with LBA-T950. Notice also that Bluetooth headset can be simultaneously used
with LBA-T950 only if your mobile phone is capable of multi-pairing.
EU UK US
[ Power Adapter Type]
LBA-T950
ITEM Bluetooth enabled watch
Model LBA-T950
Bluetooth® specification V2.0 (Class 2), Gap Profile
Battery 3.7V, Li-Polymer Rechargeable
Operation Temperature -10℃~ 60℃
Humidity 20%~60% (No Dew formation)
Dimension / weight 33mm(L) X 40mm(W) X 11 mm(H) / 51g
Wrist Band Genuine Leather
Adapter rated voltage AC 100 ~ 220V, 50 ~ 60HZ
Charging Time 3Hr
Watch Accuracy ±5s/Day (25℃)
Runtime •Not Connected to a mobile phone
- approximately 3 days for watch
- Check the Operating conditions
•Connected to a mobile phone
- approximately 3 days for watch
- Check the Operating conditions
Duration
(Operating Condition)
•Not Connected to a mobile phone
- Check on the time : 15/day
- Backlight Duration : 15 sec
•Connected to a mobile phone
- Call : 10/day (Vibrator only)
- SMS : 10/day (Viewing)
- Time Check : 15/day
- Alarm : 1/day
3/14
LGE Confidential Challenge 123
1. Overview 2. Getting Started

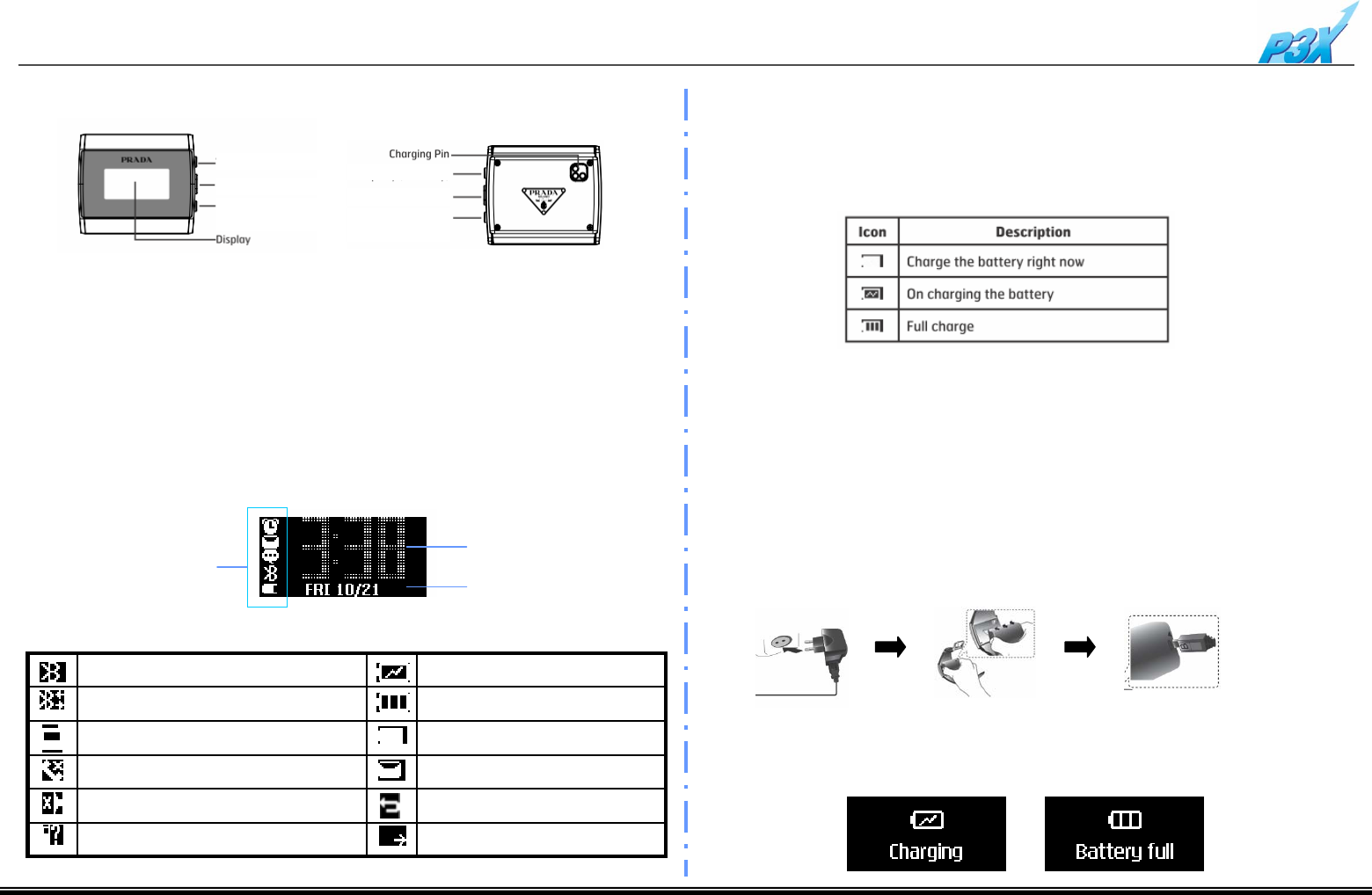

Watch Overview
ICON
Indicator Time
Date
Back
OK
Navigation
Back
OK
Navigation
Back(B) key
Call history/ Messages/ Back
OK(O) key
PWR on-off/ Top menu/ Select/ OK
Navigation(N) key
Profile setting/ Time theme change/ Navigation
Bluetooth ON (not Connected ) Charging
Bluetooth ON (Connected) Charging Completed
Incoming Call Low Battery Level
Incoming Call Reject Message Received
Incoming Call Silent Menu Back
Missed Call Navigation
Battery Status
When the battery voltage drops, transmission and alarm functions
become ineffective. Check the remaining battery level frequently
and recharge the battery before it runs out.
It takes 3 hours to fully charge the completely discharged battery.
Charging
The LBA-T950 can be charged in two ways
1. Connect LBA-T950 to power adapter
a) Plug the power adapter into a working electrical outlet.
b) Connect the charging clip to back of the watch. Make sure that
charging pins are properly aligned with pins on the clip.
c) Connect the power adapter to the charging clip with the
symbols on the power adapter and clip connector facing the
same direction.
d) When connecting the charger, LBA-T950 will be reset and then the
battery begin to charge. If the screen indicates “Battery full” icon,
charging battery is completed.
4/14
LGE Confidential Challenge 123
2. Getting Started
Connecting to your mobile phone

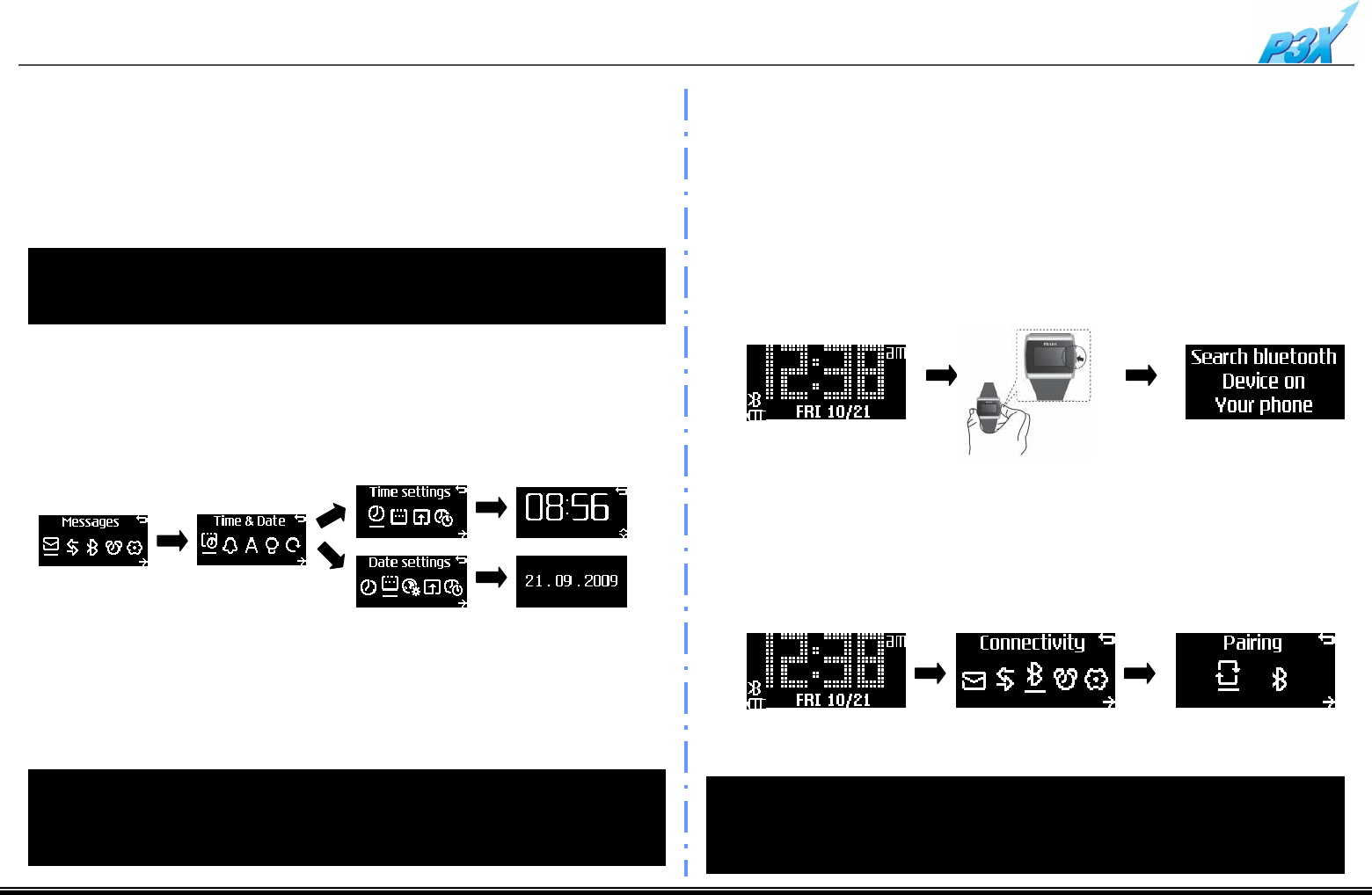

Follow the instructions that came with your mobile phone to place your phone
in paring mode. Pairing process is essential to fully utilize LBA-T950. There
are two ways to establish connection.
Easy Pairing
1. Press “Back” and “Navigation” keys simultaneously for 1 sec and then
the LBA-T950 is ready for pairing
Manual Pairing
1. Choose “Connectivity” Æ“Pairing “
Optimum operating range is within 10m. If the LBA-T950 is out of range, the
connection will be lost.
when the LBA-T950 is brought back in the range, it will automatically attempt to
establish the connection
If the screen doesn’t show charging icon, the watch might not be connected
properly to either USB port or power outlet. Once it happens, please follow the
steps again.
2. Connect LBA-T950 to your computer using charging cable
a) Turn on your computer
b) Connect charging cable to a USB port on your computer
c) Following same steps shown in the previous section using charging
cable instead of power adapter
The date and time on this watch can be set to synchronize with those set
on your LGE mobile phone. To set the time and date only once and to
have it set automatically each time this watch gets connected to your
LGE mobile phone.
Setting time and Date
1. Press “OK” button shortly to show Top menu “ Messaging”
2. Choose “Setting” Æ“Time&Date” Æ“Time Settings” & “Date settings”
3. Press “Navigation” button to increase the number
4. Press “OK” key to confirm the Hour and move on to minute
5. Date setting is similar to time setting procedure shown above.
6. Day is automatically set based on the date
2. Search LBA-T950 from your phone
3. Choose LBA-T950 to pair with your phone
4. When properly done, “Connected” message will be displayed
2. Following same steps shown in the “Easy Pairing” from step2
5/14
LGE Confidential Challenge 123
3. Basic
Main Menu and Profiles

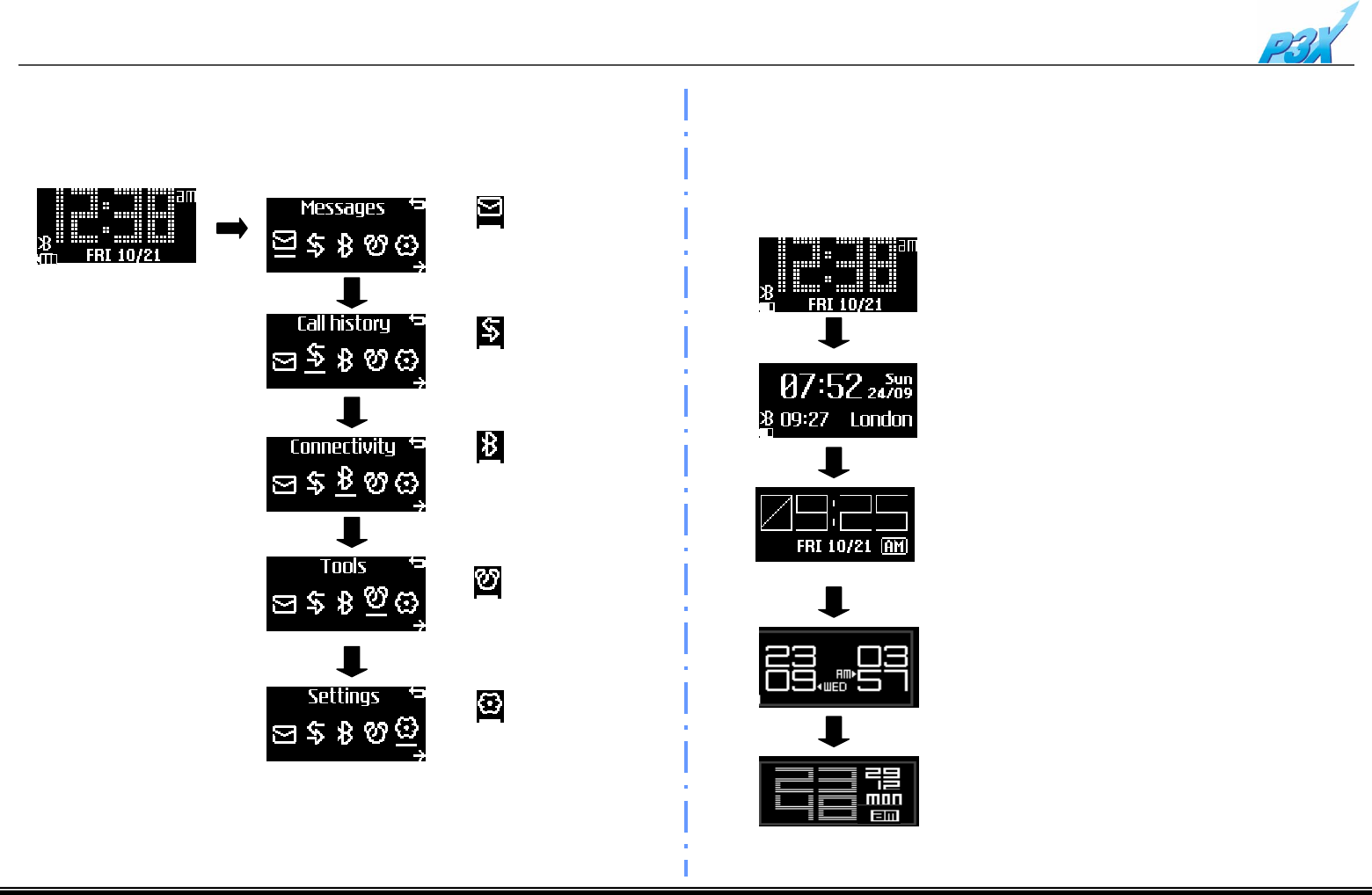

To enter the menu map, press “OK” key shortly. The following Main menu
map shows the available menu structure and Icons
Messages
Call History
Connectivity
Tools
Settings
1. Pairing
2. Bluetooth
1. Alarms
2. World Time
3. Stopwatch
1. Time & Date
2. Event Alert
3. Language
4. Backlight
5. Reset
Watch Theme
LBA-T950 provides 5 time themes to be selected upon your preference
Default Watch
Support Icon Indicator
World Time watch
Support Icon Indicator
Watch Theme 1
Not support Icon Indicator
Watch Theme 2
Not support Icon Indicator
Watch Theme 3
Not support Icon Indicator
6/14
LGE Confidential Challenge 123
3. Basic
Setting the Manner Mode
1. Pressing “Navigation” for 1sec will place LBA-T950 into Alert Setting
Mode.
2. LBA-T950 provides Ring & Vibration, Vibration, Ring, and LCD only
(silent) modes

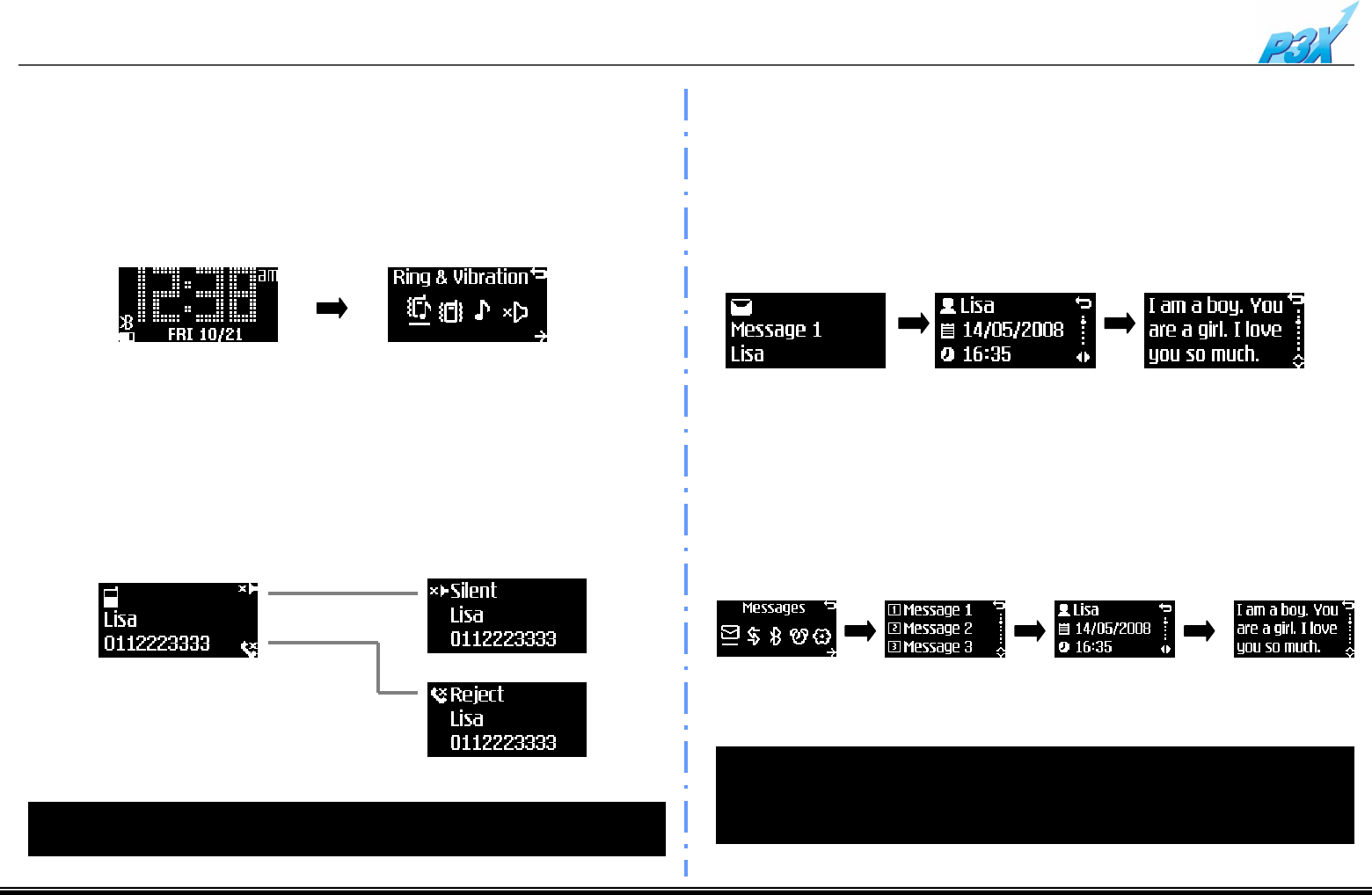

When receiving a phone call, you have two options to respond
1. Press “back” key to mute the sound.
2. Click “navigation” button to reject an incoming call.
Responding to a call
1. The LBA-T950 alerts you and displays a notification on screen when you
receive a text message
2. Press “OK” key to check the sender’s information.
3. Contents of the selected message will be displayed and Up to 70
characters can be displayed.
Check the New Message
Check Received Message List
1. Press “OK” key and select Messages
2. Up to 3 messages will be shown on the screen
3. Press “Navigate” button and select message title to see the details
The LBA-T950 is unable to save the messages in internal storage memory.
Therefore, if the LBA-T950 is not connect to mobile phone, received message list
is not able to be displayed on LBA-T950.
The LBA-T950 doesn’t support MMS for now.
These are useful when you’ve forgotten the set an alert mode to silent or
vibration for a meeting
7/14
LGE Confidential Challenge 123
4. Tools
Setting the Alarm

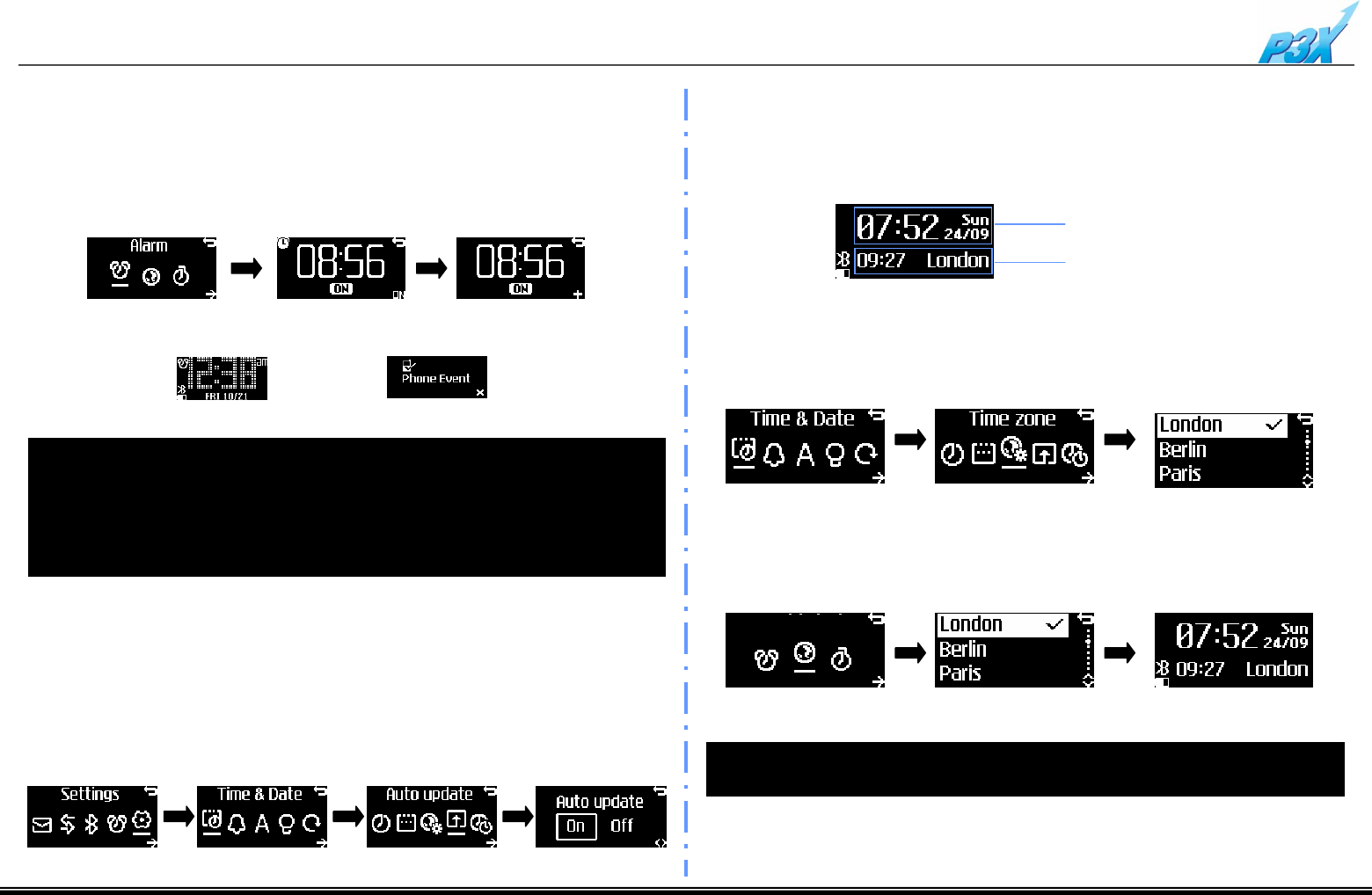

1. Press the “OK” key and then select “Tools” Æ“Alarm”
2. Press “Navigation” button to increase the number
3. Press “OK” key to confirm the Hour and move on to minute
Updating the time automatically
1. Set “Off” in the “Auto update” menu, Time & Date have to be set manually.
2. Set “On”, Time &Date will be updated automatically by synchronizing with
the phone.
Bluetooth connection is not required to use this local alarm function.
LBA-T950 supports “auto update” function to synchronize with your phone
Using the world time
The world time theme of LBA-T950 supports two types of time settings.
The default World Time region has been set to “London”
Notice that The LBA-T950 is not able to set clock to summer time automatically.
1. Select the “ Setting” Æ”Time & Date” Æ”Time Zone”
2. Choose the region or country where you are located.
Time Zone (Local)
World Time (Regional)
World Time
3. Select the “ Tools” Æ”World Time”
4. Choose the region or country desired to display.
When alarm setting of your phone becomes active, “Phone alert” message will be
displayed on the LBA-T950 screen .
Press “Back” or “OK” button to snooze the alert and press “ Navigation” button
to stop the phone alarm.
Icon indicator will blink on the screen of LBA-T950 when local alarm function is
in action.
-
[Phone alarm][Local alarm]
Alarm indicator
8/14
LGE Confidential Challenge 123
4. Tools

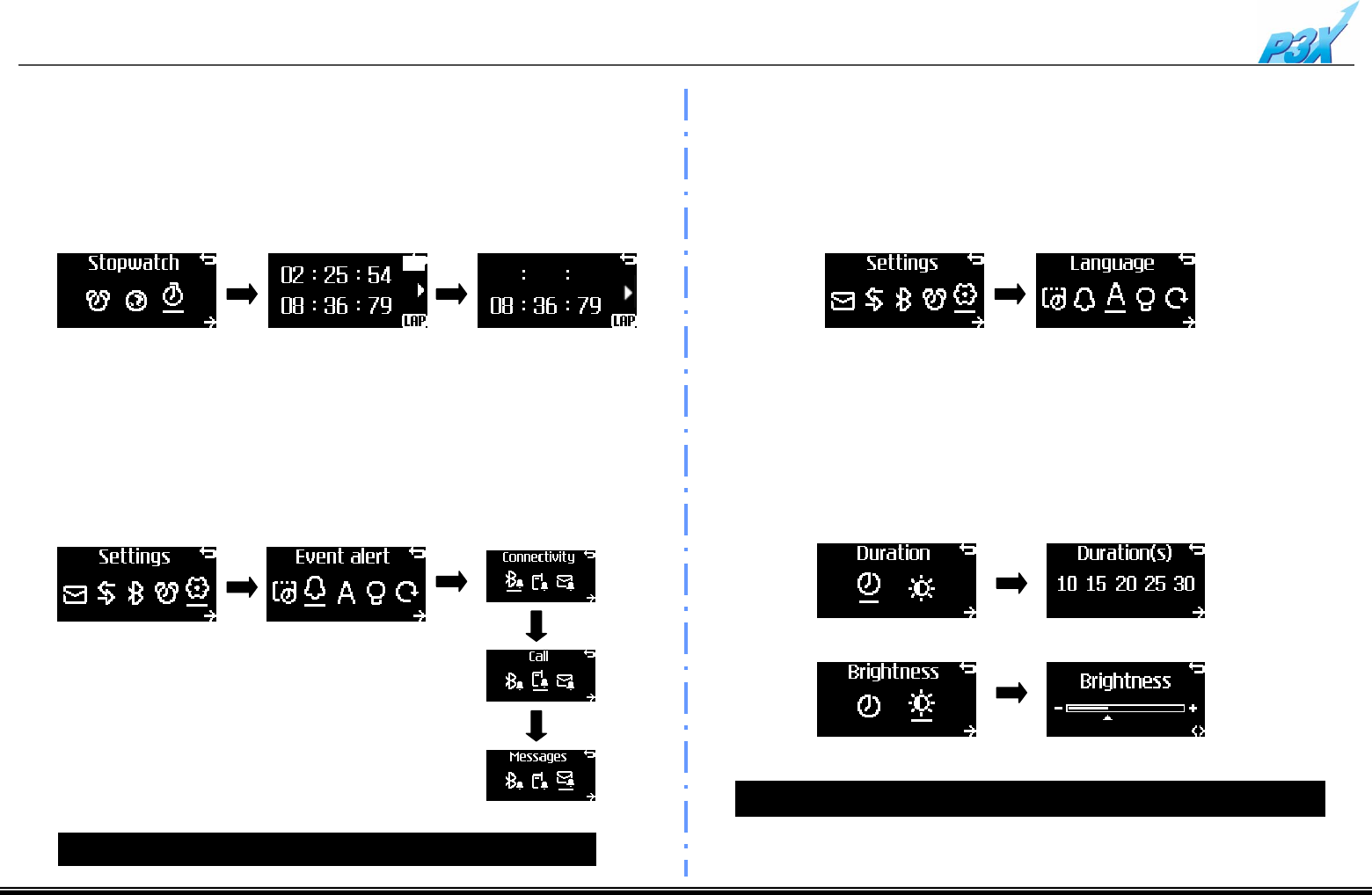

Using Stopwatch
1. Go to “Tools” Æ“Stopwatch”
2. Press “OK” key to start and Pressing “OK” key again will stop timer.
3. Press “Navigation” button for Lap.
4. Press “back” button to clear
5. Settings
Setting the Event Alert
1. Go to “Settings” Æ“Event alert”
2. LBA-T950 provides three event alerts
3. Select an option that you want to get notified and set it “ON” or “OFF”
The default event alert setting is “ON” for all the choices.
Changing the Language
1. Go to “Settings” Æ“Language”
2. Select region where you are located
3. Language of country that you selected will be a default
Changing the Backlight
1. Go to “Setting” Æ“Backlight”
2. Select the proper duration and brightness upon your preference
Battery runtime may vary and depends on your LCD setting
CLR 00 00 00
9/14
LGE Confidential Challenge 123
5. Settings
Restore factory setting
Set the LBA-T950 to factory default settings and deletes changes you
have made.
To reset the watch

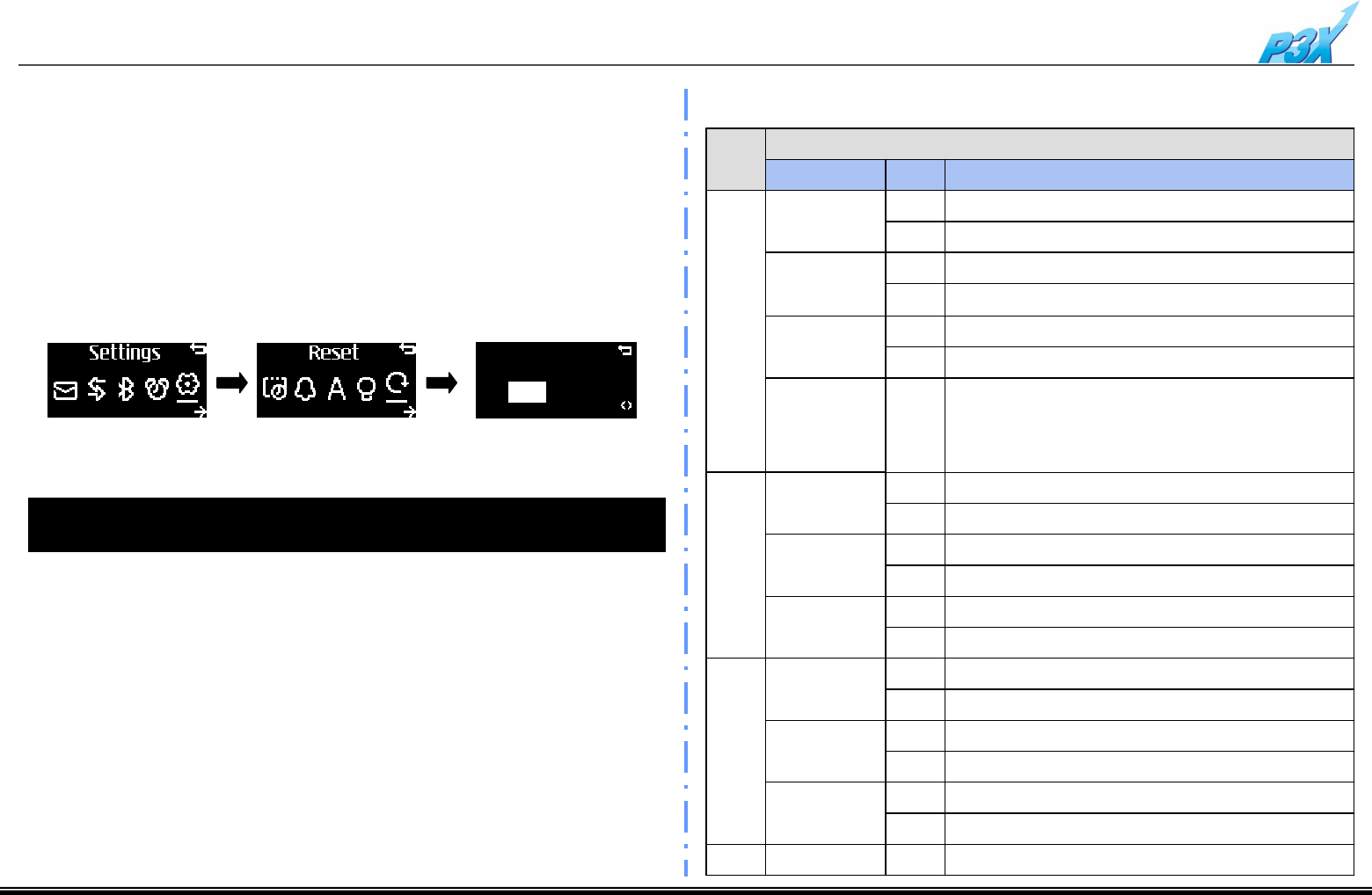

1. Go to “ Settings” Æ”Reset” Æ”Reset all”
2. Choose the “Yes”
3. All the settings are initialized
The LBA-T950 needs to re-establish the connection through pairing
process once you set the LBA-T950 to factory default settings.
Reset all
Yes No
Hot Keys
Key Description
Case Press Actions
B
Main display Short Messages
Long Call history
Time/Alarm
setting
Short Previous menu
Long Main clock display
Top menu Short Previous menu
Long Main clock display
Unavailable
connection
(from main
display)
Short
Long Attempt to establish connection
OK
Main display Short Top menu
Long Power off
Time/Alarm
setting
Short Confirm the setting
Long Power off
Top menu Short Select sub menus
Long Power off
N
Main display Short watch theme
Long Profile Setting (vibration/ring)
Time/Alarm
setting
Short Increase hour/minute
Long Increase hour/minute fast
Top menu Short Move pointer
Long Move pointer fast
B+N Main display Long Pairing mode
10/14
LGE Confidential Challenge 123

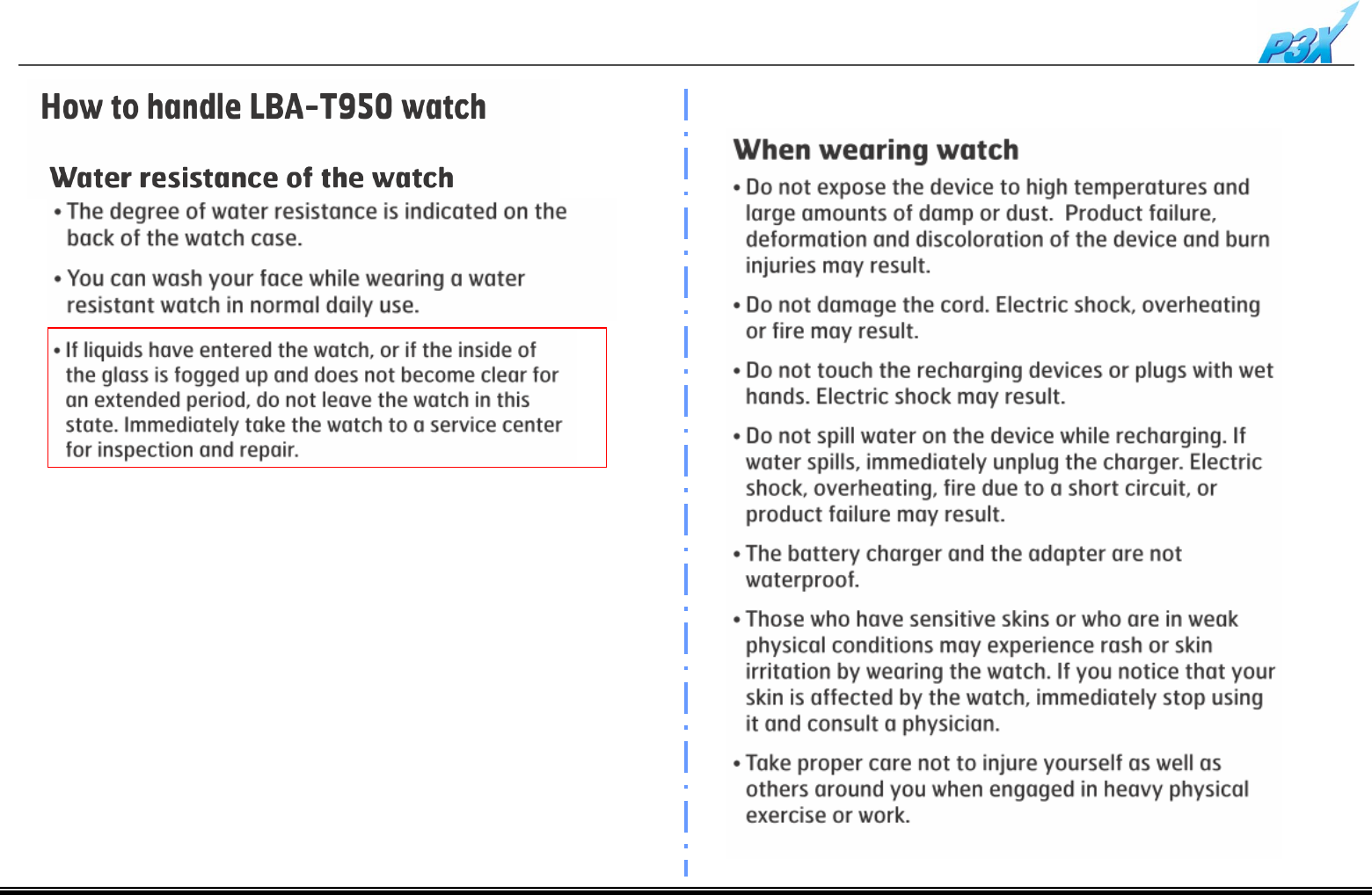

6. How to handle LBA-T950
11/14
LGE Confidential Challenge 123

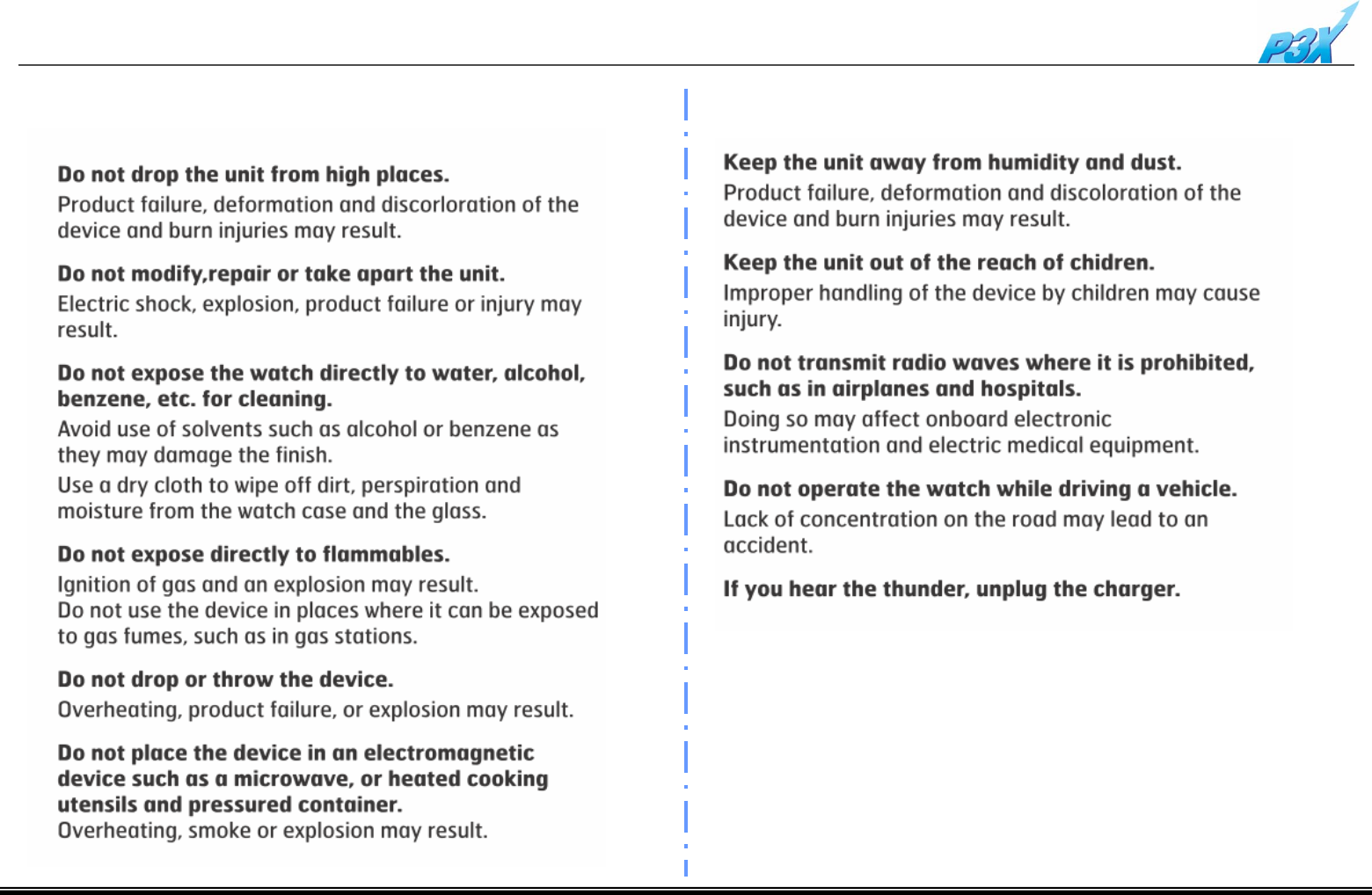

7. Safety Guideline
12/14
LGE Confidential Challenge 123
8. Troubleshooting
Problem Possible Corrective measures solution
No display Not enough battery •Try to charge the battery
Battery Charging
cannot be done The watch is not mounted properly
to the charge clip • Check the charge clip
direction with watch rear
case’s charge pin
System Halt No key is functional •Please connect LBA-T950
to the charger to reset.
•Press “OK” button for
5~12 sec to power off and
press “ OK” button to turn
on power
Not pairing with
Phone Do not receive Caller ID,
messages. • Please try to follow the
pairing process
9. Warranty and Service
Conditions
The warranty is valid only if the original receipt issued to the
original purchaser by the dealer, specifying the date of
purchase and serial number, is presented with the product to
be repaired or replaced.
LG Electronics reserves the right to refuse warranty service if
this information has been removed or changed after the
original purchase of the product from the dealer.
If LG Electronics repairs or replaces the product, the repaired or
replaced product shall be warranted for the remaining time of the
original warranty period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement may involve the
use of functionally equivalent reconditioned units. Replaced parts
or components will become the property of LG Electronics.
This Warranty does not cover any failure of the product due to
normal wear and tear, or due to misuse, including but not limited to
use in other than the normal and customary manner, in accordance
with instructions for use and maintenance of the product. Nor does
this warranty cover any failure of the product due to accident,
modification or adjustment, acts of God or damage resulting from
liquid.
This warranty does not cover product failures due to improper
repair installations, modifications or service performed by a non- LG
Electronics authorized person. Tampering with any of the seals on
the product will void the warranty.
13/14
LGE Confidential Challenge 123
9. Warranty and Service
THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN
OR ORAL, OTHER THAN THIS PRINTED INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS
VENDORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT
NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO
THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY
LAW.
Some countries/states do not allow the exclusion or limitation of
incidental or consequential damages, or limitation of the duration
of implied warranties, so the preceding limitations or exclusions
may not apply to you. The warranty provided does not affect the
consumer's statutory rights under applicable national legislation in
force, nor the consumer's rights against the dealer arising from
their sales/purchase contract.
Limited Warranty
Subject to the conditions of this Limited Warranty, LG Electronics
warrants this product to be free from defects in design, material and
workmanship at the time of its original purchase by a consumer, and
for a subsequent period of one (1) year. Should your product need
warranty service, please return it to the dealer from whom it was
purchased or contact your local LG Electronics contact center to get
further information.

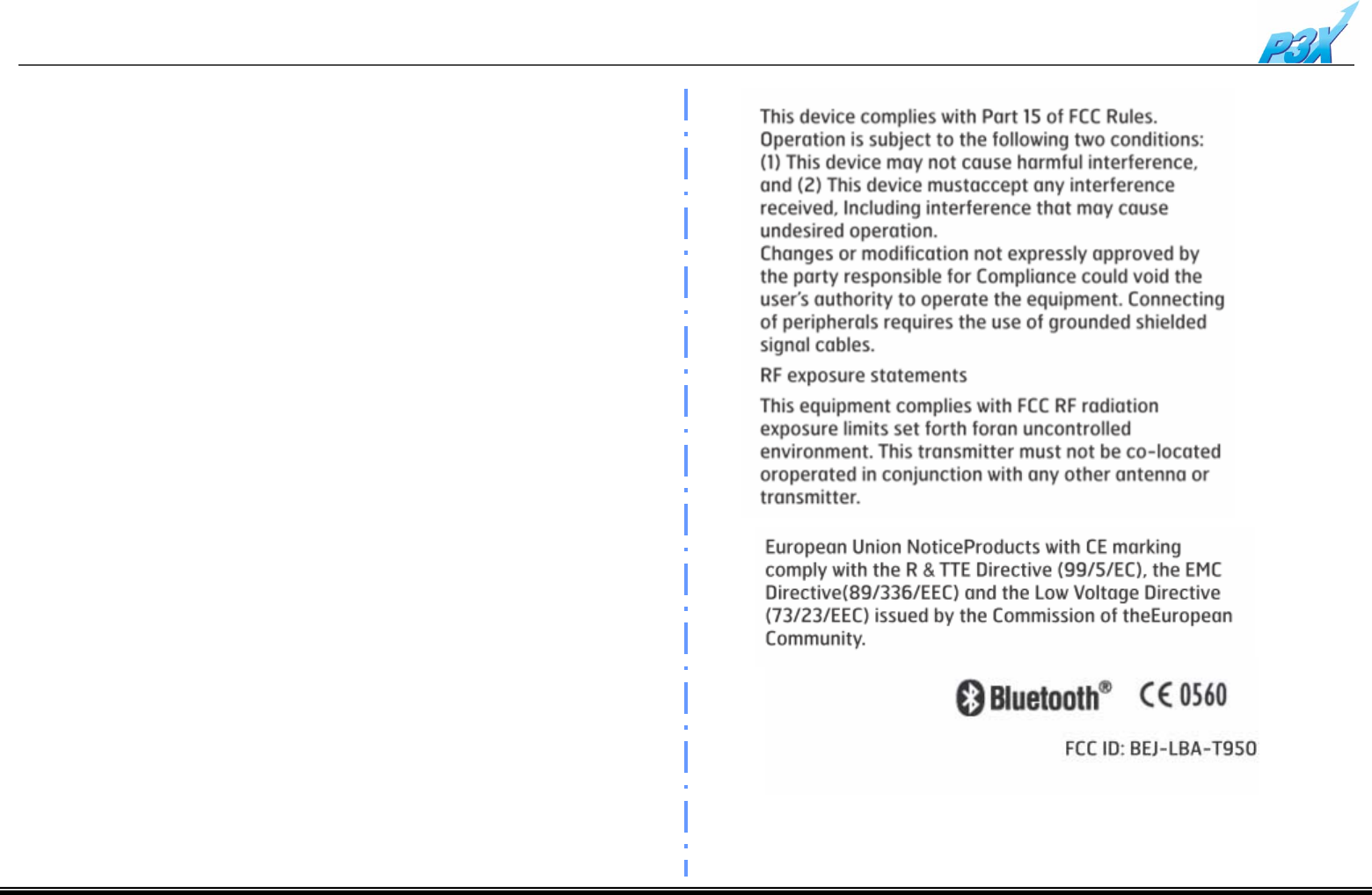

10. Declaration of Confirmation
QDID: B014727
싸인부분 형식만 확인해주세요.
일반 BT헤드셋은 없는데, Phone쪽은
자세하게 들어가네요.
14/14
LGE Confidential Challenge 123
11. Additional Information
1. Radio frequency exposure
This Bluetooth®, LBA-T950, is a radio transmitter and
receiver. When in operation, it communicates with a Bluetooth®
equipped mobile device by receiving and transmitting radio
frequency (RF) electromagnetic fields (microwaves) in the
frequency range 2.4 to 2.4835 GHz. The output power of the radio
transmitter is low, 0.001 watt. Your Bluetooth® Device is designed
to operate in compliance with the RF exposure guidelines and limits
set by national authorities and international health agencies when
used any compatible LG Electronics mobile phone.
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially
explosive atmosphere. It is rare, but your electronic device could
generate sparks. Sparks in such areas could cause an explosion or
fire resulting in bodily injury or even death. Areas with a potentially
explosive atmosphere are often, but not always, clearly marked.
3. Battery information
A rechargeable battery has a long service life if treated properly.
A new battery or one that has not been used for a long period of time
could have reduced capacity the first few times it is used.
Do not expose the battery to extreme temperatures, never above
+60。(+140。F) or under -20。(-4。F). For maximum battery capacity,
use the battery in room temperature. If the battery is used in low
temperatures, the battery capacity will be reduced. The battery can
only be charged in temperatures between +10。(+50。F) and
+45。(+ 113。F).
4. Recycling the battery in your Bluetooth® Device
The battery in your Bluetooth® Device must be disposed of properly
and should never be placed in municipal waste. The LG Electronics
service partner removing battery will dispose of it according to local
regulations.
