LG Electronics USA LC10S-R RADIO ASM-RECEIVER User Manual
LG Electronics USA RADIO ASM-RECEIVER
User Manual
Car AV
User Manual
Model Name : LC10S-R
(2) Specifications
*Product
Item Categories Specifications
Specification
Product Name RADIO ASM-RECEIVER
Model LC10S-R
FCC ID BEJLC10S-R
IC 2703H-LC10SR

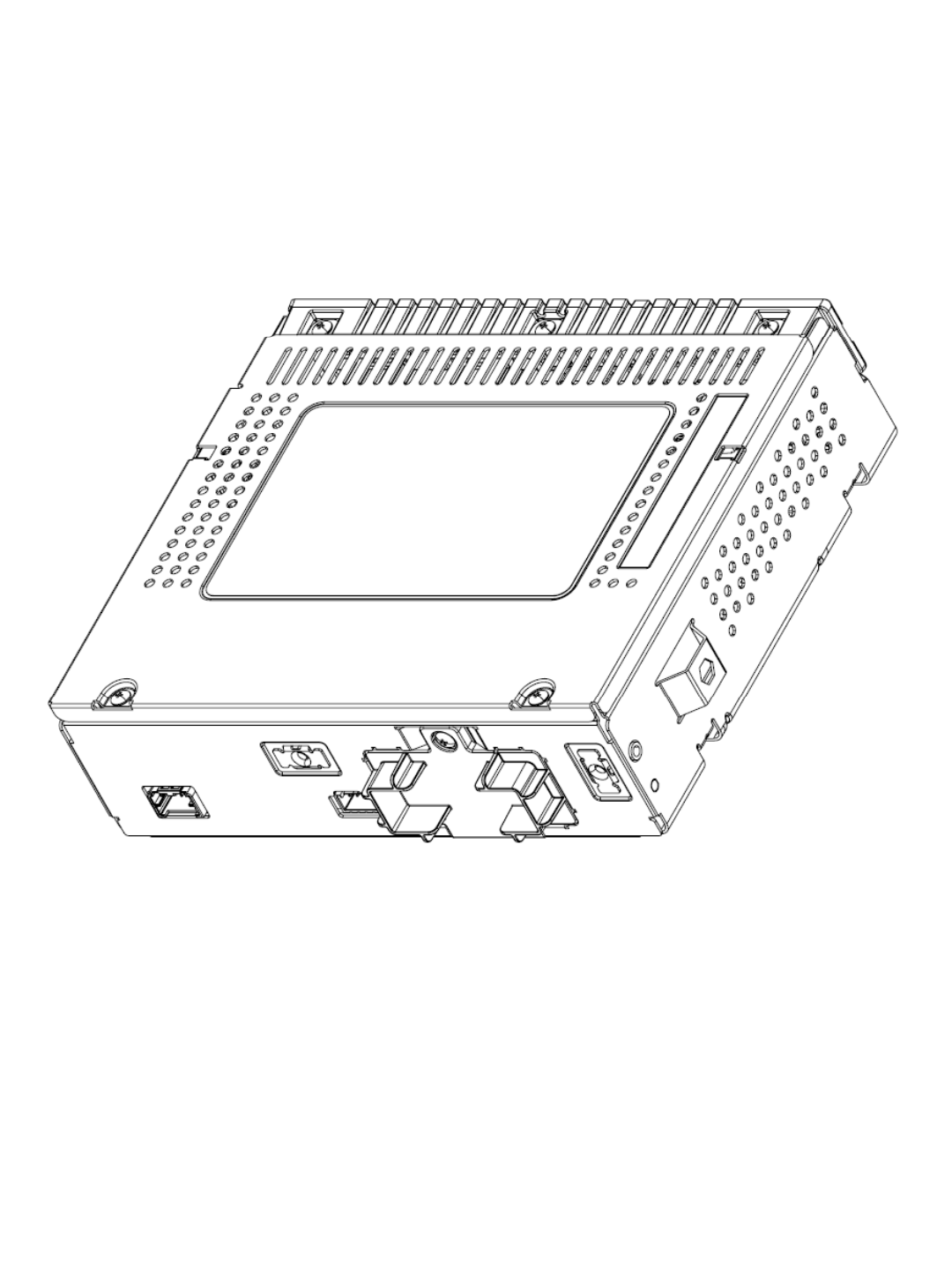

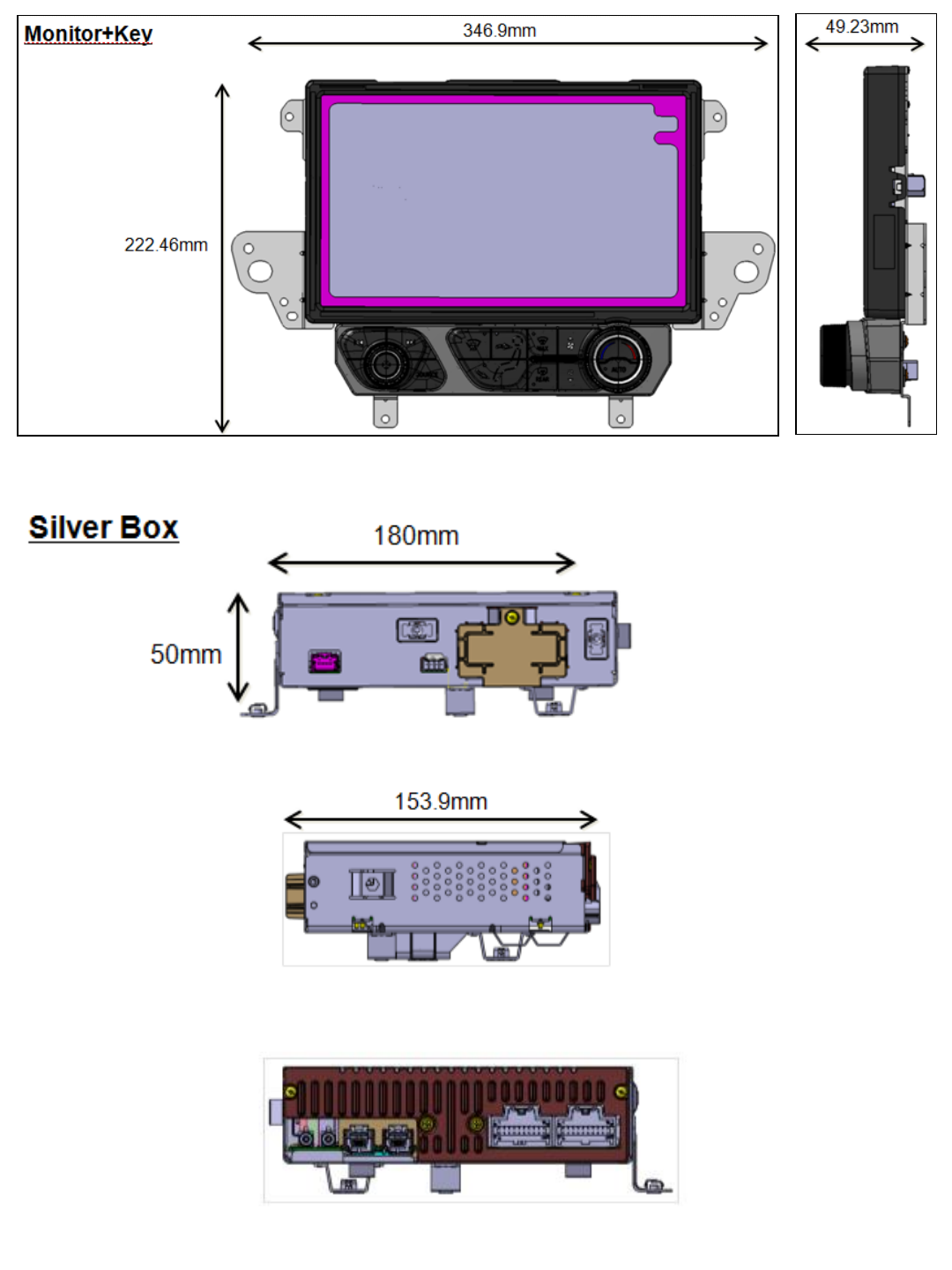

Dimensions Refer to image
Weight Monitor+Key : 1.3kg
Silver box : 0.896kg (XM)
Power source DC 12V
Operational
temperature range -30 ℃ ~ 80 ℃
1. Overview and Specifications
(1) Overview
1) The Infotainment system provides Infotainment in your car, using the latest
technology. See your dealer to have the system or software updated and upgraded.
2) The Infotainment system can play the USB storage device or iPod/iPhone products.
4) The Bluetooth phone connection function allows for the use of wireless hands-free
Phone calls, as well as a phone music player.
In addition, the WiFi function is provided.
5) Connect a portable music player to the auxiliary sound input to enjoy the rich
sound of the Infotainment system.
*RF specifications
[ BT ]
Item Specifications Unit
Frequency 2400 ~2483.5 MHz
Modulation Type GFSK, Π/4-DQPSK, 8-DPSK
BT Power [dBm] power class 2 dBm
Datarate 1 ~ 3 Mbps
Channel spacing 1 MHz
BT version BT 4.0
[ WiFi ]
Item Specifications Unit
Standard IEEE 802.11 a/b/g/n
Frequency 2.4G 2400 ~ 2483.5 MHz
5G 5.725 ~ 5.850 GHz
Bandwidth 20 MHz
Datarate
802.11 b 1, 2, 5.5, 11 Mbps
802.11 g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 a (5G) 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 n
(2.4G / 5G) 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
Modulation DSSS / OFDM
Mode AP, Station, Peer to Peer
2. Component
3. Operation
(1)
(2)
(3) (4)
(5) (6)

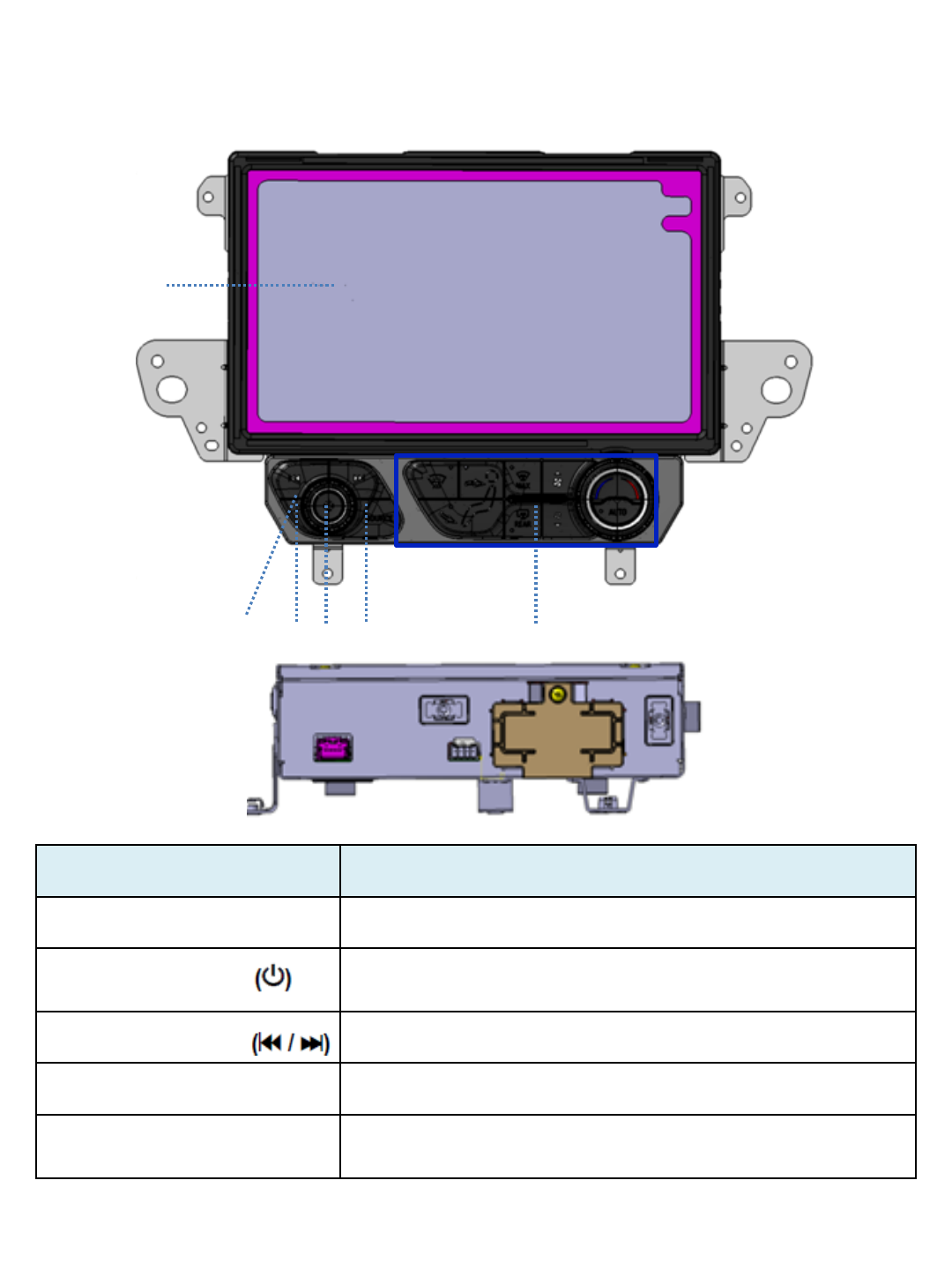

Item (#No.) Descriptions
(1) Display Display for Play/Reception/Menu state and information.
(2) POWER button Press and hold this button to turn the power on/off.
Press this button to turn the mute function on/off.
(3)/(4) Seek button Press this button to seek the station or media contents.
(5) Volume knob Rotate the Volume knob to adjust the volume.
(6) etc. Control Heating System, Air Conditioning System,
And Ventilation System

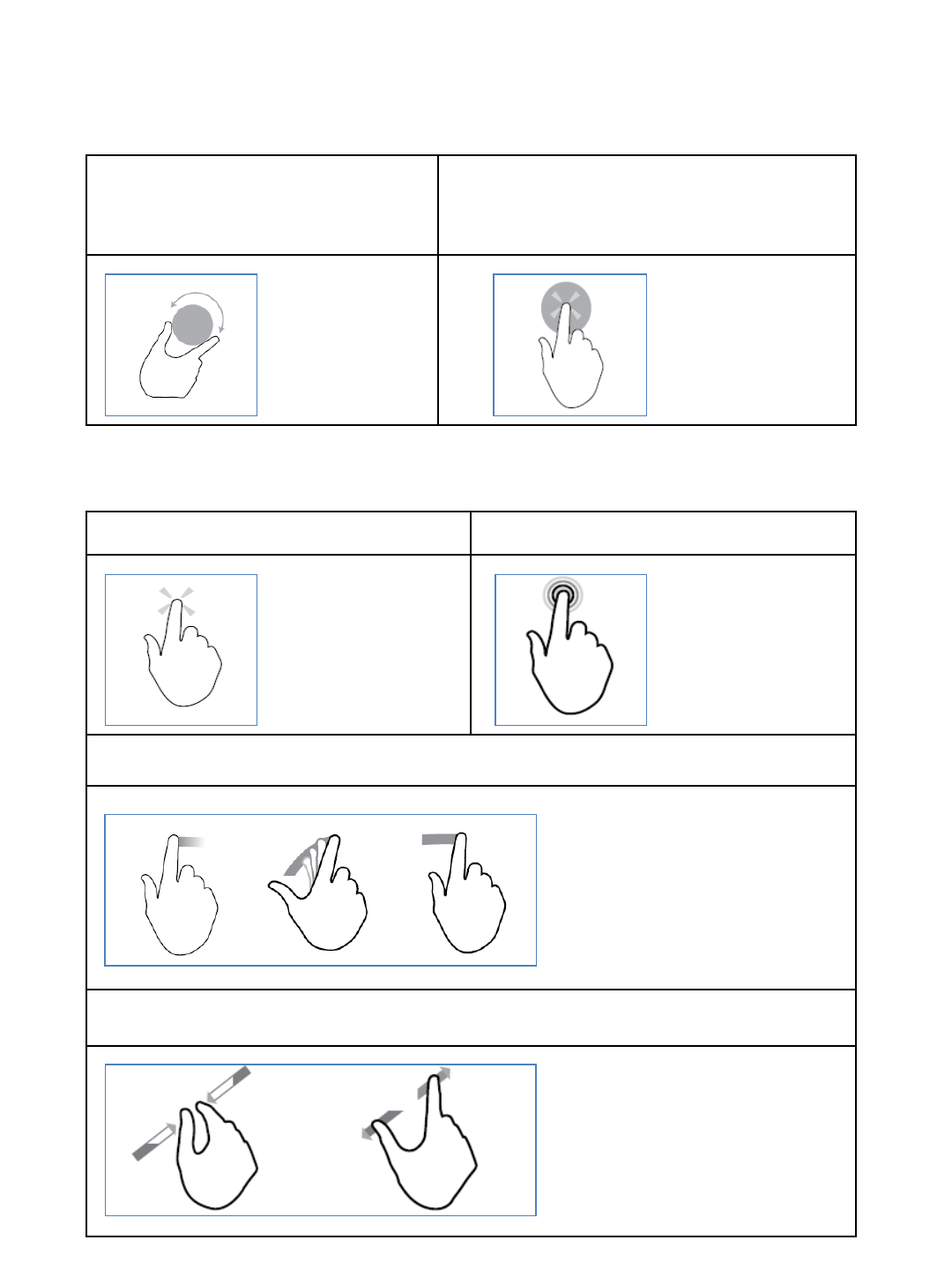

*Tap *Press & Hold
*Fling/Swipe
*Pinch & Spread
(7) Interactions | Rotary Knob
(8) Touch Gestures
*Rotate
Users can rotate the Volume
knob on the faceplate.
*Push
Users can press on the center of
the rotary-push knob to mute volume.
4. Precautions
1) Always operate the vehicle in a safe manner. Do not become distracted by
the vehicle while driving and always be fully aware of all driving conditions.
Do not change settings or any functions. Pull over in a safe and legal
manner before attempting such operations. To promote safety, certain
functions are disabled unless the parking brake is on.
2) To reduce the risk of electric shock, do not remove the cover or back of
this product. There are no user-serviceable parts inside. Refer servicing to
qualified service personnel.
3) To reduce the risk of fire or electric shock, do not expose this product to
dripping or splashing water, rain, or moisture.
4) When driving your vehicle, be sure to keep the volume of the unit low
enough to allow you to hear sounds coming from the outside.
5) Do not drop it and avoid heavy impacts at anytime.
6) The driver should not watch the monitor while driving. If the driver
watches the monitor while driving, it may lead to carelessness and cause an
accident.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. This transmitter
must not be co-located or operated in conjunction with any other antenna or
transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
–Consult the dealer or an experienced radio/TV technical for help.
This equipment should be installed and operated with minimum 20 cm between the
radiator and your body.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et.
(2) l'utilisateur de l'appareil doit accepter tout brouillage radio electrique subi, meme si
le brouillage est susceptible d'en compromettre le fonctionnement.
This equipment should be installed and operated with minimum 20 cm between the
radiator and your body.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm entre le
radiateur et votre corps.
