LG Electronics USA LC10SB Silver Box Radio Asm-Receiver User Manual
LG Electronics USA Silver Box Radio Asm-Receiver
User Manual
Car AVN
Car
AVN
User Manual
Model Name : LC10S-B
1. Overview and Specifications
(1) Overview
1) The Infotainment system provides Infotainment in your car, using the latest
technology. See your dealer to have the system or software updated and
upgraded.
2) The Infotainment system can play the USB storage device or iPod/iPhone
products.
4) The Bluetooth phone connection function allows for the use of wireless
hands-free
Phone calls, as well as a phone music player.
In addition, the WiFi function is provided.
5) Connect a portable music player to the auxiliary sound input to enjoy the
rich
d f th Ifti t t
(
2
)
Spec
ifi
cat
i
o
n
s
soun
d
o
f
th
e
I
n
f
o
t
a
i
nmen
t
sys
t
em.
( ) Spec cat o s
*Product
Item Categories Specifications
Product Name Silverbox RADIO ASM-RECEIVER
Model LC10S

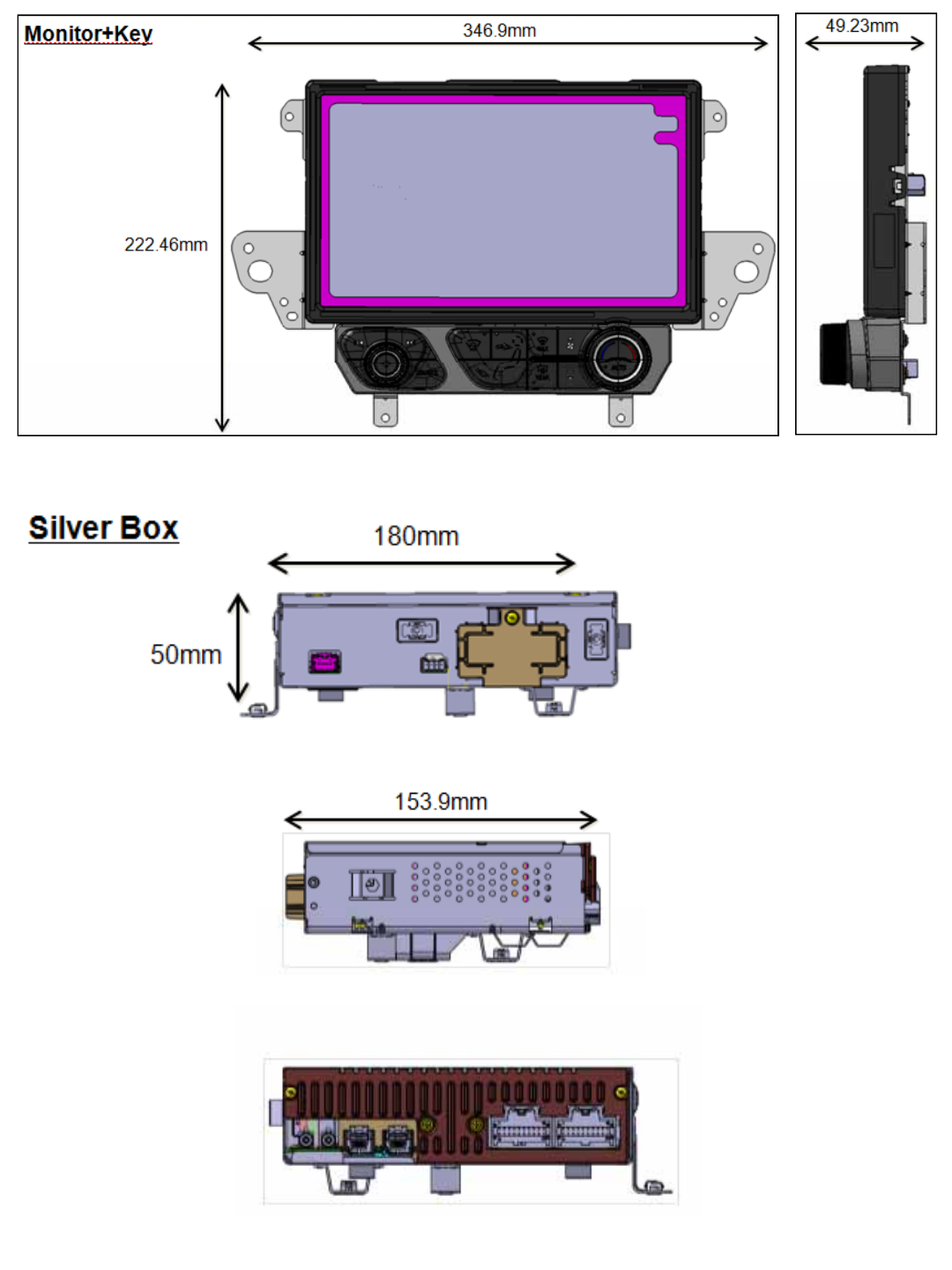

Dimensions Refer to ima
g
e
Specificatio
n
g
Weight Monitor+Key : 1.3kg
Silver box : 0.887kg (DAB)
Power source DC 12V
Operational
temperature range -30 ℃ ~ 80 ℃
*RF specifications
[ WiFi ]
Item
Specifications
Unit
Item
Specifications
Unit
Standard IEEE 802.11 a/b/g/n
Frequency 2.4G 2400 ~ 2484 MHz
5G 5G~6G GHz
Bandwidth 20 MHz
802.11 b 1, 2, 5.5, 11 Mbps
802.11
g
6,
9,
12,
18,
24,
36,
48,
54
Mbps
Datarate
802.11 g
6, 9, 12, 18, 24, 36, 48, 54
Mbps
802.11 a (5G) 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 n
(2.4G / 5G) 6.5, 13, 19.5, 26, 39, 52,
58.5, 65 Mbps
Modulation DSSS / OFDM
Mode AP, Station, Peer to Peer
2. Component
3. Operation
(1)
(2)
(3) (4)
(5) (6)
Item (#No.) Descriptions
(1) Display Display for Play/Reception/Menu state and
information.
(2) POWER button Press and hold this button to turn the power on/off.
Press this button to turn the mute function on/off.
(3)/(4) Seek button Press this button to seek the station or media
contents.
(5) Volume knob Rotate the Volume knob to adjust the volume.
(6) etc. Control Heating System, Air Conditioning System,
And Ventilation System
(7) Interactions | Rotary Knob
*Rotate
*Push
*Rotate
Users can rotate the Volume
knob on the faceplate.
*Push
Users can press on the center of
the rotary-push knob to mute volume.
*Ta
p
*Press & Hold
(8) Touch Gestures
p
*Fling/Swipe
*Pinch & Spread
4. Precautions
1) Always operate the vehicle in a safe manner. Do not become
distracted by the vehicle while driving and always be fully aware of
all driving conditions. Do not change settings or any functions. Pull
over in a safe and legal manner before attempting such operations. To
promote safety, certain functions are disabled unless the parking brake
is on
is
on
.
2) To reduce the risk of electric shock, do not remove the cover or
back of this product. There are no user-serviceable parts inside. Refer
servicing to qualified service personnel.
3) To reduce the risk of fire or electric shock, do not expose this
product to dripping or splashing water, rain, or moisture.
4) When driving your vehicle, be sure to keep the volume of the unit
low enough to allow you to hear sounds coming from the outside.
5) Do not drop it and avoid heavy impacts at anytime.
6) The driver should not watch the monitor while driving. If the driver
watches the monitor while driving, it may lead to carelessness and
cause an accident.
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
FCC Label Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IC Warning Statement
- English Warning Statement:
“This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this devicemust accept any interference, including interference that may cause undesired
operation of the device."
- French Warning Statement:
“Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement."
