Model Name : LC7F-D
1) The Infotainment system provides Infotainment in your car, using the latest
technology. See your dealer to have the system or software updated and upgraded.
2) The radio can be easily used by registering up to 25 FM or AM with the PRESET
button[1 to 5] per every 5 pages.
3) The Infotainment system can play the USB storage device or iPod/iPhone products.
4) The Bluetooth phone connection function allows for the use of wireless hands-free
Phone calls, as well as a phone music player.
In addition, the WiFi function is provided.
5) Connect a portable music player to the auxiliary sound input to enjoy the rich
sound of the Infotainment system.
(2) Specifications
*Product
Item Categories Specifications
Specification
Product Name Faceplate RADIO ASM-RECEIVER
Model LC7F-D

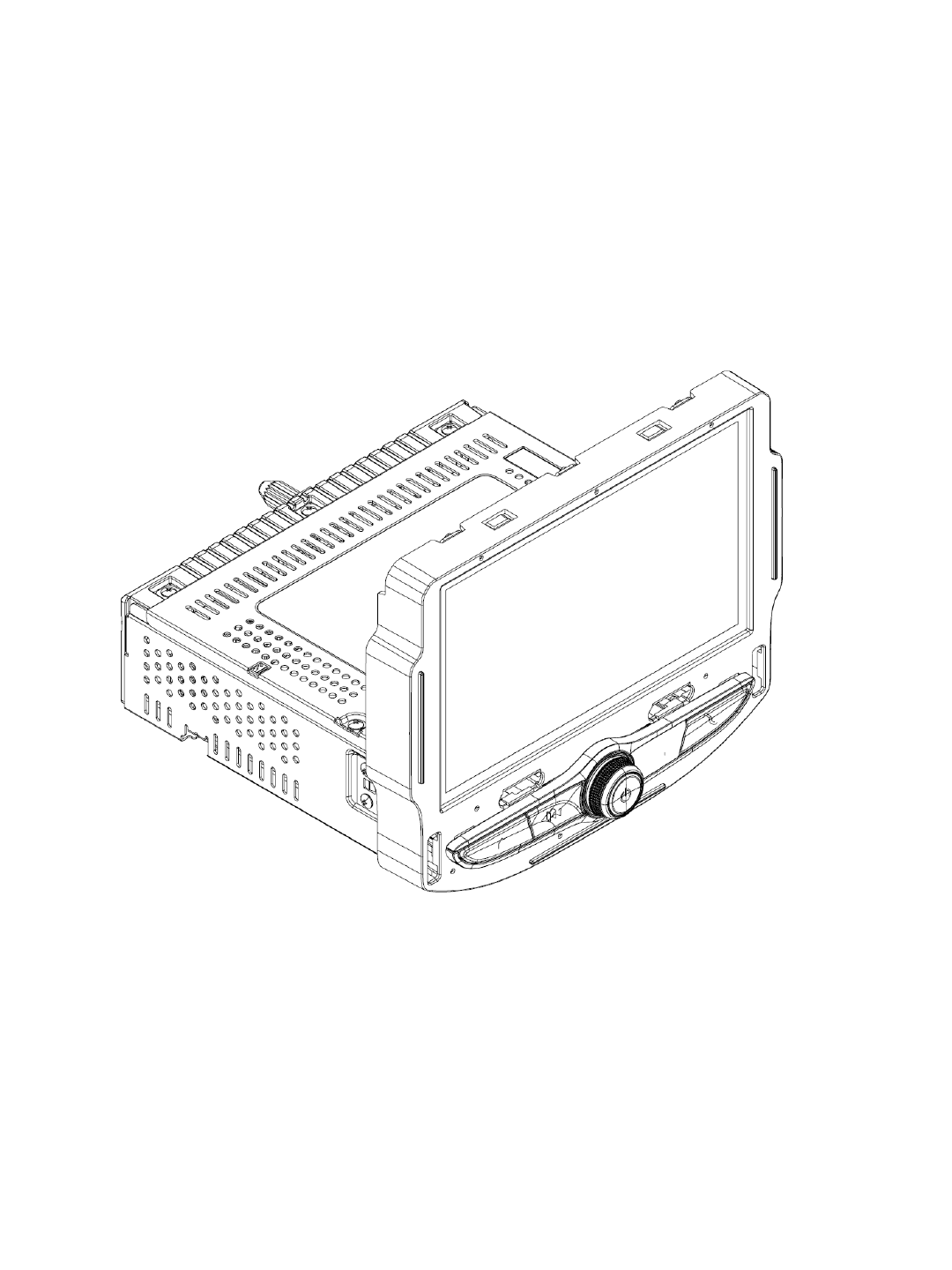

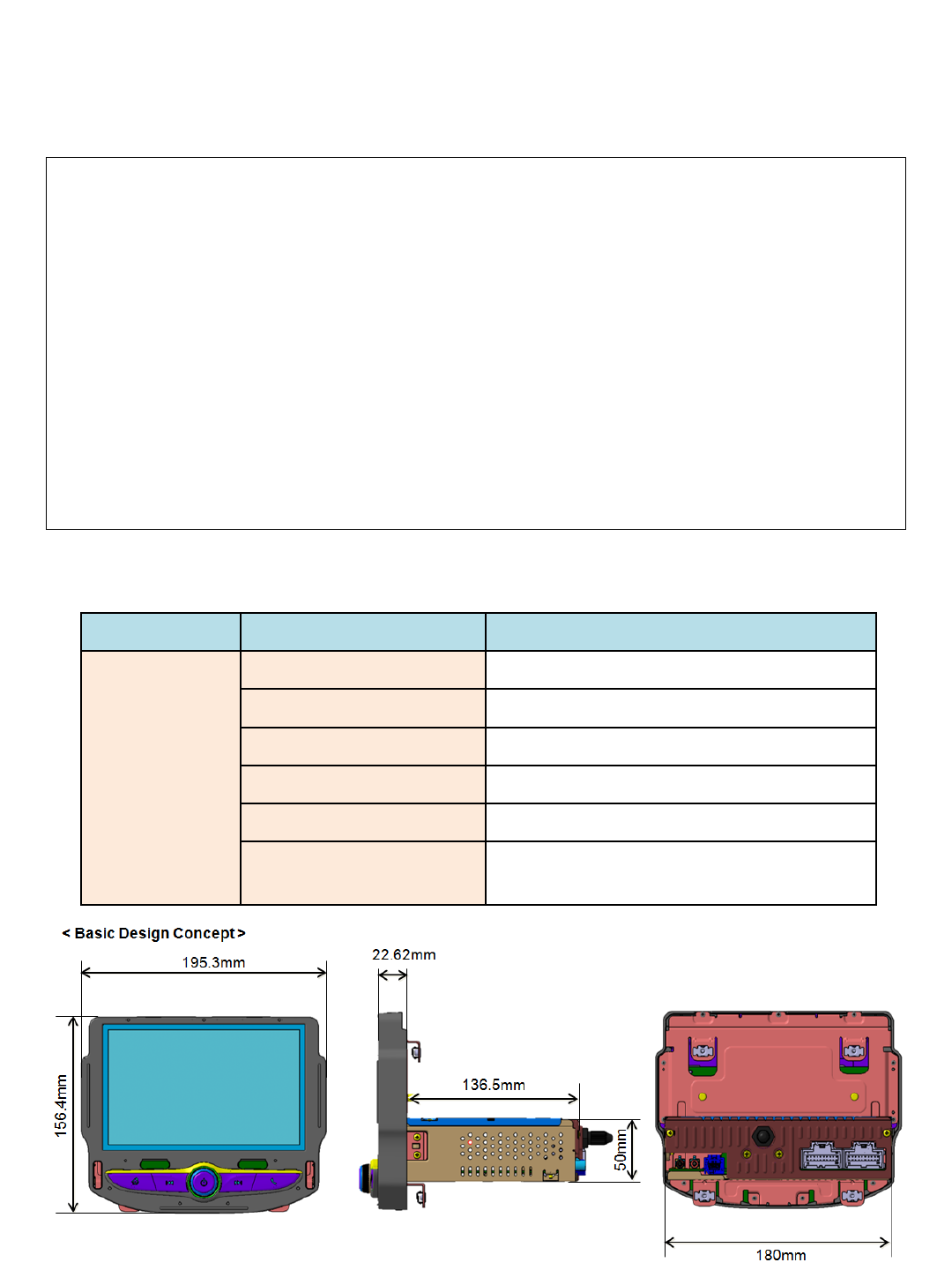

Dimensions Refer to image
Weight 1.48kg(Dual/Single)
Power source DC 12V
Operational
temperature range -30 ℃ ~ 80 ℃
1. Overview and Specifications
(1) Overview
*RF specifications
[ BT ]
Item Specifications Unit
Frequency 2400 ~2483.5 MHz
Modulation Type GFSK, Π/4-DQPSK, 8-DPSK
BT Power Power class 2
Datarate 1 ~ 3 Mbps
channel spacing 1MHz
BT version BT 3.0
[ WiFi ]
Item Specifications Unit
Standard IEEE 802.11 a/b/g/n
Frequency 2.4G 2400 ~ 2484 MHz
5G 5G~6G GHz
Bandwidth 20 MHz
Datarate
802.11 b 1, 2, 5.5, 11 Mbps
802.11 g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 a (5G) 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 n
(2.4G / 5G) 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
Modulation DSSS / OFDM
Mode AP, Station
2. Component
3. Operation

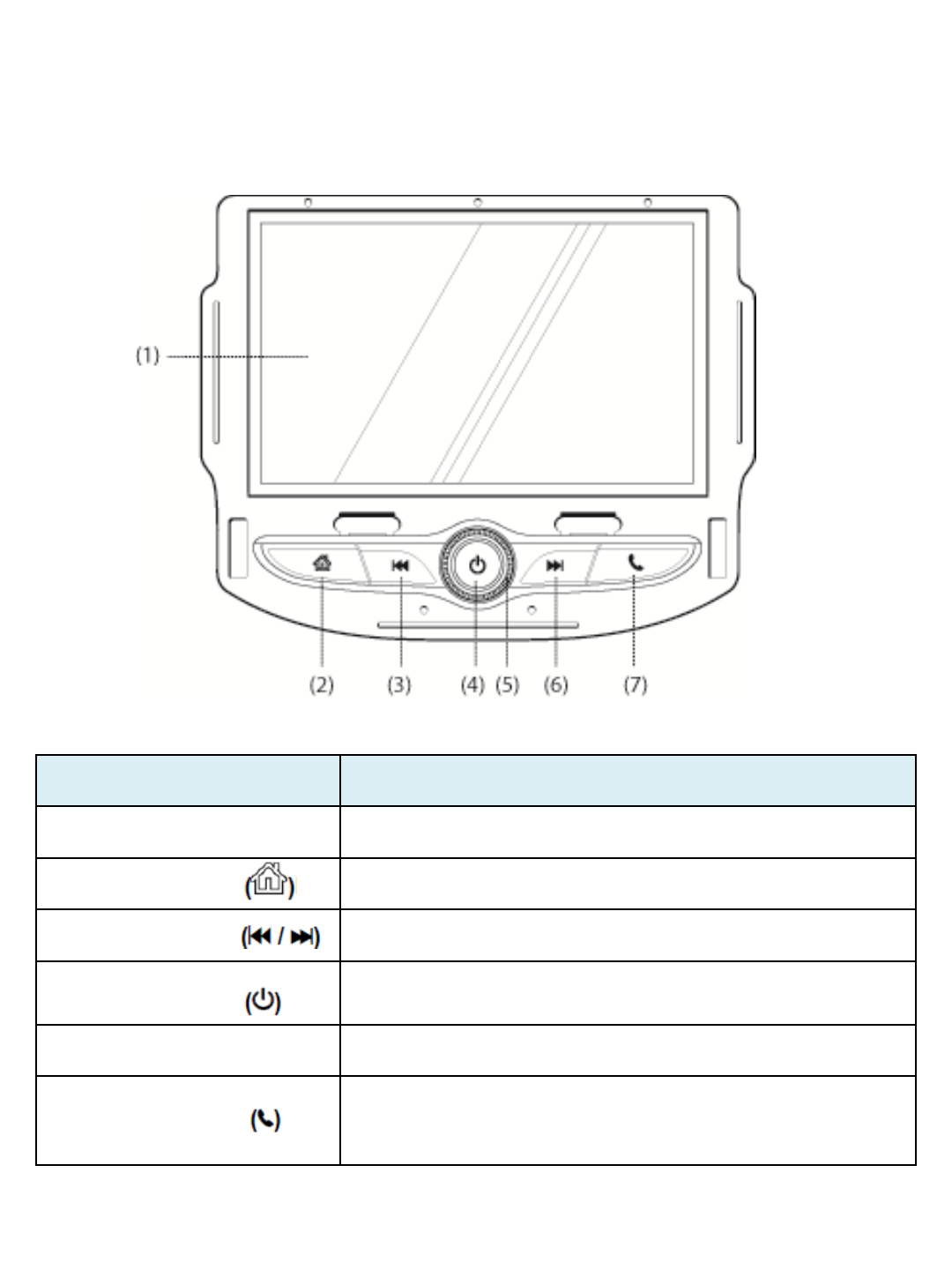

Item (#No.) Description
(1) Display Display for Play/Reception/Menu state and information.
(2) HOME button Press this button to enter the home menu.
(3)/(6) Seek button Press this button to seek the station or media contents.
(4) POWER button Press and hold this button to turn the power on/off.
Press this button to turn the mute function on/off.
(5) Volume knob Rotate the Volume knob to adjust the volume.
(7) Phone button
Press this button to access the Phone screen.
(If there is no connected phone, it will be displayed
Bluetooth device management screen.)

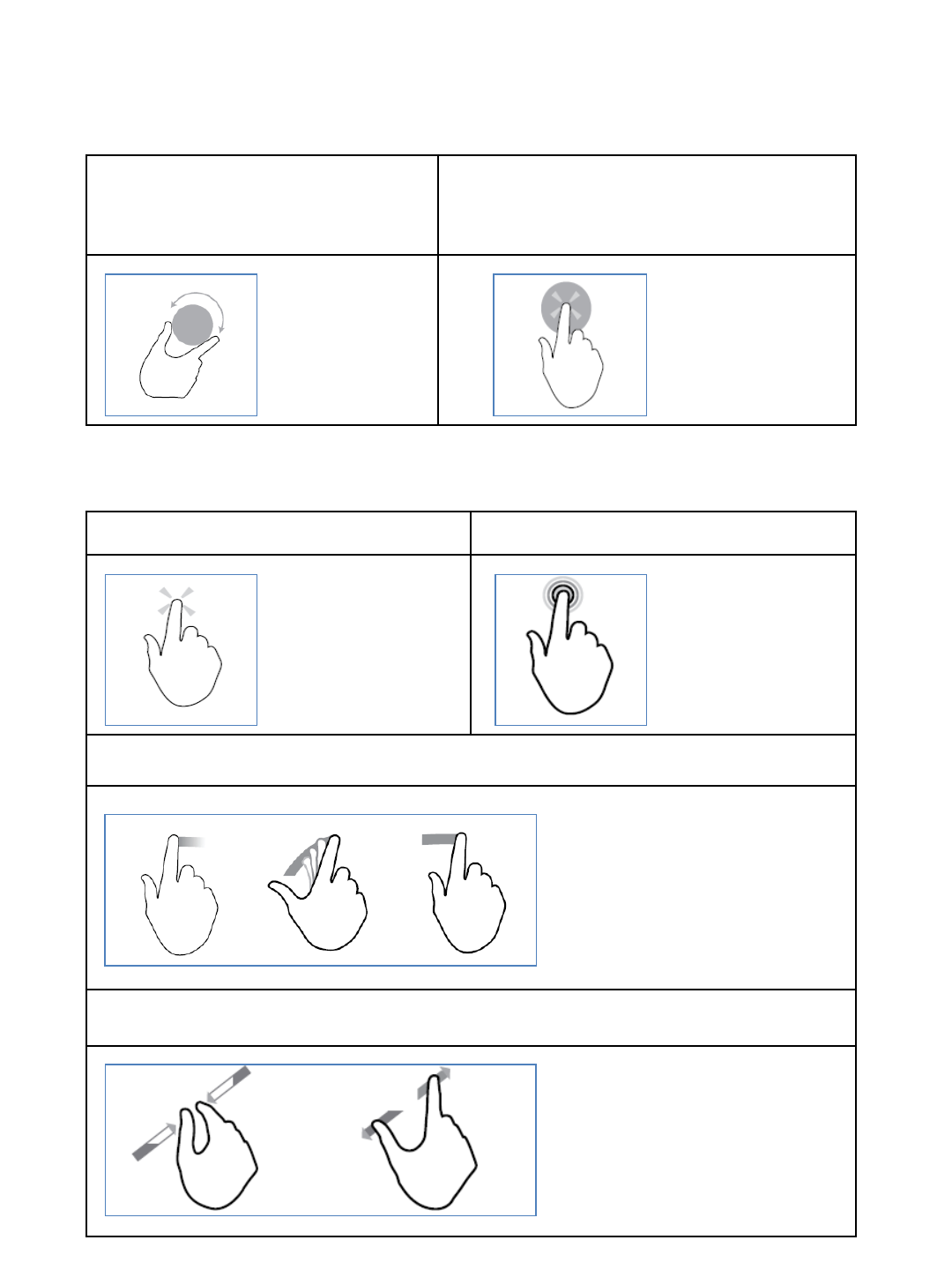

*Tap *Press & Hold
*Fling/Swipe
*Pinch & Spread
*Rotate
Users can rotate the Volume
knob on the faceplate.
*Push
Users can press on the center of
the rotary-push knob to mute volume.
(8) Interactions | Rotary Knob
(9) Touch Gestures
4. Precautions
1) Always operate the vehicle in a safe manner. Do not become distracted by
the vehicle while driving and always be fully aware of all driving conditions.
Do not change settings or any functions. Pull over in a safe and legal
manner before attempting such operations. To promote safety, certain
functions are disabled unless the parking brake is on.
2) To reduce the risk of electric shock, do not remove the cover or back of
this product. There are no user-serviceable parts inside. Refer servicing to
qualified service personnel.
3) To reduce the risk of fire or electric shock, do not expose this product to
dripping or splashing water, rain, or moisture.
4) When driving your vehicle, be sure to keep the volume of the unit low
enough to allow you to hear sounds coming from the outside.
5) Do not drop it and avoid heavy impacts at anytime.
6) The driver should not watch the monitor while driving. If the driver
watches the monitor while driving, it may lead to carelessness and cause an
accident.
•FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
•RF Exposure Statement (MPE)
The antenna(s) must be installed such that a minimum separation distance of at least
20 cm is maintained between the radiator (antenna) and all persons at all times. This
device must not be collocated or operating in conjunction with any other antenna or
transmitter.
•FCC Part 15.19 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
