LG Electronics USA LC7SR Silver box RADIO ASM-RECEIVER User Manual
LG Electronics USA Silver box RADIO ASM-RECEIVER Users Manual
Users Manual
Car AVN
User Manual
Model Name : LC7S-R
(2) Specifications
*Product
Item Categories Specifications
Specification
Product Name Silverbox RADIO ASM-RECEIVER
Model LC7S-R

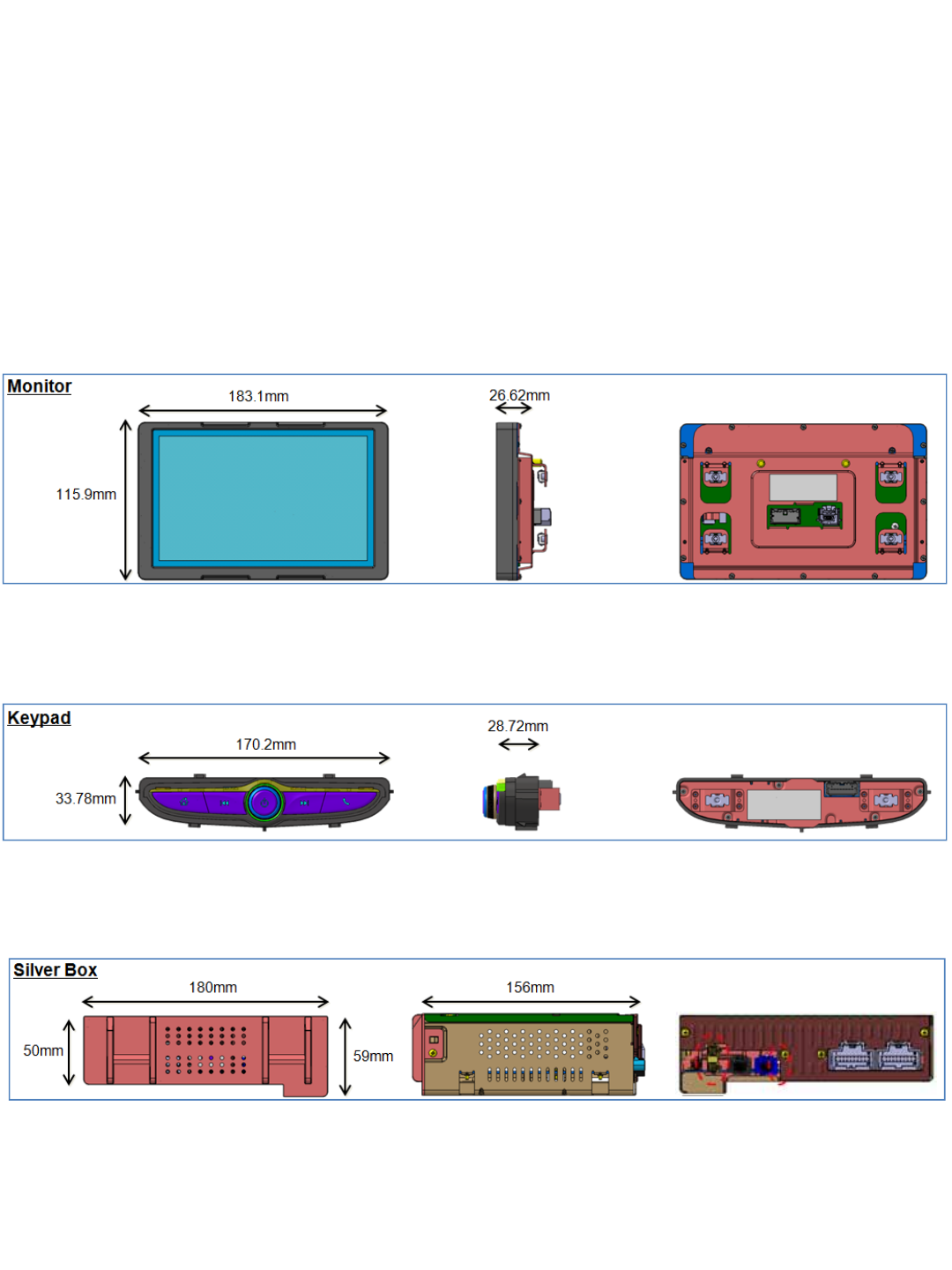

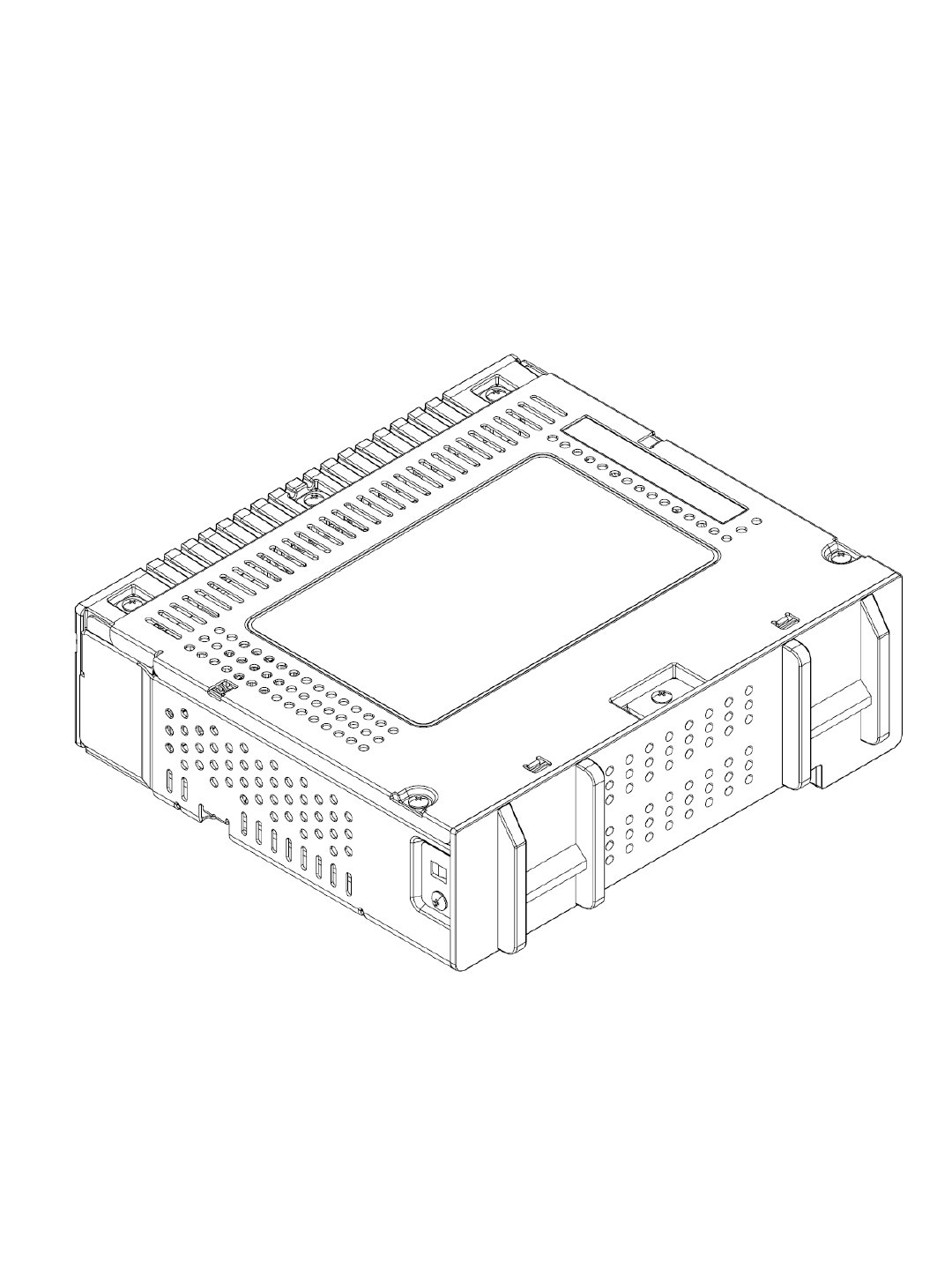

Dimensions Refer to image
Weight
Monitor : 0.69kg
Keypad : 0.13kg
Silver box : 0.79kg(Single)
0.83kg(XM)
Power source DC 12V
Operational
temperature range -30 ℃ ~ 80 ℃
1. Overview and Specifications
(1) Overview
1) The Infotainment system provides Infotainment in your car, using the latest
technology. See your dealer to have the system or software updated and upgraded.
2) The radio can be easily used by registering up to 25 FM or AM with the PRESET
button[1 to 5] per every 5 pages.
3) The Infotainment system can play the USB storage device or iPod/iPhone products.
4) The Bluetooth phone connection function allows for the use of wireless hands-free
Phone calls, as well as a phone music player.
In addition, the WiFi function is provided.
5) Connect a portable music player to the auxiliary sound input to enjoy the rich
sound of the Infotainment system.

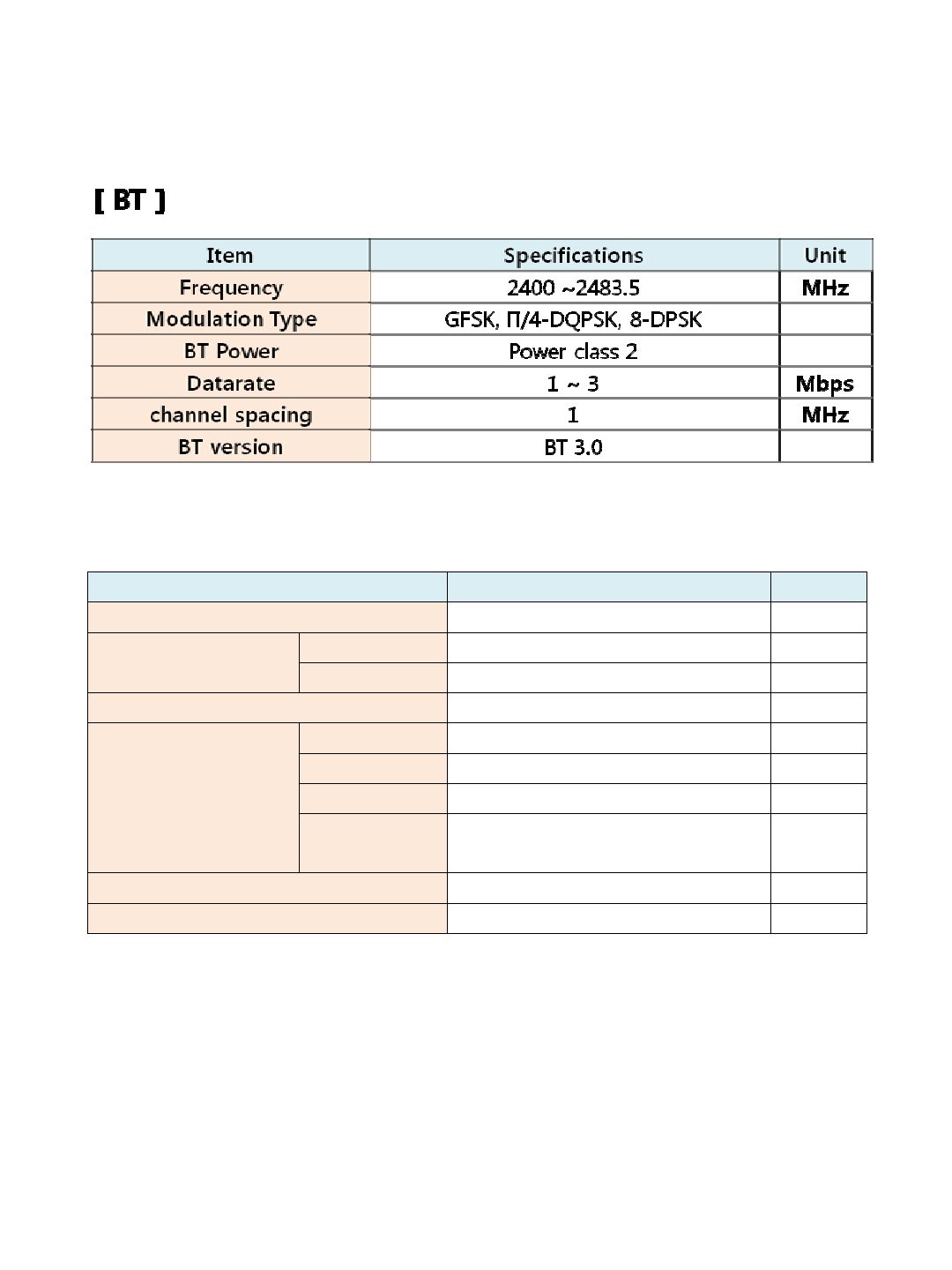

*RF specifications
[ WiFi ]
Item Specifications Unit
Standard IEEE 802.11 a/b/g/n
Frequency 2.4G 2400 ~ 2484 MHz
5G 5G~6G GHz
Bandwidth 20 MHz
Datarate
802.11 b 1, 2, 5.5, 11 Mbps
802.11 g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 a (5G) 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11 n
(2.4G / 5G) 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
Modulation DSSS / OFDM
Mode AP, Station, Peer to Peer
2. Component
3. Operation
(1)
(2) (3) (4)(5) (6) (7)

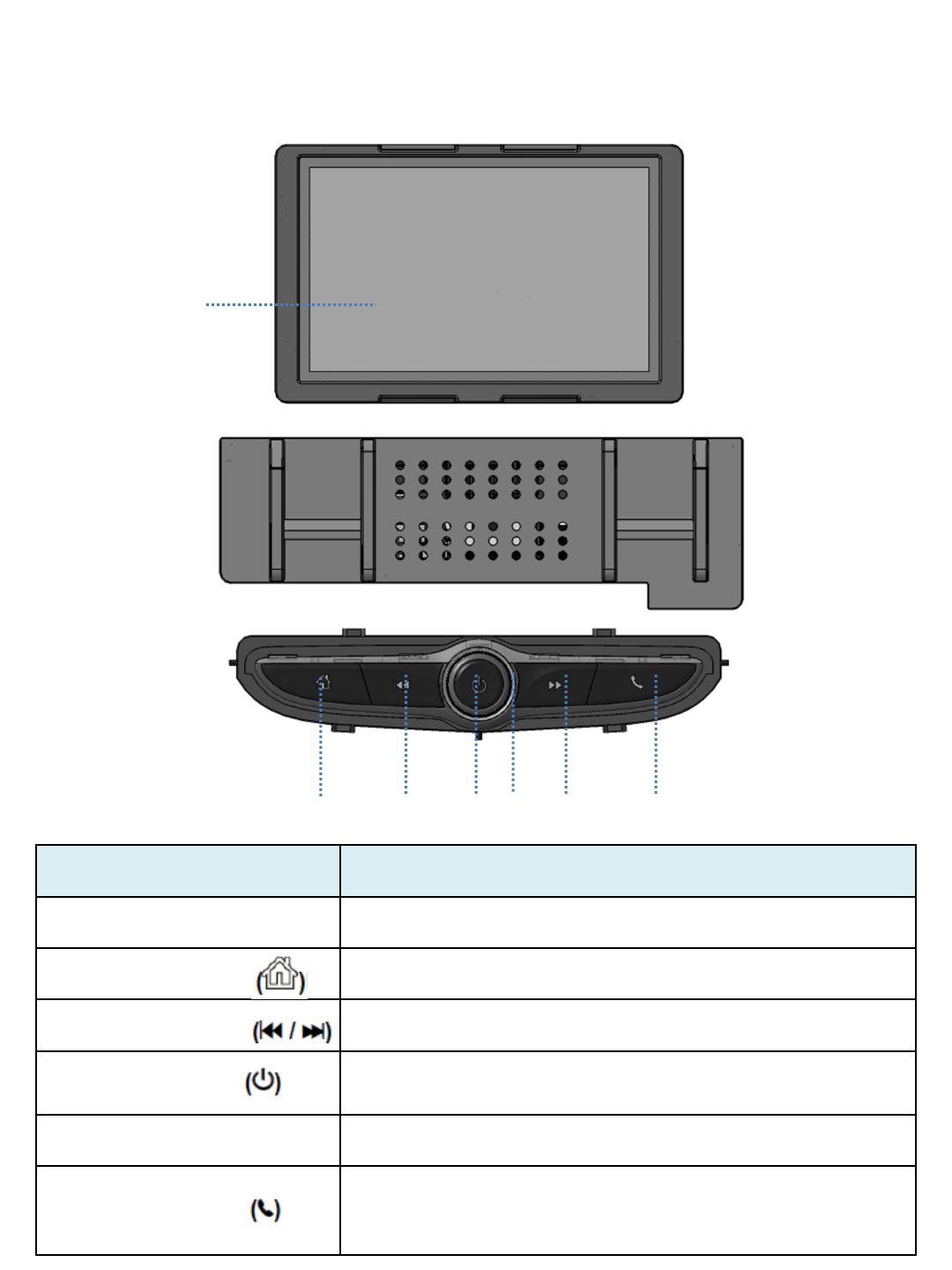

Item (#No.) Descriptions
(1) Display Display for Play/Reception/Menu state and information.
(2) HOME button Press this button to enter the home menu.
(3)/(6) Seek button Press this button to seek the station or media contents.
(4) POWER button Press and hold this button to turn the power on/off.
Press this button to turn the mute function on/off.
(5) Volume knob Rotate the Volume knob to adjust the volume.
(7) Phone button Press this button to access the Phone screen.
(If there is no connected phone, it will be displayed
Bluetooth device management screen.)

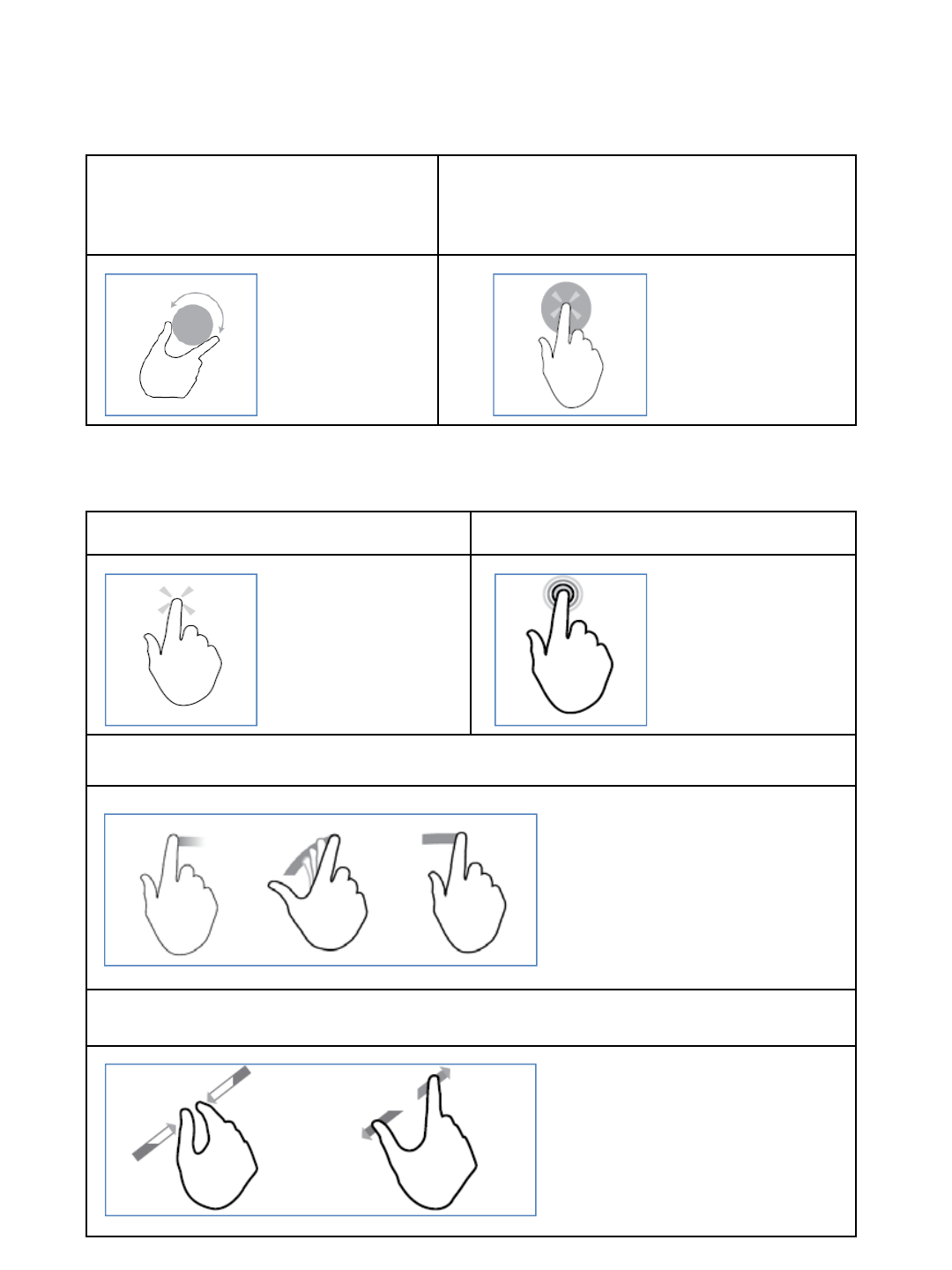

*Tap *Press & Hold
*Fling/Swipe
*Pinch & Spread
(8) Interactions | Rotary Knob
(9) Touch Gestures
*Rotate
Users can rotate the Volume
knob on the faceplate.
*Push
Users can press on the center of
the rotary-push knob to mute volume.
4. Precautions
1) Always operate the vehicle in a safe manner. Do not become distracted by
the vehicle while driving and always be fully aware of all driving conditions.
Do not change settings or any functions. Pull over in a safe and legal
manner before attempting such operations. To promote safety, certain
functions are disabled unless the parking brake is on.
2) To reduce the risk of electric shock, do not remove the cover or back of
this product. There are no user-serviceable parts inside. Refer servicing to
qualified service personnel.
3) To reduce the risk of fire or electric shock, do not expose this product to
dripping or splashing water, rain, or moisture.
4) When driving your vehicle, be sure to keep the volume of the unit low
enough to allow you to hear sounds coming from the outside.
5) Do not drop it and avoid heavy impacts at anytime.
6) The driver should not watch the monitor while driving. If the driver
watches the monitor while driving, it may lead to carelessness and cause an
accident.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
RF Exposure Statement (MPE)
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is
maintained between the radiator (antenna) and all persons at all times. This device must not be co-
located or operating in conjunction with any other antenna or transmitter.
RSS-GEN, Sec. 7.1.3 – (licence-exempt radio apparatus) (BT or WLAN 의 경우, 해당됨)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
RF Exposure
The antenna (or antennas) must be installed so as to maintain at all times a distance minimum of
at least 20 cm between the radiation source (antenna) and any individual. This device may not be
installed or used in conjunction with any other antenna or transmitter.
l'exposition aux RF
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance
minimum de au moins 20 cm entre la source de radiation (l’antenne) et toute personne physique.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate thisequipment.Attention:
Les changements ou modifications de cet appareil non expressément approuvé par le fabricant
peuvent annuler votre droit à utiliser cet équipement.
