Users Manual
Part 15.21 statement
" Change or Modifications that are not expressly approved by the manufacturer could void
the user's authority to operate the equipment. "
Part 15.105 statement
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. if this
equipment does cause harmful interference or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT SAFETY PRECAUTIONS
2
IMPORTANT SAFETY PRECAUTIONS
1. Do not expose the battery charger or adapter to direct sunlight or use it in places with high
humidity, such as a bathroom.
2. Do not use harsh chemicals (such as alcohol, benzene, thinners, etc.) or detergents to clean
your phone. This could cause a fire.
3. Do not drop, strike, or shake your phone severely. It may harm the internal circuit boards of
the phone.
4. Do not use your phone in high explosive areas as the phone may generate sparks.
5. Do not damage the power cord by bending, twisting, pulling, or heating. Do not use the plug
if it is loose as it may cause a fire or electric shock.
6. Do not place any heavy items on the power cord. Do not allow the power cord to be crimped
as it may cause electric shock or fire.
7. Do not handle the phone with wet hands while it is being charged. It may cause an electric
shock or seriously damage your phone.
8. Do not disassemble the phone.
3
IMPORTANT SAFETY PRECAUTIONS
1. Do not place or answer calls while charging the phone as it may short-circuit the phone
and/or cause electric shock or fire.
2. Do not hold or let the antenna come in contact with your body during a call.
3. Make sure that no sharp-edged items such as animal’s teeth or nails, come into contact with
the battery. This could cause a fire.
4. Store the battery out of reach of children.
5. Be careful that children do not swallow any parts (such as rubber plugs, earphone,
connection parts of the phone, etc.) This could cause asphyxiation or suffocation resulting in
serious injury or death.
6. Unplug the power cord and charger during lightning storms to avoid electric shock or fire.
7. Only use the batteries and chargers provided by LG. The warranty will not be applied to
products provided by other suppliers.
8. Only authorized personnel should service the phone and its accessories. Faulty installation or
service may result in accidents and consequently invalidate the warranty.
9. An emergency call can be made only within a service area. For an emergency call, make sure
that you are within a service area and that the phone is turned on.
Thank you for choosing the advanced and compact LG200C cellular
phone, designed to operate with the latest digital mobile
communication technology, Code Division Multiple Access (CDMA).
Along with the many advanced features of the CDMA system, such as
significantly enhanced voice clarity, this phone offers:
●
Large, easy-to-read, 7-line backlight LCD with status icons.
●
Paging, messaging, voice mail, and caller ID.
●
22-key keypad.
●
Speaker phone feature.
●
Menu-driven interface with prompts for easy operation and
configuration.
●
Any key answer, auto answer, auto retry, one-touch and speed
dialing with 99 memory locations.
●
Bilingual (English and Spanish) capabilities.
Important Information
This user’s guide provides important information on the use and
operation of your phone. Please read all the information carefully prior
to using the phone for the best performance and to prevent any
damage to or misuse of the phone. Any unapproved changes or
modifications will void your warranty. Internal antenna described as
antenna throughout this user guide
FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC rules.
Operation is subject to the following two conditions: (1) This device
and its accessories may not cause harmful interference, and (2) this
device and its accessories must accept any interference received,
including interference that causes undesired operation.
FCC RF Exposure Information
WARNING! Read this information before operating
the phone.
In August 1996, the Federal Communications Commission (FCC) of the
United States, with its action in Report and Order FCC 96-326,
adopted an updated safety standard for human exposure to Radio
Frequency (RF) electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies.
The design of this phone complies with the FCC guidelines and these
international standards.
WELCOME
4
WELCOME
WELCOME
5
Bodily Contact During Operation
This device was tested for typical use with the back of the phone kept
0.6 inches (1.5 cm) from the body. To comply with FCC RF exposure
requirements, a minimum separation distance of 0.6 inches (1.5 cm)
must be maintained between the user’s body and the back of the
phone, including the antenna, whether extended or retracted. Third-
party belt-clips, holsters, and similar accessories containing metallic
components should not be used. Avoid the use of accessories that
cannot maintain 0.6 inches (1.5 cm) distance between the user’s body
and the back of the phone and have not been tested for compliance
with FCC RF exposure limits.
Vehicle-Mounted External Antenna
(Optional, if available)
A minimum distance of 8 inches (20cm) must be maintained between
the user / bystander and the vehicle-mounted external antenna to
satisfy FCC RF exposure requirements. For more information about RF
exposure, visit the FCC website at www.fcc.gov.
Caution
Use only the supplied and approved antenna. Use of unauthorized
antennas or modifications could impair call quality, damage the phone,
void your warranty and/or result in violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna
comes into contact with the skin a minor burn may result. Contact your
local dealer for a replacement antenna.
2
2
2
0.790.790.790.790.790.790.790.790.790.790.790.79
6
PHONE OVERVIEW
PHONE OVERVIEW
Earpiece
Navigation
Keys
Right Soft
Key
END/PWR
Key
Flip
LCD
Screen
Left Soft
Key
Headset
Jack
SEND
Key
OK Key
BACK
Key
Manner
Mode
Key
Alphanumeric
Keypad
Microphone
Charging the Battery
To use the charger provided with your phone:
1. Plug the end of the adapter into the phone’s charger port and the
other end into an electrical outlet.
2. The charge time varies depending upon the battery level.
Turning the Phone On
1. Install a charged battery or connect the phone to an external power
source such as a cigarette lighter charger or hands-free car kit.
2. Press until the LCD screen lights up.
Turning the Phone Off
1. Press and hold until the display turns off.
Making Calls
1. Make sure the phone is turned on. If not, press for about 3
seconds.
2. Enter the phone number (include the area code if needed).
3. Press . lf the phone is locked, enter the lock code.
4. Press to end the call.
NNoottee
Like any other radio device, avoid contact with the antenna while your
phone is on.
Installing the Battery
To install the battery, insert the battery into the opening on the back of
the phone. Put the battery cover on the battery and push it slightly
upwards.
Removing the Battery
Turn the power off. Lift the release latch to detach the battery.
GETTING STARTED WITH YOUR PHONE
PREPAID
7
Receiving Calls
1. When the phone rings or vibrates press to answer.
2. Press twice to end the call.
Manner Mode
Use Manner Mode in public places. When Manner Mode is set, is
displayed on the screen, the key tones are silent, and the phone is set
to vibrate.
Manner Mode Quick Activation
1. From Standby Mode press for 3 seconds.
Manner Mode Quick Cancellation
1. Press to switch to Normal Mode.
Lock Mode
Use Lock Mode to prevent others from using your phone. When Lock
Mode is set, your 4-digit password(the last 4 digits of your phone
number) is required to use the phone.
Lock Mode Quick Cancellation
1. Press Right Soft Key
[Unlock]
then enter your 4-digit
password.
Menu Access
Press Left Soft Key [Menu] to have access to six phone menus.
There are two methods to access menus and submenus:
●
Use the navigation key to highlight and select, or
●
Press the number key that corresponds to the menu or submenu.
Prepaid
The Prepaid Menu allows you to make use of your phone with cool
features and cut corners efficiently as much as you pay in advance.
Don't miss the opportunity and navigate the following sub-menus for
your understanding of Prepaid functionality.
1. Add Airtime
, ,
Add Airtime allows you to start an over-the-air request for additional
airtime.
2. Buy Airtime
, ,
Buy Airtime allows you to start an over-the-air request for purchase
additional airtime.
3. My Phone Number
, ,
Phone Number displays the phone's programmed MSID or MDN.
4. Airtime Info
, ,
Airtime Info displays the amount of airtime by the unit and due date
information.
8
CONTACTS
GETTING STARTED WITH YOUR PHONE
5. Airtime Display
, ,
Airtime Display allows you to disable/enable the display of idle screen,
prepaid-related information.
6. My MEID
, ,
My MEID simply displays the information of your phone's MEID.
7. Code Entry Mode
, ,
Code Entry Mode will allow the phone to accept Tracfone-related
codes in order to add units, modify specific data and troubleshoot the
phone. In using the Code Entry Mode, you can't receive incoming calls
or use events alert.
Contacts
The Contacts Menu allows you to store names, phone numbers and
other information in your phone’s memory. When you list your
Contacts, the number in parenthesis represents the number of entries
you have stored (up to 300).
1. Contact List
, ,
Allows you to view your Contacts list.
Options from here:
●
Press to scroll through your Contacts alphabetically.
●
Press Right Soft Key
[Options]
to select one of the
following:
Send Message/ Find Name/ Find Number/ Find Speed Dial/
Find Group/ Find E-mail/ Erase
●
Press Left Soft Key
[New]
to store a New Number or New
E-mail.
2. New Number
, ,
Allows you to add a new number as a new Contact entry.
1. Enter the number, then press .
2. Select the Label you want and press .
3. Enter the name, then press .
4. Continue saving the entry as necessary.
3. New E-mail
, ,
Allows you to save a new e-mail address as a new Contact entry.
1. Enter the e-mail address, then press .
2. Enter the name, then press .
3. Continue saving the entry as necessary.
4. Groups
, ,
Allows you to view your grouped Contacts, add a new group, change
the name of a group, or delete a whole group.
NNoottee
Using this sub-menu, the e-mail is saved as a new Contact. To save
the e-mail into an existing Contact, edit the Contact entry.
NNoottee
Using this sub-menu, the number is saved as a new Contact. To save
the number into an existing Contact, edit the Contact entry.
RECENT CALLS
9
RECENT CALLS
Options from here:
●
Use to highlight a group to view, then press .
●
Press Left Soft Key
[Add]
to add a new group to the list.
●
Use to highlight a group, then press Right Soft Key
[Options]
to change the name of the group or delete the group.
Edit Group/ Erase Group
5. Speed Dials
, ,
Allows you to view your Speed Dials list, designate new Speed Dials, or
remove Speed Dial designations entered in your Contacts.
1. Use to highlight the Speed Dial position, or enter the Speed
Dial digit and press .
2. Use to highlight the Contact and press .
3. Use to highlight the number and press .
A confirmation message is displayed.
6. Voice Dials
, ,
Allows you to view the list of numbers programmed with voice dialing or
add a Voice Dial command to a number stored in your Contacts.
Options from here:
●
Press Left Soft Key [New] to record a new Voice Dial
command. Follow the phone’s prompts.
●
Use to highlight a Voice Dial and press Right Soft Key
[Options] to choose one of the following:
Play/ Re-record/ Erase/ Erase All
Recent Calls
The Recent Calls Menu is a list of the last phone numbers or Contact
entries for calls you placed, accepted, or missed. It is continually
updated as new numbers are added to the beginning of the list and the
oldest entries are removed from the bottom of the list.
1. Dialed Calls
, ,
Allows you to view the list of outgoing calls; up to 30 entries.
1. Use to highlight an entry, then
●
Press to view the entry.
●
Press to call the number.
●
Press Right Soft Key [Options] to select:
Save(Contact Info)/ Send Msg/ Prepend/ Erase/ Erase All
2. Received Calls
, ,
Allows you to view the list of incoming calls; up to 30 entries.
1. Use to highlight an entry, then
●
Press to view the entry.
●
Press to call the number.
●
Press Right Soft Key [Options] to select:
Save(Contact Info)/ Send Msg/ Prepend/ Erase/ Erase All
NNoottee
To view a quick list of all your recent calls, press from standby mode.
10
3. Missed Calls
, ,
Allows you to view the list of missed calls; up to 30 entries.
1. Use to highlight an entry, then
●
Press to view the entry.
●
Press to call the number.
●
Press Right Soft Key [Options] to select:
Save(Contact Info)/ Send Msg/ Prepend/ Erase/ Erase All
4. Erase Calls
, ,
Allows you to erase selected call list(s).
1. Use to highlight the list of calls to erase, then press .
Dialed Calls/ Received Calls/ Missed Calls/ All Calls
2. Press
Erase
or
Cancel
.
5. Call Timer
, ,
Allows you to view the duration of selected calls.
1. Use to highlight a call list, then press .
Last Call/ Home Calls/ Roam Calls/ All Calls
Messages
The phone can store up to 115 messages (for example, 50 inbox text
messages, 50 outbox text messages, 15 saved text messages). The
LG200C supports up to 160 characters per message including header
information. The information stored in the message is determined by
phone mode and service capability. Other limits to available characters
per message may exist. Please check with your service provider for
system features and capabilities.
New Message Alert
Your phone alerts you when it receives a new message. You'll see New
Message displayed in the middle of the screen and the message icon
( ) on the top line. You could also hear a message alert, if you set
one. Urgent message may be displayed if the sender sent it as an urgent
message.
1. Voice Mail
, ,
Allows you to view new voice messages recorded in the voice mail box.
When you have a new voice message, your phone will alert you.
Checking Your Voice Mail Box
1. Options from here:
●
Press to listen to the message(s).
●
Press Left Soft Key [Clear] to delete information, and then
select CClleeaarr CCoouunntt.
MESSAGES
MESSAGES
2. New Message
, ,
Allows you to send text messages, pages, and e-mail transmissions. Each
message has a destination (Address 1) and information (Message).
These are dependent upon the type of message you want to send.
1. Enter the phone number of the recipient or the e-mail address for
an e-mail message.
2. Press .
3. Press to access the message screen.
4. Type your message (text or e-mail) then press .
5. Press Left Soft Key [Send].
A confirmation message is displayed.
Customizing the Text Message using options
1. Create a new message.
2. Press Right Soft Key [Options].
3. Select the option(s) to customize.
Send
Sends the message.
Priority
Gives priority to the message.
Normal/ Urgent
Callback #
Inserts a pre-programmed callback number with your
message.
On/ Off/ Edit
Delivery Notice
Informs you that the message has been successfully
delivered to the recipient.
Enhanced/ On
Save Message
Saves the message into the saved folder.
4. Complete and send the message.
Using Contacts to Send a Text Message
You can designate an entry saved in your Contacts as Address 1 instead
of manually entering it.
1. Press , , .
2. Press Left Soft Key [Contacts].
3. Select
Contacts/ Recent Calls/ Recent Addresses
then press .
4. Use to highlight the Contact entry containing the
destination, then press .
5. Use to highlight the SMS phone number or e-mail address,
then press .
6. Complete the message as necessary.
3. Inbox
, ,
Viewing Your Inbox
Up to 50 received messages can be stored in the Inbox.
●
Left Soft Key [Reply].
●
Right Soft Key [Options].
Erase
Deletes the selected message from the Inbox.
NNoottee
The Address 1 feature allows multi-sending of up to 10 addresses.
MESSAGES
11
MESSAGES
12
MESSAGES
Lock/Unlock
Locks a message so that it is not erased if the Erase
Inbox or Erase All feature are used.
1. Press .
Options from here:
Reply w Copy
Replies to the SMS with the original message
attached.
Forward
Forwards a receiced message to others destination
address(es).
Erase
Deletes the selected message from the Inbox.
Save Address
Stores the callback number, e-mail address, and
numbers in user data included in the received
message into your Contacts.
Save Templates
Saves the message into the Templates list
Save Message
Saves Inbox message into the Saved Folder.
Lock/Unlock
Locks or unlocks the selected message. Locked
messages can not be deleted by the Erase Inbox or
Erase All functions.
4. Outbox
, ,
Your Outbox can store up to 50 sent messages. View lists and contents
of sent messages and verify whether the transmission was successful or
not.
●
Press Left Soft Key [Resend].
●
Press Right Soft Key [Options].
Erase
Deletes the selected message.
Lock/Unlock
Locks a message so that it is not erased if the Erase
Outbox or Erase All feature is used.
1. Press .
Options from here:
Send to
Edits the recipient's address.
Erase
Deletes the selected message from the Outbox.
Save Address
Stores the callback number, e-mail address, and
numbers in user data included in the received
message into your Contacts.
Save Templates
Saves the message into the Templates list
Save Message
Saves Outbox message into the Saved Folder.
Lock/Unlock
Locks or unlocks the selected message. Locked
messages can not be deleted by the Erase Outbox
and Erase All functions.
Message Info
Shows the message type, priority and status.
5. Saved
, ,
Displays saved messages and draft messages.
●
Press Left Soft Key [Resume].
●
Press Right Soft Key [Options].
Erase
Deletes the selected message.
Lock/Unlock
Locks a message so that it is not erased if the Erase
Saved or Erase All feature is used.
6. Msg Settings
, ,
Allows you to configure nine settings for received messages.
MESSAGES
TOOLS
13
1. Use to highlight a setting and press to select it.
6.1 Auto Save
Designates whether or not to save a copy of sent messages when
transmitted.
6.2 Auto Delete
With this feature on, read messages (except locked messages) are
automatically deleted when you exceed the storage limit.
6.3 Callback #
Allows you to manually enter the callback number.
6.4 Voice Mailbox #
Allows you to manually enter the access number for Voice Mail Service if
the VMS access number isn't provided from the network.
6.5 Signature
Allows you make/edit a signature to automatically send with your
messages.
6.6 Entry Mode
Allows you to select the default input method including T9 Word, Abc,
123 .
6.7 Templates
Allows you to display, edit, and add text phrases. These text strings
allow you to reduce manual text input into messages.
7. Erase All
, ,
Allows you to erase all text messages stored in your Inbox, Outbox, or
Saved Msgs Folders. You can also erase all messages at the same time.
●
Press
Inbox
to erase all messages stored in the Inbox.
●
Press
Outbox
to erase all messages stored in the Outbox.
●
Press
Saved
to erase all messages stored in the Saved Items
folder.
●
Press
All
to erase all messages stored in the Inbox, Outbox,
and Saved Items folder.
Press
Erase All
. Confirmation message is displayed.
Tools
1. Schedule
, ,
Allows you to conveniently keep and access your agenda(s). Simply
store your appointments and your phone will alert you with a reminder
of your appointment.
1. Use to highlight the scheduled day.
2. Press Left Soft Key [Add].
3. Enter your schedule information including:
●
Date
●
Time
●
Title/Information
●
Recurring event
●
When to ring the alarm reminder
●
Which ring alarm to sound
4. Press Left Soft Key [Save].
TOOLS
14
TOOLS
2. Alarm Clock
, ,
Allows you to set one of four alarms. The current time is displayed at
the top of the screen when you select an alarm to set. At the alarm
time, Alarm 1 (or 2 or 3, as applicable) will be displayed on the LCD
screen and the alarm will sound.
1. Select the alarm you want to edit.
Alarm 1/ Alarm 2/ Alarm 3/
Quick Alarm
2. Use to highlight the alarm time then press .
3. Set the time for alarm and press .
4. Use to highlight Once (recurring setting) and press .
5. Press to select one of the following and press .
Once/ Daily/ Mon-Fri/ Weekends
6. Use to highlight Ring (ring type setting) and press .
7. Use to select one of the available alarm ring types and press
.
8. Press Left Soft Key [Save].
3. Voice Memo
, ,
Allows you add, listen to, and erase short verbal reminders.
1. Press Left Soft Key [New] to record a new voice memo.
2. Select the Voice Memo you want then press Right Soft Key
[
Options
].
4. My Shortcut
, ,
Allows you to set a shortcut to phone menus using the Right Navigation
key.
1. An explanation message is displayed.
2. Press to continue.
3. Select the shortcut.
5. Notepad
, ,
Allows you to add, read, edit, and erase notes to yourself.
1. Press Left Soft Key [Add] to write a new note.
2. Use Right Soft Key [Options]. Erase/ Erase All
6. EZ Tip Calc
, ,
Allows you to quickly and easily calculate the amounts for a bill with the
amount of the bill, the amount of the tip and the number of people as
variables.
7. Calculator
, ,
Allows you to calculate simple mathematical computations. You can enter
numbers up to the second decimal place.
8. World Clock
, ,
Allows you to determine the current time in another time zone or country.
9. Games
, ,
TOOLS
Settings
The Settings menu has options to customize your phone.
1. Sounds
, ,
Options to customize the phone’s sounds.
1.1 Ringers , , ,
Assign ring tones for incoming calls.
1. Select
Caller ID/ No Caller ID/ Restrict
.
2. Use to select a ringer, then press to save the sound.
1.2 Key Tone , , ,
Allows you to select the Key Tone type.
1. Select
Beep
/
English
/
Spanish
then press .
Beep
Sends out a beep sound, when you press the keys.
English
Sends out a voice (English), when you press the keys.
Spanish
Sends out a voice (Spanish), when you press the keys.
1.3 Volume , , ,
Allows you to set various volume settings.
1. Select
Master Volume/ Earpiece/ Key Beep/ Speaker Phone
.
2. Adjust the volume with then press to save the setting.
1.4 Message Alerts , , ,
Allows you to select the alert type for a new message. Alert types are
Voice Mail, Text Message, E-mail, Page, and 2-Min Reminder.
1. Select
Voice Mail/ Text Message/ E-mail/ Page/ 2-Min Reminder
.
1.5 Service Alerts , , ,
Allows you to set any of the 4 Alert options to On or Off.
1. Select
Service Change/ Minute Beep/Call Connect/Back To Top
2. Set
On/ Off
with then press .
1.6 Power On/Off Tone , , ,
Allows you to set the phone to sound a tone when the phone is
powered on and off.
1. Set
On/ Off
with then press .
1.7 DTMF Length , , ,
Allows you to set the Key tone length and touch tone playback speed.
1. Select either of the following then press .
Normal
Sends out a tone for a fixed period of time even if you
keep the key pressed.
Long
Sends out a continuous tone for as long as you keep
the key pressed.
2. Display
, ,
Options to customize the phone’s display screen.
SETTINGS
15
SETTINGS
2.1 Banner , , ,
Allows you to enter a string of up to 16 characters which display on the
LCD screen.
1. Enter your banner text, then press .
2.2 Backlight , , ,
Allows you to set the duration for illuminating the backlight. Main LCD,
and Key Light Timer are set separately.
1. Choose a Backlight sub-menu and press .
Main LCD/ Key Light Timer
2. Choose a setting and press .
Timer/ Brightness
2.2.1 Main LCD
Timer Options
7 seconds/ 15 seconds/ 30 seconds/ Always On/ Always Off
Brightness
Sets the brightness level of the backlight.
0%/ 25%/ 50%/ 75%/ 100%
2.2.2 Key Light Timer
7 seconds/ 15 seconds/ Always On/ Always Off
2.3 Screens , , ,
Allows you to choose the kind of background to be displayed on the
phone.
1. Select
Wallpaper/ Power On/ Power Off,
then press .
2. Select from different screens, then press .
3. Press Left Soft Key [Save].
2.4 Menu Style , , ,
Allows you to view the Menu as an Icon or List display.
1. Select
Icon
or
List
and press .
2.5 Clocks , , ,
Allows you to choose the kind of clock to be displayed on the LCD
screen.
1. Select Normal/ Analog/ Digital then press Left Soft Key
[Save]
.
2.6 Theme Colors , , ,
Allows you to choose the color of the background screen.
1. Select Default/ Gray/ Sky/ Pink then press .
2.7 Contrast , , ,
Allows you to set the level of contrast for your LCD screen.
1. Use to adjust the contrast level.
2.8 Fonts , , ,
Allows you to set the size and color of the font.
16
SETTINGS
SETTINGS
1. Select Calling Digits/ Text Editor.
2. Select Size/ Color.
3. Press to choose the desired size or color and then press
to save.
2.9 Language , , ,
Allows you to set the bilingual feature according to your preference.
Choose between English and Spanish.
1.
Use to select
English/ Spanish
, then press .
2.0 Power Saver , , ,
When the phone is in an area without service, it stops searching for
service and enters Power Saver Mode.
1. Use to select a setting, then press .
2 sec/ 10 sec/ 30 sec/ Off
2.* Status Light , , ,
Shows the status of your phone by blinking the light.
1. Set On/ Off with then press .
3. System
, ,
The System menu allows you to designate specific system network
settings.
3.1 Select System , , ,
Allows you to set up the phone producer’s management environment.
Leave this setting as the default unless you want to alter system
selection as instructed by your service provider.
1. Set Home Only/ Automatic with then press .
3.2 Serving System , , ,
Identifies the channel number of a system that is served as a SID
Number. This information should only be used for technical support.
4. Security
, ,
The Security menu allows you to secure the phone electronically.
4.1 Lock Phone
Keeps your phone from unauthorized use. Once the phone is locked, it
is in restricted mode until the lock code is entered. You can receive
phone calls and still make emergency calls. You can modify the lock
code using the New Lock code within the Security menu.
1. Press , , .
2. Enter the four-digit lock code.
The default lock code is commonly the last 4 digits of your phone
number.
SETTINGS
17
SETTINGS
18
SETTINGS
3. Press
Lock Phone
.
4. Select an option then press .
Unlock
The phone is never locked (Lock mode can be used).
Lock
The phone is always locked. When locked, you can
receive incoming calls and make only emergency calls.
On Power Up
The phone is locked when it is turned on.
4.2 Restrict Calls
Allows you to restrict the calls that can be dialed from your phone.
Outgoing calls can only be placed to emergency numbers or phone
numbers saved in your Contacts, but you will still be able to receive all
incoming calls.
1. Press , , .
2. Enter the four-digit lock code.
3. Press
Restrict Calls
.
4. Select On/ Off then press .
4.3 Change Lock
Allows you to enter a new four-digit lock code.
1. Press , , .
2. Enter the four-digit lock code.
3. Press
Change Lock
.
4. For confirmation, it will ask you to enter the new lock code again.
4.4 Erase Contacts
Allows you to erase all of your Contacts at once.
1. Press , , .
2. Enter the four-digit lock code.
3. Press
Erase Contacts
.
4. Select
Erase all #s
then press .
4.5 Reset Default
Allows you to reset your phone to the factory default settings.
1. Press , , .
2. Enter the four-digit lock code.
3. Press
Reset Default
.
4. Press , select Revert then press .
5. Call Setup
, ,
The Call Setup menu allows you to designate how the phone handles
both incoming and outgoing calls.
5.1 Auto Retry , , ,
Allows you to set the length of time the phone waits before
automatically redialing a number when the attempted call fails.
1. Select Off/ Every 10 seconds/ Every 30 seconds/ Every 60
seconds then press .
SETTINGS
SETTINGS
19
5.2 Answer Call , , ,
Allows you to determine how to handle an answered call.
1. Select Flip open/ Any key/ SEND only then press .
5.3 Auto Answer , , ,
Allows you to select the number of rings before the phone automatically
answers a call. This feature is intended for use with hands free devices,
but is an independent feature of the phone and must be manually
turned on/off when connected or disconnected from the device.
1. Select
Off/ After 5 sec
then press .
5.4 One-Touch Dial , , ,
Allows you to initiate a speed dial call by pressing and holding the
speed dial digit. If set to Disable, Speed Dial numbers designated in
your Contacts will not function.
1. Select Enable/ Disable then press .
5.5 Voice Privacy , , ,
Allows you to set the voice privacy feature for CDMA calls as Enhanced
or Standard. CDMA offers inherent voice privacy. Check with your
service provider for availability.
1. Select On/ Off then press .
5.6 Auto Volume , , ,
Provides a better audio experience by enabling the Auto Volume feature
to control the dynamic range and volume of the sending and receiving
voice across different levels of speaker and environments.
1. Select On/ Off then press .
5.7 TTY Mode , , ,
Allows you to attach a TTY device enabling you to communicate with
parties also using a TTY device. A phone with TTY support is able to
translate typed characters to voice. Voice can also be translated into
characters and then displayed on the TTY.
* TTY : Text Telephone.
1. Press .
2. Select TTY Full/ TTY + TALK/ TTY + HEAR/ TTY Off then press
.
6. Voice Services
, ,
The Voice Services menu provides access to the voice services available
with your phone.
6.1 Voice Dial Prompt , , ,
Allows you to set the command to enable voice dialing.
1. Select Disable/ Flip Open then press .
6.2 Train Words , , ,
1. Select Yes/ No then press .
2. Select Train/ Un-train then press .
SETTINGS
20
SETTINGS
7. Location
, ,
Menu for GPS (Global Positioning System: Satellite assisted location
information system) mode.
1. Selecg
Location On/ E911 Only
, then press .
8. Airplane Mode
, ,
Airplane Mode allows you to use many of your phone’s features, such as
Games, Notepad, Voice Memos, etc., when you are in an airplane or in
any other area where making calls or receiving calls or data is prohibited.
When your phone is in Airplane Mode, it cannot send or receive any
calls or access online information.
1. The Airplane Mode disclaimer is displayed.
2. Read the disclaimer and press .
3. Select On/ Off then press .
9. Phone Info
, ,
The Phone Info menu provides you with specific information pertaining
to your phone model.
9.1 My Phone Number , , ,
Allows you to view your phone number.
9.2 S/W Version , , ,
Allows you to view the S/W, PRL.
9.3 Icon Glossary , , ,
Allows you to view all the icons and their meanings.
9.4 Shortcut Help , , ,
Allows you to view condensed information about using the phone.
SETTINGS
SAFETY
21
SAFETY
TIA Safety Information
The following is the complete TIA Safety Information for wireless handheld phones.
Exposure to Radio Frequency Signal
Your wireless handheld portable phone is a low power radio transmitter and receiver.
When ON, it receives and sends out Radio Frequency (RF) signals.
In August, 1996, the Federal Communications Commissions (FCC) adopted RF
exposure guidelines with safety levels for handheld wireless phones. Those guidelines
are consistent with the safety standards previously set by both U.S. and international
standards bodies:
ANSI C95.1 (1992) *
NCRP Report 86 (1986)
ICNIRP (1996)
* American National Standards Institute; National Council on Radiation Protection
and Measurements; International Commission on Non-Ionizing Radiation Protection
Those standards were based on comprehensive and periodic evaluations of the
relevant scientific literature. For example, over 120 scientists, engineers, and
physicians from universities, government health agencies, and industry reviewed the
available body of research to develop the ANSI Standard (C95.1).
The design of your phone complies with the FCC guidelines (and those standards).
Antenna Care
Use only the supplied or an approved replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the phone and may violate FCC
regulations.
Phone Operation
NORMAL POSITION: Hold the phone as you would any other telephone with the
antenna pointed up and over your shoulder.
Tips on Efficient Operation
For your phone to operate most efficiently:
Don’t touch the antenna unnecessarily when the phone is in use. Contact with the
antenna affects call quality and may cause the phone to operate at a higher power
level than otherwise needed.
Driving
Check the laws and regulations on the use of wireless phones in the areas where you
drive and always obey them. Also, if using your phone while driving, please observe
the following:
●
Give full attention to driving -- driving safely is your first responsibility;
●
Use hands-free operation, if available;
●
Pull off the road and park before making or answering a call if driving conditions or
the law require it.
Electronic Devices
Most modern electronic equipment is shielded from RF signals. However, certain
electronic equipment may not be shielded against the RF signals from your wireless
phone.
Pacemakers
The Health Industry Manufacturers Association recommends that a minimum
separation of six (6) inches be maintained between a handheld wireless phone and a
pacemaker to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by and
recommendations of Wireless Technology Research.
Persons with pacemakers:
●
Should ALWAYS keep the phone more than six (6) inches from their pacemaker
when the phone is turned ON;
●
Should not carry the phone in a breast pocket;
●
Should use the ear opposite the pacemaker to
minimize the potential for interference;
●
Should turn the phone OFF immediately if there is any reason to suspect that
interference is taking place.
22
SAFETY
SAFETY

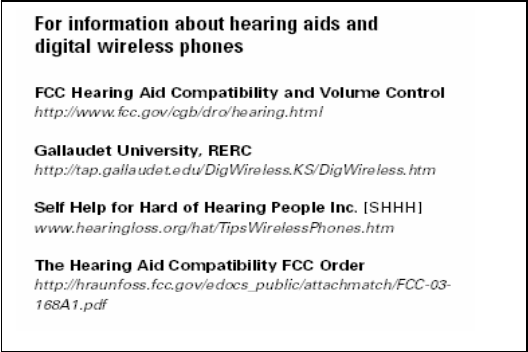

Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In the event of
such interference, you may want to consult your service provider (or call the
customer service line to discuss alternatives).
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device
to determine if it is adequately shielded from external RF energy. Your physician may
be able to assist you in obtaining this information.
Health Care Facilities
Turn your phone OFF in health care facilities when any regulations posted in these
areas instruct you to do so. Hospitals or health care facilities may use equipment that
could be sensitive to external RF energy.
Vehicles
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer or its
representative regarding your vehicle. You should also consult the
manufacturer of any equipment that has been added to your vehicle.
Posted Facilities
Turn your phone OFF in any facility where posted notices so require.
Aircraft
FCC regulations prohibit using your phone while in the air. Switch OFF your phone
before boarding an aircraft.
Blasting Areas
To avoid interfering with blasting operations, turn your phone OFF when in a
“blasting area” or in areas posted: “Turn off two-way radio”. Obey all signs and
instructions.
Potentially Explosive Atmosphere
Turn your phone OFF when in any area with a potentially explosive atmosphere and
obey all signs and instructions. Sparks in such areas could cause an explosion or fire
resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always marked
clearly. Potential areas may include: fueling areas (such as gasoline stations); below
deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied
petroleum gas (such as propane or butane); areas where the air contains chemicals or
particles (such as grain, dust, or metal powders); and any other area where you would
normally be advised to turn off your vehicle engine.
For Vehicles Equipped with an Air Bag
An air bag inflates with great force. DO NOT place objects, including either installed
or portable wireless equipment, in the area over the air bag or in the air bag
deployment area. If in-vehicle wireless equipment is improperly installed and the air
bag inflates, serious injury could result.
Safety Information
Please read and observe the following information for safe and proper use of your
phone and to prevent damage. Also, keep the user guide in an accessible place at all
times after reading it.
CCaauuttiioonn!!Violation of the instructions may cause minor or serious
damage to the product.
Charger and Adapter Safety
●
The charger and adapter are intended for indoor use only.
●
Insert the battery pack charger vertically into the wall power socket.
●
Use the correct adaptor for your phone when using the battery pack charger
abroad.
●
Only use the approved battery charger. Otherwise, you may cause serious damage
to your phone.
Battery Information and Care
●Please dispose of your battery properly or take it to your local wireless carrier for
recycling.
●
The battery doesn't need to be empty before recharging.
●Use only LG-approved chargers specific to your phone model since they are designed
to maximize battery life.
●Do not disassemble or short-circuit the battery.
●Keep the battery’s metal contacts clean.
●Replace the battery when it no longer provides acceptable performance. The battery
can be recharged several hundred times before replacement.
●Recharge the battery after long periods of non-use to maximize battery life.
●Battery life will vary due to usage patterns and environmental conditions.
●
Use of extended backlighting, Browser, and data connectivity kits affect battery life and
talk/standby times.
●The self-protection function of the battery cuts the power of the phone when its
operation is in an abnormal state. In this case, remove the battery from the phone,
reinstall it, and turn the phone on.
Explosion, Shock, and Fire Hazards
●Do not put your phone in a place subject to excessive dust and keep the minimum
required distance between the power cord and heat sources.
●Unplug the power cord prior to cleaning your phone, and clean the power plug pin
when it’s dirty.
●When using the power plug, ensure that it’s firmly connected. If not, it may cause
excessive heat or fire.
●If you put your phone in a pocket or bag without covering the receptacle of the
phone (power plug pin), metallic articles (such as a coin, paperclip or pen) may short-
circuit the phone. Always cover the receptacle when not in use.
●Don’t short-circuit the battery. Metallic articles such as a coin, paperclip or pen in your
pocket or bag may short-circuit the + and – terminals of the battery (metal strips on
the battery) upon moving. Short-circuit of the terminal may damage the battery and
cause an explosion.
●Do not disassemble or crush the battery. It may cause a fire.
General Notice
●Using a damaged battery or placing a battery in your mouth may cause serious injury.
●Do not place items containing magnetic components such as a credit card, phone
card, bank book or subway ticket near your phone. The magnetism of the phone may
damage the data stored in the magnetic strip.
●Talking on your phone for a long period of time may reduce call quality due to heat
generated during use.
●When the phone is not used for a long period time, store it in a safe place with the
power cord unplugged.
●Using the phone in proximity to receiving equipment (i.e., TV or radio) may cause
interference to the phone.
●Do not use the phone if the antenna is damaged. If a damaged antenna contacts skin,
it may cause a slight burn. Please contact an LG Authorized Service Center to replace
the damaged antenna.
●Do not immerse your phone in water. If this happens, turn it off immediately and
remove the battery. If the phone does not work, take it to an LG Authorized Service
Center.
●Do not paint your phone.
●The data saved in your phone might be deleted due to careless use, repair of the
phone, or upgrade of the software. Please backup your important phone numbers. The
manufacturer is not liable for damage due to the loss of data.
●When you use the phone in public places, set the ring tone to vibration so as not to
disturb others.
●Do not turn your phone on or off when putting it to your ear.
●Use accessories, such as earphones and headsets, with caution. Ensure
that cables are tucked away safely and do not touch the antenna
unnecessarily.
Avoid damage to your hearing
Damage to your hearing can occur if you are exposed to loud sound for long periods of
time. We therefore recommend that you do not turn on or off the handset close to your
ear. We also recommend that call volumes are set to a reasonable level.
23
SAFETY
FDA Consumer Update
The U.S. Food and Drug Administration’s Center for Devices and Radiological Health
Consumer Update on Mobile Phones:
1. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are
associated with using wireless phones. There is no proof, however, that wireless
phones are absolutely safe. Wireless phones emit low levels of Radio Frequency (RF)
energy in the microwave range while being used. They also emit very low levels of RF
when in standby mode. Whereas high levels of RF can produce health effects (by
heating tissue), exposure to low level RF that does not produce heating effects
causes no known adverse health effects. Many studies of low level RF exposures have
not found any biological effects. Some studies have suggested that some biological
effects may occur, but such findings have not been confirmed by additional research.
In some cases, other researchers have had difficulty in reproducing those studies, or
in determining the reasons for inconsistent results.
2. What is the FDA's role concerning the safety of wireless phones?
Under the law, the FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new drugs
or medical devices. However, the agency has authority to take action if wireless
phones are shown to emit Radio Frequency (RF) energy at a level that is hazardous
to the user. In such a case, the FDA could require the manufacturers of wireless
phones to notify users of the health hazard and to repair, replace, or recall the
phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, the FDA
has urged the wireless phone industry to take a number of steps, including the
following:
●
Support needed research into possible biological effects of RF of the type emitted
by wireless phones;
●
Design wireless phones in a way that minimizes any RF exposure to the user that is
not necessary for device function; and
●
Cooperate in providing users of wireless phones with the best possible information
on possible effects of wireless phone use on human health.
The FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at the
federal level. The following agencies belong to this working group:
●
National Institute for Occupational Safety and Health
●
Environmental Protection Agency
●
Occupational Safety and Health Administration
●
National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group
activities, as well.
The FDA shares regulatory responsibilities for wireless phones with the Federal
Communications Commission (FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF exposure. The FCC relies on the
FDA and other health agencies for safety questions about wireless phones.
The FCC also regulates the base stations that the wireless phone networks rely upon.
While these base stations operate at higher power than do the wireless phones
themselves, the RF exposures that people get from these base stations are typically
thousands of times lower than those they can get from wireless phones. Base
stations are thus not the subject of the safety questions discussed in this document.
3. What kinds of phones are the subject of this update?
The term “wireless phone” refers here to handheld wireless phones with built-in
antennas, often called “cell”, “mobile”, or “PCS” phones. These types of wireless
phones can expose the user to measurable Radio Frequency (RF) energy because of
the short distance between the phone and the user’s head.
These RF exposures are limited by FCC safety guidelines that were developed with
the advice of the FDA and other federal health and safety agencies. When the phone
is located at greater distances from the user, the exposure to RF is drastically lower
because a person's RF exposure decreases rapidly with increasing distance from the
source. The so-called “cordless phones,” which have a base unit connected to the
telephone wiring in a house, typically operate at far lower power levels, and thus
produce RF exposures far below the FCC safety limits.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies have
suffered from flaws in their research methods. Animal experiments investigating the
effects of Radio Frequency (RF) energy exposures characteristic of wireless phones
have yielded conflicting results that often cannot be repeated in other laboratories. A
SAFETY
24
SAFETY
few animal studies, however, have suggested that low levels of RF could accelerate the
development of cancer in laboratory animals. However, many of the studies that
showed increased tumor development used animals that had been genetically
engineered or treated with cancer-causing chemicals so as to be pre-disposed to
develop cancer in the absence of RF exposure. Other studies exposed the animals to
RF for up to 22 hours per day. These conditions are not similar to the conditions
under which people use wireless phones, so we do not know with certainty what the
results of such studies mean for human health. Three large epidemiology studies have
been published since December 2000. Between them, the studies investigated any
possible association between the use of wireless phones and primary brain cancer,
glioma, meningioma, or acoustic neuroma, tumors of the brain or salivary gland,
leukemia, or other cancers. None of the studies demonstrated the existence of any
harmful health effects from wireless phone RF exposures. However, none of the
studies can answer questions about long-term exposures, since the average period of
phone use in these studies was around three years.
5. What research is needed to decide whether RF exposure from
wireless phones poses a health risk?
A combination of laboratory studies and epidemiological studies of people actually
using wireless phones would provide some of the data that are needed. Lifetime
animal exposure studies could be completed in a few years. However, very large
numbers of animals would be needed to provide reliable proof of a cancer promoting
effect if one exists. Epidemiological studies can provide data that is directly
applicable to human populations, but ten or more years follow-up may be needed to
provide answers about some health effects, such as cancer. This is because the
interval between the time of exposure to a cancer-causing agent and the time tumors
develop — if they do — may be many, many years. The interpretation of
epidemiological studies is hampered by difficulties in measuring actual RF exposure
during day-to-day use of wireless phones. Many factors affect this measurement, such
as the angle at which the phone is held, or which model of phone is used.
6. What is the FDA doing to find out more about the possible
health effects of wireless phone RF?
The FDA is working with the U.S. National Toxicology Program and with groups of
investigators around the world to ensure that high priority animal studies are
conducted to address important questions about the effects of exposure to Radio
Frequency (RF) energy.
The FDA has been a leading participant in the World Health Organization
International Electro Magnetic Fields (EMF) Project since its inception in 1996. An
influential result of this work has been the development of a detailed agenda of
research needs that has driven the establishment of new research programs around
the world. The project has also helped develop a series of public information
documents on EMF issues.
The FDA and the Cellular Telecommunications & Internet Association (CTIA) have a
formal Cooperative Research And Development Agreement (CRADA) to do research
on wireless phone safety. The FDA provides the scientific oversight, obtaining input
from experts in government, industry, and academic organizations. CTIA-funded
research is conducted through contracts with independent investigators. The initial
research will include both laboratory studies and studies of wireless phone users. The
CRADA will also include a broad assessment of additional research needs in the
context of the latest research developments around the world.
7. How can I find out how much Radio Frequency energy exposure I
can get by using my wireless phone?
All phones sold in the United States must comply with Federal Communications
Commission (FCC) guidelines that limit Radio Frequency (RF) energy exposures. The
FCC established these guidelines in consultation with the FDA and the other federal
health and safety agencies. The FCC limit for RF exposure from wireless phones is set
at a Specific Absorption Rate (SAR) of 1.6 watts per kilogram (1.6 W/kg). The FCC
limit is consistent with the safety standards developed by the Institute of Electrical
and Electronic Engineering (IEEE) and the National Council on Radiation Protection
and Measurement. The exposure limit takes into consideration the body’s ability to
remove heat from the tissues that absorb energy from the wireless phone and is set
well below levels known to have effects. Manufacturers of wireless phones must report
the RF exposure level for each model of phone to the FCC. The FCC website
(http://www.fcc.gov/oet/rfsafety) gives directions for locating the FCC identification
number on your phone so you can find your phone’s RF exposure level in the online
listing.
8. What has the FDA done to measure the Radio Frequency energy
coming from wireless phones?
The Institute of Electrical and Electronic Engineers (IEEE) is developing a technical
standard for measuring the Radio Frequency (RF) energy exposure from wireless
phones and other wireless handsets with the participation and leadership of FDA
scientists and engineers. The standard, “Recommended Practice for Determining the
Spatial-Peak Specific Absorption Rate (SAR) in the Human Body Due to Wireless
25
SAFETY
Communications Devices: Experimental Techniques”, sets forth the first consistent
test methodology for measuring the rate at which RF is deposited in the heads of
wireless phone users. The test method uses a tissue-simulating model of the human
head. Standardized SAR test methodology is expected to greatly improve the
consistency of measurements made at different laboratories on the same phone. SAR
is the measurement of the amount of energy absorbed in tissue, either by the whole
body or a small part of the body. It is measured in watts/kg (or milliwatts/g) of
matter. This measurement is used to determine whether a wireless phone complies
with safety guidelines.
9. What steps can I take to reduce my exposure to Radio Frequency
energy from my wireless phone?
If there is a risk from these products — and at this point we do not know that there
is — it is probably very small. But if you are concerned about avoiding even potential
risks, you can take a few simple steps to minimize your exposure to Radio Frequency
(RF) energy. Since time is a key factor in how much exposure a person receives,
reducing the amount of time spent using a wireless phone will reduce RF exposure. If
you must conduct extended conversations by wireless phone every day, you could
place more distance between your body and the source of the RF, since the exposure
level drops off dramatically with distance. For example, you could use a headset and
carry the wireless phone away from your body or use a wireless phone connected to
a remote antenna. Again, the scientific data do not demonstrate that wireless phones
are harmful. But if you are concerned about the RF exposure from these products,
you can use measures like those described above to reduce your RF exposure from
wireless phone use.
10. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones, including
children and teenagers. If you want to take steps to lower exposure to Radio
Frequency (RF) energy, the measures described above would apply to children and
teenagers using wireless phones. Reducing the time of wireless phone use and
increasing the distance between the user and the RF source will reduce RF exposure.
Some groups sponsored by other national governments have advised that children be
discouraged from using wireless phones at all. For example, the government in the
United Kingdom distributed leaflets containing such a recommendation in December
2000. They noted that no evidence exists that using a wireless phone causes brain
tumors or other ill effects. Their recommendation to limit wireless phone use by
children was strictly precautionary; it was not based on scientific evidence that any
health hazard exists.
11. What about wireless phone interference with medical
equipment?
Radio Frequency (RF) energy from wireless phones can interact with some electronic
devices. For this reason, the FDA helped develop a detailed test method to measure
Electro Magnetic Interference (EMI) of implanted cardiac pacemakers and
defibrillators from wireless telephones. This test method is now part of a standard
sponsored by the Association for the Advancement of Medical Instrumentation
(AAMI). The final draft, a joint effort by the FDA, medical device manufacturers, and
many other groups, was completed in late 2000. This standard will allow
manufacturers to ensure that cardiac pacemakers and defibrillators are safe from
wireless phone EMI.
The FDA has tested hearing aids for interference from handheld wireless phones and
helped develop a voluntary standard sponsored by the Institute of Electrical and
Electronic Engineers (IEEE). This standard specifies test methods and performance
requirements for hearing aids and wireless phones so that no interference occurs
when a person uses a “compatible” phone and a “compatible” hearing aid at the
same time. This standard was approved by the IEEE in 2000.
The FDA continues to monitor the use of wireless phones for possible interactions
with other medical devices. Should harmful interference be found to occur, the FDA
will conduct testing to assess the interference and work to resolve the problem.
12. Where can I find additional information?
For additional information, please refer to the following resources:
FDA web page on wireless phones
(http://www.fda.gov/cdrh/phones/index.html)
Federal Communications Commission (FCC) RF Safety Program
(http://www.fcc.gov/oet/rfsafety)
International Commission on Non-lonizing Radiation Protection
(http://www.icnirp.de)
World Health Organization (WHO) International EMF Project
(http://www.who.int/emf)
National Radiological Protection Board (UK)
(http://www.nrpb.org.uk/)
SAFETY
26
SAFETY
10 Driver Safety Tips
Your wireless phone gives you the powerful ability to communicate by voice almost
anywhere, anytime. An important responsibility accompanies the benefits of wireless
phones, one that every user must uphold. When operating a car, driving is your first
responsibility. When using your wireless phone behind the wheel of a car, practice
good common sense and remember the following tips:
1. Get to know your wireless phone and its features such as speed dial and redial.
Carefully read your instruction manual and learn to take advantage of valuable
features most phones offer, including automatic redial and memory. Also, work to
memorize the phone keypad so you can use the speed dial function without
taking your attention off the road.
2. When available, use a hands-free device. A number of hands-free wireless phone
accessories are readily available today. Whether you choose an installed mounted
device for your wireless phone or a speaker phone accessory, take advantage of
these devices if available to you.
3. Make sure you place your wireless phone within easy reach and where you can
reach it without removing your eyes from the road. If you get an incoming call at
an inconvenient time, if possible, let your voicemail answer it for you.
4. Suspend conversations during hazardous driving conditions or situations. Let the
person you are speaking with know you are driving; if necessary, suspend the call
in heavy traffic or hazardous weather conditions. Rain, sleet, snow, and ice can be
hazardous, but so is heavy traffic. As a driver, your first responsibility is to pay
attention to the road.
5. Don’t take notes or look up phone numbers while driving. If you are reading an
address book or business card, or writing a “to-do” list while driving a car, you are
not watching where you are going. It is common sense. Do not get caught in a
dangerous situation because you are reading or writing and not paying attention
to the road or nearby vehicles.
6. Dial sensibly and assess the traffic; if possible, place calls when you are not moving
or before pulling into traffic. Try to plan your calls before you begin your trip or
attempt to coincide your calls with times you may be stopped at a stop sign, red
light, or otherwise stationary. But if you need to dial while driving, follow this
simple tip -- dial only a few numbers, check the road and your mirrors, then
continue.
7. Do not engage in stressful or emotional conversations that may be distracting.
Stressful or emotional conversations and driving do not mix; they are distracting
and even dangerous when you are behind the wheel of a car. Make people you are
talking with aware you are driving and if necessary, suspend conversations which
have the potential to divert your attention from the road.
8. Use your wireless phone to call for help. Your wireless phone is one of the greatest
tools you can own to protect yourself and your family in dangerous situations --
with your phone at your side, help is only three numbers away. Dial 911 or other
local emergency number in the case of fire, traffic accident, road hazard, or
medical emergency. Remember, it’s a free call on your wireless phone!
9. Use your wireless phone to help others in emergencies. Your wireless phone
provides you a perfect opportunity to be a “Good Samaritan” in your community.
If you see an auto accident, crime in progress or other serious emergency where
lives are in danger, call 911 or other local emergency number, as you would want
others to do for you.
10. Call roadside assistance or a special wireless non-emergency assistance number
when necessary. Certain situations you encounter while driving may require
attention, but are not urgent enough to merit a call for emergency services. But
you can still use your wireless phone to lend a hand. If you see a broken-down
vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident
where no one appears injured or a vehicle you know to be stolen, call roadside
assistance or other special non-emergency wireless number.
The above tips are meant as general guidelines. Before deciding to use your mobile
device while operating a vehicle, it is recommended that you consult your applicable
jurisdiction’s local laws or other regulations regarding such use. Such laws or other
regulations may prohibit or otherwise restrict the manner in which a driver may use
his or her phone while operating a vehicle.
27
SAFETY
LIMITED WARRANTY STATEMENT
29
LIMITED WARRANTY STATEMENT
1. WHAT THIS WARRANTY COVERS:
LG offers you a limited warranty that the enclosed subscriber unit and
its enclosed accessories will be free from defects in material and
workmanship, according to the following terms and conditions:
(1) The limited warranty for the product extends for TWELVE (12)
MONTHS beginning on the date of purchase of the product with
valid proof of purchase, or absent valid proof of purchase, FIFTEEN
(15) MONTHS from date of manufacture as determined by the
unit’s manufacture date code.
(2) The limited warranty extends only to the original purchaser of the
product and is not assignable or transferable to any subsequent
purchaser/end user.
(3) This warranty is good only to the original purchaser of the product
during the warranty period as long as it is in the U.S, including
Alaska, Hawaii, U.S. Territories and Canada.
(4) The external housing and cosmetic parts shall be free of defects at
the time of shipment and, therefore, shall not be covered under
these limited warranty terms.
(5) Upon request from LG, the consumer must provide information to
reasonably prove the date of purchase.
(6) The customer shall bear the cost of shipping the product to the
Customer Service Department of LG. LG shall bear the cost of
shipping the product back to the consumer after the completion of
service under this limited warranty.
2. WHAT THIS WARRANTY DOES NOT COVER:
(1) Defects or damages resulting from use of the product in other than
its normal and customary manner.
(2) Defects or damages from abnormal use, abnormal conditions,
improper storage, exposure to moisture or dampness, unauthorized
modifications, unauthorized connections, unauthorized repair,
misuse, neglect, abuse, accident, alteration, improper installation, or
other acts which are not the fault of LG, including damage caused
by shipping, blown fuses, spills of food or liquid.
(3) Breakage or damage to antennas unless caused directly by defects
in material or workmanship.
(4) That the Customer Service Department at LG was not notified by
consumer of the alleged defect or malfunction of the product during
the applicable limited warranty period.
(5) Products which have had the serial number removed or made
illegible.
(6) This limited warranty is in lieu of all other warranties, express or
implied either in fact or by operations of law, statutory or otherwise,
including, but not limited to any implied warranty of marketability or
fitness for a particular use.
(7) Damage resulting from use of non-LG approved accessories.
(8) All plastic surfaces and all other externally exposed parts that are
scratched or damaged due to normal customer use.
(9) Products operated outside published maximum ratings.
(10) Products used or obtained in a rental program.
(11) Consumables (such as fuses).
3. STATE LAW RIGHTS:
No other express warranty is applicable to this product. THE
DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED
WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF
THE EXPRESS WARRANTY HEREIN. LGE MOBILECOMM USA INC.
SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE
PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES,
DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR
INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED
WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT.
Some states do not allow the exclusive limitation of incidental or
consequential damages or limitations on how long an implied warranty
lasts; so these limitations or exclusions may not apply to you. This
warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
4. HOW TO GET WARRANTY SERVICE:
To obtain warranty service, please call or fax to the following telephone
numbers from anywhere in the continental United States:
Tel. 1-800-793-8896 or Fax. 1-800-448-4026
Or visit http://us.lgservice.com. Correspondence may also be mailed to:
LG Electronics Service- Mobile Handsets
P.O. Box 240007, Huntsville, AL 35824
DO NOT RETURN YOUR PRODUCT TO THE ABOVE ADDRESS
.
Please call or write for the location of the LG authorized service center
nearest you and for the procedures for obtaining warranty claims.
LIMITED WARRANTY STATEMENT
30
LIMITED WARRANTY STATEMENT
FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless
Devices
On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket
01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988 (HAC
Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act is to
ensure reasonable access to telecommunications services for persons with hearing disabilities.
While some wireless phones are used near some hearing devices (hearing aids and cochlear implants), users
may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to
this interference noise, and phones also vary in the amount of interference they generate.
The wireless telephone industry has developed a rating system for wireless phones, to assist hearing device
users find phones that may be compatible with their hearing devices. Not all phones have been rated.
Phones that are rated have the rating on their box or a label located on the box.
The ratings are not guarantees. Results will vary depending on the user’s hearing device and hearing loss.
If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone
successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal
needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to
hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.
Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may
help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference
noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered
acceptable for normal use. A sum of 6 is considered for best use.
In the above example, if a hearing aid meets the M2 level rating and the wireless phone meets the M3 level
rating, the sum of the two values equal M5. This should provide the hearing aid user with “normal usage”
while using their hearing aid with the particular wireless phone. “Normal usage” in this context is defined
as a signal quality that is acceptable for normal operation.
The M mark is intended to be synonymous with the U mark. The T mark is intended to be synonymous
with the UT mark. The M and T marks are recommended by the Alliance for Telecommunications
Industries Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC Rules. The
HAC rating and measurement procedure are described in the American National Standards Institute (ANSI)
C63.19 standard.
When you're talking over the cell phone, it's recommended you'd turn the BT mode off for HAC.
