APPENDIX G :
FCC ID : BEJLG808H
USER’S MANUAL
FPD 1830 monitor user's guide
P/NO.3828TUO197K(0207-REV00)
Printed in Korea
i
www.gateway.com
Contents
1 Using Your Flat Panel Monitor
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installing the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Starting the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting display settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
External controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
OSD options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Software controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
ENERGY STAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Energy declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
No picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Picture is scrambled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Display colors are wrong . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Picture has shadows or “ghosts” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Color is not uniform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Image is not sized or centered properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Image cannot be adjusted full screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
A Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . 19
ii www.gateway.com
1
1
www.gateway.com
Using Your Flat
Panel Monitor
The FPD 1830 Flat Panel Display is high-resolution LCD color
monitor with:
■ 1280 × 1024 maximum resolution
■ Over 16 million colors
■Excellent contrast and legibility
■Space-saving and lightweight design
■Reduced power usage
2
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
Installing the monitor

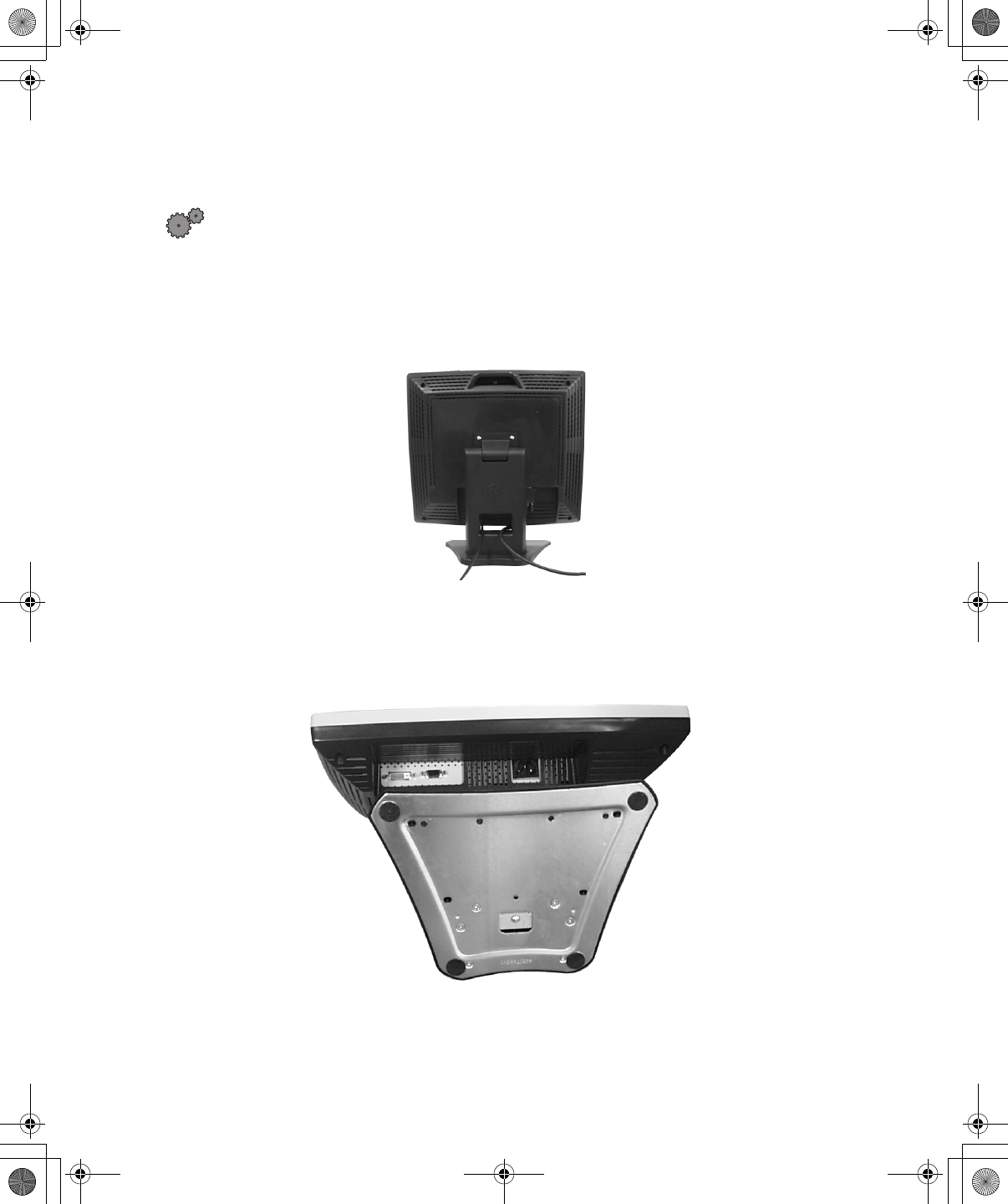

To install the monitor:
1
Position the computer and monitor so you can easily reach the back panel
of each.
2 Set the monitor upright, then feed the power cable and the attached video
cable(analog) through the hole in the stand.
3
Lay the monitor down on its back.
3
Installing the monitor
www.gateway.com

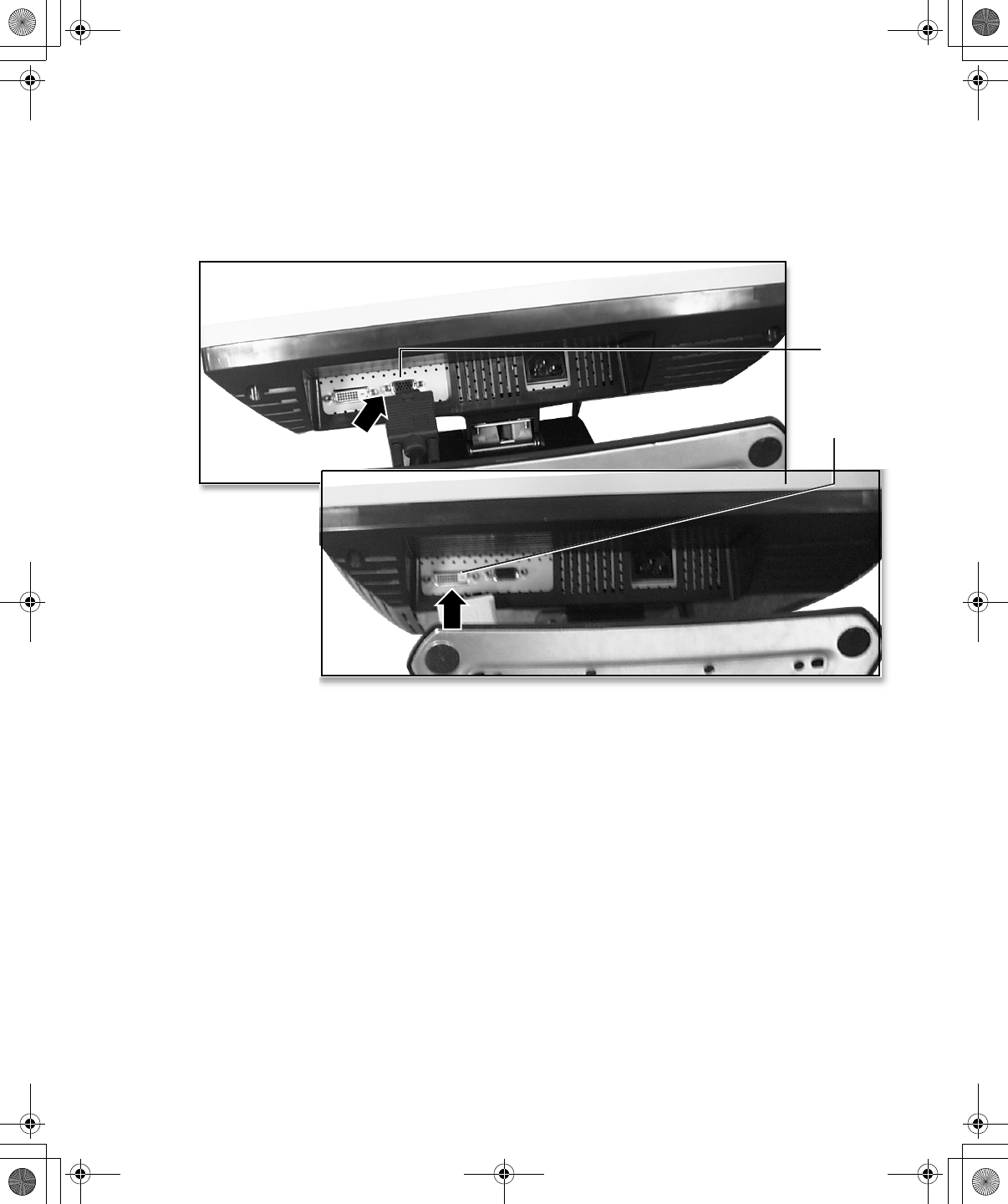

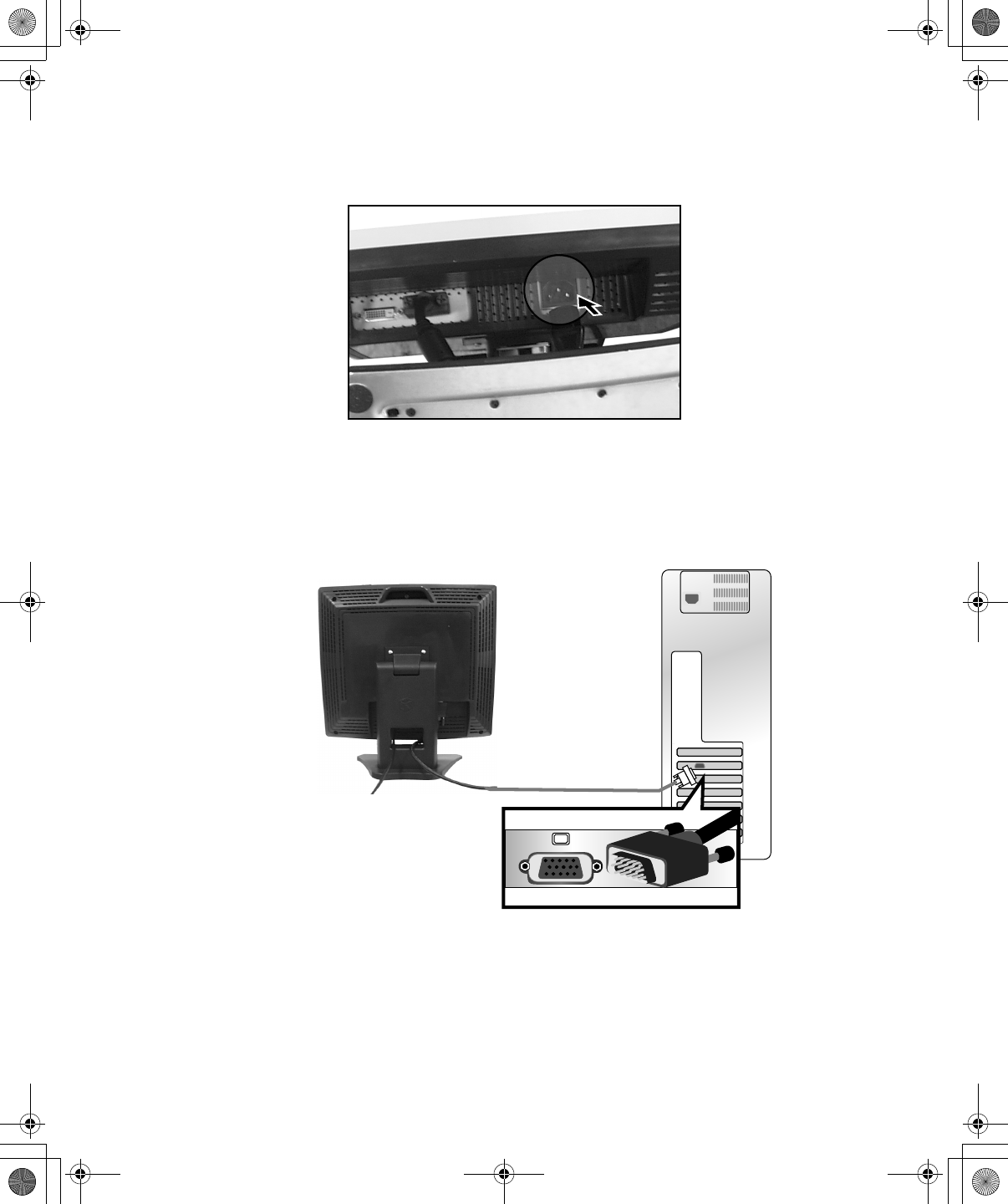

4Connect one end of the video cable to the matching video port on the
underside of the monitor. If your computer has both a digital video port
and an analog video port, we recommend using the digital video
connection.
Analog
port
Digital
port
4
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
5
Connect the power cord to the power connector on the underside
of the monitor.
6 Return the monitor to its upright position.
7 Make sure your computer is turned off, then connect the end of the
attached video cable to the matching video port on the back of your
computer (analog video connectors shown).
5
Installing the monitor
www.gateway.com

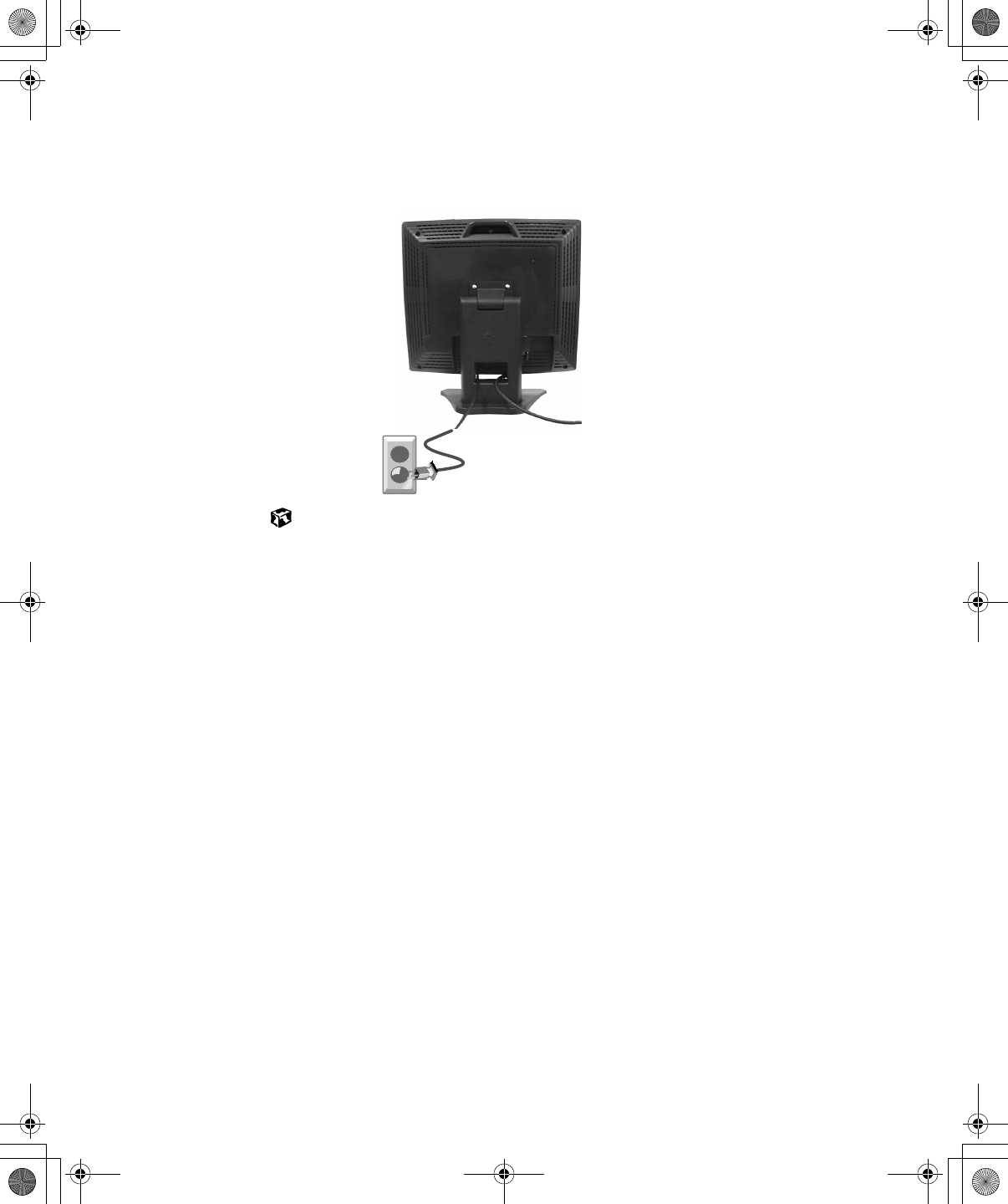

8 Plug the other end of the power cord into a properly grounded electrical
outlet.
6
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
Starting the monitor
To start the monitor:
1Press the power button once. The LED on the button turns on.
2Turn on the computer.
3After the computer is running, the LED on the power button should be
green. Allow about 10 seconds for the video signal to appear. If the power
LED is not green or you do not see a video signal, check the connections.
For more troubleshooting information, see “Troubleshooting” on
page 15.
4Adjust the tilt of the panel for the best viewing angle.
5Adjust the controls to get the best picture. If your monitor uses an analog
connection, press the button to automatically adjust your display
image to the ideal settings. Adjust other display settings by using the
On-Screen Display (OSD). For more information, see “Adjusting display
settings” on page 7.
Important When adjusting your display settings, always press the
button before entering the OSD. This will automatically
adjust your display image to the ideal settings for the
current screen resolution size (display mode).
The optimal display mode is 1280 × 1024.
Power button and LED
7
Adjusting display settings
www.gateway.com
Adjusting display settings
You can adjust your display image by using external controls (located on the
monitor itself) and software controls (accessible in Windows).
External controls
This monitor features an On-Screen Display (OSD) that lets you adjust and
save contrast, brightness, and other settings for the display. The monitor saves
changes you make to the settings, even if you turn off the monitor.
■OSD. Press to view the OSD. Press again to exit.
■Arrows.
OSD active: Press to select or adjust OSD options.
OSD inactive: Press and to adjust the contrast, and press once
then and to adjust the brightness. If your monitor is connected to
an analog video port, press (Auto) to automatically optimize your
display’s position, clock, and phase.
■Source/Set.
OSD active: Press to enter a selection in the OSD.
OSD inactive: Press the Source/Set button to re-detect the video source.

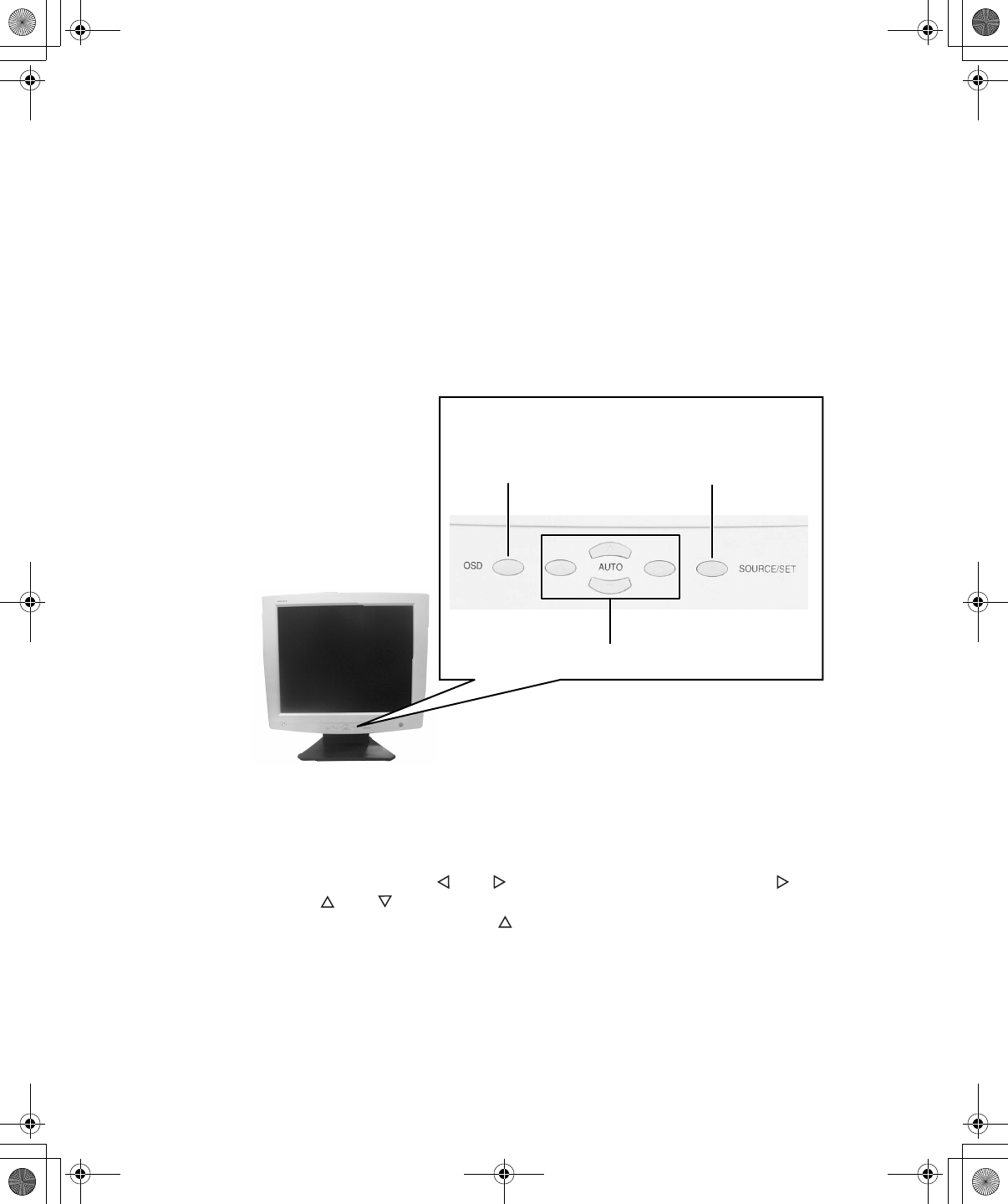

Menu selection arrows and
Auto setting
OSD button
Source/Set
button
8
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
OSD options

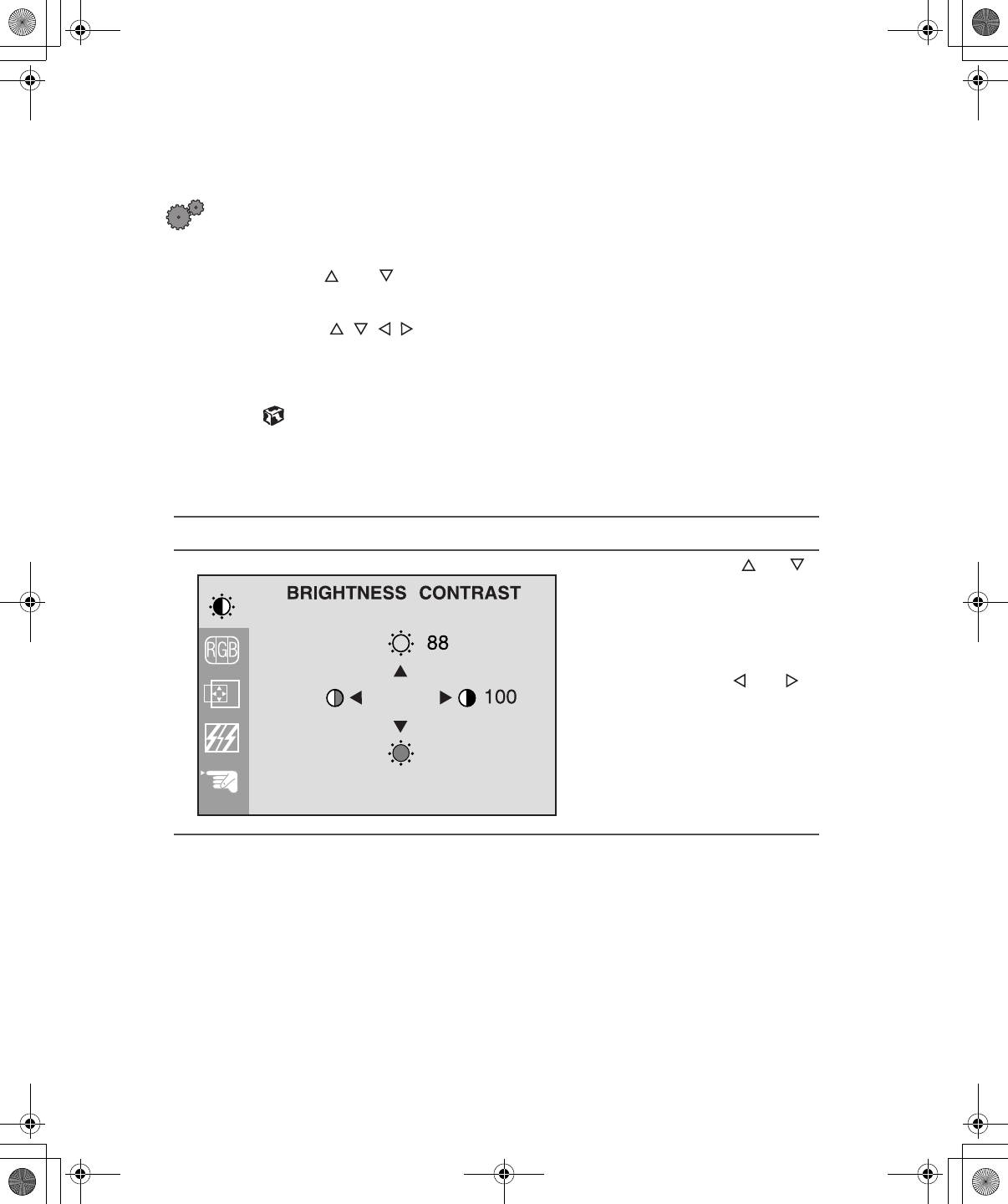

To adjust the OSD settings:
1Press the OSD button. The OSD menu opens.
2Use the and buttons to highlight a control, then press the Source/Set
button.
3Use the buttons to adjust the control to the desired level.
4When you have finished making all selections, press the OSD button to
exit the OSD.
OSD menus
You can access any of these menus in the OSD:
OSD Adjust Description
Brightness. Press the and
buttons to adjust the brightness
of the screen. Maximize the life of
your monitor by using the lowest
brightness setting you are
comfortable with.
Contrast. Press the and
buttons to adjust the contrast of
the screen.
/
9
Adjusting display settings
www.gateway.com
This menu cannot be accessed
(and is not needed) if your
monitor is connected to a digital
video port.

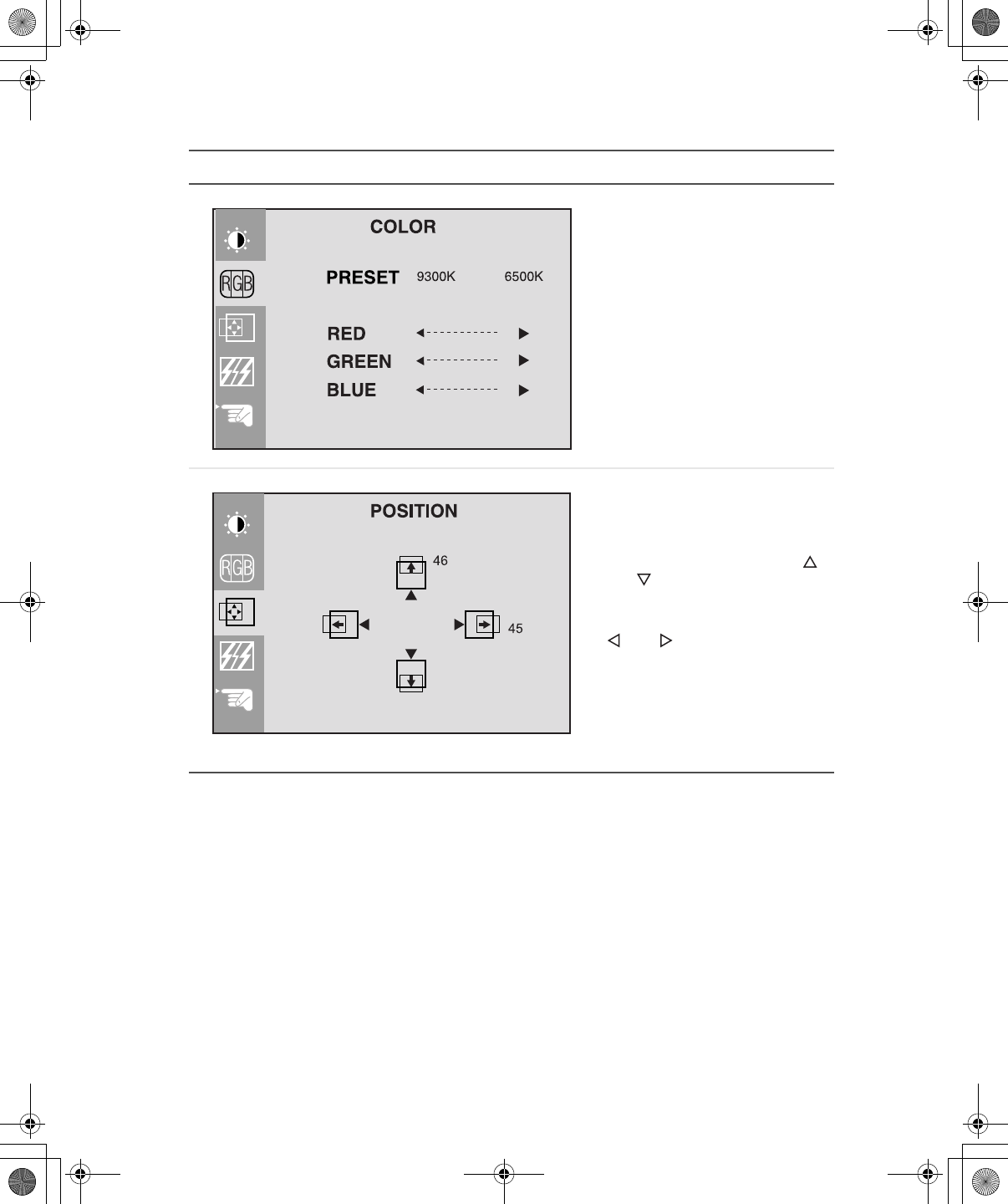

Preset. Adjust to change the
color temperature.
9300K is bluish white.
6500K is reddish white.
Red, Green, Blue. Adjust to set
your own color levels.
This menu cannot be accessed
(and is not needed) if your
monitor is connected to a digital
video port.
Vertical position. Press the
and buttons to move the
image up and down.
Horizontal position. Press the
and buttons to move the
image left and right.
The Auto function configures the
vertical and horizontal position for
you. For more information on the
Auto function, see “External
controls” on page 7.
OSD Adjust Description
10
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
This menu cannot be accessed
(and is not needed) if your
monitor is connected to a digital
video port.

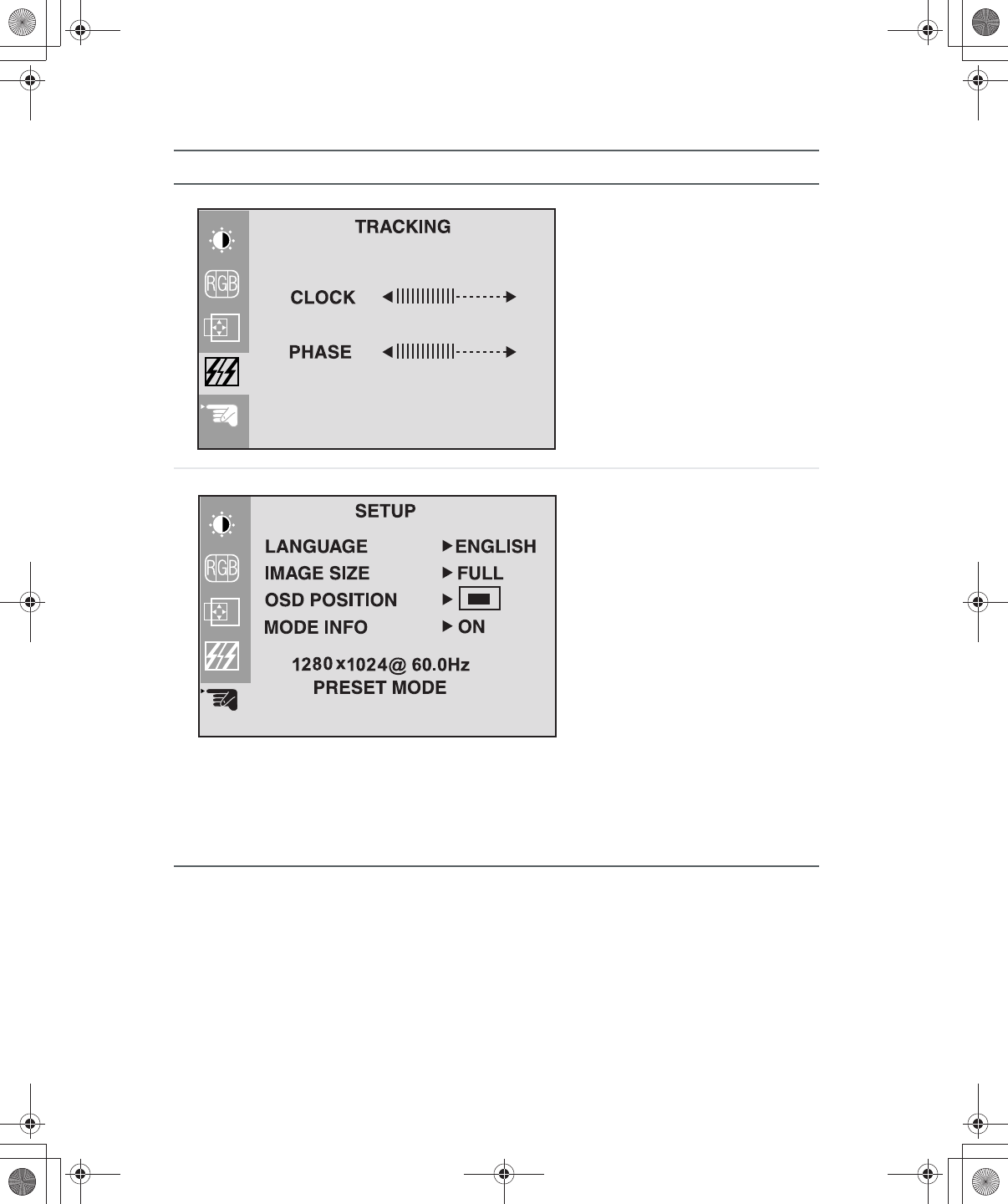

Clock. Adjust to minimize any
vertical bars or stripes visible on
the screen background. The
horizontal screen size will also
change.
Phase. Adjust to remove any
horizontal distortion, and clear or
sharpen the image of characters.
Language. Change the OSD
language display setting.
Image Size. Adjust to display a
smaller-than-native resolution
(such as 640 x480 on a monitor
that supports 1280 x1024) at a
1:1 ratio (resulting in a black
border around the image) or at
full size to fill the display
(resulting in a slightly "fuzzy"
image). The native screen
resolution is 1280x1024.
OSD Position. Adjust the OSD
window position on the screen.
Mode Info. When changing
screen resolution settings (for
example, size or number of
colors), display information is
briefly shown on the screen.
OSD Adjust Description
DSUB ANALOG
11
Adjusting display settings
www.gateway.com
Software controls
You can adjust the desktop settings such as the color depth and screen area
resolution using the Display Properties window.
To change the color depth and screen area resolution:
1Click Start, then select Settings, then Control Panel. The Control Panel
window opens.
2Click/Double-click the Display icon. The Display Properties window
opens.
3Click the Settings tab.
4Select the color depth (number of colors) used for the screen display from
the Colors list. Choosing the highest number of colors available in the
menu gives the best results.
5Select the screen area (number of pixels) used for the horizontal and
vertical screen display by dragging the Screen area slider. The display’s
best resolution is 1280 × 1024.
6Click OK. The settings are updated.
12
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
Video modes
Your monitor supports several video modes.
■ Best display mode for the 18.1-inch panel is 1280x1024.
The supported video modes are:
If you do not use the best mode for your monitor, the display may look slightly
“fuzzy” or may have a black border around the edges.
Display Modes
(Resolution) Horizontal
Frequency Vertical
Frequency
1640× 480 31.47 kHz 60 Hz
2640× 480 37.5 kHz 75 Hz
3720× 400 31.47 kHz 70 Hz
4800× 600 37.88 kHz 60 Hz
5800× 600 46.88 kHz 75 Hz
61024× 768 48.36 kHz 60 Hz
71024×768 60.02 kHz 75 Hz
8 1280 ×1024
(best for 18.1-inch
panel)
63.9 kHz 60 Hz
13
Power management
www.gateway.com
Power management
ENERGY STAR
As an ENERGY STAR® Partner, Gateway has determined that this product
meets the ENERGY STAR guidelines for energy efficiency.
This monitor complies with the EPA's International ENERGY STAR Program,
which is a program designed to encourage manufacturers of computer
equipment to build circuitry into their products to reduce energy
consumption during time of non-use.
Energy declaration
When connected to a computer that supports the VESA Display Power
Management Signaling (DPMS) Protocol, this monitor can conserve
significant energy by reducing power consumption during periods of non-use.
When the computer goes into the energy saving mode, the monitor will then
enter the Active Off mode (different from total shut down). In the Active Off
mode the Power LED will still show amber.
By following these conventions the power can be reduced to the following
levels:
To “wake” the monitor when it is in Active Off mode, move your mouse or
press any keyboard key.
You can change the period of time after which the monitor enters these low
power states by accessing the power management options in the Control
Panel.
VESA state LED indicator Power Consumption
On Green <55 W
Active Off Amber <2 W
14
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
Maintenance
To keep your monitor in optimal working order:
■Do not block the ventilation holes.
■Do not expose the monitor to rain or use near water.
■Keep the monitor away from radiators or heat vents.
■Keep the monitor out of direct sunlight.
Clean the monitor using a soft cloth lightly moistened with water only. Wipe
the cabinet, screen, and controls.
Caution Do not use any type of abrasive pad or glass cleaner. You
will permanently scratch the LCD panel.
15
Troubleshooting
www.gateway.com
Troubleshooting
If you have problems with your monitor, the information in this
troubleshooting section may help you solve them.
No picture
■Make sure the power cord is properly connected to both the back of the
monitor and the wall outlet.
■Make sure the video cable is securely connected to the back of the
monitor and computer.
■Make sure the monitor power button is turned on.
■If the power saving indicator is orange:
■Make sure that the computer is turned on.
■Move the mouse or press any key on the keyboard to bring the
monitor out of active off mode.
■Check the video port and the end of the video cable for any pins
that might be bent or pushed in.
■Make sure that the video cable is not damaged.
■Restart the computer with the monitor turned on.
■Perform a monitor self-test by turning off your monitor and unplugging
the video cable from the back of the computer. Turn the monitor back
on and wait for ten seconds. If the monitor is functioning properly, a
self-diagnostic screen appears.
Important Make sure that the monitor has warmed up for
approximately 30 minutes before making any judgments
about the picture quality.
16
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
Picture is scrambled
If your picture is scrambled, does not look right, or you see an “Out of range”
message, reset your monitor to its default video mode and resolution settings.
For more information, see “Adjusting display settings” on page 7.
To reset your monitor to its default settings:
1Restart the system, then press and hold CTRL while it starts up.
2Select Safe mode. Windows starts in a “safe mode,” which means that
most drivers are not loaded.
3Click Start, then select Settings, then Control Panel. The Control Panel
window opens.
4Click/Double-click the Display icon. The Display Properties dialog box
opens.
5Click the Settings tab.
6Click Advanced. The Advanced Display Properties dialog box opens.
7Click the Monitor tab.
8Click Change. The Select Device window opens.
9Select Plug and Play monitor (VESA DDC) by following the on-screen
instructions.
10 Restart Windows.
Display colors are wrong
■If your monitor is connected to an analog video port, press the button
to automatically adjust your display image to the ideal settings.
■Check the video port and the end of the video cable for any pins that
might be bent or pushed in.
■Make sure the video cable is securely connected to the back of the
monitor and computer.
■Make sure that the video cable is not damaged.
■Restart the system with the monitor turned on.
17
Troubleshooting
www.gateway.com
Picture has shadows or “ghosts”
■If your monitor is connected to an analog video port, press the button
to automatically adjust your display image to the ideal settings.
■Remove any extension cables or switchboxes.
■Check the video port and the end of the video cable for any pins that
might be bent or pushed in.
■Make sure the video cable is securely connected to the back of the
monitor and computer.
■Make sure that the video cable is not damaged.
Color is not uniform
■Make sure the monitor warms up for at least 30 minutes before making
a final judgment about color uniformity or brightness.
■If your monitor is connected to an analog video port, press the button
to automatically adjust your display image to the ideal settings.
Image is not sized or centered properly
■If your monitor is connected to an analog video port, press the button
to automatically adjust your display image to the ideal settings.
■Use the position controls to adjust the image. For instructions on how
to change your display settings, see “Adjusting display settings” on
page 7.
Image cannot be adjusted full screen
Some video modes used by your monitor produce images that cannot be
adjusted all the way out to the bezel edge (the edge where the screen glass
and monitor casing meet).
This condition does not indicate that the monitor is defective.
18
Chapter 1: Using Your Flat Panel Monitor
www.gateway.com
Specifications
Specifications are subject to change without notice or obligation.
Many products for Gateway and its subsidiaries are custom engineered by our
suppliers to Gateway specifications and may vary from similarly marketed
products.
Display 18.1-inch flat panel active-matrix TFT (Thin Film
Transistor) LCD
Optimal resolution
1280 × 1024
Display colors Over 16 million colors
Power input AC 100-240V 50/60Hz 1.0A
Power consumption
Normal operation:
<55 W
Active off operation: <2 W at AC 115V
Dimensions(WxHxD)
17.40 × 16.89 × 8.07 inches
(44.20 × 42.90 × 20.50 cm)
Power Management Meets EPA ENERGY STAR® and VESA DPMS
requirements
Certifications UL, cUL, NOM, EPA, and
FCC Class B
19
A
www.gateway.com
Safety,
Regulatory, and
Legal Information
Important safety information
Your Gateway system is designed and tested to meet the latest standards for safety of information
technology equipment. However, to ensure safe use of this product, it is important that the
safety instructions marked on the product and in the documentation are followed.
Setting up your system
■Read and follow all instructions marked on the product and in the documentation before you
operate your system. Retain all safety and operating instructions for future use.
■Do not use this product near water or a heat source such as a radiator.
■Set up the system on a stable work surface.
■The product should only be operated from the type of power source indicated on the rating
label.
■If your product has a voltage selector switch, make sure that the switch is in the proper
position for your area. The voltage selector switch is set at the factory to the correct voltage.
■Openings in the monitor case are provided for ventilation. Do not block or cover these
openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system
for ventilation when you set up your work area. Never insert objects of any kind into the
monitor ventilation openings.
■Some products are equipped with a three-wire power cord to make sure that the product is
properly grounded when in use. The plug on this cord will only fit into a grounding-type
outlet. This is a safety feature. If you are unable to insert the plug into an outlet, contact an
electrician to install the appropriate outlet.
■If you use an extension cord with this system, make sure that the total ampere rating on the
products plugged into the extension cord does not exceed the extension cord ampere rating.
Warning Always follow these instructions to help guard against
personal injury and damage to your Gateway system.
20
Appendix A: Safety, Regulatory, and Legal Information
www.gateway.com
■If your system is fitted with a TV Tuner, cable, or satellite receiver card, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage
surges and buildup of static charges.
Care during use
■Do not walk on the power cord or allow anything to rest on it.
■Do not spill anything on the system. The best way to avoid spills is to avoid eating and
drinking near your system.
■When the monitor is turned off, a small amount of electrical current still flows through the
monitor. To avoid electrical shock, always unplug all power cables and modem cables from the
wall outlets before cleaning the system.
■Unplug the system from the wall outlet and refer servicing to qualified personnel if:
■The power cord or plug is damaged.
■Liquid has been spilled into the system.
■The system does not operate properly when the operating instructions are followed.
■The system was dropped or the cabinet is damaged.
■The system performance changes.
Replacement parts and accessories
Use only replacement parts and accessories recommended by Gateway.
Warning To prevent electric shock, never remove the cover. No
user serviceable parts inside. Refer servicing to qualified
service personnel.
Important Do not use Gateway products in areas classified as
hazardous locations. Such areas include patient care
areas of medical and dental facilities, oxygen-laden
environments, or industrial facilities.
21
Regulatory compliance statements
www.gateway.com
Regulatory compliance statements
United States users
FCC Part 15
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio or television reception. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause interference to radio and television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
■Reorient or relocate the receiving antenna
■Increase the separation between the equipment and receiver
■Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
■Consult the dealer or an experienced radio/TV technician for help.
Compliance Accessories: The accessories associated with this equipment are: shielded video
cable. These accessories are required to be used in order to ensure compliance with FCC rules.
FCC declaration of conformity
Responsible party:
Gateway Companies, Inc.
610 Gateway Drive, North Sioux City, SD 57049
(605) 232-2000 Fax: (605) 232-2023
This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Canadian users
ICES-003
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus as set out in the radio interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage
radioélectrique édicté par Industrie Canada.
Caution Changes or modifications not expressly approved by
Gateway could void the FCC compliance and negate your
authority to operate the product.
www.gateway.com
EPA ENERGY STAR
As an ENERGY STAR® Partner, Gateway has determined that this product
meets the ENERGY STAR guidelines for energy efficiency when used with
a computer equipped with a Display Power Management System.
22
Appendix A: Safety, Regulatory, and Legal Information
www.gateway.com
www.gateway.com
Notices
Copyright © 2001 Gateway, Inc.
All Rights Reserved
4545 Town Centre Court
San Diego, CA 92121 USA
All Rights Reserved
This publication is protected by copyright and all rights are reserved. No part of it may be reproduced or
transmitted by any means or in any form, without prior consent in writing from Gateway.
The information in this manual has been carefully checked and is believed to be accurate. However, changes are
made periodically. These changes are incorporated in newer publication editions. Gateway may improve and/or
change products described in this publication at any time. Due to continuing system improvements, Gateway is
not responsible for inaccurate information which may appear in this manual. For the latest product updates,
consult the Gateway Web site at www.gateway.com. In no event will Gateway be liable for direct, indirect,
special, exemplary, incidental, or consequential damages resulting from any defect or omission in this manual,
even if advised of the possibility of such damages.
In the interest of continued product development, Gateway reserves the right to make improvements in this
manual and the products it describes at any time, without notices or obligation.
Trademark Acknowledgments
1-800-GATEWAY, ActiveCPR, ALR, AnyKey, black-and-white spot design, CrystalScan, Destination, DestiVu,
EZ Pad, EZ Point, Field Mouse, Gateway 2000, Gateway Country, gateway.net, Gateway stylized logo, Perfect
Scholar, Solo, TelePath, Vivitron, stylized “G” design, and “You’ve got a friend in the business” slogan are
registered trademarks and black-and-white spotted box logo, GATEWAY, Gateway Astro, Gateway@Work,
Gateway Connected touch pad, Gateway Connected music player, Gateway Cyber:)Ware, Gateway
Education:)Ware, Gateway Flex Case, Gateway Gaming:)Ware, Gateway GoBack, Gateway Gold, Gateway
Learning:)Ware, Gateway Magazine, Gateway Micro Server, Gateway Money:)Ware, Gateway Music:)Ware,
Gateway Networking Solutions, Gateway Online Network (O.N.) solution, Gateway Photo:)Ware, Gateway
Professional PCs, Gateway Profile, Gateway Solo, green stylized GATEWAY, green stylized Gateway logo,
Gateway Teacher:)Ware, Gateway Video:)Ware, HelpSpot, InforManager, Just click it!, Learn@Gateway, Kids
BackPack, SERVE-TO-ORDER, Server Watchdog, SpotShop, Spotshop.com, and Your:)Ware are trademarks
of Gateway, Inc. Intel, Intel Inside logo, and Pentium are registered trademarks and MMX is a trademark of Intel
Corporation. Microsoft, MS, MS-DOS, and Windows are trademarks or registered trademarks of Microsoft
Corporation. All other product names mentioned herein are used for identification purposes only, and may be the
trademarks or registered trademarks of their respective companies.
23
Regulatory compliance statements
www.gateway.com
