For more information about RF exposure, please visit the FCC website at www.fcc.gov
FCC RF EXPOSURE INFORMATION
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies. The design of this
phone complies with the FCC guidelines and these international standards.
Use only the supplied or an approved antenna. Unauthorized antennas,
modifications, or attachments could impair call quality, damage the phone, or result in
violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into
contact with the skin, a minor burn may result. Please contact your local dealer for
replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations with the back of the phone
kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure
requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5
cm. separation distance between the user’s body and the back of the phone, including
the antenna, whether extended or retracted. The use of third-party belt-clips, holsters
and similar accessories should not contain metallic components in its assembly. The
use of accessories that do not satisfy these requirements may not comply with FCC
RF exposure requirements, and should be avoided.
WARNING! Read this information before using your phone
CHAPTER 1. THE NAME AND FUNCTIONS

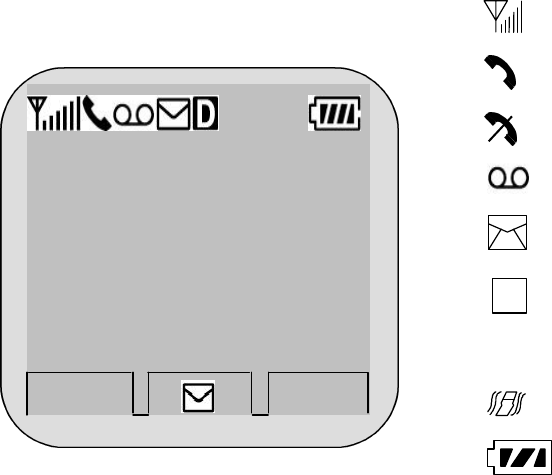

Hold Icon
LG CION BANNER
Sep/09
[Fri]
12:30pm
MENU
BOOK
Rm
R
Signal Strength
In Use
No Service
Roaming
Short Message
Battery Level
Short Message
Vibrator
D
CHAPTER 2. BASIC FUNCTIONS
Turning the Phone On and Off
<Turning the Terminal On>
1. Connect the terminal to the charged battery or the external power supply.
2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper side
of the terminal.
< Turning the Terminal Off >
1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressing
the key.
2. If an antenna is stretched, push it in for safety.
Making a Call
<Method1> Entering the Entire Phone Number
1. If the terminal is turned off, turn it on.
2. Enter the phone number.
(Enter the area code, if necessary.)
3. Press the [OK] key.
- If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the
call again.
- If the call is not connected, “Call Failed” signal will be indicated on the LCD.
4. Press the [END] key.
<Method2> Using Phone Book Entry
1. Enter the phone entry number, and press the [OK] key or
2. press the related phone entry number for some time. Then, the call will be attempted.
e.g.) Press the [2] key for some time, then call will be
connected to the phone number stored in the Entry #2.
123-456-7890
OPT
CLR
123-456-7890
Calling . . .
3. If you are not sure of the phone entry number, select the Soft Key(BOOK) with the Right
Mouse Button.
4. Place the cursor on the Phone Book, and press the Soft Key(SEL) with the Left Mouse
Button.
5. Search the Phone Book Entry number or name requested in the Phone Book to attempt a call
to the phone number stored in it.
<Method3> Using the Recent Call History
1. Select the Soft Key(BOOK) with the Right Mouse Button.
2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key(SEL)
with the Left Mouse Button.
3. If the “Outgoing”, “Incoming”, and “Missed” are indicated on the screen, select the menu
requested. Ten phone numbers of the recent calls are stored in each menu. Place the cursor on
the menu requested, and press the Soft Key(SEL) with the Left Mouse Button.
4. The phone number list appears on the screen. Then, search and place the cursor on the phone
number or name requested, and press the [OK] key.
Correcting Dialing Mistakes
1. Press the Soft Key(CLR) with the Right Mouse Button of the screen to erase the number or
character of the last entry.
2. Press the Soft Key(CLR) with the Right Mouse Button for one second, then all the number or
LG CION
BANNER
Sep/09
12:30p
m
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1.Call History
2.Phone Book
3.Alarm
4.Own Number
Input
Entry #: ___
ALL
BACK
¡ã
¡å
LG CION
BANNER
Sep/09
12:30p
m
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1.Call History
2.Phone Book
3.Alarm
4.Own Number
VIEW
BACK
¡ã
¡å
01 : 1111111
02 : 2222222
03 : 3333333
04 : 4444444
SAVE
BACK
TIME
Call to
1111111
character requested will be erased.
Receiving Calls
1. Press any key except for the [END/PWR] key to receive a call.
Press the END Key to end the incoming call
2. When the call completes, press the [END/PWR] key.
Mute
1. Press the Soft Key(MENU) with the Left Mouse Button during the call.
Key Beep
1. Press the Soft Key(MENU) with the Left Mouse Button during the call.
2. If a popup menu appears on the screen, place the cursor Key Beep and press the Soft
Key(SEL) with the Left Mouse Button to select the Key Beep State.
3. Set the tone length in two levels (Normal, Long) with the direction keys.
2. If a popup menu appears on the screen,
place the cursor on the Mute
menu and
press the Soft Key(SEL) with the Left
Mouse Button to select the Mute state
.
(The message”Mute” will be indicated
on
the screen.)
3. Press the Soft Key(MENU)
with the Left
Mouse Button to
clear the function. The
popup menu will appear. Select the Unmute
menu. (The message “Mute” will b
e disappeared on
the screen.)
SEL
BACK
¡ã
¡å
1.Send Msg
2.Ear Volume
3.Mute
4.Memo
MENU
BOOK
MUTE : 1 :20
SEL
BACK
¡ã
¡å
1.Send Msg
2.Ear Volume
3.Mute
4.Memo
SEL
BACK
¡ã
¡å
4.Key Beep
OK
BACK
¡ã
¡å
Key Beep
Long
Normal
¢º
Redialing Last Outgoing Number
<Method 1>
1. Just press [SEND] key to redial the last outgoing number. Then, the call will be attempted.
<Method 2> using the Call History
1. Press the Soft Key(BOOK) with the Right Mouse Button.
2. Place the cursor on the Call history menu on the screen, and press the Soft Key(SEL) with
the Left Mouse Button.
3. Then, three menus will appear.
-
“Outgoing”: Ten last outgoing calls are stored in this menu.
-
“Incoming”: Ten last incoming calls are stored in this menu
.
-
“Missed”: Ten last missed calls are stored in this menu
.
4. Place the cursor on the menu requested, and press the Soft Key(SEL) with the Left Mouse
Button.
e.g.) Place the cursor on the “Outgoing” menu and press the Soft
Key (SEL) with the Left Mouse Button.
5. The phone number list will appear. Place the cursor on the phone number or name requested,
and press the [SEND] key. Then, the call will be attempted.
Adjusting the Volume
It is possible to adjust the speaker volume, ring volume, and the Ring Type with the volume
buttons on the upper left side of the terminal.
- It is possible to adjust the speaker volume during the call.
- It is possible to adjust the key tone volume in a idle state.
- It is possible to adjust the ring volume during the ringing time.
- It is possible to adjust the ring volume from the Sound item on the Menu screen also.
( F [MENU] [Sound][RingVolume] or [MENU]-1-3)
LG CION
Sep/09
Sun/PM
12:30
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1.Call History
2.Phone Book
3.Alarm
4.Own Number
SEL
BACK
¡ã
¡å
1.Outgoing
2.Incoming
3.Missed
VIEW
BACK
¡ã
¡å
01 : 1111111
02 : 2222222
03 : 3333333
04 : 4444444
SEL
BACK
¡ã
¡å
1.Sound
2.Display
3.Call info
4.Features
SEL
BACK
¡ã
¡å
1.Ring Sound
2.Ring Type
3.Ring Volume
4.Key Beep
OK
BACK
¡ã
¡å
Key Volume
--------------
-
--------------
If you turn the ring volume down to the minimum, the message “-Ringer Off-“ will be indicated
on the LCD and no ringing sound will be sent out.
- Adjust the Ring Type on the Sound item on the Menu screen.
(F [MENU] [Sound][Ring Type] or [MENU]-1-2)
CHAPTER 3. MENU FEATURE
Main Menu
It is possible to verify or change various functions or setup the terminal status on the main menu.
General Guidelines to MENU Access and Settings
1. Press the Soft Key(MENU) on the left and the menu items will appear.
2. Use the upside and downside keys (é ê) to move to the menu items not indicated on the
screen.
3. Place the cursor on the menu item requested with the direction keys to select a menu item,
and press the Soft Key(SEL) on the left. And then, press the number corresponding to the
menu item to be selected.
4. Use the upside and downside keys (é ê) to change the setup values in the menu items.
5. Press the Soft Key(SEL) on the left to store the setup values changed in the menu item, or
press the Soft Key(BACK) on the right to leave the setup values not stored.
6. Press the Soft Key(BACK) on the right to move up to the upper level during the value setup
in the menu items.
Menu Item Descriptions
Menu 1. <Sound>
1. Ring Sound ( F [MENU]-1-1 )
Select one of 24 melodies with the direction keys.
LG CION
Sep/09
Sun/PM
12:30
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1. Sound
2. Display
3. Call info
4. Features
Ring Sound
¢º
Standard
chime
bell
BACK
¡ã
¡å
OK
OK
BACK
¡ã
¡å
KeyBeep Volume
---------------
2. Ring Type ( F [MENU]-1-2 )
Set one of three Ring Types (Ring, Lamp, Ring+Vibrate and Vibrate) with the direction keys.
3. Ringer Volume ( F [MENU]-1-3 )
Set of the ring volume in five levels (Most High - High - Medium –
Low - Off ) with the direction keys.
4. Key Beep (F [MENU]-1-4)
Set the tone length in two levels (Normal, Long) with the direction
keys.
5. Key Volume (F [MENU]-1-5)
Adjust the beep in five levels (Most High, High, Medium, Low, Off) with the direction keys.
6.Ear Volume (F [MENU]-1-6)
Adjust the earpiece volume in four levels (Most High, High, Medium,
Low) with the direction keys.
OK
BACK
¡ã
¡å
Ring Type
Ring
Lamp
VIB+Ring
Vibrate
¢º
OK
BACK
¡ã
¡å
Ring Volume
---------------
---------------
OK
BACK
¡ã
¡å
Key Beep
Long
Normal
¢º
OK
BACK
¡ã
¡å
Earpiece Volume
---------------
---------------
OK
BACK
¡ã
¡å
Backlight
Always off
10 seconds
30 seconds
7. Alerts Sound ( F [MENU]-1-7 )
An alert signal is activated according to each situation by five
submenus under the Alert menus.
- Fade: It is activated if the call is disconnected in a busy line state. (On / Off)
- Minute : This signal is activated when 1 minute elapses from the call connection. (On /
Off)
- Service : This signal notifies whether a call is available or not between the service and the
no service areas. (On / Off)
- Call Connection : It is activated to notify that the call is connected. (On / Off)
- Roam Ringer : This signal notifies that the roam is activated (On / Off)
Menu 2. <Display>
1. Backlight ( F [MENU]-2-1 )
It is possible to adjust the keypad and the backlight time in 4 levels with the direction keys.
(Always Off, 10 Sec, 30 Sec, Always On)
2. Banner ( F [MENU]-2-2 )
It is possible to store the characters to appear on the standby state of the terminal.
You can change the banner to press ‘EDIT’
SEL
BACK
¡ã
¡å
1. Fade
2. Minute
3. Service
4. Call Connect
OK
BACK
Banner
LG CYON BANNER
EDIT
3. Auto Hyphen (F [MENU]-2-3 )
It is possible to set the function to enter the Hyphen to the input number automatically to an
“On” or “Off” state. .
4. Version ( F [MENU]-2-4 )
When you select this menu you can see the hardware and software
version.
5. Languages ( F [MENU]-2-5 ) < TBD>
It is possible to set the language to be used in the terminal between
two languages with the direction keys
(Select one of two languages of English and Portuguese)
Menu 3. <Call Info>
1. Last Call ( F [MENU]-3-1 )
This service shows the last call time.
OK
BACK
¡ã
¡å
AUTO HYPHENATION
Off
On
OK
BACK
¡ã
¡å
Language
English
Protogunes
OK
BACK
00:01:05
Last Call TIME
OK
BACK
Version
H/W:0.5
S/W:C16PT01
2. Home Calls (F [MENU]-3-2 )
- Total call time at the Home system (not roaming) from initial setup to the present.
3. Roam Calls ( F [MENU]-3-3 )
Shows the call time at the roaming system from initial setup to the present
4. All Calls ( F [MENU]-3-4 )
It shows the total call time to the present either at the Home system or the roaming system or
both.
Menu 4. <Features>
1. Data/Fax In ( F [MENU]-4-1 )
It is possible to select the Fax In or Data In mode.
zero
2 Calls
00:08:00
Home Call
OK
BACK
ZERO
Home Calls
0 Calls
00:00:00
OK
BACK
ZERO
2 Calls
00:08:00
Roam Call
OK
BACK
ZERO
2 Calls
00:08:00
All Calls
OK
BACK
ZERO
Data/Fax In
Off
Fax In
Data In
OK
BACK
¡ã
¡å
CLR
BACK
ENTER
LOCK CODE
____
2. Auto Answer ( F [MENU]-4-2 )
Auto answer service is one of the most useful functions while
driving a vehicle, and it enables automatic answering to the
incoming call after the bell rings for designated times.
(Off, 1 ring after, 3 ring after)
3. Auto Retry ( F [MENU]-4-3 )
If the called user is in a busy line state, this service automatically attempts a call to that number
in a certain interval. It is possible to set the interval in four selections. (Off, every 10sec, every
30sec, every 60sec)
4. One Touch ( F [MENU]-4-4 )
It is possible to select the One Touch dial that is enable or disable.
5. Key Guard ( F [MENU]-4-5 )
It is possible to select the Key Guard dial that is Off or On
Menu 5. <Security>
Select the Soft Key(MENU) on the left in an initial call waiting state,
and select [5. Security]. Then a message will appear on the LCD to
request the Lock Code. If you fail to enter the correct Lock Code of
OK
BACK
¡ã
¡å
Off
After 1 ring
After 3 rings
Auto Answer
OK
BACK
¡ã
¡å
Off
Every 10seconds
Every 10seconds
Auto Retry
OK
BACK
¡ã
¡å
Key Guard
Off
On
OK
BACK
¡ã
¡å
One Touch Dial
Disable
Enable
four characters, the process will not proceed to the following low level menu. And if the Lock
Code is not correct, the process will return to the Main Menu.
1. Lock Mode ( F [MENU]-5-1 )
Set the terminal lock function to either “On Power Up”, “Never”, or “Always” with the
direction key.
2. Restrict ( F [MENU]-5-2 )
This service enables restriction on the call service. Select either “Yes” or “No” with the
direction key. The call service will be restricted only to the emergency phone numbers.
However, call termination is available.
3. Clr Call (F [MENU]-5-3 )
This service enables clearing of all the call information in the Memory. Select either “Yes” or
“NO” with the direction key. Select “Yes” to clear the information requested.
4. Emergency # ( F [MENU]-5-4 )
This service enables entering of the emergency phone numbers up to three.
It has two items of “Edit”, and “BACK” as the Submenu. Select “Edit” to view the
emergency phone numbers. If the memory address is empty, the message “Empty” will be
indicated. Enter the phone number requested and then select the Soft Key(SAVE) on the left,
to add the emergency phone numbers.
5.New Code ( F [MENU]-5-5 )
This service enables replacing of the present terminal Lock Code in four digits with a new
Lock Code. A message will appear to confirm the command to change the lock code.
CHAPTER 4. Message(SMS)
Message Service
This service supports reception of the text message, alerting, origination of the text message,
and the voice mailbox. It is possible to access the above functions with the text
message key Call back
service is also available with the call key ([OK] key) , if the calling number is indicated on the
message received.
It is possible to store up to 25 messages (received message : 20 , originated message : 5) and to
receive up to 153(TeleSP) characters per message. It is recommended to check the number of
character receivable because the capacity depends on the system service provider.
<Initial Message Service Image >
- Move the cursor with the upside and downside keys,
and press Softkey(SEL) for the menu requested. Press
Softkey(BACK) to return to the initial image on the terminal.
- ( ): The number in the parenthesis indicates the
number of messages.
<Type of Menu>
- Text 0 /0 : Menu to check incoming text message
- Voice 0 : Menu to check incoming voice message
- Send Msg : Menu to send the text message
- Setting : Menu to select the alerting tone to report arrival of a message
- Erase All : Menu to erase incoming text and voice message.
1. Received Text Msg
1.1 Text
1.1.1 New Message
Menu to check the received message.

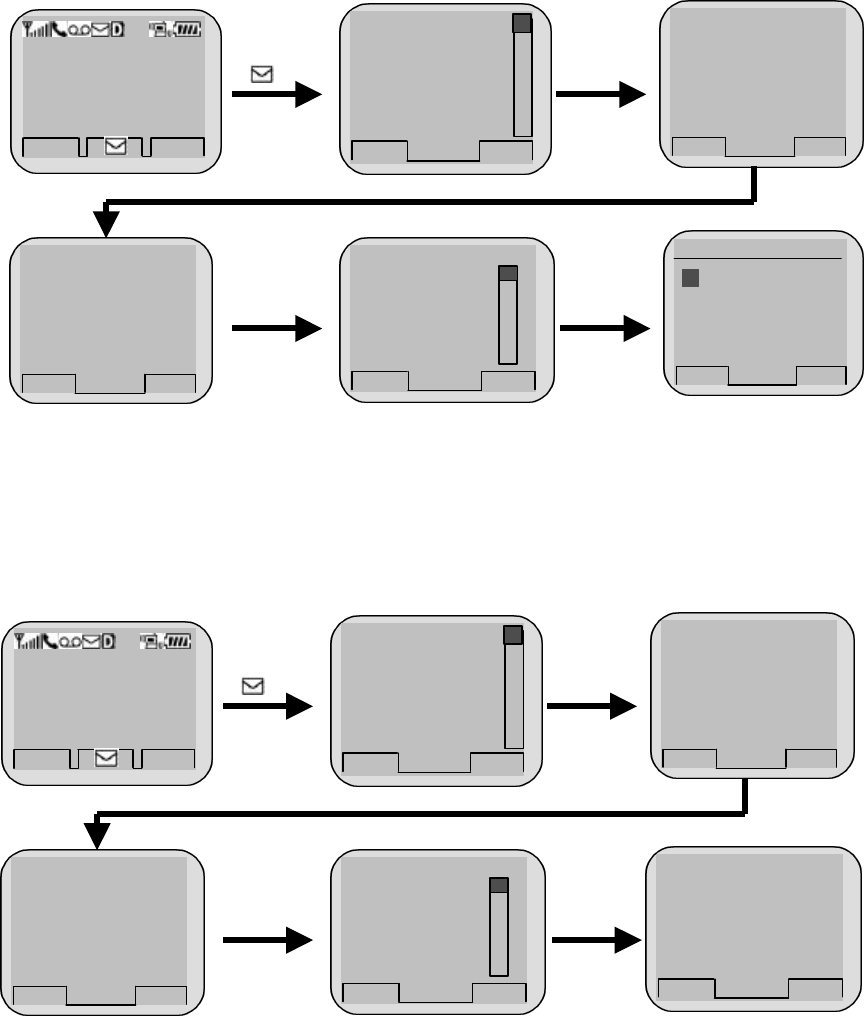

<When a message has been received. >
Select the VIEW, and the sub menu related to the message will appear.
For erasing or saving, select the softkey OPT
SEL
BACK
¡ã
¡å
1. Text 0/0
2. Voice 0
3. Send Msg
4. Setting
5. Erase All
MESSAGE!
9/18 3:25pm
0113456789
VIEW
BACK
Rm
9/18 3:25pm
Message from
Smith Kim
0113456789
Hello this is Ki
m from IBM.
OPT
BACK
Hello this is Ki
m from IBM. Plea
se call me ASAP.
I wiil be staying
at Hotel Clinton.
Waiting...
OPT
BACK
OK
Erase

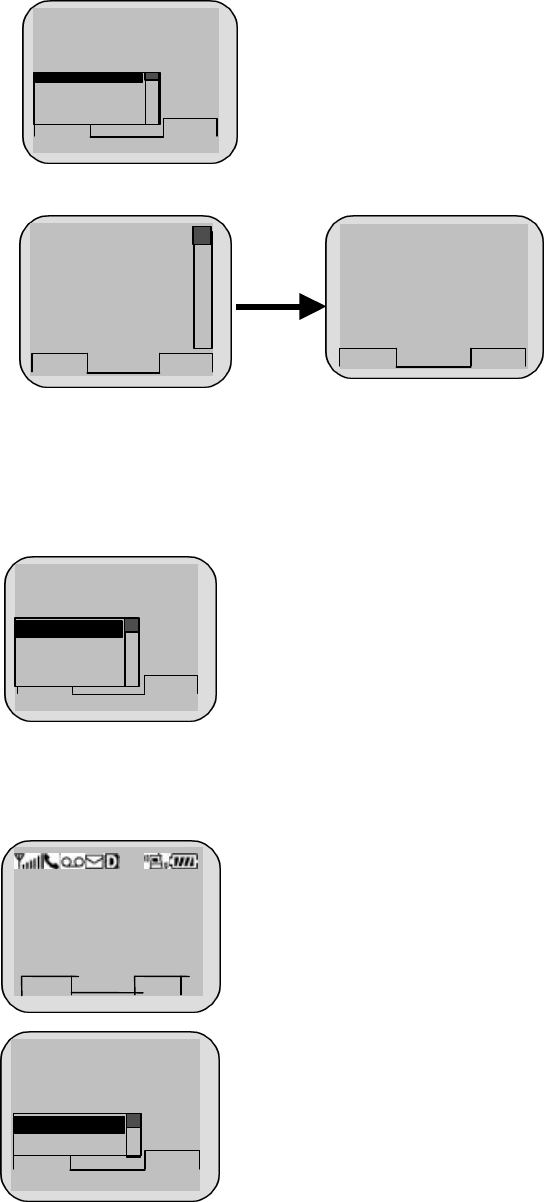

<When the Erase item is selected on the sub menu >
- [Next]: It indicates that there is another message received.
(If no more new message has been received, the old text list
will be indicated.)
- [Erase]: It erases the message.
- [Call back]: It calls back to the calling number.
1.1.2 Old Text (*)
- It indicates the checked but not erased messages in the form of the list.
- It indicates the checked and stored message in the form of the list. Move the location of > with
the upside or downside key to select the message.
2. Received voice message
- It indicates the number of the voice messages in the voice mailbox.
- Press the voice mailbox identification number or the [Call] menu
key. Then, the voice mailbox will connect.
- Select the [Erase] menu item. Then, the messages will be erased, as
many as indicated on the LCD, without need to verify the number of
messages
01:*Hellp this
02:Let’s go for
¢º
BACK
OPT
¡ã
¡å
View
Erase
SEL
BACK
¡ã
¡å
1. Text 1/0
2. Voice 0
3. Send Msg
4. Setting
9/18 3:25pm
Message from
Smith Kim
0113456789
Hello this is Ki
m from IBM.
OPT
BACK
Voice Mail
9/18 3:25pm
3 new message
OPT
BACK
Rm
OPT
BACK
¡ã
¡å
9/18 3:25pm
VOICE MAIL
Smith Kim
0112345678
3 New Messages
Erase
Call Back

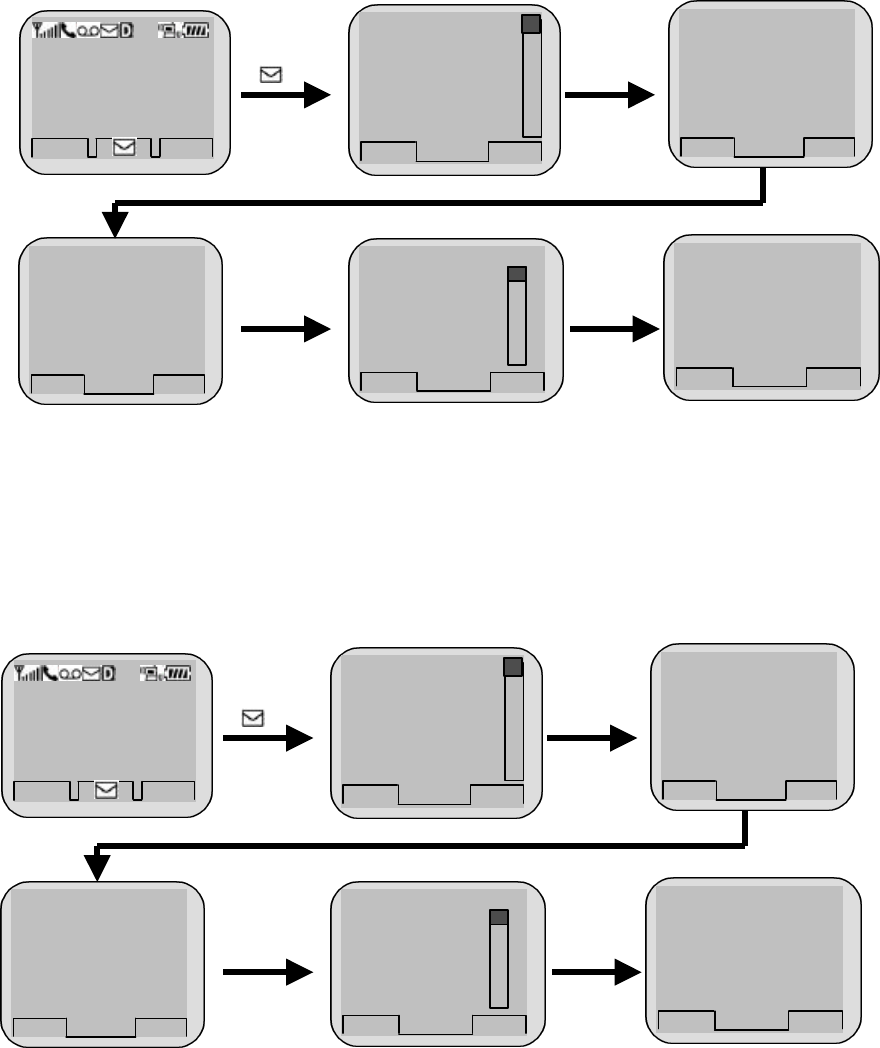

3. Send message
- Menu to originate SMS
3.1 New Message
- Menu to originate new SMS
- After input message, select OK and Send message
3.2 Outbox Message
- Menu to originate the message from the messages stored by the message service
- After selecting message number, select OK and SEND message
LG CYON BANNER
Sep/09
[Fri]
12:30
p
m
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1. Text 0/0
2. Voice 0
3. Send Msg
4. Setting
SEL
¡ã
¡å
1.New Message
2.Outbox
3.Inbox
4.Erase
BACK
Receiver Phone #
123-456
OK
BACK
¡ã
¡å
Call Back#
567-890
¢º
OK
BACK
¡ã
¡å
SEL
CLR
¡ã
¡å
Write MSG [80]
¢¸
English
¢º
LG CYON BANNER
Sep/09
[Fri]
12:30
p
m
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1. Text 0/0
2. Voice 0
3. Send Msg
4. Setting
SEL
¡ã
¡å
1.New Message
2.Outbox
3.Inbox
4.Erase
BACK
Receiver Phone #
123-456
OK
BACK
¡ã
¡å
Call Back#
567-890
¢º
OK
BACK
¡ã
¡å
1:Yes
2:No
3:Call me
4:Need directi
5:Where are yo
6:Will I call
¢º
SEL
BACK
¡ã
¡å
3.3 Inbox Message
- Menu to originate the message from the messages stored by the message service
- After selecting message number, select OK and SEND message
3.3 Erase
- This service enables erasing of all the originated messages stored by the
message service.
- After selecting want to erase, and select OK.
LG CYON BANNER
Sep/09
[Fri]
12:30
p
m
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1. Text 0/0
2. Voice 0
3. Send Msg
4. Setting
SEL
¡ã
¡å
1.New Message
2.Outbox
3.Inbox
4.Erase
BACK
Receiver Phone #
123-456
OK
BACK
¡ã
¡å
Call Back#
567-890
¢º
OK
BACK
¡ã
¡å
1:Yes
2:No
3:Call me
4:Need directi
5:Where are yo
6:Will I call
¢º
SEL
BACK
¡ã
¡å
LG CYON BANNER
Sep/09
[Fri]
12:30
p
m
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1. Text 0/0
2. Voice 0
3. Send Msg
4. Setting
SEL
¡ã
¡å
1.New Message
2.Outbox
3.Inbox
4.Erase
BACK
Receiver Phone #
123-456
OK
BACK
¡ã
¡å
Call Back#
567-890
¢º
OK
BACK
¡ã
¡å
1:Yes
2:No
3:Call me
4:Need directi
5:Where are yo
6:Will I call
¢º
SEL
BACK
¡ã
¡å
4. Setting
- It is possible for the user to set the alarm to report arrival of a message.
- Alert: Select one of 2 alerts, 4 alerts, mute and vibrator services.
- After selecting Alert, select OK
OK
BACK
¡ã
¡å
Rate Set
Silent
2 Rings
4 Rings
Vibrator
LG CYON BANNER
Sep/09
[Fri]
12:30p
m
MENU
BOOK
Rm
SEL
BACK
¡ã
¡å
1. Text 0/0
2. Voice 0
3. Send Msg
4. Setting
1.
Alert
SEL
BACK
¡ã
¡å
5. Erase All

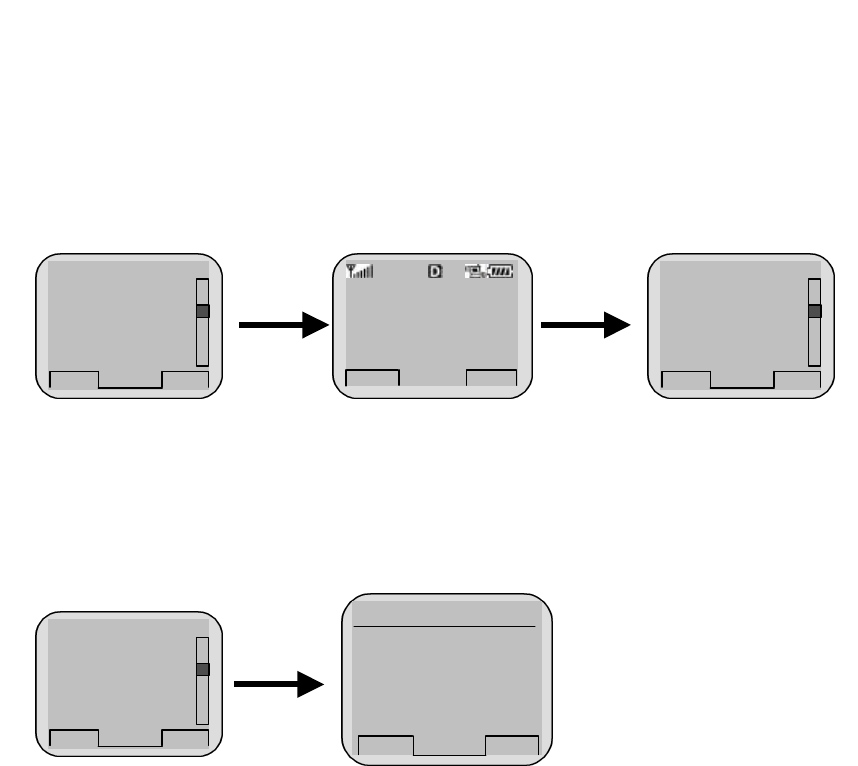

- This service enables erasing of all the messages stored by the message
service.
Erase Message
Erase
All Message?
OK
BACK
Erasing
Please Wait.
Selecting OK

Navigation menu
