Users Manual

LG-LS831
User Guide
Body-worn Operation
This device was tested for typical body-worn operations with the back of the phone kept 0.79
inches (2FP) from the body. To comply with FCC RF exposure requirements, a minimum
separation distance of 0.79 inches (2FP) must be maintained between the user’s body and the
back of the phone, including the antenna, whether extended or retracted. Third-party belt-clips,
holsters and similar accessories containing metallic components should not be used. Body-worn
accessories that cannot maintain 0.79 inch (2FP) separation distance between the user’s body
and the back of the phone, and have not been tested for typical body-worn operations may not
comply with FCC RF exposure limits and should be avoided.
FCC Part 15.19 statement
This device and its accessories comply with part 15 of FCC rules. Operation is subject to the
following two conditions: (1) This device and its accessories may not cause harmful interference,
and (2) this device and its accessories must accept any interference received, including
interference that cause undesired operation.
FCC Part 15.21 statement
Changes or Modifications that are not expressly approved by the manufacturer could void the
user's authority to operate the equipment.
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Get Started 1
Get Started
This section gives you all the information you need to set up your device and XX service the
first time.
Your Device at a Glance
Setting Up Your Device
Activate Your Device
Complete the Setup Application
Set Up Voicemail
XX Account Information and Help
Your Device at a Glance
Setting Up Your Device
You must first install and charge the battery to begin setting up your device.
1. Install the battery.
Remove the battery from its packaging.
Insert the battery into the opening in the back of the device, making sure the
connectors align (see step 1, in the following illustration). Gently press down to
secure the battery (see step 2, in the following illustration).
Get Started 2
Position the back cover over the battery compartment and press down until you hear
a click (see step 3, in the following illustration).
2. Press and hold located on the top left to turn the device on.
Activating Your Device
Depending on your account or how and where you purchased your device, it may be ready to
use or you may need to activate it on your account.
● If you purchased your device at a XX Store, it is probably activated and ready to
use.
● If you received your device in the mail and it is for a new XX account or a new
line of service, it is designed to activate automatically. To confirm your activation,make
a phone call.
● If you received your device in the mail and you areactivating a new phone for an
existing number on youraccount, (you're swapping phones), you can activateon your
computer online or directly on your phone.
Activate on your computer:
Go to XX website and follow the instructions.
Activate on your phone:
Note: For security reasons, you will need your phone number and PIN to use this
activation method.
1. Turn on your new phone. (Make sure the old one is turned off.) Your device will
automatically attempt Hands-Free Activation.
Note: Turn on your new phone. (Make sure the old one is turned off.) Your device will
automatically attempt Hands-Free Activation.
2. Tap Activate to override auto-activation and start the manual activation wizard
Note: If you don't override Hands-Free Activation, your device will attempt to auto activate five
times. Wait for Retry to appear on your screen. Tap Retry and then tap Activate.
Get Started 3
3. Follow the onscreen prompts to complete the activation process.
4. After you have completed the wizard, make a phone call to confirm your activation.
If your phone is still not activated or you do not have access to the Internet, contact XX
Customer Service for assistance.
Tip: Do not press while the phone is being activated. Pressing cancels the activation
process.
Note: If you are having difficulty with activation, contact XX Customer Service by dialing
from any other phone.
Complete the Setup Application
Make Your First Call
1. Tap Phone > ..
2. Use the dialpad to enter a phone number.
If you enter a wrong number, tap to erase digits one by one.
To erase the entire number, touch and hold .
3. Tap call.
Get Started 4
Note: Your device's battery should have enough charge for your device to turn on and find a
signal, set up your voicemail, and make a call. You should fully charge your battery as
soon as possible. See Charging the Battery for details.
Setting Up Your Voicemail
Your phone automatically transfers all unanswered calls to your voicemail, even if your phone is
in use or turned off. You should set up your XX Voicemail and personal greeting as soon as
your phone is activated. Always use a password to protect against unauthorized access.
1. Tap Phone > .
2. Follow the system prompts to:
Create your password.
Record your name announcement.
Record your greeting.
Note: XX strongly recommends that you create a password when setting up your voicemail
to protect against unauthorized access. Without a password, anyone who has access to
your phone is able to access your voicemail messages.
XX Account Passwords
As a XX customer, you enjoy unlimited access to your personal account information, your
voicemail account, and your data services account. To ensure that no one else has access to
your information, you will need to create passwords to protect your privacy.
Account Username and Password
If you are the account owner, you will create an account username and password when you
sign on towww.XX.com. (Click Need to register for access? to get started.) If you are not
the account owner (if someone else receives the bill for your XX service), you can get a sub-
account password at www.XX.com.
Voicemail Password
You’ll create your voicemail password (or passcode) when you set up your voicemail. See
Setting Up Your Voicemail for more information on your voicemail password.
With your XX phone, you may elect to set up an optional data services password to control
access and authorize Premium Service purchases.
Data Services Password
For more information, or to change your passwords, sign on to www.XX.com or call XX
Customer Service.
Get Started 5
Getting Help
Find out about account passwords and information about managing your account and finding
help.
Managing Your Account
Manage your XX account from your computer, your XX phone, or any other phone.
Online: www.XX.com
● Access your account information.
● Check your minutes used (depending on your XX service plan).
● View and pay your bill.
● Enroll in XX online billing and automatic payment.
● Purchase accessories.
● Shop for the latest XX phones.
● View available XX service plans and options.
● Learn more about data services and other products like games, ringers, screensavers,
and more.
From Your XX Phone
● From the dial screen, tap call to check minute usage and account balance.
● From the dial screen tap call to make a payment.
● From the dial screen, tap call to access a summary of your XX service
plan or get answers to other questions.
● From the dial screen, tap call to add a new line of service, upgrade your
phone, purchase accessories, or access other account services.
From Any Other Phone
● XX Customer Service
● Business Customer Service
Get Started 6
XX 411
XX 411 gives you access to a variety of services and information, including residential,
business, and government listings; movie listings or showtimes; driving directions, restaurant
reservations, and major local event information. You can get up to three pieces of information
per call, and the operator can automatically connect your call at no additional charge.
There is a per-call charge to use XX 411, and you will be billed for airtime.
► From the dial screen, tap call.
XX Operator Services
XX Operator Services provides assistance when you place collect calls or when you place
calls billed to a local telephone calling card or third party.
► From the dial screen, tap call .
For more information or to see the latest in products and services, visit us online at
www.XX.com.
Device Basic 7
Device Basics
Your Device
Viewing the Display Screen
Turning Your Device On and Off
Battery and Charger
Device Function Keys
Navigation and Customization
Displaying Your Phone Number
Entering Text
Creating a Google Account
Tip: Phone Software Upgrades – Updates to your device’s software may become available
from time to time. XX will automatically upload critical updates to your device. You
can also use the menu to check for and download updates. Tap > <arrow key> >
Settings > phone update.
Device Basic 8
Your Device Overview
Front View
1. Proximity Sensors sense proximity towards other objects (such as your head) so that
touch commands are not accidentally activated during a call.
Note: Please be careful not to cover the sensors with a protective film, pouch, or a protective
case not authorized by LG.
2. Status Bar provides information about your device’s status and options, such as signal
strength, roaming, ringer setting, messaging, and battery charge. The status bar displays
icons indicating that you’ve received notifications (on the left) and icons indicating the
device's status (on the right), along with the current time.
3. Phone Key displays the dialpad so you can dial a number. Also provides additional tabs
to access Call history, Contacts, and your Favorites.
4. Home Key returns to the Start Screen. If you're already viewing one of extension panes,
it opens the central Start Screen. Press and hold to display recently used applications.
5. Menu Key allows you to access your device's main functions menu: Add, Wallpaper,
Settings, Switch ID, Search, and More (Manage apps and Notifications). While in a
menu, press to open a list of options available.
6. Microphone allows other callers to hear you clearly when you are speaking to them.
Device Basic 9
7. Back Key returns to the previous screen. Also closes pop-up display items such as
menus and dialog boxes.
8. Search Key displays the Quick Search box that can be used to search for a key term
both on the device and online (box). See Using the Search Key.
For example, entering the word “Pa” will display any matching entries from your
device’s Contacts list, installed applications, or will suggest search terms.
Press and hold to launch Voice Search where you can initiate a Google™ search by
verbally entering search terms. The device recognizes your spoken words and
initiates a Web search.
9. XX ID Key launches the XX ID application from where you can replace a current ID
or get a new one.
10. Application Key opens the Applications screen to view installed applications.
11. Touchscreen displays all the information needed to operate your device, such as the
applications, call status, the Contacts list, the date and time, and the signal and battery
strength.
12. Earpiece lets you hear the caller and automated prompts.
Device Basic 10
Rear View

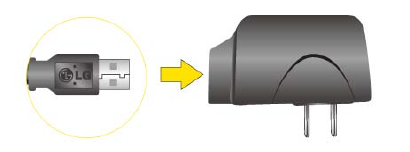

1. Charger/Accessory Jack allows you to connect the device charger or an optional USB
cable (included). CAUTION! Inserting an accessory into the incorrect jack may damage
the device.
2. Power/Lock Button locks the screen. Press and hold to open the Phone options menu
(for the following options): Silent mode, Airplane mode, and Power off.
3. Camera Lens, as part of the built-in camera, lets you take pictures and videos.
4. Flash
5. Speaker lets you hear the different ringers and sounds. The speaker also lets you hear
the caller’s voice in speakerphone mode.
6. Back Cover Fingertip Cutout allows you to lift and remove the device's back cover.
7. User Defined Button makes you quick access to the specific feature you previously
allocate to this button. Camera is allocated by default.
8. Volume Buttons allow you to adjust the ringer and media volumes, or to adjust the in-
call volume during a call. When you press and hold the volume button, the phone
switches to the Sound-off mode.
9. 3.5mm Headset Jack allows you to plug in a headset for convenient, hands-free
conversations. CAUTION! Inserting an accessory into the incorrect jack may damage the
device.
10. microSD Slot accommodates the pre-installed microSD™ card (expandable up to 32GB).
Note: Insert a microSD card to use the camera and other multimedia features. Multimedia
contents will be saved in the microSD card. LG-LS831 has a microSD™card pre-
installed.
Device Basic 11
Viewing the Display Screen
The Status Bar appears at the top of the screen. It displays icons indicating that you’ve received
notifications (on the left) and icons indicating the device’s status (on the right), along with the
current time.
The following list identifies the symbols you’ll see on your device's display screen:
Status Bar – Service Icons
Signal Strength – Shows your current signal strength. (More bars = stronger
signal.)
No Service – Your phone cannot find a usable signal.
3G Connected – Indicates that 3G data service is available.
3G In Use – Indicates that 3G data service is incuse.
1x Data Connected – Indicates that 1x data service is available.
1x Data Service In Use – Indicates that 1x data service is in use.
Bluetooth On – Indicates that Bluetooth is on.
Bluetooth Connected – Indicates that the phone is connected to a Bluetooth
device.
GPS On – Indicates that GPS is on.
GPS Communicating – Indicates that the device is receiving location data from
GPS.
Roaming – Your phone is “roaming” off the Nationwide XX Network.
Device Basic 12
Airplane Mode – Indicates that the device is in Airplane Mode.
Status Bar – Status Icons
Speakerphone On – Indicates that Speakerphone is on.
No microSD – Indicates that no microSD card is installed.
Vibrate Mode – Indicates that the ringer volume is set to vibrate and any sounds
are silenced.
Ringer Silenced – Indicates that all sounds are turned off.
Muted – Indicates that phone microphone is muted.
Very Low Battery – Indicates that battery is very low.
Low Battery – Indicates that battery is low.
Battery Drained (40%) – Indicates that battery is partially drained.
Status Bar – Status Icons
Battery Full – Shows your current battery charge level. (Icon shown is fully
charged.)
Battery Charging – Indicates that battery is charging.
Unknown Battery – Indicates that an unknown battery is inserted.
Alarm Clock – Alarm Clock
Status Bar – Notification Icons
New Gmail Message – Indicates a new Gmail message.
Indicates you have received a new text or
New Email – Indicates a new Email message.
New Voicemail – Indicates you have received a new voicemail message.
Device Basic 13
Upcoming Event – Alerts you to an upcoming event.
connection to the Google server, or you were not properly signed into your
account. In order to use Google application or sync features, you must set up
Full microSD Card – Indicates that microSD card is full.
USB Connected – The device has detected an active USB connection.
Call In Progress – Indicates that a call is in progress.
Call In Progress Using Bluetooth Headset – Indicates that a call is in progress
Call Being Forwarded – Indicates that a call is being forwarded.
Call On Hold – Indicates that a call is on hold.
Missed Call – Indicates that you have missed calls.
Uploading Data – Indicates that your device is uploading data.
Downloading Data – Indicates that your device is downloading data.
Download Finished – Indicates that a download is complete.
Connected To VPN – Indicates that the device is connected to a Virtual Private
Song Is Playing – Indicates that a song is playing.
Lock Screen – Indicates that screen is locked.
Carrier data use threshold approaching or exceeded.
TTY – Indicates that your phone is operating in TTY mode.
Tethering Active - Indicates that USB tethering is active.
Device Basic 14
Turning Your Device On and Off
Turn your device on and off and wake-up the screen by using the power/lock button.
Turning Your Device On
► Press and hold .
Once your phone is on, it may display “Searching for Service.” When your phone finds a signal,
it enters standby mode – the phone’s idle state. At this point, you are ready to begin making and
receiving calls.
If your phone is unable to find a signal after 15 minutes of searching, a Power Save feature is
automatically activated. When a signal is found, your phone automatically returns to standby
mode.
In Power Save mode, your phone searches for a signal periodically without your intervention.
You can also initiate a search for XX service by pressing any key (when your phone is turned
on).
Tip: The Power Save feature conserves your battery power when you are in an area where
there is no signal.
Turning Your Device Off
1. Press and hold for two seconds until you see the powering-down animation on the
display screen.
2. Tap (Power off) and then tap OK to power off the device.
Your screen remains blank while your phone is off (unless the battery is charging).
Wake Up the Screen
If you don’t use the device for a while, the screen and backlight will shut off to conserve battery
power.
To wake up the device's screen
Device Basic 15
1. Press . Your lock screen will appear. See Your Device's Lock Feature.
2. Slide up the screen. The last screen you were working on opens. (This is the default lock
screen.)
Battery and Charger
XX-approved or LG-approved batteries and accessories can be found at XX Stores or
through LG; or call to order. They’re also available at www.XX.com.
WARNING: Use only XX-approved or LG-approved batteries and chargers with your
device. The failure to use a XX-approved or LG-approved battery and charger
may increase the risk that your phone will overheat, catch fire, or explode,
resulting in serious bodily injury, death, or property.
Battery Capacity
Your device is equipped with a Lithium Ion (Li-Ion) battery. It allows you to recharge your battery
before it is fully drained. The battery provides up to 5 hours of continuous digital talk time.
When the battery reaches 5% of its capacity, the battery icon blinks. When there are
approximately two minutes of talk time left, the device can sound an audible alert and then turn
off.
Note: Long backlight settings, searching for service, using vibrate mode, browser use, and
other variables may reduce the battery’s talk and standby times.
Tip: Watch your device's battery level indicator and charge the battery before it runs out of
power.
Installing the Battery
► See Setting Up Your Device.
Removing the Battery
1. Make sure the power is turned off so that you don’t lose any unsaved items.
2. Lift the back cover using the fingertip cutout located at the bottom of the cover and
remove it.
3. Lift the battery using the fingertip cutout and remove it from the device.
WARNING: Do not handle a damaged or leaking Li-Ion battery as you can be burned.
Device Basic 16
Charging the Battery
Keeping track of your battery’s charge is important. If your battery level becomes too low, your
device automatically turns off, and you will lose any information you were just working on.
Always use a XX-approved or LG-approved desktop charger, travel charger, or vehicle power
adapter to charge your battery.
1. Connect the cableless wall adapter and USB data cable. Connect as shown; the LG logo
on the USB cable should face toward you.
2. Plug one end of the USB cable into the device's Charger/Accessories Jack and the other
end into an electrical outlet. The charge time varies depending upon the battery level.
With the XX-approved Li-Ion battery, you can recharge the battery before it becomes
completely rundown.
Battery Temperature Protection
Though extremely rare, if the battery becomes overheated, the phone will automatically turn off.
Charging with USB
You can use your computer to charge your device. To be able to charge with the USB cable,
you need to install the necessary USB drivers on your computer first. Connect one end of the
USB cable to the Charger/Accessory Jack on your device and connect the other end to a USB
port on your computer. It is best to use the rear USB port when connecting to a desktop
computer. The USB hub should be powered by an external power source (see NOTE below).
Note: Low-power USB ports are not supported, such as the USB port on your keyboard or bus-
powered USB hub.
LG USB Driver is downloadable from the following site: http://www.lg.com/us/mobile-
phones/index.jsp > Click Mobile Support > Select the Carrier(XX) > Select the Model
LG-LS831 > Click USB Cable Driver to download.
Device Basic 17
Always unplug the charger from the wall socket after the phone is fully charged to save
unnecessary power consumption of the charger.
Extending Your Battery Life
You can extend your battery's life between charges by turning off features that run in the
background. You can also monitor how applications and system resources consume battery
power.
● Reduce your backlight on time. (See Changing the Backlight Time Length.)
● Turn Bluetooth off when not in use. (See Turning Bluetooth On and Off.)
● Turn Wi-Fi off when not in use. (See To turn Wi-Fi on and connect to a Wi-Fi network
● Deactivate the GPS when not needed. Most applications using this function will
periodically query the GPS satellites for your current location; each query drains your
battery. (See Activating Location Mode.)
● Do not wait until your battery is completely depleted before charging your device.
Repeating this process of a complete discharge and recharge can over time reduce the
storage capacity of any battery.
● Turn off Automatic application sync. (See Synchronizing Accounts.)
● Use the Power Control Widget to deactivate hardware functions such as Wi-Fi, Bluetooth,
GPS, Synchronization, or LCD brightness setting. (See Adding and Removing Widgets.)
● Check the Running Services and close any unnecessary applications.
Turn down screen brightness and set a shorter screen timeout. (See Display
Settings.)
If you don't need them to sync, turn off automatic syncing for Gmail, Calendar,
Contacts, and other applications. (See Synchronizing Accounts.)
Use the Power Control widget to check and control the wireless connections,
Bluetooth power, GPS connection, syncing activity, and display brightness. (See
Adding and Removing Widgets.)
To check the battery's charge level:
Tap > <Arrow Key> > Settings > About phone > Status.
The battery status (charging, discharging) and level (as a percentage of fully charged) are
displayed at the top of the screen.
Device Basic 18
To monitor and control what uses the battery:
The Battery Use screen shows which applications consume the most battery power. You can
also use it to turn off applications that you’ve downloaded, if they are consuming too much
power.
Device Function Keys
The LG-LS831 comes equipped with three main function keys that can be used on any screen
to access added functions.
Start Key
The Start Key takes you back to your main Homescreen (of the 5 total available screens.)
Back Key
The Back Key returns you to the previously active screen. If the onscreen keyboard is
currently open, this key closes the keyboard.
Search Key
The Search Key displays the Bing Search engine that you can use to search for a key
term both on the device and on the Web. In addition to being able to search by typing in search
terms, you can also search by voice.
Tap to launch the Quick Search Box.
On Search screen, tap <voice icon> to launch the Voice Search function.
Device and Web Search Using Text Entry
1. Tap > .
When you press on the Start Screen or in the other applications that support this, the
search screen will open automatically.
Device Basic 19
2. Enter the text you're searching for.
3.
4. Tap to search for the entered text.
– or –
If what you want to search for appears in the suggestions list, tap that item to conduct
the search.
Device Basic 20
To search using voice command:
► Tap <voice icon>.
When you stop speaking, the Search engine by Voice analyzes your speech and displays the
results of your search.
The available Voice Commands are:
● Say “Directions to,” followed by an address, name, business name, type of business, or
other destination, to get directions to that location.
● Say “Navigate to,” followed by an address, name, business name, type of business, or
other destination to get spoken, turn-by-turn directions to that destination.
● Say “Map of,” followed by an address, name, business name, type of business, or other
location, to view that location.
Touchscreen Navigation
The LG-LS831 is a touch-sensitive device which allows you to select an onscreen option with a
single touch and to easily scroll through long lists. Simply slide up and down through the display
with your fingertip.
Your touchscreen provides an excellent way to interact with and use your Android phone. With
the touch of your finger, you can access available applications, make menu selections, and
access data saved to your device. The following terms are used for describing the different
available actions using the touchscreen:
● Tap: A single finger tap selects items, links, shortcuts and letters on the on-screen
keyboard.
● Touch and hold: Touch and hold an item on the screen by touching it and not lifting
your finger until an action occurs. For example, to open a contact’s available options,
touch and hold the contact in the Contacts list until the context menu opens.
● Drag: Touch and hold an item for a moment and then, without lifting your finger, move
your finger on the screen until you reach the target position. You can drag items on the
Start Screen to reposition them, as described in Changing the Device’s Wallpaper, or
drag the Notification screen open, as described in Using the Notifications Panel.
● Swipe or slide: To swipe or slide, quickly move your finger across the surface of the
screen, without pausing when you first touch it (so you don’t drag an item instead). For
example, you can slide the screen up or down to scroll through a list, or browse through
the different Start Screens by swiping from left to right (and vice versa).
● Double-tap: Double-tap to zoom on a Web page or a map. For example, quickly double-
tap a section of a Web page to adjust that section to fit the width of the screen. You can
Device Basic 21
also double-tap to zoom in and out when taking a picture (using the Camera), and when
using Maps.
● Pinch-to-Zoom: Use your index finger and thumb in a pinch or spread motion to zoom
in or out when using the Browser, Maps, or browsing pictures.
● Rotate the screen: From many applications and menus, the orientation of the screen
adjusts to the device’s physical orientation. (See Changing the Screen Orientation.)
Your Start Screen
The Start Screen is the starting point for many applications and functions. This is the default
page and accessible from any menu by tapping .
The Start Screen
To return to the Start Screen:
► Tap at any time, from any application.
Applications: How to View, Open and Switch
All of the applications on your device, including any applications that you downloaded and
installed from Marketplace or other sources, are grouped together on one Applications screen
that you access from your Start Screen.
The Applications screen contains all of the device's applications (though not downloaded
widgets and other downloaded material that isn't an application),including the
MarketplaceAlarms, Calculator, Calendar, Camera, Games, Help+How-to, Internet Explorer,
Maps, Marketplace, and much more.
Overview
Device Basic 22
Opening and Closing the Applications Screen
To open the Applications screen:
► Tap <arrow key> .
To close the Applications screen:
► Tap .
► Tap <Back Arrow> .
Note: The Applications screen closes automatically when you tap an icon to open its
Application. Dragging an icon onto your Start Screen also closes the Applications screen
automatically.
Opening and Switching Applications
Multi-tasking is easy with Windows® Phone. Opened applications can keep running in the
background when you open another application. There’s no need to quit an application before
opening another. You can easily switch among several open applications. Windows® Phone
manages each application, pausing and starting them as needed to ensure that unused
applications don’t waste your device's resources.
To open an application:
► Simply tap its icon on the screen.
Tip: You can customize your Start Screen with shortcuts to the applications you use most
often. Applications are located on the Applications screen, but you can add an
application shortcut to your Start Screen for faster access. No matter where the icon is,
on the Applications screen or your Startscreen, just tap it to open and use it. See Adding
Application Icons to the Homescreen for more information.
To open multiple applications:
1. Tap an application icon to open it.
2. Tap .
3. Tap <arrow key> and tap the icon for the other application you want to open.
– or –
Simply tap the icon if the application you want is already on your Start Screen.
Device Basic 23
To switch between multiple applications:
1. Touch and hold . Small screens of each application that you've used recently are
displayed.
2. Tap the application screen you want to open.
– or –
Tap to return to the current application.
Adding Application Icons to the Start Screen
Customize your Start Screen with shortcuts to the applications you use most often.
1. Tap > <arrow key> .
2. Touch and hold the application icon you want to add to your Start Screen.
3. Tap pin to start from the options list that appears. Now you will see the application on
the Start screen.
To move the application to the location you want on the Start screen:
1. Touch and hold the tile and then drag it to a new position.
2. Tap the tile again to set it in place.
3. To delete a tile, touch and hold the tile, and then tap <unpin icon>.
Application s/Tiles
The following is a listing of the default applications or tiles.
Application Icons
Alarms - Launches Alarms application.
Calculator – Launches the Calculator application.
Calendar – Launches the Calendar application that can sync to either your
Google or Outlook®Work calendar. Events can only be synched to a managed
account.
Camera – Launches the built-in camera.
Alarms - Launches Alarms application.Alarms - Launches Alarms
application.Games - Launches the XBOX LIVE where you can play games and
invite a friend to play a game with you. Also can download new games to your
device.
Device Basic 24
Help+How-to
Internet Explorer - Launches the Internet Explorer.
Maps – Launches a dynamic map that helps you find local businesses, locate
friends, view maps and get driving directions.
Marketplace - Launches the Marketplace where you can browse, search for, try,
and buy apps, music and game.
Messaging – Provides access to your text messages.
Music+Videos - Launches Music+Videos application.
Office - Launches the Office application.
Panorama shot - Launches the Panorama shot application.
People - Launches the People hub application, the integrated communication
application for emails, messages, contacts and other information.
Phone – Accesses the Phone application, where you can view the call history,
access voicemail, open the dialpad, or open People hub.
Pictures - Displays pictures or videos.
ScanSearch - Launches the ScanSearch application.
Settings – Accesses the device’s built-in Settings menu
Changing the Screen Orientation
This device is capable of changing the orientation of screen content when the orientation of the
device itself has changed. The device’s built-in accelerometer senses movement and changes
its angle/orientation. Note that some of the screens, applications and widgets do not support
orientation changes.
The automatic screen orientation feature can be manually enabled to change the orientation for
all enabled screens when rotation is detected.
Note: An example of a screen that automatically re-orients by moving the device is the
Messaging screen. This only requires you turn the device on its side.
Displaying Your Phone Number
Display your phone number and other information about your phone and account.
► Tap > <Arrow Key> > Settings > about.
Device Basic 25
Entering Text With the Onscreen Keyboard
The onscreen keyboard displays automatically when you tap a text entry field. To manually
display the keyboard, simply touch a text field where you want to enter text.
1. Tap a text field where you want to enter text.
2. Enter text.
To enter numbers or symbols, tap .
To enter letters again, tap .
Device Basic 26
Rotate the screen to use the larger keyboard.
3. When you finished typing, tap to close the keyboard.
Tips for Editing Text
You can edit the text you enter in text fields and use menu commands to cut, copy, and paste
text, within or across most applications.
To cut/copy and paste the text:
Device Basic 27
Getting Started
When you turn on your phone for the fi rst time, you will be guided through essential settings.
Please follow the instructions on the screen to activate your device. Please note that during the
"WINDOWS PHONE SETTINGS" step, recommended settings includes activating sending
feedback to Microsoft. This feature will consume data and may incur data charges. To avoid this
select custom and uncheck "Send information to help improve Windows Phones". If you want to
disable this later, open the application list and select settings > system > feedback and turn
off the Send feedback option. CHOOSE A LANGUAGE > WINDOWS PHONE SETTINGS >
CHOOSE TIME ZONE > Sign in with a Windows Live ID
Step 1. Sign in with a Windows Live ID
To download applications, play Xbox LIVE games, use a Zune Pass, synchronise Windows Live
information to the web and more, you will need to sign in with a Windows LIVE ID. Please note
that the Zune Pass is not available in all countries/regions. A Windows Live ID is the email
address you use to sign in to services like Xbox LIVE®, Zune®, Hotmail®, and so on. If you can’t
remember the email address you use:
For Xbox LIVE: On your Xbox 360® console, sign in with your gamer tag, then press the Guide
button on your controller (the one in the middle that looks like the Xbox logo). In Settings, click
Account Management > email & accounts.
For Zune: Install the Zune Software(dorado) in advance. Sign in to the Zune software on your
PC. Right-click your profi le picture and click Switch user to see your Windows Live ID. To reset
your password or get a reminder, go to http://account live.com/ResetPassword.aspx. If you
haven't yet signed in with a Windows Live ID, there are a few things you won't be able to do on
your phone for the moment (for example, get applications or play Xbox LIVE games).
Step 2. Import your contacts
When you set up your email or Facebook account, your contacts are imported automatically into
your People hub. And when you add Facebook, your friends’ feeds appear in your People hub,
their photos show up in your Pictures hub, and your own feeds pop up in your Me tile.
To set up a Facebook (or any kind of email) account:
1. Tap the arrow on Start to go to your App list.
2. Tap Settings > System > email & accounts.
Getting your contacts from your old phone is also easy. Put your old SIM card into your
new phone, then go to Settings. Flick to applications, tap people, then tap import SIM
contacts.
Device Basic 28
Step 3. Stay in Sync
To sync your music, videos, pictures, and updates from your computer to your phone (or vice
versa), you’ll need the Zune software.
1. Connect your phone to your computer using the cable.
2. Go to www.microsoft.com/windowsphone/en-ca/howto/wp7/ start/install-the-zune-
software.aspx to install the Zune software.
3. Open the Zune software, then follow the instructions to get your music, videos, pictures,
and so on into your collection.
4. Click collection, then drag everything you want to sync to the phone icon in the lower left.
Phone 29
Phone
With the XX National Network and your device’s phone, you can enjoy clear calling across
the country.
Making Calls
Answering Calls
Saving a Phone Number
Finding a Phone Number
Making Calls
There are several convenient ways to place calls from your device.
1. Tap Phone > <keypad icon>.
Note: If necessary, tap the Phone tab to access the dialpad.
2. Enter a phone number using the onscreen dialpad and tap call.
If you enter a wrong number, tap to erase digits one by one.
To erase the entire number, touch and hold .
3. Tap end to end the call.
Tip: To redial your last outgoing call, tap Phone. You will see the Call history. Call history is
continually updated as your device automatically adds a new call to the beginning of the
list. Tap <Call icon> followed by the last call.
You can also make calls from your Contacts list, from the Call history, and using Voice Dialer.
Dialing Options
After entering numbers with the dialpad, you can use the following dialing options.
● save: Tap to add the entered number as a new contact, or to an existing contact entry.
(See Saving a Phone Number.)
● Add 2-sec pause:
● Add wait:
Phone 30
Missed Call Notification
A missed call icon displays when you do not answer a call. When you do not answer an
incoming call, is displayed in the Status bar.
To display the Missed Call entry from the notification screen:
Calling Emergency Numbers
You can place calls to 911 (dial call), even if your phone is locked or your
account is restricted.
Note: When you place an emergency call, your phone automatically enters Emergency mode.
During an emergency call, tap an option.
● Speaker On to activate speakerphone mode. (If you are in speakerphone mode, the
option is displayed as Speaker Off to deactivate.)
● Dialpad/Hide to show or hide the onscreen dialpad.
● End to end the current call.
To exit Emergency mode:
1. Tap End call to end the emergency call.
2. Tap Exit on the Emergency Call Back mode.
Enhanced 911 (E911) Information
This phone features an embedded Global Positioning System (GPS) chip necessary for utilizing
E911 emergency location services where available. When you place an emergency 911 call, the
GPS feature of your phone seeks information to calculate your approximate location. Depending
on several variables, including availability and access to satellite signals, it may take up to 30
seconds or more to determine and report your approximate location.
Important: Always report your location to the 911 operator when placing an
emergency call. Some designated emergency call takers, known as Public
Safety Answering Points (PSAPs) may not be equipped to receive GPS location
information from your phone.
Phone 31
TTY Use With XX Service
A TTY (also known as a TDD or Text Telephone) is a telecommunications device that allows
people who are deaf, hard of hearing, or who have speech or language disabilities, to
communicate by telephone.
Your device is compatible with select TTY devices. Please check with the manufacturer of your
TTY device to ensure that it is compatible with digital cell phones. Your phone and TTY device
will connect via a special cable that plugs into your device's headset jack. If this cable was not
provided with your TTY device, contact your TTY device manufacturer to purchase the
connector cable.
To turn TTY Mode on or off:
To access the state Telecommunications Relay Service (TRS) for assistance with TTY calls:
► Dial call to reach an operator.
For additional information about XX Relay Services and TTY compatibility, call XX Relay
Customer Service or visit www.XX.com.
Note: In TTY Mode, your device will display the TTY access icon. When enabled, TTY mode
may impair the audio quality of non-TTY devices connected to the headset jack.
WARNING: 911 Emergency Calling XX recommends that TTY users make emergency
calls by other means, including Telecommunications Relay Services (TRS),
analog cellular, and landline communications. Wireless TTY calls to 911 may be
corrupted when received by public safety answering points (PSAPs), rendering
some communications unintelligible. The problem encountered appears related
to software used by PSAPs. This matter has been brought to the attention of the
FCC, and the wireless industry and the PSAP community are currently working to
resolve this.
In-Call Options
Once you initiate a call, you will see these onscreen options:
● Add call to initiate a 3-way call.
● End to end the call.
● Dialpad to display the dialpad.
● Bluetooth (Only available when a Bluetooth headset is connected to your phone) to
conduct the call via the Bluetooth headset for hands-free conversation. (For details
about pairing the phone with a Bluetooth headset, see Pairing Bluetooth Devices.)
Note: When using the Bluetooth headset during a call, the Ongoing Call notification icon is
blue in the Status bar.
Phone 32
● Mute to mute the microphone during a call. The Mute button lights up and is
displayed on the Status Bar to indicate the microphone is muted. To unmute the
microphone, tap Mute again.
● Speaker to turn the speakerphone on or off. The Speaker button lights up and is
displayed on the Status Bar to indicate that the speakerphone is on.
WARNING: Because of higher volume levels, do not place the device near your ear while
using the speakerphone.
Dialing and Saving Phone Numbers With Pauses
You can dial or save phone numbers with pauses for use with automated systems, such as
voicemail or credit card billing numbers.
There are two types of pauses available on your device:
● 2-Second Pause automatically sends the next set of numbers after two seconds.
● Hard Pause (Wait) sends the next set of numbers when you tap call.
Note: You can have multiple pauses in a phone number and combine two-second and hard
pauses.
To dial or save phone numbers with pauses:
Note: When dialing a number with a hard pause (Wait) press call to send the next set of
numbers.
Phone 33
Dialing From the Contacts List
Dial directly from your contacts list.
1. Tap > <arrow key> > People.
– or –
Tap > People.
2. Find a contact to call and tap it to open its entry, then, tap <call icon>
Using Direct Dialing
With Direct Dialing, you are able to directly save a contact to your Start Screen.
Plus (+) Code Dialing
When placing international calls, Plus Code Dialing automatically enters the international access
code for your location (for example, 011 for international calls made from the U.S.).
1. In the dialpad, touch and hold until you see a “+” on the display screen.
2. Dial the country code and phone number, and then tap call. (The phone automatically
prepends the access code for international dialing, followed by the country code and
phone number.)
Answering Calls
When you receive a phone call, the Incoming Call screen opens with the caller ID and any other
available information (such as the caller's name, if saved in the Contact’s list). The most recent
incoming calls are recorded in the Call history. (See Call history.)
To answer a call:
► Tap answer.
If you were already on a call, the first call is placed on hold while you answer the new call. To
silence the ringer of an incoming call, press the volume down button.
Your phone notifies you of incoming calls in the following ways:
● The phone rings or vibrates.
● The backlight illuminates.
● The screen displays an incoming call message.
To decline a call and divert it to voicemail:
Phone 34
► Tap ignore.
The caller is sent directly to your voicemail box to leave a message.
Answering a Roam Call With Call Guard Enabled
Call Guard is an option that helps you manage your roaming charges when making or receiving
calls while outside the Nationwide XX Network. Please see Roaming for more information
about roaming.
► Tap Yes to answer the call. (See Call Guard for additional information.)
Note: When your phone is off, calls go directly to voicemail
Ending a Call
When you have finished the conversation, please make sure to tap end call.
– or –
If you opened other applications while on a call:
Phone Call Options
Your phone application provides many useful features and options to help you make the most of
your calling experience.
Caller ID
Caller ID allows people to identify a caller before answering the phone by displaying the number
of the incoming call. If you do not want your number displayed when you make a call, follow
these steps.
1. Tap > <Arrow Key> > Phone.
2. Tap .
3. Enter a phone number and tap call .
To permanently block your number, call XX Customer Service.
Call Waiting
When you’re on a call, Call Waiting alerts you of incoming calls by sounding a beep instead of a
ring. Your device's screen informs you that another call is coming in and displays the caller’s
phone number (if it is available).
To respond to an incoming call while you’re on a call:
► Before accepting the incoming call, tap and drag one of the following onscreen options:
Phone 35
Answer to answer the new call. The first caller is placed on hold.
Decline to send the call to your voicemail box.
To switch back to the first caller:
► From the In-Call options screen, tap Swap calls.
Tip: For those calls where you don’t want to be interrupted, you can temporarily disable Call
Waiting by pressing before placing your call. Call Waiting is
automatically reactivated once you end the call.
Making a 3-Way Call
With 3-Way Calling, you can talk to two people at the same time. When using this feature, the
normal airtime rates will be charged for each of the two calls.
1. Tap > <arrow key icon> > Phone .
2. 2. Tap <keypad icon> to open the dialpad.
3. Make your call to the first recipient.
4. Once you have established the connection, tap Add call.
5. Enter the second caller’s phone number and tap call or select a number from your
Contacts. (Your first call is automatically put on hold.)
6. When you’re connected to the second party, tap Merge calls to combine both calls into a
single 3-way call. If one of the people you called hangs up during your call, you and the
remaining caller stay connected. If you initiated the call and are the first to hang up, all
callers are disconnected.
Call Forwarding
Call Forwarding lets you forward all your incoming calls to another phone number – even when
your phone is turned off. You can continue to make calls from your device when you have
activated Call Forwarding.
To activate Call Forwarding:
1. Tap > <arrow key icon> > Phone.
2. Tap <keypad icon> to open the dialpad.
3. Tap .
Phone 36
4. Enter the area code and phone number to which you want your calls forwarded.
5. Tap call. (You will hear a tone to confirm the activation of Call Forwarding and the call
will end.)
To deactivate Call Forwarding:
1. Tap > <arrow key icon> > Phone to access the Dialpad.
2. Tap call (You will hear a tone to confirm the deactivation and
the call will end.)
Note: You are charged a higher rate for calls you have forwarded.
Call history
The Call history tab of the Phone application lists all recent incoming, outgoing, and missed
calls.
Viewing the Call history
Call history Options
Making a Call From the Call history
Saving a Number From the Call history
Prepending a Number From the Call history
Clearing the Call history
Viewing the Call history
The Call history is a list of the most recently placed, received, or missed calls. It offers a
convenient way to redial a number, return a call, or add a number to your Contacts.
To open the Call history:
► Tap > <arrow key icon> > Phone.
Calls are listed in the Call history tab, the most recent calls are located at the top of the list.
Scroll down to see older entries.
Note: Call history records only calls that occur while the device is turned on. If a call is
received while your device is turned off, it will not be included in the Call history. If you
return a call from the voicemail menu, it will not be included in your phone’s Call history.
Phone 37
Call history Options
Tap an entry to view the date and time of the call and call duration. The following options are
available:
● Call again to make a call.
● Send text message to send a text message.
● Add to contacts to add an entry's number to your Contacts.
If several calls were made to one number or received by one number, the calls are displayed as
one entry. When you tap this entry, the individual Call historys are opened.
You can also touch and hold the entry to open a menu with more options, to communicate with
that contact in other ways.
● Call to make a call.
● View contact (for entries saved in Contacts) to view contact information.
● Edit number before call to edit a number before you redial.
● Send text message to send a text message.
● Add to contacts to add an entry's number to your Contacts.
● Remove from Call history to remove the entry from the Call history.
Phone 38
Making a Call From the Call history
► From the Call history, tap the <call key icon> at the left of the entry.
Saving a Number From the Call history
1. Tap an entry and tap <Save icon> on the application bar.
2. Tap <+ icon>.
– or –
Search for an existing contact name and tap an existing contact to add the new number
to that existing contact. (For more information about creating and editing contacts, see
Contacts.).
Note: You cannot save phone numbers already in your Contacts or from calls identified as No
ID or Restricted.
Prepending a Number From the Call history
If you need to make a call from the Call history and you are outside your local area code, you
can add the appropriate prefix by prepending the number.
1. Touch and hold an entry and tap Edit number before call.
2. Tap call the area immediately to the left of the phone number and enter the prefix.
3. Tap to call the number.
Clearing the Call history
1. From the history screen, tap <...>.
2. On the extended application bar, tap delete all.
3. If you are certain you want to clear the Call history, tap delete.
– or –
Tap cncel.
Saving a Phone Number
You can store phone numbers and contact entries in your phone. You can also synchronize
them with your, Microsoft Exchange account, or other accounts that support syncing contacts.
(For more information, see Contacts.)
To save a number from standby mode:
Phone 39
For more information about creating and editing contacts, see Contacts.
Finding a Phone Number
Your contacts are displayed alphabetically in a list. It is easy to search for a contact by name.
1. Tap > People.
2. Tap <Search Key icon>.
3. Start entering the name of the contact you’re searching for. As you type, contacts with
matching names will appear above the keyboard.
4. Tap a matching contact in the list to open its entry. To dial a number, tap call .
Phone 40
Device Settings
This section provides an overview of items you can change using your device’s Settings menus.
Wireless & Network Settings
Call Settings
Roaming Settings
Sound Settings
Display Settings
Quick Launch Key
Location & Security Settings
Applications Settings
Accounts & Sync
Privacy Settings
Storage Settings
Language & Keyboard Settings
Voice input & output Settings
Connectivity Settings
Accessibility Settings
Date & Time Settings
About Phone
To open Settings:
► Tap > <Arrow Key>> Settings.
– or –
Tap > <Arrow Key> > Settings.
Phone 41
Wireless & Network Settings
This group of settings lets you control your device's Wi-Fi settings, Bluetooth, Tethering, VPN,
and Mobile Networks.
Airplane Mode
Airplane Mode (Flight mode) allows you to use many of your device’s features, such as Games,
and Music, when you are in an airplane or in any other area where making or receiving calls or
data is prohibited. When you set your device to Airplane Mode, it cannot send or receive any
calls or access online data.
1. Press and hold to reveal the Phone options.
2. Tap Airplane mode.
– or –
1. Tap > <Arrow Key> > Settings > Wireless & networks.
2. Tap Airplane mode. (A green checkmark appears.) While in Airplane Mode, your
device’s Status Bar will display .
To deactivate Airplane Mode:
1. Press and hold to reveal the Phone options.
2. Tap Airplane mode.
– or –
1. Tap > <Arrow Key> > Settings > Wireless & networks.
2. Tap Airplane mode to remove the checkmark.
Wi-Fi Settings
For details on your device’s Wi-Fi features and settings, see
Connecting to Wi-Fi Networks.
Phone 42
Bluetooth Settings
Your device’s Bluetooth capabilities let you use wireless headsets, send and receive pictures
and files, and more. For details on your device’s Bluetooth settings, see The Bluetooth Settings
Menu.
VPN Settings
From your device, you can add, set up, and manage virtual private networks (VPNs) that allow
you to connect and access resources inside a secured local network, such as your corporate
network. For details on your device's VPN settings, see Virtual Private Networks (VPN).
Mobile Settings
You can set whether to enable or disable data access on your device.
1. Tap > <Arrow Key> > Settings > Wireless & network settings > Mobile
networks.
2. Tap Data enabled to check or uncheck it.
Call Settings
Your device's Call Settings menu lets you configure International call options and TTY mode.
North American Dialing
Replace + code as needed for outgoing calls.
1. Tap > <Arrow Key> > Settings > Call settings.
2. Tap North American Dialing to check or uncheck it.
International Dialing
Set international dialing code for outgoing calls.
1. Tap > <Arrow Key> > Settings > Call settings > International Dialing.
2. Enter the international dialing code and tap OK.
Phone 43
TTY mode
A TTY (also known as a TDD or Text Telephone) is a telecommunications device that allows
people who are deaf, hard of hearing, or who have speech or language disabilities, to
communicate by telephone. Your device is compatible with select TTY devices. Please check
with the manufacturer of your TTY device to ensure that it is compatible with digital cell phones.
Your phone and TTY device will connect via a special cable that plugs into your device's
headset jack. If this cable was not provided with your TTY device, contact your TTY device
manufacturer to purchase the connector cable.
To turn TTY Mode on or off:
1. Tap > <Arrow Key> > Settings > Call settings > TTY mode.
2. Tap TTY Off to turn TTY mode off, or tap TTY FULL, TTY HCO or TTY VCO.
Roaming Settings
With your device and global roaming service from XX WorldwideSM Wireless Service, you
can make phone calls and use wireless data services around the globe on compatible CDMA
and GSM/UMTS networks.
Roaming Icon
Your display screen always lets you know when you’re off the Nationwide XX Network.
Anytime you are roaming, the device displays the roaming icon ( ). If you are roaming on a
digital system, you will see the roaming icon along with the text – Digital Roam – .
Roaming on Other Digital Networks
When you’re roaming on digital networks, your call quality and security will be similar to the
quality you receive when making calls on the Nationwide XX Network. However, you may not
be able to access certain features, such as data services, depending on the available network.
Note: If you’re on a call when you leave the Nationwide XX Network, your call will be
dropped. If your call is dropped in an area where you think XX service is available,
turn your phone off and on again to reconnect to the network.
Checking for Voicemail Messages While Roaming
When you are roaming off the Nationwide XX Network, you may not receive a notification of
new voicemail messages on your phone. Callers can still leave messages, but you will need to
periodically check your voicemail for new messages if you are in a roaming service area for an
extended period of time.
1. Dial your 10-digit wireless your phone number.
Phone 44
2. When you hear your voicemail greeting, press .
3. Enter your passcode at the prompt and follow the voice prompts.
When you return to the Nationwide XX Network, voicemail notification will resume as normal.
Setting Roam Mode
Your phone allows you to control your roaming capabilities. By using the Roaming menu option,
you can determine which signals your phone accepts.
Choose from three different settings on your dual-band device to control your roaming
experience.
1. Tap > > Settings > Roaming.
2. Tap Domestic Data, International Data or both to place a checkmark and connect to
data service while roaming. (Requires Domestic Voice or International Voice)
Note: With Data roaming unchecked, you can still transmit data with a Wi-Fi connection. See
Connecting to Wi-Fi Networks.
3. Tap System select to change the CDMA roaming mode.
XX Only to access only the home area mobile network, which is the Nationwide
XX Network. This option also prevents roaming on other networks.
Include Roaming to seek service on the Nationwide XX Network. When XX
service is unavailable, the device searches for an alternate system.
Call Guard
Call Guard makes it easy to manage your roaming by requiring confirmation before placing or
answering a roaming call.
To turn Call Guard on or off:
1. Tap > <Arrow Key> > Settings > Roaming > Roaming Guards.
2. Tap Voice(Domestic), Voice(International) or both to activate or deactivate this function.
When active, an extra key press is required for dialing when in a roaming area.
Note: Call Guard is turned off by default on your phone.
Voice dialing and speed dialing are not available when you are roaming with Call Guard
enabled.
To place roaming calls with Call Guard on:
Phone 45
1. Tap > <Arrow Key> > Phone to access the Dialpad.
2. Enter 1 + area code + the seven-digit number and tap call .
3. Tap Yes.
To answer incoming roaming calls with Call Guard on:
1. Touch and drag to the right. (A message will be displayed notifying you that roaming
charges will apply.)
2. Tap Yes.
Data Roam Guard
Depending on service availability and roaming agreements, your phone may be able to access
data services while roaming on certain digital systems. You can set your device to alert you
when you are roaming off the Nationwide XX Network and try to use data services such as
messaging.
Note: Data Roam Guard is turned off by default on your phone.
To set your Data Roam Guard notification:
1. Tap > <Arrow Key> .
2. Tap Settings > Roaming > Roaming Guards
3. Tap Data(Domestic), Data(International) or both to place a checkmark and activate the
function.
To use data services when Data Roam Guard is active:
► When a pop-up notification appears informing you that data roam charges may apply,
tap Connect orAlways Connect to connect.
Sound Settings
In the Sound settings menu, you can configure call and notification ringtones, audio volumes, as
well as some related settings.
Ringer Types
The phone Ring tones alert you of incoming calls.
Phone 46
Selecting Ringtone for Voice Calls
1. Tap > <Arrow Key> > Settings > Sound > Phone ringtone.
2. Tap a ringtone to select it and to hear it. If you want to set the ringtone, tap OK. If not,
select another ringtone or tap Cancel.
Using a Song as a Ringtone
You can use a song as your phone ringtone, in place of one of the ringtones that come with the
phone.
1. Tap > <Arrow Key> > Music.
2. Touch and hold a song in your collection. In the pop-up menu, tap Use as phone
ringtone.
– or –
On the Playback screen, tap <Arrow Key> > Use as ringtone.
For details about using the Music application, see Music.
Adjusting the Device's Volume Settings
Adjust your device's volume settings to suit your needs and your environment.
1. Tap > <Arrow Key> > Settings > Sound > Volume.
2. Adjust each volume level.
Ringtone: Changes the volume of your call ringtones and notifications (if applicable).
Media: Changes the volume of your music, videos and other media.
Alarm: Changes the volume of your alarms.
Notification: If you deselect the checkmark (below the Alarm volume bar), you will
be able to set this volume level. This is the volume of the ringtone when you receive
a notification.
3. Tap OK.
Tip: You can adjust the ringer volume on the Start Screen or Applications screen, or almost
any screen by using the volume button on the right side of your device. In other
applications such as Music, YouTube, spoken directions, and other audio, the volume
buttons controls the volume of the application.
Phone 47
Vibrate and Silent Mode
To set your device to vibrate instead of making any sounds:
1. Tap > <Arrow Key> > Settings > Sound > Vibrate.
2. Tap one of the four options.
To set your device to always vibrate:
1. Tap > <Arrow Key> > Settings > Sound > Vibrate.
2. Tap Always.
To switch to silent mode:
1. Tap > <Arrow Key> > Settings > Sound.
2. Tap Silent mode. (A green checkmark will appear.)
– or –
Press the down volume button until you see on the screen.
– or –
On the default lock screen, drag to the left.
Selecting a Notification Ringtone
When you receive a notification such as the arrival of new messages, calendar events, or
alarms, the device sounds a ringtone.
1. Tap > > Settings > Sound > Notification ringtone.
2. Select a ringtone.
Setting Various Feedback Tones
To hear tones when you use the dialpad to dial a number:
1. Tap > <Arrow Key> > Settings > Sound.
2. Tap Audible touch tones. (A green checkmark will appear.)
Phone 48
To hear sound when you tap buttons, icons, and other onscreen items:
1. Tap > <Arrow Key> > Settings > Sound.
2. Tap Audible selection. (A green checkmark will appear.)
To hear sound when the screen is locked or unlocked:
1. Tap > <Arrow Key> > Settings > Sound.
2. Tap Screen lock sounds. (A green checkmark will appear.)
To set your device to vibrate when touching buttons and keys:
1. Tap > <Arrow Key> > Settings > Sound.
2. Tap Haptic feedback. (A green checkmark will appear.)
To set how the phone reacts when you make an emergency call:
1. Tap > <Arrow Key> > Settings >Sound.
2. Tap Emergency tone.
3. Tap Off, Alert, or Vibrate.
Display Settings
Adjusting your device's display settings not only helps you see what you want, it can also help
increase battery life.
Changing the Backlight Time Length
Select how long the display screen remains backlit after touch the screen or press a key before
the screen darkens.
1. Tap > <Arrow Key> > Settings > Display > Screen timeout.
2. Tap 15 seconds, 30 seconds, 1 minute, 2 minutes, 10minutes, or 30 minutes.
Note: Long backlight settings reduce the battery’s talk and standby times. For the best battery
performance, use the shortest convenient timeout.
Changing the Contrast
Adjust your screen’s contrast (brightness) to suit your surroundings.
Phone 49
1. Tap > <Arrow Key> > Settings > Display > Brightness.
2. Use the slider to set a brightness level.
Note: For the best battery performance, use the dimmer levels.
Display Language
You can choose to display your device's onscreen menus in English or in Spanish.
1. Tap > <Arrow Key> > Settings > Language &keyboard > Select language.
2. Tap English, Español, 한국어, 简体, or 繁體.
Setting the Device Automatically to Rotate the Screen
Choose whether the device automatically switches the orientation of the screen as you turn it
sideways or even upside down.
1. Tap > <Arrow Key> > Settings > Display.
2. Tap Auto-rotate screen to automatically rotate the screen (a green checkmark will
appear).
– or –
To disable this, tap Auto-rotate screen so that the checkmark is removed.
Note: Some applications on your device do not support the Auto-rotate feature.
Date & Time Display Settings
Set your preferences for how dates and time are displayed. You can also use these settings to
set your own time and time zone, rather than obtaining the current time from the mobile network.
1. Tap > <Arrow Key> > Settings > Date & time.
2. Tap Use 24-hour format to display the time using 24-hour time format—for example,
13:00 rather than 1:00 pm.
3. Tap Select date format to open a dialog to select the format for displaying dates.
Animation Display Options
Choose whether you want to enjoy animated transitions for some effects (such as when opening
menus), for all supported effects (such as when navigating from one screen to another), or to
Phone 50
remove all animated transitions (this setting does not affect transitions in non-native
applications).
1. Tap > <Arrow Key> > Settings > Display > Animation.
2. Tap No animation, Some animations, or All animations.
Location & Security Settings
Your Location settings menu lets you select how your device determines its location (using the
wireless network, GPS satellites, both, or neither). The Security settings menus let you set
device security, lock codes, passwords, administrator settings, and more.
The Location feature allows the network to detect your position. Turning Location off will hide
your location from everyone except 911.
Note: Turning Location on will allow the network to detect your position using GPS technology
making some XX applications and services easier to use. Turning Location off will
disable the GPS location function for all purposes except 911, but will not hide your
general location based on the cell site serving your call. No application or service may
use your location without your request or permission. GPS-enhanced 911 is not
available in all areas.
To enable your device's Location feature:
1. Tap > <Arrow Key> > Settings >Location & security > GPS Privacy Setting.
2. Tap Location On or E911 Only.
Using Wireless Networks
You can use information from Wi-Fi and XX networks to determine your approximate location,
for use in GPS applications, when you search, and so on. To use information about your
location when navigating and searching in GPS applications (see GPS Navigation) you must
turn on location services.
1. Tap > <Arrow Key> > Settings > Location & security.
2. Tap Use wireless networks. (A green checkmark will appear.)
3. When you check this option, you’re asked whether you consent to sharing your location
anonymously with Google’s location service.
4. Read the disclaimer and tap Agree.
Phone 51
Using GPS Satellites
You can use your device's global positioning system (GPS) satellite receiver to pinpoint your
location to within accuracy as close as several meters (“street level”). Actual GPS accuracy
depends on a clear view of the sky and other factors.
1. Tap > <Arrow Key> > Settings > Location & security.
2. Tap Use GPS satellites. (A green checkmark will appear.)
Note: Uncheck this option when you do not use Maps to conserve battery.
Your Device's Lock Feature
Locking Your Device
When your device is locked, you can only receive incoming calls or make calls to 911.
► Press . Locking the screen prevents accidental screen touches from activating phone
functions.
Unlocking Your Device
1. Press to wake up the phone. (See Wake Up the Screen.)
2. On your lock screen, touch and drag the green lock icon to the right.
If you have set up an Unlock Pattern (see Your Device's Lock Feature), use your
fingertip to draw the pattern.
If you have set up an Unlock Pattern (see Your Device's Lock Feature, you’re your
fingertip to draw the pattern. If you have set up Unlock PIN or Unlock Password,
enter the Unlock PIN or Unlock Password. After entering it, tap . The last
screen you were working on opens.
Note: You have five opportunities to enter your unlock Pattern, PIN or Password. If you've
entered the wrong information five times, you must wait 30 seconds before you can
attempt again.
When you can’t recall your unlock Pattern, PIN or Password:
Phone 52
If you’ve set up a Google account on the device, tap the Forgot pattern? button.
You will be able to unlock the device with your Google account username and
password.
If you haven’t created a Google account on the device, you must perform a factory
reset. (CAUTION! If you perform a factory reset, all user applications and user data
will be deleted. Please remember to back up any important data before performing a
factory reset.)
1. Turn the power off.
2.
Press and hold the following keys for over 5 seconds: Down volume key + + .
3. When the power turns on, release these keys.
If you can't recall your unlock PIN or Password: Call XX Customer Service.
Your Device's Unlock Pattern, Pin, or Password Feature
You can increase your device’s security by creating a screen unlock pattern (disabled by
default), by creating a PIN, or by choosing a password. When these features are enabled, you
must draw the correct unlock pattern, enter the PIN, or enter the password on the screen to
unlock and regain access to the device.
Your Device's Lock Feature
1. Tap > <Arrow Key> > Settings > Location & security.
2. Tap Set up screen lock.
3. Select Pattern, PIN, or Password.
Pattern: The first time you set unlock pattern, you will see a tutorial with instructions
on how to create it. Read the tutorial and tap Next (twice).Draw and redraw your own
pattern. Then, tap Confirm. (Connect at least four dots.)
PIN: Enter a PIN (at least of four digits) and confirm it.
Password: Enter a Password (at least of fourcharacters) and confirm it.
From then on, any time you wish to turn the phone on or unlock the screen, you must draw your
unlock pattern or enter the PIN or password to unlock the screen.
Phone 53
Changing the Lock Code
1. Tap > <Arrow Key> > Settings > Location & security > Change screen lock.
2. Confirm the saved pattern, or your PIN or Password.
3. Select Pattern, PIN, or Password.
To disable your device's lock feature:
1. Tap > <Arrow Key> > Settings > Location & security > Change screen lock.
2. Enter the PIN, Password, or Pattern.
3. Tap None.
Calling in Lock Mode
Even if the screen is locked, you will still be able to place emergency calls. Tap the Emergency
Call icon.
► To call an emergency number, tap the Emergency call button and enter the phone
number and call .
Silence Your Device from the Lock Screen
If you are in a place where your device's sounds may disturb others, you can quickly silence
your device from the lock screen.
► Drag to the left. To turn the phone sounds back on, drag to the right.
Credential Storage Settings
You use credential storage to establish some kinds of VPN and Wi-Fi connections.
To allow applications to access your device's encrypted store of secure certificates and related
passwords and other credentials:
1. Tap <Arrow Key> > Settings > Location & security.
2. Slide the screen up until you see Use secure credentials.
3. Tap Use secure credentials. (A green checkmark will appear.)
To install a secure certificate from a microSD card:
1. Tap ><Arrow Key> >Settings > Location & security > Install from SD card.
Phone 54
2. Tap the file name of the certificate to install. Only the names of certificates that you have
not already installed on your device are displayed.
3. If prompted, enter the certificate's password and tap OK.
4. Enter a name for the certificate and tap OK. You can now use the certificate that you
installed when connecting to a secure network. For security purposes, the certificate will
be deleted from the microSD card.
If you have not already set a password for your device’s credential storage, you will
be prompted to enter a password for it, twice, then tap OK.
To set or change the password for your secure credential storage:
1. Tap ><Arrow Key> > Settings > Location & security > Set password.
2. Enter the current password, a new password, and confirm the new password. (Please
note that your password must have at least 8 characters.)
To delete all secure certificates and related credentials and reset its password:
1. Tap <Arrow Key> > Settings > Location & security > Clear storage.
2. Tap OK in the confirmation dialog box.
Accounts Settings
The Accounts settings menu lets you add and manage all your email, social networking, and
picture and video sharing accounts.
Adding Account
Removing an Account
Configuring Account Sync and Display Options
Accounts
You can add multiple Google™ Accounts and Exchange accounts. You may also be able to add
other kinds of accounts, depending on the applications downloaded and installed on your device.
When you add an account, the Contacts application compares any new contacts with your
existing contacts and will join contact entries if matches are found. This does not join the contact
entries on the accounts themselves; they are only displayed as a single contact on your device.
(See Configuring Account Sync and Display Options to learn how to separate contact
information that was joined incorrectly.)
To add an account:
Phone 55
Note: To add some accounts, you must contact a network administrator for account setup
information. For example, you may need to know the account’s domain or server
address.
1. Tap > <Arrow Key> > Settings > Accounts & sync. The Accounts & sync
settings screen displays your current sync settings and accounts. (For more information,
see Configuring Account Sync and Display Options.)
2. Tap Add account.
3. Tap the type of account you want to add.
4. Follow the onscreen steps to enter the required (and optional) account information.
Note: Many accounts require only a user name and password, but some accounts will require
more information.
5. Configure the account.
Depending on the kind of account, you may be asked to configure the types of data you want to
sync to the device, name of the account, and other details. When you're finished, the account
will be added to the list in the Accounts & sync settings screen.
Removing an Account
You can remove an account to delete all information associated with it from your device,
including email, contacts, settings, etc.
Some accounts cannot be removed, such the first Google Account you set up on the device.
That account can only be removed by resetting your device entirely.
To remove an account:
1. Tap > <Arrow Key> > Settings > Accounts & sync.
2. Tap the account you want to delete.
3. Tap Remove account.
4. Tap Remove account again to confirm that you want to remove the account.
Configuring Account Sync and Display Options
You can configure background data and synchronization options for the applications on your
device. You can also configure synchronization options for each individual account. Some
applications, such as GmailTM and Calendar, have their own synchronization settings. Some
applications, such as Contacts and Gmail, can sync data for multiple accounts. Others, such as
Phone 56
Calendar, sync data only from the first Google Account you set up with your device, or from an
account associated specifically with that application.
For some accounts, syncing is two-directional; changes that you make to the information on
your device are synchronized with the accounts on the Web or computer. Your Google Account
synchronizes in a two-directional manner. Other accounts support only one-way sync; the
information changed on your phone is only changed on your phone.
To configure general sync settings:
1. Tap <Arrow Key> > Settings > Accounts & sync.
Indicates that some, or all, of an account’s information is configured to sync
automatically with your device.
Indicates that none of an account’s information is configured to sync
automatically with your device.
2. Tap Background data to enable or disable whether applications can use your data
connection to synchronize data while the applications run in the background.
If you disable this option, the Gmail and Calendar applications will not automatically receive
updates until they are manually refreshed (using their respective options menu).
3. Tap Auto-sync to enable or disable whether changes you make to information on the
device or on the web are automatically synced with each other.
For example, when this option is enabled, changes that you make in the Contacts
application on your device are automatically made to your web-based Google
Contacts™.
If you uncheck this option, you may be able to use an application's tools to sync data
manually. (See To sync information manually.)
To sync information manually:
1. Tap > <Arrow Key> > Settings > Accounts & sync.
2. Tap the account whose data you want to sync.
3. Tap <Arrow Key> > Sync now.
To change an account’s sync settings:
Phone 57
1. Tap > <Arrow Key> > Settings > Accounts & sync.
2. Tap the account whose data you want to change.
The Data and synchronization screen will open, displaying a list of the types of data
the account can sync.
3. Tap the items you want to sync. (A green checkmark indicates that synchronization has
been enabled.)
By disabling synchronization for an item, it will not remove the previously
synchronized data from your device, it will simply stop future synching. To remove
the information previously synced for the account, you must remove the account.
Contacts 58
Contacts
The Contacts application lets you store and manage contacts from a variety of sources,
including contacts you enter and save directly in your device as well as contacts synchronized
with your Google account, your PC, compatible email programs (including Exchange Server),
and your Facebook friends.
Creating a New Contacts Entry
Adding a Contact to Your Favorites
Editing a Contacts Entry
Adding a Number to a Contacts Entry
Editing a Contacts Entry’s Numbers
Assigning Direct Dialing Numbers
Selecting a Ringtone for an Entry
Assigning a Picture to an Entry
Finding Contacts Entries
Selecting which Contacts are Displayed
Communicating with Your Contacts
Importing, Exporting, and Sharing Contacts
Use the Contacts application to add, view, and communicate with your family, friends and
acquaintances.
To open your Contacts application:
► Tap > Contacts.
All of your contacts are displayed alphabetically in a list. If you have a new phone and haven't
added any contacts yet, the Contacts application will display hints on how to start adding
contacts to your phone.
Contacts 59
Creating a New Contacts Entry
You can add contacts on your phone and synchronize them with the contacts in your Google™
Account, Microsoft Exchange account, or other accounts that support syncing contacts.
The Contacts application tries to join new addresses with existing contacts, to create a single
entry. You can also manage that process manually.
1. Tap > > Contacts.
2. Tap <Arrow Key> > New contact.
3. Tap a destination type (Phone, Google, or Corporate), if applicable.
4. Tap the Picture Frame icon to select a picture to display next to the name in your list of
contacts and in the Caller ID.
5. Tap the First name and Last name fields, and enter a name for the new entry.
6. Tap the label button (to the left of the Phone number field) to select one of the following
categories: Mobile, Home, Work, Work Fax, Home Fax, Pager, Other, Custom
Callback, Car, Company Main, ISDN, Main, Other Fax, Radio, Telex, TTY TDD, Work
Mobile, Work Pager, Assistant, or MMS.
7. Tap a phone number field and enter a phone number. Tap Email, postal address,
Organization, or More to input additional contact information.
8. When you're finished, tap Done.
Adding a Contact to Your Favorites
Favorites contains a short list of the contacts you communicate with most often.
To add a contact to your favorites:
1. Tap > > Contacts.
2. Tap a contact to view its details.
3. Tap the star to the right of the contact's name. (A gold star appears.)
To remove a contact from your favorites list:
1. Tap > > Favorites.
2. Tap a contact to view its details.
Contacts 60
3. Tap the gold star to the right of the contact's name. The star will turn gray, meaning it has
been removed from your Favorites.
Editing a Contacts Entry
You can change or add details saved in your contact entries, such as setting specific ringtones
to specific contacts or setting calls from specific contacts to divert to your voicemail. Some
contact entries contain information from multiple sources: information that you added manually,
information joined from multiple accounts to consolidate duplicates, etc.
If you find duplicate entries in Contacts, you can join them into a single entry. If you find that
unrelated contacts were joined in error, you can separate them.
Changes made to information from one source do not automatically change the information on
the other sources. For example, if you have information about a contact from a Google Account
and an Exchange account and both are configured to sync contacts, changes to the contact
from the Google Account are synced to that account on the Web, but the information from the
Exchange account will remain unchanged.
For more information about working with multiple accounts, see Accounts.
To edit contact details:
1. Tap > > Contacts.
2. Touch and hold the contact whose details you want to edit.
3. Tap Edit contact.
4. Edit the desired contact information.
5. Tap Done.
To change a contact’s default phone number:
The default phone number is used when you initiate a call or send a text message using the
context menu (by touching and holding a contact).
1. Tap > > Contacts.
2. Tap the name of a contact to view its details.
3. Touch and hold the phone number you want to set as the contact's default phone number.
4. Tap Make default number. (A checkmark will appear next to the default phone number.)
To divert calls from a contact to your voicemail:
Contacts 61
1. Tap > > Contacts.
2. Tap the name of a contact to view its details.
3. Tap <Arrow Key> > Options.
4. Tap Incoming Calls. (A green checkmark will appear.)
5. Tap .
When this contact calls you, your phone will not ring and the caller will be forwarded directly to
your voicemail.
To set a ringtone for a contact:
1. Tap > > Contacts.
2. Tap the name of a contact to view its details.
3. Tap <Arrow Key> > Options.
4. Tap Ringtone and tap a ringtone to select it.
5. Tap OK.
To delete a contact:
1. Tap > > Contacts.
2. Tap the name of a contact.
3. Tap <Arrow Key> > Delete contact.
If the contact contains information from a read-only account, you will not be able to
delete it; you will only be able to change the sync settings for that account or delete
the account itself.
If the contact contains information joined from a read-only account, a dialog box will
inform you that you must separate the contact entry into individual contacts to delete
the contact.
4. Tap OK to confirm that you want to delete the contact.
Adding a Number to a Contacts Entry
1. Tap > > Contacts.
Contacts 62
2. Touch and hold the contact's entry.
3. Tap Edit contact in the menu that opens.
4. Tap the Phone category’s plus button.
5. Tap the label button to the left of the phone number field and select the relevant label.
To create your own label, tap Custom.
6. Enter a phone number and tap Done.
Editing a Contacts Entry’s Numbers
1. Tap > > Contacts.
2. Touch and hold a contact's entry.
3. Tap Edit contact.
4. Tap a phone number to edit.
5. Re-enter or edit the number and tap Done.
Assigning Direct Dialing Numbers
Speed dialing, as available in other feature phones, is not available. However, you are able to
directly save a contact to your Start Screen.
To set a contact as Direct dial:
1. Tap > <Arrow Key> > Add > Shortcuts > Direct dial.
2. Tap a contact from your Contact List. The contact will be shown on the Start Screen.
Note: If there is no available space on a particular Start Screen pane, Add will not be available;
you must delete or remove an item before you can add another item. In this case, you
have the option of switching to another Start Screen pane.
Direct Dial
Simply tap the contact on the Start Screen.
Selecting a Ringtone for an Entry
Assign a ringtone to a Contacts entry so you can identify the caller by the ringtone. (See Ringer
Types.)
Contacts 63
1. Tap > > Contacts.
2. Tap the name of a contact to view its details.
3. Tap <Arrow Key> > Options.
4. Tap Ringtone and tap a ringtone to select it.
5. Tap OK.
Assigning a Picture to an Entry
Assign a picture to display each time a certain contact calls you.
1. Tap > > Contacts.
2. Touch and hold the contact's entry.
3. Tap Edit contact.
4. Tap the Picture Frame icon.
5. Tap Take photo to take a new picture. The camera will launch.
– or –
Tap Select photo from Gallery to select a picture from the Gallery.
6. After cropping the picture as you want, (see Gallery Options) tap Save.
Finding Contacts Entries
Finding Contacts by Name
1. Tap > > Contacts.
2. Tap .
3. Start entering the name of the contact you’re searching for. As you type, contacts with
matching names will appear below the search box.
4. Tap a matching contact in the list to open its entry.
Shortcut: From the Start Screen, tap to display the Search feature.
Contacts 64
Selecting which Contacts are Displayed
You can hide contacts that don't have phone numbers. You can also configure which groups of
contacts you want to display in the Contacts List.
To set whether contacts without phone numbers are displayed:
1. Tap > > Contacts.
2. Tap <Arrow Key> > Display Options.
3. Tap Only contacts with phones. (A green checkmark will appear.)
4. Tap Done.
Communicating with Your Contacts
From the Contacts or Favorites tab, you can quickly call or send a text (SMS) or multimedia
message (MMS) to a contact's default phone number. You can also open a menu to access
different methods of communicating with that contact.
The Contacts application shares your contacts with many other applications, such as Gmail™
(see Gmail) and messaging (see Text Messaging (SMS)).
To connect by using Quick Contact for Android™:
1. Tap a contact's picture to open Quick Contact for Android.
2. Tap the icon corresponding to the type of communication you want to start.
Depending on the contact information saved, the available actions will be displayed above the
name. (For more information, see Communicating with Your Contacts.)
To communicate with a contact:
1. Tap > > Contacts.
2. Tap the contact's entry.
3. In the contact's details screen, tap the method you wish to communicate with the contact.
Tap next to the number you want to call to directly.
Tap next to the number you want to message.
Tap next to the email address you want to email.
Contacts 65
Note: Anytime you see the green dial button next to a number, such as in your Favorites
or Call history, just tap it to call that number.
To call a contact’s default number:
1. Tap > > Contacts.
2. Touch and hold the contact's entry.
3. Tap Call contact.
(For more information about placing phone calls, see Making Calls.)
To send a text or multimedia message to a contact’s default number:
1. Tap > > Contacts.
2. Touch and hold the contact's entry.
3. Tap Text contact.
For more information about sending text and multimedia messages, see Text Messaging and
MMS.
Importing, Exporting, and Sharing Contacts
If you have contacts stored in vCard format on a microSD card you can import them into your
Contacts application on your device. You can also export contacts in vCard format onto a
microSD card. Export your contacts to back them up to a computer or another device.
Importing contacts from your microSD card
Note: See Connecting Your Device to Your Computer for details about copying files to a
microSD card from your computer.
1. Insert the microSD card (that contains the vCard files) into your device.
2. Tap > > Contacts.
3. Tap <Arrow Key> > Import/Export > Import from SD card.
4. If you have more than one account on your phone, tap the account into which you want to
import the contacts.
5. Tap the importing option and then tap OK.
Contacts 66
Exporting contacts to your microSD card
You can export all of the contacts on your phone to your microSD card, as vCard files. You can
then copy this file to a computer or another device that is compatible with this format, such as
an address book application. (See Connecting Your Device to Your Computer.)
1. Tap > > Contacts.
2. Tap<Arrow Key> > Import/Export.
3. Tap Export to SD card.
4. Tap OK to confirm your selection and to begin exporting your Contact List to the microSD
card.
Sharing a contact
You can share a contact with someone by sending it to the person as a vCard file.
1. Tap <Arrow Key> > > Contacts.
2. Open the contact you want to share.
3. Tap <Arrow Key> > Share.
4. Choose the method for sending.
Account and Messaging 67
Account and Messaging
With XX service and your device’s messaging capabilities, you have the opportunity to share
information through many different channels and accounts.
Email
Your device's Email application lets you access and manage multiple email accounts
simultaneously in one convenient location.
Although there is a separate Gmail application, the main email application can manage both
Internet based email services (Gmail™ and Yahoo!™) and Corporate Work Email (Outlook®).
The device can also be manually configured to connect to other email systems.
Note: If you multiple email accounts, you must configure each account with its own settings.
If you want to send and receive email messages through an ISP (Internet Service Provider)
account (such as Outlook), you will first need to set up an IMAP or POP account.
Internet Message Access Protocol(IMAP – This mail retrieval protocol is frequently
used in large networks and commercial and institutional settings. IMAP4 is the
current standard.
Post Office Protocol(POP - This protocol is supported by most ISPs and is currently
more common among consumer applications. POP3 is the current standard.
Note: For more information, review your email carrier’s support documents or contact your IT
administrator.
Email Icons/Shortcuts
- Email shortcut
- Gmail shortcut
Status Bar - Notifications
- New Email message received
- New Gmail message received
Account and Messaging 68
Corporate Email (Outlook)
The main Email application also provides access toyour Outlook Exchange server via your
device. If your company uses Microsoft Exchange Server 2003, 2007 and 2010 as the corporate
email system. you can use this email application to wirelessly synchronize your email,Contacts
and directly with your company’s Exchange server.
Important: This Outlook application does not utilize Microsoft® ActiveSync to synchronize
the deviceto your remote Exchange Server. This synchronization is done
wirelessly over the air(OTA) and not via a direct connection.
Setting Up a Corporate Email
1. Tap > > Email.
2. Tap <Arrow Key> > Accounts.
3. Tap <Arrow Key> > Add account.
4. Enter your Email address and Password
information, then tap Next. Consult your Network Administrator for further details.
Email address: Your Outlook work email address.
Password: Typically your network access password (case-sensitive).
5. Tap Exchange (from the add new email account screen).
6. Enter a Domain\Username, Password, and Server information and tap Next.
Domain\Username: Enter your network domain\login username.
Password: Typically your network access password (Case-sensitive).
Server: Your exchange server remote email address. Typically starts with
mail.XXX.com. Obtain this information from your company network administrator.
If your network requires SSL encryption, tap the Use secure connection (SSL) box
to place a checkmark and activate this additional level of security.
If your exchange server requires this feature, leaving this field unchecked can
prevent connection.
Note: Signal interruptions or incorrect username or password information can cause
completion issues.
7. Read the onscreen activation disclaimer and, if prompted, tap Next.
Account and Messaging 69
8. Configure your Email check frequency, Amount to synchronize (days to synchronize
between your device and server), and activate any other email settings, then tap Next.
9. Identify your new account with a unique name and provide the outgoing name, then tap
Done.
Important: You can synchronize over the air (not directly) with an Exchange Server running
Microsoft Exchange Server 2003 Service Pack 2 (SP2) or Microsoft Exchange
Server 2010.
Note: You can have multiple Work Email (Microsoft Exchange) accounts active on your device.
Opening Corporate Email
1. Tap > > Email.
2. Tap a message to read, manage, or reply to.
From your Inbox screen, <Arrow Key> to select options, such as Refresh, Compose,
Folders, Accounts, or Account settings.
While in a message, tap <Arrow Key> to select messaging options, such as Delete,
Forward, Reply, Reply all, or Mark as unread.
Create and Send Email
1. From the Inbox, tap <Arrow Key> > Compose.
2. Enter the recipient’s email address in the To field.
If you are sending the email to several recipients,separate the email addresses with
a comma.
You can add as many message recipients as you want.
Note: To send an additional carbon copy (Cc) or a blind carbon copy (Bcc) of the current email
to other recipients, tap <Arrow Key> > Add Cc/Bcc.
3. Tap the Subject field and enter the email subject.
4. Tap the Body field and compose your email.
To add a picture attachment, tap <Arrow Key> > Add attachment.
You can access the internal microSD card and navigate to the file you wish to attach.
Tap the file you wish to attach.
To reply to an email message:
Account and Messaging 70
1. From the Inbox, tap an email message to view it.
2. With the email message displayed, tap either Reply or Reply all.
– or –
With the email message displayed, tap <Arrow Key> and tap either Reply or Reply all.
If you select Forward, you must specify the message’s recipients.
3. Enter a new message body and tap Send.
To delete an email message:
► Touch and hold an email (from your inbox list) and tap Delete from the pop-up context
menu.
– or –
With the email message displayed, tap Delete.
Configuring Corporate Email Settings
Account Settings: Allow you to configure various settings for your account.
1. Tap ><Arrow Key> > Settings > Accounts & sync.
2. Tap the Corporate account to reveal the account’s synchronization settings screen.
3. Place a checkmark next to each option if you want the device to automatically
synchronize. If you want to manually synchronize, tap <Arrow Key> > Sync now.
To configure Corporate Email settings:
1. Tap ><Arrow Key> > Settings > Accounts & sync.
2. Tap the Corporate account field to reveal the account’s synchronization settings screen.
3. Tap Account settings.
Account name: Displays the name used by the device to track the account.
Your name: Displays the name that recipients view when receiving email from you.
Signature: To add a signature or other information to outgoing email.
Amount to synchronize: Configures how many days worth of emails the device and
server should synchronize. Choose from: One day,Three days, One week, Two
weeks, or One month.
Account and Messaging 71
Email check frequency: Configures the frequency which the device queries the
remote server for new email changes. Choose from: Automatic (Push), Never,
Every 5 minutes, Every 10 minutes, Every 15 minutes, Every 30 minutes, or
Every hour.
Default account: Assigns this account as the default account used when sending
out new emails.
Email notifications: Allows the phone to notifyyou when you receive new emails.
Select ringtone: Allows you to assign a ringtone to notify you of new email.
Vibrate: Allows you to set the phone to vibrate when new email is received.
Incoming settings: Allows you to view and modify your incoming server settings.
Sync contacts: Synchronizes the contacts between your device and the
remoteexchange server. A checkmark indicates the feature is enabled.
Sync calendar: Synchronizes your exchange calendar entries between your device
and theremote exchange server. A checkmarkindicates the feature is enabled.
Out Of Office
4. Tap to return to the previous screen.
For more detailed Corporate email information, see Corporate Email (Outlook). For more
information on Corporate Calendar synchronizing,Synchronizing Corporate Calendar Events.
To create a Corporate Email Signature:
This signature can differ from any current Email signature on your local Outlook client. This
signature is applied to any outgoing emails originating on your device.
1. Tap ><Arrow Key> > Settings > Accounts & sync.
2. Tap the Corporate account to reveal the account’s synchronization settings screen.
3. Tap Account settings.
4. Tap Signature.
5. Delete the current default text and enter your new email signature.
6. Tap OK to store the new signature.
Account and Messaging 72
Configuring Data Synchronization Settings
This feature allows you to determine which current applications are synchronized with the
external server and at what intervals.
1. Tap ><Arrow Key> > Settings > Accounts & sync.These settings can affect
data minute usage, please refer to your current data plan for more details.
2. Tap any of the following options:
Background data: Allows data synchronization tooccur as a background function
and does not affect any current use of the device.
Auto-sync: Requires the device to maintain synchronized with the remote server
providing data to your selected applications.
3. Tap to store your changes and return to the Start Screen.
Text Messaging and MMS
With text messaging (SMS), you can send and receive instant text messages between your
wireless phone and another messaging-ready phone. When you receive a new message, you
will be notified by your device.
Messaging is available via the Messaging application in your Applications screen. The icon
appears in Status Bar when a new text message is received.
Note: See your service plan for applicable charges for text messaging and and SMS voicemail.
Composing Text Messages
1. Tap > > Messaging > New message.
2. Tap the To: field and enter the recipient’s phone number or email information using the
onscreen keyboard.
Contacts As you enter either a phone number or email address, if the information
matches a current contact’s entry information, you will see a match. When you see a
match, tap the associated name to complete the addressing.
Mobile Tap to use the keypad to enter a wireless phone number directly.
Email You can also enter the recipient’s email address.
3. Tap a matching entry from the onscreen dropdown list. This list is populated by matches
found from your managed accounts.
Account and Messaging 73
4. Tap the Type to compose field and enter your message.
5. Insert an Emoticon or a Smiley.
To enter an emoticon, touch and hold on the onscreen keyboard.
To enter a smiley from the menu options, tap <Arrow Key> > Insert smiley. Make a
selection from the list to insert it into your current message.
6. Review your message and tap Send.
Accessing Text Messages
To read a text message:
When you receive a text message, your phone will notify you. You can access the message by:
► Opening the Notification panel and tapping the text message notification.
► Tapping > > Messaging and selecting the new message.
To reply to a text message:
1. While viewing a message, tap the Type to compose field.
2. Compose your reply or use the preset messages or icons.
To enter a message, use your onscreen keyboard. (See Entering Text.)
3. Insert an emoticon or a Smiley.
To enter an emoticon, touch and hold on the onscreen keyboard.
To enter a smiley from the menu options, tap <Arrow Key> > Insert smiley. Make a
selection from the list to insert it into the message.
4. You may select additional messaging options by tapping <Arrow Key> .
Options include: Call, View contact, Add subject, Attach, Insert Smiley, Preset
Message, Set priority, Preset Message, Set priority, or More [Delete thread, All
threads, and Add to Contacts].
5. Review your reply and tap Send.
Multimedia Messaging (MMS)
With multimedia messaging (MMS), you can send and receive instant multimedia messages
that contain text, pictures, audio, recorded voice, or a picture slideshow. Messaging is available
via the Messaging application in your Applications screen.
Account and Messaging 74
Note: See your service plan for applicable charges for multimedia messaging and MMS voice
messaging.
Composing MMS Messages
1. Tap > > Messaging > New message.
2. Tap the To: field and enter the recipient’s phone number or email information. As you
enter the phone number or email address, matching contacts appear onscreen.
Tap an available matching recipient or continue entering the phone number or email
address.
3. Tap the Type to compose field and enter your message.
4. Tap <Arrow Key> > Attach.
5. Select a multimedia attachment type:
Pictures: Opens the Gallery application. Use the onscreen navigation to select the
picture you wish to send with the outgoing message.
Capture picture: Opens the Camera application. Take a picture, and then tap OK to
use this image in your message. (See Taking Pictures.)
Videos: Opens the Gallery application. Use the onscreen navigation to select a
video and attach it to your outgoing message.
Capture video: Opens the Camcorder application. Record a video, then tap OK to
use this video in your message. (See Recording Videos.)
Audio: Opens a menu that allows you to choose between Select music track and
Sound Recorder. Use the onscreen navigation with the Select music track option
to select an audio file and tap OK or record a new audio file using the Sound
Recorder option.
Record audio: Opens the message recorder.
• Record Duration: Displays the length of the recorded voice message.
• Record: Starts recording your message.
• Play: Plays back the current recording.
• Stop: Stops the recording. Once stopped, tap either Use this recording (attach
it to your message) or Discard (delete the current recording and re-record).
Slideshow: Opens the Edit slideshow menu.
• Tap Add slide to create a new slide.
Account and Messaging 75
• Tap the created slide (example, Slide 1), tap Add picture, and then select the
picture you want to add to the slide.
• Tap the text field below the image to enter a caption for the picture.
• When finished, tap Done to attach the slideshow to your message.
Contact (vCard): Opens your Contacts list and allow you to select a picture of a
Contact to send.
Note: To remove or replace a picture or an audio attachment, on the Compose screen, tap the
Remove or Replace button next to the attachment.
6. When you are finished creating your new MMS message, tap Send MMS.
To view and play a multimedia message:
1. Tap > > Messaging.
2. From the message list, tap a multimedia message to open its contents.
3. While viewing a message, tap the play icon (on the video file) to playback the file or tap
the image to view the picture.
Tip: The file attachment on the MMS message can be saved to the microSD card. To save
the attachment, touch and hold the file and tap Save attachment from the Message
options context menu.
To reply to a multimedia message:
1. Tap > > Messaging.
2. From the message list, tap a multimedia message to open its contents.
3. While viewing a message, tap the Type to compose field and type your reply message.
4. Once completed, tap Send.
Note: When replying to an SMS message with an MMS message, first open the text message,
press and tap or Attach. The original text message is then automatically converted into
a multimedia message.
Deleting a Message or Message Thread
1. Tap > > Messaging.
Account and Messaging 76
2. From the message list, touch a message and tap <Arrow Key> .
– or –
Touch and hold the message thread to display the context menu.
3. Tap Delete thread and once prompted, tap OK to complete the process.
Adjusting Message Settings
1. Tap > > Messaging.
2. From within the Messaging screen, tap <Arrow Key> and tap Settings.
3. Adjust the following settings according to your needs:
Delete old messages Enable this option to delete older text messages when the
limit for maximum number of text messages is exceeded.
Text message limit Sets the maximum number of text messages that can be stored
on the device (per conversation).
Multimedia message limit Sets the maximum number of multimedia messages that
can be stored on the device (per conversation).
Signature Tap this to automatically add signature (green checkmark dsiplays).
Callback Number Check this to automatically add callback number (green
checkmark displays).
Set priority Select Normal or Urgent.
Message Reassembly Enable this option (green checkmark displays) so that multi-
segment messages can be reassembled and shown as a single message. Each
segment will still count toward your usage.
Preset Message Select a present message, such as "Call me" or "Where are you?"
Auto-retrieve Enable this option to automatically retrieve the entire content of your
MMS message. When checked, the MMS message header, message body, and any
attachments will automatically download to your device.
• If you disable this option, only the MMS message header will be retrieved and
displayed.
Roaming auto-retrieve. Disable this option if you only desire the MMS message
headers to download while roaming. Enable this option to automatically download
your complete multimedia messages even while roaming.
Account and Messaging 77
Set priority Select Low, Normal, or High.
Notifications. Enable this option if you wish to receive a notification in the Status
Bar when a new text or multimedia message arrives.
Select ringtone. Allows you to select a ringer to sound when a new message is
received. Tap this option, and then select a ring tone that is specific to new text and
multimedia messages. A sample will briefly be played upon selection.
Vibrate. Enable this option if you want the device to vibrate when a new text or
multimedia message is received.
Text Messaging and MMS
Your device's advanced messaging capabilities let you send and receive many different kinds of
text messages.
Messaging settings allow you to decide how you would like to be notified of new messages,
create a signature with each sent message, and create your own preset messages.
Viewing Notifications of Received Messages
When you receive a message, your device notifies you by displaying an icon within the
Notification area at the top left of your Start Screen.
- indicates a new text or MMS messages were received.
1. Tap > <Arrow Key> > More > Notifications.
– or –
Touch and drag the Status Bar to the bottom of the screen.
2. Tap a message entry to open the Messaging application.
Deleting Old Text Messages
Delete messages or message threads you have read whenever you like, or have your device
delete them automatically for you. A thread is a series of text conversations between two people.
Deleting a thread will delete the sent and received messages in the conversation.
To delete a specific message thread:
1. Tap > >Messaging.
2. Tap a thread to view the contents of that thread.
Account and Messaging 78
3. Tap <Arrow Key> > Delete thread.
To delete all stored messages:
1. Tap > > Messaging.
2. Tap <Arrow Key> > Delete threads.
Gmail
This email client is Google’s web-based email service. (See Synchronizing Your Google
Account.)
From a computer, launch your preferred Web browser and navigate to www.gmail.com.
Depending on your synchronization settings, Google Mail (along with calendar events, phone
numbers and other contact information) on your device is automatically synchronized between
your device and your Gmail account on the Web.
Note: You must have a valid and active Google account prior to using this email client.
● Gmail is web-based: Your messages are stored online, on Google™ servers, but you
can read, write, and organize messages by using the Gmail application on your device
or a web browser on a computer. Because your mail is stored on Google servers, you
can search your entire message history, backed by the speed and power of Google
search. Any actions taken in the Gmail phone application are reflected on the web
browser. For example, if you read a message in Gmail on your device, it will be marked
as read in a Web browser. And a message that you send using a browser, or even a
draft of a message, is visible in Gmail on the device.
● Gmail is conversation-based: Every related message is grouped in your Inbox as a
single conversation tread. In other email applications, replies to messages are sent as
individual messages, making it difficult to keep track of related messages. Gmail makes
it easy to follow conversations with its conversation threads.
● Gmail is organized by labels, not by folders: By tagging messages with labels, you
can organize your conversations in many different ways. Whereas in other email
applications, each message can only be stored in one folder. For example, with Gmail
you can label a conversation with your mother about your brother’s birthday present with
both “Mom” and “Dave.” Later, you can look for the all messages containing either label.
Using folders, you'd have to store the message in the “Mom” folder or the “Dave” folder,
not both.
● Gmail for the phone is optimized for mobile: Some features are only accessible on
your computer browser. The best place to organize and learn about Gmail is the Web.
For example, you can't use the Gmail application on the device to create the labels and
filters that you use to organize your messages, but you can label a message. Gmail on
Account and Messaging 79
the Web offers complete information about the service, so it’s the best place to learn
about all of the features of Gmail.
● Gmail is for Gmail: Of course you can use Gmail to send email to any email address,
and anyone can send email to you at your Gmail address. But if you want to read
messages from another email service provider (using your AOL, Yahoo!, or other email
account), you must use the Email application. (See Email.)
Setting Up other Email accounts via the Device
The Email application only reveals all currently added Email accounts. To view additional email
accounts within the main Email screen, they must first be added.
1. Tap > > Email.
2. Follow the onscreen instructions to setup an Email account.
Tap Manual setup to configure your connection settings manually (POP3 or IMAP).
Follow the onscreen prompts and enter the information specific to your carrier.
Opening Gmail and Your Inbox
When you open the Gmail application, the most recent conversations are displayed in your
Inbox.
► Tap > > Gmail.
All of your conversations are displayed in your Inbox unless you delete, archive, or filter them.
Conversations with new messages are displayed with bold subject lines. To read a message in
a conversation, tap the conversation. (See Reading Your Messages.)
To open your Inbox when Gmail is running:
► When reading a message, tap <Arrow Key> > Go to Inbox.
– or –
When viewing a list of labeled conversations, tap <Arrow Key> > More > Go to Inbox.
To switch accounts:
Gmail displays conversations and messages from one Google Account at a time. If you have
more than one account, you can open the Accounts screen to view how many unread
messages you have in each account and switch accounts.
1. From your Inbox, tap <Arrow Key> > Accounts.
Account and Messaging 80
– or –
Tap your account name at the top right corner of the Inbox screen.
2. Tap the account that contains the email you want to read.
Reading Your Messages
► Tap a conversation that contains the message you want to read.
When you open a conversation, the first unread or starred message is displayed.
The Google Talk online status will appear next to the name of the sender of each message if the
sender has a Google account. If you want to contact the sender, touch the Contact's picture ID
to open Quick Contact. (See Communicating with Your Contacts.) When reading messages in a
conversation, you can use the buttons at the bottom of the screen to archive the entire
conversation (see Archiving Conversations) or Delete to delete it. After you delete a
conversation, you can touch Undo in the yellow bar that appears at the top of the Inbox screen
to return the message to the Inbox. You can scroll to the bottom of a message to access buttons
for replying to or forwarding the message, as described in Replying to or Forwarding a Message.
To reread a message:
When you open a conversation, messages that you’ve already read are minimized into a tab
that indicates the number of hidden messages.
1. Tap > > Gmail.
2. Tap the conversation you want to view, then touch the tab indicating minimized
messages.
3. Tap the contact name to open that message.
When reading a message or when its tab is selected, you can tap <Arrow Key> > Mark Unread
to return a read message to the unread state. For example, to remind yourself to read it again
later.
Composing and Sending a Message
You can compose and send a message to people or groups with Gmail addresses or other
email addresses.
Account and Messaging 81
To compose and send a message:
1. Tap > > Gmail.
2. Tap <Arrow Key> > Compose.
3. Enter a recipient's address. As you enter text, matching addresses are displayed from
your Contact list. You can tap a suggested address or continue entering text to enter a
new one.
4. Tap <Arrow Key> > Add Cc/Bcc to Cc or Bcc recipients, if necessary.
5. Enter a subject for the message in the Subject field.
6. Continue into the next field to compose your email message.
7. Tap <Arrow Key> > Attach to add an attachment to the email.
8. Tap the Send button to send the email.
– or –
If you're not ready to send the message, tap Save as draft instead. You can read your
drafts by opening messages with the Drafts label. (See Viewing Conversations by Label.)
– or –
Tap Discard to erase the message (including any saved drafts).
Note: If you aren't connected to a network - for example, if you’re working in Airplane mode -
the messages that you send are stored on your device, with the Outbox label until you
connect to a network again.
Replying to or Forwarding a Message
You can continue an email conversation by replying to a message or by forwarding it.
To reply to or forward a message:
1. Scroll to the bottom of a message.
2. Tap Reply, Reply to all, or Forward.
Replying to or forwarding messages without changing the subject adds your reply to
the current conversation. Changing the subject starts a new conversation.
The message will open in a new screen where you can add or remove addresses,
edit the subject, and add or remove text or attachments, as described in Composing
and Sending a Message.
Account and Messaging 82
You can add one or more people to an ongoing conversation by replying to all and
then adding the new person's address(es) to the message.
All of the messages in the conversation are included in the new message; any
messages that follow the message you forward are omitted.
3. Tap Send to send the email.
Working with Conversations in Batches
With Gmail, you can archive, label, delete, or perform other actions on a batch of conversations
at once.
1. From the Inbox or another label, tap the checkmark box to the left of each message for all
the messages you want to include in the batch.
When you checkmark a conversation, the Archive, Delete, and Labels buttons
appear at the bottom of the screen.
2. Tap Archive, Delete, or Labels. You can also tap <Arrow Key> > Add star, Report spam,
Mute, Mark read/Mark unread, or Deselect all.
The chosen action affects the selected batch of messages. If you accidentally delete
a batch of conversations, you can tap Undo in the yellow bar (that appears briefly
after the action) at the top of the Inbox screen to return the messages to the Inbox or
appropriate label. You can also use Undo after muting, archiving, and reporting
spam. If you never work with batches of messages, you can hide the check boxes to
leave more room for the subjects of conversations. (See Changing Gmail Settings.)
Labeling a Conversation
As mentioned previously, conversations are organized by labels. Gmail has several default
labels, but you can also add your own through Gmail on the Web.
To label a conversation or change a conversation's labels:
1. When viewing a conversation tap > Change labels.
2. In the dialog box that opens, check the labels you want to assign to the conversation and
tap OK.
To label a batch of conversations at once:
You can assign or change the labels of one or more conversations at once.
Account and Messaging 83
1. From your Inbox or another label, checkmark the conversations to select a batch. (See
Working with Conversations in Batches.)
2. Tap Labels at the bottom of the screen.
3. In the dialog box that opens, check the labels you want to assign to the conversation.
4. Tap OK.
Starring a Message
You can star an important message or conversation to make it easy to locate again. To view just
conversations with starred messages, see Viewing Conversations by Label and view the
Starred label.
To star a message:
● When reading a message, tap the star in its header.
– or –
When viewing the list of conversations, tap a conversation’s star to start the newest
message in the conversation.
To unstar a message:
● Tap its star again.
To star or unstar all messages in a conversation:
● Tap a star in a conversation list.
Viewing Conversations by Label
You can view a list of the conversations that have the same label, including conversations with
starred messages. (See Labeling a Conversation or Starring a Message for information about
assigning labels and stars.)
1. When viewing your Inbox or another label, press <Arrow Key> > Go to labels.
2. Tap a label to view a list of conversations with that label.
Note: The conversation list will resemble your Inbox. Most of the options available while using
your Inbox will also be available while viewing these lists of labeled messages.
Account and Messaging 84
Reporting Spam
The Gmail webmail service is quite effective at preventing spam (junk mail) from reaching your
Inbox. When you do receive spam you can help improve the Gmail service by reporting the
conversation as spam.
To report a conversation as spam:
► When reading the email, tap <Arrow Key> > More > Report spam.
– or –
From the Inbox, tap the checkmark to select the messages, then tap <Arrow Key> >
Report spam.
When you report a conversation as spam, the conversation (and all its messages) are removed
from your Inbox. You can view the messages you've marked as spam by switching to the Spam
label. (See Viewing Conversations by Label.)
Searching for Messages
With the Gmail application, it is very easy to search and find specific emails. When you search
for emails, all of the emails in your Google account on the web are included in your search
(except those labeled Trash or Spam), not just those that you've synchronized onto your device.
You can also use the advanced search options as described on the Gmail website.
1. From the Inbox, tap <Arrow Key> > Search.
– or –
From the Inbox, press .
2. Enter the word or words to search for, then tap the Search icon to the right of the text
field. A list of results will appear, displaying all of the conversations with emails that
contain the word(s) you searched for.
Archiving Conversations
You can archive conversations, to move them out of your Inbox without deleting them. Archived
conversations are assigned the All Mail label, and also retain any other labels you've assigned
to them. Archived conversations are also included in search results. If someone replies to a
message that you’ve archived, its conversation will be restored to your Inbox.
To Archive a conversation:
► From your Inbox, touch and hold a conversation then tap Archive in the menu that
opens.
Account and Messaging 85
– or –
Checkmark one or a batch of conversations in your Inbox, then tap the Archive button.
(See Working with Conversations in Batches.)
– or –
When reading a message, tap the Archive button at the bottom of the screen.
Archiving Conversations
The Gmail webmail service has the resources to store all the messages you've ever sent or
received; your device does not. To save space, Gmail downloads only some of your messages
to your device. Use the Settings application to control how and when applications synchronize
their data. (See Synchronizing Accounts.)
To select which conversations to synchronize:
1. Tap > > Gmail.
2. Tap <Arrow Key> > More > Settings > Labels.
The Synchronization settings screen opens, displaying a list of your Gmail labels. Below
each label is its current synchronization setting: Sync all, Sync 4 days, or with no label.
(Conversations with no label are not synchronized.)
3. Tap a conversation label whose synchronization settings you want to change. Choose
from the following options:
Sync none: Don't download any conversations that only have this label.
Sync 4 days: Download the previous 4 days (or number of days you set) of
conversations.
Sync all: Download all conversations with this label.
To set how many days of conversations to synchronize:
1. Tap > > Gmail.
2. Tap <Arrow Key> > More > Settings > Labels.
3. Tap Number of days to sync.
4. Enter the number of days, then tap the OK button.
Account and Messaging 86
Appending a Signature to Your Messages
You can add a signature to every email you send, such as your name, contact information, or
any personal message.
1. Tap > > Gmail.
2. Tap <Arrow Key> > More > Settings > Signature.
3. Enter a signature or other information.
4. Tap OK.
Changing Gmail Settings
You can change a number of settings for Gmail. Each Google account has its own settings, so
your changes affect only the current account. (See To switch accounts.)
Notification volumes and some synchronization settings can also be changed in the Settings
application.
1. Tap > > Gmail.
2. Tap <Arrow Key> > More > Settings.
General settings:
Signature: To add a signature or other information to outgoing email. (See
Appending a Signature to Your Messages.)
Confirm delete: If checkmarked, this feature will display a dialog asking you to
confirm whenever you want to archive, delete, or send a message.
Auto-advance: Allows you to choose what screen to display after you delete or
archive conversation.
Message text size: Allows you choose the size of the text in a message for easier
viewing.
Batch operations: When checkmarked, this feature allows you to perform various
operations on multiple conversations at once
Clear search history: Removes the search history all searches performed on your
Gmail account.
Labels: Allows you to manage which conversations are synchronized and how often.
Notification settings:
Account and Messaging 87
Email notifications: When checkmarked, the phone will notify you whenever you
receive new email. (See Using the Notifications Panel.)
Select ringtone: Allows you to choose a ringtone to sound when you receive a new
email notification.
Vibrate: When checkmarked, the phone will vibrate when you receive a new email
notification.
Synchronizing Accounts
Your device is able to synchronize data from a variety of different sources or sites. These
accounts can range from Google, a Corporate Exchange Server, and other social sites,
including Facebook, Twitter, and MySpace.
Corporate and Google accounts are also able to synchronize Calendar events and Contacts.
To enable the auto-sync feature:
1. Tap ><Arrow Key> > Settings > Accounts & sync.
2. Tap Auto-sync. A checkmark indicates the feature is enabled.
Tap an account you've already set up to choose the type of data you want to
synchronize. For example, you can choose to sync your Google Calendar and/or
Gmail data.
Synchronizing Your Google Account
By default, there are no accounts managed by the device. These must be added manually.
To add an account (using a Google account type as an example):
1. Tap ><Arrow Key> > Settings > Accounts & sync.
2. Tap Add account > Google.
3. Tap Next > Sign in.
Note: If you do not already have a Google account, tap Create (instead of Sign in) follow the
onscreen prompts to create your new account.
4. Tap the Username and Password fields and enter your information.
5. Tap Sign in. Your device communicates with the Google servers to confirm your
information. Your existing Gmail account appears within the Manage accounts area of
the screen.
Account and Messaging 88
If Auto-sync is selected, changes or updates to your Gmail account are then
automatically updated to your device.
To configure the Google sync settings:
1. Tap <Arrow Key> > Settings > Accounts & sync.
2. Tap the Google account to reveal the account’s synchronization settings screen.
3. Tap the type of data you wish to synchronize (Sync Contacts, Sync Gmail, and Sync
Calendar). Note that Auto-sync must be selected (in the previous screen) for these
options to become available.
4. Tap to return to the previous screen.
Synchronizing Your Corporate Account
Your device is capable of synchronizing with your company’s Exchange Servers.
To add a new Corporate account:
1. Tap > <Arrow Key> > Settings > Accounts & sync.
2. Tap Add account > Corporate.
3. Follow the onscreen prompts to create your new Corporate email account. (See
Corporate Email (Outlook.)
If Auto-sync is selected, changes or updates to your Corporate/Outlook account are
synchronized to your device.
To configure the Corporate account settings:
1. Tap > <Arrow Key> > Settings > Accounts & sync.
2. Tap the Corporate account.
3. Tap the options you wish to configure:
Account settings allows you to configure:
• Account name displays the name used by the device to track the account.
• Your name displays the name used in the From field within your outgoing
emails.
• Signature allows you to create an outgoing email signature attached to new
emails sent from your device.
Account and Messaging 89
• Amount to synchronize to select the how many days of data you want to sync.
Choose from: One day, Three days, One week, Two weeks, or One month.
• Default account assigns this account as the default used when sending out new
emails.
• Email notifications enable the device to display icon in the status bar when
new emails have been received.
• Select ringtone assigns an audible ringtone when a new or upcoming event is
pending.
• Vibrate assigns a vibration when a new or upcoming event is pending.
• Incoming settings provides access to the Domain, password, and exchange
server parameter fields.
• Sync contacts synchronizes the contacts between your device and the remote
exchange server. A checkmark indicates the feature is enabled.
• Sync calendar synchronizes your exchange calendar entries between your
device and the remote exchange server. A checkmark indicates the feature is
enabled.
4. Tap to return to the previous screen.
5. For more detailed Work/Corporate email information, see Corporate Email (Outlook.). For
more information on Corporate Calendar synchronizing, see Displaying and
Synchronizing Calendars
Privacy: Factory Data Reset
Resetting the device restores all the factory defaults, including personal data from internal
device storage, information about your Google Account, any other accounts, your system and
application settings, and any downloaded applications. Resetting the device does not erase any
system software updates you’ve downloaded or any files on your microSD card, such as music,
pictures, or applications. After resetting the device, the next time you turn on the device, you’re
prompted to reenter the same kind of information as when you first started the device. See
Activating Your Device.
1. Tap > <Arrow Key> > Settings > Privacy > Factory data reset.
2. If you are certain that you would like to restore all factory settings, tap Reset phone.
Applications and Entertainment 90
Applications and Entertainment
All your device’s features are accessible through the Applications list.
Android Market
Applications
Getting Started with XX TV and Music
XX TV & Movies
Music
YouTube™
Applications and Entertainment
GPS Services
Google Maps™
TeleNav™ GPS Navigator
Getting Driving Directions
Navigation
Android Market™
Android Market provides direct access to applications and games to download and install on
your device.
Accessing the Market
1. Tap > > Market.
2. If not already logged in with your Google account, tap Next.
3. Tap Sign in and enter your Google account information.
4. Touch Accept to agree to the Android Market termsof service.
Selecting and Installing a Google Application
1. Tap > > Market.
Applications and Entertainment 91
2. Browse for an application. Once you have decidedon one, tap it to view its details.
3. Read the application descriptions and comments.
4. Tap Install (for free applications) or Buy.
Note: Use caution with applications which request access to any personal data, functions, or
significant amounts of data usage times.
5. If prompted, follow the onscreen instructions to pay for the application.
6. Check the progress of the current download by opening the Notification screen.
7. You will be notified when the item is downloaded and installed on your device.
8. On the Android Market screen, tap <Arrow Key> tap Downloads, tap the installed
application in the list,and then tap Open.
Launching an Installed Google Application
1. Tap > .
– or –
Tap > > Market > <Arrow Key> > Downloads.
2. Tap icon of the newly installed application.
Reinstalling a Google Application
If the Android Operating System is ever updated, any data contained on the device will be
erased. The only data stored on the device are Google applications available via the Android
Market.
Note: Pictures, videos and music are stored on the microSDcard. Applications can be stored
on the microSD card as well as on the device.
Contacts and Calendars are stored remotely on your remote Google or Outlook servers.
1. Tap > > Market > <Arrow Key> > Downloads.
2. Scroll through the list of previously downloaded Google applications and choose the one
you wish to reinstall.
3. Follow the onscreen instructions.
Applications and Entertainment 92
XX ID
ID Packs are bundles of applications, ringtones, wallpapers, settings, and more. ID Packs are
installed using an application called XX ID.
You can have up to six ID Packs installed at any onetime and you can easily switch from one ID
Pack to another without losing any applications already installed. For example, when you install
the XX ID Pack, XX applications such as XX TV, TeleNav™ GPS Navigator, NASCAR
XX Cup Mobile, and XX Football Live will remain in your applications.
Installing Your First ID Pack
Note: Your device must be activated, your battery should be fully charged, and you should be
in a network coverage area before you install an ID Pack.
1. Tap Install an ID on the Welcome to XX ID screen.
If your device is in Power Save mode, tap <Arrow Key> or to reactivate the screen.
If the lock screen appears, unlock it by dragging the Unlock icon to the right side
of the screen.
Note: You also have the ability to place an emergency call directly from the Welcome to XX
ID screen.
2. Tap an ID Pack on the Browse ID Packs screen.
Note: The XX ID pack comes with wallpapers, ringtones, and applications such as XX
TV, & Movies, GPS TeleNavigator, XX Music Plus, XX Football Live, and
NASCAR, XX Cup Mobile.
3. Read the information screen for a description of the ID Pack and touch Install.
4. Touch Agree to accept the Terms & Conditions of the ID Pack.
5. If prompted, touch Continue on any following screens until you see the Downloading
in the upper-left on your screen.
Note: While the ID Pack is downloading in the background, you can begin to explore the
features of your new device from the Start Screen.
When the download is complete, you will see the Download finished icon in the
upper-left corner of the screen.
Applications and Entertainment 93
WARNING: DO NOT interrupt the download process.
6. Tap > <Arrow Key> > More > Notifications. If the download is complete, tap ID
ready to install to install the ID Pack.
Switching ID Packs
1. Tap > (XX ID).
2. Tap an ID Pack to replace your current pack.
– or –
Tap Get New to install a new ID Pack and follow steps 2–6 of Installing Your First ID
Pack.
Note: Certain features of XX ID are subject to change. For the most up-to-date information
about using XX ID, please visit www.XX.com.
Applications
You can access a wide variety of XX applications in many different categories with your
phone and data service. Currently, various applications, such as NASCAR, XX Football Live,
TeleNav GPS Navigator, XX Music Plus, and XX TV are available when you download
and install the XX ID pack.
Note: Some XX data applications may not work with a Wi-Fi connection present. If
prompted, disable your device's Wi-Fi feature while using these applications.
Download the XX ID Pack
► Tap > On the Choose your ID screen, tap Get New > XX Pack. Follow
the onscreen prompts to install the XX ID Pack.
– or –
Tap > > XX Zone > XX
Applications. Follow the on-screen prompts to install the XX ID Pack.
Note: Once you download and install the XX pack, XX applications such as NASCAR,
XX Cup Mobile, XX Football Live, XX Music Plus, and TeleNav™GPS
Navigator will appear on your Applications screen. When you switch from the XX
pack to another ID pack, or choose a new ID pack, the XX applications will remain
installed and visible on your Applications screen.
Applications and Entertainment 94
To download and install XX apps:
1. Tap > > [application name]. The application will then be downloaded.
2. Follow the instructions to customize your application (such as selecting a favorite team
ordriver) or tap <Arrow Key> to explore your options.
Note: Important Privacy Message – XX’s policies often do not apply to third-party
applications. Third-party applications may access your personal information or require
XX to disclose your customer information to the third-party application provider. To
find out how a third-party application will collect, access, use, or disclose your personal
information, check the application provider’s policies, which can usually be found on their
website. If you aren’t comfortable with the third-party application’s policies, don’t use the
application.
XX Zone
XX Zone is a free application that lets you stay connected to all the latest news and
information from XX. Included here are XX customer promotions,news, feedback, featured
apps and tips/tricks for yourdevice.
1. Tap > > XX Zone.
2. Navigate through the list to find your relevant topics.
3. Tap a topic link to continue to that page.
NASCAR XX Cup Mobile
Now you have the ability to get every bit of NASCAR coverage, news, and stats right on your
device.
1. Tap > > NASCAR.
2. If prompted, read the disclaimer, make a selection and tap OK. Follow the onscreen
instructions until you reach the main NASCAR XX Cup Mobile page.
3. Navigate the main page using your finger.
4. Tap an onscreen option to activate features that include:
Home is the main NASCAR homepage where you can view stats on a current race,
choose to follow a specific driver, view special NASCAR promotions and other
NASCAR-specific multimedia content.
• Tap <Arrow Key> and tap Home to return to the main NASCAR page. This
applies to each of these options.
Applications and Entertainment 95
Race Recap provides overviews of the curren traces, pictures, commentary,
additional photos,and race stats.
SPEED displays a list of selectable multimedia video clips from the SPEED channel
that are specific to NASCAR.
Point Standings allows you to view the latest leaderboard driver point standings.
My Driver to customize your NASCAR experience by following specific drivers.
Information includes driver-specific stats and NASCAR RSS feeds. You can also get
additional stats, review other driver info, or change drivers.
Stats/Sched lets you track race information such as: NSCS Recap, NNS Recap,
Point Standings,Season Stats, and Schedule.
Miss XX Cup is your insider to NASCAR by providing news, information, blogs
and twitter updates to the goings-on within NASCAR.
Videos displays a list of selectable multimedia content. Other features include
streaming multimedia content from NASCAR radio stations or other racing radio
shows.
News & Alerts provides you with quick access to NASCAR-specific news, photos,
and driver stats.You can also customize alerts for new information such as ALL
NASCAR News, XX Cup News,etc.
Twitter allows you to view the latest Twitter updates.
Fantasy lets you take part in online fantasy racing, access Games, News, Videos,
take part in Polls,and access other Special Promotions.
Fanzone displays a list of selectable content available to XX subscribers such as
Sweepstakes, Video clips (footage and music) and Screensavers.
Settings and Help displays help information for usage of the NASCAR application
and features.
Exit to quit the NASCAR application.
• Tap <Arrow Key> > Exit > Yes.
XX Football Live
Get XX Football live on your device. It lets you be right in the middle of your favorite game by
being apart of previews, blogs, discussions groups, fantasy football, etc.
1. Tap > > XX Football Live.
Applications and Entertainment 96
2. Tap the PRO or COLLEGE tab on the XX Football Live home page, or tap <Arrow
Key> > PRO or COLLEGE to access features such as:
My Team launches a team-specific page with content such as top stories, Schedules,
and the ability to change your favorite team selection.
Scores and Schedules to access the latest scores and team schedules.
News and Analysis provides AP league news,News, PFTV, Injury Info,
Transactions, Legal, and other football related information, photos and videos.
Team Pages allows you select from either the AFC or NFC conferences, then
display content such as top stories, Schedules, and the ability to change your
favorite team selection.
Standings for the latest team standings.
Statistics for the latest team and player statistics.
Twitter launches an onscreen Twitter page specific to the NFL, or college teams.
Odds for the odds on the upcoming team matchups.
Polls (College) for the latest AP, Coaches, and BCS polls.
Fantasy (Pros) for access to your favorite fantasy leagues.
Videos and Photos for updated football new sreports, photos, and video clips.
Settings/Help displays help information for XX Football Live, allows you to
change your favorite team, and gives software information about the XX Football
Live application.
To exit XX Football live:
► Tap <Arrow Key> > EXIT.
Getting Started with XX TV and Music
In order to access XX applications on your device, such as XX TV and XX Music Plus,
you must first download and install the XX ID Pack. Once you have installed the XX pack,
you can switch back to any other pack or install a new pack. The XX applications will always
be stored on your applications screen.
XX TV gives you the ability to listen to audio clips and to view video clips right from your
device's display.Watch live TV and catch up on episodes of your favorite shows – anywhere on
the Nationwide XX Network.*
Applications and Entertainment 97
XX Music Plus lets you preview, purchase, download, and listen to over a million songs
right on your device.You can even add songs from your own library to round out your on-the-go
playlist.
* XX TV coverage not available everywhere. Content and lineup subject to change.
Select channels also available for casual usage. Visit www.XX.com/tvguide for more
information.
► Tap > .
On the Choose your ID screen tap Get New > XX Pack. Follow the on-screen
prompts to install the XX ID Pack.
– or –
Tap > > XX Zone > XX
Applications. Follow the on-screen prompts to install the XX ID Pack.
XX TV & Movies
The XX TV application offers a wide variety of accessible channels. Subscription options
include comprehensive basic packages as well as a full menu of “a la carte” channels. Visit
www.XX.com/tvguide for more information on channels and pricing.
Some of the available categories may include:
● XX Radio XX Power View
● Primetime TV
● Music Videos
● XX TV Live Music
● Sports
● Entertainment
● Cartoons
● News & Weather
● Movies & Shorts
● Mobile Previews
Note: Available categories and content are subject to change.
Applications and Entertainment 98
Watching TV
1. Tap > > XX TV & Movies. Depending on your settings, your device may
prompt you to accept a data connection.
2. Select Live TV, On Demand, or Movies to display channel options.
3. Tap an entry to select a channel from the XX TV listings or to select an available
category.
Note: The first time you access a channel, the system will prompt you to purchase access
(unless the channel doesn't have a monthly fee). Tap Subscribe to purchase access.
4. If applicable, tap a desired clip to view the program. The clip will automatically load and
begin playing.
Tip: Scroll through the channels to view more selections. Once you find a channel that you
want to watch or listen to, simply touch it and wait approximately three seconds, and the
channel begins loading.
Music
You can play audio files that are stored on your device's microSD card. Copy audio files from
your computer onto the microSD card before you open the Music application. The Music
application supports audio files in numerous formats, including MP3, M4A (DRM-free AAC files,
from iTunes®), AMR, MIDI, and OGG Vorbis.
Music Player
1. Tap > > Music.
2. You can select music tracks from the following tabs:
Artists: To display your music library sorted by artist.
Albums: To display your music library sorted by album.
Songs: To browse through your downloaded music library.
Playlists: To select a customized playlist you’ve created.
3. Once you’ve displayed a list of songs, you can browse through your available titles.
To listen to a song or playlist, tap it to begin playing.
Applications and Entertainment 99
Creating a Playlist
1. Tap > > Music > Songs.
All compatible music files are displayed.
2. Touch and hold a song you’d like to add to a playlist. A popup menu is displayed.
3. Press Add to playlist and select either Current playlist or New (to create a new playlist).
If you select New, delete the current default name, enter a name for your new playlist,
then tap Save.
Assigning a Song as a Ringtone
1. Tap > > Music > Songs.
2. Touch and hold a song you’d like to use as your new ringtone. A popup menu is
displayed.
3. Tap Use as phone ringtone to set the selected song as your new default ringtone.
4. Confirm the song has been successfully assigned by navigating to your Phone ringtone
menu.
Tap > <Arrow Key> > Sound > Phone ringtone.
5. Confirm the new song is selected.
Backing Up Your Downloaded Music Files
XX recommends that you back up your downloaded music files to your computer. Although
the downloaded files can only be played on your device and on your account, backing them up
to your computer lets you access the files in case your microSD card is lost or damaged, or if
you install a new microSD card. (See Connecting Your Device to Your Computer.)
1. Connect your device to your PC using a USBcable or the built-in connection on Bluetooth
-enabled phones.
2. Use your computer to navigate to the microSDcard’s Music folder.
3. Select and copy the music files to a folder on your computer’s hard drive.
XX Music Plus
The XX Music Plus store lets you purchase and download digital music files to play on your
device or computer.
Applications and Entertainment 100
Accessing XX Music Plus
1. Tap > > XX Zone> XX Applications > XX Music Plus.
Depending on your settings, your device may prompt you to accept a data connection.
2. Follow the on-screen instructions to download the application.
3. Tap <Arrow Key> > Notifications. Tap the Download
complete field for the XX Music app and tap Install.
Purchasing and Downloading Music from XX Music Plus
1. Tap > > XX Music Plus.
2. Tap My Library, Downloads, Music Store, Ringtone Store, or Ringback Tone Store
to begin your music selection.
My Library allows you to access your music library.
Downloads allows you to view any pending downloads.
Music Store provides access to New Releases,Top Downloads, or Genres of
music.
Ringtone Store provides access to New Ringtones, Top Ringtones, or Genres of
music.
Ringback Tone Store provides access to New Ringback Tones, Top Ringback
Tones, or Genres of music.
YouTube™
YouTube™ is a video sharing website on which users can upload and share videos. The site is
used to display a wide variety of user-generated video content,including movie clips, TV clips,
and music videos, aswell as video content such as video blogging, informational shorts and
other original videos.
Note: YouTube is a data-intensive feature. XX recommends that you upgrade to an
unlimited data plan to avoid additional data charges.
1. Tap > > YouTube.
2. To search for videos, tap or tap .
3. Enter the text to search for or tap to search by voice.
4. If entering text, tap a suggestion below the search box or tap to search.
Applications and Entertainment 101
5. Scroll through the search results and tap a video to watch it.
6. Tap to return to the previous page.
Note: It is not necessary to sign in to the YouTube site to view content. However, if you wish to
sign in to access additional options, tap <Arrow Key> > My account. Then enter your
username and password and tap Sign in.
GPS Navigation
GPS Services
Google Maps™
TeleNav™ GPS Navigator
Getting Driving Directions
Navigation
GPS Services
Your device's built-in GPS capability gives you accessto a number of location-based services,
including Maps, Navigation, and TeleNav™ GPS Navigator.
Activating Location Mode
Before using any of the location-based services, you must turn on your device's location mode.
1. Tap > <Arrow Key> > Settings > Location & security.
2. Tap Use GPS satellites to place a checkmark and activate your GPS.
Activating Using Wireless Networks
This additional location feature uses open Wi-Fi and mobile network connections to assist in
providing additional location accuracy.
1. Tap ><Arrow Key> > Settings > Location & security.
2. Tap Use wireless networks to place a checkmark and activate this feature. (A green
checkmark appears.)
Applications and Entertainment 102
Since this feature is based on Google’s location service, you will need to agree to
allow Google to collect anonymous information.
3. Tap Agree to accept the terms of service.
Google Maps™
You can use Google Maps to find your current location;to view real-time traffic conditions; to get
detailed directions by foot, public transportation, bicycle, or car; and to navigate by using spoken,
turn-by-turn driving instructions using the Google Maps Navigation (beta) service. You can
search on a street map or a satellite image to locate an address or a landmark, and you can
view some locations as if you were strolling down the street. If you join Google Latitude, you can
view your friends’ locations on your maps and share your location and other information with
them. There are some locations that Maps does not have information about.
To launch the Google Maps application and view your location:
1. Tap <Arrow Key> > > Maps
2. Tap <Arrow Key> > .
The map centers on a blue arrow that indicates your location. A blue circle around the dot
indicates that your actual location is with in the circle.
To get an address and additional information for a location:
► Touch and hold a location on the map. A balloon with the address and a thumbnail from
Street View (if available) opens over the location.
► Tap the balloon to access additional options.
To utilize Google Maps:
1. Tap > > Maps
If prompted, read the What’s new message and tap OK.
2. Tap the magnification icons to zoom in or out of the current map view.
Applications and Entertainment 103
– or –
Tap <Arrow Key> to utilize other Google Map features.
Choose from: Search, Directions, Starred Places, Clear Map, Join Latitude, and
More.
To search for a location:
1. While viewing a map, tap <Arrow Key> > Search.
– or –
Simply tap .
2. In the search box, enter the place you're looking for.
You can enter an address, a city, or a type of business or establishment. For
example, “theater in New York”.
3. Tap .
Markers with letter labels indicate search matches on the map.
4. Tap a marker to open a balloon that contains a label. Tap the balloon to open a screen
with more information about the location, as well as options for obtaining directions.
To get directions:
1. While viewing a map, tap <Arrow Key> > Directions.
2. Enter a starting point in the My Location field, or leave as is to allow GPS to find your
location, and your destination in the End point field.
Tap to open a menu with options for selecting an address from your Contacts or
a point that you touch on a map.
To reverse directions, tap <Arrow Key> > Reverse Start & End.
3. Tap the icon for car, public transit, bicycling, or walking directions.
4. Tap Go. The directions to your destination appear in a list.
5. You can choose the directions format:
Read directions as text.
Applications and Entertainment 104
Tap Show on map to see the directions on a map.
Tap Navigate to get spoken, turn-by-turn directions from Google Maps Navigation.
When you're finished, tap <Arrow Key> > More > Clear map to clear the map.
TeleNav™ GPS Navigator
TeleNav GPS Navigator gives you turn-by-turn directions onscreen and over speakerphone.
Note: Depending on your service plan, TeleNav may requirea monthly subscription. Contact
XX for informationand pricing.
Some features may be available only with a subscription to TeleNav GPS Navigator
Premium.
Getting Started with TeleNav GPSNavigator
Before you can use TeleNav GPS Navigator, you must first install the XX ID pack.
► Tap > . On the Choose your ID screen tap Get New > XX Pack. Follow
the onscreen prompts to install the XX ID Pack.
– or –
Tap > > XX Zone> XX Applications. Follow the onscreen prompts
to install the XX ID Pack.
Registering TeleNav GPS Navigator
Before you can use the TeleNav GPS Navigator, your device and service must be registered.
1. Tap > > TeleNav GPS Navigator.
2. Read the disclaimer and touch Accept to acknowledge the terms of use.
3. Tap each of the onscreen registration fields and enter the required information.
First Name, Last Name, and Email (optional).
If using the onscreen keyboard, tap Next to store your information.
4. Tap Continue to register your information.
5. Tap Yes to take a brief tour of the Navigation features, or No, Skip Tour to continue to
the main navigation screen.
Applications and Entertainment 105
Using TeleNav GPS Navigator
1. Tap > > TeleNav GPS Navigator.
2. Select an option and follow the onscreen instructions to take advantage of TeleNav’s
fullsuite of features.
Drive To lets you get driving directions from wherever you are to wherever you’re
going. Choices include:
• My Favorites: user-defined favorite locations.
• Recent Places: recently entered locations.
• Address: manually entered street addresses.
• Contacts: those local addresses assigned to previously entered Contacts.
• Places: lets you search for locations from several categories.
• Airport: local airports based on current GPS location.
Places lets you search for locations from dozens of names or category options such
as Food/Coffee, Gas Stations, Gas by Price, Banks/ATMs, WiFi Spots, Parking
Lots, Hotels & Motels, Movie Theaters, etc.
Maps & Traffic provides access to a 2D map of your current location, and other
additional features.
Local Apps allows you to search for movies.
Share & More offers additional options, such as sharing your location with contacts,
creating and storing My Favorites locations, accessing the product tour, looking for
movies and movie theaters, and setting detailed application preferences.
Note: For more information about XX Navigation powered by TeleNav, visit
www.Xx.com/navigation.
Getting Driving Directions
The built-in GPS hardware (when enabled) allows you to get driving directions to selected
locations or establishments based on your current location.
Using a Physical Address
1. Tap > > TeleNav GPS Navigator > Drive To > Address.
Applications and Entertainment 106
2. Manually enter the new address and receive driving directions from the GPS network.
– or –
Tap Say It to place a call to the TeleNav™ operator where you will speak the desired
address. This is similar to calling 411 for directory assistance. (A fee may be incurred.)
3. Tap Address and then enter information (Address, City, State/ZIP, and Country) into any
of the address fields.
4. Tap Done to initiate your search. If prompted to select from a list of matches, tap the
correct address.
5. Follow both the onscreen and audio directions.
To receive turn by turn directions (2D):
1. Tap > > TeleNav GPS Navigator > Drive To > Address.
Note: A 2D map is a flat representation of your projected driving directions. A 3D map
represents the driving directions with a representation of depth.
2. Enter the physical address information, and tap Go.
3. Tap <Arrow Key> > Summary to receive a detailed turn by turn description for navigating
to your desired location. Choose from Route Summary, MapSummary or Traffic
Summary.
To search nearby locations based on type:
1. Tap > > TeleNav GPS Navigator > Drive To > Places..
2. Select a category from the list that displays. A list of nearby businesses under that
category will display..
Using a Local Business Category
The LG-LS831 can also cross-reference your current location with local business and points of
interest, such as Grocery Stores, Gas Stations, Wi-Fi Spots, Malls, Hospitals, etc.
1. Tap > > TeleNav GPS Navigator > Places.
2. Tap one of the available categories: Food/Coffee, GasStations, Gas by Price,
Banks/ATMs, WiFi Spots,Hospitals, etc.
Applications and Entertainment 107
– or –
Enter a location into the Where field to begin retrieving matches. Once you see a
matching business name, touch the entry.
Entries with more than one available category or subcategory) appear with an
adjacent gray arrow. These entries can be expanded and then closed.
3. Tap Search to store your information and begin the search.
4. Tap a matching entry based on star ratings and distances.
To search for the nearest gas station in your area:
1. Tap > > TeleNav GPS Navigator > Places Gas Stations.
2. Select Any, By Price (Regular), By Price (Plus), By Price (Premium), By Price
(Diesel).
3. Tap an entry from the list to display a new route to the selected gas station.
Sharing a Recent Location with Others
Recently queried locations can be saved to you’re my Favorites list and also shared with other
cellular devices.
1. Tap > > TeleNav GPS Navigator > Share & More > Share Address.
2. Tap the Send To: field and then enter a mobile number or email address.
3. Tap Send Now to complete the delivery process.
Configuring Your Navigation Preferences
1. Tap > > TeleNav GPS Navigator > <Arrow Key> > Settings.
2. Touch an entry to change its current setting:
Profile: allows you to alter the current first and last name registered with the service,
as well as email address.
General: allows change general settings,including:
• Language: allows you to assign a current language. Default is English(US).
• Distance Units: allows you to alter the descriptions used for distances:
Km/Meters or Mi/Ft.
Navigation: lets you change navigation settings,including:
Applications and Entertainment 108
• Route Style: allows you to choose the method which is used to provide you
directions from Point A to Point B. The default is Fastest.
• Map Color: allows you to to select Auto, Daytime, or Nighttime.
• Avoid: allows you to set up obstacles that should be avoided when determining
travel routes: HOV Lanes, Tools, and Traffic Delays space. Tap Done to set
these parameters.
• Map Style: allows you to setup a preferred traffic display view. Choose from 2D
Maps or 3D Maps (default).
• Backlight: allows you to assign the backlight settings. Choose from On, Off, or
On at Turns.
• Traffic Alerts: allows you to setup a traffic alert notification when these appear
on your current travel route. Choose from On or Off.
Audio: lets you change the audio readout given during your navigation session .
Select from With Street Names, Without Street Names, or No Audio.
Launching the Product Tour
► Tap > > TeleNav GPS Navigator > don't see this.
Navigation
Another Google Maps navigation application is available on your device. It uses your current
location (provided by GPS communication to your device) to provide various location-based
services.
1. Tap > > Navigation.
2. Read the onscreen disclaimer and tap Accept.
3. Choose from the following onscreen options:
Speak Destination to use the voice recognition feature to search for matching
locations in your area.
Type Destination to manually enter a destination address.
Contacts to receive turn-by-turn directions to the address stored for a selected
Contacts entry.
Starred Places to obtain directions to locations that have been starred within Google
maps (maps.google.com)
Web and Data 110
Web and Data
Your device's data capabilities let you wirelessly access the Internet or your corporate network
through a variety of connections, including:
Connecting to Wi-Fi Networks
Data Services
Virtual Private Networks
Browser
Connecting to Wi-Fi Networks
Wi-Fi is a wireless networking technology that can provide Internet access at distances of up to
100 meters, depending on the Wi-Fi router and your surroundings.
To use Wi-Fi on your device, you must connect to a wireless access point. Some
access points are open and you can simply connect to them without entering any information.
Others are hidden or implement other security features, so you must configure your device to
connect to them.
Turn off Wi-Fi when you're not using it to extend the life of your battery.
When you connect to a Wi-Fi network, the device obtains a network address and other
information it needs from the network, using the DHCP protocol. To configure the device with a
static IP address and other advanced settings, tap <Arrow Key> > Advanced from the Wi-Fi
settings menu.
To turn Wi-Fi on and connect to a Wi-Fi network:
1. Tap ><Arrow Key> .
2. Tap Settings > Wireless & networks > Wi-Fi settings.
3. Tap Wi-Fi to turn Wi-Fi on and scan for available Wi-Fi networks.
A list of available Wi-Fi networks will be displayed. Secured networks are indicated
by a lock icon.
If the device finds a network that you have connected to previously, it automatically
connects to it.
4. Tap a network to connect to it.
Web and Data 111
If the network is open, you will be prompted to confirm that you want to connect to
that network by touching Connect.
If the network is secured, you will be prompted to enter a password. (Ask your
network administrator for details.)
When you're connected to a network, you can tap the network name in the Wi-Fi
settings screen for details about the speed, security, address, and related settings.
To receive notifications when open networks are in range:
By default, when Wi-Fi is on, you receive notifications in the Status Bar when your device
detects an open Wi-Fi network.
1. Turn on Wi-Fi, if it's not already on.
2. From the Wi-Fi settings screen, tap Network notification to checkmark the box. Tap
again to remove the checkmark and stop receiving notifications.
To add a Wi-Fi network:
You can add a Wi-Fi network manually if it does not broadcast its name (SSID) or if you want to
add a Wi-Fi network when you are out of its range.
To add a secured network, you need to contact the network’s administrator to obtain the
password or other required security credentials.
1. Turn on Wi-Fi, if it's not already on.
2. From the Wi-Fi settings screen, tap Add Wi-Fi network.
3. Enter the Network SSID (name) of the network. If the network is secured, tap the
Security drop-down menu and tap the type of security used for the network.
4. Enter the required passwords and security credentials.
5. Tap Save.
The device will connect to the wireless network. Any credentials that you entered are
saved, so you are connected automatically the next time you come within range of this
network.
To forget a Wi-Fi network:
You can also make the device forget about the details of a Wi-Fi network that you have added.
For example, if you don't want the device to connect to it automatically or if it is a network that
you no longer use.
1. Turn on Wi-Fi, if it's not already on.
Web and Data 112
2. In the Wi-Fi settings screen, touch and hold the name of the network.
3. Tap Forget network.
Data Services
With your XX service, you are ready to start enjoying the advantages of data services. This
section will help you learn the basics of using your data services, including managing your user
name, launching a data connection, and navigating the Web with your device.
Important: Certain data services requests may require additional time to process. While your
device is loading the requested service, the touchscreen or QWERTY keyboard
may appear unresponsive when in fact they are functioning properly. Allow the
device some time to process your data usage request.
Your User Name
When you buy your device and sign up for service, you’re automatically assigned a user name,
which is typically based on your name and a number, followed by “@XX.com.” (For
example, the third John Smith to sign up for XX data services might have
jsmith003@XX.com as his user name.)
When you use data services, your user name is submitted to identify you to the Nationwide
XX Network. Your user name will be automatically programmed into your device. You don’t
have to enter it.
Updating Your User Name
If you choose to change your user name and select a new one online, you must then update the
user name on your device.
► Tap > > Settings > About phone > System updates > Update PRL.
Your profile will be automatically updated by the network.
Launching a Web Connection
► Tap > > Browser.
Note: You can connect to the Internet via Mobile network or via Wi-Fi (access by pressing >
Settings > Wireless & networks).
Once the Browser loads, you are directed to the home page.
Tip: To change the default home page, tap <Arrow Key> > More > Settings > Set home
page.
Web and Data 113
Note: The Browser automatically launches when a Web link is touched from within an email or
text message.
Data Connection Status and Indicators
Your phone notifies you of the current status of your data connection through status icons in the
Status Bar. The following symbols can be displayed:
Your device is connected to the high-speed XX Mobile Broadband Network (3G).
When the arrows are animated, your device is transferring data. When the arrows are
gray, your device is connected to the network but is not currently transferring data. In
either state, you can receive incoming calls.
Your device is connected to the XX 1xRTT data network. When the arrows are
animated, your device is transferring data and you cannot receive calls. When the
arrows are gray, your device is connected to the network but is not currently transferring
data and you can receive calls.
If you do not see an indicator, your device does not have a current data connection. To launch a
connection, see Launching a Web Connection.
Virtual Private Networks (VPN)
From your device, you can add, set up, and manage virtual private networks (VPNs) that allow
you to connect and access resources inside a secured local network, such as your corporate
network.
Prepare Your Device for VPN Connection
Set Up Secure Credential Storage
Add a VPN Connection
Connect to a VPN
Disconnect From a VPN
Preparing Your Device for VPN Connection
Depending on the type of VPN you are using at work, you may be required to enter your login
credentials or install security certificates before you can connect to your company’s local
network. You can get this information from your network administrator. Before you can initiate a
VPN connection, your device must first establish a Wi-Fi or data connection. For information
about setting up and using these connections on your device, see Launch a Web Connection
and Turn Wi-Fi On and Connect to a Wireless Network.
Web and Data 114
Setting Up Secure Credential Storage
If your network administrator instructs you to download and install security certificates, you must
first set up the device’s secure credential storage.
1. Tap > <Arrow Key> > Settings > Location & security > Set password.
2. Enter a new password (at least eight characters without any spaces) for the credential
storage, scroll down and confirm the password, and then tap OK.
3. Select the Use secure credentials check box.
You can then download and install the certificates needed to access your local network. Your
network administrator can tell you how to do this.
Adding a VPN Connection
1. Tap > <Arrow Key> > Settings > Wireless & networks > VPN settings.
2. Tap Add VPN, and then tap the type of VPN you want to add.
3. Tap VPN settings and set them up according to the security details you have obtained
from your network administrator.
4. When finished, tap <Arrow Key> > Save.
The VPN is then added to the VPNs section of the VPN settings screen.
Connecting to a VPN
1. Tap > <Arrow Key> > Settings > Wireless & networks > VPN settings.
2. In the VPNs section, tap the VPN that you want to connect to.
3. When prompted, enter your login credentials, and then tap Connect. When you are
connected, the VPN connected icon appears in the notification area of the title bar.
4. Open the Web browser to access resources such as intranet sites on your corporate
network.
Disconnect From a VPN
1. Touch and drag down the Status Bar to open the Notifications panel.
2. Tap the VPN connection to return to the VPN settings screen, and then tap the VPN
connection to disconnect from it.
When your device has disconnected from the VPN, the VPN disconnected icon is displayed in
the notification area of the title bar.
Web and Data 115
Browser
Web pages that are optimized for mobile devices typically open at a size appropriate for your
device. Often, you can't zoom or even scroll their contents. Web pages that aren't designed
specifically for mobile devices typically open in overview mode- the page is zoomed out so you
can get the big picture.
Learn to Navigate the Browser
Navigating through menus and websites during a data session is easy once you’ve learned a
few basics. Here are some tips for getting around:
Note: Prior to gaining access to XX’s Powerdeck Webpage, you may be asked to enter your
10-digit PCS phone number and tap Ok. Entering your phone number is not required for
access to other Web pages.
Scrolling
As with other menus on your phone, you’ll have to scroll up and down to see everything on
some websites.
To scroll a Web page:
► Slide your finger on the screen in the direction you wish to scroll.
Selecting
Once you’ve learned how to scroll, you can start navigating the Web.
To select items or links:
► Simply tap a link or an item.
Links, which are displayed as underlined text, direct you to Web pages, select special functions,
or even place calls.
Going Back
To go back one page:
► Tap on your device. Repeat this process to keep going back through your recently
visited pages.
Finding and Copying Text on a Web Page
To find text on a Web page:
1. Tap <Arrow Key> > More > Find on page.
Web and Data 116
2. Enter the text you're looking for.
As you type, the first word with matching characters is highlighted on the screen and
subsequent matches are boxed.
3. Tap the left or right arrow to jump to and highlight the previous or next matching word.
To copy text from Web page:
1. Open a Web page and scroll to the beginning of the text you want to copy
2. Tap <Arrow Key> > More > Select text.
3. Use your finger to drag across the text you want to copy. The text you selected is copied
to the clipboard. You can now use the techniques described in Entering Text to paste the
copied text into a text field.
Going to a Specific Website
To go to a particular website by entering a URL(website address):
1. Tap the URL field (top of the Browser window) and enter a new Web address.
As you enter the address, possible matches are displayed. Tap an entry to launch
the desired website.
2. Tap to launch the new page.
Browser Menu
The Browser menu offers additional options to expand your use of the Web on your device.
Opening the Browser Menu
The Browser menu may be opened anytime you have an active data session, from any page
you are viewing.
► From any open Web page, tap .
Options available within the Browser menu include:
● New window: Launches a new Browser window while maintaining the current Web
page active.
● Bookmarks: Allows you to access and manage your Bookmarks.
● Windows: Displays the currently active Browser windows as a list. Tap a window entry
to launch that window.
● Refresh: Reloads the current Web page and displays the most current information.
Web and Data 117
● Forward: Forwards you to a previously viewed page.
● More: provides the following additional Browser options:
Add bookmark: Allows you to assign the current Web page as a new bookmark.
Find on page: Allows you to search the current Web page for a word.
Select text: Allows you to select text from the current Web page and copies it to the
clipboard.
Page info: Displays the Name and URL (website address) of the Web page you’re
currently viewing.
Share page: Allows you to send a URL via Bluetooth, Email, Gmail, and Messaging.
Downloads: Displays your download history.
Settings: Allows you to configure and manage your Browser settings.
Adjusting Browser Page Settings
1. Tap <Arrow Key> to open the Browser menu.
2. Tap More > Settings.
3. In the Page content settings area, select from one of the following Web page settings:
Text size: Allows you to increase or decrease the size of the text that the Browser
uses when displaying Web pages. Options include: Tiny, Small, Normal, Large, or
Huge.
Default zoom: Allows you to increase or decrease the magnification level that the
Browser uses when first opening a Web page. Choose from: Far, Medium, or Close.
Open pages in overview: When checkmarked, Webpages are displayed in an
overview. If the checkmark is removed, the Web page is displayed at 100% size.
Text encoding: Allows you to change the character-encoding standard that the
Browser uses when displaying text on a Web page.
Block pop-up windows: When checkmarked, this feature allows the device to block
pop-up windows and prevent websites from opening windows unless you request it.
Load images: When checkmarked, this feature allows the Browser to load images
when displaying a Web page. Remove the checkmark to allow the Browser to omit
images when displaying a Web page.
Web and Data 118
Auto-fit pages: When checkmarked, the Browser optimizes the presentation text
and other elements of Web pages to fit your device’s screen. If the checkmark is
removed, Web pages can be viewed as designed for a computer screen.
Landscape-only display: When checkmarked, this feature allows your device to
display pages in landscape (horizontal) orientation on your screen, regardless of how
you are holding the device.
Enable JavaScript: When checkmarked, the Browser allows JavaScript to run.
Remove the checkmark to prevent JavaScript from running.
Enable plug-ins: When checkmarked, plug-ins are enabled on Web pages. Remove
the checkmark to disable plug-ins from Web pages.
Open in background: When checkmarked, links opened in a new window will open
in the background. If the checkmark is removed, new windows will open in place of
the current window.
Set home page: Allows you to enter a URL to set as your Home page. (See Setting
the Browser Home Page)
4. Tap <Arrow Key> to return to the Browser.
Adjusting Browser Page Settings
1. Tap <Arrow Key> to open the Browser menu.
2. Tap More > Settings.
3. Navigate to the Privacy settings area and select from one of the following privacy
settings:
Clear cache: Clears all currently cached content and databases. Tap OK to
complete the process.
Clear history: Clears the Browser navigation history. Tap OK to complete the
process.
Accept cookies: When checkmarked, your device allows Web pages to store
cookies. Remove the checkmark to prevent Web pages from storing cookies on your
device.
Invert Color: Displays pages in inverted color.
Clear all cookie data: Clears all current Browser cookie files.
Remember form data: When checkmarked, the Browser remembers what you
entered in a form on a site and displays matching entries when entering text in a
form. Remove the checkmark to disable this feature.
Web and Data 119
Clear form data: Deletes all the information the Browser remembers about what
you've entered informs. Tap OK to complete the process.
Enable location: When checkmarked, you permit websites with location-specific
content to ask whether you want to share your location, using your device's GPS. To
provide a website with your location, you must also have location sharing enabled in
the Settings application.
Clear location access: Allows you to clear the permissions to access your location
that you’ve granted to websites in the past. If those websites want permission to
access your location again, you must grant it again.
4. Tap to return to the Browser.
Adjusting Browser Security Settings
1. Press to open the Browser menu.
2. Tap More > Settings.
3. Navigate to the Security settings area and select from one of the following security
settings:
Remember passwords: The Browser can remember your usernames and
passwords for some Web pages that require you to log in to make it quicker to
access those pages on repeat visits. Remove the checkmark to prevent the Browser
from storing usernames and passwords.
Clear passwords: Deletes all saved passwords that the Browser has stored. Tap
OK to complete the process.
Show security warnings: When checkmarked, you will be notified if there is a
security issue with the current website. Remove the checkmark to disable this
function.
4. Tap to return to the Browser.
Setting the Browser Home Page
1. Tap <Arrow Key> to open the Browser menu.
2. Tap More > Settings > Set home page.
3. Delete the current address and enter a new URL. If you are viewing the Web page you
want to set as the Home page, tap Use current page instead.
4. Tap OK to complete the process.
Web and Data 120
Resetting the Browser to Default
1. Tap <Arrow Key> to open the Browser menu.
2. Tap More > Settings > Reset to default.
3. Tap OK to complete the process.
Creating Website Settings
1. Tap <Arrow Key> to open the Browser menu.
2. Tap More > Settings > Website settings. These advanced settings that can be
configured for individual sites (ex: Clear location access).
3. Tap OK to complete the process.
Creating Bookmarks
You can bookmark Web pages so that you can quickly return to them.
1. From any open Web page, tap <Arrow Key> to open the Browser menu.
2. Tap Bookmarks. Three tabs are revealed:
Shortcut: From any open Web page, tap (located next to the URL).
Bookmarks: Displays a list of your current bookmarks.
Most visited: Displays a list of your most frequently visited websites.
History: Displays a record of your browsing history. These records are organized
into folders such as: Today, Yesterday, 5 days ago, and 1month ago.
3. In the Bookmarks tab, tap Add.
4. Enter a descriptive name and URL for the new bookmark
5. Tap OK to store the new entry to your Bookmarks list.
To create Bookmarks from other Tabs:
1. From any open Web page, tap <Arrow Key> >Bookmarks.
– or –
From any open Web page, tap .
2. Tap either the Most visited or History tab.
Web and Data 121
3. Tap the star icon adjacent to a Web page entry. The star now turns gold. This adds the
“starred” website to your current Bookmarks list.
– or –
Touch and hold an entry from the list to display a popup menu. Then, tap Add bookmark
to add the selected entry to your current list of bookmarks.
To create a New Homepage:
1. From any open Web page, tap <Arrow Key> >Bookmarks.
– or –
From any open Web page, tap .
2. Tap either the Most visited or History tab.
3. Touch and hold an entry from the list to display a popup menu.
4. Tap Set as homepage to assign the selected entry as your new homepage.
Adding Bookmarks to Your Start Screen
1. From any open Web page, tap <Arrow Key> > Bookmarks.
– or –
From any open Web page, tap .
2. Touch and hold an existing entry from the list to display a popup menu.
3. Tap Add shortcut to Home to add the selected entry to your Start Screen.
Web and Data 122
Voice Dialer
You can use your device’s built-in automatic speech recognition (ASR) software, called Voice
Dialer, to dial a phone number in your Contacts or to launch device functions without having to
go through the phone menus. All you have to do is to talk into the phone, and ASR will
recognize your voice and complete tasks by itself.
Voice Dialing
Opening Menus With Voice Dialer
Text-to-Speech
Voice Search
Web and Data 123
Important Note: The Voice Control (Speech to Action) feature will not launch if you are
currently in an active menu.
Activating Voice Dialer
► Tap > > Voice Dialer.
The screen displays “Listening” and the phone prompts you to say the name of the command
you want to use. To complete your task, simply follow the voice prompts or touch an onscreen
option.
Available ASR commands include:
● Call <Name> to call an entry in your Contact List.(See Making a Voice Call With Voice
Dialer.)
● Dial <#> to call a spoken phone number.
● Redial to call back the last Contact you dialed.
● Open <Menu> to jump directly to menu items or applications. (See Opening Menus With
Voice Dialer.)
Tip: Use Voice Dialer in a quiet environment so it can accurately recognize your commands
Making a Voice Call With Voice Dialer
1. Tap > > Voice Dialer.
2. When you see “Listening,” say “Call” followed by the name and the label for the phone
number you wish to call. For example, say “Call John Smith Mobile.” The device dials
the number stored for the contact “John Smith” with the label “Mobile.”
If the location is not recognized or the name does not have a phone number stored in
Contacts, your device will display a list of possible options.
If a name has only a single number, or if you know the name but are not sure which
number to call, say “Call” followed by the name only. For example, say “Call John.”
If the name is recognized and there is only one phone number for the name, your
device immediately places the call.
Calling a Phone Number with Voice Dialer
1. Tap > > Voice Dialer.
2. When you see “Listening,” say “Dial” followed immediately by a phone number, for
example, say “Dial 555 555 5555.”
Web and Data 124
3. Speak naturally and clearly and remember to speak one digit at a time—1-800 should be
pronounced “One Eight Zero Zero. Speak naturally and clearly and remember to speak
one digit at a time—1-800 should be pronounced “One Eight Zero Zero.”
Opening Menus With Voice Dialer
The Voice Dialer application allows you to directly open many menu items or applications by
saying voice commands.
1. Tap > > Voice Dialer.
2. When you see “Listening,” say “Open” followed by a menu or application.
3. If a list of valid actions is displayed, tap an action, the device opens the selected menu.
Text-to-Speech
The text-to-speech feature allows the device to provide a verbal readout of onscreen data such
as messages and incoming caller information (based on Caller ID).
Text-to-Speech Settings
1. Tap > <Arrow Key> > Settings > Voice input & output > Text-to-speech
settings.
2. Configure any of the following Text-to-Speech settings:
Listen to an example: Plays a short example of what the text-to-speech feature will
sound like on your device when activated.
Always use my settings: Allows you to override the application settings with those
configured within this menu.
Default Engine: Sets the speech synthesis engine to be used for spoken text.
Install voice data: Installs the voice data required for speech synthesis.
Speech rate: Allows you to adjust the rate at which the displayed text is spoken by
the device. Choose from: Very slow, Slow, Normal, Fast, and Very fast.
Language: Allows you to assign the language used by the verbal readout. Choose
from German (Germany), English (United Kingdom), English (United States),
Spanish (Spain), French (France), or Italian (Italy).
Pico TTS: Allows you to configure the Pico TTS language settings.
Web and Data 125
Voice Search
Voice Search uses built-in voice recognition software to listen to your spoken words, convert
those to text, then launch a Google search using that text.
1. Tap > > Voice Search.
2. Speak clearly into the microphone. If an error occurs, tap Speak again.
3. You can then touch a matching entry from the Google search page to direct you to the
item you are searching.
Camera and Video 126
Camera and Video
You can use the camera or camcorder to take and share pictures and videos. Your device
comes with a 3.2 megapixel camera with an autofocus feature that lets you capture sharp
pictures and videos.
Taking Pictures
Recording Videos
You can take pictures and record videos using the Camera application. You can also view your
pictures and videos with the Gallery application.
Note: Pictures and videos are stored in a microSD card. Please make sure that the device has
a microSD card inserted before taking pictures or recording video.
Be sure to clean the protective lens cover with a microfiber cloth before taking pictures.
A lens cover with smudges from fingers can cause blurry pictures with a“halo” effect.
Taking Pictures
Taking pictures with your device's built-in camera is as simple as choosing a subject, pointing
the lens, and pressing a button.
To take a picture:
1. Press and hold the camera button located on the right side of the device.
– or –
Tap > > Camera to activate camera mode. (Additional camera options are
available through the camera settings page. See Camera Settings for more information.)
2. Frame your subject on the screen.
3. Press or tap until the shutter sounds. The camera brings the image into
focus. When the image is in focus, the focus indicators in each corner turn green and the
camera takes a picture. (Your device automatically saves the picture to the microSD
card.)
Camera Settings
From the camera mode, tap each icon to adjust the following camera settings.
Camera and Video 127
Settings
• Focus mode to set the focal properties of the camera lens. Choose from Auto
(default), Infinity, Macro (close up images), or Fixed.
• Scene mode to select Auto or Portrait.
• Picture size to set the size of your picture. Choose from 3M Pixels, 2M Pixels,
1M Pixels, VGA, or QVGA.
• Picture quality to set the image quality for your picture. Choose from Super fine,
Fine, or Normal.
• Color effect to apply different color effects to your pictures. Choose from None,
Mono, Sepia, Negative, Aqua, Sketch, Mono-Negative.
• ISO to control the camera's sensitivity to light. Choose from Auto (default), 100,
200, 400, or 800.
• Auto Review to set whether to view the picture that was just taken. Choose from
No Review, 2secs(default), or 5secs.
• Restore to defaults to restore the settings back to the default values.
Store location to decide whether to use the device’s GPS to include the
location of each picture you take.
• On: Location stored with picture
• Off: Location not stored with picture
White balance to select how the camera adjusts colors in different kinds of
light in order to achieve the most natural-looking colors for your pictures. Choose
from Auto, Incandescent, Daylight, Fluorescent, or Cloudy.
Flash mode to select Auto, On, or Off.
Zoom to zoom in on an object. You can adjust the zoom from 1x to 2.9x.
Select camera to select Back or Front.
Viewing Your Pictures
The Gallery is where you can access the Gallery of stored camera images. You can view them
in a slideshow, share them with your friends, and delete and edit them.
1. Tap > > Gallery.
Camera and Video 128
2. Select a location and tap an image to view your picture.
• Tap an image to open it, and tap Menu or tap <Arrow Key> for options, such as
Share, Delete, and More.
• Tap to return to the previous screen.
Gallery Options
The Gallery application presents the pictures and videos on your microSD card, including those
you’ve taken with the Camera application and those you downloaded from the Web or other
locations.
If you have one of your device's Google™ Accounts, you’ll also see your Picasa Web albums in
Gallery.
1. Tap > > Gallery to view the gallery of images stored on the microSD card.
Drag left or right to view more albums.
2. Tap an album to open it and view its contents. (The pictures and videos in the album are
displayed in chronological order.)
3. Tap a picture in an album to view it.
Tap at the top left of the screen to return to the main Gallery screen at any time.
Tap Slideshow to watch a slideshow of the current album.
Tap Menu to access the following options:
• Share to share the picture via Messaging, Picasa, Gmail Bluetooth, or Email.
• Delete to delete the picture.
• More to access options such as Details, Set as, Crop, Rotate Left, or Rotate
Right.
Assigning Pictures
After taking a picture, assign it as a picture ID for a Contacts entry or as the Start Screen
background image (wallpaper).
1. Tap > > Gallery.
2. Tap an album and tap an image to view it.
Camera and Video 129
3. With the picture displayed, tap Menu > More > Set as.
4. Select an option.
Contact icon to assign the picture to a Contact entry as a picture ID. Tap an entry
from Contacts, crop the image and tap Save to assign the picture.
Wallpaper to assign the picture as a background image, crop the image and tap
Save to assign the picture.
Recording Videos
In addition to taking pictures, you can record, view, and send videos with your device's built-in
video camera.
1. Press and hold the camera button located on the right side of the device, then
drag the camera mode control to the Video position .
– or –
Tap > > Camera and drag the camera mode control to the
Video position .
– or –
Tap > > Camcorder.
2. Point the lens to frame the scene where you want to start.
3. Tap to start recording the video. The length of the recording is displayed on the
bottom left part of the screen.
4. Tap to stop recording. Your video will be automatically saved to the Gallery.
Video Settings
From video mode, tap each icon to adjust the following camcorder settings.
Settings
• Color effect to apply different color effects to your videos. Choose from None,
Mono, Sepia, Negative, Solarize..
• Restore defaults to restore the settings back to the default values.
Camera and Video 130
White balance to select how the camcorder adjusts colors in different kinds
of light in order to achieve the most natural-looking colors for your videos. Choose
from Auto, Incandescent, Daylight, Fluorescent, or Cloudy.
Flash mode to select whether flash is On or Off.
Video quality to set the video quality and maximum length combination
appropriate for viewing on a computer or for sharing with others via Messaging or
YouTube. Choose from High(Max 1h), Low (Max 2h), MMS (Low, 30s), or
YouTube(High, 10m)
Video Gallery Options
The Gallery is where you can access the Gallery of stored video images. You can view them,
share them with your friends, and delete and edit them.
1. Tap > > Gallery to view the gallery stored on the microSD card.
Scroll left or right to view more albums.
2. Tap an album to open it and view its contents. (The pictures and videos in the album are
displayed in chronological order.)
3. Press twice, then tap a video to place a checkmark and access the following options:
Tap Share to share the video via Messaging, YouTube, Gmail, Bluetooth, or
SmartShare.
Tap Delete to delete the video.
Tap More to view the details of the video.
To play a video:
1. Tap > > Gallery to view the gallery stored on the microSD card.
Scroll left or right to view more albums.
2. Tap an album to open it and view its contents. (The pictures and videos in the album are
displayed in chronological order.)
3. Tap a video in an album to play.
Camera and Video 131
Tap the video to view the playback controls.
Tools and Calendar
Tools and Calendar
Learn how to use many of your device's productivity-enhancing features.
Calendar
Folders
Clock
Alarms
Calculator
Updating Your Android Operating System
Updating Your Profile
Updating Your PRL
Bluetooth
microSD card
Calendar
Viewing Your Calendar and Events
Use the Calendar application you can view the events you have scheduled in the coming days,
weeks, or months.
To open your Calendar application:
► Tap > > Calendar.
If you have created or subscribed to more than one calendar through Google CalendarTM
on the Web, events from each calendar are displayed in a different color. (For
information about which calendars are displayed on your device, see Displaying and
Synchronizing Calendars.)
Note: To go to the current day in any Calendar view, tap > Today.
To change your Calendar view:
Tools and Calendar
► Tap <Arrow Key> > Day, Week, Month, Agenda, or Today. Each view displays the
events in your calendar for the period of time that you specify.
Day View
Week View
Month View
Agenda View
Viewing Event Details
You can view more information about an event in a number of ways, depending on the current
view.
To view information about an event:
► In Agenda, Day, or Week view, tap an event to view its details.
► In Month view, tap a day to switch to Day view. Then tap an event to open the event
summary.
Tools and Calendar
Creating an Event
You can use Calendar on your device to create events that appear on your device and in your
Google Calendar on the Web.
To create an event:
1. Open the Calendar, and tap <Arrow Key> > More > New event.
You can also touch and hold a spot in Day, Week, or Month view. In the menu that
opens, tap New event to open the new event screen with that day and time already
entered.
2. Add details about the event.
Enter a name, and other optional details about the event, just as you would on
Google Calendar (on the web). If you have more than one calendar, you can choose
the calendar to which to add the event. Tap the Plus button to add more
reminders.(See Setting an Event Reminder.)
3. Invite guests to the event.
In the Guests field, enter the email addresses of everyone you want to invite to the
event. Separate multiple addresses with commas ( , ). If the people to whom you
send invitations use Google Calendar, they'll receive an invitation through their
Google Calendar and by email.
4. Tap <Arrow Key> > Show extra options to add additional event details.
5. Scroll to the bottom of the screen and tap Done.
The event will be added to your Calendar. You can also access and configure the
event from Google Calendar on the Web.
Editing or Deleting an Event
You can edit or delete an event that you created on the device or on the Web. You can also edit
or delete events created by others, if they have given you permission.
To edit an event:
1. Open Calendar and tap the event to open it. (See Viewing Event Details.)
2. Tap <Arrow Key> > Edit event.
(For information on how to create or change event information, see Creating an Event.)
Note: Tap the <Arrow Key> > Show extra options to add or edit additional event details.
3. Make your changes to the event.
4. Tap Done.
Tools and Calendar
To delete an event:
► From Agenda, Day, or Week view, tap an event to view the event details. Then, tap
<Arrow Key> > Delete event. Tap OK to confirm.
► From Day or Week view, touch and hold the event then tap Delete event in the menu
that opens. Tap OK to confirm.
► When editing an event, tap the Delete button at the bottom of the screen. Then tap OK
to confirm.
Setting an Event Reminder
You can set one or more reminders for an event, whether or not you created the event or have
permission to edit its other details.
To set an event reminder:
1. Open Calendar and touch the event to open it. (See Viewing Event Details.)
2. Tap Add reminder to add a reminder.
3. Tap the reminder time to display a popup menu and choose your desired setting.
At the designated time, you will receive a notification to remind you about the event.
(See Responding to an Event Reminder.)You can also use Google Calendar (on the
Web) to configure additional reminders.
To delete an event reminder:
1. Open Calendar and tap the event to open it.
2. Tap to remove a reminder.
Responding to an Event Reminder
If you set a reminder for an event, the reminder notification appears in the Status Bar when the
reminder time arrives. (See Using the Notifications Panel.)
To respond to an event reminder:
► If you receive notifications in the Status Bar, drag the Notification panel down to your
notifications. Tap the event notification to open the list of Calendar notifications.
► Tap an event in the Calendar Notifications list to view more information about that event.
► Tap Snooze all in the Calendar Notifications list to receive the reminder again 5 minutes
later.
► Tap Dismiss all in the Calendar Notifications list to delete all reminders in the list.
Tools and Calendar
► Tap when viewing the Calendar Notifications list to keep the reminders. The
reminders will remain in the Status Bar.
Displaying and Synchronizing Calendars
Initially, all calendars that you create or subscribe to through Google Calendar on the Web are
also displayed in the Calendar application on your device. You can select which calendars to
show or hide on the device, and which to keep synchronized.
You can also control whether any data is synchronized to your device by using the General sync
settings in Settings > Accounts & sync.
(For more information, see Configuring Account Sync and Display Options.)
Only the calendars that you've created or subscribed to on the Web are shown in the
Calendars list.
To show or hide calendars:
1. Tap <Arrow Key> > More > Calendars.
2. Tap the button to the right of each calendar to show or hide it. If is displayed, the
calendar is shown. If is not displayed, the calendar is hidden. The status of the
calendar is also displayed in text under the calendar's name.
To stop syncing calendars to your device:
1. Tap <Arrow Key> > More > Calendars.
2. Tap the button to the right of each calendar stop syncing. If is not displayed, the
calendar will not sync. The status of the calendar is also displayed in text under the
calendar's name.
To synchronize calendars to your device:
1. Tap <Arrow Key> > More > Calendars.
2. Tap the button to the right of each calendar to sync it. If is displayed, the calendar will
sync. The status of the calendar is also displayed in text under the calendar's name.
Changing Calendar Settings
You can change the settings for how the Calendar application displays events and how it
notifies you of upcoming events.
To change Calendar settings:
► Open the Calendar, and tap <Arrow Key> > More> Settings.
Tools and Calendar
Hide declined events: Allows you to checkmark declined events so that they are not
displayed in your calendar views. Tap to remove the checkmark and display all
events in your calendar views.
Use home time zone Allows you to checkmark Use home time zone so that the
device displays calendars and event times in your home time zone when traveling.
Home time zone Opens a dialog where you can set the time zone to use in
Calendar when you're traveling, if you have the Use home time zone setting
checked.
Set alerts and notifications: Opens a dialog box to configure event reminders. You
can select to be alerted, to be notified in the Notification panel, or to turn off
notifications. (See Setting an Event Reminder and Responding to an Event
Reminder.)
Select ringtone: Allows you to select which ringtone is used for the Calendar event
reminders.
Vibrate: Allows you to set event reminders to vibrate.
Default reminder time: Allows you to select the default time set for event reminders.
Folders
Folders allow you to organize other Start Screen shortcuts and icons, or folders that contain all
your contacts, contacts with phone numbers, or starred contacts. Your folder's contents are kept
up to date automatically. Organizing in folders can create space to add more shortcuts, widgets,
or applications on the Start Screen.
To add a folder to the Start Screen:
1. Go to the Start Screen pane where you want to add a folder. (Swipe the Start Screen
from left to right or vice versa.)
2. Touch and hold an empty spot on the Start Screen pane.
3. Tap Folders > New folder.
To rename a folder:
1. Tap the folder icon to open it.
2. Touch and hold the folder window's title bar.
3. Enter the new folder name.
4. Tap Done > OK.
To organize items on the Start Screen in a folder:
Tools and Calendar
► Just drag a shortcut, an icon, or a folder and drop in a folder.
Clock
You can use Clock application to monitor several types of information at once, in addition to the
current date and time.
To open the Clock application:
► Tap > > Clock.
The Clock application opens with the date and time displayed on your Start Screen wallpaper,
along with your local weather and other useful information.
► When the Clock application is running, it switches to screensaver mode after a few
minutes. Simply press a device key to wake the phone up again. To return to the Start
Screen, tap at the bottom of the Clock screen.
To play a slideshow:
You can play a slideshow of the pictures in your Gallery albums from the Clock application.
► Tap at the bottom of the Clock screen.
► Tap to end the show.
To play music:
You can play music while the Clock is displayed.
► Tap at the bottom of the Clock screen.
The Music application opens, where you can select music to play. You can return to the Clock
application or use another application while the music is playing.
To dim the Clock display:
If you want to use your device as a bedside clock, you can set the screen brightness very low.
► Tap on the top right of the screen to dim the clock.
► Tap again to restore normal brightness.
Tools and Calendar
Alarms
The Clock application also allows you to set alarms.
To set an alarm:
1. Tap at the bottom of the Clock screen.
2. Tap an existing alarm to change its time and other attributes or tap Add alarm to add a
new one.
3. Tap Time to set the time of the alarm. You can change the time by taping the + or -
buttons and the AM or PM buttons or tap the hour and minutes fields to enter the time
with the keyboard.
4. Tap Repeat to set the days when you want the alarm to sound. (If you don't set a repeat,
the alarm will only sound on the assigned day.)
5. Tap Ringtone to select a ringtone for the alarm. The ringtone plays briefly when you
select it.
6. Tap Vibrate to have the device vibrate, in addition to playing the ringtone.
7. Tap Label to enter a name for the alarm.
8. When you're finished, tap Done.
9. Tap to return to the main Clock screen.
To change clock alarm settings:
1. Tap at the bottom of the Clock screen.
2. Tap <Arrow Key> > Settings.
3. You can set the following options:
Alarm in silent mode: Tap to place a checkmark and allow your device to play
alarms even when it is in Silent mode.
Alarm volume: Allows you to set the volume of alarms.
Snooze duration: Allows you to set how long the Clock waits before playing an
alarm again.
Tools and Calendar
Volume and Camera: Allows you to set the desired behavior of the Volume buttons
and Camera Key when pressed during an alarm.
Calculator
You can use the Calculator application to solve math problems.
To open and use the Calculator:
1. Tap > > Calculator.
2. Enter numbers and arithmetic operators on the basic panel.
3. Drag the basic panel to the left to open the advanced panel.
4. Touch and hold the Calculator’s display to open a menu where you can copy what you’ve
entered and access other tools.
5. Tap Clear to delete the last number or operator you entered. Touch and hold Clear to
delete all of the entered information.
Updating Your Android Operating System
This option allows you to update the Android Operating System (OS) on your device via an
over-the-air connection. There are two components to your LG-LS831: XX User-Interface (UI)
firmware and device Google OS.
1. Tap > <Arrow Key> > Settings > About phone > System updates > Update
Firmware and Update LG Software.
2. Follow the onscreen instructions.
Tools and Calendar
Updating Your Profile
This option allows you to automatically update your online user profile information. If you choose
to change your user name and select a new one online, you must then update the user name on
your device.
1. Tap <Arrow Key> > Settings > About phone > Update Profile > System updates >
Update Profile..
2. Follow the onscreen instructions.
Updating Your PRL
This option allows you to download and update the PRL (Preferred Roaming List) automatically.
1. Tap > <Arrow Key> > Settings > About phone > System updates > Update
PRL.
2. Follow the onscreen instructions.
Bluetooth
Bluetooth is a short-range communications technology that allows you to connect wirelessly to a
number of Bluetooth devices, such as headsets and hands-free car kits, Bluetooth-enabled
handhelds, computers, printers, and wireless phones. The Bluetooth communication range is
usually up to approximately 30 feet
Turning Bluetooth On and Off
Using the Bluetooth Settings Menu
Pairing Bluetooth Devices
Sending Items via Bluetooth
Disconnecting Bluetooth Connection During an Active Call
Turning Bluetooth On and Off
By default, your device’s Bluetooth feature is set to Off. Turning Bluetooth on makes your device
“discoverable” by other in-range Bluetooth devices.
Note: Activating Bluetooth can drain your battery faster and reduce your available usage times.
To conserve your device’s battery, turn off Bluetooth when not in use. Always turn off
your Bluetooth when you are in locations that prohibit its use.
To turn Bluetooth on:
Tools and Calendar
1. Tap > <Arrow Key> > Settings > Wireless & networks.
2. Tap Bluetooth to place a checkmark and activate the feature. When active, appears
within the Status Bar.
To turn Bluetooth off:
1. Tap <Arrow Key> > Settings > Wireless & networks.
2. Tap Bluetooth uncheck and deactivate Bluetooth.
Bluetooth Status Indicators
The following icons show your Bluetooth connection status at a glance:
– Bluetooth is active
– Bluetooth is connected to a Bluetooth device
The Bluetooth Settings Menu
The Bluetooth Settings menu allows you to set up many of the characteristics of your device's
Bluetooth service, including:
● Entering or changing the name your device uses for Bluetooth communication
● Setting your device's visibility (or “discoverability”) for other Bluetooth devices
To access the Bluetooth Settings menu:
1. Tap > <Arrow Key> > Settings > Wireless & networks.
2. Tap Bluetooth to place a checkmark and activate the feature. When active, appears
within the Status Bar.
3. Tap Bluetooth settings.
4. Set the following Bluetooth options:
Device name: Change your device’s Bluetooth name.
Discoverable: Tap to place a checkmark and make your device visible to other
devices for pairing and communication. (A green checkmark will appear.) Tap again
to uncheck and make your device invisible.
Tools and Calendar
Note: Your device is visible for up to 120 seconds (2 minutes). This value appears as a
countdown within this field.
Scan for devices: If the Bluetooth-compatible device (such as headsets, device,
printer, or computer) you want to pair with isn't on the list, make sure the target
device is set to be discoverable, then tap Scan for devices to scan again.
Pairing Bluetooth Devices
Paired Devices
The Bluetooth pairing process allows you to establish trusted connections between your device
and another Bluetooth device. When you pair devices, they share a passkey, allowing for fast,
secure connections while bypassing the discovery and authentication process.
To pair your phone with another Bluetooth device:
1. Verify your Bluetooth is active.
2. From the Bluetooth settings page, tap Discoverable to place a checkmark and make
your device visible. Your device must be visible to successfully pair with an external
device.
3. Tap Scan for devices. (Your device will display a list of discovered in-range Bluetooth
devices.)
4. Tap a device from the list to initiate pairing.
5. Depending on the device, you might have to tap Pair to accept the passkey (if they match
on both devices) or enter the passkey or PIN Code.
6. Tap Done > OK if you entered a passkey or PIN code or passkey.
7. The external device will then have to accept the connection and enter your device’s PIN
code.
Once successfully paired to an external device, appears within the Status Bar.
Note: Due to different specifications and features of other Bluetooth-compatible devices,
display and operations may be different, and functions such as transfer or exchange
may not be possible with all Bluetooth compatible devices.
Pairing between two Bluetooth devices is a one-time process. Once a pairing has been
created, the devices will continue to recognize their partnership and exchange
information without having to re-enter a passcode again.
To disconnect a paired device:
Tools and Calendar
Disconnecting a paired device breaks the connection between the device and your LG-LS831,
but retains the pairing. At a later point when you wish to reconnect the device, there is no need
to setup the connection information again.
1. Verify your Bluetooth is active.
2. From the Bluetooth settings page, tap the previously paired device (under the Bluetooth
devices section).
3. Tap OK to confirm disconnection.
– or –
From the Bluetooth settings page, touch and hold the name of the previously paired
device, and select Disconnect.
Note: Disconnections are manually done but often occur automatically if the paired device
goes out of range of your LG-LS831 or if it is powered off.
To delete a paired device (unpair):
Deleting a device from your list removes its “connection record” and upon reconnection would
require that you re-enter all the previous pairing information.
1. Verify your Bluetooth is active.
2. From the Bluetooth settings page, touch and hold the name of the previously paired
device (under the Bluetooth devices section). This opens the connected device’s menu
options.
3. Tap Disconnect & Unpair to confirm deletion.
Sending Items via Bluetooth
Depending on your paired devices’ settings and capabilities, you may be able to send pictures,
videos, Contacts information, or other items using a Bluetooth connection.
Note: Prior to using this feature, Bluetooth must first be enabled, and the recipient’s device
must be visible. If no devices are detected, tap Scan devices to begin a new search.
To send contacts information:
1. Tap > > Contacts.
2. Tap an entry to open its details page.
3. Tap <Arrow Key> > Share > Bluetooth.
4. Tap a paired device.
Tools and Calendar
The external Bluetooth device must be visible and communicating for the pairing to
be successful.
To send pictures and/or videos:
1. Tap > > Gallery.
2. Tap an album to open it and view its contents. (The pictures and videos in the album are
displayed in chronological order.)
3. Tap <Arrow Key> twice, then checkmark pictures and/or videos to share.
4. Tap Share> Bluetooth.
5. Tap a paired device.
The external Bluetooth device must be visible and communicating for the pairing to
be successful.
Disconnecting Bluetooth Connection During an
Active Call
► During an active call, where the audio is being routed through a connected Bluetooth
device (headset or hands-free connection), tap Bluetooth to route the device’s audio
through the connected Bluetooth headset (On) or through the speaker (Off).
When the call is routed to a Bluetooth headset, the current call area is surrounded by
a blue box, the Bluetooth button indicates it’s on, and the Bluetooth call icon is
displayed in the Status Bar.
When Bluetooth is turned off, the call is routed through either the earpiece or
speaker, the call area is surrounded by a green box, the Bluetooth button indicates
it's off, and the Call icon is displayed in the Status Bar.
Note: Communication can be toggled between the Bluetooth headset and the device earpiece
or speaker by tapping the Bluetooth button On or Off.
microSD Card
Your deviceis equipped with a preinstalled microSD™ (Secure Digital) memory card to expand
the device's available memory space. It allows you to store images, videos, music, and voice
data in your device.
Your Device's microSD Card and Adapter
microSD Card Settings
Tools and Calendar
Connecting Your Device to Your Computer
Your Device's microSD Card and Adapter
Removing the microSD Card
To safely remove the microSD card from your device, first you need to unmount the microSD
card.
WARNING: On the Android OS 2.3, you can download applications from Android Market and
store them on a microSD card as well as on the device. Due to this feature, if you
skip the unmount procedure, it can cause an error because information between
the microSD card and the device is accorded properly. In the worst case, the
microSD card can be corrupted or damaged.
1. Tap > <Arrow Key> > Settings > Storage > Unmount SD card. Confirm your
selection by tapping OK. Now you can safely remove the microSD card.
2. 2. Lift off the back cover using the fingertip cutout at the bottom of the cover.
3. Carefully remove the microSD card from the slot.
Note: You can easily damage the microSD card by improper operation. Please be careful
when inserting, removing, or handling it.
Inserting the microSD Card
1. Lift off the back cover using the fingertip cutout at the bottom of the cover.
2. Position the microSD card with the label side facing up and slide it into place until it is
fully inserted and locked in place.
Note: Be sure to use only recommended microSD cards (up to 32GB). Using non-
recommended microSD cards could cause data loss and damage your device.
microSD Icon Indicators
The following icons show your microSD card connection status at a glance:
- microSD card has been unmounted from the device and is safe to remove.
- microSD card is being prepared for use and for mounting.
Note: DO NOT remove a microSD card while files are being accessed or transferred. Doing so
will result in loss or damage of data. Make sure your battery is fully charged before using
the microSD card. Your data may become damaged or unusable if the battery runs out
while using the microSD card.
Tools and Calendar
microSD Adapter
The supplied microSD adapter allows you to use microSD cards in other SD-compatible devices,
like computers, cameras, and printers. Before using the microSD card with an SD-compatible
device, you will need to insert the microSD card into the microSD adapter.
To insert the microSD card into the microSD adapter:
► With the label side of the microSD card facing up, insert the card into the supplied
microSD adapter, and gently slide the card until it is fully inserted.
To remove the microSD card from the microSD adapter:
► Hold the front edge of the microSD card, and gently pull it out to remove it from the
adapter.
Write Protection
The microSD adapter has a built-in Write Protection lock to prevent accidental overwriting or
removal of your data when the microSD card and adapter are inserted in another device.
► Slide the Write Protection lock tab down into the “Lock” position to prevent overwriting of
data. To allow data to be added or removed from the microSD card, slide the Write
Protection lock tab up into the normal position.
microSD Card Settings
Viewing Memory in the microSD Card
1. Tap > <Arrow Key> > Settings > Storage.
2. Review the available information.
The storage capacity page is divided into two sections: SD card and Internal phone
storage.
Formatting the microSD Card
Formatting a microSD card permanently removes all files stored on the card.
1. Tap > <Arrow Key> > Settings > Storage.
2. Tap Unmount SD card and confirm your selection by tapping OK to release the microSD
card from its use by the device. The icon appears in the Status Bar to indicate an
unmounted microSD card.
3. Once unmounted, tap Format SD card> Format SDcard> Erase everything.
Tools and Calendar
Once completely formatted, you will have to remount the microSD card in order to
use it.
Note: The formatting procedure erases all the data on the microSD card, after which the files
CANNOT be retrieved. To prevent the loss of important data, please check the contents
before you format the card.
Connecting Your Device to Your Computer
Before using your device's mass storage capabilities, you need to prepare your device's data
services to synchronize with your desktop or laptop computer. Once you have connected the
device to the computer, you can transfer your data to or from the microSD card.
To connect your device to a computer via USB:
1. Use the USB cable that came with your phone to connect the phone to a USB port on
your computer.
2. Open the Notification panel and tap USB connected.
3. Select Mass storage and press Done button and OK in the dialog box that opens to
confirm that you want to transfer files.
When the device is connected as USB storage, you receive a notification on your
computer.
You device's microSD card is mounted as a removable drive on your computer. You
can now copy files to and from the microSD card. For more information, see the
documentation for your computer.
During this time, you will not be able to access the microSD card in your device, so
you can't use applications that rely on the microSD card, such as Camera, Gallery,
and Music.
To remove the connection:
WARNING: Carefully follow your computer's instructions to unmount, remove, or disconnect
any removable USB devices or disks, to avoid losing information on the microSD
card when disconnecting your phone from your computer.
1. On your computer, complete the process to safely Stop, or Remove, the USB device (in
this case, the phone). For example, use the Safely Remove Hardware option to Stop the
USB Mass Storage Device on Windows® XP.
2. Open the Notification panel (on your device) and tap Turn off USB storage to unmount
the microSDcard.
Tools and Calendar
Important Connection Information
● To avoid loss of data, DO NOT remove the USB cable, the microSD card, or the battery
while accessing or transferring files.
● DO NOT use your computer to change or edit folder or file names on the microSD card,
and do not attempt to transfer large amounts of data from the computer to the microSD
card. Doing so may cause the microSD card to fail.
● DO NOT turn off or restart your computer, or put it into standby mode, while using a
mass storage device. Doing so will result in loss or damage of data.
● The internal microSD card can only be mounted for use by either the device or a
connected computer. Prior to accessing the card via a different method, it must first be
unmounted from its current device (phone or computer-USB).
Important: The internal microSD card can only share a connection with one device at a time,
either your device or your computer (via its USB connection), not both. You
cannot browse the contents of the card via your device if they are currently being
browsed via your computer.
HAC statement
This phone has been tested and rated for use with hearing aids for some of the wireless technologies that
it uses. However, there may be some newer wireless technologies used in this phone that have not been
tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly
and in different locations, using your hearing aid or cochlear implant, to determine if you hear any
interfering noise. Consult your service provider or the manufacturer of this phone for information on
hearing aid compatibility. If you have questions about return or exchange policies, consult your service
provider or phone retailer.
FCC Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices
On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report and Order in WT Docket
01-309 modified the exception of wireless phones under the Hearing Aid Compatibility Act of 1988
(HAC Act) to require digital wireless phones be compatible with hearing-aids. The intent of the HAC Act
is to ensure reasonable access to telecommunications services for persons with hearing disabilities.
While some wireless phones are used near some hearing devices (hearing aids and cochlear implants),
users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than
others to this interference noise, and phones also vary in the amount of interference they generate.
The wireless telephone industry has developed a rating system for wireless phones, to assist hearing
device users to find phones that may be compatible with their hearing devices. Not all phones have been
rated. Phones that are rated have the rating on their box or a label located on the box.
The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss.
If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone
successfully. Trying out the phone with your hearing device is the best way to evaluate it for your
personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to
hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.
T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to generate less interference to
hearing devices than phones that are not labeled. T4 is the better/ higher of the two ratings.
Hearing devices may also be rated. Your hearing device manufacturer or hearing health professional may
help you find this rating. Higher ratings mean that the hearing device is relatively immune to interference
noise. The hearing aid and wireless phone rating values are then added together. A sum of 5 is considered
acceptable for normal use. A sum of 6 is considered for best use. In the example to the left, if a hearing
aid meets the M2 level rating and the wireless phone meets the M3 level rating, the sum of the two values
equal M5. This should provide the hearing aid user with “normal usage” while using their hearing aid
with the particular wireless phone. “Normal usage” in this context is defined as a signal quality that’s
acceptable for normal operation. The M mark is intended to be synonymous with the U mark. The T mark
is intended to be synonymous with the UT mark. The M and T marks are recommended by the Alliance
for Telecommunications Industries Solutions (ATIS). The U and UT marks are referenced in Section
20.19 of the FCC Rules. The HAC rating and measurement procedure are described in the American
National Standards Institute (ANSI) C63.19 standard. When you're talking on a cell phone,
it's recommended that you turn the BT (Bluetooth) mode off for HAC.
For information about hearing aids and digital wireless phones
Wireless Phones and Hearing Aid Accessibility
http://www.accesswireless.org/hearingaid/
FCC Hearing Aid Compatibility and Volume Control
http://www.fcc.gov/cgb/consumerfacts/hac_wireless.html

Navigation menu
