Users Manual
© 2001 PCTEST Lab
ATTACHMENT M – USER’S MANUAL
CDMA Fixed Wireless Telephone
User Guide
Model: LSP-2400
i
FCC RF EXPOSURE INFORMATION
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies. The design of this
phone complies with the FCC guidelines and these international standards.
To comply with FCC RF exposure requirements, a minimum separation distance of
2.5cm (1 inch) must be maintained between the user/bystander and the back of the
unit, including the antenna.
For more information about RF exposure, please visit the FCC website at www.fcc.gov
WARNING! Read this information before use

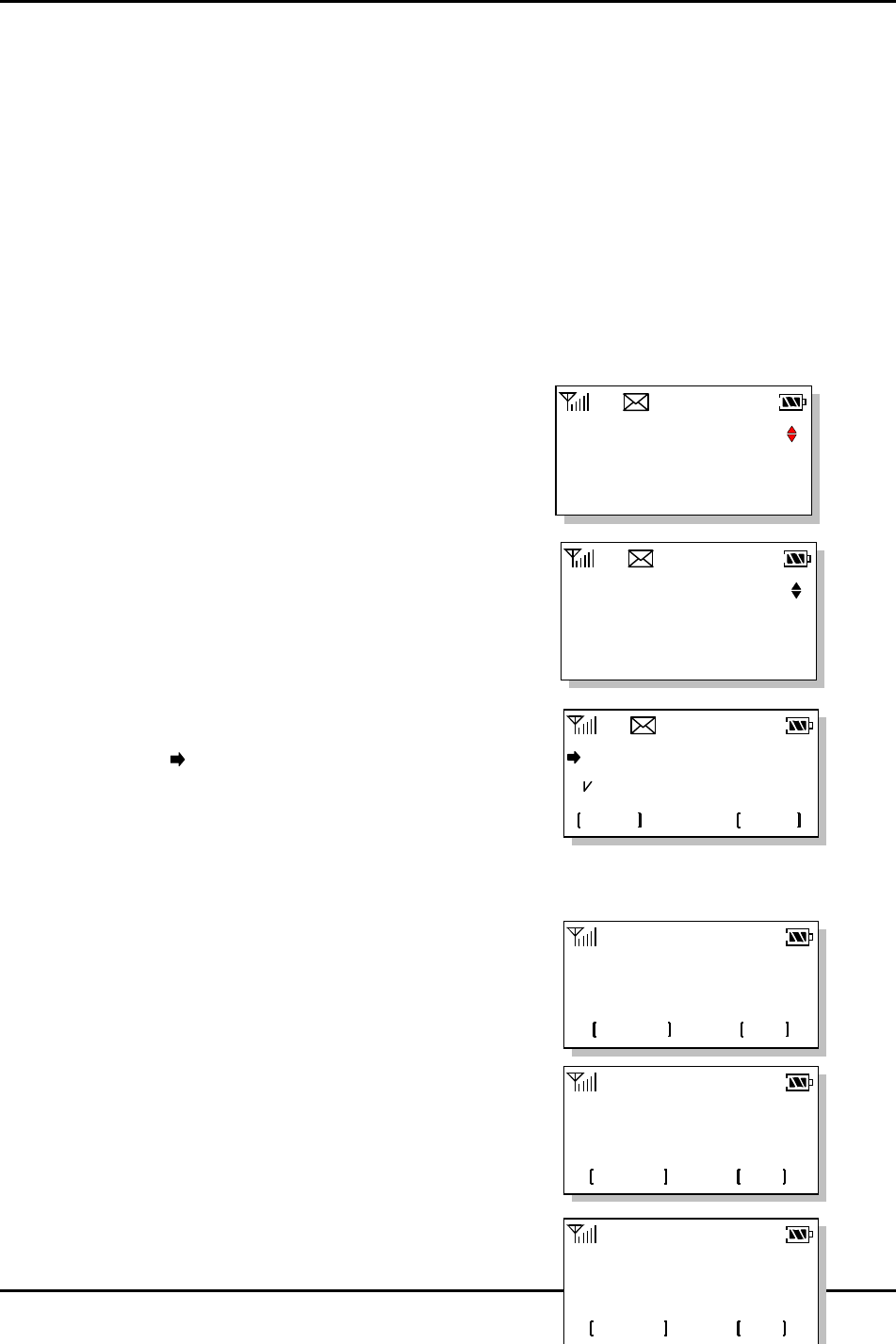

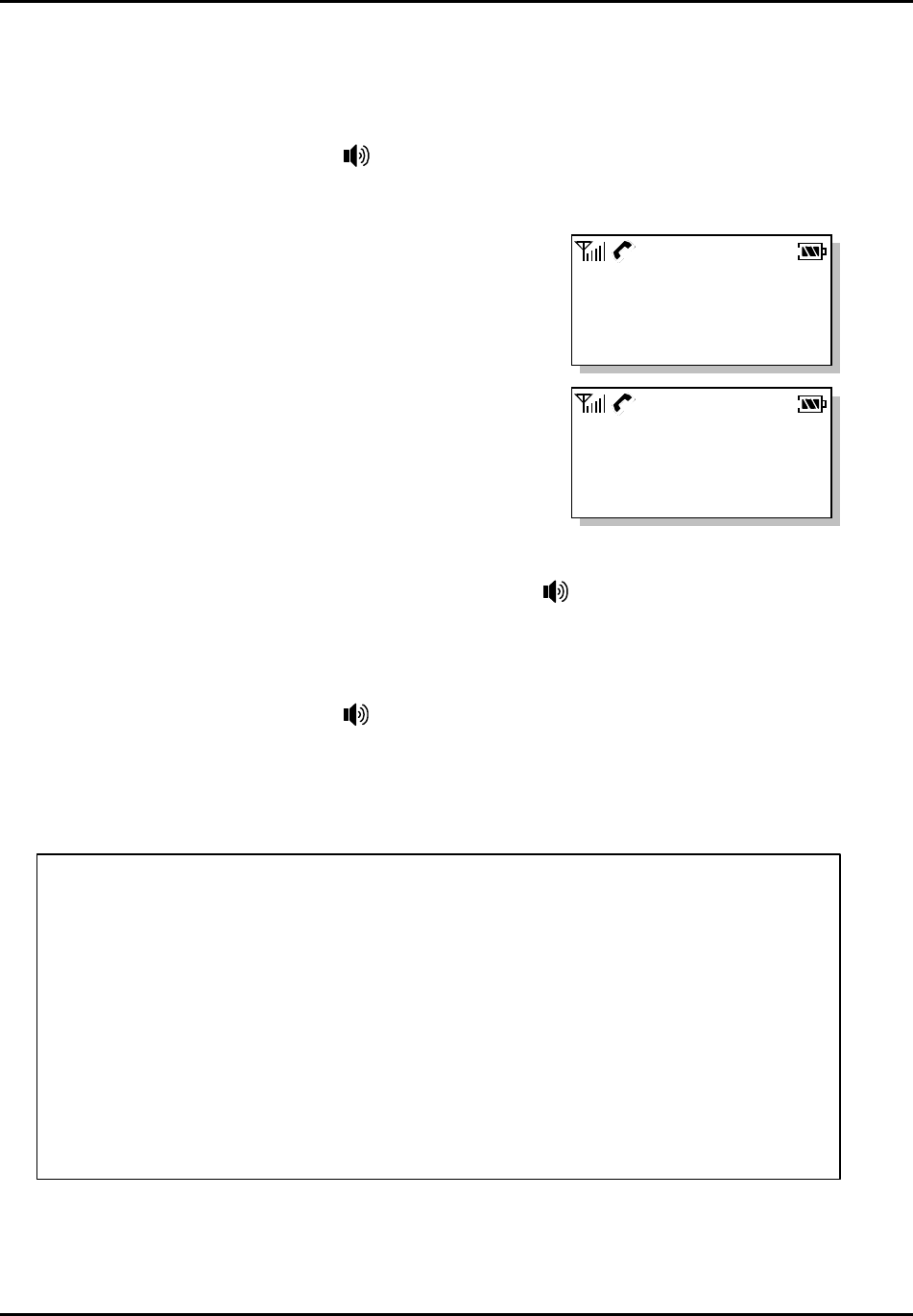

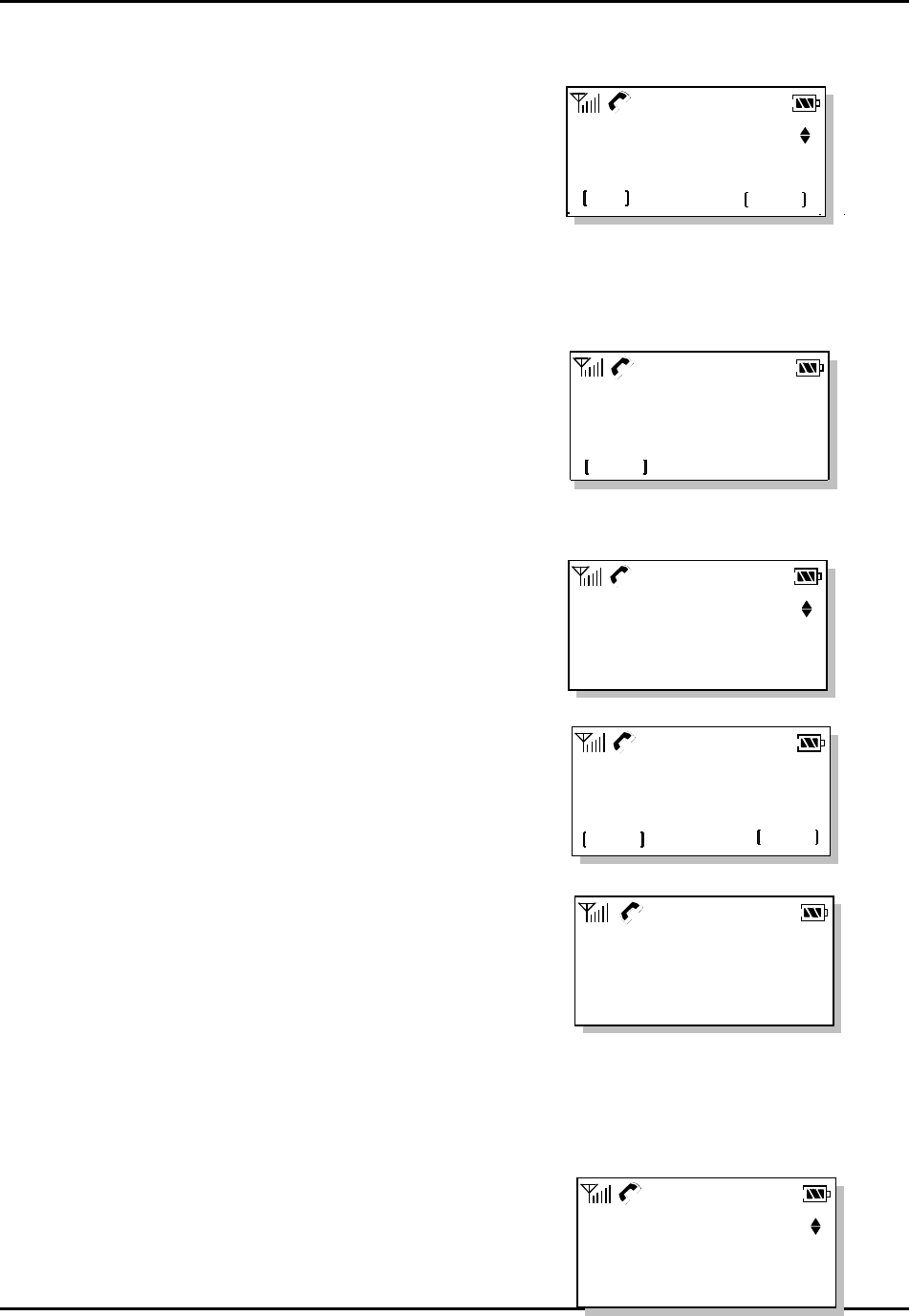

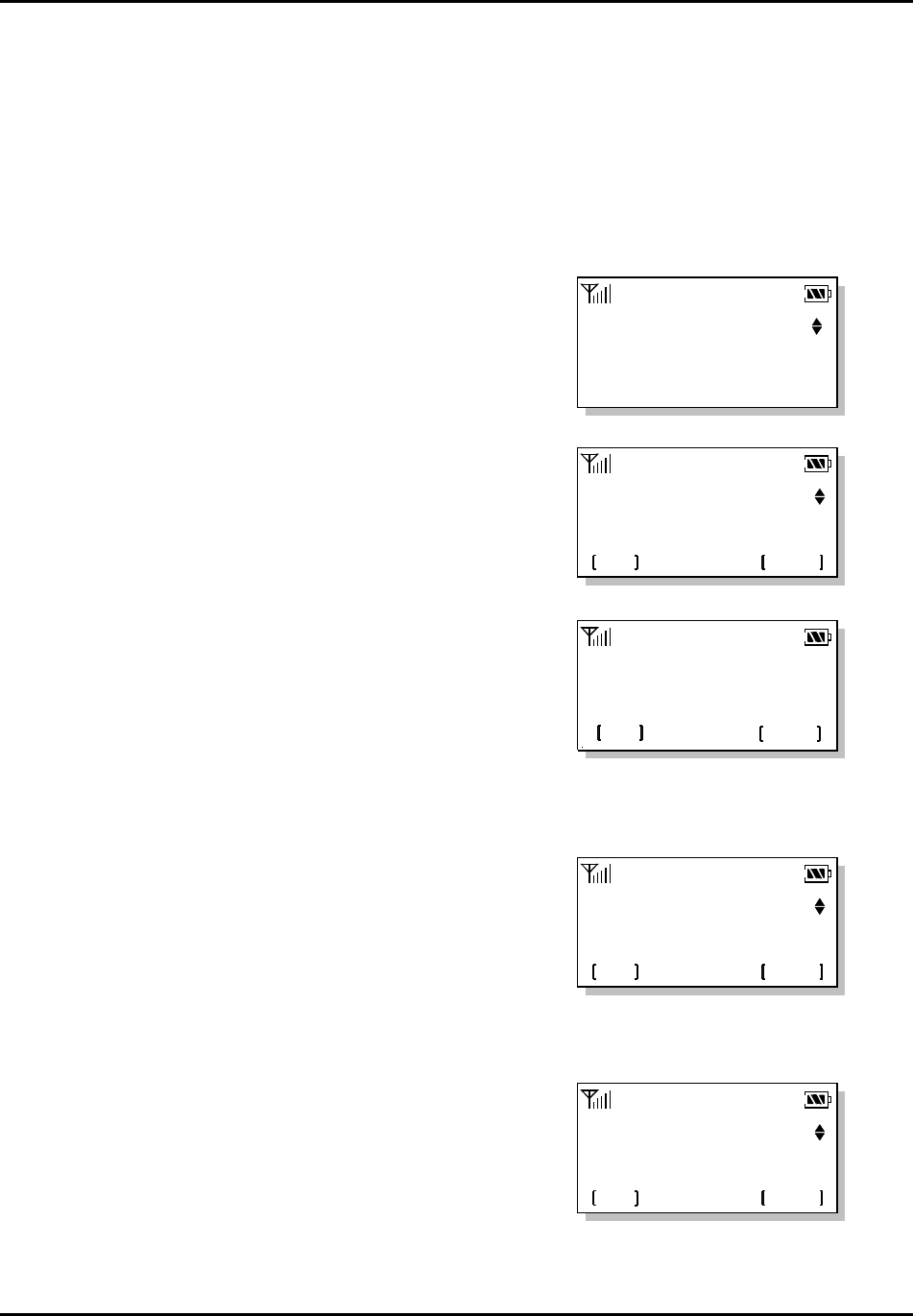

LGE CDMA Fixed Wireless Telephone
LSP-2400
3
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
2000/12
ISSUE 1
Initial Release
LGE CDMA Fixed Wireless Telephone
LSP-2400
4
CONTENTS
Highlights ................................................................................................................................7
1. Important Information..................................................................................................8
1.1 Safety Information.....................................................................................................8
1.2 Optimal Phone Performance.....................................................................................8
1.3 Care and Service.......................................................................................................9
2. Introduction..................................................................................................................10
2.1 Front View of the Telephone...................................................................................10
2.2 LCD Display ............................................................................................................11
2.3 Installation...............................................................................................................12
2.4 Installation Steps.....................................................................................................14
3. Basic Operation...........................................................................................................15
3.1 Making a Call ..........................................................................................................15
3.2 Redialing Last Outgoing Number ............................................................................15
3.3 Receiving a Call ......................................................................................................16
3.4 Signal Strength .......................................................................................................16
3.5 Missed Call Message ..............................................................................................16
4. List of Menu State.......................................................................................................17
4.1 Select Volume.........................................................................................................17
4.1.1 Ring Volume ...................................................................................................17
4.1.2 Key Volume ....................................................................................................18
4.1.3 Ear Volume.....................................................................................................18
4.2 Ring Type Selection................................................................................................18
4.3 Wake-up Time.........................................................................................................19
4.4 Security ...................................................................................................................19
4.4.1 Lock Mode Set ................................................................................................19
4.4.2 Clear Calls......................................................................................................20
4.4.3 Clear Memory .........................................................................................................20
4.4.4 Emergency Call.......................................................................................................20
4.4.5 Changing Lock Code...............................................................................................20
4.5 Convenient Features...............................................................................................21
4.5.1 Hot Line ..................................................................................................................21
4.5.2 Hot Line Time .........................................................................................................21
4.5.3 Speed Dial(enable/disable) .....................................................................................21
4.6 Additional Feature...................................................................................................22
4.6.1 Key-tone Length......................................................................................................22
4.6.2 Auto Time-out .........................................................................................................22
4.6.3 3 Minute Alert..........................................................................................................22
4.6.4 DS Mode Set ..........................................................................................................22
LGE CDMA Fixed Wireless Telephone
LSP-2400
5
5. Features while in a Call.............................................................................................23
5.1 Ear Volume .............................................................................................................23
5.2 MIC Volume.............................................................................................................23
5.3 Mute........................................................................................................................23
5.4 Memo......................................................................................................................24
5.5 Transmitting your own number................................................................................24
6. Searching, Editing & Dialing ..............................................................................25
6.1 Retrieving Last Call History.....................................................................................25
6.2 Retrieving Phone Number by Address....................................................................26
6.3 Retrieving Phone Number by Name .......................................................................27
7. SMS(Short Message Service)...................................................................................28
7.1 Check & Deleting Received Message .....................................................................28
7.1.1 Text Message ..................................................................................................28
7.1.2 Voice Message.................................................................................................29
7.2 Erasing Message.....................................................................................................29
8. Beside Functions........................................................................................................30
8.1 Redial......................................................................................................................30
8.2 Viewing your own number.......................................................................................30
9. Storing Phone Number .......................................................................................31
9.1 Storing / Editing Phone Numbers............................................................................31
9.1.1 Storing Phone Numbers ...................................................................................31
9.1.2 Erasing Stored Phone Numbers ........................................................................32
9.2 Finding Stored Phone Numbers.....................................................................................33
10. General Information....................................................................................................34
LGE CDMA Fixed Wireless Telephone
LSP-2400
6
Highlights
Congratulations on your purchase of the LSP-2400 Fixed Wireless Telephone. This telephone
has been designed to operate on the latest digital mobile communications technology. This
technology has greatly enhanced voice clarity and can provide various advanced features.
The telephone provides:
l 3-line LCD Display with status indicator
l A choice of 10 ring sounds
l A menu driven interface with prompts for easy operation
l Last Number Redial
l Speed Dialing with a 99-number memory
l Dial tone
l ROH (Receiver Off-Hook) tone
l Adjustable Ring Volume
l Internal Back-up Battery Pack
l AC Power Supply
l Dipole Antenna
l RJ-45 Data Port for service and repair
LGE CDMA Fixed Wireless Telephone
LSP-2400
7
1. Important Information
1.1 Safety Information
Warning
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Do not
use this product near swimming pools or other bodies of water.
IMPORTANT
Before installing or operating this product read this information.
1.2 Optimal Phone Performance
l Do not operate your product when holding the antenna, or when someone is within four inches
(ten centimeters) of the antenna. Holding the antenna affects call quality and may cause the
telephone to operate at a higher power level than needed.
l For the best call quality, keep the antenna free from obstructions and point the antenna straight
up.
l Do not use the unit with a damaged antenna. Have your antenna replaced by a qualified
technician immediately. Use only a manufacturer-approved antenna. Non-approved antennas,
modifications, or attachments could impair call quality, damage the phone.
l RF energy may affect improperly installed or inadequately shielded personal medical devices
such as pace markers, hospital monitor. Consult the manufacturer of any personal medical
devices to determine if they are adequately shielded from external RF energy. Turn your
terminal OFF in health care facilities when any regulations posted in the areas instruct you to do
so. Hospitals or health care facilities may be using equipment that could be sensitive to external
RF energy.
l If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the distance between the radio or television and the telephone.
- Connect the equipm
ent into an outlet on a circuit different from that to which the
terminal is connected.
- Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help.
l Use only the battery, antenna and AC power supply provided by LGIC. Using any other type will
invalidate the warranty.
l Only authorized personnel should service the phone and its accessories. Faulty installation or
service any be dangerous and may invalidate the warranty.
l Do not use the unit in designated “no cellular phone use” area.
l Avoid exposure to high temperature or humidity.
l Avoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately and
remove the backup battery and AC power supply. If the unit is inoperable, then return to the
service agent for service.
l Avoid shock or impact.
l We recommend you to charge the backup battery before initial use. Backup battery may be
LGE CDMA Fixed Wireless Telephone
LSP-2400
8
discharged during delivery.
1.3 Care and Service
l Unplug the telephone from the wall outlet and remove antenna (or disconnect antenna cable)
before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
l If the unit fails for any reason, do not attempt to disassemble; contact the telephone service
provider for assistance.
l If any of the following conditions exist; unplug the unit at the wall plug, remove battery, and call
the service provider.
- The power supply cord is damaged or frayed.
- Liquid has been spilled into the unit.
- The unit has been exposed to rain or water.
- The unit has been dropped or damaged.
- The unit does not work normally by following the operating instructions.
LGE CDMA Fixed Wireless Telephone
LSP-2400
9
2. Introduction
2.1 Front View of the Telephone
Hook Switch
Base Handset
DB-9 Port
Used for data communication or service
personnel.
Soft Key 1
Displays main menu features and also
used as soft key while setting menu items
in sub-field.
Message Button
Press to view text or voice message.
End Button
Exit all the way out of a menu back to the
Soft Key 2
Displays recall menu feature and also
used as soft key while setting menu items
in sub-field.
Volume Up/Down Button
Used for volume control and scroll
through menu.
Clear Button
Press to erase displayed letters, numbers
or returns to the previous menu option.
Redial Button
Press to dial the last dialed number or
display its own number.
LGE CDMA Fixed Wireless Telephone
LSP-2400
10
phone's standby display without changing
any setting. OHD Button : On Hook Dialing
Dipole Antenna

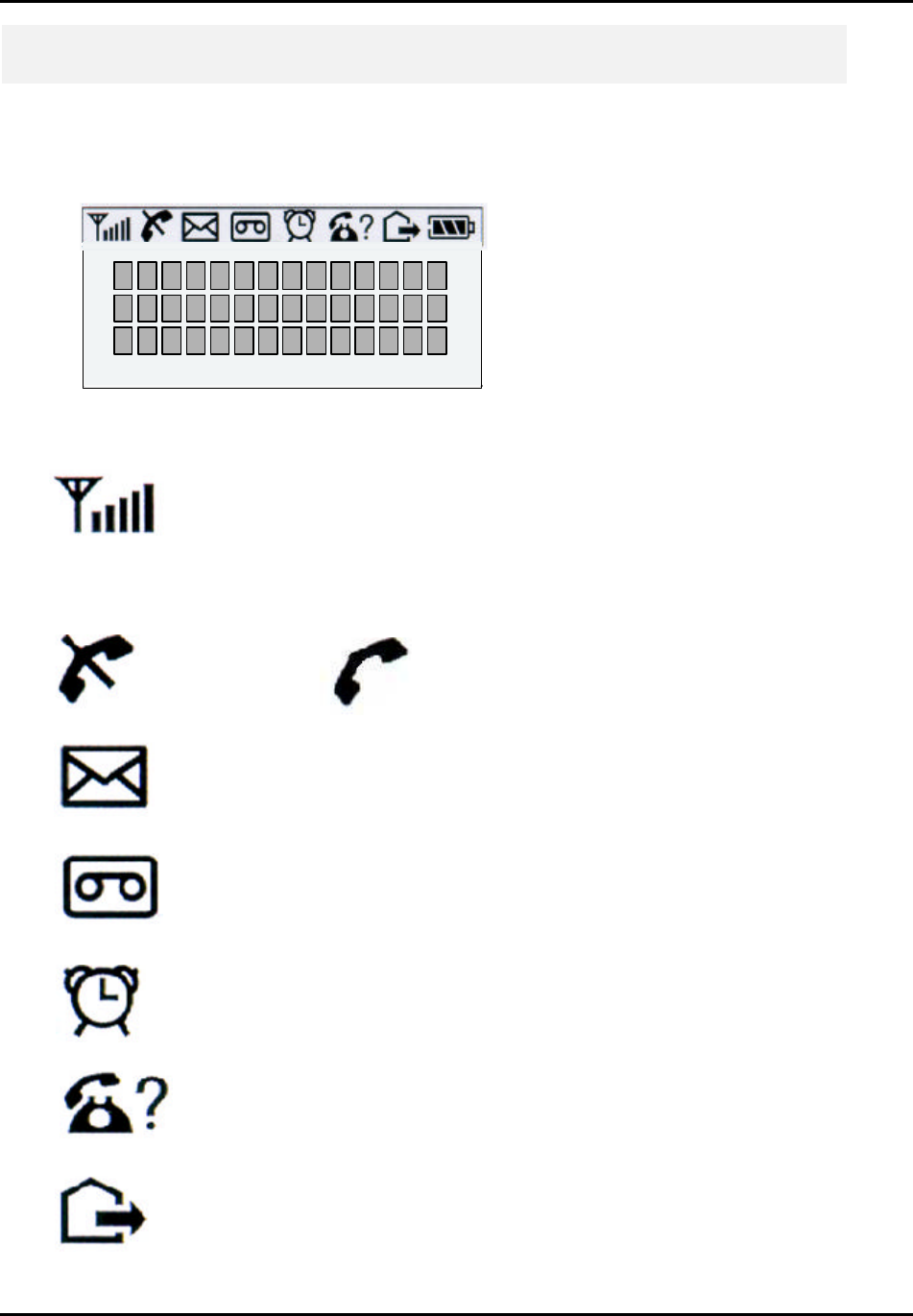

2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicator appears based on the phone's operating mode.
1) RSSI indicator : Indicates the signal strength in the service area.
2) No service : The phone is not receiving system signal.
3) In use : Displayed when call is in progress or the phone is in off-hook and dial tone
heard.
: No service : In use
4) Text message : Displayed when a text message is received.
5) Voice message : Displayed when a voice message is received.
6) Alarm : Displayed when wake up alarm time was setting.
7) Caller ID : Displayed when caller ID is received.
8) OUT : Going out.
9) Battery charge level : Indicates charged battery level.
LGE CDMA Fixed Wireless Telephone
LSP-2400
11
LGE CDMA Fixed Wireless Telephone
LSP-2400
12
2.3 Installation
You should follow each step carefully as shown below in order to guarantee proper operation of
CDMA Fixed Wireless Telephone.
STEP I. Check Components
l Fixed Wireless Terminal is supplied with the following standard unit and accessories;
1. LSP-2400 Main Unit with Handset -1EA-
2. Dipole Antenna -1EA-
3. Backup Battery -1EA-
4. User Guide . -1EA-
5. AC/DC Power Adapter -1EA-
6. Power Cord(Only SMPS Adapter) -1EA-
l Please make sure that these components are present before you begin the unit installation.
And then compare the following figures and components. If components are missing or
damage is found, contact the store where you purchased the unit immediately.
STEP II. Place the Terminal
l Place the terminal on the stable flat secure surface area (desk, table, etc.). Serious damage
may result if the unit falls. Do not place the unit on, or within 1 meter of heaters or radiators.
This unit is designed for desktop usage. Avoid direct exposure to the sun lights and damp
area.
l Read the SAFETY INFORMATION located at the first part of this document before you place
the terminal
STEP III. Connect Components (See the figures in “Installation Steps”.)
l Connect the antenna to the TNC antenna connector located at the top side of the terminal. If
you placed the terminal on the flat surface, bend the antenna up right.
l Connect curl cord of handset assembly to the RJ-11C port located at the left side of the
terminal.
l Open the battery case, securely connect the battery cord, place the backup battery pack and
close the case.
l Connect the AC/DC Adapter cable to the DC input port located at the topside of the terminal.
-. If it is good, beep tone is heard.
-. If it is not good(Booting is fail or beep tone is not heard), you have to connect the adapter
or backup battery, again.
l Please follow the below to get better voice quality;
1. Keep away from electrical appliances such as TV, computer, radio and so on.
2. Keep terminal in a high and central location with no obstructions, such as metal
walls.
3. Raise the integral antenna of terminal to get maximum strength of receive signal
as shown figure at the next page.
LGE CDMA Fixed Wireless Telephone
LSP-2400
13
STEP IV. Check the LCD Display
l After you follow the installation instruction step I to step III, please check the LCD for normal
operation.
l If you may not see status of service, please repeat the 5th instruction of step III. And conform
Fixed Wireless Telephone to get the proper signal strength from service operator system.
The adapter type(with power cord) may be different by country adaptation.
2.4 Installation Steps
Please follow the below procedure to install the unit properly.
Connect Base-
handset to the
handset connector.
Connect the
antenna to the
TNC connector
(Turn right).
Bend the antenna
up right.
Open the
battery cover
at the bottom
of the unit.
Insert back-up
battery in the
bottom of the unit.
(give care to
polarity)
Connect the AC
power supply.
1
11
1
22
1
33
1
5
5
1
44
1
66
LGE CDMA Fixed Wireless Telephone
LSP-2400
14
1234567
1234567
Calling...

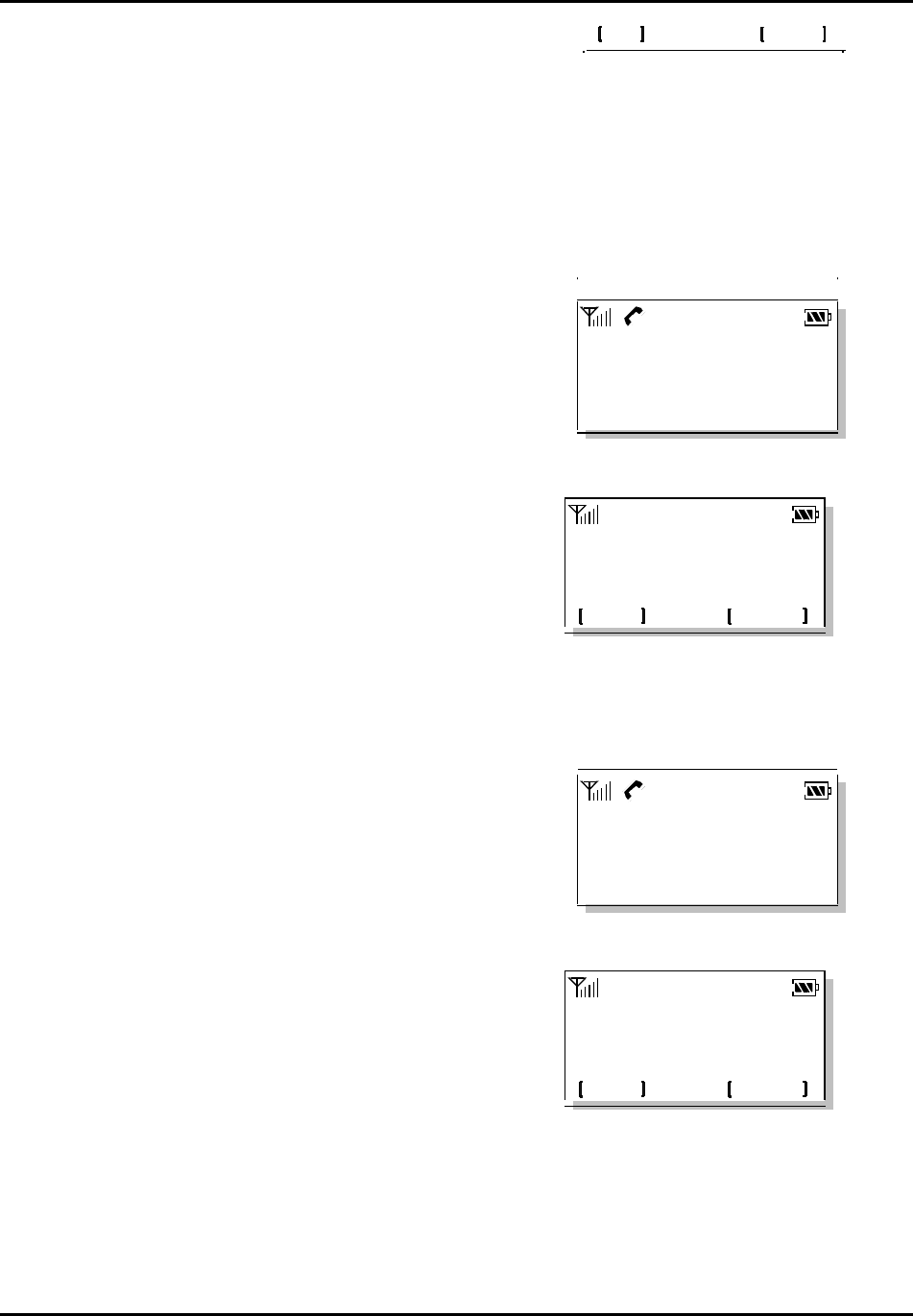

Basic Operation
3.1 Making a Call
1. Pick up the handset or press button.
2. Listen for dial tone
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out.
5. The call is connected and you can start conversation.
6. To disconnect the call, replace the handset or press button.
3.2 Redialing Last Outgoing Number
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Press Redial button. The last number that you called will be re-dialed.
l Correcting dialing mistakes
1. Press Clear button shortly to erase the most recent digit.
2. Press and hold Clear button for at least one second.
l If the phone is locked, enter the Lock Code
l If the call did not go through, press the hook switch and dial again.
l Flashing / Hook Switch
1.
While in the middle of a call, pressing the hook switch for less than 1 second will be
treated as a flash. After 1 second, the call will be terminated.
2. Very briefly pressing the hook switch will be ignored.
l Battery icon is displayed only when the terminal is operating by battery without AC power.
LGE CDMA Fixed Wireless Telephone
LSP-2400
15
10:51 AM
Missed 1 call
ok
Incoming Call!
10:23 AM
08 May, Sat
menu recall
3.3 Receiving a Call
1. When bell rings, pick up the handset.
2. Start conversation.
3. To disconnect the call, replace the handset.
3.4 Signal Strength
The quality of calls depends on the signal strength in
your area. The stronger the signal, the better the call
quality. The signal strength icon indicates the current
strength as number of bars. You can see the antenna
and bars according to the strength of received signal in
the upper-left part.
3.5 Missed Call Message
If a call is received and not answered for user’s absence,
You are informed that you have missed a call. The latest
missed call time and number of missed call is displayed.
Press [ok] to erase “Missed call” message.
Time: 0:23
menu
LGE CDMA Fixed Wireless Telephone
LSP-2400
16
MAIN MENU
2:Select Ring
1:Select Volume
Ring Level
ok next
Ring Level
List of Menu State
Main Menu Sub-Menu Setting Value Default
1. Ring Volume 3 steps
2. Key Volume 3 steps +silent
1. Select Volume
3. Ear Volume 3 steps
2. Ring Select - 10 types
3. Wake-up Time - 12 hour (AM/PM)
1. Lock Mode Set Off/Always/Power On
2. Clear Calls 10 ea.
3. Clear Memory 99ea
4. Emergency Call Local (3 ea.)
4. Security
5. Lock Code 4 digit
1. Hot Line Enable/Disable
2. Hot Line Time 2-9 Sec.
5.Convenient
3. Speed Dial Enable/Disable
1. Key Tone Length Short/Long
2. Auto Time-out 2-9 Sec.
3. 3 Min. Alert Enable/Disable
6. Additional
4. DS Mode Set PC FAX/Voice/Async
4.1 Select Volume
This menu allows you to adjust the various different volumes.
4.1.1 Ring Volume
The received tone when you receive a call can be adjusted.
l From the MENU
1. Press [menu] + 1(Select Volume)+ 1(Ring Volume)in
on-hook state.
2. Press Volume button or [next] to adjust ring volume.
3. Press [ok]
l By the Volume button
1. Press Volume button to adjust ring volume in on-
hook state
LGE CDMA Fixed Wireless Telephone
LSP-2400
17
Key Level
nextok
Ear Level
nextok
4.1.2 Key Volume
The tone when you press a key can be adjusted.
1. Press [menu] + 1(Select Volume) + 2(Key Volume) in
on-hook state.
2. Press Volume button or [next] to adjust key volume.
3. Press [ok]
4.1.3 Ear Volume
The voice of the other party can be adjusted in on-hook
state.
1. Press [menu] + 1(Select Volume) + 3(Ear Volume) in
on-hook state.
2. Press Volume button or [next] to adjust ear piece volume
3. Press [ok]
ü Press Volume button to adjust volume during conversation
4.2 Ring Type Selection
You can select the various ring types
1. Press [menu] + 2(Select Ring) in on-hook state.
2. Select a desired ring type with Volume button or
[next].
ü There are 10 different ring types.
ü Those are General, Chime, Cord, Escalate, Jewel, Pathetique, Bolero, Edelweiss,
Csikos Post, Sweet Home.
3. Press [ok] to save and exit.
Select Ring
next
ok
General
LGE CDMA Fixed Wireless Telephone
LSP-2400
18
Enter
Lock Code!
SECURITY
1:Lock Mode Set
2:Clear Calls
MAIN MENU
4:Security
3:Wake-up Time
Alarm Time
nextok
Always
Wake-up Time
_1:23 AM
okAM/PM
Auto Lock
nextok
Off
4.3 Wake-up Time
This function allows you to adjust Wake-up Time.
1. Press [menu] + 3(Wake-up Time)
2. Select Always, Once or Off by [next] and press [ok].
3. Press [edit] and set the time.
4. Select A.M. or P.M. by [AM/PM].
5. If you want to modify the wrong time, press Clear button
and set again.
6. Press [ok] to save and exit
4.4 Security
4.4.1 Lock Mode Set
This function prevents your phone from being used without permission. Typical default value
is 0000. Possible settings are Off, Power On and Always. The Off means that the phone is
not locked. Power On locks the phone when the phone is turned on. Always sets the phone
locked immediately.
1. Press [menu] + 4 (Security)
2. Enter your own 4 digit lock code
3. Press 1(Lock Mode Set)
4. Select Off, Power On or Always by [next] or
Volume button.
5. Press [ok] to save and exit.
LGE CDMA Fixed Wireless Telephone
LSP-2400
19

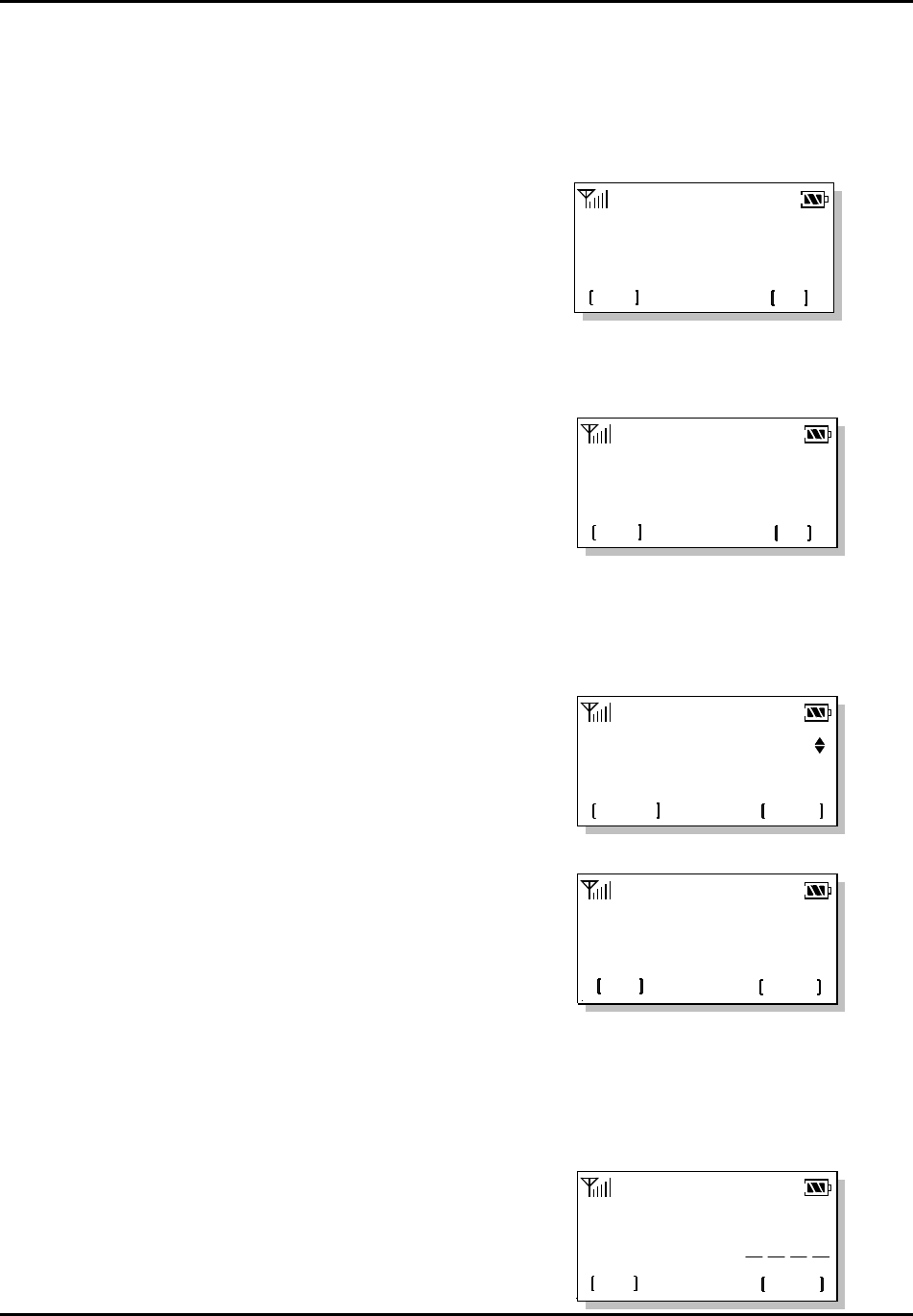

Clear Calls?
noyes
Emergency 1
next
edit
Empty!
119
ok quit
New Code
ok quit
Clear Memory?
noyes
4.4.2 Clear Calls
When a previous outgoing or incoming call history is stored in a memory location, you can
erase the all call history.
1. Do the above 1 and 2 steps of 4.4.1.
2. Press 2(Clear Calls)
3. Press [yes] to erase all call history
4.4.3 Clear Memory
When you want to delete phonebook memory, you can erase all phonebook memory.
1. Do the above step1 and 2 of 4.4.1.
2. Press 3(Clear Memory).
3. Press [yes] to erase all phone memory.
4.4.4 Emergency Call
Even if your phone is locked you can make calls to 3 emergency numbers.
1. Do the above step1 and 2 of 4.4.1.
2. Press 4(Emergency Call)
3. Press [next] or Volume button to choose the number
from 1 to 3
4. Press [edit].
5. Enter the emergency phone number
6. Press [ok] to save the number
7. Press [next] to edit others or Press End button to exit emergency call process
4.4.5 Changing Lock Code
You can change a new lock code(4digits).
1. Do the above step1 and 2 of 4.4.1.
2. Press 5.(Lock Code)
LGE CDMA Fixed Wireless Telephone
LSP-2400
20

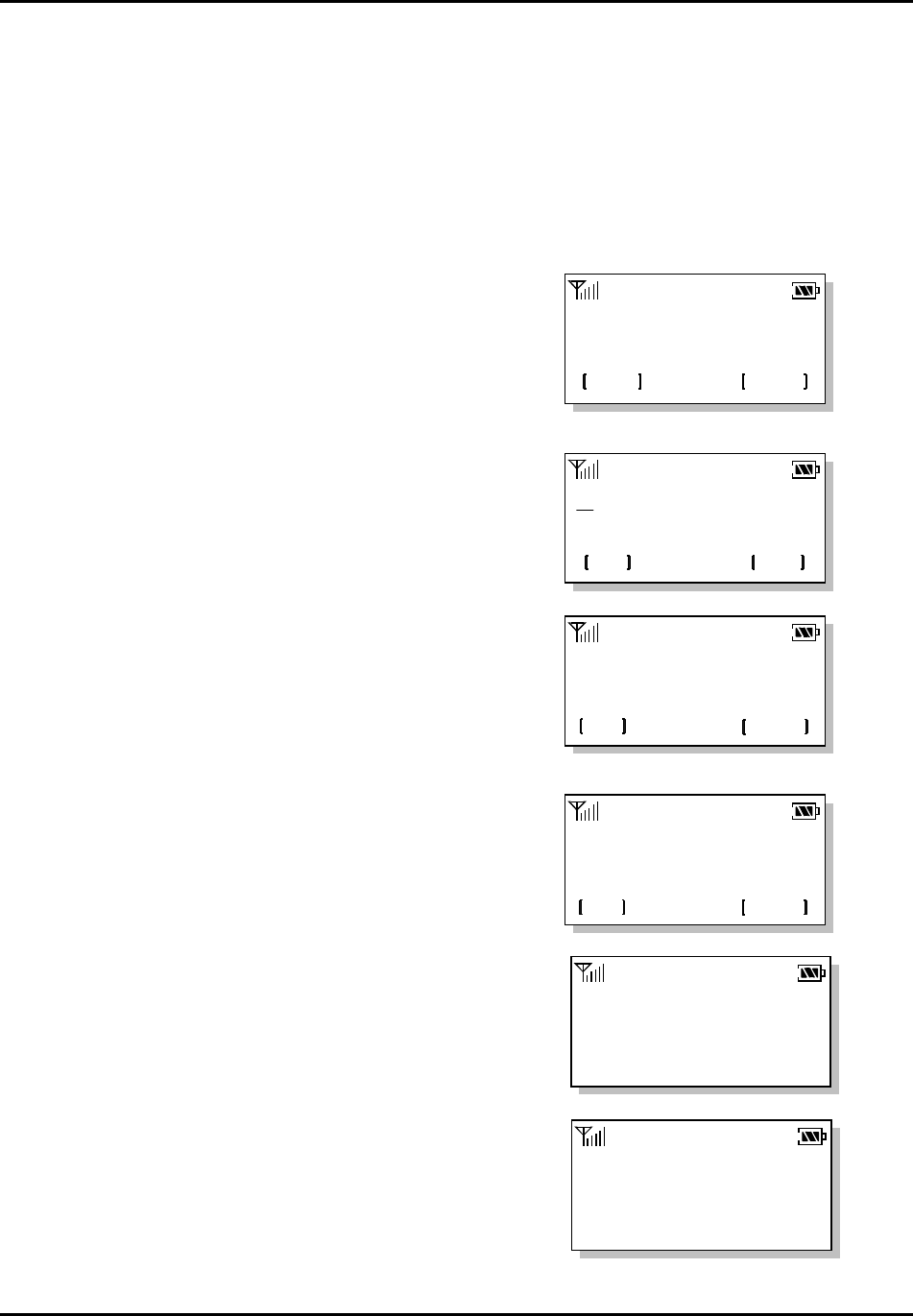

CONVENIENT
2:Hot Line Time
1:Hot Line
Hot Line
nextok
On
ok quit
119
Hot Line Time
nextok
5 sec
Speed Dial
nextok
Yes
3. Enter new lock code and press [ok] to save.
4. Enter new lock code again to confirm and press [ok] to save.
4.5 Convenient Features
While the Hot line function is enabled, the programmed number will be automatically dialed
when you pick up the handset and wait for the programmed hot line time (2~9 sec) without
any key press.
4.5.1 Hot Line
1. Press [menu] + 5 (Convenient)
2. Press 1(Hot Line)
3. Select on or off by [next] or Volume button and press
[ok] to select.
4. Press [edit] to input Hot Line phone number.
5. Enter the Hot Line phone number
6. Press [ok] to save and exit.
4.5.2 Hot Line Time
1. Press [menu] + 5 (Convenient)
2. Press 2(Hot Line Time).
3. Select hot line connection time(2~9 sec.) by [next] or
Volume button.
4. Press [ok] to select.
4.5.3 Speed Dial (enable / disable)
1. Press [menu] + 5 (Convenient)
2. Press 3(Speed Dial)
3. Select Yes or No by [next] or Volume button and press
[ok] to save and exit.
LGE CDMA Fixed Wireless Telephone
LSP-2400
21
ADDITIONAL
2:Auto Time-out
1:KeyTone Length
KeyTone Length
nextok
Short
Auto Time-out
nextok
5 sec
3 Minute Alert
nextok
On
This function can be used when the Speed Dial is set to Yes.
l Speed Dial Function
1. You can store phone numbers in memory locations (1~99) and place a call.
2. Press the memory number (1 through 99) corresponding to the appropriate memory location,
and hold for a few seconds.
4.6 Additional feature
4.6.1 Key-tone Length
Setting key beep playback length. Possible settings are Short and Long.
1. Press [menu] + 6(Additional).
2. Press 1(KeyTone Length).
3. Select Short or Long by [next] or Volume button and
press [ok] to select.
4.6.2 Auto Time-out
Setting the length of time the phone waits before automatically dialing a number. You can
select this time between 2 and 9 second.
1. Press [menu] + 6(Additional).
2. Press 2(Auto Time-out).
3. Select Auto time-out second between 2 and 9 by
[next] or Volume button.
4. Press [ok] to select.
4.6.3 3 Minute Alert
Alerts you every 3 minutes during a call.
1. Press [menu] + 6(Additional)
2. Press 3(3 Min Alert)
3. Select On or Off by [next] or Volume button.
LGE CDMA Fixed Wireless Telephone
LSP-2400
22
IN-CALL MENU
2:MIC Level
1:Memo
Ear Level
1234567
Time: 0:23
menu
DS Mode Set
nextok
Voice
4. Press [ok] to save and exit
4.6.4 DS Mode Set
In Data Service mode, You can select the terminal receive type among PC FAX, Voice and
Async.
5. Press [menu] + 6(Additional)
6. Press 4(DS Mode Set)
7. Select the desired type by [next] or Volume button.
8. Press [ok] to save and exit
4.6.5 24 / 12 hours
You can select time display type(24/12 hours)
1. Press [menu] + 6(Additional)
2. Press 5(24/12 hours)
3. Select [24hours] to display 24hours(00~24)
4. Select [12hours] to display (AM / PM)
Functions while in a call
5.1 Ear Volume
You may adjust ear volume while you are in a call.
The Volume button on the right side of the phone can be
used to adjust ear volume.
5.2 MIC Volume
Adjusting MIC volume while in a call.
1. Press [menu] and 2(MIC Level) while in a call.
24 / 12 hours
next
ok
24 hours
LGE CDMA Fixed Wireless Telephone
LSP-2400
23
IN-CALL MENU
2:MIC Level
1:Memo
IN-CALL MENU
3:Send Owner #
Number Stored
in Call List
MIC Level
High
ok next
1234567
Time: 0:23 Mute
menu
114
quit
add
2. Select Low or High by [next] or Volume button.
3. Press [ok] to save and exit.
5.3 Mute
This function prevents your voice from being transmitted but you can still hear other side.
1. Press End button while in a call.
2. You could see “Mute” message blinking on the right
side of the LCD.
3. To release Mute, Press End button again.
5.4 Memo
You can save numbers while in a call.
1. Press [menu] and 1(Memo) while in a call.
2. Enter a number using key pad.
3. Press [add] to save and exit. Or press [quit] to exit.
5.5 Transmitting your own number
This function is a convenient feature which enables you to transmit your own phone number
while in a call through press one key. (For example, Sending your phone number when you
pages.)
ü Press [menu] and 3(Send Owner #)
LGE CDMA Fixed Wireless Telephone
LSP-2400
24
RECALL MENU
2:Memories
1:Last Calls
Call to
028507618
save time
Call Made:
05/12 4:34 PM
ok
028507618
ok A/a
ABC
auto=01 ??
ok next
Make it Secret?
No
ok next
1234567
028507618
viewnext
Searching, Editing & Dialing
6.1 Retrieving Last Call History
1. Press [recall] and 1(Last Calls)
-
2. Select a number or a name in the last call list by [next]
and press [view].
3. To see more information press [time] and press [save] to
save a number in the memory.
ü Pick up the handset or Press button to make
a call with the displayed number.
l By pressing [time]
ü Press [ok] to exit
l To save a number
ü Press [save] in step3
ü Enter the name in text mode and press [ok] to save.
Press [A / a] to change upper or lower case
character.
- To store without name, just press [ok].
- Refer to “To enter a character”.
ü Enter a desired memory location (01~99: 2 digits) or
press [next] to choose a desired memory location
and press [ok].
- The phone number is stored in the displayed
memory location.
ü The phone will display a message asking to keep
your number as secret or not. Select “No” or “Yes”
using [next]. Then press [ok].
LGE CDMA Fixed Wireless Telephone
LSP-2400
25
ABC
was stored
in #01
Memory...
Unused : 99
Used : 01
Recall Address?
??
quitname
01:ADG
028503619
eraseedit
ADG
028503619
ok
028503333
DG
ok A/a
CBH
org=01 ??
ok next
- You can see a confirming message.
- Also you can see a condition of used memory.
6.2 Retrieving Phone Number by Address
1. Press [recall] and 2(Memories)
2. Enter a memory address to retrieve phone number.
(ex: If you enter a memory address, 01.)
ü If there is no stored phone number in the memory
location, “Empty address” is displayed.
3. Pick up the handset or press button to call to
displayed number, press [edit] to edit stored
information or press [erase] to delete displayed
information.
l Edit process
ü Modify the phone number by Clear button and
keypad. And Press [ok] to edit a related name.
1) Delete the phone number by Clear button.
2) Enter the modified phone number.
3) Press [ok].
4) To move cursor, use Volume button or *, #.
5) Enter the name.
6) Press [ok].
ü Enter a new memory address to store a new
information or choose the new memory address
by [next] and press [ok].
LGE CDMA Fixed Wireless Telephone
LSP-2400
26
- erased! -
Erase #01?
028503619
ok quit
Recall Address?
??
quitname
Search for
find
01:ADG
028503619
eraseedit
01:ADG
02:ABC
next view
ü Press [ok] to no secret.
l Erasing process
ü You might press [erase] at the above step 3.
ü Press [ok] to complete erasing process.
6.3 Retrieving Phone Number by Name
1. Press [recall] and 2(Memories)
2. Press [name] to retrieve phone number by name.
3. Enter the name that you want to look for and press
[find].
ü At least two letters are recommended for quick
search.
ü Press [next] or Volume button to scroll through
the list of matches.
4. Press [view] to see information in that location.
ü Pick up handset to make a call.
LGE CDMA Fixed Wireless Telephone
LSP-2400
27
RECEIVED MSG
2:Voice Mail
1:Message
!01.Hello!
02.Good Morning
viewnext
5/21 2:20 PM
< Message >
erase ok
< Mesage >
Hello!
erase ok
< Called By >
1234567
erase ok
SMS MENU
2:Set Alert
1:Received MSG
SMS (Short Message Service)
Messaging, Paging, and Voice mail features are available when your phone is turned on.
Using Message button allows you to access messages for viewing on the LCD screen or to
send a message. While viewing a message, you can call back to the number displayed in the
message by picking up handset.
Check with your WLL service provider regarding the availability of this feature. The information
in a message depends on the mode the WLL is operating in and the service’s capabilities.
7.1 Checking & Deleting Received Message
7.1.1 Text Message
1. Press Message button and 1(Received MSG)
2. Press 1(Message) to see a received text message list.
.
ü Locate to the desired message in the list.
ü Mark “!” means a new message.
ü Mark “∨ “means already a checked message.
3. Press [view] to see the content of desired message.
ü You can see the message with received time and
caller’s phone number.
ü Use the Volume button to read all message.
LGE CDMA Fixed Wireless Telephone
LSP-2400
28
RECEIVED MSG
3:Clear All
-Voice Mail-
1 New Msg
5/21 2:32 PM
< Voice Mail >
5/21 2:32 PM
erase ok
Erase Message?
yes no
4. Press [erase] to erase a message.
ü Press [yes] to complete erasing process.
7.1.2 Voice Message
Voice mail notifications indicate the number of new voice
mail message in your mail box. Only the most recent
voice mail notification will be stored in the WLL phone;
previous messages will be overwritten. When a voice mail
messages left for you, the WLL phone will alert and
display “ -Voice Mail -“. You must call your voice mail
service to retrieve these messages.
1. Press Message button and 1(Received MSG) in idle
state.
2. Press 2(Voice Mail) to check the voice message.
ü If there is no voice message, “No New Voice Mail”
is displayed.
ü Press [erase] to delete the voice message.
3. Pick up the phone to make a call to call back your voice mail box if the number of the voice
mail box is provided by system.
7.1.3 Erasing all Received Message
1. Press Message button and 1(Received MSG).
2. Press 3(Clear All).
3. Press [yes] to delete.
7.2 Setting alert tone count.
Erase All?
yes no
LGE CDMA Fixed Wireless Telephone
LSP-2400
29
2 beeps
ok next
< Called By >
1234567
erase ok
028503333
ok A/a
abcde
<MSG INPUT>
ok A/a
Message Store?
nextok
Yes
MSG Sending
2:Sent MSG
1:New MSG
SMS MENU
2:Set Alert
1:Received MSG
SMS MENU
3:MSG Sending
Called Number
ok
1234
Call back Number
ok
5678
1. Press Message button and 2(Set Alert).
2. Select no, 2 beeps, 4 beeps or Factory by pressing
[next].
3. Press [ok] to save and exit.
7.3 Message Sending
n 7.3.1 Sending a New Message
1. Press Message Button and 3(MSG Sending)
2. Press 1(New MSG) to send a new message
3. Enter the called number and press [OK]
4. Enter the call back number and press [OK]
5. Input a message and press [ok] to send
Press [A / a] to change upper or lower case character
6. Select Yes/No to store the message. Press [OK] to send
LGE CDMA Fixed Wireless Telephone
LSP-2400
30
028503333
ok A/a
Hello!
<MSG INPUT>
ok A/a
028503333
ok A/a
Hello Guys!
<MSG INPUT>
ok A/a
MSG Sending
2:Sent MSG
1:New MSG
01.Hello!
02.Good Morning
editnext
Called Number
ok
1234
Call back Number
ok
5678
n 7.3.2 Sending the sent Message or message after editing the Sent Message
1. Press Message Button and 3(MSG Sending)
.
2. Press 2(Sent MSG) to see a received text message list.
ü Locate to the desired message in the list.
.
ü If You want to select the next message,
Press the next button
3. Press [edit] to edit the content of the selected message.
ü You can see the selected sent message
ü Edit the message. Press [A / a] to change upper
or lower case character
5. Press [OK] Button.
6. Enter the called Number and press [OK]
7. Enter the call back Number and press [OK]
LGE CDMA Fixed Wireless Telephone
LSP-2400
31
Message Store?
nextok
Yes
Erase Message?
yes no
MSG Sending
2:Sent MSG
1:New MSG
MSG Sending
3:Clear MSG
< CONTENTS >
Hello!
erase cancel
01.Hello!
02.Good Morning
viewnext
8. Select Yes/No to store Message. Press [OK] to send the MSG
n 7.3.3 Erasing a Sent Message
1. Press Message Button and 3(MSG Sending)
2. Press 3(Clear MSG) to clear text message list.
ü Locate to the desired message in the list.
3. Press [view] to see the content of desired message.
ü You can see the received message.
4. Press [erase] to erase a message.
ü Press [yes] to complete erasing process.
Beside Functions
LGE CDMA Fixed Wireless Telephone
LSP-2400
32
012-345-6789
WLL
8.1 Redial
Pick up the handset or press button and Redial button to redial last outgoing number.
8.2 Viewing your own number
Press Redial button in on-hook state to see your own
telephone number
LGE CDMA Fixed Wireless Telephone
LSP-2400
33
ABC
was stored!
in #01
Memory...
Unused : 99
Used : 01
021234567
find
save
021234567
ok A/a
ABC
auto=01 ??
ok next
Make it Secret?
No
ok next
9. Storing Phone Number
9.1 Storing/Editing Phone Numbers
9.1.1 Storing Phone Numbers
Frequently used phone numbers can be stored on the memory locations (01~99: 2 digits) and
you can make a call by pressing memory location number in off-hook state.
1. Enter the area code and phone number in on-hook
state. (Max. 32 digits)
2. Press [save].
3. Enter the name in text mode and press [ok] to save.
Press [A /a] to change upper or lower case characters.
ü To store without name, just press [ok].
ü Refer to “To enter a character”.
4. Enter the desired memory location.
ü The phone number is stored in the displayed
memory location.
5. The phone will display a message asking to keep your
number as secret or not. Select “No” or “Yes” using
[next]. Then Press [ok].
ü You can see a confirming message.
ü Also you can see a condition of used memory.
LGE CDMA Fixed Wireless Telephone
LSP-2400
34
Empty Address
Recall Address?
??
quitname
Search for
find
l To enter a character.
You can enter English character in editing mode.
You can enter English character as default, and press Message to select specific character.
l To enter English character.
Press once a keypad to enter the first letter labeled in the keypad, twice to enter the second
letter and 3 times to enter the third letter.
EX) To enter “L”,
Press dial button 5 labeled “JKL” 3 times to enter “L”.
ü After 2 seconds entering a character, the cursor is moved to the next position
automatically.
ü Press Volume button to move the cursor.
ü Press Clear button to erase or correct entered character.
l To enter specific character,
Press Message to view a desired character while you are entering names.
ü Special characters includes *, #, %, “, :, +, <, >, =, and more
ü Press the number next to the character you want insert.
9.1.2 Erasing Stored Phone Numbers
When a phone number is stored in a memory location, you can erase the stored phone
number.
1. Press [recall] and 2(memories) and enter a number of
the desired memory location to erase.
ü If there is no stored phone number in the memory
location, “Empty Address” is displayed.
ü If you do not remember the memory location to
erase, press Volume button or press [name] to
search phone number by name.
LGE CDMA Fixed Wireless Telephone
LSP-2400
35
- erased! -
01:ABC
02:1234567
next view
01:ADG
028503619
eraseedit
Erase #01?
028503619
ok quit
Recall Address?
??
quitname
01:ABC
023456789
eraseedit
2. Erasing process
ü Press [erase] to delete.
ü Press [ok] to complete erasing process.
9.2 Finding Stored Phone Numbers
You can see all the list of stored phone numbers in memory list and if you forgot the memory
location, can find it in sequence. And You can place a call with the phone number.
1. Press [recall] and 2(memories) in on-hook state.
2. Press Volume button to find the desired phone
number.
ü Locate in the desired name or address to find.
ü If not any entered name, phone number is
displayed.
3. Press [view] to see the stored number.
4. To make a call with the phone number in the state of
step 2 or step 3, pick up the handset or press
button and wait for Auto Time-out.
LGE CDMA Fixed Wireless Telephone
LSP-2400
36
10. Restriction Call Service
This function is a convenient feature which enables user to restrict using any phone number.
To forbid using any phone number, user must set the number in deny edit.
Can’t use any phone number(max 32digits) started with the number saved in deny edit.
If user set the phone number in permit edit, can use any phone number (max 32digits)
started with the number even if the phone number is set in deny edit.
Ex) example to restrict using the phone number started with “700” .
1. set “Restriction” in Restrict set menu (function 10.1)
2. set “700” in deny edit. (function 10.3)
3. set “700-1234” in permit edit.(function 10.2)
Result : user can use the phone number started with “700-1234”.
10.1 Restrict set
No restriction
This is a general function which has no any restrictions
Restriction
This is a function that you can set permited phone number and denied phone number.
Emergency only
This is a function which enable you to call only emergency numbers.
.
1. Press [menu] and 4(Security) .
2. Enter a lock code using key pad.
3. Press 6(Restrict) and 1(Restrict Set).
4. Select “No Restriction” ,” Restriction” or “Emergency only ” using [next].
and press [ok]
MAIN MENU
4:Security
3:Wake-up Time
RESTRICT
1: Restrict Set
2: Permit Edit
Enter
Lock Code !
_----
Restrict Set
Restriction
ok
LGE CDMA Fixed Wireless Telephone
LSP-2400
37
♦ Below 10.2 and 10.3 function can be used when the Restrict set is set to “Restriction”.
10.2 Permit Edit
You can call it if the phone numbers saved in permit edit though they were saved in deny edit.
You can save 10 permit phone numbers.
1. Do the above step 1~2 of 10.1
5. Press 6(Restrict) and 2(Permit Edit).
3.Press [edit] to edit permit phone number.
4.Enter the permit phone number
5.Press [ok] to save and exit
10.3 Deny Edit
You couldn’t call any phone numbers saved in deny edit.
You can save 10 deny phone numbers.
1. Do the above step 1~2 of 10.1
2. Press 6(Restrict) and 3(Deny Edit).
3.Press [edit] to edit deny number.
4.Enter the deny phone number
5.Press [ok] to save and exit
11. Speaker phone
This function is a convenient feature which enables you to call using speaker phone button in
on-hook state.
12. Backlight
pressed any keys, LCD has a light during 7 seconds.
next
RESTRICT
1: Restrict Set
2: Permit Edit
Permit 1
700-1234
next
edit
RESTRICT
3: Deny Edit
Restrict 1
700
next
edit
LGE CDMA Fixed Wireless Telephone
LSP-2400
38
13. General Information
Main Unit
Item LSP-2400
Tx Frequency Digital : 1850 ~ 1910 MHz
Rx Frequency Digital : 1930 ~ 1990 MHz
Channel Bandwidth 1.25 MHz
Tx Power Digital : Max. 0.2W
Rx Sensitivity -104 ~ -25dBm
Size 160 X 215 X 76 (L X W X H)
Below 809(with battery, Ni-MH)
Weight(g) Below 748 (without battery)
Operating
Temperature
0 ~ 50
AC/DC Adapter
Item SMPS Type Description
Input Voltage AC 100 ~ 250V / 0.3A, 15W
Input Frequency 50 / 60Hz
Output Voltage 9.6V(DC), 1A
Battery
Item Description
Capacity 6V Ni-MH 550mAh
Talk duration time 0.5 Hours
Standby duration time 6 Hours
Charging duration time Trickle, 24 Hours
Licensed by QUALCOMM Incorporated under one or more of the following Patents:
U.S, Patent No. 4,901,307 U.S, Patent No. 5,056,109 U.S, Patent No. 5,099,204
LGE CDMA Fixed Wireless Telephone
LSP-2400
39
U.S, Patent No. 5,101,501 U.S, Patent No. 5,103,459 U.S, Patent No. 5,107,225
