Users Manual
CDMA Fixed Wireless Telephone
User Guide
Model: LSP-300
LGE CDMA Fixed Wireless Telephone
LSP-300
3
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
2001/02/19
ISSUE1 Initial Release
LGE CDMA Fixed Wireless Telephone
LSP-300
4
Blank Page
LGE CDMA Fixed Wireless Telephone
LSP-300
5
CONTENTS
Highlights ......................................................................................................................................7
1. Important Information.......................................................................................................8
1.1 Safety Information...........................................................................................................8
1.2 Optimal Phone Performance.........................................................................................8
1.3 Care and Service............................................................................................................9
2. Introduction.......................................................................................................................10
2.1 Front View of the Telephone.........................................................................................10
2.2 LCD Display .................................................................................................................11
2.3 Installation.....................................................................................................................12
2.4 Installation Steps ..........................................................................................................14
3. Basic Operation................................................................................................................15
3.1 Making a Call ................................................................................................................15
3.2 Redialing Last Outgoing Number.................................................................................15
3.3 Receiving a Call............................................................................................................16
3.4 Signal Strength.............................................................................................................16
3.5 Missed Call Message ...................................................................................................16
4. List of Menu State............................................................................................................17
4.1 Volume / Ring..................................................................................................................17
4.1.1 Ring Volume.........................................................................................................17
4.1.2 Key Volume..........................................................................................................18
4.1.3 Ear Volume ..........................................................................................................18
4.1.4 Ring Type
4.2 Additional Feature.........................................................................................................24
4.2.1 Wake-up time.....................................................................................................19
4.2.2 Minute alert ..........................................................................................................20
4.2.3 Set Rx call mode..................................................................................................20
4.2.4 SIO baud rate.......................................................................................................20
4.2.5 Own Number ..........................................................................................................2
4.3 Dialing features ..................................................................................................................19
4.4.1 Hot line ...............................................................................................................19
4.4.2 Hot line time.......................................................................................................20
4.4.3 Auto time-out........................................................................................................20
4.4.4 Speed dialing........................................................................................................20
4.4.5 Keytone length.....................................................................................................20
LGE CDMA Fixed Wireless Telephone
LSP-300
6
4.5 Security Features............................................................................................................22
4.5.1 Set Lock mode.......................................................................................................23
4.5.2 Clear calls..............................................................................................................23
4.5.3 Clear memory.........................................................................................................23
4.5.4 Emergency call ......................................................................................................23
4.5.5 Restrict call............................................................................................................23
4.5.5.1 Restriction set .....................................................................................................23
4.5.5.2 Permit Memory..................................................................................................23
4.5.5.3 Deny Memory....................................................................................................23
4.5.6 New Code
5. Features while in a Call ..................................................................................................25
5.1 Ear Volume...................................................................................................................25
5.2 MIC Volume..................................................................................................................25
5.3 Mute..............................................................................................................................26
5.4 Memo............................................................................................................................26
5.5 Transmitting your own number ....................................................................................26
6. Searching, Editing & Dialing.........................................................................................27
6.1 Retrieving Last Call History..........................................................................................27
6.2 Retrieving Phone Number by Name............................................................................28
6.3 Retrieving Phone Number by Address ........................................................................29
6.4 Retrieving Phone Number by Number.........................................................................29
7. SMS(Short Message Service).......................................................................................30
7.1 Check & Deleting Received Message..........................................................................30
7.1.1 Text Message........................................................................................................30
7.1.2 Voice Message..................................................................................................31
7.1.3 Erasing all Received Message..........................................................................31
7.2 MSG Notification tone select........................................................................................32
7.3 Erasing Message..........................................................................................................31
7.4 Message sending .........................................................................................................32
7.3.1 Sending a New Message....................................................................................32
7.3.2 Sending the sent message or message after editing the sent message...........33
7.3.3 Erasing a sent message.....................................................................................34
8. Beside Functions.............................................................................................................35
8.1 Redial ...........................................................................................................................35
8.2 Viewing last call-history................................................................................................35
8.3 Flash.............................................................................................................................35
9. Storing Phone Number ..................................................................................................36
9.1 Storing / Editing Phone Numbers ................................................................................36
9.1.1 Storing Phone Numbers.........................................................................................36
9.1.2 Erasing Stored Phone Numbers..............................................................................37
9.2 Finding Stored Phone Numbers...................................................................................38
10. Speaker phone..................................................................................................................39
11. General information .........................................................................................................39
LGE CDMA Fixed Wireless Telephone
LSP-300
7
Highlights
Congratulations on your purchase of the LSP-300 Fixed Wireless Telephone. This
telephone has been designed to operate on the latest digital mobile communications
technology. This technology has greatly enhanced voice clarity and can provide various
advanced features.
The telephone provides:
l 3-line LCD Display with status indicator
l A choice of 10 ring sounds
l A menu driven interface with prompts for easy operation
l Last Number Redial
l Speed Dialing with a 99-number memory
l Dial tone
l ROH (Receiver Off-Hook) tone
l Adjustable Ring Volume
l Internal Back-up Battery Pack
l AC Power Supply
l Dipole Antenna
l DB9 Data Port for service and repair
l Backlingt
l Speaker phone
LGE CDMA Fixed Wireless Telephone
LSP-300
8
1. Important Information
1.1 Safety Information
Warning
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not use this product near swimming pools or other bodies of water.
IMPORTANT
Before installing or operating this product read this information.
1.2 Optimal Phone Performance
l Do not operate your product when holding the antenna, or when someone is within four
inches (ten centimeters) of the antenna. Holding the antenna affects call quality and may
cause the telephone to operate at a higher power level than needed.
l For the best call quality, keep the antenna free from obstructions and point the antenna
straight up.
l Do not use the unit with a damaged antenna. Have your antenna replaced by a qualified
technician immediately. Use only a manufacturer-approved antenna. Non-approved
antennas, modifications, or attachments could impair call quality, damage the phone.
l RF energy may affect improperly installed or inadequately shielded personal medical
devices such as pace markers, hospital monitor. Consult the manufacturer of any
personal medical devices to determine if they are adequately shielded from external RF
energy. Turn your terminal OFF in health care facilities when any regulations posted in the
areas instruct you to do so. Hospitals or health care facilities may be using equipment that
could be sensitive to external RF energy.
l If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the distance between the radio or television and the telephone.
- Connect the equipment into an outlet on a circuit
different from that to which the
terminal is connected.
- Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help.
l Use only the battery, antenna and AC power supply provided by LGIC. Using any other
type will invalidate the warranty.
l Only authorized personnel should service the phone and its accessories. Faulty
installation or service any be dangerous and may invalidate the warranty.
l Do not use the unit in designated “no cellular phone use” area.
l Avoid exposure to high temperature or humidity.
l Avoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately
and remove the backup battery and AC power supply. If the unit is inoperable, then return
to the service agent for service.
l Avoid shock or impact.
LGE CDMA Fixed Wireless Telephone
LSP-300
9
l We recommend you to charge the backup battery before initial use. Backup battery may
be discharged during delivery.
1.3 Care and Service
l Unplug the telephone from the wall outlet and remove antenna (or disconnect antenna
cable) before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
l If the unit fails for any reason, do not attempt to disassemble; contact the telephone
service provider for assistance.
l If any of the following conditions exist; unplug the unit at the wall plug, remove battery, and
call the service provider.
- The power supply cord is damaged or frayed.
- Liquid has been spilled into the unit.
- The unit has been exposed to rain or water.
- The unit has been dropped or damaged.
- The unit does not work normally by following the operating instructions.
LGE CDMA Fixed Wireless Telephone
LSP-300
10
2. Introduction
2.1 Front View of the Telephone
Menu / Softkey 1 : Activate MENU state (also MENU state in the call state)
Message : Activate SMS state
End : Deactivate a STATE – No store a value (also activate MUTE state )
Recall / Softkey 2 : Activate RECALL state / Choose NEXT state
Navigation Up (é) : Shift to a upper state in the MENU state (also Function as a cursor in the EDIT state)
Navigation Down(ê) : Shift to a lower state in the MENU state(also Function as a cursor th the EDIT state)
Navigation Left (ç) : Volume(also Function as a cursor th the EDIT state)
Navigation Right (è) : Volume(also Function as a cursor th the EDIT state)
Clear(Cancel) : Delete the last digit/dial number(also Exit without storing in the MENU state)
LGE CDMA Fixed Wireless Telephone
LSP-300
11
Flash : flash function in the call state Redial : Redial function

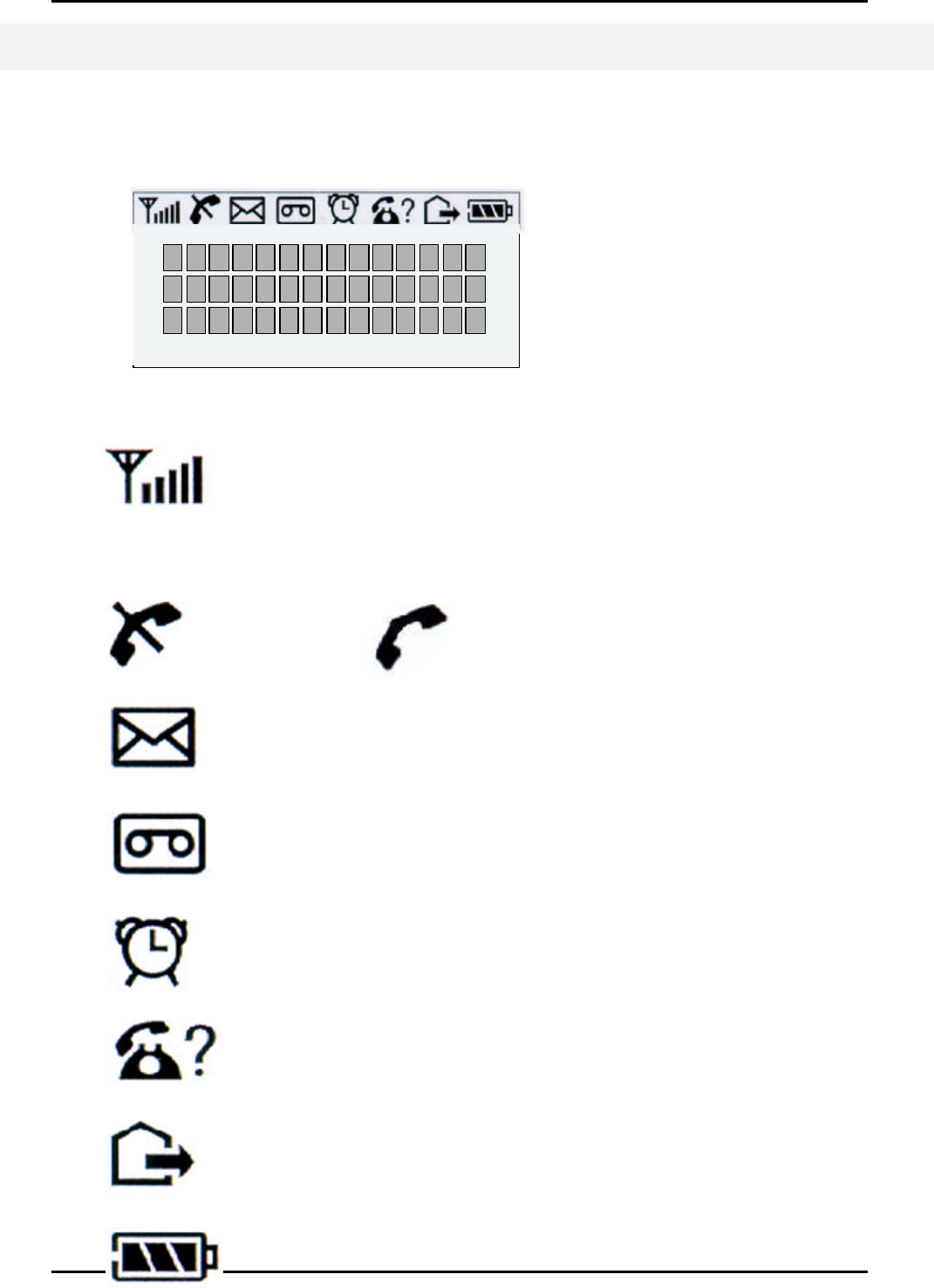

2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicator appears based on the phone's operating mode.
1) RSSI indicator : Indicates the signal strength in the service area.
2) No service : The phone is not receiving system signal.
3) In use : Displayed when call is in progress or the phone is in off-hook and dial tone
heard.
: No service : In use
4) Text message : Displayed when a text message is received.
5) Voice message : Displayed when a voice message is received.
6) Alarm : Displayed when wake up alarm time was setting.
7) Caller ID : Displayed when caller ID is received.
8) OUT : Going out.
9) Battery charge level : Indicates charged battery level.
LGE CDMA Fixed Wireless Telephone
LSP-300
12
LGE CDMA Fixed Wireless Telephone
LSP-300
13
2.3 Installation
You should follow each step carefully as shown below in order to guarantee proper
operation of CDMA Fixed Wireless Telephone.
STEP I. Check Components
l Fixed Wireless Terminal is supplied with the following standard unit and accessories;
1. LSP-300 Main Unit with Handset -1EA-
2. Dipole Antenna -1EA-
3. Backup Battery -1EA-
4. User Guide . -1EA-
5. AC/DC Power Adapter -1EA-
6. Power Cord(Only SMPS Adapter) -1EA-
l Please make sure that these components are present before you begin the unit
installation. And then compare the following figures and components. If components
are missing or damage is found, contact the store where you purchased the unit
immediately.
STEP II. Place the Terminal
l Place the terminal on the stable flat secure surface area (desk, table, etc.). Serious
damage may result if the unit falls. Do not place the unit on, or within 1 meter of
heaters or radiators. This unit is designed for desktop usage. Avoid direct exposure to
the sun lights and damp area.
l Read the SAFETY INFORMATION located at the first part of this document before you
place the terminal

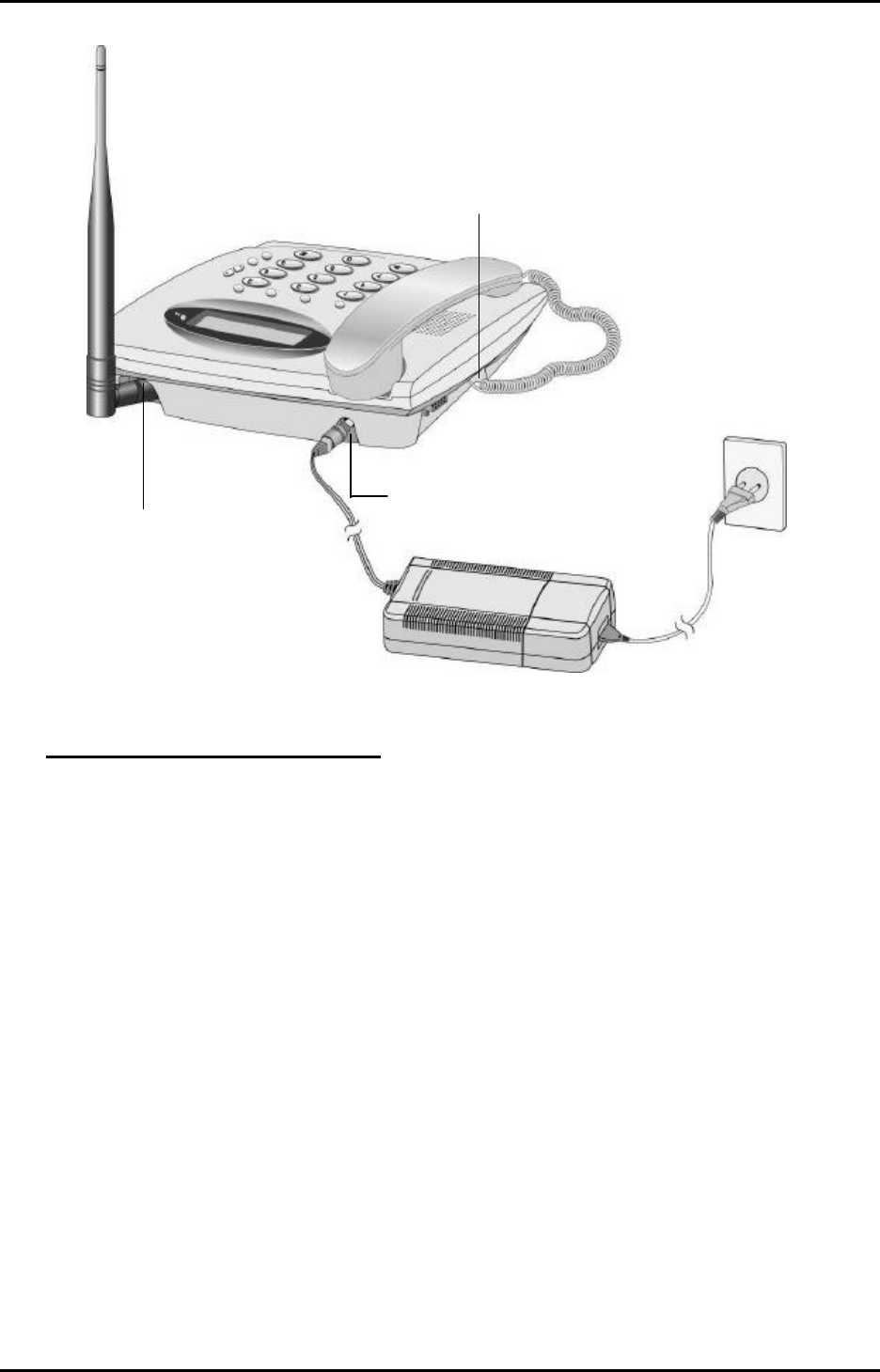

STEP III. Connect Components (See the figures in “Installation Steps”.)
l Connect the antenna to the TNC antenna connector located at the top side of the
terminal. If you placed the terminal on the flat surface, bend the antenna up right.
l Connect curl cord of handset assembly to the RJ-11C port located at the left side of the
terminal.
l Open the battery case, securely connect the battery cord, place the backup battery
pack and close the case.
l Connect the AC/DC Adapter cable to the DC input port located at the topside of the
terminal.
-. If it is good, beep tone is heard.
-. If it is not good(Booting is fail or beep tone is not heard), you have to connect the
adapter or backup battery, again.
l Please follow the below to get better voice quality;
1. Keep away from electrical appliances such as TV, computer, radio and so on.
2. Keep terminal in a high and central location with no obstructions, such as metal
walls.
3. Raise the integral antenna of terminal to get maximum strength of receive signal
as shown figure at the next page.
LGE CDMA Fixed Wireless Telephone
LSP-300
14
STEP IV. Check the LCD Display
l After you follow the installation instruction step I to step III, please check the LCD for
normal operation.
l If you may not see status of service, please repeat the 5th instruction of step III. And
conform Fixed Wireless Telephone to get the proper signal strength from service
operator system.
The adapter type(with power cord) may be different by country adaptation.
Antenna TNC
Connector
AC Power Supply
Connector
Handset Connector
LGE CDMA Fixed Wireless Telephone
LSP-300
15
2.4 Installation Steps
Please follow the below procedure to install the unit properly.
Connect Base-
handset to the
handset connector.
Connect the
antenna to the
TNC connector
(Turn right).
Bend the antenna
up right.
Open the
battery cover
at the bottom
of the unit.
Insert back-up
battery in the
bottom of the unit.
(give care to
polarity)
Connect the AC
power supply.
1
11
1
22
1
33
1
55
1
44
1
66
LGE CDMA Fixed Wireless Telephone
LSP-300
16
1234567
1234567
Calling...
Basic Operation

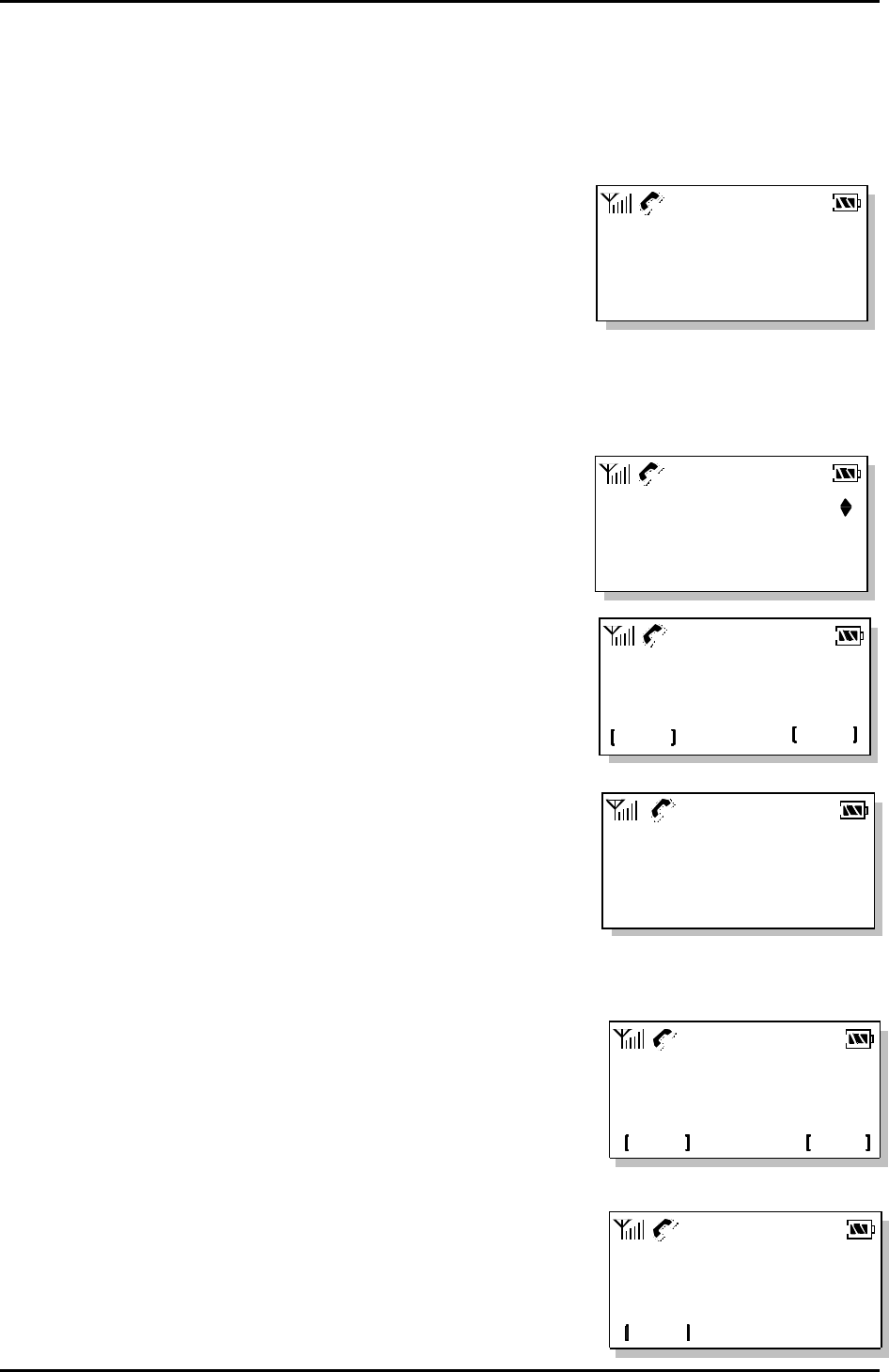

3.1 Making a Call
1. Pick up the handset or press button.
2. Listen for dial tone
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out.
5. The call is connected and you can start conversation.
6. To disconnect the call, replace the handset or press button.
3.2 Redialing Last Outgoing Number
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Press Redial button. The last number that you called will be re-dialed.
l Correcting dialing mistakes
1. Press Clear button shortly to erase the most recent digit.
2. Press and hold Clear button for at least one second.
l If the phone is locked, enter the Lock Code
l If the call did not go through, press the hook switch and dial again.
l Flashing / Hook Switch
1.
While in the middle of a call, pressing the hook switch for less than 1 second will be
treated as a flash. After 1 second, the call will be terminated.
2. Very briefly pressing the hook switch will be ignored.
l Battery icon is displayed only when the terminal is operating by battery without AC power.
LGE CDMA Fixed Wireless Telephone
LSP-300
17
10:51 AM
Missed 1 call
OK
Incoming Call!
10:23 AM
08 May, Sat
MENU RECALL

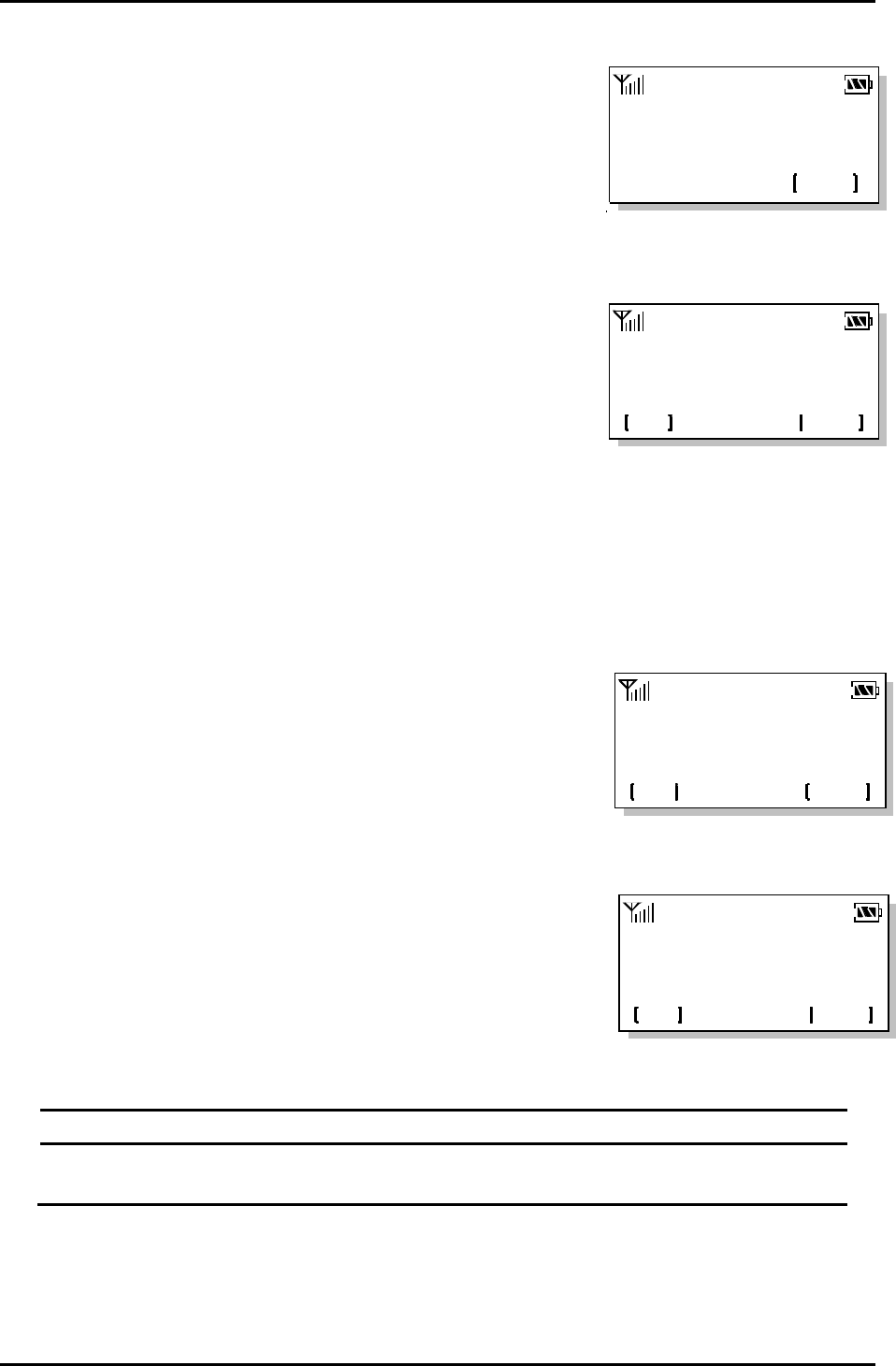

3.3 Receiving a Call
1. When bell rings, pick up the handset.
2. Start conversation.
3. To disconnect the call, replace the handset.
3.4 Signal Strength
The quality of calls depends on the signal strength in your
area. The stronger the signal, the better the call quality.
The signal strength icon indicates the current strength as a
number of bars. You can see the antenna and bars
according to the strength of received signal in the upper-
left part.
3.5 Missed Call Message
If a call is received and not answered for user’s absence,
You are informed that you have missed a call. The latest
missed call time and number of missed call is displayed.
Press [OK] to erase “Missed call” message.
Time: 0:23
MENU [MUTE]
LGE CDMA Fixed Wireless Telephone
LSP-300
18
List of Menu State
Main Menu Sub-Menu Setting Value Default
1. Ring Volume 4 steps
2. Key Volume 4 steps +silent
3. Ear Volume 4 steps
1. Select Volume
4. Ring Select - 10 types
1. Wake-up time Off/Once/Always
2 .Minute alert Enable/Disable
3.Rx call mode Voice / Fax for next / Always Fax /
Modem for next / Always modem
4.SIO baud rate 19200/38400/57600/115200
/230400
2. Additional
5.Own Number Display own number
1. Hot Line Off/On
2. Hot Line Time 2-9 Sec.
3. Auto time-out 2-9 Sec.
4. Speed Dialing Enable/Disable
3. Dialing features
5. Key tone length normal/Long
1. Set Lock mode Never/on power up/Always
2. Clear calls Enable/Disable
3. Clear memory No/Yes
4. Emergency call Local(3.ea)
5. Restrict call
5.1 restrict set No restriction/restriction
/emergency only
5.2 permit memory Local(10.ea)
5.3 Deny memory Local(10.ea)
6. new code Create new lock code
4. Security
LGE CDMA Fixed Wireless Telephone
LSP-300
19
MAIN MENU
2:Additional
1:Volume / Ring
RING VOLUME
OK NEXT
KEY VOLUME
NEXTOK
U
EAR VOLUME
NEXTOK

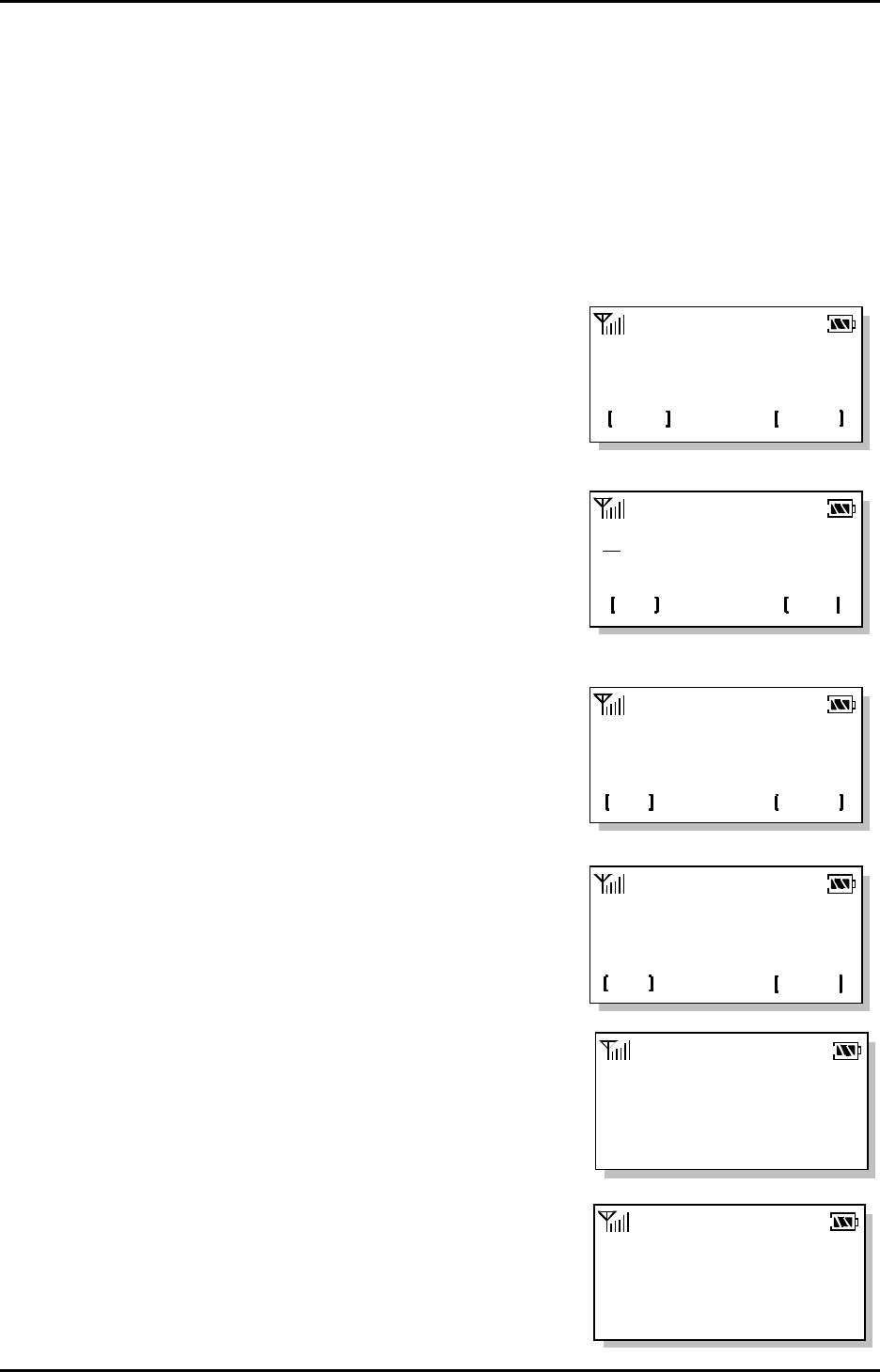

4.1 Select Volume
This menu allows you to adjust the various different volumes.
4.1.1 Ring Volume
The received tone when you receive a call can be adjusted.
l From the MENU
1. Press [MENU] + 1(Volume/Ring)+ 1(Ring Volume) in on-hook state.
2. Press Volume button or [NEXT] to adjust ring volume.
3. Press [OK]
l By the Volume button
1. Press Volume button to adjust ring volume in on-hook
state
4.1.2 Key Volume
The tone when you press a key can be adjusted.
1. Press [MENU] + 1(Volume/Ring) + 2(Key Volume) in
on-hook state.
2. Press Volume button or [NEXT] to adjust key volume.
3. Press [OK]
4.1.3 Ear Volume
The voice of the other party can be adjusted in on-hook state.
1. Press [MENU] + 1(Volume/Ring) + 3(Ear Volume) in
on-hook state.
2. Press Volume button or [NEXT] to adjust ear piece
volume
3. Press [OK]
ü Press Volume button to adjust volume during conversation
LGE CDMA Fixed Wireless Telephone
LSP-300
20
MAIN MENU
Alarm Time
Always
[OK] [NEXT]
Wake-up Time
_1:23 AM
OKAM/PM
MINUTE ALERT
NEXTOK
On
4.1.4 Ring Select
You can select the various ring types
1. Press [MENU] + 1(Volume/Ring) + 4(Ring Type)
in on-hook state.
2. Select a desired ring type with Volume button or
[NEXT].
ü There are 10 different ring types.
ü Those are Standard,Option 1,Option 2, Option 3, Option 4, Habanera, Deutsch
song, La Primavera, Oh! susanna, Beethoven
3. Press [OK] to save and exit.
4.2 Additional feature
4.2.1 Wake-up Time
This function allows you to adjust Wake-up Time.
1. Press [MENU] + 2(ADDITIONAL) + 1(Wake-up Time)
In on – hook State
2. Select Off, Once or Always by [NEXT] and press [OK].
3. Press [EDIT] and set the time.
4. Select A.M. or P.M. by [AM/PM].
5. If you want to modify the wrong time, press Clear button
and set again.
6. Press [OK] to save and exit
4.2.2 Minute Alert
Alerts you every minute during a call.
1. Press [MENU] + 2(ADDITIONAL) + 2(Minute Alert)
In on – hook State
RINGER TYPE
NEXT OK
Standar
d
1:VOLUME/RING
2.ADDITIONAL
LGE CDMA Fixed Wireless Telephone
LSP-300
21
DATA BAUDRATE
NEXTOK
19200
OWN NUMBER
OK
000-000-0000
DIAL FEATURES
2:Hot Line Time
1:Hot Line
Hot Line
NEXT
OK
On
RX CALL MODE
NEXTOK
voice
2. Select On or Off by [NEXT] or Volume button.
3. Press [OK] to save and exit
4.2.3 Rx call mode
.
1. Press [MENU] + 2(ADDITIONAL) + 3(RX Call Mode)
in on – hook State.
2. Select Voice, Fax for next, Always Fax, Modem for
next by Volume or [NEXT] button.
3. Press [OK] to save and exit.
4.2.4 SIO baud rate
1. Press [MENU] + 2(ADDITIONALl) + 4(SIO Baud Rate)
in on – hook State.
2. Select 19200, 38400, 57600, 115200, 230400 by
Volume or [NEXT] button
3. Press [OK] to save and exit
4.2.5 own number
1. Press [MENU] + 2(ADDITIONAL) + 5(Own Number)
in on – hook Sate.
2. Press [OK] to exit
4.3 Dial features
4.3.1 Hot Line
1. Press [MENU] + 3 (DIAL FEATURES) + 1(Hot Line)
In on – hook State.
2. Select On or Off by [NEXT] or Volume button and
press [OK] to select.
LGE CDMA Fixed Wireless Telephone
LSP-300
22
U
[OK] QUIT
119
Hot Line Time
NEXTOK
5 sec
Auto Time-out
NEXTOK
5 sec
SPEED DIALING
NEXTOK
Enable
3. Press [EDIT] to input Hot Line phone number.
4. Enter the Hot Line phone number
5. Press [OK] to save and exit.
4.3.2 Hot Line Time
1. Press [MENU] + 3 (DIAL FEATURES) + 2(Hot Line
time)
In on – hook Sate.
2. Select hot line connection time(2~9 sec.) by [NEXT] or
Volume button.
3. Press [OK] to select.
4.3.3 Auto Time-out
Setting the length of time the phone waits before automatically dialing a number. You
can select this time between 2 and 9 second.
1. Press [MENU] + 3(DIAL FEATURES) + 3(Auto Timeout)
In on – hook State.
2. Select Auto time-out second between 2 and 9 by [NEXT]
or Volume button.
3. Press [OK] to select.
4.3.4 Speed Dial (enable / disable)
1. Press [MENU] + 3 (DIAL FEATURES) + 4(Speed Dialing)
in on – hook State.
2. Select Enable or Disable by [NEXT] or Volume button
and press [OK] to save and exit.
This function can be used when the Speed Dial is set to Yes.
l Speed Dial Function
1. You can store phone numbers in memory locations (1~99) and place a call.
2. Press the memory number (1 through 99) corresponding to the appropriate memory
location, and hold for a few seconds.
LGE CDMA Fixed Wireless Telephone
LSP-300
23
Enter
Lock Code!
SECURITY
1:Set Lock Mode
2:Clear Calls
SET LOCK
NEXTOK
Never
DIAL FEATURES
5:KeyTone Length
BEEP LENGTH
NEXTOK
normal
CLEAR CALL STACK
NEXTOK
No

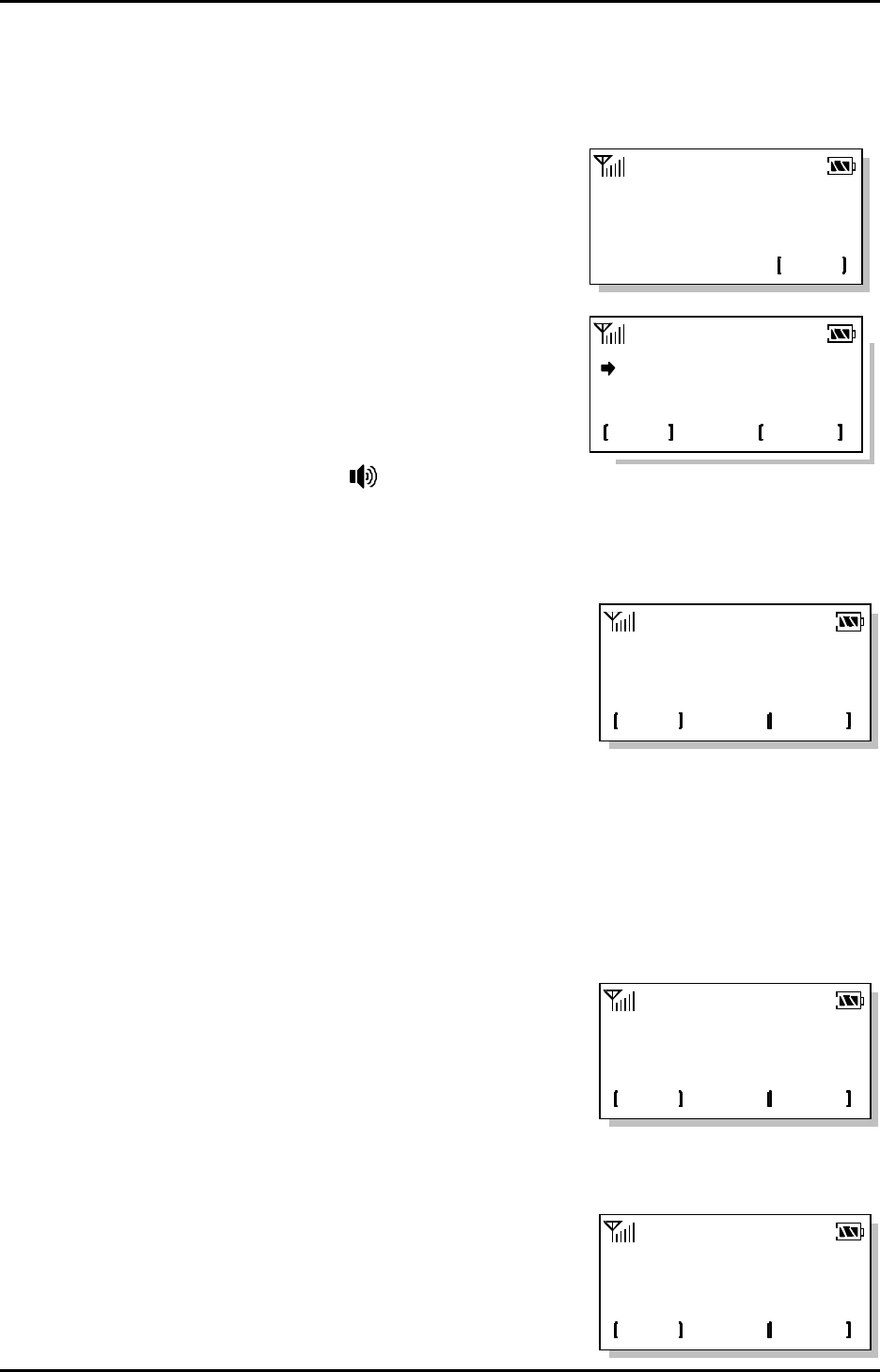

4.3.5 Key-tone Length
Setting key beep playback length. Possible settings are Normal and Long.
1. Press [MENU] + 3(DIAL FEATURES) + 5(Keytone
Length) in on – hook State.
2. Select Normal or Long by [NEXT] or Volume button
and press [OK] to select.
4.4 secruity
4.4.1 Lock Mode Set
This function prevents your phone from being used without permission. Typical default
value is 0000. Possible settings are Never, On power up and Always. The Never
means that the phone is not locked. On power up locks the phone when the phone is
turned on. Always sets the phone locked immediately.
1. Press [MENU] + 4 (SECURITY)
2. Enter your own 4 digit lock code
ü When this product comes out, the default is 0000.
3. Press 1(Set Lock Mode)
4. Select Off, On power up or Always by [NEXT] or
Volume button.
5. Press [OK] to save and exit.
4.4.2 Clear Calls
When a previous outgoing or incoming call history is stored in a memory location, you
can erase the all call history.
1. Do the above 1 and 2 steps of 4.4.1.
2. Press 2(Clear Calls)
LGE CDMA Fixed Wireless Telephone
LSP-300
24
Emergency 1
NEXT
EDIT
<empty>
119
OK QUIT
CLEAR WHOLE BOOK
NEXTOK
No
3. Press [YES] to erase all call history
4.4.3 Clear Memory
When you want to delete phonebook memory, you can erase all phonebook memory.
1. Do the above step1 and 2 of 4.4.1.
2. Press 3(Clear Memory).
3. Press [YES] to erase all phone memory.
4.4.4 Emergency Call
Even if your phone is locked you can make calls to 3 emergency numbers.
1. Do the above step1 and 2 of 4.4.1.
2. Press 4(Emergency Call)
3. Press [NEXT] or Volume button to choose the number
from 1 to 3
4. Press [EDIT].
5. Enter the emergency phone number
6. Press [OK] to save the number
7. Press [NEXT] or Volume button to edit others or Press
End button to exit emergency call process
4.4.5 Restriction Call Service
This function is a convenient feature which enables user to restrict using any phone number.
To forbid using any phone number, user must set the number in deny edit.
Can’t use any phone number(max 32digits) started with the number saved in deny edit.
If user set the phone number in permit edit, can use any phone number (max 32digits)
started with the number even if the phone number is set in deny edit.
Ex) example to restrict using the phone number started with “700” .
1. set “Restriction” in Restrict set menu (function 4.4.6.1)
2. set “700” in deny edit. (function 4.4.6.3)
3. set “700-1234” in permit edit.(function 4.4.6.2)
Result : user can use the phone number started with “700-1234”.
4.4.5.1 Restrict set
No restriction
This is a general function which has no any restrictions
LGE CDMA Fixed Wireless Telephone
LSP-300
25
Restrict Set
restrction
OK NEXT
Restriction
This is a function that you can set permited phone number and denied phone number.
Emergency only
This is a function which enable you to call only emergency numbers.
.
1. Press [MENU] and 4(SECURITY ) .
2. Enter a lock code using key pad.
3. Press 5(Restrict Call) and 1(Restrict Set).
4. Select “No Restriction” ,” Restriction” or “Emergency
only ” using [NEXT] or Volume button and press [OK]
♦ Below 4.4.5.2 and 4.4.5.3 function can be used when the Restrict set is set to
“Restriction”.
4.4.5.2 Permit memory
You can call it if the phone numbers saved in permit edit though they were saved in deny
edit. You can save 10 permit phone numbers.
1. Do the above step 1~2 of 4.4.1
5. Press 5(Restrict Call) and 2(Permit Memory).
MAIN MENU
4:SECURITY
3:DIAL FEATURES
RESTRICT CALL
1: Restrict Set
2: Permit
memory
Enter
Lock Code
_----
RESTRICT CALL
1: Restrict Set
2: Permit
memory
LGE CDMA Fixed Wireless Telephone
LSP-300
26
Enter
OK QUIT
New code
3.Press [EDIT] to edit permit phone number.
4.Enter the permit phone number
5.Press [OK] to save and exit
4.4.5.3 Deny memory
You couldn’t call any phone numbers saved in deny edit.
You can save 10 deny phone numbers.
1. Do the above step 1~2 of 4.4.1
2. Press 5(Restrict Call) and 3(Deny Memory).
2. Press [EDIT] to edit deny number.
4.Enter the deny phone number
5.Press [OK] to save and exit
4.4.6 New Lock Code
You can change a new lock code(4digits).
1. Do the above step1 and 2 of 4.4.1.
2. Press 6.(New Code)
3. Enter new lock code and press [OK] to save.
4. Enter new lock code again to confirm and press [OK] to save.
Permit 1
700-1234
NEXT EDIT
RESTRICT CALL
3: Deny memory
Restrict
1
700
NEXT EDIT
LGE CDMA Fixed Wireless Telephone
LSP-300
27
IN_CALL MENU
2:MIC LEVEL
1:MEMO
EAR VOLUME
[ OK ] [ NEXT ]
MIC LEVEL
High
OK NEXT
1234567
Time: 0:23
MENU MUTE]
Functions while in a call
5.1 Ear Volume
You may adjust ear volume while you are in a call.
The Volume button on the right side of the phone can be
used to adjust ear volume.
5.2 MIC Volume
Adjusting MIC volume while in a call.
1. Press [MENU] and 2(MIC LEVEL) while in a call.
2. Select Low or High by [NEXT] or Volume button.
3. Press [OK] to save and exit.
LGE CDMA Fixed Wireless Telephone
LSP-300
28
IN_CALL MENU
2:MIC LEVEL
1:MEMO
IN-CALL MENU
3:Send Owner #
Number Stored
In Calls List
114
QUIT
ADD
1234567
Time: 0:23
MENU MUTE]
1234567
Time: 0:23
MENU [UNMUTE]
MUTE
5.3 Transmitting your own number
This function is a convenient feature which enables you to transmit your own phone
number while in a call through press one key. (For example, Sending your phone
number when you pages.)
1. Press [MENU] and 3(SEND OWNER #) button while
in a call.
2. Press [MENU] and 3(Send Owner #)
5.4 Memo
You can save numbers while in a call.
1. Press [MENU] and 1(MEMO) while in a call.
2. Enter a number using key pad.
3. Press [ADD] to save and exit. Or press [QUIT] to exit.
5.6 Mute
This function prevents your voice from being transmitted but you
can call still hear other side.
1. Press [MUTE] button while in a call.
2. You could see “MUTE” message blinking on the right
side of the LCD
3. To release Mute, Press [UNMUTE] button.
LGE CDMA Fixed Wireless Telephone
LSP-300
29
RECALL MENU
2:FROM MEMORIES
1:FROM LAST CALL
Call to
028507618
SAVE TIME
6/9 10:14am
0Min 5Sec
OK
028507618
OK ABC
ABC
auto=01 ??
OK NEXT
Make it Secret?
No
OK NEXT
1234567
028507618
VIEW
Searching, Editing & Dialing
6.1 Retrieving Last Call History
1. Press [RECALL] and 1(FROM LAST CALL)
-
2. Select a number or a name in the last call list by Up and
Down button and press [VIEW].
3. To see more information press [TIME] and press
[SAVE] to save a number in the memory.
ü Pick up the handset or Press button to make a
call with the displayed number.
l By pressing [TIME]
ü Press [OK] to exit
l To save a number
ü Press [SAVE] in step3
ü Enter the name in text mode and press [OK] to
save. Press [ABC] to change upper or lower case
character.
- To store without name, just press [OK].
- Refer to “To enter a character”.
ü Enter a desired memory location (01~99: 2 digits)
or press [NEXT] to choose a desired memory
location and press [OK].
- The phone number is stored in the displayed memory location.
ü The phone will display a message asking to keep
your number as secret or not. Select “No” or “Yes”
using [NEXT]. Then press [OK].
LGE CDMA Fixed Wireless Telephone
LSP-300
30
ABC
was stored
in 01
- MEMORY -
empty : 99
used : 01
Lookup name?
FINDABC
01:ADG
028503619
ERASEEDIT
FROM MEMORIES
2:By Address
1:By Name
01:ADG
ERASEVIEW
02:ACG
- You can see a confirming message.
- Also you can see a condition of used memory.
6.2.1 Retrieving Phone Number by Name
1. Press [RECALL] and 2(FROM MEMORIES)
2. Press 1 button to retrieve phone number by name.
3. Enter the name that you want to look for and press
[FIND].
ü At least two letters are recommended for quick
search.
ü Press [NEXT] or UP and DOWN button to scroll
through the list of matches.
4. Press [VIEW] to see information in that location.
ü Pick up handset to make a call.
ü You can edit the phone number by pressing [EDIT]
button.
LGE CDMA Fixed Wireless Telephone
LSP-300
31
Lookup Location?
??
FIND
01:ADG
028503619
ERASEEDIT
A
028503619
QUITOK
ERASE ? #02
NO
NEXTOK
01:ADG
ERASEVIEW
02:ACG
6.2.2 Retrieving Phone Number by Address
1. Press [RECALL] and 2(FROM MEMORIES)
2. Press 2 button to retrieve a phone number by address.
3. Enter a memory address to retrieve phone number.
(ex: If you enter a memory address, 01.)
ü If there is no stored phone number in the memory
location, “Empty Location” is displayed.
ü If you press [FIND] button without entering number,
you see the whole phone number list in the
memory Location and you can find the number by
scrolling the list.
4. Pick up the handset or press button to call to displayed number, press [EDIT] to
edit stored information or press [ERASE] to delete displayed information.
l Edit process
ü Modify the phone number by Clear button and
keypad. And Press [OK] to edit a related name.
1) Delete the phone number by Clear button.
2) Enter the modified phone number.
3) Press [OK].
4) To move cursor, use Volume button or *, #.
5) Enter the name.
6) Press [OK].
ü Enter a new memory address to store a new information or choose the new
memory address by [NEXT] and press [OK].
ü Press [OK] to no secret.
l Erasing process
LGE CDMA Fixed Wireless Telephone
LSP-300
32
Lookup Number?
??
FIND
01:ADG
ERASEVIEW
02:ACG
ü You might press [ERASE] at the above step 3.
ü Press [OK] to complete erasing process.
6.4 Retrieving Phone Number by NUMBER
1. Press [RECALL] and 2(FROM MEMEORIES).
2. Press 3 button to retrieve a phone number by number.
3. Enter the phone number that you want to find and press
[FIND] button.
ü If there is no stored phone number in the memory location, “No number
matches” is displayed.
4. Pick up the handset or press button to call to displayed number, press [EDIT] to
edit stored information or press [ERASE] to delete displayed information.
l Edit process.
l Erasing process
ü Do the above step of 6.2.2.
LGE CDMA Fixed Wireless Telephone
LSP-300
33
RECEIVED MSG
2:Voice Mail
1:Message
01 Hello
02 Good Morning
[ERASE]VIEW
5/21 2:20 PM
< PAGE from >
OK
333333
[ERASE]
333333
Hello!
[ERASE][OK]
ERASE ?
OK [ NEXT ]
No
SMS MENU
2:MSG Sending
1:MSG Received
SMS (Short Message Service)
Messaging, Paging, and Voice mail features are available when your phone is turned on.
Using Message button allows you to access messages for viewing on the LCD screen
or to send a message. While viewing a message, you can call back to the number
displayed in the message by picking up handset.
Check with your WLL service provider regarding the availability of this feature. The
information in a message depends on the mode the WLL is operating in and the
service’s capabilities.
7.1 Checking & Deleting Received Message
7.1.1 Text Message
1. Press MESSAGE button and 1(MSG RECEIVED)
2. Press 1(Text MSG) to see a received text message list.
ü Locate to the desired message in the list.
ü Mark “∨ “means already a checked message.
3. Press [VIEW] to see the content of desired message.
ü You can see the message with received time and
caller’s phone number.
ü You can read a l message.
4. Press [ERASE] to erase a message.
ü Press [OK] to complete erasing process.
LGE CDMA Fixed Wireless Telephone
LSP-300
34
MSG RECEIVED
3:Clear All
* VOICE MAIL *
5/21 2:32 PM
1 < DUPLICATED >
[OK] [ERASE]
MSG NOTIF
Off
[OK] [NEXT]
7.1.2 Voice Message
Voice mail notifications indicate the number of new voice mail message in your mail box.
Only the most recent voice mail notification will be stored in the WLL phone; previous
messages will be overwritten. When a voice mail messages left for you, the WLL phone
will alert and display “ * Voice Mail * “. You must call your voice mail service to retrieve
these messages.

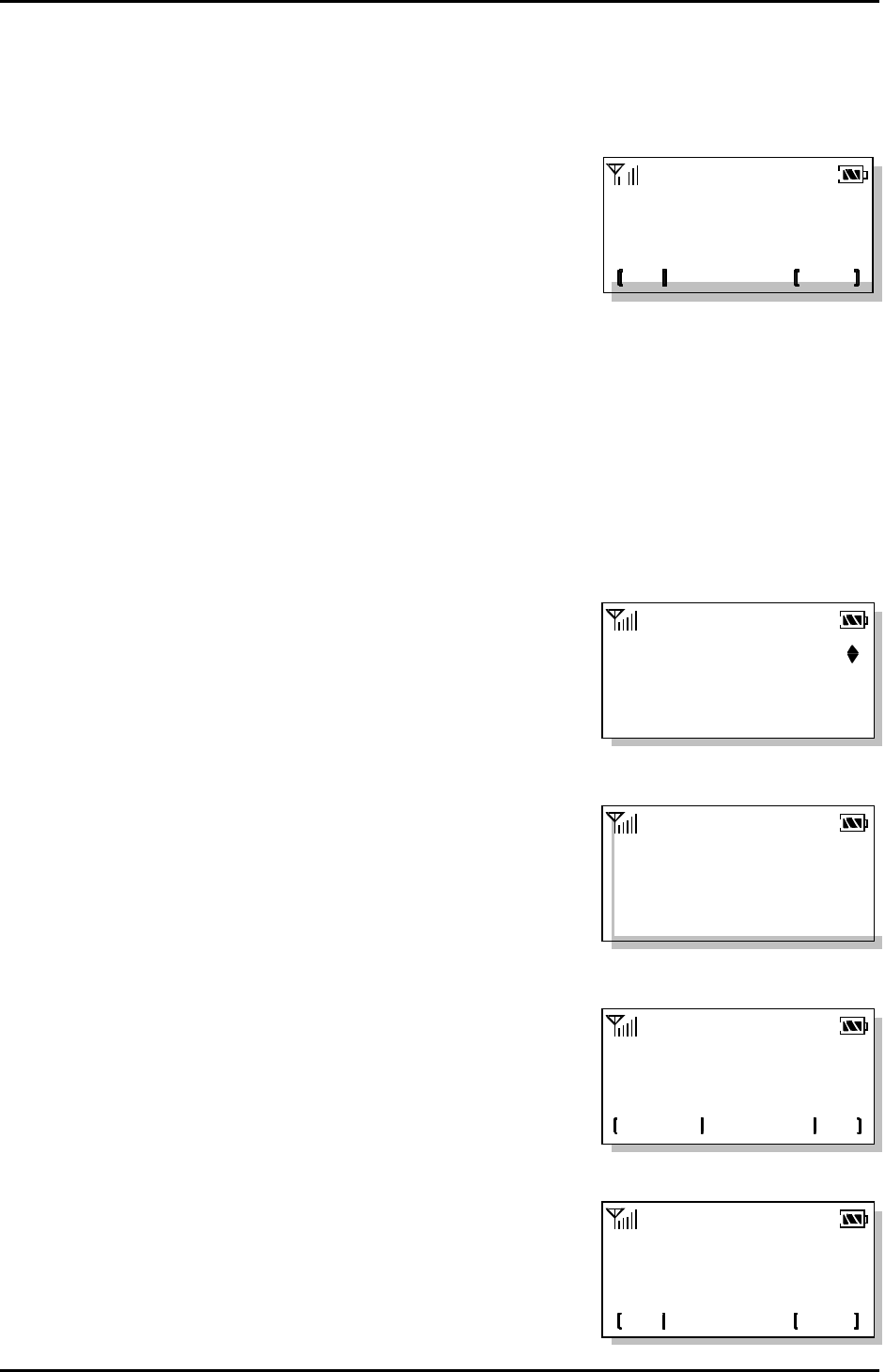

1. Press MESSAGE button and 1(Received MSG) in idle
state.
2. Press 2(Voice MSG) to check the voice message.
ü If there is no voice message, “No Voice Mail was received” is displayed.
ü Press [ERASE] to delete the voice message.
3. Pick up the phone to make a call to call back your voice
mail box if the number of the voice mail box is provided
by system.
7.1.3 Erasing all Received Message
1. Press MESSAGE button and 1(MSG RECEIVED).
2. Press 3(Clear All).
3. Press [OK] to delete.
7.2 MSG Notification tone select
1. Press Message button and 3(MSG NOTIF).
2. Select off, once, Every 2 Min by pressing [NEXT] or
Volume button.
. 3. Press [OK] to save and exit.
ERASE All?
[OK] [NEXT]
Yes
LGE CDMA Fixed Wireless Telephone
LSP-300
35
028503333
ok A/a
abcde
<MSG Input>
OK ABC
Store Message ?
NEXTOK
Yes
MSG SENDING
2:Sent Message
1:New Message
Called Number
OK
1234
[FIND]
Call back Number
OK
5678
SMS MENU
2:MSG Sending
1:MSG Received

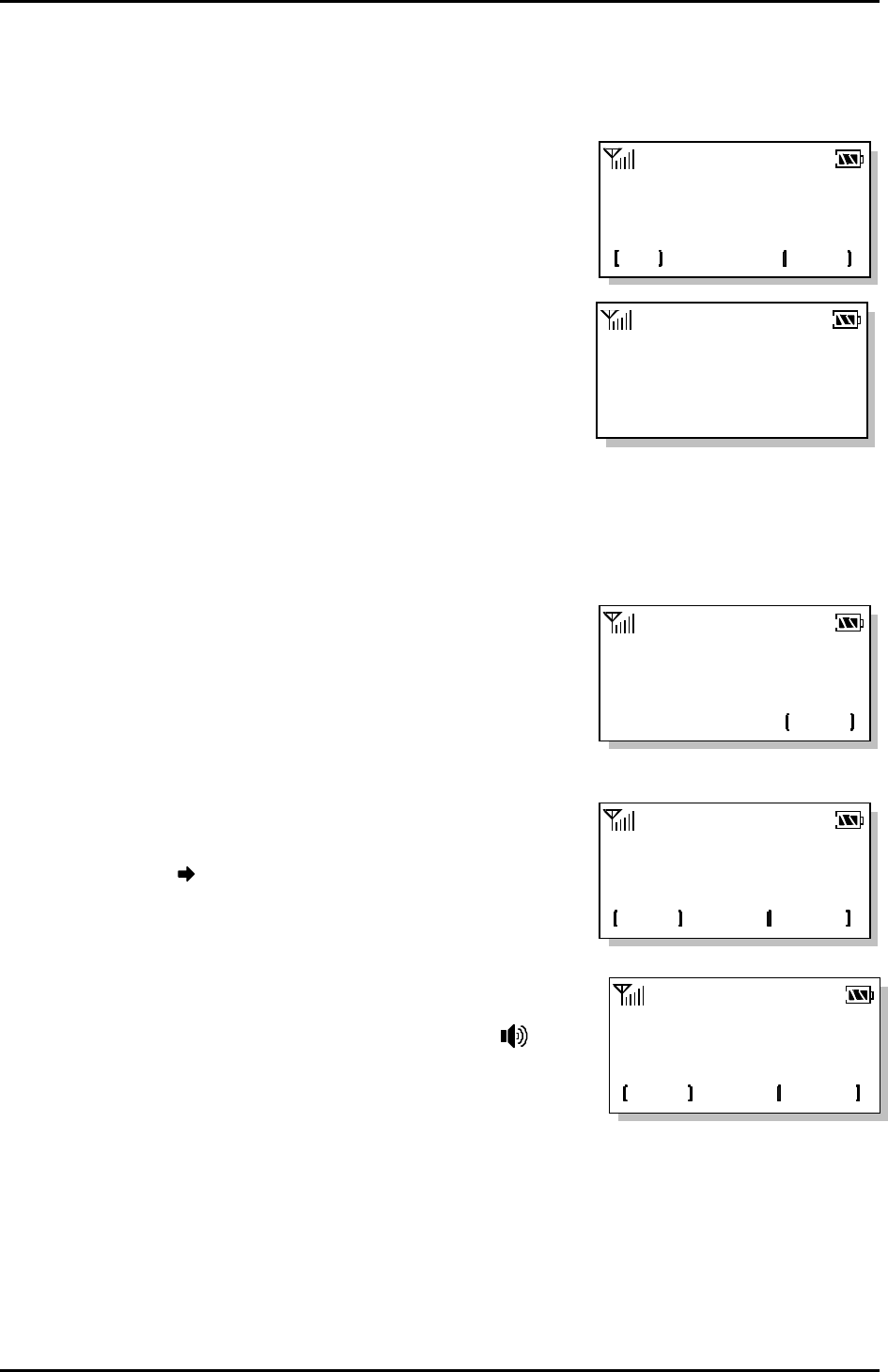

7.3 Message Sending
n 7.3.1 Sending a New Message
1. Press MESSAGE button and 2(MSG SENDING)
2. Press 1(New Message) to send a new message
3. Enter the called number and press [OK]
ü You can find the called number in the memory by
[FIND] button
4. Enter the call back number and press [OK]
5. Input a message and press [OK] to send
Press [A BC] to change upper or lower case character
6. Select Yes/No to store the message. Press [OK] to send
n 7.3.2 Sending the sent Message or message after editing the Sent Message
1. Press MESSAGE button and 2(MSG SENDING)
.
LGE CDMA Fixed Wireless Telephone
LSP-300
36
028503333
ok A/a
Hello!
<MSG Input>
OK ABC
Store Message?
NEXTOK
Yes
MSG Sending
2:Sent MSG
1:New MSG
MSG Sending
2:Sent Message
1:New Message
MSG SENDING
3:Clear All
01 Hello
02 Good Morning
ERASEEDIT
Called Number
OK
1234
[RECALL]
Call back Number
OK
5678
2. Press 2(Sent Message) to see a received text message
list.
ü Locate to the desired message in the list.
.
3. Press [EDIT] to edit the content of the selected message.
ü You can see the selected sent message
ü Edit the message. Press [ABC] to change upper
or lower case character
5. Press [OK] Button.
6. Enter the called Number and press [OK]
7. Enter the call back Number and press [OK]
8. Select Yes/No to store Message. Press [OK] to send the
MSG
n 7.3.3 Erasing a Sent Message
1. Press MESSAGE button and 2(MSG SENDING)
LGE CDMA Fixed Wireless Telephone
LSP-300
37
ERASE ALL ?
OK [NEXT]
Yes
2. Press 3(Clear All) to clear text message list.
.
3. Press [OK] to erase a message.
LGE CDMA Fixed Wireless Telephone
LSP-300
38
1234567
028507618
VIEW
Beside Functions
8.1 Redial
Pick up the handset or press button and Redial button to redial last outgoing
number.
8.2 Finding Last Call History
Press Redial button in on-hook state to see your last
telephone numbers.
8.3 Flash
ü The same as that of a single line phone
LGE CDMA Fixed Wireless Telephone
LSP-300
39
ABC
As stored!
in 01
021234567
FIND
SAVE
021234567
OK ABC
Auto=01 ??
OK NEXT
ABC
Make it Secret?
No
OK NEXT
- MEMORY -
empty : 99
used : 01
9. Storing Phone Number
9.1 Storing/Editing Phone Numbers
9.1.1 Storing Phone Numbers
Frequently used phone numbers can be stored on the memory locations (01~99: 2 digits)
and you can make a call by pressing memory location number in off-hook state.
1. Enter the area code and phone number in on-hook
state. (Max. 32 digits)
2. Press [SAVE].
3. Enter the name in text mode and press [OK] to save.
Press [ABC] to change upper or lower case
characters.
ü To store without name, just press [OK].
ü Refer to “To enter a character”.
4. Enter the desired memory location.
ü The phone number is stored in the displayed
memory location.
5. The phone will display a message asking to keep your
number as secret or not. Select “No” or “Yes” using
[NEXT]. Then Press [OK].
ü You can see a confirming message.
ü Also you can see a condition of used memory.
LGE CDMA Fixed Wireless Telephone
LSP-300
40
01:ADG
ERASEVIEW
02:ACG
Lookup Number?
FIND
l To enter a character.
You can enter English character in editing mode.
You can enter English character as default, and press Message to select specific
character.
l To enter English character.
Press once a keypad to enter the first letter labeled in the keypad, twice to enter the
second letter and 3 times to enter the third letter.
EX) To enter “L”,
Press dial button 5 labeled “JKL” 3 times to enter “L”.
ü After 2 seconds entering a character, the cursor is moved to the next position
automatically.
ü Press Volume button to move the cursor.
ü Press Clear button to erase or correct entered character.
l To enter specific character,
Press Message to view a desired character while you are entering names.
ü Special characters includes *, #, %, “, :, +, <, >, =, and more
ü Press the number next to the character you want insert.
9.1.2 Erasing Stored Phone Numbers
When a phone number is stored in a memory location, you can erase the stored phone
number.
1. Press [RECALL] + 2(FROM MEMORIES) + 3(By
Number) and enter a number of the desired memory
location to erase.
ü If there is no stored phone number in the memory
location, “Empty Location” is displayed.
ü If you do not remember the memory location to erase, press [FIND] to search phone
number by memory location
LGE CDMA Fixed Wireless Telephone
LSP-300
41
- ERASED -
Erase? #01
Yes
OK NEXT
Lookup Number?
??
FIND
01:ADG
ERASEVIEW
02:ACG
01:ADG
028503619
ERASEEDIT
2. Erasing process
ü Press [ERASE] to delete.
ü Press [OK] to complete erasing process.
9.2 Finding Stored Phone Numbers
You can see all the list of stored phone numbers in memory list and if you forgot the
memory location, can find it in sequence. And You can place a call with the phone
number.
1. Press [RECALL] + 2(FROM MEMEORIES) +3(By
Number) in on-hook state.
2. Press [FIND] button to find the desired phone number.
ü Locate in the desired name or address to find.
ü If not any entered name, phone number is displayed.
3. Press [VIEW] to see the stored number.
4. To make a call with the phone number in the state of step
2 or step 3, pick up the handset or press
button and wait for Auto Time-out.
LGE CDMA Fixed Wireless Telephone
LSP-300
42
10. Speaker phone
This function is a convenient feature which enables you to call using speaker phone
button in on-hook state.
11. General Information
Main Unit
Item LSP-300
Tx Frequency Digital : 824 ~ 849 MHz
Rx Frequency Digital : 869 ~ 894 MHz
Channel Bandwidth 1.25 MHz
Tx Power Digital : Max. 0.31W
Rx Sensitivity -104 ~ -25dBm
Size 160 X 215 X 76 (L X W X H)
Below 809(with battery, Ni-MH) Weight(g)
Below 748 (without battery)
Operating
Temperature
0 ~ 50
AC/DC Adapter
Item SMPS Type Description
Input Voltage AC 100 ~ 250V / 0.3A, 15W
Input Frequency 50 / 60Hz
Output Voltage 9.6V(DC), 1A
Battery
Item Description
Capacity 6V Ni-MH 1500mAh
Talk duration time 2 Hours
Standby duration time 24 Hours
Charging duration time Trickle, 24 Hours
LGE CDMA Fixed Wireless Telephone
LSP-300
43
Licensed by QUALCOMM Incorporated under one or more of the following Patents:
U.S, Patent No. 4,901,307 U.S, Patent No. 5,056,109 U.S, Patent No. 5,099,204
U.S, Patent No. 5,101,501 U.S, Patent No. 5,103,459 U.S, Patent No. 5,107,225
