LG Electronics USA LSP350 Wireless Local Loop Telephone (CDMA) User Manual BEJLSP350
LG Electronics USA Wireless Local Loop Telephone (CDMA) BEJLSP350
User Manual
CDMA Fixed Wireless Phone
User Guide
Model: LSP-350
Please read this manual carefully before operating your set.
Retain it for future reference.
LSP-350
LGE CDMA Fixed Wireless Phone
3
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
2004/09/17
ISSUE1.0
Initial Release
LSP-350 LGE CDMA Fixed Wireless Phone
4
CONTENTS
1. Important Information........................................................................9
1.1 Safety Information.................................................................................................. 9
1.2 Optimal Phone Performance................................................................................ 9
1.3 Care and Service.................................................................................................10
1.4 Safety Information................................................................................................11
1.5 FCC RF Exposure Information...........................................................................14
2. Introduction...................................................................................... 15
2.1 Front View of the Telephone...............................................................................15
2.2 LCD Display.........................................................................................................16

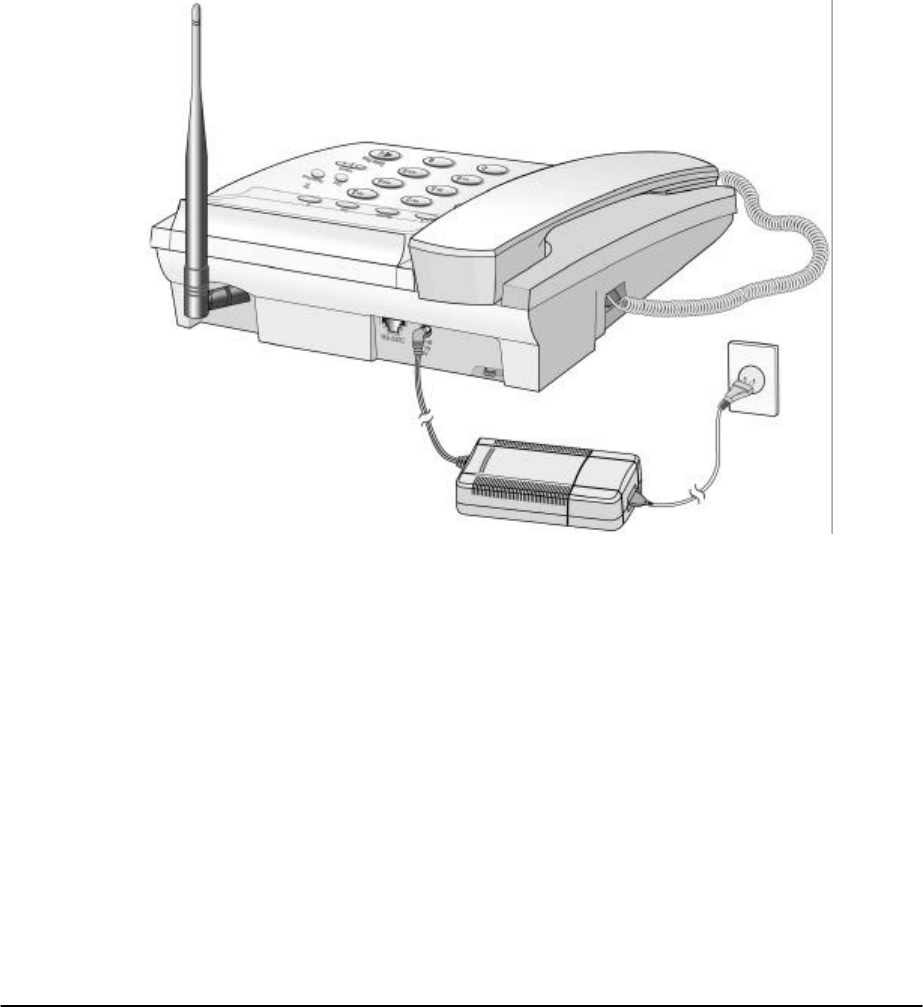

2.3 Installation.............................................................................................................18
2.4 Installation Steps..................................................................................................20
3. Basic Operation............................................................................... 21
3.1 Making a Call........................................................................................................21
3.2 3 way call...............................................................................................................21
3.3 Call waiting ...........................................................................................................21
3.4 Volume Control.....................................................................................................21
3.5 Receiving a Call...................................................................................................22
3.6 Lock Mode............................................................................................................22
4. List of Menu State ........................................................................... 23
4.1 Names...................................................................................................................26
4.1.1 Find.................................................................................................................26
4.1.2 Add..................................................................................................................26
4.1.3 Group..............................................................................................................26
4.1.4 Speed Dial......................................................................................................26
4.1.5 Help.................................................................................................................27
4.2 Message...............................................................................................................28
4.2.1 Write...............................................................................................................28
4.2.2 Inbox ...............................................................................................................28
4.2.3 Outbox............................................................................................................29
4.2.4 Voice Mail........................................................................................................29
4.2.5 Broadcast Box................................................................................................29
4.2.6 Archive............................................................................................................29
LSP-350
LGE CDMA Fixed Wireless Phone
5
4.2.7 Drafts..............................................................................................................29
4.2.8 Templates.......................................................................................................30
4.2.9 Form...............................................................................................................30
4.2.10 Setting.............................................................................................................30
4.2.10.1 Priority.................................................................................................30
4.2.10.2 Delivery Ack........................................................................................30
4.2.10.3 Deferred Delivery................................................................................30
4.2.10.4 Validity Period......................................................................................31
4.2.10.5 Save Sent Massage............................................................................31
4.2.10.6 Auto Delete Inbox................................................................................31
4.2.11 Help.................................................................................................................31
4.3 Call History............................................................................................................32
4.3.1 Missed Call.....................................................................................................32
4.3.2 Received Call .................................................................................................32
4.3.3 Dialed Call ......................................................................................................32
4.3.4 In Call Memo...................................................................................................32
4.3.5 Call Time........................................................................................................32
4.3.6 Help.................................................................................................................32
4.4 Profiles..................................................................................................................33
4.4.1 Silent Only ......................................................................................................33
4.4.2 General...........................................................................................................33
4.4.3 Outdoor...........................................................................................................33
4.4.4 Drive ...............................................................................................................34
4.4.5 Conference.....................................................................................................34
4.4.6 User................................................................................................................34
4.4.7 Help.................................................................................................................34
4.5 Display..................................................................................................................35
4.5.1 Language........................................................................................................35
4.5.2 Service Area...................................................................................................35
4.5.3 Wallpaper .......................................................................................................35
4.5.3.1 Idle Screen..........................................................................................35
4.5.3.2 Banner.................................................................................................35
4.5.4 MENU Style.....................................................................................................36
4.5.5 Backlight.........................................................................................................36
4.5.6 Contrast..........................................................................................................36
4.5.7 Help.................................................................................................................36
4.6 Settings.................................................................................................................37
4.6.1 My MENU Edit.................................................................................................37
LSP-350 LGE CDMA Fixed Wireless Phone
6
4.6.2 Call..................................................................................................................37
4.6.2.1 Call Forward........................................................................................37
4.6.2.2 Call Waiting.........................................................................................37
4.6.2.3 Auto Redial..........................................................................................37
4.6.2.4 Call Timer............................................................................................38
4.6.2.5 Call Connect Alert...............................................................................38
4.6.2.6 Silent Scratch Pad..............................................................................38
4.6.2.7 TATA A/S Center.................................................................................38
4.6.2.8 Help.....................................................................................................38
4.6.3 Phone .............................................................................................................38
4.6.3.1 Key Guard...........................................................................................38
4.6.3.2 Auto Dial Time.....................................................................................39
4.6.3.3 Data Setting ........................................................................................39
4.6.3.3.1 Data/Fax..............................................................................................39
4.6.3.3.2 Data Baud...........................................................................................39
4.6.3.4 DTMF Tone Length.............................................................................39
4.6.3.5 Phone Info...........................................................................................39
4.6.3.5.1 My Phone Number ..............................................................................39
4.6.3.5.2 Data Storage.......................................................................................39
4.6.3.5.3 Version................................................................................................40
4.6.3.6 Help.....................................................................................................40
4.6.4 Security...........................................................................................................40
4.6.4.1 Lock Mode...........................................................................................40
4.6.4.2 Change Lock Code.............................................................................40
4.6.4.3 Restrict Call ........................................................................................40
4.6.4.4 Hot Line...............................................................................................41
4.6.4.5 Clear All Names ..................................................................................41
4.6.4.6 Metering Info........................................................................................41
4.6.4.7 Restore Factory Setting......................................................................41
4.6.4.8 Phone Init ............................................................................................41
4.6.4.9 Help.....................................................................................................41
4.7 Organiser..............................................................................................................42
4.7.1 Calendar.........................................................................................................42
4.7.2 To Do..............................................................................................................42
4.7.3 Memo..............................................................................................................42
4.7.4 Alarm ..............................................................................................................42
4.7.5 Stopwatch.......................................................................................................43
4.7.6 Calculator .......................................................................................................43
LSP-350
LGE CDMA Fixed Wireless Phone
7
4.7.7 World Clock....................................................................................................43
4.7.8 Help.................................................................................................................43
4.8 Joy Box..................................................................................................................44
5. Speaker Phone................................................................................ 45
6. General Information........................................................................ 46
6.1 Main Unit...............................................................................................................46
6.2 AC/DC Adapter....................................................................................................46
6.3 Battery...................................................................................................................46
LSP-350 LGE CDMA Fixed Wireless Phone
8
Highlights
Congratulations on your purchase of the LSP-350 Fixed Wireless Phone. This phone has been
designed to operate on the latest digital mobile communications technology. It has greatly
enhanced voice clarity and provides various advanced features.
This phone provides:
?? CMX 16 Poly Ringer Type, Power on / off, SMS, Alarm, Midi Sound, Wide view graphic
LCD Display, A choice of 15 Melody or 5 Bell Ring sounds
?? A MENU driven interface with prompts for easy operation
?? 3 Way calling
?? Call history management
? Last call Number Redial
?? Speed Dialing with a 99-number memory
?? Powerful Phonebook
?? Enhanced SMS feature
? Dial tone
? ROH (Receiver Off-Hook) tone
? Adjustable Ringer Volume, Key button volume, Speaker & Handset volume
? Internal Back-up Battery Pack
? AC Power Supply
? Dipole Antenna
? RS-232C/USB Port for service or repair
?? Hands free speaker phone
?? Organizer
?? My MENU
?? Game
LSP-350
LGE CDMA Fixed Wireless Phone
9
1. Important Information
1.1 Safety Information
Warning
To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. Do not
use this unit in swimming pools or other water bodies.
IMPORTANT
Before installing or operating the unit, please read this information.
1.2 Optimal Phone Performance
??Do not hold the antenna when operating the unit, or operate the unit when someone
is within four inches (ten centimeters) of the antenna. Both cases affect the call quality
and may cause the telephone to operate at a higher power level than required.
??For the best call quality, keep the antenna free from obstructions and position the
antenna upright.
??Do not use the unit if the antenna is damaged. Replace the damaged antenna
immediately by a qualified technician. Use only a manufacturer-approved antenna.
Non approved antennas, modifications, or attachments may impair call quality and
damage the unit.
??RF energy may affect improperly installed or inadequately shielded personal medical
devices such as pace-makers or hospital monitors. Consult the manufacturer of any
personal medical devices to determine whether they are adequately shielded from
external RF energy. Turn your unit OFF in health care centers if any regulations posted
in the area instruct you to do so. Hospitals or health care centers may be using
equipment that may be sensitive to external RF energy.
??If this unit causes harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
LSP-350 LGE CDMA Fixed Wireless Phone
10
? Reorient or relocate the receiving antenna
? Place the radio or television farther away from the unit.
?? Connect the equipment to an outlet on a circuit different from that to which the
unit is presently connected.
? Consult the Authorized LGE Dealer for assistance of an experienced radio/TV
technician.
??Use only battery, antenna and AC power supply provided by LGE. Using any other
maker may invalidate the warranty.
??Only authorized personnel should service the unit and its accessories. Faulty
installation or service can be dangerous and may invalidate the warranty.
??Do not use the unit in any designated “no cellular phone use” area.
??Avoid using the unit in high temperature or humidity.
??Avoid spilling any liquid on the unit. If the unit gets wet, turn the power off
immediately and remove the backup battery and AC power supply. If the unit doesn’t
work, please return it to the service agent.
??Avoid shock or impact.
??We recommend you to charge the backup battery before initial use. The backup
battery may be discharged during delivery.
1.3 Care and Service
Before cleaning, always unplug the unit from the wall outlet and remove the antenna (or disconnect
the antenna cable). Do not use liquid or aerosol cleaners; use a damp cloth for cleaning.
If the unit doesn’t work, do not attempt to disassemble it; contact the telephone service agent for
assistance.
If any of the following conditions exist, unplug the unit from the wall plug, remove the battery and
call the service agent.
??The power supply cord is damaged or frayed.
??Liquid has spilled into the unit.
??The unit has been exposed to rain or water.
??The unit has been dropped or damaged.
??The unit does not function normally even after following the operating instructions.
LSP-350
LGE CDMA Fixed Wireless Phone
11
1.4 Safety Information
? Do not use the unit with a car battery. It may cause electric shock, fire,
breakdown or transformation.
? For safety, use only an adapter approved by LG.
LG does not bear responsibility for any faults that may arise due to non-
conformation to this guide.
Example: LSP-350
(LG Power Adapter Source: DC 5V / 1A)
? Avoid using the unit in high temperature or humidity. Avoid spilling any liquid on
this unit. If the unit gets wet, turn the power off immediately and remove the
backup battery and AC power supply.
? Keep the unit dry. Submersion, humidity, and liquids contain minerals that may
corrode internal electronic circuits.
? Do not store or use the unit in dusty or dirty areas as this can damage the
moving parts.
? Do not store the unit in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
? Do not store the unit in cold areas. When the unit warms up to its normal
operating temperature, moisture can form inside the unit, which can damage the
internal electronic circuit boards.
? Do not attempt to open it. Non-expert handling of the device could damage it. It
may cause fire, electric shock and breakdown. Consult your authorized LG
dealer for assistance.
? Do not drop, knock or shake the unit. Rough handling may break the internal
circuit boards.
WARNING
LSP-350 LGE CDMA Fixed Wireless Phone
12
? Do not use harsh chemicals, cleaning solvents or strong detergents to clean the
unit. Wipe it with a soft cloth that has been slightly dampened in a mild soap
and water solution.
? Do not paint the unit. Paint can clog the device’s moving parts and prevent
proper functioning.
? During lightning, do not touch the power plug or the phone line. It may result in
an electric shock or death.
Do not install the unit under direct sunlight or on an uneven surface.
? Before using the plug, check the available power voltage. Inaccurate power
voltage may cause fire and damage.
Example: LSP-350 Input Voltage: 100-250V.
? Do not plug many power cords into one outlet. It may cause fire or electric
shock.
? Do not remodel the power cord or disassemble it. If the power cord or plug is
impaired, do not use it. It may cause fire or electric shock.
? Do not install the unit in an ill-ventilated place. It may cause fire or a breakdown.
LSP-350
LGE CDMA Fixed Wireless Phone
13
? Do not touch the plug with wet hands. When disconnecting the power cord of
any accessory, grasp and pull out the plug itself and not the cord. It may cause
fire or electric shock.
? Do not put heavy objects on the power cord. Do not bend the power cord too
much. It may cause fire or electric shock.
? Do not, in any way, cause a short-circuit. It may start a fire or the unit may
explode causing injury.
? Do not create a sudden impact on the battery by throwing it. Do not dispose off
batteries by putting them in a fire. They may explode or catch fire due to the
electrolyte within.
? Use only an LG-approved battery or adapter. If not, it may cause an explosion or
result in a short-circuit. LG does not bear any responsibility for the damage.
? When you disconnect the power cord of any accessory, grasp and pull the plug
itself and not the cord. It may cause the adapter to breakdown.
WARNING
WARNING
LSP-350 LGE CDMA Fixed Wireless Phone
14
1.5 FCC RF Exposure Information
WARNING! Read this information before operating the phone.
In August 1996, the Federal Communications (FCC) of the United States, with its action in Report and
Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency(RF)
electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the
safety standard previously set by both U.S. and international standards bodies.
The design of this phone complies with the FCC guidelines and these international standards.
To comply with FCC RF exposure requirements, a minimum separation distance of 2.5cm (0.98 inch)
must be maintained between the user/bystander and the back of the unit, including the antenna.
CAUTION
Use only the supplied and approved antenna. Use of unauthorized antennas or modifications could impair
call quality, damage the phone, void your warranty and/or result in violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with skin, a
minor burn may result. Contact your local dealer for a replacement of antenna.
FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC rules. Operation is subject to the
following two conditions: (1) This device and its accessories may not cause harmful interference, and (2)
this device and its accessories must accept any interference received, including interference that may
cause undesired operation.
LSP-350
LGE CDMA Fixed Wireless Phone
15
2. Introduction
2.1 Front View of the Telephone
① Soft key 1 : Activates MENU state
② Dial/Flash : Activates Dial or Flash state
③ End/PWR : Deactivates a state – End or Power ON/OFF
④ Soft key 2 : Searches phone number list
⑤ ◀( ) : Moves to Profile MENU(Volume/Condition), Moves right in the MENU
⑥ ▲( ) : Moves to SMS MENU, Moves up in the MENU
⑦ ▶( ) : Moves to Joy Box MENU, Moves down in the MENU
⑧ ▼( ): Selects Melody/Bell setting MENU, Moves down in the MENU
⑨ Clear : Deletes the last digit/Move previous MENU
⑩ Activates hands free speaker phone function
⑪ Attached Antenna
LSP-350 LGE CDMA Fixed Wireless Phone
16
2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicators appear based on the phone's operating mode.
Icon Description
RSSI indicator: Indicates the signal strength in the
service area.
No service: The phone is not receiving any system
signal.
Roaming Service
Bell (Others : / )
In use : Displayed when a call is in progress or the
phone is in off-hook
and dial tone is heard
Alarm : Displayed when wake up alarm time is set
Text message : Displayed when a text message is
received
Voice message : Displayed when a voice message is
received
Text and Voice message : Displayed when a text and
voice message is received
Lock mode
Battery charge level : Indicates charged battery level
Charge complete (Others : , Only outlet (No
battery) )
LSP-350
LGE CDMA Fixed Wireless Phone
17
battery) )
LSP-350 LGE CDMA Fixed Wireless Phone
18
2.3 Installation
You should follow each step carefully as shown below in order to guarantee the proper operation of
CDMA Fixed Wireless Phone.
STEP I. Check Components
??The following components are supplied for Fixed Wireless Phone.
1. LSP-350 Main Unit with Handset(Including inner backup battery) -1EA-
2. Dipole Antenna -1EA-
3. AC/DC Power Adapter -1EA-
4. User Guide -1EA-
??Please make sure that these components are present before you begin to install the
unit. If any of the components are missed or damaged, contact the store where you
purchased the phone immediately.
STEP II. Place the Terminal
??Place the unit on the stable flat surface area (desk, table, etc.). Serious damage may
result if the unit is dropped. Do not place the unit within 1 meter of heaters or radiators.
This unit is designed for desktop usage. Avoid the direct exposure to sunlight and
dampness.
??Read the SAFETY INFORMATION located in the first part of this document before you
place the unit.
STEP III. Connect Components (See the figures in “Installation Steps”.)
??Connect the antenna to the TNC antenna connector located at the top of the unit. If you
have placed the unit on a flat surface, position the antenna upright.
??Connect the curl cord of the handset to the RJ-11 port located on the left side of the
unit.
LSP-350
LGE CDMA Fixed Wireless Phone
19
??Connect the AC/DC Adapter cable to the DC input port located at the top of the unit.
? If it is correct, a beep tone will be heard.
?? If it is not correct (Booting fails or beep tone is not heard), you will have to
reconnect the adapter or backup battery.
??Please observe the following to get better voice quality
1. Keep away from electrical appliances such as TV, computer, radio etc.
2. Keep the unit in a high and central location without any obstructions.
3. Raise the integral antenna of the unit to get maximum strength as shown in the
figure.
STEP IV. Check the LCD Display
??After you follow the installation instruction step I to step III, please check the LCD for
normal operation.
??If you do not see the status of service, please repeat the 5th instruction of step III.
Then confirm the status of phone to get the proper signal strength from the service
operator system.
※ The adapter type(with power cord) may differ from each country.
LSP-350 LGE CDMA Fixed Wireless Phone
20
2.4 Installation Steps
Please follow the procedure below to install the unit properly.
Connect base-
handset to the
handset connector.
Turn the antenna
upright.
Connect the AC
power supply.
Connect the
antenna to the TNC
connector
(Turn right).
When you first use
the unit, please Turn
“on” the battery
switch.
Notice
Before using the unit, please check that the battery switch is “on”.
After switching it on, use the phone.
When charging the battery, check that the battery switch is “on”.
The battery will be charged only when the battery switch is “on”.
LSP-350
LGE CDMA Fixed Wireless Phone
21
3. Basic Operation
3.1 Making a Call
You can make a call as follows.
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out.
5. The call is connected and you may start conversation.
6. To disconnect the call, replace the handset or press button.
When the user presses the 'Dial/Flash' button after dialing any desired number, if the user pick up
the handset or press the speaker phone button, the phone makes a call immediately.
3.2 3 way call
You can start tripartite conversation.
1. Enter the phone number while talking over the phone.
2. Press Dial/Flash button.
* This service should be registerd by Telecom Service Company.
3.3 Call waiting
While a call is in progress, you may hear two beeps indicating another incoming call. When call
waiting is enabled, you may put the active call on hold while you answer the other incoming call.
1. Press Clear or End button, Call Waiting window is gone. Or
2. Press Dial/Flash button, you may start conversation with called number.
3. Re-press Dial/Flash button, you may start conversation with previous number.
3.4 Volume Control
1. Press left/right button of navigation while in a call, adjust receiver volume.
2. Press up/down button of navigation while in a call, adjust MIC volume.
LSP-350 LGE CDMA Fixed Wireless Phone
22
3.5 Receiving a Call
When the bell rings or backlight blinks in silent mode, you can receive a call as follows
1. Pick up the handset or press the speaker phone button.
2. Start a conversation.
3. To disconnect the call, replace the handset or press the speaker phone button.
3.6 Lock Mode
Keeps your phone from unauthorized use. Once the phone is locked, it is in restricted mode, until
the lock code is entered. This will allow you to receive phone calls and still make emergency calls.
The lock code/password on your phone is 0000 by default. If you need to modify the lock code,
you may modify it using the new lock code within the security set MENU.
Lock Mode
1. Press ‘0’ button for a long time.
Unlock Mode
2. Press Unlock button.
3. Input Lock Number.
LSP-350
LGE CDMA Fixed Wireless Phone
23
4. List of Menu State
Main MENU Sub-MENU Setting Value Default
1. Find Name / Number / Group
2. Add Name / Mobile / Home / Office
Etc / E-mail / Group / Memo / Ring
3. Group Family / Friends / Business / School
4. Speed Dial Immediate / Find
1. Names
5. Help Help message
1.Write
T9En / T9EN / T9en / Abc
123 / Symbol / Smileys
T9Hin / Hindi
Template / Form
2. Inbox View / Clear
3. Outbox View / Clear
4. Voice Mail -
5. Broadcast Box View / Clear
6. Archive View / Clear
7. Drafts View / Clear
8. Templates View / Add
9.Foms View / Add
0. Setting
Priority / Delivery Ack /
Deferred Delivery / Validity Period
Save Sent Message /
Auto Delete Inbox
2. Message
*. Help Help message
1. Missed Call View / Clear
2. Received Call View / Clear
3. Call History
3. Dialed Call View / Clear
LSP-350 LGE CDMA Fixed Wireless Phone
24
Main MENU Sub-MENU Setting Value Default
4. In Call Memo View / Clear Number
5.Call Time Dialed Calls / Received Calls /
Total Calls
6. Help Help message
1. Silent Only Option setting
2. General Option setting
3. Outdoor Option setting
4. Drive Option setting
5.Conference Option setting
6. User Option setting
4. Profiles
7. Help Help message
1. Languages English / Hindi
2. Service Area Service Area Indication
3. Wallpaper Idle Screen / Banner
4. MENU style List / Picture
5. Backlight Off / 10Sec / 30Sec / Night / Always
6. Contrast Bar 0 ~ Bar 8
5. Display
7. Help Help message
1. My MENU Edit
Names / Message / Call History /
Profiles / Display / Settings /
Organiser / Joy Box / Help
2. Call
Call Forwarding / Call Waiting /
Call Timer / Call Connect Alert /
Silent Scratch Pad / Help
6. Settings
3. Phone
Key Guard / Auto Dial Time /
Data Settings / DTMF Tone Length /
Phone Info / Help
LSP-350
LGE CDMA Fixed Wireless Phone
25
Main MENU Sub-MENU Setting Value Default
4. Security
Lock Mode / Change Lock Code /
Restrict Call / Hot Line /
Clear All Names / Metering Info /
Restore Factory Setting / Phone Init /
Help
1. Calendar OK / Add
2. To Do Option / View
3. Memo View / Add
4. Alarm Option / View
5. Stopwatch -
6. Calculator -
7. World Clock -
7. Organiser
8. Help Help message
1. JumpJump -
8. Joy Box 2. StoneAxe -
LSP-350 LGE CDMA Fixed Wireless Phone
26
4.1 Names
You may select five sub-MENU(Find, Add, Group, Speed Dial, Help) for this item.
To return to the initial screen, press END button.
And to return to the previous screen, press Clear button.
4.1.1 Find
To find phone numbers you have stored in the Phone Book.
1. Press MENU + 1(Names) + 1(Find) in on-hook state.
2. Select a desired search MENU.
Name, Number : enter full or part of name (Number), select OK.
Group : select group name.(1 of the family & friends & business & school)
3. Select desired item.
Option : can edit or erase.
4.1.2 Add
You can save name, mobile numbers and so on, up to 500 entries.
1. Press MENU + 1(Names) + 2(ADD) in on-hook state.
2. Enter the information or select a desired item.
4.1.3 Group
This is function for adding, editing, erase Group.
1. Press MENU + 1(Names) + 3(Group) in on-hook state.
2. To add a new group (Limit 10 groups), select Add.
3. To edit or erase for selected group, select OK.
4.1.4 Speed Dial
Speed Dial allows you to make a call faster by just pressing a corresponding number.
You can save up to 99 entries.
1. Press MENU + 1(Names) + 4(Speed Dial) in on-hook state
2. You may view a registered item.
3. You may add new Speed Dial with two ways.
Immediate
LSP-350
LGE CDMA Fixed Wireless Phone
27
ⅰ) Press MENU + 1(Names) + 4(Speed Dial) + Add + 1(Immediate)
in on-hook state
ⅱ) Enter the phone number and speed dial number.
ⅲ) Select Save
Find
ⅰ) Press MENU + 1(Names) + 4(Speed Dial) + Add + 2(Find)
in on-hook state
ⅱ) Find your desired phone number.
ⅲ) Select OK
ⅳ) Enter speed dial number.
ⅴ) Select Save
4. You may edit or erase a registered item.
4.1.5 Help
1. Press MENU + 1(Names) + 5(Help) in on-hook state.
LSP-350 LGE CDMA Fixed Wireless Phone
28
4.2 Message
Text message, page and voice mailbox become available as soon as the power is on. You
may access the above type of messages using the message key.
To return to the initial screen, Press END button.
And to return to the previous screen, press Clear button.
Confirms received Message
1. Press MENU + 2(Message) in on-hook state.
2. To return previous screen after confirmed message when you have receive message
while operating something. Select Back.
4.2.1 Write
1. Press MENU + 2(Message) + 1(Write) in on-hook state.
2. Write message.
3. Select OK.
4. Enter phone number or press Find.
5. Enter received phone number (Basically user’s phone number is displayed).
6. Select priority or delivery ack.
Priority : Allows you to give the priority to message. Normal or Urgent.
Delivery Ack : This function allows you to know whether the message is successfully
transmitted to other party or not when the transmitted message is received in other
party’s phone. If you want to activate this function, set to ON
7. Select Send.
4.2.2 Inbox
Received messages is saved at this
1. Press MENU + 2(Message) + 2(Inbox) in on-hook state.
2. To delete all messages, Select Clear.
3. To view desired message, Select View
4. You may select four options (1. Delete 2. Reply 3. Forward 4. Move to Archive).
LSP-350
LGE CDMA Fixed Wireless Phone
29
4.2.3 Outbox
Sent and failed messages are saved at this.
1.Press MENU + 2(Message) + 3(Outbox) in on-hook state.
2. To delete all messages, Select Clear.
3. To view desired message, Select View.
4. You may select four options (1. Delete 2. Resend 3. Forward 4. Move to Archive).
4.2.4 Voice Mail
Voice mail notifications indicate the number of new voice mail message in your mailbox.
Only the most recent voice mail notification will be stored in the WLL phone; previous
messages will be overwritten.
1. Press MENU + 2(Message) + 4(Voice Mail) in on-hook state.
2. Pick up the phone to make a call back your voice mailbox if the number of the voice
mailbox is provided by the telecom service company’s system.
4.2.5 Broadcast Box
Message box for advertisement
1. Press MENU + 2(Message) + 5(Broadcast Box) in on-hook state.
2. To delete all messages, Select Clear.
3. To view desired message, Select View.
4. You may select option.
4.2.6 Archive
Archive stores what is preferred to save among messages received.
1. Press MENU + 2(Message) + 6(Archive) in on-hook state.
2. To delete all messages, Select Clear.
3. To view desired message, Select View.
4. You may select four options(1. Erase 2. Reply 3. Forward 4. Save Num)
4.2.7 Drafts
A Drafts is a function enabling sending messages saved here. A total of up to 30 messages
may be saved in Draft. These include failed messages, incomplete/unsent messages saved
LSP-350 LGE CDMA Fixed Wireless Phone
30
by the user and also messages which automatically get saved when a user is interrupted by
a call while composing a message.
Recently data is saved at the top of list.
1. Press MENU + 2(Message) + 7(Drafts) in on-hook state.
2. To delete all messages, Select Clear.
3. To view desired message, Select View.
4. You may select two options (1. Erase 2. Send).
4.2.8 Templates
There are 10 predefined phrases included in the Templates.
You may add up 20 templates more. A total of 30 templates may be saved.
1. Press MENU + 2(Message) + 8(Templates) in on-hook state.
2. If you select the message, View/Add appears on the screen.
View : There are two options Erase and Edit.
Add : You may add new template message to the Templates list.
4.2.9 Form
1. Press MENU + 2(Message) + 9(Forms) in on-hook state.
View : to show predefined form.
To Erase or edit, press Option.
Add : to add new form.
4.2.10 Setting
4.2.10.1 Priority
1. Press MENU + 2(Message) + 0(Setting) + 1(Priority) in on-hook state.
2. You may select two options (1. Normal 2. Urgent).
4.2.10.2 Delivery Ack
1. Press MENU + 2(Message) + 0(Setting) + 2(Delivery Ack) in on-hook state.
2. Select On or Off.
4.2.10.3 Deferred Delivery
1. Press MENU + 2(Message) + 0(Setting) + 3(Deferred Delivery) in on-hook state.
LSP-350
LGE CDMA Fixed Wireless Phone
31
2. Select one of the followings.
1. Immediate 2. After 30 Minutes 3. After 1 Hour 4. After 2 Hours
5. After 12 Hours 6. After 1 Day 7. After 2 Days
4.2.10.4 Validity Period
1. Press MENU + 2(Message) + 0(Setting) + 4(Validity Period) in on-hook state.
2. Select desired time.
1. default 2. 30 Minutes 3. 1 Hour 4. 2 Hours 5. 12 Hours
6. 1 Day 7. 2 Days
4.2.10.5 Save Sent Massage
1. Press MENU + 2(Message) + 0(Setting) + 5(Save Sent Massage) in on-hook state.
2. Select On or Off.
4.2.10.6 Auto Delete Inbox
1. Press MENU + 2(Message) + 0(Setting) + 6(Auto Delete Inbox) in on-hook state.
2. Select On or Off.
4.2.11 Help
1. Press MENU + 2(Message) + *(Help) in on-hook state.
LSP-350 LGE CDMA Fixed Wireless Phone
32
4.3 Call History
4.3.1 Missed Call
1. Press MENU + 3(Call History) + 1(Missed Call) in on-hook state.
2. To delete all missed calls, Select Clear.
3. To view desired item, Select View.
4. You may select three options(1. Delete 2. Send Message 3. Save Number)
4.3.2 Received Call
1. Press MENU + 3(Call History) + 2(Received Call) in on-hook state.
2. To delete all received call, Select Clear.
3. To view desired item, Select View.
4. You may select three options(1. Delete 2. Send Message 3. Save Number)
4.3.3 Dialed Call
1. Press MENU + 3(Call History) + 3(Dialed Call) in on-hook state.
2. To delete all dialed calls, Select Clear.
3. To view desired item, Select View.
4. You may select three options(1. Delete 2. Send Message 3. Save Number)
4.3.4 In Call Memo
1. Press MENU + 3(Call History) + 4(In Call Memo) in on-hook state.
2. To delete all In Call Memos, Select Clear.
3. To view desired item, Select View.
4. You may select three options(1. Delete 2. Send Message 3. Save Number)
4.3.5 Call Time
Press MENU + 3(Call History) + 5(Call Time) in on-hook state.
You may select three options(1. Dialled Calls 2. Received Calls 3. Total Calls).
4.3.6 Help
1. Press MENU + 3(Call History) + 6(Help) in on-hook state.
LSP-350
LGE CDMA Fixed Wireless Phone
33
4.4 Profiles
Profiles let you set your phone’s sound to your environment.
To return to the initial screen, press END button.
And to return to the previous screen, press Clear button.
4.4.1 Silent Only
It same operate to press “*” key long times.
1. Press MENU + 4(Profiles) + 1(Silent Only) in on-hook state.
2. To set up silent mode, Select OK.
3. To release silent mode, Reselect OK for other mode
4. To change option for silent mode, Select Option.
Time : Uncondition / 0.5 hr/ 1 hr/ 2 hr/ 3 hr/ 4 hr/ 5 hr/ 6 hr/ 7 hr/ 8 hr/ 9 hr
Profile : Previous/ General/ Outdoor/ Drive/ Conference/ User
5. To previously return silent only, select Previous option.
4.4.2 General
1. Press MENU + 4(Profiles) + 2(General) in on-hook state.
2. To set up general mode, Select OK.
3. To change option for general mode, Select Option
1. Ring Type : 1. Ring 2. Elevating 3. Ring & Lamp 4. Ring After Lamp
2. Ring Tone : 1. Bell 2. Melody
3. Ringer Volume
4. Handset Volume
5. Key Volume
6. Message Alert : 1. Alert Type 2. Alert Tone 3. Message Reminder
7. Edit Name : It may change each profile’s name and icon.
4.4.3 Outdoor
1. Press MENU + 4(Profiles) + 3(Outdoor) in on-hook state.
2. To set up outdoor mode, Select OK.
3. To change option for outdoor mode, Select Option
LSP-350 LGE CDMA Fixed Wireless Phone
34
4.4.4 Drive
1. Press MENU + 4(Profiles) + 4(Drive) in on-hook state.
2. To set up drive mode, Select OK.
3. To change option for drive mode, Select Option
4.4.5 Conference
1. Press MENU + 4(Profiles) + 5(Conference) in on-hook state.
2. To set up conference mode, Select OK.
3. To change option for conference mode, Select Option
4.4.6 User
1. Press MENU + 4(Profiles) + 4(User) in on-hook state.
2. To set up user mode, Select OK.
3. To change option for user mode, Select Option
4.4.7 Help
Press MENU + 4(Profiles) + 7(Help)
LSP-350
LGE CDMA Fixed Wireless Phone
35
4.5 Display
Lets you personalize your phone’s display by selecting different graphic
To return to the initial screen, press END button.
And to return to the previous screen, press Clear button.
4.5.1 Language
1. Press MENU + 5(Display) + 1(Language) in on-hook state.
2. Select English or Hindi
4.5.2 Service Area
This menu displays the current calling area where the user is in.
1. Press MENU + 5(Display) + 2(Service Area) in hook on state.
2. Select On or Off.
4.5.3 Wallpaper
Enter the string of characters you want to be displayed. You may set up the screen
displayed on the LCD screen in the standby mode.
1. Press MENU + 5(Display) + 3(Wallpaper) in hook on state
2. Select 1(Idle Screen) or 2(Banner).
4.5.3.1 Idle Screen
It set up picture that display during Idle.
Time and Date are presented as they installed in the option.
4.5.3.2 Banner
Enter the string of characters you want to be displayed.
Registered Banner is presented during idle.
If registered Banner do not exist, empty screen display during idle.
And in the clock1, clock2, The Banner does not displayed.
LSP-350 LGE CDMA Fixed Wireless Phone
36
4.5.4 MENU Style
Allow you to select the menu style.
1. Press MENU + 5(Display) + 4(MENU Style) in on-hook state
2. Select 1(List) or 2(Picture).
4.5.5 Backlight
Choose the settings of the LCD and keypad backlight.
1. Press MENU + 5(Display) + 5(Backlight) in on-hook state.
2. Select desired options
If during night (pm 6:00~am6:00), Off after turn on LED only 30sec.
Otherwise: LED off during daylight.
4.5.6 Contrast
Using the Navigation Key, select the contrast setting using the scale of lightest to darkest.
1. Press MENU + 5(Display) + 6(Contrast) in on-hook state.
2. Control the desired contrast by using the left-right direction keys, and select OK.
4.5.7 Help
1. Press MENU + 5(Display) + 7(Help) in on-hook state
LSP-350
LGE CDMA Fixed Wireless Phone
37
4.6 Settings
4.6.1 My MENU Edit
Lets you access to favorite menu quickly by customizing my MENU.
Selected My MENU may show that press Clear key button on idle condition.
1. Press MENU + 6(Settings) + 1(My MENU Edit) in on-hook state.
2. To add my MENU,
1) Search desired item in My MENU Edit.
2) Select ADD.
3. To delete my MENU,
1) Search desired item in My MENU.
2) Select Delete.
4. To see Help, press MENU + 6(Settings) + 1(My MENU Edit) + 9(Help).
4.6.2 Call
4.6.2.1 Call Forward
Call forward lets you forward all your incoming calls to another number
1. Press MENU + 6(Settings) + 2(Call) + 1(Call Forward) in on-hook state.
2. Select desired item.
3. Set up Enable or Disable
4.6.2.2 Call Waiting
While a call is in progress, you may hear two beeps indicating another incoming call. When
call waiting is enabled, you may put the active call on hold while you answer the other
incoming call.
1. Press MENU + 6(Settings) + 2(Call) + 2(Call Waiting) in on-hook state.
2. Select Enable or Disable and select OK.
4.6.2.3 Auto Redial
Set the length of time the phone waits before automatically redialing a number when the
attempted call fails.
1. Press MENU + 6(Settings) + 2(Call) + 3(Auto Redial) in on-hook state.
2. Select desired time and select OK.
LSP-350 LGE CDMA Fixed Wireless Phone
38
4.6.2.4 Call Timer
You may set your phone to display the running elapsed time while a call is active
1. Press MENU + 6(Settings) + 2(Call) + 4(Call Timer) in on-hook state.
2. Select enable or disable and select OK.
4.6.2.5 Call Connect Alert
This is a function to alert you that the call connection has been established.
1. Press MENU + 6(Settings) + 2(Call) + 5(Call Connect Alert) in on-hook state.
2. Select On or Off.
4.6.2.6 Silent Scratch Pad
Silent Scratch Pad may stop a receiver from hearing DTMF key sound by taking notes while
talking over the telephone (If set On).
1. Press MENU + 6(Settings) + 2(Call) + 6(Silent Scratch Pad) in on-hook state.
2. Select On or Off.
4.6.2.7 TATA A/S Center
1. Press MENU + 6(Settings) + 2(Call) + 7(TATA A/S Center) in on-hook state.
2. Select service area.
3. Press Dial/Flash button, then connect A/S Center.
? (Do not this version, use next version)
4.6.2.8 Help
1. Press MENU + 6(Settings) + 2(Call) + 8(Help) in on-hook state.
4.6.3 Phone
4.6.3.1 Key Guard
Allows you to protect the keypad of your phone from accidental dialing. When this function is
enabled, no call may be made and the access to MENU is locked. When the keypad is
locked, it is possible to answer a call normally.
1. Press MENU + 6(Settings) + 3(Phone) + 1(Key Guard) in on-hook state.
2. Select Enable or Disable.
3. If you select enable, enter operating time (1~30 min).
LSP-350
LGE CDMA Fixed Wireless Phone
39
4.6.3.2 Auto Dial Time
1. Press MENU + 6(Settings) + 3(Phone) + 2(Auto Dial Time) in on-hook state.
2. Select desired time and select OK.
4.6.3.3 Data Setting
4.6.3.3.1 Data/Fax
In Data/Fax setting, you may use your phone as a wireless modem to avail high speed data
services such as browsing Internet and other dial-up networking functions. The wireless
phone supports a maximum data rate of 153.6kbps on the network side. The speed of your
connection depends upon network congestion, signal strength, and other variables.
1. Press MENU + 6(Settings) + 3(Phone) + 3(Data Setting) + 1(Data/Fax) in on-hook
state.
2. Select desired options and select OK.
4.6.3.3.2 Data Baud
1. Press MENU + 6(Settings) + 3(Phone) + 3(Data Setting) + 2(Data Baud) in on-hook
state.
2. Select desired options and select OK.
4.6.3.4 DTMF Tone Length
1. Press MENU + 6(Settings) + 3(Phone) + 4(DTMF Tone Length) in on-hook state.
2. Select Short or Long.
4.6.3.5 Phone Info
4.6.3.5.1 My Phone Number
Display the user’s Phone Number
1.Press MENU + 6(Settings) + 3(Phone) + 5(Phone Info) + 1(My Phone Number)
in on-hook state.
4.6.3.5.2 Data Storage
Display the Phone’s data storage (Names / Message / To Do / Memo)
1.Press MENU + 6(Settings) + 3(Phone) + 5(Phone Info) + 2(Data Storage)
in on-hook state.
LSP-350 LGE CDMA Fixed Wireless Phone
40
4.6.3.5.3 Version
Display the Phone S/W Version
Press MENU + 6(Settings) + 3(Phone) + 5(Phone Info) + 3(Version)
in on-hook state.
4.6.3.6 Help
Press MENU + 6(Settings) + 3(Phone) + 5(Phone Info) + 6(Help)
in on-hook state.
4.6.4 Security
1. Press MENU + 6(Settings) + 4(Security) in on-hook state.
2. Enter password.
4.6.4.1 Lock Mode
1. Press MENU + 6(Settings) + 4(Security) + 1(Lock Mode) in on-hook state.
2. Select desired options.
4.6.4.2 Change Lock Code
New Lock Code allows you to enter a new four-digit lock code number.
1. Press MENU + 6(Settings) + 4(Security) + 2(Change Lock Mode) in on-hook state.
2. Enter current password and select OK.
3. Enter new password and select OK.
4. Verify new password and select OK.
4.6.4.3 Restrict Call
You can restricts you are called up by Black List & White List.
If Black List are recorded “12”, front numbers is 12 cannot receive.
But, if White List are recorded “123”, front numbers is 123 can receive.
1. Press MENU + 6(Settings) + 4(Security) + 3(Restrict) in on-hook state.
2. Select On or Off and select OK.
3. If select on, select Black List, White List or Help.
4. Except Help option, you can add new list or erase (or edit) the existing list.
LSP-350
LGE CDMA Fixed Wireless Phone
41
4.6.4.4 Hot Line
Hot Line automatically calls to registered number by passing setup time in off-hook state.
1. Press MENU + 6(Settings) + 4(Security) + 4(Hot Line) in on-hook state.
2. Select enable or disable and select OK.
3. If select enable, enter Number and Time.
4.6.4.5 Clear All Names
Deletes all information saved in phone book. Be careful since any deleted information is not
recoverable.
1. Press MENU + 6(Settings) + 4(Security) + 5(Clear All Names) in on-hook state.
2. Enter password.
3. To delete all name, select Yes.
4.6.4.6 Metering Info
This only appears when 0.Service>>7.The Others>>5.PCO set up Enable.
1. Press MENU + 6(Settings) + 4(Security) + 6(Metering Info) in on-hook state.
2. Select Unit Info or Unit Price, and select OK.
3. Unit Price may enter a monetary unit (only number).
4.6.4.7 Restore Factory Setting
Return to factory setting. But not delete all DB data.
1. Press MENU + 6(Settings) + 4(Security) + 7(Restore Factory Setting) in on-hook state.
2. Enter password.
3. To Restore factory Setting, select OK.
4.6.4.8 Phone Init
Delete all data and return to factory setting.
1. Press MENU + 6(Settings) + 4(Security) + 8(Phone Init) in on-hook state.
2. Enter password.
3. To initial, select Yes
4.6.4.9 Help
Press MENU + 6(Settings) + 4(Phone) + 9(Help) in on-hook state.
LSP-350 LGE CDMA Fixed Wireless Phone
42
4.7 Organiser
4.7.1 Calendar
Calendar and To Do keeps your agenda convenient and easy to access. Simply store your
appointment and your phone alerts you with a reminder of your appointment.
1. Press MENU + 7(Organiser) + 1(Calendar) in on-hook state.
2. Cursor moves to desired day.
3. Select OK or Add.
4. If select Add, you can register new schedules.
5. If select OK,
1) exist schedules : you may see registered schedules and select options.
Option : 1.Add, 2.Edit, 3.Erase, 4.Bell, 5.Erase Today, 6. Erase Past Day
View : show schedule.
2) not exist schedules. : display “There is no data” message.
Option : 1. Bell, 2. Erase Past Day
Add : new schedule can add.
4.7.2 To Do
To Do same function Calendar. To Do will registers a hundred.
1. Press MENU + 7(Organiser) + 2(To Do) in on-hook state.
4.7.3 Memo
Memo will registers a ten.
1. Press MENU + 7(Organiser) + 3(Memo) in on-hook state.
1) exist memo : show registered memo or add new memo.
View : erase or edit memo.
2) not exist schedules. : display “There is no data” message.
Add : add new memo.
4.7.4 Alarm
To change an event alarm time.
1. Press MENU + 7(Organiser) + 4(Alarm) in on-hook state.
LSP-350
LGE CDMA Fixed Wireless Phone
43
2. Select View or Add.
View ; show registered data.
It can select Edit or Erase.
ADD : If the number of registered data is 3, Softkey Add is gone.
Enter time and date and press OK.
Select ring tone and press OK.
4.7.5 Stopwatch
1. Press MENU + 7(Organiser) + 5(Stopwatch) in on-hook state.
2. select Start.
Check : save the pressed time.
Stop : Stop the time.
Clear : delete Check time and return initial screen.
View : Show saved time( also stop time)
4.7.6 Calculator
Calculate simple mathematical computations.
1. Press MENU + 7(Organiser) + 6(Calculator) in on-hook state.
2. Using Navigation Key for the four arithmetical operations.
left : + right : - upper : X
lower : / * : . # : Reset
4.7.7 World Clock
It Is useful if you need to make a call to another country, and you are not sure about the
time difference.
1.Press MENU + 7(Organiser) + 7(World Clock) in on-hook state.
2.Select the city by navigation button
4.7.8 Help
1.Press MENU + 7(Organiser) + 8(Help) in on-hook state.
LSP-350 LGE CDMA Fixed Wireless Phone
44
4.8 Joy Box
1. Press MENU + 8(Joy Box) in on-hook state.
2. Select JumpJump or StoneAxe.
To return to the initial screen, press END button.
And to return to the previous screen, press Clear button.
LSP-350
LGE CDMA Fixed Wireless Phone
45
5. Speaker Phone
This function is a convenient feature, which enables you to make a call using the speakerphone
button in on-hook state.
LSP-350 LGE CDMA Fixed Wireless Phone
46
6. General Information
6.1 Main Unit
Item LSP-350
Tx Frequency Digital : 824 ~ 849 MHz
Rx Frequency Digital : 869 ~ 894 MHz
Channel Bandwidth 1.25 MHz
Tx Power Digital : LOWER: 0.2W ~UPPER:1W
Rx Sensitivity -104 ~ -25dBm
Size (mm) 220 × 190 × 78 (L X W X H)
Weight (g) Below 650(included Li-ion battery)
Operating Temperature -10 ~ 55℃
6.2 AC/DC Adapter
Item SMPS Type Description
Input Voltage AC 100 ~ 250V
Input Frequency 50 / 60Hz
Output Voltage 5V(DC), 1A
6.3 Battery
Item Description
Capacity 3.7V Li-ion (Nominal)
Talk duration time 4 Hours (Max)
Standby duration time 36 Hours (Max)
Charging duration time 3.5 Hours (Max)
LSP-350
LGE CDMA Fixed Wireless Phone
47
Licensed by QUALCOMM Incorporated under one or more of the following Patents:
U.S, Patent No. 4,901,307 U.S, Patent No. 5,056,109 U.S, Patent No. 5,099,204
U.S, Patent No. 5,101,501 U.S, Patent No. 5,103,459 U.S, Patent No. 5,107,225
