Highlights
Congratulations on your subscription to the LSP-3500 Fixed Wireless phone.
This phone has been designed to operate on the IS-2000 Air Protocol over the
1.9GHz band. And the phone has the advanced user interface similar to mobile
phone. It has greatly enhanced voice clarity and provides various advanced
features.
Key phone features:
●Wide view, Graphic, Backlit Display
●Polyphonic Ring tones: A choice of 15 melodies and 5 bell sounds
available
●Large Phonebook with 500 entries
●Speed Dialling for upto 99 numbers
●3 Way call conferencing
●Enhanced SMS features - Group SMS, T9 Dictionary
●Hands free Speaker Phone
●Receiver Off-Hook tone
●Adjustable Ringer volume, Earpiece volume, Key volume, Speaker
volume
●A Menu driven interface with prompts for easy operations
●USB and Serial Connectivity for internet access.
●Organiser: Scheduler, Alarm, Calculator, World Clock with DST
●Games: Fortress and Mole
●Fast charging battery
LSP-3500 2005.6.7 1:54 PM 페이지4
7
LGE CDMA Fixed Wireless Phone
CONTENTS
1Important Information 9
1.1 Safety Instruction 9
1.2 Optimal Phone Performance 9
1.3 Care and Service 10
1.4 Safety Information 11
2Introduction 14
2.1 Front View of the Phone 14
2.2 LCD Display 15
2.3 Installation 16
2.4 Installation Steps 19
3Basic Operations 20
3.1 Making a Call 20
3.2 Redialing Last Number 20
3.3 3 way call conferencing 20
3.4 Call Waiting 21
3.5 Volume Control 21
3.6 Receiving a Call 21
3.7 Lock Mode 22
3.8 Entering and Editing Information 22
4Menu Tree 26
4.1 Names 29
4.2 Messages 32
4.3 Call History 39
4.4 Sound 42
4.5 Display 44
4.6 Settings 46
4.7 Organiser 54
4.8 Games 56
LSP-3500 2005.6.7 1:54 PM 페이지6
Important Information
9
CDMA Fixed Wireless Phone
8CDMA Fixed Wireless Phone
CONTENTS
5Speaker Phone 59
6Troubleshooting 60
7General Information 61
7.1 Main Unit 61
7.2 AC/DC Adapter 61
7.3 Battery 61
1. Important Information
1.1 Safety Instruction
WARNING / CAUTION
To reduce the risk of fire or electric shock, do not expose this phone to rain or
moisture. Do not use this phone in swimming pools or other water bodies.
1.2 Optimal Phone Performance
●Do not hold the antenna when operating the phone, or operate the phone
when someone is within four inches (ten centimeters) of the antenna. Both
cases affect the call quality and may cause the phone to operate at a higher
power level than required.
●For the best call quality, keep the antenna free from obstructions and
position the antenna upright.
●Do not use the phone if the antenna is damaged. Replace the damaged
antenna immediately by a qualified technician. Use only a manufacturer-
approved antenna.
Non-approved antennas, modifications or attachments may impair call
quality and damage the phone.
●RF energy may affect improperly installed or inadequately shielded
personal medical devices such as pace-makers or hospital monitors.
Consult the manufacturer of any personal medical devices to determine
whether they are adequately shielded from external RF energy. Turn your
phone OFF in health care centers if any regulations posted in the area
instruct you to do so. Hospitals or health care centers may be using
equipment that may be sensitive to external RF energy.
●If this phone causes harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
LSP-3500 2005.6.7 1:54 PM 페이지8
Important Information
11
CDMA Fixed Wireless Phone
10
Important Information
CDMA Fixed Wireless Phone
❑For safety, use only an adapter approved by LG.
LG does not bear responsibility for any faults that may
arise due to non- conformation to this guide.
Example: LSP-3500
(LG Power Adapter Source: DC 5V / 1A)
❑Do not, in any way, cause a short-circuit. It may start a
fire or the phone may explode causing injury.
❑Do not create a sudden impact on the battery by throwing
it. Do not dispose off batteries by putting them in a fire.
They may explode or catch fire due to the electrolyte
within.
❑Do not use the phone with a car battery. It may cause
electric shock, fire, breakdown or transformation.
❑Avoid using the phone in high temperature or humidity.
Avoid spilling any liquid on this phone. If the phone gets
wet, Switch off phone and turn off AC power supply.
❑Keep the phone dry. Submersion, humidity, and liquids
contain minerals that may corrode internal electronic
circuits.
1.4 Safety Information
WARNING
CAUTION
LSP-3500 2005.6.7 1:54 PM 페이지10
➢Reorient or relocate the receiving antenna
➢Place the radio or television farther away from the phone.
➢ Connect the equipment to an outlet on a circuit different from that to
which the phone is presently connected.
➢ Consult the Authorized LGE Dealer for assistance of an experienced
radio/TV technician.
●Use battery, antenna and AC/DC power adapter provided by LGE. Using
parts made by any other manufacturer may invalidate the warranty.
●Only authorized personnel should service the phone and its accessories.
Faulty installation or service can be dangerous and may invalidate the
warranty.
●Do not use the phone in any designated cellular phone use area.
●Avoid using the phone in high temperature or humidity.
●Avoid spilling any liquid on the phone. If the phone gets wet, turn the
power off immediately. If the phone doesn t work, please contact the
service provider immediately.
●Avoid shock or impact.
●We recommend you to charge the backup battery before initial use. The
backup battery may be discharged during delivery.
1.3 Care and Service
Before cleaning, always unplug the phone from the wall outlet and remove
the antenna (or disconnect the antenna cable). Do not use liquid or aerosol
cleaners; use a damp cloth for cleaning.
If the phone doesn t work, do not attempt to disassemble it; contact the phone
service agent for assistance.
If any of the following conditions exist, unplug the phone from the wall plug,
remove the battery and call the qualified engineer.
●The power supply cord is damaged or frayed.
●Liquid has spilled into the phone.
●The phone has been exposed to rain or water.
●The phone has been dropped or damaged.
●The phone does not function normally even after following the operating
instructions.
.
●Do not touch the antenna while the phone is operating .
Important Information
13
CDMA Fixed Wireless Phone
12
Important Information
CDMA Fixed Wireless Phone

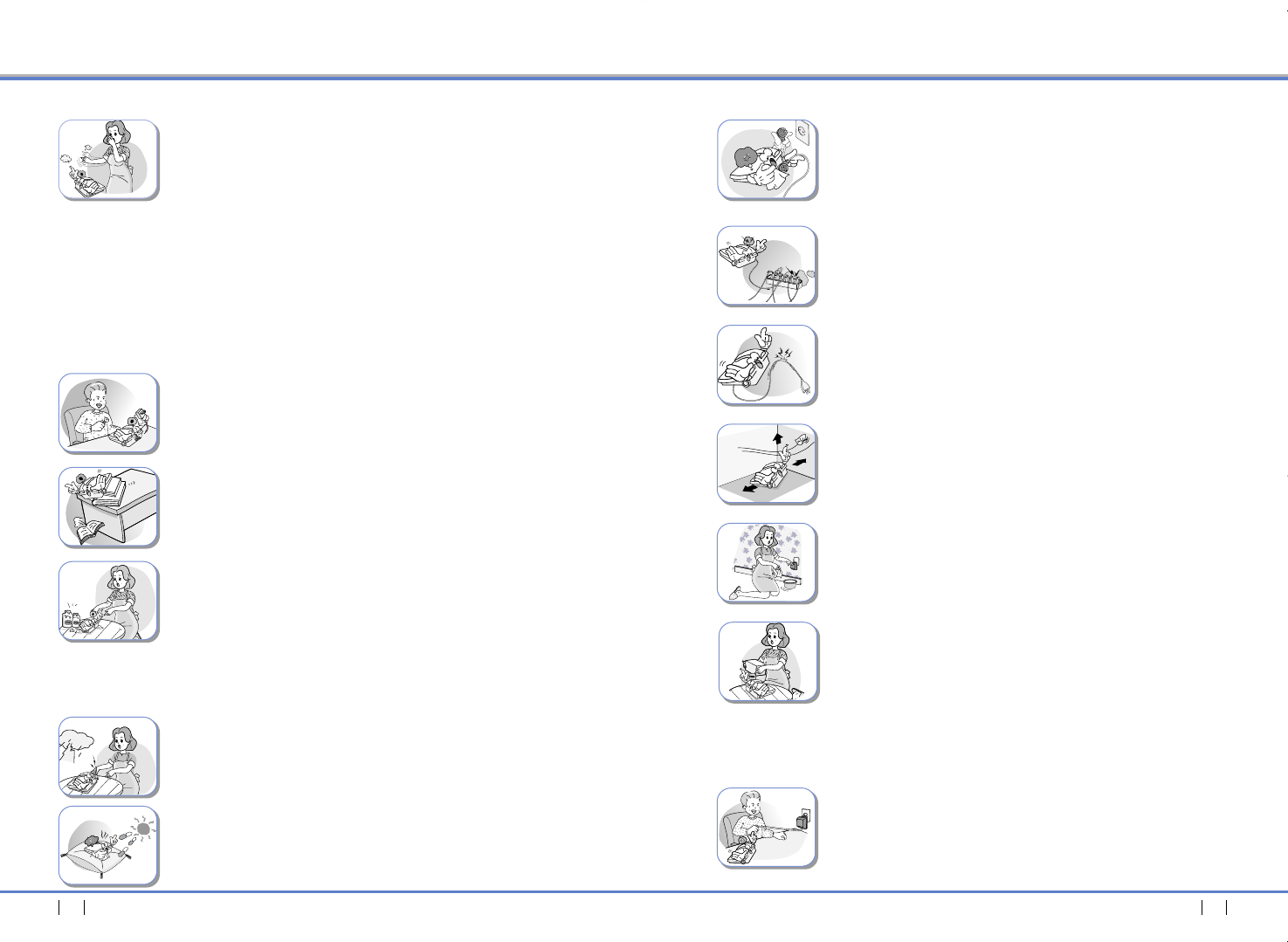

❑Before using the plug, check the available power voltage.
Inaccurate power voltage may cause fire and damage.
Example: LSP-3500 Input Voltage: 100 ~ 240V.
❑Do not plug many power cords into one outlet.
It may cause fire or electric shock.
❑Do not remodel the power cord or disassemble it.
If the power cord or plug is impaired, do not use it.
It may cause fire or electric shock
❑Do not install the phone in an ill-ventilated place.
It may cause fire or a breakdown.
❑Do not touch the plug with wet hands. When disconnect-
ing the power cord of any accessory, grasp and pull out
the plug itself and not the cord. It may cause fire or elec-
tric shock.
❑Do not put heavy objects on the power cord. Do not bend
the power cord too much. It may cause fire or electric
shock
❑Use only an LG-approved battery and adapter. If not, it
may cause an explosion or result in a short-circuit. LG
does not bear any responsibility for the damage.
❑When you disconnect the power cord of any accessory,
grasp and pull the plug itself and not the cord. It may
cause the adapter to breakdown.
❑Do not store or use the phone in dusty or dirty areas as
this can damage the moving parts.
❑Do not store the phone in hot areas. High temperatures
can shorten the life of electronic devices, damage batter-
ies, and warp or melt certain plastics.
❑Do not store the phone in cold areas. When the phone
warms upto its normal operating temperature, moisture
can form inside the phone, which can damage the internal
electronic circuit boards.
❑Do not attempt to open it. Non-expert handling of the
device could damage it. It may cause fire, electric shock
and breakdown. Consult your authorized LG dealer for
assistance.
❑Do not drop, knock or shake the phone. Rough handling
may break the internal circuit boards.
❑Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the phone. Wipe it with a soft cloth
that has been slightly dampened in a mild soap and water
solution.
❑ Do not paint the phone. Paint can clog the device s mov-
ing parts and prevent proper functioning.
❑During lightning, do not touch the power plug or the
phone line. It may result in an electric shock or death.
❑Do not install the phone under direct sunlight or on an
uneven surface.
LSP-3500 2005.6.7 1:54 PM 페이지12
Introduction
Introduction
14 15
CDMA Fixed Wireless Phone CDMA Fixed Wireless Phone
The LCD shows icons on the top of the LCD screen.
Different indicators appear based on the phone’s operating mode.
2.2 LCD Display
Icon Operating Condition

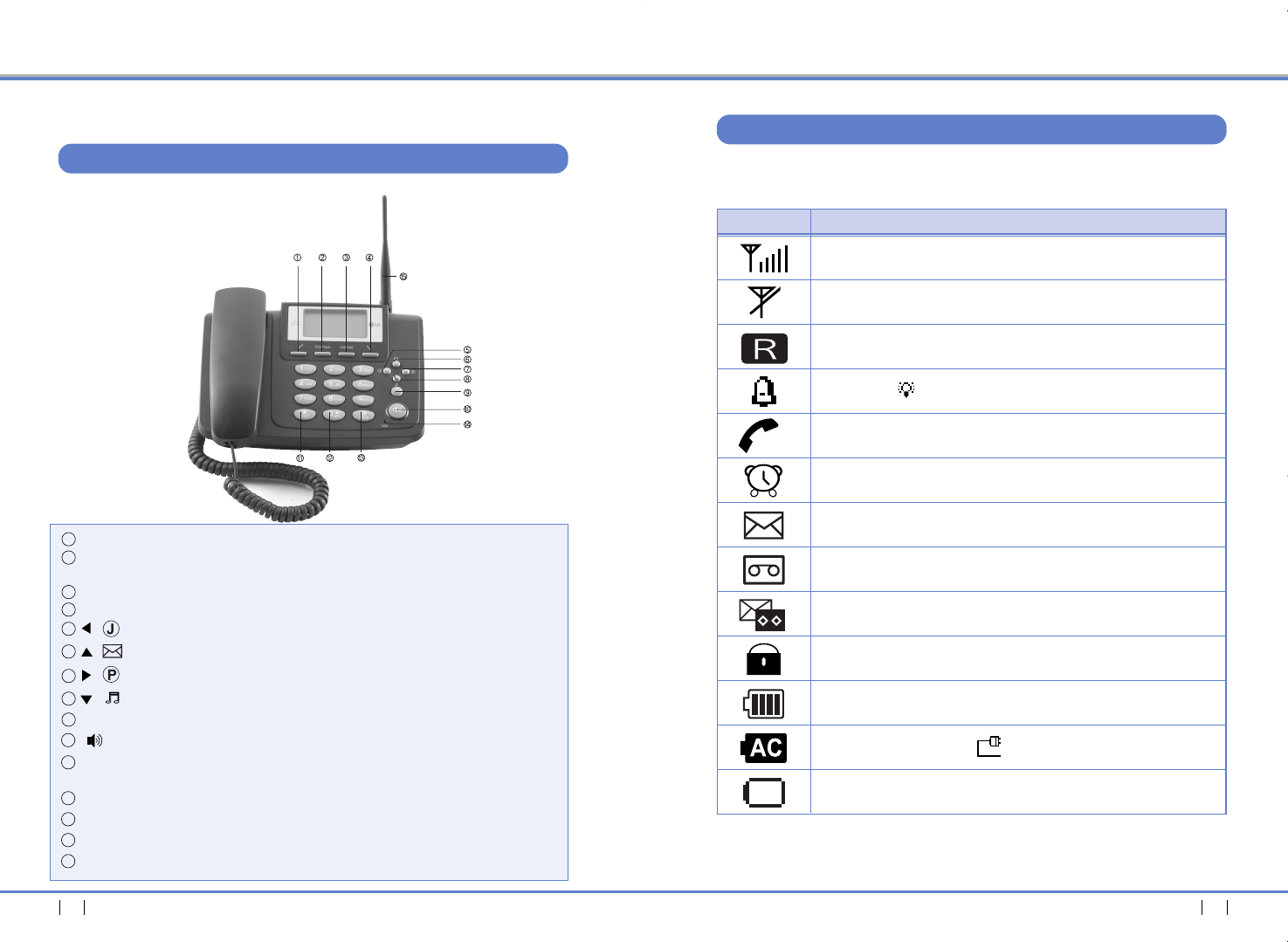

2.1 Front View of the Phone
2. Introduction
Soft key 1 : Activates Menu state
Dial/Flash : Activates Dial or Flash state, make it possible to redial from call
history
END/PWR : Deactivates a state - End or Power ON/OFF
Soft key 2 : Searches phone number list
( ) : Moves to Games Menu, Moves left in the Menu
( ) : Moves to SMS Menu, Moves up in the Menu
( ) : Moves to Sound profile, Moves right in the Menu
( ) : Selects Melody/Bell setting Menu, Moves down in the Menu
Clear : Deletes the last digit, Moves previous Menu
( ) : Activates hands free speaker phone function
* : Input dial * , Makes a phone switch between the Light mode & the
earlier set mode after long-press
0 : Input dial 0 , Makes a phone lock after long-press
# : Input dial # , Makes a phone input space during text entry operation
MIC
Attached Antenna
RSSI indicator: Indicates the signal strength in the service area.
No service: The phone is not receiving any system signal.
Roaming Service
Bell (Light : )
In use: Displayed when a call is in progress or the phone is in off-
hook state
Alarm: Displayed when alarm time is set
Text message: Displayed when a text message is received
Voice message: Displayed when voice message are received
Text and Voice message: Displayed when text and voice messages
are received.
Lock mode
Battery charge level: Indicates charged battery level
Charge complete (Others : , Only outlet (No battery) )
No AC power & Battery ON. But in low battery state
1
2
3
4
5
6
7
8
9
11
12
13
14
15
10
LSP-3500 2005.6.7 1:54 PM 페이지14
Introduction
Introduction
16 17
CDMA Fixed Wireless Phone CDMA Fixed Wireless Phone

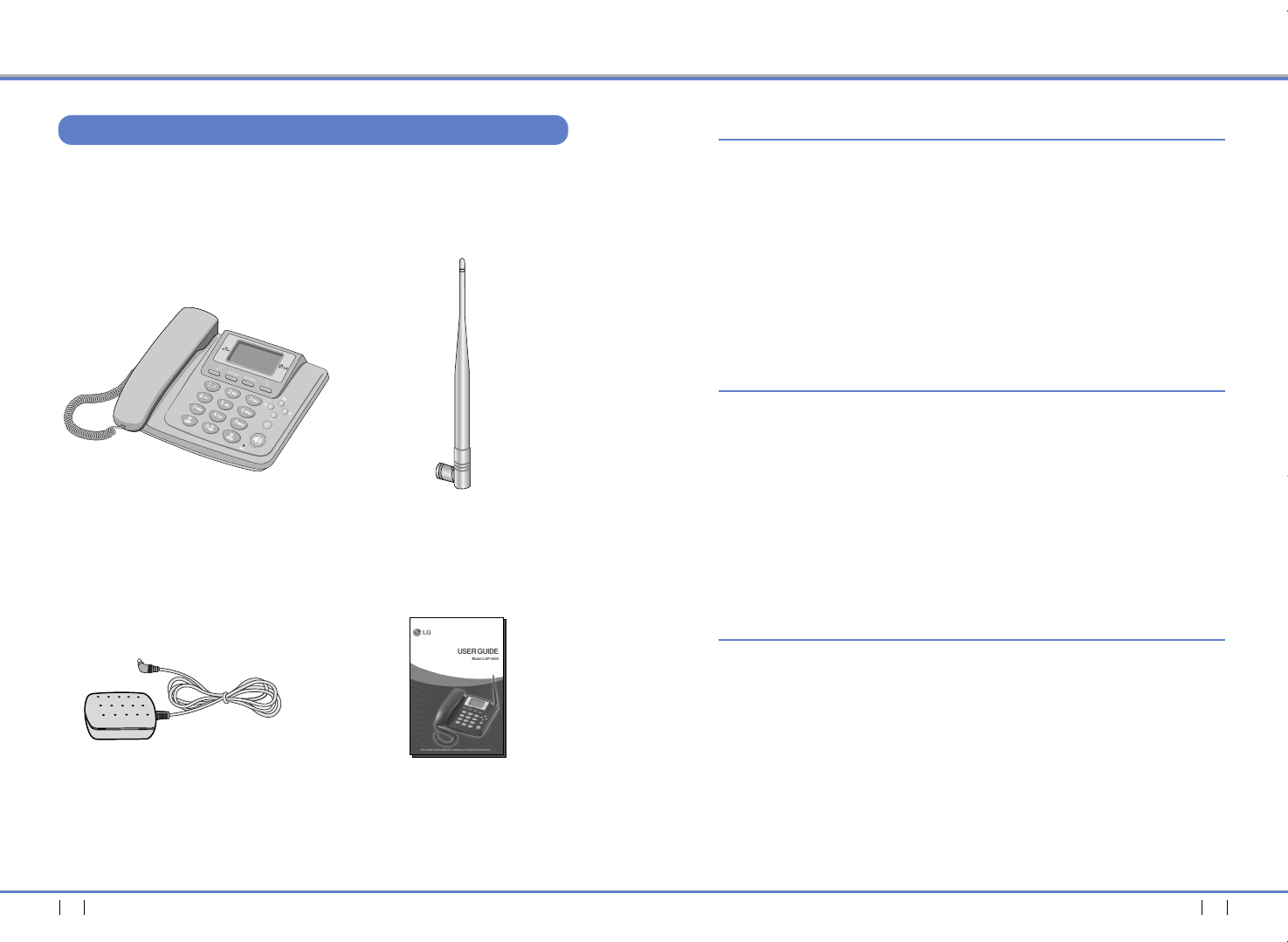

STEP I. Check Components
■The following components are supplied for Fixed Wireless Phone.
1.
LSP-3500 Main Phone with Handset(Including inner backup battery)
-1EA-
2. Dipole Antenna -1EA-
3. AC/DC Power Adapter -1EA-
4. User Guide -1EA-
■Please make sure that these components are present before you begin to
install the phone. If any of the components are missing or damaged,
contact your service provider immediately.
STEP II. Place the Terminal
■Place the phone on the stable flat surface area (desk, table, etc.). Serious
damage may result if the phone is dropped. Do not place the phone within
1 meter of heaters or radiators.
This phone is designed for desktop usage. Avoid the direct exposure to
sunlight and dampness.
■Read the SAFETY INFORMATION located in the first part of this
document before you place the phone.
STEP III. Connect Components
(Please refer to Installation Steps in 2.4)
■Connect the antenna to the TNC antenna connector located at the top of
the phone. If you have placed the phone on a flat surface, position the
antenna upright.
■Connect the curl cord of the handset to the RJ-11 port located on the left
side of the phone.
■Connect the AC/DC Adapter cable to the DC input port located at the top
of the phone.
➢If it is correct, a beep tone will be heard.
➢If it is not correct (Booting fails or beep tone is not heard), you will
have to reconnect the adapter or reset the battery switch to on .
2.3 Installation
You should follow each step carefully as shown below in order to guarantee
the proper operation of CDMA Fixed Wireless Phone.
Main Phone Dipole Antenna
AC/DC Power Adapter User Guide
LSP-3500 2005.6.7 1:54 PM 페이지16
Introduction
Introduction
18 19
CDMA Fixed Wireless Phone CDMA Fixed Wireless Phone

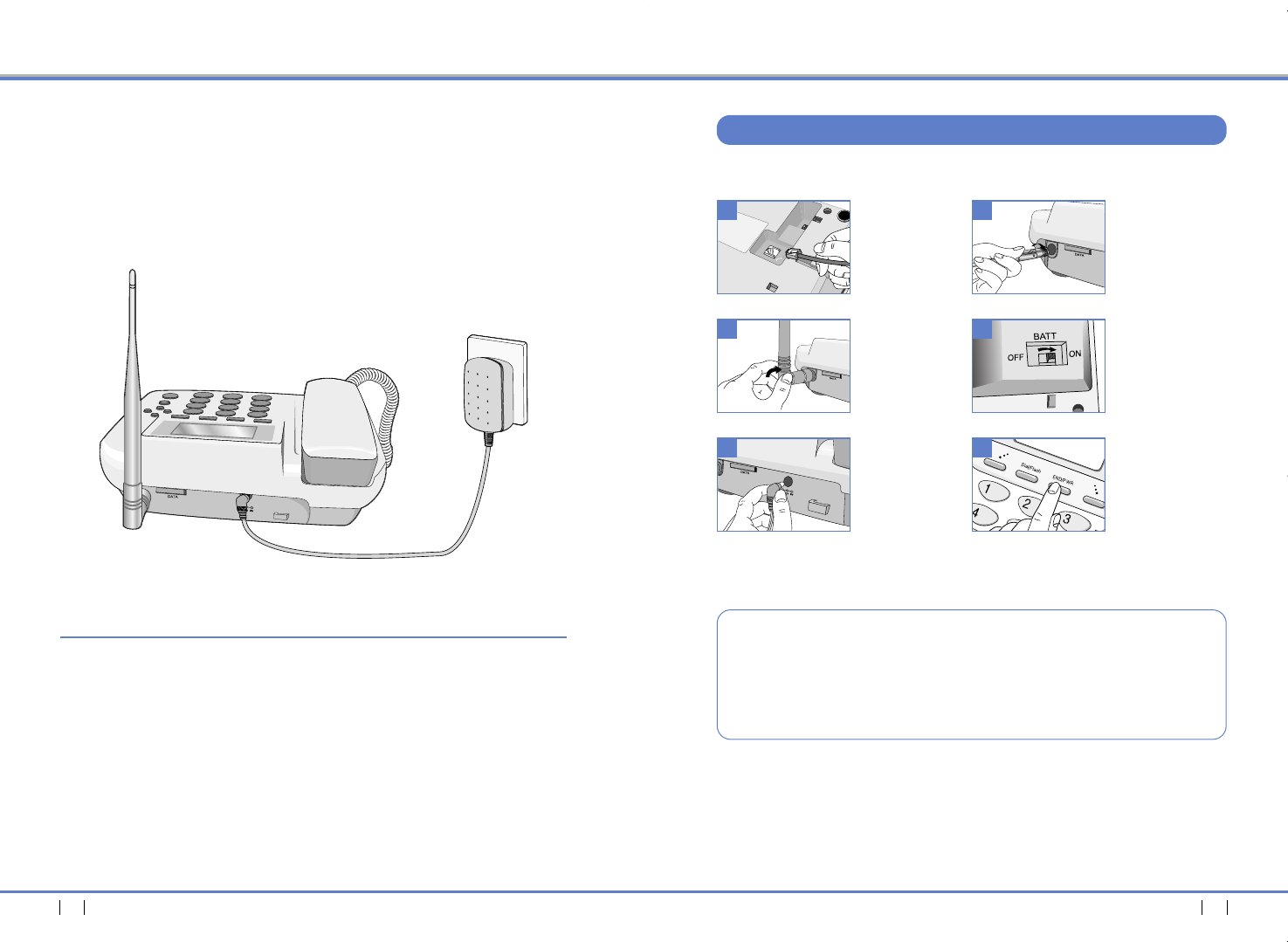

2.4 Installation Steps
Please follow the procedure below to install the phone properly.
Connect base-
handset to the
handset
connector.
Turn the antenna
upright.
Connect the AC
power supply.
Connect the
antenna to the
TNC connector
(Turn right).
When you first
use the Phone,
please Turn on
the battery
switch.
1 2
3
Press END/PWR
button to operate
initially.
5 6
4
■Before using the phone, please check that the battery switch is on .
■ After switching if on, use the phone.
■When charging the battery, check that the battery switch is on .
■The battery will be charged only when the battery switch is on .
■Please observe the following to get better voice quality
1. Keep away from electrical appliances such as TV, computer, radio etc.
2. Keep the phone in a high and central location without any obstructions.
3. Raise the integral antenna of the phone to get maximum strength as
shown in the figure.
STEP IV. Check the LCD Display
■After you follow the installation instruction step I to step III, please check
the LCD for normal operation.
■If you do not see the status of service, please repeat the 4th instruction of
step III.
Then confirm the status of phone to get the proper signal strength from the
service operator system.
Notice:
LSP-3500 2005.6.7 1:54 PM 페이지18
Basic Operations
20 21
CDMA Fixed Wireless Phone CDMA Fixed Wireless Phone
3. Basic Operations
3.1 Making a Call
You can make a call as follows.
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out or Press Dial/Flash button.
5. The call is connected and you may start conversation.
6. To disconnect the call, replace the handset or press button.
When the user presses the Dial/Flash button after dialing any desired number,
if the user picks up the handset or presses the Speaker Phone button, the
phone makes a call immediately.
3.2 Redialing Last Number
You can make a redial to last number, shown in All Calls.
1. Pick up the handset or press button.
2. Listen for dial tone.
3. Press Dial/Flash button.
4. The call is connected and you may start conversation.
5. To disconnect the call, replace the handset or press button.
※You can also dial any of the last 60 (Dialled+Received+Missed) numbers
stored in All Calls.
3.3 3 way call conferencing
You can start tripartite conversation.
1. Enter the phone number of the 2nd party phone while you are in
telephonic conversation with 1st party.
2. Press 3 + Dial/Flash button.
This service should be provided by your service provider.
3.4 Call Waiting
While a call is in progress, you may hear two beeps indicating another
incoming call. When call wait is enabled, you may put the active call on hold
while you answer the other incoming call.
1. Press Clear or END/PWR button, Call Waiting window then disappears.
2. Press Dial/Flash button, you may start conversation with called num-
ber.
3. Re-press Dial/Flash button, you may start conversation with previous
number.
3.5 Volume Control
1. Press Left/Right button of navigation while in a call, to adjust Speaker
volume.
2. Press Up/Down button of navigation while in a call, to adjust MIC
volume.
3.6 Receiving a Call
When the bell rings or backlight blinks in Light Mode, you can receive a call
as follows
1. Pick up the handset or press the Speaker Phone button.
2. Start a conversation.
3. To disconnect the call, replace the handset or press the Speaker Phone
button.
Basic Operations
LSP-3500 2005.6.7 1:54 PM 페이지20
- Shift key : Used to change the letter case. In T9 Mode, it switches
3-types of letter case such as T9En, T9EN, T9en and in Abc Mode, it
switches 3-types of letter case such as Abc, ABC, abc.
- Next key : In T9 mode, press to display other matching words.
- . key : In T9 mode, press to insert sentence mark ( . , - ? ! @ : )
- SPACE key : Press to complete a word or insert a space.
- Clear key : Press to delete a single space or character. Press and
hold to delete entire words.
Text Input provides seven modes for entering text, numbers, special
characters, and punctuation
-T9En Mode : Type text using keystroke per letter in English with the
help of T9 English dictionary function. This is default mode.
- Abc Mode : Use Abc mode to input text in English.
•If you want an instant input of numbers in Abc mode without
converting to 123 mode, press the button until number is displayed in
Abc mode. Use Abc mode to add words to the T9 database too.
- 123 Mode : Type numbers using one keystroke per number. To change
to 123 mode in a text entry field, press Soft key 2 until 123 mode is
displayed
- Symbols Mode : Insert special characters, punctuation. You may use
any of the special characters. When the special characters are displayed,
you can select the number corresponding to the character that you want
to input. To search more symbols, press Soft key 1(Next) or up/down
key button.
- Smileys Mode : Insert smileys in your text. When the smileys are
displayed, you can select the number corresponding to the smileys that
you want to input. To search more smileys, press Soft key 1(Next) or
up/down key button.
Input Mode
Basic OperationsBasic Operations
22 23
CDMA Fixed Wireless Phone CDMA Fixed Wireless Phone

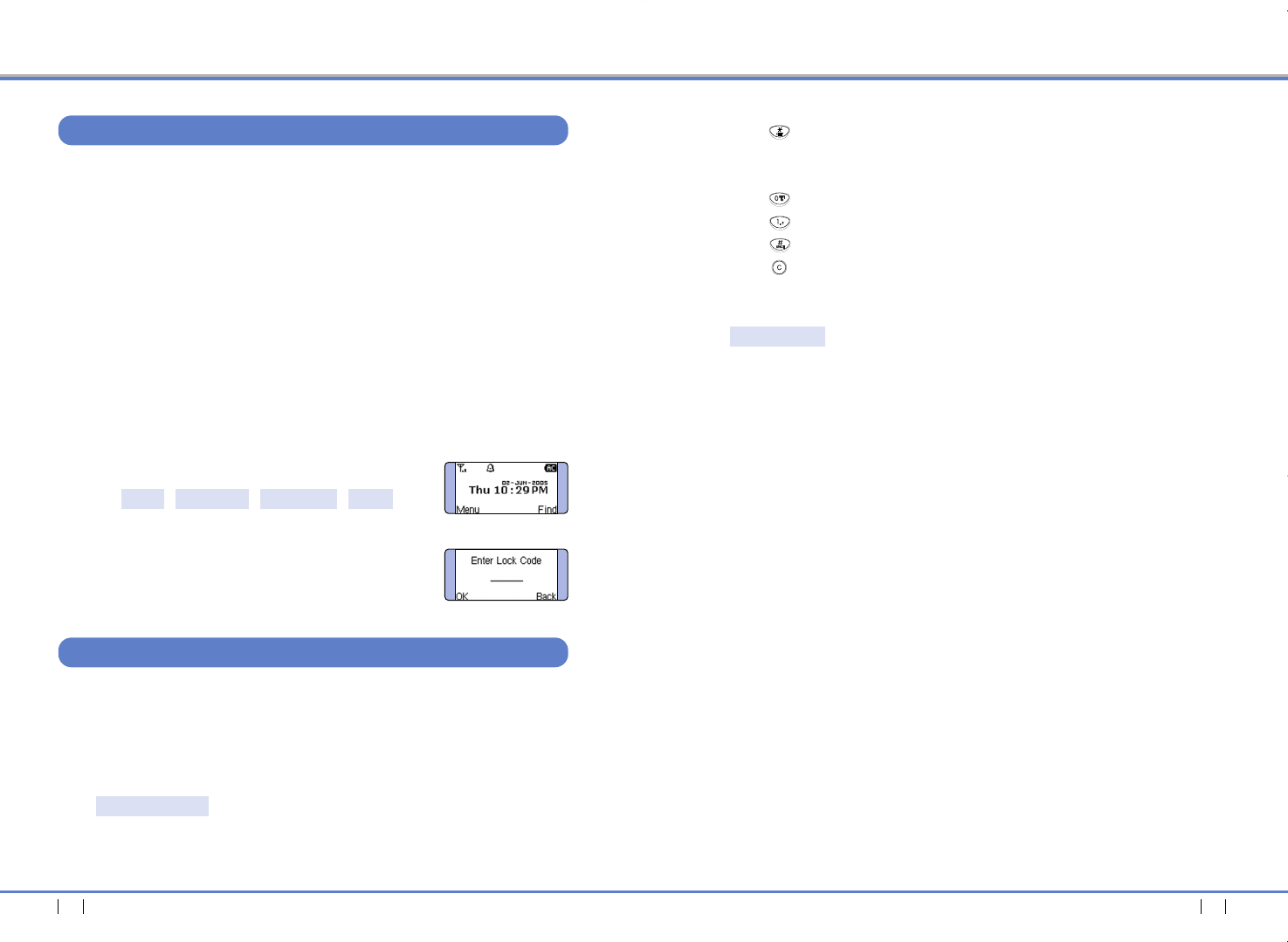

3.7 Lock Mode
Protects your phone from unauthorized use. Once the phone is locked, it
is in restricted mode, until the in lock code is entered. This will allow you
to receive phone calls and still make only emergency calls. The lock
code/password on your phone is “0000”by default. If you need to modify
the lock code, you may modify it using the new lock code within the
security set Menu.
* You can also lock your phone using the key guard [Option 4.6.4 page no.50]
* Also, you can lock your phone manually and change your default password
as explained [4.6.4 page no.50]
Under Lock Mode
1. Press 0 button for some time.
The phone is now locked.
2. To unlock, press Unlock button(Soft Key 2).
Soft Key 1 Soft Key 2
3. Enter unlock code. (Default 0000 )
3.8 Entering and Editing Information
You can edit the phonebook, Short Messges, Scheduler and Banner using
various text input mode. Your phone supports T9 Text Input in English
Language. T9 Text Input is an easy way to write. In this input method, you
only need to press a key once for each letter.
Soft key 2 : Press to scroll and select a mode through menus.
- You can scroll through the modes using Soft key 2 in the following
Key Functions
●●●●●●
END/PWRDial/Flash
●●●●●●
LSP-3500 2005.6.7 1:54 PM 페이지22
Adding Words to the T9 Database
If a word is not in the T9 database, add it by using Abc mode text entry. The
word is automatically added to the T9 database when you complete a word.
For example, follow these steps:
1. Press: Soft Key 2 to change letter case to Abc mode.
2. Press:
3. Display: Imt
4. Press: Soft Key 2 to change letter case to T9En mode and then the
word Imt will be automatically added to the T9 database.
5. Press: to erase the existing word.
6. Press:
7. Display: Got
8. Press:
9. Display: Imt
Typing In ABC(Multi-tap) Mode
For example, to type RELIANCE , follow these steps:
1. Press: Soft key 2 to change letter case ABC mode.
2. Press: Shift key to change to ABC Caps Lock mode.
3. Press:
4. Display: RELIANCE
Examples Using ABC Text input
Initial Cap(T9En/Abc)
Only the first letter is capitalized.
Caps Lock(T9EN/ABC)
All subsequent letters are capitalized.
Lowercase(T9en/abc)
All subsequent letters are lowercase.
Typing In T9 Mode
When you want to use T9 Mode, check that T9En is shown at the right
bottom of the display. To write the word, press each key once for one letter.
For example, to write Call the office , follow these steps:
1. Press: Soft key 2 to change letter case to T9En mode.
2. Press:
3. Press: # to complete the word and add a space.
4. Press:
5. Display: Call the office
As you can see, the word changes after each key press. Therefore, you
don t need to pay much attention to what happens on the display before
you have keyed in the whole word.
Using the NEXT key
After you have finished typing a word, if the word displayed is not the word
you want, press 0 to display additional choices. For example, follow these
steps:
1. Press:
2. Display: Good
3. Press:
4. Display: Home, Gone, Hood ............
Examples Using T9 Text Input for English
Basic OperationsBasic Operations
24 25
CDMA Fixed Wireless Phone CDMA Fixed Wireless Phone
LSP-3500 2005.6.7 1:54 PM 페이지24
Menu Tree
27
CDMA Fixed Wireless Phone
Menu Tree
26 CDMA Fixed Wireless Phone
Main Menu
Sub-Menu Setting Value
6. Erase History
Erase Missed / Erase Received
Erase Dialled
1. Ring Type Ring / One-Beep / Light
2. Ring Tone Bell / Melody
3. Ringer Volume Option setting (Bar 0 ~ Bar 5)
4. Sound 4. Earpiece Volume Option setting (Bar 1 ~ Bar 5)
5. Key Volume Option setting (Bar 0 ~ Bar 5)
6. Speaker Volume Option setting (Bar 1 ~ Bar 5)
7. Message Alert Alert Type / Alert Tone / Message Reminder
1. Language English
2. Wallpaper Idle Screen / Banner
5. Display 3. Menu Style List / Icon
4. Backlight
Off / 10 Secs / 30 Secs / Night Only /
Always On
5. Contrast Option setting (Bar 0 ~ Bar 8)
1. My Menu Names / Messages / Call History /
Sound / Display / Settings /
Organiser / Games
2. Call
Call Forward / Call Waiting / Call Timer
Call Connect Alert / Silent Scratch Pad
6. Settings
3. Phone
Auto Dial Time Out / Data Settings
Phone Info
Lock Mode / Emergency Numbers
4. Security Change Lock Code / Restrict Call / Hot Line
Set NAM / PCO(8.Metering Info)
Clear Memory & Reset / Reset Phone
1. Find Name Search / Number Search / Group Search
2. Add Name / Mobile / Home / Office / General /
1. Names
E-mail / Memo / Personal bell
3. Group Group Name / Group Bell
4. Speed Dial
5. Erase All Names
1. Write T9En / Abc / 123 / Symbol / Smileys /
Templates / Forms
2. Inbox View / Erase
3. Outbox View / Erase
4. Voice Mail Erase
5. Broadcast Box
6. Archive View / Erase
2. Messages
7. Drafts View / Erase
8. Templates View / Add
9. SMS Groups View / Options
0. Erase Message
Inbox / Outbox / Broadcast Box
Archive / Drafts /All Message
Priority / Delivery Ack / Deferred Delivery
*. Message Settings Validity Period / Save Sent Message
Auto Delete Inbox
1. Missed View / Erase
2. Received View / Erase
3. Call History
3.
Dialled View / Erase
4. In Call Memo View / Erase
5. Call Duration Last Dialled Calls / All Dialled Calls
All Calls / Reset Call Duration
Main Menu
Sub-Menu Setting Value
4. Menu Tree
LSP-3500 2005.6.7 1:54 PM 페이지26
Menu Tree
29
CDMA Fixed Wireless Phone
Menu Tree
28 CDMA Fixed Wireless Phone
4.1 Names
You may select from three Sub-Menus (Find, Add, Group, Speed Dial, Erase
All Names) for this item. If you press Soft Key1, Menu is activated.
Soft Key 1 Soft Key 2
To scroll in Menu, press▲,◀,▶or ▼button.
To return to the initial screen, press END/PWR button and to return to the
previous screen, press Clear button.
4.1.1 Find
To find phone numbers you have stored in the Phone Book.
1. Press + 1( ) + 1( ) in on-hook state.
2. Select a desired search Menu.
, , : Enter full or
starting of name (Number), select .
3. Select desired item.
4. To make a call, pick up the handset or press speaker phone button.
5. To view, press Soft Key 1.
: You can Edit or Erase.
You can send a message also while number is highlighted.
Options
OK
Group Search
Number SearchName Search
FindNamesMenu
●●●●●●
END/PWRDial/Flash
●●●●●●
Main Menu
Sub-Menu Setting Value
1. Scheduler OK / Add
2. Alarm Options / View
7. Organiser 3. Memo View/ Add
4. Calculator -
5. World Clock DST
6. StopWatch Start
8. Games
1. Fortress New Game / High Score / Key Info.
2. Mole New Game / High Score / Key Info.
LSP-3500 2005.6.7 1:54 PM 페이지28

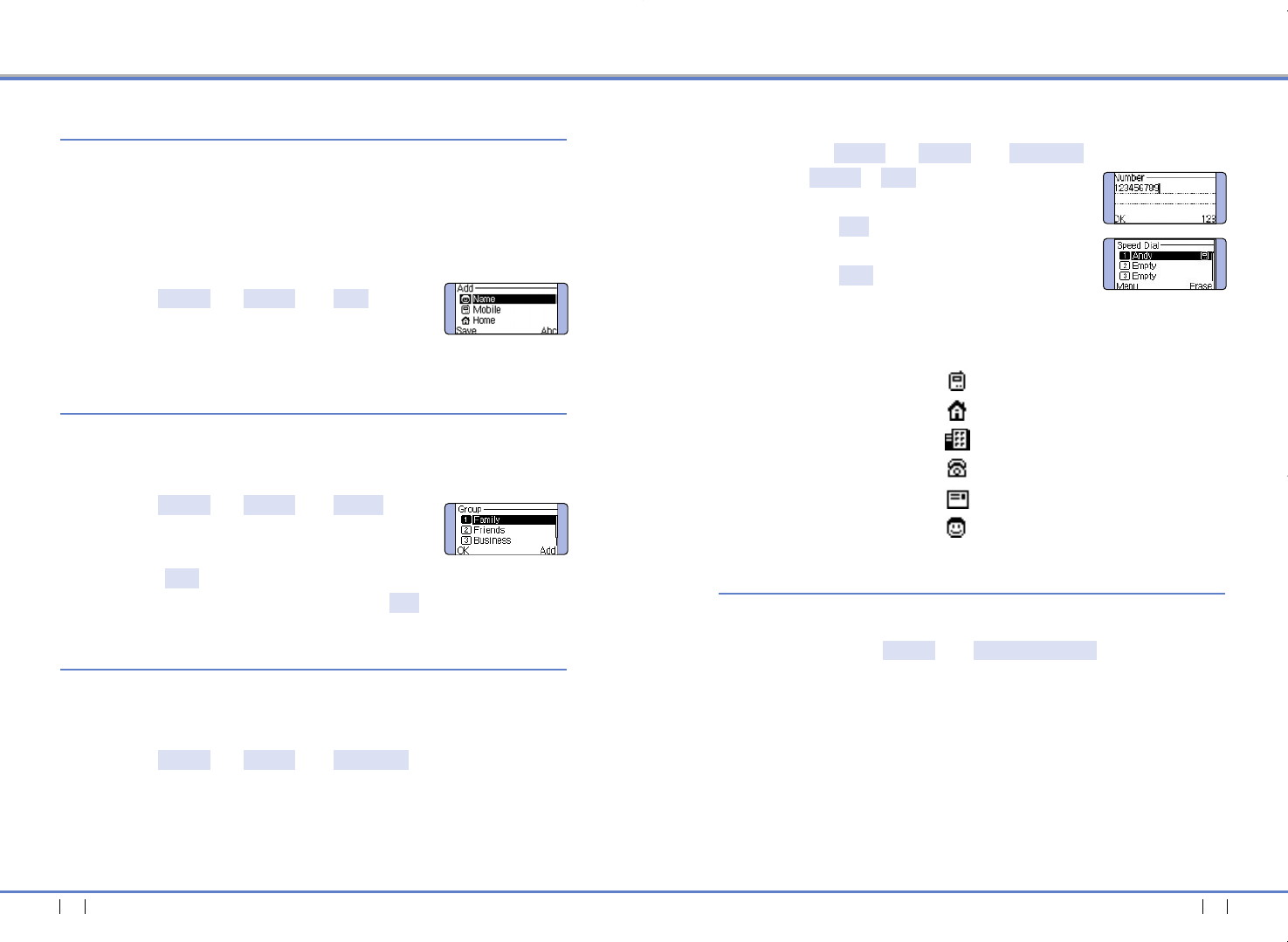

4.1.2 Add
You can save upto 500 entries in your LSP-3500 phonebook.
You can store multiple contact details under a name: Mobile Number, Home
Number, Office Number, General Number, E-mail address of the contact.
You can also add any additional details about the contact like the Person s
birthday , favorite things etc in memo.
Lastly, there is an option to assign a ring tone to a name.
1. Press + 1( ) + 2( ) in
on-hook state.
2. Enter the information to select a desired item.
4.1.3 Group
This is function that allows you to add a contact to a group. Group has four
options: Family, Friends, Business, School: You can also edit and delete the
name of a group.
1. Press + 1( ) + 3( ) in
on-hook state.
2. To add a new group (Maximum upto 10 groups),
select .
3. To edit or delete for selected group, select .
4.1.4 Speed Dial
Speed Dial allows you to make a call faster by just pressing a corresponding
number.
You can save upto 99 entries.
1. Press + 1( ) + 4( ) in on-hook state
2. You can view a stored item.
3. You can add a new Speed Dial number in two ways.
Speed DialNames Menu
OK
Add
GroupNames Menu
ADDNames Menu
Menu Tree
31
CDMA Fixed Wireless Phone
Menu Tree
30 CDMA Fixed Wireless Phone
Find
1) Press + 1( ) + 4()
+ + in on-hook state.
2) Find your desired phone number.
3) Select .
4) Enter speed dial number.
5) Select .
4. You can Edit or Erase a stored item.
In this menu, All sorts of the icon have the meaning as follows:
- Mobile phone number :
- Home phone number:
- Office phone number:
- General phone number:
- E-mail address:
- Name of person:
4.1.5 Erase All Names
You can delete all Entries in your LSP-3500 phone book.
1. Press Menu + 1( ) + 5( ) in on-hook state.
2. Enter lock code. ( Default 0000)
3. Press "Yes"
Erase All Names
Names
Save
OK
AddMenu
Speed DialNames Menu
LSP-3500 2005.6.7 1:54 PM 페이지30
Menu Tree
33
CDMA Fixed Wireless Phone
Menu Tree
32 CDMA Fixed Wireless Phone
4.2.1 Write
1. Press + 2( ) + 1( ) in
on-hook state.
2. Write message.
Refer to the 3.8 (page 22) Entering and Editing
Information about text input.
3. Select .
4. Enter phone number or press .
: can select or .
5. Select options as following.
Priority: Allows you to give priority to Message as
or .
Delivery Ack: This function allows you to know whether the Messages
have been successfully transmitted to the recipient. If you want to activate
this function, set to .
Deferred Delivery : This function allows you to reserve when the
message is sent.
You may select from seven options(Immediate / After 30 Minutes / After
1 Hour / After 2 Hours / After 12 Hours / After 1 Day / After 2 Days)
Validity Period : This function allows you to define the period of the
valid message until the message sending is completed.
You may select from seven options(Default/ 30 Minutes / 1 Hour / 2
Hours / 12 Hours / 1 Day / 2 Days)
Save Sent Message: This function allows you to choose whether the sent
message shall be saved or not. You may select or
6. Select .
Send
OffOn
On
UrgentNormal
SMS Groups
Find
Options
Options
OK
WriteMessagesMenu

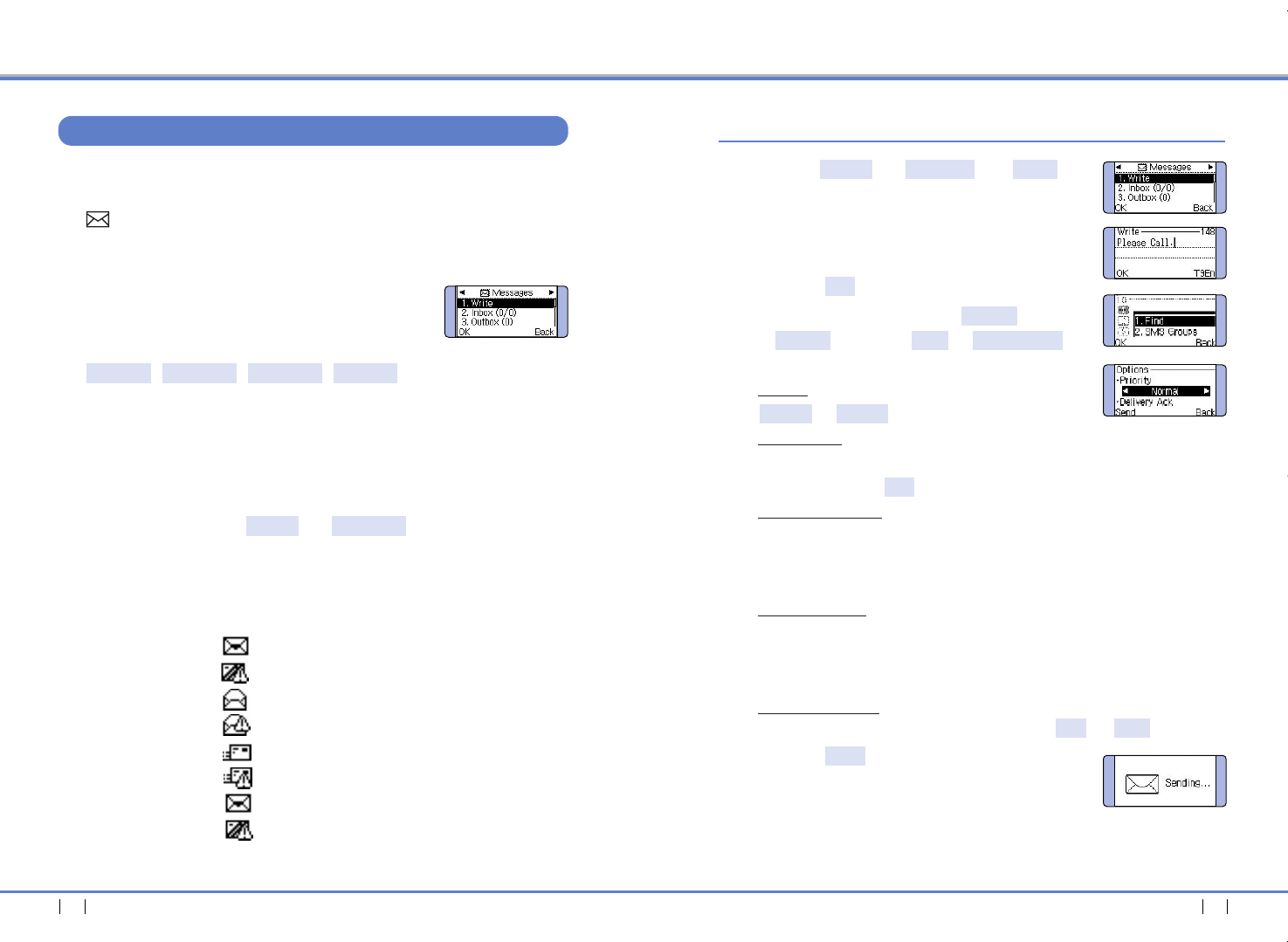

4.2 Messages
Text messaging, page and voice mailbox become available as soon as the
power is on. You may access the above type of messages using the Messages
( ) key.
The phone can store upto 50 messages in each Inbox and Outbox. And the
phone can also store upto 50 messages in Archive, 30 messages in Drafts, 30
messages in Templates, 5 SMS Groups with 10 Entries
per Group.
If you press Soft Key1, Menu is activated.
Soft Key 1 Soft Key 2
To scroll in MENU, press ▲, ◀, ▶ or ▼button.
To return to the initial screen, press END/PWR button and to return to the
previous screen, press Clear button.
To access messages, Press + 2( ) in on-hook state.
In the list of Inbox or Outbox , all sorts of the icon have the meaning as
follows:
- Unread :
- Unread Urgent :
- Read :
- Read Urgent :
- Sent :
- Sent Urgent :
- Unsent :
- Unsent Urgent :
MessagesMenu
●●●●●●
END/PWRDial/Flash
●●●●●●
LSP-3500 2005.6.7 1:54 PM 페이지32
Menu Tree
35
CDMA Fixed Wireless Phone
Menu Tree
34 CDMA Fixed Wireless Phone
2. Pick up the handset or press speaker phone button to make a call back
your voice mailbox if the number of the voice mailbox is provided by
the telecom service company s system.
4.2.5 Broadcast Box
Message box for advertisement
1. Press + 2( ) + 5( ) in on-hook state.
2. To delete all messages, Select .
3. To view desired message, Select .
4. You may select option.
4.2.6 Archive
Archive allows you to store your messages in a different folder.
1. Press + 2() +6( ) in on-hook state.
2. To erase message, select .
3. To view desired message, select .
4. ¥ In case of Inbox message, you may select from four options
(1. Erase 2. Reply 3. Forward 4. Save Number).
¥ In case of Outbox message, you may select from three options
(1. Erase 2. Resend 3. Forward).
4.2.7 Drafts
A Draft is a function enabling you to store messages to be sent in Future. A
total of upto 30 messages may be saved in Draft. These include failed
messages, incomplete/unsent messages saved by the user and also messages
which automatically get saved when a user is interrupted by a call while
composing a message.
The most recent data is saved at the top of list.
View
Erase
ArchiveMessagesMenu
View
Clear
Broadcast Box
MessagesMenu

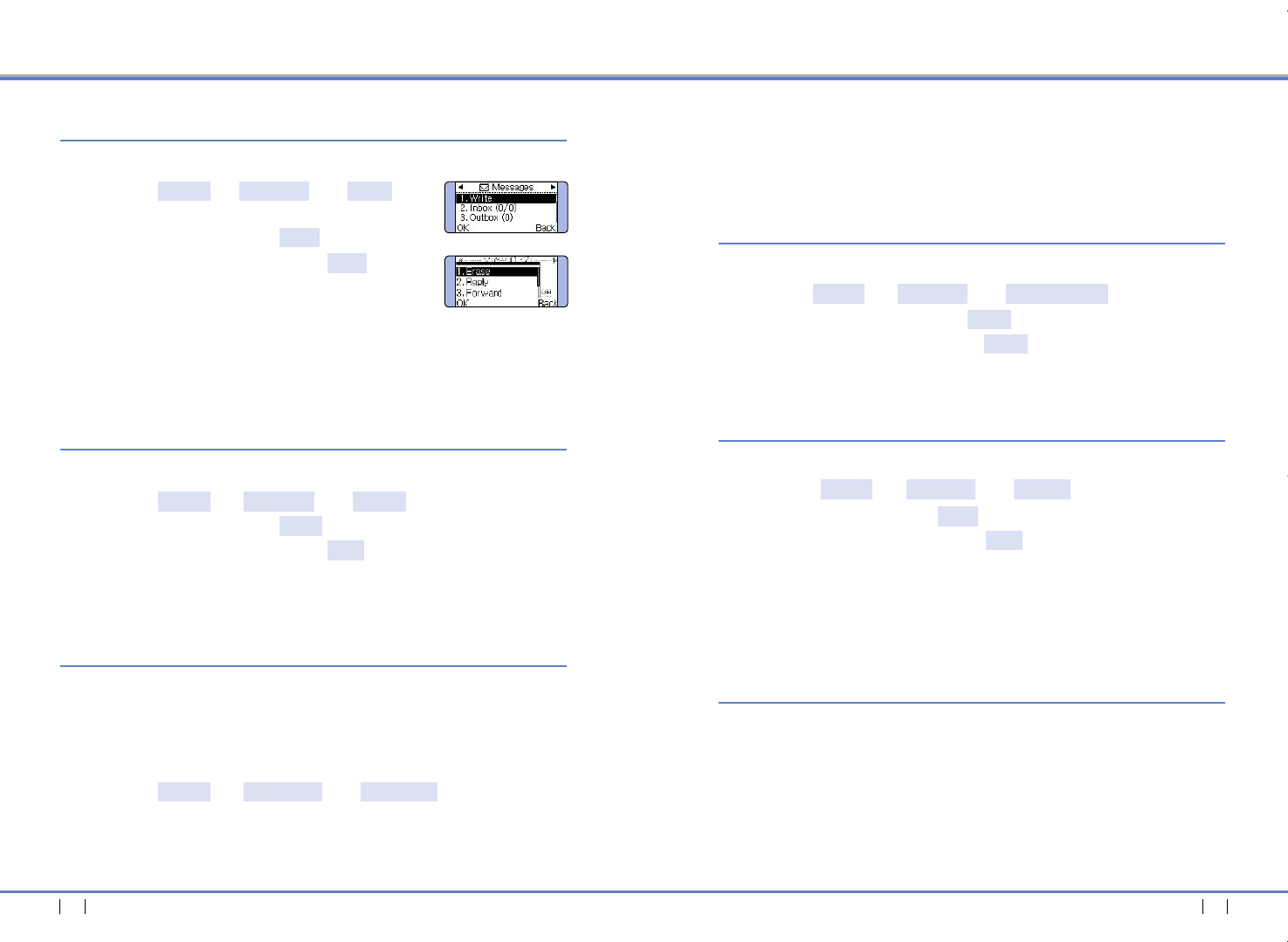

4.2.2 Inbox
Received messages are stored here.
1. Press + 2( ) + 2( ) in
on-hook state.
2. To erase message, select .
3. To view desired message, select .
4. You may select from five options (1. Erase
2. Reply 3. Forward 4. Move to Archive
5. Save Number).
* For example, the meaning of (2/3) in Inbox is that 2 out of 3 messages
are unread.
4.2.3 Outbox
All your successfully sent messages are saved here.
1. Press + 2() +3( ) in on-hook state.
2. To erase message, select .
3. To view desired message, select .
4. You may select from four options (1. Erase 2. Resend 3. Forward
4. Move to Archive).
4.2.4 Voice Mail
Voice mail notifications indicate the number of new voice mail messages in
your mailbox.
Only the most recent voice mail notification will be stored in your phone;
previous message will be overwritten.
1. Press + 2( ) + 4( ) in on-hook state.
Voice MailMessagesMenu
View
Erase
Outbox
MessagesMenu
View
Erase
InboxMessagesMenu
LSP-3500 2005.6.7 1:54 PM 페이지34
Menu Tree
37
CDMA Fixed Wireless Phone
Menu Tree
36 CDMA Fixed Wireless Phone
2. Select desired option to erase.
3. Press button.
4.2.11 Message Settings
Priority
1. Press Menu + 2( ) + *( ) + 1( ) in on-
hook state.
2. You may select from two options (1. Normal 2. Urgent).
Delivery Ack
1. Press + 2( ) + *( ) + 2()
in on-hook state.
2. Select or .
Deferred Delivery
1. Press + 2( ) + *( ) +
3( ) in on-hook state.
2. Select one of the following.
1. 2. 3.
4. 5. 6.
7.
Validity Period
1. Press + 2( ) + *( ) +
4( ) in on-hook state.
2. Select desired time.
1. 2. 3. 4.
5. 6. 7.
2 Days1 Day12 Hours
2 Hours1 Hour30 Minutes Default
Validity Period
SettingsMessagesMenu
After 2 Days
After 1 Day After 12 Hours
After 2 Hours
After 1 HourAfter 30 Minutes Immediate
Deferred Delivery
SettingsMessagesMenu
OffOn
Delivery Ack
SettingsMessagesMenu
PrioritySettingsMessages
OK
1. Press + 2() +7( ) in on-hook state.
2. To erase message, select .
3. To view desired message, select .
4. You may select from two options (1. Erase 2. Send).
4.2.8 Templates
There are 10 predefined phrases included in the Templates.
You may add up 20 templates more. A total of 30 templates may be saved.
1. Press + 2( ) + 8( ) in on-hook state.
2. If you select the message, View/Add appears on the screen.
View: There are two options: Erase and Edit.
Add : You may add new template Messages to the Templates list.
4.2.9 SMS Groups
Five SMS Groups are available in your phone. You can add upto ten
members in each group. You can also rename the group name.
1. Press + 2( ) + 9( ) in on-hook state.
2. Select desired group
View : There are five options (1. Send 2. Send to all 3. Replace
4. Erase Member 5. Clear Group) or add new member
Options : There are four options (1. Send 2. Rename 3. Clear Group
4. Clear all)
4.2.10 Erase Message
You may erase message with various options from Inbox, Outbox, Archive or
Drafts. You may erase all messages by selecting single option All Messages.
1. Press + 2() +0( ) in on-hook
state.
Erase MessageMessagesMenu
SMS GroupsMessagesMenu
Templates
MessagesMenu
View
Erase
DraftsMessagesMenu
LSP-3500 2005.6.7 1:54 PM 페이지36
Menu Tree
39
CDMA Fixed Wireless Phone
Menu Tree
38 CDMA Fixed Wireless Phone

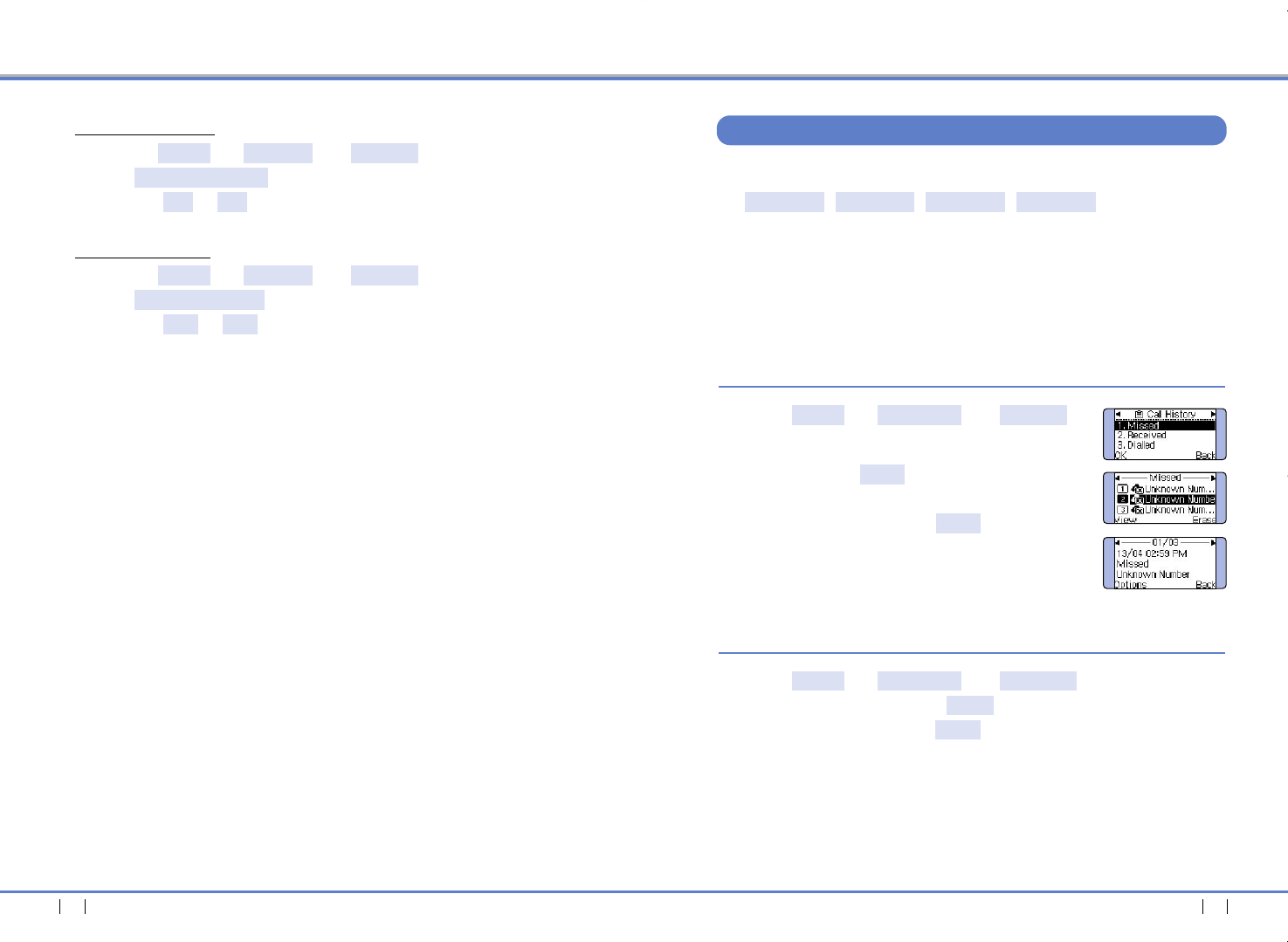

4.3 Call History
If you press Soft Key1, Menu is activated.
Soft Key 1 Soft Key 2
To scroll in Menu, press ▲, ◀, ▶ or ▼button.
To return to the initial screen, press END/PWR button.
The phone can store upto 60 Received Call, 60 Dialled Call, 60 Missed Call
and 5 In Call Memo in Call History.
4.3.1 Missed
1. Press + 3( ) + 1()
in on-hook state.
2. To erase, select .
3. To view desired item, select .
4. You may select from three options (1. Erase 2. Send
Message 3. Save Number).
4.3.2 Received
1. Press + 3() +2( ) in on-hook state.
2. To erase received calls, select .
3. To view desired item, select .
4. You may select from three options (1. Erase 2. Send Message
3. Save Number).
View
Erase
Received Call HistoryMenu
View
Erase
Missed Call HistoryMenu
●●●●●●
END/PWRDial/Flash
●●●●●●
Save Sent Message
1. Press + 2( ) + *( ) +
5( ) in on-hook state.
2. Select or
.
Auto Delete Inbox
1. Press + 2( ) + *( ) +
6( ) in on-hook state.
2. Select or .
OffOn
Auto Delete Inbox
SettingsMessagesMenu
offOn
Save Sent Message
SettingsMessagesMenu
LSP-3500 2005.6.7 1:54 PM 페이지38
Menu Tree
41
CDMA Fixed Wireless Phone
Menu Tree
40 CDMA Fixed Wireless Phone
4.3.6 Erase History
You may erase all history from three options (1. Missed Calls 2. Received
Calls 3. Dialled Calls)
1. Press + 3( ) + 6( ) in on-hook
state.
2. To select history that you want to erase, press
When you press the Dial/Flash button, All Calls are displayed.
In the list of All Calls, All sorts of the icon have the meaning as follows:
- Received :
- Dialled :
- Missed :
- In Call Memo:
- Call Waiting :
- Call Waiting(Missed):
- 3 Way Call :
OK
Erase HistoryCall HistoryMenu
4.3.3 Dialled
1. Press + 3( ) + 3( ) in on-hook state.
2. To erase dialled numbers, select .
3. To view desired item, select .
4. You may select from three options (1. Erase 2. Send Message 3. Save
Number).
4.3.4 In Call Memo
In Call Memo allows you to make quick notes(numbers only) while call is
in progress. While in call, press Soft key 1(Menu), and then select 2 to type in
In Call Memo .
To retrieve an In Call Memo :
1. Press + 3( ) + 4( ) in on-hook state.
2. To erase In Call Memo, select .
3. To view desired item, select .
4. You may select from three options (1. Erase 2. Send Message 3. Save
Number).
4.3.5 Call Duration
1. Press + 3( ) + 5( ) in on-hook state.
2. You may select from four options (1. Last Dialled Calls 2. All Dialled
Calls 3. All Calls 4. Reset Call Duration).
Call DurationCall HistoryMenu
View
Erase
In Call MemoCall HistoryMenu
View
Erase
DialledCall HistoryMenu
LSP-3500 2005.6.7 1:54 PM 페이지40
Menu Tree
43
CDMA Fixed Wireless Phone
Menu Tree
42 CDMA Fixed Wireless Phone
4.4.4 Earpiece Volume
You may select a volume level of handset earpiece sound among the 1 ~ 5
steps.
1. Press + 4( ) + 4( ) in on-hook state.
2. Select the desired volume level by using the horizontal scroll keys and
press .
4.4.5 Key Volume
You may select a volume level of key tone sound among the 0 ~ 5 steps.
When you select 0 level, key tone sound become mute.
1. Press + 4( ) + 5( ) in on-hook state.
2. Select the desired volume level by using the horizontal scroll keys and
press .
4.4.6 Speaker Volume
You may select a volume level of speaker phone sound among the 1 ~ 5
steps.
1. Press + 4( ) + 6( ) in on-hook state.
2. Select the desired volume level by using the horizontal scroll keys and
press .
4.4.7 Message Alert
1. Press + 4( ) + 7( ) in on-hook state.
2. Select desired item (1. Alert Type 2. Alert Tone 3. Message Reminder)
Alert Type: 1. 2. 3. 4.
Alert Tone: 1. 2. 3. 4. 5.
Message Reminder:1. 2. 3. 4.Every 5 minutesEvery 2 Minutes OnceOff
Effect 5
Effect 4
Effect 3
Effect 2
Effect 1
LightOne-BeepRingOff
Message AlertSoundMenu
OK
Speaker VolumeSoundMenu
OK
Key VolumeSoundMenu
OK
Earpiece VolumeSoundMenu
4.4 Sound
Sound lets you choose your phone s sound settings to your environment.
Sound Menu contains settings for your phone s Ring Type, Ring Tone,
Ringer Volume, Earpiece Volume, Key Volume, Speaker Volume, and
Message Alert.
If you press Soft Key1, Menu is activated.
Soft Key 1 Soft Key 2
To scroll in Menu, press ▲, ◀, ▶ or ▼button.
To return to the initial screen, press END/PWR button and to return to the
previous screen, press Clear button.
4.4.1 Ring Type
You may select the call alert option.
1. Press + 4( ) + 1( ) in on-hook state.
2. There are three modes (1. Ring 2. One-Beep 3. Light)
4.4.2 Ring Tone
1. Press + 4( ) + 2( ) in on-hook state.
2. There are two modes (1. Bell 2. Melody)
You may select one ring sound among the 5 Bells or 15 Melodies.
4.4.3 Ringer Volume
You may select a volume level of ringer sound among the 0 ~ 5 steps.
When you select 0 level, ringer sound become mute.
1. Press + 4( ) + 3( ) in on-hook state.
2. Select the desired volume level by using the horizontal scroll keys and
press .
OK
Ringer VolumeSoundMenu
Ring ToneSoundMenu
Ring TypeSoundMenu
●●●●●●
END/PWRDial/Flash
●●●●●●
LSP-3500 2005.6.7 1:54 PM 페이지42
Menu Tree
45
CDMA Fixed Wireless Phone
Menu Tree
44 CDMA Fixed Wireless Phone
Banner
Enter the string of characters you want to be displayed.
Banner is presented during idle mode along with selected wallpaper.
In the clock 2 idle screen option, banner will not displayed.
4.5.3 Menu Style
Allows you to select the Menu style.
1. Press + 5( ) + 3( ) in on-hook state
2. Select 1( ) or 2( ) and press .
4.5.4 Backlight
Allows you to choose the settings of the LCD and keypad backlight.
1. Press + 5( ) + 4() in
on-hook state.
2. Select among Off / 10 Secs / 30 Secs / Night
Only / Always On
* If you want to turn on the backlights from 6 PM to 6 AM, select Night
Only.
4.5.5 Contrast
Allows you to select the contrast setting using the scale of brightest to
darkest.
You may select a contrast level of LCD among the 0 ~ 8 steps.
1. Press + 5( ) + 5( ) in on-hook state.
2. Select the desired contrast level by using the navigation keys and press
.
OK
ContrastDisplayMenu
BacklightDisplayMenu
OKIconList
Menu StyleDisplayMenu

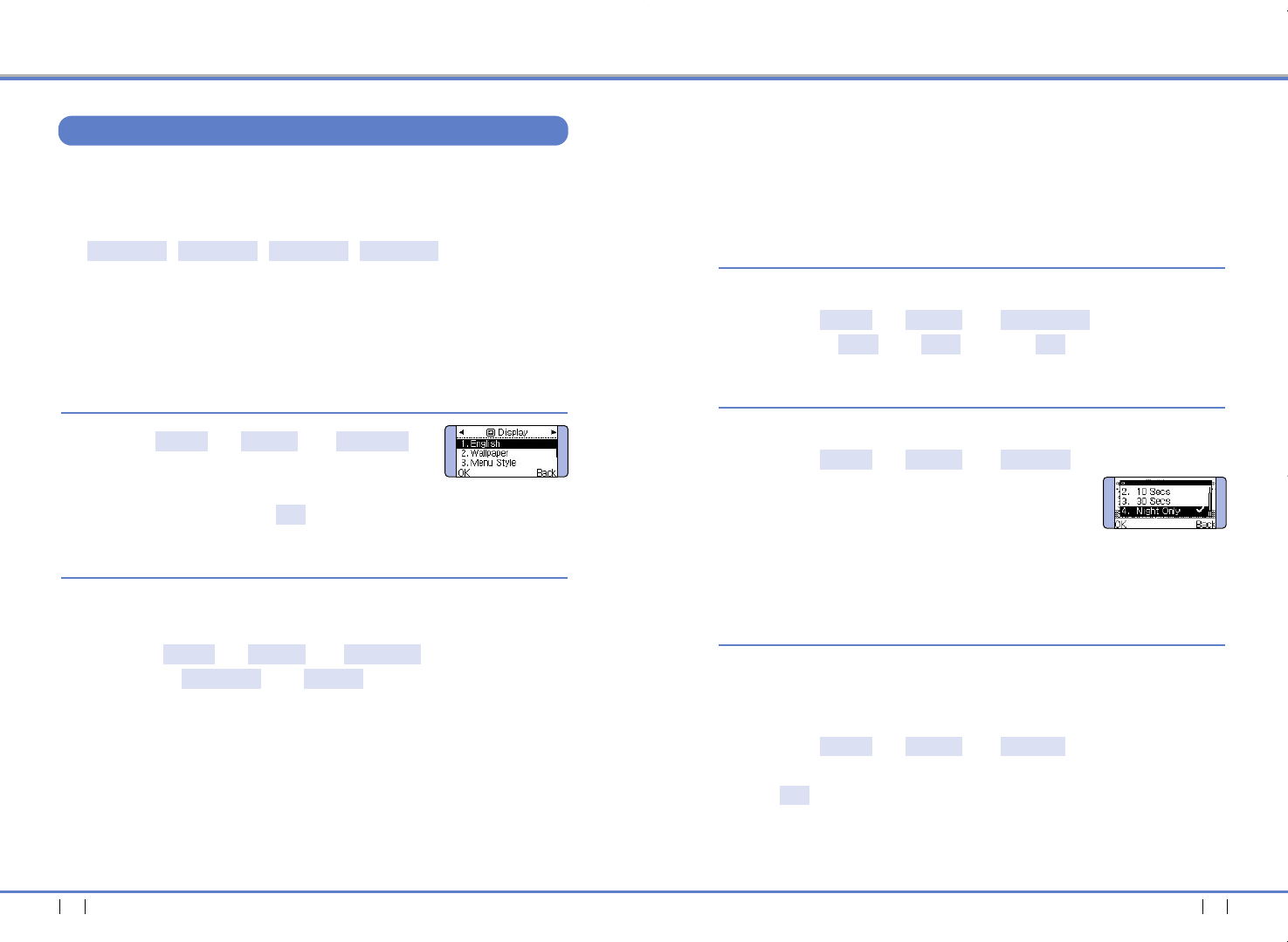

4.5 Display
You can personalize your phone s display by selection of various display
settings like Language, Wallpaper, Menu Style, Backlight and Contrast.
If you press Soft Key1, Menu is activated.
Soft Key 1 Soft Key 2
To scroll in Menu, press ▲, ◀, ▶ or ▼button.
To return to the initial screen, press END/PWR button and to return to the
previous screen, press Clear button.
4.5.1 Language
1. Press + 5( ) + 1( ) in
on-hook state.
2. Select English and press
4.5.2 Wallpaper
It allows you to customize the LCD screen display in the standby mode / idle
state.
1. Press + 5( ) + 2( ) in on-hook state
2. Select 1( ) or 2().
Idle Screen
Allows you to choose among given LCD screen display option during idle
state.
The Idle Screen has 6 options(Clock1, Clock2, Mushroom, Castle, Beach,
Sea), So you may choose the one of those screens.
BannerIdle Screen
WallpaperDisplayMenu
OK
LanguageDisplayMenu
●●●●●●
END/PWRDial/Flash
●●●●●●
LSP-3500 2005.6.7 1:54 PM 페이지44
Menu Tree
47
CDMA Fixed Wireless Phone
Menu Tree
46 CDMA Fixed Wireless Phone
1. Press + 6( ) + 1( ) + 1( ) in
on-hook state.
2. Select from Immediate / When Busy / No Reply / Not Reachable /
Disable All.
Disable All deactivates all the activated call forwarding options.
3. Select Enable or Disable and press .
Call Waiting
While a call is in progress, you may hear two beeps indicating another
incoming call. When call waiting is enabled, you may put the active call on
hold while you answer the other incoming call.
1. Press + 6( ) + 1( ) + 2( ) in on-
hook state.
2. Select or and press .
* Contact your service provider for more information on Call Forward
and Call Waiting.
Call Timer
While a call is in progress, you can see the elapsed time of the active call if
you set Call Timer to be Enable.
1. Press + 6( ) + 1( ) + 3( ) in on-
hook state.
2. Select or and press .
Call Connect Alert
This function will alert you when the call connection has been established.
1. Press + 6( ) + 2( ) + 4( )
in on-hook state.
2. Select or .
OffOn
Call Connect AlertCallSettingsMenu
OK
DisableEnable
Call Timer
CallSettingsMenu
OKDisableEnable
Call WaitingCallSettingsMenu
OK
Call ForwardCallSettingsMenu
4.6 Settings
If you press Soft Key1, Menu is activated.
Soft Key 1 Soft Key 2
To scroll in Menu, press ▲, ◀, ▶ or ▼button.
To return to the initial screen, press END/PWR button.
4.6.1 My Menu
Allows you to: 1) Make you own menu. 2) Access your favorite menu quick-
ly by customizing My Menu.
By pressing the Clear button in idle condition, user will go to My Menu
option and can access or delete his choice.
To add to My Menu
1. Press + 6( ) + 1( ) in on-hook
state.
1) Search desired item in Add to My Menu.
2) Select .
2. To delete My Menu, press Clear button:
1) Search desired item in My Menu.
2) Select using soft key 2.
3. To use Help, press + 6( ) + 1( ) +
9( ).
4.6.2 Call
Call Forward
Call Forward lets you forward all your incoming calls to another number
or Voice Mail connection.
Help
Add to My MenuSettingsMenu
Delete
ADD
Add to My MenuSettingsMenu
●●●●●●
END/PWRDial/Flash
●●●●●●
LSP-3500 2005.6.7 1:54 PM 페이지46
Menu Tree
49
CDMA Fixed Wireless Phone
Menu Tree
48 CDMA Fixed Wireless Phone
Voice
Always you can receive only Voice call and SMS.
Fax for next
You can receive the PC Fax for next call. After you receive the Fax once,
you can receive only Voice call and SMS.
Always Fax
Always you can only receive only PC Fax.
Modem for next
You can receive the Modem asynchronous data for next call. After you
receive the Modem data once, you can receive only Voice call and SMS.
Always Modem
Always you can only receive the Modem asynchronous data.
Note
•Fax services are currently not supported. Please contact your service
provider for further information.
•You need to purchase the Data Kit in order to be able to use the phone
as modem. Please contact your service provider for further information.
Data Baud
You may select one of speed options such as USB, 9600, 19200, 115200
and 230400 in bps. This options mean the data communication speed in
bps(bit per second) between the phone and PC. If you select USB, you
can communicate with PC through USB port. And if you select other
option, you can communicate with PC through RS-232C port in selected
speed.
The phone will work with PC/PDA properly only when the port settings
on both the PC match with the baud rates set on the phone.
Silent Scratch Pad
Silent Scratch Pad (if set on) may stop a receiver from hearing DTMF key
sound of taking notes while talking over the phone.
1. Press + 6( ) + 2( ) + 5( )
in on-hook state.
2. Select or .
4.6.3 Phone
Auto Dial Time Out
Allows you to place a call automatically after the last digit of the phone
number is dialled.
You may select one of the 7 options. (Off / 2 Secs / 3 Secs / 4 Secs / 5 Secs /
7 Secs / 10 Secs )
1. Press + 6( ) + 2( ) + 1()
in on-hook state.
2. Select desired time and press .
Data Settings
Data/Fax
In Data/Fax setting, you may use your phone as a wireless modem to avail
high speed data services such as browsing Internet and other dial-up
networking functions. The wireless phone supports a data rate of upto 153.6
kbps for USB cable and 115 kbps for Serial cable. The speed of your
connection depends upon network congestion, signal strength, and other
variables.
1. Press + 6() +2( ) + 2() +
1( ) in on-hook state.
2. Select desired options and press .
You may select one of Rx call mode options such as Voice, Fax for next,
Always Fax, Modem for next and Always Modem.
OK
Data /Fax
Data SettingsPhone
Settings
Menu
OK
Auto Dial Time outPhoneSettingsMenu
OffOn
Silent Scratch PadCallSettingsMenu
LSP-3500 2005.6.7 1:54 PM 페이지48
Menu Tree
51
CDMA Fixed Wireless Phone
You may select one of lock mode options.( Off / Power On / Lock Now )
Off : means that the phone is never locked (Lock mode can be used).
When locked, you can receive incoming calls or make only emergency
calls.
Power On : means that the phone is always locked whenever it is turned
on although you have unlocked before.
Lock Now : means that the phone is locked immediately.
(In idle state press "Key 0" for a long time, The phone is locked
immediatly.)
Note : To unlock the phone, press Unlock button (soft key2)
Enter 4-digit lock code (Default "0000")
Emergency Numbers
Emergency Number can store upto three Numbers (default100, 101, 102).
1. Press + 6( ) + 4( ) + 2()
in on-hook state.
2. To edit a number, press .
Change Lock Code
Change Lock Code allows you to enter a new four-digit lock code.
1. Press + 6( ) + 4() +
3( ) in on-hook state.
2. Enter current lock code.
3. Enter new four-digit lock code.
4. For confirmation, it will ask you to enter the new lock code again.
Restrict Call
You can restrict your outgoing calls including numbers / numbers
beginning with specified digit in the Restrict list.
For example: If 9 is stored in the Restrict list, all number beginning with
9 cannot be called. However if 92 is stored in Permit List, you can
call numbers beginning with 92 successfully.
1. Press + 6() +4( ) + 4( ) in
on-hook state.
Restrict CallSecuritySettingsMenu
Change Lock Code
SecuritySettingsMenu
Edit
Emergency NumbersSecuritySettingsMenu
Menu Tree
50 CDMA Fixed Wireless Phone
1. Press + 6() +2( ) + 2() +
2( ) in on-hook state.
2. Select desired options and press .

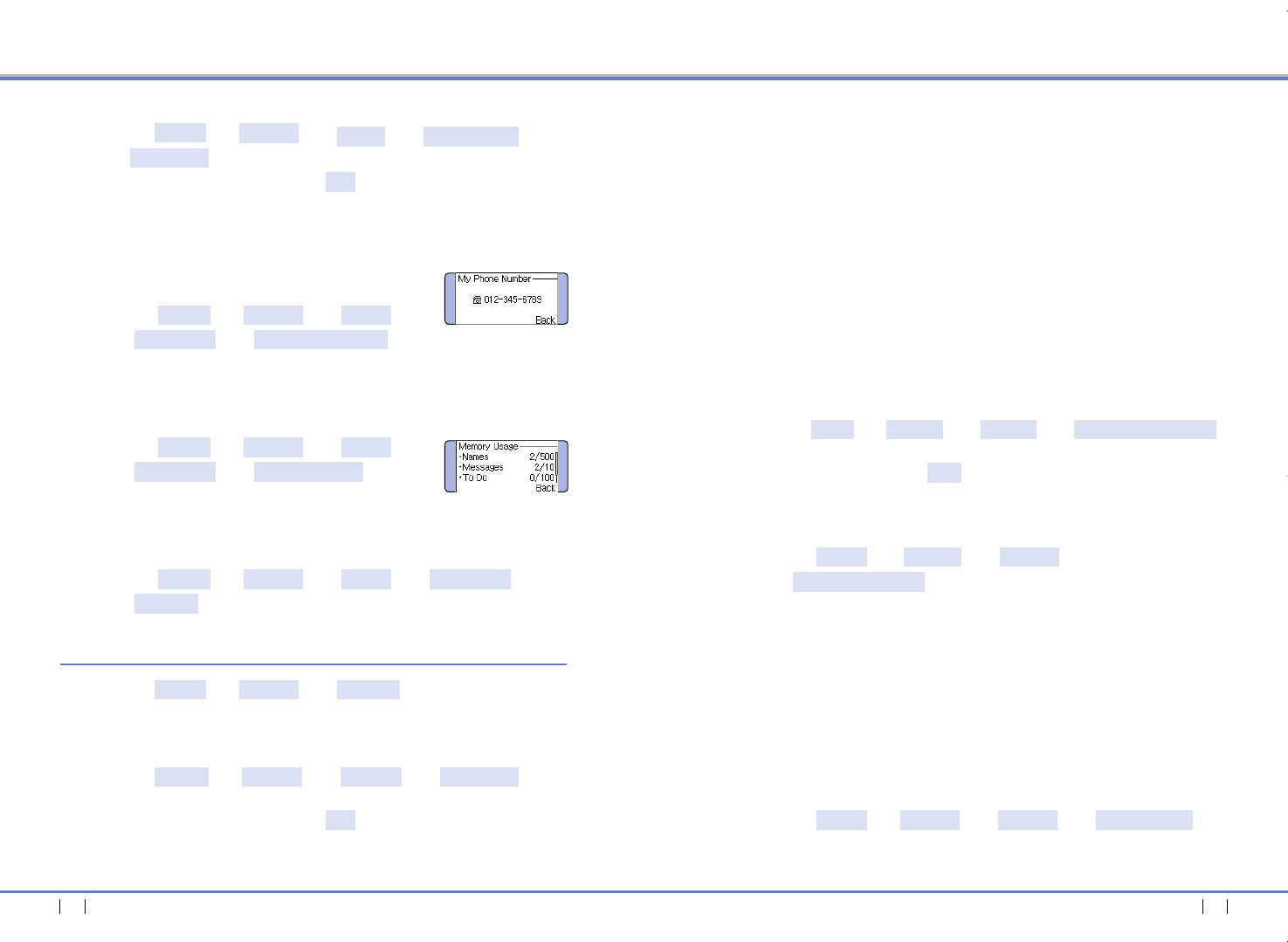

Phone Info
My Phone Number
Displays your Phone Number along with STD code.
1. Press + 6( ) + 3() +
3( ) + 1( ) in on-hook state.
Memory Usage
Displays the Phone s Memory Usage (Names, Messages, To Do, Memo)
1. Press + 6( ) + 3() +
3( ) + 2( ) in
on-hook state.
Version
Displays the Phone Software version, Hardware version, PRL version.
1. Press + 6( ) + 3( ) + 3() +
3( ) in on-hook state.
4.6.4 Security
1. Press + 6( ) + 4( ) in on-hook state.
2. Enter Lock Code. (Default 0000 )
Lock Mode
1. Press + 6( ) + 4( ) + 1( ) in
on-hook state.
2. Select desired options and press .
OK
Lock ModeSecuritySettingsMenu
SecuritySettingsMenu
Version
Phone InfoPhoneSettingsMenu
Memory UsagePhone Info
PhoneSettingsMenu
My Phone NumberPhone Info
PhoneSettingsMenu
OK
Data Baud
Data SettingsPhone
Settings
Menu
LSP-3500 2005.6.7 1:54 PM 페이지50
Menu Tree
53
CDMA Fixed Wireless Phone
Menu Tree
52 CDMA Fixed Wireless Phone
2. Select or and press .
3. If is selected,
•Enter the numbers / starting digit of specific numbers to be restricted
in the Restrict list.
•Enter the number / starting digits of the numbers to be allowed in the
Permit list.
4. To add new list, press .
5. To erase (or edit) the existing list, press +
HotLine
HotLine automatically calls to registered number by passing setup time
in off-hook state.
1. Press + 6( ) + 4( ) + 5( ) in on-
hook state.
2. Select or and press .
3. Enable is selected, enter Number and Time.
If you have selected Enable and enter the HotLine Number and Time,
HotLine functions as follows:
When you pick up the handset or press button , the phone
automatically dials the HotLine Number that you have already saved if
any number is not dialed for duration specified in HotLine Time.
Set NAM
This option is presently not available. Please contact your service
provider for further information. Use NAM 1 only.
1. Press + 6( ) + 4( ) + 6( ) in on-
hook state.
2. Select NAM 1 or NAM 2 and press .
PCO
You can simply calculate the call charge.
If you select Enable, 6.Settings>>4.Security>>8.Metering Info list appears.
OK
Set NAMSecuritySettingsMenu
OKDisableEnable
HotLineSecuritySettingsMenu
OptionsView
Add
On
OKOffOn 1. Press + 6( ) + 4( ) + 7( ) in on-hook
state.
2. Select Enable or Disable, and Press OK.
Metering Info
This Item only appears when 6.Settings>>3.Security>>7.PCO set to Enable.
When you end the call, the total units and call charge are turned out.
1. Press + 6( ) + 4( ) + 8()
in on-hook state.
2. Select Unit Info or Unit Price, and Press OK.
3. Unit Price may enter a monetary unit(Only number).
Clear Memory & Reset
Erase all data and return to factory setting. Be cautious since any erased
information is not recoverable.
1. Press + 6( ) + 4() +
8( ) in on-hook state.
2. Enter lock code.
3. To Clear Memory and Erase all data, select .
*. if pco function is enabled, this menu number will be changed 9
(Clear Memory & Reset).
Reset Phone
Return to factory setting. But User data is not erased.
1. Press + 6( ) + 4( ) + 9() in
on-hook state.
2. Enter lock code.
3. To Reset Phone, select .
*. if pco function is enabled, this menu number will be changed 0
(Reset Phone).
Yes
Reset PhoneSecuritySettingsMenu
Yes
Clear Memory & Reset
Security
SettingsMenu
Metering InfoSecuritySettingsMENU
PCOSecuritySettingsMENU
LSP-3500 2005.6.7 1:54 PM 페이지52
Menu Tree
55
CDMA Fixed Wireless Phone
Menu Tree
54 CDMA Fixed Wireless Phone
4.7.2 Alarm
Allows user to set alarm time.
You can save 3 Alarms and set the alarm for a period and specified time.
1. Press + 7( ) + 2( ) in
on-hook state.
In case of already stored alarm, you may see stored
alarm and select from Options. (Add / Edit / Erase)
In the absence of alarm, There is no data message is
displayed.
2. To enter new alarm,
1) press
2) Enter time and date.
3) You can select option from Off / Daily / Once /
Mon~Fri / Mon~Sat / Sat~Sun / Select days
4) Select ring tone and press .
4.7.3 Memo
Memo function allows user to store upto 10 memos.
1. Press + 7( ) + 3( ) in on-hook state to add,
view or edit memos.
4.7.4 Calculator
Calculates simple mathematical computations.
1. Press + 7( ) + 4( ) in on-hook state.
2. Use Navigation Key for the four arithmetical operations.
CalculatorOrganiserMenu
MemoOrganiserMenu
OK
Add
AlarmOrganiserMenu

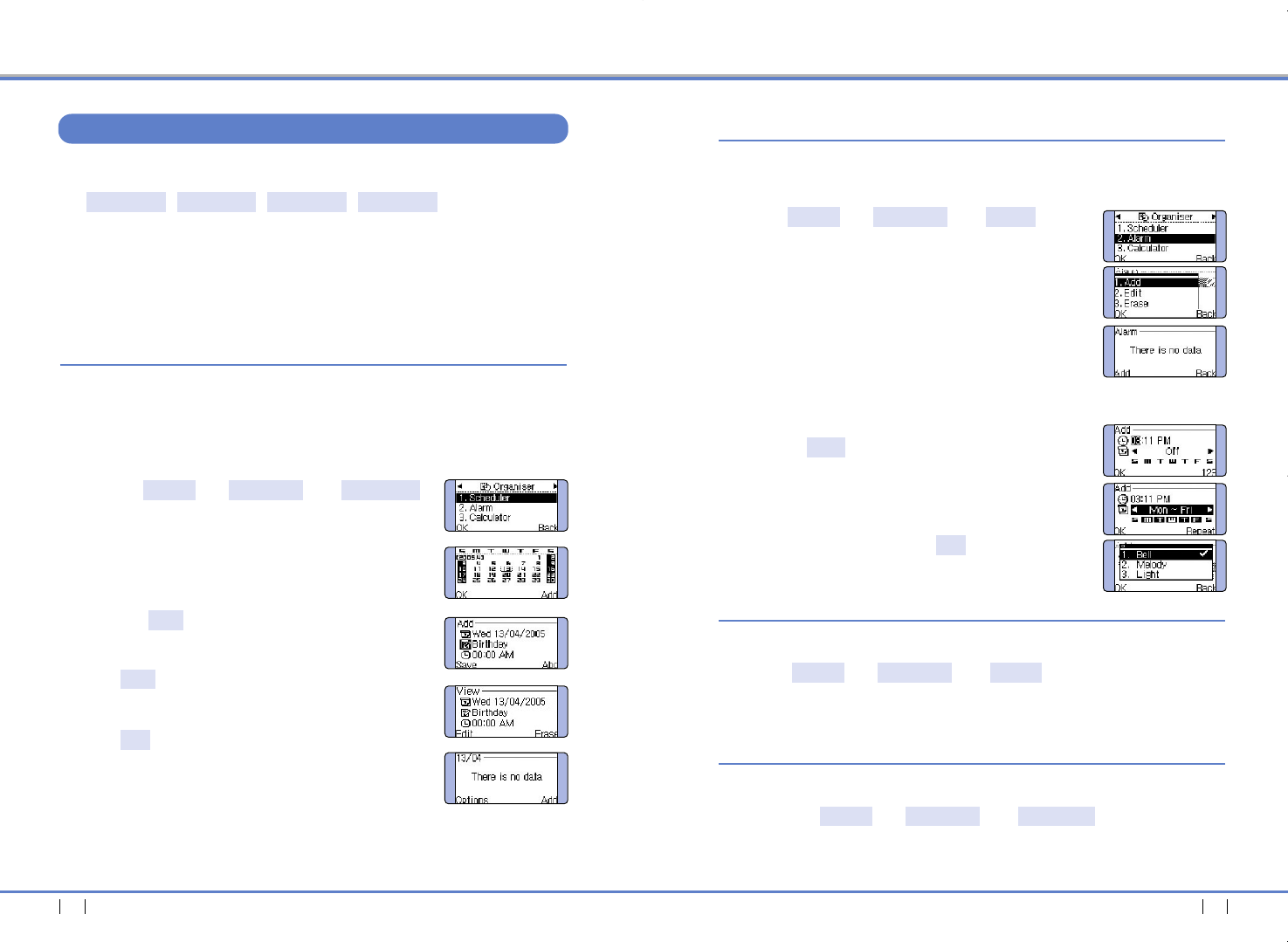

4.7 Organiser
If you press Soft Key1, Menu is activated.
Soft Key 1 Soft Key 2
To scroll in Menu, press ▲, ◀, ▶ or ▼button.
To return to the initial screen, press END button.
And to return to the previous screen, press Clear button.
4.7.1 Scheduler
Scheduler keep your agenda convenient and easy to access. Simply store your
appointment and your phone would alert you with a reminder of your
appointment.
1. Press + 7( ) + 1()
in on-hook state.
2. Move cursor to desired day
3. Select .
4. If is selected, you can store new schedules.
5. If is selected,
1) In case of already stored schedule, you may see
stored schedules and select from Options. (Add /
Edit / Erase / Ring / Erase Today / Erase Past Day)
2) In the absence of schedule, There is no data message is displayed.
Select from Options: Ring / Erase Past Day
OK
Add
Add
SchedulerOrganiserMenu
●●●●●●
END/PWRDial/Flash
●●●●●●
LSP-3500 2005.6.7 1:54 PM 페이지54
Menu Tree
57
CDMA Fixed Wireless Phone
Menu Tree
56 CDMA Fixed Wireless Phone
Fortress
Fortress is a shooting game which saves The Earth from UFO who wants to
conquer the Earth. Defense areas are displayed on the world map that shows
the city of each country. If you defense successfully, it will be displayed V .
The radar at the bottom of the center will display UFO if it appears. The left
side of radar displays defense energy of cannon. The other side, it shows time
out. The defense succeed that it time is decrease to zero.
1. Press + 8( ) + 1( )+ 1() in
on-hook state.
2. To start game, press any key button.
Keypad configuration ─Menu screen.
1() ─Starts new game.
2() ─Displays the two high scores with Date, Score and
Name.
3() ─Displays controlling keys for playing game.
Keypad configuration ─Game screen.
•Keypad button 4 or ◀- Moves left
•Keypad button 6 or ▶- Moves right.
•Keypad button 2 or ▲- Moves the barrel of a gun up.
•Keypad button 6 or ▼- Moves the barrel of a gun down.
•Keypad button 5 ─Shots the gun.
•Clear ─pause the game.
Mole
Mole is a game which is originated from a mole game which was
popular in 80’s(/ old days).
It is simply controlled. If the hidden mole appears, press number button. Life
gauge is reduced if the mole is missed, and the game is over if out of life,
Key Info.
High Score
New Game
New GameFortressGamesMenu
left: + right: - upper: X
lower: / * : .#: Reset
3. Press for computing result of the calculation.
4.7.5 World Clock
It is useful when you need to make a call to another country, and you are not
sure about the time difference.
1. Press + 7(+ 5( ) in on-hook state.
2. Select the city by pressing navigation button.
4.7.5 Stopwatch
1. Press + 7( ) + 6( ) in on-hook state.
2. Select .
Lap: Saves the lap time.
Stop: Stops the Lap.
View: Shows saved time (also stop time)
Delete: Deletes Lap time and returns to initial screen.
4.8 Games
1. Press + 8( ) in on-hook state.
2. Select or .
You can get key information about playing a game if you select Key Info
after selecting game in menu.
MoleFortress
Joy BoxMenu
Start
StopwatchOrganiserMenu
World ClockOrganiserMenu
OK
LSP-3500 2005.6.7 1:54 PM 페이지56
Speaker Phone
59
CDMA Fixed Wireless Phone
58 CDMA Fixed Wireless Phone
Menu Tree
1. Press + 8( ) + 2( ) + 1( ) in on-
hook state.
2. To start game, press keypad button 5.
Keypad configuration
─
Menu screen.
1()
─
Starts new game.
2()
─
Display the latest two high score.
3()
─
Display keypad configuration (Game screen).
Keypad configuration
─
Game screen.
•Keypad button 1 ~ 9
─
Game Keys
•Keypad button 5
─
State Key.
Key Info.
High Score
New Game
New GameMoleGamesMenu 5. Speaker Phone
This function is a convenient feature, which enables you to make a call using
the Speaker Phone ( ) button in on-hook state.
LSP-3500 2005.6.7 1:54 PM 페이지58
61
LGE CDMA Fixed Wireless Phone
60 CDMA Fixed Wireless Phone
General Information
7. General Information
7.1 Main unit
Item LSP-3500
Tx Frequency Digital: 1850 ~ 1910 MHz
Rx Frequency Digital: 1930 ~ 1990 MHz
Channel Bandwidth 1.25 MHz
Tx Power Digital: LOWER: 62.5mW ~UPPER:0.5W
Rx Sensitivity -104 ~ -25dBm
Size (mm) 205 ×161 ×76 (L x W x H)
Weight (gms) 554(included Li-ion battery)
Operating Temperature -10 ~ 50¡C
7.2 AC/DC Adapter
Item SMPS Type Description
Rated Input Voltage AC 100 ~ 240V
Operating Input voltage AC 80 ~ 420V
Rated Input Frequency 50 / 60Hz
Operating Input Frequency 47 ~ 63Hz
Rated Output Voltage, Current 5V(DC), 1A
7.3 Battery
Item Description
Capacity 3.7V Li-ion (Nominal)
Talk time / Standby time 4 Hours / 120Hours
Charging time duration 3 Hours (Standby condition)
Note : Talk time condition: sector power -80dBm ~ -85dBm full data rate
Standby time condition: sector power -80 dBm ~ -85dBm slot
cycle index 2
Troubleshooting
Item Remedy
Please check the following items before contacting service center.
6. Troubleshooting
Phone doesn t operate at all.
Because of noise and cross talking,
call status is bad.
When I press button to call, can t hear
the dial tone.
Call cannot be received.
Battery fails to charge.
Bell sound isn t heard
¥ The LCD repeats on and off when
you plug-in the adapter while battery
switch is off.
¥ Phone repeats abnormally power-on
and power-off after a few second
when you plug-in the adapter while
battery switch is on and phone is
power-off.
¥ There is no charging display when
you plug-in the adapter while the
phone is power on.
¥ Check that the phone is installed correctly.
¥ Check that the battery is fully charged.
¥ Check that the power is on.
Keep away from electrical application such as TV,
computer, radio and so on.
Check that phone cord or power is connected
correctly.
Check the current status of Rx call mode settings in
data settings menu. Voice option should be selected.
Check that the authorized adaptor (5V/1A) for LSP-
3500 is correctly connected to the DC power
connector of the phone and Battery ON/OFF switch
is ON.
If bell sound is low, please adjust the volume level
and make sure that Light Mode is not selected.
Check that the adapter is the approved from LG.
Adapter should be 5V(DC), 1A
LSP-3500 2005.6.7 1:54 PM 페이지60
62 LGE CDMA Fixed Wireless Phone
General Information
Appendix FCC RF Exposure Information
WARNING!
The antenna used for this transmitter must not exceed 2.5dBi and must
be installed to provide a minimum separation distance of 20 cm from
all persons.
CAUTION
Use only the supplied and approved antenna. Use of unauthorized
antennas or modifications could impair call quality, damage the phone,
void your warranty and/or result in violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna
comes into contact with skin, a minor burn may result. Contact your
local dealer for a replacement of antenna.
FCC Part 15 Class B Compliance
This device and its accessories comply with part 15 of FCC rules.
Operation is subject to the
following two conditions: (1) This device and its accessories may not
cause harmful interference, and (2) this device and its accessories
must accept any interference received, including interference that may
cause undesired operation.
LSP-3500 2005.6.7 1:54 PM 페이지62
65
LGE CDMA Fixed Wireless Phone
LGE CDMA Fixed Wireless Phone LSP-3500
Licensed by QUALCOMM Incorporated under one or more of the following Patents:
U.S, Patent No. 4,901,307 U.S, Patent No. 5,056,109 U.S, Patent No. 5,099,204
U.S, Patent No. 5,101,501 U.S, Patent No. 5,103,459 U.S, Patent No. 5,107,225
LSP-3500 2005.6.7 1:54 PM 페이지64
LSP-3500 2005.6.7 1:54 PM 페이지66
P/NO : MMBB0164202 JUNE/2005/ISSUE 1.0
PRINTED IN KOREA
LSP-3500 2005.6.7 1:54 PM 페이지68
