LG Electronics USA LUM900T Cellular/PCS GSM/EDGE/WCDMA Module User Manual 1

Installation guide

LGCM Installation Guide

 Installing the LG Connection Manager S/W

1. Run setup.exe

2. You will then see the Ericsson Wireless Module Install shield Wizard, and follow the instructions to

proceed with installation.

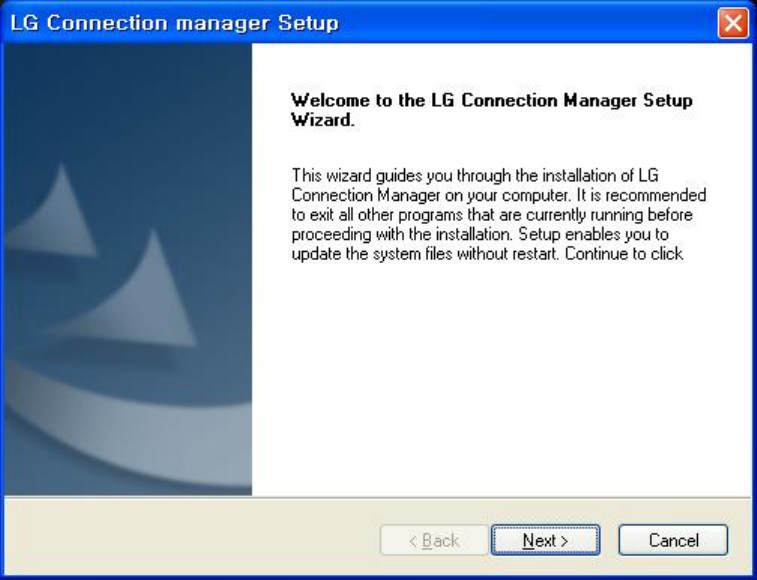

3. When the follow screen appears, click the “Next >” button.

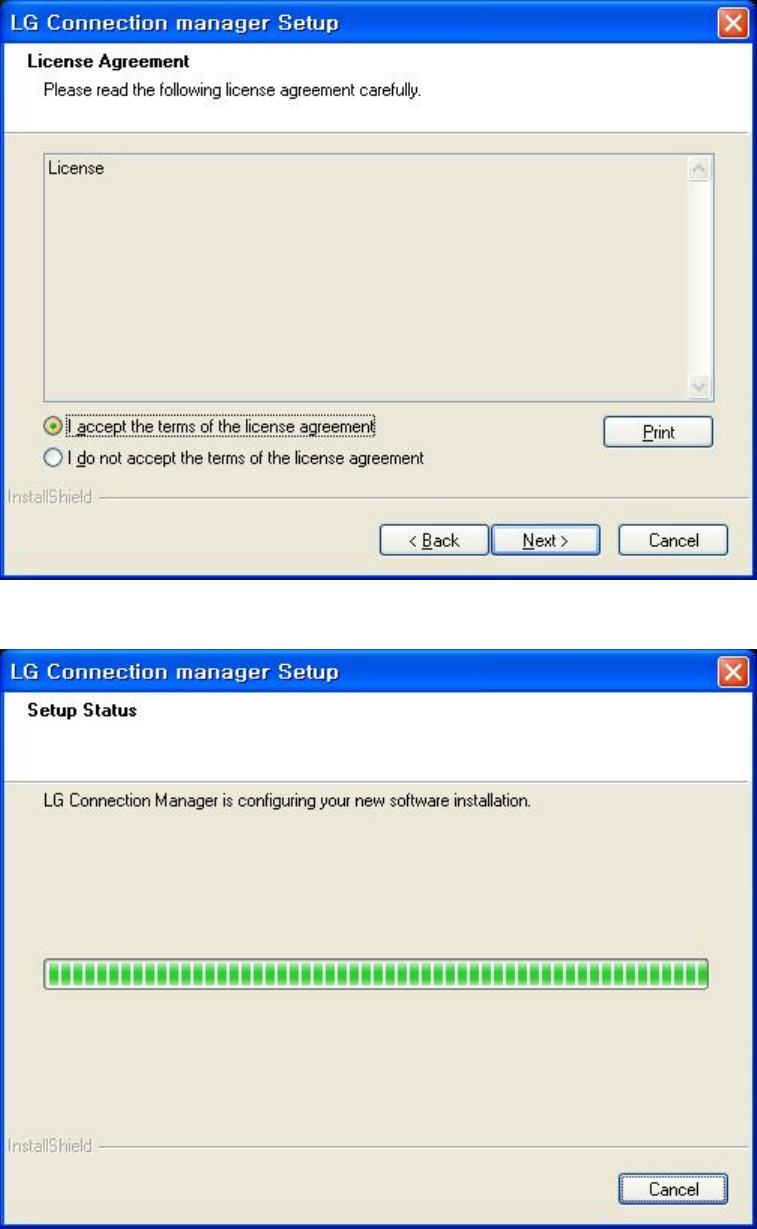

4. When the follow screen appears, select the “I accept the terms of the license agreement” and click

the “Next > “ button.

5. It is installing.

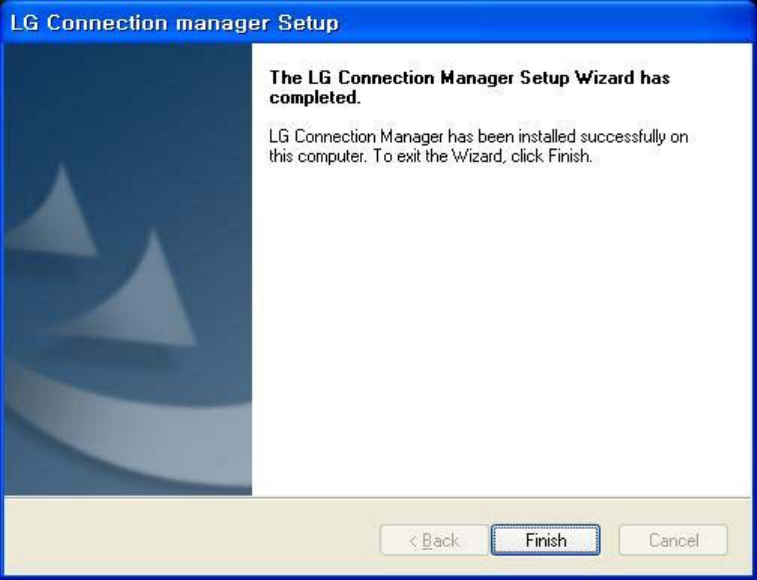

6. When the installation is complete, press the [Finish] button and the installation message window

will disappear.

FCCRegulatoryComplianceStatement

TocomplywithRFexposurecompliance,thefollowingrestrictionsandrequirementsmustbe

followedwhenthisdeviceisintegratedinthefinalhostendproduct.

• Maintainatleasta20cmseparationbetweentheantennaandtheuser’sbody.

• Themax.antennagainforthisdevicemustnotexceed:

o CellularBand<‐3.53dBi

o PCSBand<‐1.84dBi

• Theantenna(s)usedforthistransmittermustnotbecollocatedoroperatingin

conjunctionwithanyotherantennaortransmitterwithinahostdevice,exceptin

accordancewithFCCmulti‐transmitterproductprocedures.

• Alabelwiththefollowingstatementsmustbeattachedtothehostendproduct:This

devicecontainsTxFCCID:BEJLUM900T

• Theusermanualoffinalhostmustbeclearlydefinesoperatingrequirementsand

conditionsthatmustbeobservedtoensurecompliancewithcurrentFCCRFexposure

guidelines.

• ThehostendproductmustcomplyapplicableFCCPart15unintentionalemissiontesting

requirementandbeproperlyauthorizedperFCCPart15.

• Thisdeviceisnotauthorizedtobeusedintheportablehostwheretheantennatothe

bodyofuserislessthan20cm.
