LG Electronics USA LUU2110TI HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM USB Modem User Manual
LG Electronics USA HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM USB Modem Users Manual
Users Manual
HSPA USB Modem
LUU-2110TI
User Guide
Part 15.21 statement
" Change or Modifications that are not expressly approved by
the manufacturer could void the user's authority to operate the equipment. “
Part 15.105 statement
This equipment has been tested and found to comply with the limits for
a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Part 15 Class B Compliance
This device and its accessories comply with part15 of FCC rules.
Operation is subject to the following two conditions:
(1) This device & its accessories may not cause harmful interference.
(2) This device & its accessories must accept any interference received,
including interference that may cause undesired operation.
Body-worn Operation
This Mobile Broadband USB Modem, model LUU-2110TI, is approved for
use in normal size laptop computers only (typically with 12" or larger display
screens). To comply with FCC RF exposure requirements,
this modem should not be used in configurations that cannot maintain
at least 5mm (approximately 0.2 inches) from your body.
Also, when using the USB extension cable, place the USB modem away
from your body or any other transmitter of the laptop or PC.
This USB modem has been tested for compliance with FCC/IC RF exposure
limits in the laptop computers configurations with horizontal and vertical
USB slots and can be used in laptop computers with substantially similar
physical dimensions, construction and electrical and RF characteristics.
When using this USB modem in your computer, it must not be co-located or
simultaneously transmit with any other radio (for example, Bluetooth or WiFi
radios) in the computer.
2
Copyright
LGE Co., Ltd holds the copyright for this manual.
This manual should not be reproduced or distributed without
prior written consent by LGE Co., Ltd.
Registered Trademark
The registered trademark used in this manual is a registered
trademark owned by the corresponding company.
Confidential & Proprietary
This manual is the technical property of LGE Co., Ltd and it is
prohibited to copy or utilize the manual without prior consent from
the technical data department.
3
Introduction
Thank you for purchasing LUU-2110TI from LGE Co., Ltd.
The LUU-2110TI is a USB Modem using HSPA for wireless internet anytime and
anywhere.
* HSPA (High Speed Packet Access): This is a mobile communication technology for
sending/receiving data at a significantly faster speed than that of W-CDMA or CDMA.
Specific Features
General Features
SIM Support
Internet, Intranet
SMS
Contacts
Mechanical Features
microSD compatible card
Main Antenna
UMTS Diversity Antenna (1900MHz)
2 Color LED
Dimensions: 29mm(W) × 14.7mm(H) × 73.9mm(D)
Data Rate
Download: Up to 7.2 Mbps
Upload: Up to 2 Mbps
Frequency Band
GSM: 850 / 900 / 1800 / 1900 MHz
UMTS: 1900 / 2100 MHz
ó
ó
ó
ó
4
Configuration

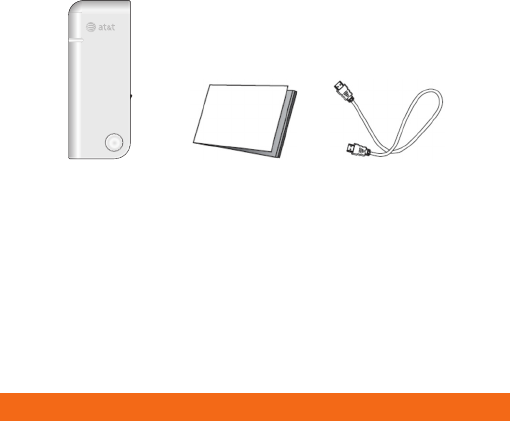

The configuration of the LUU-2110TI product is as shown below:
Main Body Manual USB Extension Cable
The configuration of the product may be changed without prior notice to improve the
functions of the product.
Conditions for Use
The minimum specification for a PC using LUU-2110TI is as described below:
Operating System: Windows® 2000, XP or Vista(32bit, 64bit), Mac® OS X
CPU: Pentium 4, 1 GHz or above
Memory: 128 MB RAM or above
Hard disk space: 100 MB or above
Connection port: USB slot A-Type
•
•
•
•
•
5

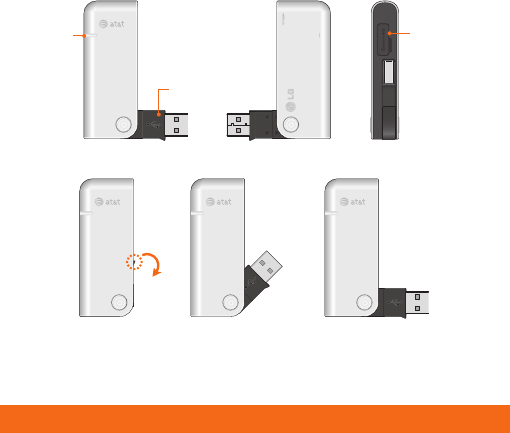

Name of Each Part

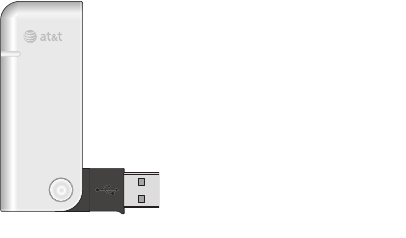

Front Part
ó
Rear Part
ó
Side Part
ó
LED
Display
USB Port
Micro SD
Slot
Lower Part
ó
6
How to install USB driver
1 Unzip “LGUSBNDISDriver_WHQL_Eng_Ver_1.0_All.zip” file
2 Connect LUU-2110TI USB modem to laptop
3 It will be detected as “mass storage” device
4 Run “LGUSBNDISDriver_WHQL_Eng_Ver_1.0_All.exe”

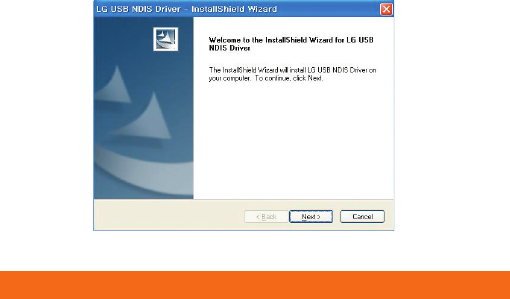

5 Press “Next” button
7

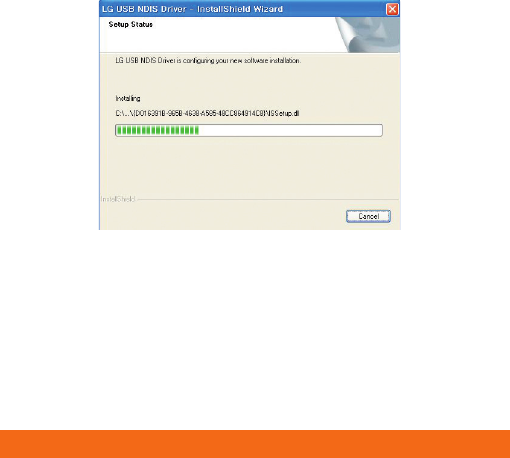

6 And installation will be executed
8

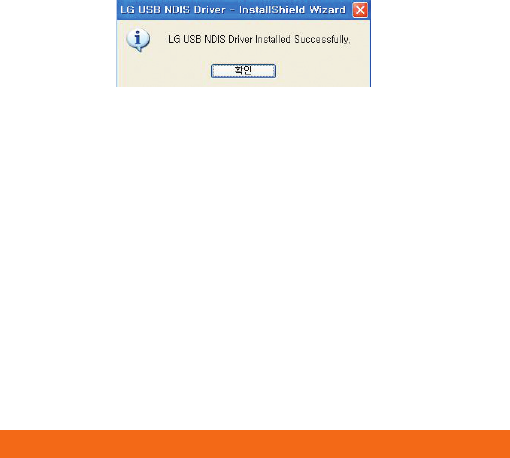

7 Press “OK” button
8 Unplug and plug LUU-2110TI USB modem
