LG Electronics USA MR300H Magic Remote User Manual
LG Electronics USA Magic Remote
User Manual
Magic Remote User Magic Remote User
InformationInformation
Model Name : ANModel Name : AN--MR300HMR300H
Table of Contents
1. Overview and specification of the remote control
(1) Overview
(2) Specification
2. Precautions
English
3. Customer Support

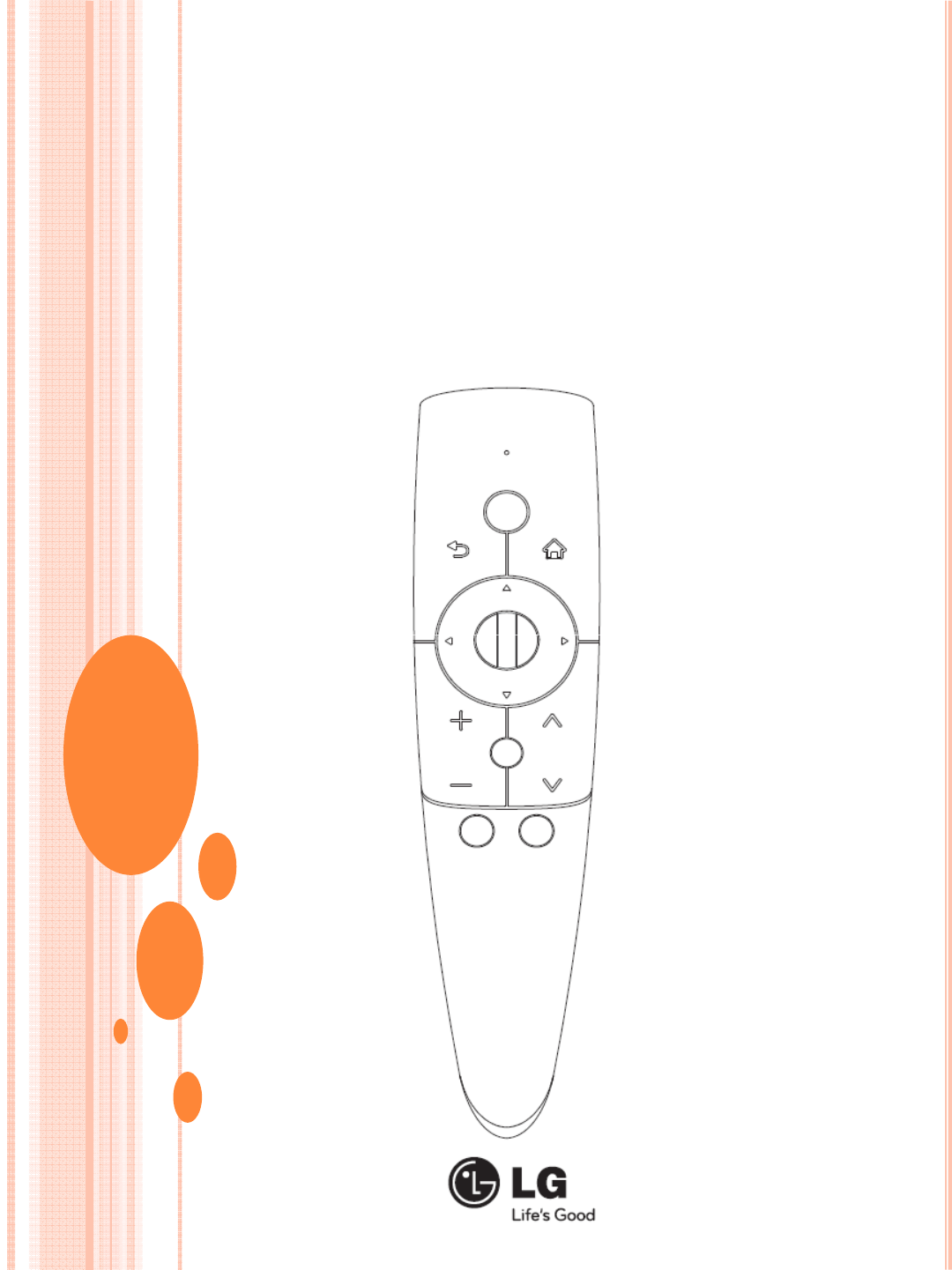

1. Overview and Specifications for the Remote Control
(1) Overview
- this remote uses RF(Radio Frequency) instead of IR (InfaRed light).
this remote will operate within 10m of the tv and does
not require it be pointed at the tv.(voice recognition support)
(2) Specifications
Categories Details
Model No. AN-MR300H
Range of frequency 2.400 GHz ~ 2.4835 GHz
Channel 79 channels
Transmission output 10dBm
Reception sensitivity -86 dBm
Dimensions Width 42.7 x Thickness 58 x
Length 185.8
(tolerance of ±1 mm)
Weight 80g ±5 g
(excluding battery)
Power source AA 1.5 V,
2 alkaline batteries are used
Operational
temperature range 0 ℃~ 60 ℃
2. Precautions
(1) After replacement of the battery, use the remote control following pairing
in accordance with user manual.
(2) If the unit does not operate after replacement of battery, take the battery
out and reattempt pairing in accordance with the user manual.
(3) If the remote controller is not being used for prolonged period of time, it is
recommended you remove the battery from the unit.
(4) Do not dismantle or exert heat to the battery.
(5) Do not drop battery or exert extreme impact that may even cause the case
to be damaged.
(6) Do not immerse the battery in water.
(7) There is danger of explosion if a the battery is inserted reversely.
(8) Properly dispose of used batteries.
3. Customer Support
Refer to the contact number for services provided in the TV Manual.
Federal Communications Commission(FCC) Statement
You are cautioned that changes or modifications not expressly approved
by the part responsible for compliance could void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
-. Reorient or relocate the receiving antenna.
-. Increase the separation between the equipment and receiver.
-. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
-. Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference
that may cause undesired operation of the device.
FCC Caution
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment and For indoor use only, use outdoors or in other modes not
covered by this manual may violate the FCC regulation and violate the
user authority to use the product.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance.
