User Manual

PLASMA MONITOR
OWNER’S MANUAL
Please read this owner’s manual carefully before operating the
Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and quote
this information to your dealer when you require service.
Model number :
Serial number :
MODELS : MU-42PZ44/44V
MU-42PZ44A/44VA
MU-42PZ44B/44VB
MU-42PZ44K/44VK
MU-42PZ44R/44VR
MU-42PZ44S/44VS
P/NO : 3828VA0361H (RF02LB)
2 Plasma Display
After reading this owner’s manual, keep it for future reference.
SERIAL NUMBER: The serial number is found on the back of this unit. This number is unique to this unit and not
available to others. You should record requested information here and retain this guide as a permanent record of
your purchase.
Model No. ___________________________________
Serial No. ___________________________________
Manufacturing Process-- Why colored dots may be present on the screen:
The plasma display panel is composed of up to 2.2 million cells. A few cell defects normally occur in the manufac-
turing process, meaning that several colored dots visible on the screen should be acceptable. This also occurs in
other manufacturers' products and the dots appearing does not mean that this product is defective. Thus a few cell
defects are not sufficient cause for the display to be exchanged or returned. Please note that our production tech-
nology is designed to minimize cell defects.
Owner’s Manual 3
W
Warning
arning
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOIS-
TURE.
FCC NOTICE
• A Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular instal-
lation. If this equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
4 Plasma Display
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential elec-
trical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and
observe the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation
that are built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards
Association.
1. Read Instructions
All the safety and operating instructions should be read
before the product is operated.
2. Follow Instructions
All operating and use instructions should be followed.
3. Retain Instructions
The safety and operating instructions should be retained for
future reference.
4. Heed Warnings
All warnings on the product and in the operating instructions
should be adhered to.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.
6. Water and Moisture
Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub, in a wet base-
ment, or near a swimming pool.
7. Accessories Carts and Stands
Do not place this product on a slippery or tilted surface, or on
an unstable cart, stand, tripod, bracket, or table. The product
may slide or fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manu-
facturer, or sold with the product. Any mounting of the prod-
uct should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the manufac-
turer.
8. Transporting Product
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to overturn.
9. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect
it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by plac-
ing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is pro-
vided or the manufacturer’s instructions have been adhered
to.
11. Power Sources
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
12. Power-Cord Polarization
This product is equipped with a three-wire grounding type
plug, a plug having a third (grounding) pin. This plug will only
fit into the grounding-type power outlet. This is a safety fea-
ture. If you are unable to insert the plug into the outlet, con-
tact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.
PORTABLE CART WARNING
(Continued on next page)
Safety Instructions
Safety Instructions
Owner’s Manual 5

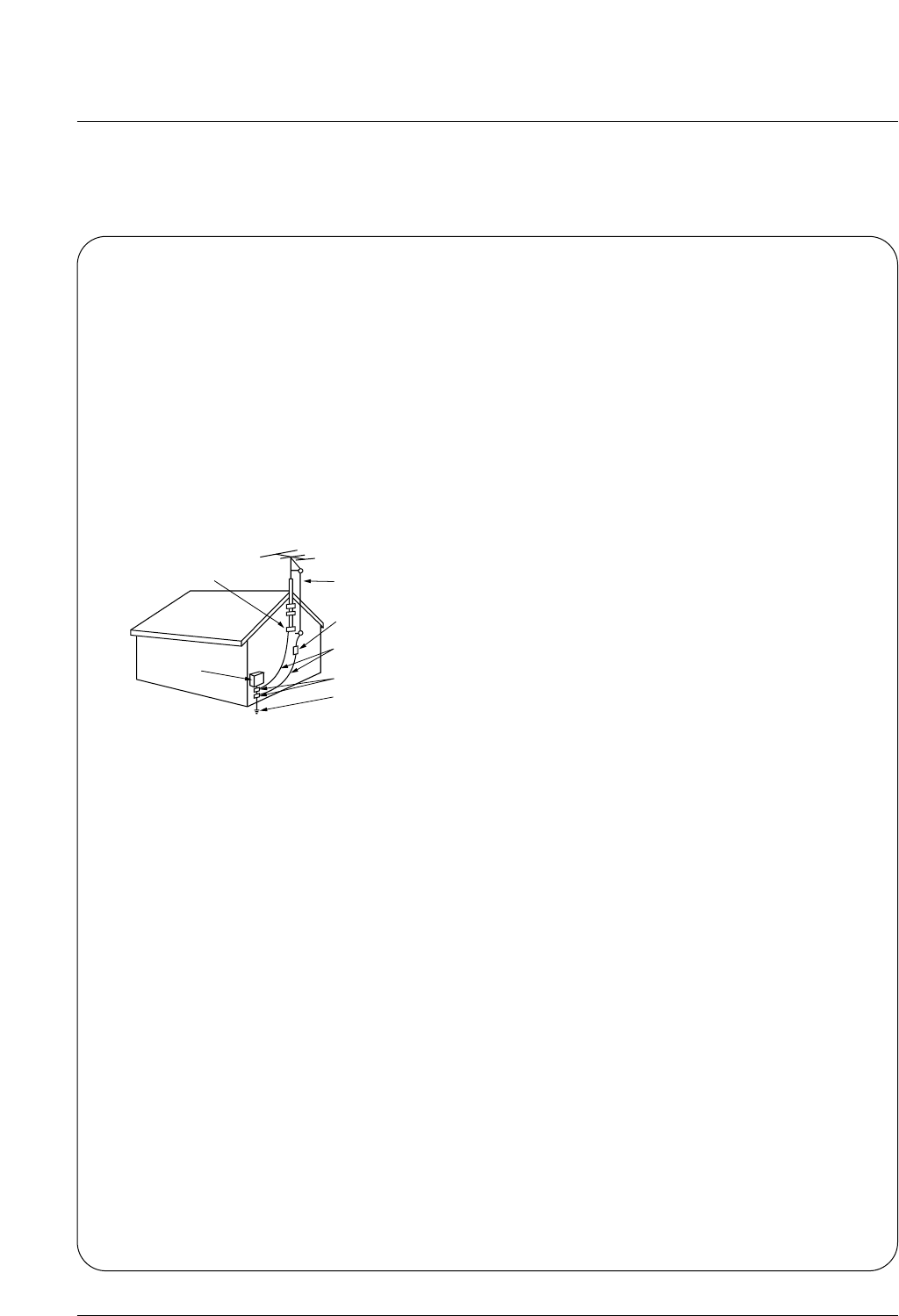

Example of Grounding According to National
Electrical Code Instructions
NEC - National Electrical Code
14. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical
Code (U.S.A.), ANSI/ NFPA 70 provides information with
regard to proper grounding of the mast and supporting struc-
ture, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-dis-
charge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
15. Lightning
For added protection for this product (receiver) during a light-
ning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
16. Power Lines
An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.
17. Overloading
Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.
18. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
19. Servicing
Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service per-
sonnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified technician
to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been
damaged.
f. If the product exhibits a distinct change in performance.
21. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the man-
ufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to deter-
mine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as
recommended by the manufacturer. The product may slide
or fall, causing serious injury to a child or adult, and serious
damage to the product.
24. Heat
The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
(Continued from previous page)
6 Plasma Display
Introduction
Step 1. Monitor Installation & Setup

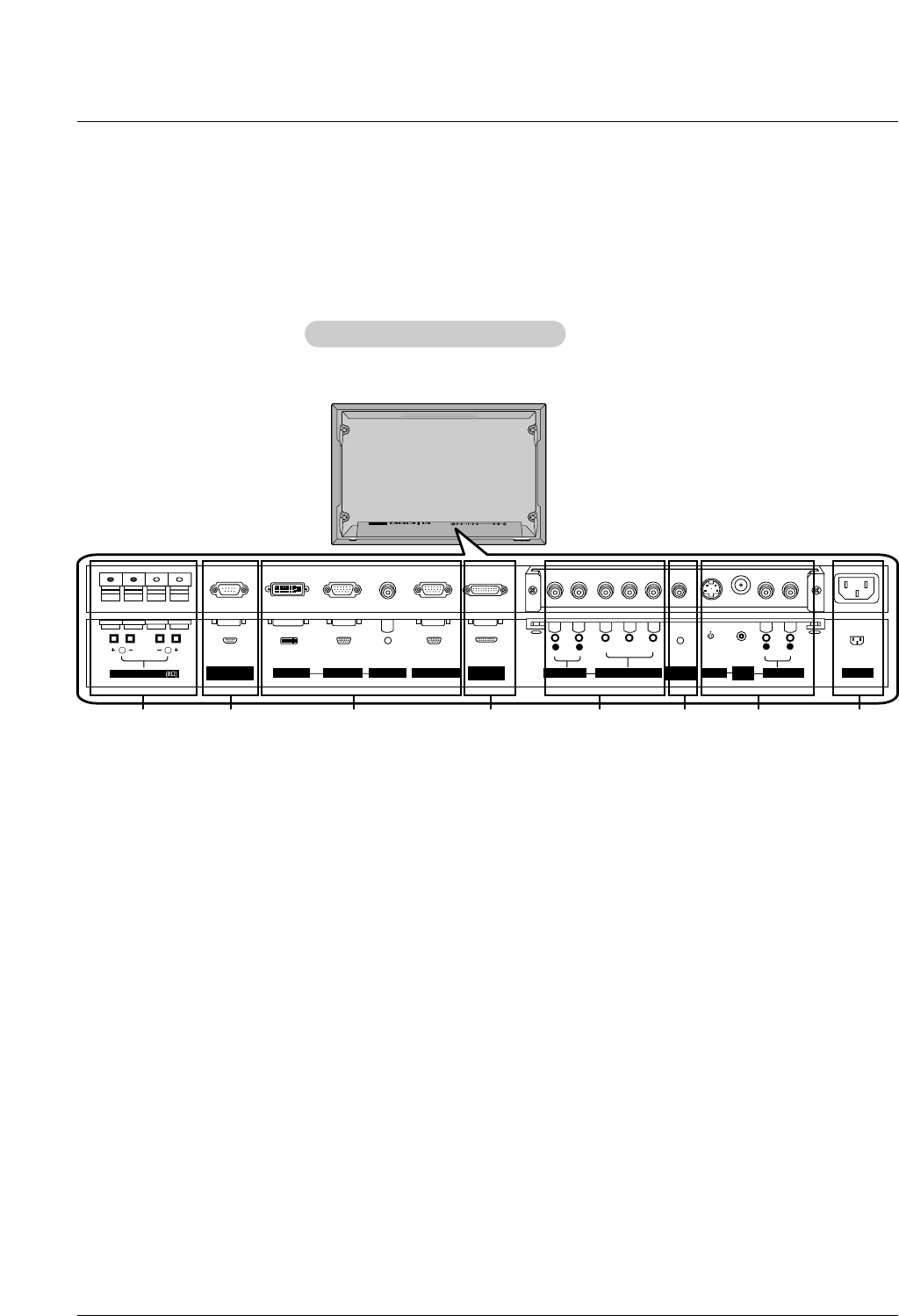

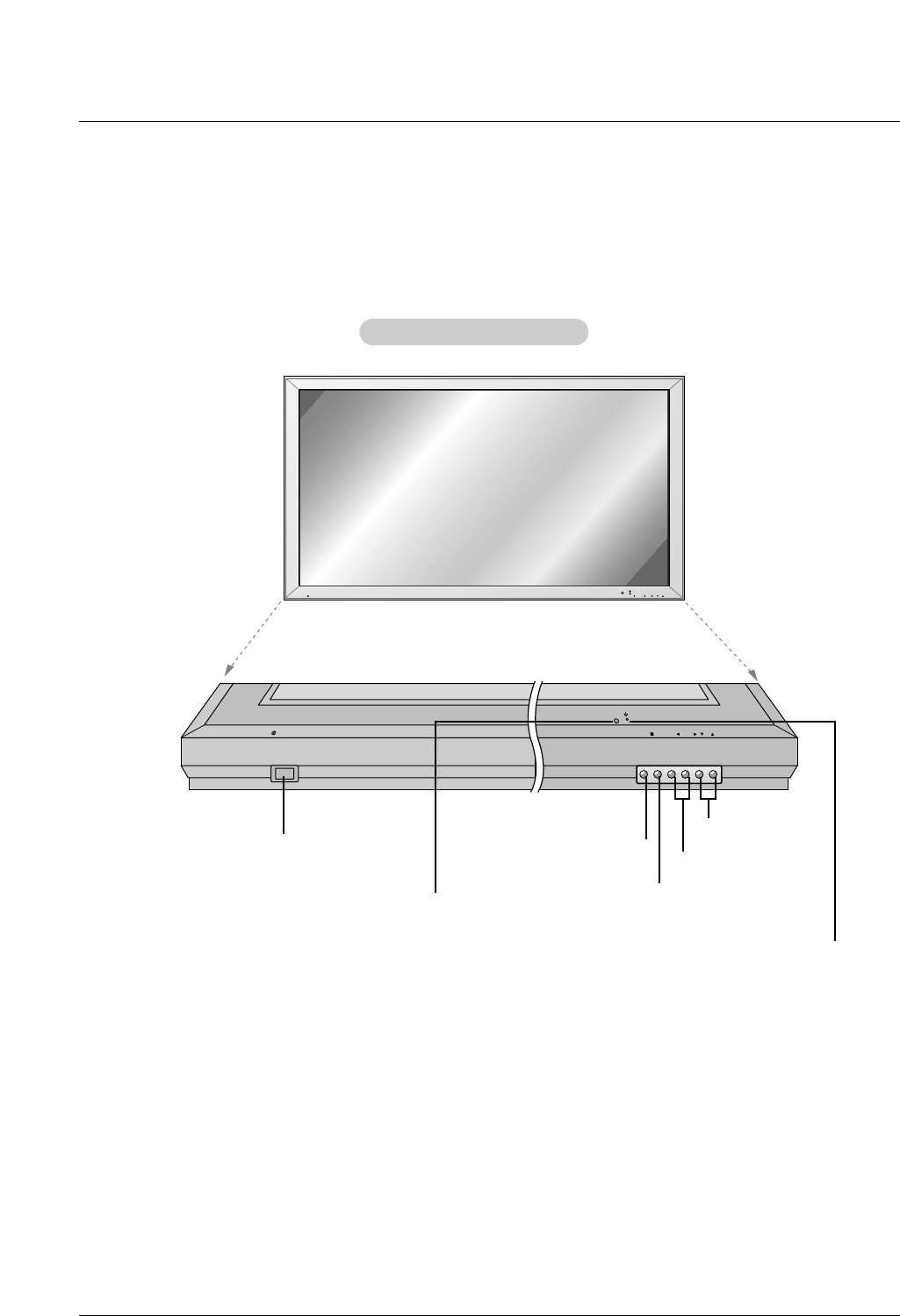

Controls and Connection Options . . . . . . . .6

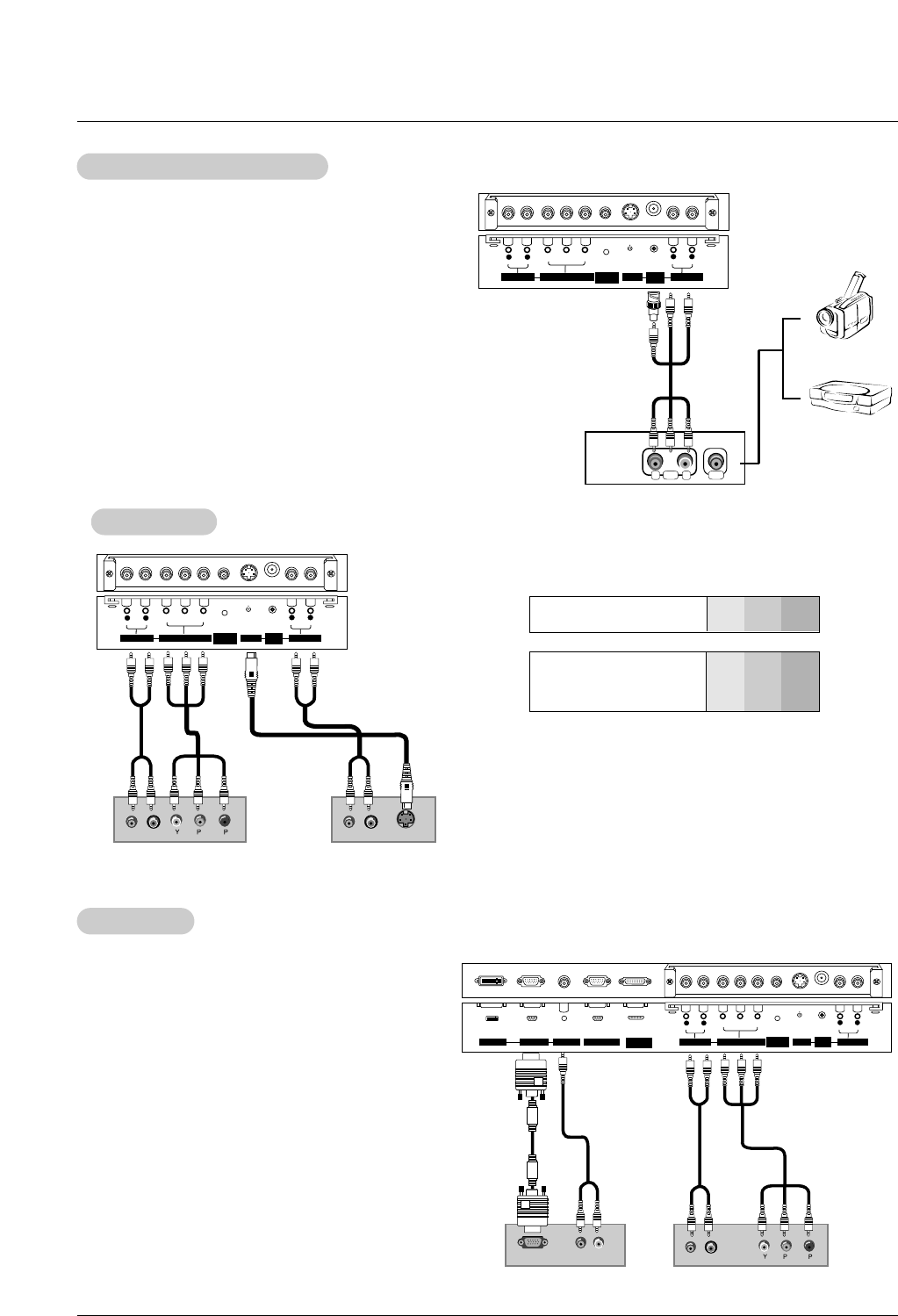

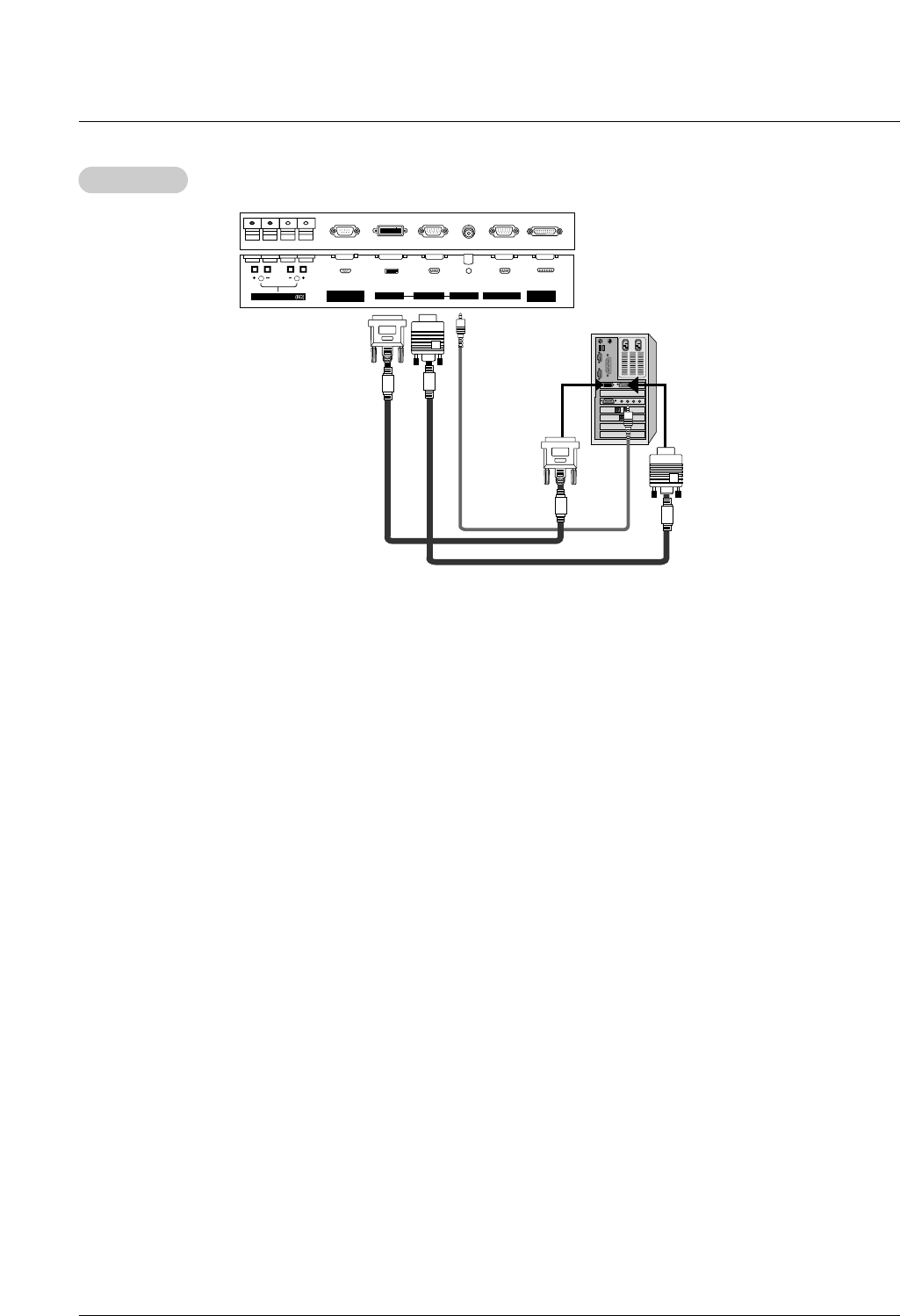

External Equipment Connections . . . . . . . .7
External Equipment Viewing Setups . . .8~10

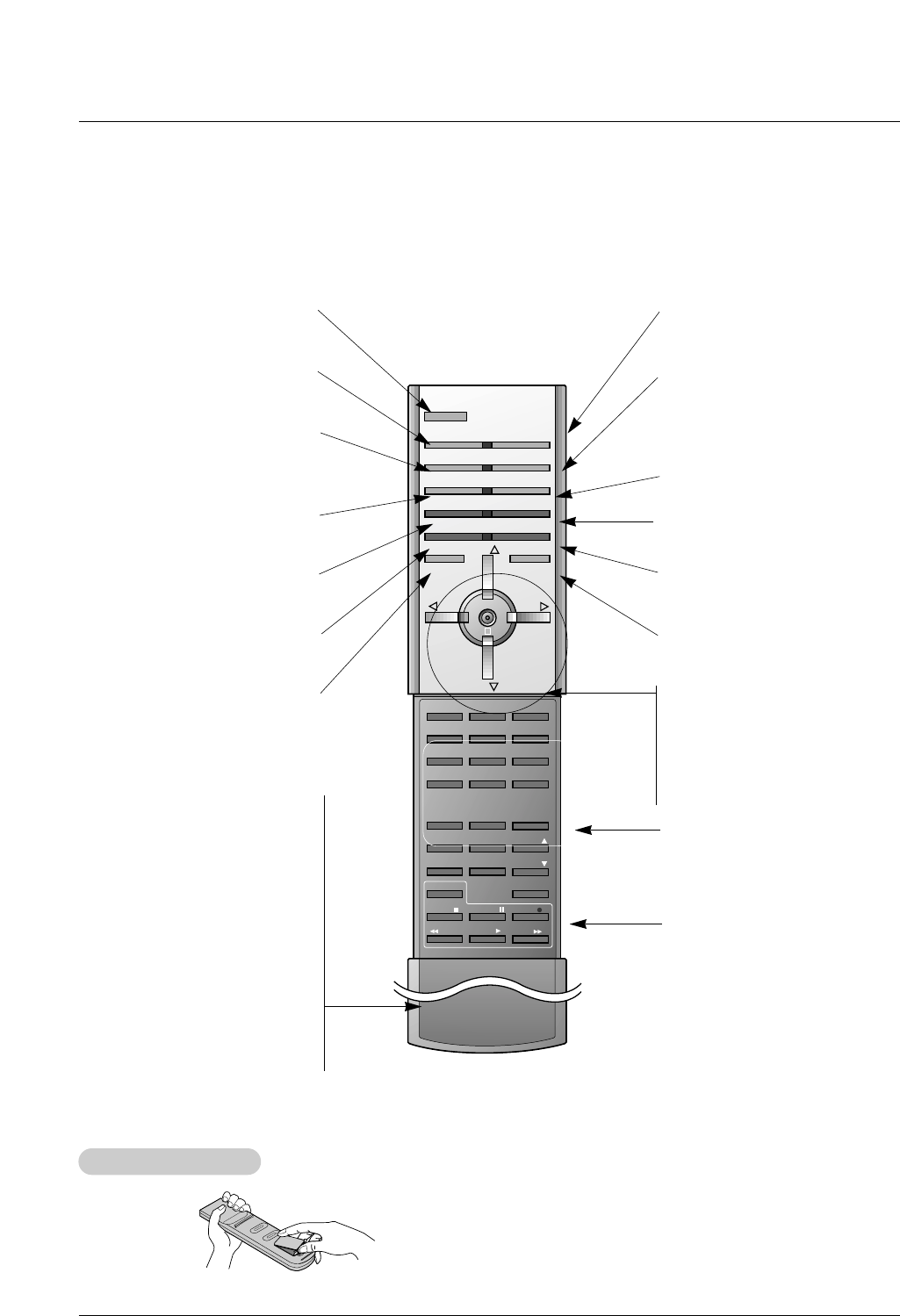

Remote Control Key Functions . . . . . . . . .11

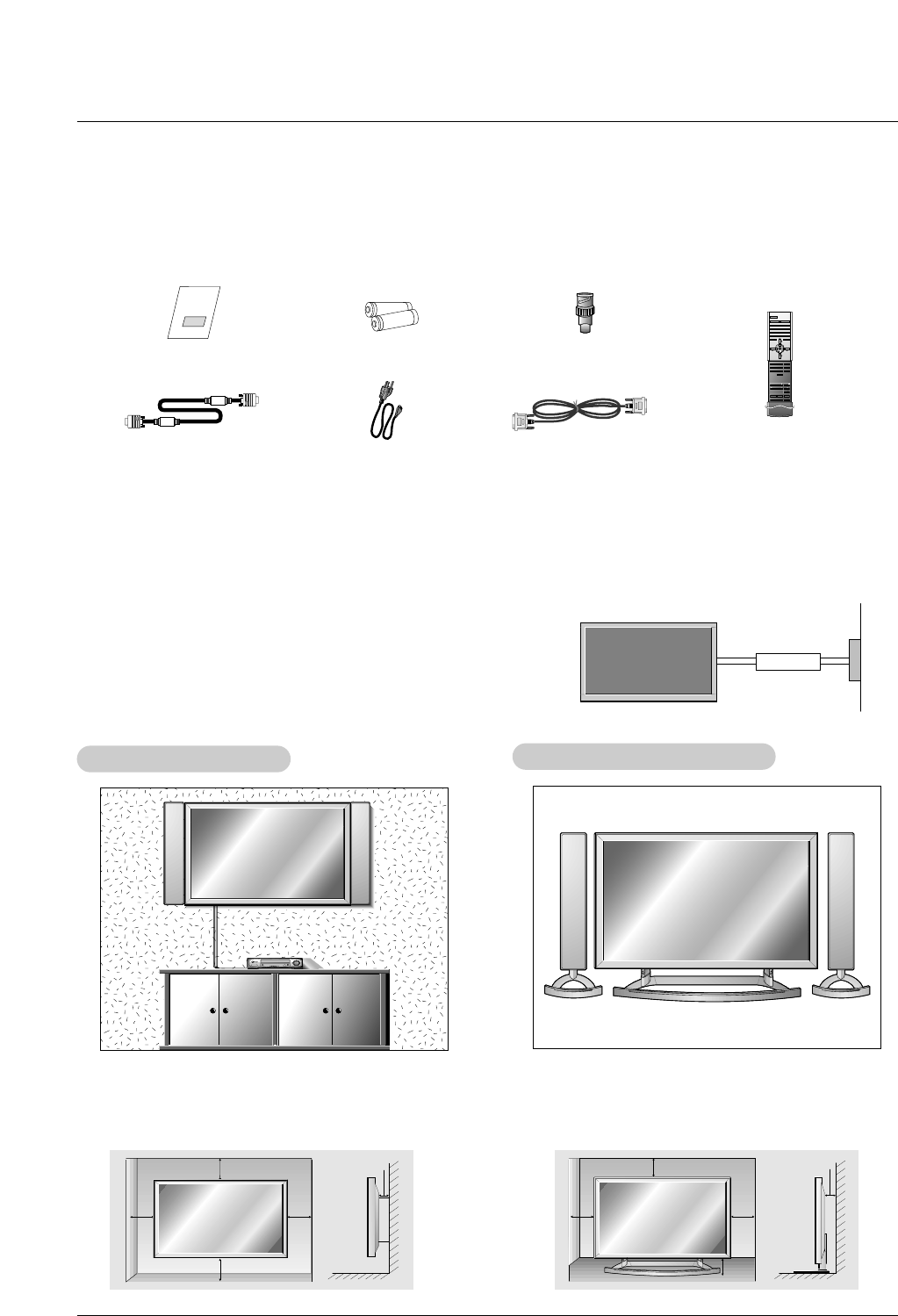

Monitor Accessories . . . . . . . . . . . . . . . . .12
Monitor Installation/Mounting Options . . . .12
Step 2. Customize your Monitor’s Features
Basic Features Setup and Operation
Turning on the Monitor . . . . . . . . . . . . . . .13

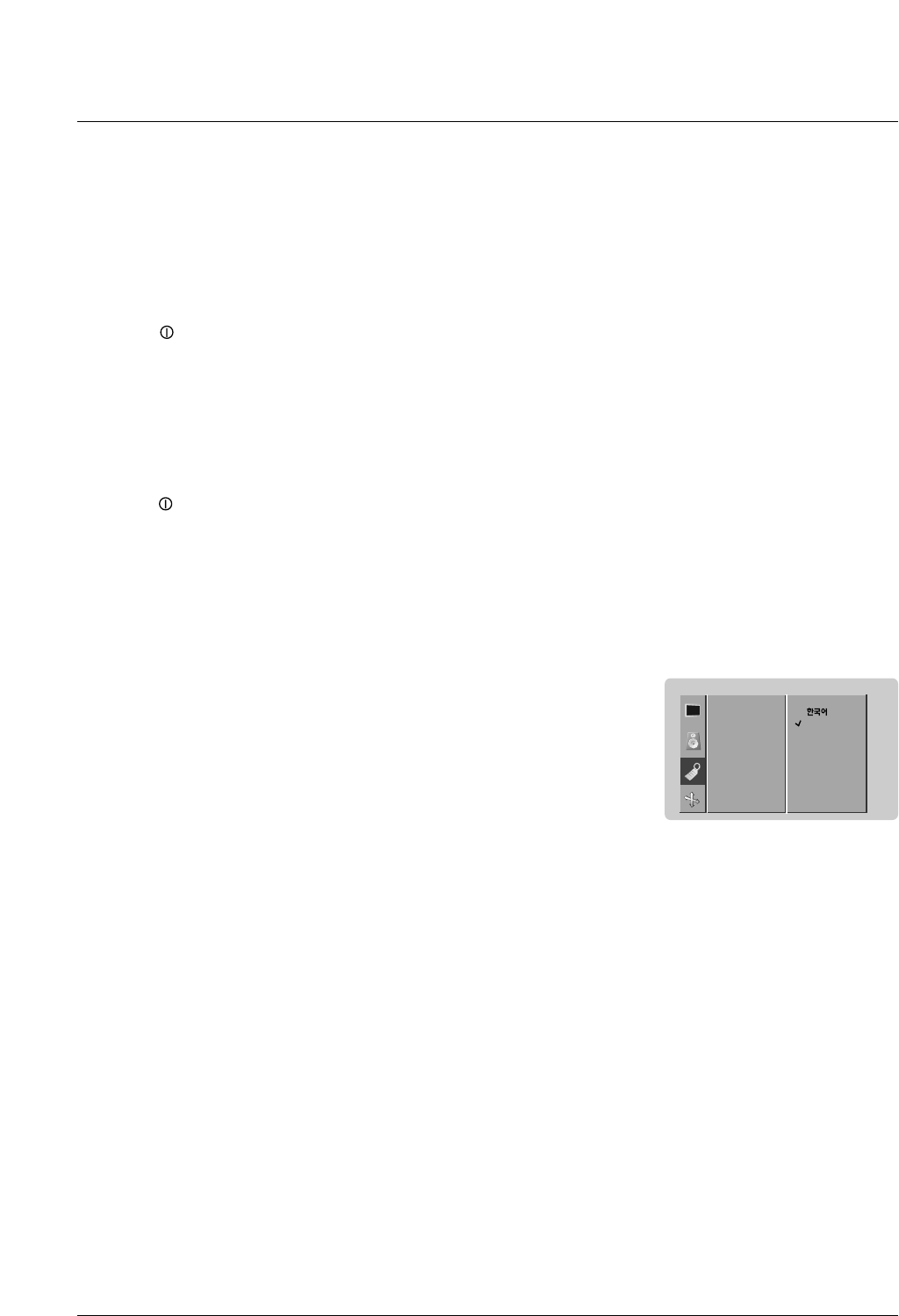

Menu Language Selection . . . . . . . . . . . .13
Picture Menu Options
APC (Auto Picture Control) . . . . . . . . . . . .14
Manual Picture Control . . . . . . . . . . . . . . .14
Sound Menu Options
DASP (Digital Auto Sound Processing) . . .15
Adjusting Sound (Manual Settings) . . . . . .15
AVL (Auto Volume Leveler) . . . . . . . . . . . .15
Special Menu Options
Orbiter . . . . . . . . . . . . . . . . . . . . . . . . . . .16
White Wash . . . . . . . . . . . . . . . . . . . . . . .16
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . .16
Adjusting Auto Color Control . . . . . . . . . .17
Manual Color Temperature Control . . . . .17
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . .17
Screen Menu Options
Auto Adjustment . . . . . . . . . . . . . . . . . . . .18
Adjusting Horizontal/Vertical Position . . . .18
Picture Phase Adjustments . . . . . . . . . . . .18
Initializing . . . . . . . . . . . . . . . . . . . . . . . . .18
Selecting Wide VGA mode . . . . . . . . . . . .19
Screen Adjustments . . . . . . . . . . . . . . . . .19
Luminance Noise Reduction . . . . . . . . . . .19

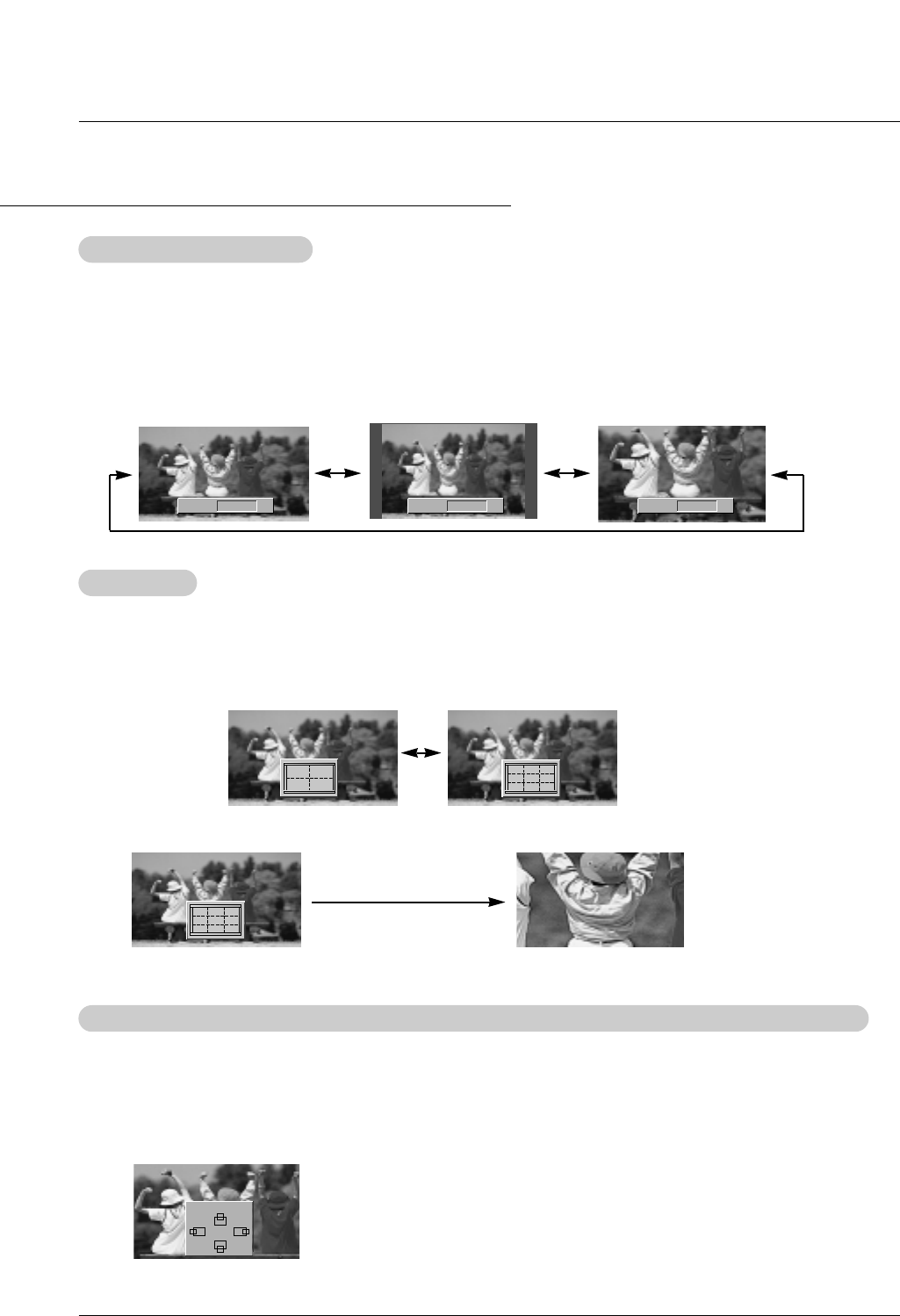

Setting Picture Format . . . . . . . . . . . . . . .20
Split Zoom . . . . . . . . . . . . . . . . . . . . . . . .20
Picture Size Adjustment . . . . . . . . . . . . . .20
PIP (Picture-in-Picture) Feature
Watching PIP . . . . . . . . . . . . . . . . . . . . . .21
Selecting an Input Signal Source for PIP .21
Using PIP Still Function . . . . . . . . . . . . . .21
Moving the PIP . . . . . . . . . . . . . . . . . . . .21
Selecting PIP Sound Options . . . . . . . . . .21
Twin Picture Setup Options
Watching Twin Picture . . . . . . . . . . . . . . .22
Selecting an Input Signal Source for Twin Picture ....................22
Selecting Twin Picture Sound Options . . .22
Using Sub Picture Still Function . . . . . . . .22
Step 3. Miscellaneous
External Control Device Setup . . . . . .23~27

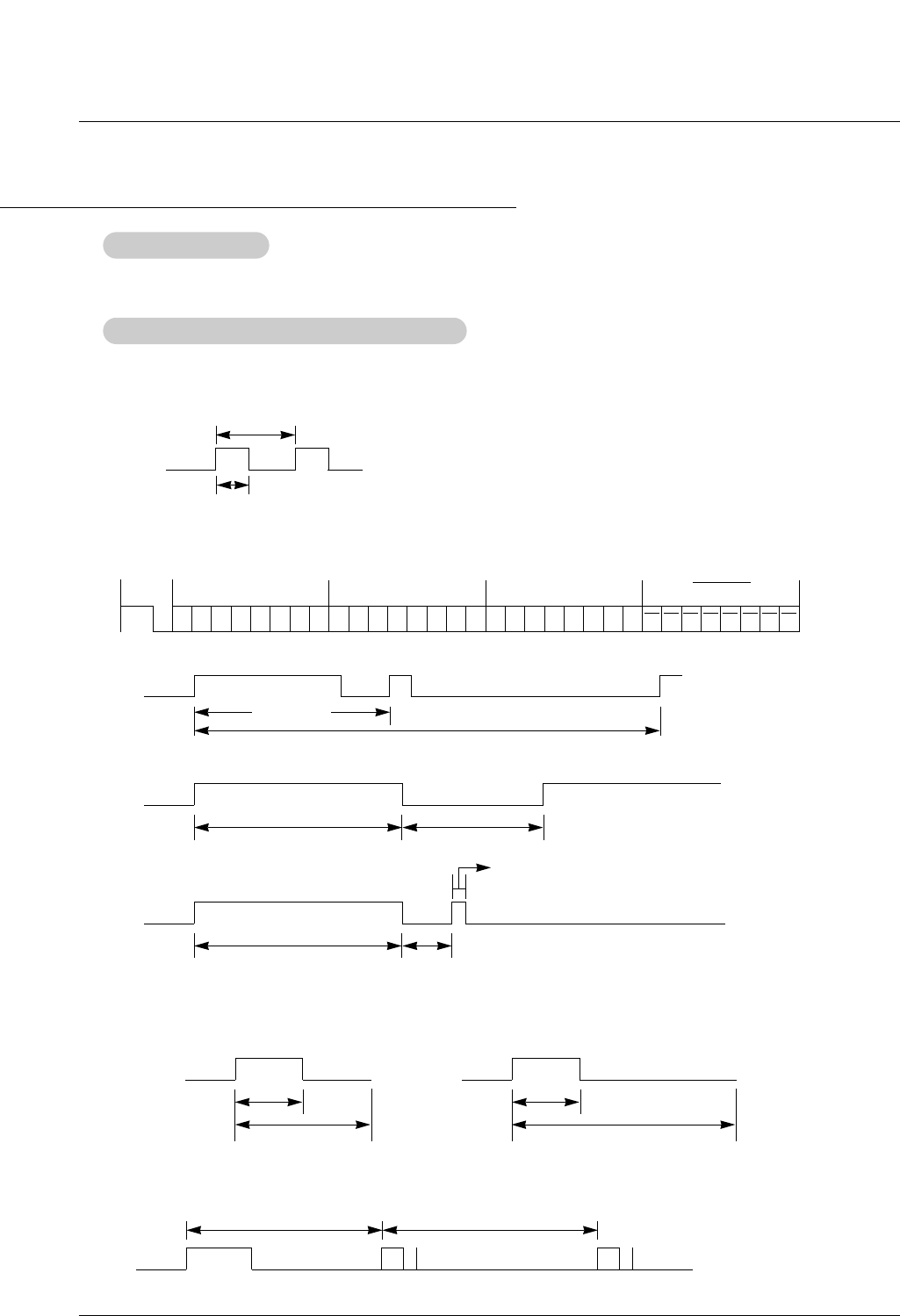

IR Code (NEC format) . . . . . . . . . . . .28~29
Troubleshooting Checklist . . . . . . . . . . . .30
Maintenance . . . . . . . . . . . . . . . . . . . . . .31
Specifications . . . . . . . . . . . . . . . . . . . . . .31
Contents
Contents
Owner’s Manual 7
Introduction
Introduction
Your new LG plasma display is an ultra-slim, super-fast digital monitor with incredibly sharp graphic images in over
16 million colors.
What is a Plasma Display Panel (PDP)?
Plasma technology gives you the rich color of conventional (CRT) monitors in a large display that is thin enough to
hang on the wall. The PDP operates by passing electricity through neon gas, causing it to become charged and pro-
duce light. Inside the plasma panel a series of red, green, and blue cells are grouped in a precise matrix. These
cells are individually controlled by advanced electronics to produce over 16 million different colors. The display
operates at a high voltage, low current, and low temperature, resulting in a long operating lifetime.
Features
This LG plasma display features stunningly high brightness, a slim design and is capable of displaying digital TV
signals.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the
display is clear for audience members anywhere in the room.
Wide Screen
The 42" screen gives you a vivid home theater experience and displays 16:9, 4:3, and ZOOM picture formats.
Multimedia
Connect your plasma display to a PC and you can use it for conferencing, games, and internet browsing. The
Picture-in-Picture feature allows you to view your PC and video images simultaneously.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conven-
tional displays don’t fit.
8 Plasma Display
Introduction
Controls
Controls
VOL.
MENU
INPUT
SELECT
ON/OFF
Main Power INPUT SELECT VOLUME (FF,GG)
Power Standby Indicator
Red - standby mode
Green - Power on.
Remote Control Sensor MENU
EE, DD
Front Panel Controls
Front Panel Controls
Owner’s Manual 9
Introduction
Connection Options
Connection Options
R
( )
( )
( )
( )
L
EXPANDED
INPUT
VIDEO
INPUT

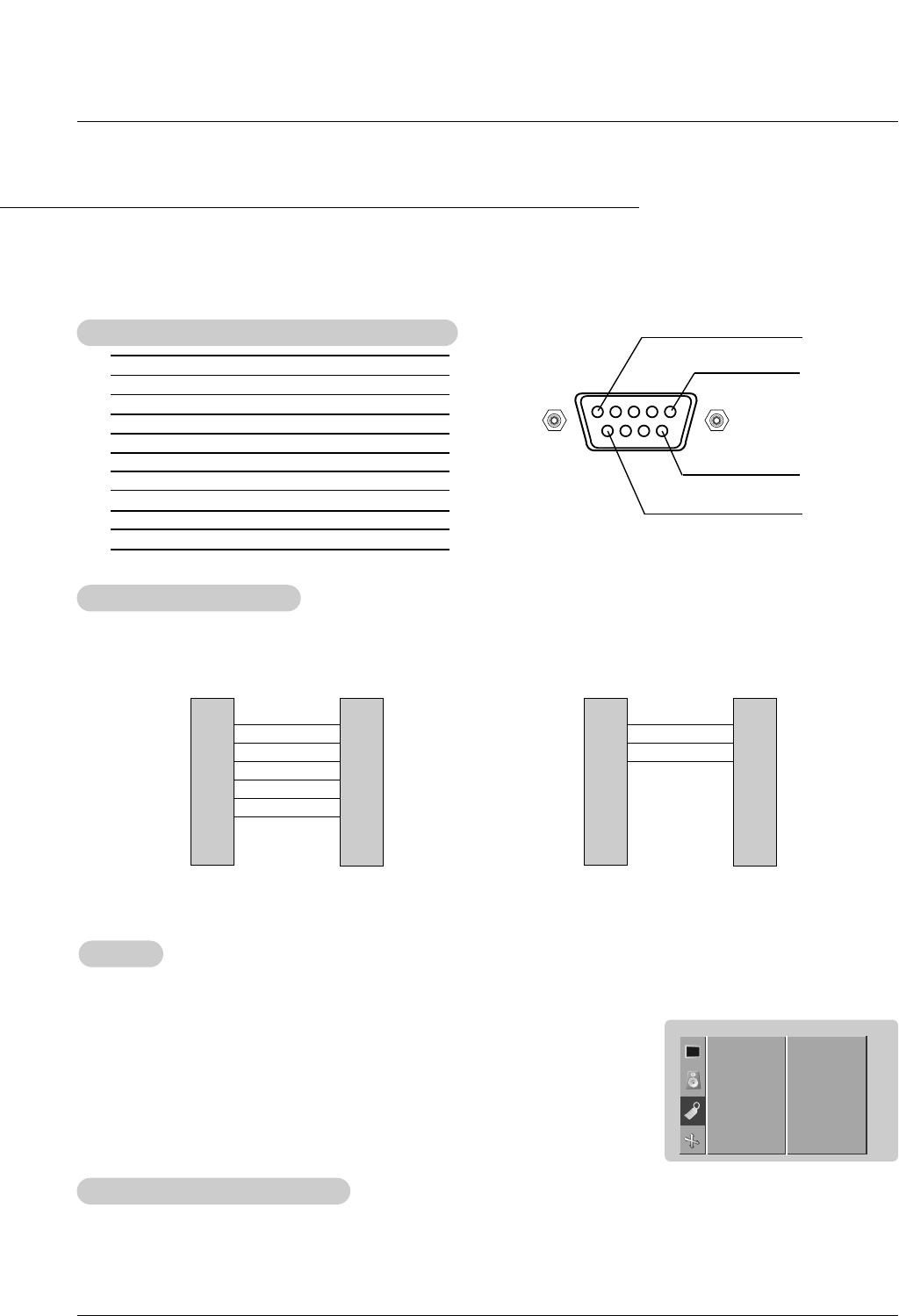

RS-232C INPUT
(CONTROL/SERVICE)
EXTERNAL SPEAKER
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO
AC INPUT
AUDIO INPUT
AUDIO INPUT
AUDIO INPUT
REMOTE
CONTROL
COMPONENT INPUT
DVI INPUT RGB INPUT RGB OUTPUT
1
Back Connections Panel
Back Connections Panel
2 4 86 753
1. EXTERNAL SPEAKER (8 ohm output)
Connect to optional external speaker(s).
* For further information, refer to ‘Speaker &
Speaker Stand’manual.
2. RS-232C INPUT (CONTROL/SERVICE) PORT
Connect to the RS-232C port on a PC.
3. AUDIO INPUT/RGB1 INPUT (PC/DTV INPUT)/
RGB2 INPUT (DIGITAL RGB INPUT) JACKS
Connect the monitor output connector of a PC to the
appropriate input port.
4. RGB1 OUTPUT (PC/DTV OUTPUT) JACKS
You can watch the RGB1 signal on another monitor,
connect RGB1 OUTPUT (PC/DTV OUTPUT) to
another monitor’s PC input port. Note: In standby
mode, RGB1 output does not work.
5. CONTROL LOCK Switch
REMOTE CONTROL
When “CONTROL LOCK” is set to “ON”, the Monitor
is operable by the external control device.
6. COMPONENT (DVD/DTV INPUT)/AUDIO INPUT
JACKS
7. AUDIO/VIDEO INPUT JACKS
Connect audio/video out from external equipment to
these jacks.
S-VIDEO INPUTS (S-VIDEO)
Connect video out from an S-VIDEO VCR to the S-
VIDEO input.
8. POWER CORD SOCKET
This Monitor operates on an AC power. The voltage is
indicated on the Specifications page. Never attempt
to operate the Monitor on DC power.
10 Plasma Display
Introduction
Remote Control Key Functions
Remote Control Key Functions
When using the remote control, aim it at the remote control sensor on the monitor. Under certain conditions such as
when the beam is interrupted, the remote control may not function. Press the key again if necessary.
To install the batteries, open the battery compartment
cover on the back side and insert the batteries with correct
polarity. Install two AAA 1.5V alkaline batteries. Don’t mix
used batteries with new batteries.
Installing Batteries
Installing Batteries
123
456
78
0
9
POWER
MULTIMEDIA INPUT SELECT
APC DASP
ARC SLEEP
PIP
DW
SWAP
MENU MUTE
ENTER
VOL
POWER
STOP
FF
REC
PLAY
REW
P/STILL
WIN.SIZE
WIN.POSITION
FAV CH
CAPTION
A.PROG PIP CH
PIP CH
ZOOM +
MTS
ZOOM -
SPLIT ZOOM
MEMORY/ERASE
VOL
CH
CH
PIP INPUT
POWER
Switches the monitor between
ON, STANDBY, and OFF.
SLEEP
Sets the sleep timer.
APC
Adjusts the factory preset picture
according to the room.
ARC
Changes the picture format.
ZOOM-
Reduces the main picture size.
SPLIT ZOOM
Enlarges a screen section.
MENU
Displays on screen menus.
Exits the current menu.
Memorizes menu changes.
NUMBER buttons
PIP
Switches the sub picture on and off.
TWIN PICTURE
PIP INPUT
Selects the input source for the sub
picture.
SOUND SELECT
Selects main picture sound or sub
picture sound for PIP.
PIP POSITION
Changes the sub picture position.
PIP STILL
Freeze sub picture motion.
VCR BUTTONS
Control LG video cassette recorders.
OK
D / E
Select menu options.
F / G (Volume button)
Increases/decreases sound level.
Adjusts menu settings.
INPUT SELECT
Selects: VIDEO,S-VIDEO,RGB1-2
or COMPONENT mode.
DASP
Selects the sound appropriate to
your viewing program character:
FLAT,SPORTS,CINEMA,MUSIC,
or USER.
AUTO CONFIG
KEY LOCK
Sets the monitor to remote control
operation only.
MUTE
Switches the sound on or off.
ZOOM+
Enlarges the main picture size.
Owner’s Manual 11
Installation
D-sub 15 pin cable
Owner’s Manual
1.5V
1.5V
Alkaline batteries BNC-RCA adapter
Power Cord
123
456
78
0
9
POWER
SLEEP INPUT SELECT
APC DASP
ARC
AUTO CONFIG.
ZOOM -
ZOOM +
SPLIT ZOOM
MENU MUTE
OK
VOL
POWER STOP
PLAY FF
REC
REW
P/STILL
PIP
TWIN PICTURE
PIP POSITION
PIP STILL
SOUND SELECT
PIP INPUT
VOL
KEY LOCK
Remote Control
DVI-D Cable
2 inches
4 inches
2.36 inches
4 inches
4 inches
4 inches
4 inches4 inches
4 inches
2 inches
W
Wall Mount Installation
all Mount Installation Desktop Pedestal Installation
Desktop Pedestal Installation
For proper ventilation, allow a clearance of 4” on each
side and 2” from the wall. Detailed installation instruc-
tions are included from your dealer in the optional Wall
Mounting Bracket Installation and Setup Guide.
For proper ventilation, allow a clearance of 4” on each
side and the top, 2.36” on the bottom, and 2” from the
wall. Detailed installation instructions are included from
your dealer in the optional Desktop Stand Installation and
Setup Guide.
Installation
Installation
Installation Instructions
Installation Instructions
Ensure that the following accessories are included with your plasma display. If an accessory is missing, please con-
tact the dealer where you purchased the product.
The plasma display is designed to be mounted horizontally for wide viewing. The speakers depicted are optional.
GROUNDING
Ensure that you connect the grounding / earth wire to prevent
possible electric shock. If grounding methods are not possible,
have a qualified electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Power
supplier
Short-circuit
breaker
12 Plasma Display
1. To avoid picture interference, leave an adequate distance between the VCR and plasma display.
2. Connect the provided BNC-RCA adapter to the monitor’s VIDEO INPUT.
3. Connect the audio and video cables between the VCR's out-
put jacks and the monitors input jacks, as shown in the figure.
When connecting the monitor to VCR, match the colors of
connecting jacks (Video = yellow, Audio Left = white, and
Audio Right = red).
Mono VCR: Connect the video output cable from the VCR to
the VIDEO input.
S-VIDEO VCR: Connect the video output cable from the VCR
to the S-VIDEO input. (Note that S-Video offers higher quali-
ty).
5. Use the INPUT SELECT button on the remote control to
select VIDEO or S-VIDEO.
6. Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner’s manual.)
Avoid having a fixed image remain on the screen for a long
period of time or the image may remain visible. If this occurs,
refer to the Troubleshooting section.

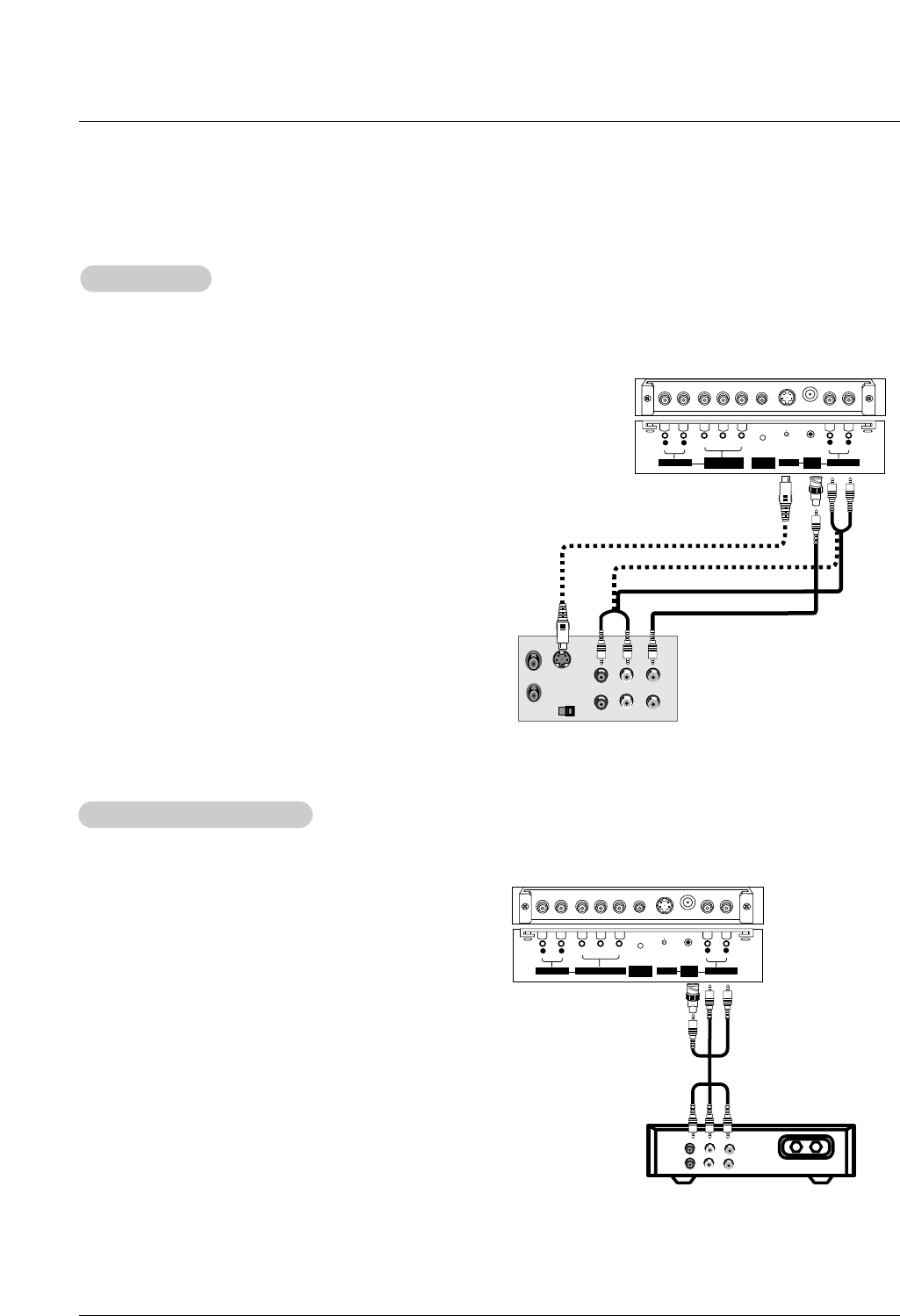

VCR Setup
VCR Setup
S-VIDEO OUT
IN
(R) AUDIO (L) VIDEO
VIDEO
INPUT
COMPONENT
(DVD/DTV INPUT)
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO AUDIO INPUT
AUDIO INPUT REMOTE
CONTROL
To dispay TV programming you need to connect a TV tuner or subscribe to cable service and use a converter box.
1. Connect the provided BNC-RCA adapter to the monitor’s
VIDEO INPUT.
2. Connect the audio and video cables between the Cable TV's
output jacks and the monitors input jacks, as shown in the fig-
ure. When connecting the monitor to Cable TV, match the col-
ors of connecting jacks (Video = yellow, Audio Left = white,
and Audio Right = red).
3. Use the INPUT SELECT button on the remote control to
select VIDEO.
W
Watching Cable
atching Cable TV Setup
TV Setup
TV
VCR RF Cable
(R) AUDIO (L) VIDEO
VIDEO
INPUT
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO AUDIO INPUT
AUDIO INPUT REMOTE
CONTROL
COMPONENT INPUT
VCR
Cable TV
External Equipment Connections
External Equipment Connections
NOTE: Not all depicted cables are included with the plasma display.
Owner’s Manual 13
1. To watch digitally broadcast programs, purchase and
connect a digital set-top box.
2. Connect the DTV set-top box video output to the mon-
itor’s COMPONENT (DVD/DTV INPUT) and audio (R
and L) jacks.
3. If the box has an RGB connector, connect it to the
monitor’s RGB1 (PC/DTV INPUT) connector and the
audio input jack.
4. Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
5. Use INPUT SELECT on the remote control to select
COMPONENT or RGB1.
DTV Setup
DTV Setup
1. Connect the provided BNC-RCA adapter to the monitor’s
VIDEO INPUT.
2. Connect the audio and video cables between the exter-
nal equipment's output jacks and the monitors input
jacks, as shown in the figure. When connecting the moni-
tor to external equipment, match the colors of connecting
jacks (Video = yellow, Audio Left = white, and Audio
Right = red).
3. Use the INPUT SELECT button on the remote control to
select VIDEO.
Component ports of the
Monitor Y PBPR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
1. Connect the DVD video outputs to the COMPONENT jacks (Y,
PB, PR) and connect the DVD audio outputs to the AUDIO INPUT
jacks.
2. If your DVD only has an S-Video output jack, connect this to the
input S-VIDEO on the monitor and connect the DVD audio out-
puts to the AUDIO INPUT jacks.
3. Turn on the DVD player, insert a DVD, and use the INPUT
SELECT button on the remote control to select COMPONENT.
Refer to the DVD player's manual for operating instructions.
External
External A/V Source Setup
A/V Source Setup
DVD Setup
DVD Setup
RL
AUDIO VIDEO
Video game set
Camcorder
VIDEO
INPUT
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO AUDIO INPUT
AUDIO INPUT REMOTE
CONTROL
COMPONENT INPUT
BR
(R) AUDIO (L)
DTV OUTPUT
(R) AUDIO (L)
VIDEO
INPUT
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO AUDIO INPUT
AUDIO INPUT REMOTE
CONTROL
EXPANDED
INPUT
AUDIO INPUT
DVI INPUT RGB INPUT RGB OUTPUT
COMPONENT INPUT
BR
(R) AUDIO (L) (R) AUDIO (L)
S-VIDEO
VIDEO
INPUT
YP
B
P
R
(MONO)
R
AUDIO
L
R
AUDIO
L
S-VIDEO AUDIO INPUT
AUDIO INPUT REMOTE
CONTROL
COMPONENT INPUT
DVD
or
Digital Set-top box
or
14 Plasma Display
This plasma display provides Plug and Play capability, meaning that the PC adjusts automatically to its settings. The plasma display
sends configuration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data Channel
(DDC) protocol. It perceives the recommended 640x480 resolution at 60 Hz to provide the Advanced Television Systems Committee
(ATSC) 480P or 480-line progressive-scan television video signaling standard that is part of the Digital Television (DTV) standard for
60 frame-per-second video.
1. To get the best picture quality, adjust the PC graphics card to a 640x480 resolution and 60 Hz screen scanning rate. Resolutions
over UXGA cannot be displayed.
2. Connect the signal cable from the PC video output port to the plasma display RGB1 INPUT port, or the PC's DVI (Digital Visual
Interface) output port to the plasma display RGB2 INPUT (DIGITAL RGB) port. If the PC graphics card does not output analog and
digital RGB simultaneously, connect to only one of the RGB ports. If you connect the PC to both, set the plasma display to either
RGB1 or RGB2 and the other mode is set automatically.
3. Connect the audio cable from the PC to the AUDIO INPUT jacks on the plasma display. If using a sound card, adjust the PC sound
as required.
4. Turn on the PC and the monitor.
5. Turn on the display by pressing the POWER button on the monitor's remote control.
6. Use the INPUT SELECT button on the remote control to select the RGB 1 or RGB 2.
7. Check the image on your plasma display. Adjust the brightness and contrast. If the picture is not clear, try changing the PC reso-
lution and/or refresh rate. If you cannot adjust the refresh rate of the PC graphics card you may need to install a different card.
8. To see a normal picture, match the VGA mode and DVI signal (640x480, 848x480, 852x480). (Refer to the Operation section of
this manual.)
NOTE: Depending on the graphics card, DOS mode may not work if you use a DVI-I cable.
NOTE: Avoid keeping a fixed image on the monitor's screen for a long period of time.The fixed image may become perma-
nently imprinted on the screen. Use the Orbiter screen saver when possible.
PC Setup
PC Setup
R
( )
( )
( )
( )
L
RS-232C INPUT
(CONTROL/SERVICE)
EXTERNAL SPEAKER
EXPANDED
INPUT
AUDIO INPUT
DVI INPUT RGB INPUT RGB OUTPUT
Owner’s Manual 15
Operation
1. Ensure the plasma display is plugged into an appropriate power outlet.
2. Press the ON/OFF button on the plasma display to place it in Standby mode.
3. Press the POWER button on the remote control to switch the plasma display on and off.
Leave the plasma display in standy mode during everyday use. If you plan on not using the plasma display for an extended length of
time, such as when you go on vacation:
1. Press the ON/OFF button on the plasma display to turn in off.
2. Unplug the plasma display from the wall outlet.
1. Press the MENU button and then use D/ Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D/ Ebutton to select LANGUAGE.
3. Press the Gbutton and then use D/ Ebutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your choice.
4. Press the MENU button.
LANGUAGE G
KEY LOCK
ORBITER
WHITE WASH
COLOR TEMP.
SET ID
SPECIAL
ENGLISH
ESPAÑOL
PORTUGUÊS
FRANÇAIS
Operation
Operation
T
Turning the Plasma Display On and Off
urning the Plasma Display On and Off
On-Screen Menu Language Selection
On-Screen Menu Language Selection
Standby Mode
Standby Mode
16 Plasma Display
Picture Menu Options
- You can adjust picture contrast, brightness, color, sharpness and tint to the levels you prefer.
- In PIP and twin picture modes, settings are not adjustable.
1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.
2. Press the Gbutton and then use D / Ebutton to select the desired picture option.
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the MENU button.
Manual Picture Control (User option)
Manual Picture Control (User option)
APC
CONTRAST G
BRIGHTNESS
COLOR
SHARPNESS
TINT
100
1. Press the APC button to select the picture appearance setup option.
APC (Auto Picture Control)
APC (Auto Picture Control)
•Each press of the APC button or F / Gbutton changes the menu option as shown below.
•You can also select CLEAR, SOFT or USER in the PICTURE menu.
•Picture options CLEAR and SOFT are preset for good picture quality at the factory and cannot be
changed.
CLEAR SOFT USER
- APC adjusts the Monitor for the best picture appearance.
- APC is not available in RGB 1,2 (PC) mode.
- When adjusting picture options (contrast, brightness, color, sharpness and tint) manually, APC automatically
changes to USER.
Owner’s Manual 17
Sound Menu Options
1. Use the DASP button to select the appropriate sound setup.
DASP
DASP (Digital
(Digital Auto Sound Processing)
Auto Sound Processing)
1. Press the MENU button and then use D / Ebutton to select the SOUND menu.
2. Press the Gbutton and then use D / Ebutton to select the desired sound option.
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the MENU button.
Manual Sound Control (User option)
Manual Sound Control (User option)
•Each press of the DASP button or F / Gbutton changes the menu option as shown below.
•You can also select FLAT, SPORTS, CINEMA, MUSIC, or USER in the SOUND menu.
•Sound options FLAT, SPORTS, CINEMA and MUSIC are preset for good sound quality at the factory
and cannot be changed.
FLAT SPORTS CINEMA MUSIC USER
- This function lets you enjoy the best sound without any special adjustment because the Monitor automatically
selects the appropriate sound option based on the program content.
- When adjusting sound options (treble, bass, and balance) manually, DASP automatically changes to USER.
- AVL maintains an equal volume level; even if you change channels.
1. Press the MENU button and then use D / Ebutton to select the SOUND menu.
2. Press the Gbutton and then use D / Ebutton to select AV L .
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
A
AVL
VL (Auto V
(Auto Volume Leveler)
olume Leveler)
DASP
AVL G
TREBLE
BASS
BALANCE
SOUND
ON
OFF
DASP
AVL
TREBLE G
BASS
BALANCE
SOUND
50
- You can adjust sound treble, bass, and balance to the levels you prefer.
18 Plasma Display
Orbiter
Orbiter
- Avoid allowing a fixed image to remain on the Monitor's screen for a long period of time. A frozen still picture
from a PC/video game displayed on the screen for prolonged periods will result in an ghost image remaining
even when you change the image.
- To avoid a permanent image on the screen, the screen will move every 2 minutes:
Left →Downside → Right →Upside →Upside →Right →Downside →Left
- The Orbiter feature may help prevent ghost images. However, it is best not to allow any fixed image to remain on
the screen.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select ORBITER.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
White W
White Wash
ash
- White Wash removes permanent images from the screen.
- Set White Wash ‘ON’until fixed image disappears. To return to the viewing screen, set White Wash to ‘OFF’.
- Note: An excessive permanent image may be impossible to clear entirely with White Wash.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select WHITE WASH.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
• When you select ON, the screen changes to white.
4. Press the MENU button.
Special Menu Options
LANGUAGE
KEY LOCK
ORBITER G
WHITE WASH
COLOR TEMP.
SET ID
SPECIAL
ON
OFF
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH G
COLOR TEMP.
SET ID
SPECIAL
ON
OFF
Key Lock
Key Lock
- The monitor can be set up so that it can only be operated with the remote control.
- This feature can be used to prevent unauthorized viewing.
1. Press the KEY LOCK button.
- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.
- In KEY LOCK ‘ON’, if the monitor is turned off with the remote control, press the INPUT SELECT button on
the monitor or POWER, or INPUT SELECT on the remote control.
- With the KEY LOCK ON, the display ‘ KEY LOCK’appears on the screen if any button on the front panel
is pressed.
•Each press of the KEY LOCK button changes the screen display as shown below.
•You can also select ON or OFF in the SPECIAL menu.
ON OFF
Owner’s Manual 19

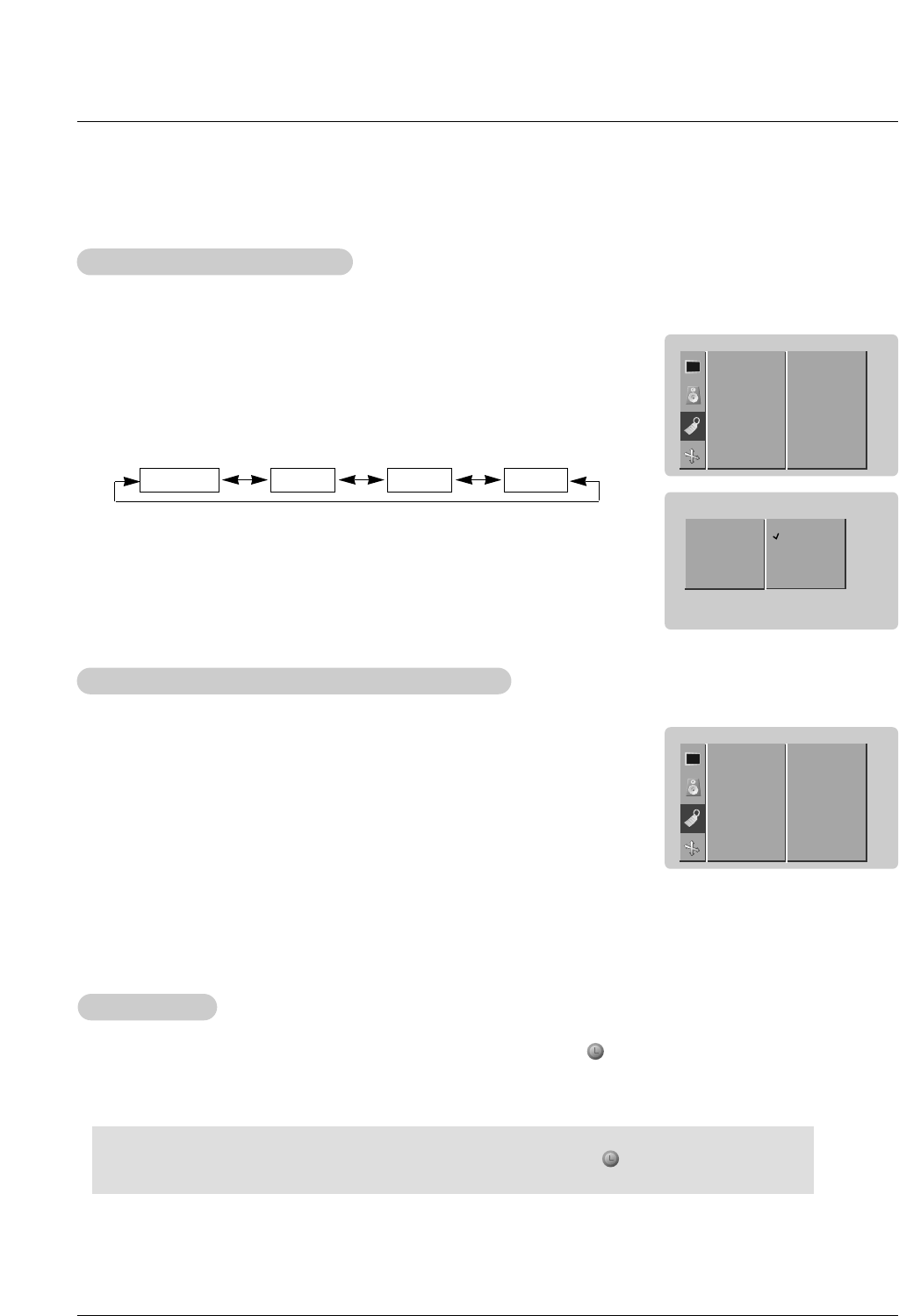

- To initialize values (reset to default settings), select the NORMAL option.
- When adjusting color temperature options (red, green, or blue) manually, ACC automatically changes to USER.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select COLOR TEMP .
3. Press the Gbutton and then use D / Ebutton to select ACC.
4. Press the Gbutton and then use D / Ebutton to select the desired color temperature.
Adjusting
Adjusting Auto Color Control
Auto Color Control
•Each press of D / Ebutton changes the menu option as shown.
•Color temperature options NORMAL, COOL and WARM are preset at the
factory and cannot be changed.
NORMAL COOL WARM USER
- You can adjust red, green, or blue to any color temperature you prefer.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select COLOR TEMP .
3. Press the Gbutton and then use D / Ebutton to select a color.
4. Use the F / Gbutton to make appropriate adjustments.
5. Press the MENU button.
•The adjustment range of RED, GREEN,and BLUE is -10 ~ +10.
Manual Color
Manual Color T
Temperature Control (User option)
emperature Control (User option)
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH
COLOR TEMP. G
SET ID
SPECIAL
TO SET
ACC G
RED
GREEN
BLUE
COLOR TEMP
NORMAL
COOL
WARM
USER
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH
COLOR TEMP. G
SET ID
SPECIAL
TO SET
a. To check the remaining minutes before turn off, press the SLEEP or OK button once.
b. To cancel the Sleep Timer setting, press the SLEEP button repeatedly until --- min. appears.
c. If you turn the monitor off after setting the sleep timer, the setting will be erased.
Sleep
Sleep T
Timer
imer
- Sleep timer turns the Monitor off at the preset time.
- Press the SLEEP button repeatedly to select the number of minutes. First the --- min. option will appear on
the screen, followed in sequence 10,20,30,60,90,120,180, or 240 minutes.
- When the turn off time you want is displayed on the screen, press the OK button.
The timer begins to count down from the number of minutes selected.
zz
zz
20 Plasma Display
- If the picture isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture phase
manually.
- You can only adjust V-POSITION/H-POSITION in DTV (480p,720p,1080i), COMPONENT (480p,720p,1080i), or in
RGB1 (PC) modes.
Initializing (Reset to original factory value)
Initializing (Reset to original factory value)
- To initialize the adjusted value, select RESET with the D / Ebutton in step 3 of ‘picture phase adjustments’and
then press the Gbutton.
Auto
Auto Adjustment (RGB1 (PC) mode only)
Adjustment (RGB1 (PC) mode only)
- Automatically adjusts picture position and minimizes image shaking.
- If the image is still not correct, your Monitor is functioning properly but needs further adjustment.
1. Press the AUTO CONFIG. button to run Auto configure.
• If the position of the image is still not correct, try Auto adjustment again.
2. If picture needs to be adjusted more after Auto adjustment in RGB1 mode, you can
manually adjust the image's V-POSITION/H-POSITION and PHASE.
Screen Menu Options
SCREEN ADJ. G
VGA MODE
ARC
PIP/DW
ZOOM
SCREEN
TO SET
Adjusting Horizontal/ V
Adjusting Horizontal/ Vertical Position
ertical Position
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select SCREEN ADJ..
3. Press the Gbutton and then use D / Ebutton to select V-POSITION or H-POSITION.
4. Press the Gbutton and then use the F / Gbutton to make adjustments until you get
desired horizontal or vertical position.
• The adjustment range of V-POSITION is -50 ~ +50.
• The adjustment range of H-POSITION is -100 ~ +100.
• Based on the PC resolution, the adjustment range of V-POSITION/H-POSITION may
change.
• Based on input signal, the position of the picture may not change even though you
have adjusted the horizontal or vertical position with this function.
5. Press the MENU button.
Picture Phase
Picture Phase Adjustments (RGB1 (PC) mode only)
Adjustments (RGB1 (PC) mode only)
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select SCREEN ADJ..
3. Press the Gbutton and then use D / Ebutton to select PHASE.
4. Press the Gbutton and then use the F / Gbutton to adjust phase.
• The adjustment range of PHASE is 0 ~ 63.
5. Press the MENU button.
AUTO CONFIG.
V-POSITION G
H-POSITION
PHASE
RESET
SCREEN ADJ.
0
AUTO CONFIG.
V-POSITION
H-POSITION
PHASE G
RESET
SCREEN ADJ.
30
Owner’s Manual 21
Selecting W
Selecting Wide VGA
ide VGA mode (RGB1, RGB2 [PC] modes only)
mode (RGB1, RGB2 [PC] modes only)
- To see a normal picture, match the resolution of RGB mode and selection of VGA mode.
- If 852x480 or 848x480 is selected, the aspect ratio is changed to 16:9 automatically.
With this setup, Twin Picture mode is not available.
1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D /Ebutton to select VGA MODE.
3. Press the Gbutton and then use D /Ebutton to select the desired VGA resolution.
4. Press the MENU button.
SCREEN ADJ.
VGA MODE G
ARC
PIP/DW
ZOOM
SCREEN
640x480
848x480
852x480
Screen
Screen Adjustments (VIDEO and S-VIDEO modes only)
Adjustments (VIDEO and S-VIDEO modes only)
- Use this function to correct jittering or picture instability while viewing a video tape.
- Use YNR to reduce the picture noise which may appear on the screen if watching the TV in a weak signal area.
1. Press the MENU button and then use D /Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D /Ebutton to select SCREEN ADJ..
3. Press the Gbutton and then use D /Ebutton to select TV or VCR.
• Select the VCR option if watching a VCR.
• Select the TV option for other equipment. (Except VCR)
4. Press the MENU button.
SCREEN ADJ. G
YNR
ARC
PIP/DW
ZOOM IN/OUT
SCREEN
TV
VCR
✓
SCREEN ADJ. G
YNR
ARC
PIP/DW
ZOOM
SCREEN
TV
VCR
SCREEN ADJ. G
YNR
ARC
PIP/DW
ZOOM IN/OUT
SCREEN
TV
VCR
✓
SCREEN ADJ.
YNR G
ARC
PIP/DW
ZOOM
SCREEN
ON
OFF
Luminance Noise Reduction (VIDEO, S-VIDEO and COMPONENT
Luminance Noise Reduction (VIDEO, S-VIDEO and COMPONENT 480i modes only)
480i modes only)
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select YNR.
3. Press the Gbutton and then use D / Ebutton to select ON or OFF.
4. Press the MENU button.
22 Plasma Display
1. Use ZOOM+/ZOOM- button to enlarge or reduce the picture size.
• The adjustment range of Zoom is 0~20.
2. Adjust the main picture position with the D / E/ F / G buttons in enlarged picture mode.
Picture Size Zoom (RGB1 [DTV], RGB2 [DTV], COMPONENT
Picture Size Zoom (RGB1 [DTV], RGB2 [DTV], COMPONENT, VIDEO, or S-VIDEO modes only)
, VIDEO, or S-VIDEO modes only)
Setting Picture Format
Setting Picture Format
- Picture formats 4:3 and 16:9 are available in RGB1 and RGB2 (PC).
- Picture formats 16:9, 4:3 and ZOOM are available in VIDEO, S-VIDEO, RGB-DTV, and COMPONENT.
- If a 4:3 fixed image is on the screen for a long time, it may remain visible.
1. Use the ARC button to select the desired picture format.
• Each press of ARC button or F / Gbutton changes the picture format as shown below.
• You can also select picture format 16:9, 4:3, or ZOOM in the SCREEN menu.
ARC F G
16 : 9 ARC F G
4 : 3 ARC F G
ZOOM
Split Zoom
Split Zoom
- Enlarges the picture in correct proportion.
- Split Zoom can be used for every input source.
1. Press the SPLIT ZOOM button.
• Each press of SPLIT ZOOM button changes the picture format options as shown below.
• On the remote, press the number button of the section to enlarge. If you choose 5, section 5 will be enlarged.
Example of choosing 5. Section 5 is enlarged to fill
the screen.
12
54
12 3
456
789
12 3
456
789
Screen Menu Options
- When enlarging or reducing the picture, the image may become distorted.
ZOOM : 0
D
FG
E
Owner’s Manual 23
W
Watching PIP
atching PIP (RGB1, RGB2 mode only)
(RGB1, RGB2 mode only)
- PIP lets you view 2 different inputs pictures (sources) on your monitor screen at the same time. One source will be large,
and the other source will show a smaller inset image.
- When you select PC (RGB1, RGB2) for main picture in PIP, you can watch DTV (480p, 720p, 1080i), VIDEO, S-VIDEO or
DVD for sub picture.
- If you turn on PIP while viewing RGB1 (DTV), COMPONENT, VIDEO, or S-VIDEO, the source is changed to sub picture
input source and main picture source is changed to PC (RGB1, RGB2).
- If PIP doesn’t work, select PC (RGB1, RGB2) for main picture source with PIP on to determine if the PC signal is being
received by the monitor.
- In RGB2 (DTV), PIP mode is not available.

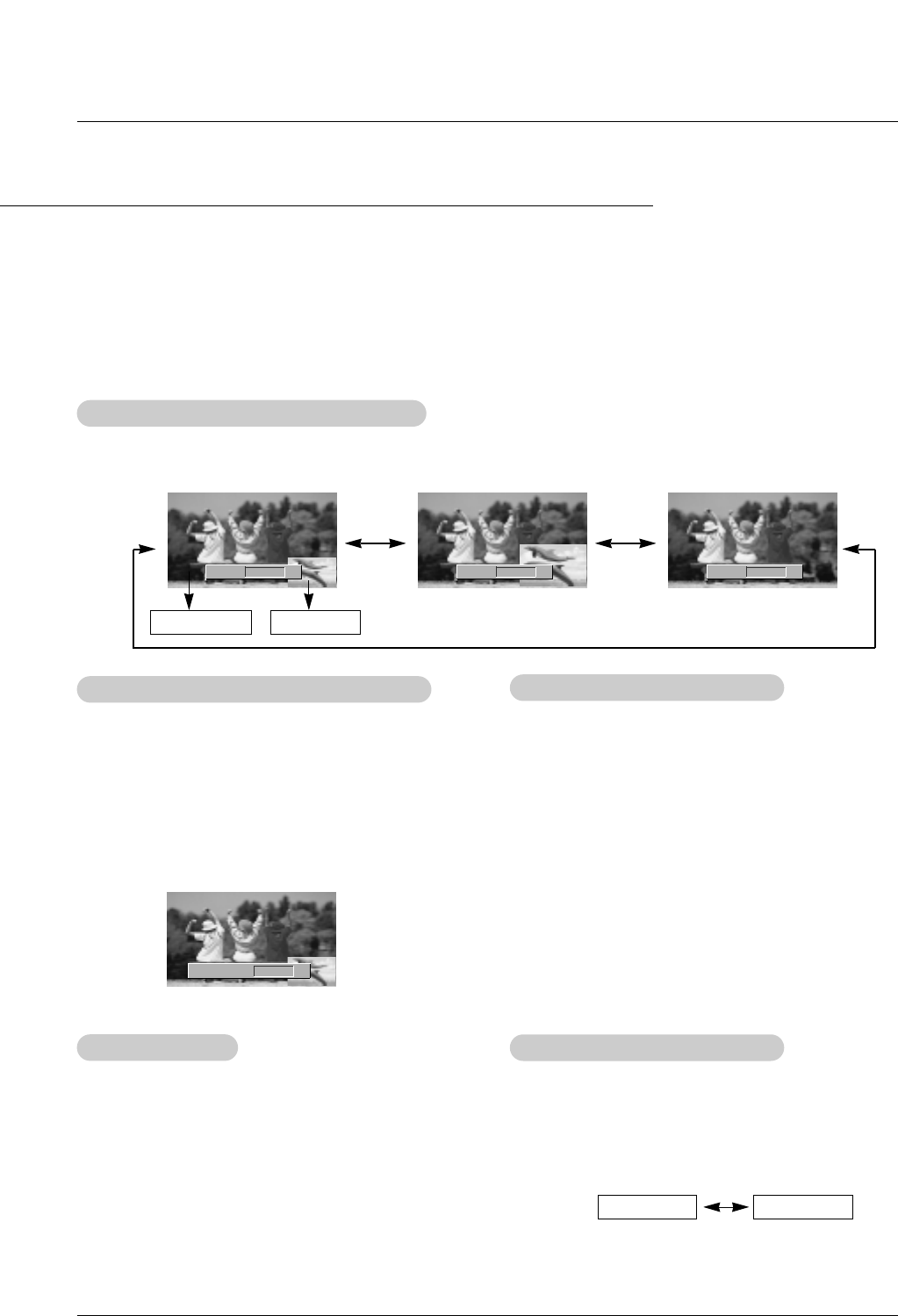

PIP (Picture-in-Picture) Feature
Press the PIP button to show the sub picture.
•Each press of PIP button or F / Gbutton changes the PIP option as shown below.
Moving the PIP
Moving the PIP
1. In PIP mode, press the PIP POSITION button.
• Each press of the the PIP POSITION button will
move the sub picture to a different position on the
screen in a clockwise direction.
PIP F G
PIP (S) PIP F G
PIP (L) PIP F G
OFF
Selecting an Input Signal Source for PIP
Selecting an Input Signal Source for PIP
Use the PIP INPUT button to select the input source for
the sub picture.
•Each press of PIP INPUT button or F / Gbutton
changes the PIP source.
• In RGB1 (PC) for main picture, you can select COM-
PONENT, VIDEO and S-VIDEO for sub picture.
• In RGB2 (PC) for main picture, you can select RGB1
(DTV), COMPONENT, VIDEO, or S-VIDEO for PIP pic-
ture.
PIP INPUT F G
VIDEO
Using PIP
Using PIP Still Function
Still Function
1. Press the PIP STILL button in the PIP mode.
•In PIP mode, the PIP (inset) picture's image is
frozen.
•The frozen picture is automatically released after
about 10 minutes.
•If a still picture is on the screen for more than 5 min-
utes, the image becomes dark. If another function is
activated, then normal screen brightness is restored.
2. To return to normal viewing, press the PIP STILL button
again.
Selecting PIP
Selecting PIP Sound Options
Sound Options
Use the SOUND SELECT button to select main image sound
(SOUND(M)) or PIP (inset image) sound (SOUND(S)).
•Each press of SOUND SELECT button or F / Gbutton
changes the sound option as shown below.
SOUND(M) SOUND(S)
Main Picture Sub Picture
24 Plasma Display

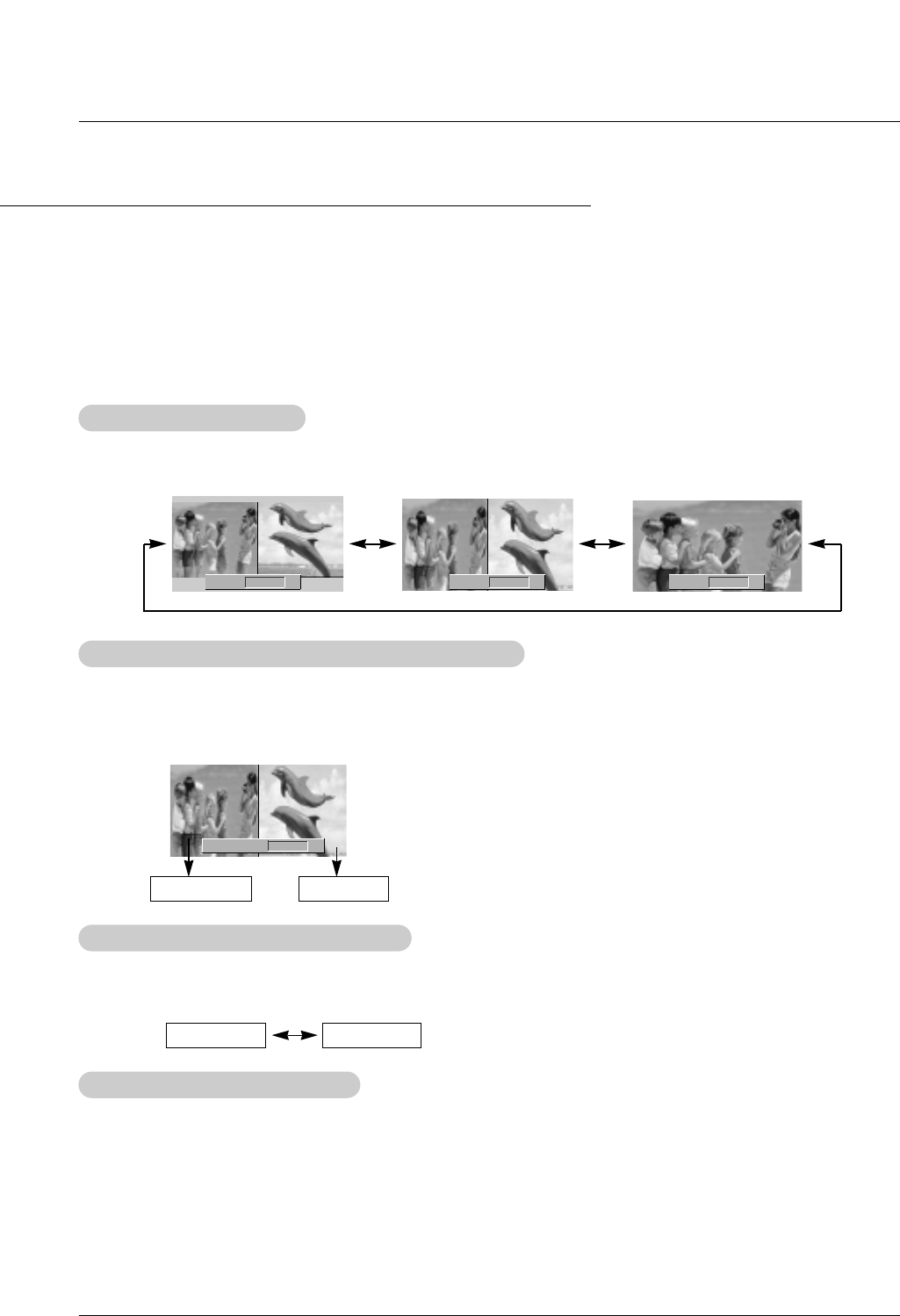

Twin Picture Setup Options
W
Watching
atching T
Twin Picture
win Picture
- As the name suggests, this mode splits the screen into 2, allowing 2 picture sources to be shown on the monitor screen at
the same time. Each source is given half the screen.
- When you select PC (RGB1, RGB2) for main picture in Twin Picture mode, you can watch DTV (480p, 720p, 1080i), VIDEO,
S-VIDEO or DVD for sub picture.
- If you turn on Twin Picture while viewing RGB1 (DTV), COMPONENT, VIDEO, or S-VIDEO, the source is changed to sub
picture input source and main picture source is changed to PC (RGB1, RGB2).
- If twin picture doesn’t work, select PC (RGB1, RGB2) for main picture in twin picture and then check it whether PC signal
input into the monitor.
- In RGB2 (DTV) and wide VGA (848x480, 852x480) modes, Twin picture mode is not available.
Press the TWIN PICTURE button.
•Each press of the TWIN PICTURE button cycles through the menu options shown below.
Selecting an Input Signal Source for the
Selecting an Input Signal Source for the T
Twin Picture
win Picture
Use the PIP INPUT button to select an input source for the sub picture.
•Each press of PIP INPUT button or F / Gbutton changes the menu option.
•In RGB1 (PC) for main picture, you can select COMPONENT, VIDEO and S-VIDEO for sub picture.
•In RGB2 (PC) for main picture, you can select RGB1 (DTV), COMPONENT, VIDEO, or S-VIDEO for sub picture.
Selecting
Selecting T
Twin Picture Sound Options
win Picture Sound Options
Press the SOUND SELECT button to select main image sound (SOUND(M)) or sub picture sound (SOUND(S)).
•Each press of SOUND SELECT button or F / Gbutton changes the sound option as shown below.
SOUND(M) SOUND(S)
PIP INPUT F G
VIDEO
DW F G
DW 1 DW F G
DW 2 DW F G
OFF
Main Picture Sub Picture
Using Sub Picture Still Function
Using Sub Picture Still Function
1. Press the PIP STILL button in the twin picture mode.
• In TWIN PICTURE mode, the sub (inset) picture is frozen.
• Frozen picture is released automatically after about 10 minutes.
• If a still picture is on the screen for more than 5 minutes, the image becomes dark.
If another function is activated, normal screen brightness is restored.
2. To return to normal viewing, press the PIP STILL button again.
Owner’s Manual 25
Set ID
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping 1’. See page 26.
1. Press the MENU button and then use the D /Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D /Ebutton to select SET ID.
3. Press the Gbutton and then use F / Gbutton to adjust SET ID to choose the desired
monitor ID number.
• The adjustment range of SET ID is 1 ~ 99.
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire Configurations
(Standard RS-232C cable)
D-Sub 9
3
2
5
6
4
8
7
PDP
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3-Wire Configurations
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
PDP
D-Sub 9
External Control Device Setup
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
T
Type of Connector; D-Sub 9-Pin Male
ype of Connector; D-Sub 9-Pin Male
RS-232C Configurations
RS-232C Configurations
• Baud rate : 115200 bps (UART)
• Data length : 8 bits
• Parity : None
* Use a crossed (reverse) cable.
• Stop bit : 1 bit
• Communication code : ASCII code
Communication Parameters
Communication Parameters
LANGUAGE
KEY LOCK
ORBITER
WHITE WASH
COLOR TEMP.
SET ID G
SPECIAL
1
26 Plasma Display
Transmission
* [Command 1]: First command to control PDP set. (j or k)
* [Command 2]: Second command to control PDP set.
* [Set ID]: You can adjust the set ID to choose desired monitor
ID number in special menu. See previous page.
Adjustment range is 1 ~ 99. When selecting Set ID
‘0’, every connected PDP set is controlled. Set ID
is indicated as decimal (1~99) on menu and as
Hexa decimal (0x0~0x63) on transmission/receiv-
ing protocol.
* [DATA]: To transmit command data.
Transmit ‘FF’data to read status of command.
* [Cr]: Carriage Return
ASCII code ‘0x0D’
* [ ]: ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
OK Acknowledgement
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 4
03. Aspect Ratio k c 0 ~ 2
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD select k l 0 ~ 1
13. External control mode k m 0 ~ 1
14. PIP/Twin picture (DW) k n 0 ~ 4
15. PIP sound select k p 0 ~ 1
16. PIP position k q 0 ~ 3
17. Treble k r 0 ~ 64
18. Bass k s 0 ~ 64
19. Balance k t 0 ~ 64
20. Color temperature (ACC) k u 0 ~ 3
21. Red adjustment k v 0 ~ 64
22. Green adjustment k w 0 ~ 64
23. Blue adjustment k $ 0 ~ 64
24. PIP input source k y 0 ~ 3
25. Abnormal State k z 0 ~ 6
26. Orbiter j p 0 ~ 1
27. White Wash j q 0 ~ 1
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from non-viable
functions or communication errors.
[Command2][ ][Set ID][ ][NG][Data][x]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
Command Reference List
Command Reference List
02. Input Select (Command2:b)
GTo select input source for the Monitor.
You can also select an input source using the INPUT
SELECT button on the Monitor's remote control.
Transmission
Data 0: RGB 1
1: COMPONENT
2: VIDEO
3: S-VIDEO
4: RGB 2
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command2:a)
GTo control Power On/Off of the Monitor.
Transmission
Data 0: Power Off 1: Power On
Data 1: Illegal Code
2: Not supported function
3: Wait more time
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
GTo show Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Acknowledgement
Data 0: Power Off 1: Power On
* In a like manner, if other functions transmit ‘FF’data
based on this format, acknowledgement data feedback
presents status about each function.
[a][ ][Set ID][ ][OK][Data][x]
* When setting 26 or 27, a menu won't appear on
screen.
Owner’s Manual 27
09. Color (Command2:i)
GTo adjust the screen color.
You can also adjust color in the picture menu.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping1’. See page 26.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command2:h)
GTo adjust screen brightness.
You can also adjust brightness in the picture menu.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping1’. See page 26.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
05. Volume Mute (Command2:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0: Volume mute on (Volume off)
1: Volume mute off (Volume on)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command2:c)
GTo adjust the screen format (main picture format).
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
screen menu.
Transmission
Data 0: Wide screen (16:9)
1: Normal screen (4:3)
2: Full screen (Zoom)
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
* Using the PC input, select either 16:9 or 4:3 screen aspect
ratio.
[c][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command2:d)
GTo select screen mute on/off.
Transmission
Data 0: Screen mute off (Picture on)
1: Screen mute on (Picture off)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command2:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping1’. See page 26.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command2:g)
GTo adjust screen contrast.
You can also adjust contrast in the picture menu.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping1’. See page 26.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
10. Tint (Command2:j)
GTo adjust the screen tint.
You can also adjust tint in the picture menu.
Transmission
Data Red: 0 ~ Green: 64
* Refer to ‘Real data mapping1’. See page 26.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the picture menu.
Transmission
11. Sharpness (Command2:k)
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping1’. See page 26.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
28 Plasma Display
17. Treble (Command2:r)
GTo adjust treble.
You can also adjust treble in the sound menu.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping1’. as shown left.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
16. PIP Position (Command2:q)
GTo select sub picture position for PIP.
You can also adjust the sub picture position using PIP
POSITION button on the remote control or in the screen
menu.
Transmission
Data 0: Right down on screen
1: Left down on screen
2: Left up on screen
3: Right up on screen
[k][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
18. Bass (Command2:s)
GTo adjust bass.
You can also adjust bass in the sound menu.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping1’. as shown left.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
19. Balance (Command2:t)
GTo adjust balance.
You can also adjust balance in the sound menu.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping1’. as shown left.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
13. External Control Mode (Command2:m)
GTo lock the front panel controls on the monitor and remote
control. When setting this mode, only control the monitor
with RS-232C.
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Lock off 1: Lock on
* If you’re not using the remote control, use this mode.
When main power is on/off, external control mode is released.
[m][ ][Set ID][ ][OK][Data][x]
14. PIP / Twin (DW) (Command2:n)
GTo control PIP (Picture-in-Picture)/Twin picture.
You can also control the PIP/TWIN picture using the PIP or
Twin picture button on the remote control or in the screen
menu.
Transmission
Data 0: PIP/DW off
1: PIP (S)
2: DW1
3: DW2
4: PIP (L)
[k][n][ ][Set ID][ ][Data][Cr]
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command2:l)
GTo select OSD (On Screen Display) on/off when con-
trolling remotely.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: OSD off 1: OSD on
[l][ ][Set ID][ ][OK][Data][x]
15. PIP Sound Select (Command2:p)
GTo select main or sub sound for PIP/Twin picture.
You can also adjust main or sub sound for PIP/Twin pic-
ture using PIP SOUND button on the remote control or in
the screen menu.
Transmission
[k][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: Main image sound
1: Sub image sound
[p][ ][Set ID][ ][OK][Data][x]
* Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
64 : Step 100
Owner’s Manual 29
Own
26. Orbiter (Command2:p)
GTo control the orbiter function on/off.
You can also adjust orbiter in special menu.
Transmission
Data 0: Orbiter off
1: Orbiter on
[j][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
27. White Wash (Command2:q)
GTo control the white wash function on/off.
You can also adjust white wash in special menu.
Transmission
Data 0: White Wash off
1: White Wash on
[j][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
21. Red Adjustment (Command2:v)
GTo adjust red in color temperature.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping 2’as shown below.
[k][v][ ][Set ID][ ][Data][Cr]
Acknowledgement
[v][ ][Set ID][ ][OK][Data][x]
22. Green Adjustment (Command2:w)
GTo adjust green in color temperature.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping 2’as shown below.
[k][w][ ][Set ID][ ][Data][Cr]
Acknowledgement
[w][ ][Set ID][ ][OK][Data][x]
23. Blue Adjustment (Command2:$)
GTo adjust blue in color temperature.
Transmission
Data Min: 0 ~ Max: 64
* Refer to ‘Real data mapping 2’as shown below.
[k][$][ ][Set ID][ ][Data][Cr]
Acknowledgement
[$][ ][Set ID][ ][OK][Data][x]
24. PIP Input Select (Command2:y)
G To select input source for sub picture in PIP/Twin pic-
ture mode. You can also adjust input source for sub
picture using PIP INPUT button on remote control.
Transmission
Data 0: RGB1 (DTV)
1: COMPONENT
2: VIDEO
3: S-VIDEO
[k][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
20. Color Temperature (Command2:u)
GTo adjust color temperature.
You can also adjust ACC in the special menu.
Transmission
Data 0: Normal 1: Cool 2: Warm 3: User
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
* Real data mapping 2
0 : -10
5: -9
A: -8
2D: -1
32: 0
37: +1
5F: +9
64: +10
25. Abnormal State (Command2:z)
GTo recognize an abnormal state.
Transmission
Data 0: Normal (Power on and signal exist)
1: No signal (Power on)
2: Turn the monitor off by remote control
3: Turn the monitor off by sleep time function
4: Turn the monitor off by RS-232C function
5: 5V down
6: AC down
* This function is “read only”.
[k][z][ ][Set ID][ ][FF][Cr]
Acknowledgement
[z][ ][Set ID][ ][OK][Data][x]
30 Plasma Display
G Connect your wired remote control to the Remote port on the Monitor.
Set the CONTROL LOCK to ‘ON’on the Monitor back panel to operate Monitor with wired remote control.
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
G Configuration of frame
G Repeat code
G Lead code
• 1st frame
Low
custom code
Lead
code High
custom code Data code Data code
TC
Tf
T1
C0
Carrier frequency
FCAR = 1/TC= fOSC/12
Duty ratio = T1/TC= 1/3
• Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
G Bit description
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
• Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
• Bit “1”
2.24 ms
IR Code (NEC Format)
How to Connect
How to Connect
Remote Control IR Code (NEC Format)
Remote Control IR Code (NEC Format)
Owner’s Manual 31
UP (D)
DOWN (E)
VOL+ (G)
VOL- (F)
POWER
POWER ON
POWER OFF
MUTE
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
INPUT SELECT
RGB 1
RGB 2 (DVI input)
VIDEO
S-VIDEO
COMPONENT
SLEEP
KEY LOCK
ZOOM +
ZOOM -
MENU
OK (Á)
APC
DASP
PIP
PIP INPUT
PIP POSITION
PIP STILL
TWIN PICTURE
SOUND SELECT
Split Zoom
ARC
ARC (4:3)
ARC (16:9)
ARC (ZOOM)
AUTO CONFIG.
00H
01H
02H
03H
08H
C4H
C5H
09H
10H
11H
12H
13H
14H
15H
16H
17H
18H
19H
0BH
98H
C6H
5AH
51H
BFH
0EH
3EH
40H
41H
43H
44H
4DH
52H
60H
61H
62H
65H
6BH
6CH
7BH
79H
76H
77H
AFH
92H
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (Input RGB1 Selection)
Discrete (Input RGB2 Selection)
Discrete (Input VIDEO Selection)
Discrete (Input S-VIDEO Selection)
Discrete (Input COMPONENT Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(4:3/16:9/Zoom Mode Selection)
Discrete IR Code (Only 4:3 mode)
Discrete IR Code (Only 16:9 mode)
Discrete IR Code (Only ZOOM mode)
R/C Button
Code (Hexa) Function Note
32 Plasma Display
Troubleshooting Checklist
No output from one of
the speakers •Adjust BALANCE in the SOUND menu. (Refer to p.15)
Unusual sound from
inside the monitor
•A change in ambient humidity or temperature may result in an unusual noise
at the time of switching off or on of the monitor and does not indicate a fault
with the monitor.
No picture &
No sound
•Check whether the Monitor is turned on.
•Power cord inserted into wall outlet?
•Test the wall power outlet, plug other product’s power cord into the wall outlet
where the Monitor’s power cord was plugged in.
No or Poor color
or Poor picture
•Select COLOR in the PICTURE menu and press the VOLUME (G) button.
(Refer to p.14)
•Keep a certain distance between the Monitor and the VCR.
•Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
The remote control
doesn’t work
•Check to see if there is any object between the Plasma Display and the
remote control causing obstruction.
•Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.11)
•Install new batteries. (Refer to p.11)
Picture OK &
No sound
•Press the VOLUME (G) button.
•Sound muted? Press MUTE button.
Picture appears slowly,
after switching on
•This is normal as the image is muted during the startup process of the moni-
tor. Please contact your service centre,if the picture has not appeared after
five minutes.
Horizontal/vertical bars
or picture shaking •Check for local interference such as an electrical appliance or power tool.
Owner’s Manual 33
Product Specifications
•The specifications shown above may be changed without notice for quality improvement.
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your Monitor.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you leave your Monitor dormant for a long time (such as a vacation), it’s a good idea to unplug the
power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new Monitor. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Maintenance
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
MODEL
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Resolution
Color
Operating Temperature Range
Operating Humidity Range
Maximum Elevation
MU-42PZ40/A/B/K/R/S
40.7 / 1033
24.5 / 622
3.2 / 81
75 / 34
AC120V, 60Hz
852 x 480 (Dot)
16,770,000 (256 steps of each R, G and B)
32 ~ 104°F (0 ~ 40°C)
Less than 80%
6561 feet (2000m)
PLASMA MONITOR
OWNER’S MANUAL
Please read this owner’s manual carefully before operating the
Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and quote
this information to your dealer when you require service.
Model number :
Serial number :
MODELS : MU-42PZ44/44V
MU-42PZ44A/44VA
MU-42PZ44B/44VB
MU-42PZ44K/44VK
MU-42PZ44R/44VR
MU-42PZ44S/44VS
P/NO : 3828VA0361H (RF02LB)
