LG Electronics USA MW71PY10 Plasma Display Panel User Manual 484Aen 040903
LG Electronics USA Plasma Display Panel 484Aen 040903
Users Manual
2 Plasma Monitor
Safety Instructions
WARNING/CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
WARNING/CAUTION:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
FCC NOTICE
• A Class B digital device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Any changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod-
ification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is:
LG Electronics U.S.A., Inc
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
1-201-816-2000
http://www.lgusa.com
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
W
Warning/Caution
arning/Caution
Owner’s Manual 3
Safety Instructions
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential elec-
trical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and
observe the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation
that are built into your new product.
This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards
Association.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-
fiers)that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Safety Instructions
Safety Instructions
4 Plasma Monitor
Contents
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.
15. Outdoor Use Marking :
WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.
16. Wet Location Marking :
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
Safety Instructions continued
Safety Instructions continued
PORTABLE CART WARNING
Owner’s Manual 5
Introduction
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2~4
Introduction
Controls and Connection Options . . . . . . . . . .7~8

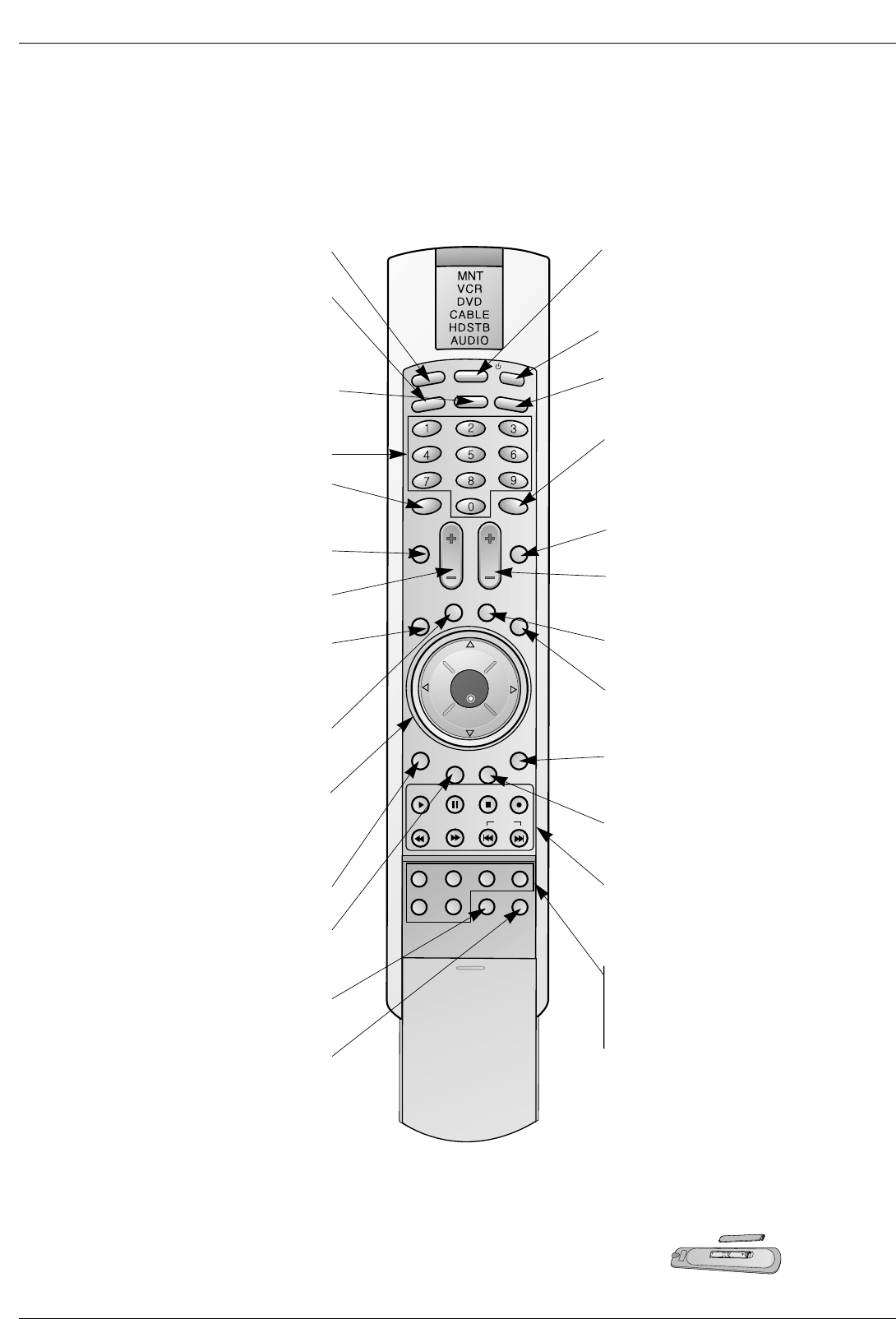

Remote Control Key Functions . . . . . . . . . . . . . .9
Installation
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

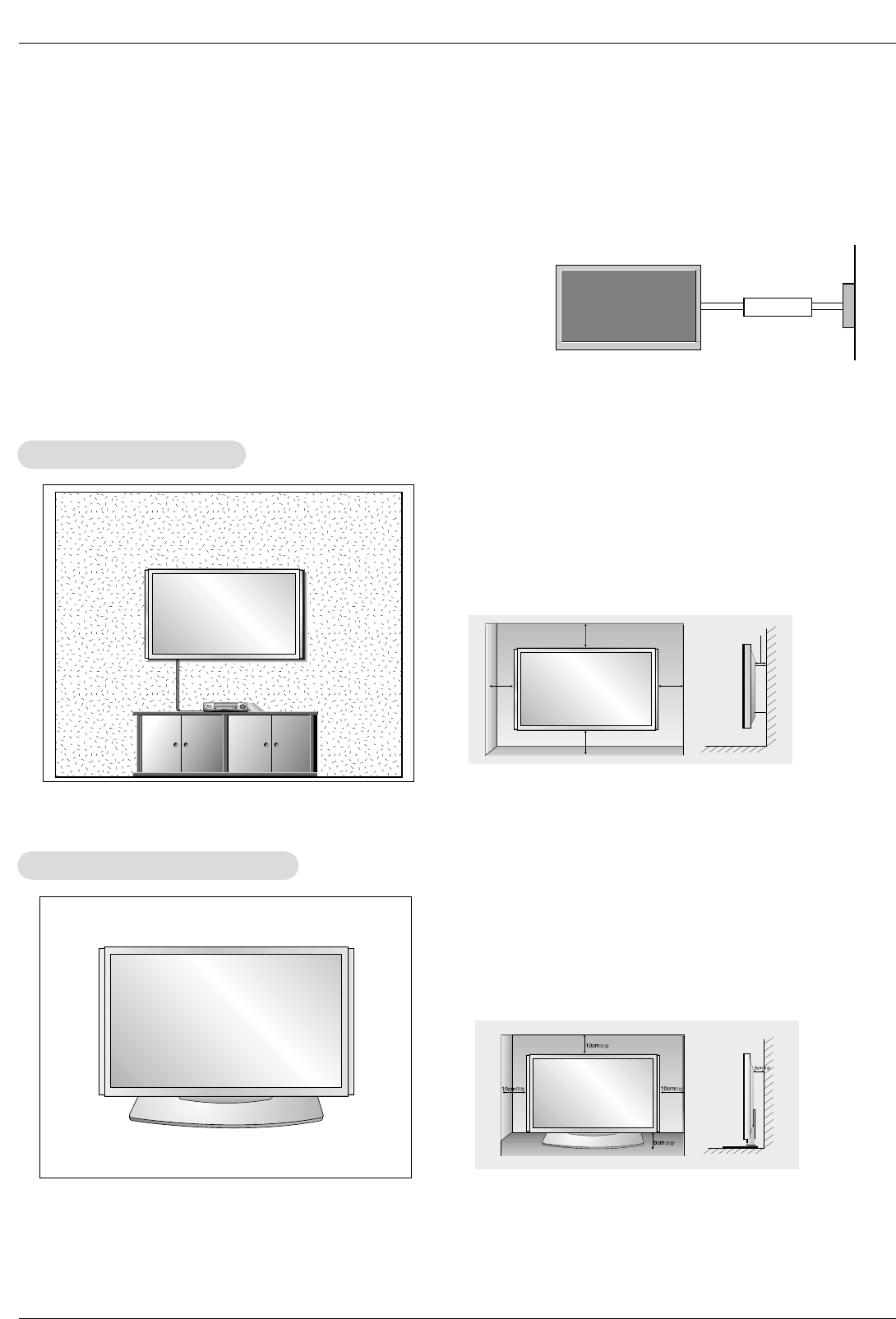

Installation Instruction . . . . . . . . . . . . . . . . . . . . . .11
External Equipment Connections . . . . . . . . . .12~17

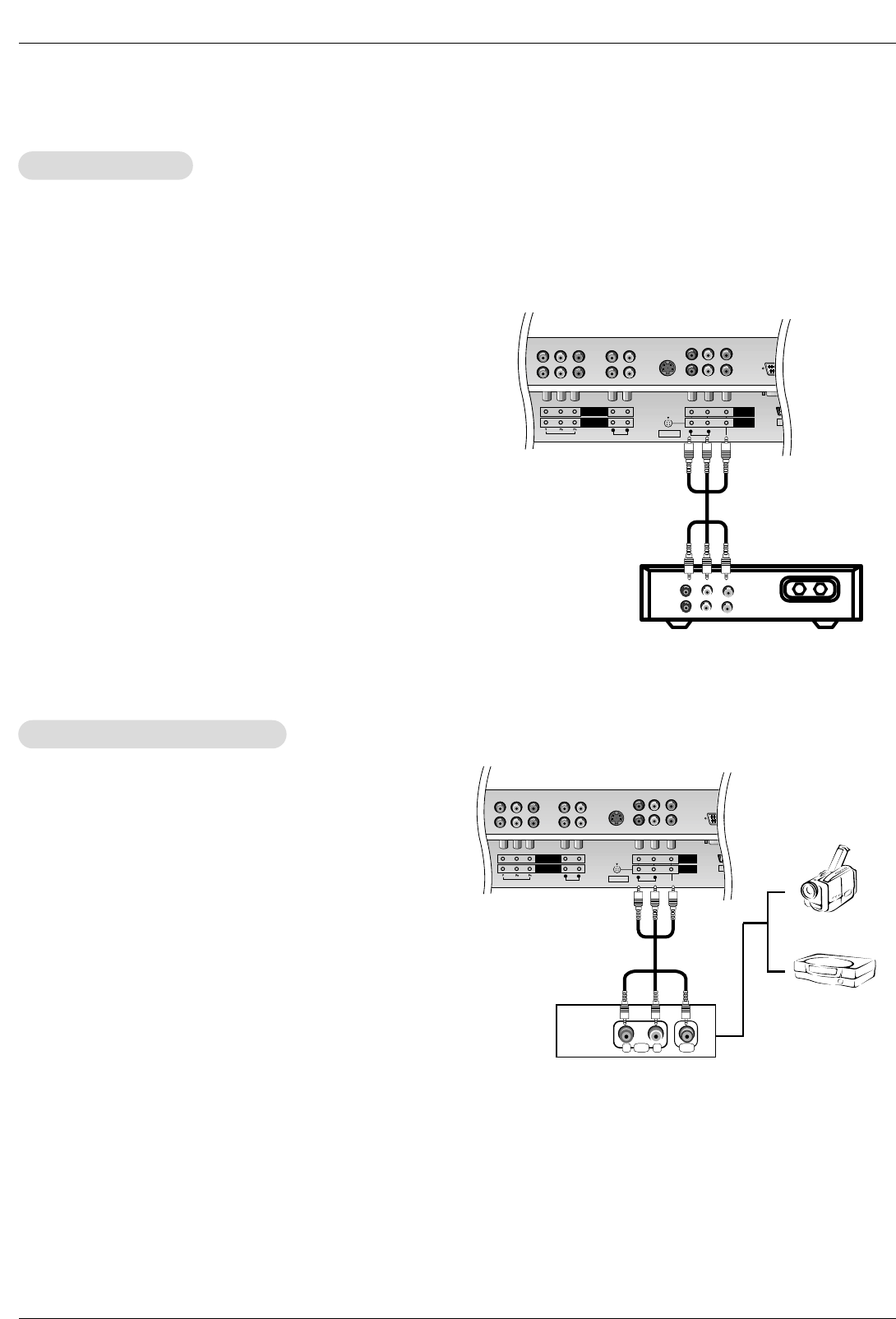

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Cable TV Setup . . . . . . . . . . . . . . . . . . . . . . . .13
External A/V Source Setup . . . . . . . . . . . . . . . .13

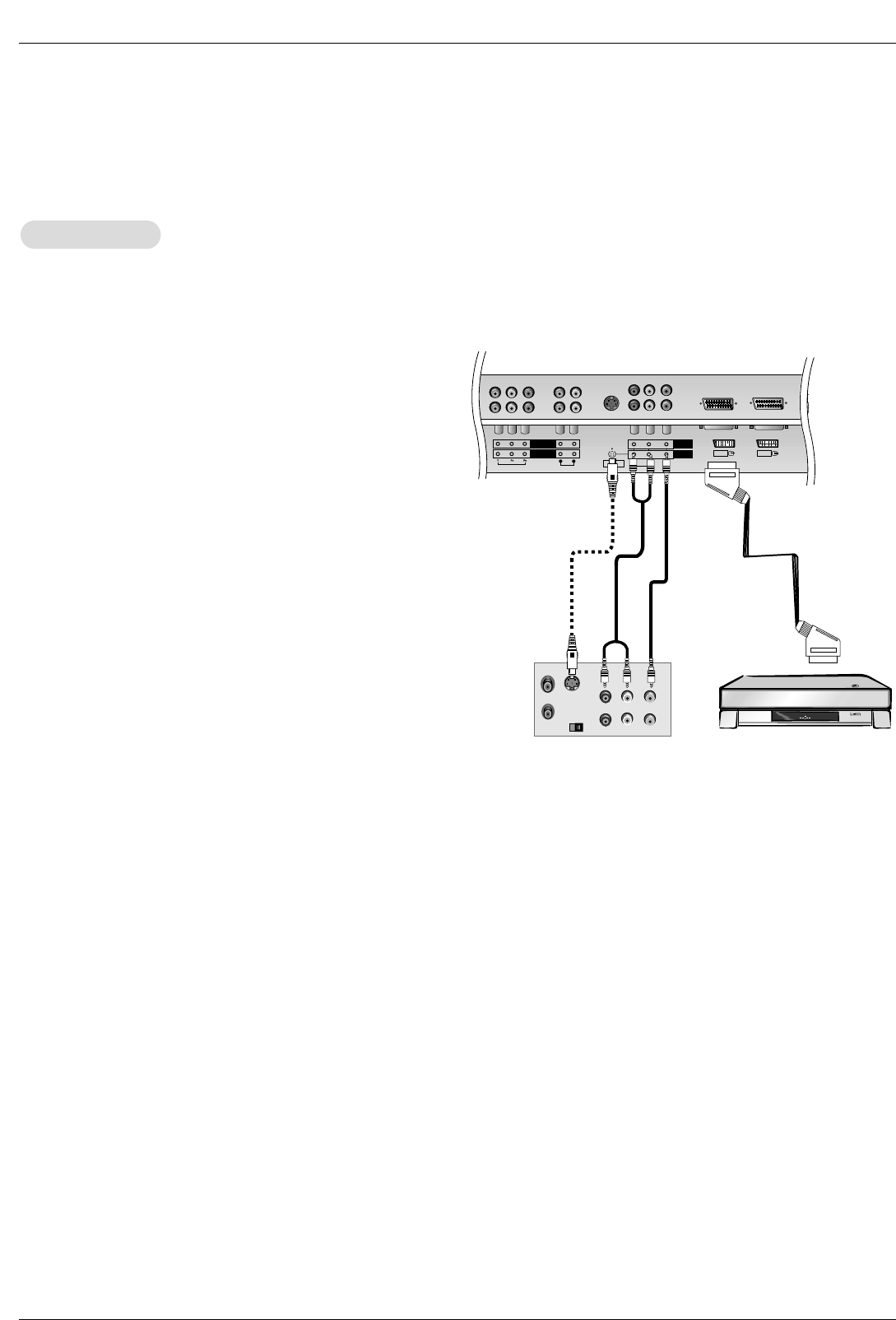

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
DTV Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

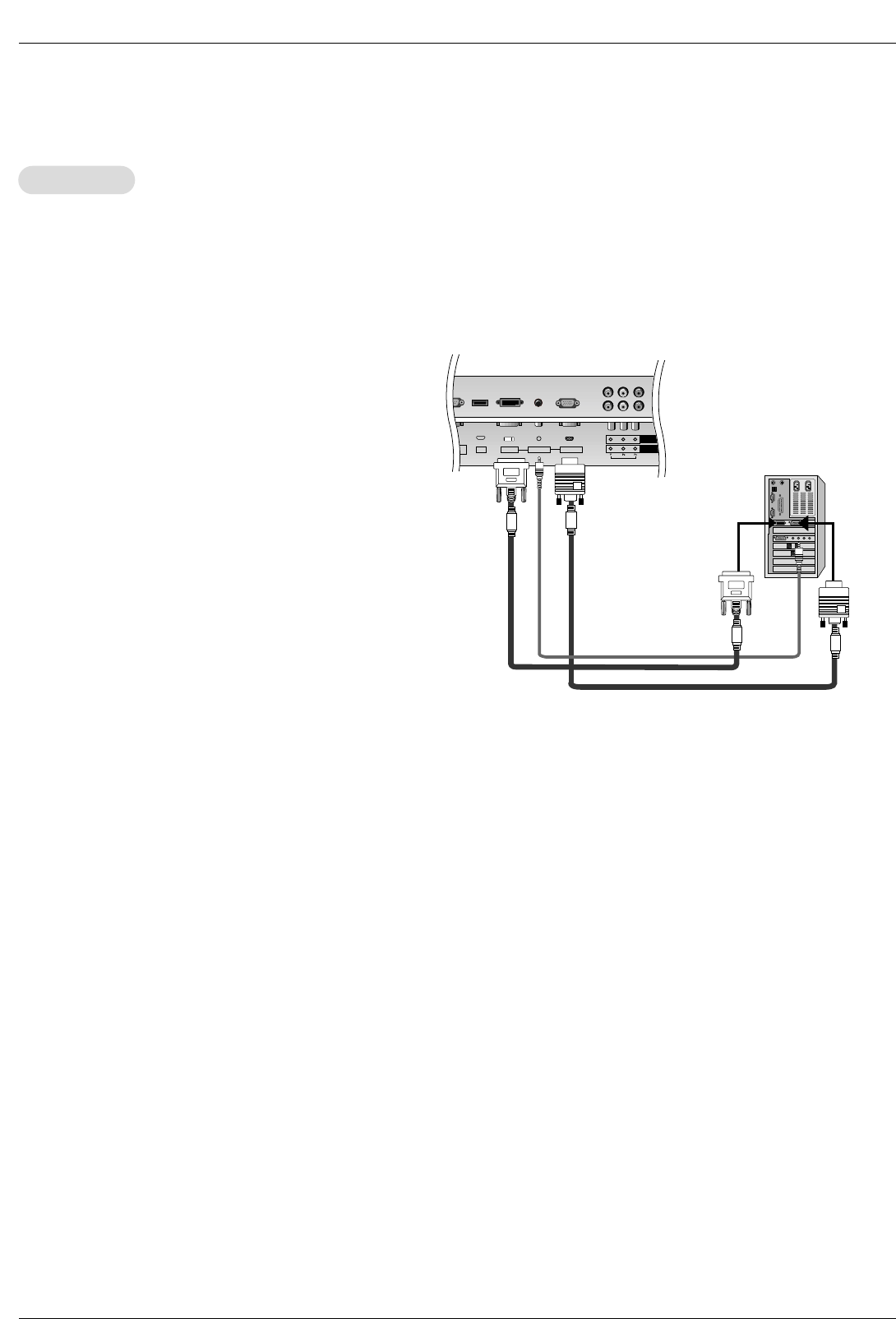

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .15~16
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Operation
Turning on the Monitor . . . . . . . . . . . . . . . . . . . . .18
Menu Language Selection . . . . . . . . . . . . . . . . . .18
Picture Menu Options
APC (Auto Picture Control) . . . . . . . . . . . . . . . .19
XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Auto Color Temperature Control . . . . . . . . . . . .19
Manual Color Temperature Control . . . . . . . . . .19
Flestone . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
sRGB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Manual Picture Control . . . . . . . . . . . . . . . . . .20
Sound Menu Options
DASP (Digital Auto Sound Processing) . . . . . . .21
Manual Sound Control . . . . . . . . . . . . . . . . . . .21
BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
AVL (Auto Volume Leveler) . . . . . . . . . . . . . . . .21
Timer Menu Options
Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .22
On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .22
Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .22

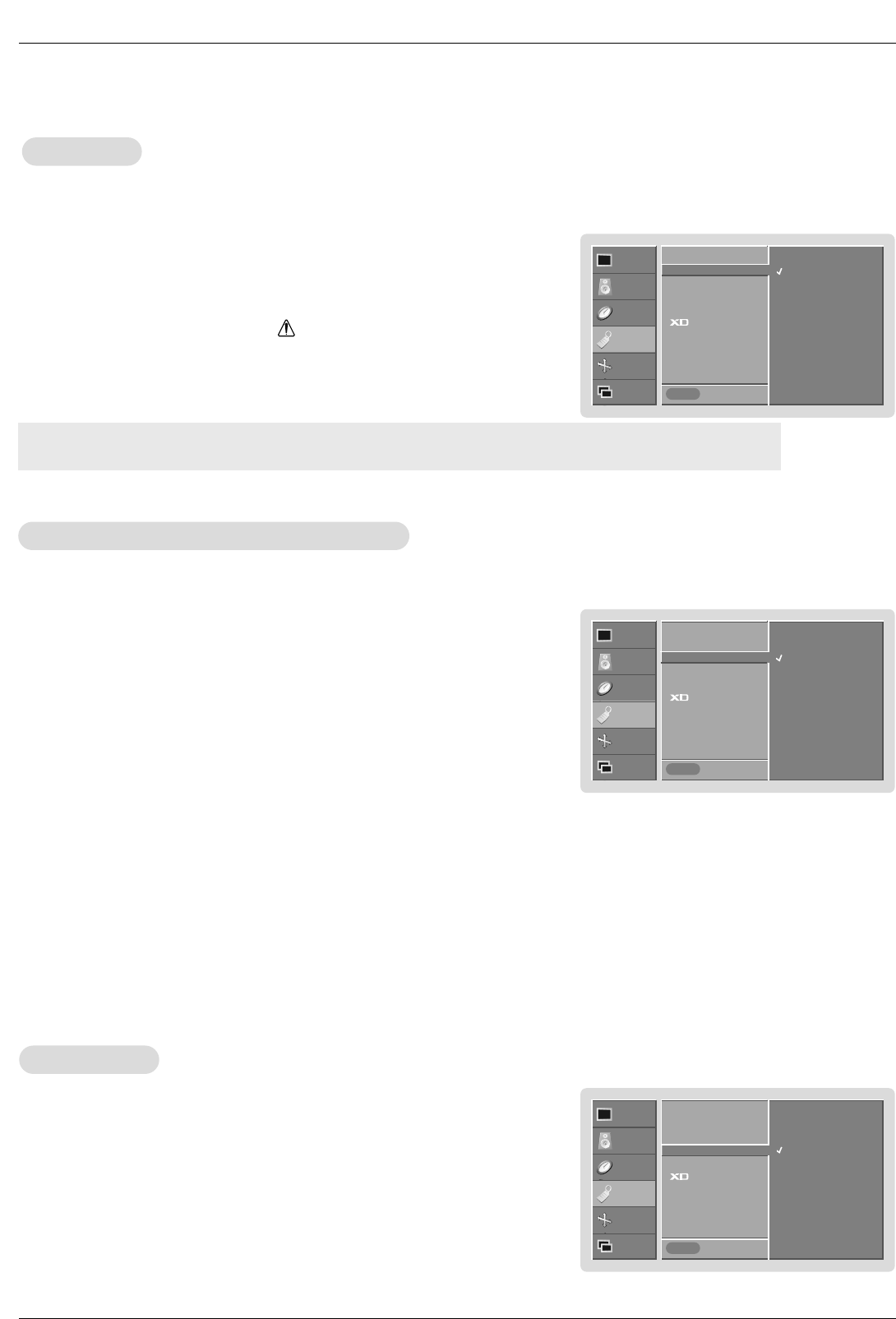

Special Menu Options
Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Low power . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
XD Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Screen Menu Options
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . .25
Setting Picture Format . . . . . . . . . . . . . . . . . . .25
Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Screen Position . . . . . . . . . . . . . . . . . . . . . . . .26
Manual Configure . . . . . . . . . . . . . . . . . . . . . . .26
Initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Selecting Wide VGA/XGA mode . . . . . . . . . . . .27

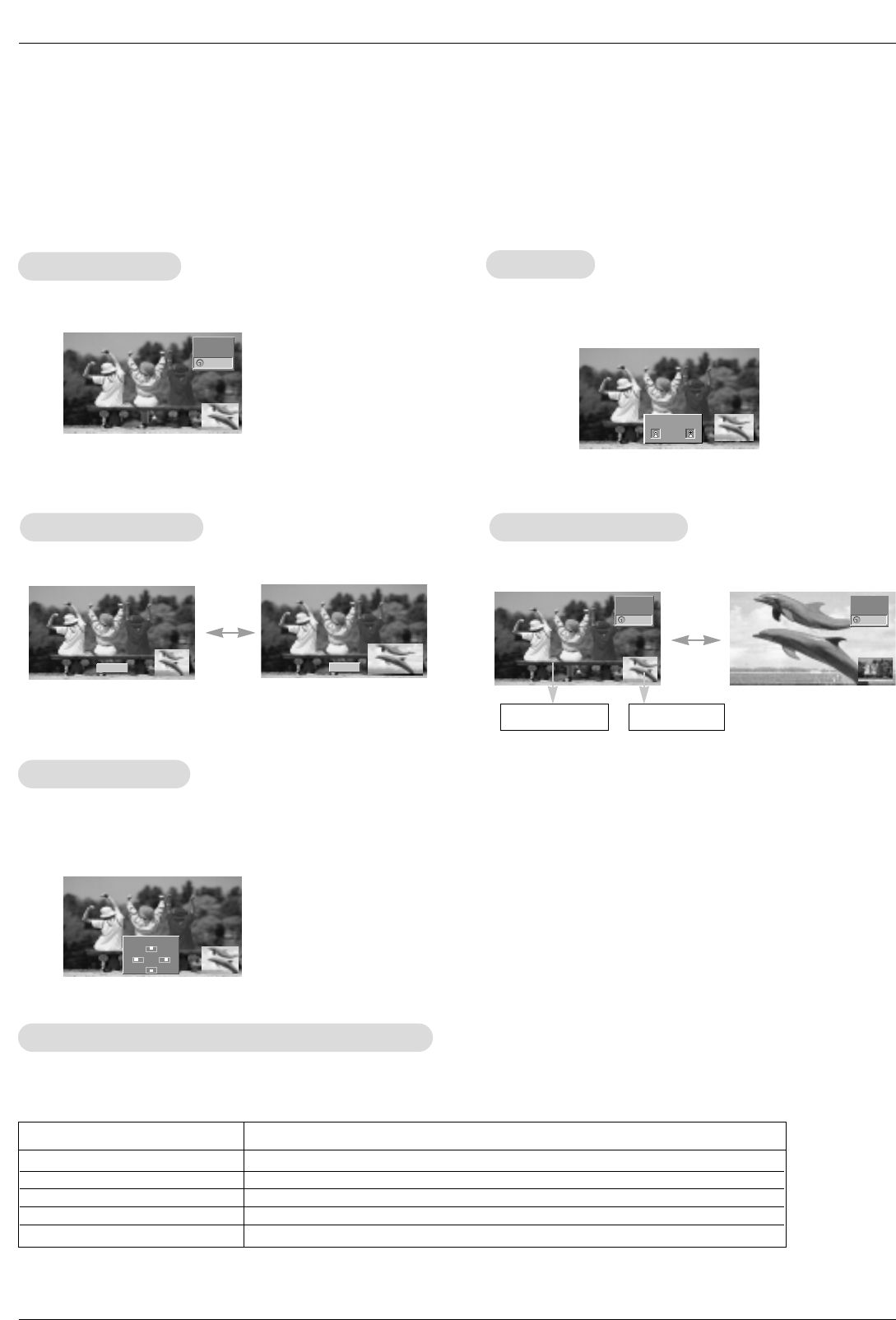

PIP (Picture-in-Picture) Feature
Watching PIP . . . . . . . . . . . . . . . . . . . . . . . . . .28
PIP Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PIP Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . .28
Swapping PIP . . . . . . . . . . . . . . . . . . . . . . . . . .28
Moving PIP . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Selecting an Input Signal Source for PIP . . . . . .28

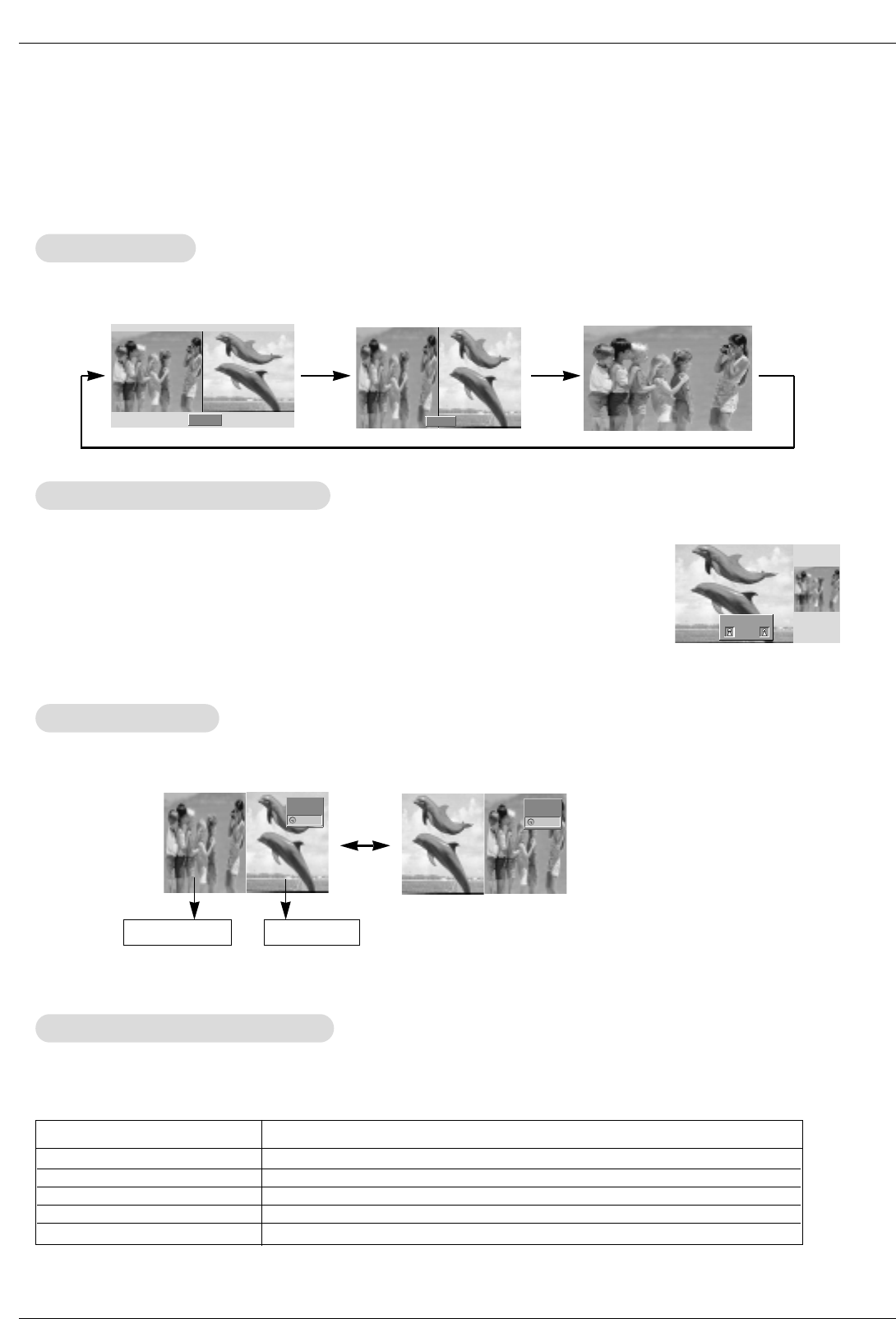

DW Setup Options
Watching DW . . . . . . . . . . . . . . . . . . . . . . . . . .29
Sub Picture Size Adjustment . . . . . . . . . . . . . . .29
Swapping the DW . . . . . . . . . . . . . . . . . . . . . . .29
Selecting a Source for the DW . . . . . . . . . . . . .29

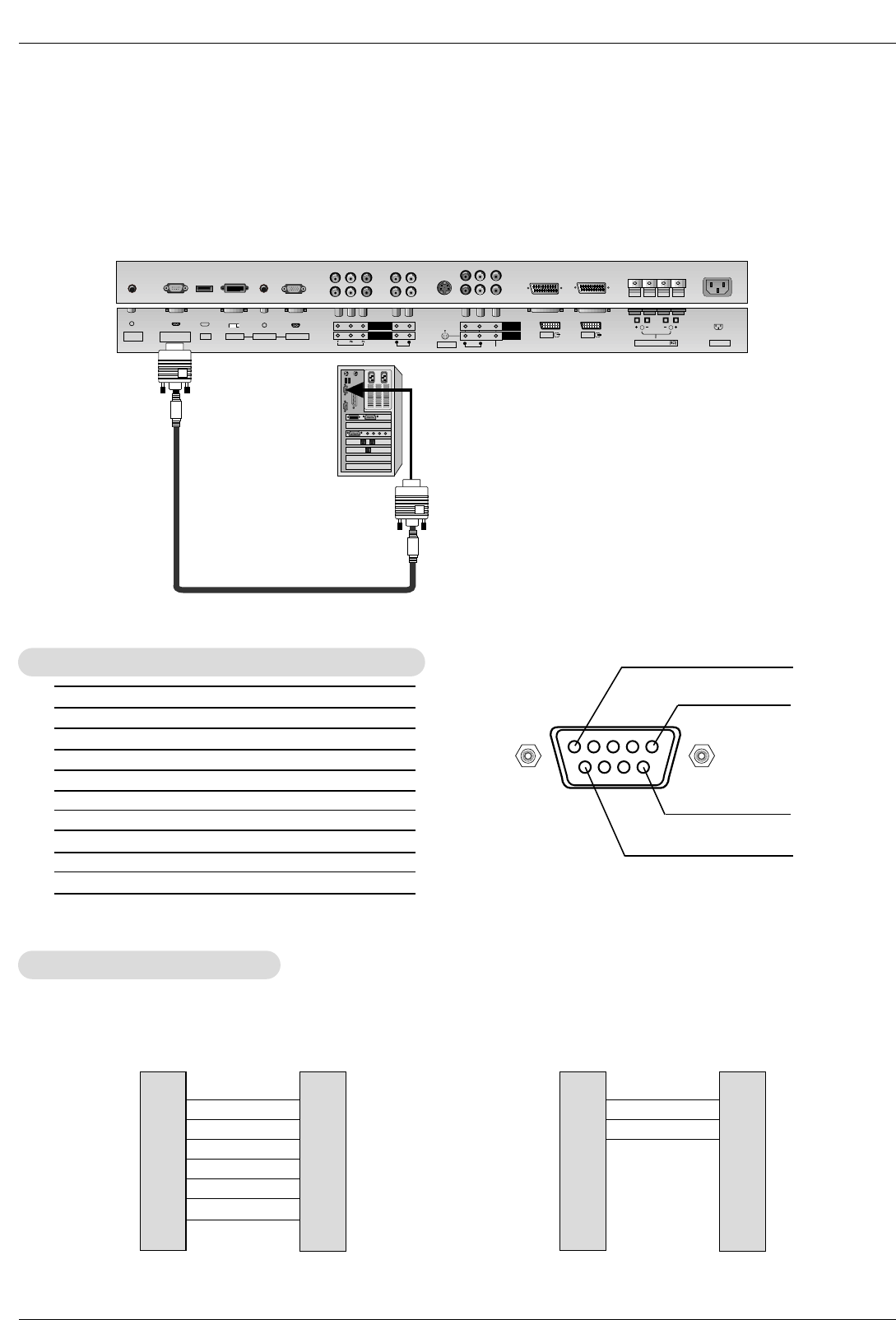

External Control Device Setup . . . . . . . . . . . . . . . .30~35
IR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36~37
Programming the remote . . . . . . . . . . . . . . . . . . . .38~40
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .41
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43~44
Contents
Contents
After reading this manual, keep it handy for future reference.
6 Plasma Monitor
Introduction
Introduction
Introduction
What is a Plasma Display Panel (PDP)?
If voltage is applied to gas within glass panels, ultraviolet rays are produced and fused with a fluorescent substance. At that
instant, light is emitted. A Plasma Display is a next generation flat Display using this phenomenon.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear and visible to viewers anywhere in the room.
Wide Screen
The screen of the Plasma Display is 60" so wide that your viewing experience is as if you are in a theater.
Multimedia
Connect your plasma display to a PC and you can use it for conferencing, games, and internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.
Versatile
The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs would
not fit.
The PDP Manufacturing Process: Why minute colored dots may be present on the PDP screen
The PDP (Plasma Display Panel) which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several minute colored dots visible on the screen should be accept-
able. This also occurs in other PDP manufacturers' products and the tiny dots appearing does not mean that this PDP is defective.
Thus a few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology is designed
to minimize cell defects during the manufacture and operation of this product.
Cooling Fan Noise
In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with
cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operat-
ing and cooling the PDP.
The fan noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during the
operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not suffi-
cient cause for the PDP to be exchanged or returned.
WARNING
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Owner’s Manual 7
Introduction

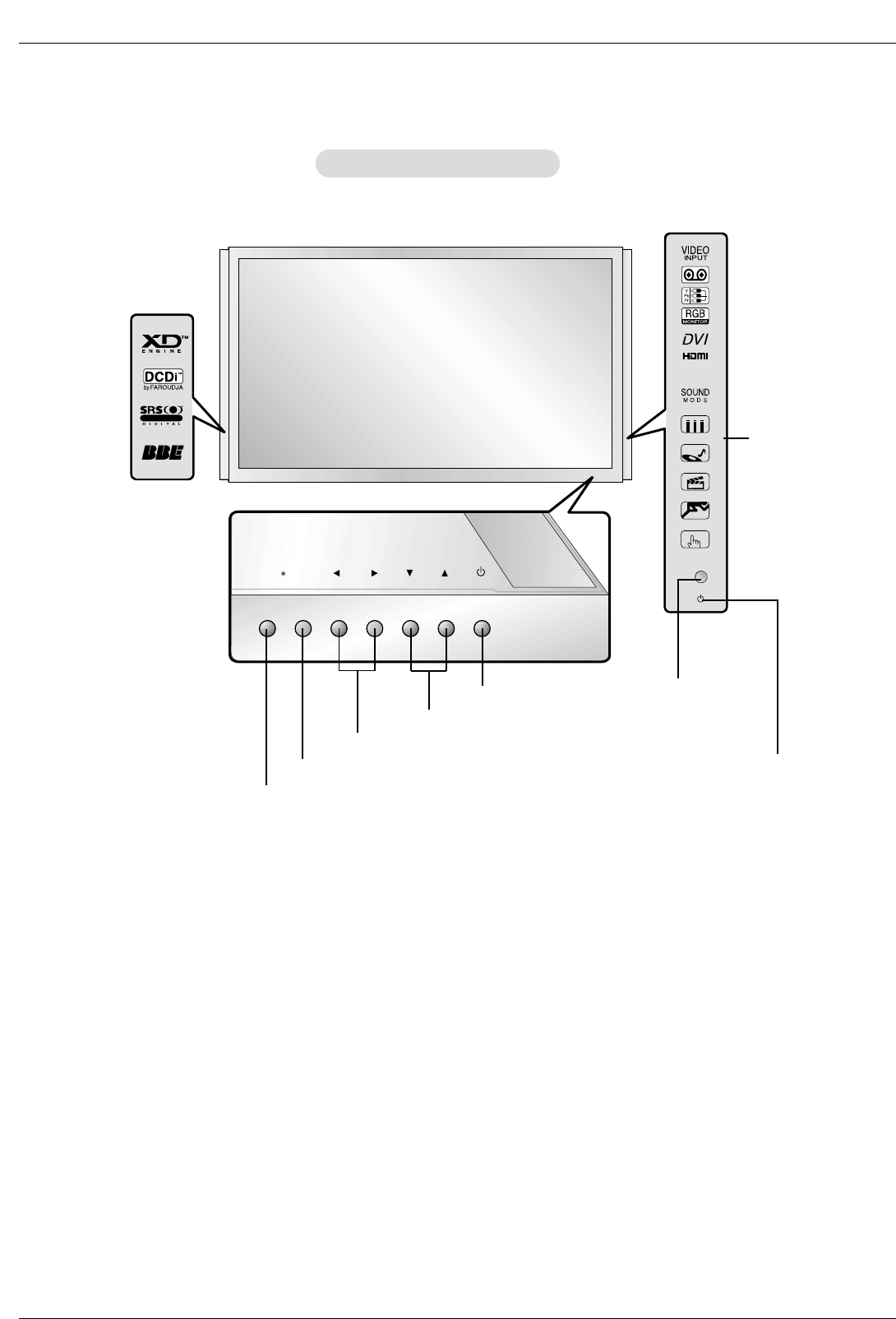

Controls
Controls
INPUT SELECT
MENU
VOL
R
TruSurround XTruSurround XT
Front Panel Controls
Front Panel Controls
MENU Button
INPUT SELECT Button
VOLUME (F,G) Buttons
E, DButtons
INDEX
Switches
LED Display
on or off.
Remote
Control
Sensor
Power Indicator
Illuminates orange in stand-
by mode, Illuminates green
when the TV is turned on.
(If power isn’t turn on in red,
contact your service center.)
Sub power Button
8 Plasma Monitor
Introduction

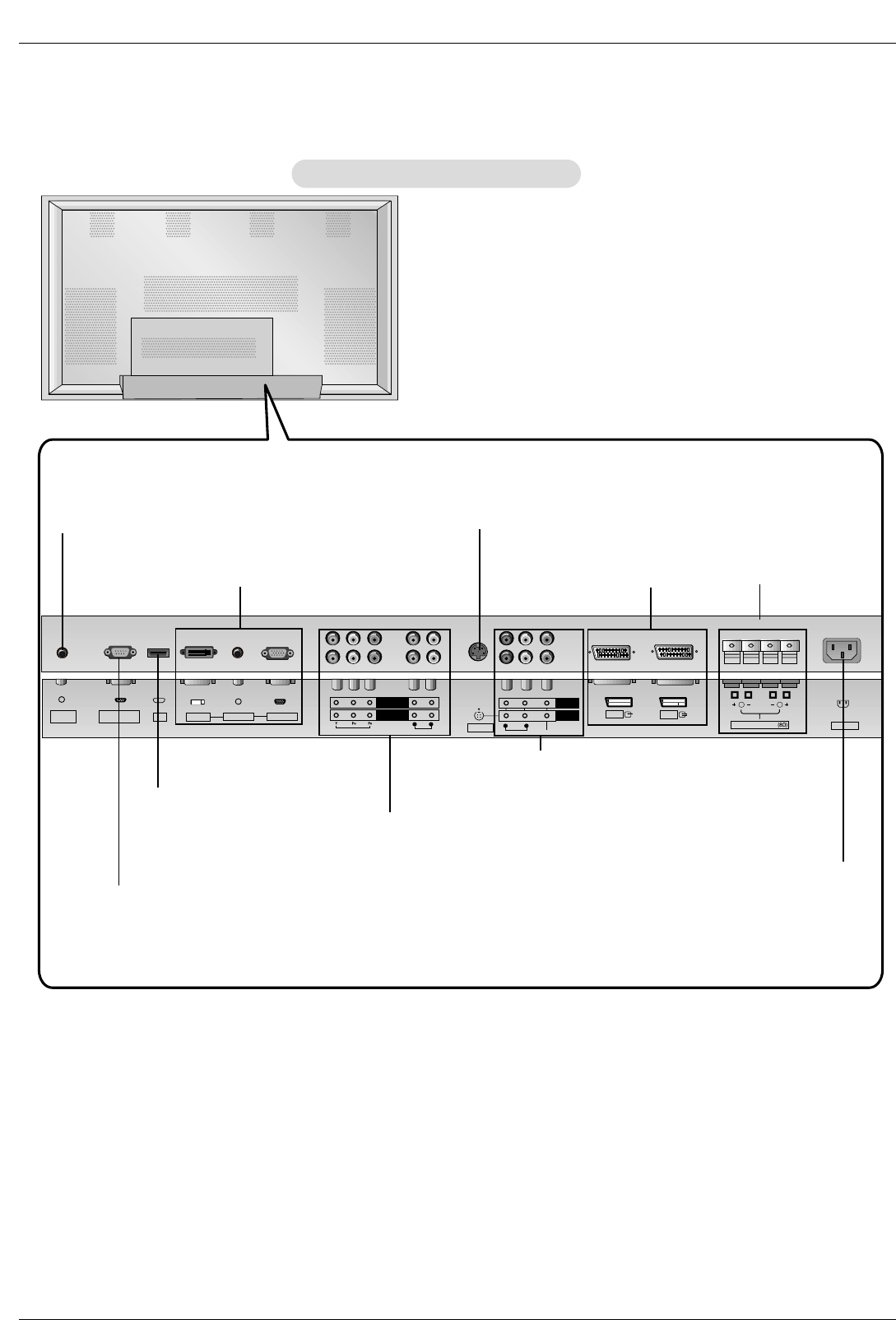

Connection Options
Connection Options
REMOTE
CONTROL
RS-232C INPUT
(CONTROL/SERVICE)
AC INPUT
DVI INPUT
AUDIO INPUT RGB INPUT
AUDIO
COMPONENT
COMPONENT
RL
VIDEO
INPUT 1
INPUT 2 VIDEO
INPUT 2
VIDEO
INPUT 1
VIDEO
MONO
AUDIO
RL
S-VIDEO
VIDEO3 VIDEO4
HDMI
R
( )
( )
( )
( )
L
EXTERNAL SPEAKER
Back Connection Panel
Back Connection Panel
EXTERNAL SPEAKER
(8 ohm output)
Connect to optional
external speaker(s).
* For further information,
refer to ‘Speaker &
Speaker Stand’manual.
Audio/Video Input 1
Connect audio/video output from
an external device to these jacks.
Component Input (1,2)
Connect a component video/audio
device to these jacks.
EURO SCART SOCKET
Connect the euro scart of
the VCR to these sockets.
Remote Control Port
Connect your wired
remote control here.
S-Video Input
Connect S-Video out from
an S-VIDEO device to the
S-VIDEO input.
Power Cord Socket
This TV operates on an AC power. The voltage is indi-
cated on the Specifications page. Never attempt to oper-
ate the TV on DC power.
RS-232C INPUT
(CONTROL/SERVICE) PORT
Connect to the RS-232C port
on a PC.
HDMI
Connect a HDMI
signal to this jack.
DVI Input/Audio Input/RGB Input
Connect the monitor output connector
from a PC to the appropriate input port.
Owner’s Manual 9
Installation
- When using the remote control, aim it at the remote control sensor on the monitor.
- Under certain conditions such as if the remote IR signal is interrupted, the remote control may not function. Press
the key again as necessary.
Remote Control Key Functions
Remote Control Key Functions
Installing Batteries
• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).
• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.
Replace cover.
LIGHT
INPUT
MODE
PIP
MUTE SLEEP
VOL CH
WIN. SIZE
WIN. POSITION
SPLIT ZOOM
SWAP
MENU
PIP INPUT ARC
EXIT
PLAY PAUSE STOP RECORD
VIDEO COM1 RGB
DVI
ENTER
HDMI
KEY LOCK INDEX
REW FF SKIP
POWER
DW
DASP
APC
COM2
LIGHT
Illuminates the remote control buttons.
INPUT
Selects: Video1-2-3-4, Component 1-2,
RGB-DTV (or RGB-PC),
DVI-DTV (or DVI-PC), HDMI input sources.
PIP
Selects the PIP mode.
NUMBER buttons
Dosen’t work for monitor mode.
APC
Adjusts the factory preset picture according
to the room.
MUTE
Switches the sound on or off.
VCR/DVD BUTTONS
Control some video cassette recorders or
DVD player ("RECORD" button is not avail-
able for DVD player).
SPLIT ZOOM
Enlarges the picture.
MODE
Selects the remote operating mode: MNT,
VCR, DVD, CABLE, HDSTB or AUDIO.
Select other operating modes, for the
remote to operate external devices.
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
DW
Selects the DW mode.
SLEEP
Sets the Sleep Timer.
SWAP
Exchanges main and sub picture
images. (Refer to p.23, 24)
DASP
To select the sound appropriate to your
viewing program character:
Flat,Music, Cinema,Sports, or User
(Refer to p.17)
THUMBSTICK
(Up/Down/Left/Right/ENTER)
Allows you to navigate the on-screen
menus and adjust the system settings to
your preference.
CHANNEL UP/DOWN
Selects available channels found with Auto
program. Dosen’t work for monitor mode.
EXIT
Clears all on-screen displays and returns to
TV viewing from any menu.
ARC
Changes the picture format. (Refer to p.20)
VOLUME UP/DOWN
Increases/decreases the sound level.
WIN.POSITION
Moves the sub picture.
MENU
Brings up the main menu to the screen.
WIN. SIZE
Adjusts the sub picture size.
PIP INPUT
Selects the input source for
the sub picture. VIDEO/COM1/COM2/RGB/DVI/HDMI
Selects: Video1-2-3-4, Component 1-2,
RGB-DTV (or RGB-PC), DVI-DTV (or DVI-
PC), HDMI input sources.
KEY LOCK
Switches the key lock on or off.
INDEX
Switches LED Display on or off.
10 Plasma Monitor
Installation
Installation
Installation

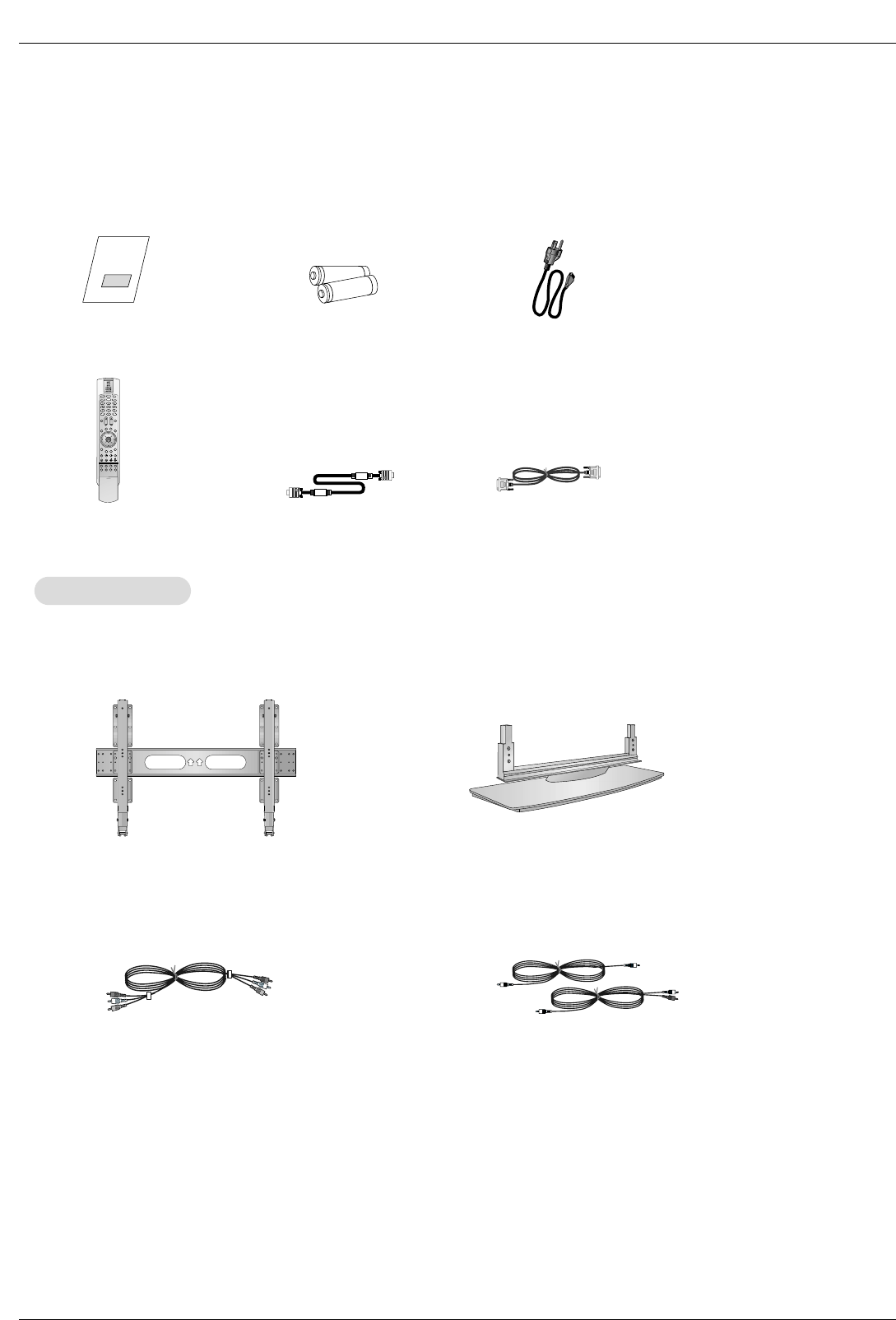

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.
Owner’s Manual
1.5V
1.5V
Batteries Power Cord
LIGHT
INPUT
MODE
PIP
MUTE SLEEP
VOL CH
WIN. SIZE
WIN. POSITION
SPLIT ZOOM
SWAP
MENU
PIP INPUT ARC
EXIT
PLAY PAUSE STOP RECORD
VIDEO COM1 RGB
DVI
ENTER
HDMI
KEY LOCK INDEX
REW FF SKIP
POWER
DW
DASP
APC
COM2
Remote Control
Video cables Audio cables
- Optional extras can be changed or modified for quality improvement without any notification new optional extras can be added.
- Contract your dealer for buying these items.
Option Extras
Option Extras
Tilt wall mounting bracket Desktop stand
404250 40 42 50
D-sub 15 pin cable DVI computer cable
Owner’s Manual 11
Installation
4 inches
4 inches
4 inches4 inches
2 inches
W
Wall Mount Installation
all Mount Installation
For proper ventilation, allow a clearance of 4” on each
side and 2” from the wall. Detailed installation instruc-
tions are available from your dealer, see the optional
Wall Mounting Bracket Installation and Setup Guide.
Installation Instructions
Installation Instructions
•The Monitor can be installed in different ways such as on a wall, or on a desktop etc.
•Install this monitor only in a location where adequate ventilation is available.
GROUNDING
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
Power
Supply
Short-circuit
Breaker
Desktop Pedestal Installation
Desktop Pedestal Installation
For proper ventilation, allow a clearance of 4” on each
side and the top, 2.36” on the bottom, and 2” from the
wall. Detailed installation instructions are included in the
optional Desktop Stand Installation and Setup Guide
available from your dealer.
12 Plasma Monitor
Installation
External Equipment Connections
External Equipment Connections
NOTE: Not all cables shown are included with the plasma display.
- To avoid picture noise (interference), leave an adequate distance between the VCR and Monitor
- Use the ISM Method feature to avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still
picture from a VCR. If the 4:3 picture format is used; the fixed image may remain visible on the screen.
How to connect
1. Connect the audio and video cables from the VCR's out-
put jacks to the TV input jacks, as shown in the figure.
When connecting the TV to VCR, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
2. If you connect an S-VIDEO output from VCR to the S-
VIDEO input, the picture quality is improved; compared to
connecting a regular VCR to the Video input.
3. If you connect the Euro scart socket of the VCR to the
Euro scart socket of the set.
Mono VCR: Connect the video output cable from the VCR
to the VIDEO input on the monitor.
S-VIDEO VCR: Connect the S-Video output cable from
the VCR to the S-VIDEO input on the monitor. (Note that
S-Video offers higher quality).
How to use
1. Insert a video tape into the VCR and press PLAY on the
VCR.
(Refer to the VCR owner’s manual.)
2. Use the INPUT button on the remote control to select
Video 1 or Video 3.
VCR Setup
VCR Setup
AUDIO
COMPONENT
COMPONENT
RL
VIDEO
INPUT 1
INPUT 2 VIDEO
INPUT 2
VIDEO
INPUT 1
VIDEO
MONO
AUDIO
RL
S-VIDEO
VIDEO3 VIDEO4
S-VIDEO OUT
IN
(R) AUDIO (L) VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
VCR
Owner’s Manual 13
Installation
External Equipment Connections
External Equipment Connections
- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming.
The monitor cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the Monitor.
- For further information regarding cable TV service, contact your local cable TV service provider(s).
How to connect
1. Connect the audio and video cables from the Cable Box's output
jacks to the monitor input jacks, as shown in the figure.
When connecting the monitor to a Cable Box, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
Or, connect the Euro scart socket of the Cable box to the Euro scart
socket of the set.
How to use
1. Use the INPUT button on the remote control to select Video 1.(If
connected to VIDEO 2 or VIDEO 3, select the Video 2 or Video 3
input source.)
2. Select your desired channel with the remote control for cable box.
Cable
Cable TV Setup
TV Setup
AUDIO
COMPONENT
COMPONENT
RL
VIDEO
INPUT 1
INPUT 2 VIDEO
INPUT 2
VIDEO
INPUT 1
VIDEO
MONO
AUDIO
RL
S-VIDEO
VI
D
TV
VCR RF Cable
(R) AUDIO (L) VIDEO
Cable Box
How to connect
1. Connect the audio and video cables from the external
equipment's output jacks to the monitor input jacks, as
shown in the figure.
When connecting the monitor to external equipment, match
the jack colors (Video = yellow, Audio Left = white, and
Audio Right = red).
Or, connect the Euro scart socket of the External A/V to the
Euro scart socket of the set.
How to use
1. Use the INPUT button on the remote control to select
Video1.(If connected to VIDEO 2 or VIDEO 3, select the
Video 2 or Video 3 input source.)
2. Operate the corresponding external equipment. Refer to
external equipment operating guide.
External
External A/V Source Setup
A/V Source Setup
AUDIO
COMPONENT
COMPONENT
RL
VIDEO
INPUT 1
INPUT 2 VIDEO
INPUT 2
VIDEO
INPUT 1
VIDEO
MONO
AUDIO
RL
S-VIDEO
VI
D
RL
AUDIO VIDEO
Video Game Set
Camcorder
14 Plasma Monitor
Installation
•Component Input ports
To get better picture quality, connect a DVD
player to the component input ports as shown
below.
- To watch digitally broadcast programs, purchase
and connect a digital set-top box.
- This monitor supports HDCP (High-bandwidth
Digital Contents Protection) protocol for DVI DTV
(480p,720p,1080i) mode.
How to connect
1. Use the monitor’s COMPONENT (Y, PB, PR)
INPUT, RGB, DVI or HDMI jack for video connec-
tions, depending on your set-top box connector.
Then, make the corresponding audio connec-
tions.
How to use
1. Turn on the digital set-top box. (Refer to the
owner’s manual for the digital set-top box.)
2. Use INPUT on the remote control to select
Component 1, RGB, DVI or HDMI.
DTV Setup
DTV Setup
Component ports of the
Monitor YPBPR
Video output ports
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How to connect
1. Connect the DVD video outputs to the COM-
PONENT (Y, PB, PR) or HDMI INPUT jacks
and connect the DVD audio outputs to the
AUDIO INPUT jacks on the monitor, as shown
in the figure.
2. If your DVD only has an S-Video output jack,
connect this to the S-VIDEO input on the mon-
itor and connect the DVD audio outputs to the
AUDIO INPUT jacks on the monitor, as shown
in the figure.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT button on the remote control to
select Component 1 or HDMI. (If connected to
S-VIDEO, select the Video 1 external input
source.)
3. Refer to the DVD player's manual for operat-
ing instructions.
DVD Setup
DVD Setup
N
PUT
RVICE)
DVI INPUT
AUDIO INPUT RGB INPUT
AUDIO
COMPONENT
COMPONENT
RL
VIDEO
INPUT 1
INPUT 2 VIDEO
INPUT 2
VIDEO
INPUT 1
VIDEO
MONO
AUDIO
RL
S-VIDEO
VI
D
HDMI
BR
(R) AUDIO (L)
RGB-DTV OUTPUT
(R) AUDIO (L)
DVI-DTV OUTPUT
HDMI OUTPUT
P
UT
V
ICE)
DVI INPUT
AUDIO INPUT RGB INPUT
AUDIO
COMPONENT
COMPONENT
RL
VIDEO
INPUT 1
INPUT 2 VIDEO
INPUT 2
VIDEO
INPUT 1
VIDEO
MONO
AUDIO
RL
S-VIDEO
VI
D
HDMI
BR
(R) AUDIO (L) (R) AUDIO (L)
S-VIDEO
HDMI OUTPUT
DVD
Digital Set-top Box
or
or
Signal
480i
480p
720p
1080i
1080p
O O X X X
O O O O O
O O O O O
O O O O O
X X O X X
Component1 Component2 RGB-DTV DVI-DTV HDMI
Owner’s Manual 15
Installation
How to connect
1. To get the best picture quality, adjust the PC
graphics card to a 1280x1024, 60Hz. Resolutions
over UXGA cannot be displayed.
2. Use the monitor’s RGB INPUT or DVI (Digital
Visual Interface) port for video connections,
depending on your PC connector.
If the graphic card on the PC does not output ana-
log and digital RGB simultaneously, connect only
one of either RGB INPUT or DVI INPUT to display
the PC on the monitor.
If the graphic card on the PC does output analog
and digital RGB simultaneously, set the monitor to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the monitor.)
3. Then, make the corresponding audio connections.
If using a sound card, adjust the PC sound as
required.
How to use
1. Turn on the PC and the monitor.
2. Turn on the display by pressing the POWER button on the monitor's remote control.
3. Use the INPUT button on the remote control to select RGB or DVI.
4. Check the image on your monitor. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC
graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
NOTES: • Use a DVI cable.
• Avoid keeping a fixed image on the monitor's screen for a long period of time. The fixed image may become
permanently imprinted on the screen. Use the Orbiter screen saver when possible.
• The synchronization input form for Horizontal and Vertical frequencies is separate.
PC Setup
PC Setup
C
INPUT
S
ERVICE)
DVI INPUT
AUDIO INPUT RGB INPUT
COMPONE
N
COMPONE
N
VIDEO
INPUT 1
INPUT 2
HDMI
- This monitor provides Plug and Play capability, meaning that the PC adjusts automatically to its settings. The monitor sends
configuration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data Channel
(DDC) protocol.
- The monitor perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. In this case, change the screen scanning
rate for the graphic card.
External Equipment Connections
External Equipment Connections
16 Plasma Monitor
Installation
Monitor Display Specifications (RGB-PC / DVI-PC Mode)
Resolution
720x400
640x480
800x600
848x480
Horizontal
Frequency(KHz)
31.469
37.927
31.469
35.000
37.861
37.500
43.269
35.156
37.879
46.875
53.674
49.725
31.500
35.000
37.500
31.500
35.000
37.500
48.363
56.476
60.023
54.348
63.995
67.500
60.000
63.981
80.000
47.700
59.625
47.700
59.625
70.08
85.03
59.94
66.66
72.80
75.00
85.00
56.25
60.31
75.00
85.06
74.55
60.00
70.00
75.00
60.00
70.00
75.00
60.00
70.06
75.02
60.05
70.01
75.00
60.00
60.02
75
60.00
75.02
60.00
75.02
Vertical
Frequency(Hz)
832x624
1024x768
852x480
1152x864
1280x960
1280x1024
1360x768
1366x768
Owner’s Manual 17
Installation
In This Mode, the Supported TV SET Resolution Specification
- 1920 x 1080I @ 59.94Hz / 60Hz
- 1280 x 720P @ 59.94Hz / 60Hz
- 720 x 480P @ 59.94Hz / 60Hz

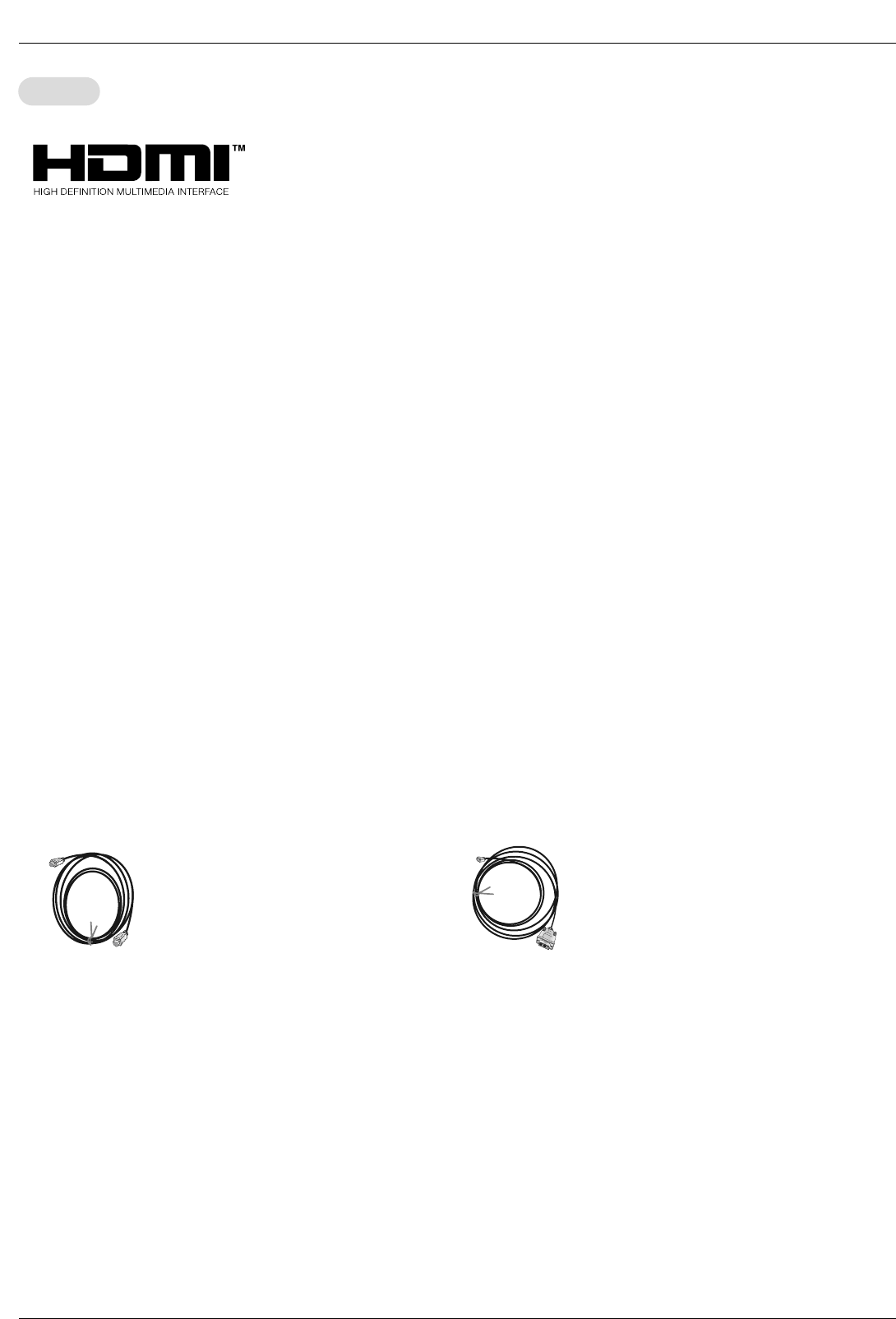

HDMI
HDMI
- HDMITM, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."
- This DTV can receive the High-Definition Multimedia Interface(HDMI) or Input of Digital Visual Interface(DVI).
- This DTV supports HDCP(High-bandwidth Digital Contents Protection) Protocol for DTV(480p, 720p, 1080i) modes.
- When you Connect with HDMI Source Devices (DVD Player or Set Top Box) supporting Auto HDMI function, automatically, support
Plug & Play and then set the HDMI Source Devices(1920 x 1080i). After reading in HDMI Source Devices using Display Data
Channel(DDC) Protocol, EDID stored in DTV is used. If HDMI Source Devices not supported Auto HDMI/DVI is been, the
Resolution is setted, manually.
- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 1920 x 1080i.
- When Source Devices have DVI Output Connector, you must connect audio with separated cable.(Refer to <How to connect>)
How to connect
1. When Source Devices(DVD Player or Set Top Box) support HDMI.
- If Source Devices have HDMI Output Connector, Source Devices connect to DTV with HDMI Cable .(not supplied with the product).
- If Source Devices support Auto HDMI, automatically, Source Devices divert output resolution in 1920 x 1080i. But if not, resolution
divert Manually Setting for reference Manual of Source Devices.
- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 1920 x 1080i.
- Because HDMI sends Digital Video and Audio with one cable, need not especial Audio Cable for using HDMI Cable.
2. When Source Devices(DVD Player or Set Top Box) supports DVI.
- If Source Devices have DVI Output Connector, Source Devices connect to DTV with HDMI to DVI Cable (not supplied with the product).
- If Source Devices support Auto DVI, automatically, Source Devices divert output resolution in 1920 x 1080i. But if not, resolution
divert Manually Setting for reference Manual of Source Devices.
- To get the best picture quality, adjust the DVD Player or Set Top Box output resolution to 1920 x 1080i.
- In this case, Audio use other cable. When Source Devices have Fiber Optic Digital Audio Output Connector, Digital Audio DVI
Input(DVI) of DTV connect to Fiber Optic Digital Audio Cable (not supplied with the product) or when Source Devices have Analog
Audio Output Connector, RGB/DVI Audio Input of DTV connect to Audio Cable (not supplied with the product). And then you can
listen to normal Audio.
How to use
1. Connect the HDMI Source Devices(DVD Player or Set Top Box) and the TV SET.
2. Turn on the display by pressing the POWER button on the TV SET and HDMI Source Devices remote control.
3. Check the image on your TV SET. There may be noise associated with the resolution, vertical pattern, contrast or brightness in
HDMI Source Devices. If noise is present, change the HDMI Source Devices to another resolution, change the refresh rate or
adjust the brightness and contrast on the menu until the picture is clear.
Notes:
- Avoid keeping a fixed image on the TV SET screen for a long period of time. The fixed image may become permanently imprint-
ed on the screen. Use the Orbiter screen saver when possible.
- In case HDMI Source Devices is not connected Cable or poor cable connection, "NO SIGNAL" OSD display in HDMI Input.
Reference
Cable sample
HDMI Cable (not supplied with the product) HDMI to DVI Cable (not supplied with the product)
18 Plasma Monitor
Operation
Operation
Operation

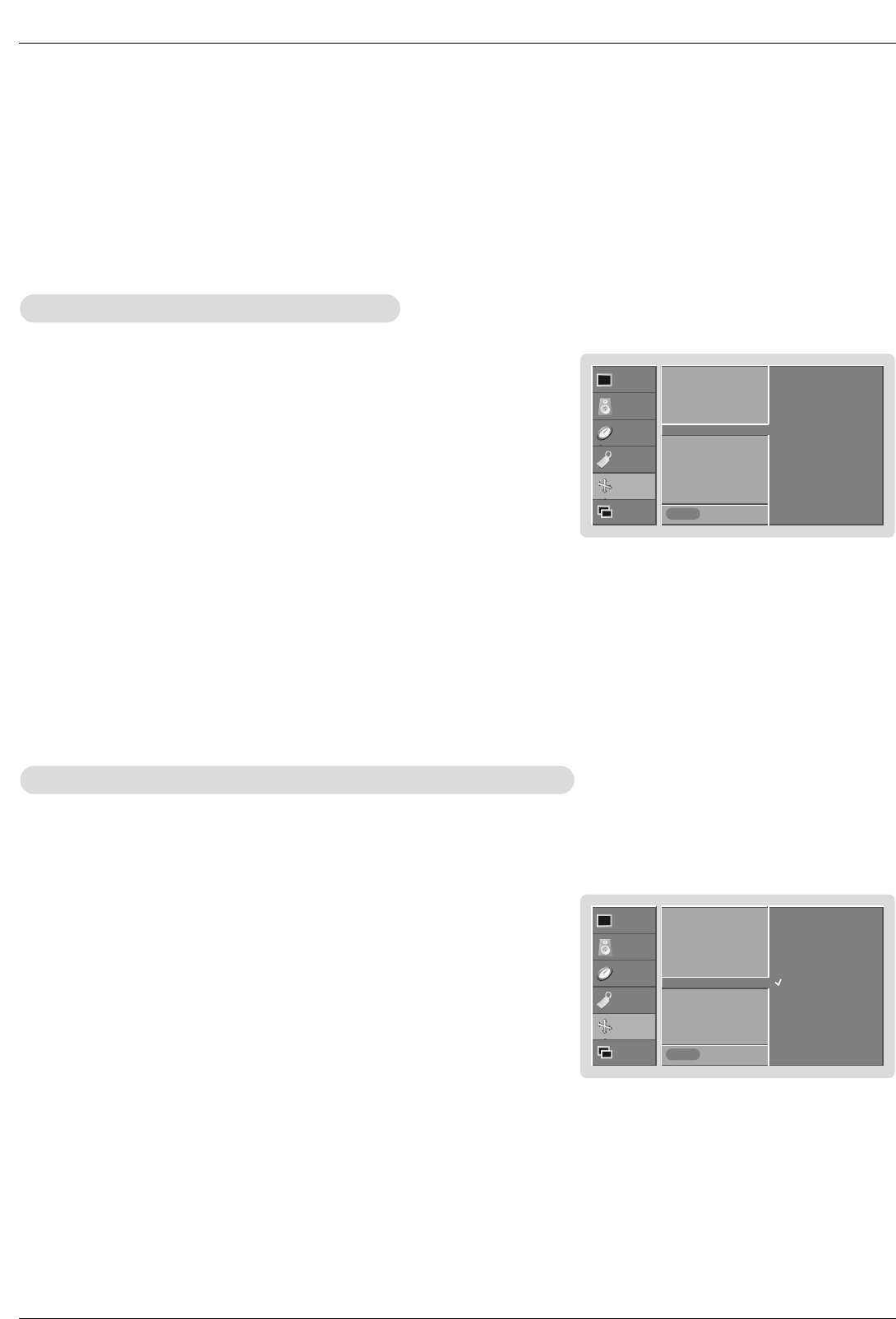

Menu Language Selection
Menu Language Selection
T
Turning on the Monitor
urning on the Monitor
Turning on the Monitor just after installation
1. Connect power cord correctly. At this moment, the Monitor is switched to standby mode.
2. Press the INPUT SELECT or button on the Monitor or press the POWER, INPUT button on
the remote control and then the Monitor will switch on.
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use D/ Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D/ Ebutton to select Language.
3. Press the Gbutton and then use D/ Ebutton to select your desired language.
From this point on, the on-screen menus will be shown in the language of your choice.
4. Press the ENTER button to save.
• Press the MENU button to return to the previous menu.
Owner’s Manual 19
Operation

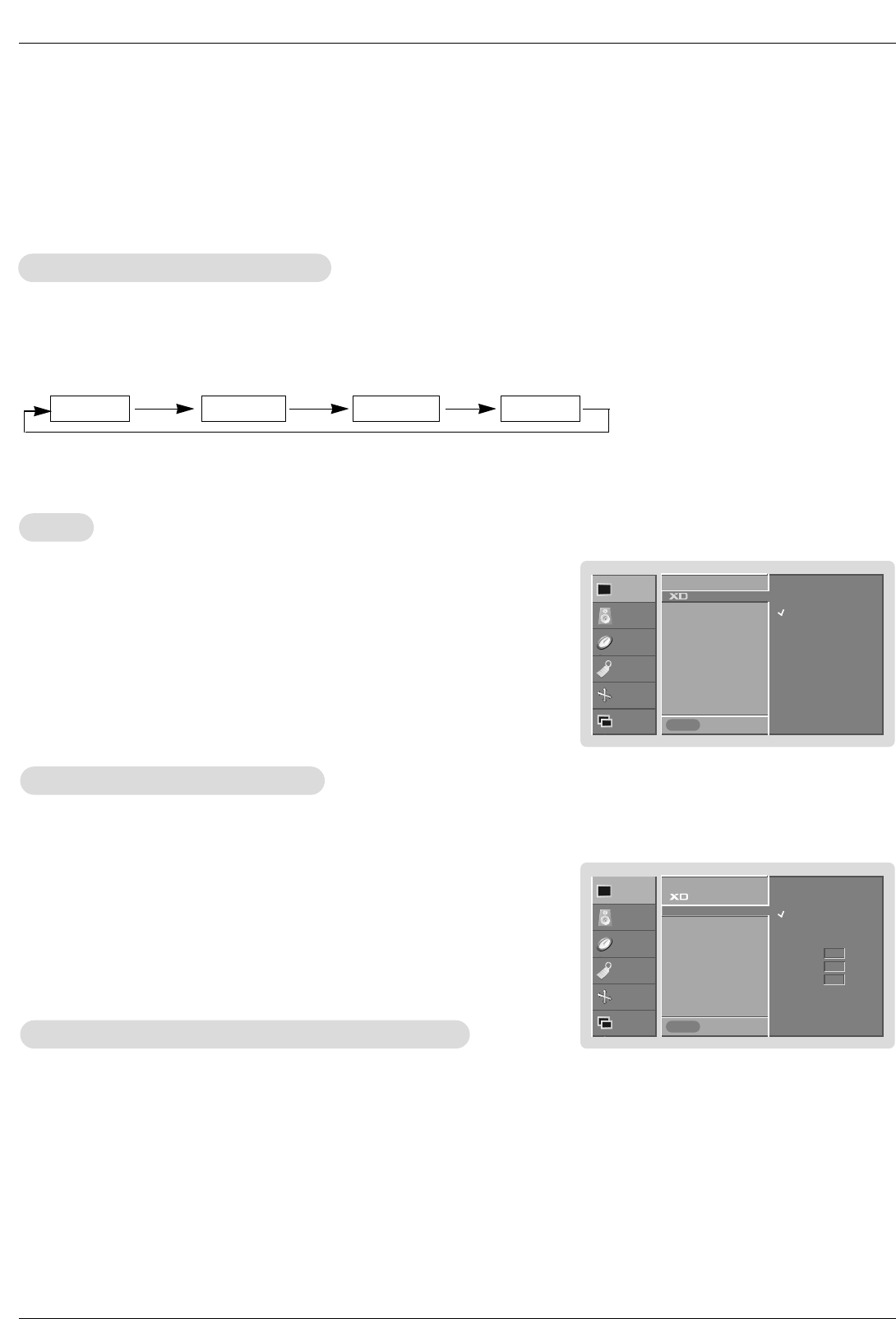

1. Press the APC button repeatedly to select the picture appearance setup option as shown below.
APC (Auto Picture Control)
APC (Auto Picture Control)
- To initialize values (reset to default settings), select the Normal option.
- When adjusting color temperature options (red, green, and blue) manually, ACC automatically changes to Off.
1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.
2. Press the Gbutton and then use D / Ebutton to select ACC .
3. Press the Gbutton and then use D / Ebutton to select either Cool (Preset),
Normal (Default), Warm (Preset), or Off (Manual Adjustment).
4. Press the ENTER button to save.
Auto Color
Auto Color T
Temperature Control
emperature Control
- APC adjusts the Monitor for the best picture appearance.
- When adjusting Picture menu options (contrast, brightness, color, sharpness, and tint) manually, APC automati-
cally changes to Off.
- You can adjust red, green, and blue to any color temperature you prefer.
1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.
2. Press the Gbutton and then use D / Ebutton to select the ACC .
3. Press the Gbutton and then use D / Ebutton to select the OFF .
4. Press the Gbutton and then use D / Ebutton to select Red, Green, or Blue.
5. Use the F / Gbutton to make appropriate adjustments.
• The adjustment range for Red, Green,and Blue is -30 ~ +30.
6. Press the ENTER button to save.
Manual Color
Manual Color T
Temperature Control (
emperature Control (Off option)
option)
- Picture menu adjustment are unique to each input source. Readjust Picture menu settings for each fol-
lowing input source as preferred.
• RGB (PC) / DVI (PC),
• RGB (DTV) / DVI (DTV) / Component (480p, 720p, 1080i) / HDMI
• Video / Component (480i)
Picture Menu Options
Picture Menu Options
•You can also select Daylight, Optimum, Night time or Off in the PICTURE menu.
•Daylight, Optimum, and Night time settings are preset for optimum picture quality at the factory and cannot be
changed.
Daylight Optimum Night time Off
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
APC
GG
ACC
Fleshtone
Contrast 100
Brightness 55
Color 55
Sharpness 60
Tint 0
On
Off
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
APC
ACC GG
Fleshtone
Contrast 100
Brightness 55
Color 55
Sharpness 60
Tint 0
Cool
Normal
Warm
Off
Red 0
Green 0
Blue 0

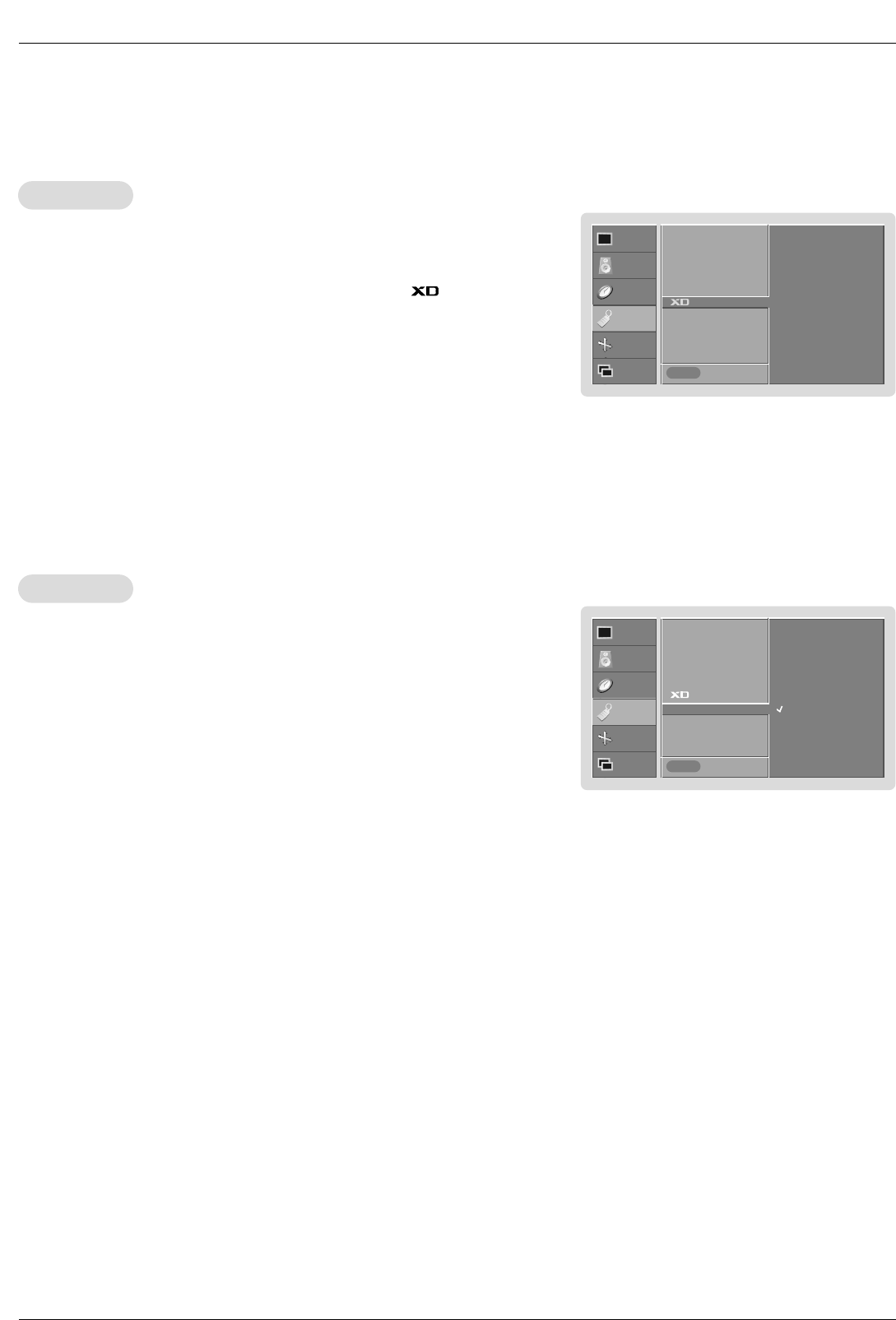

- XD is LG Electronic’s unique picture improving technology to display a real HD
source through an advanced digital signal processing algorithm.
- When selecting APC options (Daylight, Optimum and Night time), XD is auto-
matically change to On.
1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.
2. Press the Gbutton and then use D / Ebutton to select XD.
3. Press the Gbutton and then use D / Ebutton to set On or Off.
4. Press the ENTER button to save.
XD
XD
20 Plasma Monitor
Operation
- You can adjust picture contrast, brightness, color, sharpness, and tint to the levels you prefer.
- PIP settings are not adjustable.
1. Press the MENU button and then use D / Ebutton to select the PICTURE
menu.
2. Press the Gbutton and then use D / Ebutton to select the desired picture
option (Contrast,Brightness,Color,Sharpness or Tint).
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the ENTER button to save.
Manual Picture Control (
Manual Picture Control (Off option)
option)
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
APC
ACC
Fleshtone GG
Contrast 100
Brightness 55
Color 55
Sharpness 60
Tint 0
0
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
APC
ACC
sRGB GG
Contrast 100
Brightness 55
Color 55
On
Off
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
APC
ACC
Fleshtone
Contrast 100 GG
Brightness 60
Color 50
Sharpness 50
Tint 0

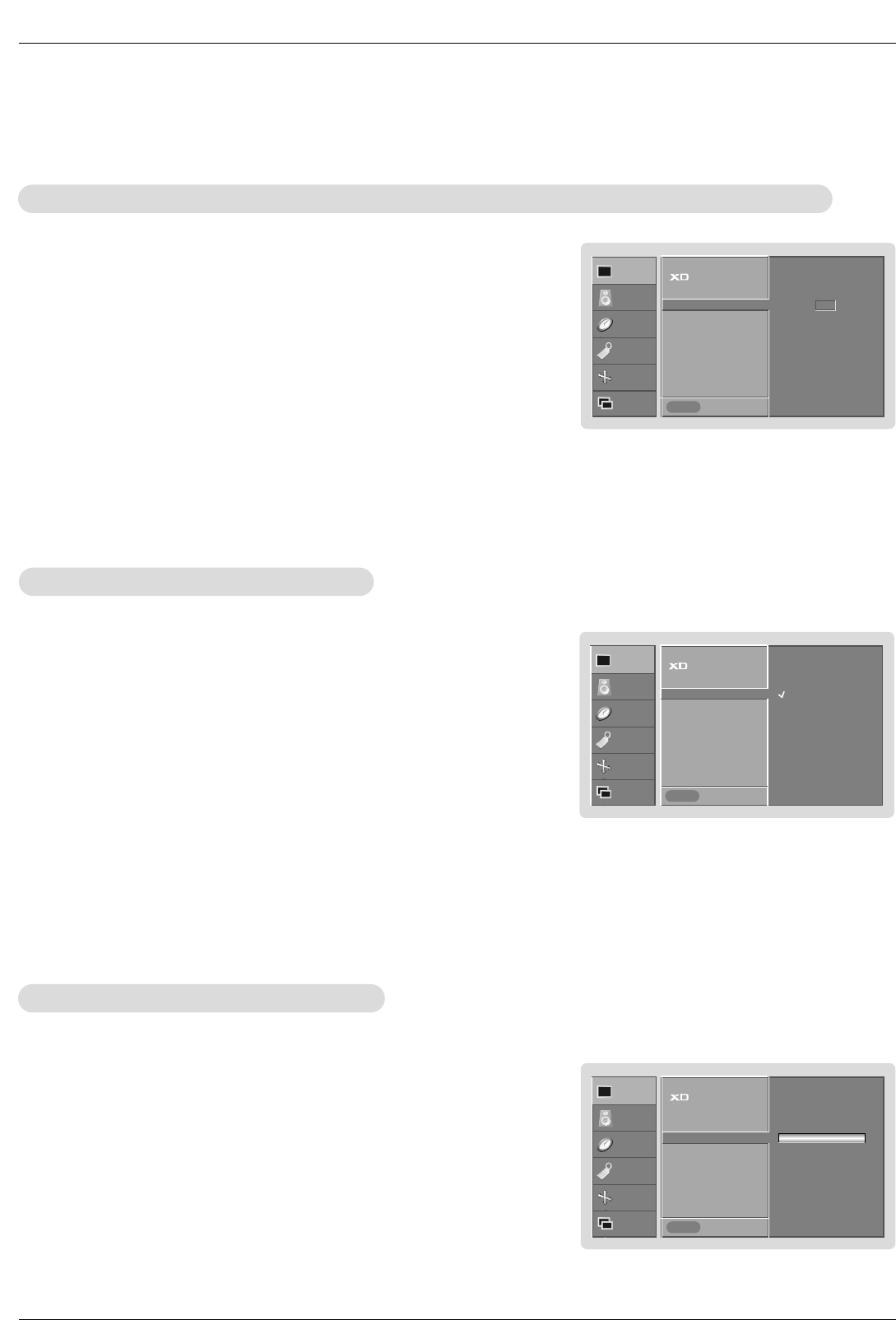

Picture Menu Options continued
Picture Menu Options continued
- Use Fleshtone to select the desired skin color option.
1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.
2. Press the Gbutton and then use D / Ebutton to select Fleshtone.
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
• The adjustment range is 0 ~ 3.
4. Press the ENTER button to save.
Fleshtone (V
Fleshtone (Video1-2-3-4, Component 1-2, RGB-DTV
ideo1-2-3-4, Component 1-2, RGB-DTV, DVI-DTV and HDMI-DTV Mode only)
, DVI-DTV and HDMI-DTV Mode only)
- If the TV is connected to external equipment using sRGB, set sRGB to On to
adjust for the color difference.
1. Press the MENU button and then use D / Ebutton to select the PICTURE menu.
2. Press the Gbutton and then use D / Ebutton to select sRGB.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
4. Press the ENTER button to save.
sRGB (only RGB-PC, DVI-PC Modes)
sRGB (only RGB-PC, DVI-PC Modes)
Owner’s Manual 21
Operation
Off
Sound Menu Options
Sound Menu Options
1. Press the DASP button repeatedly to select the appropriate sound setup as shown below.
DASP
DASP (Digital
(Digital Auto Sound Processing)
Auto Sound Processing)
1. Press the MENU button and then use D / Ebutton to select the SOUND menu.
2. Press the Gbutton and then use D / Ebutton to select BBE.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
4. Press the ENTER button to save.
BBE
BBE
- DASP lets you enjoy the best sound without any special adjustment because the Monitor has the appropriate
sound options based on the program content.
- When adjusting sound options (treble, bass) manually, DASP automatically changes to Off.
- This feature maintains an equal volume level; even if you change channels.
1. Press the MENU button and then use D / Ebutton to select the SOUND menu.
2. Press the Gbutton and then use D / Ebutton to select AV L .
3. Press the Gbutton and then use D / Ebutton to select On or Off.
4. Press the ENTER button to save.
A
AVL
VL (Auto V
(Auto Volume Leveler)
olume Leveler)
SRS TSXT Flat Music Movie Sports
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
On
Off
DASP
BBE GG
AVL
Balance 0
Treble 50
Bass 50
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
On
Off
DASP
BBE
AVL GG
Balance 0
Treble 50
Bass 50
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
DASP
BBE
AVL
Balance 0 GG
Treble 50
Bass 50
L R
1. Press the MENU button and then use D / Ebutton to select the SOUND menu.
2. Press the Gbutton and then use D / Ebutton to select the desired sound option
(Balance,Treble or Bass).
3. Press the Gbutton and then use F / Gbutton to make appropriate adjustments.
4. Press the ENTER button to save.
Manual Sound Control (Dasp
Manual Sound Control (Dasp Off option and balance)
option and balance)
- BBE High Definition Sound restores clarity and presence for better speech intelligibility and musical realism.
•Manufactured under license from BBE Sound, Inc.
•Treble, Bass or BBE aren’t suitable for SRS TSXT mode.
•You can also adjust DASP in the SOUND menu.
•SRS TSXT, Flat, Music, Movie, and Sports are preset for good sound quality at the factory and cannot be changed.
•is a trademark of SRS Labs, Inc.
•TruSurround XT technology is incorporated under license from SRS Labs, Inc.
22 Plasma Monitor
Operation
- Timer function operates only if current time has been already set.
- Off-Timer function overrides On-Timer function if they are set to the same time.
- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically
revert to standby mode.
On/Of
On/Off
f T
Timer Setup
imer Setup
1. Press the MENU button and then use D / Ebutton to select the TIMER menu.
2. Press the Gbutton and then use D / Ebutton to select Off timer or On timer.
3. Press the Gbutton and then use D / Ebutton to select On.
• To cancel On/Off timer function, select Off.
4. Press the Gbutton and then use D / Ebutton to set the hour.
5. Press the Gbutton and then use D / Ebutton to set the minutes.
For only On timer function; Press the Gbutton and then use D / Ebutton to
set volume level.
6. Press the ENTER button to save.
Auto Of
Auto Off
f
- If there is no input signal, the Monitor turns off automatically after 10 minutes.
1. Press the MENU button and then use D / Ebutton to select the TIMER menu.
2. Press the Gbutton and then use D / Ebutton to select Auto off.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
4. Press the ENTER button to save.
Clock Setup
Clock Setup
- If current time setting is wrong, reset the clock.
1. Press the MENU button and then use D / Ebutton to select the TIMER menu.
2. Press the Gbutton and then use D / Ebutton to select Clock.
3. Press the Gbutton and then use D / Ebutton to set the hour.
4. Press the Gbutton and then use D / Ebutton to set the minutes.
5. Press the ENTER button to save.
T
Timer Menu Options
imer Menu Options
Sleep
Sleep T
Timer
imer
- The sleep timer turns the Monitor off at a preset time. Note that this setting is cleared when the monitor is turned off.
1. Press the SLEEP button repeatedly to select the number of minutes. First the --- Min option appears on the
screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to
count down from the number of minutes selected.
3. To check the remaining minutes before the monitor turns off, press the SLEEP or ENTER button once.
4. To cancel the Sleep Timer, press the SLEEP button repeatedly until --- Min appears.
zz
zz
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
- - : - - AM
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
On
Off
6 : 30 AM
Volume 17
Clock GG
Off timer
On timer
Auto off
Clock
Off timer
On timer GG
Auto off
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
On
Off
Clock
Off timer
On timer
Auto off GG
Owner’s Manual 23
Operation
Special Menu Options
Special Menu Options
Key Lock
Key Lock
- The monitor can be set up so that it can only be used with the remote control.
- This feature can be used to prevent unauthorized viewing by disabling the front panel controls.
- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select Key lock.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
• When you select On, the display ‘ Key lock’appears on the screen if any
button on the front panel is pressed.
4. Press the ENTER button to save.
-In setting Key lock ‘On’, if the monitor is turned off with the remote control, press the INPUT SELECT on the
monitor or POWER, INPUT on the remote control to turn the monitor on.
W
- A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in an ghost
image remaining; even when you change the image. Avoid allowing a fixed image to remain on the Monitor's
screen for a long period of time.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select ISM Method.
3. Press the Gbutton and then use D / Ebutton to select either Normal, White
wash, Orbiter, or Inversion.
• Normal
If image sticking is never a problem, ISM is not necessary - set to Normal.
• White wash
White Wash removes permanent images from the screen. Note: An excessive
permanent image may be impossible to clear entirely with White Wash. To return
to normal viewing, press the any button.
Low Power
Low Power
- Low power reduces the plasma display's power consumption.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select Low power.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
• When you select On, the screen darkens.
4. Press the ENTER button to save.
ISM (Image Sticking Minimization) Method
ISM (Image Sticking Minimization) Method
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
On
Off
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
Normal
White wash
Orbiter
Inversion
Language
Key lock GG
ISM Method
Low power
Set ID
Demo
Index
Language
Key lock
ISM Method GG
Low power
Set ID
Demo
Index
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
On
Off
Language
Key lock
ISM Method
Low power GG
Set ID
Demo
Index
• Orbiter
Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a
permanent image on the screen, the image will move every 2 minutes: Right →Right → Downside →Downside →Left →Left
→Upside →Upside.
• Inversion
Inversion will automatically invert the plasma display panel color every 30 minutes.
4. Press the ENTER button to save.
24 Plasma Monitor
Operation
Special Menu Options continued
Special Menu Options continued
PIC-
TURE
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
To start
Language
Key lock
ISM Method
Low power
Set ID
Demo GG
Index
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
On
Off
Language
Key lock
ISM Method
Low power
Set ID
Demo
Index GG
XD Demo
XD Demo
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select Demo.
3. Press the Gbutton to begin
XD Demo
.
4. Press the EXIT button to stop
XD Demo
.
- Use it to see the difference between XD Demo on and XD Demo off.
1. Press the MENU button and then use D / Ebutton to select the SPECIAL menu.
2. Press the Gbutton and then use D / Ebutton to select INDEX.
3. Press the Gbutton and then use D / Ebutton to select On or Off.
4. Press the ENTER button to save.
INDEX
INDEX
- Switches LED Display on or off.
Owner’s Manual 25
Operation
Auto
Auto Adjustment
Adjustment
- RGB (PC) mode only; This function doesn’t work for RGB-DTV.
- Automatically adjusts picture position and minimizes image shaking.
- After adjustment, if the image is still not correct, your Monitor is functioning properly but needs further adjustment.
- The Auto config. and Manual config. are not active in DVI mode.
1. Press the MENU button and then use D / Ebutton to select the SCREEN menu.
2. Press the Gbutton and then use D / Ebutton to select Auto config..
3. Press the Gbutton to run Auto configure.
• When Auto config. has finished, OK will be shown on screen.
• If the position of the image is still not correct, try Auto adjustment again.
4. In RGB (PC) mode, if the image needs to be adjusted more after using Auto
config., you can make further adjustments with the Manual config. option.
Screen Menu Options
Screen Menu Options
Setting Picture Format
Setting Picture Format
- Caution: If a 4:3 fixed image is on the screen for a long time, it may remain visible.
- RGB/DVI-PC: 4:3, 16:9
- Component 480i, Video sources : 4:3, 16:9, Horizon and Zoom.
- RGB-DTV/DVI-DTV/Component 480p,720p,1080i : 4:3, 16:9, Horizon and Zoom.
1. Press the ARC button repeatedly to select the desired picture format. You can also select picture format 4:3 or
16:9 in the SCREEN menu.
• 4:3
- Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both
the left and right sides.
• 16:9
- Choose 16:9 when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
• Horizon
- Choose Horizon when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both
sides, to create a spectacular view.
• Zoom
- Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions
of the picture will be cropped.
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
To start
Auto config. GG
ARC
Position
Manual config.
Reset
XGA Mode
26 Plasma Monitor
Operation

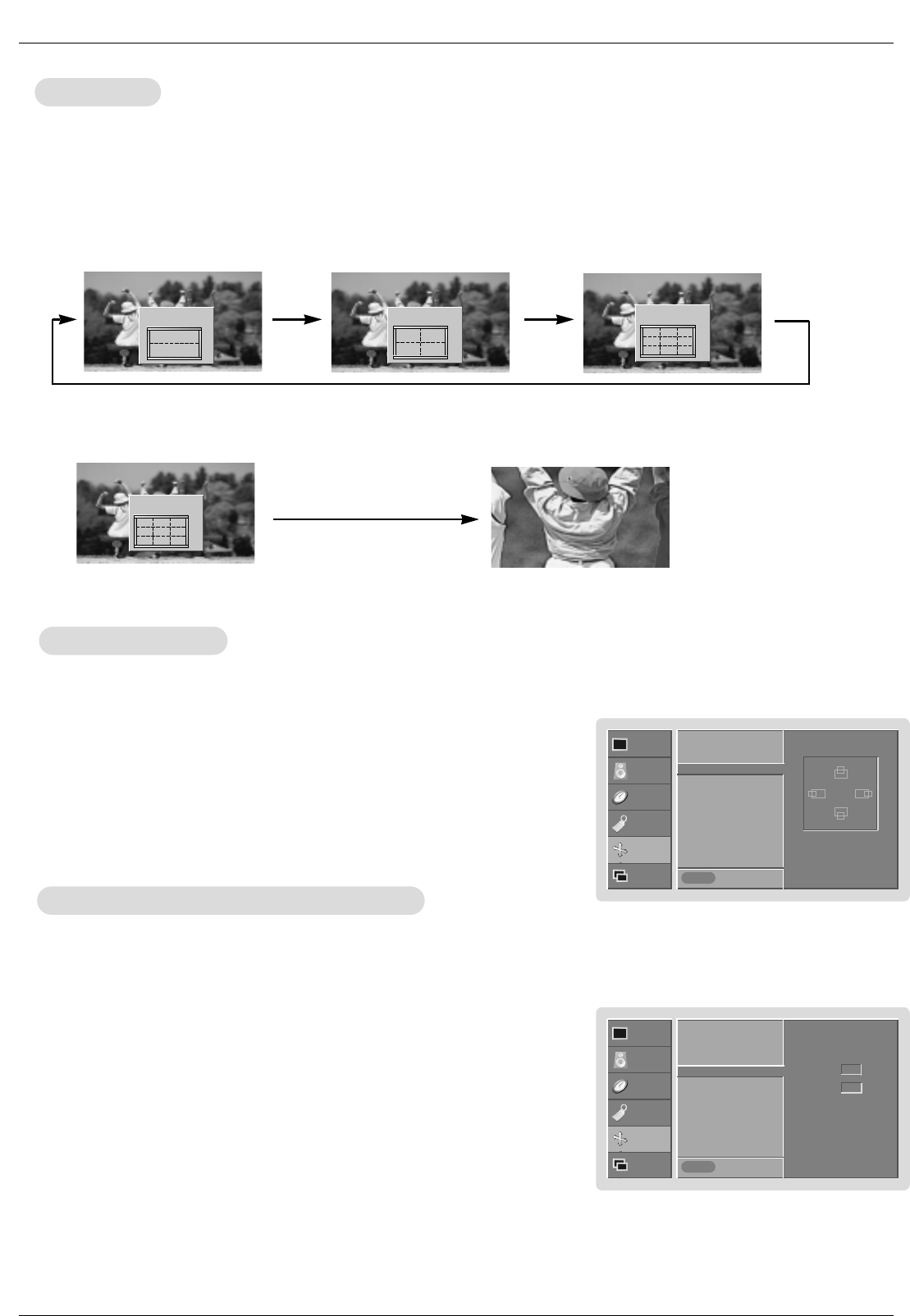

1
4
▲
▼
◀▶
2-Split zoom
▲
▼
◀▶
12
54
4-Split zoom
▲
▼
◀▶
12 3
456
789
9-Split zoom
Manual Configure (RGB-PC mode only)
Manual Configure (RGB-PC mode only)
- If the image still isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture
Phase manually.
- To correct the screen size, adjust Clock.
1. Press the MENU button and then use D / Ebutton to select the SCREEN
menu.
2. Press the Gbutton and then use D / Ebutton to select Manual config..
3. Press the Gbutton and then use D / Ebutton to to select Phase or Clock.
4. Use the F / Gbutton to make appropriate adjustments.
• The Phase adjustment range is 0 ~ 30.
• The Clock adjustment range is -127 ~ +128.
5. Press the ENTER button to save.
- This function works in the following mode:
RGB-PC, RGB-DTV (480p,720p,1080i), COMPONENT (480p,720p,1080i).
1. Press the MENU button and then use D / Ebutton to select the SCREEN
menu.
2. Press the Gbutton and then use D / Ebutton to select Position.
3. Press the Gbutton and then use D / E/ F / Gbutton to adjust the position.
4. Press the ENTER button to save.
Screen Position
Screen Position
- Enlarges the picture in correct proportions.
- Split Zoom can be used for all input sources.
- In 2-Split Zoom mode, you can only move the image up or down.
- If a screen is enlarged, a screen can move without selecting section of screen Split Zoom.
1. Press the SPLIT ZOOM button repeatedly to select either 2, 4 , or 9 Split Zoom.
2. Press the number button corresponding to the section you wish to enlarge. You can move within the enlarged
image with the D / E / F / Gbutton. To return to normal viewing, press the SPLIT ZOOM button again.
Example of choosing 5. Section 5 is enlarged to fill
the screen.
▲
▼
◀▶
12 3
456
789
9-Split zoom
Split Zoom
Split Zoom
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
Phase 0
Clock 0
Auto config.
ARC
Position
Manual config. GG
Reset
XGA Mode
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
Auto config.
ARC
Position GG
Manual config.
Reset
XGA Mode
DD
FFGG
EE
Owner’s Manual 27
Operation
1. Press the MENU button and then use D / Ebutton to select the SCREEN
menu.
2. Press the Gbutton and then use D / Ebutton to select Reset.
3. Press the Gbutton.
•You can initialize Manual config., Position, Split zoom, PIP size, PIP posi-
tion and sub picture size for DW.
Initializing (Reset to original factory value)
Initializing (Reset to original factory value)
- This function operates in every mode.
- To initialize the adjusted value
1. Press the MENU button and then use D /Ebutton to select the SCREEN
menu.
2. Press the Gbutton and then use D /Ebutton to select VGA Mode/XGA
Mode.
3. Press the Gbutton and then use D /Ebutton to select the desired VGA/XGA
resolution.
4. Press the ENTER button to save.
Selecting W
Selecting Wide VGA/XGA
ide VGA/XGA mode (RGB-PC, DVI-PC mode only)
mode (RGB-PC, DVI-PC mode only)
- To see a normal picture, match the resolution of RGB XGA mode (1024x768, 1360x768, 1366x768) with the selection for XGA
mode and the resolution of RGB VGA mode (640x480, 848x480, 852x480) with the selection for VGA mode in the SCREEN
menu.
- If the input source is RGB VGA mode, the screen menu option is changed from XGA Mode to VGA Mode automatically.
Screen Menu Options continued
Screen Menu Options continued
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
1024x768
1280x768
1360x768
1366x768
Auto config.
ARC
Position
Manual config.
Reset
XGA Mode GG
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
To start
Auto config.
ARC
Position
Manual config.
Reset GG
XGA Mode
28 Plasma Monitor
Operation
W
Watching PIP
atching PIP
- PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the
other source will show a smaller inset image.
Press the PIP button repeatedly to turn PIP on or off.
PIP
PIP Size
Size
Press the WIN.SIZE button and then use F / Gbutton to
change the sub picture size.
PIP
PIP Aspect Ratio
Aspect Ratio
Press the PIP ARC button. The sub picture appears as shown.
Moving the PIP
Moving the PIP
Press the WIN.POSITION button.
Press the D / E/ F / Gbutton repeatedly until desired posi-
tion is achieved. The sub picture moves up/down/left/right.
Swapping the PIP
Swapping the PIP
Press the SWAP button to switch the main and sub pictures.
Selecting an Input Signal Source for the PIP
Selecting an Input Signal Source for the PIP
Use the SUB INPUT button to select the input source for
the sub picture.
Main Picture Sub Picture
◀▶
▲
▼
10 : 30 10 : 30
4 : 3 16 : 9
Win.position
Component
Video Video
Component
PIP
PIP (Picture-In-Picture) Feature
(Picture-In-Picture) Feature
10 : 30
Component
Video
Win.size
FFGG
Main Picture Source Available Sub Picture Sources
Video
Component 480i
Component 480p/720p/1080i
RGB and DVI
HDMI 480p/720p/1080i
Video, Component 480i/480p/720p/1080i, RGB/DVI/HDMI 480p/720p/1080i
Video, Component 480i/480p/720p/1080i, RGB/DVI/HDMI 480p/720p/1080i
Video, Component 480i, RGB/DVI 480p/720p/1080i
Video and Component 480i/480p/720p/1080i
Video and Component 480i
Owner’s Manual 29
External Control Device Setup
Selecting a Source for the DW
Selecting a Source for the DW
W
Watching DW
atching DW
Press the DW button repeatedly to select one of the DW options.
Sub Picture Size
Sub Picture Size Adjustment
Adjustment
Press the WIN.SIZE button.
•Use the F / Gbutton to change the sub picture size.
•Using the WIN.SIZE function in DW mode, main and sub picture sizes are changed
simultaneously.
Using the WIN.SIZE function in PIP mode, sub picture size is changed.
•WIN.POSITION is not functional in DW mode.
Swapping the DW
Swapping the DW
Use the SWAP button to switch the main and sub pictures in DW mode.
DW 1
DW 2
10 : 30
10 : 30
◀▶
Component
Video Video
Component
- As the name suggests, this mode splits the screen into 2, allowing 2 picture sources to be shown on the monitor screen at the
same time. Each source is given half the screen.
DW Setup Option
DW Setup Option
Win.size
FFGG
Main Picture Sub Picture
Use the SUB INPUT button to select the input source for the sub picture.
Main Picture Source Available Sub Picture Sources
Video
Component 480i
Component 480p/720p/1080i
RGB and DVI
HDMI 480p/720p/1080i
Video, Component 480i/480p/720p/1080i, RGB/DVI/HDMI 480p/720p/1080i
Video, Component 480i/480p/720p/1080i, RGB/DVI/HDMI 480p/720p/1080i
Video, Component 480i, RGB/DVI 480p/720p/1080i
Video and Component 480i/480p/720p/1080i
Video and Component 480i
30 Plasma Monitor
External Control Device Setup
No. Pin Name
1 No Connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
1
5
6
9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DSR
DTR
CTS
RTS
PC
7-Wire Configuration
(Standard RS-232C cable)
D-Sub 9
3
2
5
6
4
8
7
PDP
D-Sub 9
2
3
5
4
6
7
8
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXD
RXD
GND
DTR
DSR
RTS
CTS
PC
3- Wire Configuration
(Not standard)
D-Sub 9
3
2
5
4
6
7
8
PDP
D-Sub 9
- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
- RS-232C connection cables are not supplied with the Monitor.
T
Type of Connector: D-Sub 9-pin Male
ype of Connector: D-Sub 9-pin Male
RS-232C Configurations
RS-232C Configurations
External Control Device Setup
External Control Device Setup
REMOTE
CONTROL
RS-232C INPUT
(CONTROL/SERVICE)
AC INPUT
DVI INPUT
AUDIO INPUT RGB INPUT
AUDIO
COMPONENT
COMPONENT
RL
VIDEO
INPUT 1
INPUT 2 VIDEO
INPUT 2
VIDEO
INPUT 1
VIDEO
MONO
AUDIO
RL
S-VIDEO
VIDEO3 VIDEO4
HDMI
R
( )
( )
( )
( )
L
EXTERNAL SPEAKER
Owner’s Manual 31
External Control Device Setup
Transmission
* [Command 1]: k, j, m
* [Command 2]: To control PDP set.
* [Set ID]: You can adjust the set ID to choose desired moni-
tor ID number in Special menu. Adjustment range
is 1 ~ 99. When selecting Set ID ‘0’, every con-
nected PDP set is controlled. Set ID is indicated
as decimal (1~99) on menu and as Hexa decimal
(0x0~0x63) on transmission/receiving protocol.
* [DATA]: To transmit command data.
Transmit ‘FF’data to read status of command.
* [Cr]: Carriage Return
ASCII code ‘0x0D’
* [ ]: ASCII code ‘space (0x20)’
[Command1][Command2][ ][Set ID][ ][Data][Cr]
OK Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.
[Command2][ ][Set ID][ ][OK][Data][x]
Error Acknowledgement
* The Monitor transmits ACK (acknowledgement) based on
this format when receiving abnormal data from
non-viable functions or communication errors.
[Command2][ ][Set ID][ ][NG][x]
T
Transmission / Receiving Protocol
ransmission / Receiving Protocol
01. Power k a 0 ~ 1
02. Input Select k b 1 ~ 9
03. Aspect Ratio k c 0 ~ 3
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k l 0 ~ 1
13.
Remote Control Lock Mode
k m 0 ~ 1
14. PIP/Twin k n 0 ~ 3
15. Split Zoom k p 0 ~99
16. PIP Position k q 0 ~ 3
17. Treble k r 0 ~ 64
18. Bass k s 0 ~ 64
19. Balance k t 0 ~ 64
20. Color Temperature k u 0 ~ 3
21. Red Adjustment k v 0 ~ 3C
22. Green Adjustment k w 0 ~ 3C
23. Blue Adjustment k $ 0 ~ 3C
24. PIP Input Source k y 1 ~ 9
25. Abnormal State k z 0 ~ a
26. ISM Method j p 0 ~ 3
27. Low Power j q 0 ~ 1
28. Orbiter Time Setting j r 1 ~ FE
29. Orbiter Pixel Setting j s 1 ~9
30. Picture Size Setting j t 0 ~30
for DW mode
31. Auto Configure j u 1
32. Key m c
Key code
COMMAND 1 COMMAND 2 DATA
(Hexadecimal)
Command Reference List
Command Reference List
Set ID
Set ID
- Use this function to specify a monitor ID number.
- Refer to ‘Real Data Mapping 1’. See page 27.
1. Press the MENU button and then use the D /Ebutton to select the SPECIAL
menu.
2. Press the Gbutton and then use D /Ebutton to select Set ID.
3. Press the Gbutton and then use F / Gbutton to adjust Set ID to choose the
desired monitor ID number.
• The adjustment range of Set ID is 1 ~ 99.
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
Communication Parameters
Communication Parameters
Data 1: Illegal Code
2: Not supported function
SOUND
TIMER
SPECIAL
SCREEN
PIP/DW Prev.
Menu
1
Language
Key lock
ISM Method
Low power
Set ID GG
Demo
Index
32 Plasma Monitor
External Control Device Setup
02. Input Select (Command 2:b) (Main Picture Input)
GTo select input source for the Monitor.
You can also select an input source using the INPUT
button on the Monitor's remote control.
Transmission
Data 1 : Video1
2 : Video2
3 : Component1
4 : Component2
5 : RGB
6 : DVI
7 : Video3
8 : Video4
9 : HDMI
[k][b][ ][Set ID][ ][Data][Cr]
Acknowledgement
[b][ ][Set ID][ ][OK][Data][x]
01. Power (Command 2:a)
GTo control Power On/Off of the Monitor.
Transmission
Data 0 : Power Off 1 : Power On
[k][a][ ][Set ID][ ][Data][Cr]
Acknowledgement
[a][ ][Set ID][ ][OK][Data][x]
GTo show Power On/Off.
Transmission
[k][a][ ][Set ID][ ][FF][Cr]
Acknowledgement
Data 0 : Power Off 1 : Power On
* In a like manner, if other functions transmit ‘FF’data
based on this format, Acknowledgement data feedback
presents status about each function.
[a][ ][Set ID][ ][OK][Data][x]
03. Aspect Ratio (Command 2:c) (Main picture format)
GTo adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Special menu.
Transmission
Data 0 : Normal screen (4:3)
1 : Wide screen (16:9)
2 : Wide screen (Horizon)
3 : Full screen (Zoom)
[k][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
05. Volume Mute (Command 2:e)
GTo control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
[k][e][ ][Set ID][ ][Data][Cr]
Acknowledgement
[e][ ][Set ID][ ][OK][Data][x]
04. Screen Mute (Command 2:d)
GTo select screen mute on/off.
Transmission
Data 0 : Screen mute on (Picture off)
1 : Screen mute off (Picture on)
[k][d][ ][Set ID][ ][Data][Cr]
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
06. Volume Control (Command 2:f)
GTo adjust volume.
You can also adjust volume with the volume buttons
on remote control.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping1’as shown below.
[k][f][ ][Set ID][ ][Data][Cr]
Acknowledgement
[f][ ][Set ID][ ][OK][Data][x]
07. Contrast (Command 2:g)
GTo adjust screen contrast.
You can also adjust contrast in the picture menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping1’as shown below.
[k][g][ ][Set ID][ ][Data][Cr]
Acknowledgement
[g][ ][Set ID][ ][OK][Data][x]
* Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
63 : Step 99 (SET ID 99)
64 : Step 100
Data 1 : Video1
2 : Video2
3 : Component1
4 : Component2
5 : RGB
6 : DVI
7 : Video3
8 : Video4
9 : HDMI
Data 0 : Screen mute on (Picture off)
1 : Screen mute off (Picture on)
Data 0 : Volume mute on (Volume off)
1 : Volume mute off (Volume on)
Data Min : 0 ~ Max : 64
Data Min : 0 ~ Max : 64
Owner’s Manual 33
External Control Device Setup
13. Remote Control Lock Mode (Command2:m)
GTo lock the remote control and front panel controls on the
monitor
Transmission
[k][m][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: lock off 1: lock on
•If you’re not using the remote control and front panel con-
trols on the monitor, use this mode. When main power is
on/off, remote control lock is released.
[m][ ][Set ID][ ][OK][Data][x]
14. PIP / DW (Command2:n)
GTo control the PIP (Picture-in-Picture) or DW.
You can also control the PIP/TWIN using the PIP or DW but-
ton on the remote control or in the Special menu.
Transmission
Data 0: PIP/DW off
1: PIP 2: DW1
3: DW2
[k][n][ ][Set ID][ ][Data][Cr]
Acknowledgement
[n][ ][Set ID][ ][OK][Data][x]
GTo adjust the screen sharpness.
You can also adjust sharpness in the Picture menu.
Transmission
11. Sharpness (Command2:k)
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 31.
[k][k][ ][Set ID][ ][Data][Cr]
Acknowledgement
[k][ ][Set ID][ ][OK][Data][x]
12. OSD Select (Command2:l)
GTo select OSD (On Screen Display) on/off.
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Acknowledgement
Data 0: OSD off 1: OSD on
[l][ ][Set ID][ ][OK][Data][x]
09. Color (Command2:i)
GTo adjust the screen color.
You can also adjust color in the Picture menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping 1’. See page 31.
[k][i][ ][Set ID][ ][Data][Cr]
Acknowledgement
[i][ ][Set ID][ ][OK][Data][x]
10. Tint (Command2:j)
GTo adjust the screen tint.
You can also adjust tint in the Picture menu.
Transmission
Data Red : 0 ~ Green : 64
•Refer to ‘Real data mapping 1’. See page 31.
[k][j][ ][Set ID][ ][Data][Cr]
Acknowledgement
[j][ ][Set ID][ ][OK][Data][x]
08. Brightness (Command2:h)
GTo adjust screen brightness.
You can also adjust brightness in the Picture menu.
Transmission
Data Min : 0 ~ Max : 64
•Refer to ‘Real data mapping 1’. See page 31.
[k][h][ ][Set ID][ ][Data][Cr]
Acknowledgement
[h][ ][Set ID][ ][OK][Data][x]
15. Split Zoom (Command2:p)
GTo operate split zoom function and select the split
zoom section number.
Transmission
Data Min: 0 ~ Max: 99
•Refer to ‘Real data mapping 2’.
[k][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
* Real Data Mapping 2
0 : Reset split zoom
21: Selection 1 of 2 split zoom
24: Selection 4 of 2 split zoom
41: Selection 1 of 4 split zoom
42: Selection 2 of 4 split zoom
44: Selection 4 of 4 split zoom
45: Selection 5 of 4 split zoom
91: Selection 1 of 9 split zoom
99: Selection 9 of 9 split zoom
Data Min : 0 ~ Max : 64
Data Min : 0 ~ Max : 64
Data Min : 0 ~ Max : 64
Data Min : 0 ~ Max : 64
Data 0: OSD off 1: OSD on
Data 0: lock off 1: lock on
Data 0: PIP/DW off
1: PIP 2: DW1
3: DW2
Data Min: 0 ~ Max: 99
34 Plasma Monitor
External Control Device Setup
20. Color Temperature (Command2:u)
GTo adjust color temperature.
You can also adjust ACC in the Picture menu.
Transmission
Data 0: Cool 1: Normal 2: Warm 3: Off
[k][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
17. Treble (Command2:r)
GTo adjust treble.
You can also adjust treble in the Sound menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 31.
[k][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
16. PIP Position (Command2:q)
GTo select sub picture position for PIP.
You can also adjust the sub picture position using
Win.position on the remote control or in the PIP/DW menu.
Transmission
Data 0: Right down on screen
1: Left down on screen
2: Left up on screen
3: Right up on screen
[k][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
18. Bass (Command2:s)
GTo adjust bass.
You can also adjust bass in the Sound menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 31.
[k][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
19. Balance (Command2:t)
GTo adjust balance.
You can also adjust balance in the Sound menu.
Transmission
Data Min: 0 ~ Max: 64
•Refer to ‘Real data mapping 1’. See page 31.
[k][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
* Real data mapping 3
0 : -30
1 : -29
2 : -28
1E: 0
3A: +28
3B: +29
3C: +30
21. Red Adjustment (Command2:v)
GTo adjust red in color temperature.
Transmission
Data Min: 0 ~ Max: 3C
•Refer to ‘Real data mapping 3’as shown below.
[k][v][ ][Set ID][ ][Data][Cr]
Acknowledgement
[v][ ][Set ID][ ][OK][Data][x]
22. Green Adjustment (Command2:w)
GTo adjust green in color temperature.
Transmission
Data Min: 0 ~ Max: 3C
•Refer to ‘Real data mapping 3’as shown below.
[k][w][ ][Set ID][ ][Data][Cr]
Acknowledgement
[w][ ][Set ID][ ][OK][Data][x]
23. Blue Adjustment (Command2:$)
GTo adjust blue in color temperature.
Transmission
Data Min: 0 ~ Max: 3C
•Refer to ‘Real data mapping 3’as shown below.
[k][$][ ][Set ID][ ][Data][Cr]
Acknowledgement
[$][ ][Set ID][ ][OK][Data][x]
Data 0: Right down on screen
1: Left down on screen
2: Left up on screen
3: Right up on screen
Data Min: 0 ~ Max: 64
Data Min: 0 ~ Max: 64
Data Min: 0 ~ Max: 64
Data 0: Cool 1: Normal 2: Warm 3: Off
Data Min: 0 ~ Max: 3C
Data Min: 0 ~ Max: 3C
Data Min: 0 ~ Max: 3C
Owner’s Manual 35
IR Code
26. ISM Method (Command2:p)
GTo avoid having a fixed image remain on screen.
Transmission
Data 0: Normal
1: White wash 2: Orbiter
3: Inversion
[j][p][ ][Set ID][ ][Data][Cr]
Acknowledgement
[p][ ][Set ID][ ][OK][Data][x]
28. Orbiter Time Setting (Command2:r)
GTo adjust orbiter operation time term.
Transmission
Data Min: 1 ~ Max: FE
[j][r][ ][Set ID][ ][Data][Cr]
Acknowledgement
[r][ ][Set ID][ ][OK][Data][x]
29. Orbiter Pixel Setting (Command2:s)
GTo adjust pixel number in orbiter function.
Transmission
Data Min: 0 ~ Max: 9
[j][s][ ][Set ID][ ][Data][Cr]
Acknowledgement
[s][ ][Set ID][ ][OK][Data][x]
31. Auto Configure (Command2:u)
GTo adjust picture position and minimize image shaking
automatically. Auto Configure only works in RGB-PC
mode.
Transmission
Data 1
•Refer to ‘Real data mapping1’. See page 31.
[j][u][ ][Set ID][ ][Data][Cr]
Acknowledgement
[u][ ][Set ID][ ][OK][Data][x]
30. Picture Size Setting for DW mode
(Command2:t)
GTo adjust main picture size in DW mode.
Transmission
Data Min: 0 ~ Max: 30
•Refer to ‘Real data mapping1’. See page 31.
[j][t][ ][Set ID][ ][Data][Cr]
Acknowledgement
[t][ ][Set ID][ ][OK][Data][x]
24. PIP Input Select (Command2:y)
G To select input source for sub picture in PIP mode.
Transmission
[k][y][ ][Set ID][ ][Data][Cr]
Acknowledgement
[y][ ][Set ID][ ][OK][Data][x]
25. Abnormal State (Command2:z)
GTo recognize an abnormal state.
Transmission
Data 0: Power on(signal)
1: Power on(No signal)
2: Remote control off
3: Sleep time off
4: RS-232C off
5: 5V monitor off
6: AC detect off
7: Fan Alarm off
8: Off timer off
9: No signal off
a: Connection Detect off
[k][z][ ][Set ID][ ][FF][Cr]
Acknowledgement
[z][ ][Set ID][ ][OK][Data][x]
Data FF:Read
Data 1 : Video1
2 : Video2
3 : Component1
4 : Component2
5 : RGB
6 : DVI
7 : Video3
8 : Video4
9 : HDMI
Data 1 : Video1
2 : Video2
3 : Component1
4 : Component2
5 : RGB
6 : DVI
7 : Video3
8 : Video4
9 : HDMI
Data 0: Normal
1: White wash 2: Orbiter
3: Inversion
27. Low Power (Command2:q)
GTo control the low power function on/off.
Transmission
Data 0: Low power off
1: Low power on
[j][q][ ][Set ID][ ][Data][Cr]
Acknowledgement
[q][ ][Set ID][ ][OK][Data][x]
Data 0: Low power off
1: Low power on
Data Min: 1 ~ Max: FE
Data Min: 0 ~ Max: 9
Data Min: 0 ~ Max: 30
Data 1
32. Key (Command2:c)
GTo adjust Key code for IR remote control.
Transmission
Data Key code : Refer to See page 36.
[m][c][ ][Set ID][ ][Data][Cr]
Acknowledgement
[c][ ][Set ID][ ][OK][Data][x]
* If you do not press any button within 2 hours after the TV turns on
with the On Timer function, the TV will automatically revert to stand-
by mode.
36 Plasma Monitor
IR Code
G Connect your wired remote control to the Remote Control port on the Monitor.
G Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
G Configuration of frame
G Repeat code
G Lead code
• 1st frame
Low
custom code
Lead
code High
custom code Data code Data code
TC
Tf
T1
C0
Carrier frequency
FCAR = 1/TC= fOSC/12
Duty ratio = T1/TC= 1/3
• Repeat frame
C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Repeat code
9 ms 4.5 ms
0.55 ms
9 ms
2.25 ms
G Bit description
G Frame interval : Tf
The waveform is transmitted as long as a key is depressed.
• Bit “0”
Tf Tf
Tf=108ms @455KHz
0.56 ms 0.56 ms
1.12 ms
• Bit “1”
2.24 ms
How to Connect
How to Connect
Remote Control IR Code
Remote Control IR Code
IR Code
IR Code
Owner’s Manual 37
Programming the Remote
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
SLEEP
MUTE
POWER
VOL+
VOL-
CH+
CH-
APC
DASP
ENTER (Á)
AII INPUT SELECT
MENU
ARC
Split Zoom
Window Position
Window Size
F
G
D
E
EXIT
PIP
SWAP
PIP Input
Input Component 1
Input Component 2
Input RGB
Input DVI
DW
Video
HDMI
Key lock
Index
10
11
12
13
14
15
16
17
18
19
0E
09
08
02
03
00
01
4D
52
44
0B
43
79
7B
62
64
07
06
40
41
5B
60
63
61
BF
D4
D5
C6
6B
CD
CE
3E
75
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (4:3/16:9/Horizon/Zoom mode Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code (Input Component 1 Selection)
Discrete IR Code (Input Component 2 Selection)
Discrete IR Code (Input RGB Selection)
Discrete IR Code (Input DVI Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Code (Hexa) Function Note
38 Plasma Monitor
Programming the Remote
G The remote control is a multi-brand or universal remote control. It can be programmed to operate most remote-controllable
devices of other manufacturers.
Note that the remote control may not control all models of other brands.
Programming a code into a remote mode
Programming a code into a remote mode
Programming the Remote
Programming the Remote
1. Test your remote control.
To find out whether your remote control can operate the component without programming, turn on the component such as a VCR
and press the corresponding MODE button (VCR) on the remote control, while pointing at the component. Test the POWER and
CH +/- buttons to see if the component responds properly. If not, the remote requires programming to operate the device.
2. Turn on the component to be programmed, then press the corresponding MODE button on the remote control.
3. Press the MENU and MUTE buttons simultaneously, the remote control is ready to be programmed for the code.
4. There are two ways to find the right code for the component.
A. If you press the CH +/- buttons repeatedly, the codes will change one at-a-time. Press the POWER button after each code
change. If the right code is found, the device will turn off.
B. Enter a code number using the number buttons on the remote. Programming code numbers for the corresponding component
can be found on the following pages. Again, if the code is correct, the device will turn off.
5. Press the MENU button to store the code.
6. Test the remote control functions to see if the component responds properly. If not, repeat from step 2.
Owner’s Manual 39
Programming the Remote
Programming Codes
Programming Codes
VCRs
VCRs
CA
CATV
TV
AIWA 034
AKAI 016 043 046 124
125 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
065 108 110 111
112116117119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 131 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
107 109 144 147
GO VIDEO 132 136
HARMAN KARDON
012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 106 114 123
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
MARANTZ 012 031 033 067
069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
133 140 145
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
107 109 140 144
145 147
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
105 107 109 112
113 115 120 122
125
SANSUI 022 043 048 135
SANYO 003 007 010 014
102 134
SCOTT 017 037 112 129
131
SEARS 003 00 009
010 013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 046
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK
016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
RK 091
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
SYLVANIA 067
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029 067
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
40 Plasma Monitor
Troubleshooting Checklist
Audio
Audio
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
DVD
DVD
ALPHASTAR DSR
123
AMPLICA 050
BIRDVIEW 051 126 129
BSR 053
CAPETRONICS 053
CHANNEL MASTER
013 014 015 018
036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010
011 052 112 116
141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058
093 094 095 096
097 098 099 100
122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027
133 134
GENERAL INSTRUMENT
003 004 016 029
031 059 101
HITACHI 139 140
HOUSTON TRACKER
033 037 039 051
057 104
HUGHES 068
HYTEK 053
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064
065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE 143
PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO
028 035 047 057
085
SCIENTIFIC ATLANTA
032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087
088 090 107 130
137
TOSHIBA 002 127
UNIDEN 016 025 042 043
044 045 048 049
078 079 080 086
101
UNIDEN 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084
091 120
HDSTB
HDSTB
Brand Codes Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes Brand Codes
AIWA 014 028 070 096
125 129 139 229
230
AKAI 163
ANAM 003 014 017 023
059 106 189 216
217 235 236
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 084
102 148 198 221
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029
087 107 108 110
190 191 192 210
211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
INKEL 037 058 062 069
078 079 095 121
122 149 150 151
152 153 154 155
157 158 159 160
189 207 222 224
225 226 227 243
247
JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089
170 171 197 206
215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098
100 172 173 174
175 176 177 178
179 180 181 183
201 202 208 213
214 219 223 232
238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025
034 041 081 090
097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047
048 056 057 132
133 140
OPTIMUS 158
PANASONIC 007 033 064 113
142 220 241 251
PENNEY 104
PHILIPS 026 112 143 253
PIONEER 039 042 043 063
065 091 093 094
115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182
193 194 195 203
204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052
072 082 117 119
156 184 199 200
206 209
SHERWOOD 005 006 158
SONY 044 045 109 114
118 126 248 249
TAEKWANG 012 020 073 074
076 077 105 161
162 163 164 165
166 167 168 169
205 231 233 242
254
TEAC 010 085 106 136
185 187 237
TECHNICS 101 113 128 134
147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092
199
Brand Codes Brand Codes Brand Codes Brand Codes
Owner’s Manual 41
Specifications
No output from one of
the speakers •Adjust Balance in the Sound menu. (Refer to p.20)
Unusual sound from
inside the monitor
•A change in ambient humidity or temperature may result in an unusual noise
when the plasma display is turned on or off and does not indicate a fault with
the monitor.
No picture &
No sound
•Check whether the Monitor is turned on.
•Power cord inserted into wall outlet?
•Test the wall power outlet, plug other product’s power cord into the wall outlet
where the Monitor’s power cord was plugged in.
No or Poor color
or Poor picture
•Select Color in the Picture menu and press the VOLUME (G) button.
(Refer to p.19)
•Keep a sufficient distance between the Monitor and the VCR.
•Activate any function to restore the brightness of the picture.
(If still picture is on the screen for more than 5 minutes, the screen gets dark.)
The remote control
doesn’t work
•Check to see if there is any object between the Plasma Display and the
remote control causing obstruction.
•Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.8)
•Install new batteries. (Refer to p.8)
Picture OK &
No sound
•Press the VOLUME (G) button.
•Sound muted? Press MUTE button.
Picture appears slowly
after switching on
•This is normal, the image is muted during the plasma display startup process.
Please contact your service center, if the picture has not appeared after five
minutes.
Horizontal/vertical bars
or picture shaking •Check for local interference such as an electrical appliance or power tool.
T
Troubleshooting Checklist
roubleshooting Checklist
42 Plasma Monitor
Notes
•The specifications shown above may be changed without notice for quality improvement.
Product Specifications
Product Specifications
MODELS
Width (inches / mm)
Height (inches / mm)
Depth (inches / mm)
Weight (pounds / kg)
Power requirement
Resolution
Color
Viewing Size (mm)
Operating Temperature Range
Operating Humidity Range
MW-71PY10
68.9 / 1750
38.7 / 982
3.9 / 98
183.6 / 83.3
AC110-240V ~ 50/60Hz
1920 x 1080 (Dot)
16,770,000 (256 steps of each R, G and B)
1512.26
32 ~ 104°F (0 ~ 40°C)
Less than 80%
Owner’s Manual 43
Notes
Notes
Notes
P/NO : 3828VA0484A (RF04FA)
PLASMA MONITOR
OWNER’S MANUAL
Please read this owner’s manual thoroughly before operating
the Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and relate
this information to your dealer if you ever require service.
Model Number :
Serial Number :
MODELS: MW-71PY10
