Users Manual Part 2
Using Software 129
5Bass Boost : Boosts the lowest frequencies for enhanced bass sound.
6Change Output Device : Changes the sound output device.
TIP
If you want to remove Audio Driver or DTS Sound, remove [DTS Sound] and
[Realtek High Definition Audio Driver] in the order specified and restart the system.
If you want to reinstall Audio Driver or DTS Sound, remove [DTS Sound] and
[Realtek High Definition Audio Driver] in the order specified and install [Realtek
High Definition Audio Driver]. Then restart the system and install [DTS Sound].
•If you do not remove or install them in the order specified, an error may occur.
ENGLISH
130 Using Software
CyberLink YouCam
Cyberlink YouCam is the program that can take picture or moving images through the web
camera.
The figures herein are subject to change without prior notice.
The web camera is optional, and so it may not be installed in some models.
For more information on how to use CyberLink YouCam, refer to Help.
TIP
You can change the web camera resolution on Setup menu.
Using Cyberlink YouCam
1Switch to the Desktop mode after clicking the [Desktop tile] in the Start screen. And
then, click the [
] icon to run the CyberLink YouCam.
2CyberLink YouCam Home Page appears as follows.
aViewer : Displays the Webcam screen.
ENGLISH
Using Software 131
bImage Gallery: Use to record pictures and moving images, play back or delete those
images.
cFrame / Animation Effect menu: Can add a frame and animation effect on the
screen.
Major Buttons
Takes pictures.
Records movie clips.
Takes the picture of Desktop.
Configures the user preferences.
Switches to the full screen view.
Starts the video monitoring function.
Allows you to use the Album and the Animation Effect.
Allows you to use the Drawing function.
Allows you to use the Zoom and Face Recognition
functions.
Deletes the picture created using the Drawing function or
clears the Animation Effect.
Displays information about CyberLink YouCam.
ENGLISH
132 Using Software
Displays the Help.
Uploads movie clips to YouTube.
Uploads pictures or movie clips to facebook.
Sends pictures or movie clips via e-mail.
Deletes the selected picture or movie clip.
ENGLISH
Restoring the System 133
Restoring the System
Using the PCLG Recovery Center
If the system has an error, you can use LG Recovery Center to use Windows 8.1 recovery
function to recover or restore the system to its initial pre-purchase state.
TIP
LG Recovery Center uses the Windows 8.1 recovery function.
For more information about Windows 8.1 recovery, refer to [Windows Help and Support].
CAUTION
If you have deleted the restoration data in the protected area of the disk, or have
arbitrarily installed another operating system, the restore function may not work.
Click the [
] icon in Desktop to run LG Recovery Center.
ENGLISH
134 Restoring the System
1PC Refresh : Recovers the PC without losing any personal files.
CAUTION
PC settings are reset to default and any user-installed software will be deleted.
2PC Reset : Removes all items from the system and restores the system to its initial pre-
purchase state.
CAUTION
All data is lost during the initialization, so you must backup all critical data in advance.
It may take about 5 hours or longer depending on the system conditions.
3Create Recovery Drive : You can create a recovery drive in Windows as a precaution
against a system failure that prevents you from entering the operating system, or any
other severe system issues.
a When the following screen appears, select [Copy the recovery partition from the PC
to the recovery drive.] and click [Next].
b When the following screen appears, select the USB flash drive and click [Next].
CAUTION
This process deletes all the data on the storage device designated as a recovery
drive. Make sure to back up its data in advance.
ENGLISH
Restoring the System 135

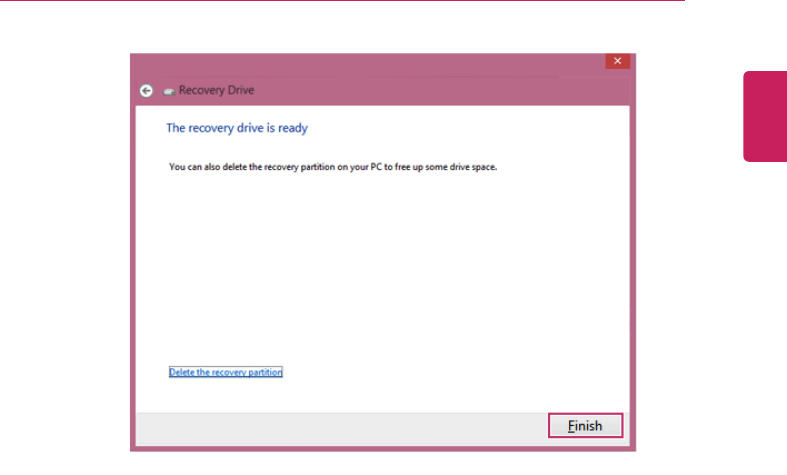

c Once the storage device is ready, click [Finish] to create a recovery drive.
CAUTION
Select [Delete the recovery partition] while creating a recovery drive to remove the
recovery partition in the PC.
Once the recovery partition is removed, you cannot use the recovery function of
the PC. You can only recover the system using the recovery media.
ENGLISH
136 Restoring the System
ENGLISH
Restoring the System 137
Recovering from a Boot Failure
If booting is impossible due to a serious error with the system, you can recover the system
using LG Recovery Center RE.
CAUTION
If you have deleted the restoration data in the protected area of the disk, the restore
function may not work.
Using LG Recovery Center RE
CAUTION
All data is lost during the initialization, so you must backup all critical data in advance.
1Turn on the PC and press [F11].
2When the following screen appears, select a language you want to use and then click
[Next].
ENGLISH
138 Restoring the System

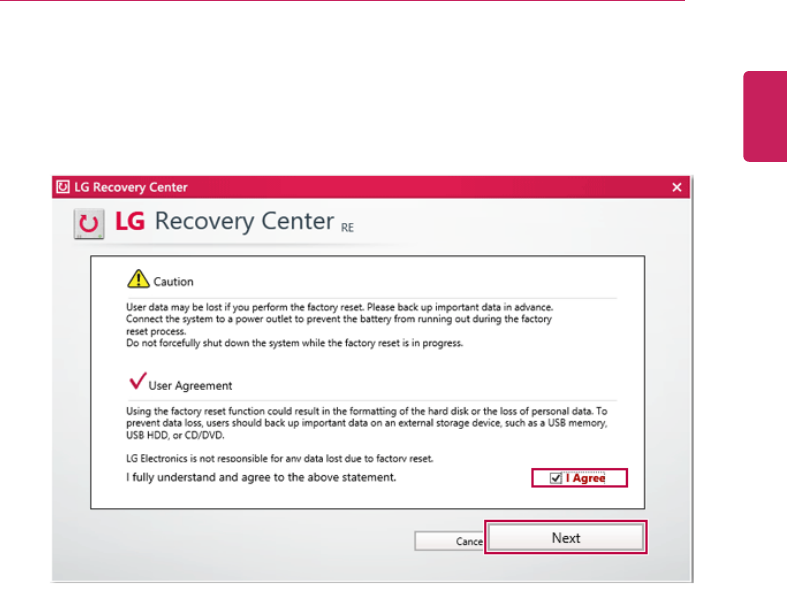

3When the following screen appears, select the [I Agree] button and then click the [Next]
button.
For recovery, the power adapter must be connected. Connect the system power
and then recover the system.
ENGLISH
Restoring the System 139
4When the factory reset has been completed as shown in the following figure, click the
[Complete] button and then restart the system.
Recover by Using a Recovery Drive
If it is impossible to recover by using [F11], you can recover the system through a recovery
drive.
TIP
To recover by using a recovery drive, you must have the recovery drive made through LG
Recovery Center [Create Recovery Drive].
1Connect the recovery drive to the USB port of the PC.
2Turn on the PC and press [F10].

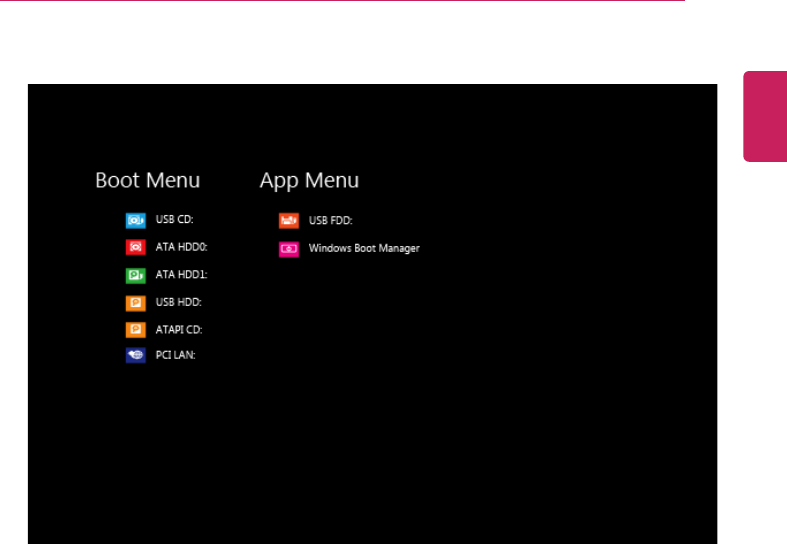

3When the screen for selecting the boot device appears, select the connected recovery
drive and click [Enter].
4Select the [Troubleshooting] menu.
5Select the item you want and recover the system following the instructions.
ENGLISH
140 Setup and Upgrade
Setup and Upgrade
Installing the Driver
The figures herein may differ by language selection and is subject to change for
performance improvements without prior notice.
Using LG Update Center to install the Driver
1Click the [
] tile on the Start screen, or the [ ] icon in Desktop mode to run LG
Update Center.
2Select [Required update] or [All List] to install the driver.
For more information on LG Update Center, refer to [Help].
TIP
You can use LG Update Center to install deleted drivers or latest drivers easily and
quickly.
For the system optimization, use LG Update Center to keep up-to-date.
ENGLISH
Setup and Upgrade 141
How to download LG Update Center
You can download LG Update Center from LG Electronics Cyber Service Center (www.lg.
com).
ENGLISH
142 Setup and Upgrade
Starting System Setup
System setup means storing the hardware configuration information of the PC in the flash
memory. Through system setup, the PC retrieves various information including current date
and time, memory capacity, and storage device (HDD, SSD, eMMC) capacity and type.
You setup the system when you set passwords, change the boot order, and add new
peripheral devices to the machine.
Items displayed on the Setup screen may differ by model type and spec.
•Refer to .
•Refer to .
•Refer to .
TIP
To use the system setup (F2), booting device selection (F10), or recovery (F11), you need
to restart the system (click [Restart] in the system power menu) and then immediately
press the corresponding function key due to the fast booting speed.
CAUTION
•Do not change the system setup unless necessary. Incorrect system setup may
cause errors during system operation. Use caution when changing the system
setup.
•For performance improvement, the system setup menu configuration and the initial
setup status may be changed and may become different from images included in the
user manual.
ENGLISH
Setup and Upgrade 143
1Press the [F2] key after re-booting the system.
ENGLISH
144 Setup and Upgrade
2In a few moments, the system setup screen appears.
Keys Used in System Setup
Keys Function
Enter Selects the current item.
Esc To deselect the current item or to move to the previous screen.
▲,▼,◄,►(Arrow
keys)
Moves the cursor up, down, left, and right.
F10 Stores new settings or ends the system setup.
ENGLISH
Setup and Upgrade 145
Setting the Password
This process is to set a password so that other people cannot use the PC or change the
settings.
The user can set a password while booting the system or setting up the system.
CAUTION
•Without the registered password, access to the system will be denied. Write down
and keep the password in a safe place.
Set Supervisor Password
The password prevents unauthorized people from accessing the PC. By default, no
password is set for the machine. If an unauthorized person changes the password in the
System Setup, you will be unable to access the system.

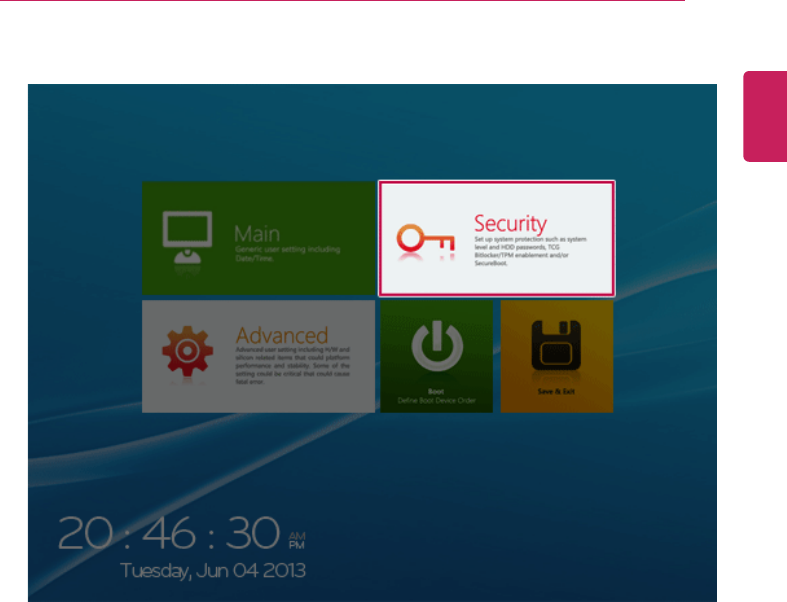

1After opening the system setup screen, click the [Security] button.
ENGLISH
146 Setup and Upgrade

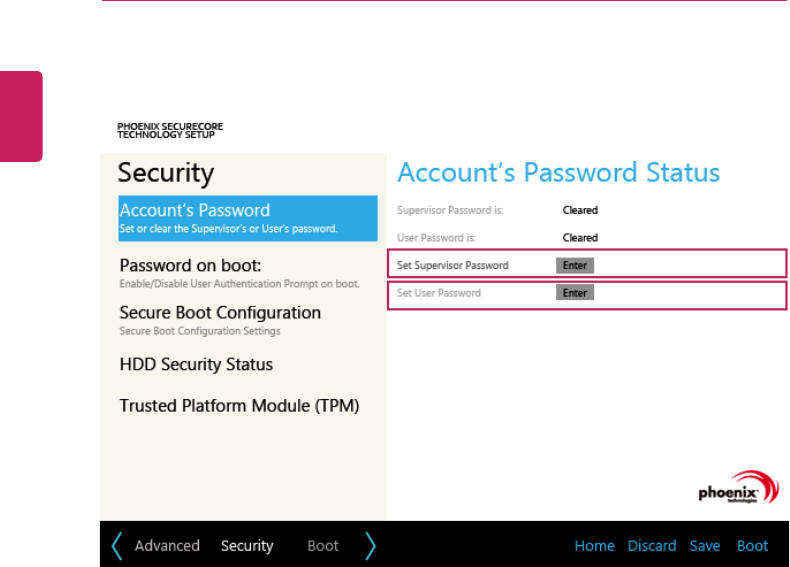

2When the following screen appears, click [Enter] in the [Set Supervisor Password]
menu.
ENGLISH
Setup and Upgrade 147
3When the following message appears, enter the password and click [OK]. The
password must not exceed 8 total characters consisting of letters (A - Z), numbers (0 -
9), or a combination of both.
ENGLISH
148 Setup and Upgrade
4When the following message appears, click [OK].
5To save the changes in system setup, press [F10].
ENGLISH
Setup and Upgrade 149

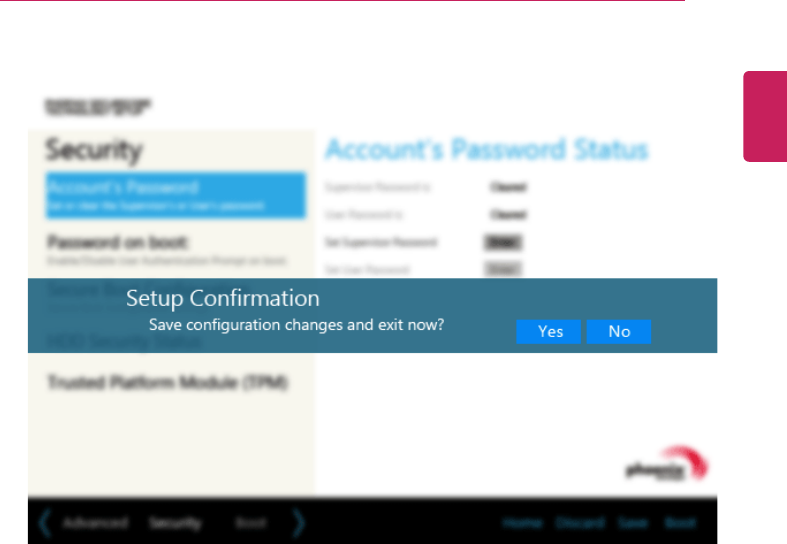

6When the following message appears, click [YES]. The PC will restart.
TIP
•With Supervisor Password, you are authorized to set all items in the System Setup
and to set Password on boot. In case other people also use the notebook PC, it is
recommended to set the Set User Password.
Set User Password
The password set by the [Set User Password] process is lower than that set by the [Set
Supervisor Password] process, and so the user can use the[Set User Password] only
after setting a password in the [Set Supervisor Password] menu.
ENGLISH
150 Setup and Upgrade

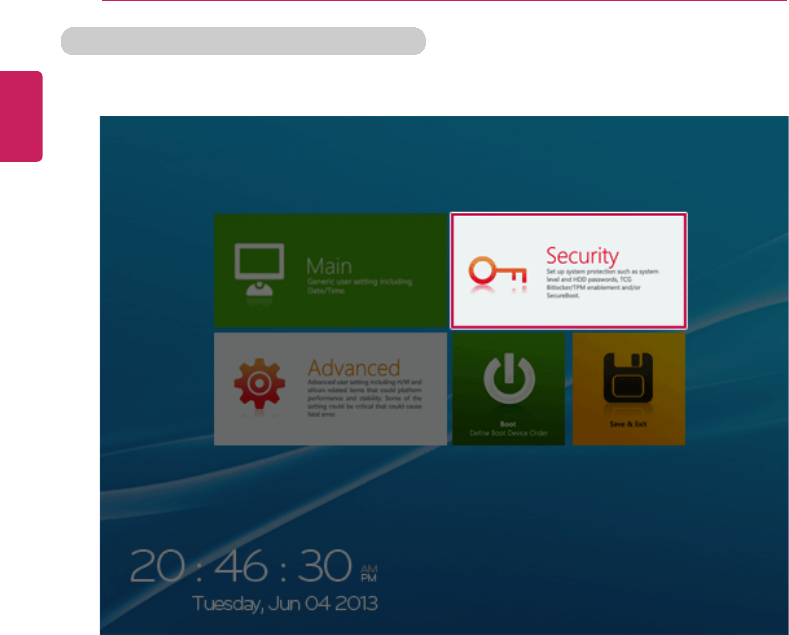

1After opening the system setup screen, click the [Security] button.
ENGLISH
Setup and Upgrade 151
2When the following screen appears, click [Enter] in the [Set User Password] menu.
ENGLISH
152 Setup and Upgrade
3When the following message appears, enter the password and click [OK]. The
password must not exceed 8 total characters consisting of letters (A - Z), numbers (0 -
9), or a combination of both.
ENGLISH
Setup and Upgrade 153
4When the following message appears, click [OK].
5To save the changes in system setup, press [F10].
ENGLISH
154 Setup and Upgrade

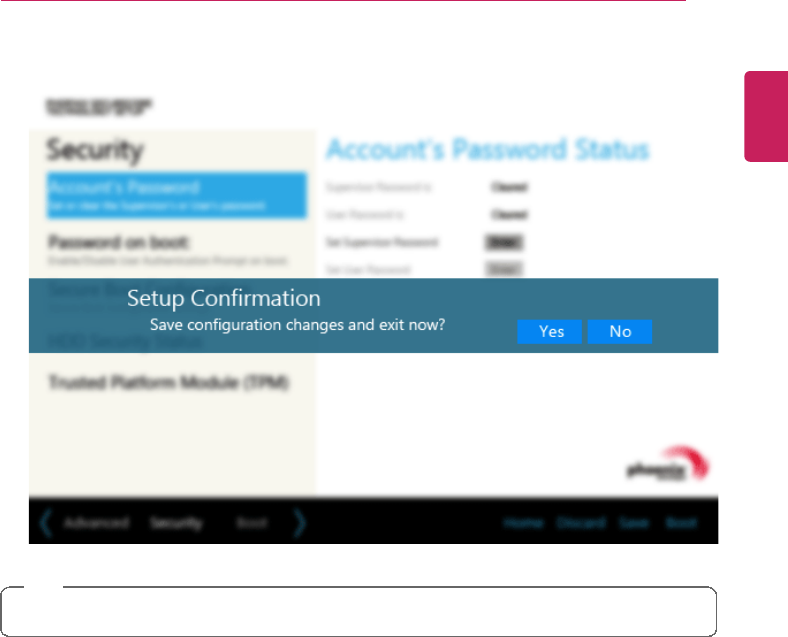

6When the following message appears, click [YES]. The PC will restart.
TIP
•[User Password] allows limited access to the items in the System Setup compared
to the [Supervisor Password] item.
Password on boot
[Password on boot] menu protects the system by requesting [Set Supervisor Password]
or [Set User Password] during boot up.
ENGLISH
Setup and Upgrade 155
1After opening the system setup screen, click the [Security] button.
ENGLISH
156 Setup and Upgrade
2When the following screen appears, set [Set Supervisor Password] only or both [Set
Supervisor Password] and [Set User Password].
ENGLISH
Setup and Upgrade 157
3Click the [Off] button in the [Password on boot] menu as shown in the following figure.
The button changes to [On] and the [Password on boot] setting is completed.
Set SSD Password
SSD Password is to set a password in the SSD separate from the Supervisor Password.

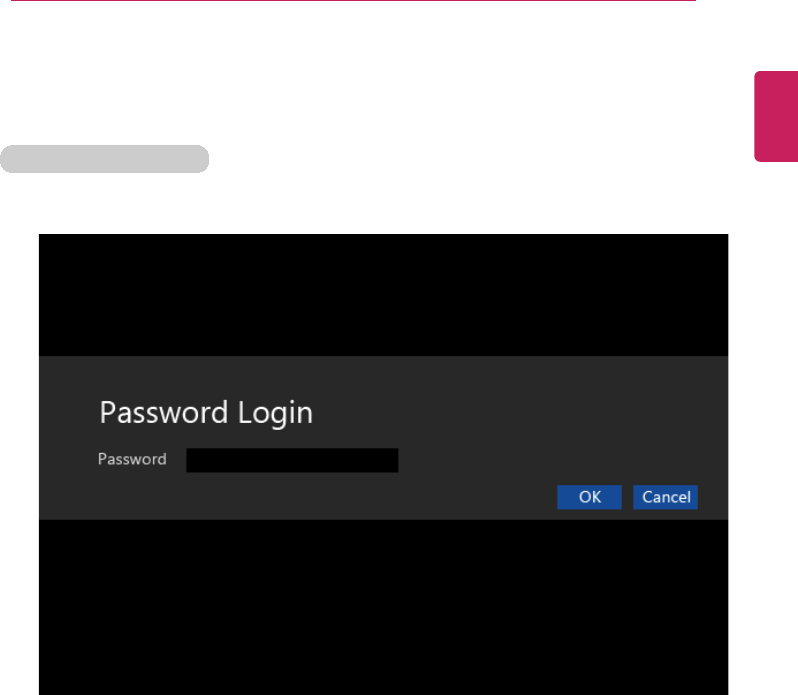

If you set the SSD Password, the password input window appears during booting.
ENGLISH
158 Setup and Upgrade
1After opening the system setup screen, click the [Security] button.
2When the [Security] menu appears, click the [HDD Security Status] button.
ENGLISH
Setup and Upgrade 159

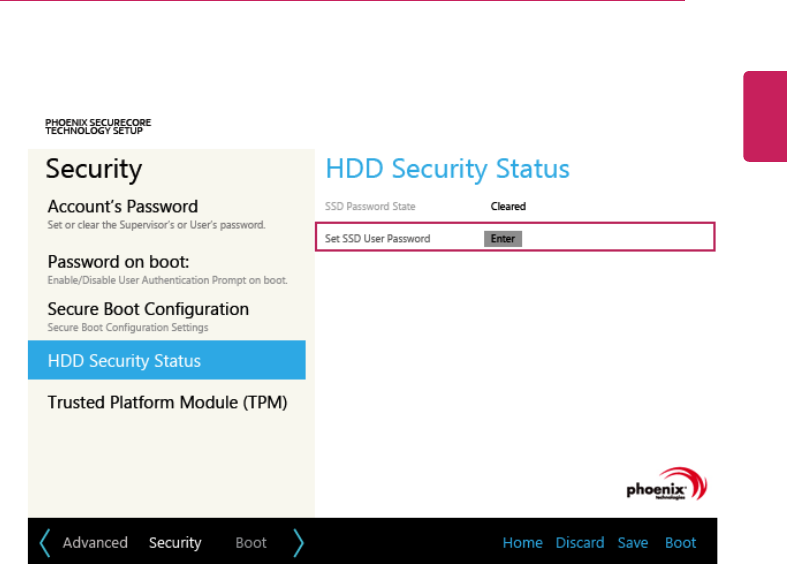

3When the following screen appears, click [Enter] in the [Set SSD User Password]
menu.
ENGLISH
160 Setup and Upgrade
4When the following message appears, enter the password and click [OK]. The
password must not exceed 8 total characters consisting of letters (A - Z), numbers (0 -
9), or a combination of both.
ENGLISH
Setup and Upgrade 161
5When the following message appears, click [OK].
6To save the changes in system setup, press [F10].
ENGLISH
162 Setup and Upgrade
7When the following message appears, click [YES]. The PC will restart.
CAUTION
Without the SSD Password, it is impossible to recover the SSD.
•Replacement of the SSD due to a forgotten SSD Password is not covered by the
warranty.
ENGLISH
Setup and Upgrade 163
Changing or Deleting the Password
You can delete or change the password only after inputting the current password.
Changing the Password
1Execute System Setup, enter the password, and press [Enter].
2Change the password the same way as setting one.
ENGLISH
164 Setup and Upgrade
Deleting the Password
1Execute System Setup, enter the password, and press the [Security] button.
ENGLISH
Setup and Upgrade 165
2When the following screen appears, click [Enter] in the [Set Supervisor Password]
menu.
ENGLISH
166 Setup and Upgrade
3When the following message appears, enter the current password in the [Enter Current
Password] field.
ENGLISH
Setup and Upgrade 167
4Press [Enter] in [Enter New Password] and [Confirm New Password].
ENGLISH
168 Setup and Upgrade
5When the following message appears, click [OK].
6To save the changes in system setup, press [F10].
ENGLISH
Setup and Upgrade 169
7When the following message appears, click [YES]. The PC will restart.
ENGLISH
170 Setup and Upgrade
Deleting the Password (Set SSD Password)
1Execute System Setup, enter the password, and press the [Security] button.
2When the [Security] menu appears, click the [HDD Security Status] button.
ENGLISH
Setup and Upgrade 171
3When the following screen appears, click [Enter] in the [Set SSD User Password]
menu.
ENGLISH
172 Setup and Upgrade
4When the following message appears, enter the current password in the [Enter Current
Password] field.
ENGLISH
Setup and Upgrade 173
5Press [Enter] in [Enter New Password] and [Confirm New Password].
ENGLISH
174 Setup and Upgrade
6When the following message appears, click [OK].
7To save the changes in system setup, press [F10].
ENGLISH
Setup and Upgrade 175
8When the following message appears, click [YES]. The PC will restart.
ENGLISH
176 Setup and Upgrade
Restoring the Factory Default Settings
If you have changed the system setup by mistake, you can restore the system default
settings.
1After opening the system setup screen, click the [Save & Exit] button.
ENGLISH
Setup and Upgrade 177

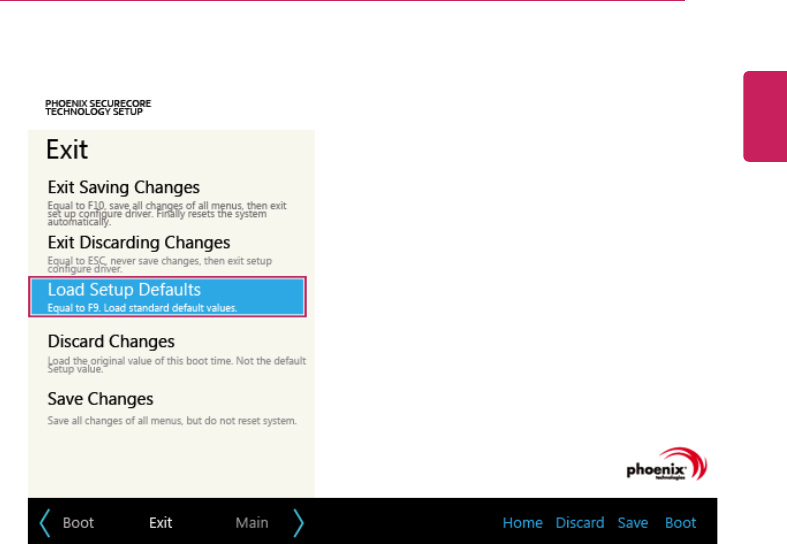

2When the [Exit] menu appears, click [Load Setup defaults].
ENGLISH
178 Setup and Upgrade
3When the following message appears, click [Yes]. The settings will be reset to the
factory default.
4To save the changes in system setup, press [F10].
ENGLISH
Setup and Upgrade 179
5When the following message appears, click [YES]. The PC will restart.
TIP
•You may press [F9] to use the [Load Setup defaults] menu.
ENGLISH
180 Setup and Upgrade
Changing Boot Order
The user can change the boot order according to his or her needs, or select a boot device
The model in the example can differ from actual models and is subject to change for
performance improvements, without prior notice.
TIP
To use the system setup (F2), booting device selection (F10), or recovery (F11), you need
to restart the system (click [Restart] in the system power menu) and then immediately
press the corresponding function key due to the fast booting speed.
Changing Boot Order
1Press the [F2] key after re-booting the system.
ENGLISH
Setup and Upgrade 181
2When the system setup screen appears, click the [Boot] button.
ENGLISH
182 Setup and Upgrade

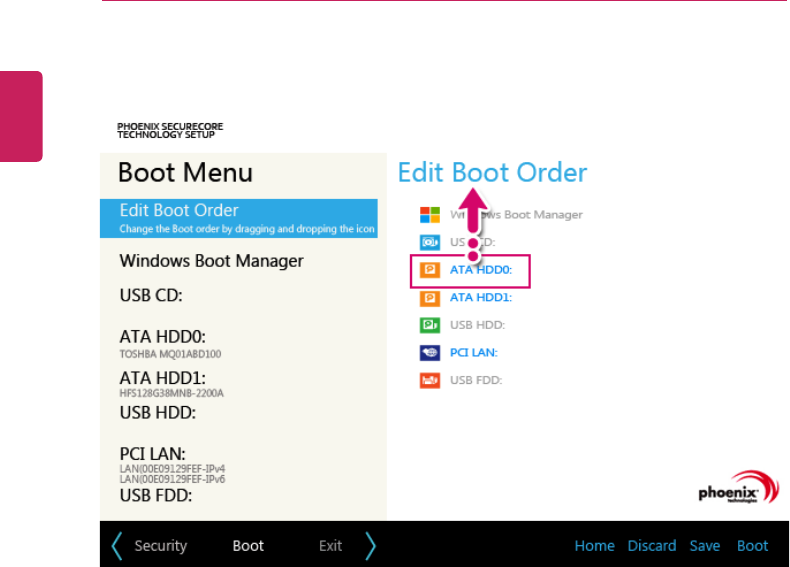

3Drag the icon of the device to change the booting order in the [Edit Boot Order] menu
to change the booting order.
4To save the changes in system setup, press [F10].
ENGLISH
Setup and Upgrade 183
5When the following message appears, click [YES].
6The changes are saved and the system reboots.
ENGLISH
184 Setup and Upgrade
Selecting a Boot Device to Use
1Press the [F10] key after re-booting the system.
ENGLISH
Setup and Upgrade 185
2When the Select Boot Device screen appears. select the device.
3Boots using the selected device.
ENGLISH
186 Setup and Upgrade
Windows 8.1 Auto Scaling
Windows 8.1 Auto Scaling feature may blur the screen or display some icons and texts
larger.
Change the DPI scaling to fit for you as follows:
1On the Start screen, click the [Desktop] tile to convert the screen to the Desktop
screen.
2Right-click with the mouse on the desktop and select [Personal Settings] >[Display],
and then check [Let me choose one scaling level for all may displays].
ENGLISH
Setup and Upgrade 187
3Select an item size to proceed as instructed.
ENGLISH
188 Setup and Upgrade
Using Instant Booting
Instant Booting allows the system to boot automatically when the notebook PC cover is
opened, so that you can use the system without pressing the power button.
1On the Start screen, press the [
] tile, or on the Desktop, press the [ ] icon to
run [LG Control Center].
2On LG Control Center screen, set the [Instant Booting] to [ON].
3Shutdown the system and close the notebook PC cover.
4When the cover is opened, the PC turns on and the system starts to boot automatically.
ENGLISH
FAQ 189
FAQ
FAQ Content
Recovering from a Boot Failure
If booting is impossible due to a serious error with the system, you can recover the system
using LG Recovery Center RE.
CAUTION
If you have deleted the restoration data in the protected area of the disk, the restore
function may not work.
Using LG Recovery Center RE
CAUTION
All data is lost during the initialization, so you must backup all critical data in advance.
1Turn on the PC and press [F11].
ENGLISH
190 FAQ
2When the following screen appears, select a language you want to use and then click
[Next].
ENGLISH
FAQ 191
3When the following screen appears, select the [I Agree] button and then click the [Next]
button.
For recovery, the power adapter must be connected. Connect the system power
and then recover the system.
ENGLISH
192 FAQ
4When the factory reset has been completed as shown in the following figure, click the
[Complete] button and then restart the system.
Recover by Using a Recovery Drive
If it is impossible to recover by using [F11], you can recover the system through a recovery
drive.
TIP
To recover by using a recovery drive, you must have the recovery drive made through LG
Recovery Center [Create Recovery Drive].
1Connect the recovery drive to the USB port of the PC.
2Turn on the PC and press [F10].
3When the screen for selecting the boot device appears, select the connected recovery
drive and click [Enter].
4Select the [Troubleshooting] menu.
5Select the item you want and recover the system following the instructions.
ENGLISH
FAQ 193
Using Instant Booting
Instant Booting allows the system to boot automatically when the notebook PC cover is
opened, so that you can use the system without pressing the power button.
1On the Start screen, press the [
] tile, or on the Desktop, press the [ ] icon to
run [LG Control Center].
2On LG Control Center screen, set the [Instant Booting] to [ON].
3Shutdown the system and close the notebook PC cover.
4When the cover is opened, the PC turns on and the system starts to boot automatically.
ENGLISH
194 FAQ
Windows 8.1 Auto Scaling
Windows 8.1 Auto Scaling feature may blur the screen or display some icons and texts
larger.
Change the DPI scaling to fit for you as follows:
1On the Start screen, click the [Desktop] tile to convert the screen to the Desktop
screen.

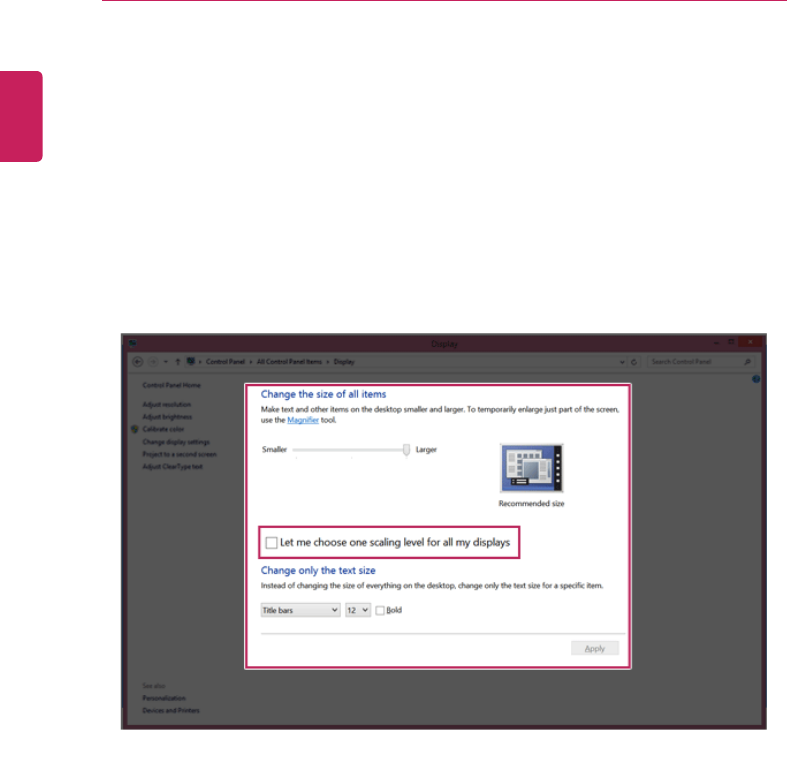

2Right-click with the mouse on the desktop and select [Personal Settings] >[Display],
and then check [Let me choose one scaling level for all my displays].
ENGLISH
FAQ 195

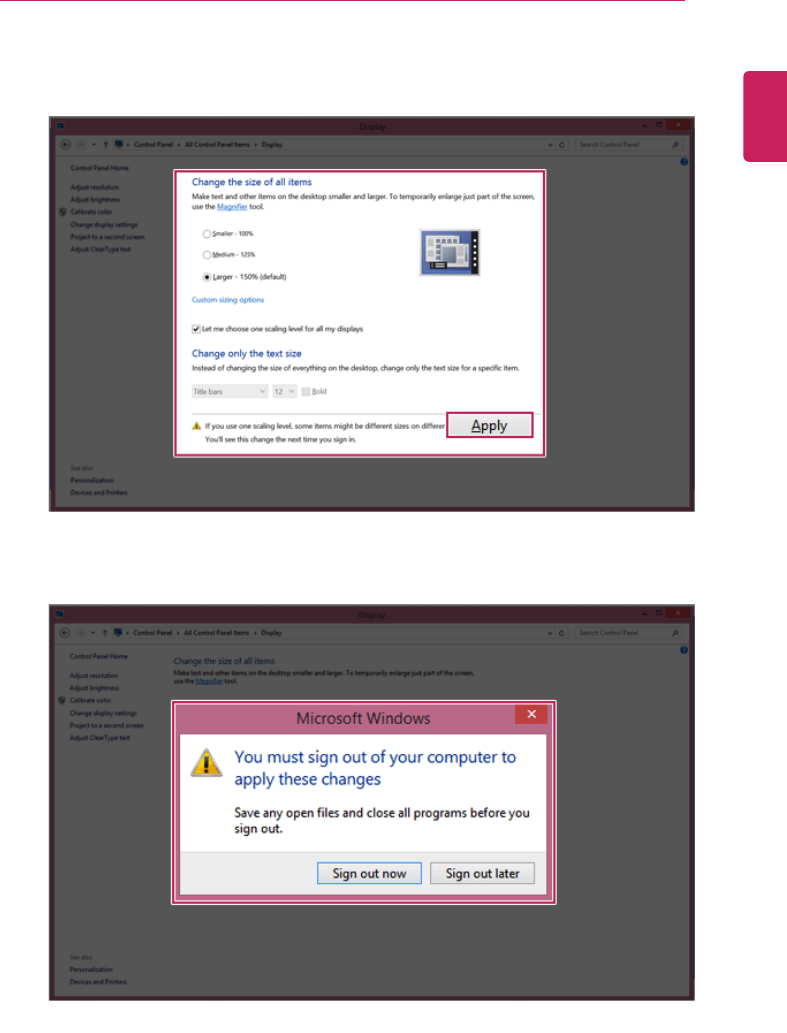

3Select an item size to proceed as instructed.
ENGLISH
196 FAQ
LG Recovery Center
If the system has an error, you can use LG Recovery Center to use Windows 8.1 recovery
function to recover or restore the system to its initial pre-purchase state.
TIP
LG Recovery Center uses the Windows 8.1 recovery function.
For more information about Windows 8.1 recovery, refer to [Windows Help and Support].
CAUTION
If you have deleted the restoration data in the protected area of the disk, or have
arbitrarily installed another operating system, the restore function may not work.
Click the [
] icon in Desktop to run LG Recovery Center.
1PC Refresh : Recovers the PC without losing any personal files.
CAUTION
PC settings are reset to default and any user-installed software will be deleted.
ENGLISH
FAQ 197
2PC Reset : Removes all items from the system and restores the system to its initial pre-
purchase state.
CAUTION
All data is lost during the initialization, so you must backup all critical data in advance.
It may take about 5 hours or longer depending on the system conditions.
3Create Recovery Drive: You can create a recovery drive in Windows as a precaution
against a system failure that prevents you from entering the operating system, or any
other severe system issues.
a When the following screen appears, select [Copy the recovery partition from the PC
to the recovery drive.] and click [Next].
b When the following screen appears, select the USB flash drive and click [Next].
CAUTION
This process deletes all the data on the storage device designated as a recovery
drive. Make sure to back up its data in advance.
ENGLISH
198 FAQ
c Once the storage device is ready, click [Finish] to create a recovery drive.
CAUTION
Select [Delete the recovery partition] while creating a recovery drive to remove the
recovery partition in the PC.
Once the recovery partition is removed, you cannot use the recovery function of
the PC. You can only recover the system using the recovery media.
ENGLISH
FAQ 199
ENGLISH
200 FAQ
Connecting a Monitor / TV
TIP
•Ensure the monitor power is off before connecting the external monitor to the PC.
Connecting to the HDMI Port
HDMI is a high-speed multimedia interface that can transfer uncompressed full digital audio
and video signals.
LG Notebook PC supports either HDMI or SPDIF.
In some models, DTS Sound may not work when you use HDMI.
1Connect the HDMI cable to the PC and the external device (TV, monitor) that supports
HDMI.
2HDMI port transfers both video and audio simultaneously. So you don't need a separate
audio connection.
3Press [Fn]+[F7] to redirect the video output to the external device.
ENGLISH
FAQ 201
TIP
Switching screen output device by pressing [Fn] + [F7]
•Press [Fn] + [F7] to display the Toggle Screen menu. Then select the screen mode
you want and press [Enter].
CAUTION
•If you do not set Speaker as the default value after disconnecting the HDMI cable,
the system may not produce any sound.
•If a program was running already, you need to exit and restart the program for it to
produce sound.
ENGLISH
202 FAQ
Using a Wireless or Regular Router
A wireless / regular router connects several PCs and mobile devices etc. to one internet line
and enables the use of internet and the network.
A wireless / regular router has to be bought separately. Refer to the manual provided
by the manufacturer for instructions.
Connecting a Wireless or Regular Router
If one internet line is used with a wireless / regular router and several devices are
connected, this may result in a slower connection.
In case of a wireless network, it is recommended to change the network name and security
settings for a more secure connection.
Network speed can differ according to operation environment and specifications.
1Connect the internet cable of the modem that was provided by your internet provider to
the router's WAN port.
2Connect all devices (PC, IPTV, internet phone, etc.) with a LAN cable to LAN ports 1 to
4 of the router.
The number of LAN ports can vary for each router model.
3Please refer to the manual provided by the router manufacturer for setup of the network
and Internet.
ENGLISH
FAQ 203
Wireless Network
The wireless network (Wireless LAN) is the network environment that connects a PC with
the internet provider or company network through an Access Point (wireless or regular
router).
Wireless network is optional, and so it may not be installed in some models.
Turning On/Off Airplane Mode
Prior to using the wireless network, press [Fn] + [F6] to turn off Airplane Mode.
Pressing [Fn] + [F6]keys will turn on or off. If you are not going to use the mode, keep the
mode turned on to reduce the battery power consumption.
Using the Wireless Network
If an Access Point (wired or wireless router) is in the vicinity of the PC, the wireless network
can easily be accessed.
During the search for a wireless network (Wireless LAN), various Access Point may
be found according to the location where the PC is used.
In case no accessible wireless network (Wireless LAN) is near the PC, no Access
Point might be found.
A password protected Access Point cannot be accessed without knowing the right
password.
ENGLISH
204 FAQ
1Run [Charms] on the Desktop or the Start screen.
2In the Charms, click [Settings] >[Wireless Network Icon].
ENGLISH
FAQ 205
3Near available Access Point(wireless network) is automatically searched.
ENGLISH
206 FAQ
4Select the Access Point (wireless network) you want to use and click [Connect] to
connect to the Access Point.
If a password is set for the wireless network, the Enter Password window
appears.
5When the connection is established, [Connected] is displayed in the connected Access
Point(wireless network).
6Click the [Internet Explorer] icon in the taskbar to check whether the internet is operating
normally.
ENGLISH
FAQ 207
Wired LAN
LAN is the network environment that users can connect to by using a cable to connect to
their internet providers or the company's network.
Using Wired LAN
LAN is installed with an automatic IP (DHCP) as default value.
Please refer to the following instructions to find out more about setting up an automatic IP
(DHCP) or manual IP.
1Connect the LAN adaptor to the micro USB port on the PC.
TIP
The recommended network cable for the optimal network environment is CAT5 or
higher.
The network (LAN) cable may be connected when the LAN adapter is used.
The LAN adapter may be separately purchased at LG Service Center.
ENGLISH
208 FAQ
2Connect LAN cable to the LAN port.
3On the Start Screen, click the Desktop tile to convert to the Desktop screen.
ENGLISH
FAQ 209
4Run [Charms] on the Desktop.
ENGLISH
210 FAQ
5In the Charm Menu, click [Settings] >[Control Panel] >[View By] >[Small Icon] >
[Network and Sharing Center].
ENGLISH
FAQ 211

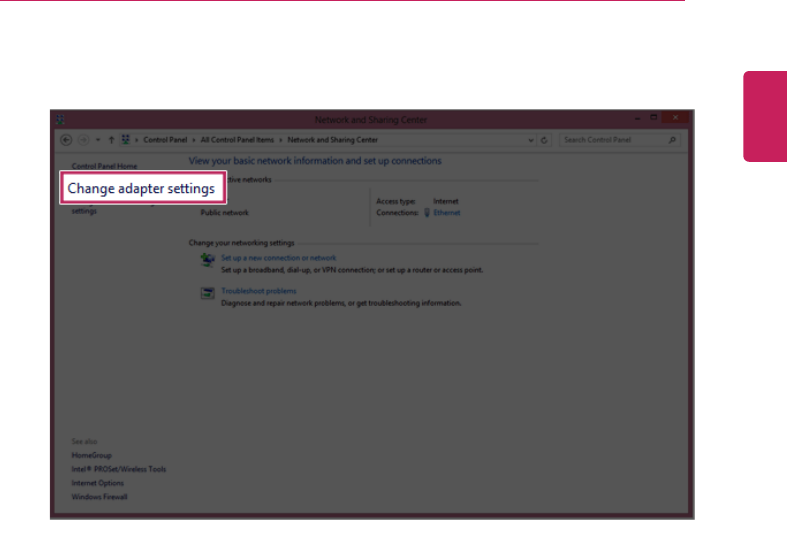

6Click [Change Adapter Settings].
ENGLISH
212 FAQ
7Right-click [Ethernet] and select [Properties].
ENGLISH
FAQ 213
8Select [Internet Protocol Version 4 (TCP/IPv4)] and click [Properties].
ENGLISH
214 FAQ

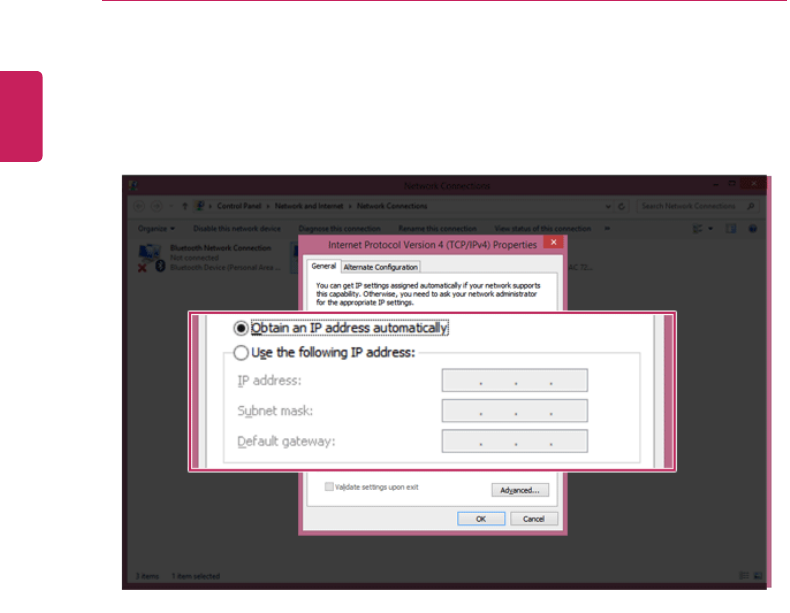

9If you want to use an automatic IP(DHCP), select [Obtain an IP Address
Automatically]. If you want to use a manual IP, select [Use Following IP Address] to
enter the address.
Please ask the network administrator about obtaining a manual IP.
10 Press [OK] to complete the network setup.
11 Click the [Internet Explorer] icon in the taskbar to check whether the internet is operating
normally.
ENGLISH
