LG Electronics USA PSBTOZ0 Bluetooth Modem User Manual
LG Electronics USA Bluetooth Modem
User Manual
LG ELECTRONICS
LG SIMs
LG ELECTRONICS
If engineer use the LG SIMs for check the unit operation during Installation & SVC.
Installer & SVC engineer can correct diagnosis,
LG SIMs / Specification
Specification
Method
Name : LG SIMs
- LG Smart phone Inverter Monitoring System
Operation OS
- Android 2.2, 2,3 version Smart phone
- Brand : LG, Samsung, Motorola, Nokia
※ iphone & Blackberry phones are impossible
Accessory : LG Bluetooth (PSBTOZ0)
Connection
- LG SIMs Bluetooth connect with LGMV cable in ODU
- Operate LGSIMs app. in Smart phone.
※ Bluetooth Connection Name is LG SVCXXXXX
Android Smart phone
Connection
Cable
Blue
tooth
Inverter ODU
Connection
[Smart LGMV Bluetooth Module]
(Case open)
Click [Start] to begin &
Bluetooth Request
message will appear, and
click [Yes]
Operation Range: -20
℃
~48
℃
LG ELECTRONICS
LG SIMs / Main Information
After the Bluetooth is being connected, while the Main Info is displayed
File (Unit Operating Data)
[Save Start]to start saving data
[Save Stop]to stop saving data
[Exit] to exit from [File]
③① ②
③
①
②View
[Main Info] to view main information
[Outdoor] to view outdoor monitoring
[Indoor] to view Indoor monitoring
[Graph] to monitor graph
Help
[TSG] to select Trouble Shooting Guide
[Main Info]
LG ELECTRONICS

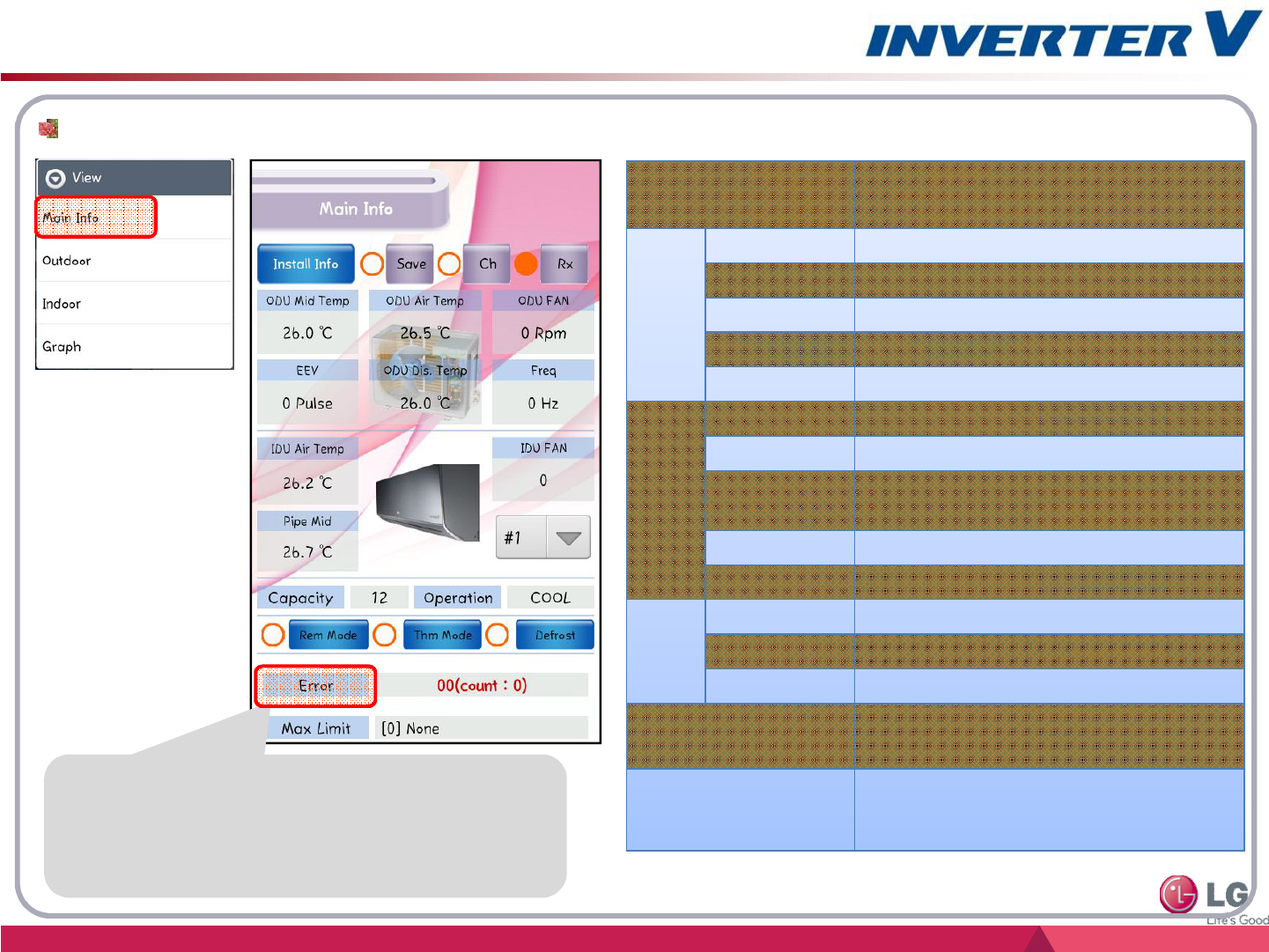

LG SIMs / Main Information
Install Info Save: Saving Data / Ch: Checking /
Rx: : Connection with Bluetooth
ODU
Mid Temp mid-pipe temperature
Air Temp Air temperature
FAN fan rpm (BLDC)
Freq Inverter comp frequency
EEV EEV pulse
IDU
Air Temp Room Air Temperature
Capacity Indoor unit capacity
Operation Unit operating condition
(Cooling/Heating/etc.)
FAN fan rpm (BLDC)
Pipe Mid mid-pipe temperature
Mode
Rem Remote Controller On/Off
Thm Thermo On/Off
Defrost Defrost Operation or not
Error Error Code display
(Count of error occurrence)
Max Limit (Comp Step Limit)Inverter comp
frequency limitation
View
Main Info
[Main Information]
Inverter Main Information Display
Click on [Error Code] to go to [TSG]
Trouble shooting for Error Code will be
displayed or you can go via [Help → TSG]
LG ELECTRONICS

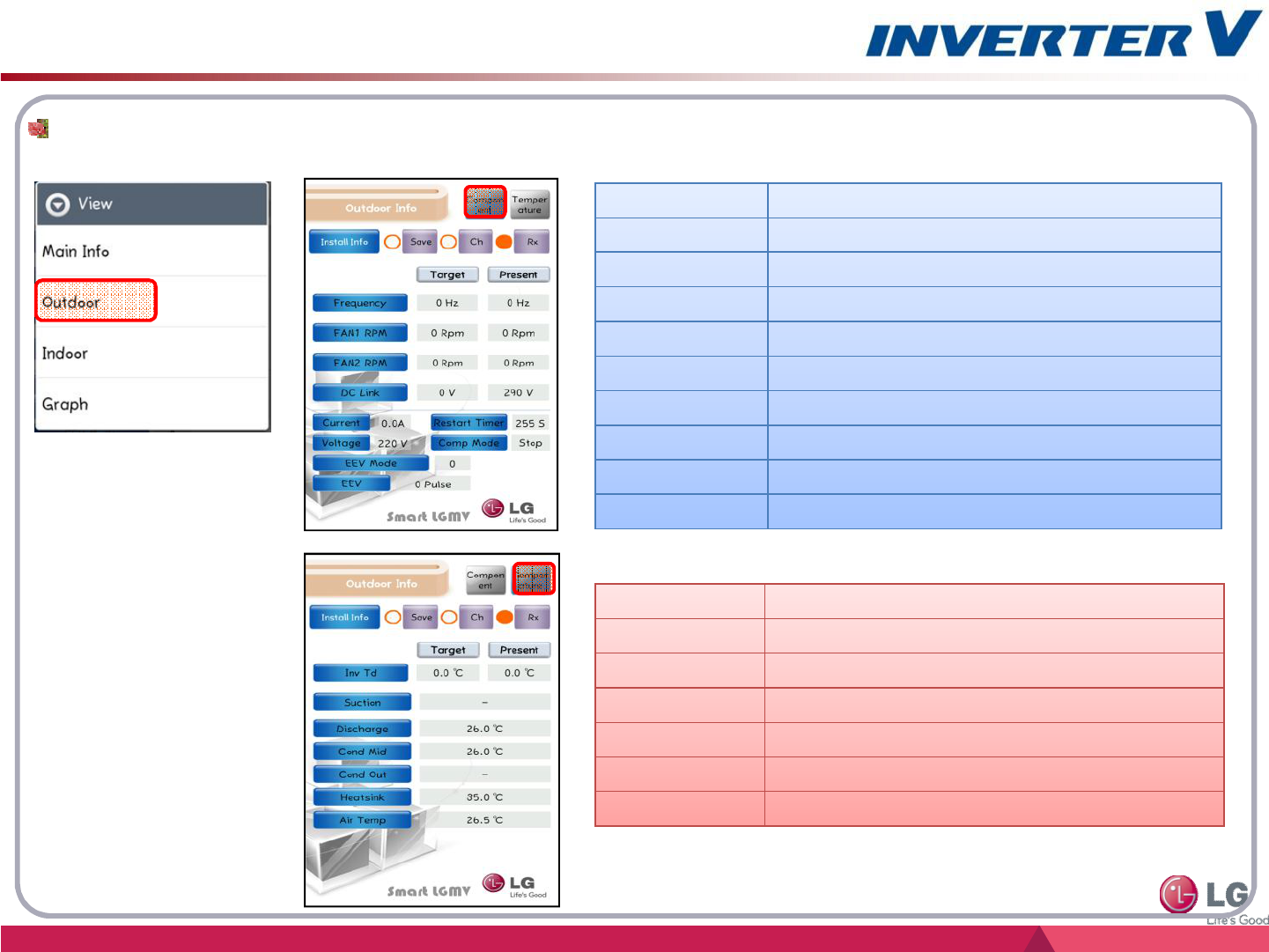

LG SIMs / Outdoor Information
View
Outdoor Monitoring
Frequency Inverter comp target/current frequency
FAN1 RPM Outdoor Fan1 target/current rpm
FAN2 RPM Outdoor Fan2 target/current rpm
DC Link DC Link target/current voltage
Current Input current
Voltage Input voltage
Restart Timer Restart timer
Comp Mode Compressor operation status
EEV Mode EEV operation status
EEV EEV pulse
Inv Td Target/current discharge temperature
Suction Suction temperature
Discharge Discharge temperature
Cond. Mid Condenser mid-pipe temperature
Cond. Out Condenser out-pipe temp
Heatsink Heatsink temperature
Air Temp Outdoor temperature
[Outdoor Unit Information Component]
[Outdoor Unit Information Temperature]
Outdoor Unit Information Display
Click!
LG ELECTRONICS

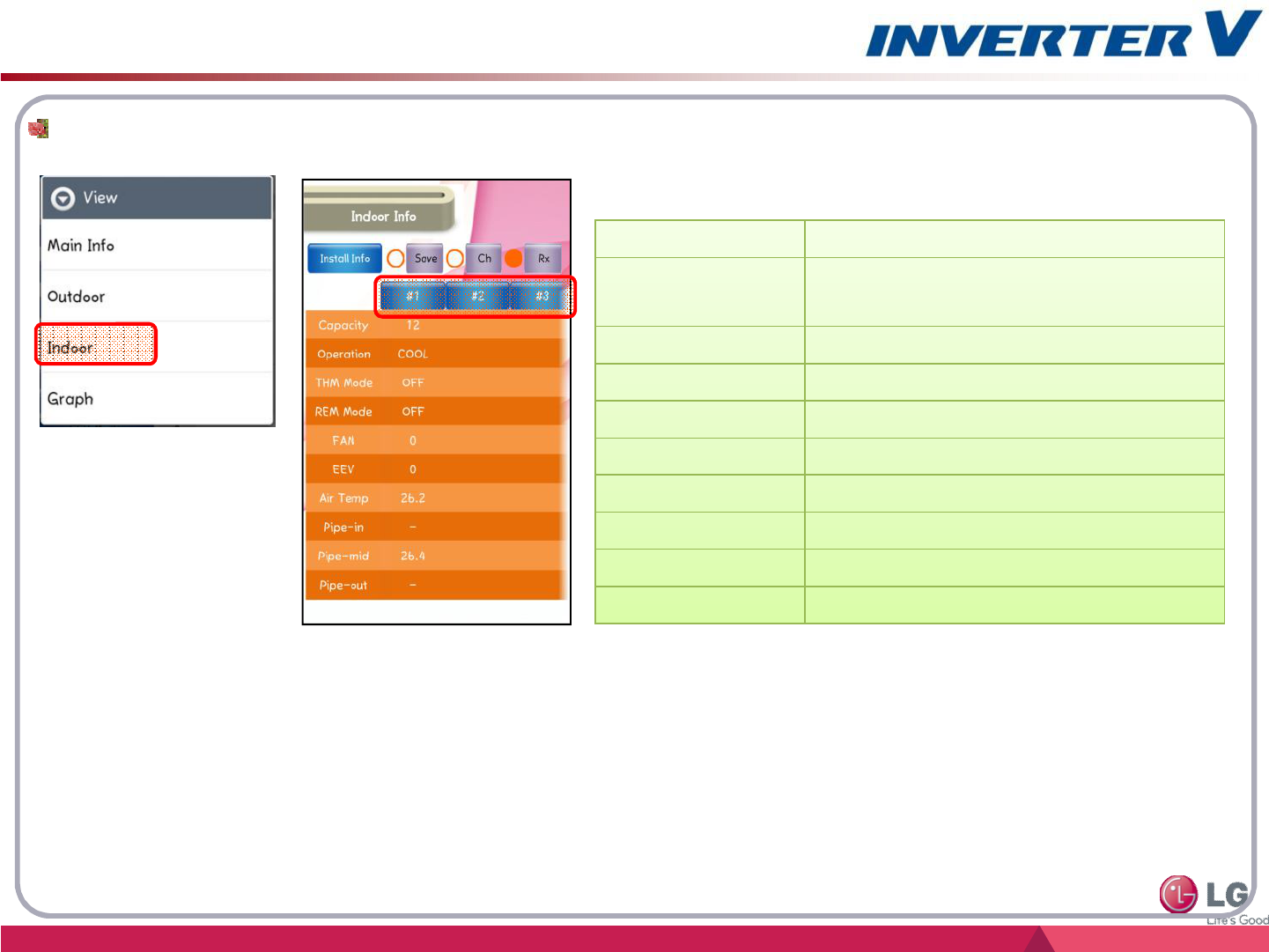

LG SIMs / Indoor Information
View
Indoor monitoring
Capacity Indoor unit capacity
Operation Unit operating condition
(Cooling/Heating/etc.)
THM Mode Thermo On/Off
REM Mode Remote Controller On/Off
FAN Fan RPM
EEV EEV pulse
Air Temp Room/Indoor side Temperature
Pipe-in pipe-in temperature
Pipe-mid pipe-mid temperature
Pipe-out pipe-out temperature
[Indoor Unit Information]
Indoor Unit Information Display
※ User can indoor monitoring maximum by 16Unit
LG ELECTRONICS
LG SIMs / Graph(Temp & Electronic)
View
Graph
Indoor Unit Temperature Graph
Disp. Items: Room Temp,
Pipe in/mid/out Temp
Outdoor Unit Temperature Graph
Click [Temp Elect] to change graph type.
Disp. Items: Discharge, Suction, Pipe mid/out,
Out Air Temp & Comp Frequency
Outdoor Unit Electric related Graph
Click [Elect Temp] to change graph type.
Disp. Items: Current & Voltage
Graph monitoring
(Note)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
caution the user that changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC Compliance Information
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
IC Warning
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum 20 cm between
the radiator and your body. This transmitter must not be collocated or operating in conjunction
with any other antenna or transmitter unless authorized to do so by the FCC.
