RCB-100 User Manual
Bluetooth Mobile Wireless Remote Controller
2
ENG
Introduction 3
- Included in the package 3
Name and Function 4
- Basic Remote Control Functions 4
How to Use 5
- Paring Remote Control 5
- Function 5
- Replacing Remote Control Battery 6
Status Indicator 7
Q&A on Troubleshooting 7
Specification 8
Precautions 8
Declaration of Confirmation 9
Additional Information 9
Limited Warranty 11
Table of Contents
3
ENG

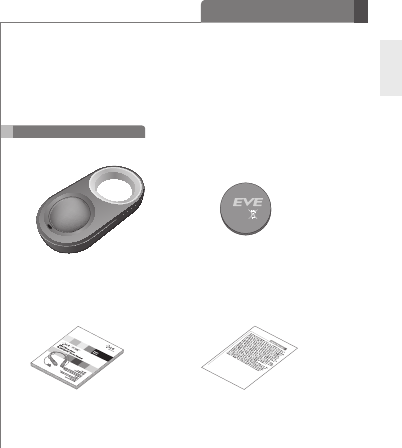

Included in the Package
The LG RCB-100 is a light weight wireless remote controller that uses Bluetooth®
technology.
This product can be used as a remote controller accessory for devices supporting
Bluetooth V4.0 and RCB-100 remote controller.
Battery
L
I
T
H
I
U
M
B
A
T
T
E
R
Y
C
R
2
0
3
2
3V
User Manual Warranty Card
Introduction
RCB-100
4
Name and Function
ENG

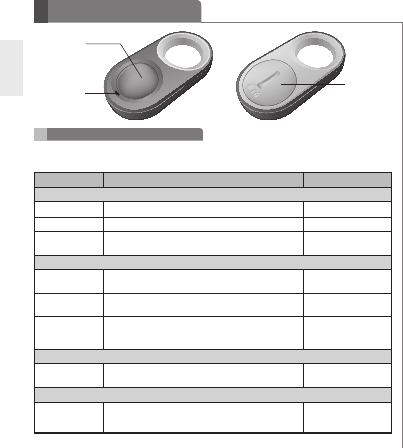

Basic Remote Control Functions
Multi-function
select button
(Select/Play/Pause)
LED Indicator Battery cover
The LG mobile wireless remote control RCB-100 with Bluetooth V4.0 provides the
following basic functions.
Function Operation LED Status
Music
Play/Pause song Press the Select button once shortly for play or pause. Green LED blinking once
Go to the next song Press the Select button twice shortly. Green LED blinking twice
Go to the rst/
previous song Press the Select button three times shortly. Green LED blinking
three times
Camera
Take photo Enter into the camera mode on a mobile phone and press
the Select button once shortly. Green LED blinking once
Take video Enter into the video mode on a mobile phone and press the
Select button once shortly. Green LED blinking once
Enter into camera
mode
Press and hold the Select button for 2 seconds or longer and
release the button.
The mobile phone enters into the camera mode.
Green LED blinking
four times
Receiving Call
Answer an
incoming call When the mobile phone rings, press the Select button once
shortly. (The default is speakerphone.) Green LED blinking once
Searching Mobile Phone
Make the phone
ring
Press the Select button ve times shortly when a mobile
phone is connected to the RCB-100. You can hear the sound
that noties of the mobile phone location.
Green LED blinking
ve times
Note: The Bluetooth wireless remote control (RCB-100) works properly when the distance
between a mobile phone and the remote control is within about 10 m.
5
ENG
Paring Remote Control
-
The wireless remote control works with a mobile phone that supports Bluetooth V4.0
and RCB-100 remote control function.
-
You must pair the RCB-100 remote control with a mobile phone that supports a
wireless remote control.
Pairing Remote Control
1. Insert a battery in a correct direction.
2. Press and hold the Select button of RCB-100 remote control for 6 seconds to enter
into the pairing mode. The LED indicator is blinking red and green for 1 minute in turn
and then the remote control enters into the pairing mode.
3. Turn on the Bluetooth device of the mobile phone. When you turn on the device, the
Bluetooth setting icon is displayed on the home screen of the mobile phone.
4. Go to Menu > Settings > Bluetooth > Setting and then search for a device.
5. In the list of searched devices, select “LG RCB100” and pair with it.
6. If the remote control and mobile phone are successfully paired, the green indicator is
blinking fast several times.
Note: If the connection is lost for 1 minute in the above step, the remote control exits
the paring mode.
Function
-
The following functions work only when the remote control is connected to a mobile phone.
Music
-
Press the Select button on the remote control once shortly to play or pause a song.
-
Press the Select button on the remote control twice shortly to go to the next song.
-
Press the Select button on the remote control three times shortly to return to the rst
or previous song.
Camera
-
Open the basic camera on a mobile phone.
-
Set the mode to Camera and press the Select button on the remote control once shortly.
-
Set the mode to Video and press the Select button on the remote control once shortly.
Note: Music function is supported only in the basic music player of a mobile phone.
How to Use
6
ENG
Receiving Call
-
When the mobile phone rings, press the Select button of the remote control once
shortly. The default is speakerphone.
Notifying Mobile Phone Location
-
This function helps to nd a mobile phone when the remote control is connected to
a mobile phone.
-
Press the Select button on the remote control ve times shortly, the mobile phone
rings through its speakerphone and also vibrates.
Note: It may not work properly if the distance between the remote control and mobile
phone is over 10 m, or the connection is lost since the Bluetooth signal between
them is weak due to the wireless environment conditions.
Low Battery
-
If a mobile phone is connected to the remote control and only the red indicator is
blinking when you press the Select key, it means the battery level is low.
-
Replace the battery with a CR2032 battery.
How to Use

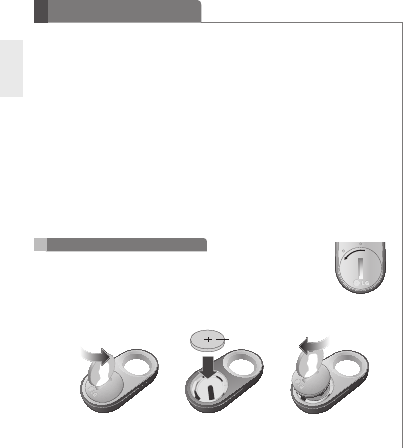

Replacing Remote Control Battery
-
Remove the battery cover using a coin.
-
Remove the battery from the remote control.
-
Insert a new CR2032 battery with its positive pole (+) upward.
-
Put the battery cover back on the remote control and tighten it using a coin.
L
I
T
H
I
U
M
B
A
T
T
E
R
Y
열림
Open Close
Place the positive polarity
(+) upward.
Note: The usage duration of RCB-100 may depend on the frequency of use.
Open
7
ENG
Function Status Operation
Pairing mode Power on The red and green LEDs are
blinking in turn.
Operation mode
Connected to a mobile
phone The green LED is blinking when
using buttons.
Not connected to a mobile
phone The red and green LEDs are
blinking shortly when using buttons.
Low power
notication Power on The red LED is blinking when
using buttons.
Problem Inspection Troubleshooting
Power fault Check if the LED turns on
during the button operation. Replace the battery or insert it in a
correct direction.
Not connected
to a mobile
phone
Check if the RCB-100 is
under the pairing mode. Press and hold the Select button for
6 seconds to switch the RCB-100 to
the paring mode.
Check if a mobile phone
supports the wireless remote
control function.
Refer to the user manual of the
mobile phone and check if a mobile
phone supports the wireless remote
control function.
Function not
work Check the connection to a
mobile phone.
If the green and red LEDs are
blinking once in turn when using
buttons, it means the connection is
lost. Try to connect again.
Keep 10 meters distance when
connecting RCB-100.
Status Indicator
Q&A on Troubleshooting
8
ENG
Specication
Precautions
Do not drop the device.
Do not modify, repair, or disassemble.
Do not expose directly to water, alcohol, benzene, etc for cleaning.
Do not expose directly to ammables.
Do not place or keep the device near ammables.
Keep the device away from excessive humidity and dust.
Do not place heavy objects on the device.
• Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
• There is a risk of explosion if the battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
Item Description
Bluetooth specication Ver. 4.0 (Bluetooth Low Energy)
Frequency range 2.402 - 2.480 GHz
Battery CR2032 3.0V primary cell
Usage duration About 6 months (depending on the frequency of use)
IP rating JIS IPX Level 4
Operating temperature 14°F ~ 140°F (-10°C ~ 60°C)
Dimension/Weight 30.7(W) x 59.5(L) x 12.5(H) mm / 14.9g
9
ENG
1. Radio frequency exposure
This Bluetooth Mobile Wireless Remote Controller, RCB-100, is a radio transmitter
and receiver. When in operation it communicates with a Bluetooth® equipped
mobile device by receiving and transmitting radio frequency (RF) electromagnetic
elds (microwaves) in the frequency range 2.4 to 2.4835 GHz. The output power of
the radio transmitter is low (0.001 watts). Your Bluetooth Mobile Wireless Remote
Controller is designed to operate in compliance with the RF exposure guidelines and
limits set by national authorities and international health agencies when used any
compatible LG Electronics mobile phone.
FCC NOTICE TO USERS:
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to
the antenna or the device is permitted. Any change to the antenna or the device
could result in the device exceeding the RF exposure requirements and void user’s
authority to operate the device.
CE NOTICE TO USERS:
Hereby, LG Electronics Inc. declares that this RCB-100 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Declaration of Conrmation
Additional Information
FCC ID: BEJRCB100
1177
10
ENG
2. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive
atmosphere. Although this is uncommon, your electronic device could generate
sparks. Sparks in such areas could cause an explosion or re resulting in bodily
injury or even death. Areas with a potentially explosive atmosphere are often, but
not always, clearly marked.
3.Battery information
Do not expose the battery to extreme temperatures, never above +70°C(+158°F)
or under -20°C(-4°F). For maximum battery capacity, use the battery at
room temperature. If the battery is used in low temperatures, the battery
capacity will be reduced. For your safety, Lithium coin batteries lodged in the
esophagus should be removed immediately. Leakage, chemical burns and
potential perforation can occur within hours of ingestion. Seek medical attention
immediately.
4. Recycling the battery in your Bluetooth® headset
The battery in your Bluetooth Mobile Wireless Remote Controller must be
disposed of properly and should never be placed in municipal waste. The LG
Electronics service partner who removes the battery will dispose of it according
to local regulations.
5. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser
by the dealer, specifying the date of purchase and serial number, is presented
with the product to be repaired or replaced. LG Electronics reserves the right to
refuse warranty service if this information has been removed or changed after
the original purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or replaced
product shall be warranted for the remaining time of the original warranty period
or for ninety (90) days from the date of repair, whichever is longer. Repair or
replacement may involve the use of functionally equivalent reconditioned units.
Replaced parts or components will become the property of LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear
and tear, or due to misuse, including but not limited to use in other than the
normal and customary manner, in accordance with instructions for use and
maintenance of the product. Nor does this warranty cover any failure of the
Additional Information
11
ENG
product due to accident, modication or adjustment, acts of God or damage
resulting from liquid.
- This warranty does not cover product failures due to improper repair installations,
modications or service performed by a non- LG Electronics authorised person.
Tampering with any of the seals on the product will void the warranty.
- THERE ARE NO EXPRESS WARRANTIES, WHETHER WRITTEN OR
ORAL, OTHER THAN THIS PRINTED INCLUDING WITHOUT LIMITATION
THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL LG ELECTRONICS OR ITS VENDORS
BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY
NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS
OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE
DISCLAIMED BY LAW.
• Some countries/states do not allow the exclusion or limitation of incidental or
consequential damages, or limitation of the duration of implied warranties, so
the preceding limitations or exclusions may not apply to you. The warranty
provided does not affect the consumer’s statutory rights under applicable national
legislation in force, nor the consumer’s rights against the dealer arising from their
sales/purchase contract.
Subject to the conditions of this Limited Warranty, LG Electronics warrants this
product to be free from defects in design, material and workmanship at the time of
its original purchase by a consumer, and for a subsequent period of one (1) year.
Should your product need warranty service, please return it to the dealer from
whom it was purchased or contact your local LG Electronics contact centre to get
further information.
Additional Information
Limited Warranty
