Non Slide-Out Users Manual
OWNER’S MANUAL
MICROWAVE OVEN
LMV2031ST
LMV2031SB
LMV2031SW
PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE
OPERATING AND KEEP IT HANDY FOR REFERENCE AT ALL TIMES.
www.lg.com
MFL06317610
- 2 -
Please record the model number and serial
number of this unit for future reference. We
also suggest you record the details of your
contact with LG (LG Electronics U.S.A., Inc.)
concerning this unit.
Staple your receipt here as proof of purchase.
Model No:
Serial No:
Dealer:
Dealer Phone No:
Customer Relations
LG Electronics U.S.A., Inc.
Service Division Bldg. #3
201 James Record Rd.
Huntsville, AL 35824-0126
Thank you for purchasing an LG microwave oven.
(a) Do not attempt to operate this oven with
the door open. Open door operation
can result in harmful exposure to
microwave energy. It is important
not to defeat or tamper with the
safety interlocks.
(b) Do not place any object between the
oven front face and the door or allow soil
or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is
damaged. It is particularly important
that the oven door:
(1) closes properly,
(2) is not damaged or bent,
(3) has hinges and latches that are not
broken or loosened,
(4) has undamaged door seals and
sealing surfaces.
(d) The oven should not be adjusted or
repaired by anyone except properly
qualified service personnel.
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
- 3 -
TABLE OF CONTENTS
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY .................................................................. 2
IMPORTANT SAFETY INSTRUCTIONS ............. 4~5
SPECIFICATIONS .................................................... 6
Location of Model Number .................................... 6
Oven Specifi cations .............................................. 6
Electrical Rating .................................................... 6
Electrical Requirements ........................................ 6
Grounding Instructions .......................................... 6
FEATURES ........................................................... 7-9
Microwave Oven Features .................................... 7
Oven Control Panel ........................................... 8~9
USING YOUR MICROWAVE OVEN ................. 10-20
Learn About Your Microwave Oven ..................... 10
Audible Signals ................................................... 10
Interrupting Cooking ............................................ 10
Slide out Ventilation............................................. 10
Glass Touch Controller ........................................ 10
Clock ................................................................... 10
Child Lock ........................................................... 10
Light Hi/Low/Off ....................................................11
Energy Saving. .....................................................11
Turntable On/Off...................................................11
Vent On/Off ..........................................................11
Vent 4 Speed........................................................11
Add 30 Sec...........................................................11
Cooking at High Cook Power .............................. 12
Microwave Power Levels .................................... 12
Multi -Stage Cooking ........................................... 12
+ / - ..................................................................... 12
Cooking Guide for Lower Power Levels .............. 13
Sensor Operating Instructions............................. 14
Sensor Cooking Guide ........................................ 14
Sensor Popcorn .................................................. 14
Sensor Reheat .................................................... 15
Sensor Cook ....................................................... 15
Cooking Guide for Sensor Reheat ...................... 15
Cooking Guide for Sensor Popcorn .................... 16
Cooking Guide for Sensor Cook ......................... 16
Timer ................................................................... 17
Soften .................................................................. 17
Melt ..................................................................... 17
Kids Meal ............................................................ 17
Soften Table ........................................................ 18
Melt Table ............................................................ 18
Defrost ............................................................... 19
Defrost Table ....................................................... 19
Quick Defrost ...................................................... 19
Time Defrost ........................................................ 20
Defrosting Tips .................................................... 20
Metal Rack .......................................................... 20
COOKING TIPS ............................................... 21~25
Getting the Best Cooking Results ....................... 21
Fish & Shellfi sh ................................................... 21
Fish and Shellfi sh Cooking Table ........................ 21
Appetizers / Sauces / Soups ............................... 22
Meat .................................................................... 22
Meat Cooking Table ............................................ 23
Poultry ................................................................. 24
Poultry Cooking Table ......................................... 24
Pasta and Rice .................................................... 25
Pasta Cooking Table ........................................... 25
Rice Cooking Table ............................................. 25
MAINTENANCE ............................................... 26~27
Care and Cleaning .............................................. 26
Metal Rack .......................................................... 26

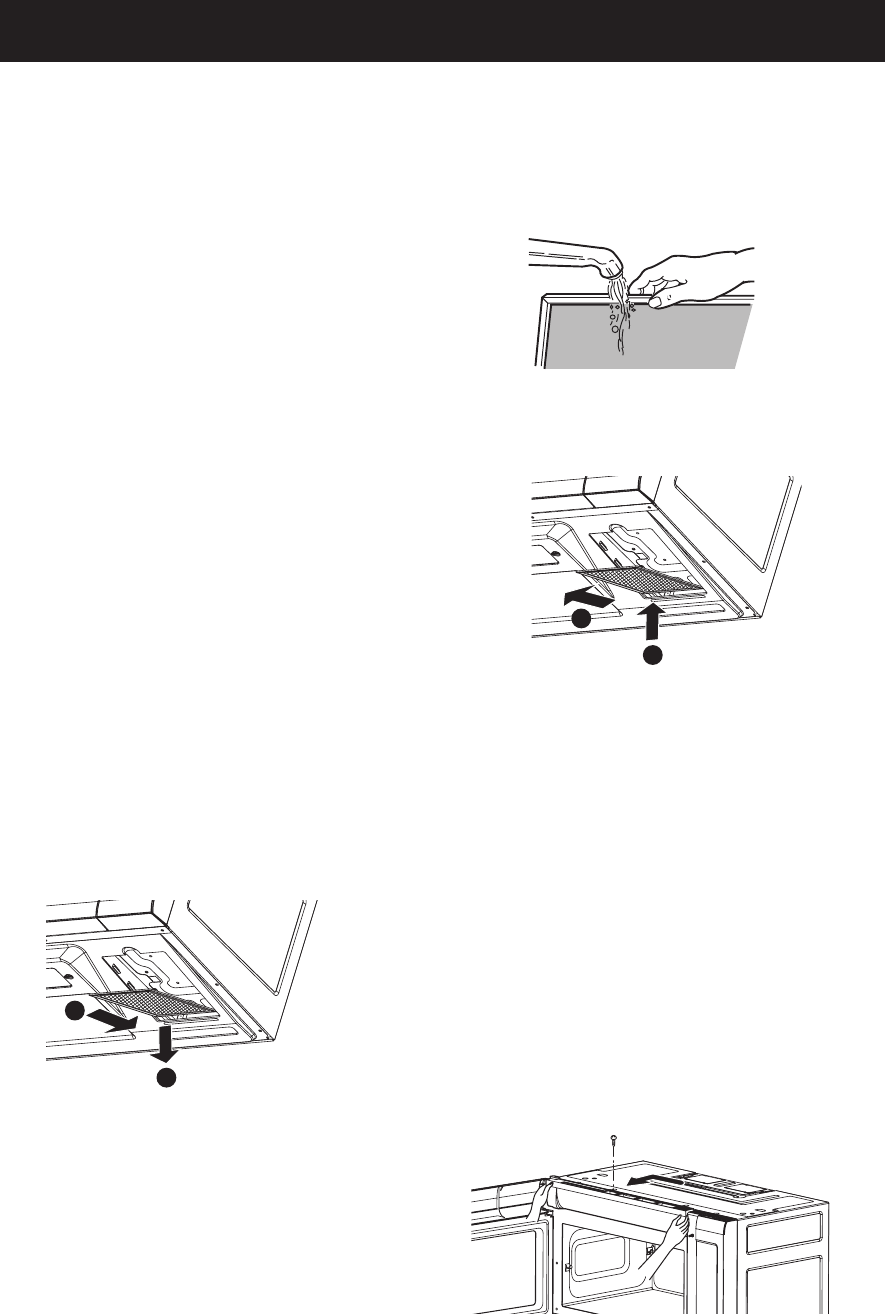

Cleaning the Grease Filters ................................ 26

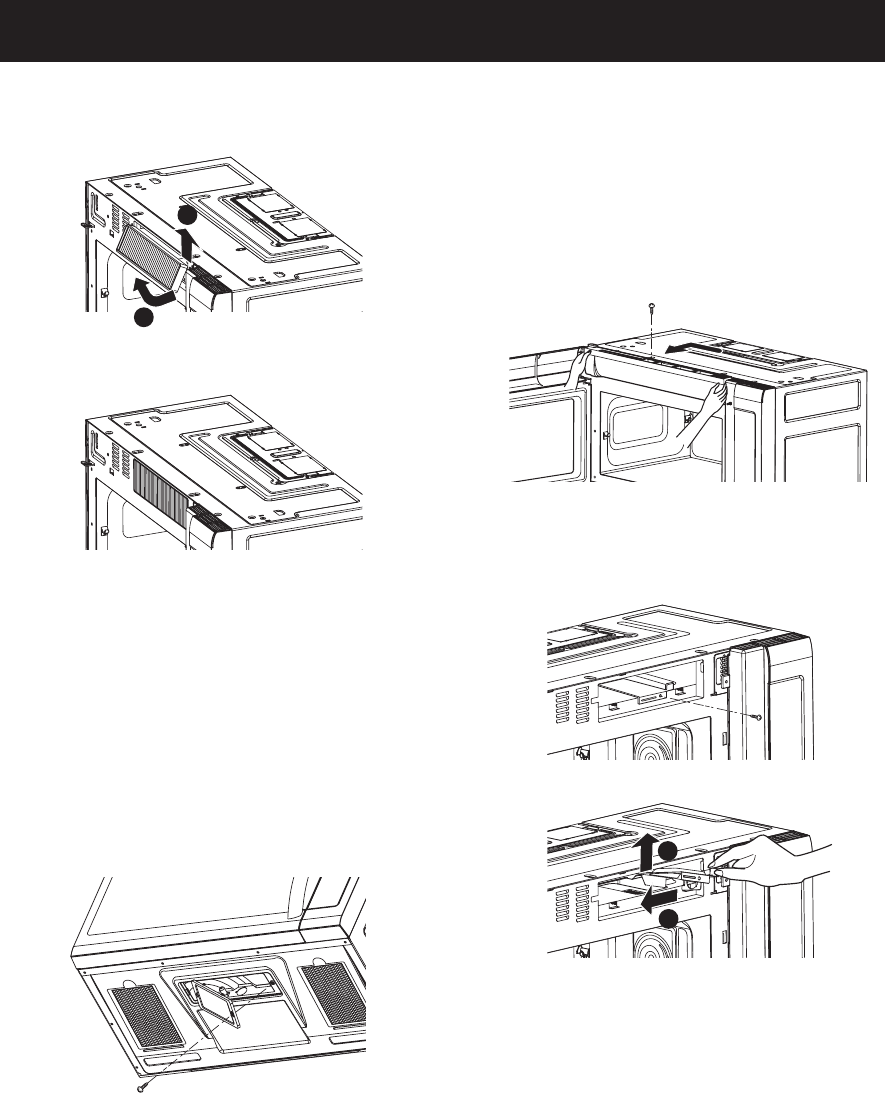

Charcoal Filter Replacement............................... 26
Cooktop/Night Light Replacement ...................... 27
Oven Light Replacement..................................... 27
COOKING UTENSILS ............................................ 28
Microwave Utensil Guide .................................... 28
FAQS ...................................................................... 29
TROUBLESHOOTING .......................................... 30
LIMITED WARRANTY-USA ................................... 31
- 4 -
WARNING - To reduce the risk of
burns, electric shock, fire, injury to persons,
or exposure to excessive microwave energy.
• Read all the instructions before using your oven
• Do not allow children to use this oven without
close supervision.
•Do not use corrosive chemicals or vapors, such as
sulfide and chloride, in this appliance. This type of
oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
•Do not store this appliance outdoors. Do not use
this product near water - for example, near a kitchen
sink, in a wet basement, near a swimming pool, or in
a similar location.
• Do not use the oven cavity for storage purposes.
Do not leave paper products, cooking utensils, or
food in the oven cavity when not in use.
• Clean the ventilating hood frequently. Do not allow
grease to accumulate on the hood or the filters.
•Use care when cleaning the vent hood filters.
Corrosive cleaning agents such as lye-based oven
cleaners may damage the filters.
•Do not tamper with the built-in safety switches
on the oven door. The oven has several built-in
safety switches to make sure the power is off when
the door is open.
•Suitable for use above both gas and electric cooking
equipment up to 36 inches wide.
• Do not use this oven for commercial purposes
It is designed for household use only.
• When cleaning the door and the surfaces that
touch the door, use only mild, non-abrasive
soaps or detergents and a sponge or soft cloth.
• If your oven is dropped or damaged have it
thoroughly checked by a qualified service technician
before using it again.
• To avoid a fire hazard
- Do not severely overcook food. Severely
overcooked foods can start a fire in the oven.
Watch the oven carefully, especially if you have
paper, plastic, or other combustibles in the oven.
- Do not store combustible items (bread,
cookies, etc.) in the oven, because if lightning
strikes the power lines it may cause the oven to
turn on.
- Do not use wire twist-ties in the oven. Be sure
to inspect purchased items for wire twist-ties and
remove them before placing the item in the oven.
• If a fire should start in the oven:
- Keep the oven door closed.
- Turn the oven off.
- Disconnect the power cord or shut off the
power at the fuse or circuit breaker panel.
• To avoid electric shock
- This appliance must be grounded. Connect it
only to a properly grounded outlet. See the
electrical GROUNDING INSTRUCTIONS on
page 6.
- Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
- Do not immerse the electrical cord or plug in
water.
- Keep the cord away from heated surfaces.
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your oven and avoid harm to yourself
or damage to your oven.
•Read and follow the specific
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY
found on page 2.
•Turn the fan on to disperse steam or smoke under
the hood. Keep the area under the hood properly
ventilated at all times. Turn off cooking equipment if
you see flames or a fire occurs.
WARNING
Hazards or unsafe practices
that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices
that may result in minor
personal injury or property
damage.
- 5 -
•To avoid improperly cooking some foods.
-Do not heat any types of baby bottles or baby
food. Uneven heating may occur and possibly
cause personal injury.
- Do not heat small-necked containers, such as
syrup bottles.
- Do not deep-fat fry in your microwave oven.
- Do not attempt home canning in your
microwave oven.
- Do not heat the following items in the
microwave oven: whole eggs in the shell, water
with oil or fat, sealed containers, or closed glass
jars. These items may explode.
•Do not cover or block any openings in the oven.
•Use your oven only for the operations described in
this manual.
•Do not run the oven empty, without food in it.
•Do not let the cord hang over the edge of the table or
counter.
•Preserve the oven floor:
- Do not heat the oven floor excessively.
- Do not allow the gray film on special microwave-
cooking packages to touch the oven floor. Put the
package on a microwavable dish.
- Do not cook anything directly on the oven floor or
turntable. Use a microwavable dish.
- Keep a browning dish at least 3/16 inch above floor.
Carefully read and follow the instructions for the
browning dish. If you use a browning dish
incorrectly, you could damage the oven floor.
•Install or locate this appliance only in accordance
with the provided installation instructions.
•This appliance should be serviced only by qualified
service personnel. Contact the nearest authorized
service facility for examination, repair, or adjustment.
•Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID.
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTEREFERENCE
STATEMENT (U.S.A. ONLY)
•Reorient the receiving antenna of the radio or
television.
•Relocate the Microwave Oven with respect to the
receiver.
•Move the microwave oven away from the receiver.
•Plug the microwave oven into a different outlet so
that the microwave oven and the receiver are on
different branch circuits.
The manufacturer is not responsible for any radio or
TV interference caused by unauthorized
modification to this microwave oven. It is the
responsibility of the user to correct such interference.
WARNING:
This equipment generates and uses ISM frequency
energy and if not installed and used properly, that is
in strict accordance with the manufacturer's
instructions, may cause interference to radio and
television reception. It has been type tested and
found to comply with limits for ISM Equipment
pursuant to part 18 of FCC Rules, which are designed
to provide reasonable protection against such
interference in a residential installation. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following:
WARNING:This product contains chemicals known to the State of California
to cause cancer. Wash hands after handling.
To reduce the risk of injury to persons;
- 6 -
LOCATION OF MODEL
NUMBER
To request service information or replacement parts,
the service center will require the complete model
number of your microwave oven. The number is on the
inside of the door frame as shown in the illustration
below.
OVEN SPECIFICATIONS
Output Power
Outer Dimensions
Cavity Volume
Net Weight
1,000W (IEC 60705 Standard)
29 7/8" x 16 7/16" X 15 13/16"
2.0 Cu.ft
68.3 lbs.
ELECTRICAL RATING
* Electrical Rating of the Oven:120V AC 60Hz
*14 Amps / 1600 Watts ( MWO + Cooktop Lamp
+ Ventilation Fan)
ELECTRICAL
REQUIREMENTS
The oven is designed to operate on a Standard
120V/60Hz household outlet. Be sure the circuit is at
least 15A or 20A and the microwave oven is the only
appliance on the circuit. It is not designed for 50Hz
or any circuit other than a 120V/60Hz circuit.
GROUNDING
INSTRUCTIONS
This appliance must be grounded. If an electrical
short circuit occurs, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. The cord for this appliance has a
grounding wire with a grounding plug. Put the plug into
an outlet that is properly installed and grounded.
WARNING - ehtesuuoyfI
grounding plug improperly, you risk electric shock.
Ask a qualified electrician if you do not understand the
grounding instructions or if you do not know whether
the appliance is properly grounded.
Because this appliance fits under the cabinet, it has a
short power-supply cord. See the separate Installation
Instructions for directions on properly placing the cord.
Keep the electrical power cord dry and do not pinch or
crush it in any way.
If it is necessary to use an extension cord, use only a
3-wire extension cord that has a 3-blade grounding
plug, and a 3-slot receptacle that will accept the plug
on the appliance. The marked rating of the extension
cord should be equal to or greater than the electrical
rating of the appliance.
For a permanently connected appliance:
This appliance must be connected to a grounded,
metallic, permanent wiring system, or an equipment
grounding conductor should be run with the circuit
conductors and connected to the equipment grounding
terminal or lead on the appliance.
Ensure proper ground
exists before use
SPECIFICATIONS
MODEL NUMBER LABEL
- 7 -
MICROWAVE OVEN FEATURES
WARNING:
FEATURES
Do not operate the oven when empty or without the glass tray. It is best to leave a glass of water in the oven
when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started.
Your microwave oven is designed to make your cooking experience as enjoyable and productive as
possible. To get you up and running quickly, the following is a list of the oven’s basic features:
1. Metal Shielded Window. The shield prevents
microwaves from escaping. It is designed as a
screen to allow you to view food as it cooks.
2.
3. Charcoal Filter (behind Vent Grille)
4. Vent Grille
Model and Serial Number Plate, Cooking
Guide & Service call Label
5. Glass Tray. The glass tray moves food as it
cooks for more even cooking.
It must be in the oven during operation for best
cooking results.
6. Cooktop/Countertop Light
7. Control Panel. Touch the buttons on this panel
to perform all functions.
8. Metal Rack. Use for extra space when
cooking in more than one container at the
same time. Remove cooking rack when you
are not using it.
9. Grease Filter
Cooktop/Countertop Light
Grease Filter
Glass Tray
Control Panel
Window with
Serivce call
Metal Shield
Door Safety
Lock System
Door Handle
Model and Serial
Number Plate
Cooking Guide
Metal Rack
Vent Grille
- 8 -
1
2 4
3
5 7
6
8 10
9
11
14
13
15
16
18
21
12
19
20
2422
23
17
OVEN CONTROL PANEL
FEATURES
Using Glass touch controller
1. Touch the middle of letter or number to activate.
2. If you touch the button with a ngernail or ngertip, the controller may not sense it is being touched.
3. If the controller or your hands are wet it may not sense your touch.
4. Remove gloves prior to touching the controller.
Your microwave oven control panel lets you select the desired cooking function quickly and easily. All you have
to do is touch the necessary Command pad. The following is a list of all the Command and Number pads located
on the control panel. For more information on these features, see the USING YOUR MICROWAVE OVEN section.
- 9 -
FEATURES
1. Display. The Display includes a clock and
indicators to tell you time of day, cooking time
settings and cooking functions selected.
2. Reheat. Reheat has preset Power Levels for 6
categories including a casserole, dinner plate, and
soup/sauce. The oven’s sensor will tell the oven
how long to cook depending on the amount of
humidity it detects from the food.
3. Cook. Cook has preset Power Levels for 13
categories including frozen lasagna, casseroles,
and rice. The oven’s sensor will tell the oven how
long to cook depending on the amount of humidity it
detects from the food.
4. Popcorn. Touch this button when popping popcorn
in your microwave oven. The oven’s sensor will
tell the oven how long to cook depending on the
amount of humidity it detects from the popcorn.
5. Defrost. Touch this button to defrost frozen food.
6. Soften/Melt.
• Soften: Touch this button to soften butter, ice
cream, cream cheese, frozen juice.
• Melt: Touch this button to melt butter or
margarine, chocolate, cheese, and marshmallows.
7. Kids Meal. Select type of dish to reheat Mac &
Cheese, Hotdog or Chicken nuggets.
8. Custom Cook. Touch this button to make oven
remember Cook time and Power level.
9. Custom Set. Touch this pad to change the oven’s
default setting for sound, clock, display speed, and
defrost weight.
10. Power Level. Touch this button to select a
cooking power level.
11. Clock. Touch this button to enter the time of day.
12. Timer. Touch this button to start the kitchen timer.
13. Cook Time. Touch this button to set a cooking
time.
14. Number. Touch number buttons to enter cooking
time, power level, quantities or weights.
15. START/Enter. Touch this button to start a function.
If you open the door after the oven begins to cook,
touch START/Enter again.
16. STOP/Clear. Touch this button to stop the oven or
clear all entries.
17. +, -. Touch this button to add or subtract ten
seconds of cooking time each time you touch it.
18. Energy Saving. Touch this button to save energy.
19. Turntable On/Off. Touch this button to turn on/off
the turntable. This option is not available in sensor
cook, defrost, soften and melt modes.
20. Light High/Low/Off. Touch this button to turn the
cooktop/countertop light on high/low or off.
21. Add 30Sec. Touch this button to add 30 seconds
of cooking time each time you touch it.
22. Vent On/Off. Touch button to turn the vent on slow
or off.
23. Vent 4 Speed. Touch button to change vent
speed.
24. Vent Auto Timeset. Touch this button to set
ventilation time. (1, 3, 5, 10, and 30 minutes.)
- 10 -
LEARN ABOUT YOUR
MICROWAVE OVEN
This section discusses the concepts behind
GLASS TOUCH CONTROLLER
- Touch the middle of letter or number to activate.
- If you touch the button with a fingernail or fingertip,
the controller may not sense it is being touched.
- If the controller or your hands are wet it may not sense
your touch.
- Remove gloves prior to touching the controller.
- Use the child lock feature when cleaning the controller
to avoid unintended activation.
microwave
cooking and introduces you to the basics you need to
know to operate your microwave oven. Please read this
information before using your oven.
To avoid risk of personal injury or property
damage, do not run the oven empty.
To avoid risk of personal injury or property
damage, do not use stoneware, large sheets of
aluminum foil, metal utensils, or metal trimmed
utensils in the oven. Keep aluminum foil at
least 1 inch from the oven wall, metal rack and
other pieces of foil. Example: Tosettheclockfor8:00 am
CLOCK
When the oven is first plugged in or after a power failure,
the display will show "PLEASE SET TIME OF DAY".
If a time of day is not set, " : " will show on the display
with beep.
2. Enter the time by using the
number buttons.
4. Enter 1 to set "am"
5. Touch START/Enter.
1. Touch Clock.
3. Touch START/Enter
(or Clock)
Example: To set the childlock.
1. Touch and hold STOP/Clear
until you hear 2 beeps and
"LOCKED" appears
(approximately 4 seconds).
1. Touch and hold STOP/Clear
until "LOCKED" disappears
(approximately 4 seconds).
Example: To cancelthechildlock.
CHILD LOCK
Use this safety feature to lock the control panel when
you are cleaning the oven, or so that children cannot
use the oven unsupervised.
USING YOUR MICROWAVE OVEN
CAUTION
AUDIBLE SIGNALS
•A beep will sound each time you touch a button.
4 beeps signals the end of a cooking cycle.
You can stop the oven during a cycle by opening
the door. The oven stops heating and the fan stops,
but the light stays on.
To restart cooking, closethe door and touch
START/Enter.
If you do not want to continue cooking, open
the door and touch STOP/Clear.
INTERRUPTING COOKING
Audible signals are available to guide you
when setting and using your oven:
•
•
8 0 0
1
- 11 -
The Energy Saving feature saves energy by turning
off the display by pressing the Energy Saving button.
The display will automatically turn off after 5 minutes
of idleness if the clock has not been set.
If the clock has been set, then the display will not
automatically turn off.
USING YOUR MICROWAVE OVEN
1. Touch Energy Saving to
turn the display off.
2. Touch Energy Saving to
turn the display on.
LIGHT HI/LOW/OFF
This button on the controller controls the cooktop
light.
To turn on, touch once.
"Light" will flash in display,
then stay on.
To turn off, touch button
again. "Light" will disappear
from the display.
VENT ON/OFF
The vent removes steam and other vapors from
the surface cooking area.
Touch once. "FAN SLOW"
will scroll in the display.
Fan will work on slow speed.
Fan will turn off. "FAN OFF"
will scroll in display.
NOTE: If the temperature from the range or cooktop
below the oven gets too hot, the exhaust fan in the
vent hood will automatically turn on at the HIGH
setting to protect the oven.
It may stay on up to an hour to cool the oven. When
this occurs, the On/Off button will not turn the fan off.
You cannot turn the exhaust fan off during microwave
cooking.
ADD 30 SEC
A time-saving button, this simplified control lets you
quickly set and start microwave cooking without the
need to touch START/Enter.
Touch Add 30 Sec. 4 times.
The oven begins cooking
and the display shows time
counting down.
NOTE: If you continue to touch Add 30 Sec., it will
add 30 seconds up to 99 min 59 seconds.
Example: To set ADD 30 SEC for 2 minutes.
Example: To set the Lamp for ON
1. Touch Light Hi/Low/Off.
2. Touch Light Hi/Low/Off.
1. Touch Vent On/Off.
VENT 4 SPEED
When the fan is on, touch this
button to toggle the fan speed.
Fan speed will change in
sequence from slow, low, high,
turbo and back to slow.
2. Touch Vent On/Off.
TURNTABLE ON/OFF
For best cooking results, leave the turntable on.
It can be turned off for large dishes. Touch
Turntable On/Off button to turn the turntable on or
off.
NOTES:
1. This option is not available in sensor cook, defrost,
soften and melt modes.
2. Sometimes the turntable can become hot to touch.
Be careful when touching the turntable during and
after cooking.
3. Do not run the oven when empty.
- 12 -
COOKING AT HIGH COOK POWER
Example: To cook food for 8 minutes 30 seconds.
By using the More or Less buttons, all of the pre-
programmed features like Cook can be adjusted to
cook food for a longer or shorter time.
Touching + will add 10 seconds to the cooking
time each time you touch it. Touching – will
subtract 10 seconds from the cooking time each
time you touch it.
Example: To cook food for 3 minutes at 100%
power and then 70% power for 7 minutes 30 seconds.
1. Enter the first cook time.
2. Touch Cook Time.
3. Enter the second cook time.
4. Touch Power Level.
5. Enter the power level.
6. Touch START/Enter.
MULTI-STAGE COOKING
For best results, some recipes call for different power
levels during different stages of a cook cycle. You can
program your oven to switch from one power to
another for up to 2 stages. 3 stages can be
programmed if the first stage is the defrost cycle.
When the cook time is over, four beeps
will sound and "COOK END" will display.
+ / –
1. Enter the cook time.
2. Touch START/Enter.
When the cook time is over,
you willhear four beeps and
"COOK END" will scroll in
display.
USING YOUR MICROWAVE OVEN
MICROWAVE POWER LEVELS
This feature lets you program a specific cook time and
power. For best results, there are 10 power level
settings in addition to HIGH (100%) power.
Refer to the “Cooking Guide for Lower Power Levels”
on page 13 for more information.
NOTE: If you do not select a power level, the oven
will automatically cook at HIGH (100%) power.
Example: To cook for 5 minutes, 30 seconds at
80% power.
1
2
3. Enter the power level.
4
. Enter cook time.
. Touch Power Level.
.Touch START/Enter. When
the cook time is over, four
beeps will sound and
"COOK END" will display.
8 3 0
5 3 0
3 0 0
7 3 0
7
8
- 13 -
COOKING GUIDE FOR LOWER POWER LEVELS
The 10 power levels in addition to HIGH allow you to choose the best power level for the food you are cooking.
Below are listed all the power levels, examples of foods best cooked at each level, and the amount of microwave
power you are using.
10 High 100%
9
8
7
6
5
4
3
2
1
0
90%
80%
70%
60%
50%
40%
30%
20%
10%
0
Boil water
Cook ground beef
Make candy
Cook fresh fruits and vegetables
Cook fish and poultry
Preheat browning dish
Reheat beverages
Cook bacon slices
Reheat meat slices quickly
Saute onions, celery, and green pepper
All reheating
Cook scrambled eggs
Cook breads and cereal product
Cook cheese dishes, veal
Cook cakes, muffins, brownies, cupcakes
Cook pasta
Cook meats, whole poultry
Cook custard
Cook whole chicken, turkey, spare ribs, rib roast,
sirloin roast
Cook less tender cuts of meat
Reheat frozen convenience foods
Thaw meat, poultry, and seafood
Cook small quantities of food
Finish cooking casseroles, stews, and some sauces
Soften butter and cream cheese
Heat small amounts of food
Soften ice cream
Raise yeast dough
Standing time
POWER LEVEL MICROWAVE OUTPUT USE
USING YOUR MICROWAVE OVEN
- 14 -
DO NOT leave the microwave oven
unattended while popping corn.
When popping commercially packaged
popcorn, remove the rack from the oven.
Do not place the bag of microwave popcorn on
the rack or under the rack.
Example: To poppopcorn.
1. Touch Popcorn.
2. Touch START/Enter.
When the cook time is over,
four beeps will sound and
"COOK END" will display.
SENSOR POPCORN
Sensor Popcorn lets you pop 2.0, 3.0 and 3.5 ounce
bags of commercially packaged microwave popcorn.
Pop only one package at a time. If you are using a
microwave popcorn popper, follow manufacturer’s
instructions.
• Recommended amounts: 2.0 - 3.5 oz.
SENSOR OPERATING
INSTRUCTIONS
Used to cook foods without selecting cooking times
and power levels. The display will indicate the sensor
category during the initial sensing period. The oven
automatically determines the required cooking time for
each food item.
When the internal sensor detects a certain amount of
humidity coming from the food, it will tell the oven how
much longer to heat. The display will show the
remaining heating time. For best results when cooking
by Sensor, follow these recommendations:
1. Food cooked with the Sensor system should be at
normal storage temperature.
2. The glass tray and the outside of the container
should be dry to assure best cooking results.
3. Foods should always be covered loosely with
microwavable plastic wrap, waxed paper, or a lid.
4. Do not open the door or touch STOP/Clear during
the sensing time. When sensing time is over, the
oven beeps twice and the remaining cooking time
will appear in the display window. At this time you
can open the door to stir, turn, or rearrange the
food.
SENSOR COOKING GUIDE
Appropriate containers and coverings help to
assure good Sensor cooking results.
1. Always use microwavable containers and cover them
with lids or vented plastic wrap.
2. Never use tight-sealing plastic covers. They can
prevent steam from escaping and cause food to
overcook.
3. Match the amount to the size of the container. Fill
containers at least half full for best results.
4. Be sure the outside of the cooking container and the
inside of the microwave oven are dry before placing
food in the oven. Beads of moisture turning into
steam can mislead the sensor.
5. If the food is not as hot as you would like after using
the sensor cook or reheat function, use Cook Time to
continue heating. Do not repeat the sensor options
in succession on the same food.
USING YOUR MICROWAVE OVEN
CAUTION
- 15 -
1. Touch Cook.
Example: To cook Rice.
SENSOR COOK
Using Cook lets you heat common microwave prepared
foods without needing to program times and Cook
Powers. Sensor Cook has preset Power Levels for 13
food categories. See the details in the cooking guide
table.
USING YOUR MICROWAVE OVEN
1. Touch Reheat.
Example: To reheat a Casserole.
SENSOR REHEAT
Reheat lets you heat foods without needing to
program times and Power Levels.
Reheat has preset Power Levels for 6 categories.
See the details in the cooking guide table.
COOKING GUIDE FOR SENSOR REHEAT
1 ~ 4 ea.
1 ~ 2 cups
(240 ml per cup)
Use a mug or microwave-safe cup with no cover.
Stir after reheating.
CODE CATEGORY
RECOMMENDED
AMOUNTS DIRECTIONS
1DINNER
PLATE 1 ~ 2 servings
Place food on a plate.
Cover with vented plastic wrap.
Let stand 3 minutes after heating.
2 SOUP/SAUCE 1 ~ 4 cups
Place in shallow microwavable casserole.
Cover with vented plastic wrap.
Let stand 3 minutes after heating.
3 CASSEROLE 1 ~ 4 cups
Place in a microwaveable bowl or casserole.
Cover with vented plastic wrap.
Let stand 3 minutes.
4 PIZZA 1 ~ 3 slices This is a reheat function for leftover pizza.
Place on paper towel on a microwave safe plate.
5BAKED
GOODS
Place on a paper towel.
Do not cover.
6TEA
See Cooking Guide for Sensor Reheat table below
for info. When the cook time is over, you will hear
four beeps and "COOK END" will display.
2. Touch 3 to choose casserole
and cooking will start 3~4
second later.
2. Touch 6 to choose rice and
cooking will start 3~4
second later.
See Cooking Guide for Sensor Cook on page 16.
When the cook time is over, you will hear four
beeps and "COOK END" will display.
36
- 16 -
RECOMMENDED
AMOUNTS
COOKING GUIDE FOR SENSOR POPCORN
DIRECTIONS
POPCORN 2.0 - 3.5 oz.
Sensor Popcorn lets you pop commercially packaged microwave popcorn.
Pop only one package at a time.
For best results, use a fresh bag of popcorn.
Place a bag of prepackaged microwave popcorn on the center of the
glass tray.
CODE CATEGORY RECOMMENDED
AMOUNTS DIRECTIONS
1 FRESH
VEGETABLE
(Hard)
1 ~ 4 cups
1 ~ 4 cups
1 ~ 4 cups
1 ~ 4 cups
Place in a microwaveable bowl or casserole. Add water according to the quantity.
* 1-2 cups: add 2 tbsp water.
* 3-4 cups: add 4 tbsp water.
Cover with vented plastic wrap.
Let stand 3 minutes after cooking.
Hard vegetables : Carrot, Beet etc.
Soft vegetables : Cauliflower, Broccoli, Spinach etc.
2 FRESH
VEGETABLE
(Soft)
3 FROZEN
VEGETABLE
Place in a microwaveable bowl or casserole.
* 1-2 cups: add 2 tbsp water.
* 3-4 cups: add 4 tbsp water.
Cover with vented plastic wrap. Let stand 3 minutes.
4 CANNED
VEGETABLE
Transfer vegetables from the can to a microwaveable bowl or casserole .
Cover with vented plastic wrap. Stir thoroughly after cooking.
5BAKED
POTATO
1 ~ 4 ea
(approx.8 - 10
oz. each)
Pierce skin with a fork and place on paper towel. Do not cover.
Let stand 5 minutes after cooking.
7 FROZEN
LASAGNA 10 ~ 21 oz.
Remove from outer display package. Slit cover. If not in microwave-safe
container, place on a microwaveable plate and cover with vented plastic wrap.
After cooking, let stand in microwave oven 3 minutes.
8 FISH FILLET 4 ~ 16 oz.
Place thawed chicken pieces in single layer and cover with vented plastic wrap.
After cooking, let stand 5 minutes.
9 SHRIMP 4 ~ 16 oz.
Place thawed shrimp in single layer and cover with vented plastic wrap.
After cooking, let stand 2 minutes.
10 CHICKEN PIECES 16 ~ 32 oz.
Place thawed chicken pieces in single layer and cover with vented plastic wrap.
After cooking, let stand 5 minutes.
11 GROUND
MEAT 4 ~ 16 oz.
Pack meat loosely into a bowl. Cover with plastic wrap.
Stir thoroughly after cooking.
12 CASSEROLE 1 ~ 4 cups
Place in a microwaveable bowl or casserole. Cover with vented plastic wrap.
Let stand 3 minutes after cooking.
13 BOILING
WATER
1 ~ 2 cups
(240 ml per cup)
Use a wide-mouth mug. Do not cover.
(Be careful! The beverage will be very hot! Sometimes liquids heated in cylindrical
containers will splash out unexpectedly when the cup is moved.)
COOKING GUIDE FOR SENSOR COOK
6 RICE ½ ~ 2 cups
Add twice as much water as you have rice (add 2 cups of water to 1 cup of rice).
Place in a microwaveable bowl large enough to prevent the water boiling over.
Cover with vented plastic wrap. Remove from microwave.
After cooking uncover, stir, then recover and let stand 5 minutes.
CATEGORY
USING YOUR MICROWAVE OVEN
- 17 -
Example: To soften quart of ice cream.
1. Touch Soften/Melt.
2. Choose menu.
Touch 2 to ice cream.
3. Touch 2 to choose amount.
4. Touch START/Enter.
1. Touch Soften/Melt twice.
2. Choose menu.
Touch 2 to chocolate.
3. Touch 2 to choose amount.
4. Touch START/Enter.
SOFTEN
The oven uses low power to soften foods (butter, ice
cream, cream cheese, and frozen juice.) See the
following table.
Example: To melt 8 oz. chocolate.
MELT
The oven uses low power to melt foods (butter or
margarine, chocolate, marshmallows, or processed
cheese food.) See the following table.
1. Touch Kids Meal.
2. Touch 2 choose Hotdog.
3. Touch 2.
4. Touch START/Enter.
Example: To heat 4 ea Hotdogs.
KIDS MEAL
Using KIDS MEAL lets you heat common microwave-
prepared foods without needing to program times and
cook power. Mac & Cheese, Hotdog, Chicken Nuggets.
Category
Chocolate
Cheese
Marshmallows
1 stick
4 oz. 8 oz.
8 oz. 16 oz.
3 sticks2 sticks
_
_
5 oz. 10 oz. _
1
3
4
1 2 3
Touch button number
Code
Butter/Margarine
2
MELT TABLE
SOFTEN TABLE
Touch button number
Code
Category 1 2
Butter 1 1 stick 2 sticks 3 sticks
Ice Cream Pint Quart Half
2gallon
_
Cream Cheese 33 oz. 8 oz.
Frozen Juice 46 oz. 12 oz. 16 oz.
3
KIDS MEAL TABLE
Touch button number
Category
Mac & Cheese
Hotdog
Chicken Nuggets
1
6 ozs.
2 ea
4 ozs.
2
12 ozs.
4 ea
8 ozs.
USING YOUR MICROWAVE OVEN
3. Touch START/Enter.
When the time is over, the
oven will beep 7 times.
Example: To count 3 minutes.
TIMER
You can use your microwave oven as a timer. Use
the Timer for timing up to 99 minutes, 99 seconds.
2. Enter the time by using the
number buttons.
1. Touch Timer.
NOTE: To turn off the Timer while it is still running,
touch the Timer button.
NOTE: When the cook time is over, you will hear
four beeps and “COOK END” will disply.
3 0 0
2
2
2
2
2
2
- 18 -
MELT TABLE
DIRECTION AMOUNT
1, 2 or 3 sticks
(4 oz. / 1 stick)
4 or 8 oz.
8 or 16 oz.
5 or 10 oz.
Butter
or
Margarine
Chocolate
Cheese
Marshmallows
SOFTEN TABLE
DIRECTION
CATEGORY AMOUNT
Unwrap and place in a microwave safe dish
on the rack over the glass tray. Butter will
be at room temperature and ready for
use in a recipe.
Place in a microwave safe dish on the rack
over the glass tray. Ice cream will be soft
enough to make scooping easier.
Unwrap and place in a microwave safe dish
on the rack over the glass tray. Cream
cheese will be at room temperature and
ready for use in a recipe.
Remove top.
Place in oven.
Frozen juice will be soft enough to mix
easily with water.
Unwrap and place in a microwave safe dish
on the rack over the glass tray. No need to
cover butter. Stir at the end of cooking to
complete melting.
Chocolate chips or squares of baking
chocolate may be used. Unwrap squares
and place in a microwave safe dish on the
rack over the glass tray. Stir at the end of
cycle to complete melting.
Use processed cheese food only. Cut
into cubes. Place in a single layer in a
microwave safe dish on the rack over the
glass tray. Stir at the end of cooking to
complete melting.
Large or miniature marshmallows may
be used. Place in a microwave safe dish
on the rack over the glass tray. Stir at
the end of cycle to complete melting.
1, 2 or 3 sticks
(4 oz. / 1 stick)
Pint, Quart,
Half gallon
3 or 8 oz.
6, 12 or 16 oz.
Butter
Ice Cream
Cream Cheese
Frozen
Juice
USING YOUR MICROWAVE OVEN
CODE
1
2
3
4
1
2
3
4
START TEMP.
CATEGORY
CODE
START TEMP.
Refrigerated
Frozen
Refrigerated
Frozen
Refrigerated
Room Temp.
Refrigerated
Room Temp.
- 19 -
Example : To defrost 1.2 lbs. of meat.
1. Touch Defrost once to choose
the Meat category.
2. Touch 1 to choose meat.
1. Touch Defrost twice.
2. Touch START/Enter.
3. Enter the weight.
4. Touch START/Enter.
1. Meat
2. Poultry
3. Fish
4. Bread
NOTE: After you touch START/Enter, the display
counts down the defrost time. The oven will beep once
during the defrost cycle. At this time, open the door and
turn, separate, or rearrange the food as needed.
Remove any portions that have thawed, then return the
frozen portions to the oven and touch START/Enter to
resume the defrost cycle.
For best results:
•
Remove fish, shellfish, meat, and poultry from its original
closed paper or plastic package (wrapper). Otherwise,
the wrap will hold steam and juice close to the foods,
which can cause the outer surface of the foods to cook.
•
Form the meat into the shape of a doughnut before
freezing. When defrosting, scrape off thawed meat when
the beep sounds and continue defrosting.
•
Place foods in a shallow glass baking dish or a on a
microwave roasting rack to catch drippings.
•
Foods should still be somewhat icy in the center when
removed from the oven.
CATEGORY FOOD
1. Meat
2. Poultry
3. Fish
4. Bread
Beef
Ground beef, Round steak, Cubes for stew,
Tenderloin steak, Pot roast,Rib roast,
Rump roast,Chuck roast, Hamburger patty.
Lamb
Chops (1-inch thick), Rolled roast
Pork
Chops (1/2-inch thick), Hot dogs, Spareribs,
Country-style ribs. Rolled roast, Sausage.
Poultry
Whole (under 4 lbs.), Cut up, Breasts
(boneless)
Cornish hens
Whole
Turkey
Breast (under 6 lbs.)
Fish
Fillets, Whole Steaks
Shellfish
Crab meat, Lobster tails, Shrimp, Scallops
Muffins
Roll cake
DEFROST TABLE
0.1to 6.0lbs.
(45g to 2.7kg)
0.1to 6.0lbs.
(45g to 2.7kg)
0.1to 6.0lbs.
(45g to 2.7kg)
0.1to 1.0lb.
(45g to 454g)
Example: To defrost for 1.0 lbs.
3. Halfway through the cycle, the
oven will beep. Open the door,
turn the meat over, Close the
door, and touch START/Enter
to resume defrosting until the
cycle ends.
QUICK DEFROST
This is a quick defrost feature that allows you to choose
a preset 1.0 lbs. defrost cycle.
When the defrost time is over, four beeps will sound
and "COOK END" will display.
DEFROST
Four defrost choices are preset in the oven. The Defrost
feature provides you with the best defrosting method
for frozen foods, because the oven automatically sets
the defrosting times for each food item according to
the weight you enter. For added convenience, the
Defrost feature includes a built-in tone mechanism that
reminds you to check, turn over, separate, or rearrange
the food during the defrost cycle. Four different
defrosting presets are provided.
Touch Defrost and choose menu. Then enter weight.
Available weight ranges for Meat, Poultry, and Fish are
0.1 to 6.0 lbs. The available weight range for Bread is
0.1 to 1.0 lb.
USING YOUR MICROWAVE OVEN
DEF 1
DEF 2
DEF 3
DEF 4
1
1 2
- 20 -
DEFROSTING TIPS
•When using Defrost Weight/Time, the weight to be
entered is the net weight in pounds and tenths of
pounds (the weight of the food minus the container).
•Before starting, make sure you have removed any
of the metal twist-ties which often come with frozen
food bags, and replace them with strings or elastic
bands.
•Open containers such as cartons before they are
placed in the oven.
•Always slit or pierce plastic pouches or packaging.
•If food is foil wrapped, remove foil and place food
in a suitable container.
•Slit the skins, if any, of frozen food such as
sausage.
•Bend plastic pouches of food to ensure even
defrosting.
•Always underestimate defrosting time. If defrosted
food is still icy in the center, return it to the microwave
oven for more defrosting.
•The length of defrosting time varies according to
how solidly the food is frozen.
•The shape of the package affects how quickly food
will defrost. Shallow packages will defrost more
quickly than a deep block.
•As food begins to defrost, separate the pieces.
Separated pieces defrost more easily.
•Use small pieces of aluminum foil to shield parts
of food such as chicken wings, leg tips, fish tails, or
areas that start to get warm. Make sure the foil does
not touch the sides, top, or bottom of the oven. The
foil can damage the oven lining.
•For better results, let food stand after defrosting.
(For more information on standing time, see the
“Microwave Cooking Tips” section.)
•Turn food over during defrosting or standing time.
Break apart and remove food as rquired.
To avoid risk of property damage:
Do not use the rack to pop popcorn.
The rack must be on the four plastic supports
when used.
Use the rack only when cooking food on the
rack position.
Do not cook with the rack on the floor of the oven.
METAL RACK
The metal rack gives you extra space when cooking
in more than one container at the same time.
To use the rack:
1. Place the rack securely in the four plastic supports.
•The rack MUST NOT touch the metal walls or back
of the microwave oven.
2. Place equal amounts of food both ABOVE AND
BELOW the rack.
•The amount of food must be approximately the same
to balance out the cooking energy.
USING YOUR MICROWAVE OVEN
CAUTION
1. Touch Defrost 3 times.
2. Enter time to defrost.
3. Touch START/Enter.
2 0 0
Example: defrost 2 minutes
TIME DEFROST
Time defrost feature allows you to enter time to defrost.
- 21 -
COOKING TIPS
GETTING THE BEST COOKING
RESULTS
To get the best results from your microwave oven, read
and follow the guidelines below.
•Storage Temperature: Foods taken from the freezer
or refrigerator take longer to cook than the same
foods at room temperature. The time for recipes in
this book is based on the normal storage temperature
of the food.
•Size: Small pieces of food cook faster than large
ones, pieces similar in size and shape cook more
evenly. For even cooking, reduce the power when
cooking large pieces of food.
•Natural Moisture: Very moist foods cook more
evenly because microwave energy is attracted to
water molecules.
•Stir foods such as casseroles and vegetables from
the outside to the center to distribute the heat evenly
and speed cooking. Constant stirring is not
necessary.
•Turn over foods like pork chops, baking potatoes,
roasts, or whole cauliflower halfway through the
cooking time to expose all sides equally to microwave
energy.
•Place delicate areas of foods, such as asparagus
tips, toward the center of the dish.
•Arrange unevenly shaped foods, such as chicken
pieces or salmon steaks, with the thicker, meatier
parts toward the outside of the dish.
•Shield,with small pieces of aluminum foil, parts of
food that may cook quickly, such as wing tips and leg
ends of poultry.
•Let It Stand: After you remove the food from the
microwave, cover the food with foil or a casserole lid
and let it stand to finish cooking in the center and
avoid overcooking the outer edges. The length of
standing time depends on the density and surface
area of the food.
•Wrapping in waxed paper or paper towel:
Sandwiches and many other foods containing
prebaked bread should be wrapped prior to
microwaving to prevent them from drying out.
•Prepare the fish for cooking.
- Completely defrost the fish or shellfish.
- Arrange unevenly shaped pieces with thicker parts
toward the outside of the dish. Arrange shellfish in a
single layer for even cooking.
- The type of cover you use depends on how you
cook. Poached fish needs a microwavable lid or
vented plastic wrap.
- Baked fish, coated fish, or fish in sauce needs to be
covered lightly with waxed paper to keep the
coating crisp and the sauce from getting watery.
- Always set the shortest cooking time. Fish is done
when it turns opaque and the thickest part begins to
flake. Shellfish is done when the shell turns from
pink to red and the flesh is opaque and firm.
•The Fish and Shellfish Cooking Table below provides
specific directions with Power Level and Cooking
Time settings for most types of fish and shellfish.
FISH & SHELLFISH
Cooking Fish and Shellfish: General Directions
POWER
LEVEL COOKING TIME DIRECTIONSFISH
HI
HI
7
HI
HI
31/2-41/2 minutes
41/2-51/2 minutes
41/2-6 minutes
31/2-5 minutes
31/2-5 minutes
Arrange fish in a single layer with thickest portion toward
outside edge of 11/2 quart microwavable baking dish.
Brush with melted butter and season, if desired. Cook
covered with vented plastic wrap. Let stand covered 2
minutes. If you are cooking more than 1 lb. of fish, turn
the fish halfway through cooking.
Arrange in a single layer. Prepare as directed above,
except stir instead of turning the shellfish.
Fish fillets
Fish steaks
Whole fish
Scallops
Shrimp, shelled
FISH AND SHELLFISH COOKING TABLE
- 22 -
COOKING TIPS
APPETIZERS/SAUCES/SOUPS
Cooking Appetizers: Tips and
Techniques
Recommended
• Crisp crackers, such as melba toast, shredded wheat
and crisp rye crackers are best for microwave use.
Wait until party time to add the spreads. Place a
paper towel under the crackers while they cook in
the microwave oven to absorb extra moisture.
• Arrange individual appetizers in a circle for even
cooking.
•Stir dips to distribute heat and shorten cooking time.
Cooking Sauces: Tips and Techniques
• Use a microwavable casserole or glass measuring
cup that is at least two or three times the volume of
the sauce.
• Sauces made with cornstarch thicken more rapidly
than those made with flour.
• Cook sauces made with cornstarch or flour uncovered
so you may stir them two or three times during cooking
for a smooth consistency.
• To adapt a conventional sauce or gravy recipe,
reduce the amount of liquid slightly.
Cooking Soups: Tips and Techniques
• Cook soups in a microwavable dish which holds
double the volume of the recipe ingredients to prevent
boil-over, especially if you use cream or milk in the
soup.
• Generally, cover microwaved soups with VENTED
plastic wrap or a microwavable lid.
• Cover foods to retain moisture. Uncover foods to
retain crispness.
• Avoid overcooking by using the minimum suggested
time. Add more time, if necessary, only after checking
the food.
• Stirring occasionally will help blend flavors, distribute
heat evenly, and may even shorten the cooking time.
• When converting a conventional soup recipe to cook
in the microwave, reduce the liquid, salt, and strong
seasonings.
Not Recommended
• Appetizers with a crisp coating or puff pastry are best
done in a conventional oven with dry heat.
• Breaded products can be warmed in the microwave
oven but will not come out crisp.
MEAT
Cooking Meat: General Directions
• Prepare the meat for cooking.
- Defrost completely.
- Trim off excess fat to avoid splattering.
- Place the meat, fat side down, on a microwavable
rack in a microwavable dish.
- Use oven cooking bag for less tender cuts of meat.
- Arrange the meat so that thicker portions are toward
the outside of the dish.
- Cover the meat with waxed paper to prevent
splattering.
• Tend the meat as it cooks.
- Drain juices as they accumulate to reduce
splattering and keep from overcooking the bottom of
the meat.
- Shield thin or bony portions with strips of foil to
prevent overcooking.
NOTE: Keep the foil at least 1 inch from the oven
walls, and do not cover more than one-third of the meat
with foil at any one time.
• Let the meat stand covered with foil 10-15 minutes
after you remove it from the oven. The internal
temperature of the meat may rise from 5-10°F during
standing time.
The Meat Cooking Table on the next page provides
detailed directions, Power Level, and Cooking Time
settings for most cuts of meat.
- 23 -
COOKING TIPS
MEAT COOKING TABLE
BEEF
Hamburgers, Form patties with depression in center of each.
Fresh or Place on microwavable roast rack. Brush with browning
defrosted HI agent, if desired. Cover with waxed paper.
(4 oz. each) Turn over halfway through cooking.
1 patty 1-11/2 minutes Let stand covered 1 minute after cooking.
2 patties 11/2-2 minutes
4 patties 21/2-31/2 minutes
Place roast fat side down on microwavable roasting rack.
8-10 minutes Add desired seasonings and cover with waxed paper.
per pound Turn meat over halfway through cooking and shield if
Sirloin tip roast RARE(135°F)
5necessary.
(3-4 lbs.) 11-13 minutes Remove roast from microwave oven when desired
per pound temperature is reached. Let stand covered with foil 15
MEDIUM(155°F) minutes.(Temperature may rise about 10°F).
11-12 minutes Place roast fat side down on microwavable roasting rack.
LAMB
per pound Brush lamb with marinade or desired seasonings such
RARE(135°F) as rosemary, thyme or marjoram. Cover with waxed
Lamb roast, 12-13 minutes paper.
rolled 5per pound Turn roast over after 15 minutes, and again after 30
boneless MEDIUM(145°F) minutes. Shield if necessary.
(3-4 lbs.) 13-14 minutes Remove roast from microwave when desired
per pound temperature is reached. Let stand covered with foil 15
WELL(155°F) minutes (Temperature may rise about 10°F).
PORK
Bacon slices Place bacon slices on microwavable roasting rack.
2 slices HI 11/2-2 minutes Cover with paper towels.
4 slices 2-3 minutes After cooking, let stand 1 minute.
6 slices 4-5 minutes
10 slices 7-8 minutes
Place chops in microwavable baking dish.
Chops Add desired seasonings and cover with vented plastic
18-20 minutes
(5-7 oz. each) wrap. Cook until no longer pink or until internal
3per pound
2 chops temperature reaches 170°F. Turn chops over halfway
15-17 minutes through cooking.
4 chops per pound Let stand covered 5 minutes after cooking.
(Temperature may rise about 10°F).
Place roast in cooking bag in microwavable dish.
Add seasonings and browning agent if desired. Close
Loin Roast, 25-27 minutes
3bag loosely with microwavable closure or string. After
rolled, boneless per pound cooking, let stand in bag 15 minutes. (Temperature may
(3 1/2- 4 1/2 lbs.) (165°F) rise about 10°F.) Internal temperature of pork should
reach 170°F before serving.
Sausage links,
Fresh or frozen
defrosted
(1-2 oz. each) Pierce links and place on microwavable roasting rack.
2 links HI Cover with waxed paper or paper towel.
45-60 seconds
4 links 1-11/2 Turn over halfway through cooking.
minutes
6 links 1/2 After cooking, let stand covered 1 minute.
1 -2 minutes
10 links 13/4-2 minutes
(8 oz. pkg.)
POWER
MEAT COOKING TIME DIRECTIONS
LEVEL
- 24 -
COOKING TIPS
•Prepare the poultry for cooking.
- Defrost completely.
- Arrange poultry pieces with thicker pieces at the
outside edge of the baking dish. When cooking legs,
arrange them like the spokes of a wheel.
- Cover the baking dish with waxed paper to reduce
splattering.
- Use a browning agent or cook with a sauce to give a
browned appearance.
•Tend the poultry as it cooks.
- Drain and discard juices as they accumulate.
- Shield thin or bony pieces with small strips of
aluminum foil to prevent overcooking. Keep foil at
least 1 inch from the oven walls and other pieces of
foil.
•The poultry is done when it is no longer pink and the
juices run clear. When done, the temperature in the
thigh meat should be 180-185°F.
•Let the poultry stand covered with foil after cooking
for 10 minutes.
The Poultry Cooking Table below provides detailed
directions, Power Level, and Cooking Time settings for
most cuts and types of poultry.
POULTRY
Cooking Poultry: General Directions
POWER
LEVEL COOKING TIME DIRECTIONSPOULTRY
HI
HI
HI
41/2-51/2 minutes
per lb.
12-13 minutes
per lb.
6-7 minutes
per lb.
Wash pieces, shake the water off, and prepare for
cooking. Place pieces in a single layer in a microwavable
baking dish with thicker pieces to the outside. Brush with
butter or browning agent and seasonings if desired. Cover
with waxed paper. Cook until no longer pink and juices run
clear. Let stand covered 5 minutes after cooking.
Wash, shake the water off, and prepare for cooking. Place
breast side down on a microwavable roasting rack. Brush
with butter, or browning agent and seasoning if desired.
Cover with waxed paper. Cook 1/3 of estimated time. Turn
breast side up, brush with butter, or browning agent.
Replace waxed paper. Cook 1/3 of estimated time again.
Shield if necessary. Cook remaining 1/3 of estimated time
or until no longer pink and juices run clear. Let stand
covered with foil 10 minutes. (The temperature may rise
about 10°F.) The temperature in the thigh should be 180°
F-185°F when the poultry is done.
Wash, shake the water off, and prepare for cooking. Tie
wings to body of hen and the legs to tail. Place hens
breast side down on microwavable rack. Cover with
waxed paper. Turn breast side up halfway through
cooking. Shield bone ends of drumsticks with foil.
Remove and discard drippings. Brush with butter or
browning agent and seasonings if desired. Cook until no
longer pink and juices run clear. Remove hens from
microwave when they reach desired temperature. Let
stand covered with foil 5 minutes.
(Temperature may rise about 10°F). Temperature in
breast should be 170°F before serving.
Chicken pieces
(21/2-3 lbs.)
Chicken whole
(3-31/2 lbs.)
Cornish hens
whole
(1-11/2 lbs. each)
POULTRY COOKING TABLE
- 25 -
COOKING TIPS
PASTA AND RICE
Microwave cooking and conventional cooking of pasta,
rice, and cereal require about the same amount of
time, but the microwave is a more convenient method
because you can cook and serve in the same dish.
There is no stirring needed and leftover pasta tastes
just like fresh cooked when reheated in the microwave
oven.
•If you are planning to use rice or pasta in a casserole,
undercook it so it is still firm.
•Allow for standing time with rice, but not for pasta.
•The Pasta and Rice Cooking Tables below provide
specific directions, with Power Level and Cooking
Time settings for most common types of pasta and
rice.
Cooking Pasta and Rice: Tips and Techniques
POWER
LEVEL COOKING TIME DIRECTIONSTYPE OF PASTA
HI
5
HI
5
HI
5
HI
5
9 to 10 minutes
71/2 to 81/2 minutes
6 to 7 minutes
51/2 to 61/2 minutes
7 to 8 minutes
11 to 121/2 minutes
8 to 10 minutes
51/2 to 61/2 minutes
Begin with hot tap water, and salt if desired, in a 2-
quart microwavable baking dish. If you are cooking
spaghetti and lasagna noodles, cover the water
with vented plastic wrap. For macaroni and egg
noodles, use either vented plastic wrap or a
microwavable lid.
1. Cook as directed in the chart or until the water
boils.
2. Stir in the pasta; cook covered as directed in the
chart or until tender. Drain in a colander.
Spaghetti
4 cups water.
Add 8 oz. spaghetti.
Macaroni
3 cups water.
Add 2 cups macaroni.
Lasagna noodles
4 cups water.
Add 8 oz. lasagna noodles.
Egg noodles
6 cups water.
Add 4 cups noodles.
PASTA COOKING TABLE
POWER
LEVEL COOKING TIME DIRECTIONSTYPE OF RICE
HI
3
HI
5
HI
3
HI
31/2 to 41/2 minutes
18 minutes
41/2 to 51/2 minutes
28 minutes
4 to 5 minutes
28 minutes
2 to 3 minutes
Combine hot tap water, and salt if desired, in a
2-quart microwavable casserole. Cover with a
microwavable lid or vented plastic wrap.
1. Cook as directed in the chart or until the water
boils.
2. Stir in the rice and any seasonings. Cook
covered as directed in the chart or until the
water is absorbed and the rice is tender. Let
stand coverd 5 to 10 minutes. Fluff with a fork.
Cook water until it boils. Stir rice into boiling water
and let stand, covered 5 to 10 minutes or until water
is absorbed and rice is tender. Fluff with a fork.
Long grain
2 1/4 cups water.
Add 1 cup rice.
Brown
2 1/2 cups water.
Add 1 cup rice.
Long grain and
wild rice mix
2 1/3 cups water.
Add 6 oz. pkg.
Quick cooking
1 cup water.
Add 1 cup rice.
RICE COOKING TABLE
- 26 -
MAINTENANCE
CARE AND CLEANING
For best performance and safety, keep the oven
clean inside and outside. Take special care to
keep the inner door panel and the oven front
frame free of food or grease build-up.
Never use abrasive powder or pads. Wipe the
microwave oven inside and out, including the
hood bottom cover, with a soft cloth and a warm
(not hot) mild detergent solution. Then rinse and
wipe dry.
Use a chrome cleaner and polish on chrome,
metal and aluminum surfaces. Wipe spatters
immediately with a wet paper towel, especially
after cooking chicken or bacon. Clean your oven
weekly or more often, if needed.
The grease filters should be removed and
cleaned often, at least once a month.
2. Soak grease filters in hot water and a mild
detergent. Rinse well and shake to dry. Do not use
ammonia or place them in a dishwasher. The
aluminum will darken.
NOTE: Do not operate the hood without the filters
in place.
If your oven is vented inside, the charcoal filter
should be replaced every 6 to 12 months, and more
often if necessary. The charcoal filter cannot be
cleaned. To order a new charcoal filter, call
1-800-243-0000 or go to www.lg.com/us/support/
parts-accessories.
1. Turn the power off at the main power supply and
wear gloves
2. Remove the one vent grille mounting screws.
(2 outside screws)
3. After open door. Slide vent grille to left and tip it
forward.
1.To remove the grease filters, slide each
filter to the side, then pull the filters downward.
The filters will drop out.
3. To reinstall the filters, slide them into the side
slots, then push up and forward to lock.
METAL RACK
Wash the metal rack with a mild soap and a soft
or nylon scrub brush.Dry completely.
Do not use abrasive scrubbers or cleaners to
clean rack.
CLEANING THE GREASE
FILTERS
CHARCOAL FILTER
REPLACEMENT
1
2
1
2
- 27 -
MAINTENANCE
OVEN LIGHT REPLACEMENT
1. Unplug the oven or turn off power at the main
power supply and wear gloves.
2. Remove the vent cover mounting screw.
(1 outside screws)
3. Slide vent grille left, then lift out to remove.
4. Remove the cover screw slide the cover to left
and then lift up the bulb holder.
5. Replace the bulb with a 30 watt appliance bulb.
6. Replace the bulb holder and screw.
7. Slide in vent grille and replace the mounting screw.
Replace the mounting screws. Turn the power
back on at the main power supply.
COOKTOP/NIGHT LIGHT
REPLACEMENT
3. Replace the halogen lamp.
4. Replace the halogen lamp cover and mounting
screws.
5. Turn the power back on at the main power supply.
2. Remove the halogen lamp cover mounting screws.
1. Unplug the oven or turn off power at the
main power supply.
6. Slide in vent grille and replace the mounting screw.
Turn the power back on at the main power supply
and set the clock.
5. Slide a new charcoal filter into place.
4. Remove the old filter.
1
2
1
2
- 28 -
USE
OVENPROOF GLASS (treated for high
intensity heat):
Utility dishes, loaf dishes, pie plates,
cake plates, liquid measuring cups,
casseroles and bowls without metallic
trim.
CHINA:
Bowls, cups, serving plates and platters
without metallic trim.
PLASTIC:
Plastic wrap (as a cover)-- lay the plastic
wrap loosely over the dish and press it to
the sides.
Vent plastic wrap by turning back one
edge slightly to allow excess steam to
escape. The dish should be deep
enough so that the plastic wrap will not
touch the food. As the food heats it may
melt the plastic wrap wherever the wrap
touches the food.
Use plastic dishes, cups,
semirigid freezer containers and plastic
bags only for short cooking time. Use
these with care because the plastic
may soften from the heat of the food.
PAPER:
Paper towels, waxed paper, paper
napkins and paper plates with no
metallic trim or design. Look for the
manufacturer's label for use in the
microwave oven.
DO NOT USE
METAL UTENSILS:
Metal shields the food from microwave energy and produces
uneven cooking. Also avoid metal skewers, thermometers or foil
trays.Metal utensils can cause arcing, which can damage your
microwave oven.
METAL DECORATION:
Metal-trimmed or metal-banded dinnerware, casserole
dishes, etc. The metal trim interferes with normal cooking and
may damage the oven.
ALUMINUM FOIL:
Avoid large sheets of aluminum foil because they hinder cooking
and may cause harmful arcing. Use small pieces of foil to shield
poultry legs and wings. Keep ALL aluminum foil at least 1 inch
from the side walls and door of the oven.
WOOD:
Wooden bowls and boards will dry out and may split or crack
when you use them in the microwave oven. Baskets react in the
same way.
TIGHTLY COVERED UTENSILS:
Be sure to leave openings for steam to escape from covered
utensils. Pierce plastic pouches of vegetables or other food items
before cooking. Tightly closed pouches could explode.
BROWN PAPER:
Avoid using brown paper bags.
They absorb too much heat and could burn.
FLAWED OR CHIPPED UTENSILS:
Any utensil that is cracked, flawed or chipped may break in the
oven.
METAL TWIST TIES:
Remove metal twist ties from plastic or paper bags.
They become hot and could cause a fire.
MICROWAVE UTENSIL GUIDE
COOKING UTENSILS
Do not use recycled paper products in the microwave oven.
They sometimes contain impurities that cause sparks to occur.
- 29 -
FAQS
FREQUENTLY ASKED QUESTIONS
Q. Can I use a rack in my microwave oven so that I may reheat or cook on two levels at a time?
A. Only use the rack that is supplied with your rmicrowave oven. Use of any other rack can result in
poor cooking performance and/or arcing and may damage your oven.
Q. Can I use either metal or aluminum pans in my microwave oven?
A. Usable metal includes aluminum foil for shielding (use small, flat pieces), and shallow foil trays (if tray
is 3/4 inch deep and filled with food to absorb microwave energy). Never allow metal to touch walls or
door.
Q. Sometimes the door of my microwave oven appears wavy. Is this normal?
A. This appearance is normal and does not affect the operation of your oven.
Q. What are the humming noises that I hear when my microwave oven is operating?
A. You hear the sound of the transformer when the magnetron tube cycles on and off.
Q. Why does the dish become hot when I microwave food in it? I thought that this should not
happen.
A. As the food becomes hot it will conduct the heat to the dish. Use hot pads to remove food after
cooking.
Q. What does “standing time” mean?
A. ”Standing time” means that food should be taken out of the oven and covered for additional time after
cooking. This process allows the cooking to finish, saves energy and frees the oven for other purposes.
Q. Can I pop popcorn in my microwave oven? How do I get the best results?
A. Yes. Pop packaged microwave popcorn following manufacturer’s guidelines or use the preprogrammed
Popcorn button.
Do not use regular paper bags. Use the “listening test” by stopping the oven as soon as the popping
slows to a “pop” every one or two seconds. Do not try to repop unpopped kernels. You can also use
special microwave poppers. When using a popper, be sure to follow manufacturer’s directions. Do not pop
popcorn in glass utensils.
Q. Why does steam come out of the air exhaust vent?
A. Steam is normally produced during cooking. The microwave oven has been designed to vent this
steam out the top vent.
Steam exhaust here
- 30 -
Check the following list to be sure a service call
is really necessary. A quick review of this
manual as well as the additional information in
this checklist may prevent an unneeded
service call.
If nothing on the oven operates:
•check for a blown circuit fuse or a tripped
main circuit breaker.
•check if oven is properly connected to electric
circuit in house.
check that controls are set properly.
•
If the oven interior light does not work:
•the light bulb is loose or defective.
If the oven will not cook:
•check that cooking program was entered correctly.
check that door is firmly closed.
check that Start button was touched.
check that probe was inserted correctly into
receptacle.
•check that timer wasn't started instead of a
cook function.
If oven takes longer than normal to cook or
cooks too rapidly:
be sure the Power Level is programmed properly.•
If the time of day clock does not always
keep correct time:
•check that the power cord is fully inserted into the
outlet receptacle.
•be sure the oven is the only appliance on
the electrical circuit.
If food cooks unevenly:
•be sure food is evenly shaped.
be sure food is completely defrosted before cooking.•
•check placement of aluminum foil strips used to
prevent overcooking.
If food is undercooked:
•check recipe to be sure all directions (amount,
time, power levels) were correctly followed.
be sure microwave oven is on a separate circuit.•
•be sure food is completely defrosted before cooking.
If food is overcooked:
•check recipe to be sure all directions (amount,
power level, time, size of dish) were followed.
If arcing (sparks) occur:
•be sure microwavable dishes were used.
.desut’nerewseittsiwteriweruseb•
•be sure oven wasn’t operated when empty.
•make sure metal rack (if used) is properly installed
on supports.
If the Display shows a time counting down but
the oven is not cooking:
•check that door is firmly closed.
•check that timer wasn’t started instead of a cooking
function.
BEFORE CALLING FOR SERVICE
TROUBLESHOOTING
•
•
•
- 31 -
LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in material or
workmanship under normal use, during the warranty period set forth below, effective from the date of original
consumer purchase of the product. This limited warranty is good only to the original purchaser of the product
and effective only when used in the United States, including U.S. Territories.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN
DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY
CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES
OR PROFITS, IN CONNECTION WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION
ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace
house fuses or correct wiring, or correction of unauthorized repairs; and
2. Damages or operating problems that result from misuse, abuse, operation outside environmental
specifications or contrary to the requirements or precautions in the Operating Guide, accident,
vermin, fire, flood, improper installation, acts of God, unauthorized modification or alteration,
incorrect electrical current or voltage, or commercial use, or use for other than intended purpose.
3. Therefore, the cost of repair or replacement of such a defective product shall be borne by
the consumer.
CUSTOMER INTERACTIVE CENTER NUMBERS:
To Prove Warranty Coverage
Retain your Sales Receipt to prove date of purchase.
A copy of your Sales Receipt must be submitted at the
time warranty service is provided.
Call 1-800-243-0000 (Phone answered 24 hours, 365
days a year) and choose the appropriate prompt from
the menu; or visit our website at: http://www. lg.com.
To Obtain Nearest Authorized Service
Cente r or Sales Dealer, or to Obtain
Product, Customer, or Service Assistance
WARRANTY PERIOD:
Model: LMV2031ST/SB/SW
Labor: 1 Year from the Date of Purchase.
Parts: 1 Year from the Date of Purchase.
Magnetron: Years from the Date of
Purchase.
HOW SERVICE IS HANDLED:
Call 1-800-243-0000 and choose the appropriate
prompt. Please have product type (Microwave) and ZIP
code ready.
LIMITED WARRANTY – USA
Printed in China
