LG Electronics USA T17PC COLOR MONITOR User Manual F700BK EN
LG Electronics USA COLOR MONITOR F700BK EN
USERS MANUAL
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
See the label attached on the back cover and quote this information to your
dealer when you require service.
User’s Guide
T750PH plus
T750BH plus
A1
This unit has been engineered and manufactured to ensure your personal
safety, however improper use may result in potential eletrical shock or fire
hazards. In order to allow the proper operation of all safeguards
incorporated in this monitor, observe the following basic rules for its
installation, use, and servicing. Keep it in an accessible place for future
reference.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnect device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the monitor only from a power source indicated in the specifications of
this manual or listed on the monitor. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Hands must be dry when holding the power plug to avoid an electric shock.
Do not damage the power cord by disassembling, bending, pulling or heating up.
It can cause fire or electric shock.
Make sure to completely insert the power plug. Insecure connections can cause
fire.
Do not Open the Monitor.
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the monitor is not operating properly.
To Avoid Personal Injury :
Do not place the monitor on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not try to roll a stand with small casters across thresholds or deep pile
carpets.
Important Precautions
A2
Important Precautions
To Prevent Fire or Hazards:
Always turn the monitor OFF if you leave the room for more than a short period
of time. Never leave the monitor ON when leaving the house.
Keep children from dropping or pushing objects into the monitor's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this monitor.
During a lightning storm or when the monitor is to be left unattended for an
extended period of time, unplug it from the wall outlet.
Do not bring magnetic devices such as magnets or motors near the picture
tube.
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the monitor where the power cord is subject to damage.
Do not use this monitor near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Monitors are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the monitor on a bed, sofa, rug,
etc.
Place the monitor in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the monitor near or over a radiator or heat source.
Do not install the monitor in a dusty area. It can cause fire.
On Cleaning
Unplug the monitor before cleaning the face of the monitor screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the
monitor screen because overspray may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
A3
Important Precautions
NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
NOTE
This epuipment has been tested and found to comply with the limits for a class
B digital device,pursuant to part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.This equipment generates,uses and can radiate radio frequency
cause harmful interference to radio communications.However,there is no
guarantee that interference will not occur in a particular installation.If this
which can be determined by turning the equipment off and on,the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and the receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
energy and,if not installed and used in accordance with the instructions,may
equipment does cause harmful interference to radio or television reception,
TO OPERATE THE EQUIPMENT.
-Consult the dealer or an experienced radio/TV technician for help.
A4
Connecting the Monitor
Latch
Before setting up the monitor, ensure that the power is turned off to the
monitor, computer system, and other attached devices.
Carefully set the monitor face-down with the underside facing you.

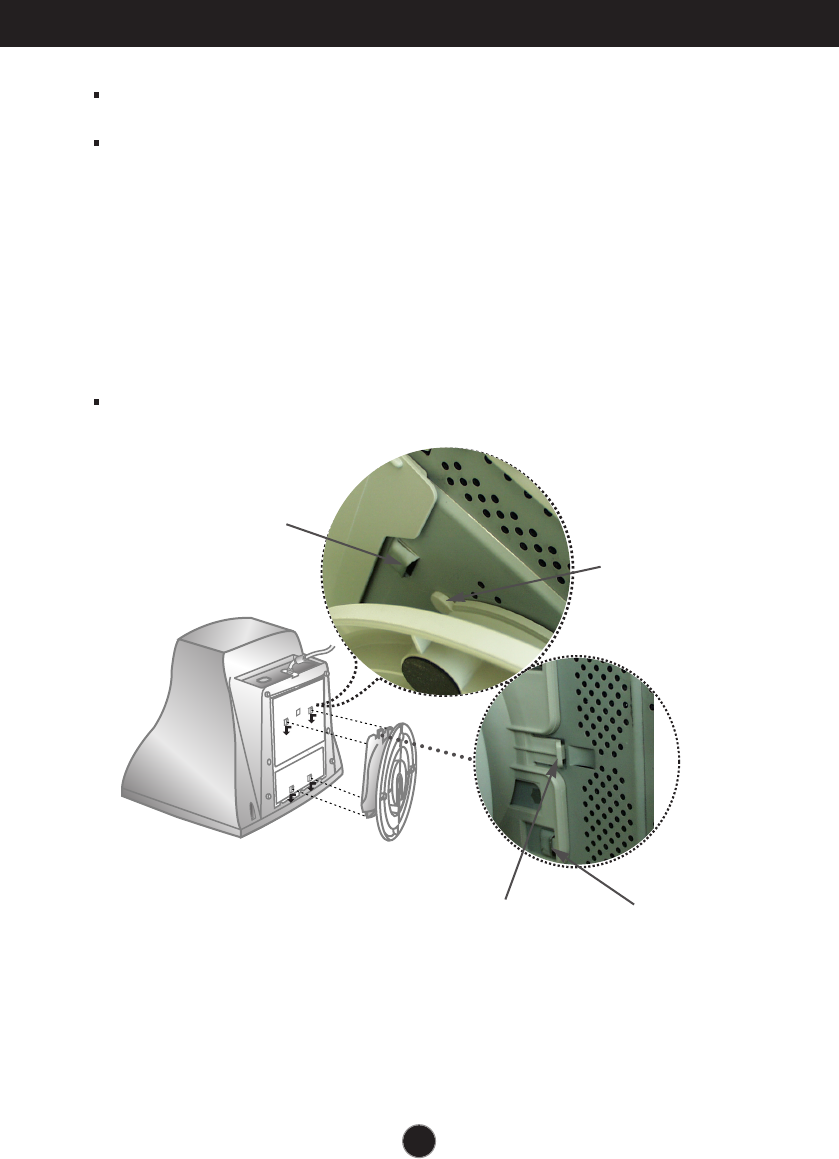

Connecting the Tilt/Swivel stand
1. Align the hooks on the tilt/swivel stand with the matching slots in the base of
the monitor.
2. Insert the hooks into slots.
3. Slide the tilt/swivel stand toward the front of the monitor until the latches click
into the locked position.
NOTE
This illustration depicts the general model of connection. Your monitor may differ from the
items shown in the picture.
Hook
Slot
Hook
A5
Connecting the Monitor

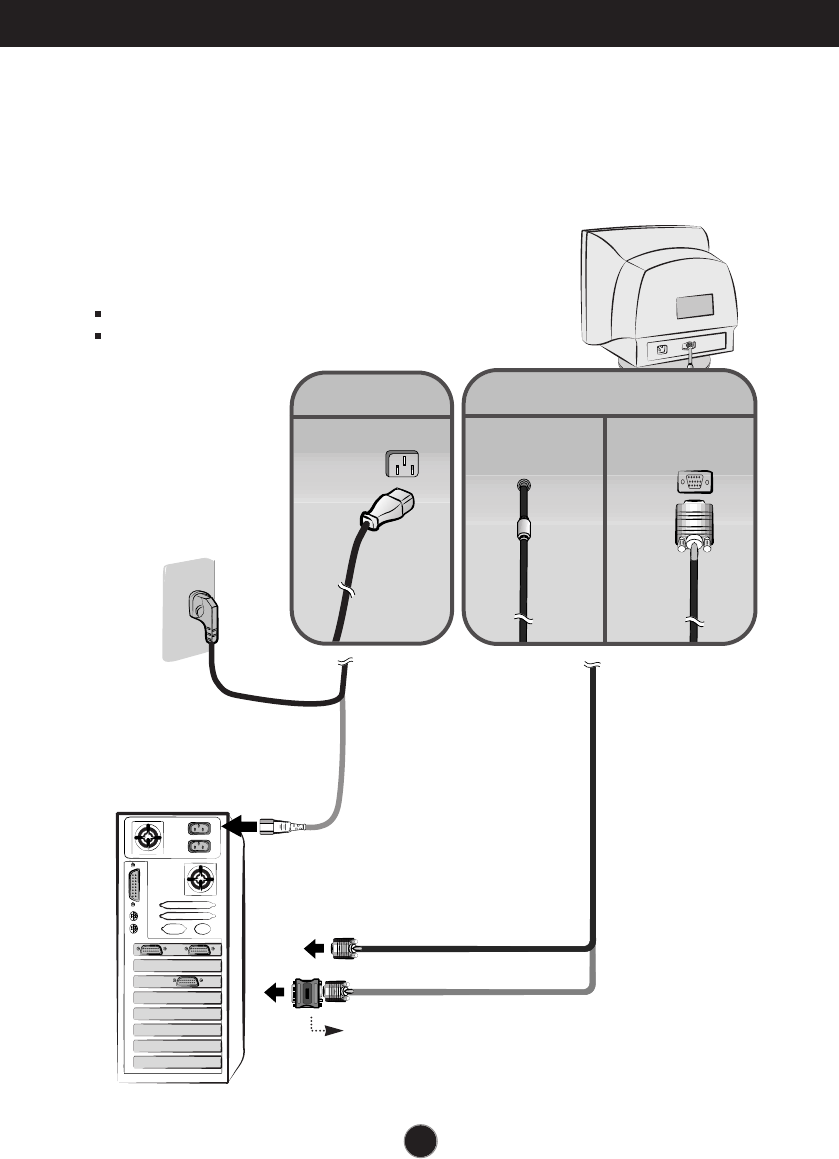

Using the Computer
1. Connect the signal cable. When mated, tighten the thumbscrews to secure the
connection.
2. Connect the power cord into a properly power outlet that is easily accessible and
close to the monitor.
Mac adapter
For Apple Macintosh use, a separate plug adapter is needed to
change the 15 pin high density (3 row) D-sub VGA connector
on the supplied cable to a 15 pin 2 row connector.
Wall-outlet type*
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your monitor
may differ from the view as shown.
PC-outlet type*
PC
MAC
Power Cord Signal Cable
Attached Type*Detached Type*
*
Varies according to model.

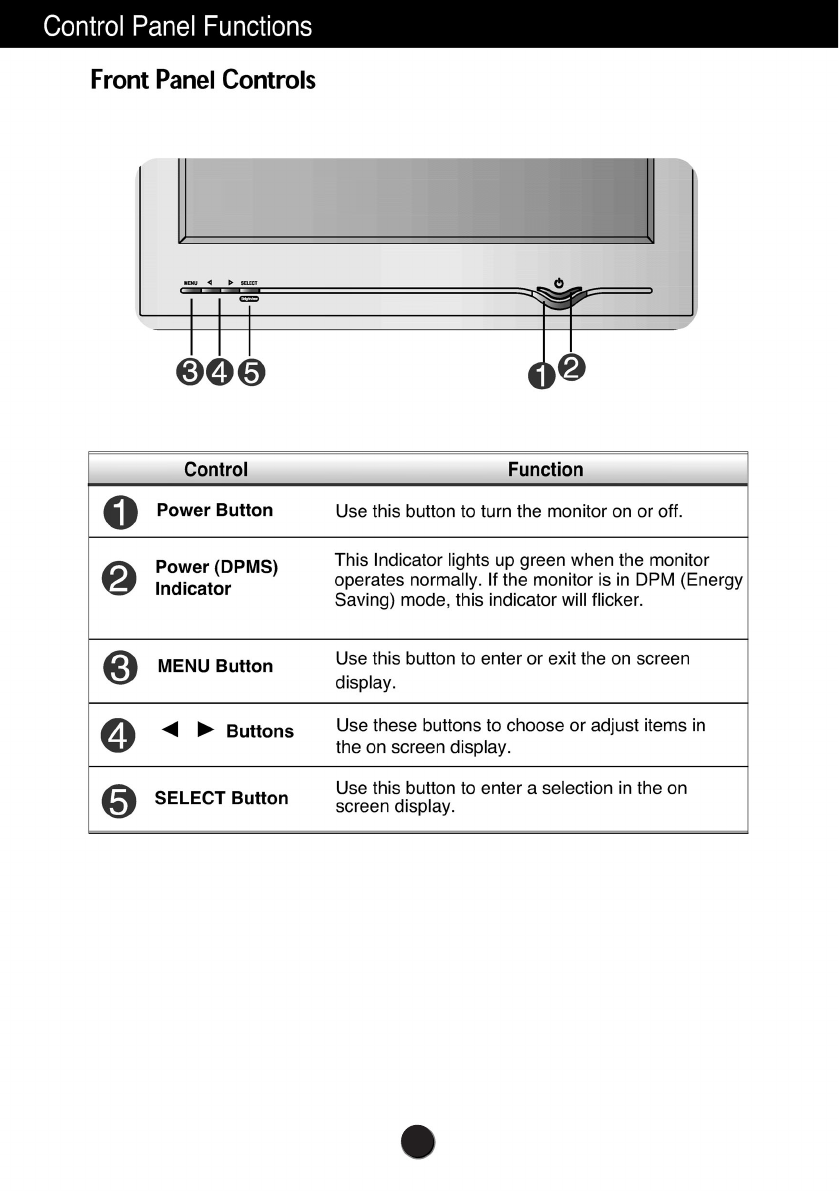

A6

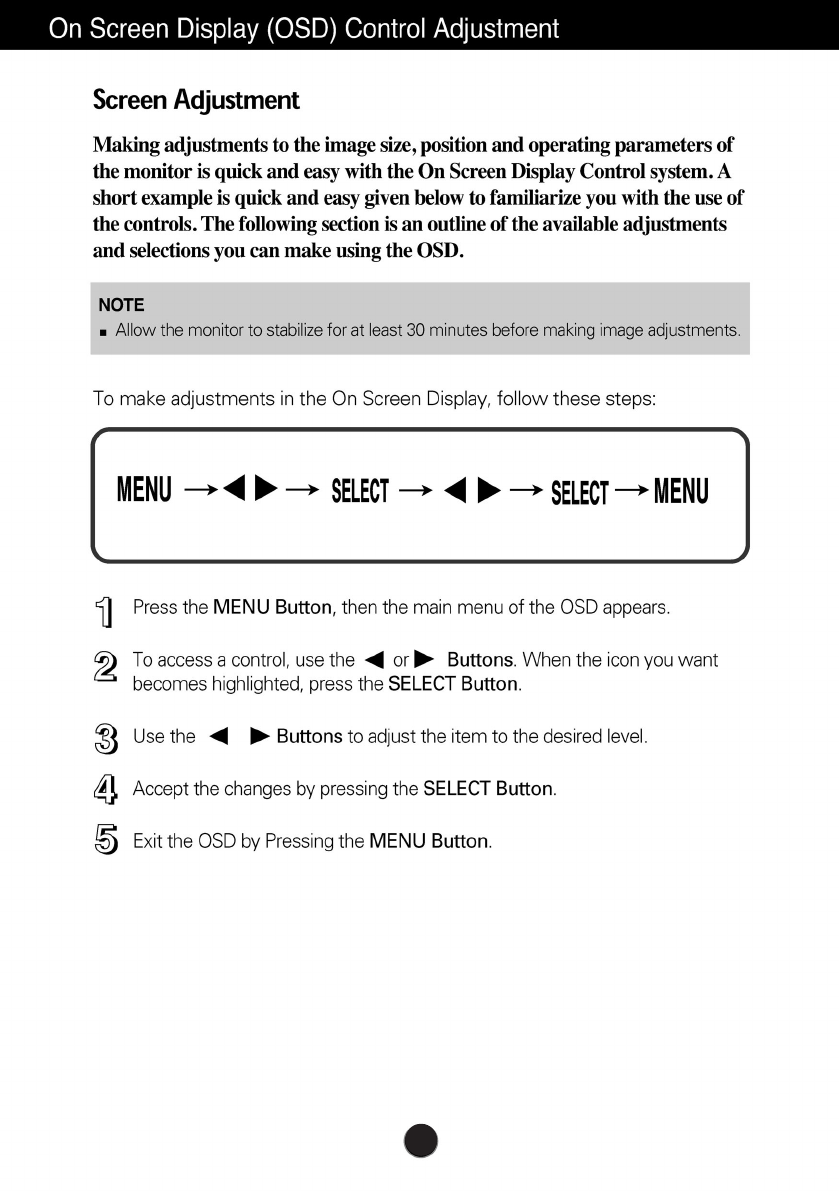

A7
A8
A9
(A9~A12).
A10
A9

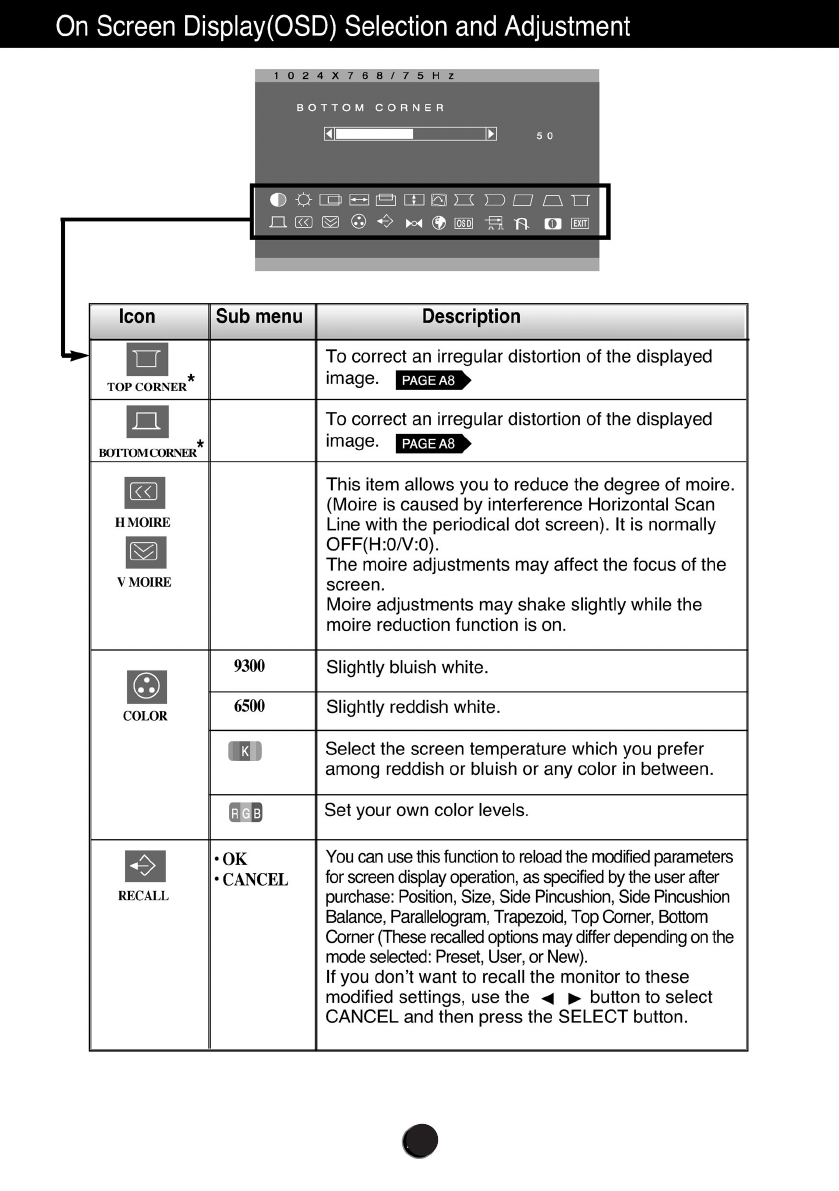

A11
A9
A9

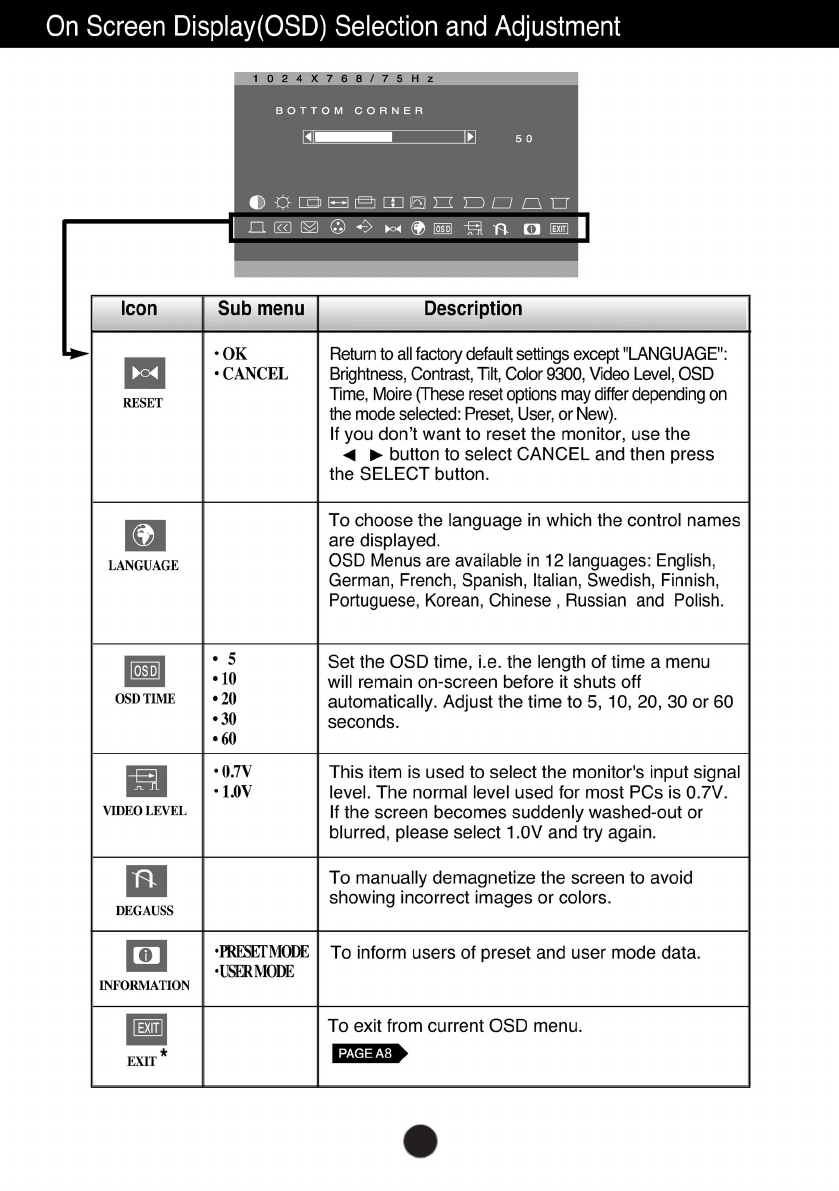

A12
A9
A13
Troubleshooting
Check the following before calling for service.
No image appears
❐Is the power cord of the
monitor connected?
❐Is the power indicator light
on?
❐Is the power on and the
power indicator green?
❐Is the power indicator
flickering?
❐Do you see an "OUT OF
FREQUENCY" message
on the screen?
❐Do you see a "SELF
DIAGNOSITICS" message
on the screen?
• Check and see if the power cord is connected properly to
the power outlet.
• Press the Power button.
• Adjust the brightness and the contrast.
• If the monitor is in power saving mode, try moving the
mouse or pressing any key on the keyboard to bring up
the screen.
• This message appears when the signal from the PC
(video card) is out of horizontal or vertical frequency range
of the monitor. See the 'Specifications' section of this
manual and configure your monitor again.
• This message appears when the signal cable between
your PC and your monitor is not connected. Check the
signal cable and try again.
❐Is the vertical frequency
less than 70Hz or is your
monitor set to the
interlaced mode?
❐Do you have any
magnetic material such
as adapter, or high-
voltage line near to your
monitor?
❐Do you hear a "~ding"
sound while the monitor
is flickering?
• Set the vertical frequency to 72Hz or higher, and
consult the video card user manual for instructions on
converting to a non-interlaced mode.
(You can set this option under the Display icon of the
Control Panel.)
• Remove magnetic sources, such as power adapters,
speakers, or high-voltage lines, away from the
monitor.
• Use the normal degaussing function. This function
clears the screen and reduces any screen blur that
may occur due to the surrounding magnetic field. The
screen may flicker for about 5 seconds, accompanied
by a "~ding" sound.
The screen is flickering.
A14
Troubleshooting
❐Do you see basic
discoloration (16 colors)?
❐Is the screen color
unstable or monochrome?
❐Do you see black dots on
the screen?
❐Do you see a partial
blurring on the screen?
• Set the color depth to 256 colors or higher: use 'Control
Panel' -> 'Display' -> 'Settings' -> 'Color Palette'
• Check the connection of the signal cable. Or pull out the
video card of the PC and insert it again.
• This is due to a small amount of foreign or abnormally
florescent material that became fastened on the mask
during manufacturing. It will not affect product
performance.
• This happens due to interference from surrounding
magnetic fields, as created when speakers, steel
structures, or high-voltage lines are placed near the
monitor. Remove any such materials from the immediate
vicinity and use the DEGAUSS icon on the screen
adjustment menu to fix the screen.
❐Do you see the after-
image even when you
turn off the monitor?
• A premature aging of the monitor pixels may cause the
prolonged display of a single image on the screen. Be
sure to use a screen saver to maximize the service life of
the monitor.
The screen color is not normal.
I see an after-image on the screen.
❐Do you see the wave
directly on the screen? • This occurs in inverse proportion to the screen focus,
which can be caused by a particular frequency or video
card. Brighten the screen and use the 'MOIRE' icon on
the screen adjustment menu to adjust the screen.
I see waves on the screen.
❐Have you installed the
monitor driver? • Be sure to install the monitor driver from the monitor driver
CD (or diskette) that comes with your monitor. Or, you
can also download the driver from our web site:
http://www.lge.com.
Have you installed the monitor driver?
A15
A16

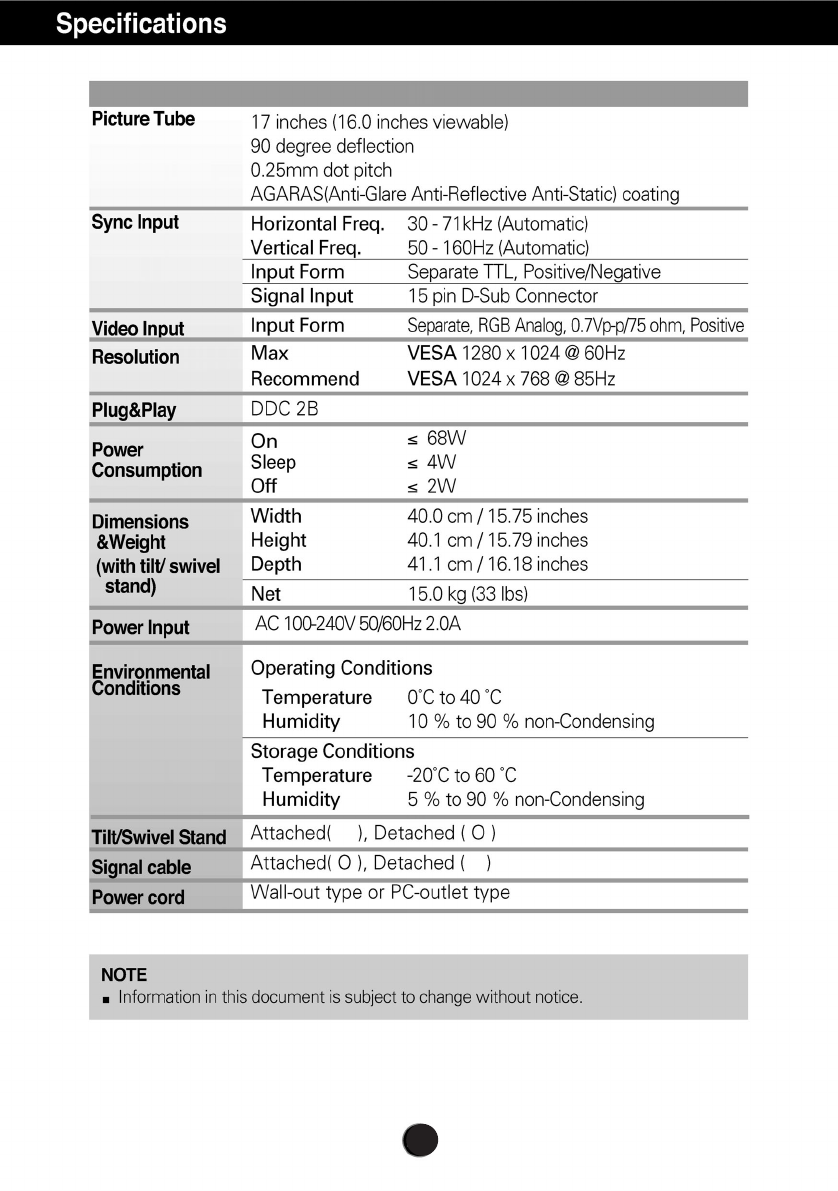

Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
3
4
5
640 x 480
800 x 600
800 x 600
1024 x 768
1280 x 768
37.50
46.88
53.674
68.677
60.289
75
75
85
85
75
VESA
VESA
VESA
VESA
VESA
