LG Electronics USA T17PE COLOR MONITOR User Manual F700BK EN
LG Electronics USA COLOR MONITOR F700BK EN
Contents
- 1. USERS MANUAL 1
- 2. USERS MANUAL 2
USERS MANUAL 2
![](/img.php?id=590043&img=bg1.png)

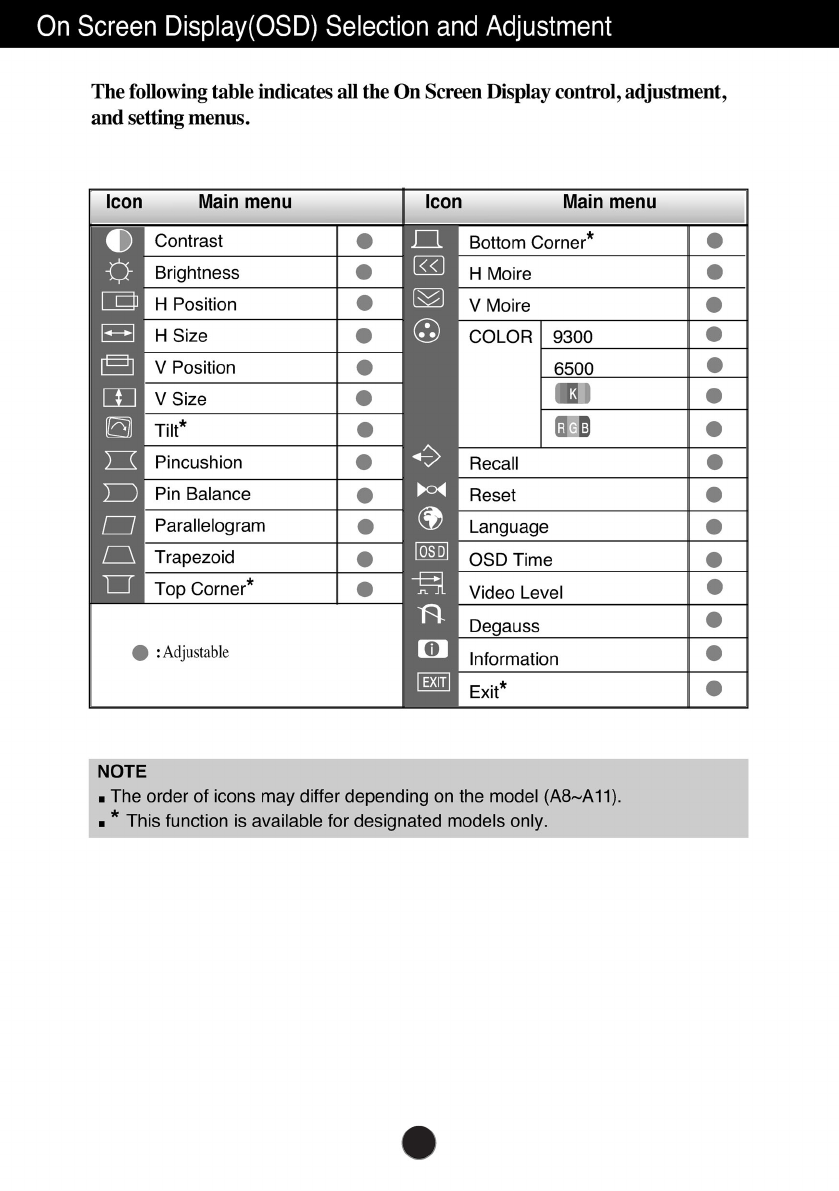

A9
(A9~A12).
![](/img.php?id=590043&img=bg2.png)

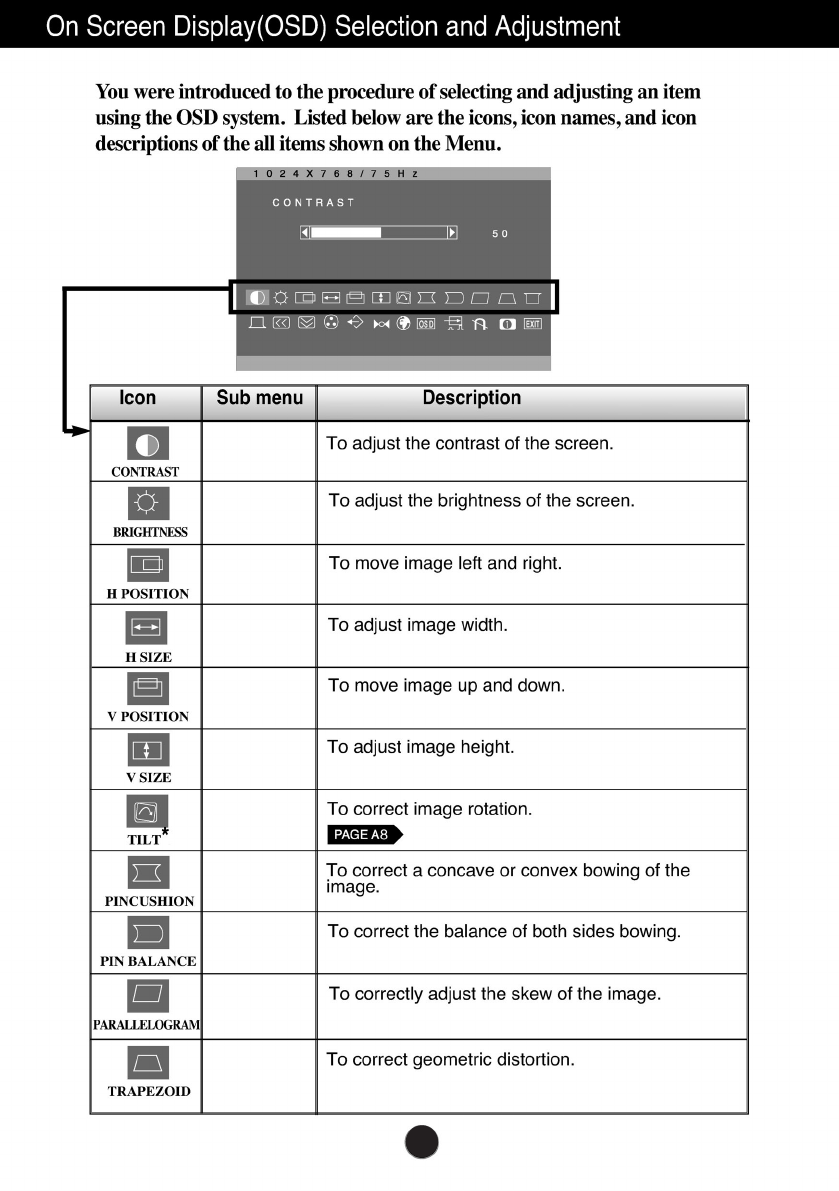

A10
A9
![](/img.php?id=590043&img=bg3.png)

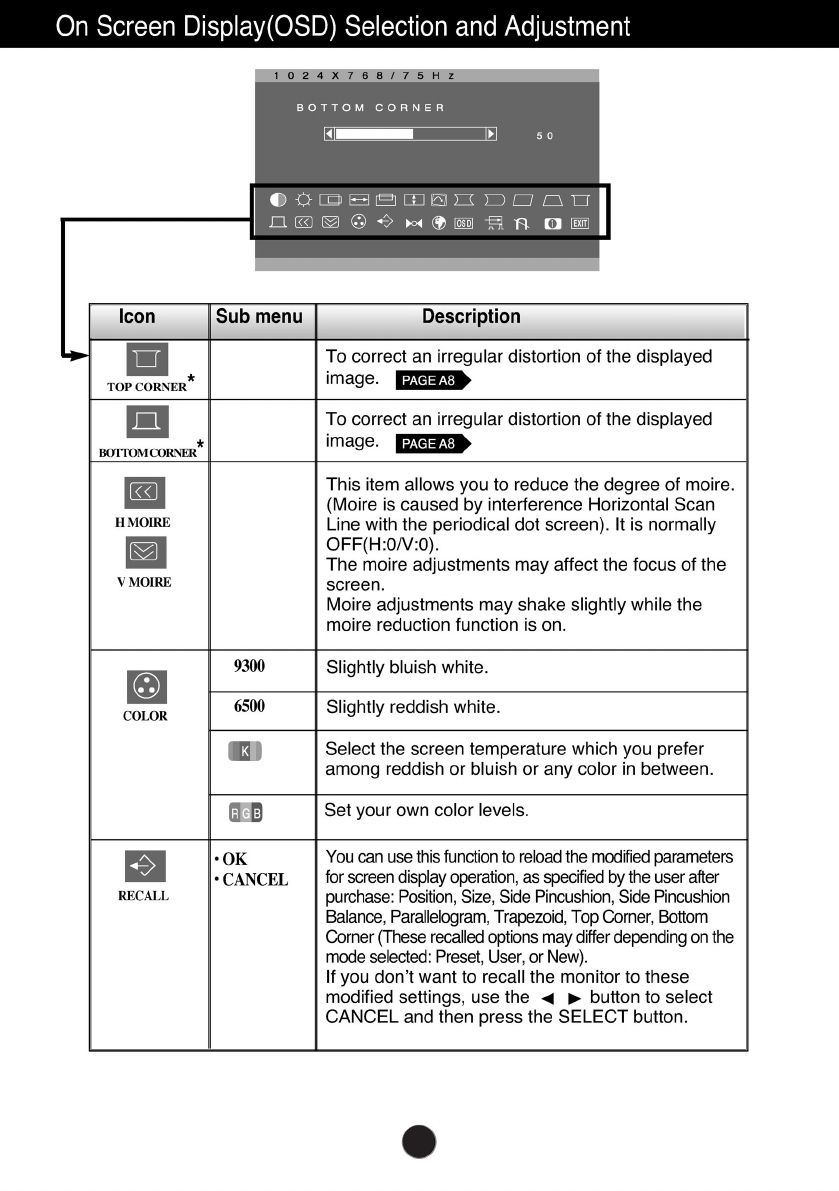

A11
A9
A9
![](/img.php?id=590043&img=bg4.png)

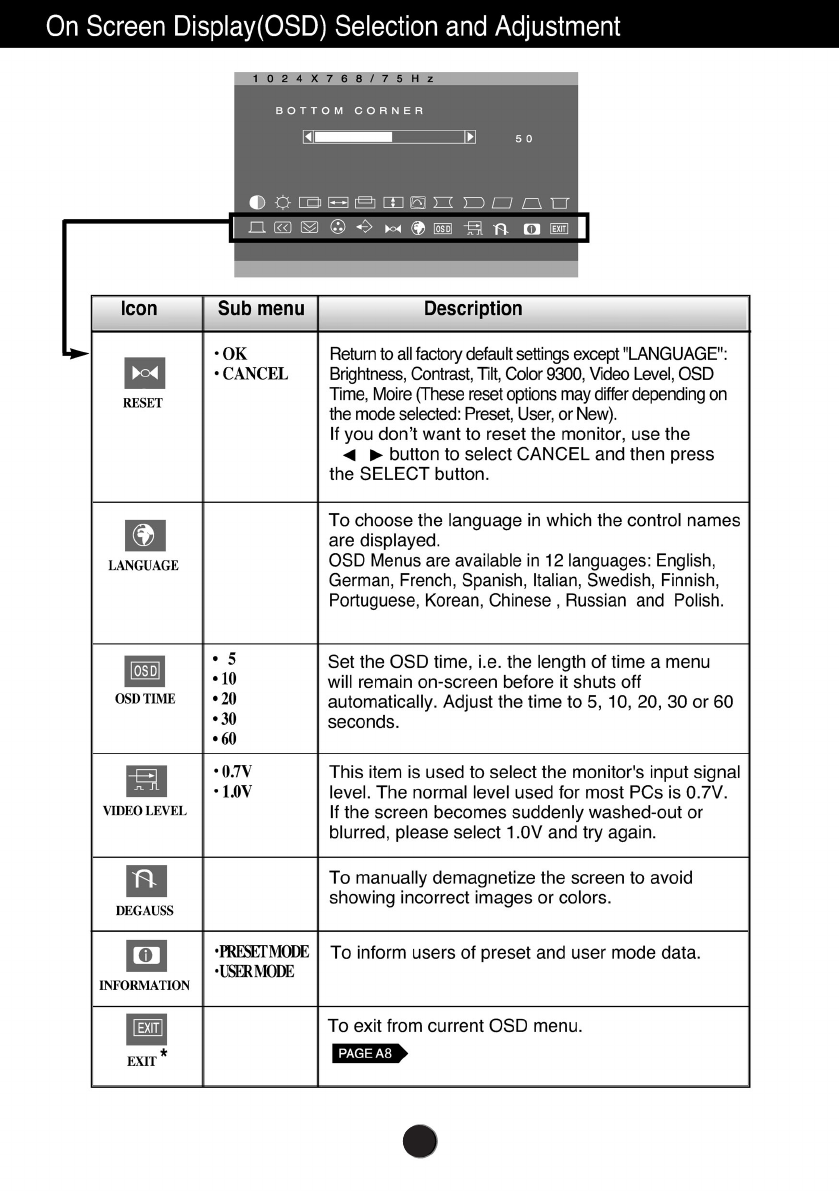

A12
A9
![](/img.php?id=590043&img=bg5.png)

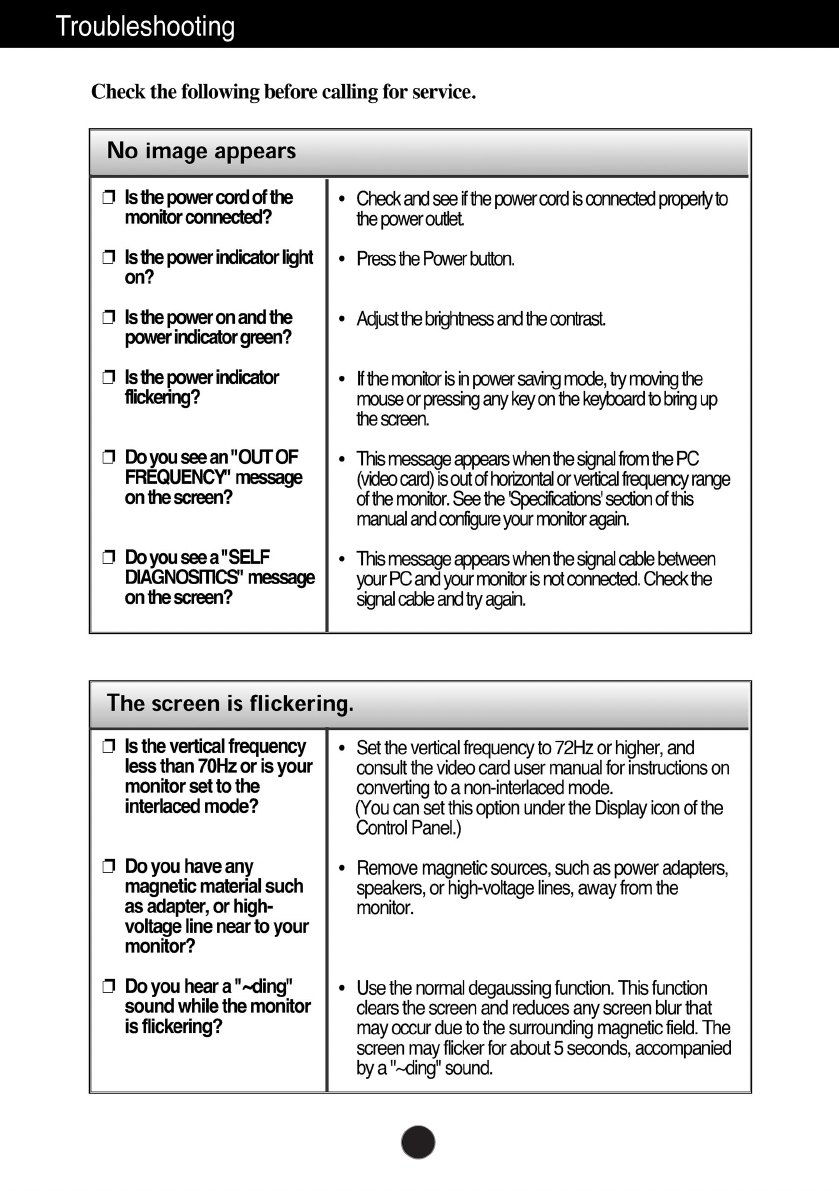

A13
![](/img.php?id=590043&img=bg6.png)

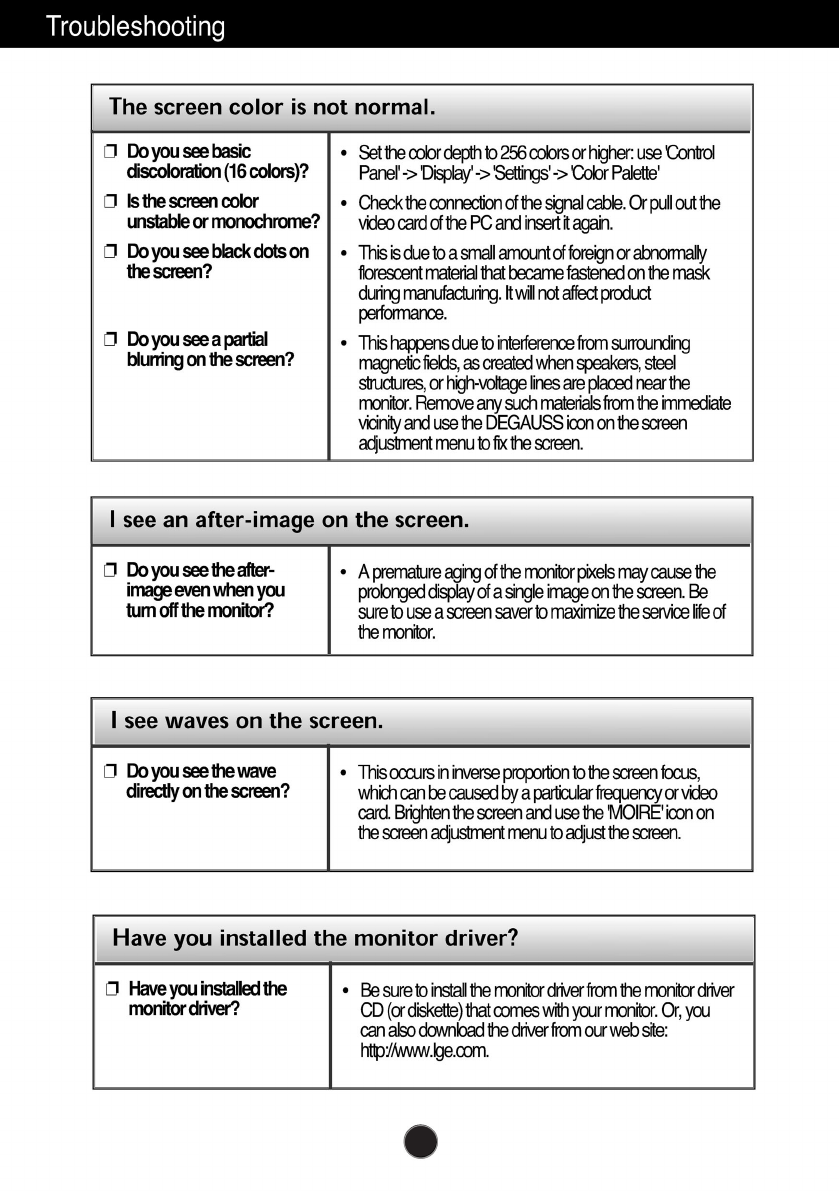

A14
![](/img.php?id=590043&img=bg7.png)
A15
Specifications
NOTE
Information in this document is subject to change without notice.
17 inches (16.0 inches viewable)
90 degree deflection
0.25mm dot pitch
ARAS(Anti-Reflective Anti-Static) coating
Horizontal Freq. 30 - 98kHz (Automatic)
Vertical Freq. 50 - 160Hz (Automatic)
Input Form Separate TTL, Positive/Negative
Signal Input 15 pin D-Sub Connector
Input Form
Separate, RGB Analog, 0.7Vp-p/75 ohm, Positive
Max Flicker Free VESA 1600 x 1200@75Hz
Recommend VESA 1280 x 1024@85Hz
DDC 2B
On
≤ 75W
Sleep
≤ 3W
Off ≤2W
Width 40.0 cm / 15.75 inches
Height 40.1 cm / 15.79 inches
Depth 41.0 cm / 16.18 inches
Net 15.0 kg (33 lbs)
Europe AC 200-240V~ 50Hz 1.0A
Others AC 100-240V~ 50/60Hz 2.0A
The products should be used according to the Power
requirements of each ID LABEL.
Operating Conditions
Temperature 0˚C to 40 ˚C
Humidity 10 % to 90 % non-Condensing
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing
Attached( ), Detached ( O )
Attached( O ), Detached ( )
Wall-outlet type or PC-outlet type
Picture Tube
Sync Input
Video Input
Resolution
Plug&Play
Power
Consumption
Dimensions
&Weight
(with tilt/ swivel
stand)
Power Input
Environmental
Conditions
Tilt/Swivel Stand
Signal cable
Power cord
![](/img.php?id=590043&img=bg8.png)
A16
Specifications
Preset Modes (Resolution)
Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)
1
2
3
4
5
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
43.269
53.674
68.677
91.146
93.750
85
85
85
85
75
VESA
VESA
VESA
VESA
VESA
![](/img.php?id=590043&img=bg9.png)
